Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

60 part groups · 14 illustrations

Illustrations

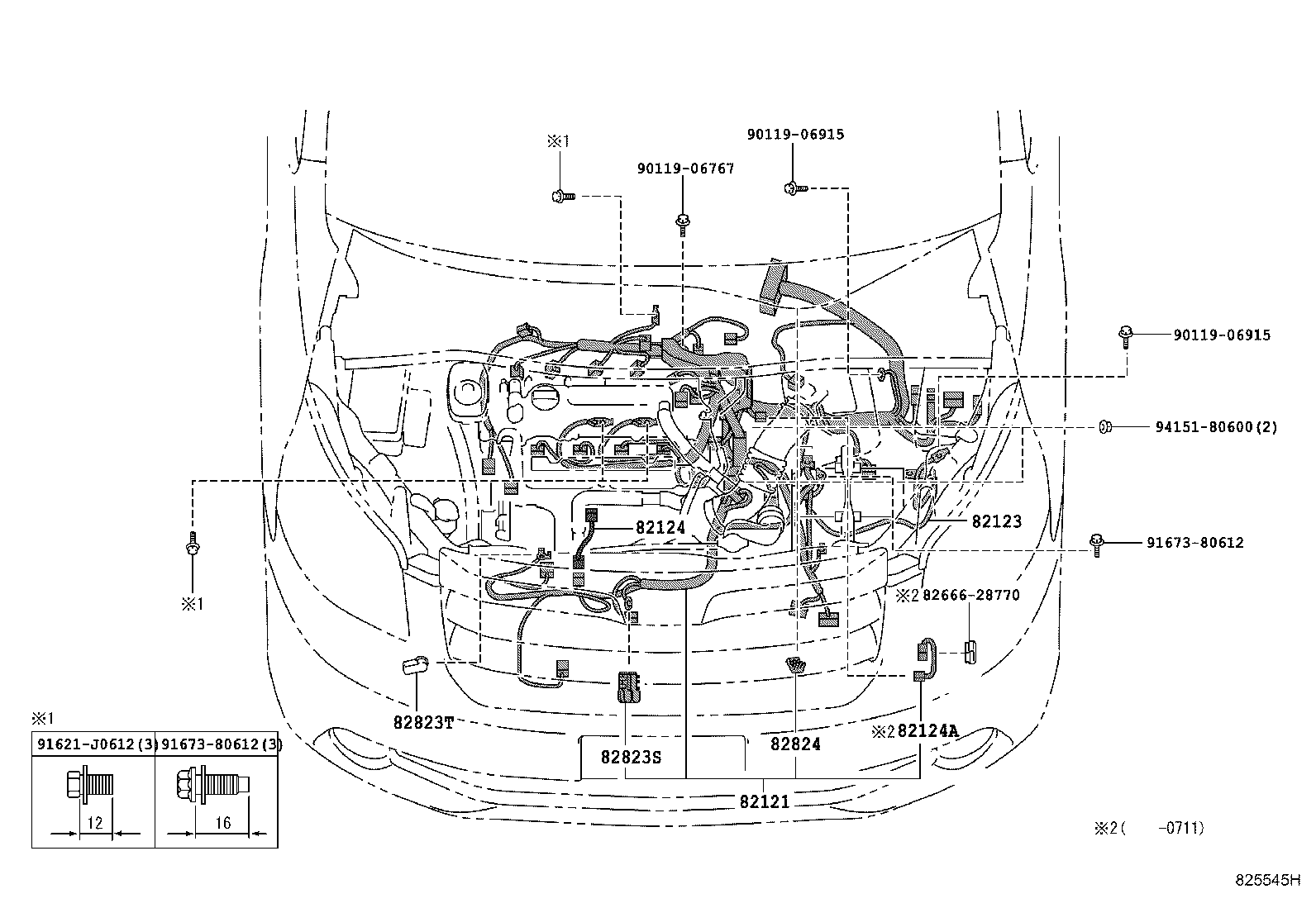

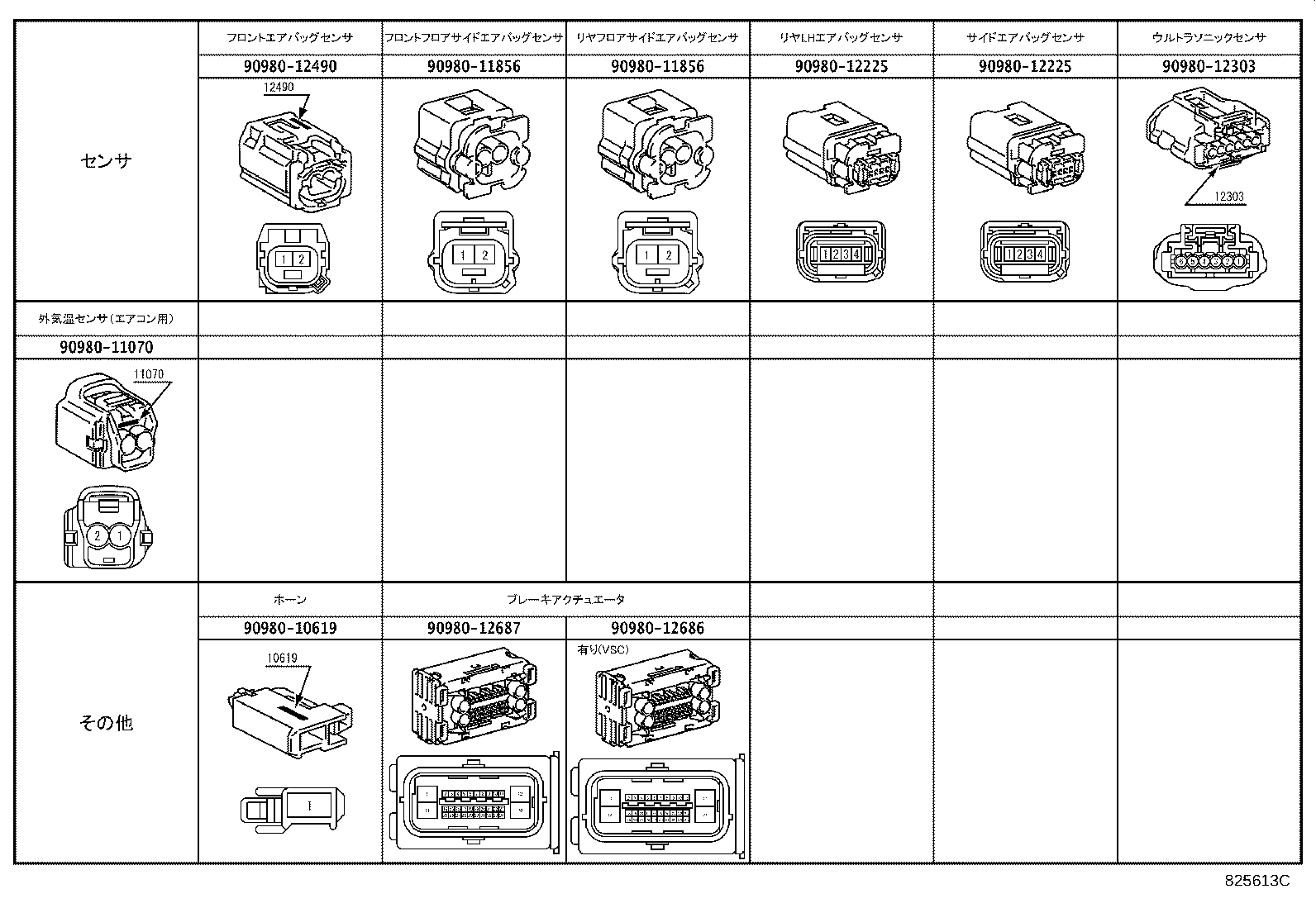

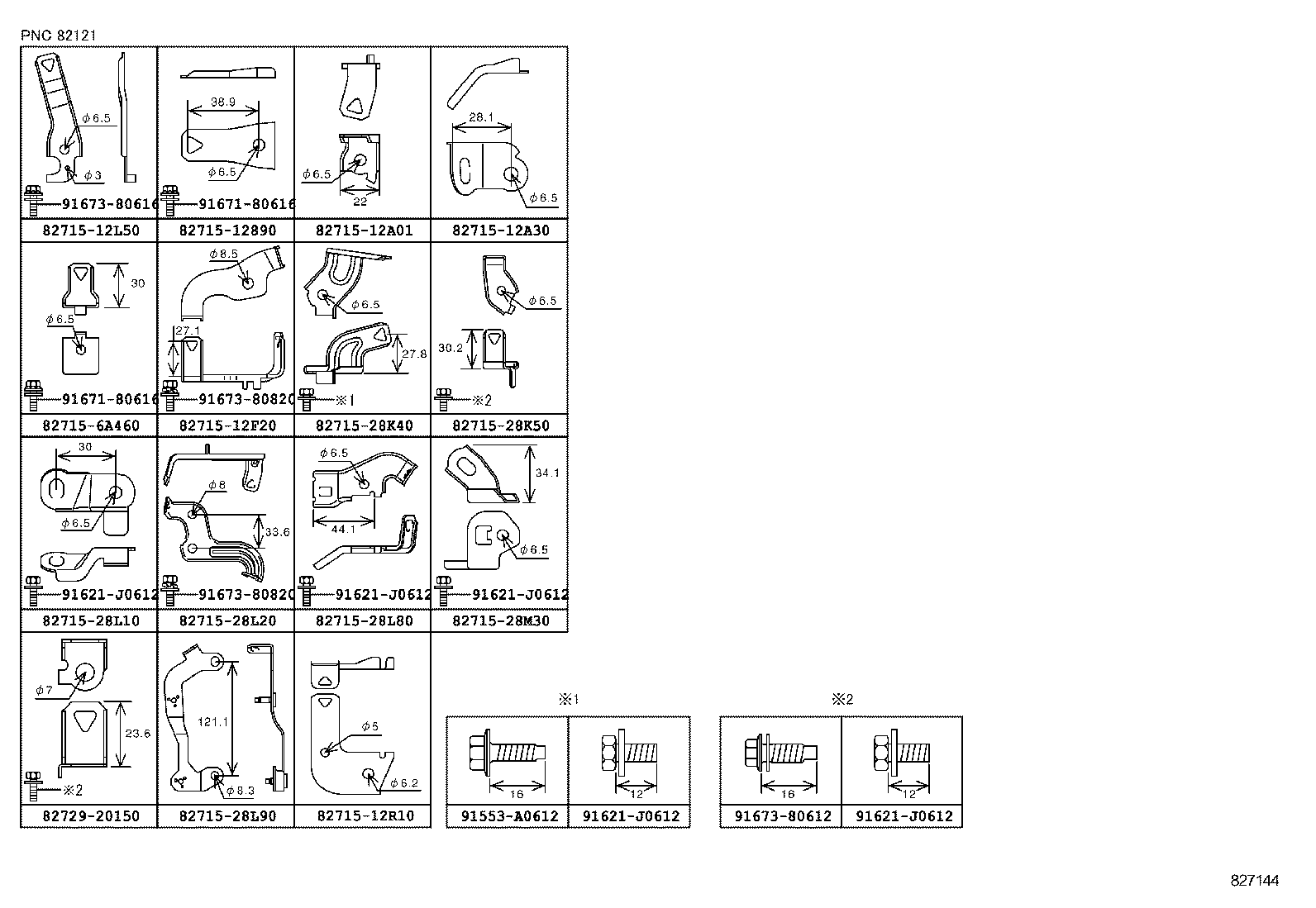

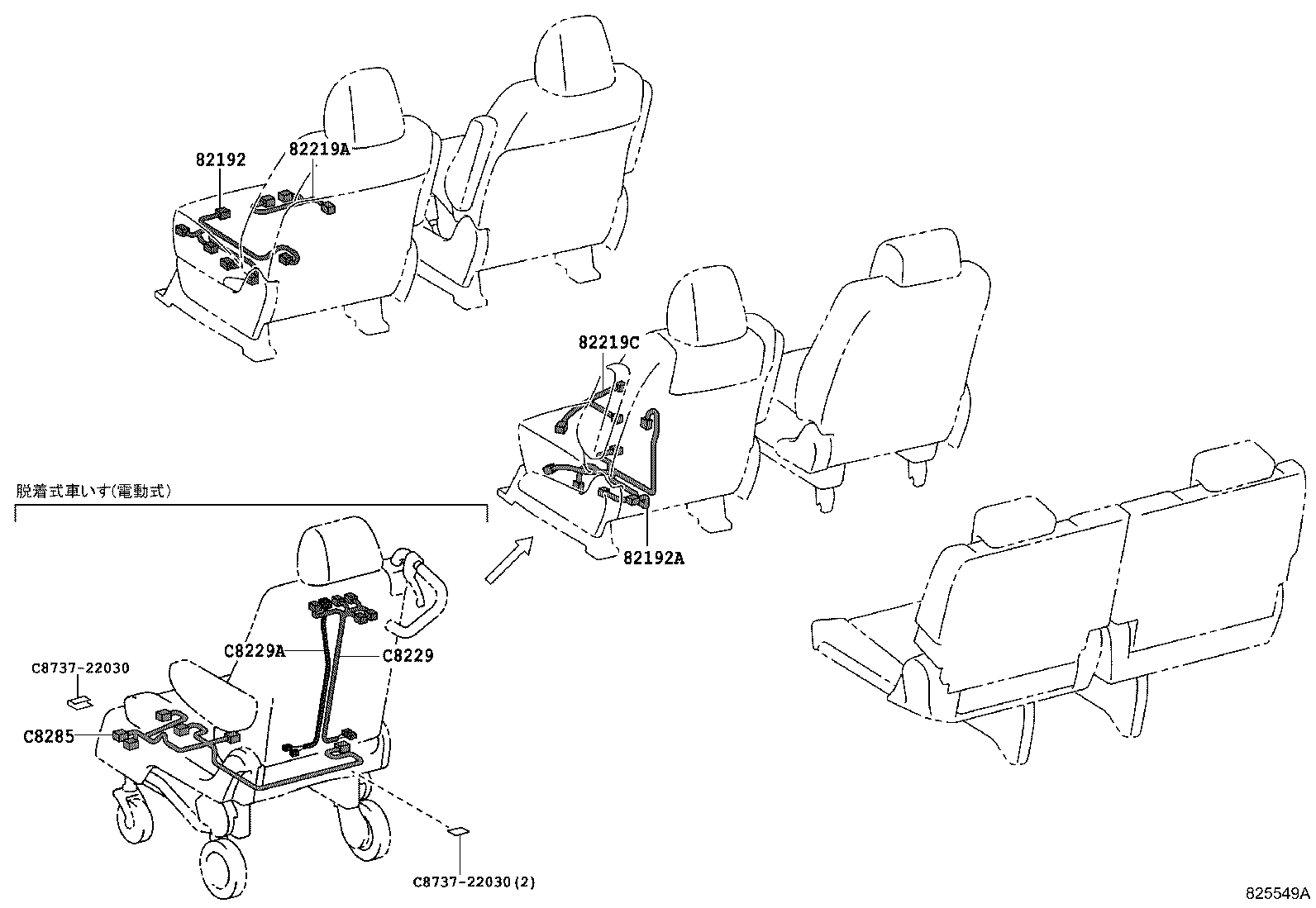

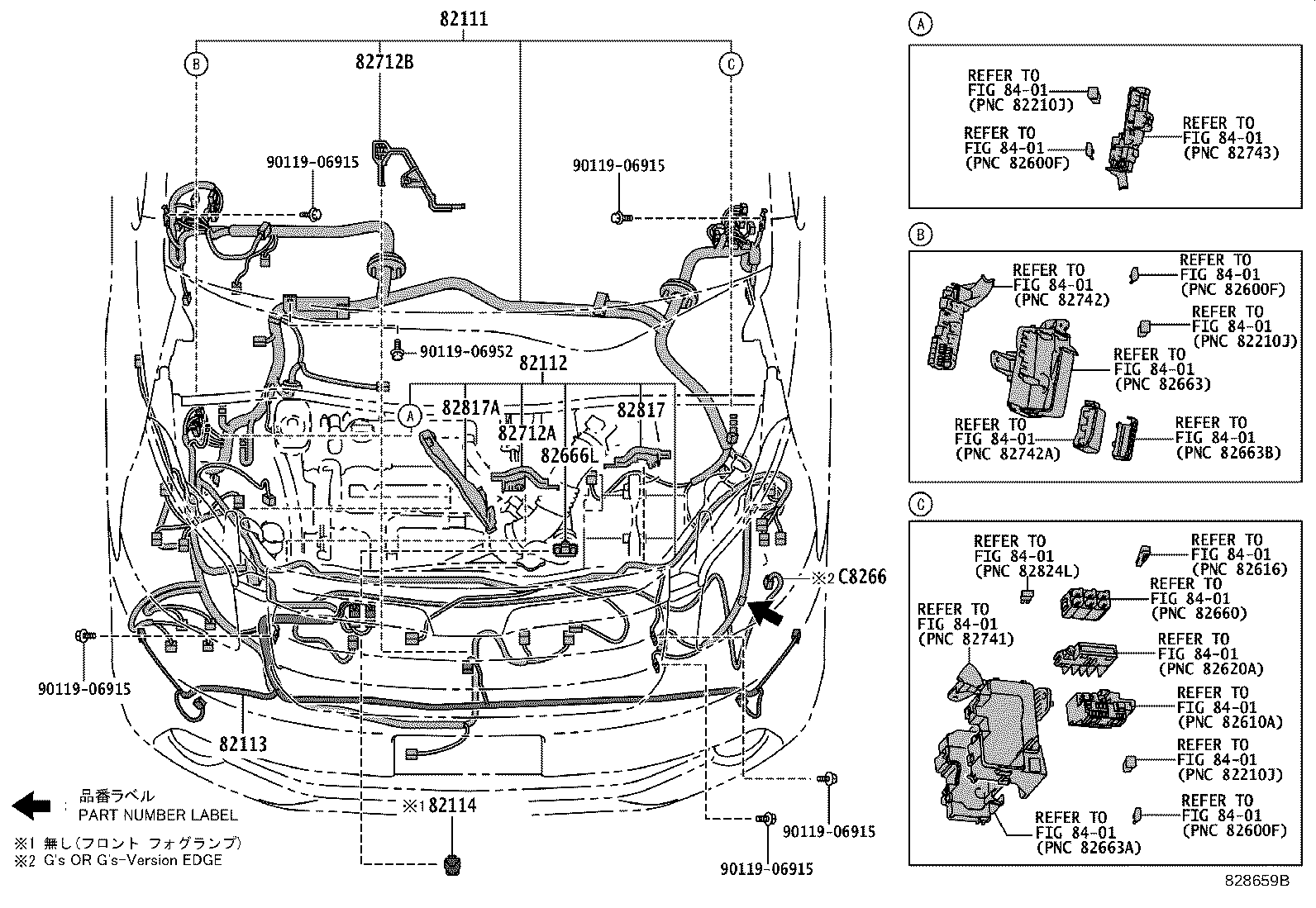

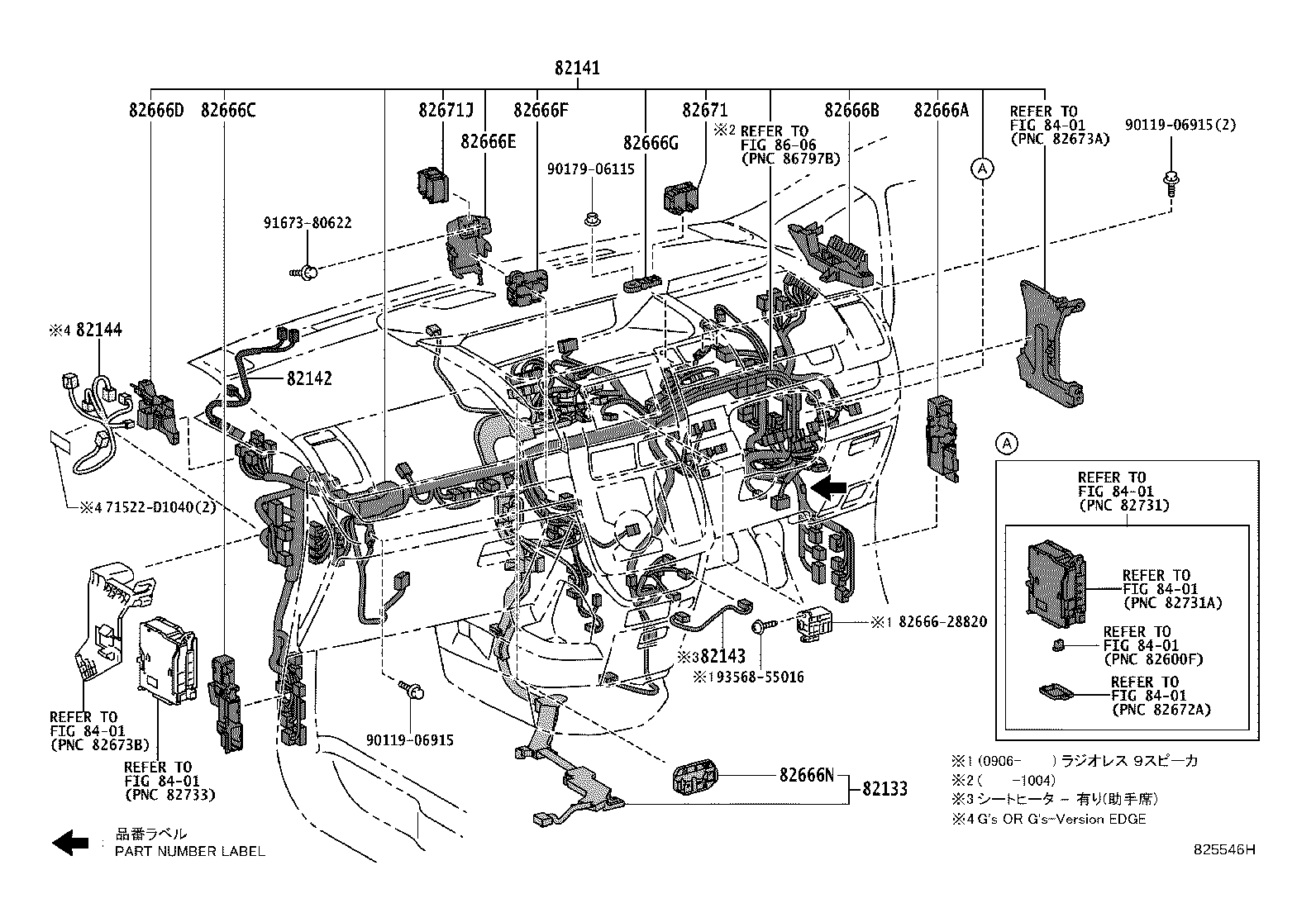

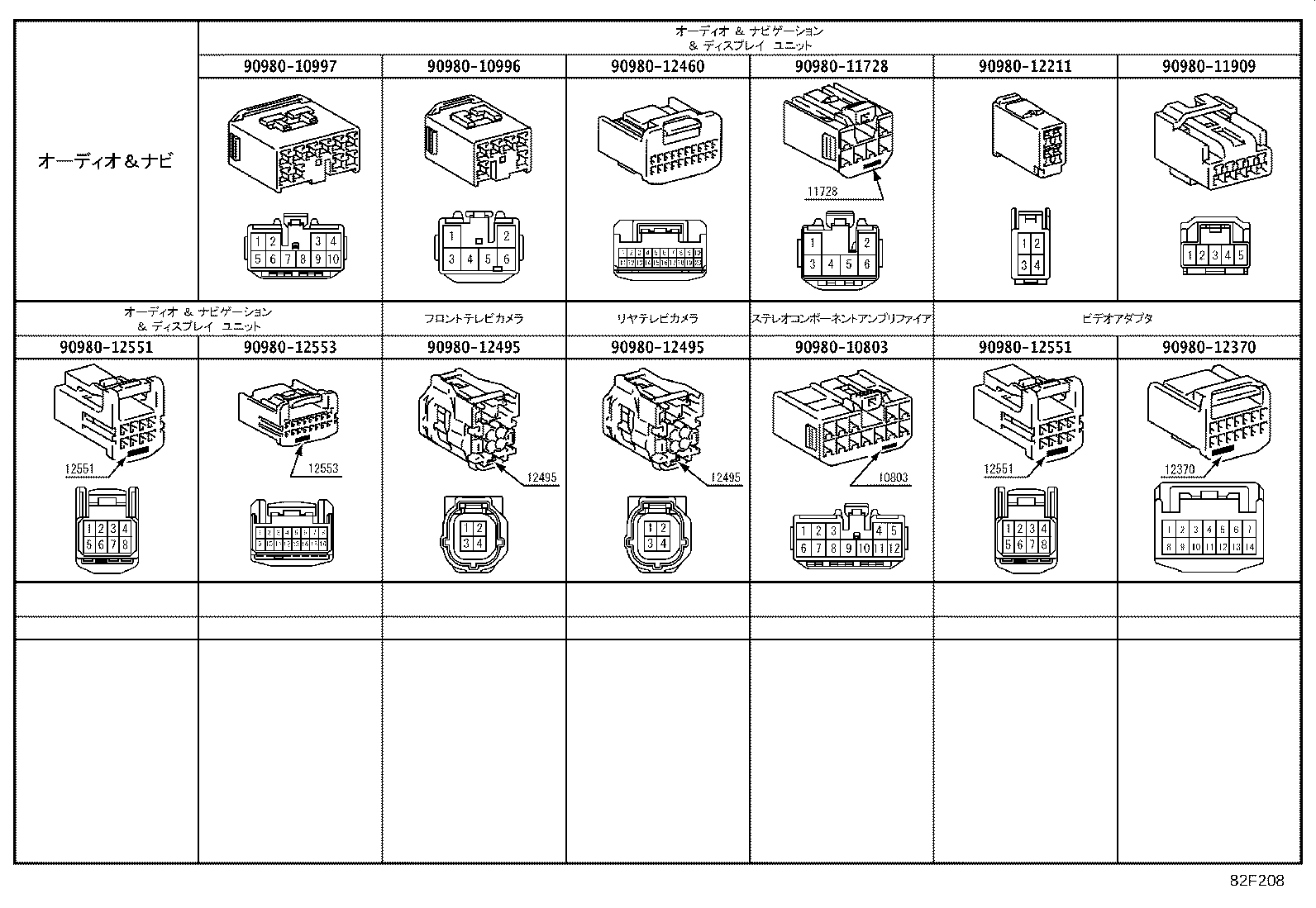

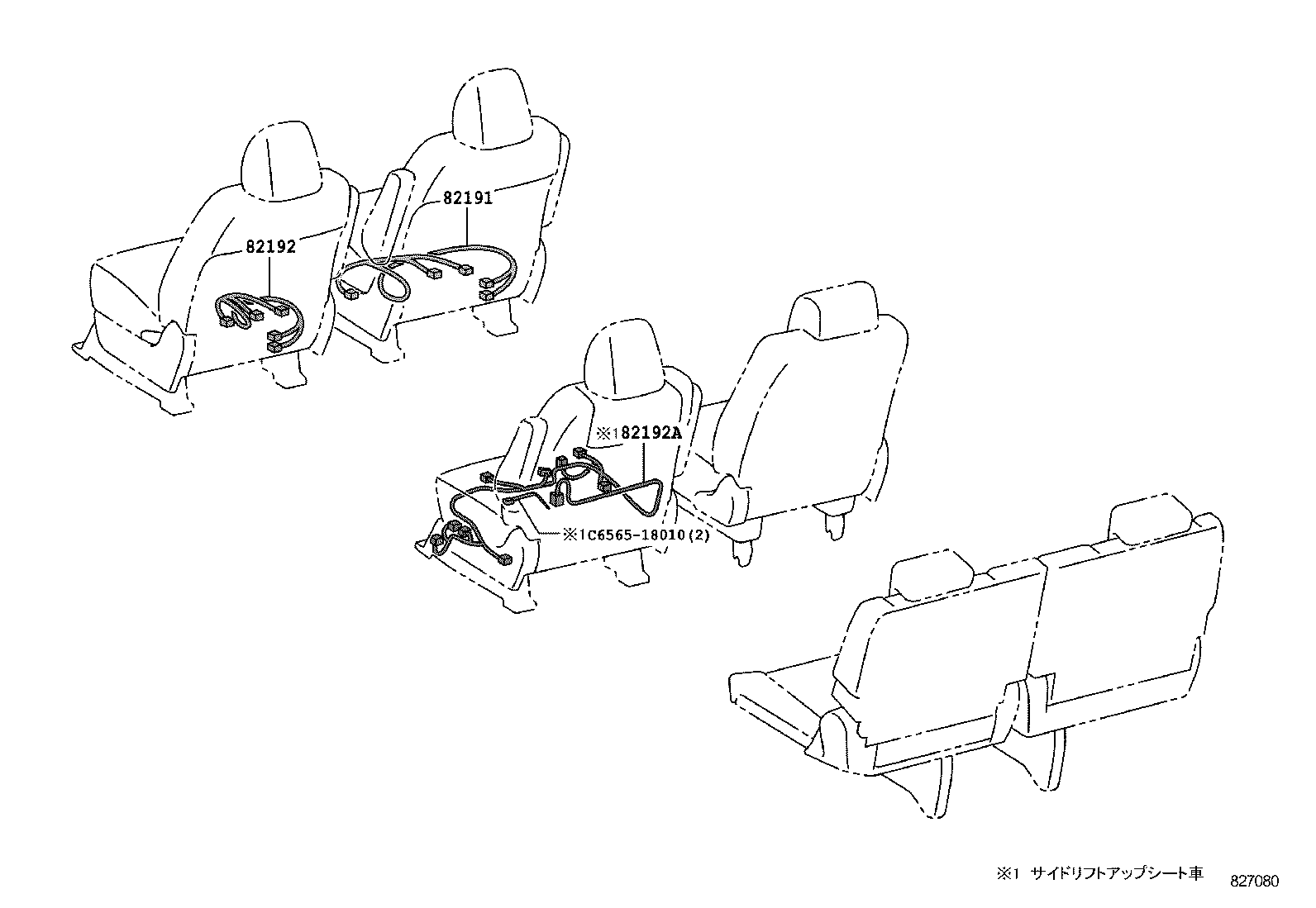

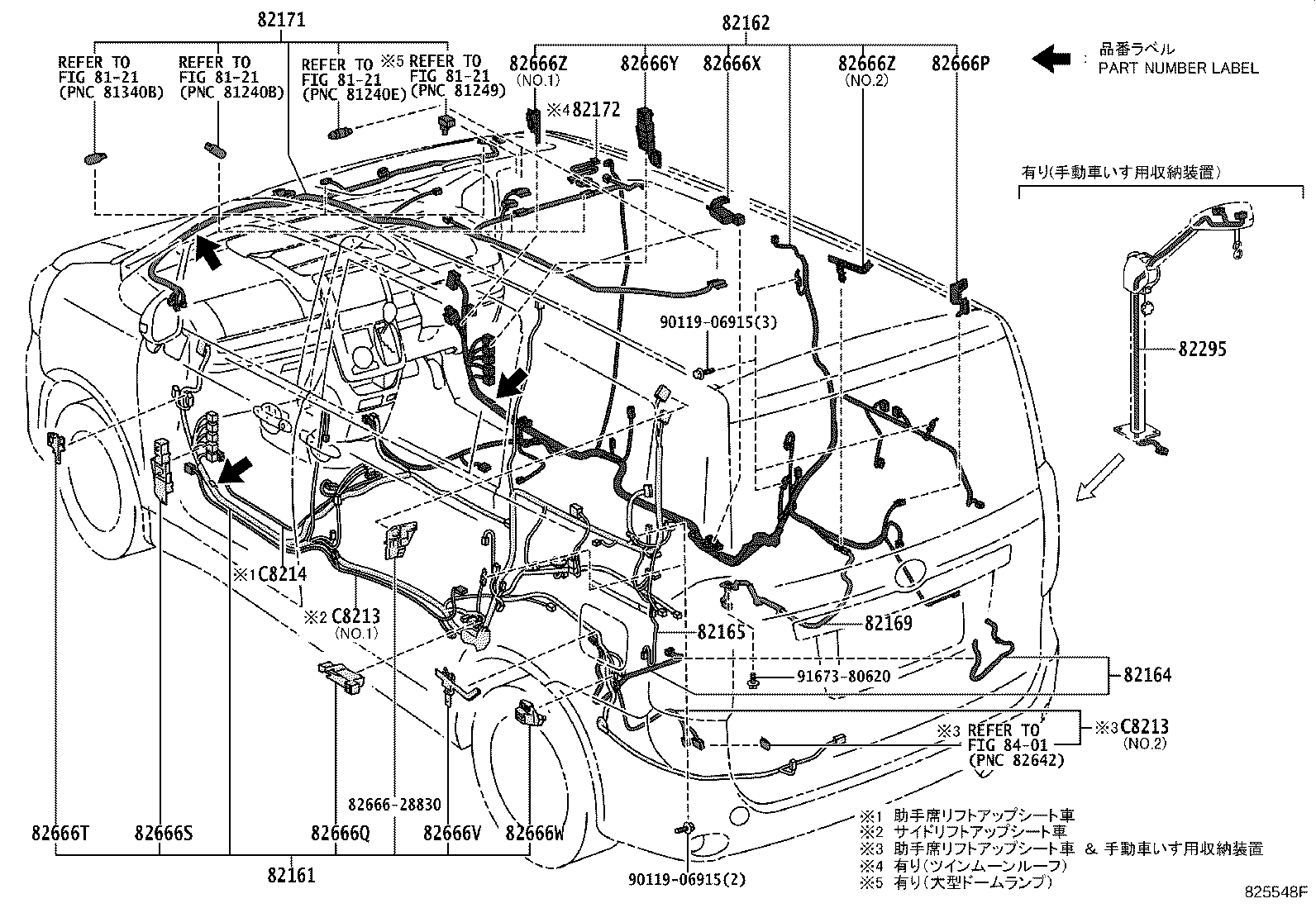

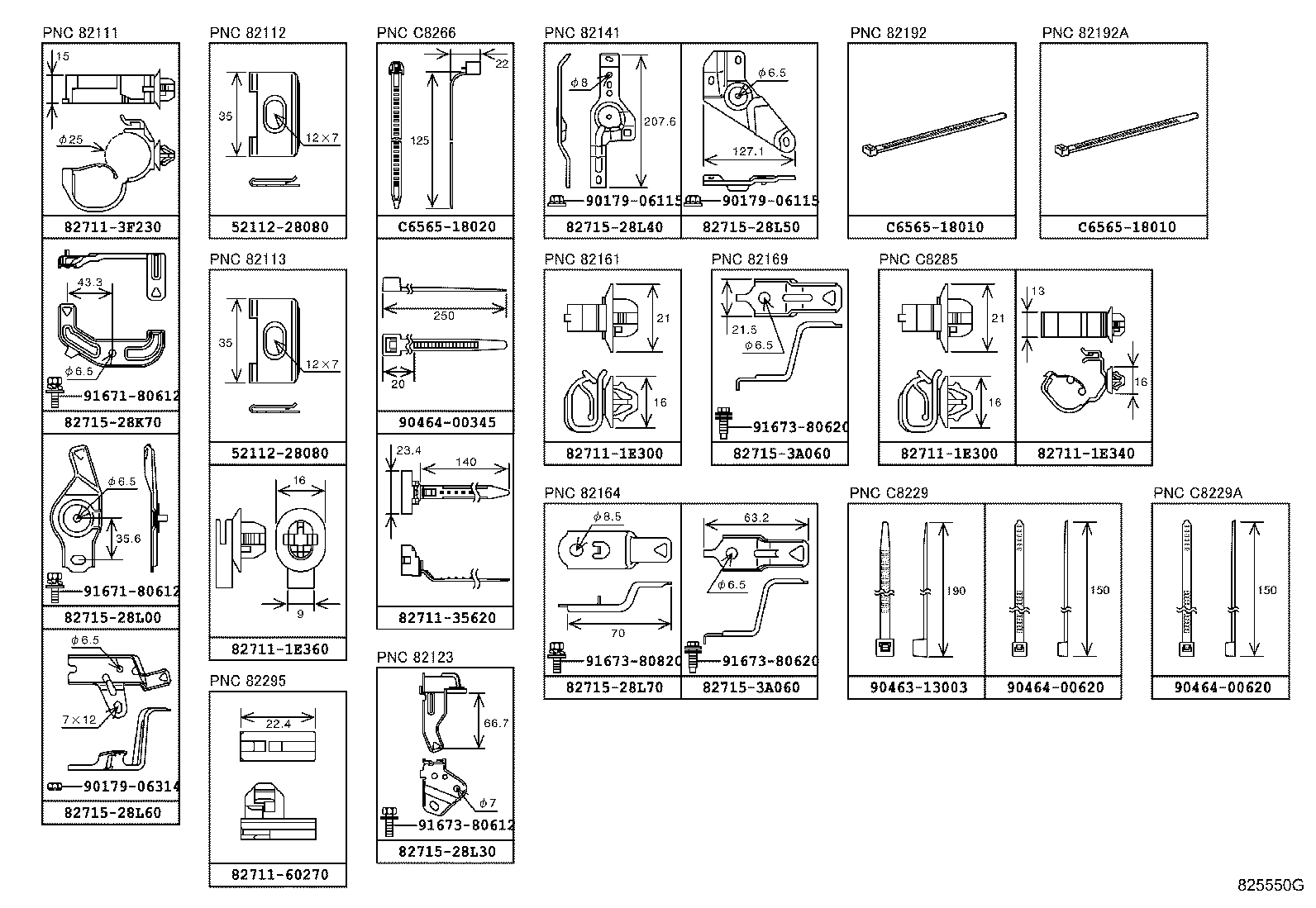

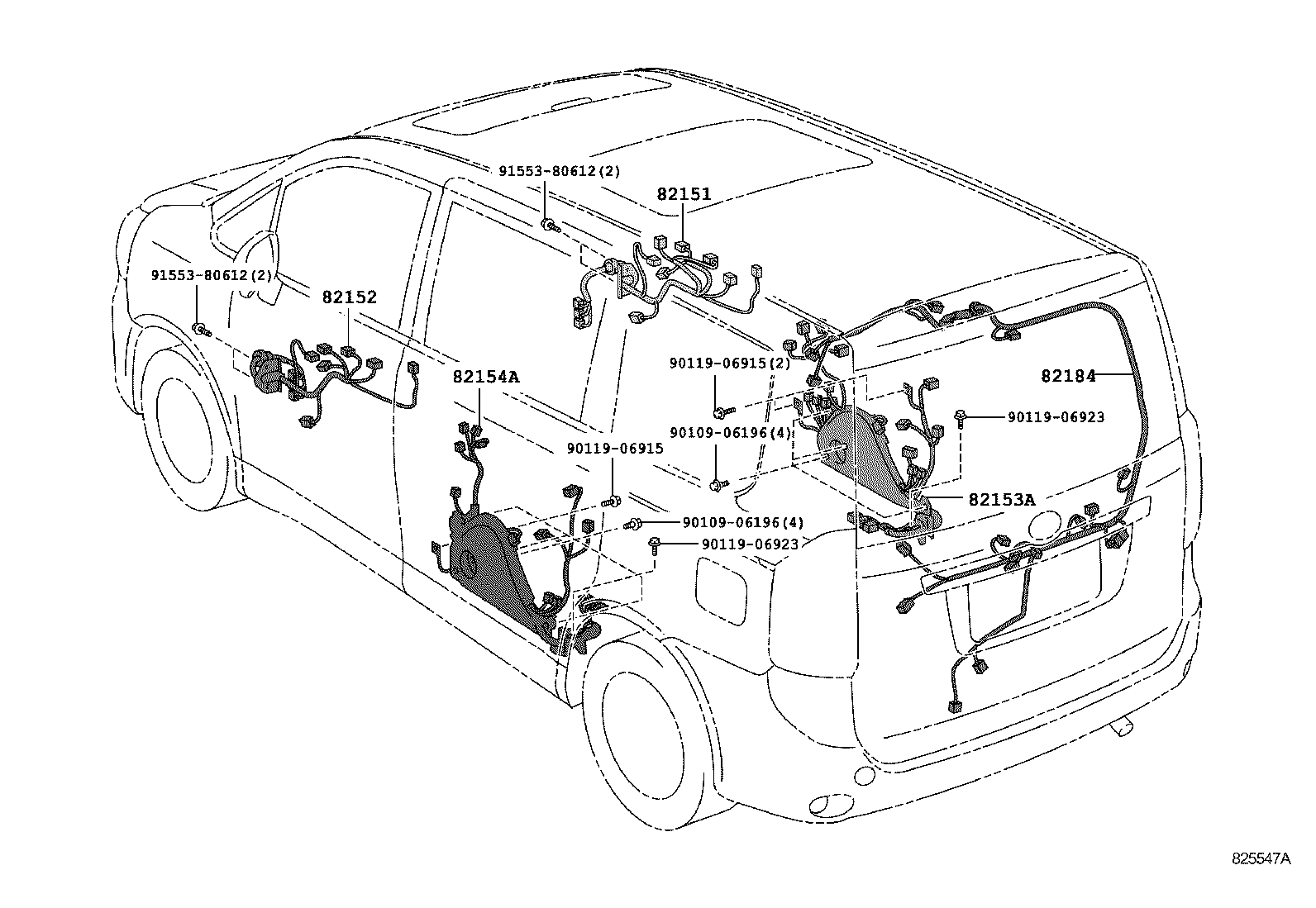

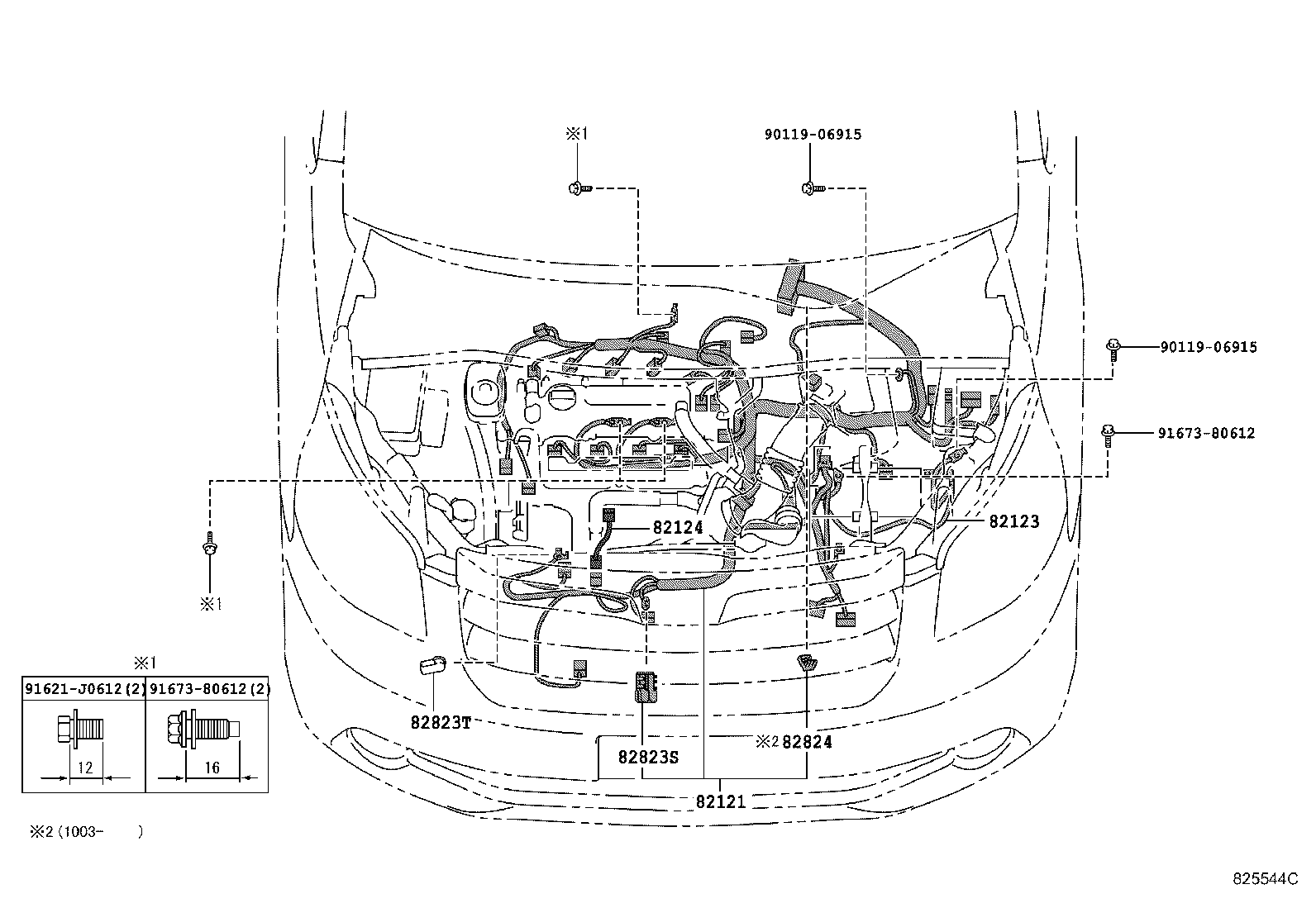

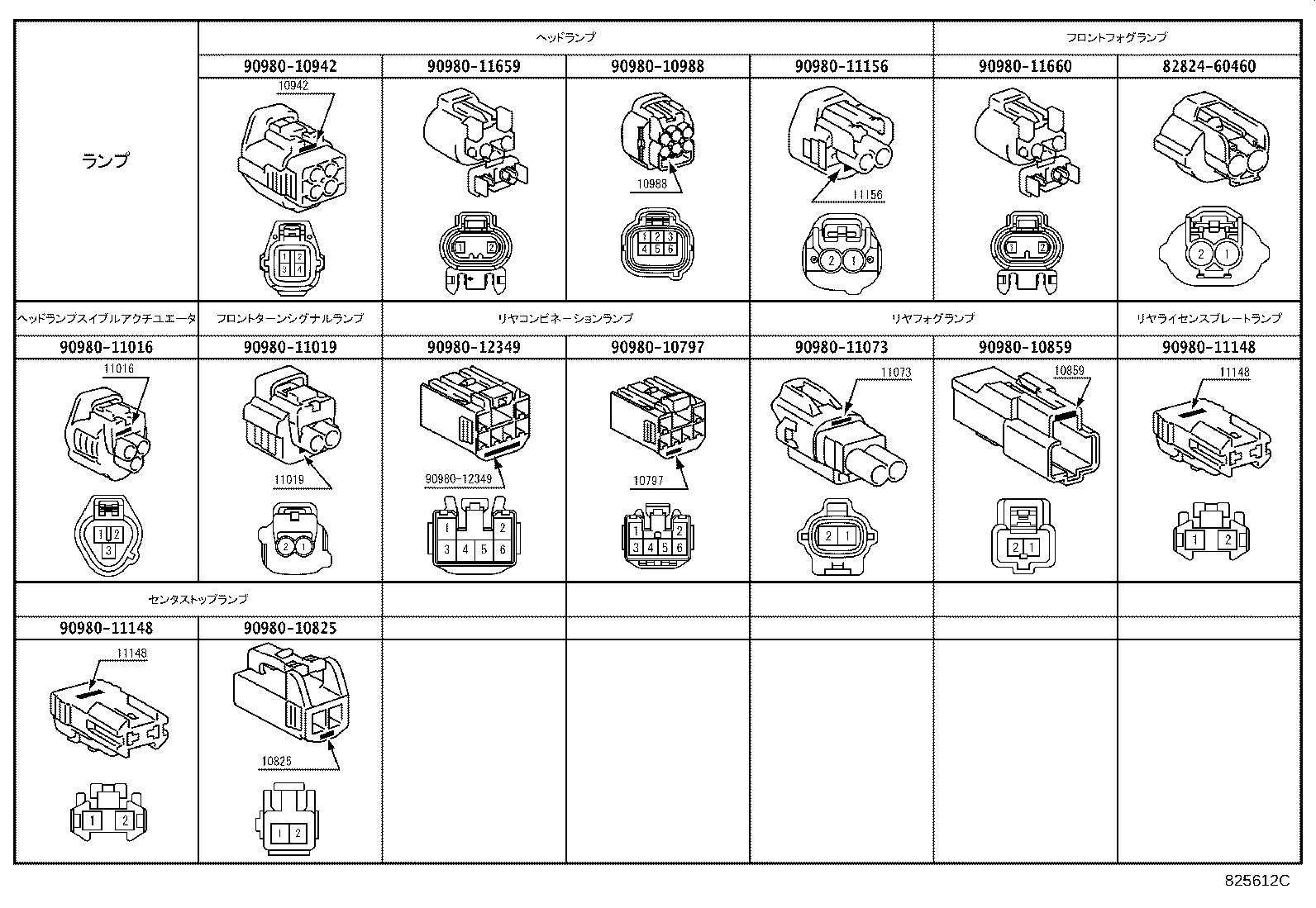

Figure 825543J 825543J 2007-06 → 2010-04 Figure 828659B 828659B 2010-04 → — Figure 825544C 825544C 2007-06 → 2010-04 Figure 825545H 825545H 2007-06 → — Figure 825546H 825546H 2007-06 → — Figure 825547A 825547A 2007-06 → — Figure 825548F 825548F 2007-06 → — Figure 825549A 825549A 2007-06 → 2010-04 Figure 827080 827080 2010-04 → — Figure 825550G 825550G 2007-06 → — Figure 827144 827144 2007-06 → — Figure 825612C 825612C 2007-06 → — Figure 825613C 825613C 2007-06 → — Figure 82F208 82F208 2007-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82114B Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192A Wire, Rear Seat, LH
82219C Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82671 Block, Junction
82671J Block, Junction, NO.2
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
C8213 Wire, Power Lift Motor TO Body
C8214 Wire, Power Lift Motor
C8266 Wire, Tecs Engine Room Main
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
