Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

32 part groups · 70 illustrations

Illustrations

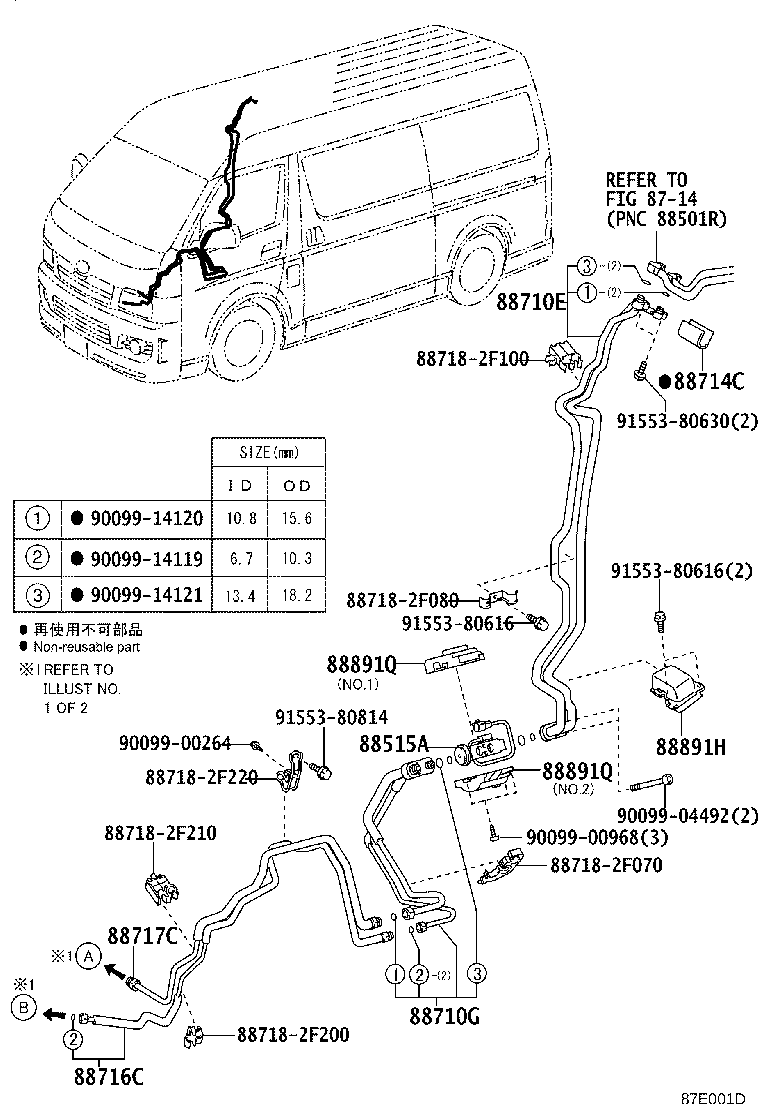

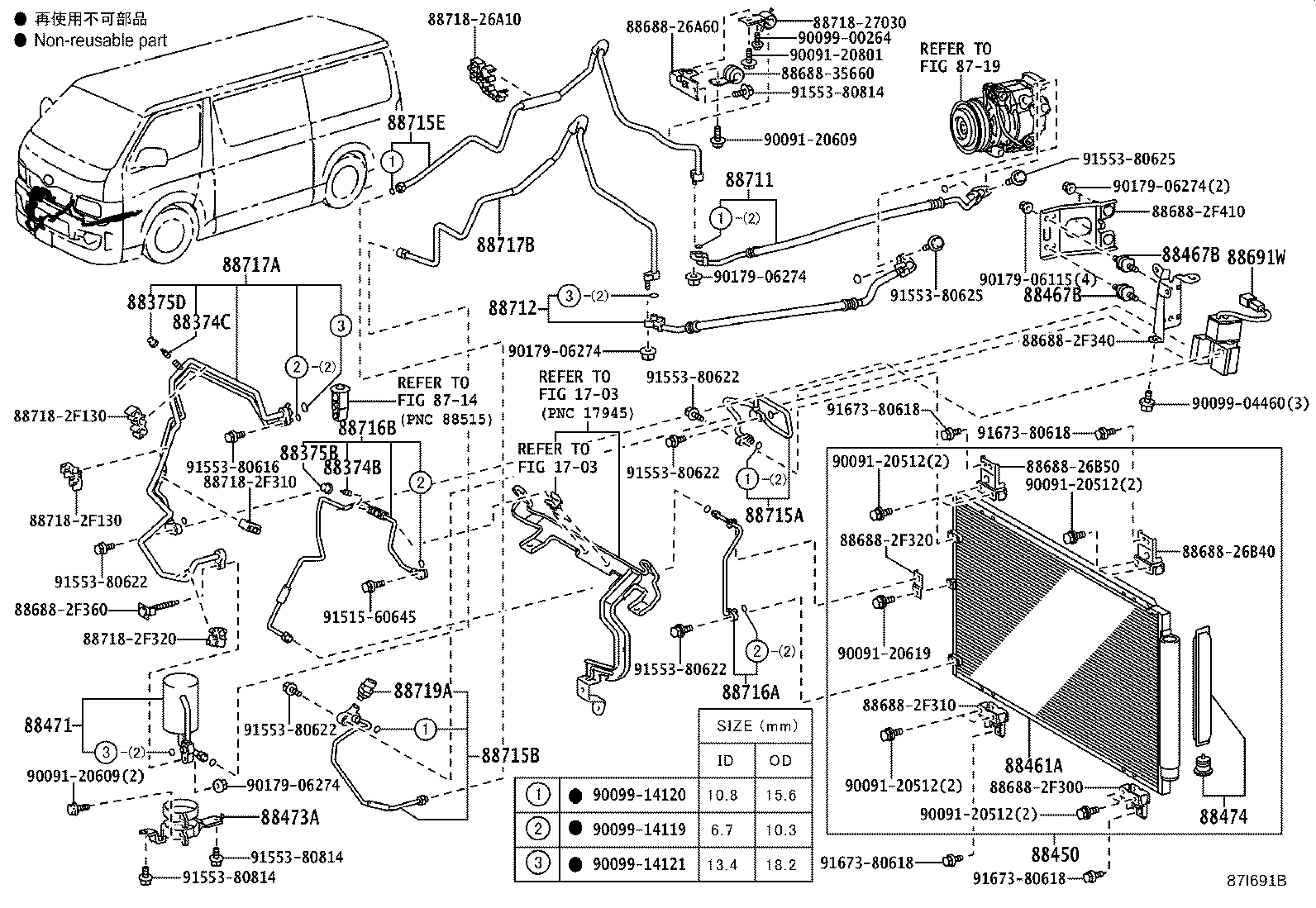

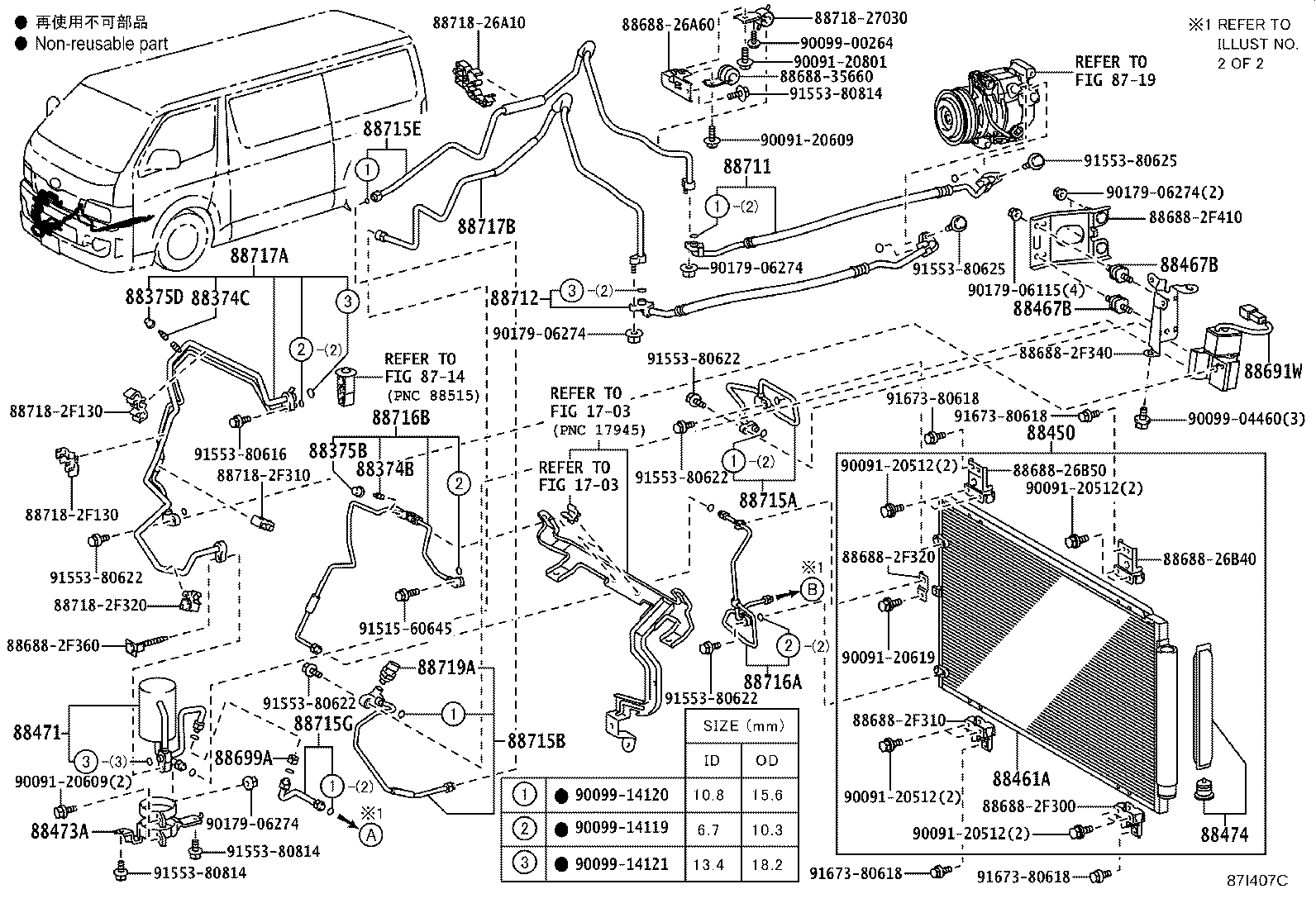

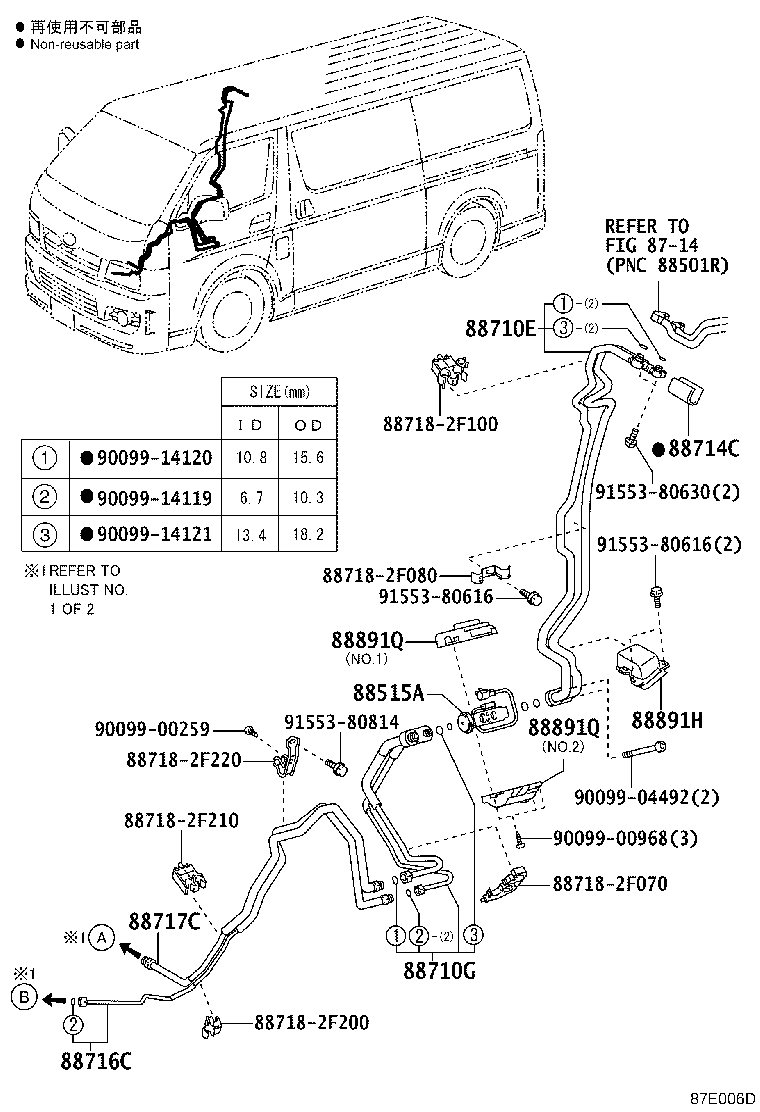

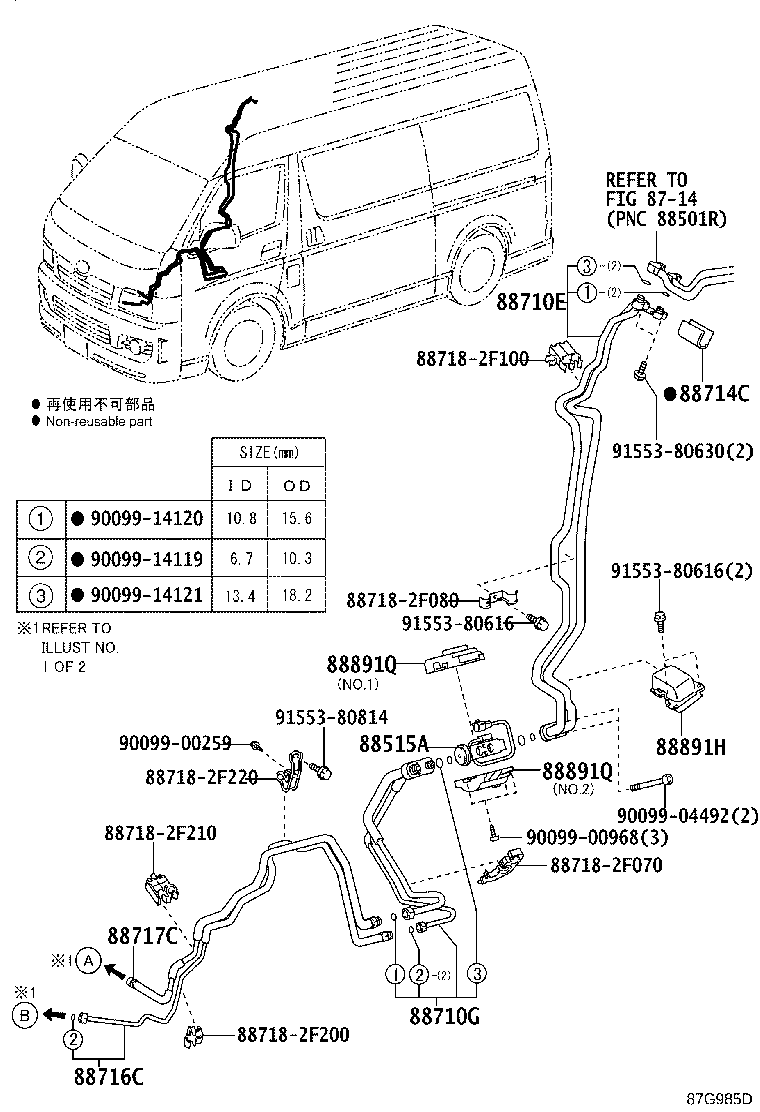

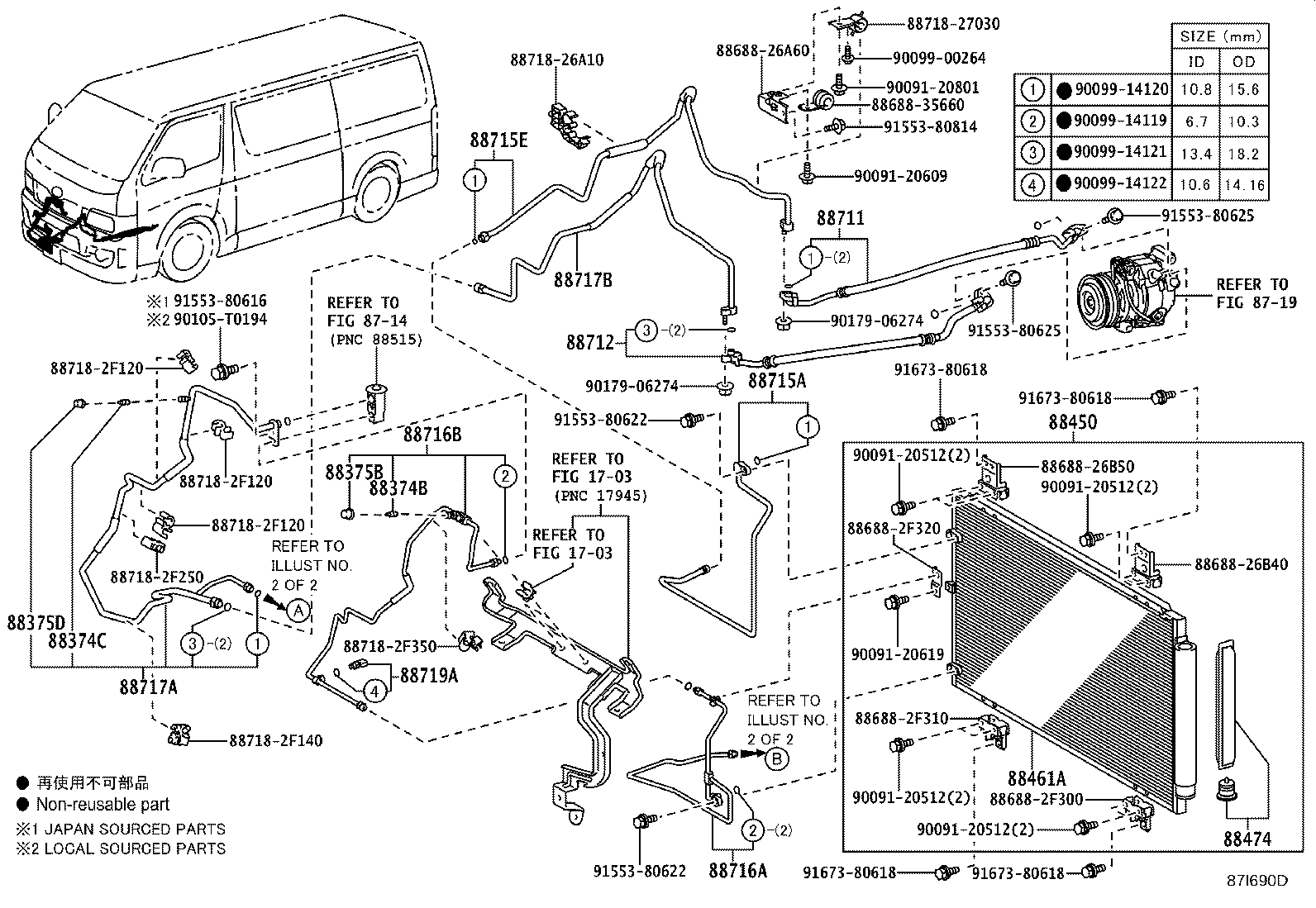

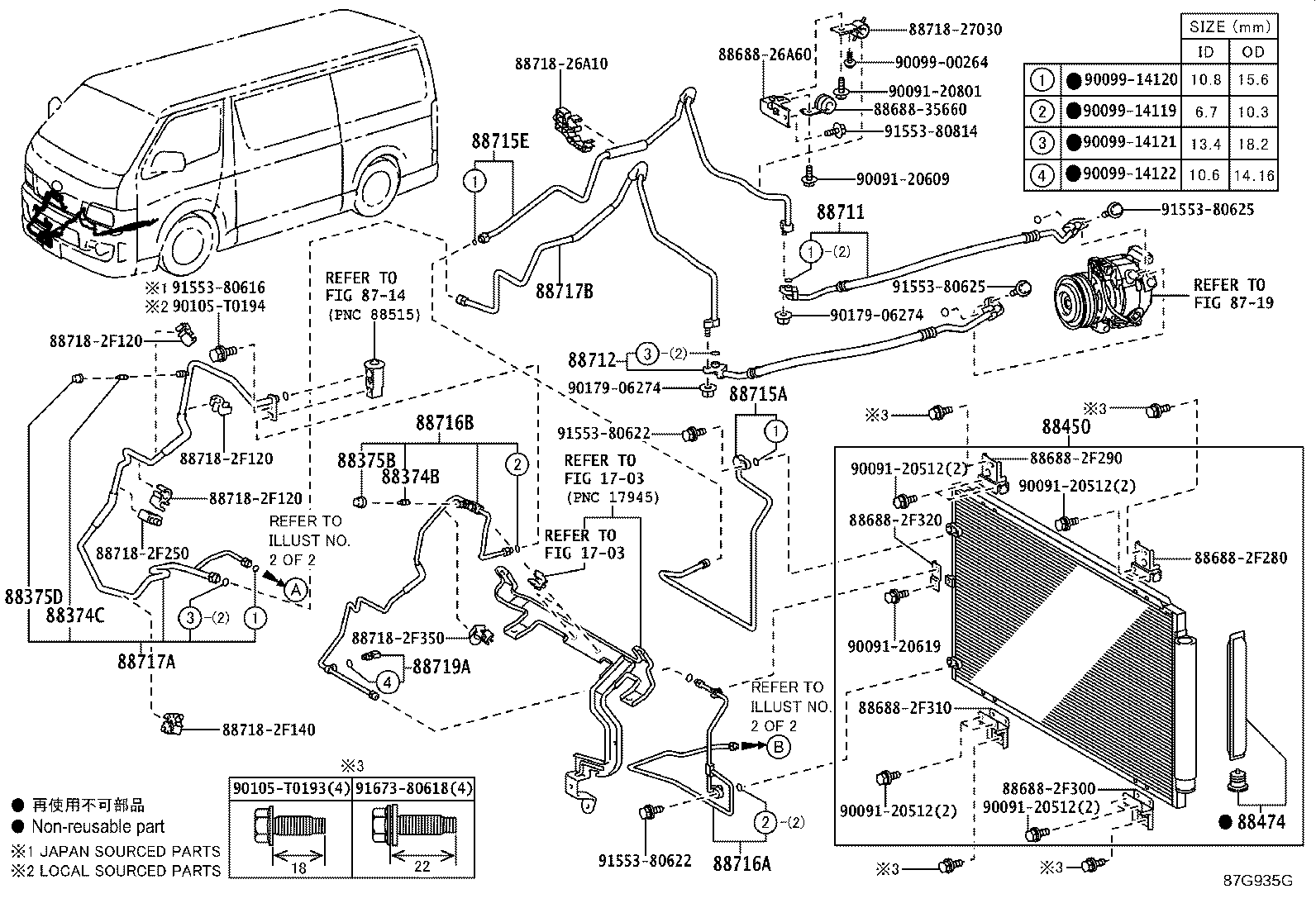

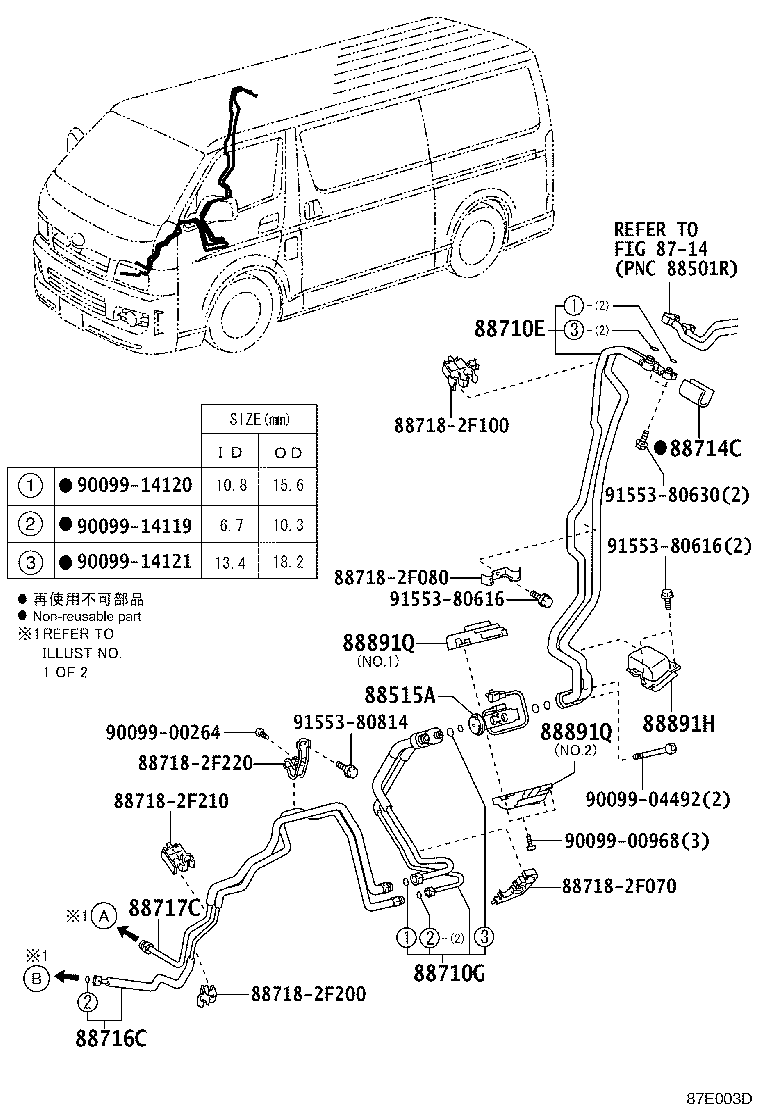

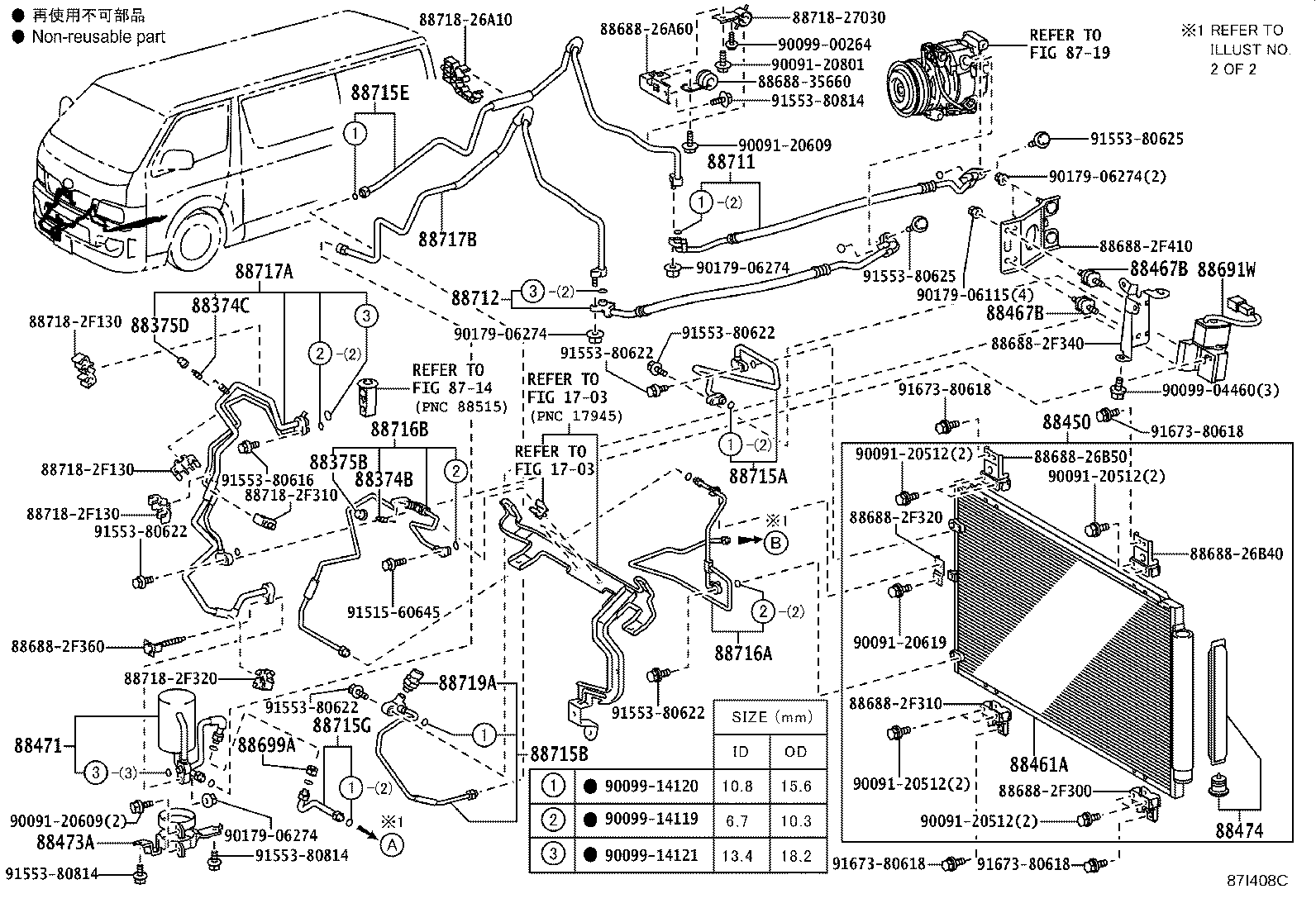

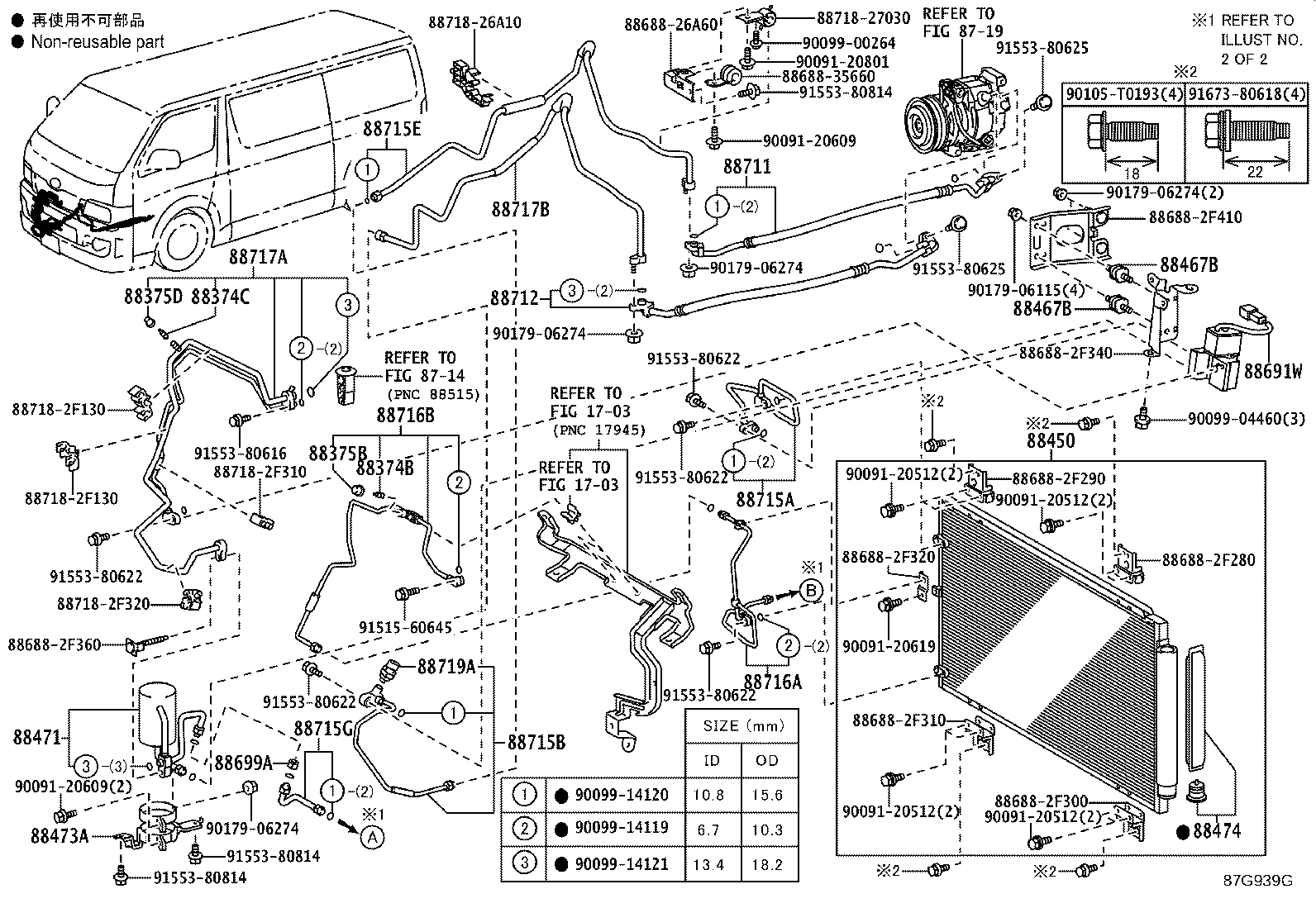

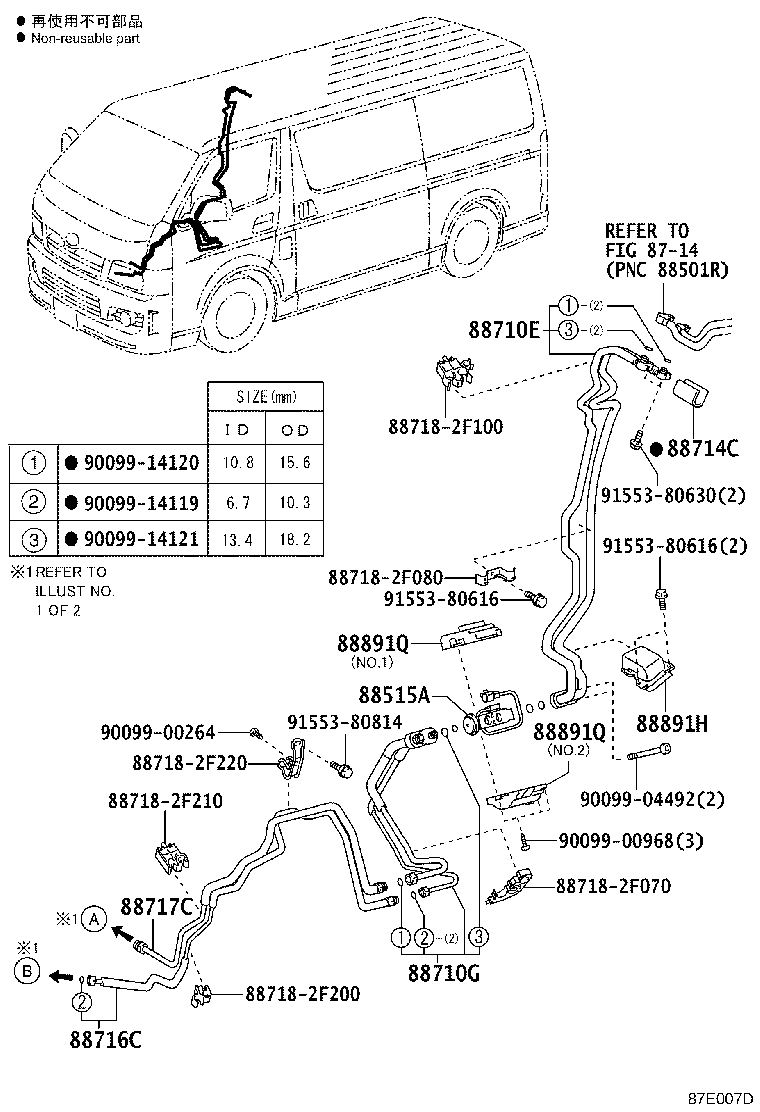

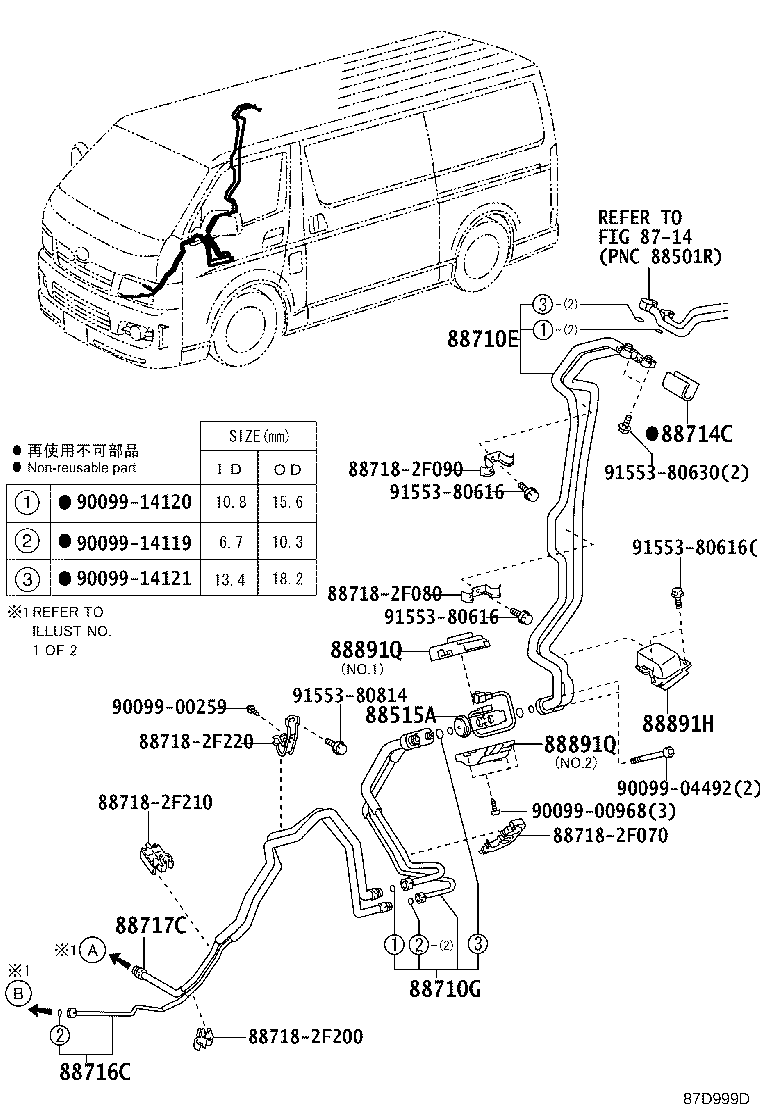

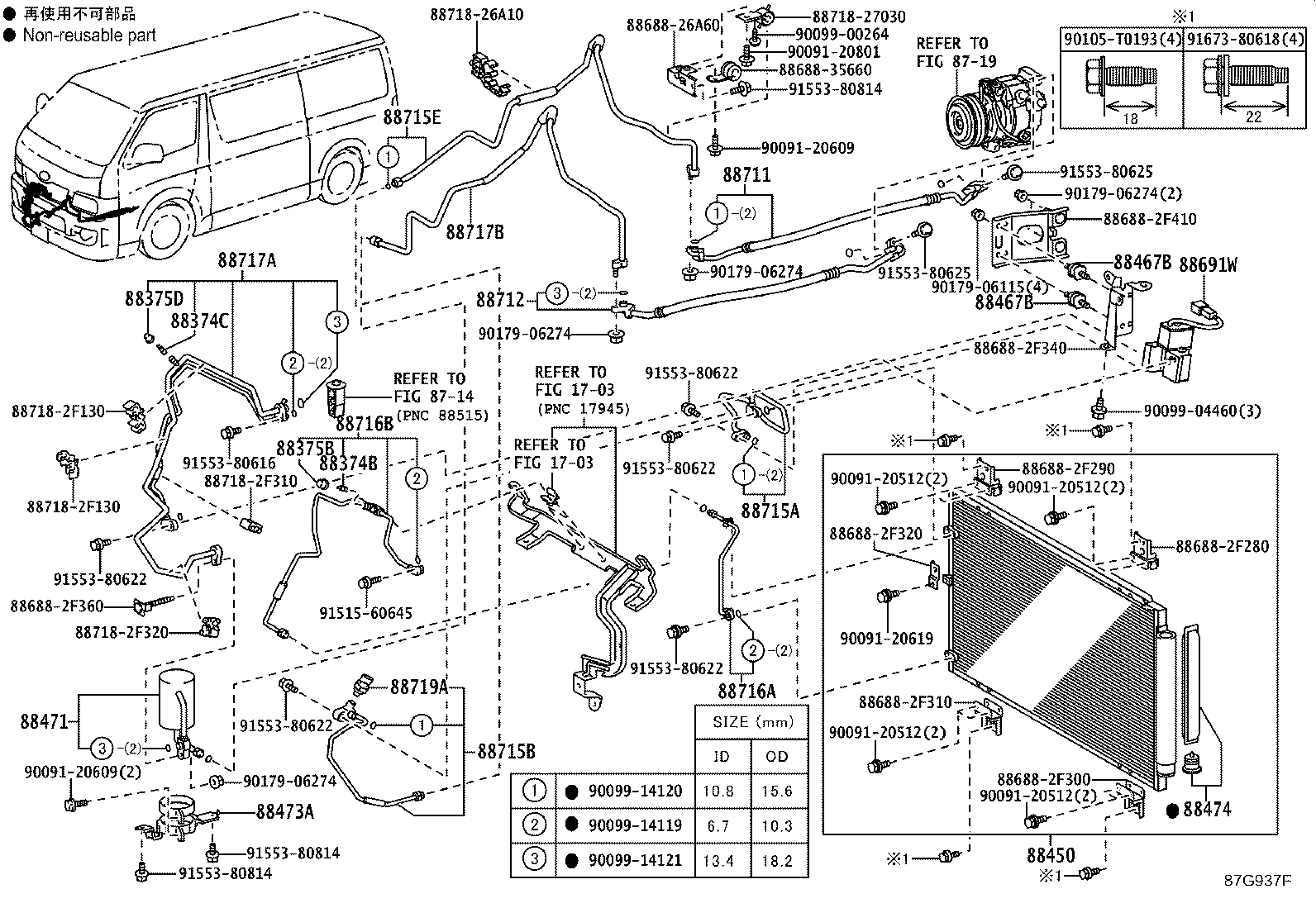

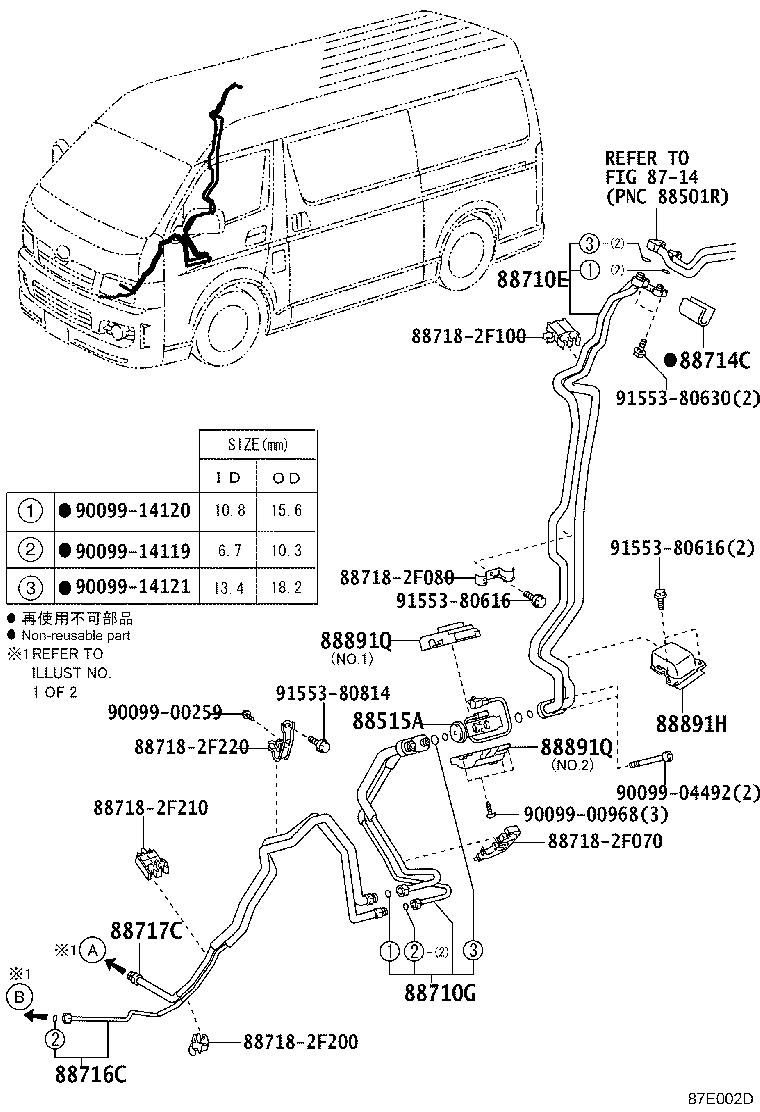

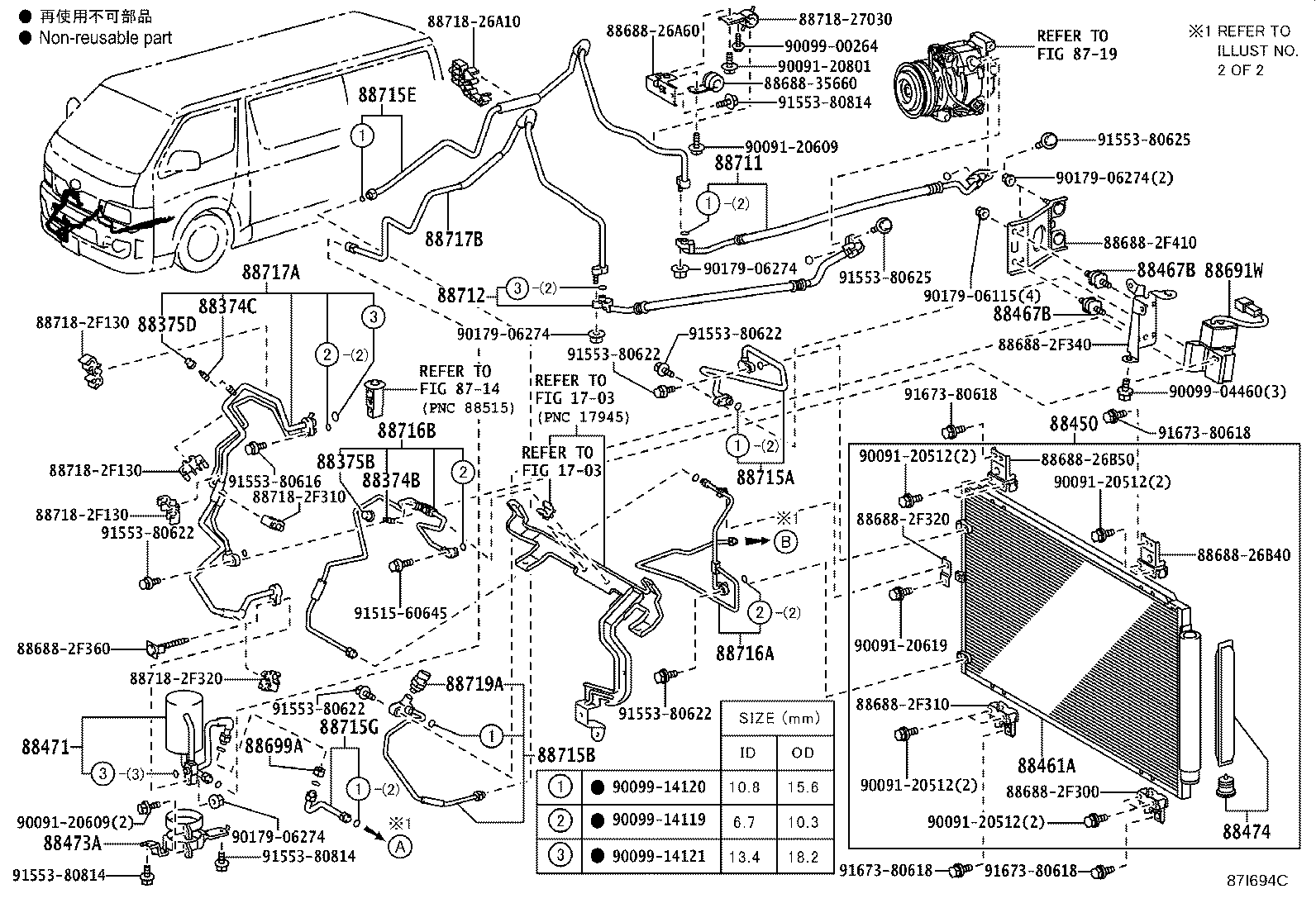

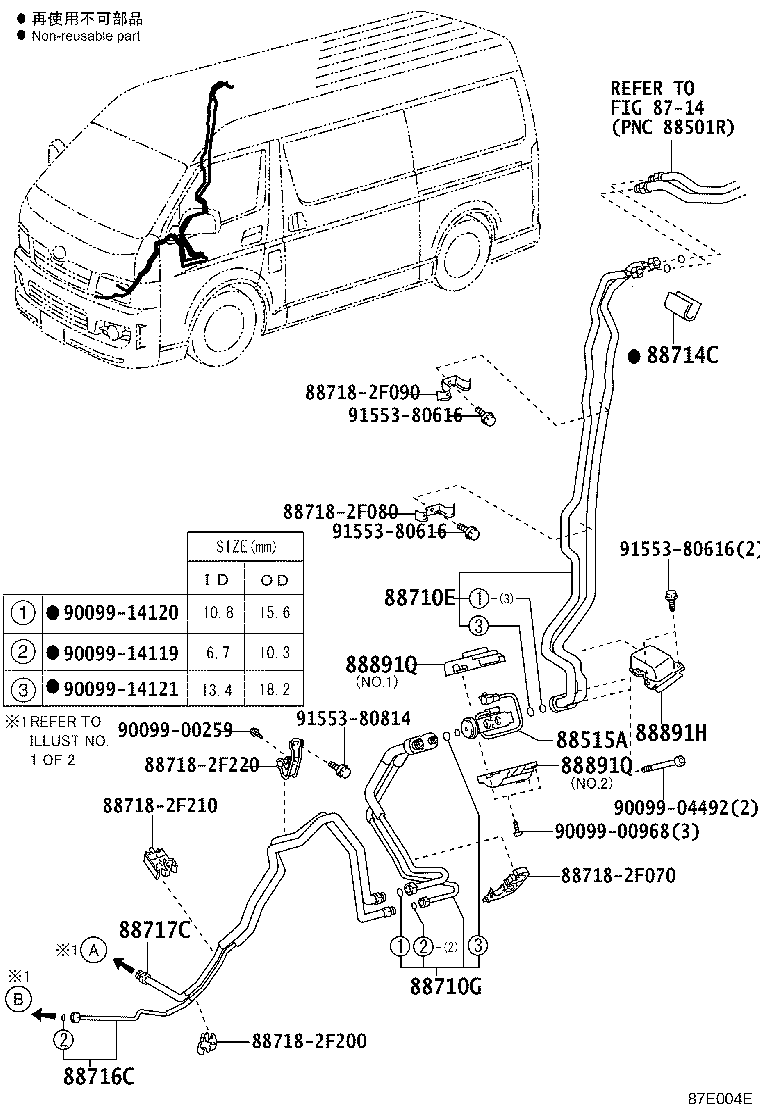

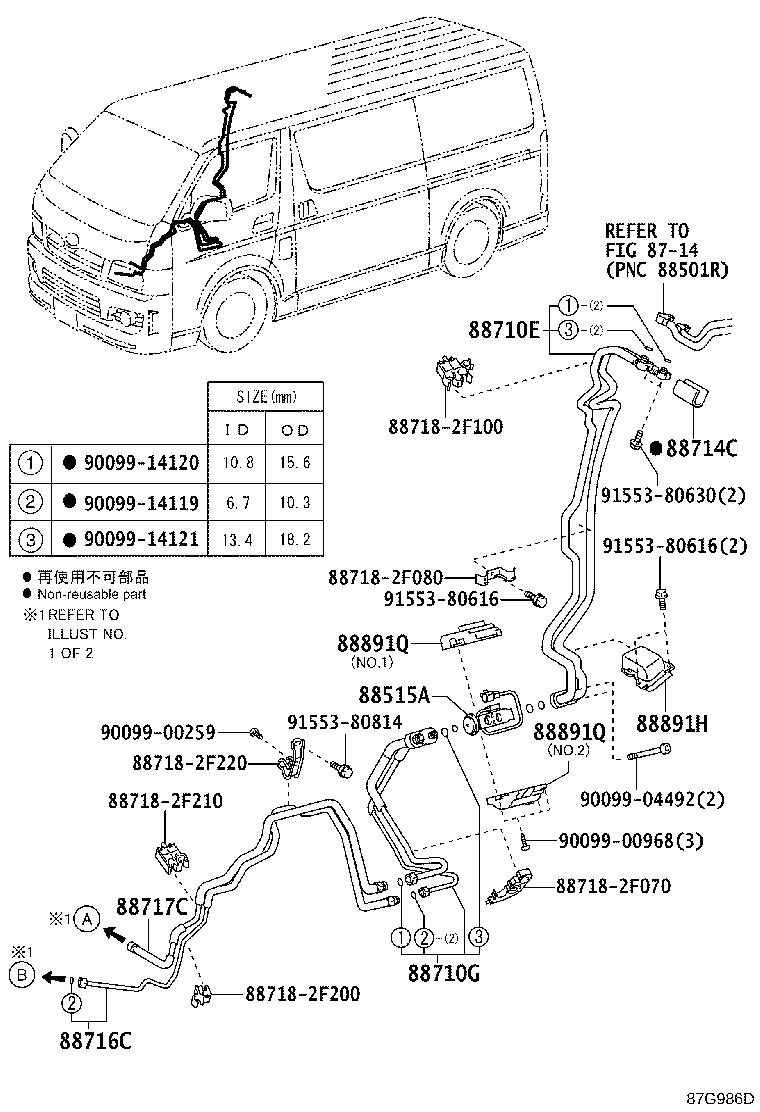

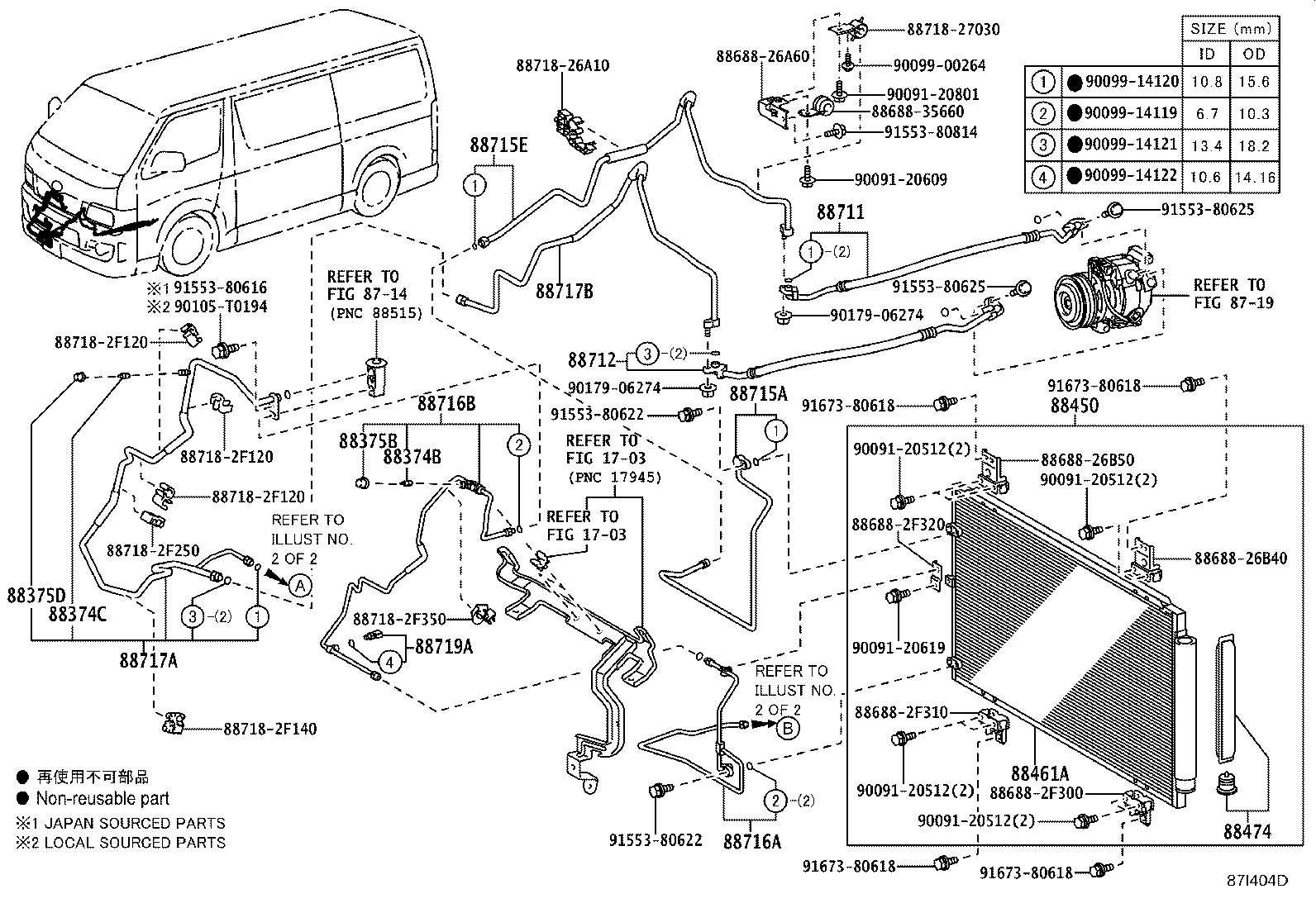

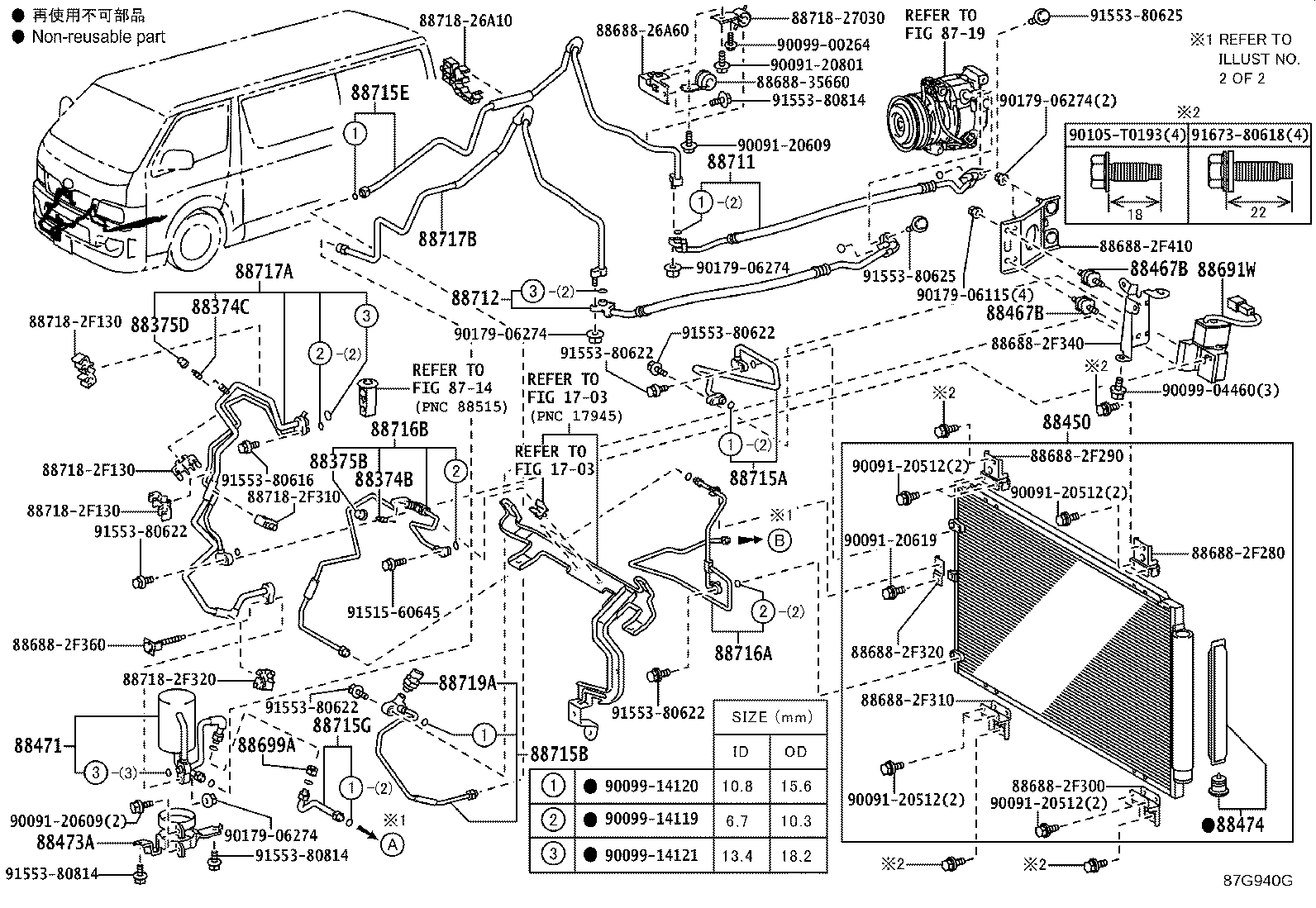

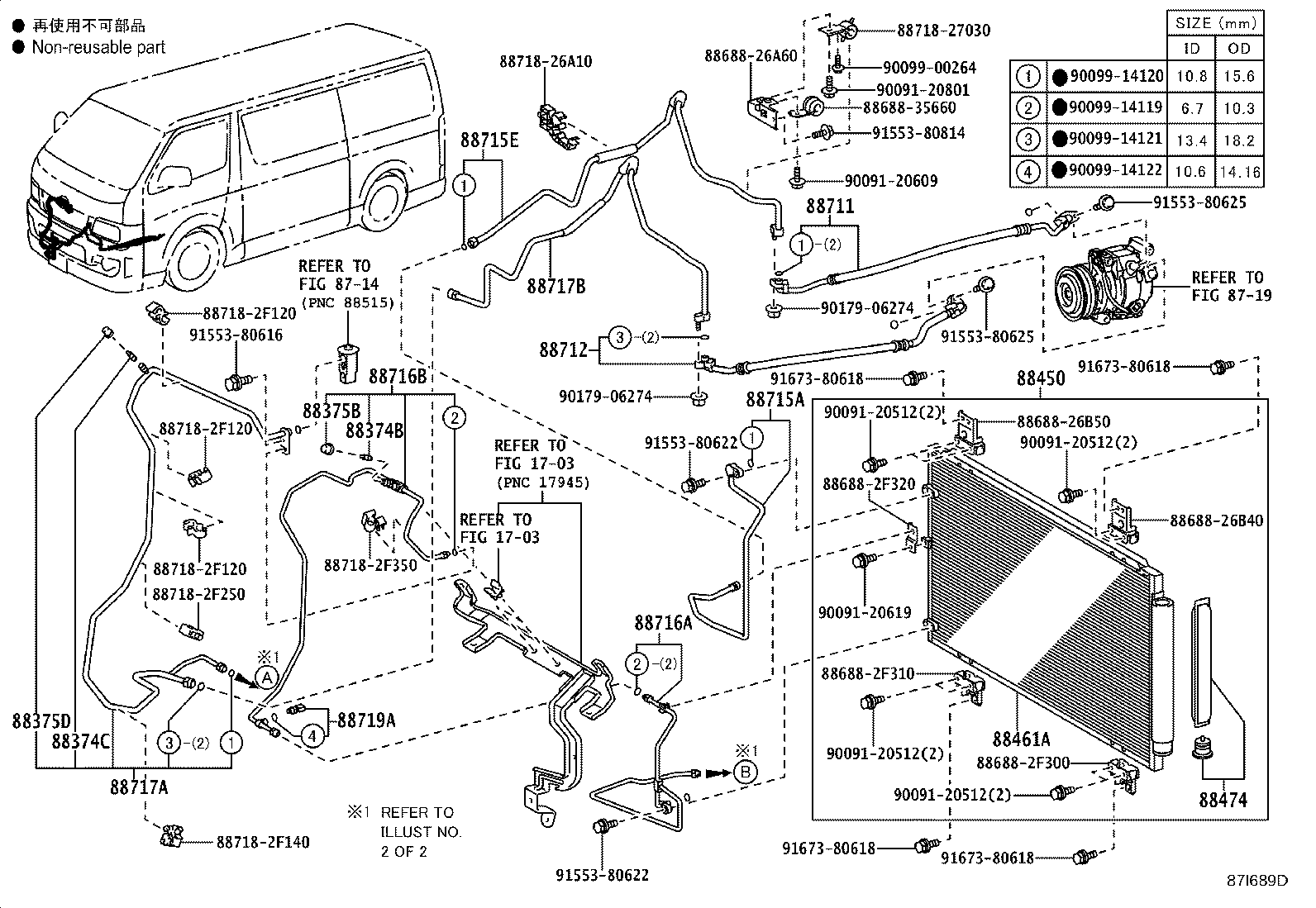

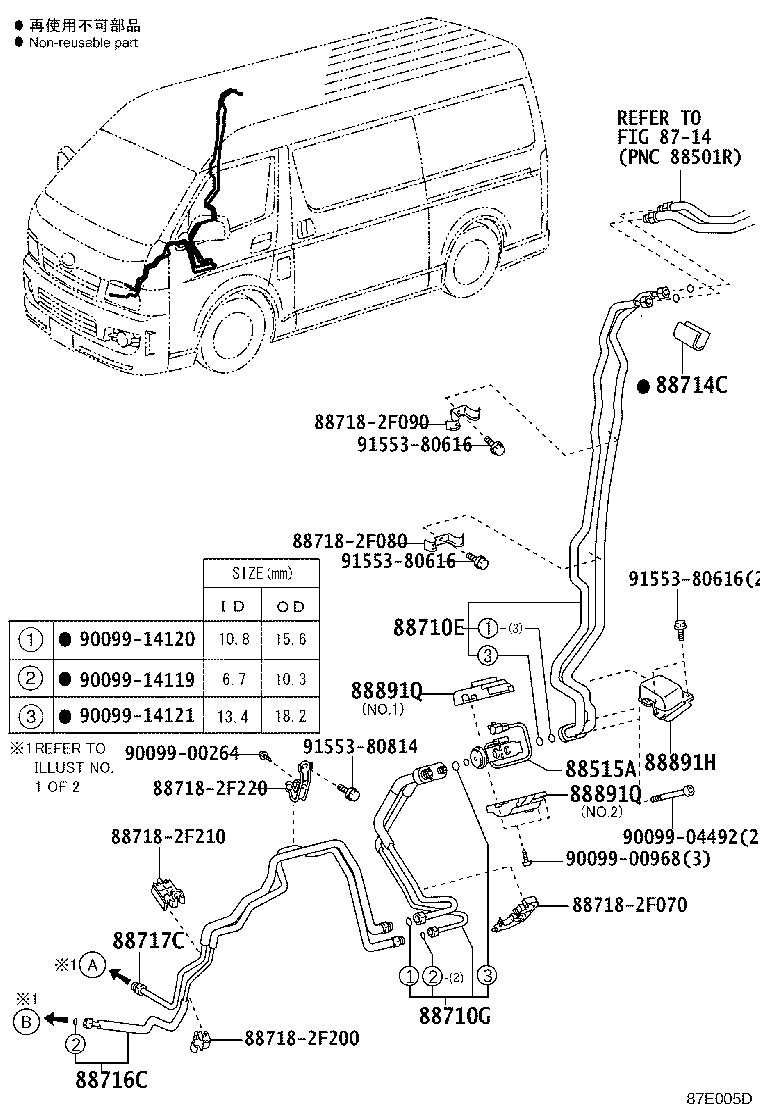

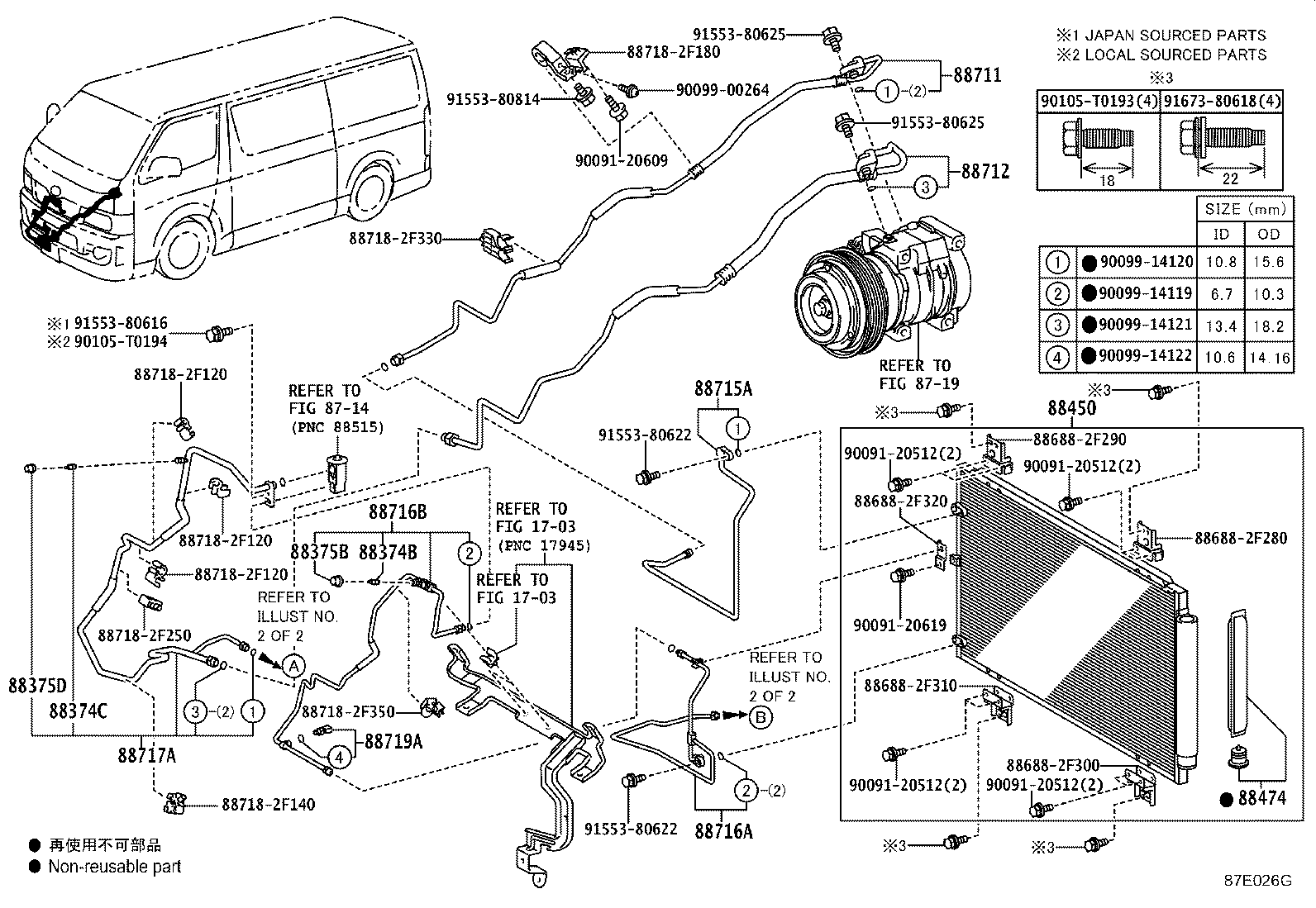

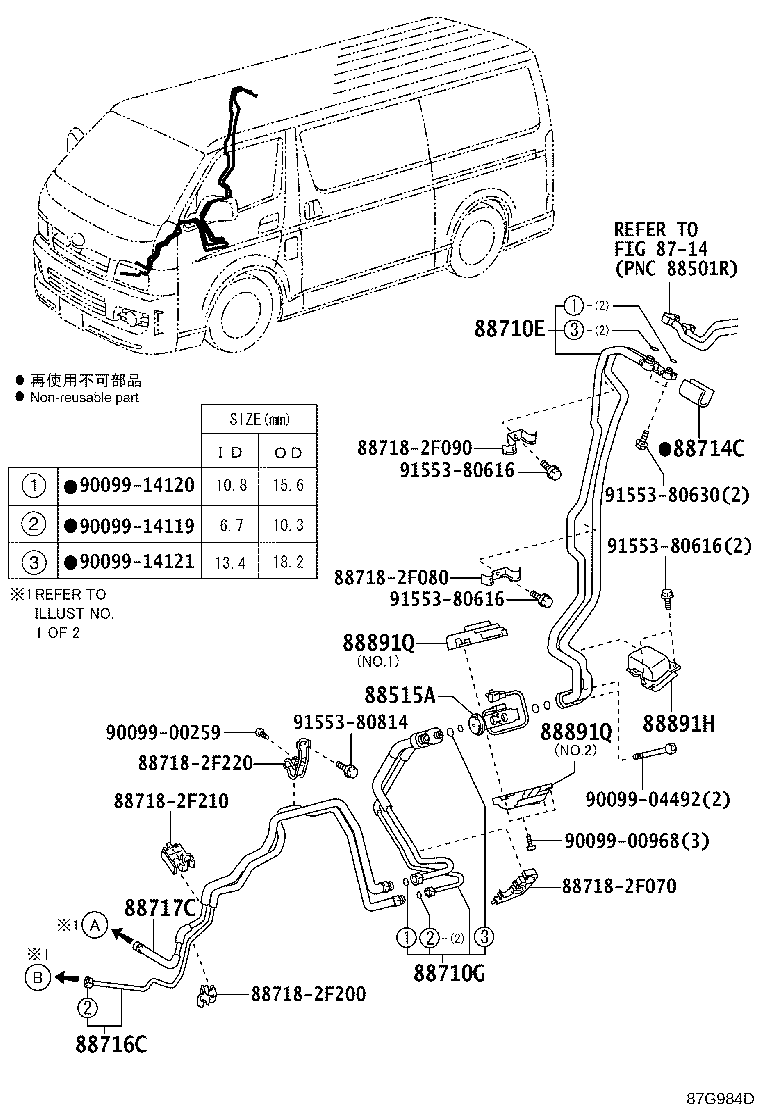

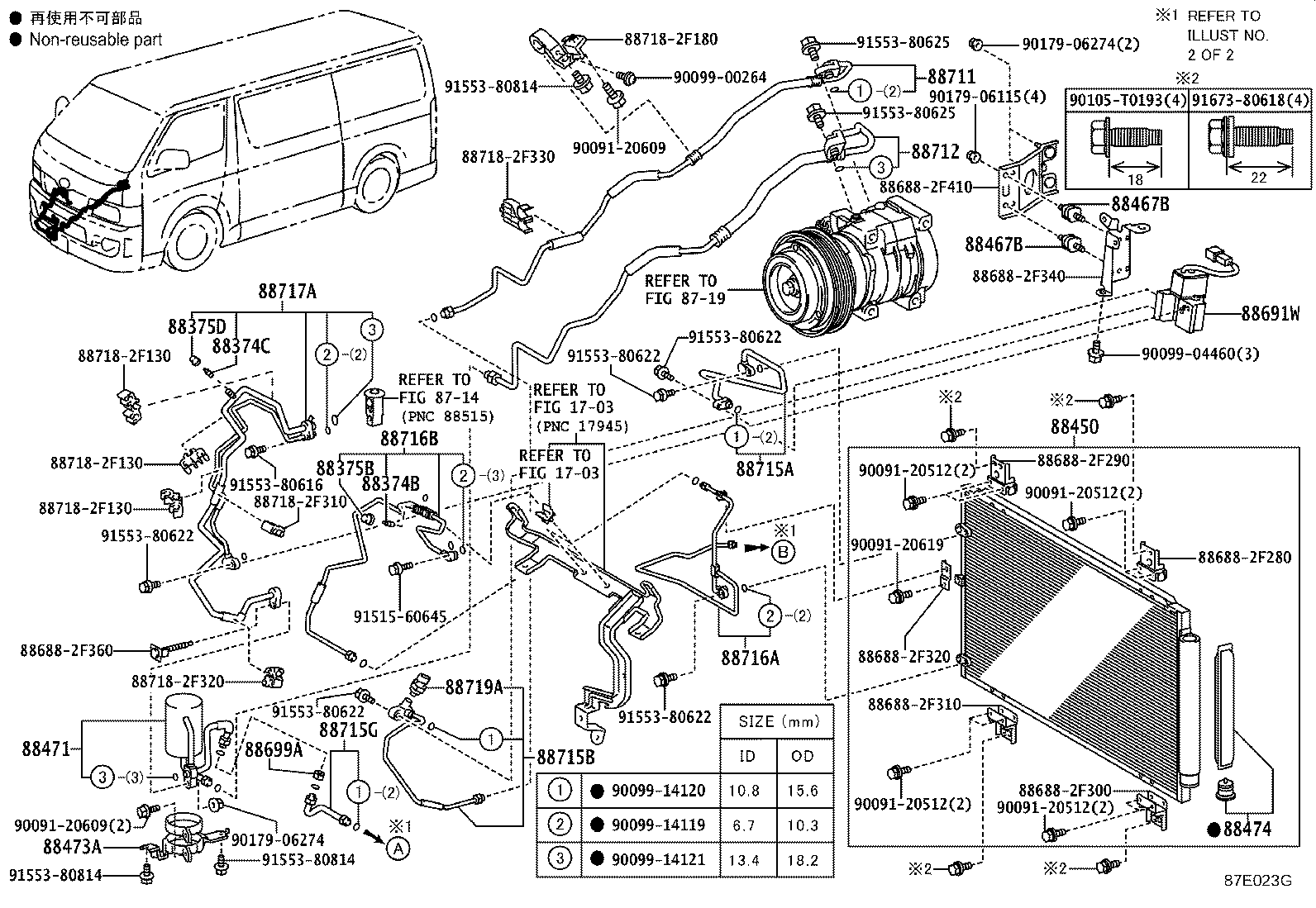

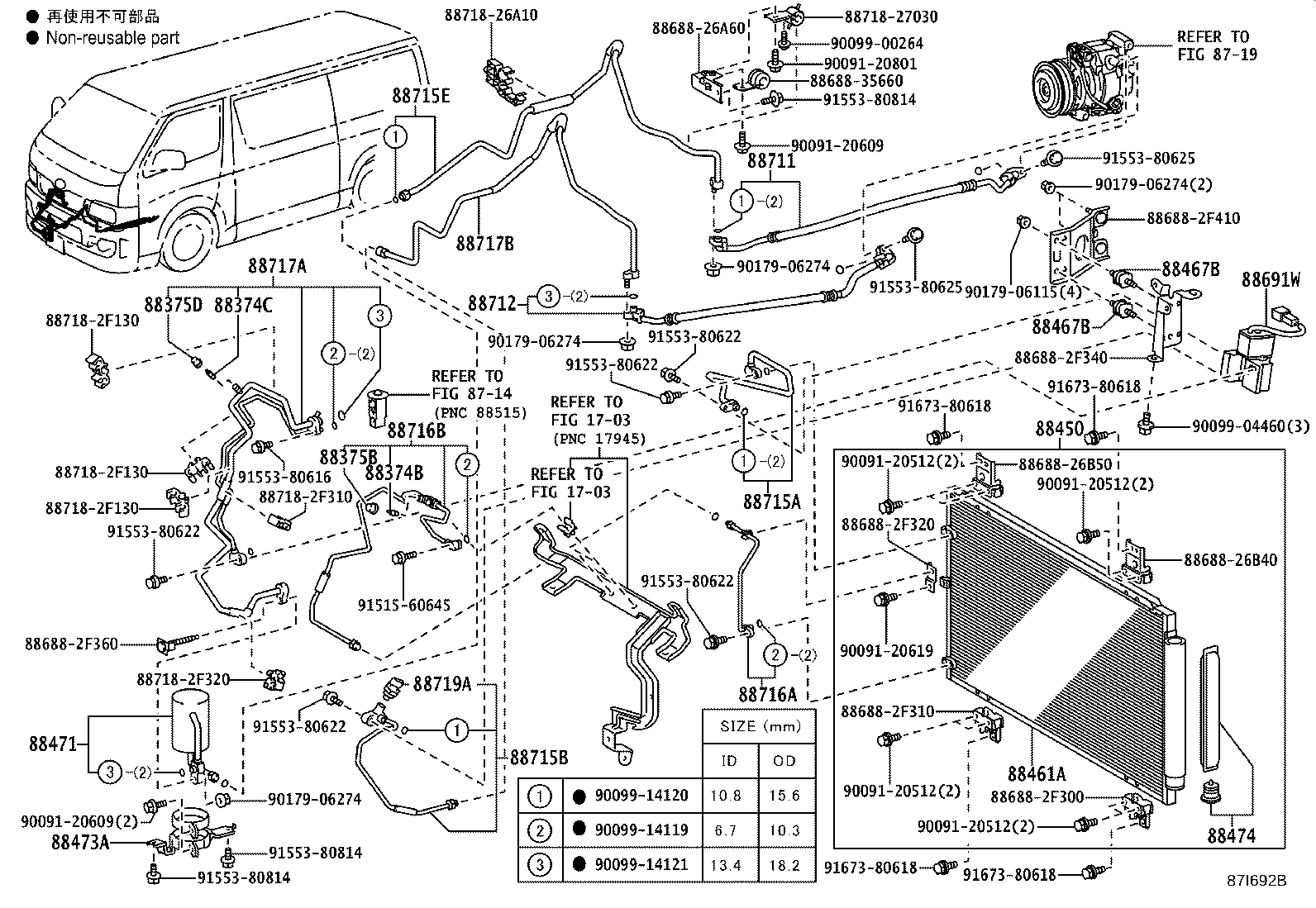

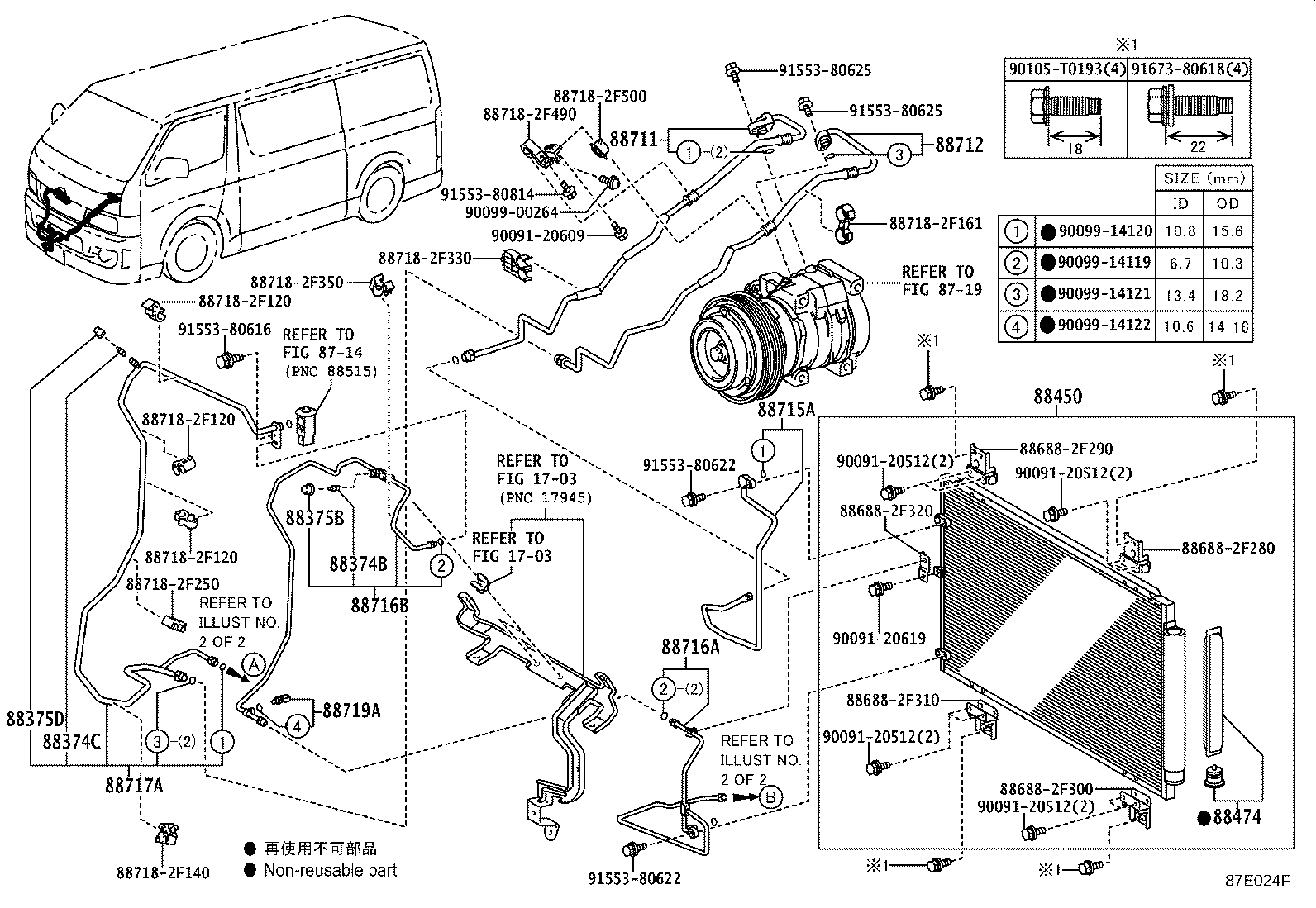

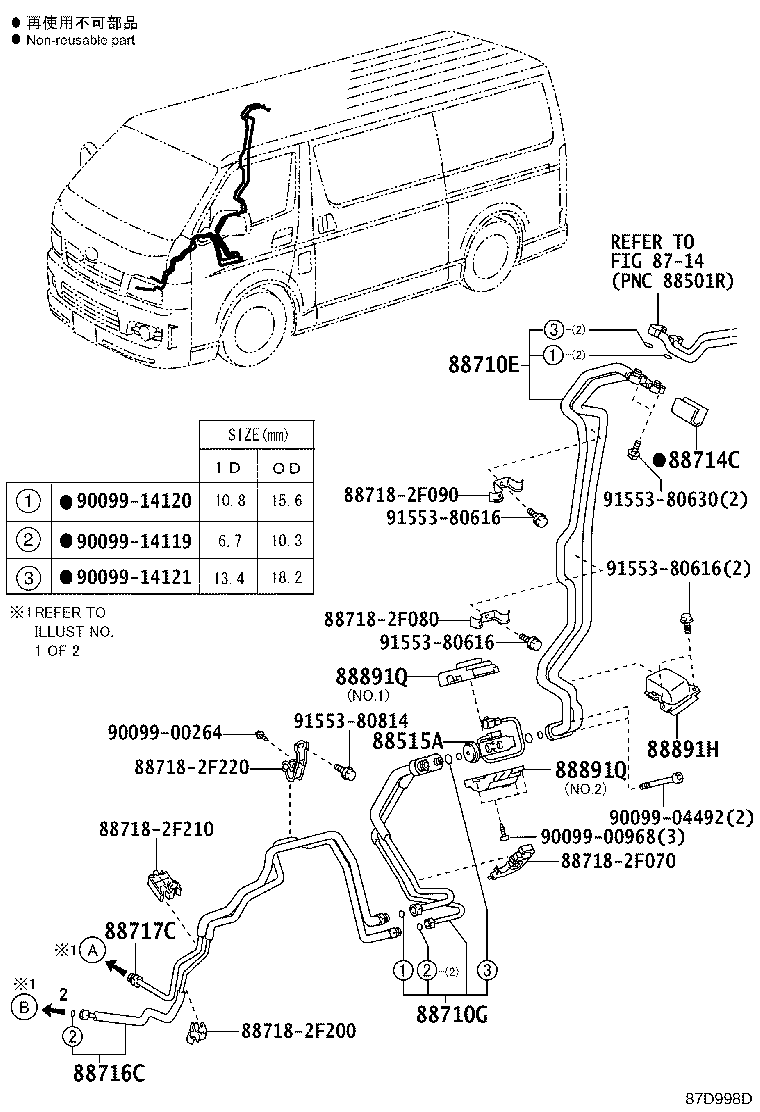

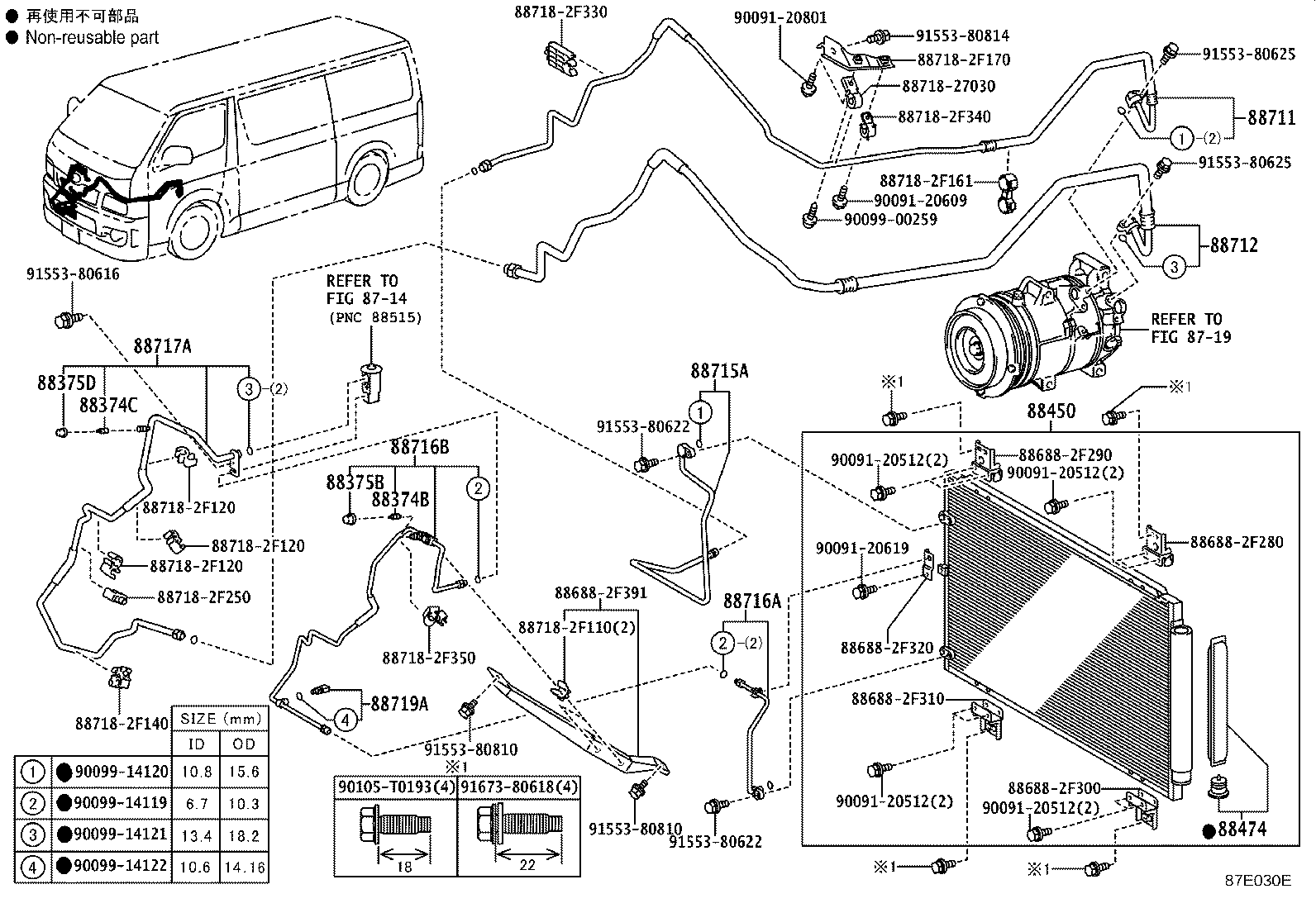

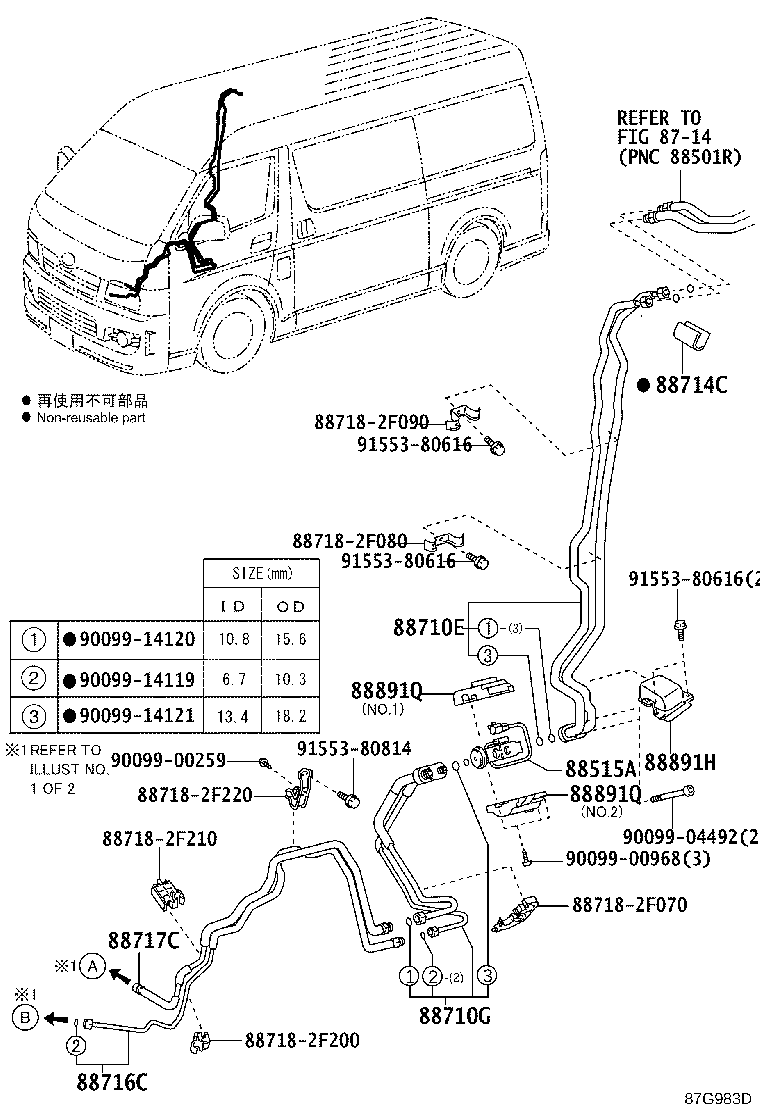

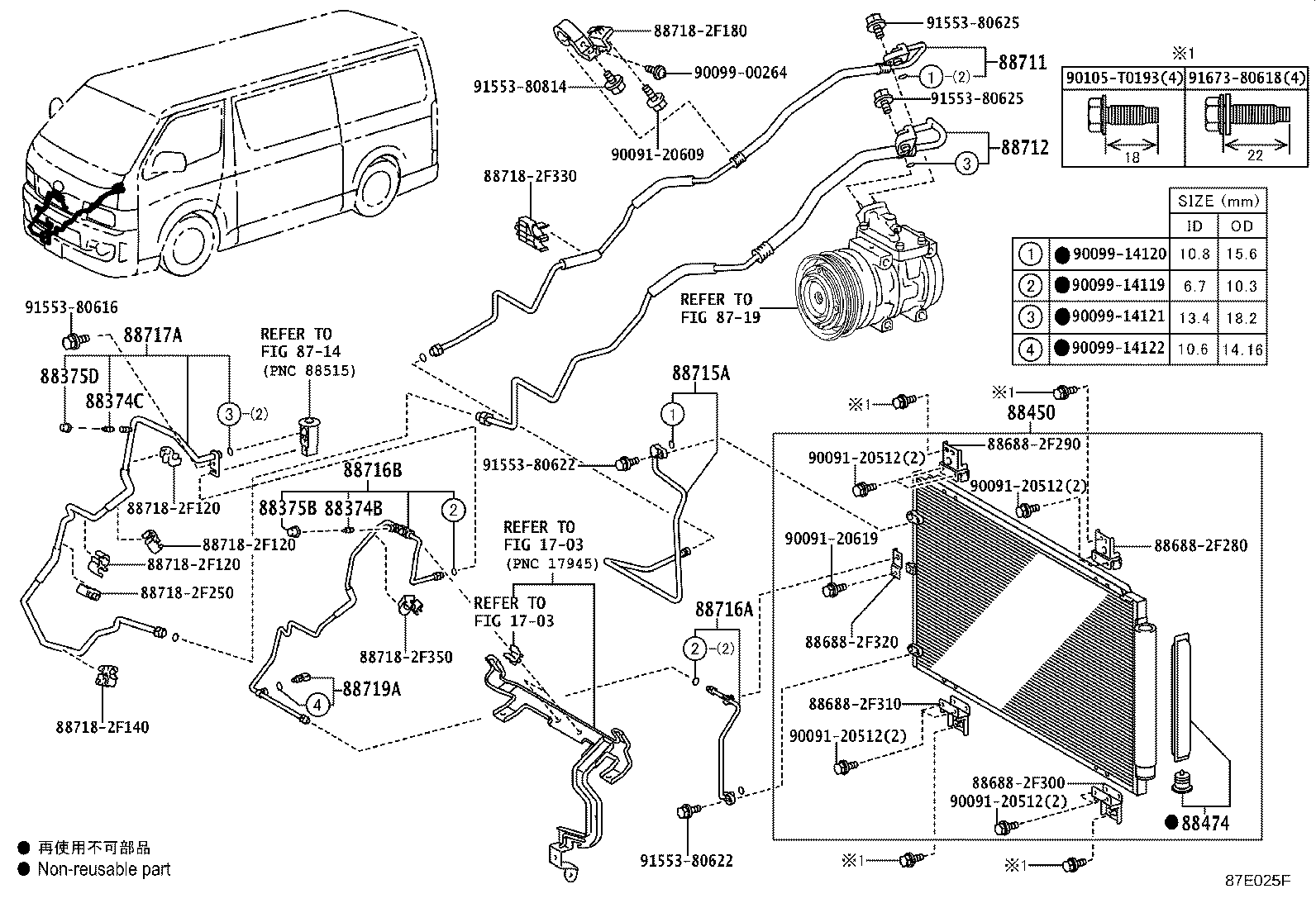

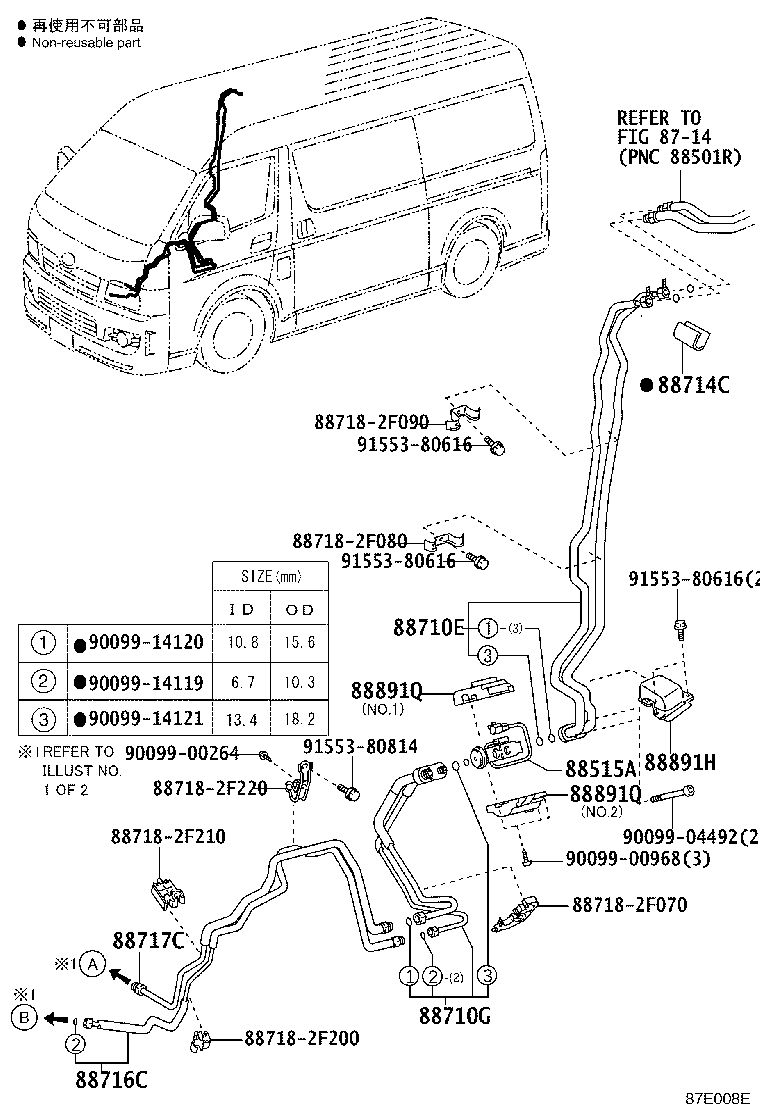

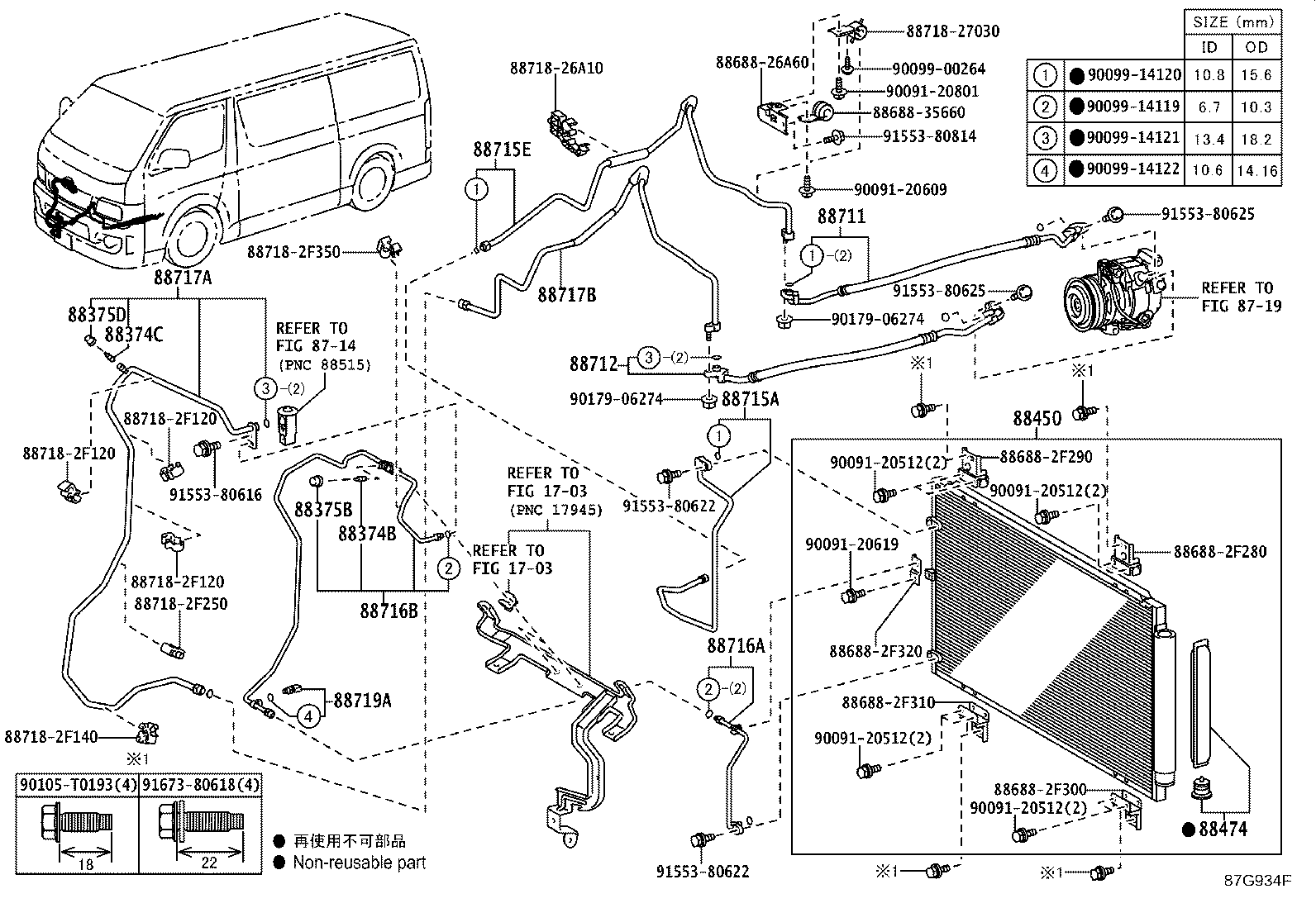

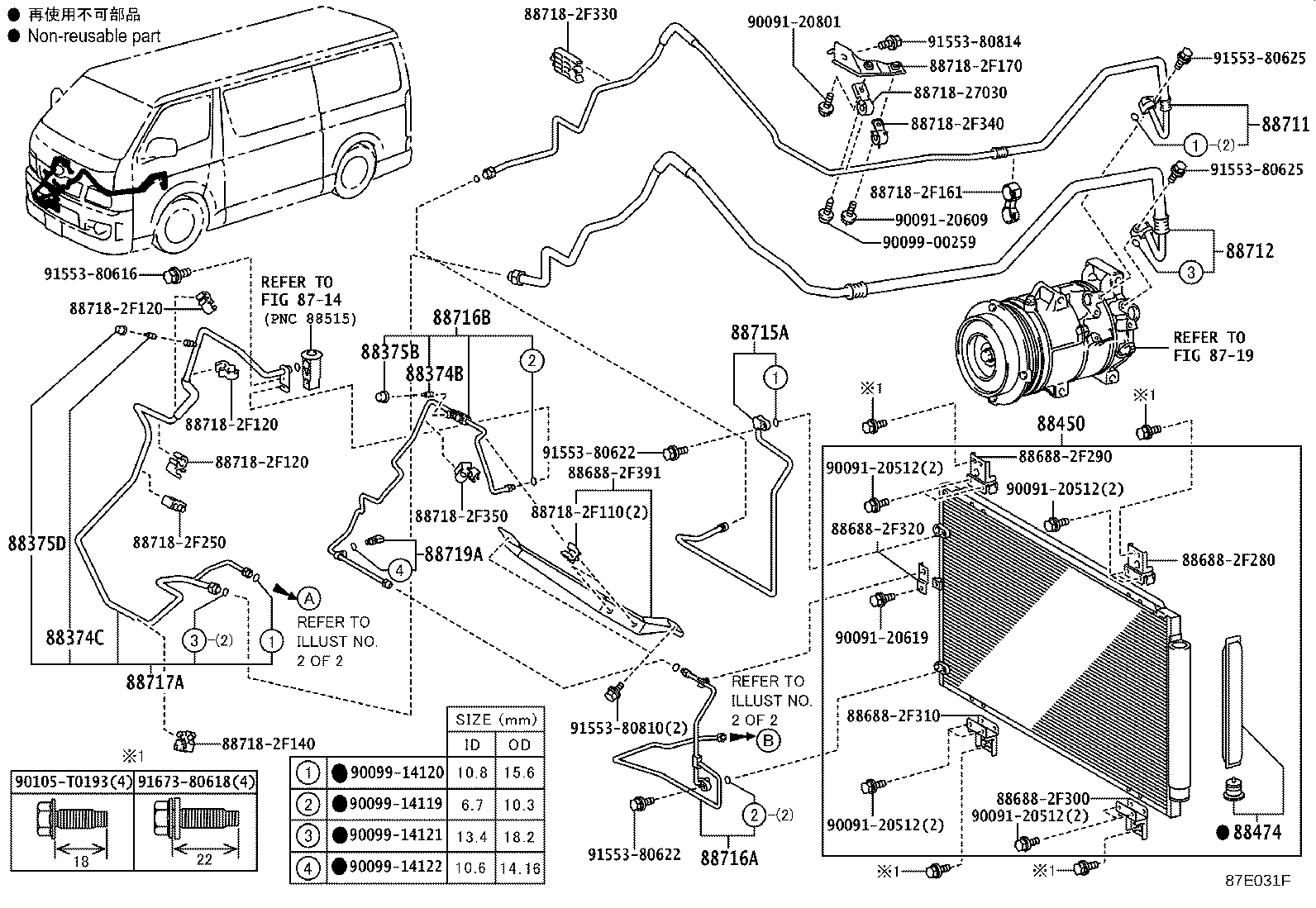

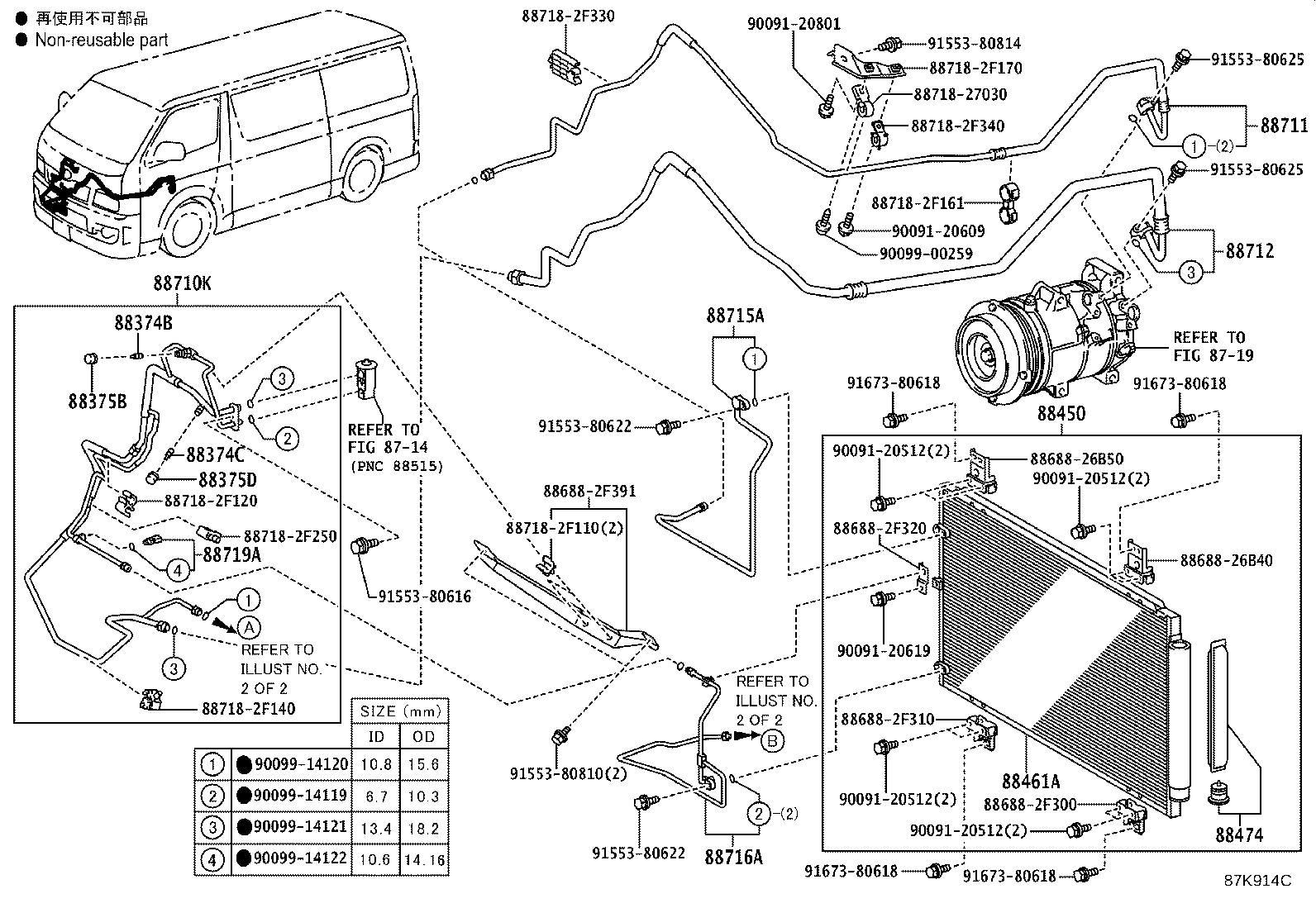

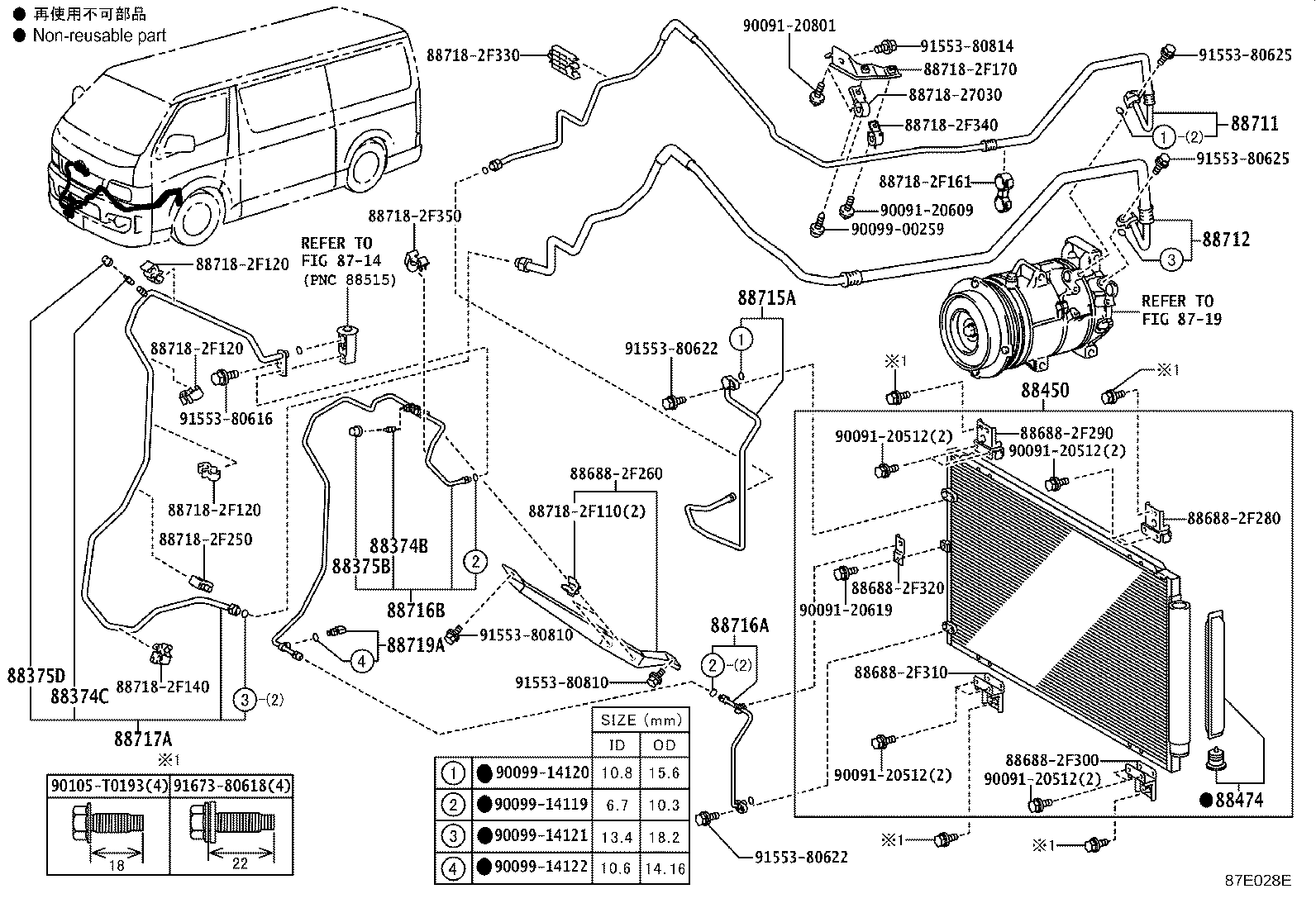

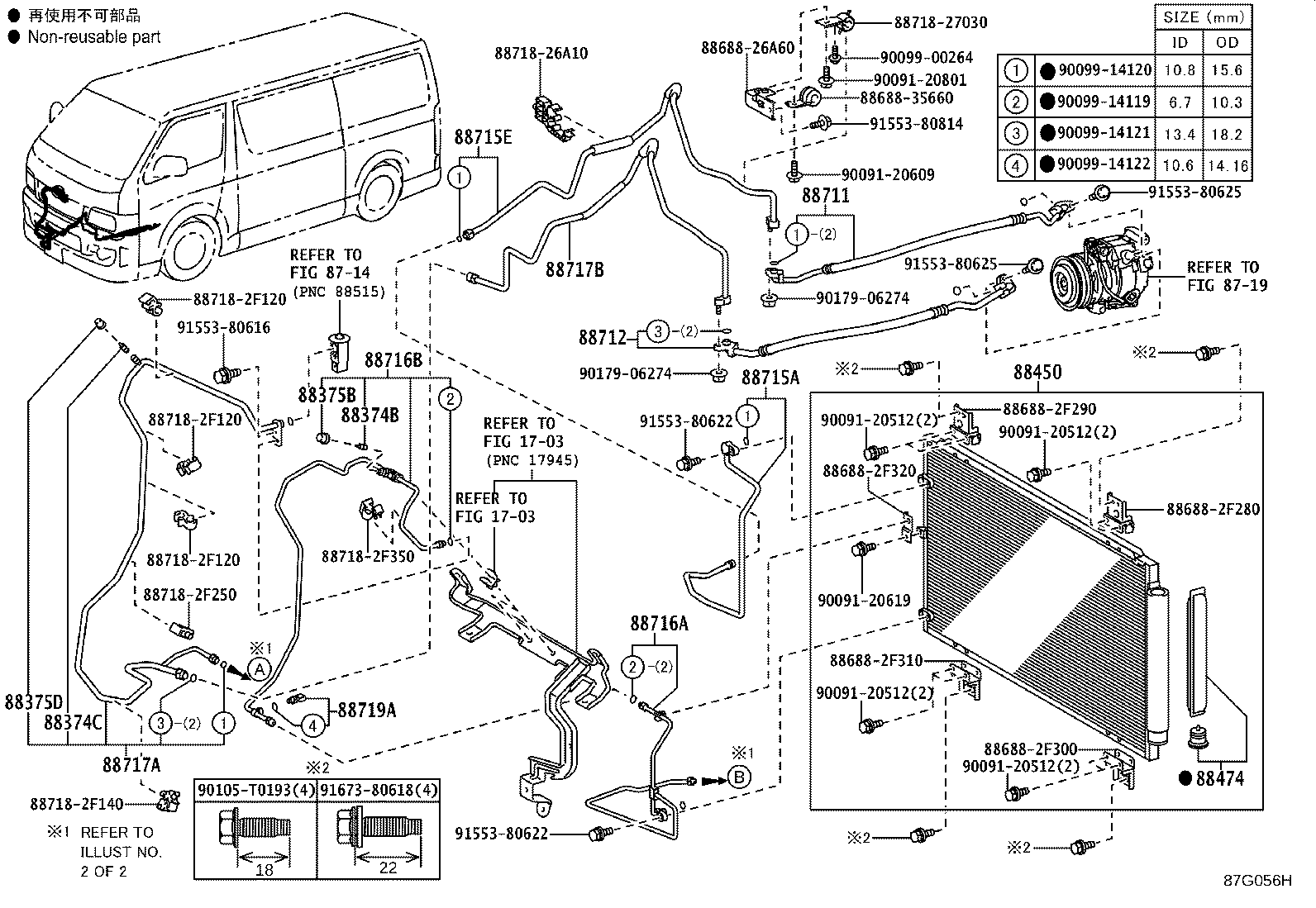

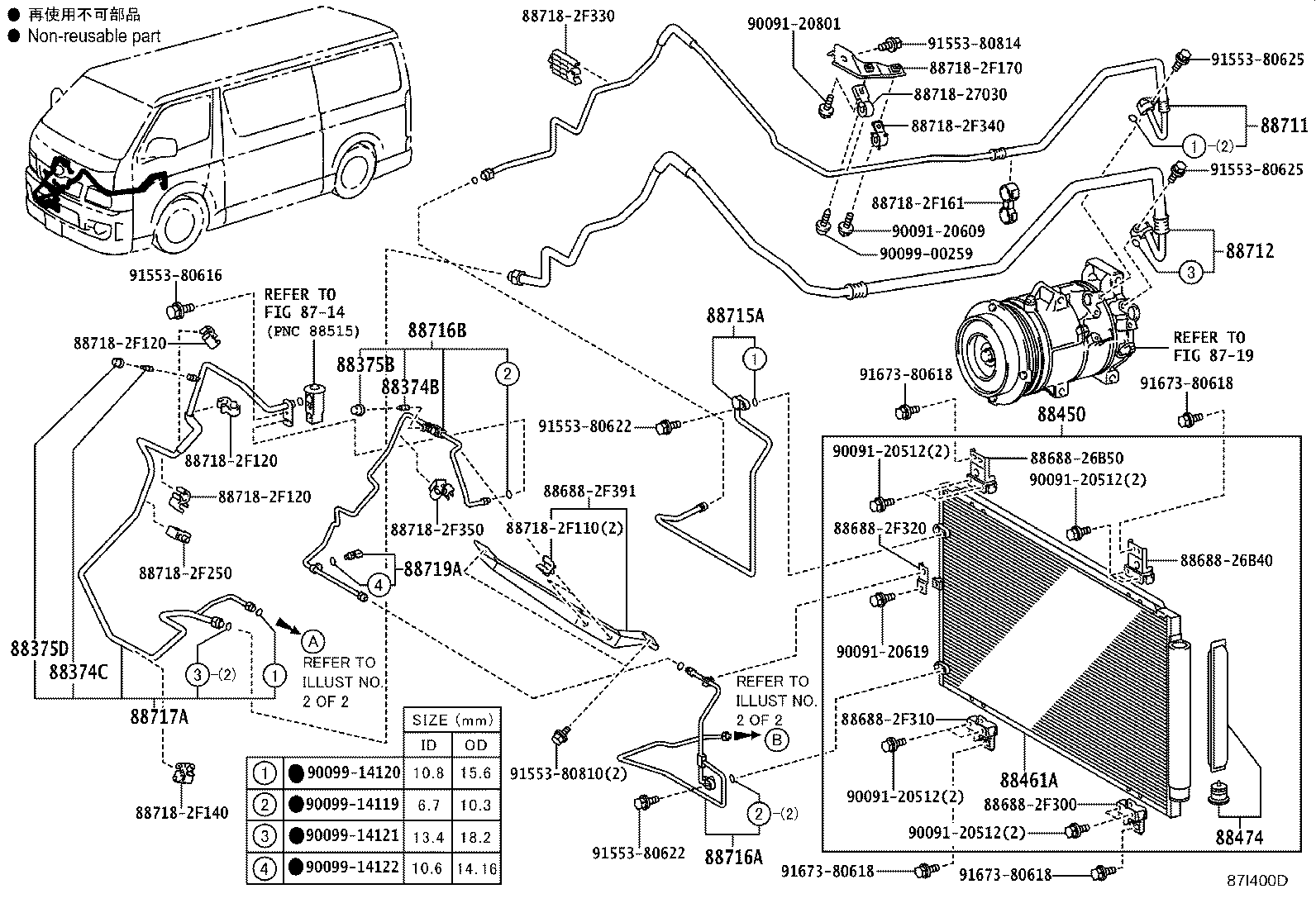

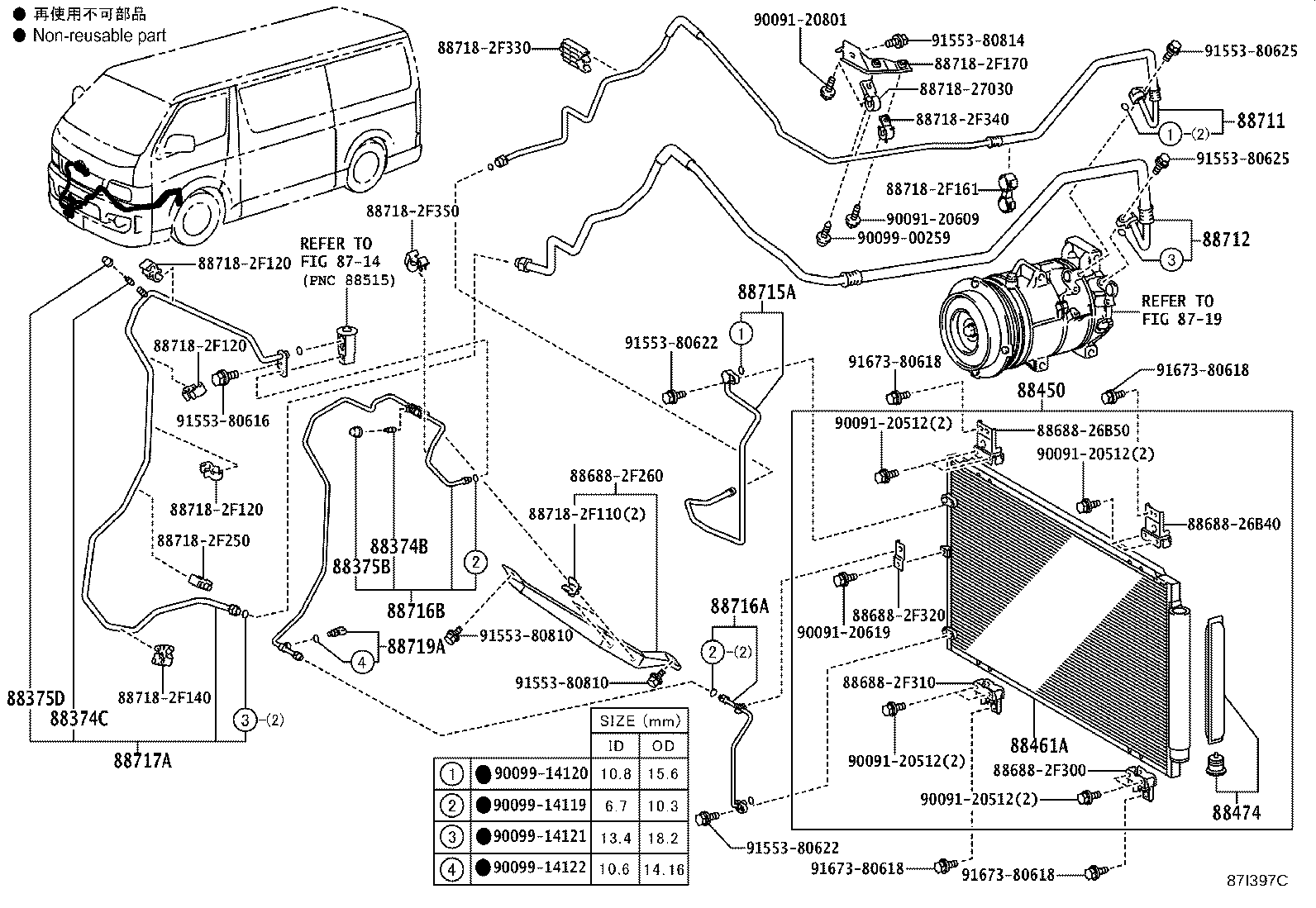

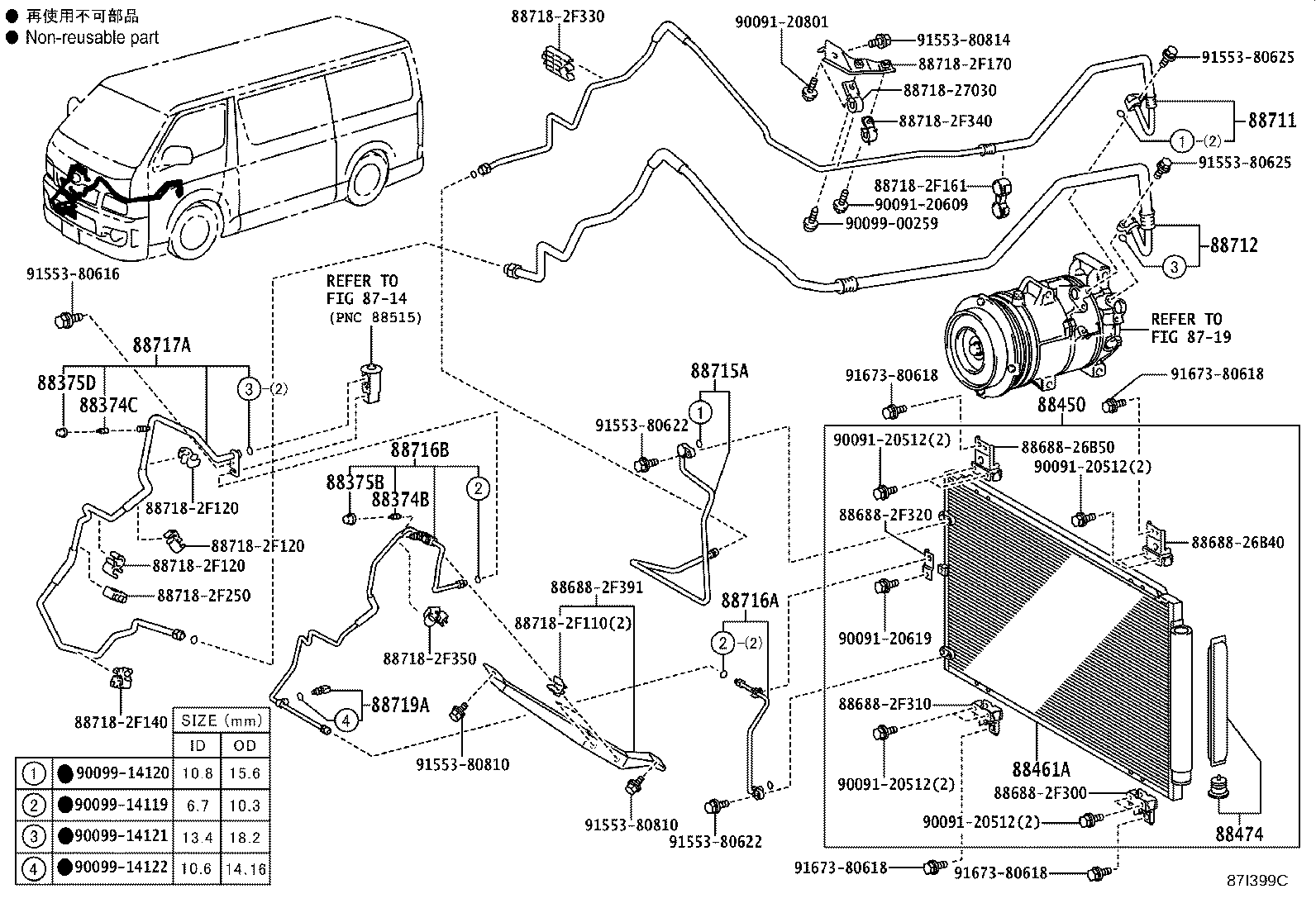

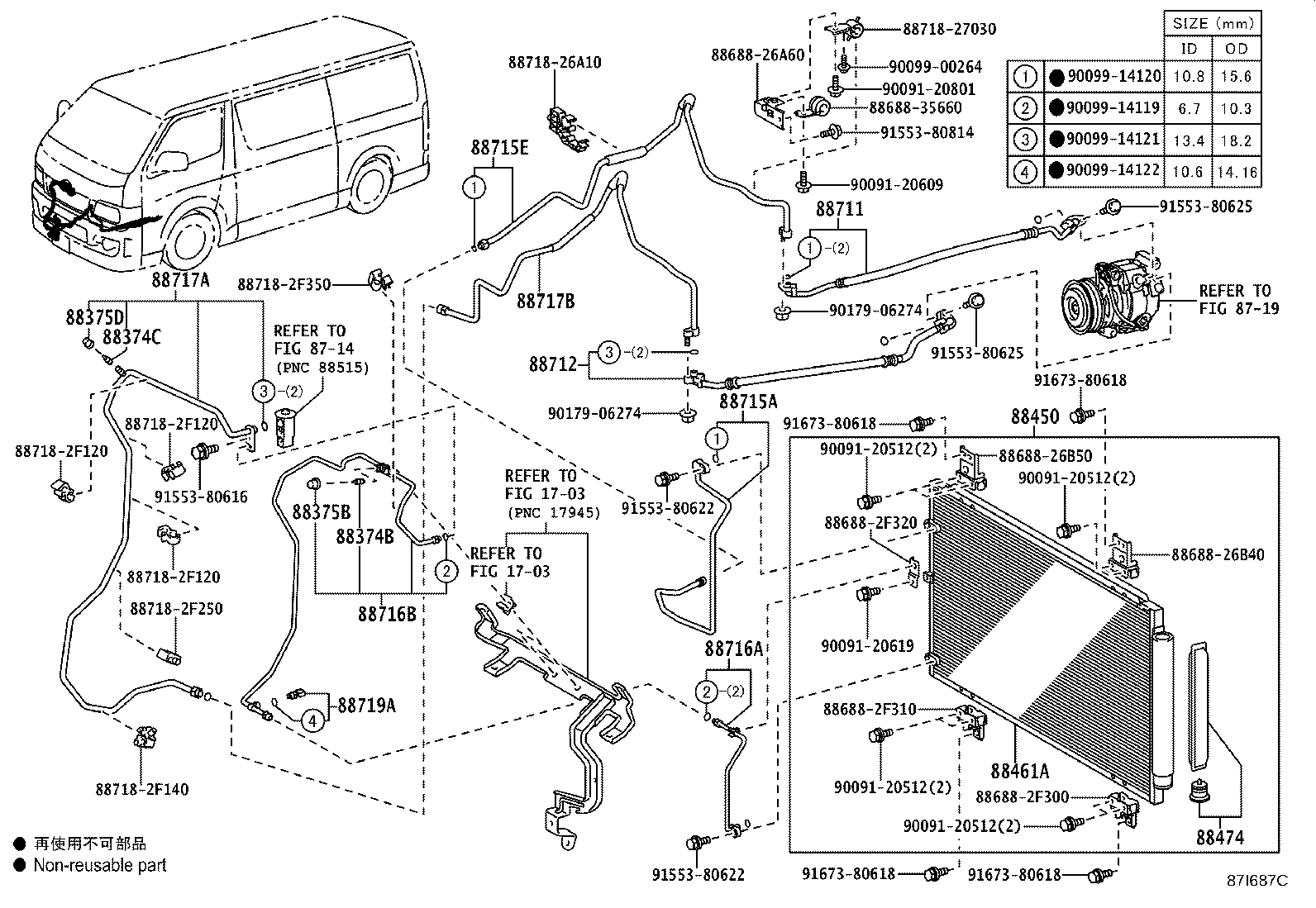

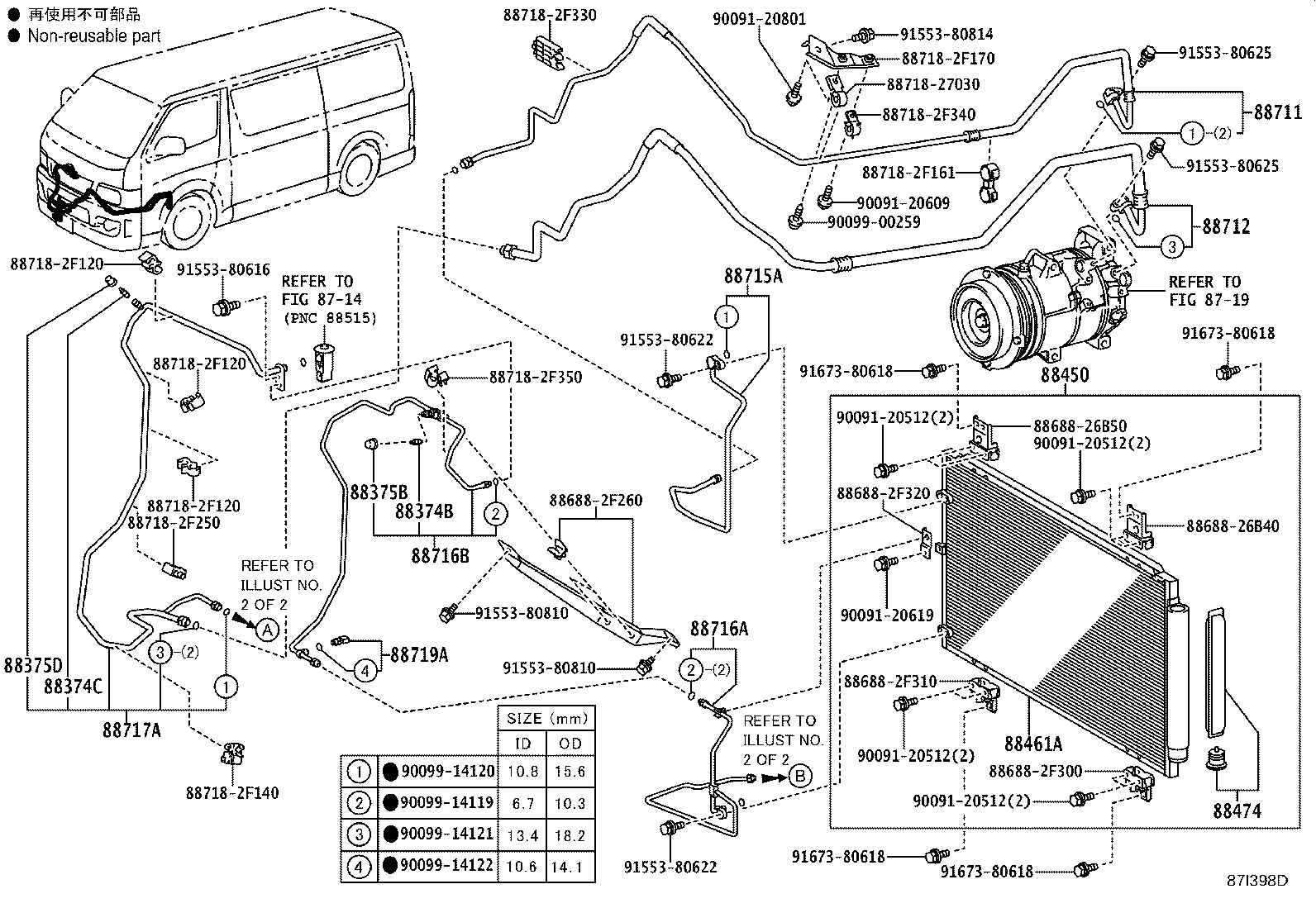

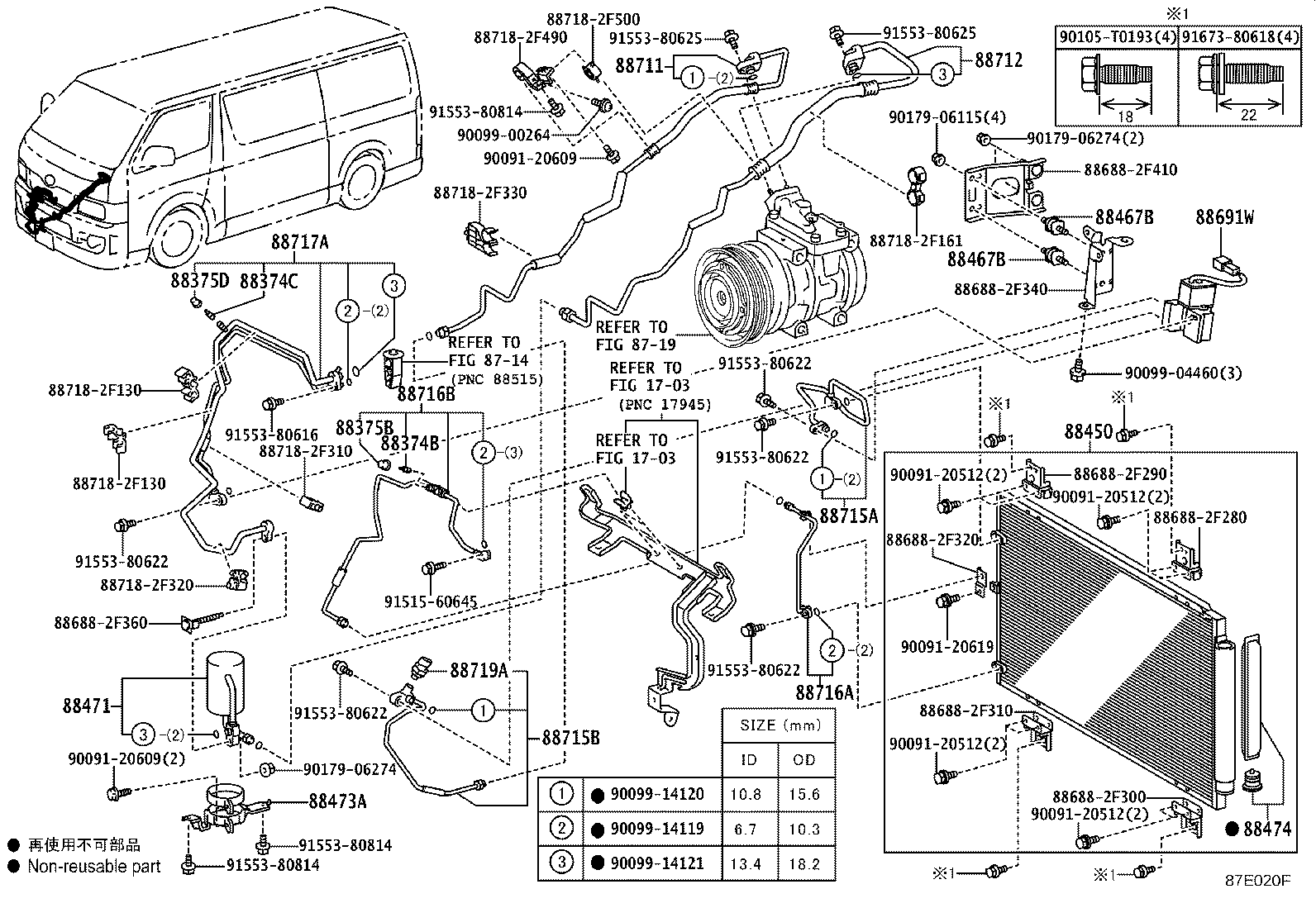

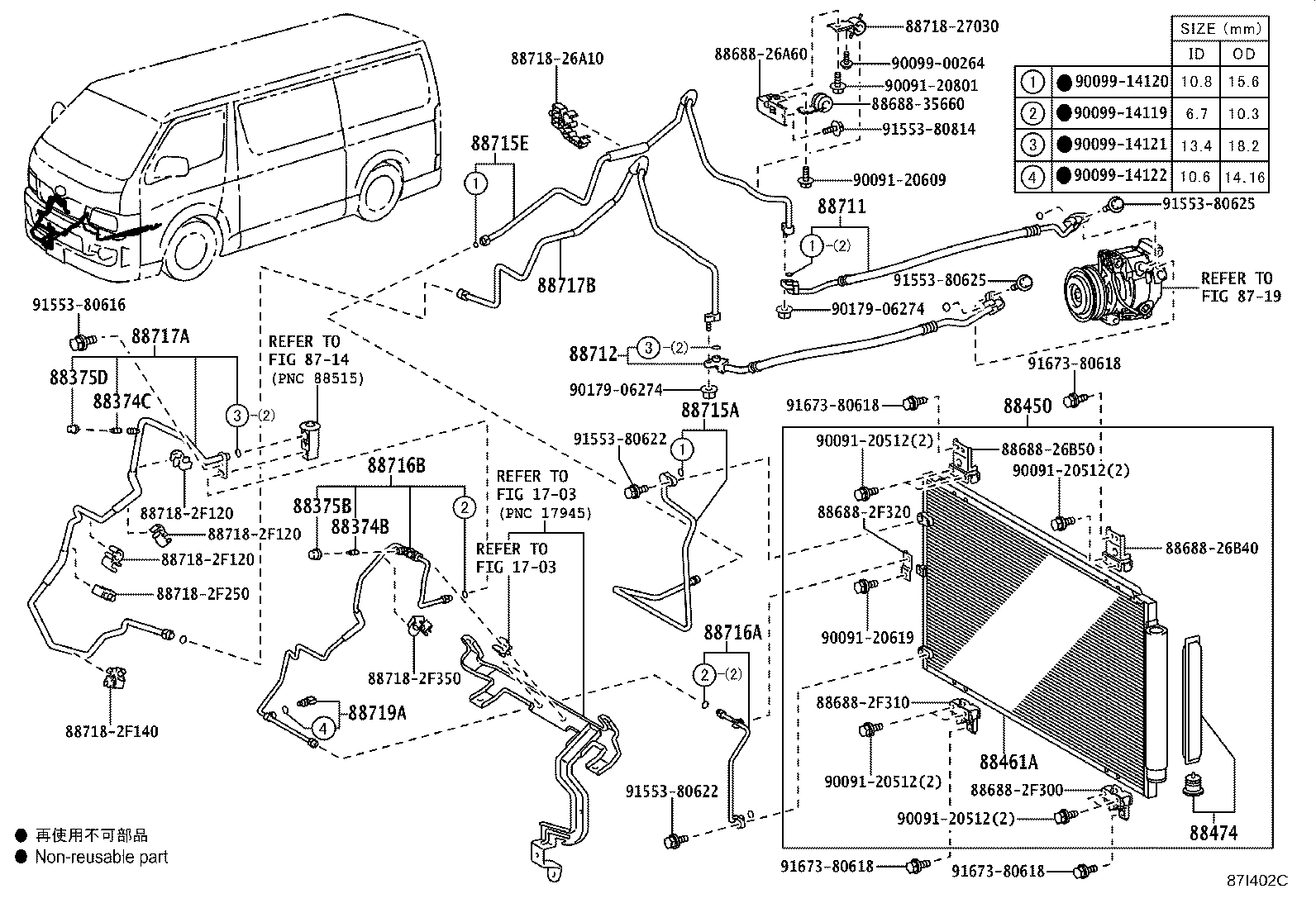

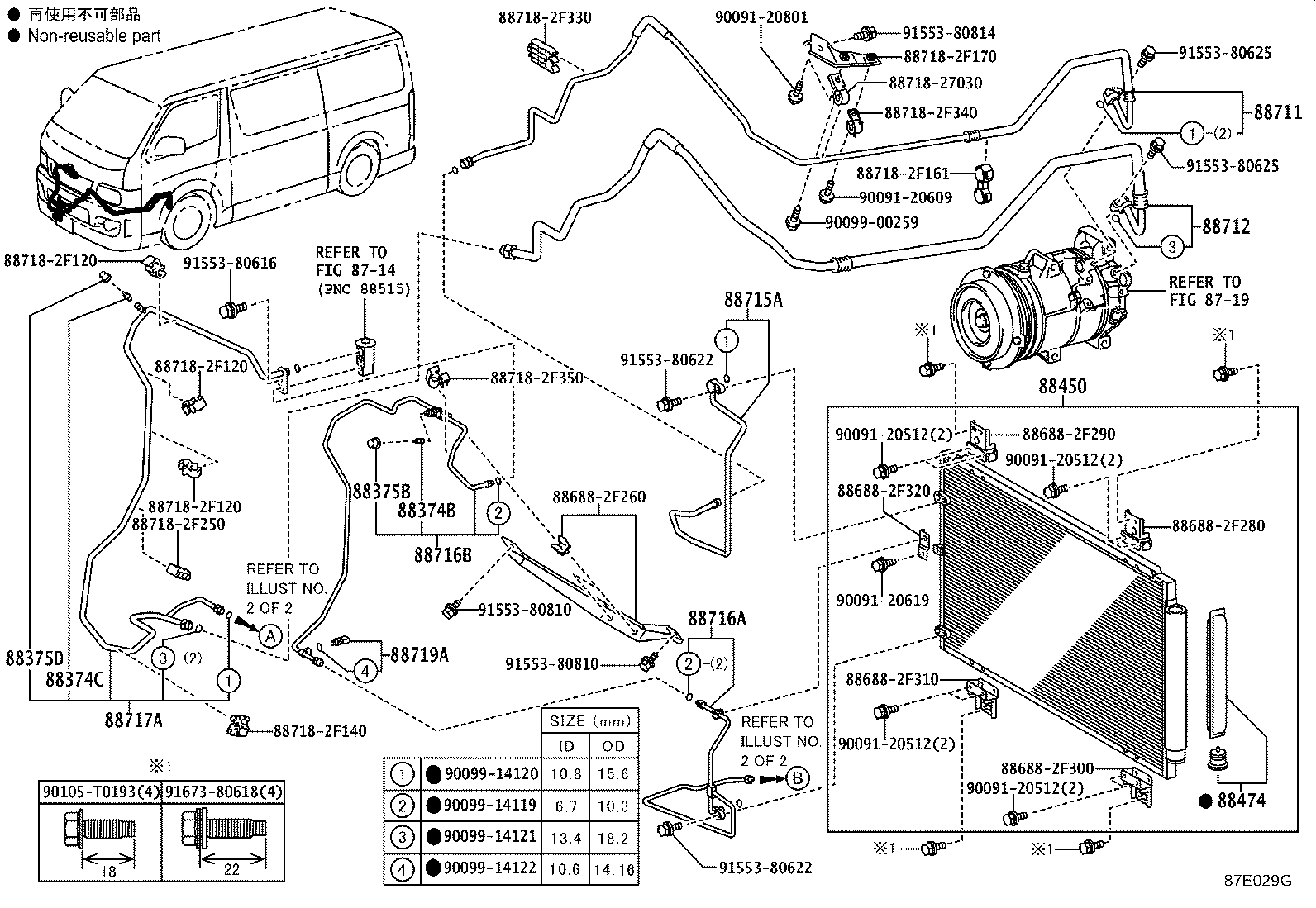

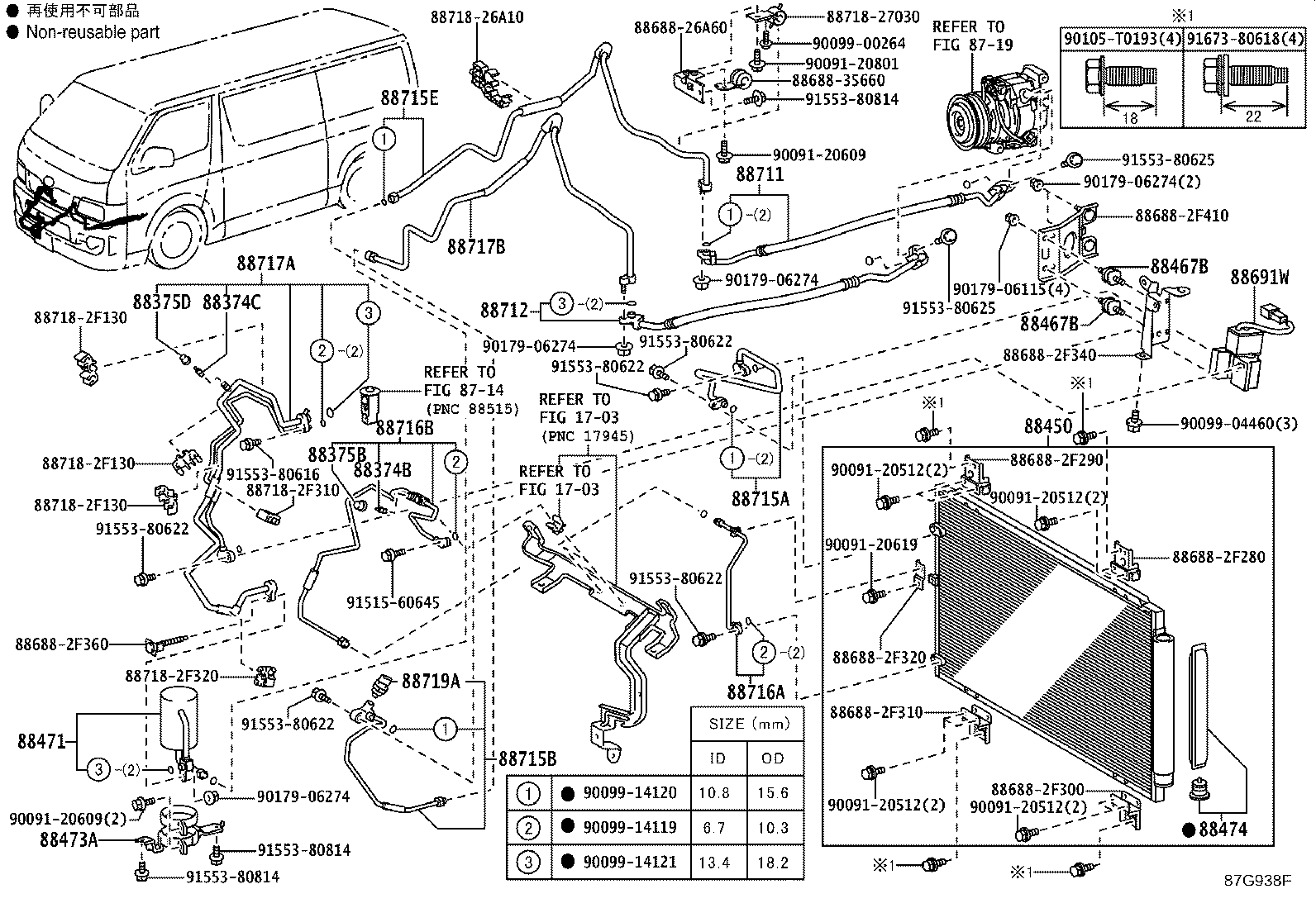

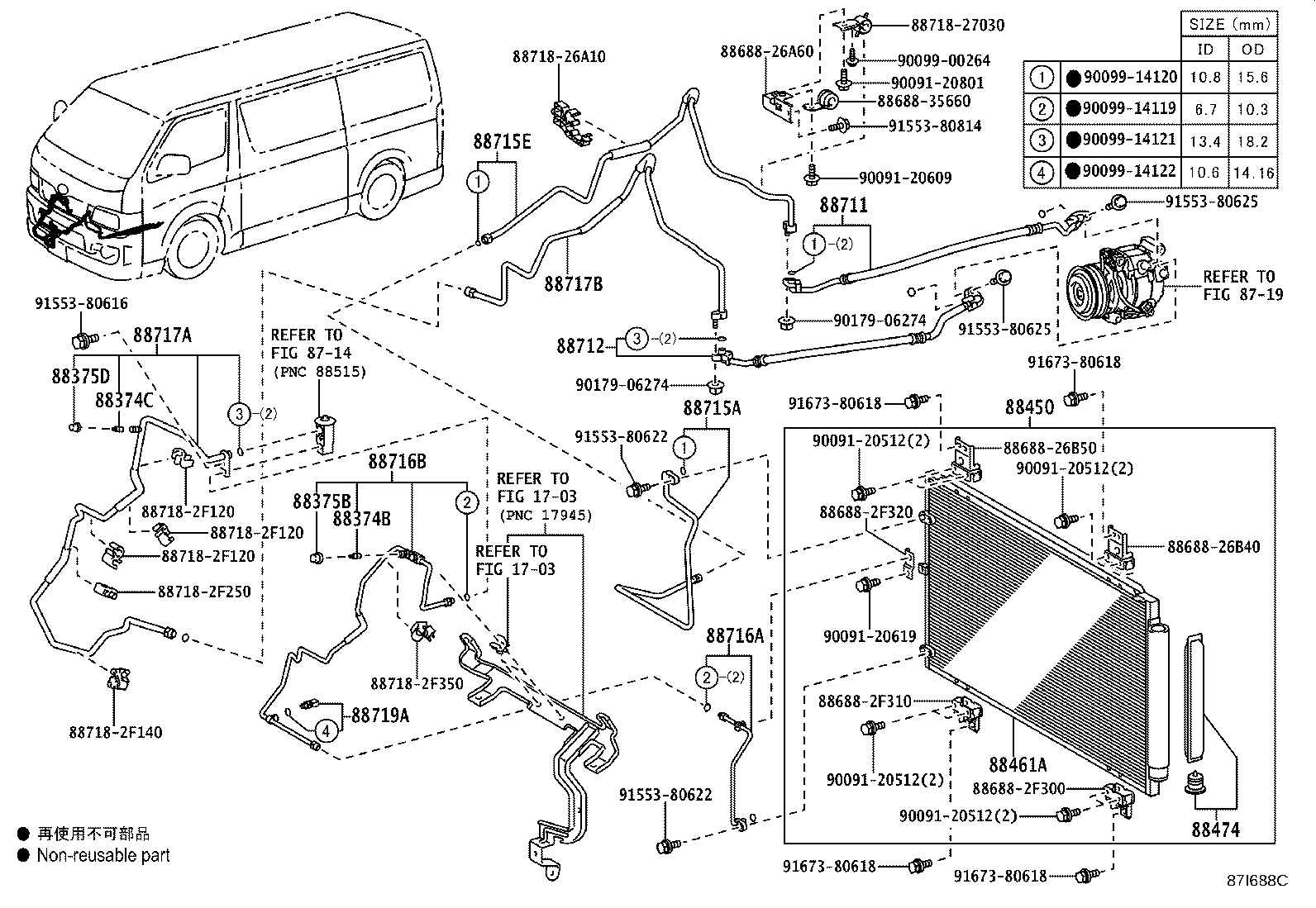

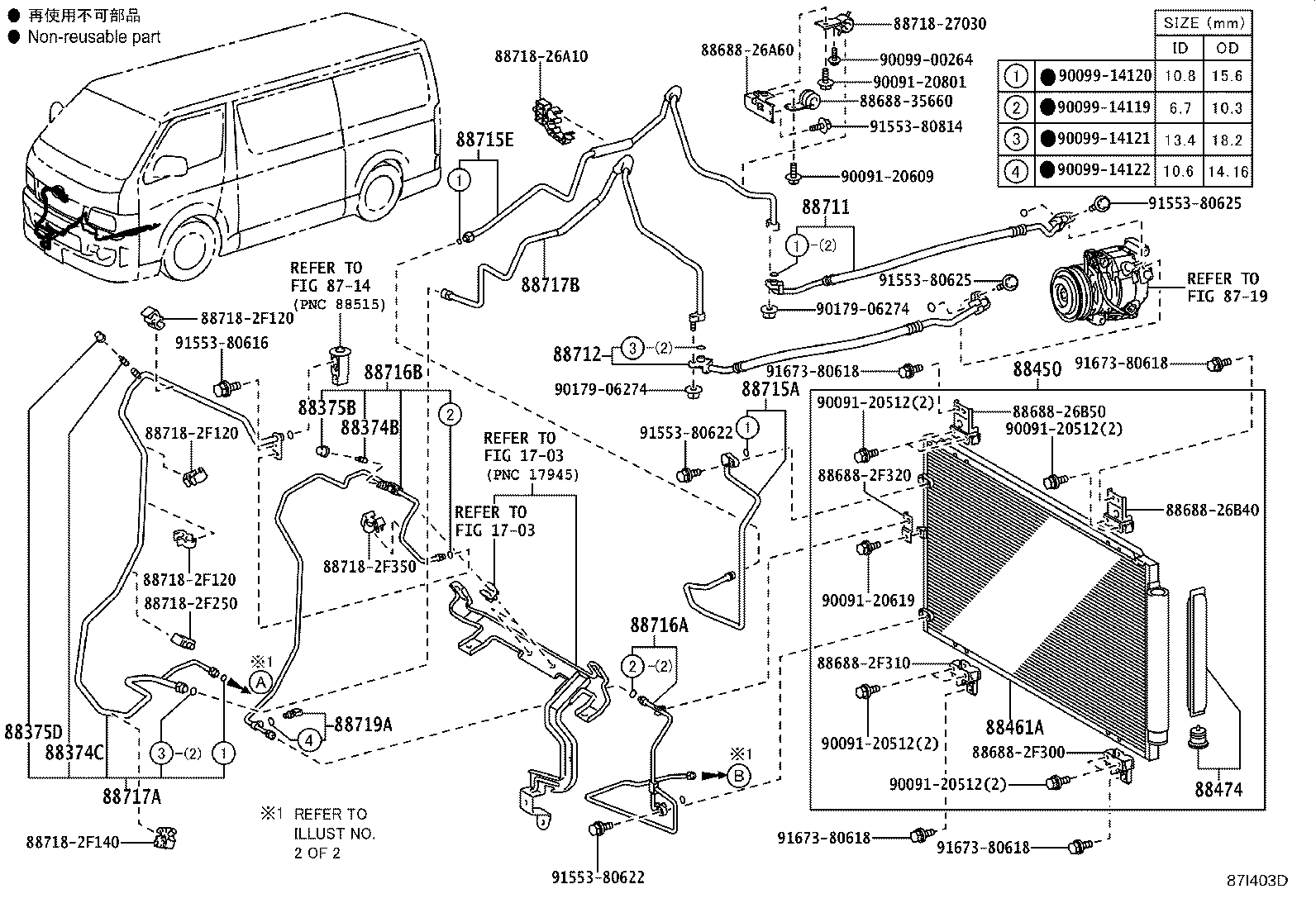

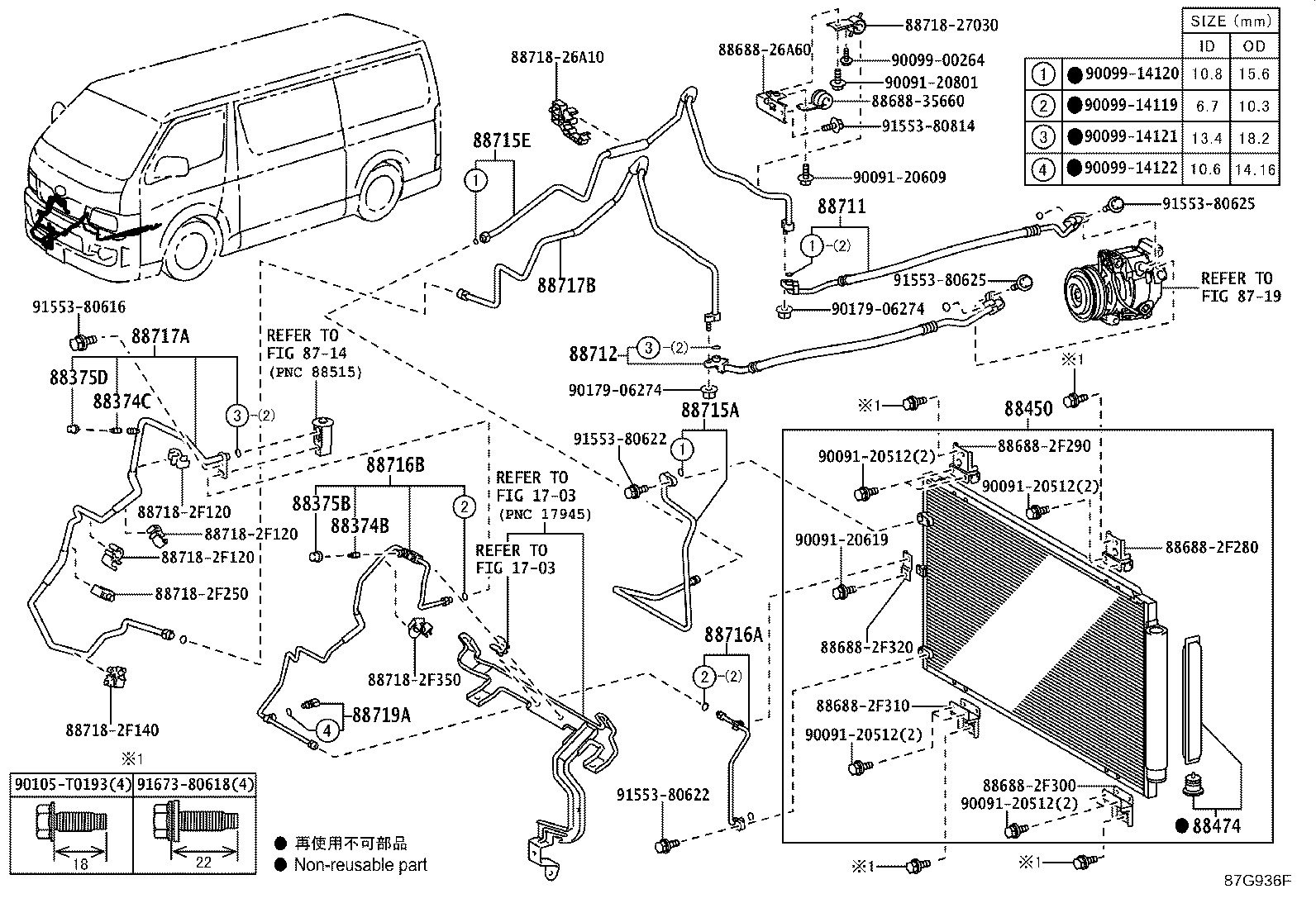

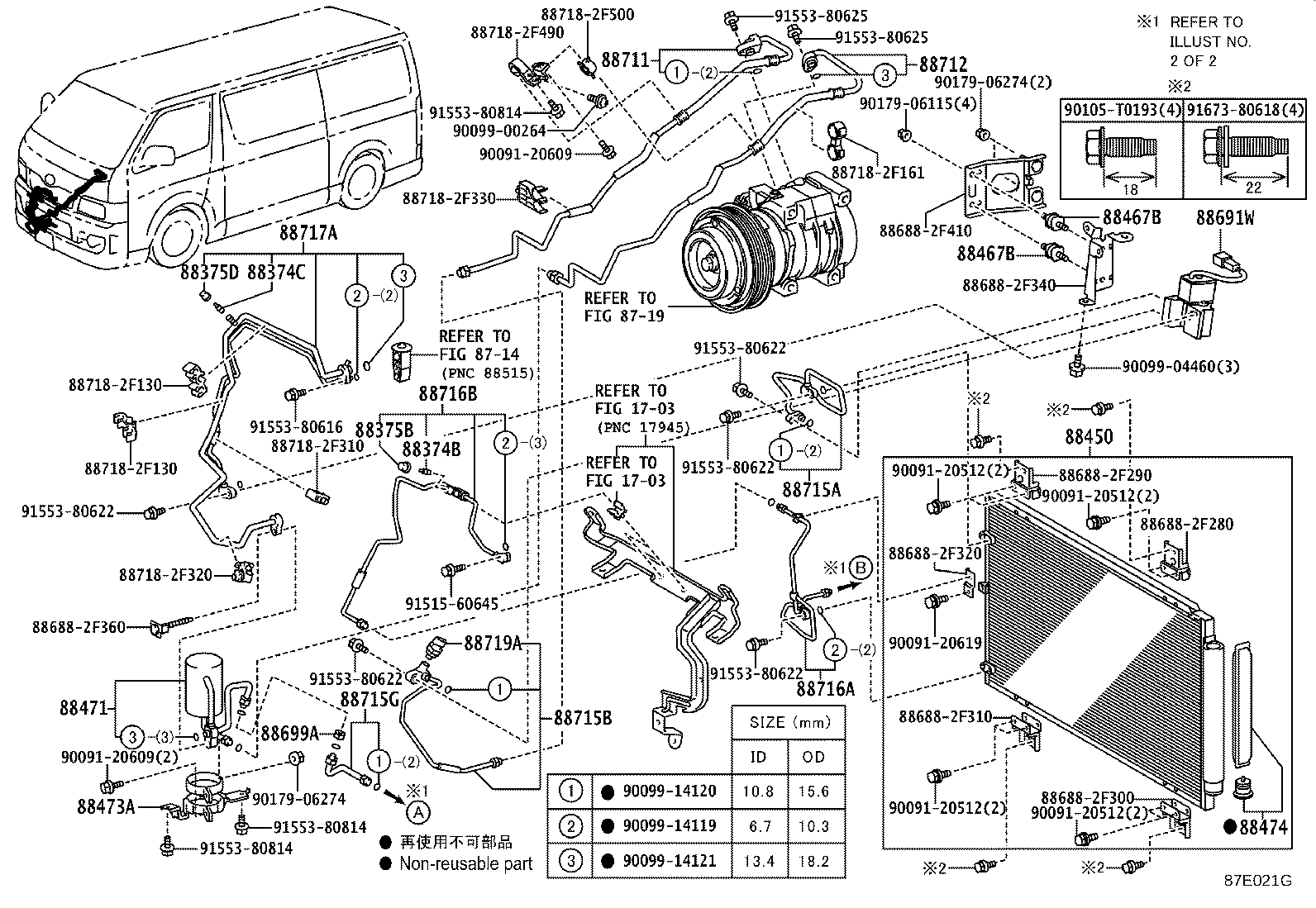

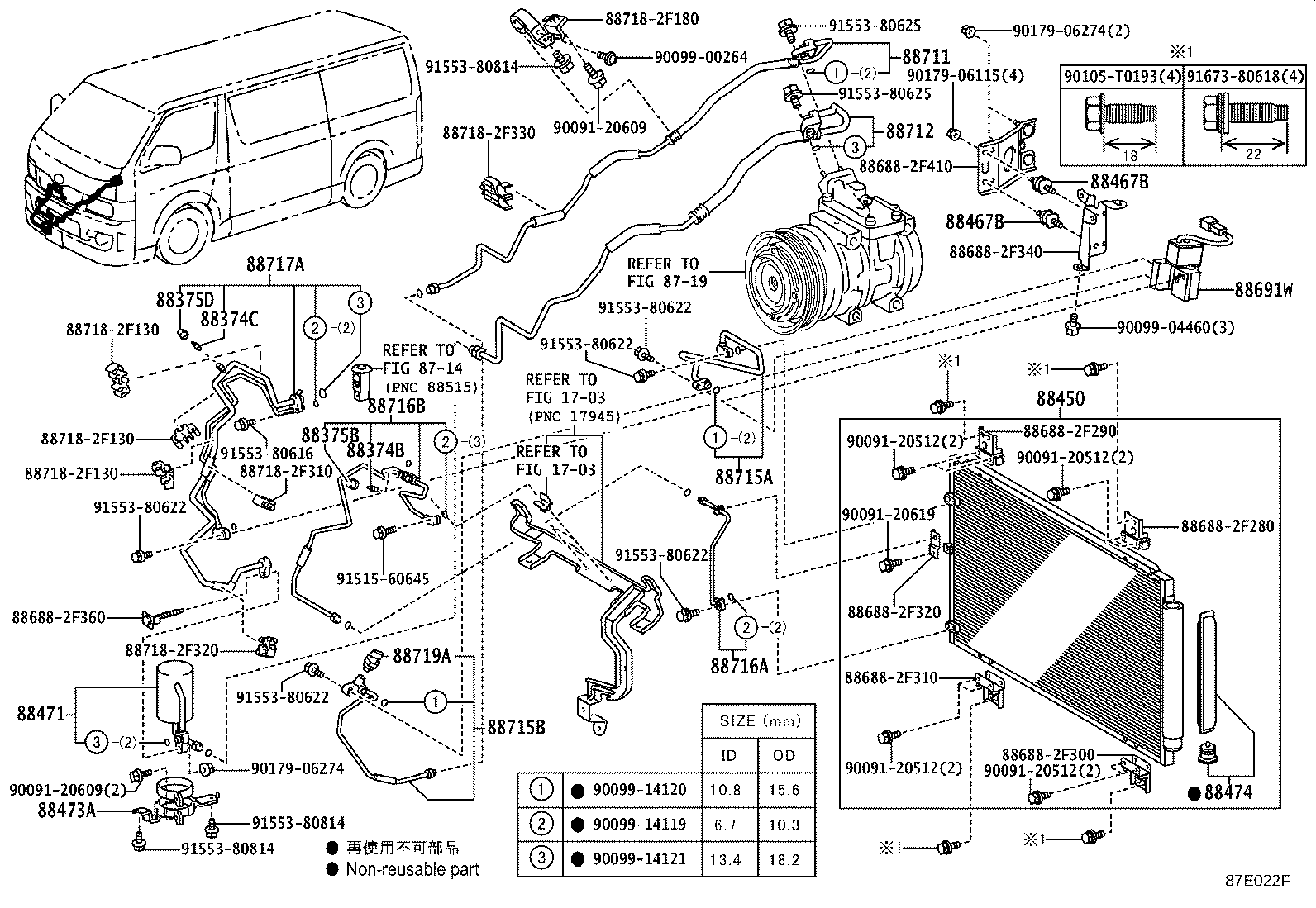

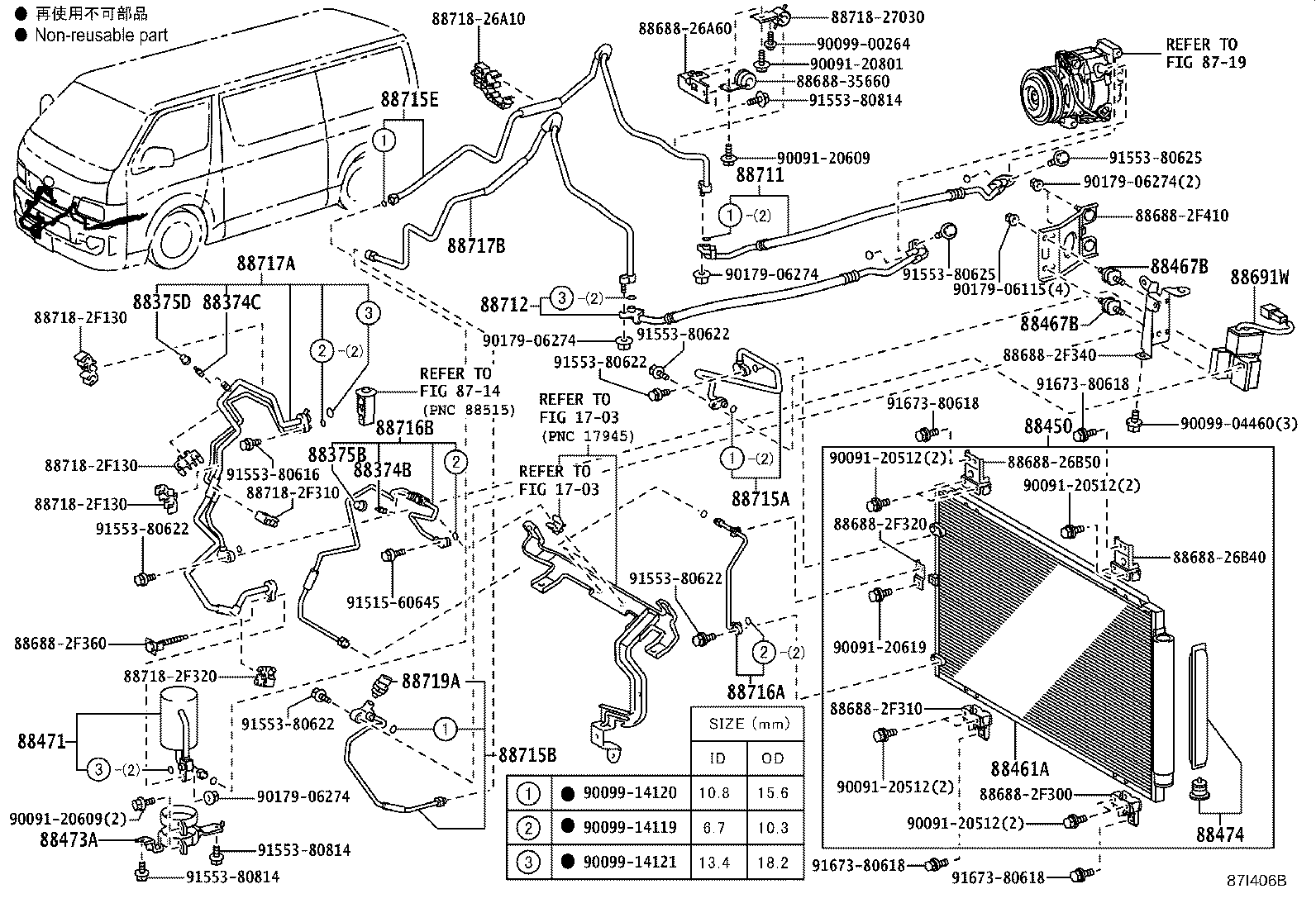

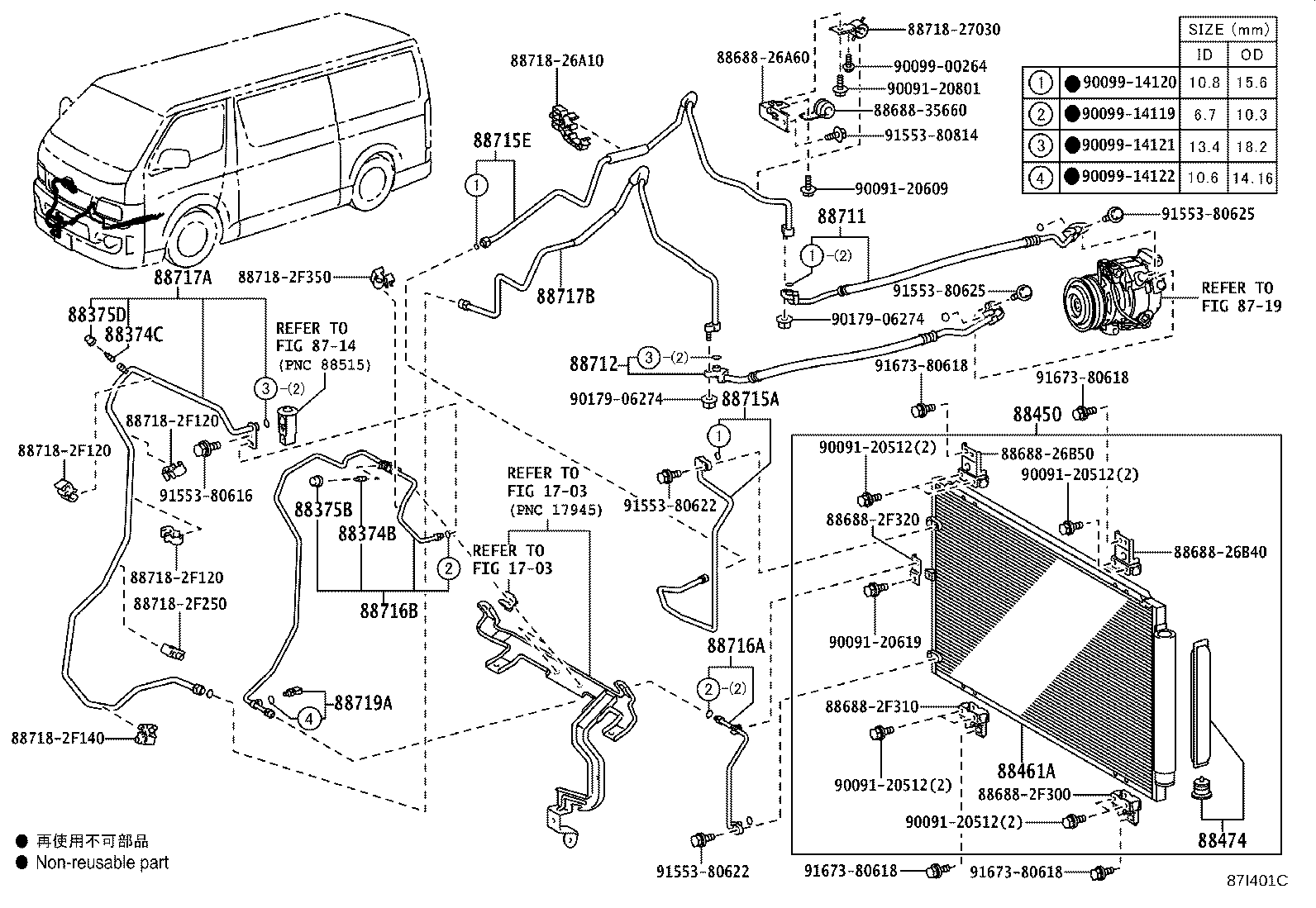

Figure 87E018E 87E018E 2013-12 → — Figure 87E020F 87E020F 2013-12 → — Figure 87E024F 87E024F 2013-12 → — Figure 87E021G 87E021G 2013-12 → — Figure 87E025F 87E025F 2013-12 → — Figure 87E022F 87E022F 2013-12 → — Figure 87E026G 87E026G 2013-12 → — Figure 87E023G 87E023G 2013-12 → — Figure 87E028E 87E028E 2013-12 → 2020-05 Figure 87E028E 87E028E 2015-01 → 2020-05 Figure 87I397C 87I397C 2020-05 → — Figure 87E029G 87E029G 2013-12 → 2020-05 Figure 87E029G 87E029G 2015-01 → 2020-05 Figure 87I398D 87I398D 2020-05 → — Figure 87E030E 87E030E 2013-12 → 2020-05 Figure 87E030E 87E030E 2015-01 → 2020-05 Figure 87I399C 87I399C 2020-05 → — Figure 87E031F 87E031F 2013-12 → 2020-05 Figure 87E031F 87E031F 2015-01 → 2020-05 Figure 87E031F 87E031F 2017-12 → 2020-05 Figure 87I400D 87I400D 2020-05 → 2022-04 Figure 87I400D 87I400D 2020-05 → — Figure 87K914C 87K914C 2022-04 → — Figure 87G934F 87G934F 2017-12 → 2020-05 Figure 87I401C 87I401C 2020-05 → — Figure 87I687C 87I687C 2020-05 → — Figure 87G936F 87G936F 2017-12 → 2020-05 Figure 87I402C 87I402C 2020-05 → — Figure 87I688C 87I688C 2020-05 → — Figure 87G056H 87G056H 2017-12 → 2020-05 Figure 87I403D 87I403D 2020-05 → — Figure 87I689D 87I689D 2020-05 → — Figure 87G935G 87G935G 2017-12 → 2020-05 Figure 87I404D 87I404D 2020-05 → — Figure 87I690D 87I690D 2020-05 → — Figure 87G937F 87G937F 2017-12 → 2020-05 Figure 87I405B 87I405B 2020-05 → — Figure 87I691B 87I691B 2020-05 → — Figure 87G938F 87G938F 2017-12 → 2020-05 Figure 87I406B 87I406B 2020-05 → — Figure 87I692B 87I692B 2020-05 → — Figure 87G939G 87G939G 2017-12 → 2020-05 Figure 87I407C 87I407C 2020-05 → — Figure 87I693C 87I693C 2020-05 → — Figure 87G940G 87G940G 2017-12 → 2020-05 Figure 87I408C 87I408C 2020-05 → — Figure 87I694C 87I694C 2020-05 → — Figure 87D998D 87D998D 2013-12 → — Figure 87D998D 87D998D 2015-01 → — Figure 87D999D 87D999D 2013-12 → — Figure 87E001D 87E001D 2013-12 → — Figure 87E001D 87E001D 2015-01 → — Figure 87E002D 87E002D 2013-12 → — Figure 87E003D 87E003D 2013-12 → — Figure 87E003D 87E003D 2015-01 → — Figure 87E004E 87E004E 2013-12 → — Figure 87E005D 87E005D 2013-12 → — Figure 87E005D 87E005D 2015-01 → — Figure 87E006D 87E006D 2013-12 → — Figure 87E007D 87E007D 2013-12 → — Figure 87E007D 87E007D 2014-04 → — Figure 87E007D 87E007D 2015-01 → — Figure 87E007D 87E007D 2015-03 → — Figure 87E007D 87E007D 2017-12 → — Figure 87E008E 87E008E 2013-12 → — Figure 87E008E 87E008E 2015-01 → — Figure 87G983D 87G983D 2017-12 → — Figure 87G984D 87G984D 2017-12 → — Figure 87G985D 87G985D 2017-12 → — Figure 87G986D 87G986D 2017-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88461A Core, Cooler Condenser
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88691W Valve, Magnet
88699A Valve, Air
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
