Cylinder Head

45 part groups · 9 illustrations

Illustrations

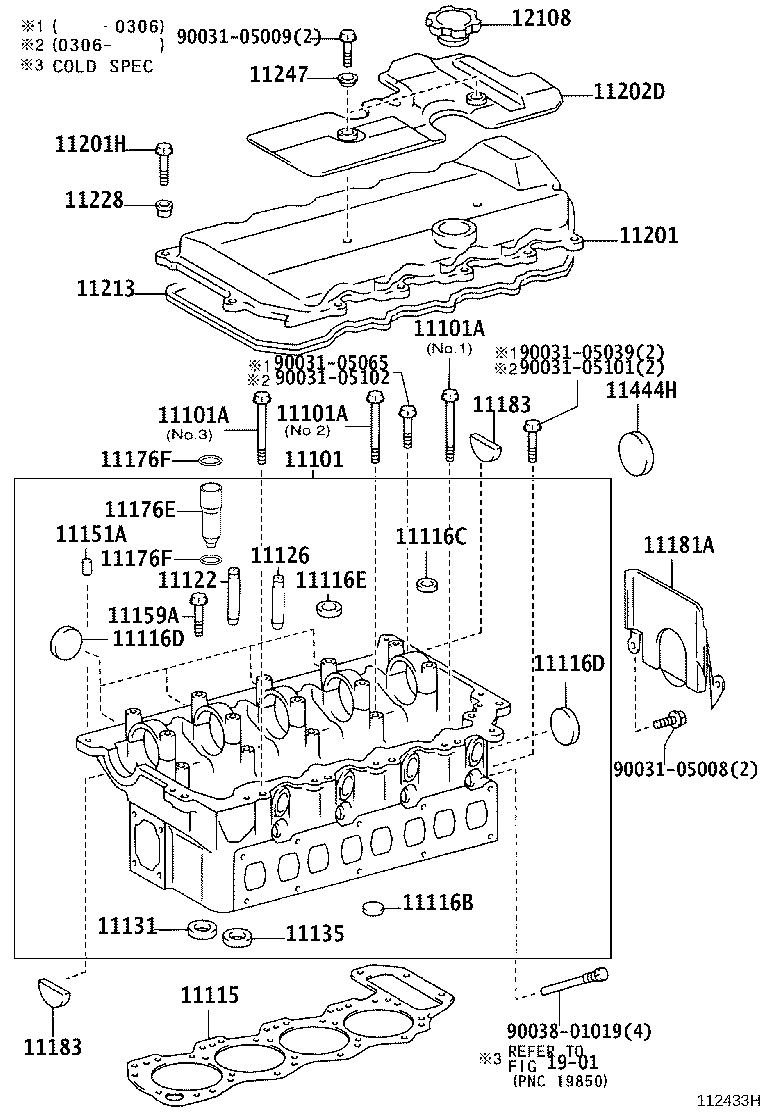

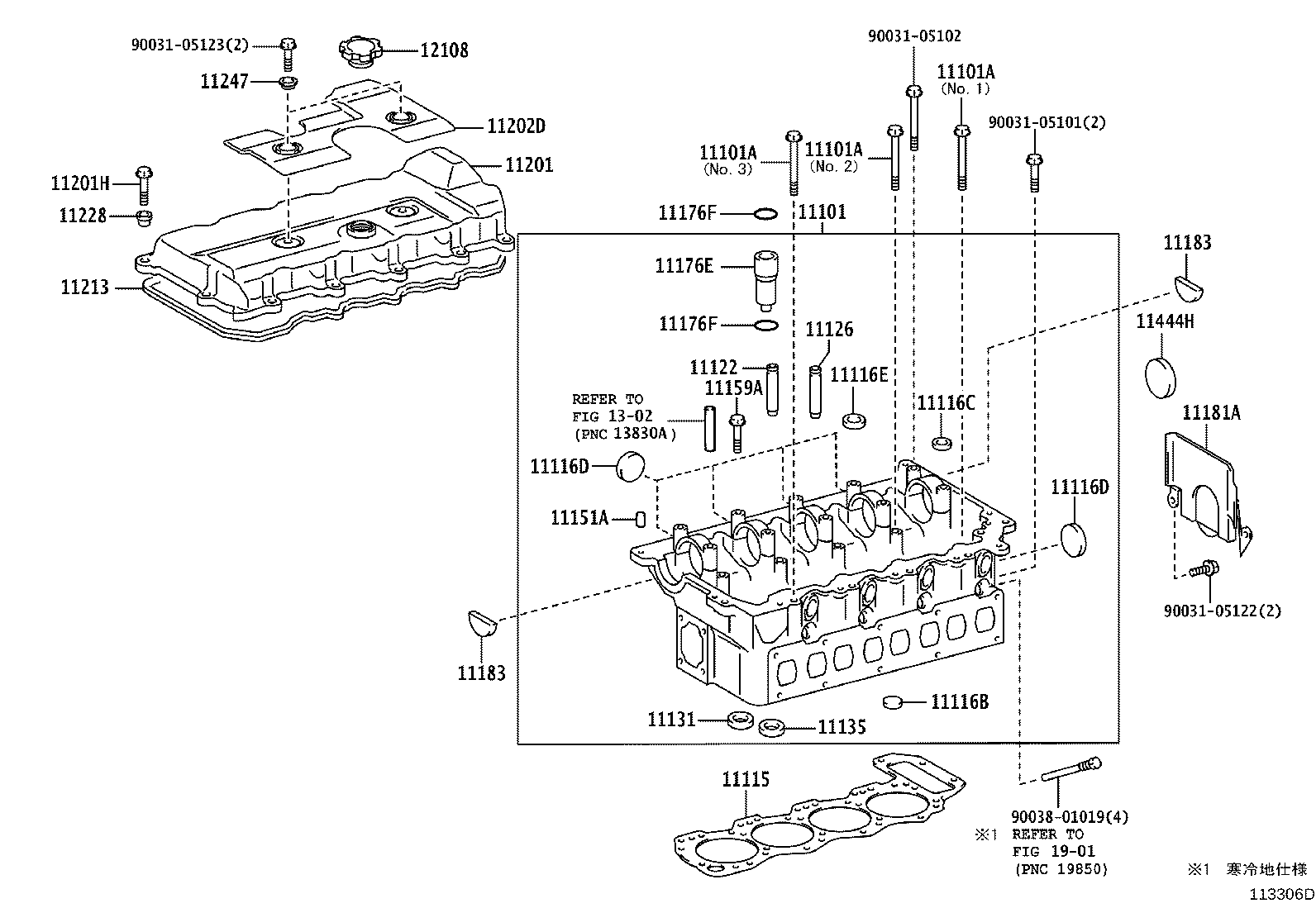

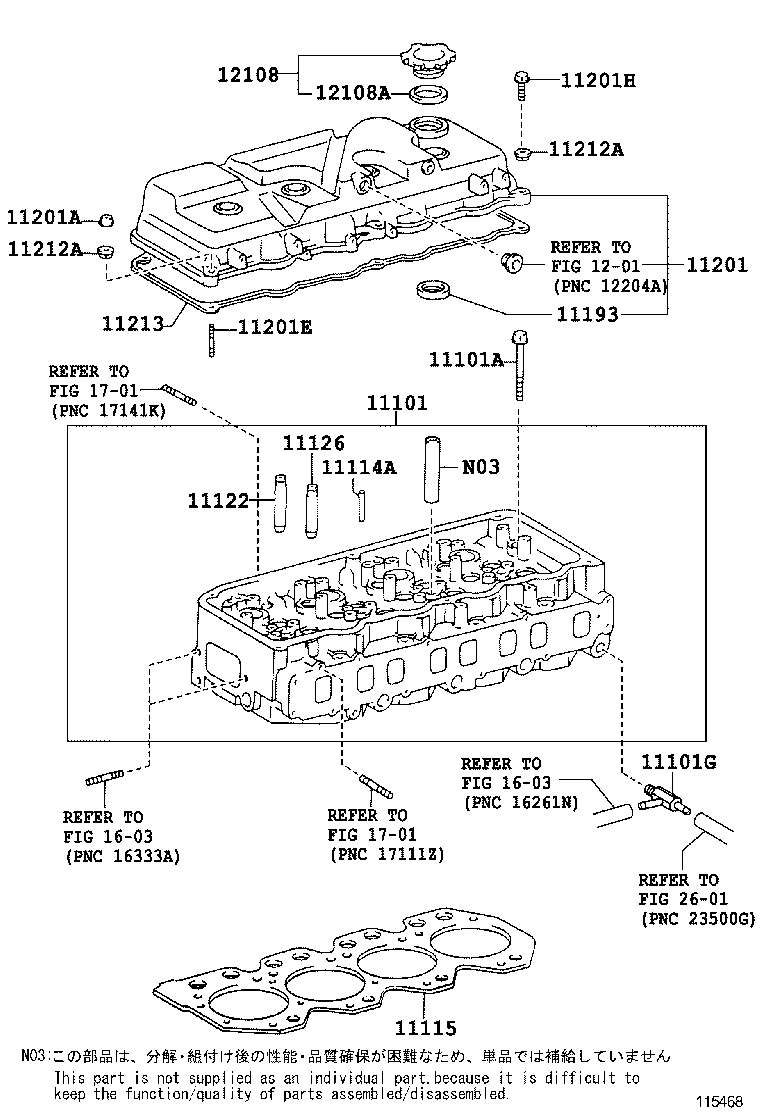

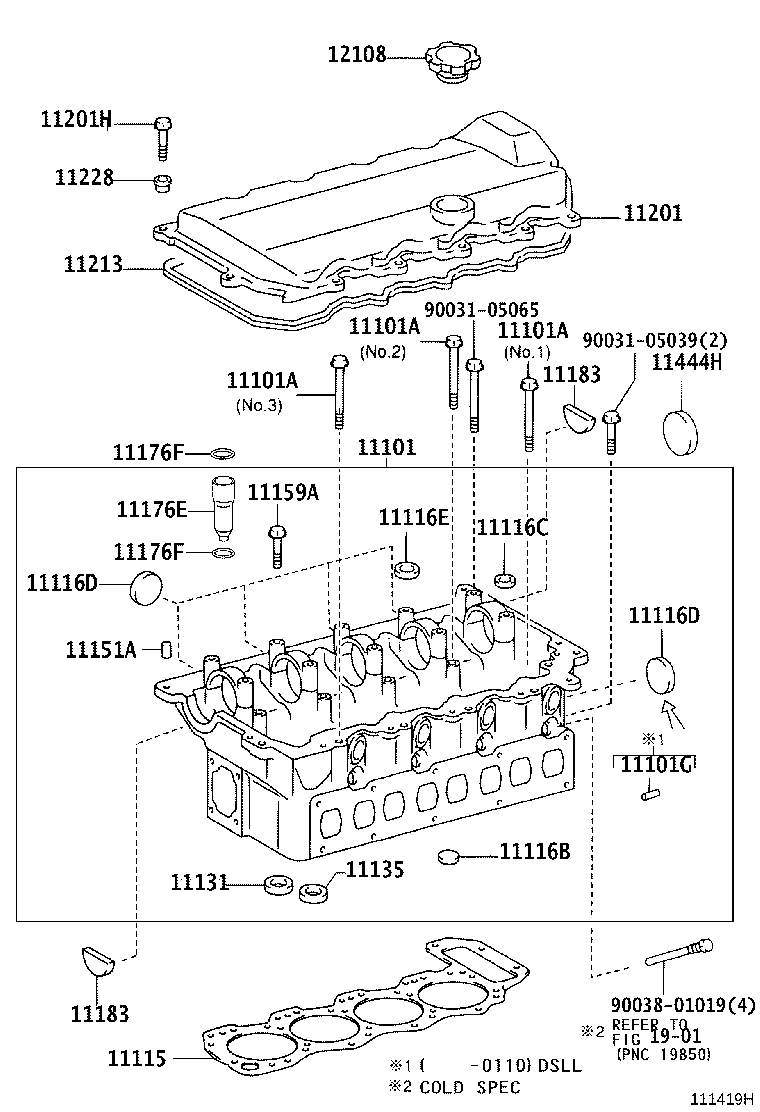

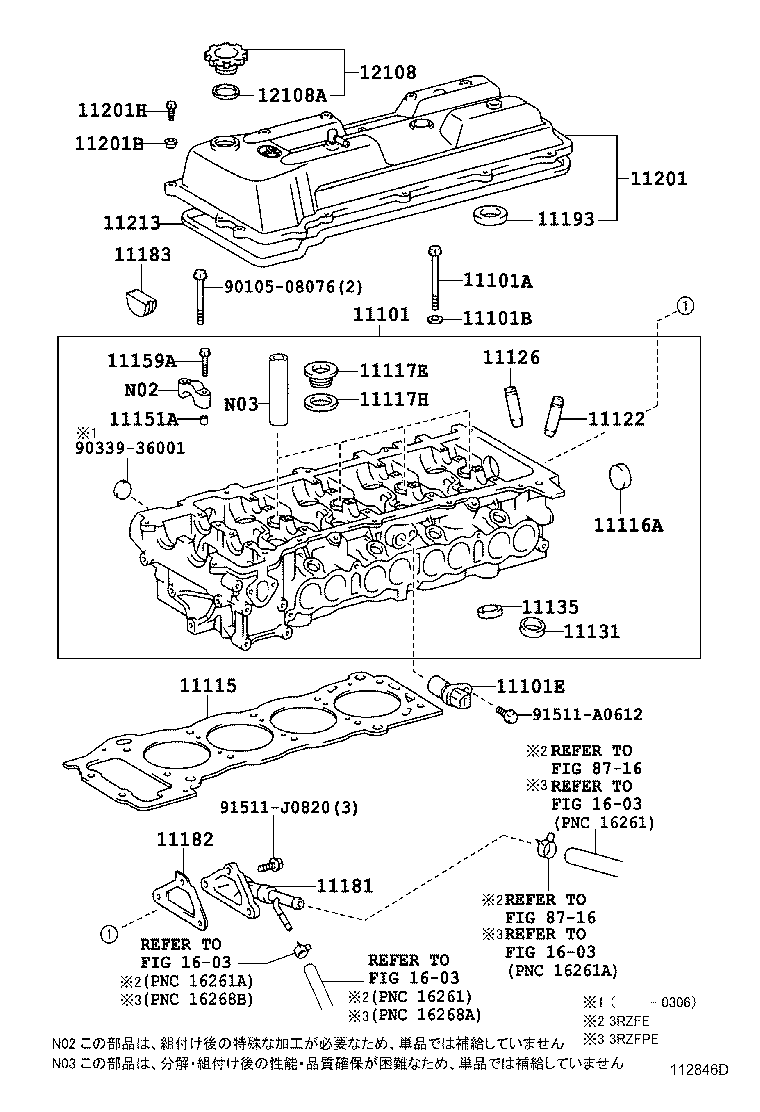

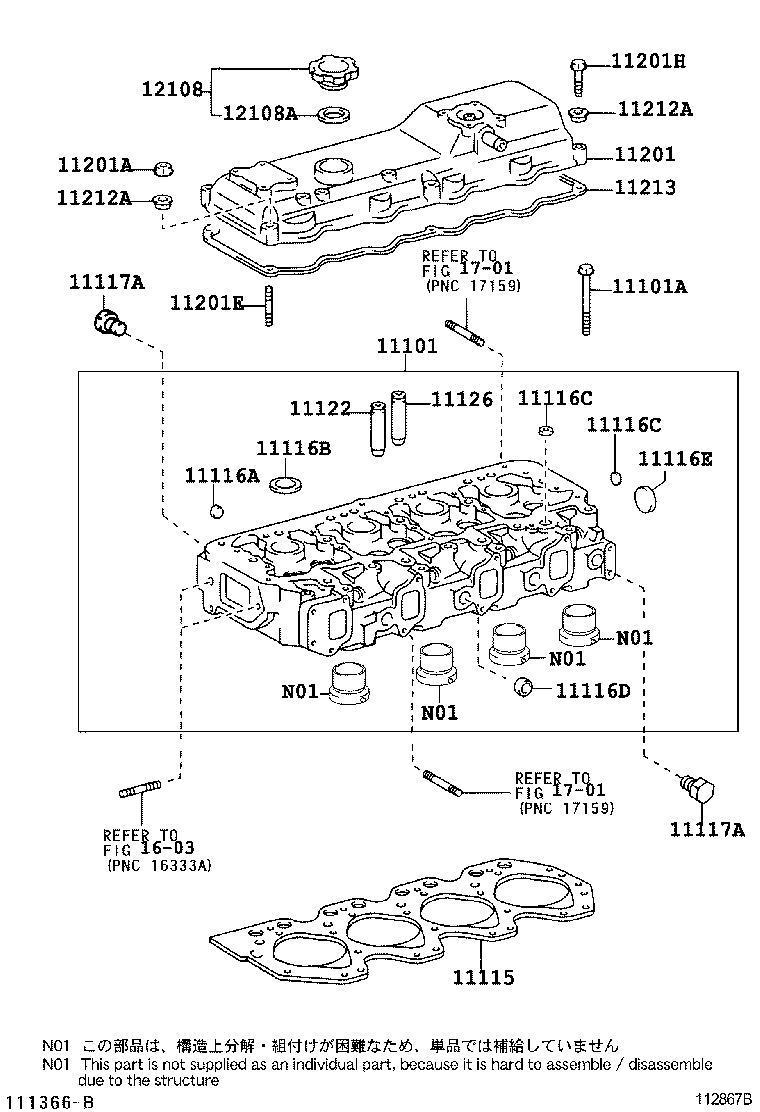

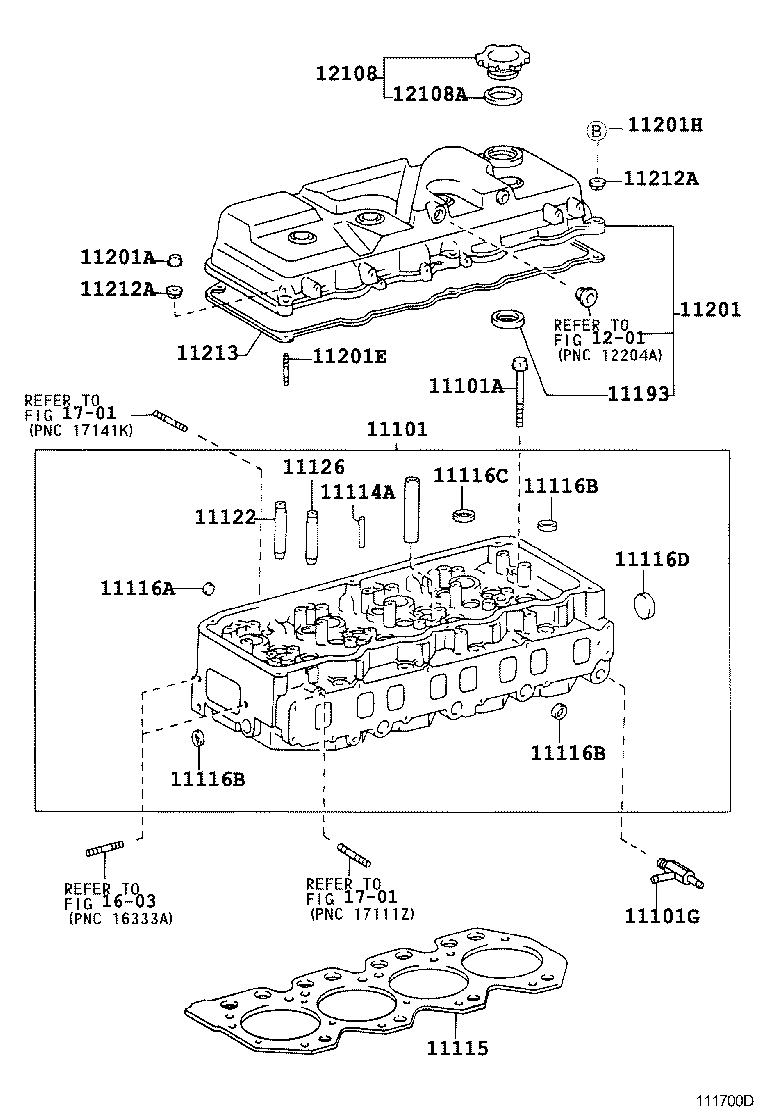

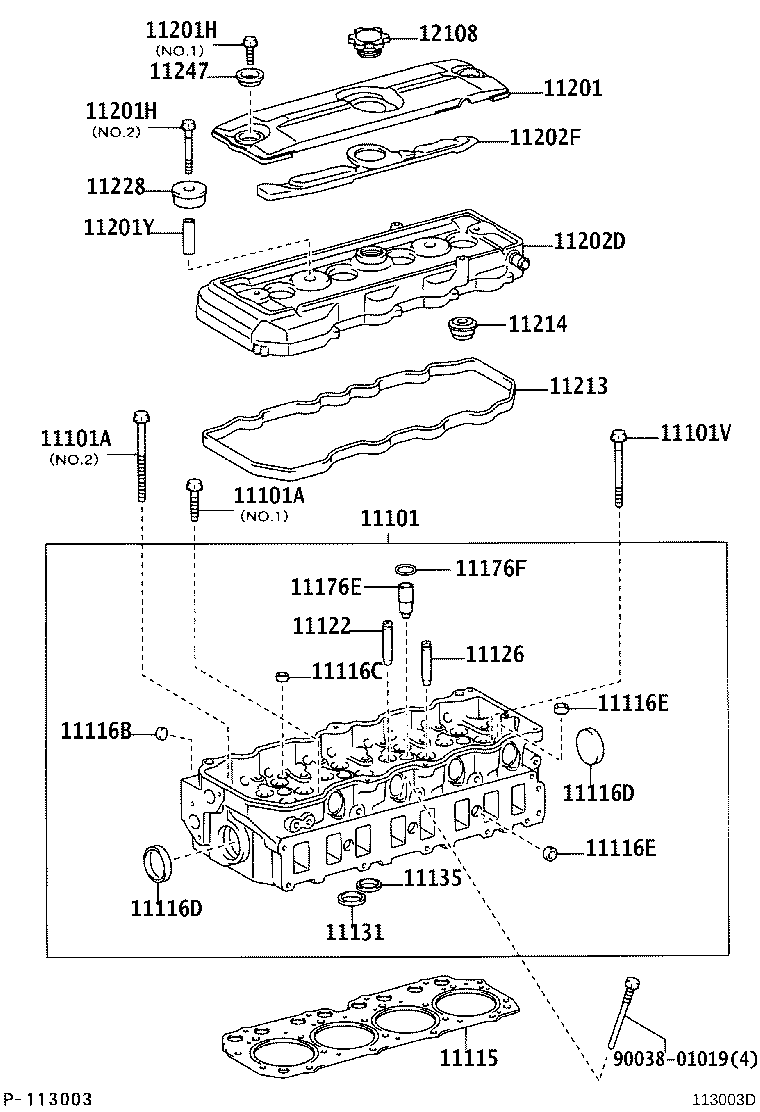

Figure 111366E 111366E 1999-05 → 2003-02 Figure 112867B 112867B 2003-02 → 2004-06 Figure 111700D 111700D 2003-06 → — Figure 112846D 112846D 2000-05 → — Figure 111419H 111419H 1999-05 → 2002-06 Figure 112433H 112433H 2002-06 → 2004-06 Figure 113306D 113306D 2004-06 → 2006-10 Figure 115468 115468 2000-05 → 2003-06 Figure 113003D 113003D 2003-10 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101E Sensor, Cam Position
11101G Union(FOR CYLINDER HEAD)
11101V Bolt(FOR CYLINDER HEAD SET SUB)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11117A Plug, W/Head Taper Screw, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11176E Seat, Injection Nozzle
11176F Gasket (FOR INJECTION NOZZLE SEAT)
11181 Plate, Cylinder Head, Rear
11181A Cover, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201E Bolt, Stud(FOR CYLINDER HEAD COVER SET)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201Y Spacer(FOR CYLINDER HEAD COVER)
11202D Cover Sub-assy, Cylinder Head, NO.2
11202F Rubber, Cushion(FOR CYLINDER HEAD COVER)
11212A Cushion, Cylinder Head Cover
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11228 Cushion, Cylinder Head Cover
11247 Stay, Cylinder Head Cover
11444H Plug, Hole(FOR CYLINDER HEAD)
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
