Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

51 part groups · 11 illustrations

Illustrations

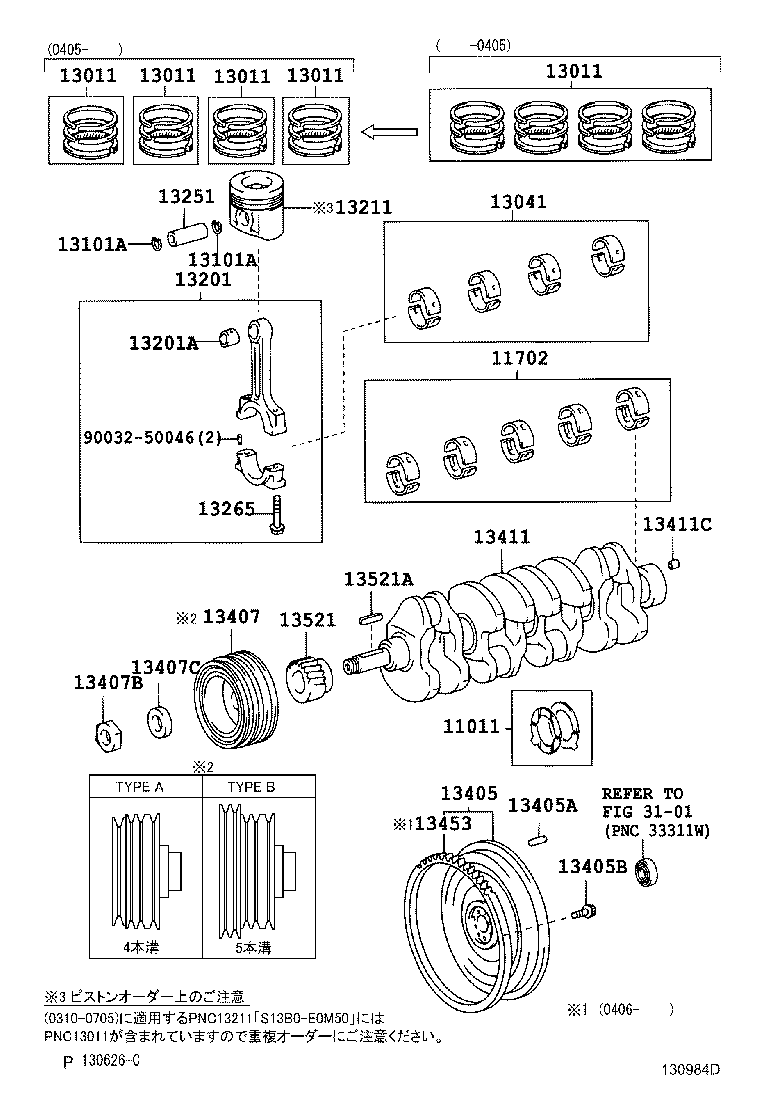

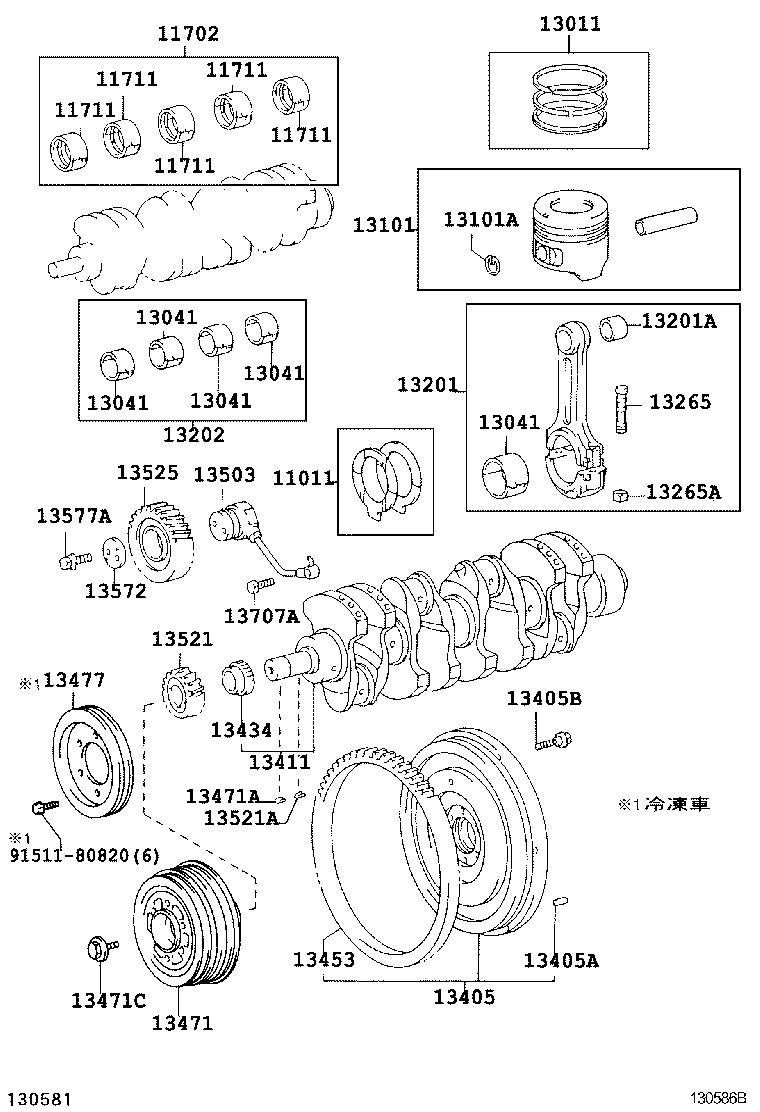

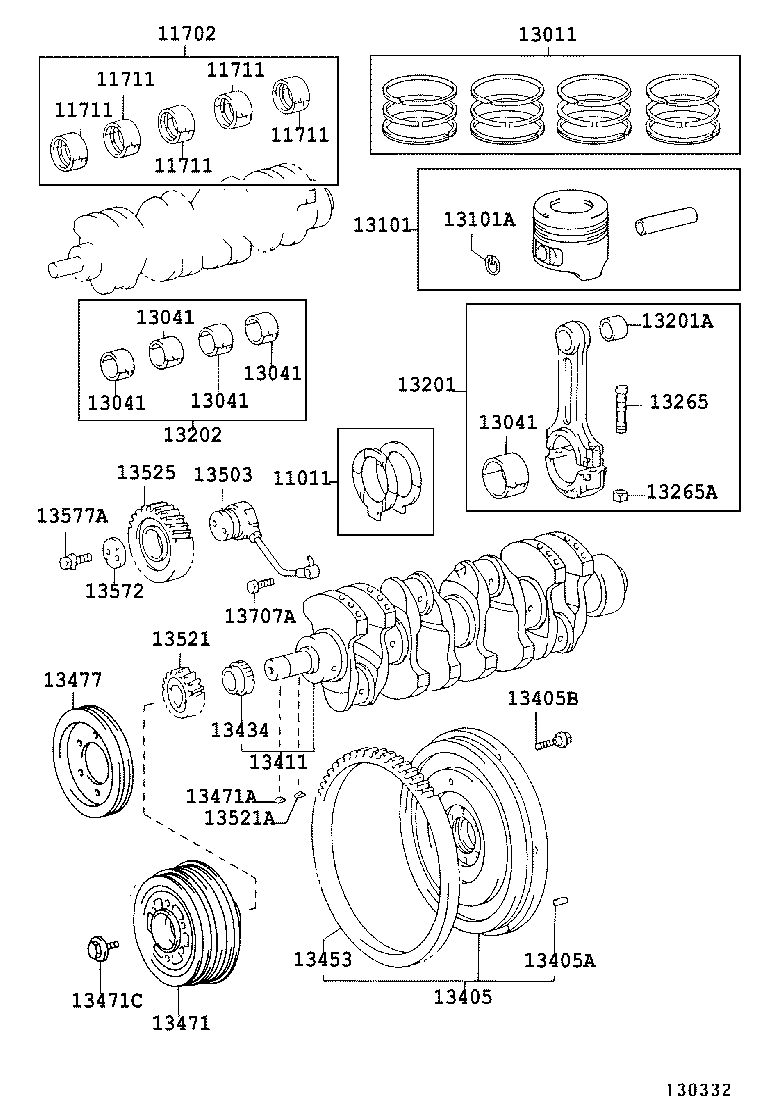

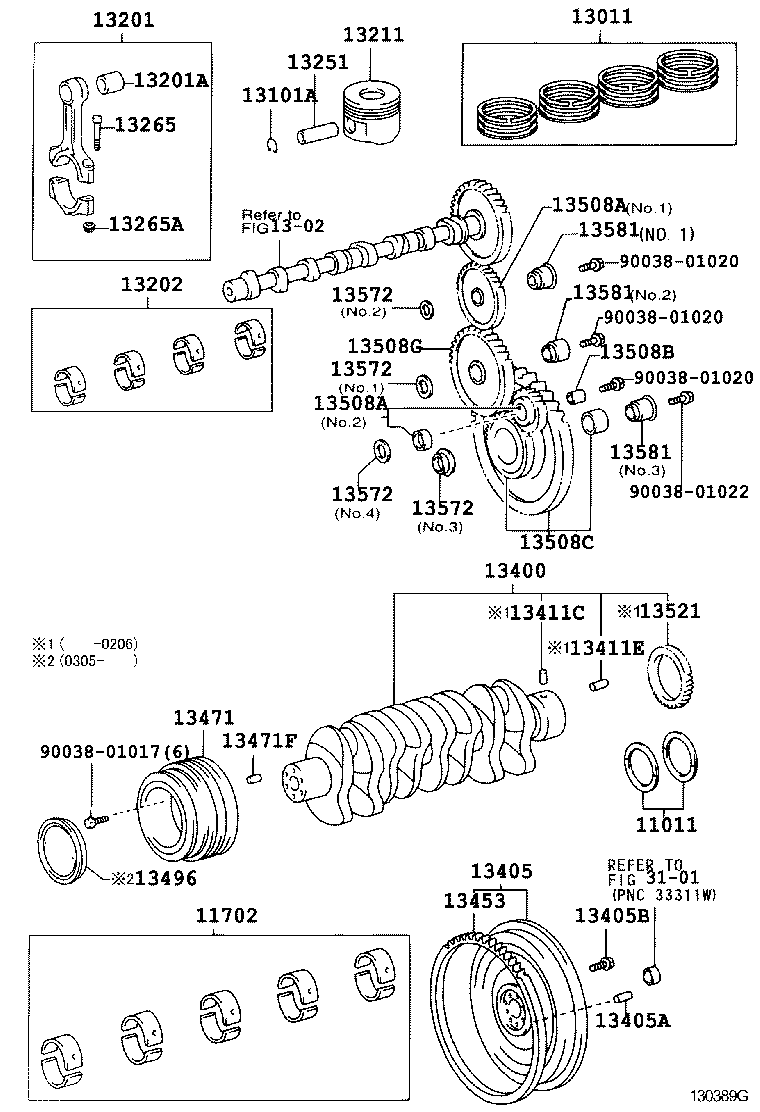

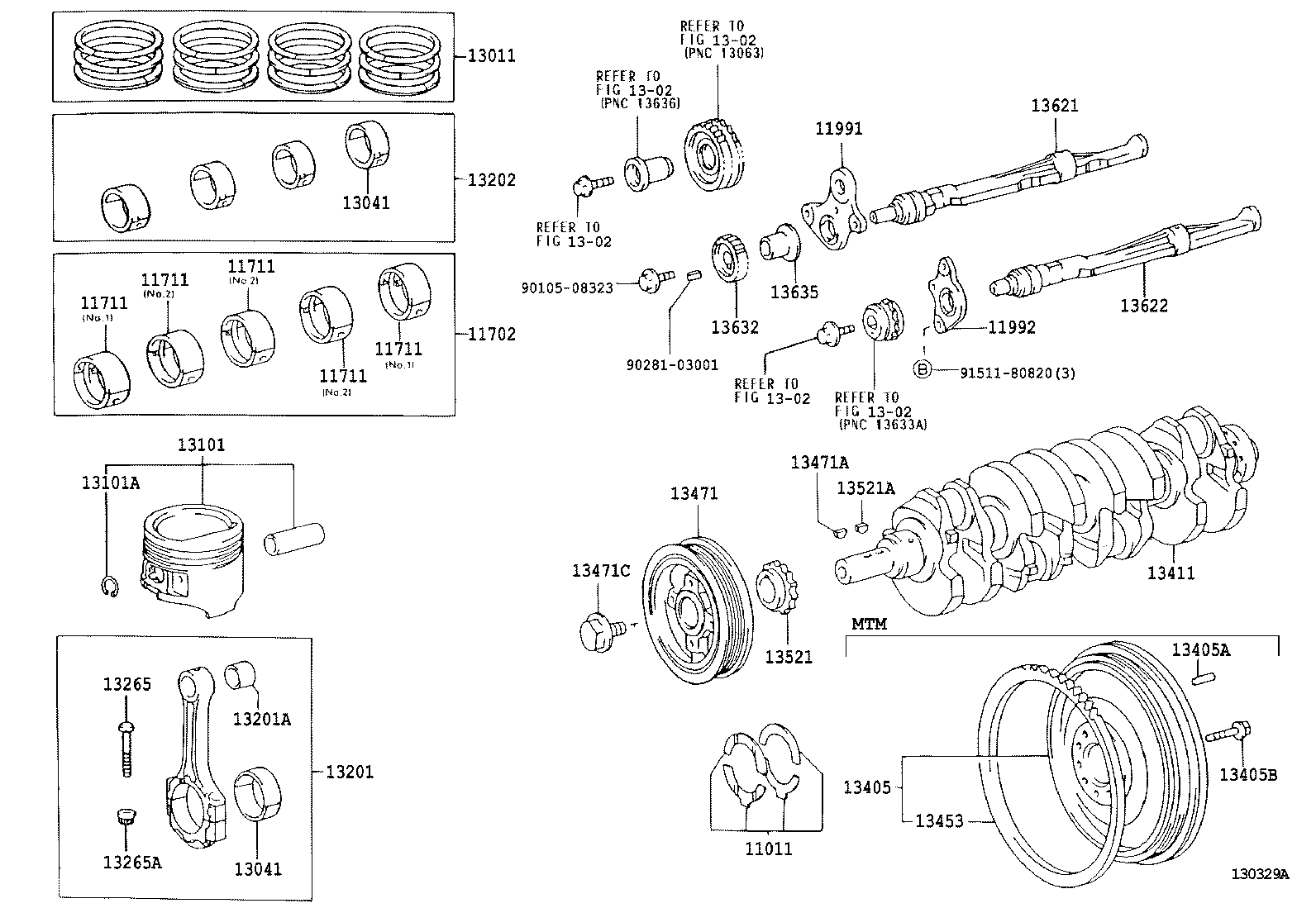

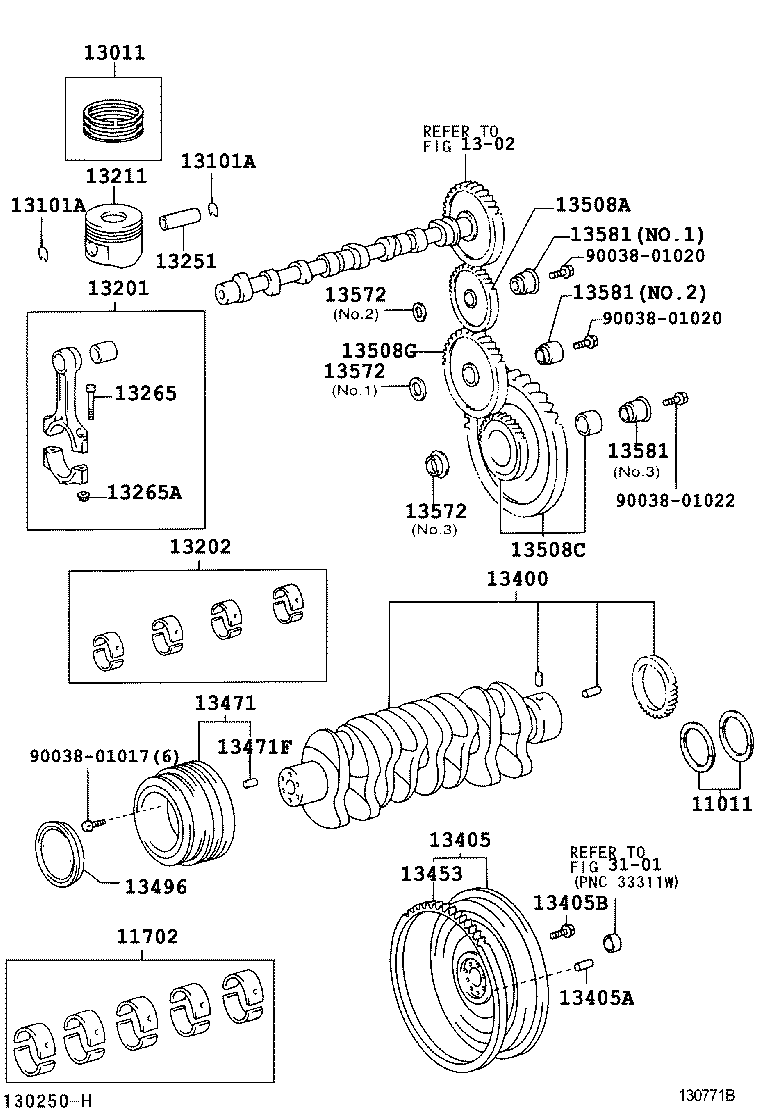

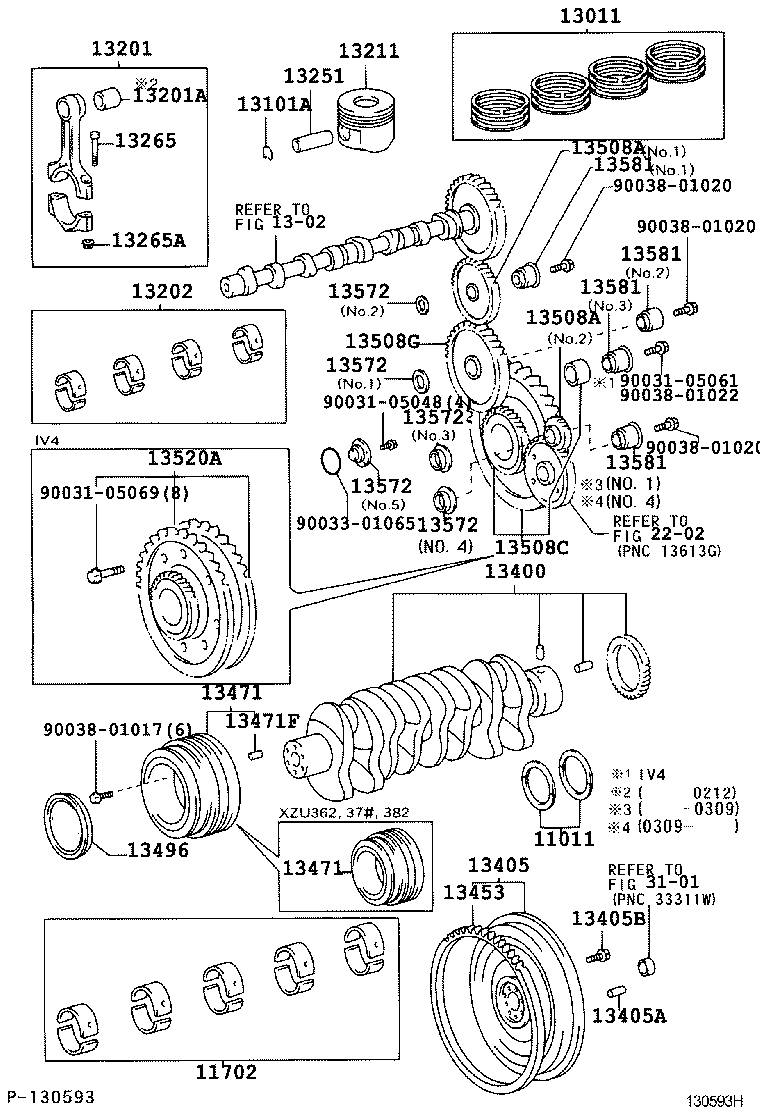

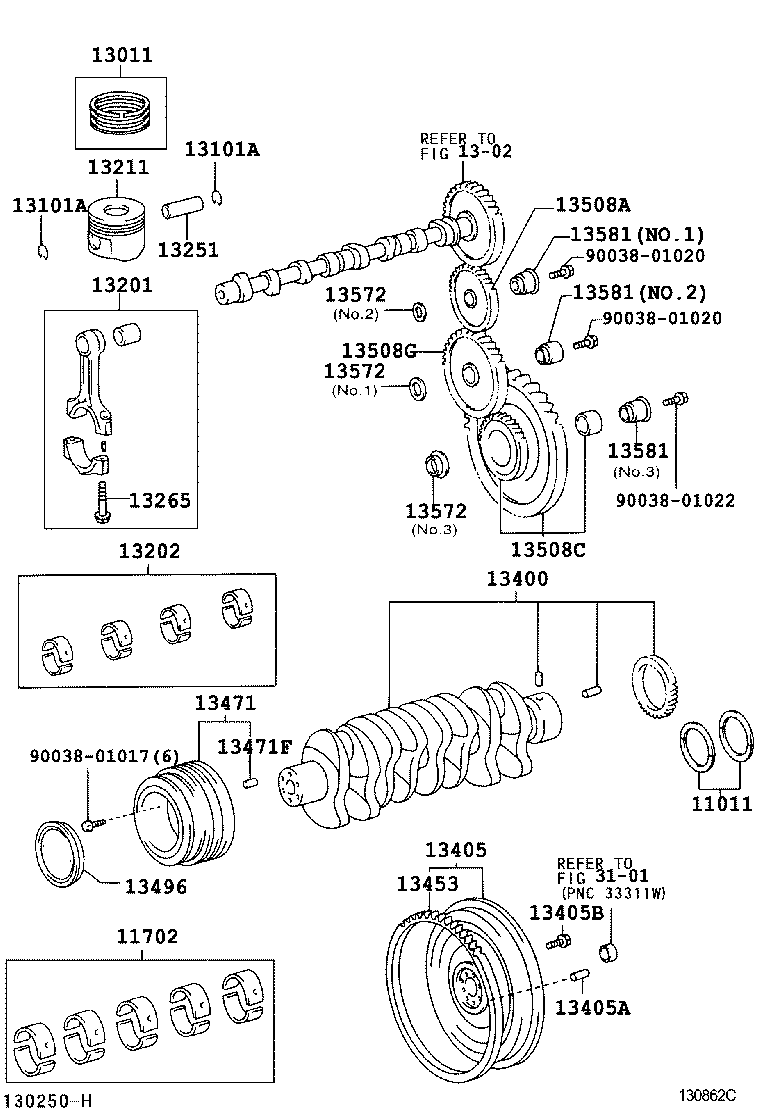

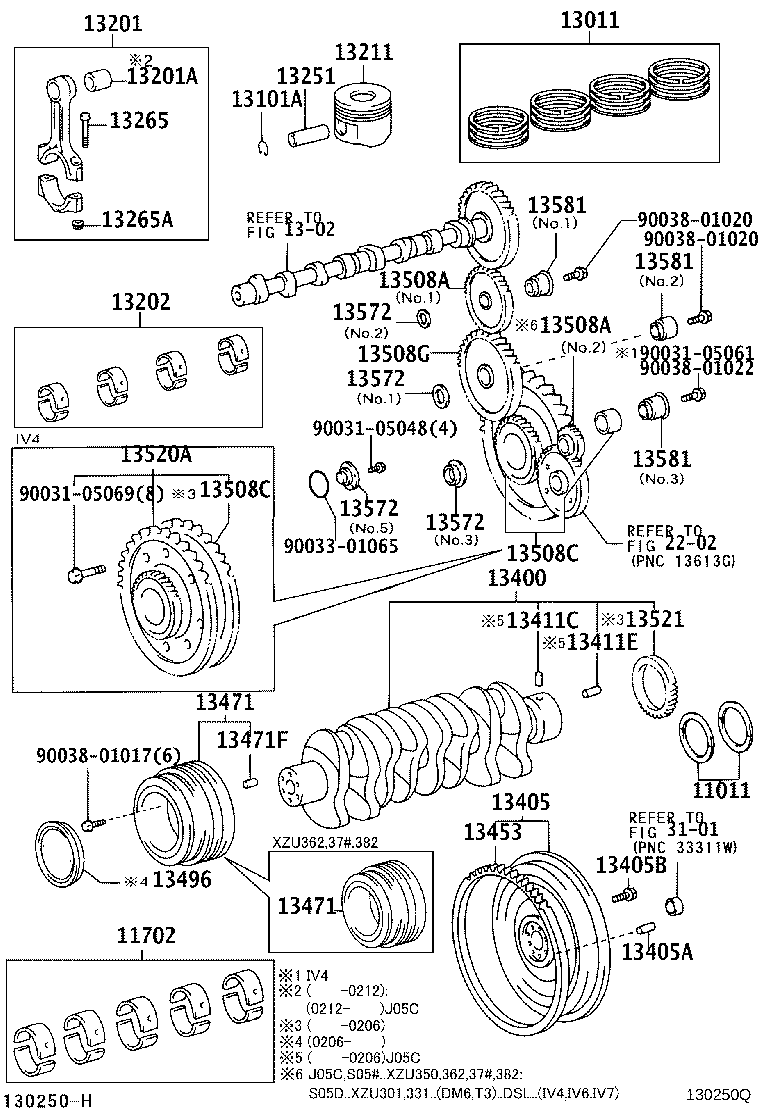

Figure 130280A 130280A 1999-05 → 2004-06 Figure 130586B 130586B 2003-06 → — Figure 130329A 130329A 2000-05 → — Figure 130250Q 130250Q 1999-05 → 2002-06 Figure 130250Q 130250Q 2002-06 → 2004-06 Figure 130593H 130593H 2002-06 → 2004-06 Figure 130389G 130389G 1999-06 → 2004-06 Figure 130771B 130771B 2004-06 → 2005-05 Figure 130862C 130862C 2005-05 → 2006-10 Figure 130332 130332 2000-05 → 2003-06 Figure 130984D 130984D 2003-10 → 2007-05

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11991 Washer, Balanceshaft Thrust
11992 Washer, Balanceshaft Thrust, NO.2
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13211 Piston
13251 Pin, Piston
13265 Bolt, Connecting Rod
13265A Nut, Hexagon(FOR CONNECTING ROD BOLT)
13400 Crankshaft Assy
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13407B Nut, Hexagon(FOR CRANKSHAFT DAMPER)
13407C Spacer(FOR CRANKSHAFT DAMPER)
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13411E Collar(FOR CRANKSHAFT)
13434 Spline, Oil Pump Drive
13453 Gear, Flywheel Ring
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13471F Pin, Straight(FOR CRANKSHAFT PULLEY)
13477 Pulley, Crankshaft, NO.2
13496 Cover, Crankshaft Pully
13503 Shaft Sub-assy, Idle Gear
13508A Gear Sub-assy, Idle
13508B Bush, Idle Gear
13508C Gear Sub-assy, Idle, NO.2
13508G Gear Sub-assy, Idle, NO.3
13520A Gear Assy, Idle
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13525 Gear, Idle, NO.1
13572 Plate, Idle Gear Thrust
13577A Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK)
13581 Shaft, Idle Gear, NO.1
13621 Balanceshaft, NO.1
13622 Balanceshaft, NO.2
13632 Gear, Balanceshaft Driven, NO.1
13635 Spacer, Balanceshaft Thrust
13707A Union(FOR OIL PIPE, NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
