Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

35 part groups · 47 illustrations

Illustrations

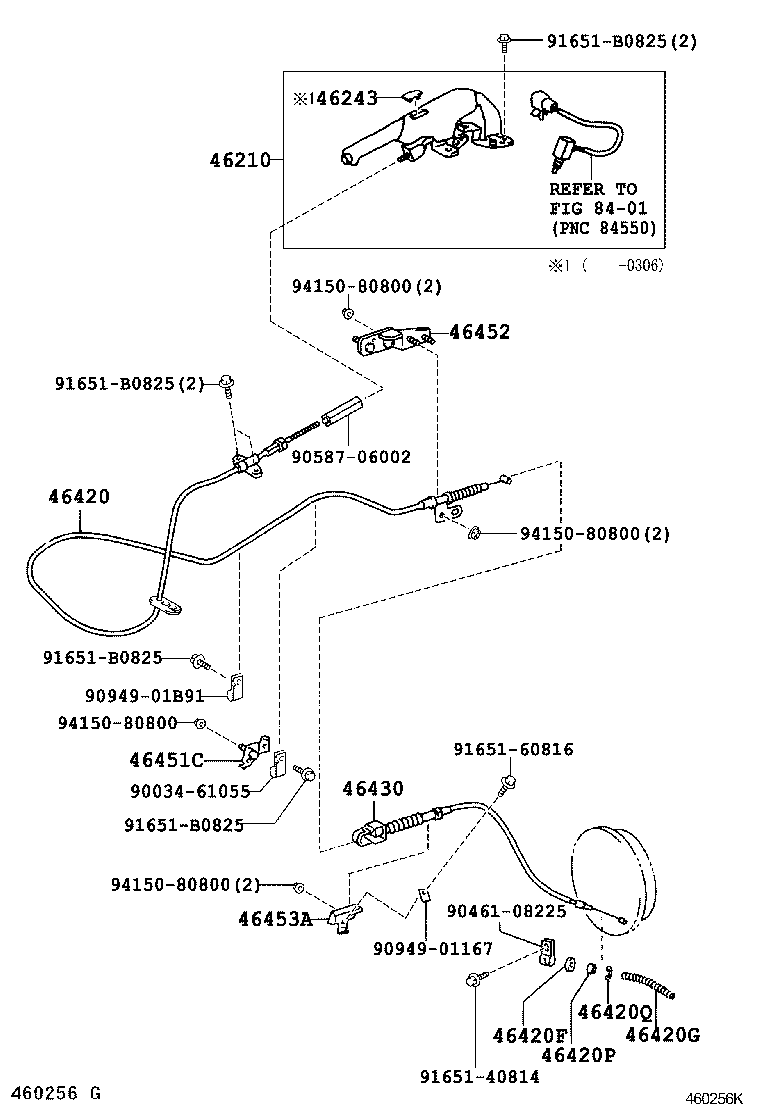

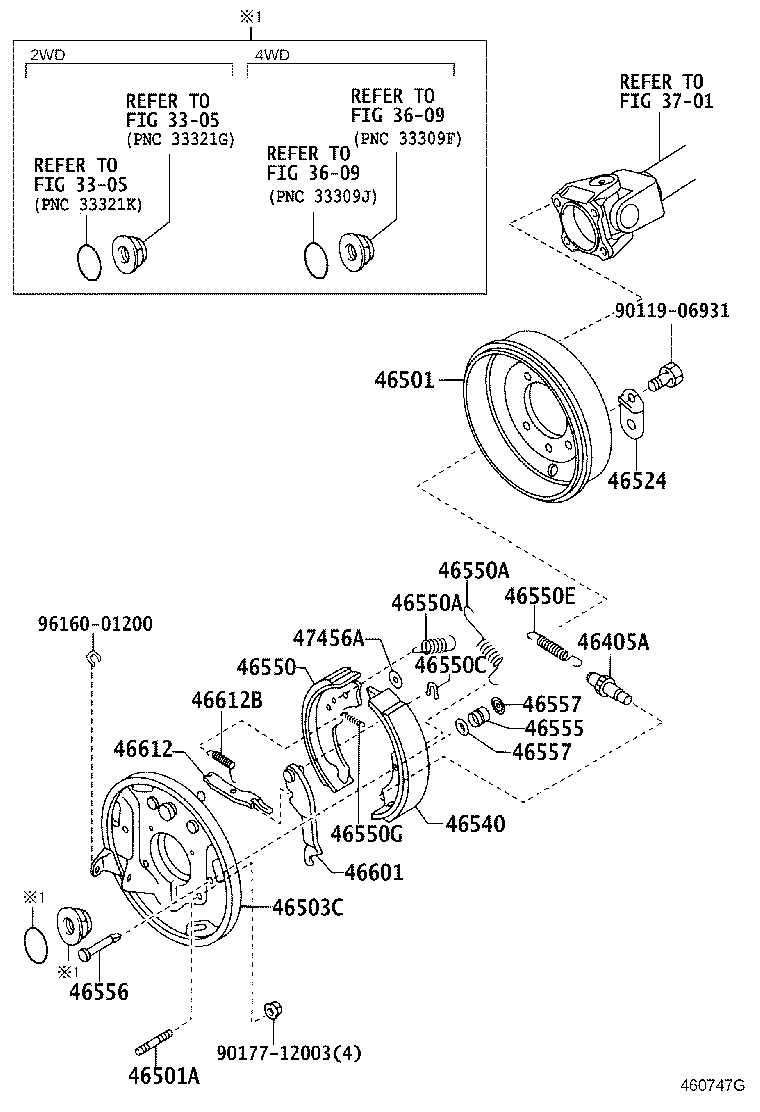

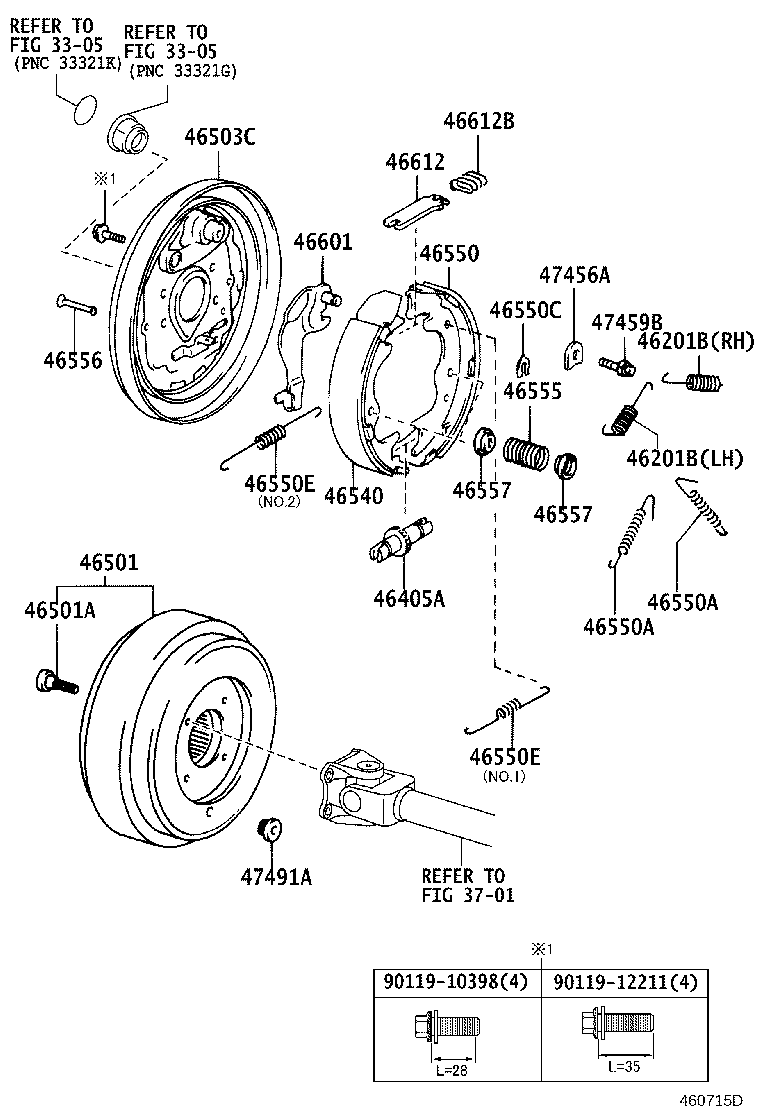

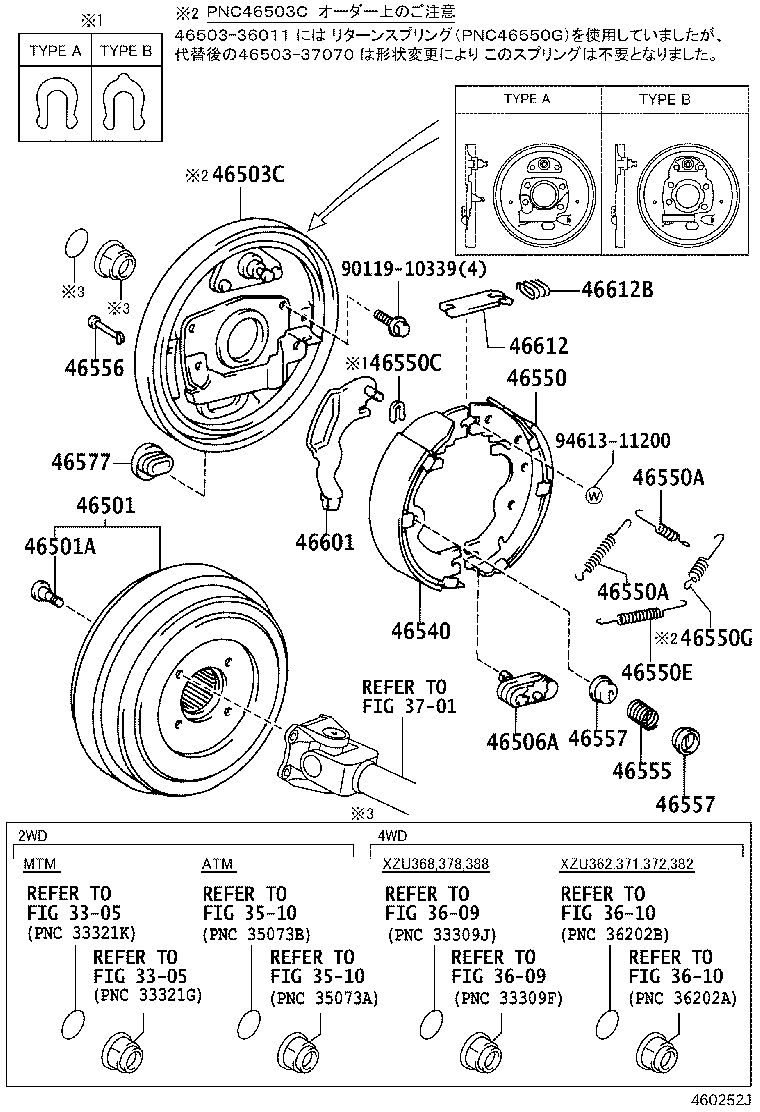

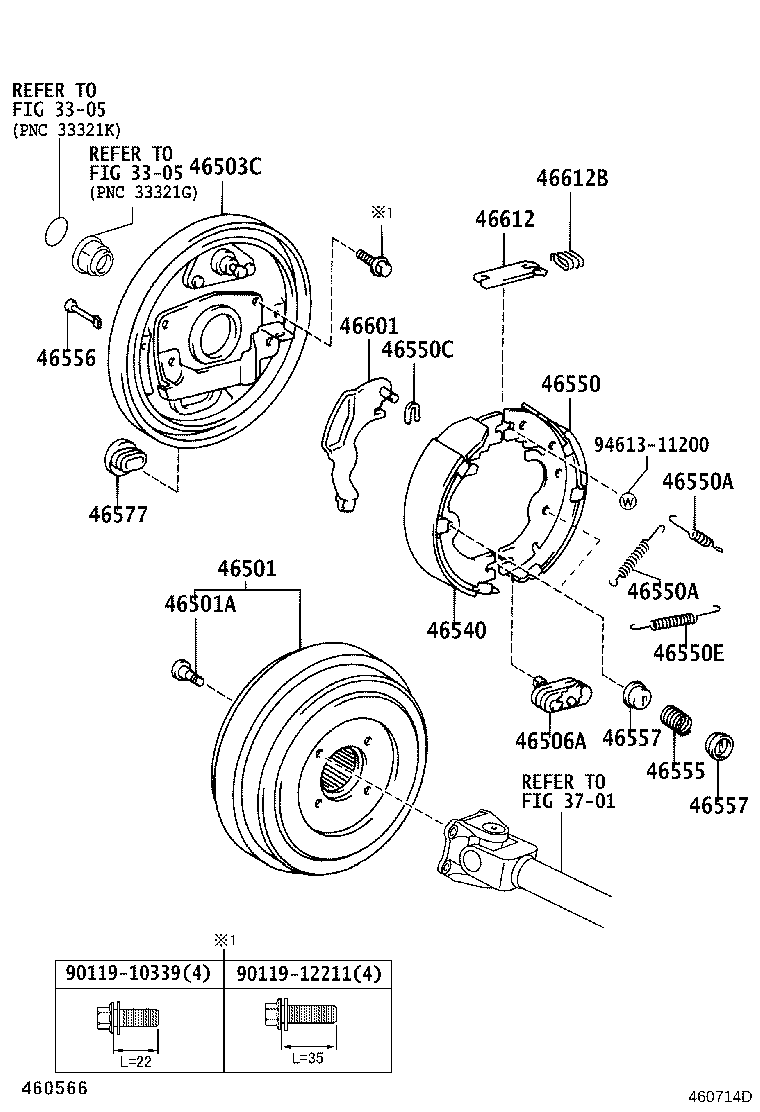

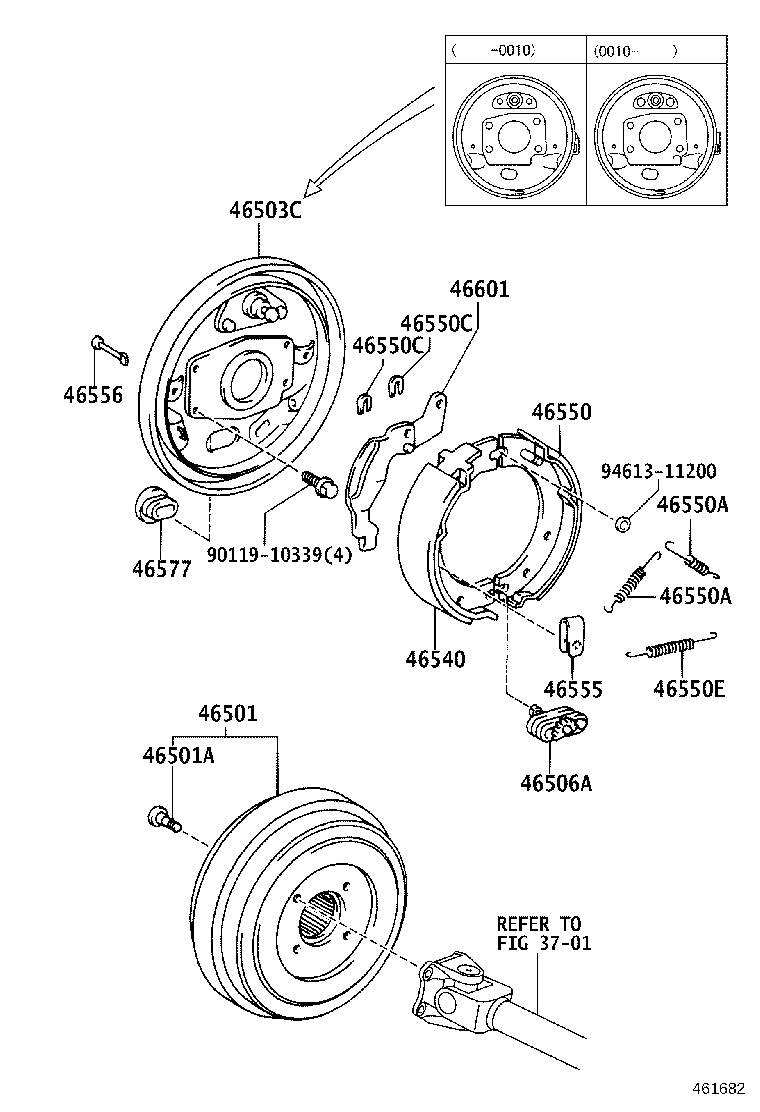

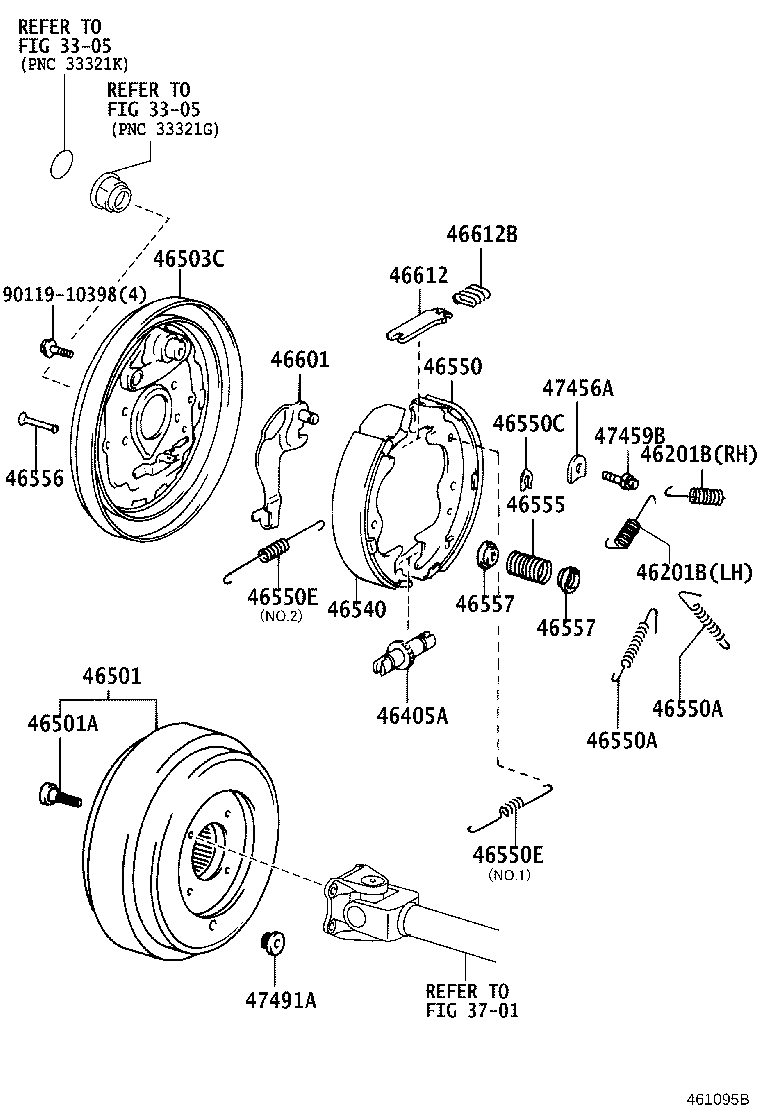

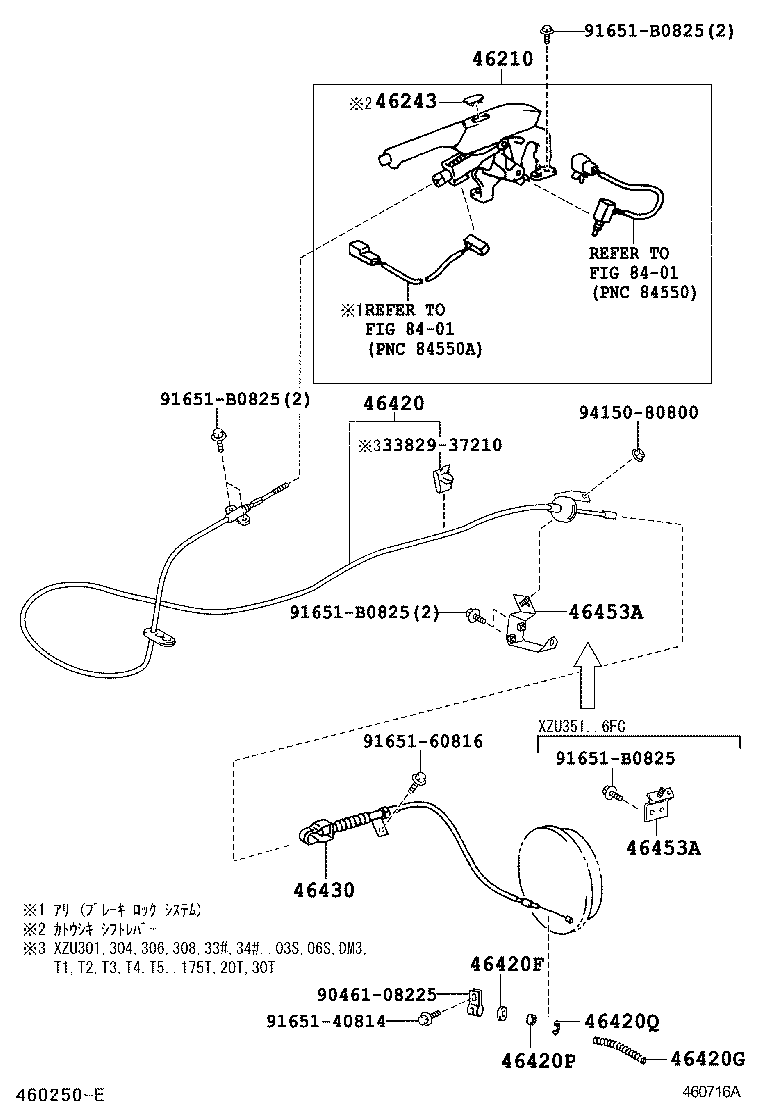

Figure 460249I 460249I 1999-05 → 2002-06 Figure 460249I 460249I 2002-06 → 2004-06 Figure 460249I 460249I 2002-06 → 2004-06 Figure 460249I 460249I 2002-06 → 2004-06 Figure 460249I 460249I 2002-06 → 2004-06 Figure 460250K 460250K 1999-05 → 2002-06 Figure 460250K 460250K 2002-06 → 2004-06 Figure 460254H 460254H 1999-05 → 2002-06 Figure 460254H 460254H 2002-06 → 2004-06 Figure 460256K 460256K 1999-05 → 2004-06 Figure 460535B 460535B 2002-06 → 2002-10 Figure 460535B 460535B 2002-10 → 2004-06 Figure 460255I 460255I 1999-08 → 2004-06 Figure 460564B 460564B 2003-10 → 2004-06 Figure 460698B 460698B 2004-06 → — Figure 460717B 460717B 2004-06 → — Figure 460699A 460699A 2004-06 → — Figure 460716A 460716A 2004-06 → — Figure 460719A 460719A 2004-06 → — Figure 460572G 460572G 1999-05 → 2000-11 Figure 460572G 460572G 1999-05 → 2002-06 Figure 460572G 460572G 1999-05 → 2004-06 Figure 460572G 460572G 1999-05 → 2004-06 Figure 460572G 460572G 1999-05 → 2004-06 Figure 461682 461682 1999-05 → 2000-11 Figure 461682 461682 1999-05 → 2004-06 Figure 460252J 460252J 1999-05 → 2002-06 Figure 460252J 460252J 1999-05 → 2004-06 Figure 460252J 460252J 1999-05 → 2004-06 Figure 460252J 460252J 1999-05 → 2004-06 Figure 460252J 460252J 1999-05 → 2004-06 Figure 460252J 460252J 1999-05 → 2004-06 Figure 460252J 460252J 2000-11 → 2002-06 Figure 460252J 460252J 2002-06 → 2004-06 Figure 460252J 460252J 2002-06 → 2004-06 Figure 460252J 460252J 2002-06 → 2004-06 Figure 460252J 460252J 2002-06 → 2004-06 Figure 460252J 460252J 2003-06 → 2004-06 Figure 461095B 461095B 1999-05 → 2004-06 Figure 461095B 461095B 2000-11 → 2004-06 Figure 460507F 460507F 2002-06 → 2004-06 Figure 460507F 460507F 2002-06 → 2004-06 Figure 460565C 460565C 2003-10 → 2004-06 Figure 460566B 460566B 2003-10 → 2004-06 Figure 460714D 460714D 2004-06 → — Figure 460715D 460715D 2004-06 → — Figure 460747G 460747G 2004-06 → —

Part groups

PNCDescription
46201B Spring, Tension
46210 Lever Assy, Parking Brake
46243 Cover, Parking Brake Lever
46405A Screw Set, Shoe Adjusting, RH

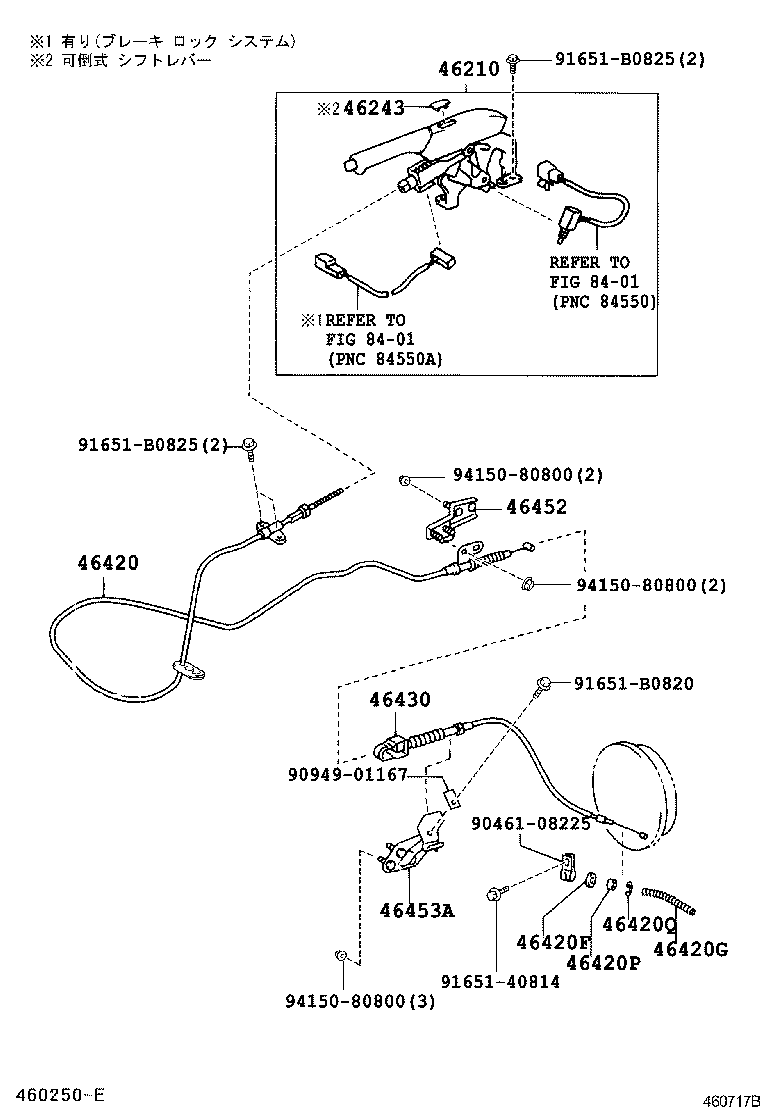

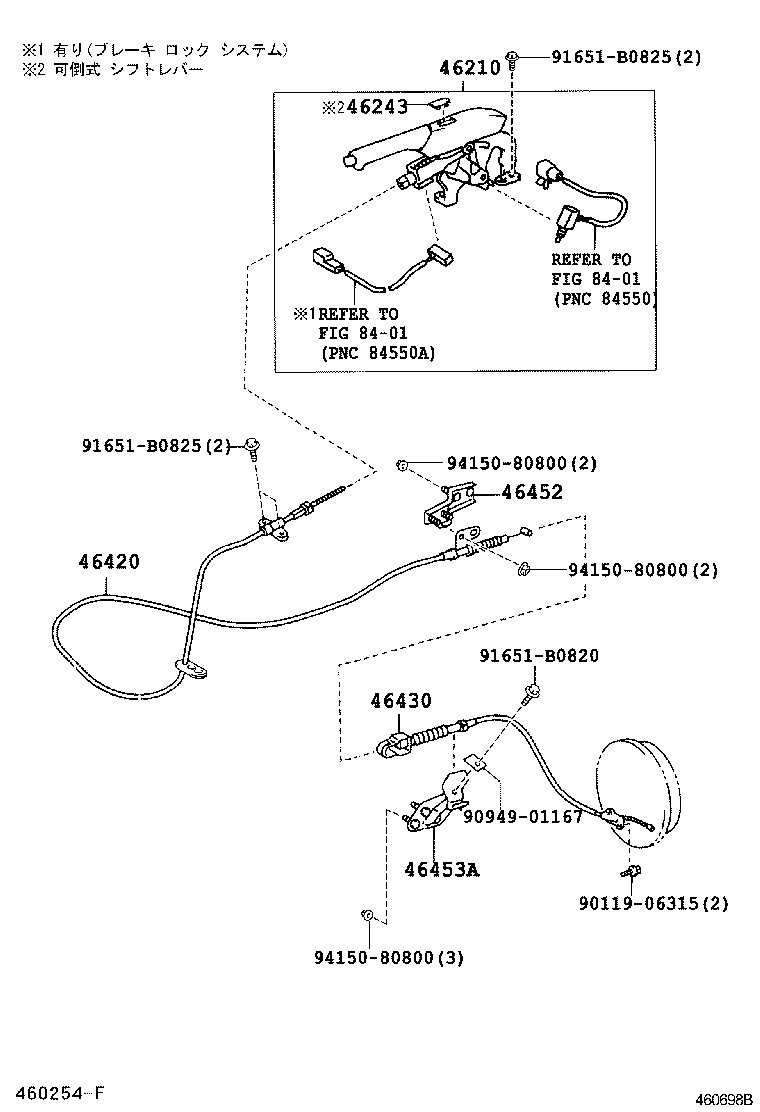

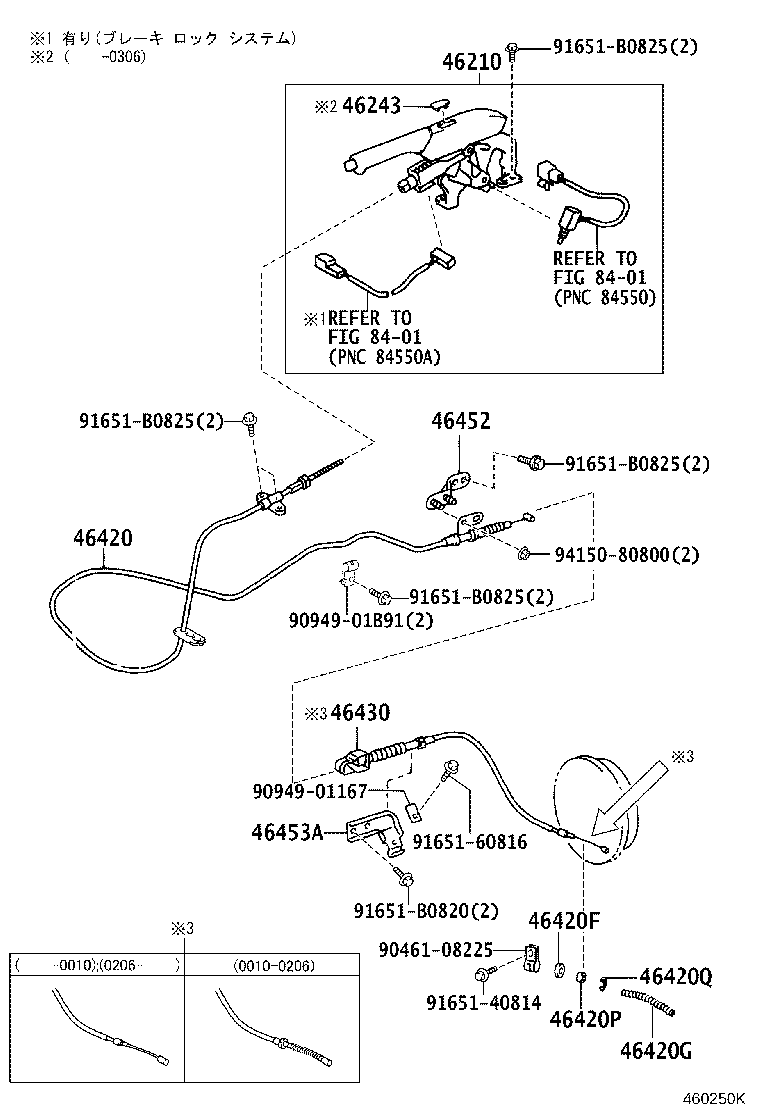

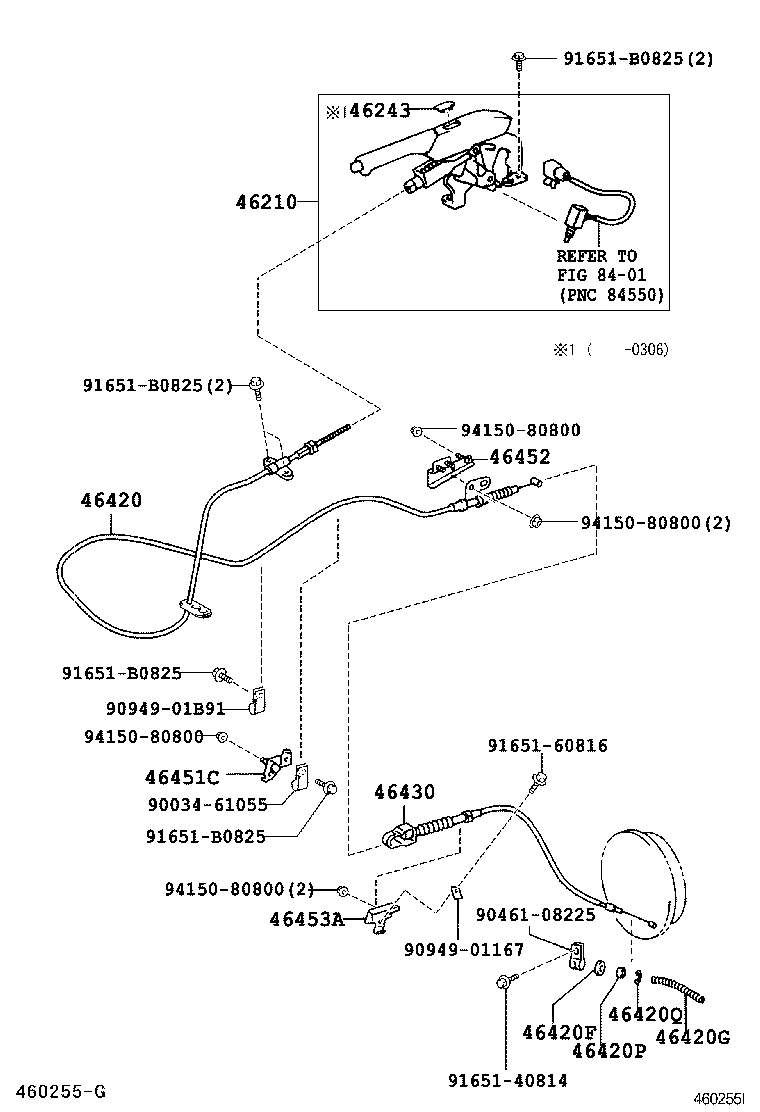

46420 Cable Assy, Parking Brake, NO.2
46420F Seal, Dust(FOR PARKING BRAKE CABLE)
46420G Spring(FOR PARKING CABLE INNER WIRE SET)
46420P Spacer, Parking Brake
46420Q Ring, E(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451C Bracket, Parking Brake Cable Support, NO.1
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3

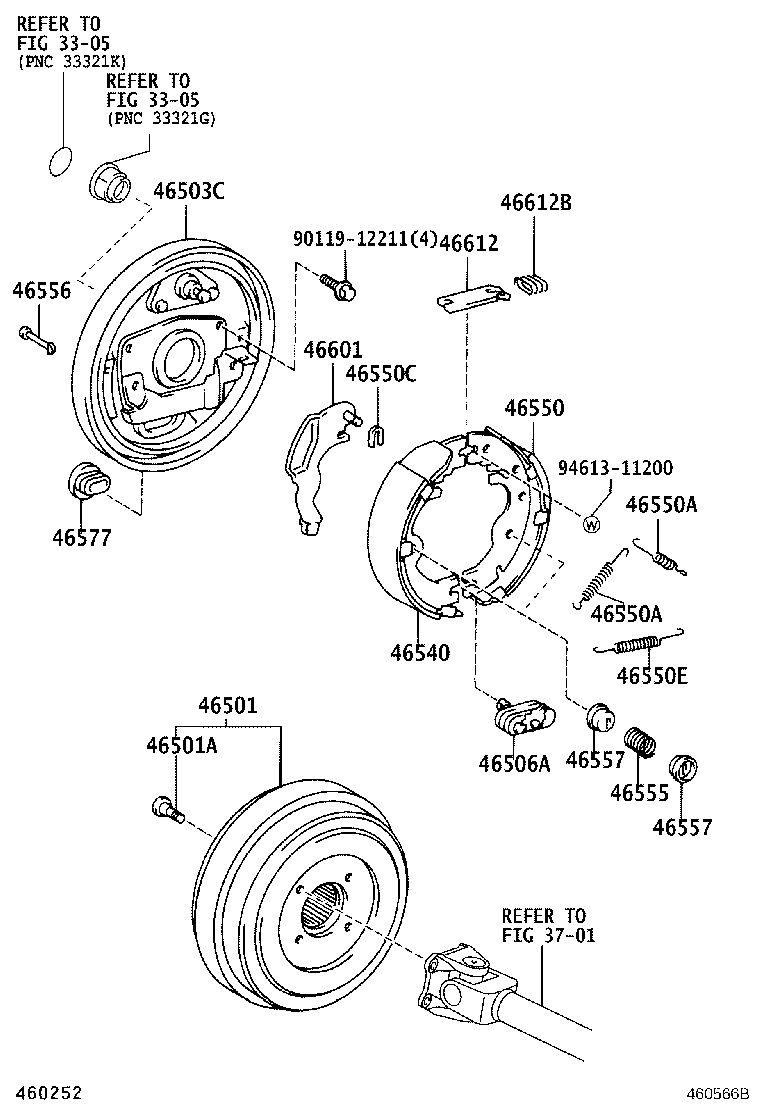

46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46503C Plate Sub-assy, Parking Brake

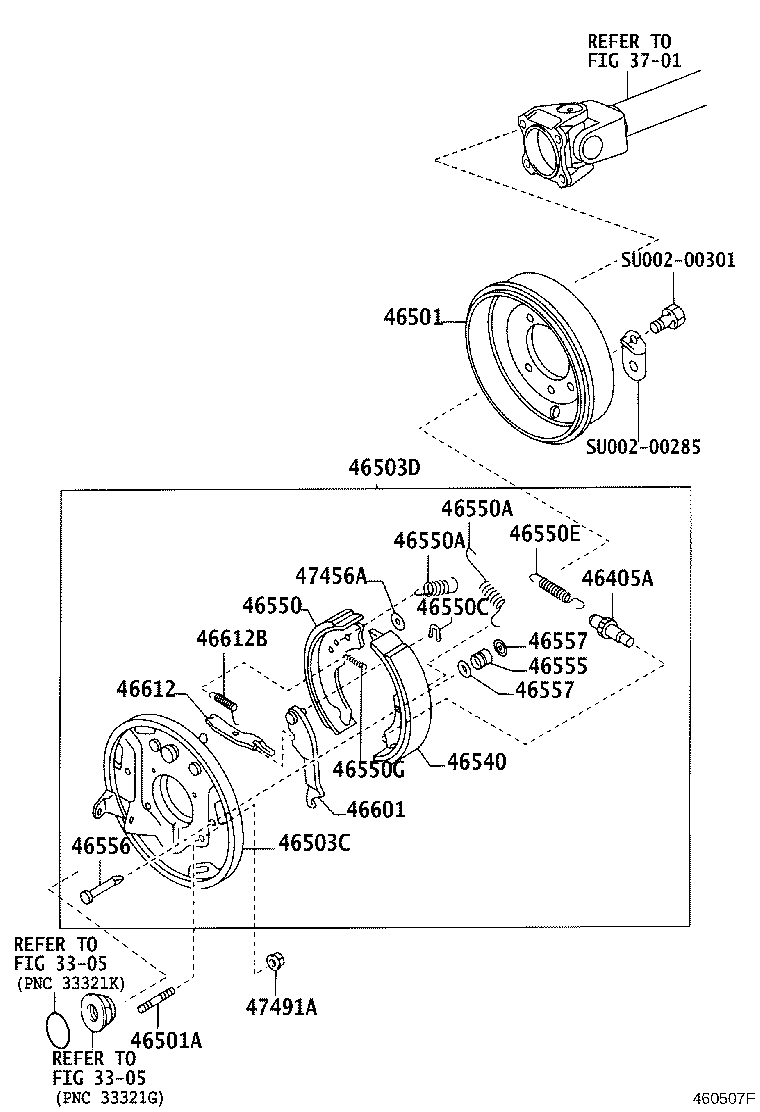

46503D Center Brake Assy
46506A Adjuster Sub-assy, Parking Brake Shoe
46524 Cover, Parking Brake Dust

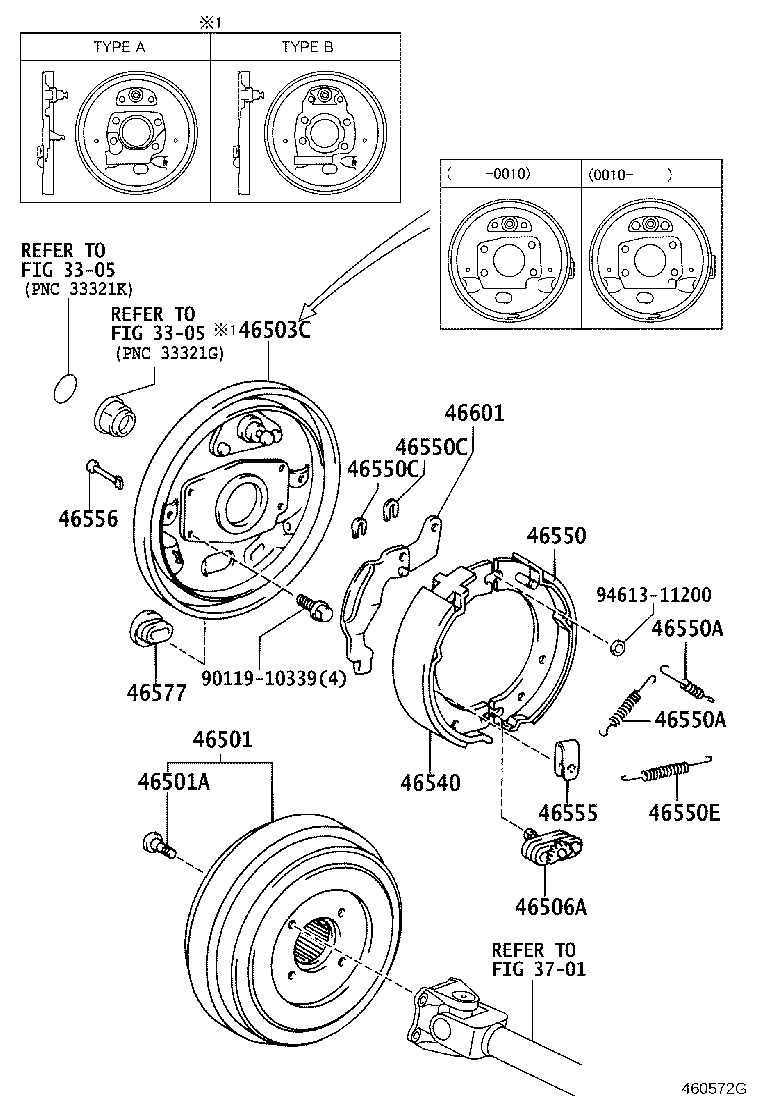

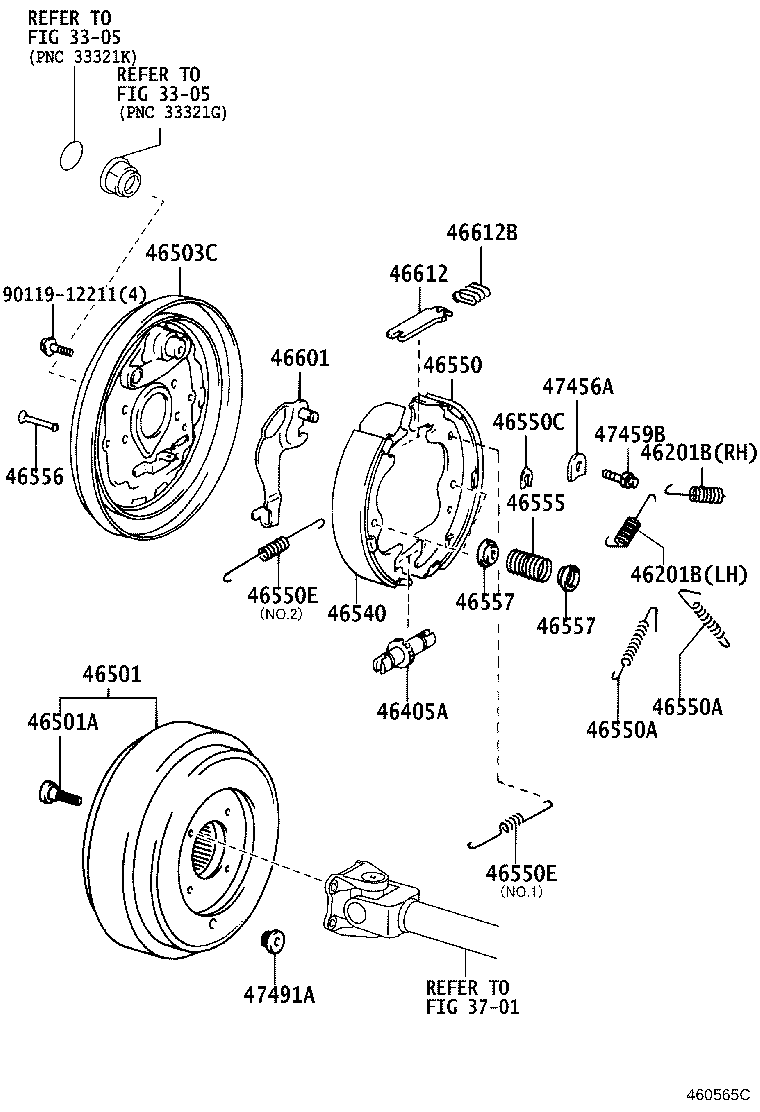

46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46557 Cup, Brake Shoe Hold Down
46577 Cover, Adjusting Cam Hole
46601 Lever Sub-assy, Parking Brake Shoe
46612 Strut, Parking Brake Shoe Lever
46612B Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
47456A Plate, Shoe Guide(FOR PARKING BRAKE)
47459B Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47491A Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
