Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

59 part groups · 69 illustrations

Illustrations

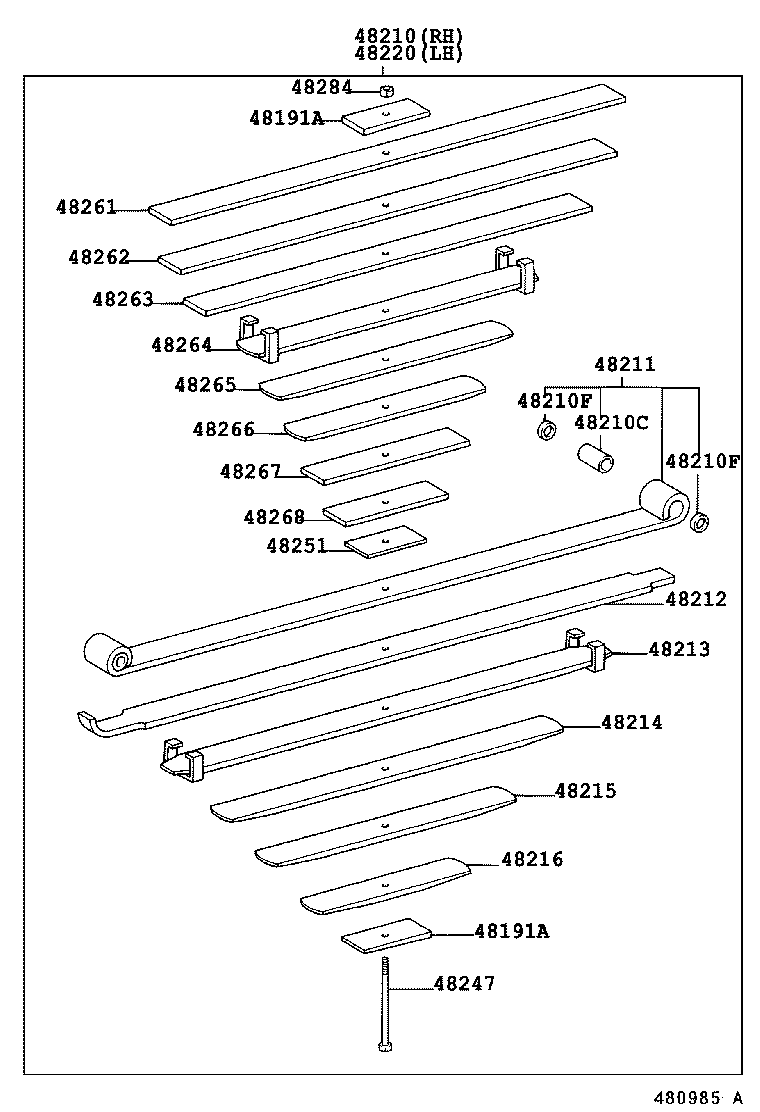

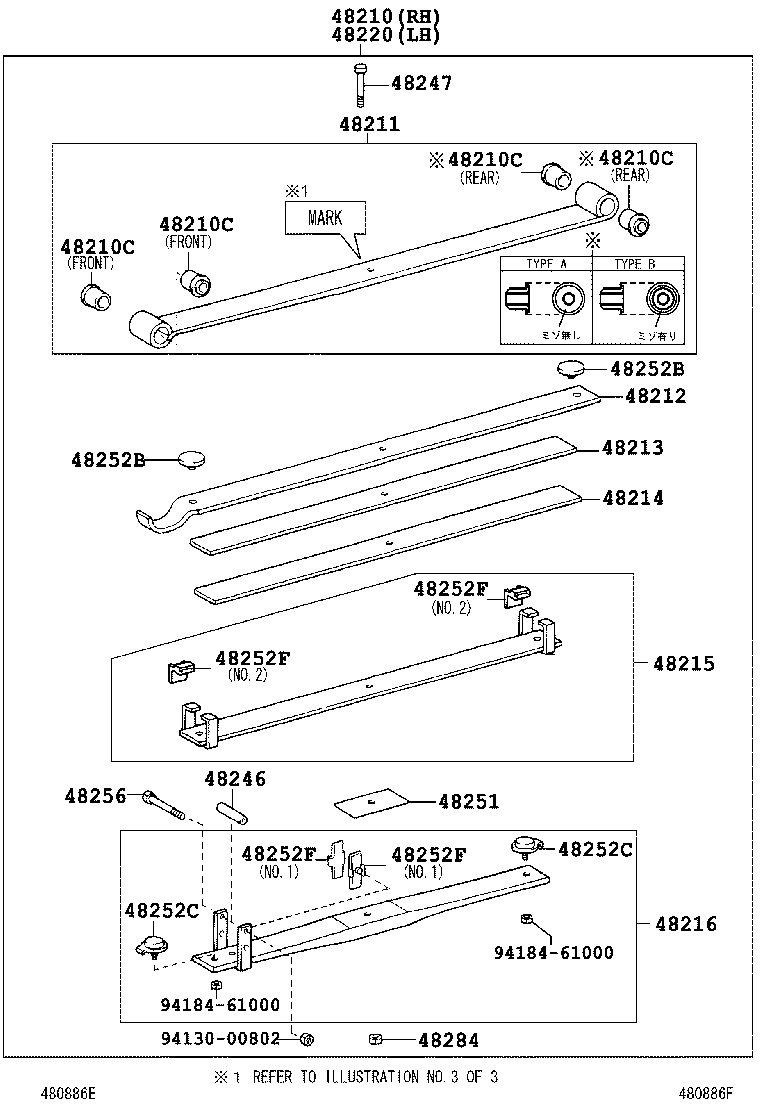

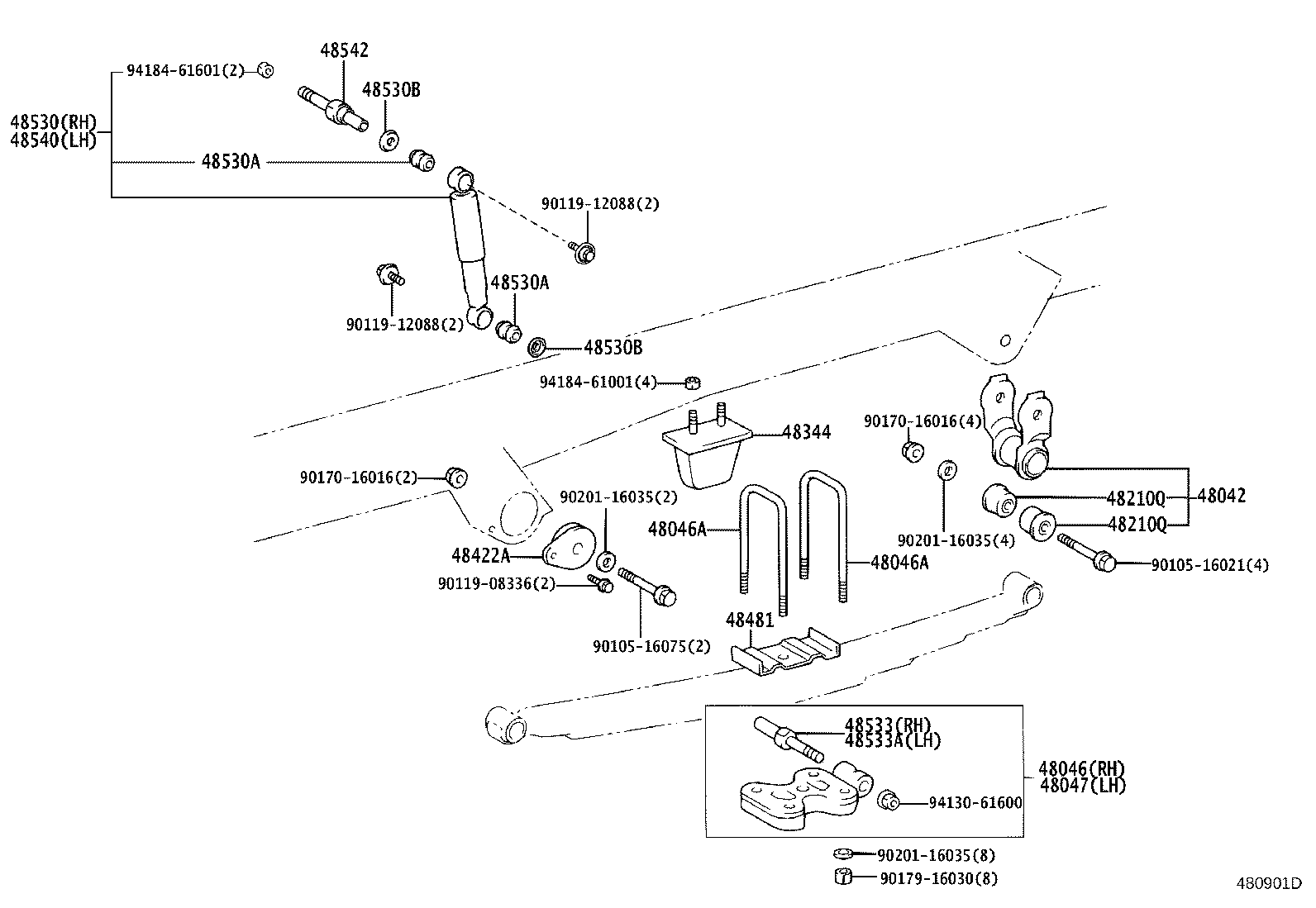

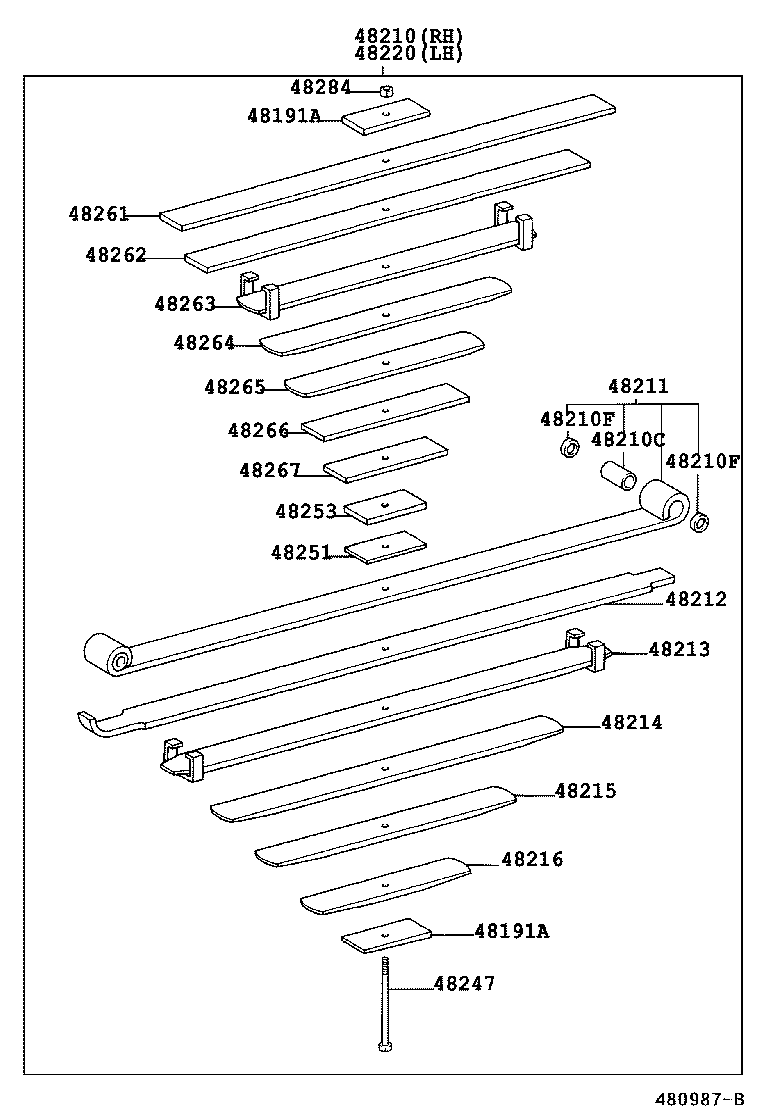

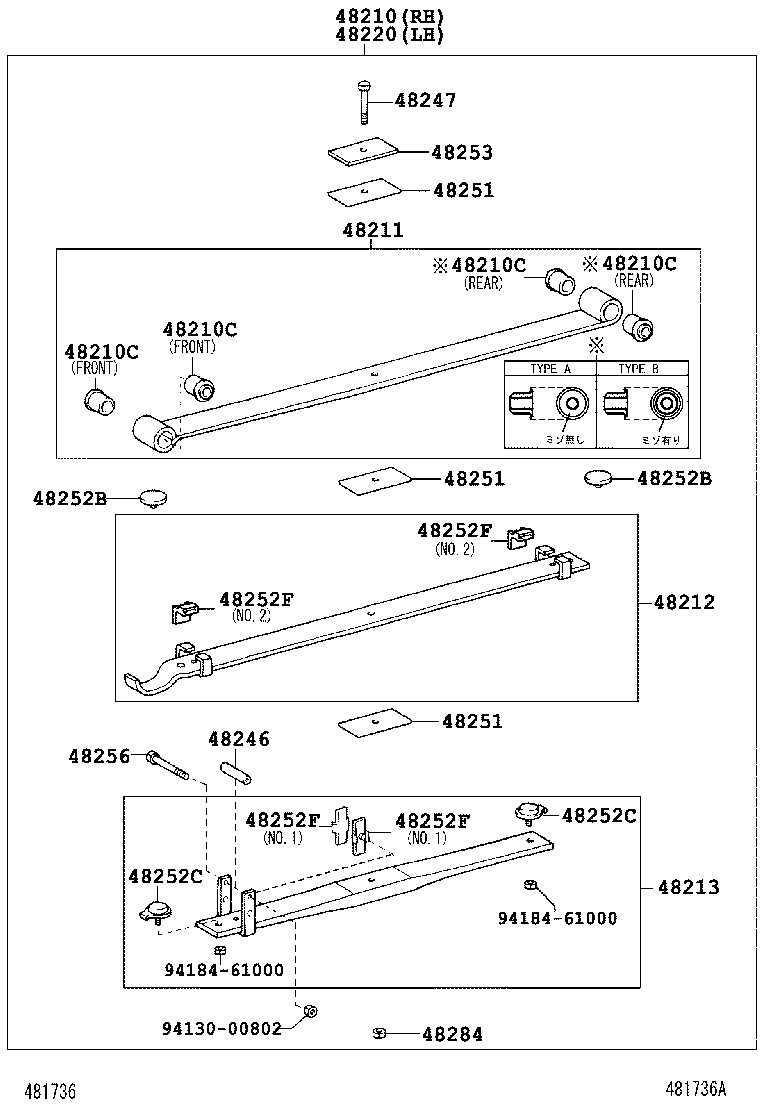

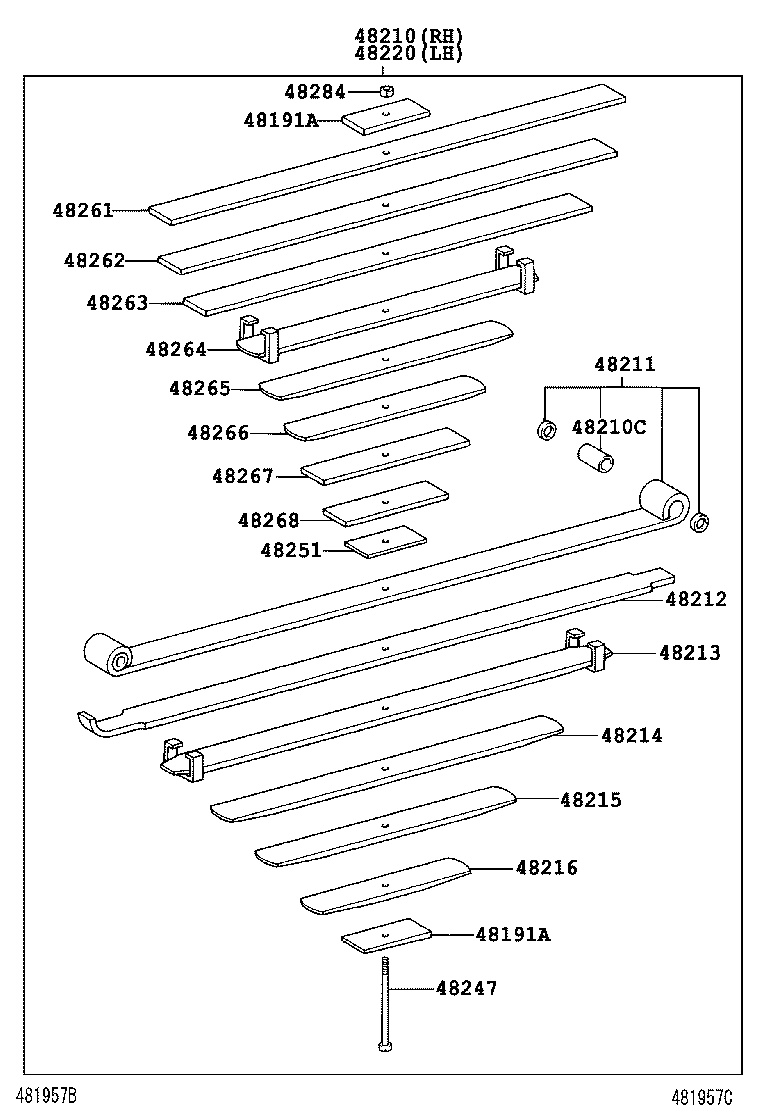

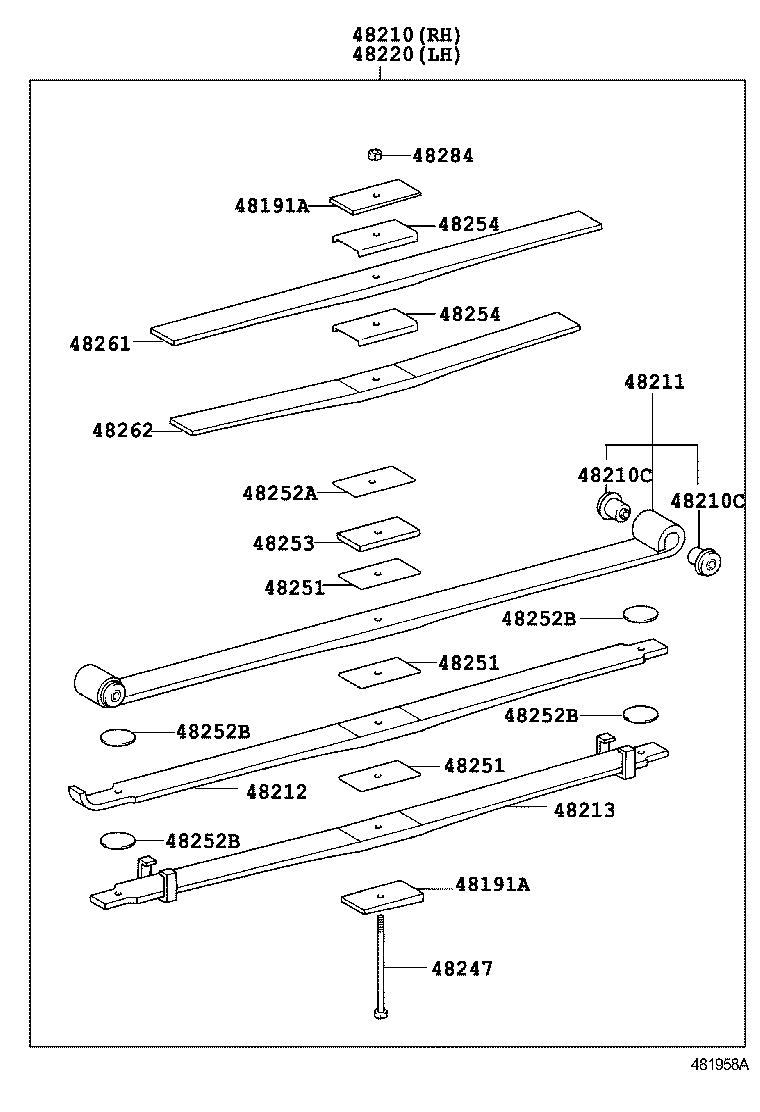

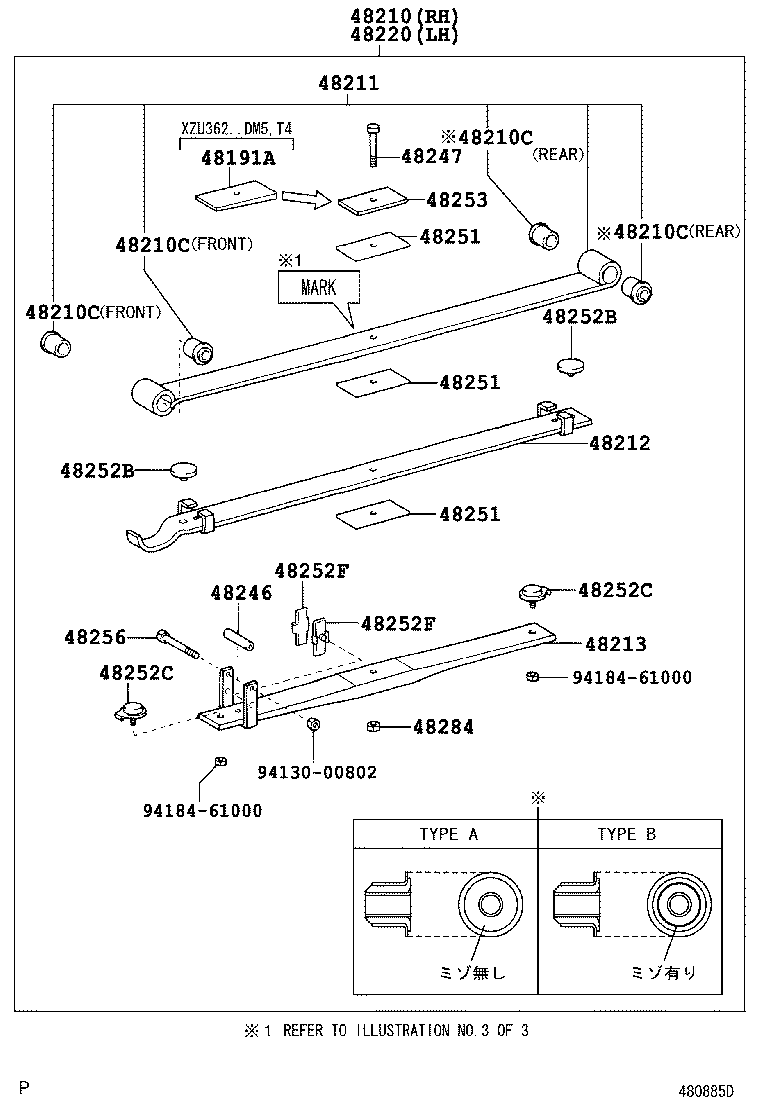

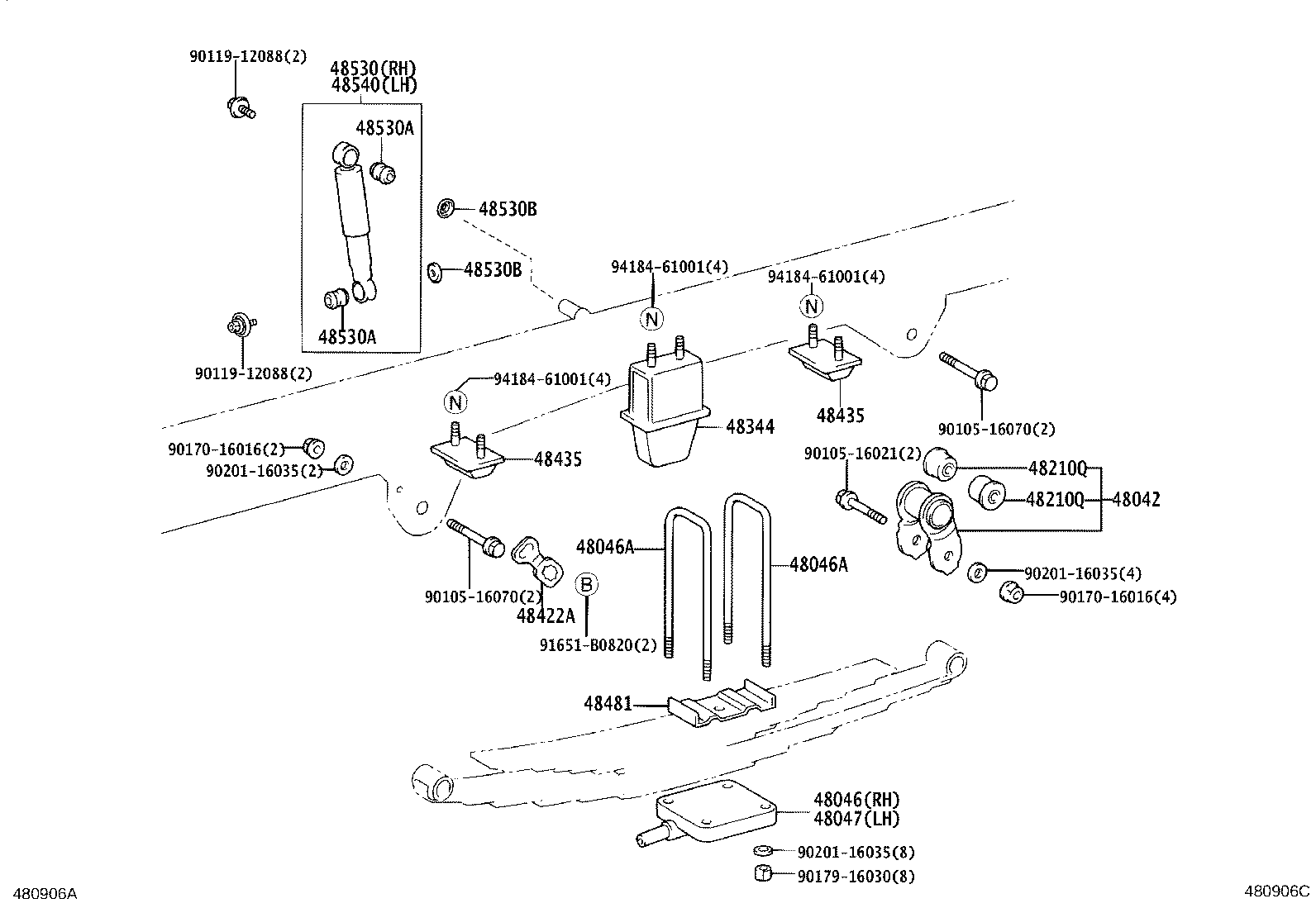

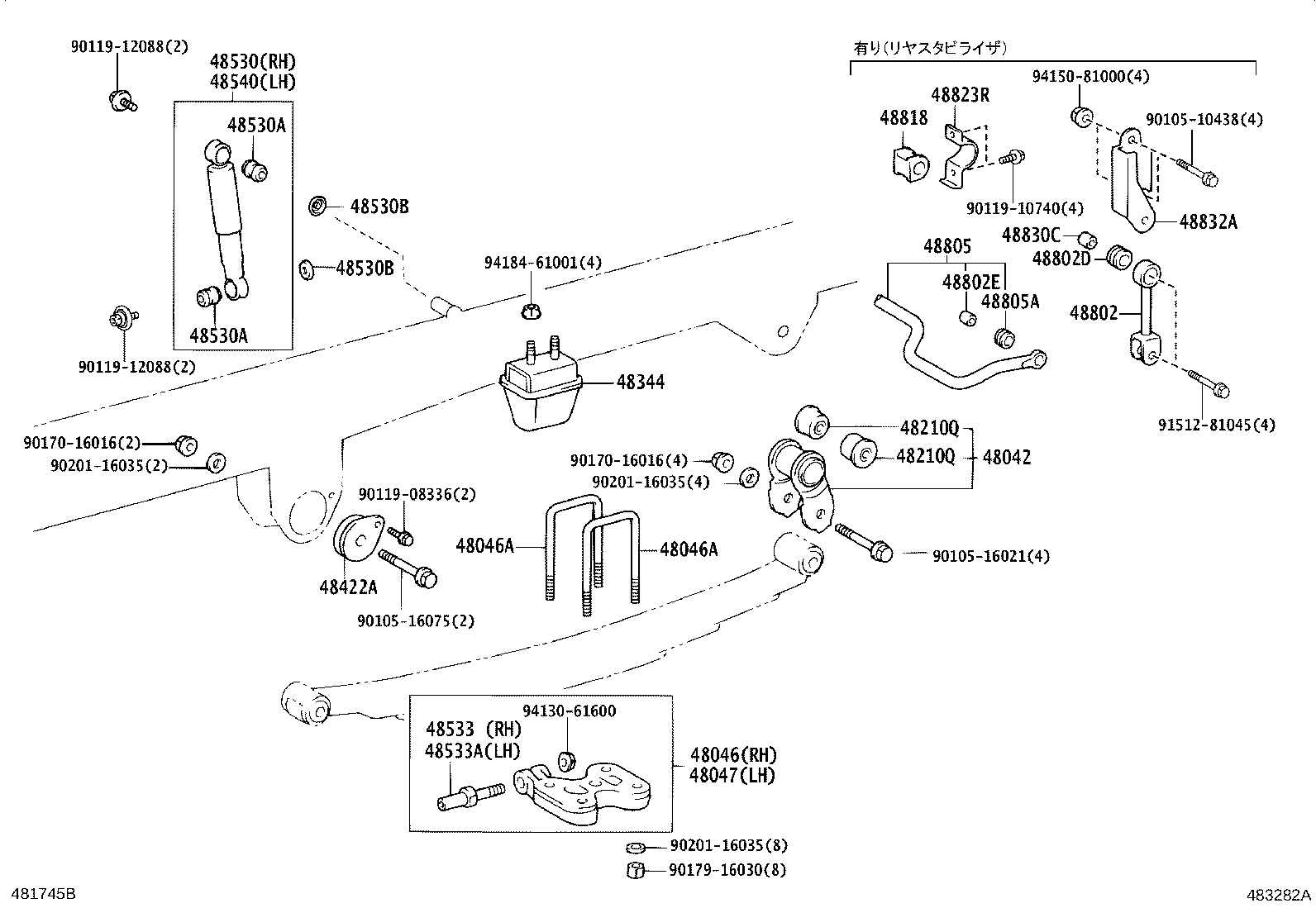

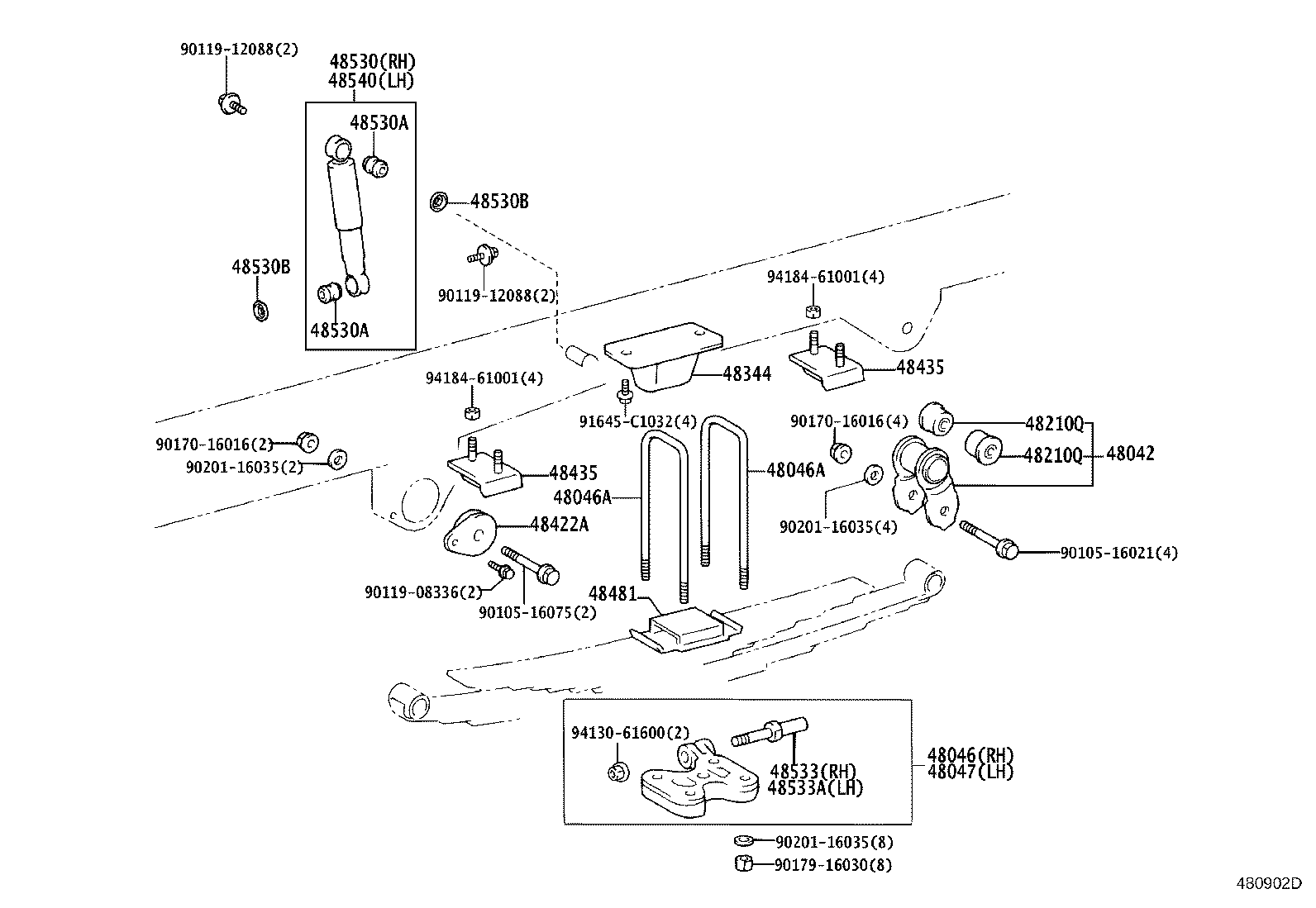

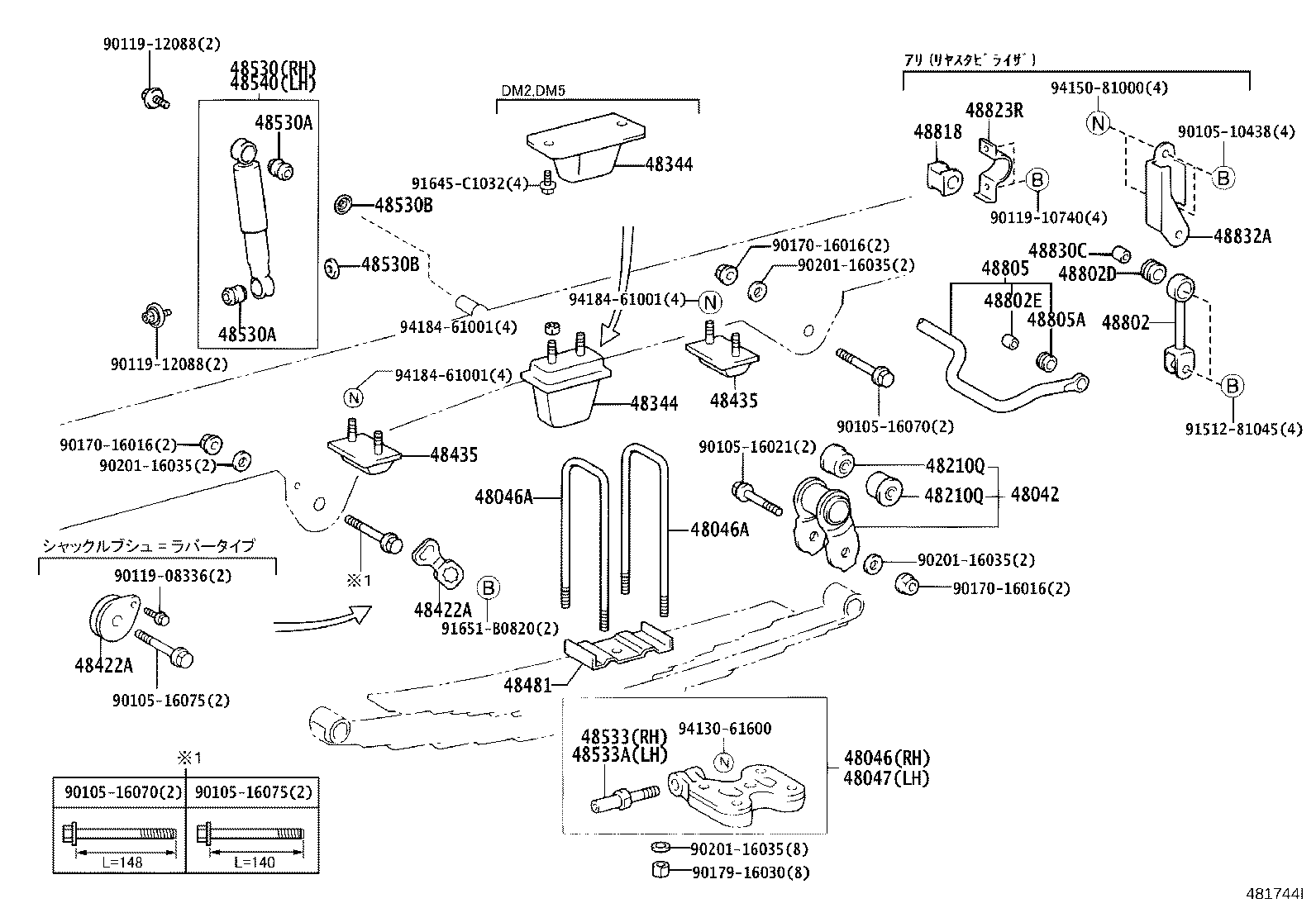

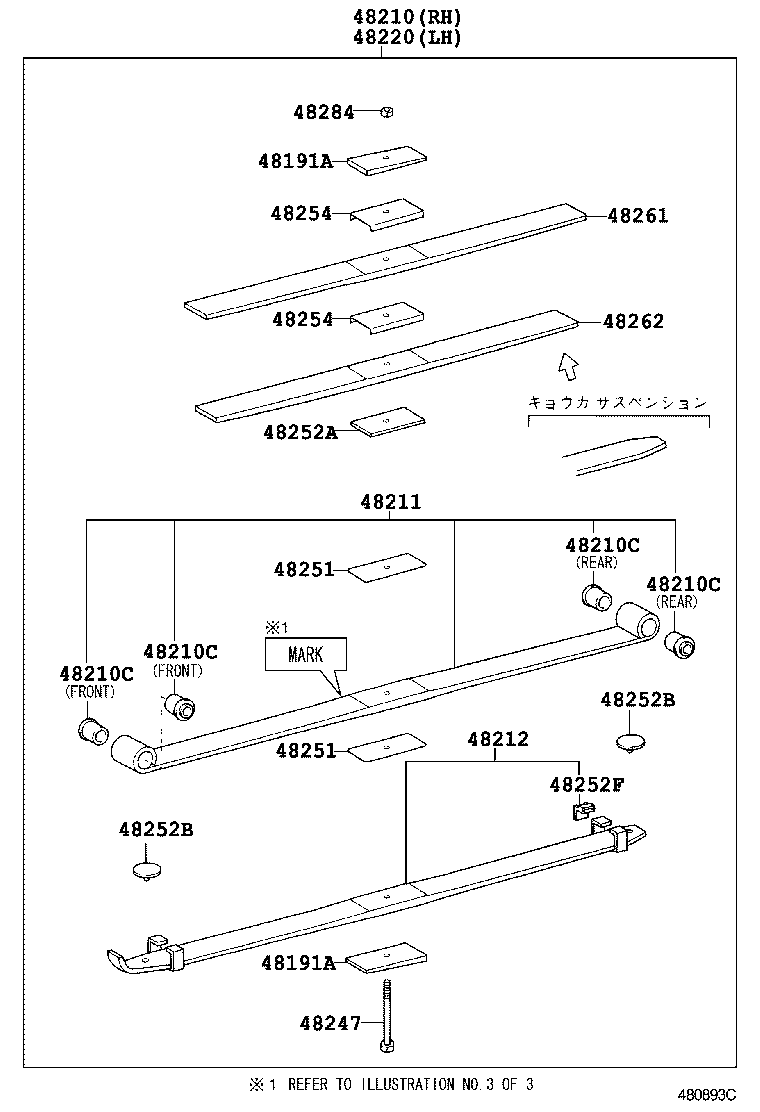

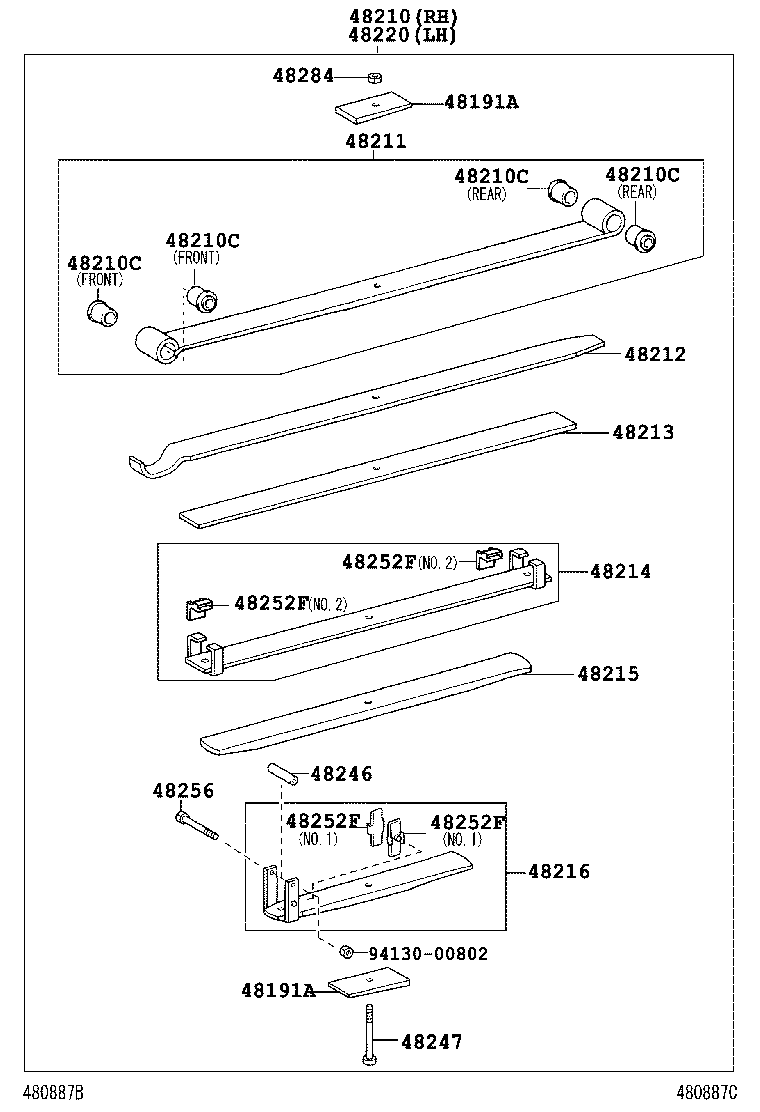

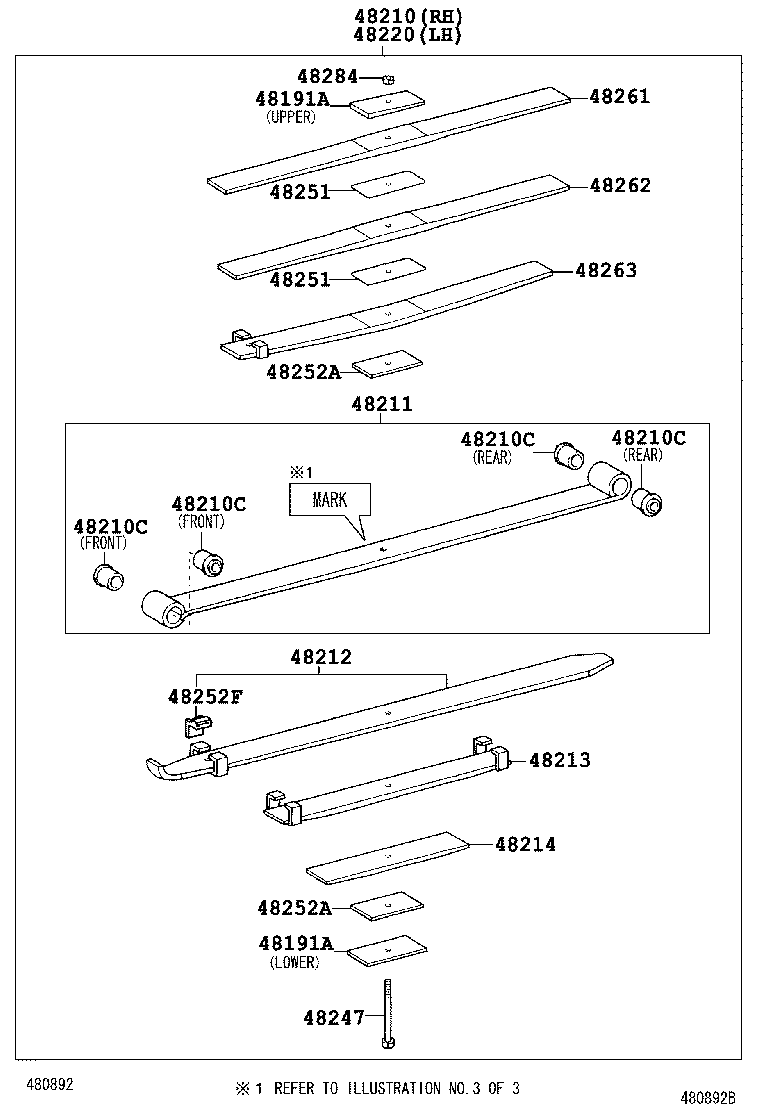

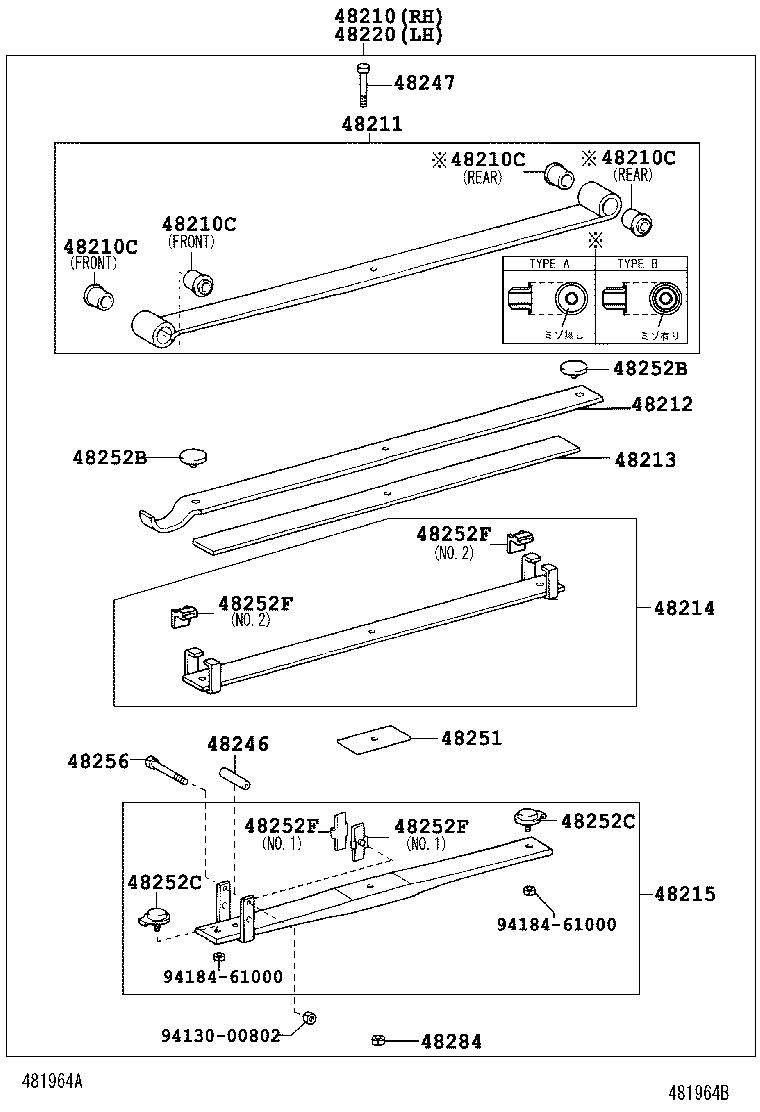

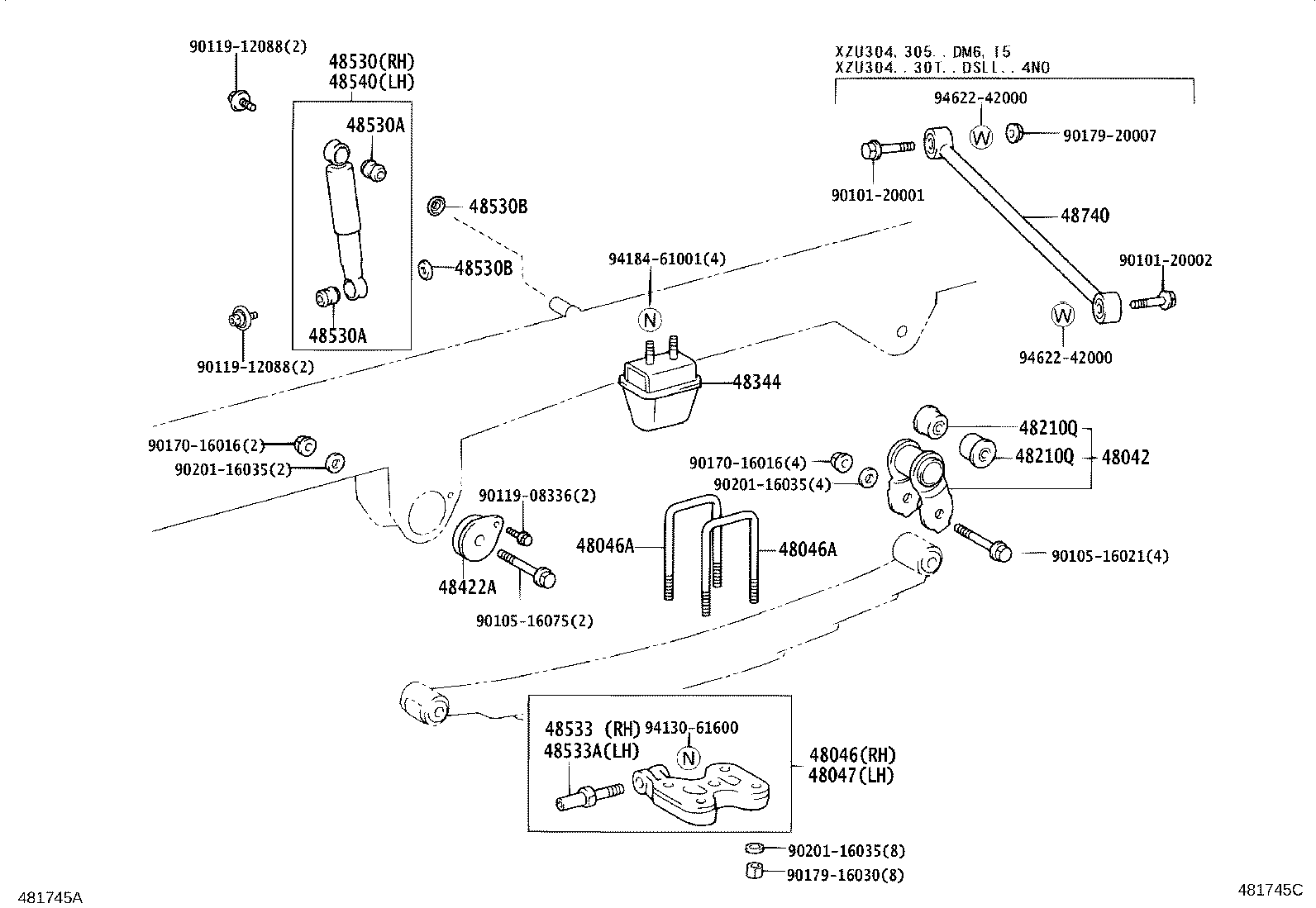

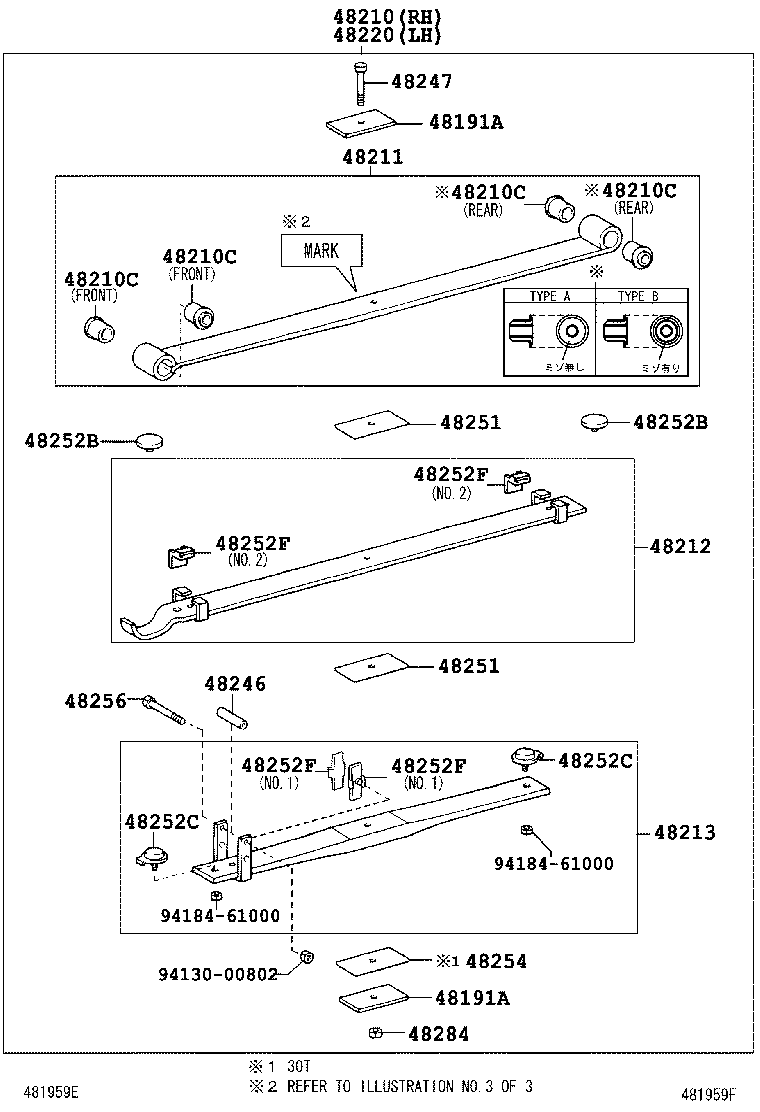

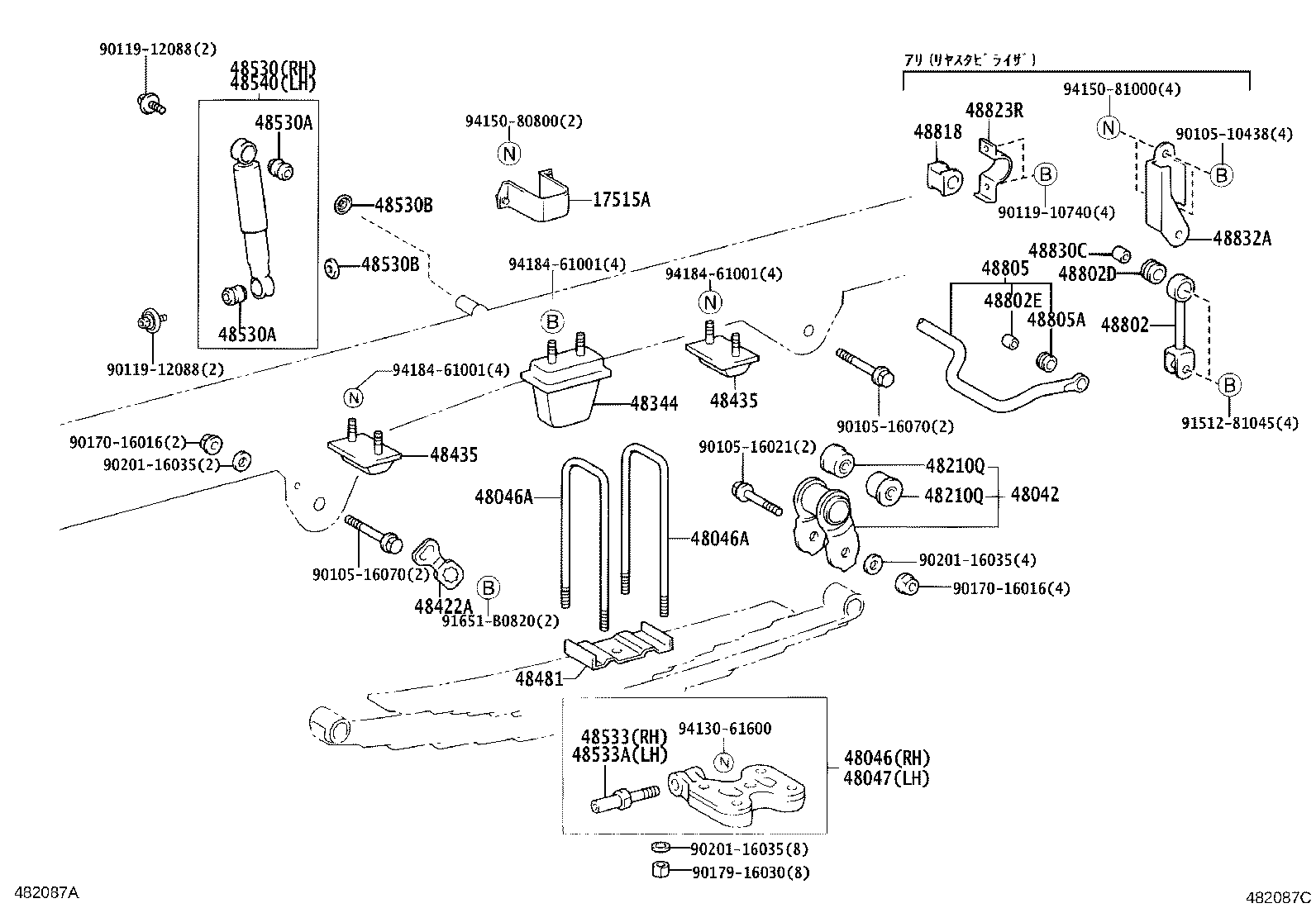

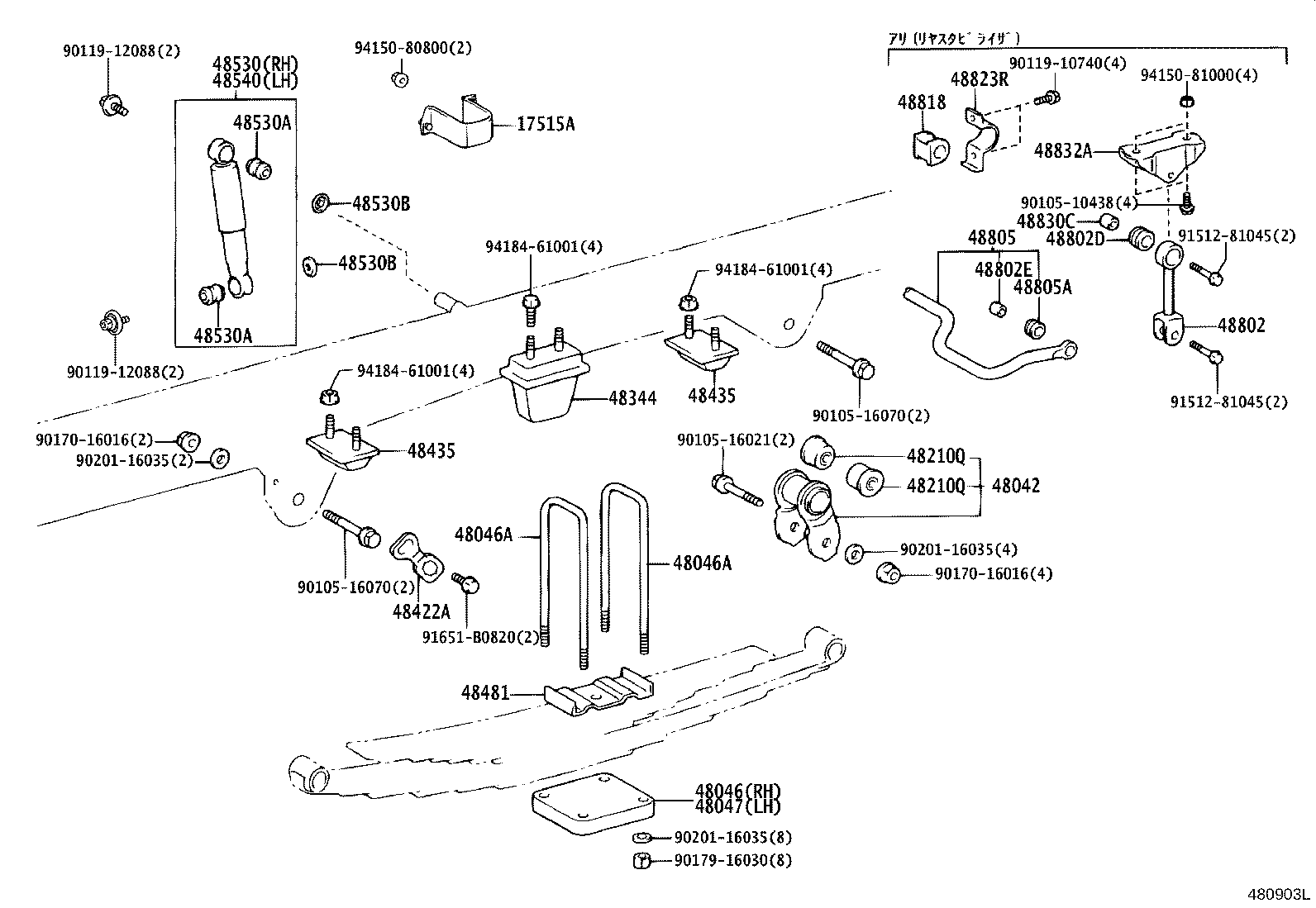

Figure 480884M 480884M 1999-05 → 2004-06 Figure 480884M 480884M 1999-05 → 2004-06 Figure 480901D 480901D 1999-06 → 2004-06 Figure 480901D 480901D 2004-06 → — Figure 480902D 480902D 1999-05 → 2004-06 Figure 480902D 480902D 2004-06 → — Figure 480903L 480903L 1999-05 → 2004-06 Figure 480903L 480903L 2004-06 → — Figure 480904F 480904F 1999-05 → 2004-06 Figure 480904F 480904F 1999-05 → 2004-06 Figure 480905C 480905C 1999-06 → 2004-06 Figure 480905C 480905C 2004-06 → — Figure 480906C 480906C 1999-07 → 2004-06 Figure 481744I 481744I 2003-10 → 2004-06 Figure 481744I 481744I 2004-06 → — Figure 481744I 481744I 2004-06 → — Figure 483282A 483282A 2004-06 → — Figure 481745C 481745C 2003-10 → 2004-06 Figure 482087C 482087C 2004-06 → — Figure 480893C 480893C 1999-05 → 2004-06 Figure 480894B 480894B 1999-07 → 2004-06 Figure 482490 482490 2004-06 → — Figure 480885D 480885D 1999-05 → 2004-06 Figure 482489 482489 1999-05 → — Figure 482959 482959 2000-05 → 2004-06 Figure 481528C 481528C 2002-06 → 2004-06 Figure 481528C 481528C 2002-10 → 2004-06 Figure 481528C 481528C 2004-06 → — Figure 481736A 481736A 1999-05 → 2004-06 Figure 481736A 481736A 2003-10 → 2004-06 Figure 481736A 481736A 2004-06 → — Figure 481959F 481959F 2004-06 → — Figure 480913A 480913A 1999-05 → 2004-06 Figure 480913A 480913A 1999-05 → 2004-06 Figure 480913A 480913A 2004-06 → — Figure 480913A 480913A 2004-06 → — Figure 480982 480982 1999-07 → 2004-06 Figure 480982 480982 2004-06 → — Figure 480983A 480983A 1999-08 → — Figure 480984A 480984A 1999-07 → — Figure 481958A 481958A 2004-06 → — Figure 480890B 480890B 1999-07 → — Figure 480889A 480889A 1999-05 → 2004-06 Figure 480889A 480889A 2004-06 → — Figure 480892B 480892B 1999-05 → 2004-06 Figure 480892B 480892B 2004-06 → — Figure 481964B 481964B 2000-05 → 2004-06 Figure 481964B 481964B 2004-06 → — Figure 480891A 480891A 1999-05 → — Figure 482491 482491 2000-05 → 2004-06 Figure 482491 482491 2004-06 → — Figure 480886F 480886F 1999-05 → 2004-06 Figure 480886F 480886F 1999-05 → 2004-06 Figure 480886F 480886F 1999-05 → 2004-06 Figure 480886F 480886F 2004-06 → — Figure 481195C 481195C 2000-05 → 2004-06 Figure 480887C 480887C 1999-06 → 2004-06 Figure 480887C 480887C 2004-06 → — Figure 480888B 480888B 1999-05 → 2004-06 Figure 481735A 481735A 2003-10 → 2004-06 Figure 481735A 481735A 2004-06 → — Figure 481735A 481735A 2004-06 → — Figure 480986A 480986A 1999-06 → — Figure 480987B 480987B 1999-06 → 2004-06 Figure 480987B 480987B 2004-06 → — Figure 480985A 480985A 1999-06 → 2004-06 Figure 480985A 480985A 2004-06 → — Figure 481957C 481957C 2004-06 → — Figure 482542A 482542A 1999-05 → —

Part groups

PNCDescription
17515A Retainer, Shock Absorber
48042 Shackle Sub-assy, Rear Spring, NO.2
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48191A Wedge, Caster(FOR REAR LEAF SPRING)

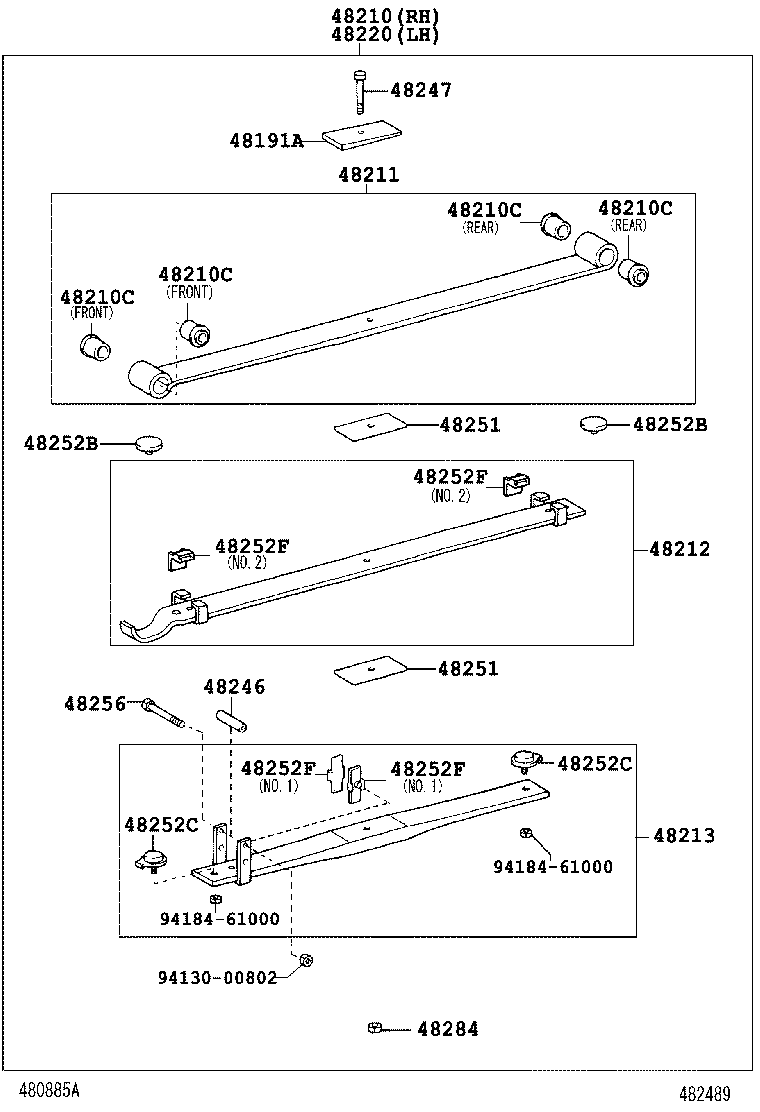

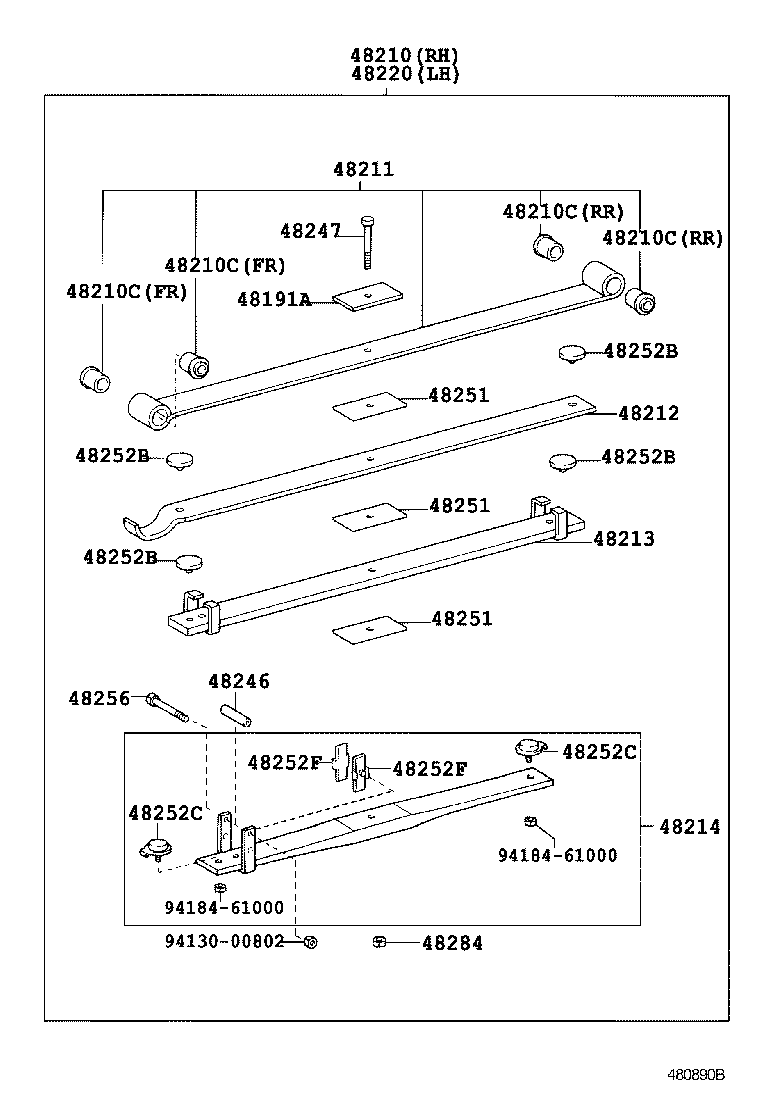

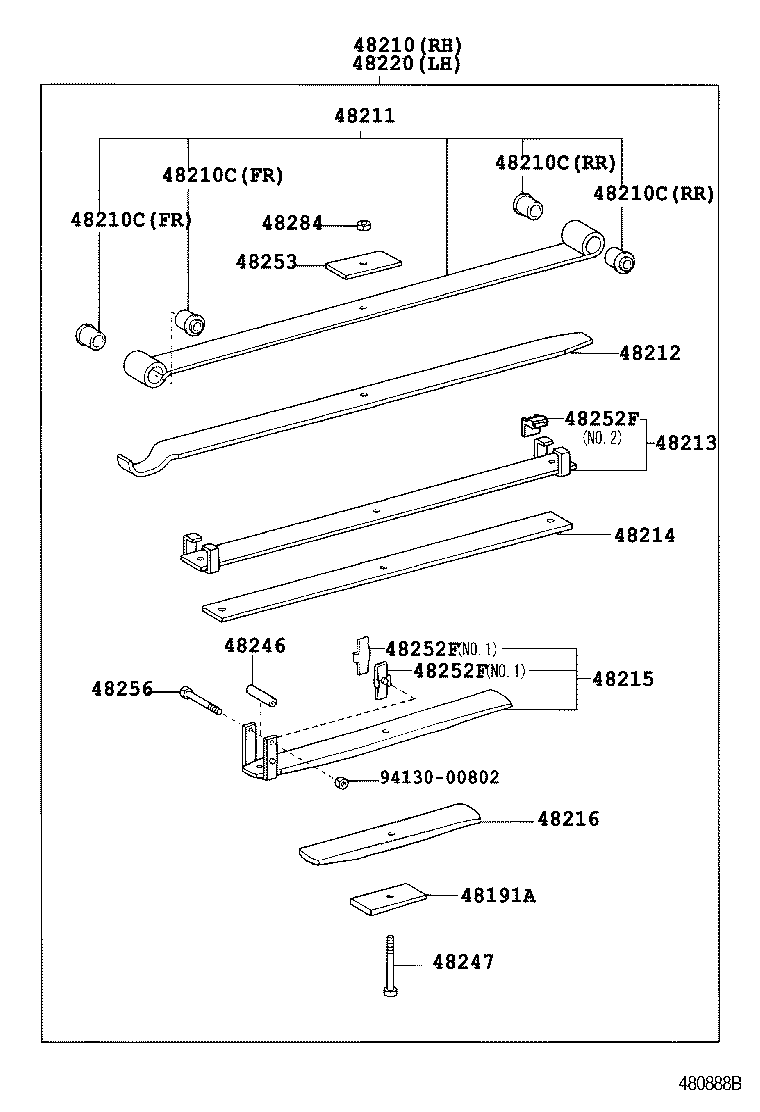

48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48210Q Bush(FOR REAR SPRING SHACKLE)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)

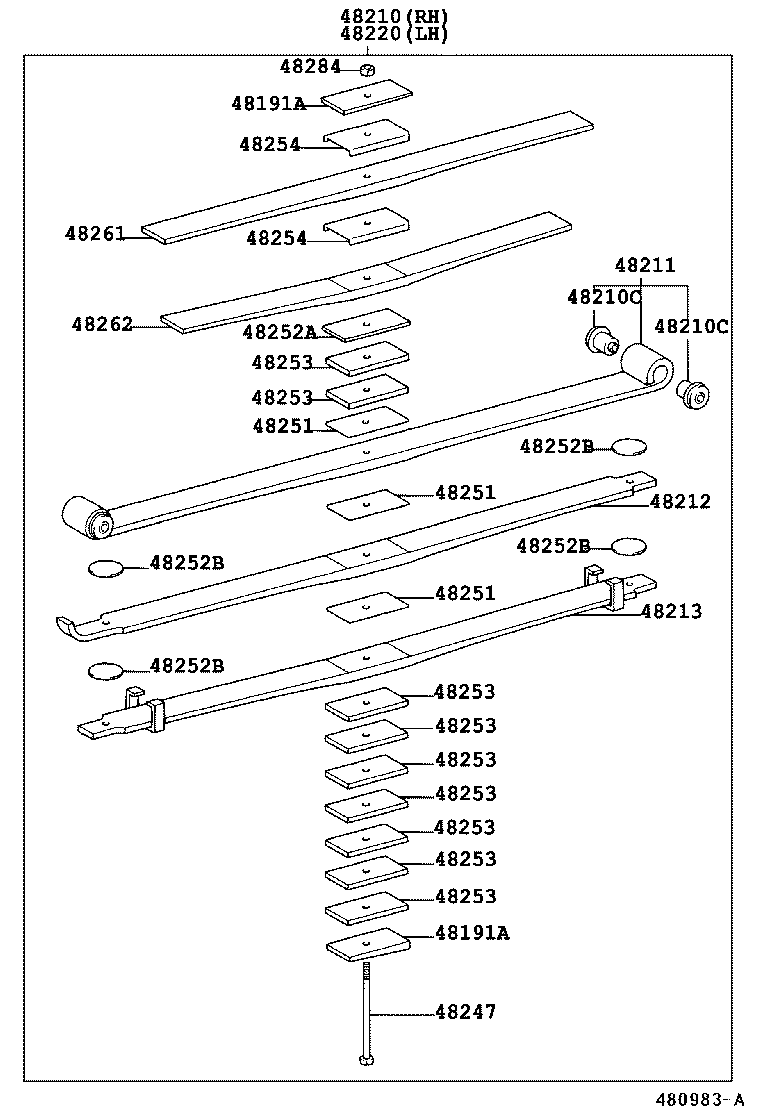

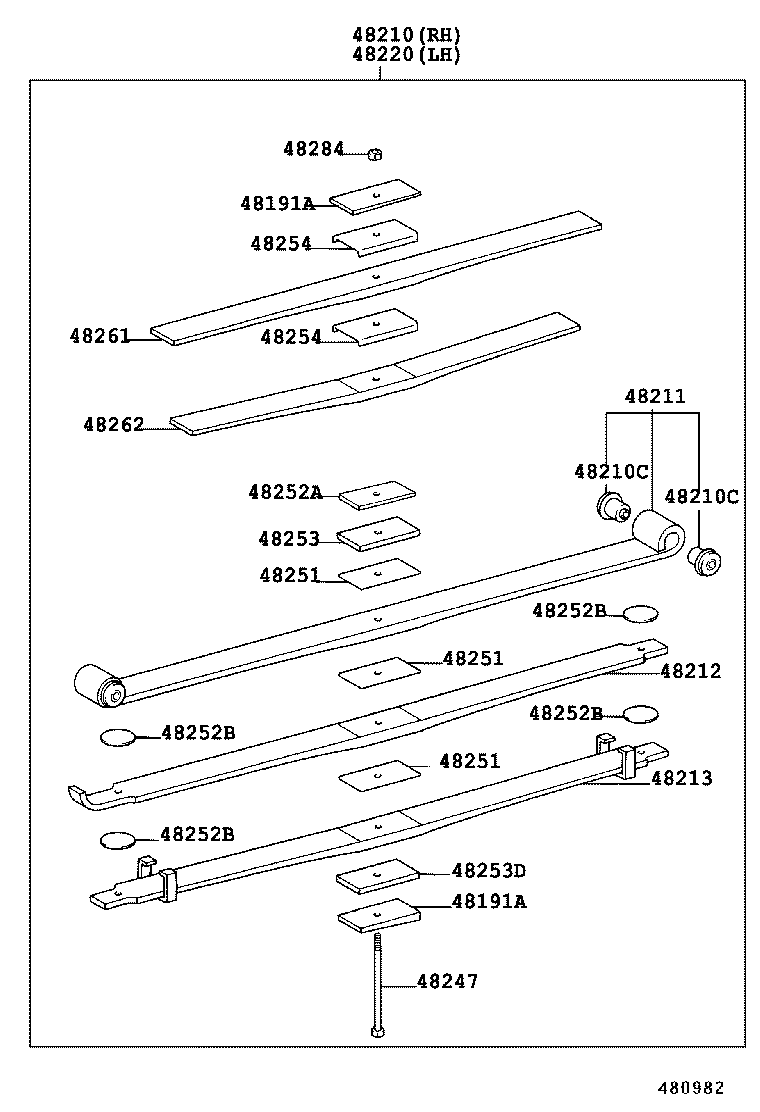

48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48268 Leaf, Rear Helper Spring, NO.8
48284 Nut, Rear Spring Center Bolt
48344 Stopper, Bumper, Rear
48422A Support, Rear Spring Pin
48424 Pin, Spring Bracket, NO.2
48435 Attachment, Helper Spring Bracket, NO.1
48481 Seat, Rear Spring, Upper
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48533 Pin, Rear Shock Absorber Lower Pivot, RH
48533A Pin, Rear Shock Absorber Lower Pivot, LH
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48740 Rod Assy, Rear Lateral Control
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48805A Bush(FOR REAR STABILIZER BAR)
48818 Bush, Stabilizer, Rear
48823R Cover, Stabilizer Link(FOR REAR)
48830C Spacer(FOR REAR STABILIZER LINK)
48832A Bracket, Rear Stabilizer Bar, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
