Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

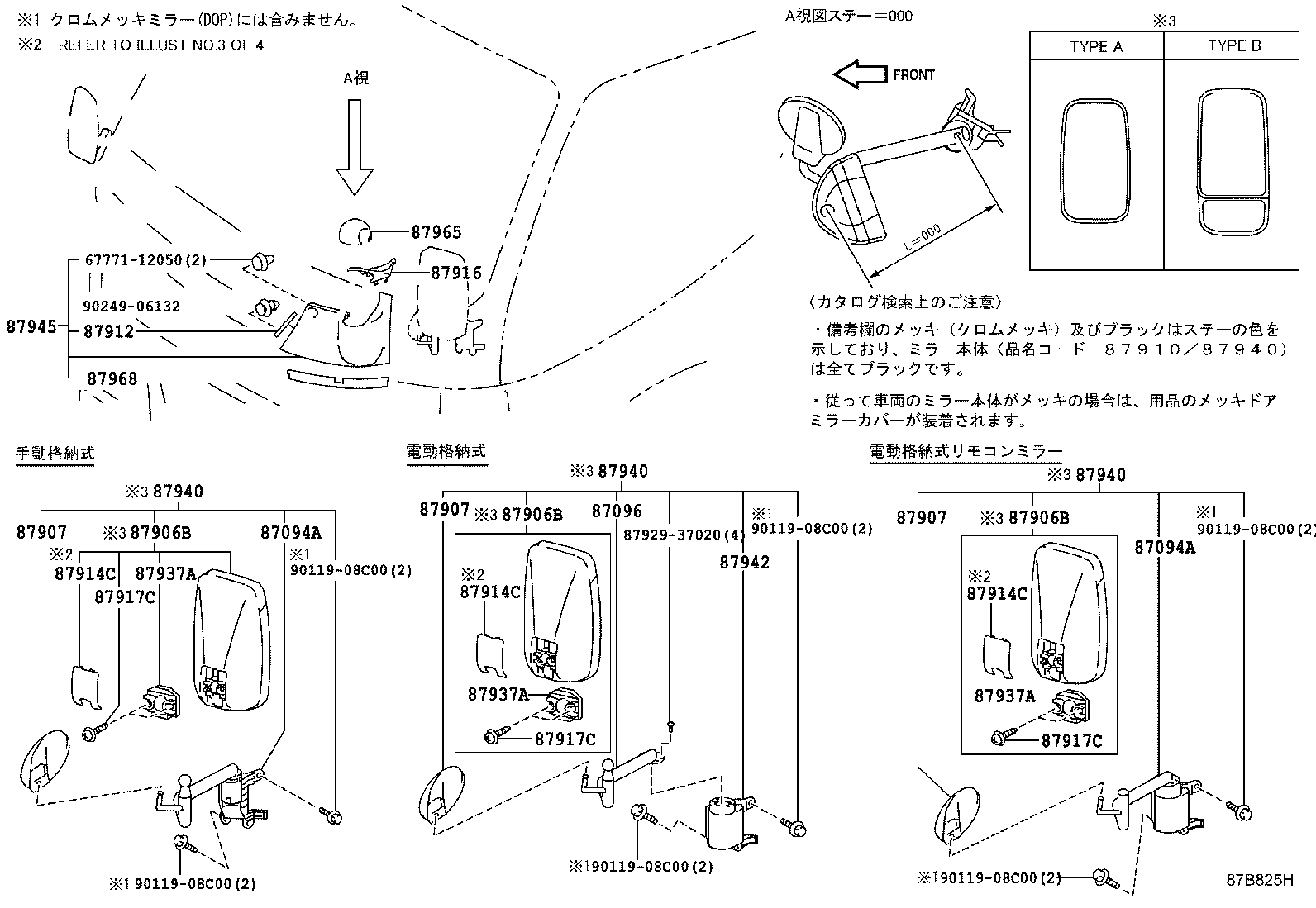

Mirror
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87093A | Stay Sub-assy, Outer Rear View Mirror, RH |
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87096 | Stay Sub-assy, Outer Rear View Mirror, Lower LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87819 | Lens, Inner RR View Mirror Room Lamp |
| 87827 | Absorber, Inner Rear View Mirror |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87902A | Arm Sub-assy, Outer Rear View Mirror, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87907A | Mirror Sub-assy, Outer Under Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87912 | Protector, Outer Mirror |
| 87914B | Cover, Outer Mirror Knob, RH |
| 87914C | Cover, Outer Mirror Knob, LH |
| 87915 | Cover, Outer Mirror, RH |
| 87916 | Bezel, Outer Mirror |
| 87917C | Screw, Outer Mirror |
| 87937 | Holder, Mirror, RH |
| 87937A | Holder, Mirror, LH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87942 | Motor, Mirror, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87965 | Grommet, Outer Mirror |
| 87967 | Holder, Mirror, Outer RH |
| 87968 | Holder, Mirror, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
