Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

138 part groups · 26 illustrations

Illustrations

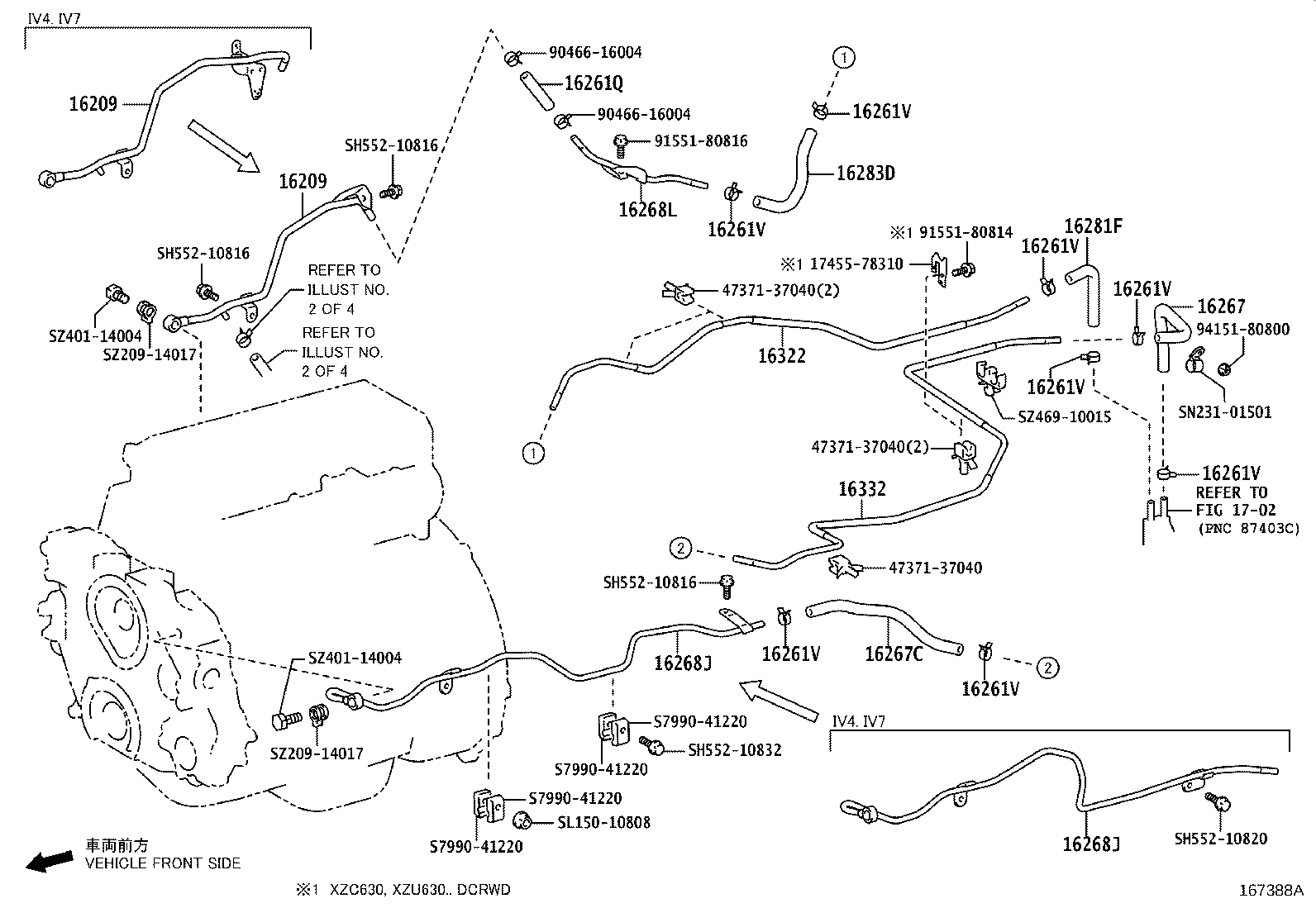

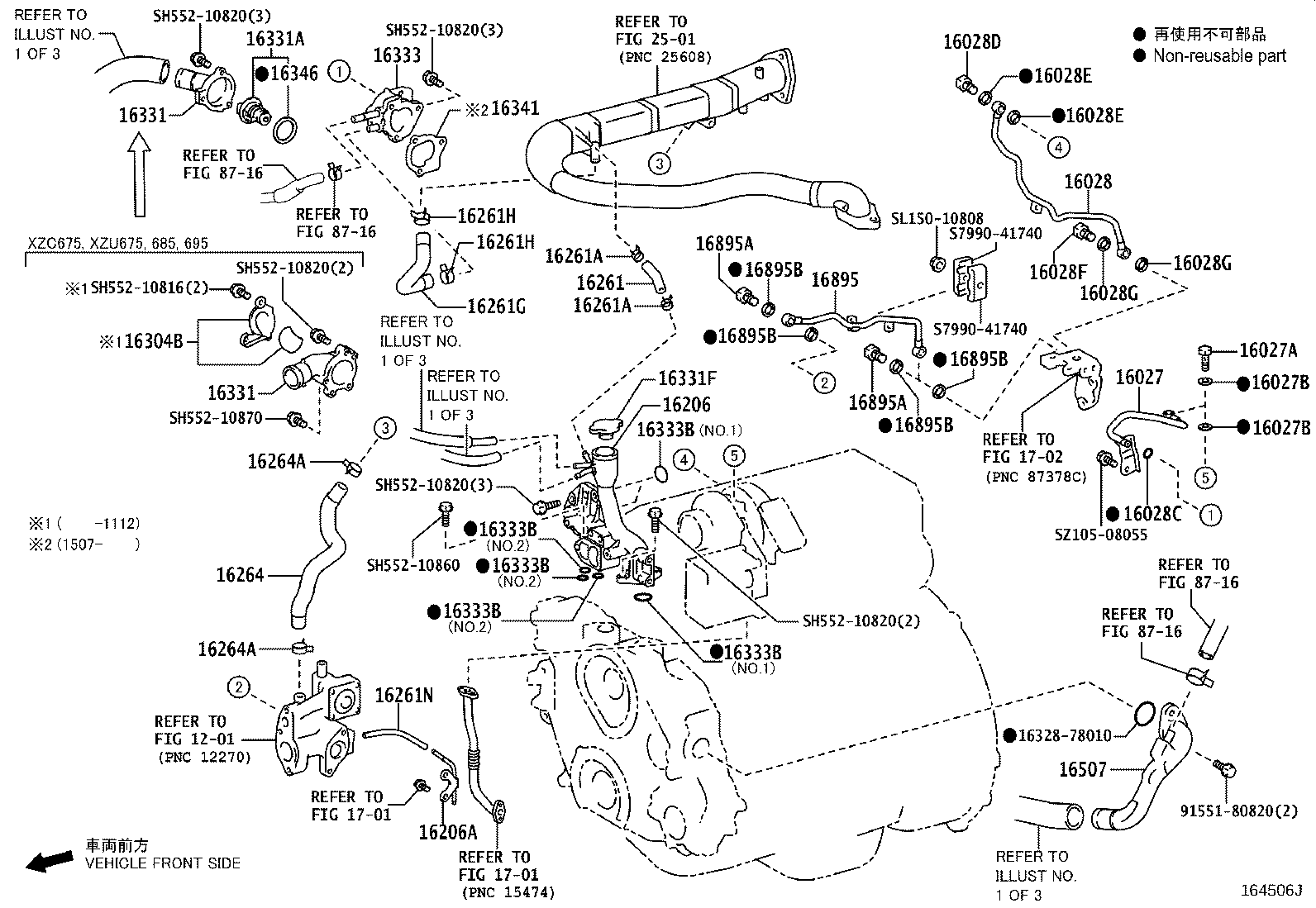

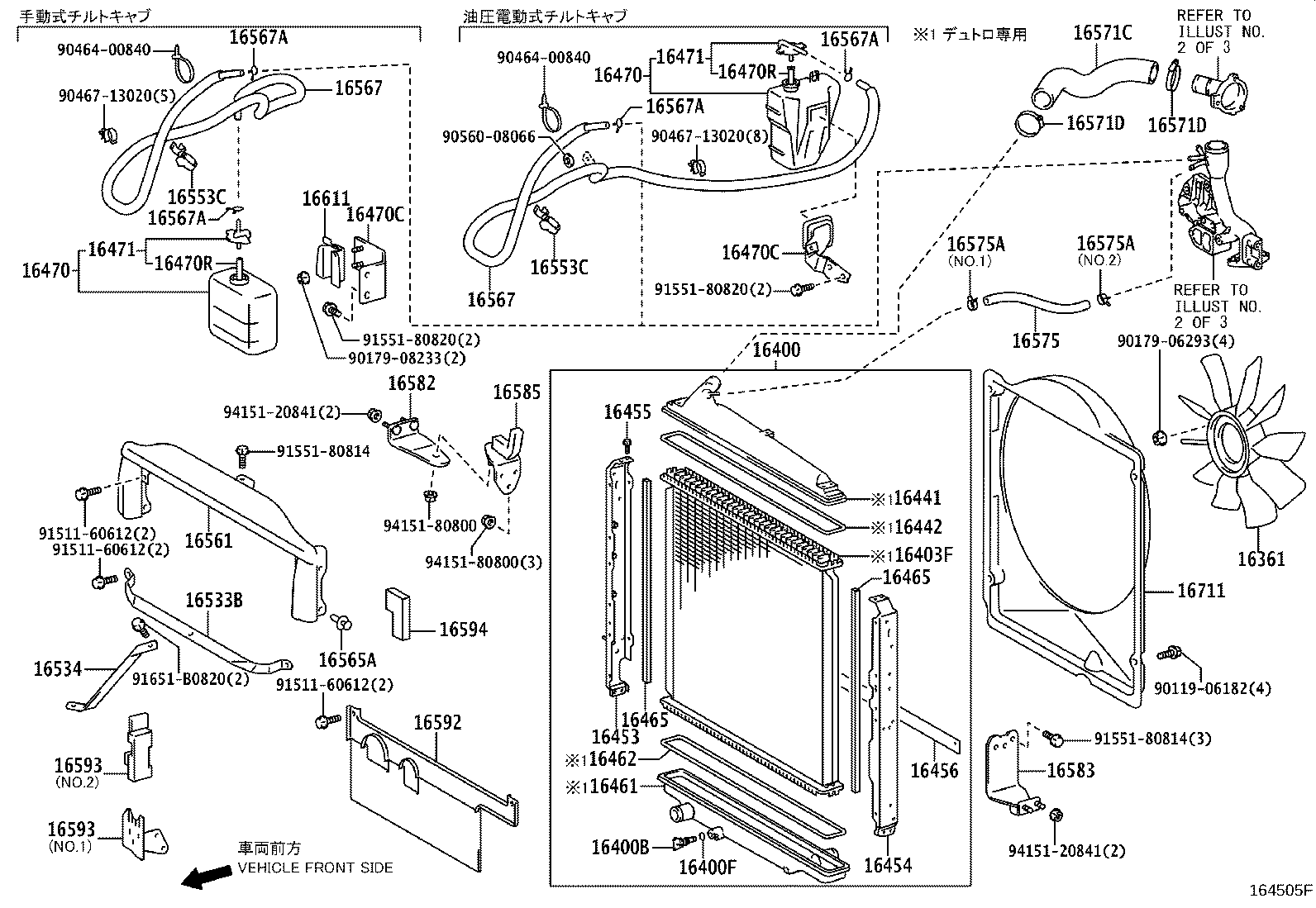

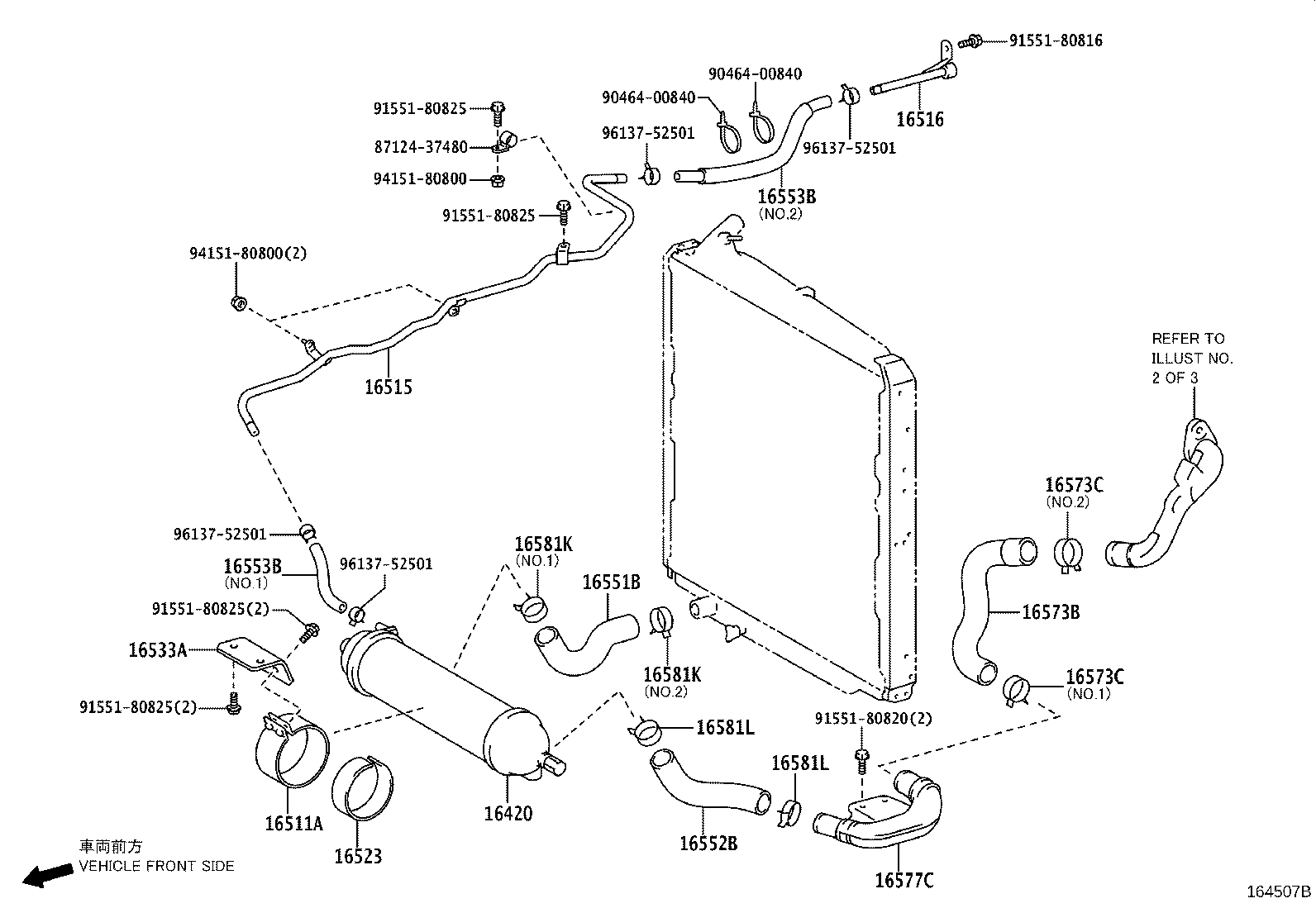

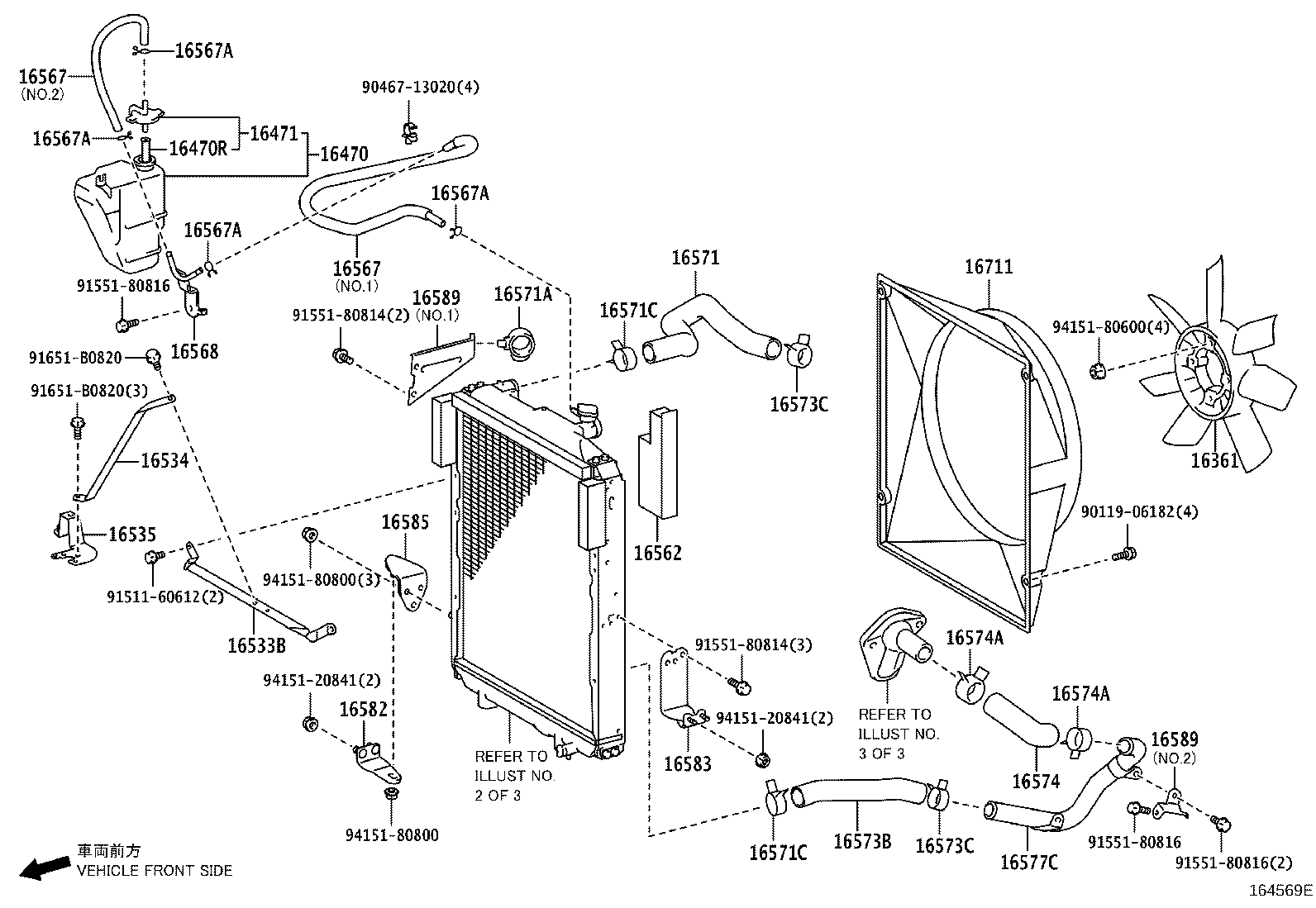

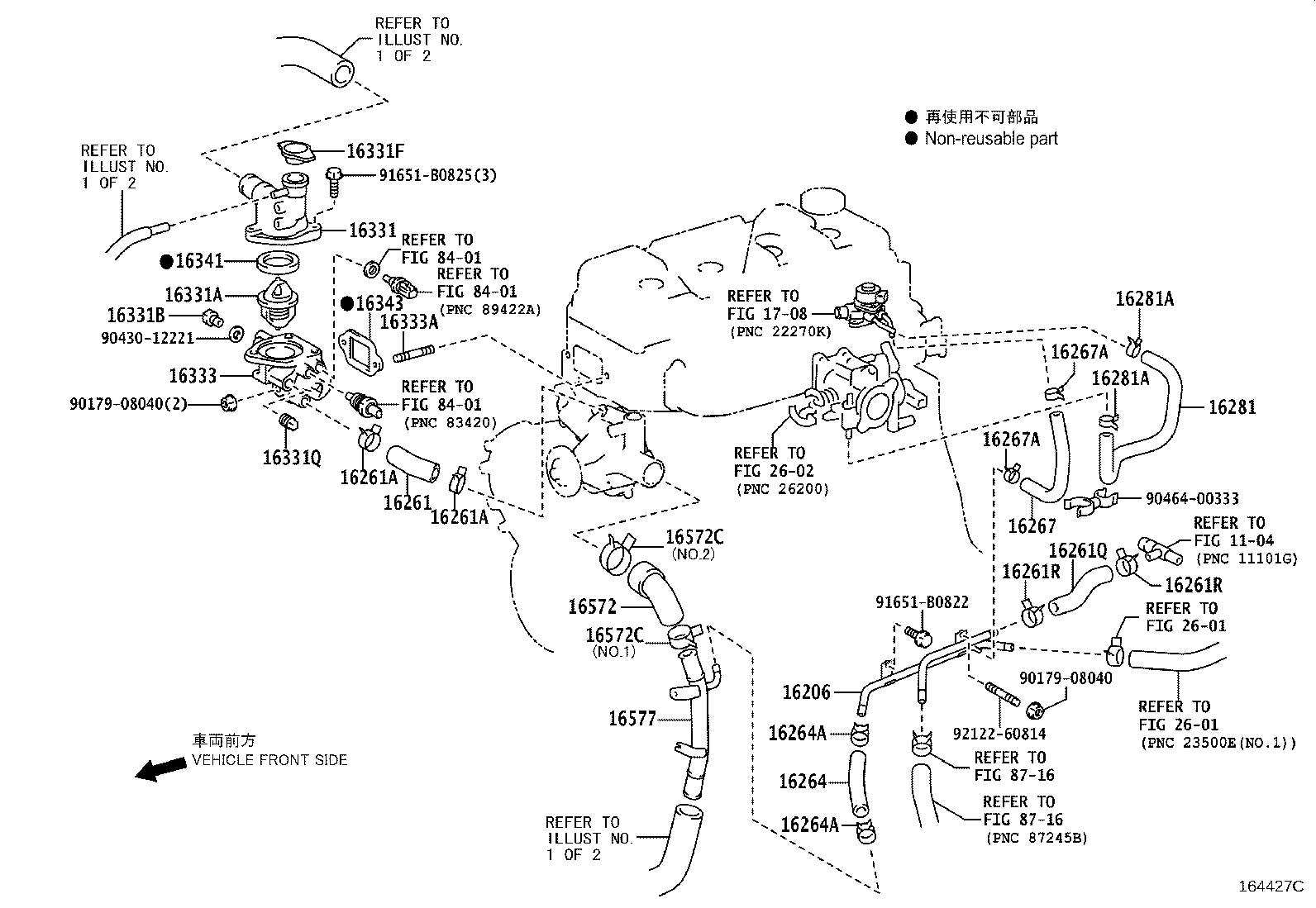

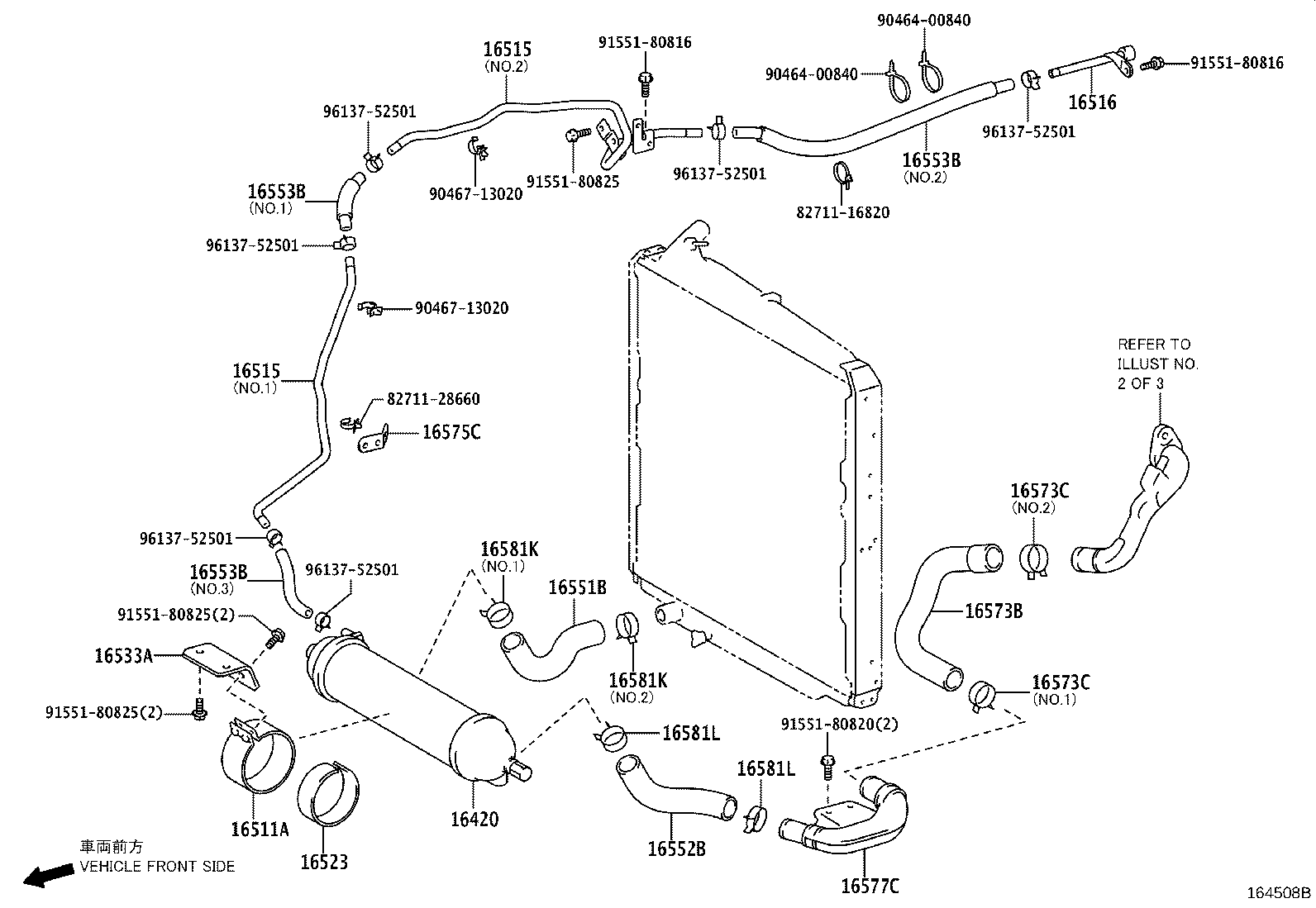

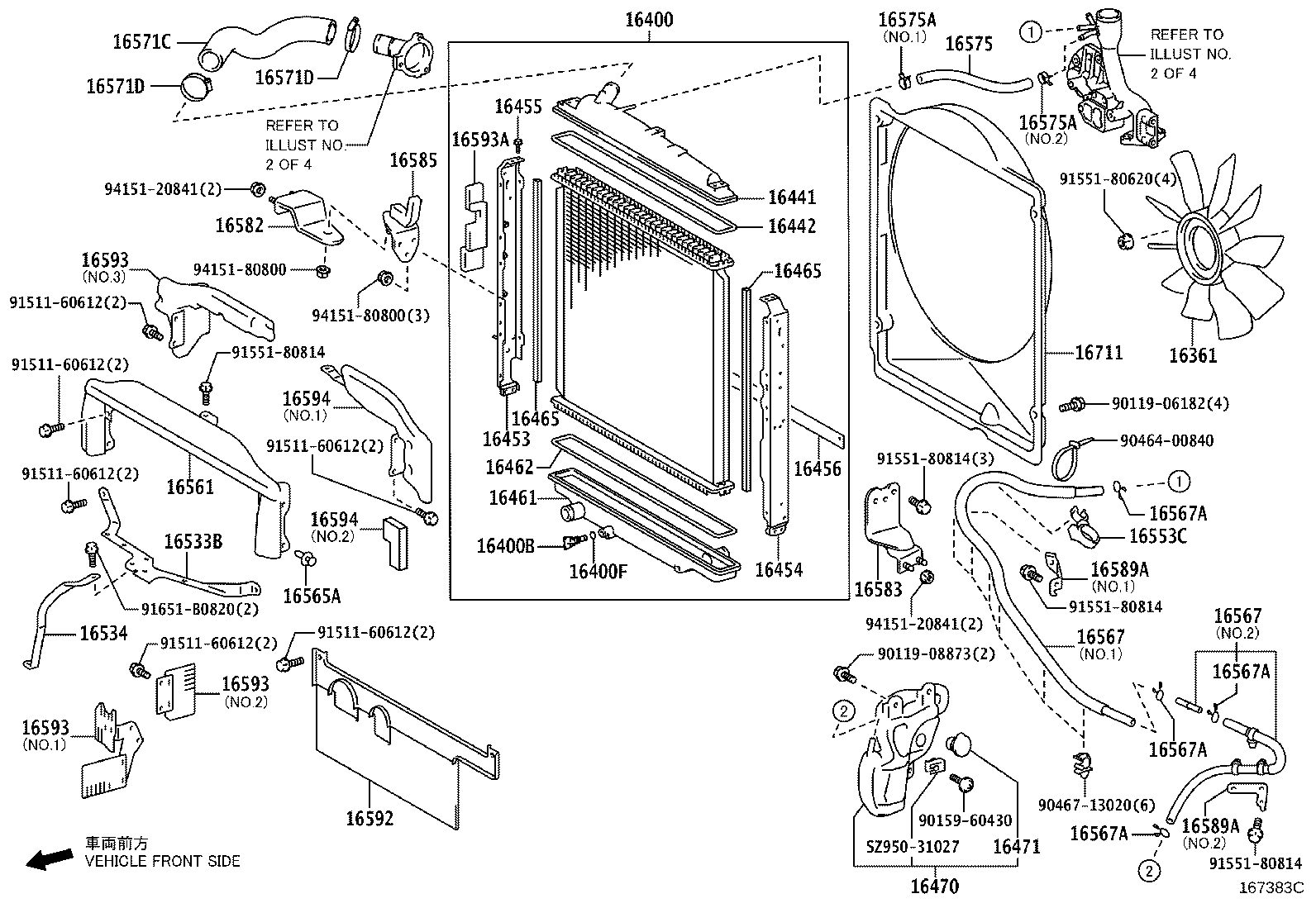

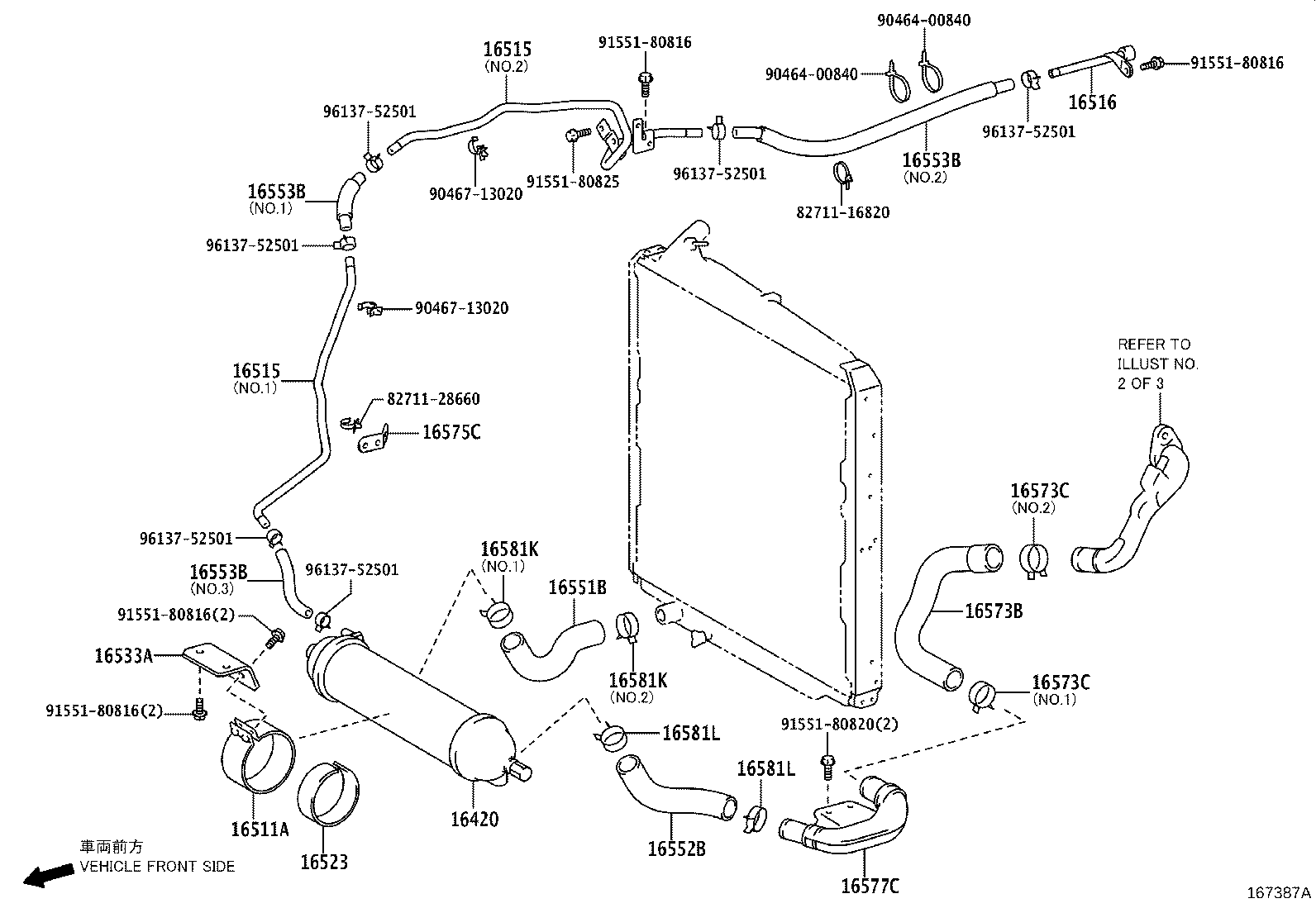

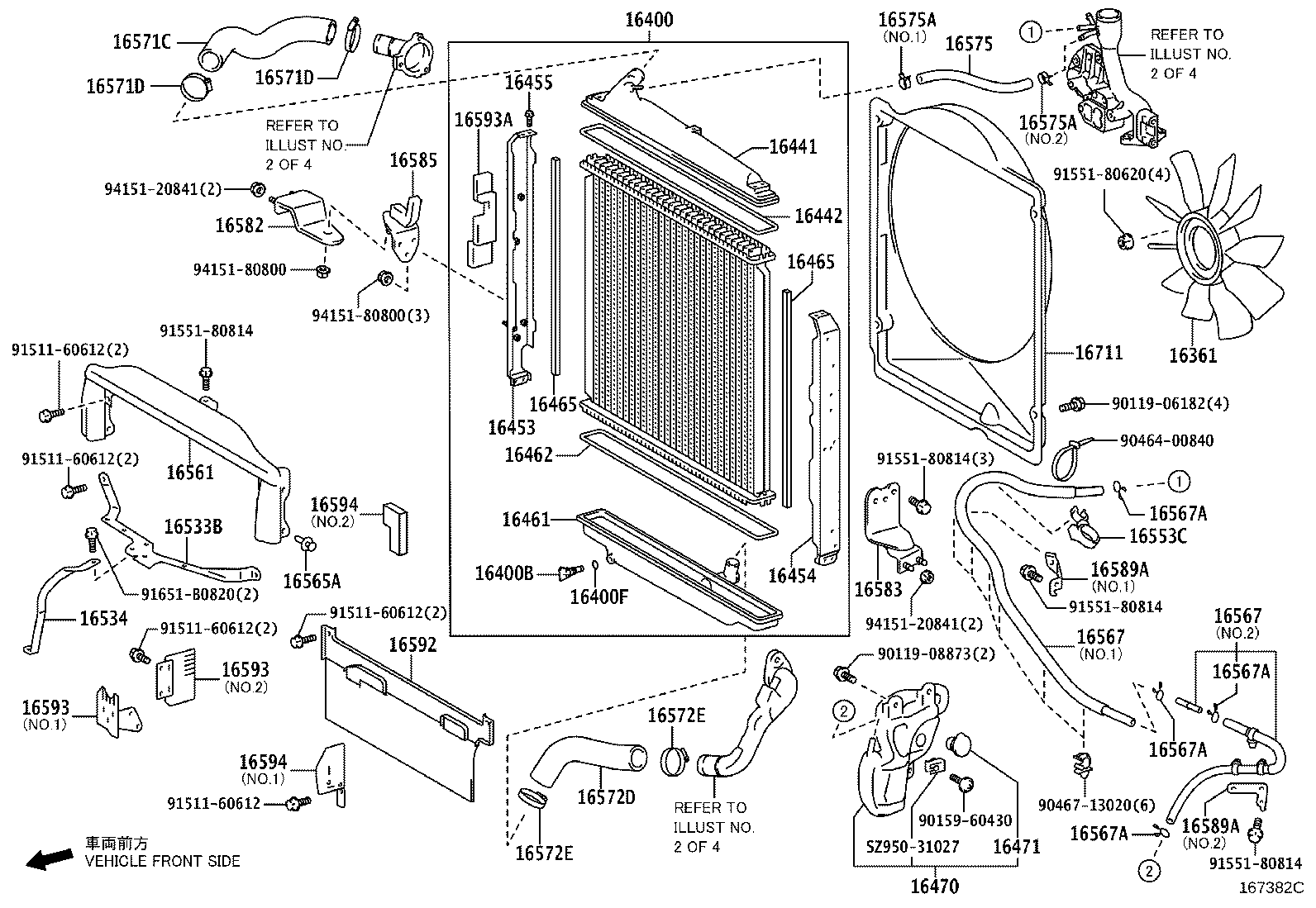

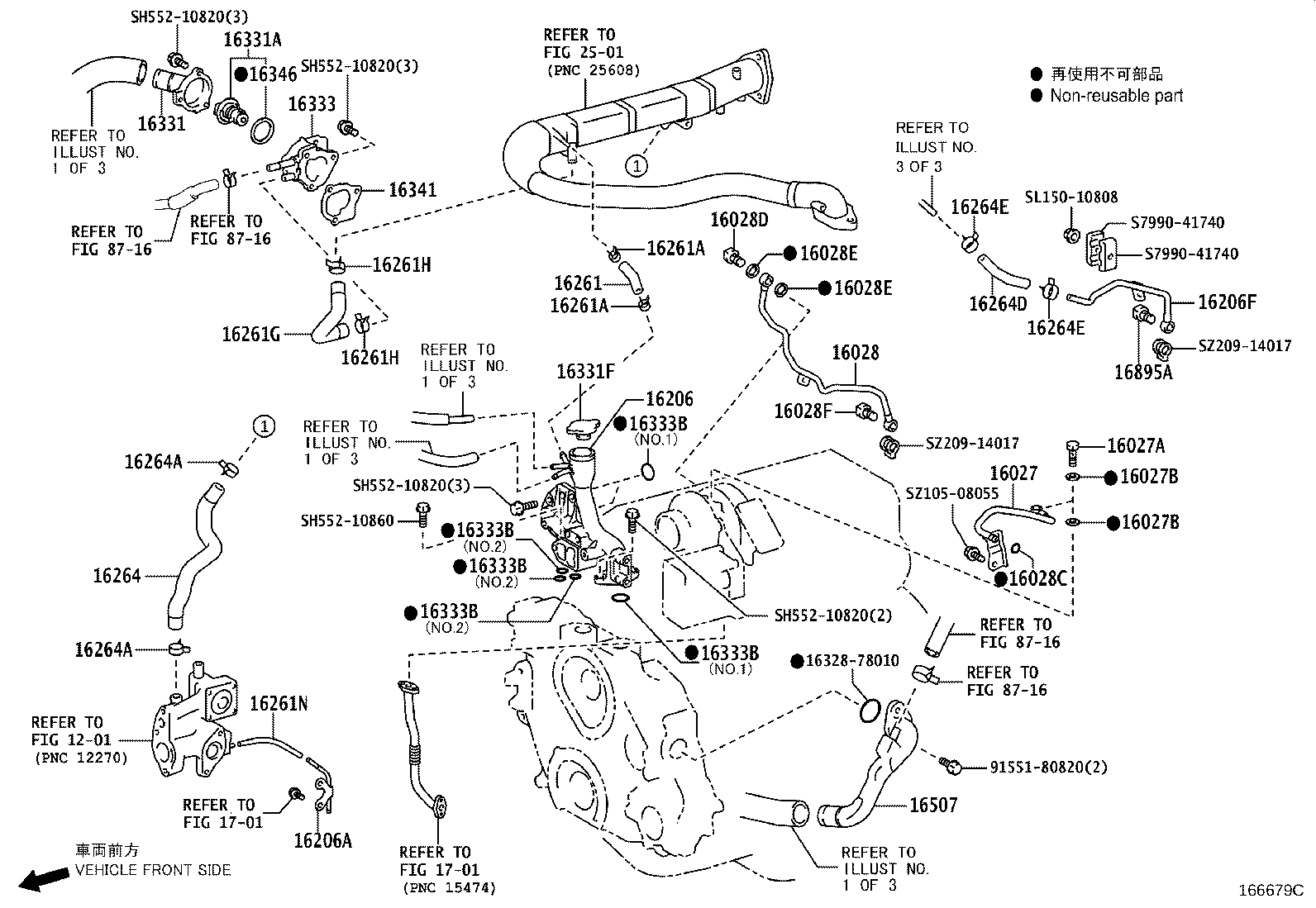

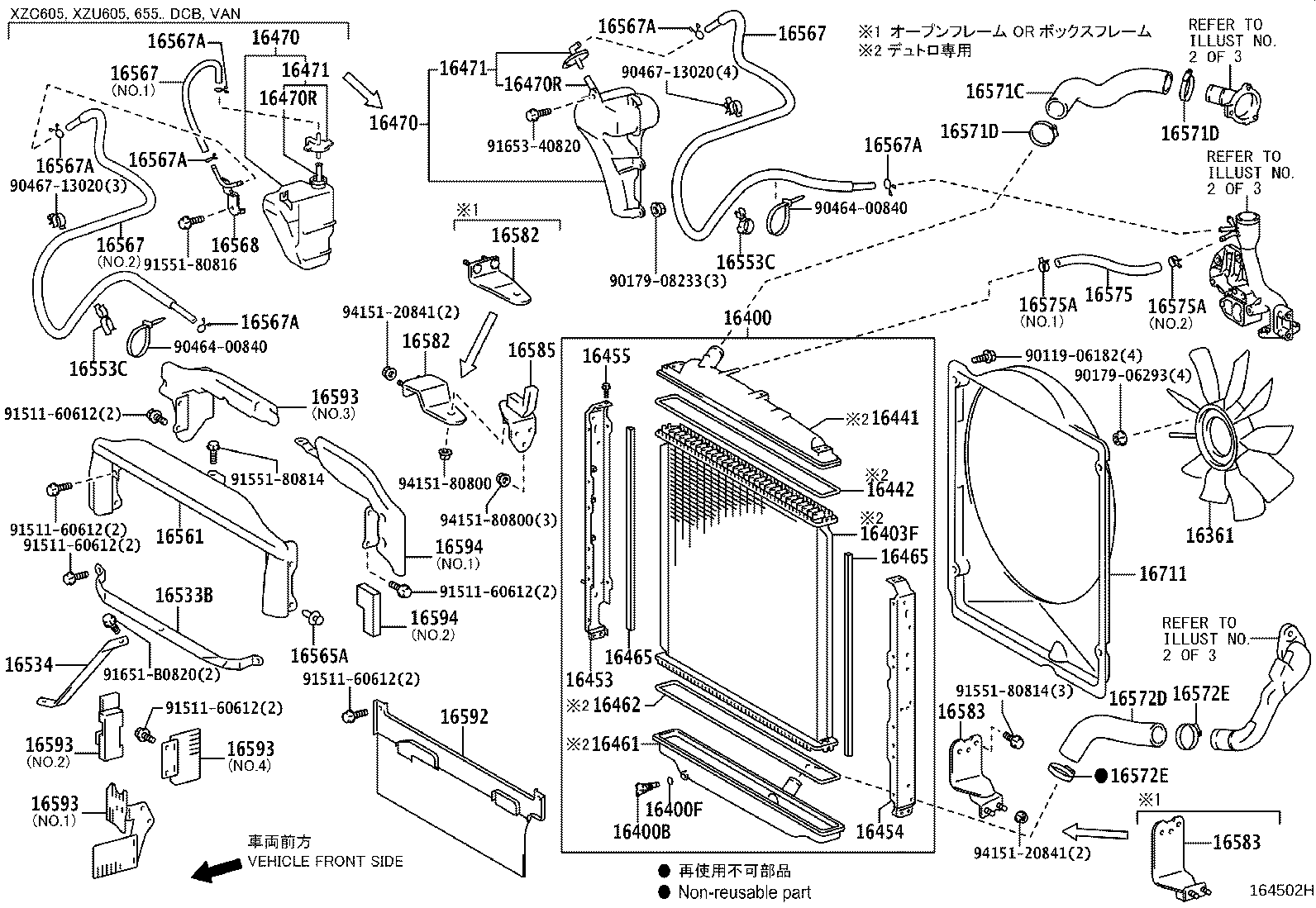

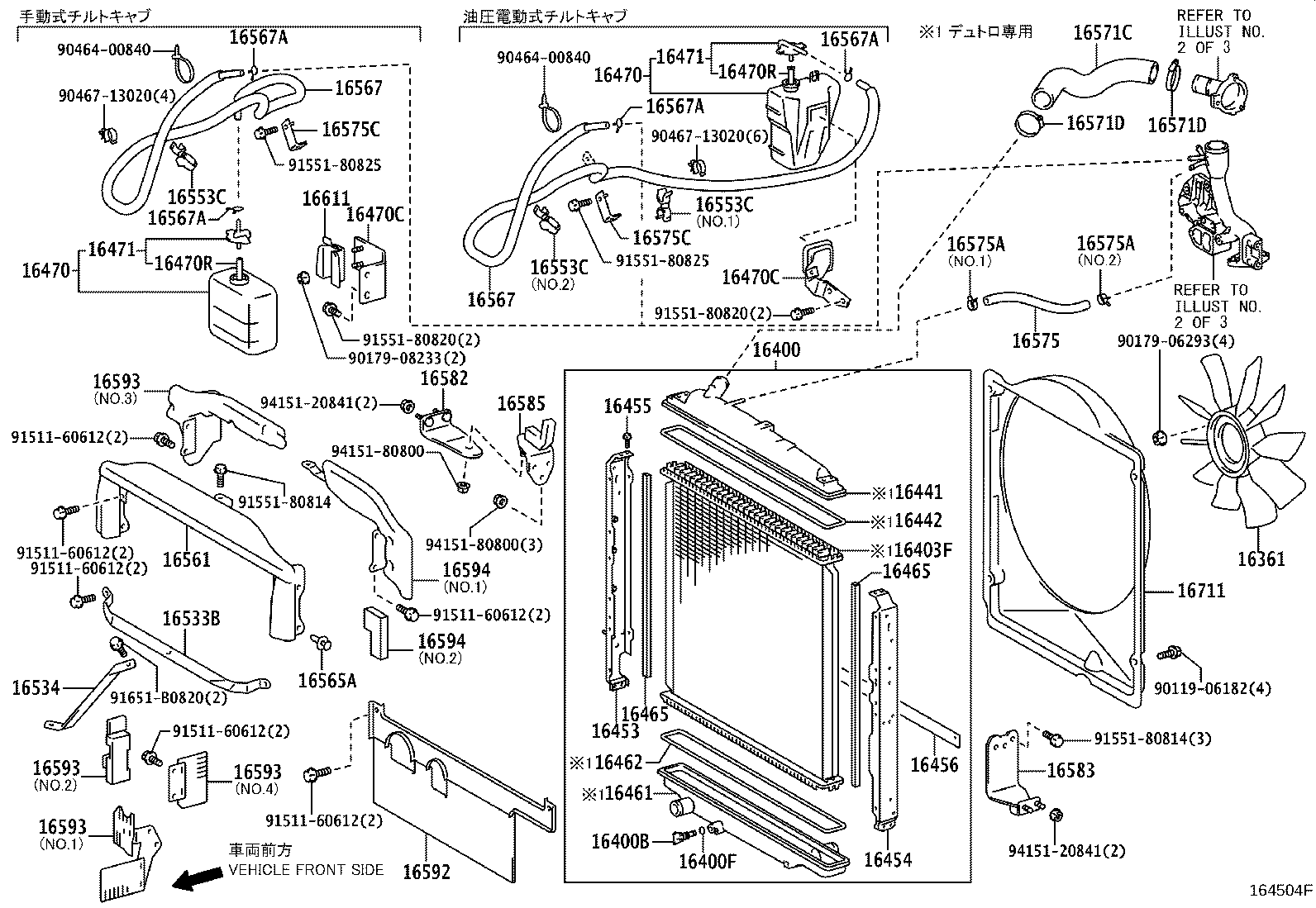

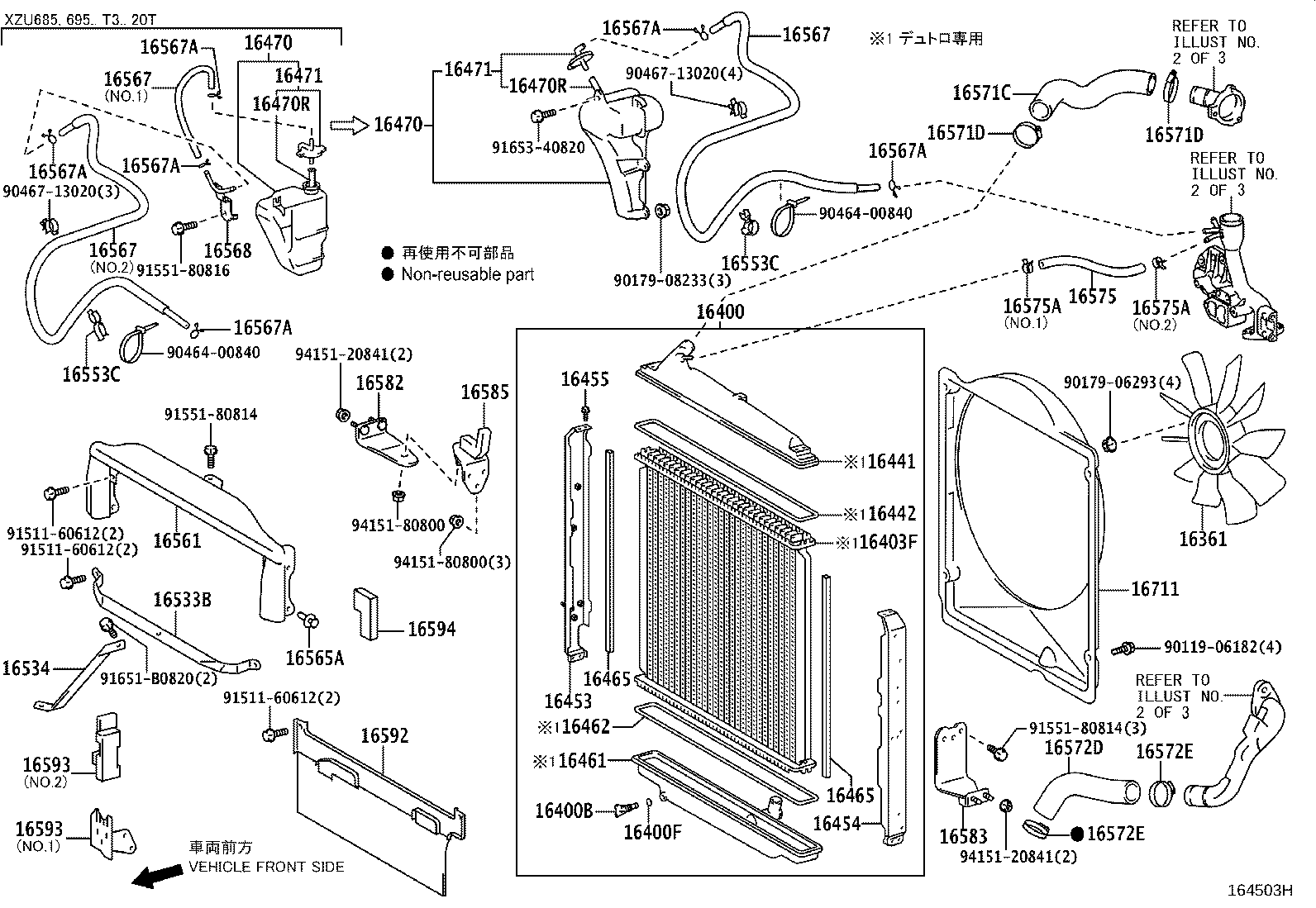

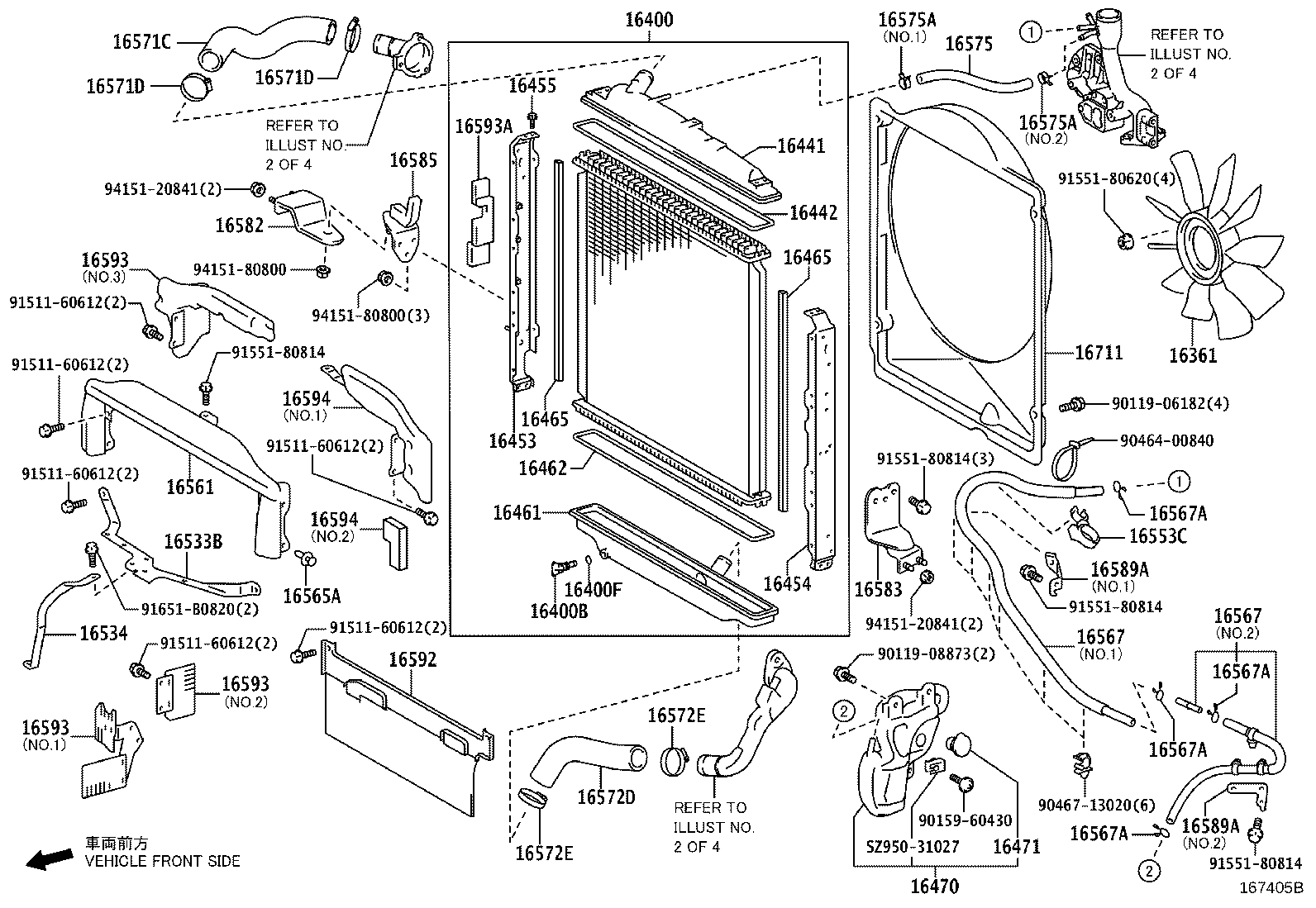

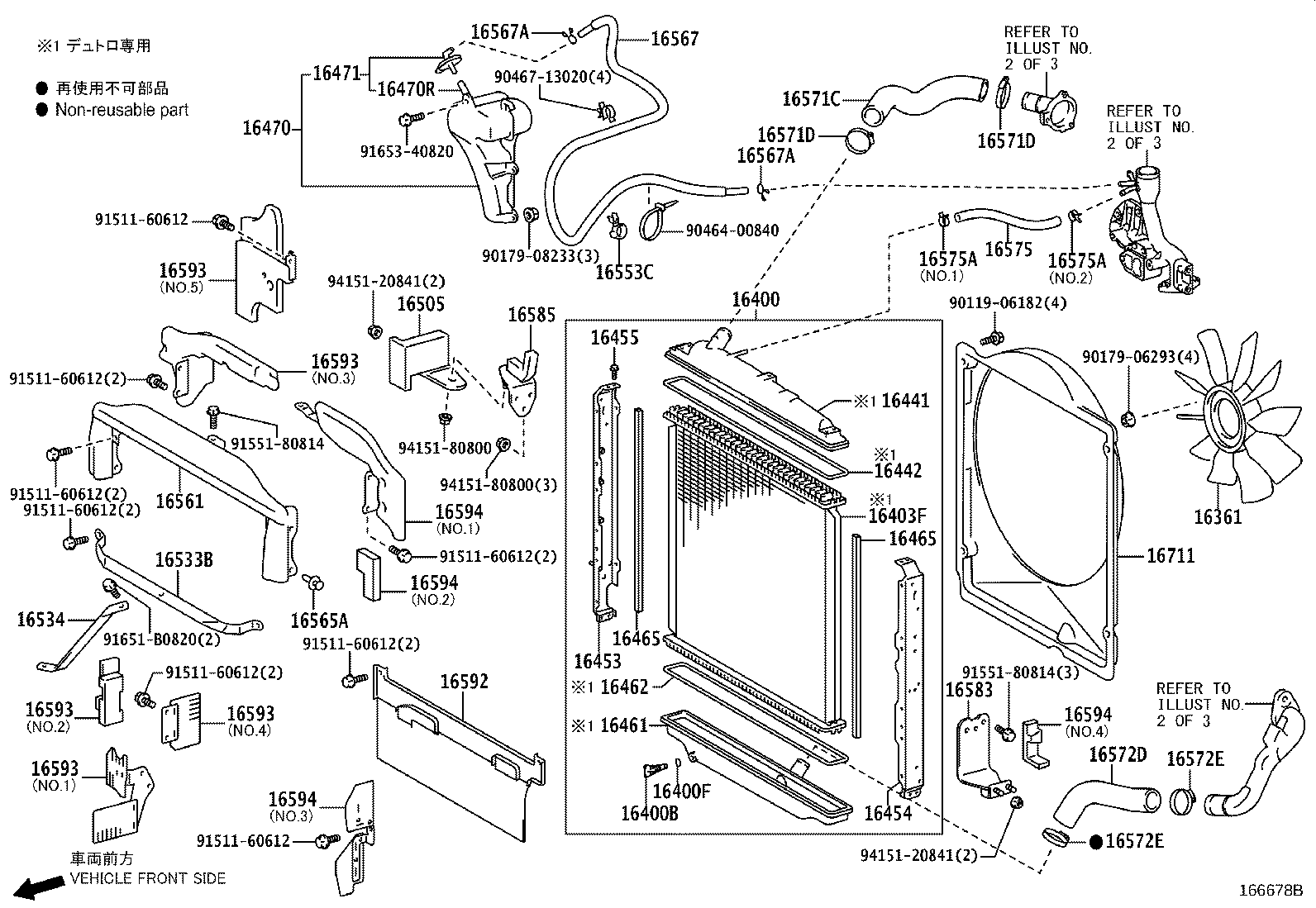

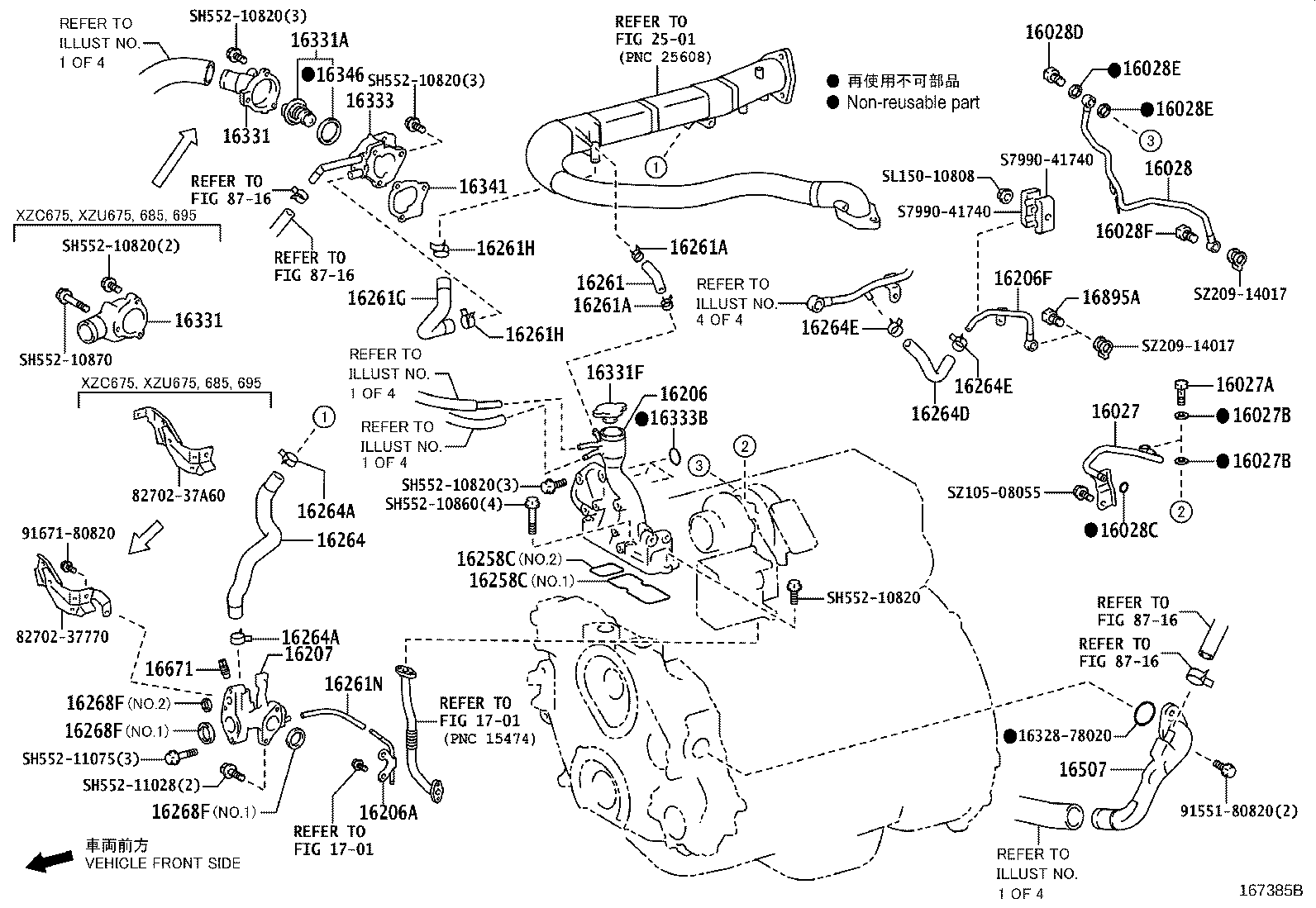

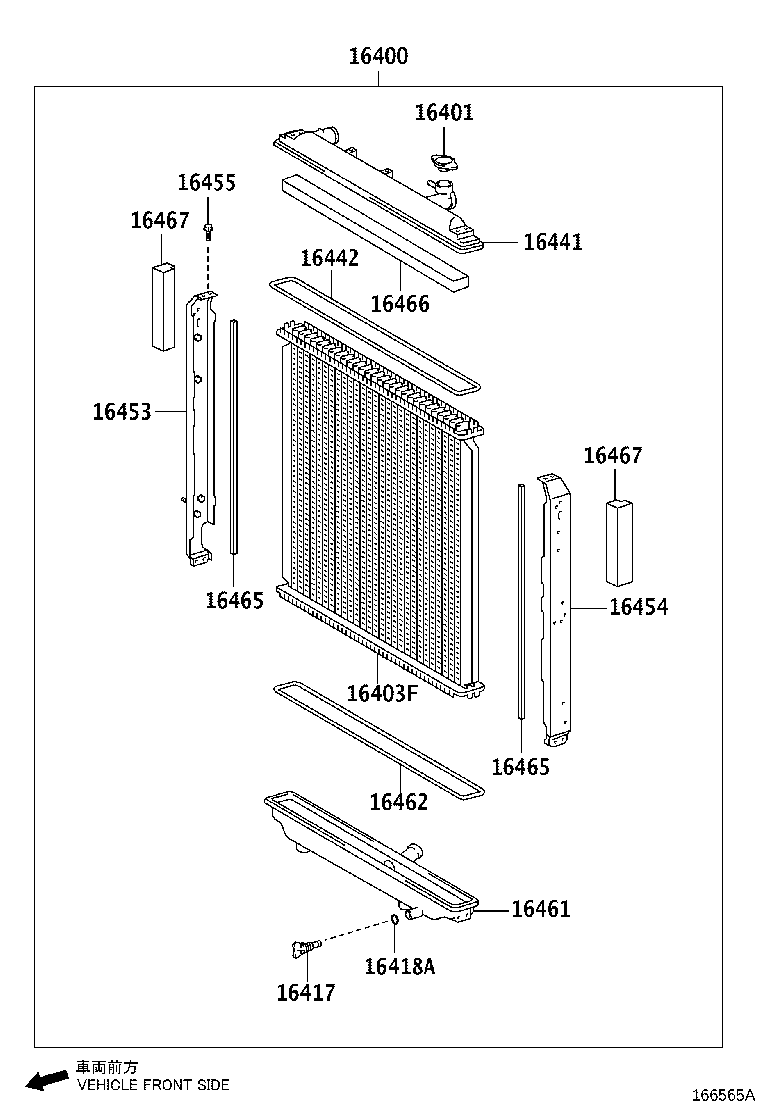

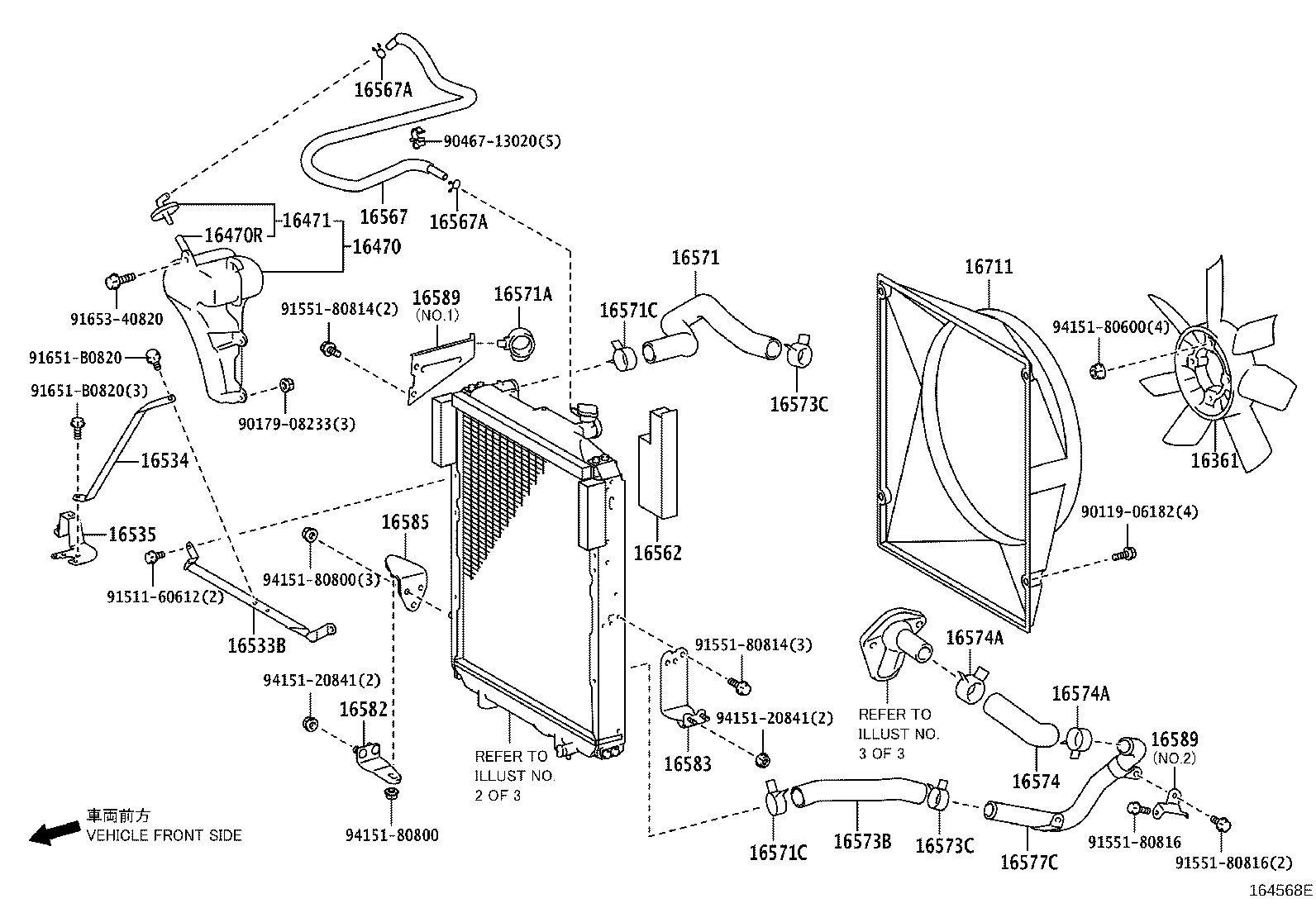

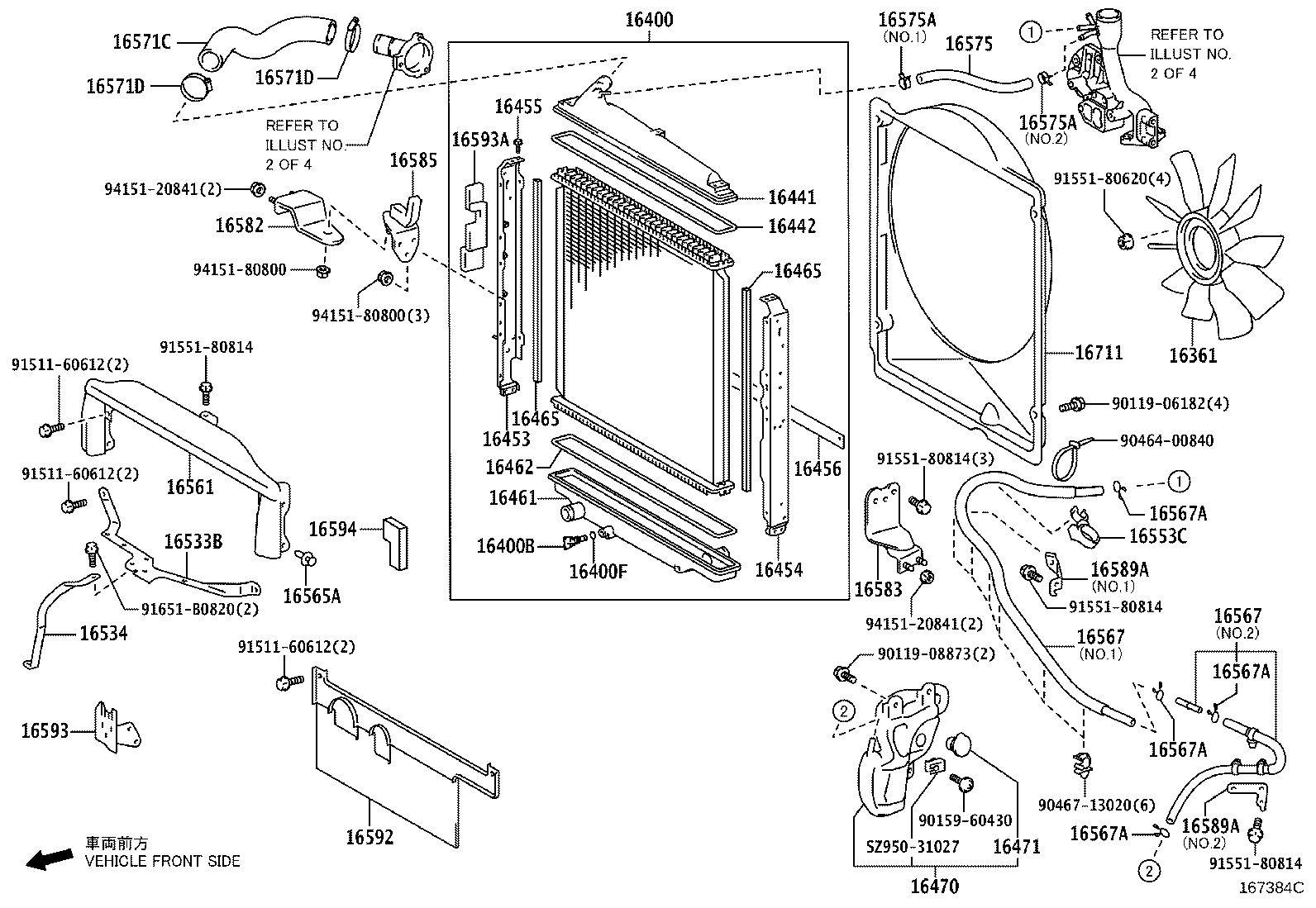

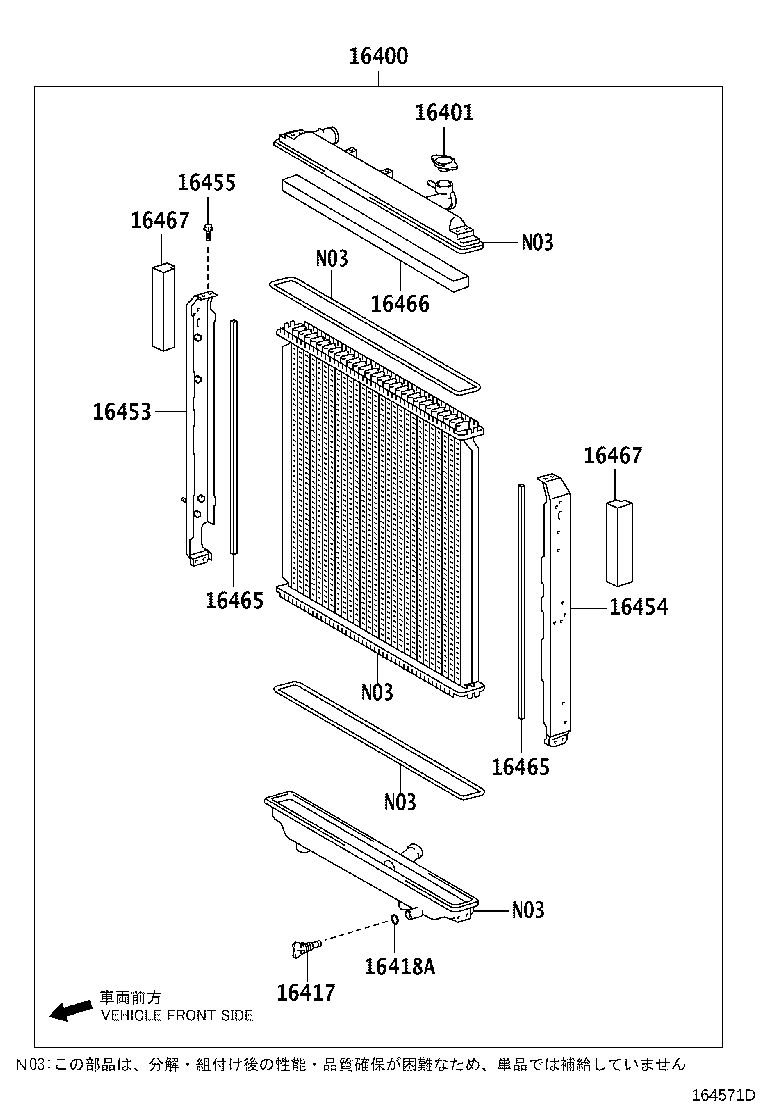

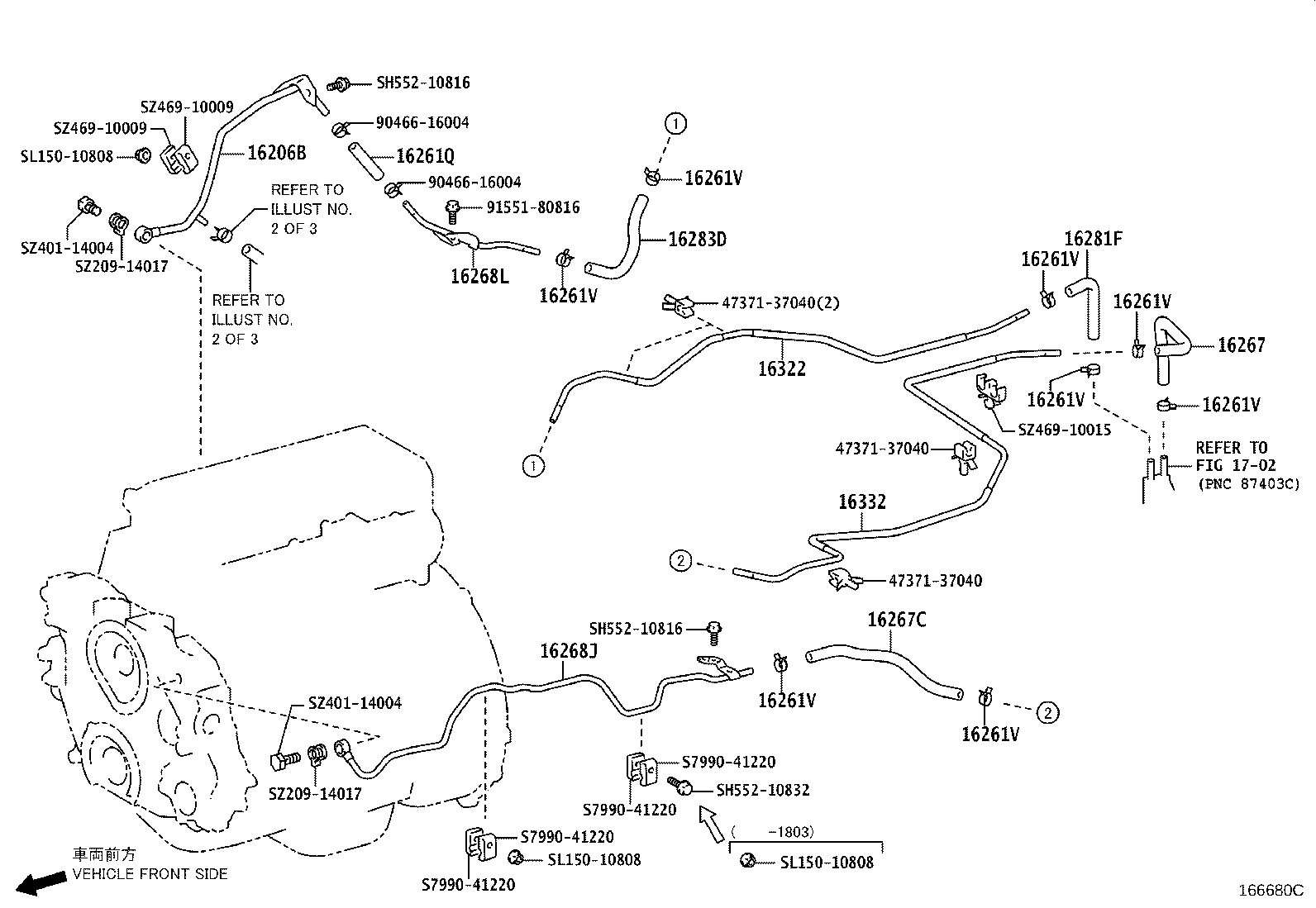

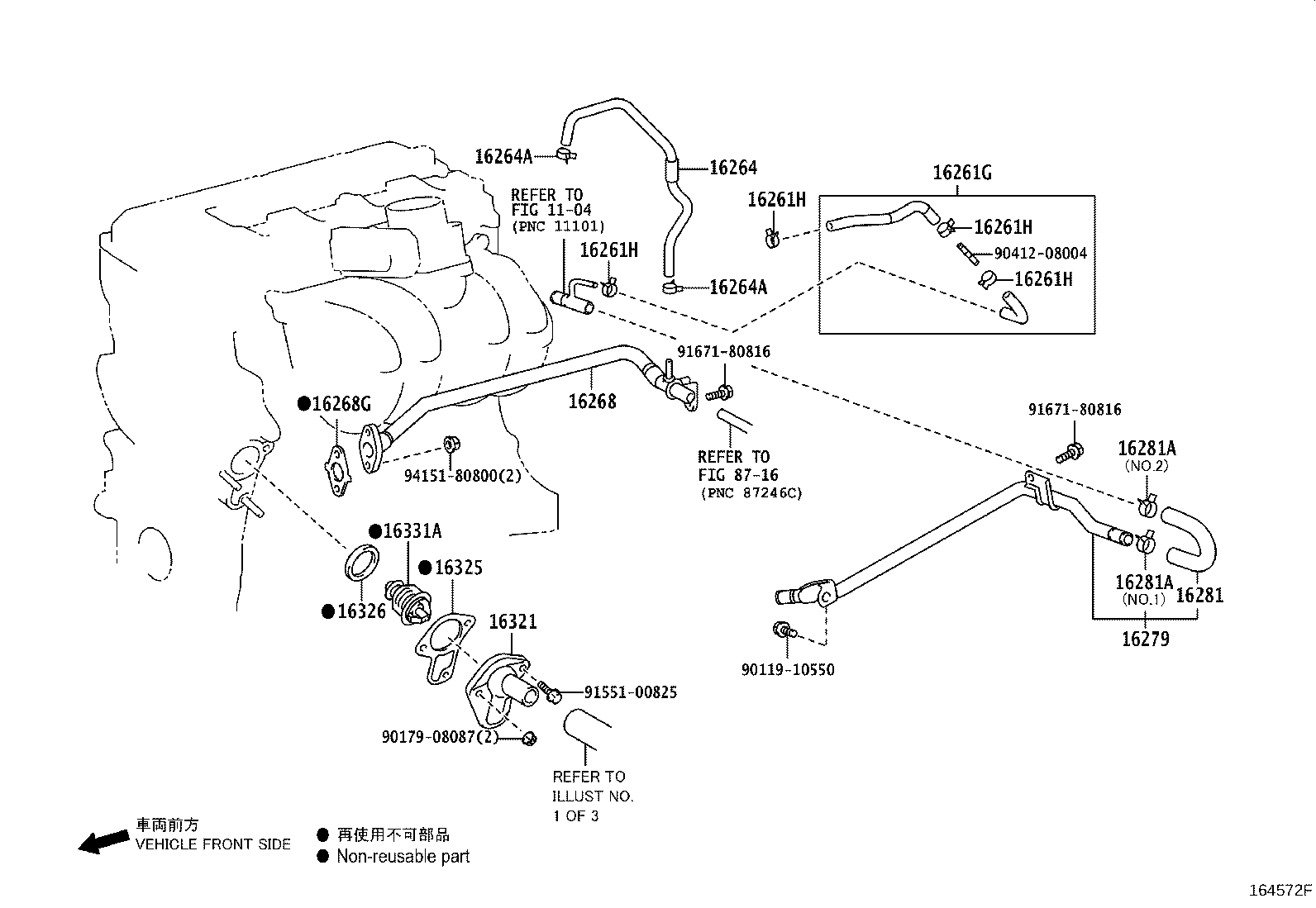

Figure 164428I 164428I 2011-07 → — Figure 164427C 164427C 2011-07 → — Figure 164568E 164568E 2011-06 → — Figure 164569E 164569E 2011-06 → — Figure 164571D 164571D 2011-06 → — Figure 166565A 166565A 2011-06 → — Figure 164572F 164572F 2011-06 → — Figure 164502H 164502H 2011-07 → — Figure 164502H 164502H 2011-07 → — Figure 164503H 164503H 2011-07 → — Figure 164504F 164504F 2011-07 → — Figure 164505F 164505F 2011-07 → — Figure 166678B 166678B 2017-05 → — Figure 164506J 164506J 2011-07 → — Figure 166679C 166679C 2017-05 → — Figure 164507B 164507B 2011-07 → — Figure 164508B 164508B 2011-07 → — Figure 166680C 166680C 2017-05 → — Figure 167405B 167405B 2019-05 → — Figure 167382C 167382C 2019-05 → — Figure 167383C 167383C 2019-05 → — Figure 167384C 167384C 2019-05 → — Figure 167385B 167385B 2019-05 → — Figure 167386A 167386A 2019-05 → — Figure 167387A 167387A 2019-05 → — Figure 167388A 167388A 2019-05 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16027A Bolt, Union(FOR TURBO WATER PIPE)
16027B Gasket(FOR TURBO WATER PIPE)
16028 Pipe Sub-assy, Turbo Water, NO.2
16028C Ring, O(FOR TURBO WATER PIPE)
16028D Bolt, Union, NO.1(FOR TURBO WATER PIPE)
16028E Gasket, NO.1(FOR TURBO WATER PIPE)
16028F Bolt, Union, NO.2(FOR TURBO WATER PIPE)
16028G Gasket, NO.2(FOR TURBO WATER PIPE)
16206 Pipe Sub-assy, Water By-pass
16206A Pipe Sub-assy, Water By-pass, NO.2
16206B Pipe Sub-assy, Water By-pass, NO.3
16206F Pipe Sub-assy, Water By-pass, NO.4
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261Q Hose, Water By-pass
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267C Hose, Water By-pass, NO.4
16268 Pipe, Water By-pass, NO.1
16268F Ring, O(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16268J Pipe, Water By-pass, NO.5
16268L Pipe, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16283D Hose, Water By-pass, NO.6
16304B Cover Sub-assy, Water Outlet
16321 Inlet, Water
16322 Pipe, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16331F Cap Sub-assy(FOR WATER OUTLET)
16331Q Plug(FOR WATER OUTLET)
16332 Pipe, Water Outlet, NO.1
16333 Housing, Water Outlet
16333A Bolt, Stud(FOR WATER OUTLET HOUSING)
16333B Ring, O(FOR WATER OUTLET HOUSING)
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16361 Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16403F Core Sub-assy, Radiator
16417 Cock
16418A Packing, Sub Radiator Drain Cock
16420 Radiator Assy, Sub
16441 Tank, Radiator, Upper
16442 Ring, O(FOR RADIATOR UPPER TANK)
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16456 Bracket, Radiator Mounting, RH
16461 Tank, Radiator, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16465 Packing, Radiator
16466 Seal, Radiator
16467 Side Seal
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16505 Support Sub-assy, Radiator, RH
16507 Pipe Sub-assy, Radiator
16511A Bracket, Sub-radiator
16515 Pipe, Sub Radiator, NO.1
16516 Pipe, Sub Radiator, NO.2
16523 Cushion, Sub-radiator Support
16533A Support, Sub-radiator
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16535 Support, Radiator, Lower
16551B Hose, Sub-radiator, NO.1
16552B Hose, Sub-radiator, NO.2
16553B Hose, Sub Radiator, NO.3
16553C Clamp, Hose
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16565A Clip
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16568 Pipe, Radiator TO Reserve Tank
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575 Hose, Radiator, NO.5
16575A Clip, Radiator Hose, NO.5
16575C Bracket, Water Hose Clamp, NO.1
16577 Pipe, Radiator, NO.7
16577C Pipe, Radiator
16581K Clamp, Sub-radiator Hose, NO.1
16581L Clamp, Sub-radiator Hose, NO.2
16582 Bracket, Radiator, NO.1
16583 Bracket, Radiator, NO.2
16585 Bracket, Radiator, NO.3
16589 Stay, Pipe Clamp
16589A Bracket, Radiator Hose Clamp
16592 Guide, Radiator Air, NO.3
16593 Guide, Radiator Air, NO.1
16593A Guide, Radiator Air, NO.1 RH
16594 Guide, Radiator Air, NO.2
16611 Bracket, Radiator Reserve Tank
16671 Valve, Water
16711 Shroud, Fan
16895 Pipe, Turbo Water, NO.1
16895A Bolt, Union(FOR TURBO WATER PIPE NO.1)
16895B Gasket(FOR TURBO WATER PIPE NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
