Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

79 part groups · 30 illustrations

Illustrations

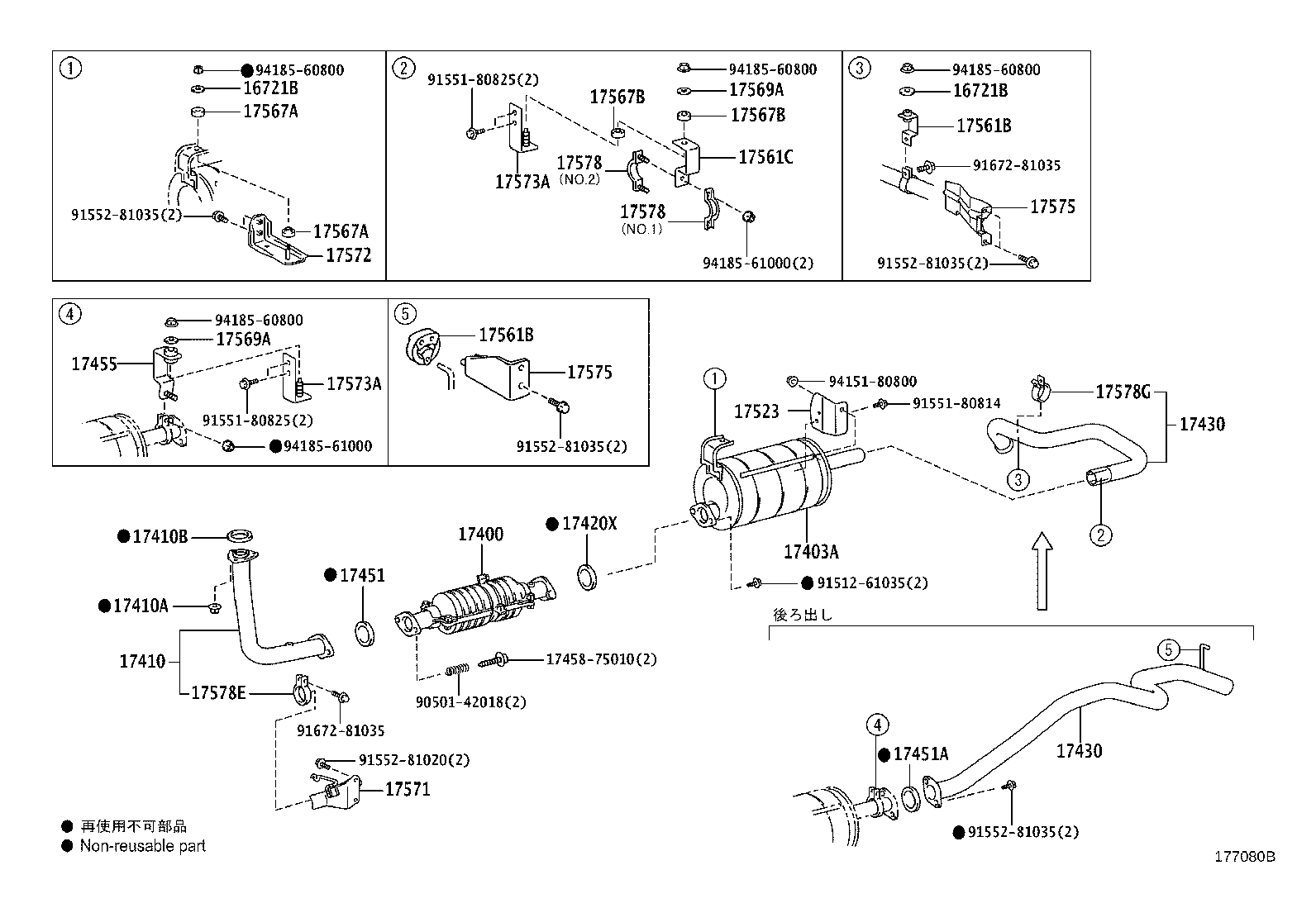

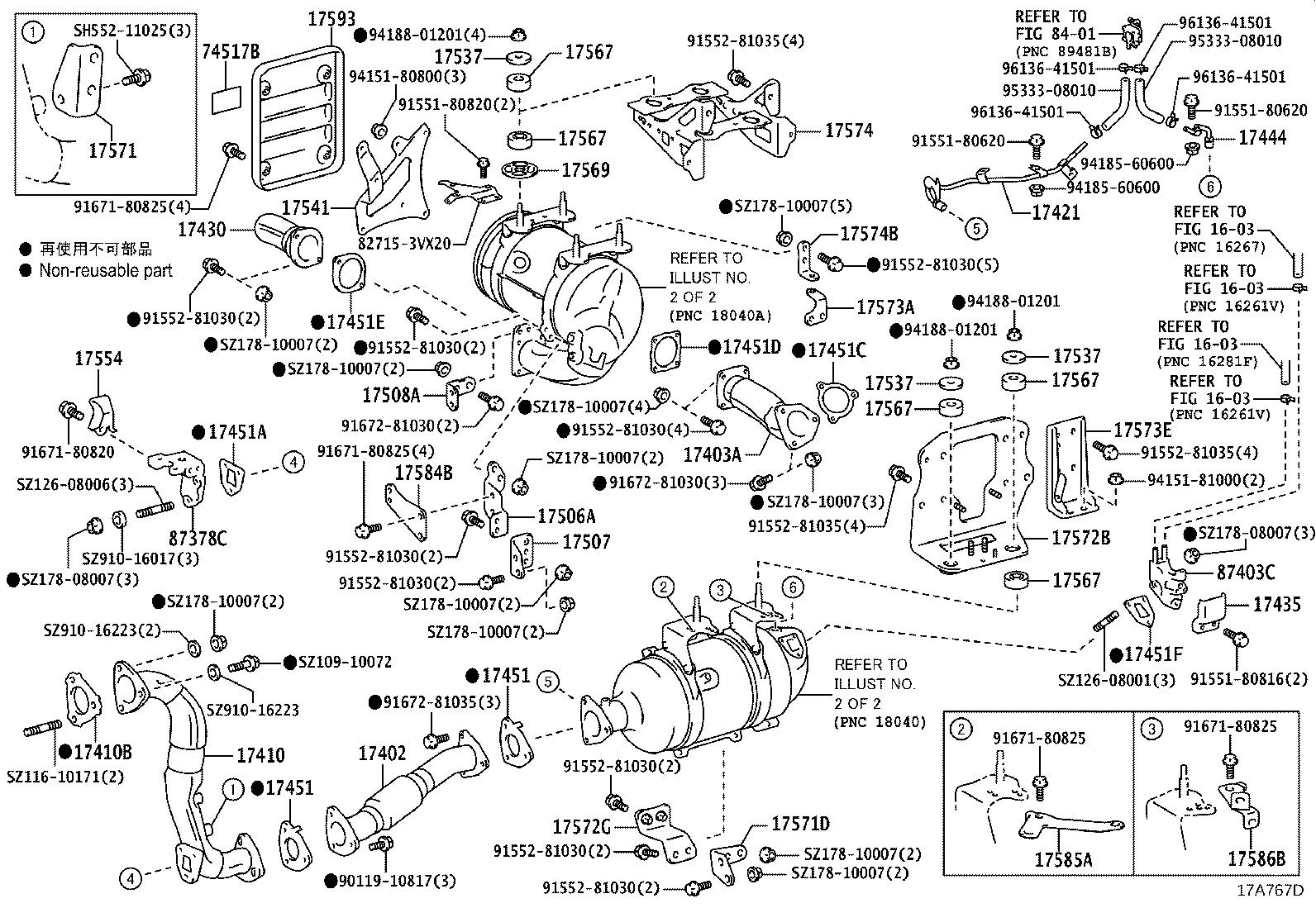

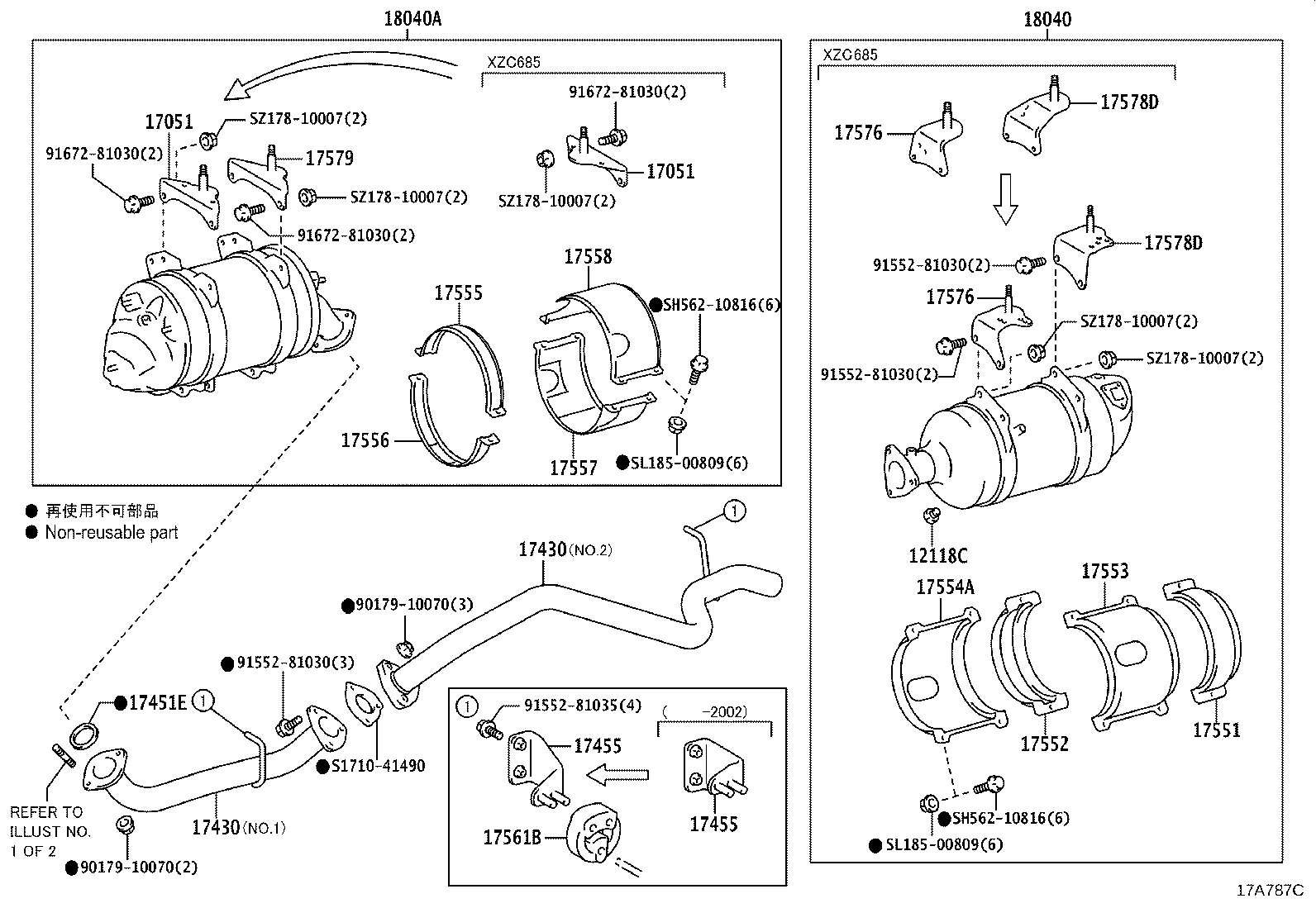

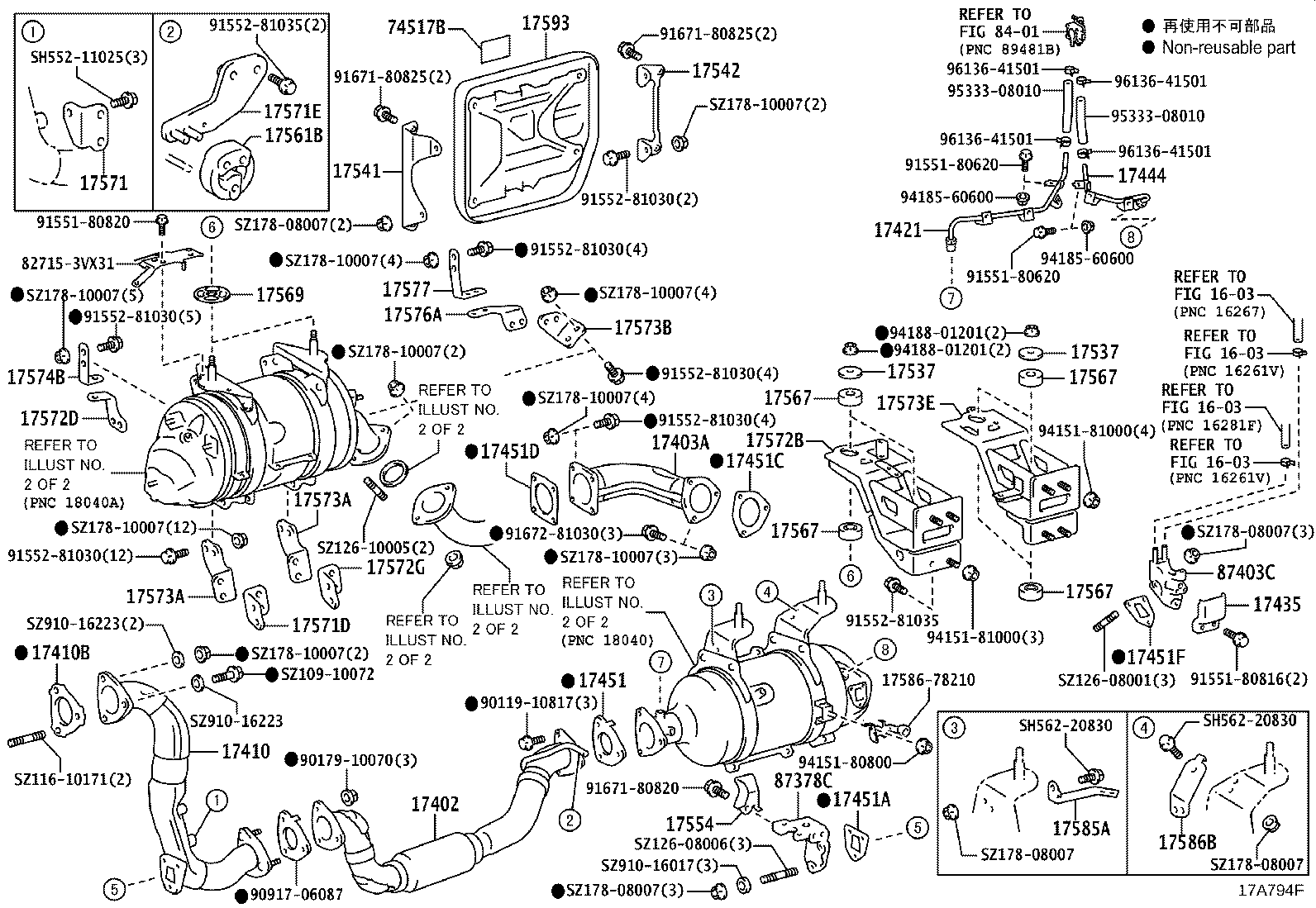

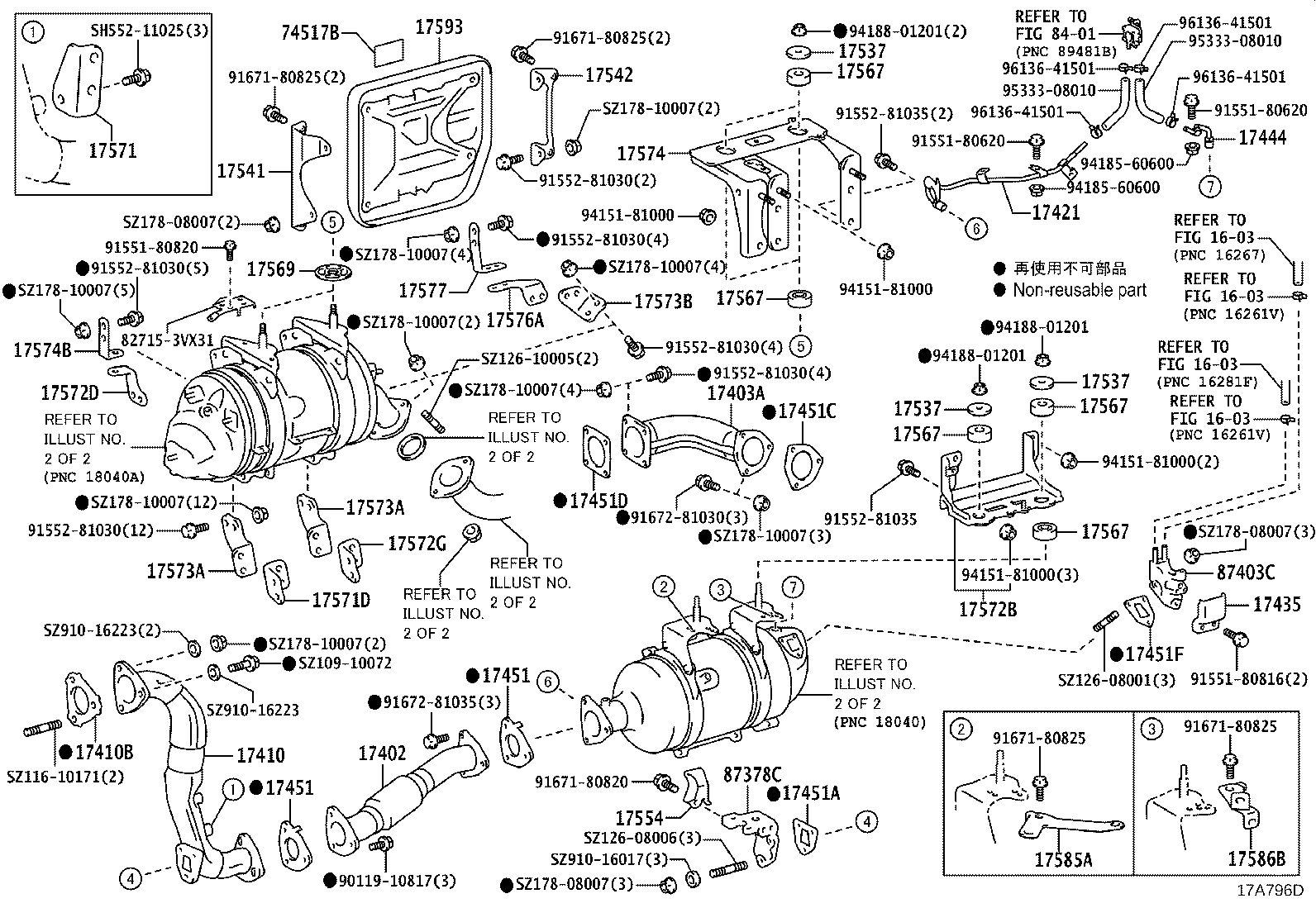

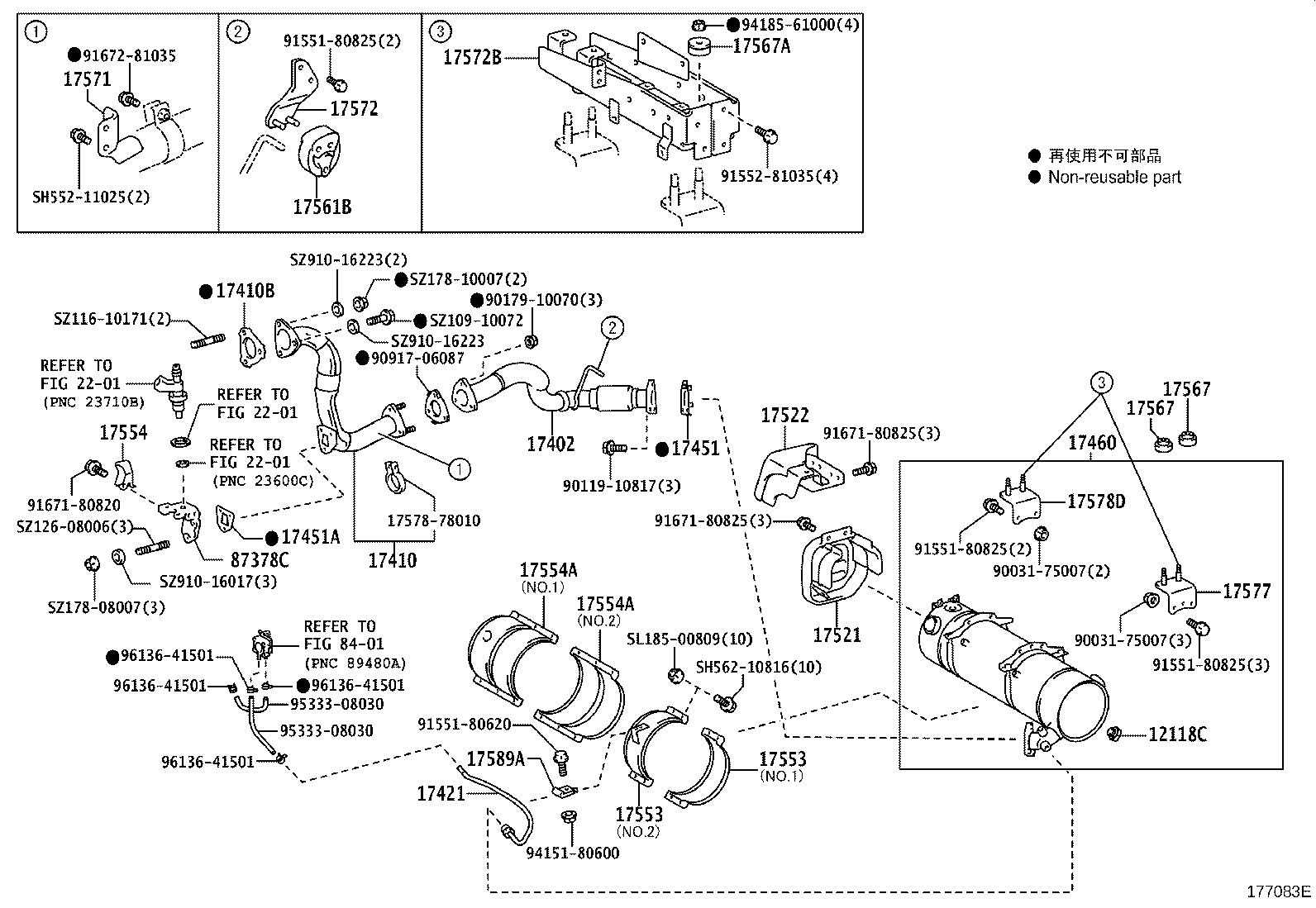

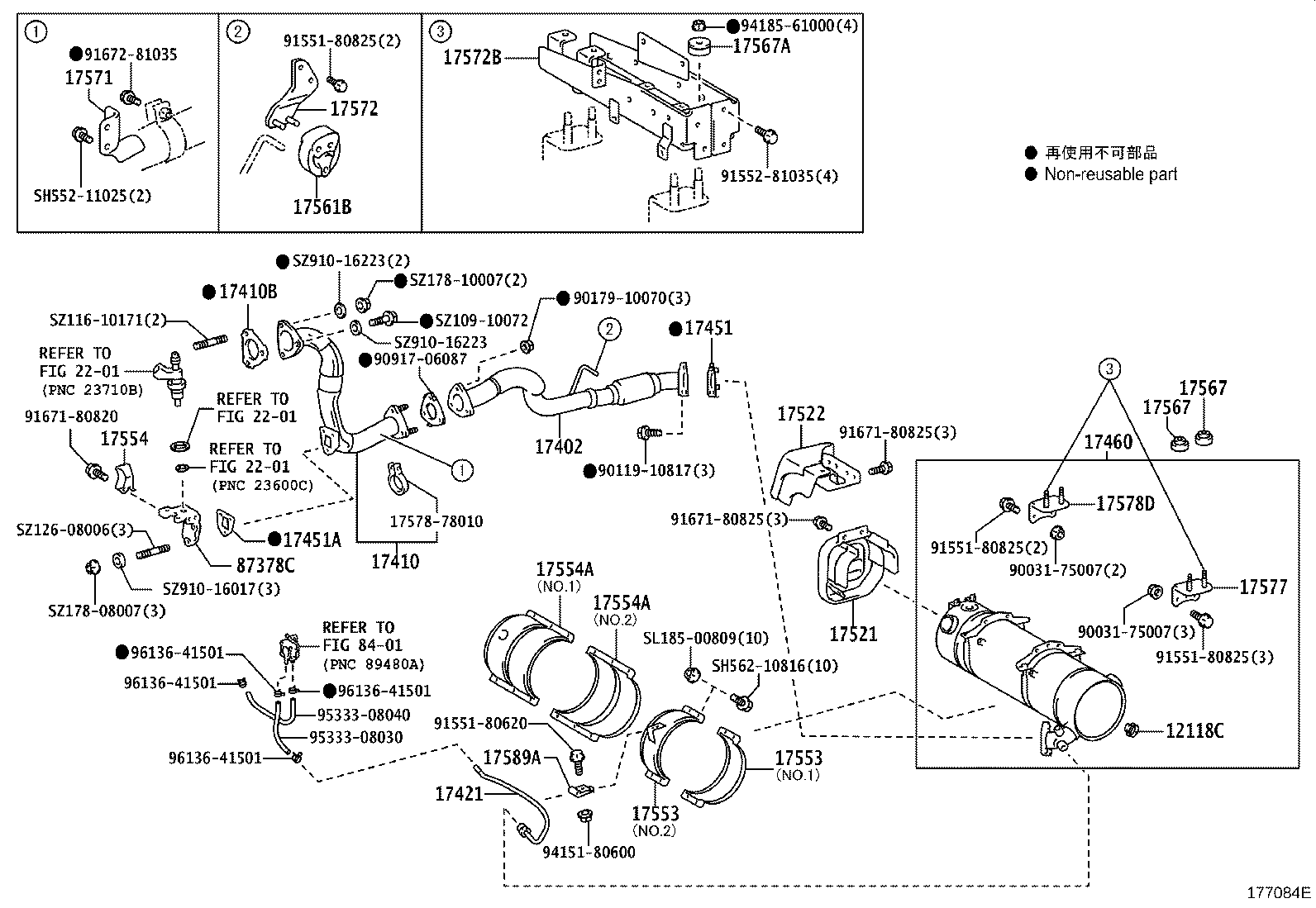

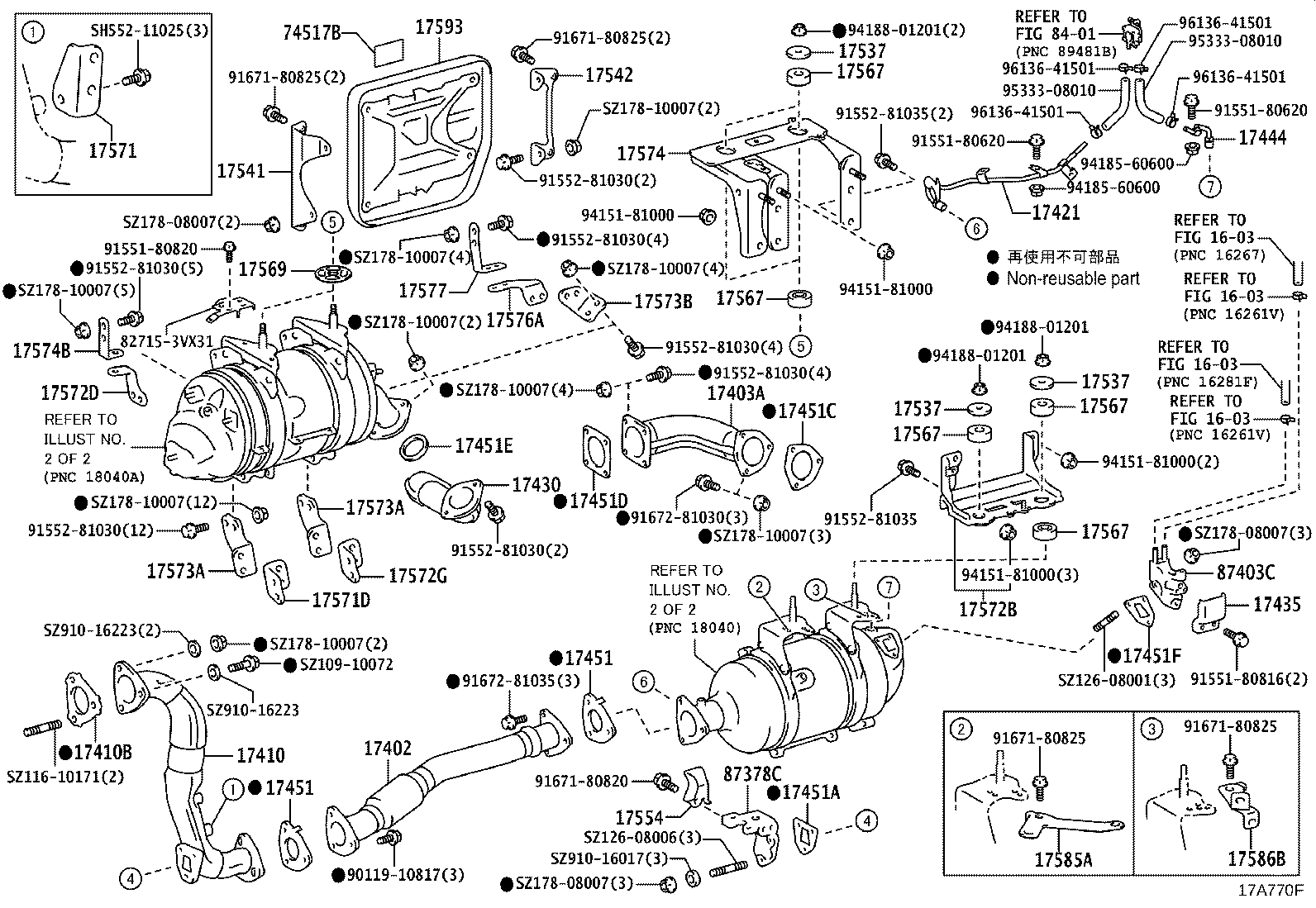

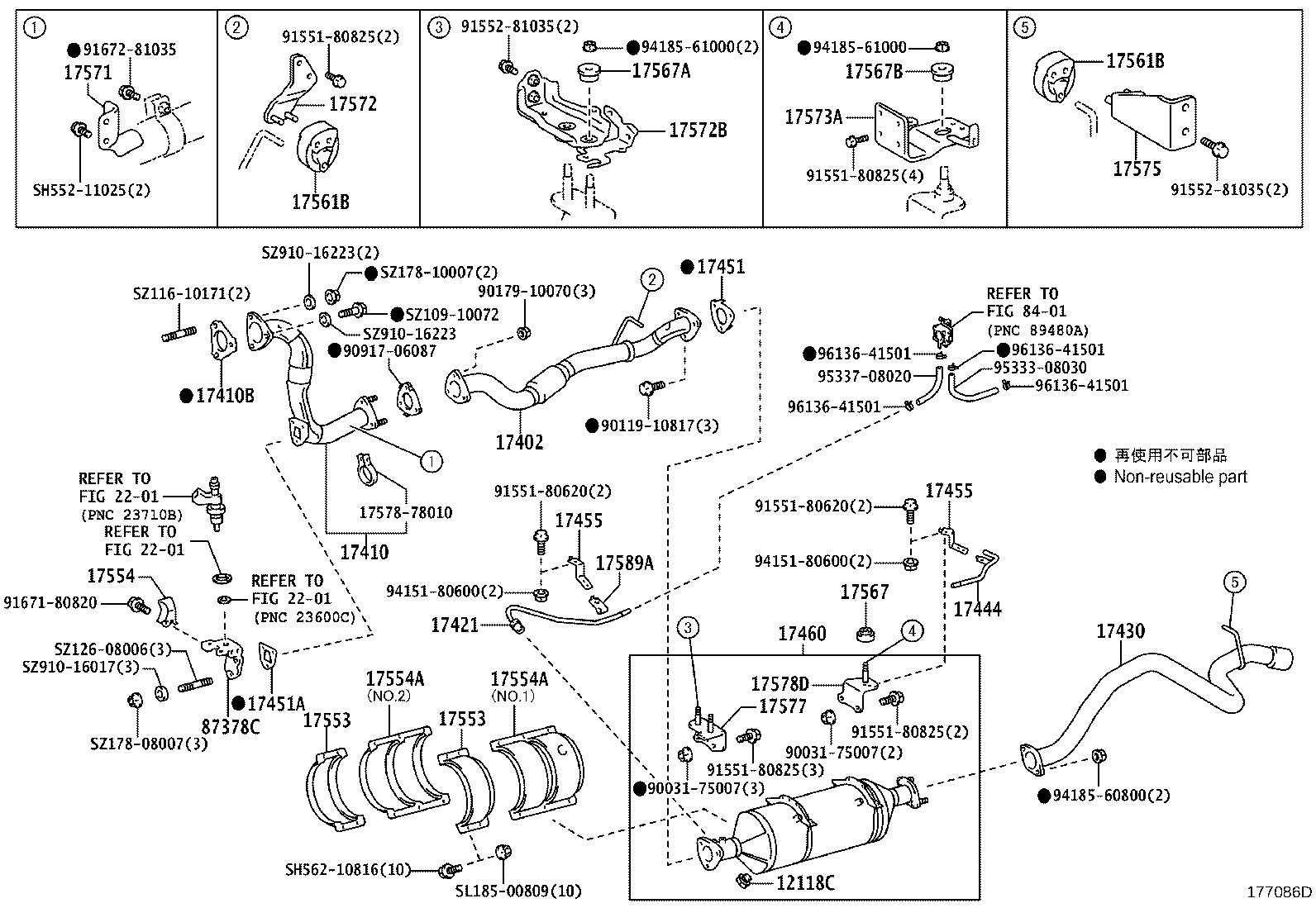

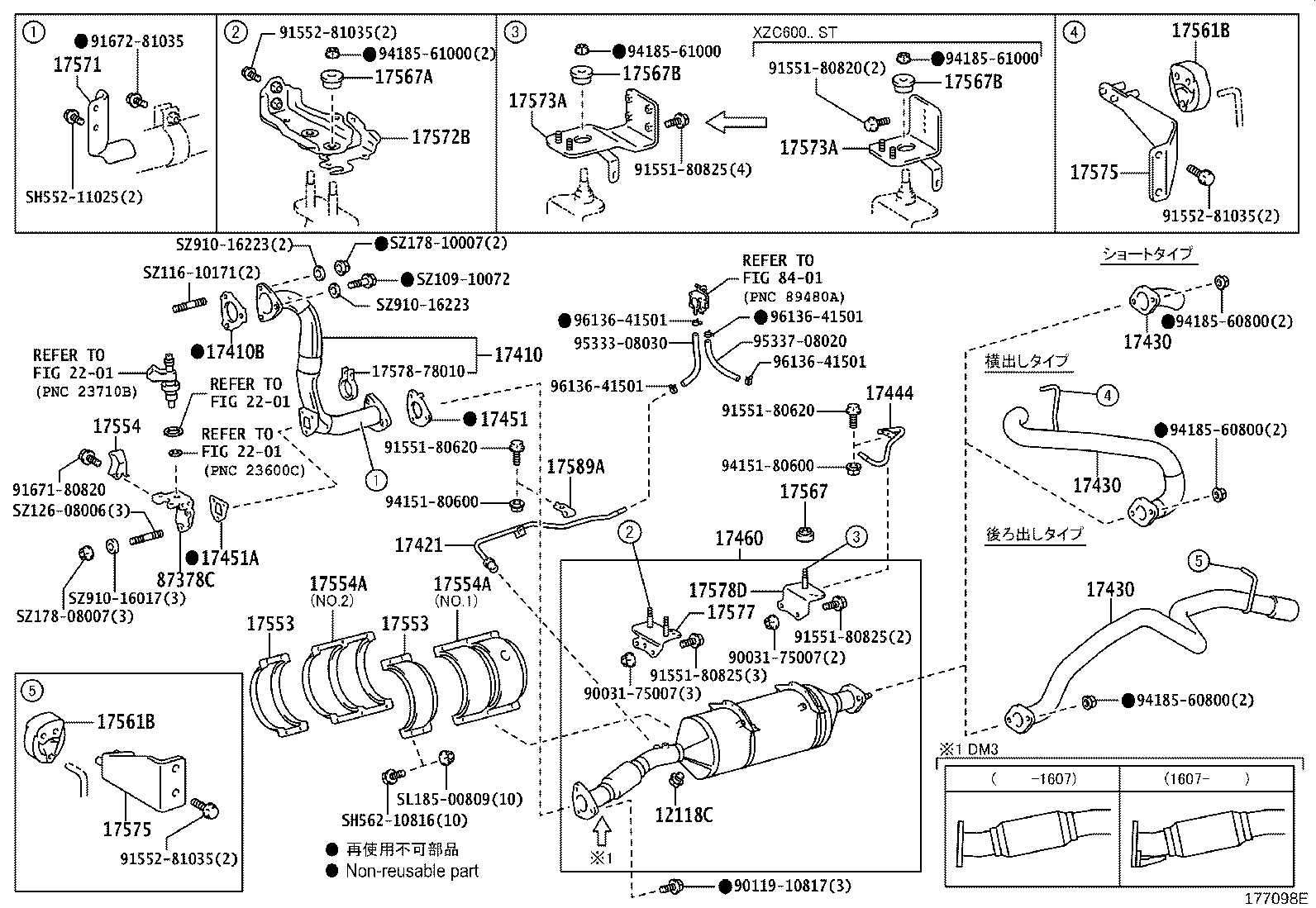

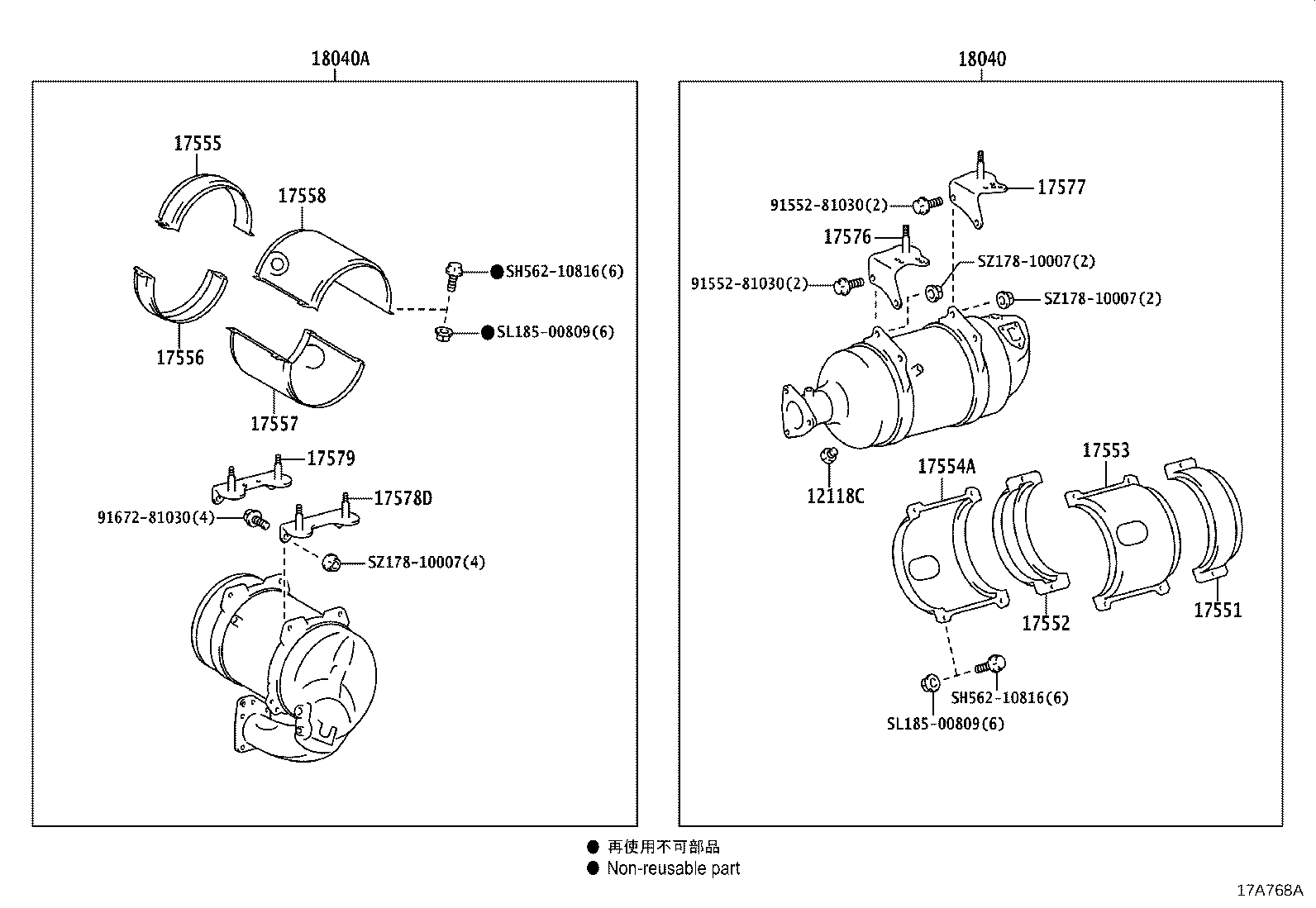

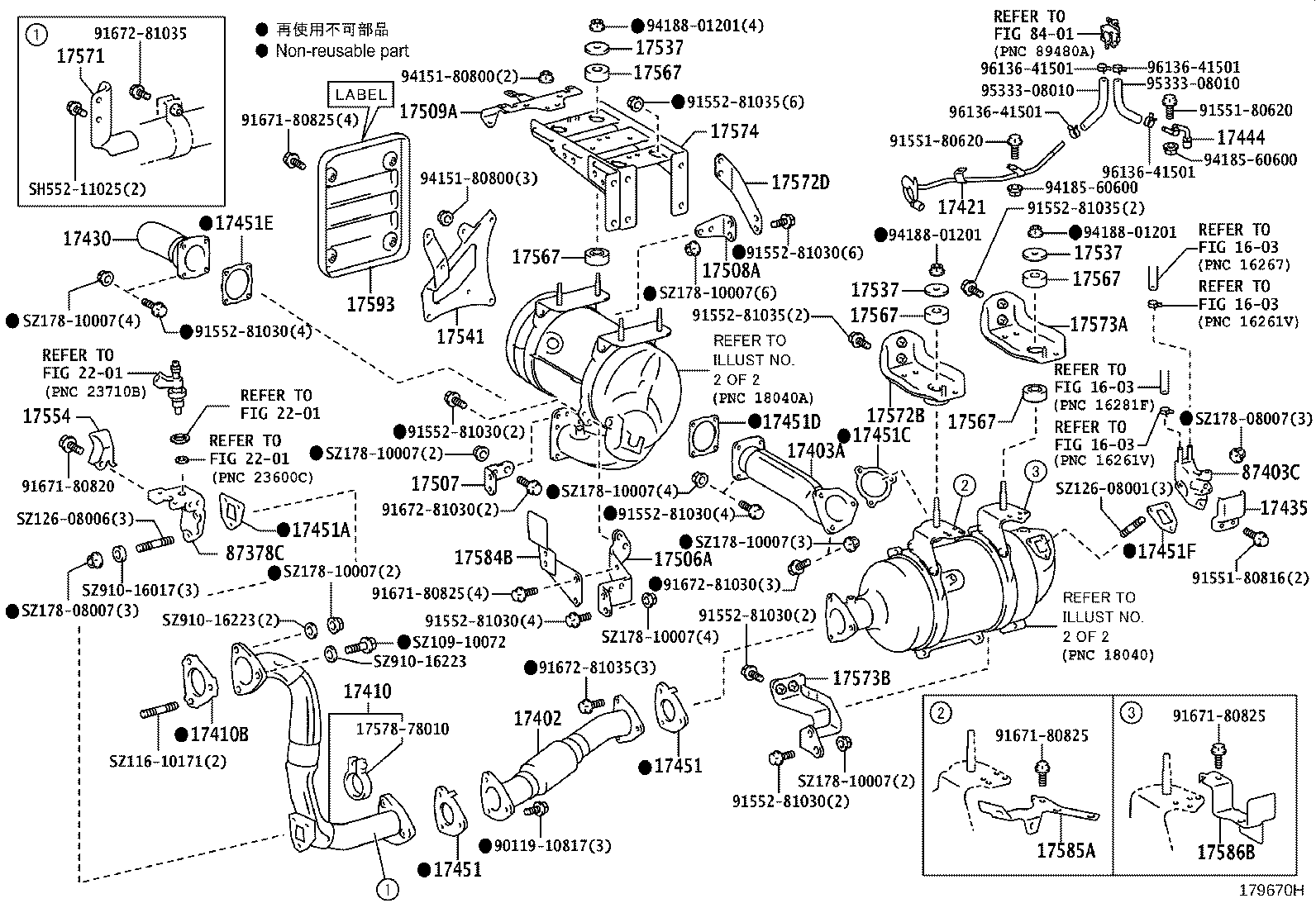

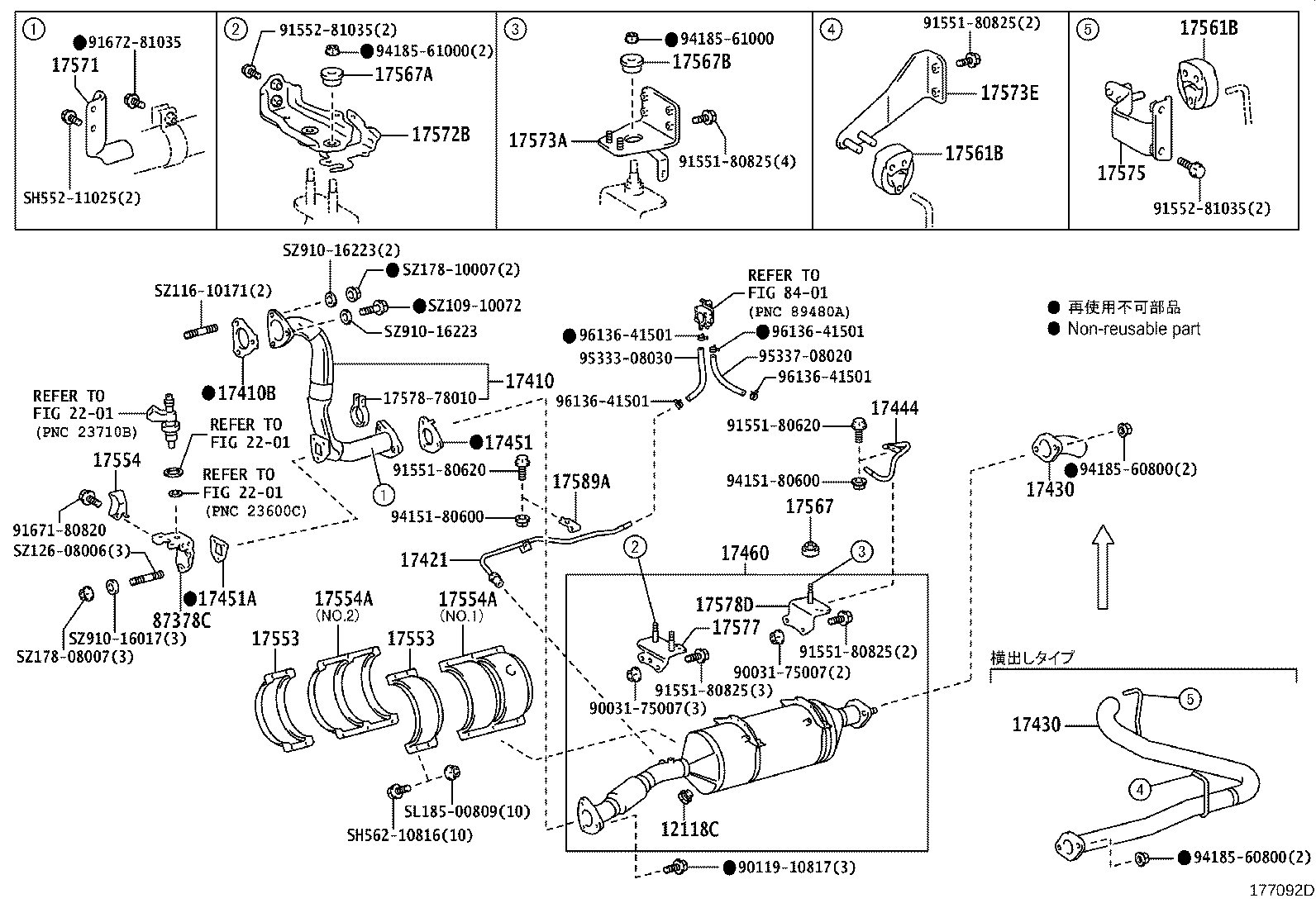

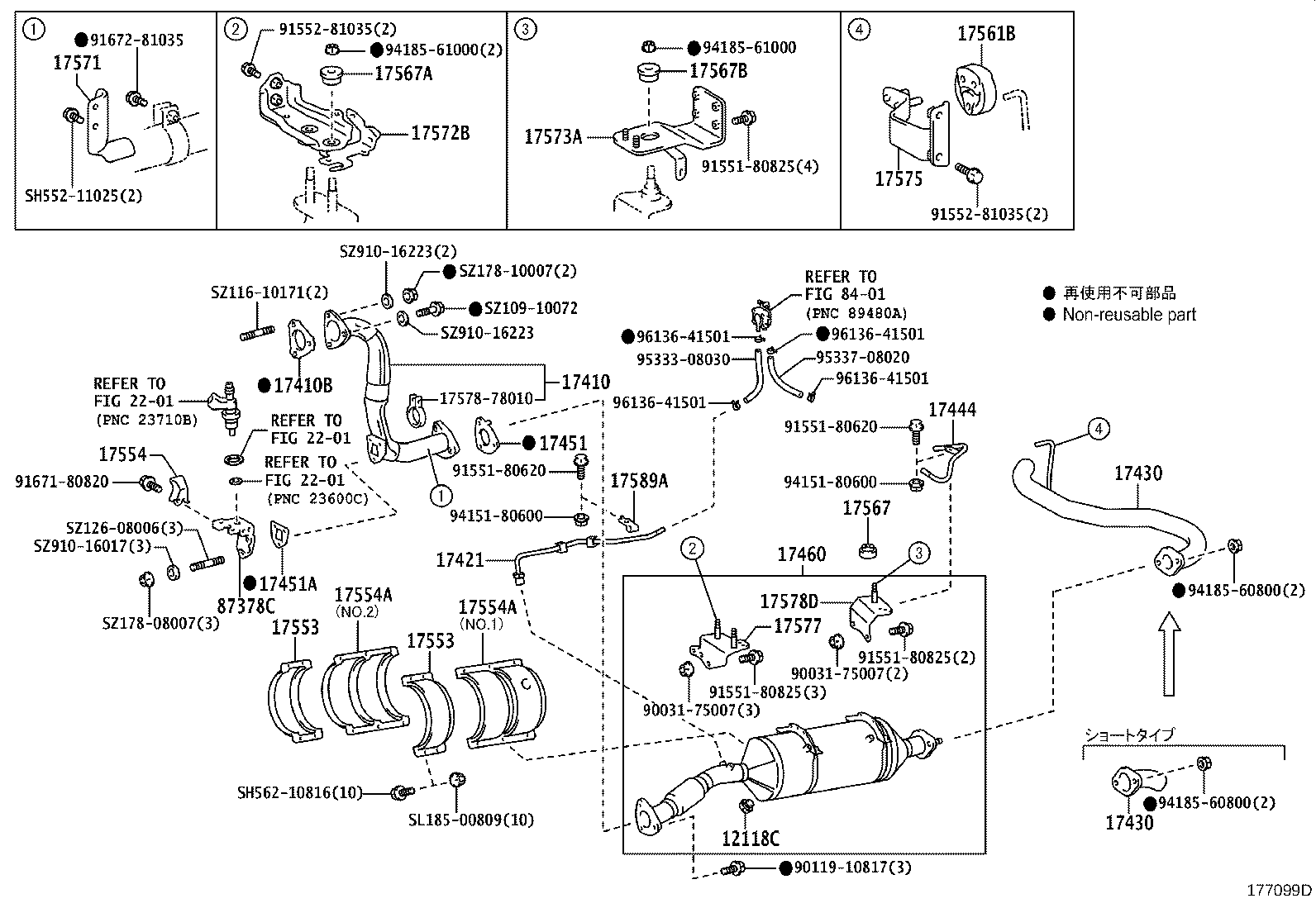

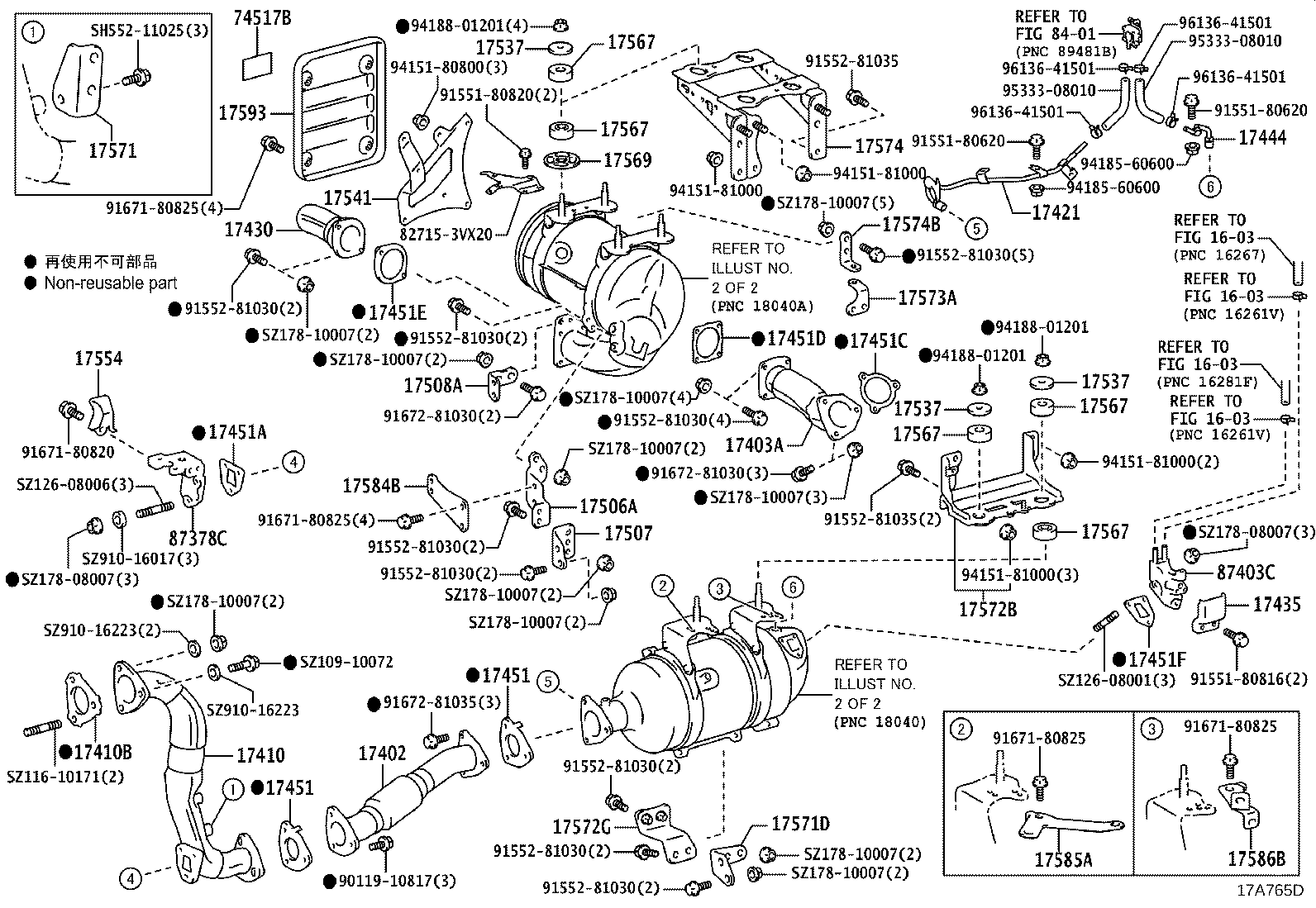

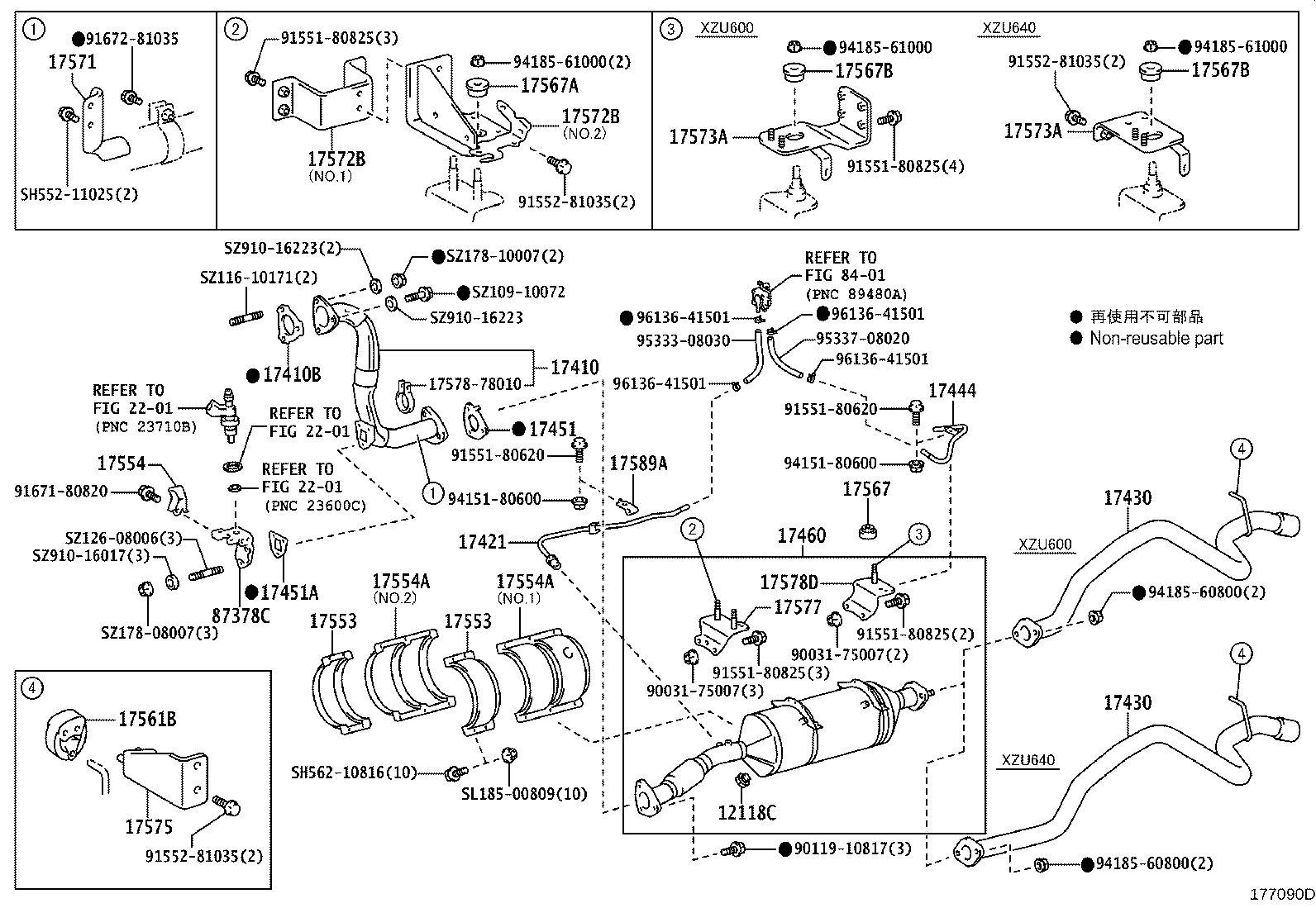

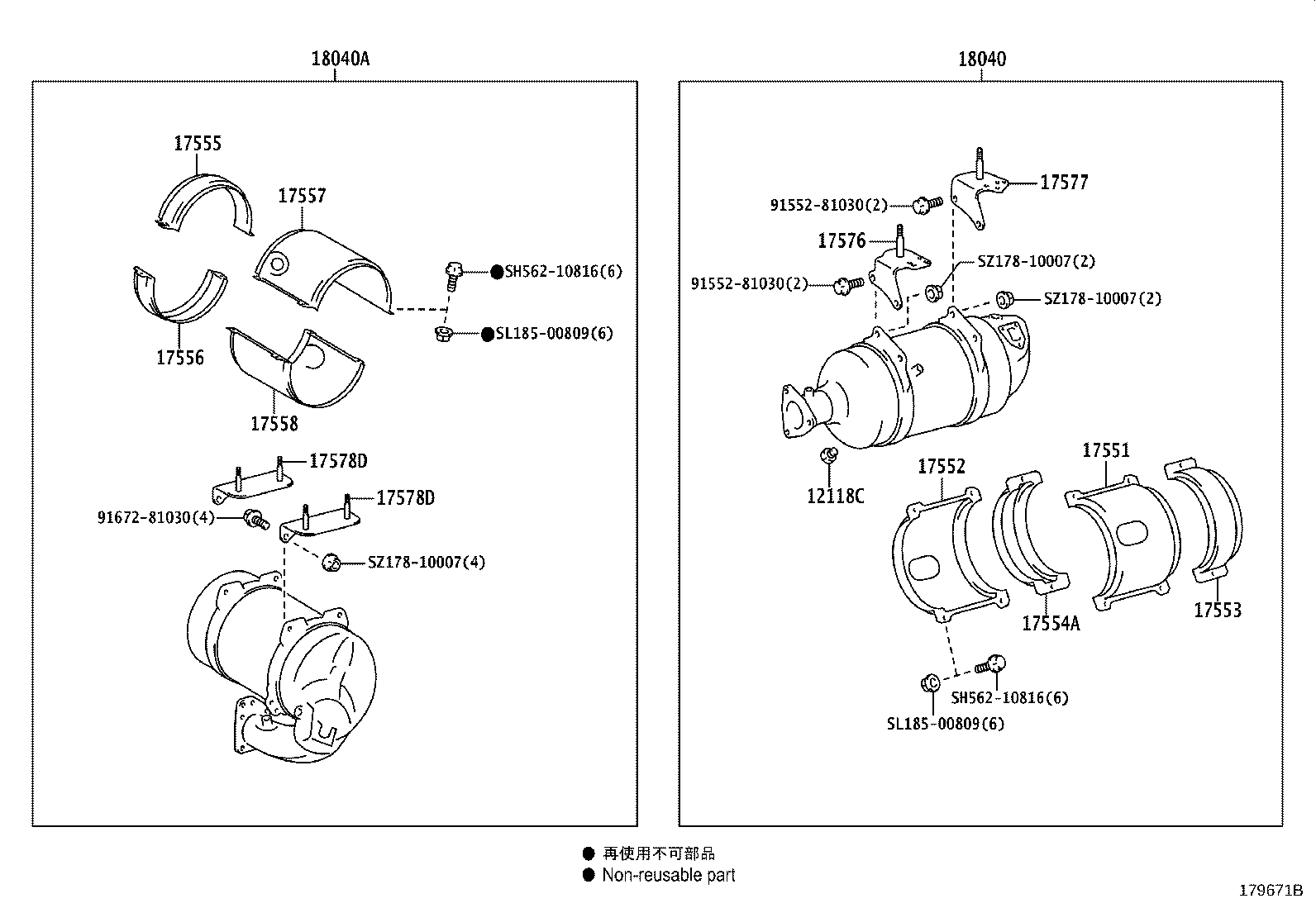

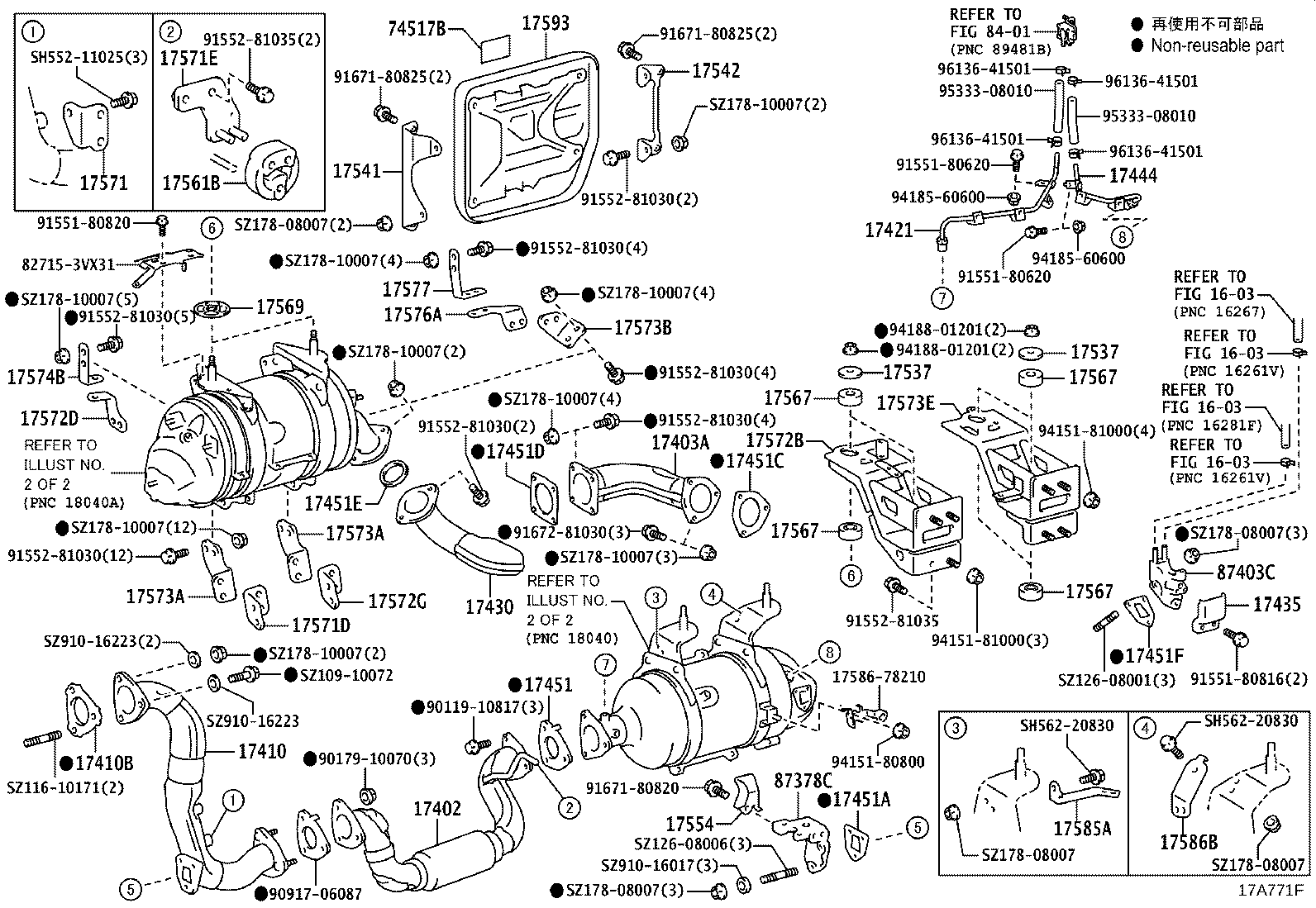

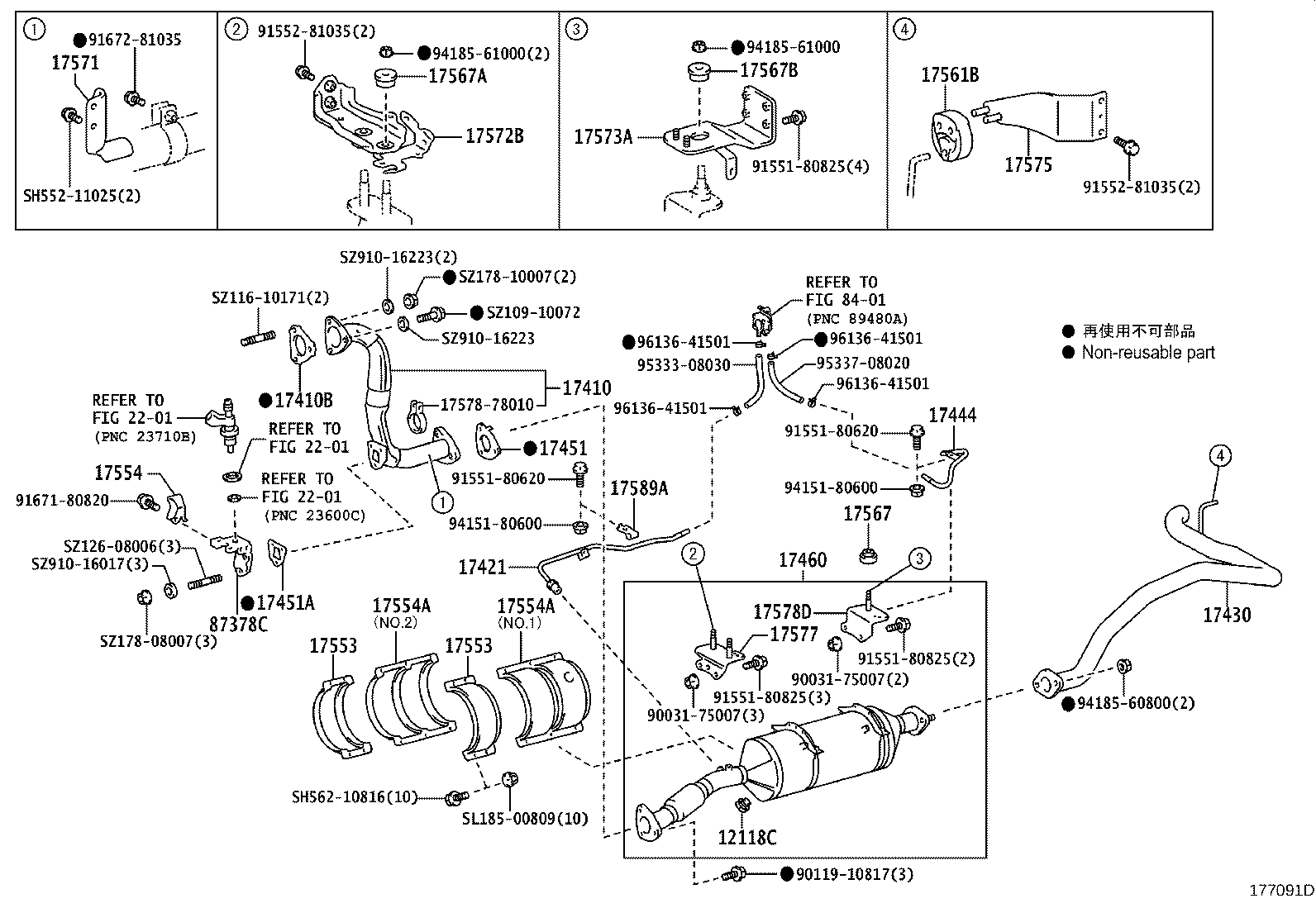

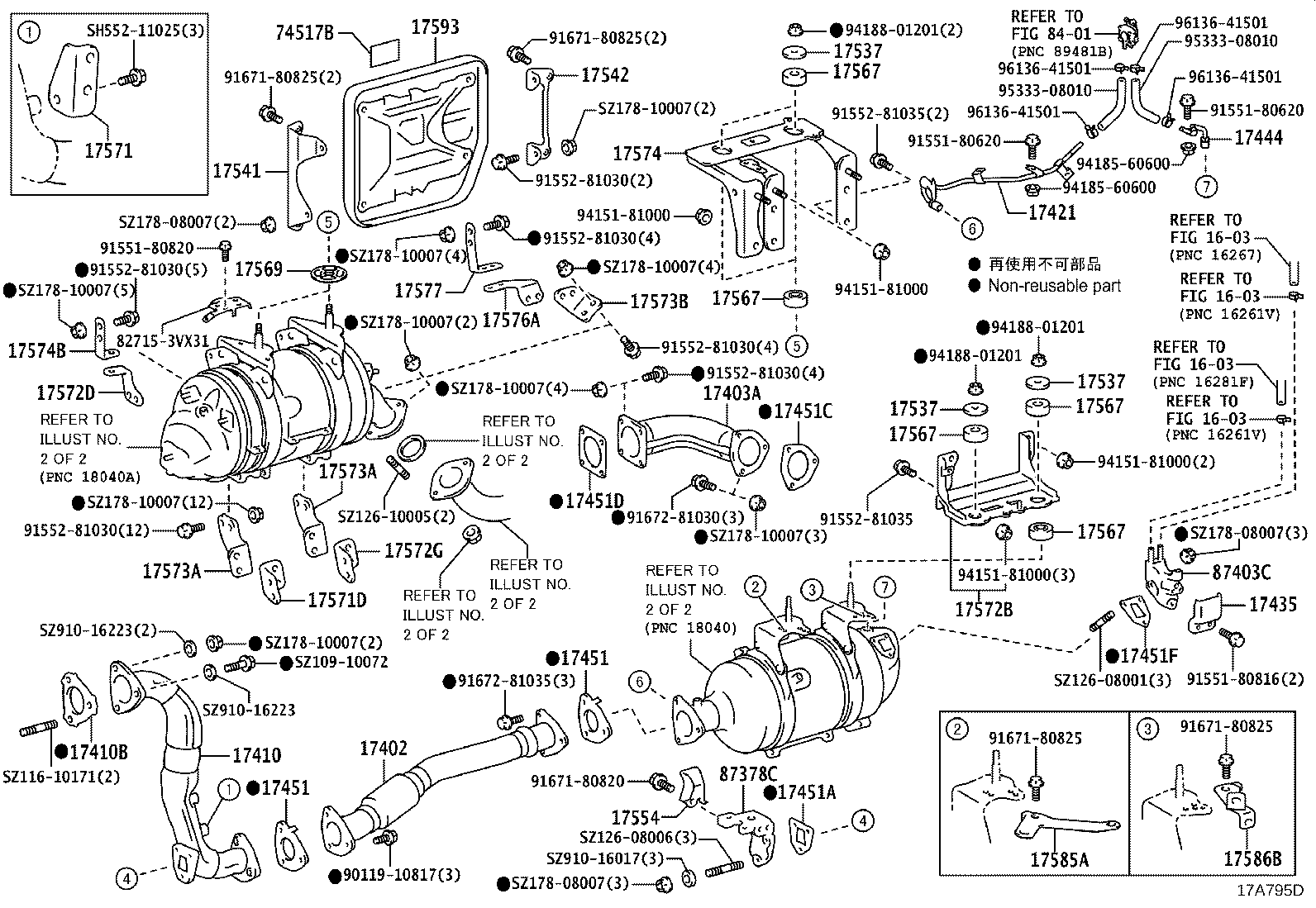

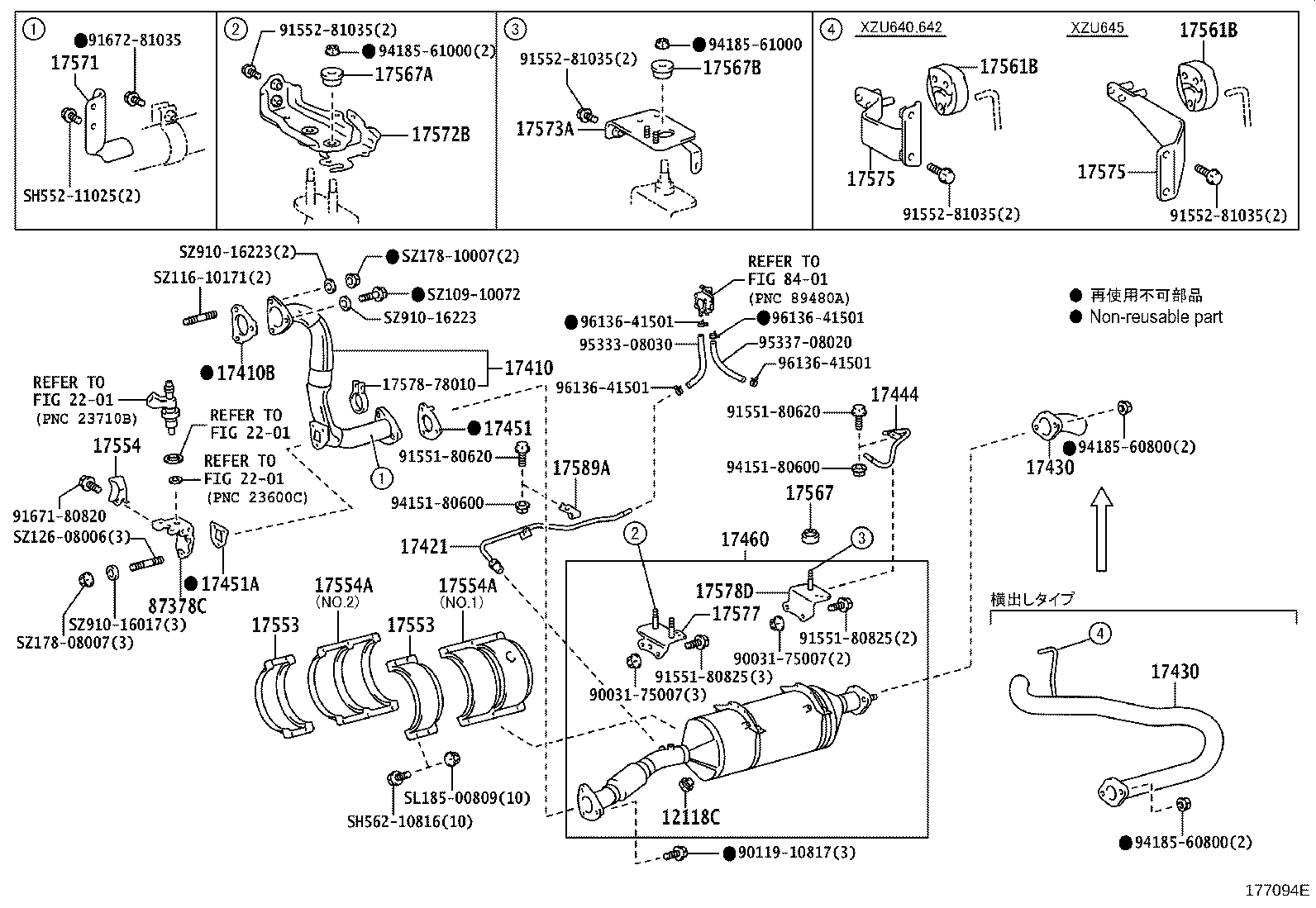

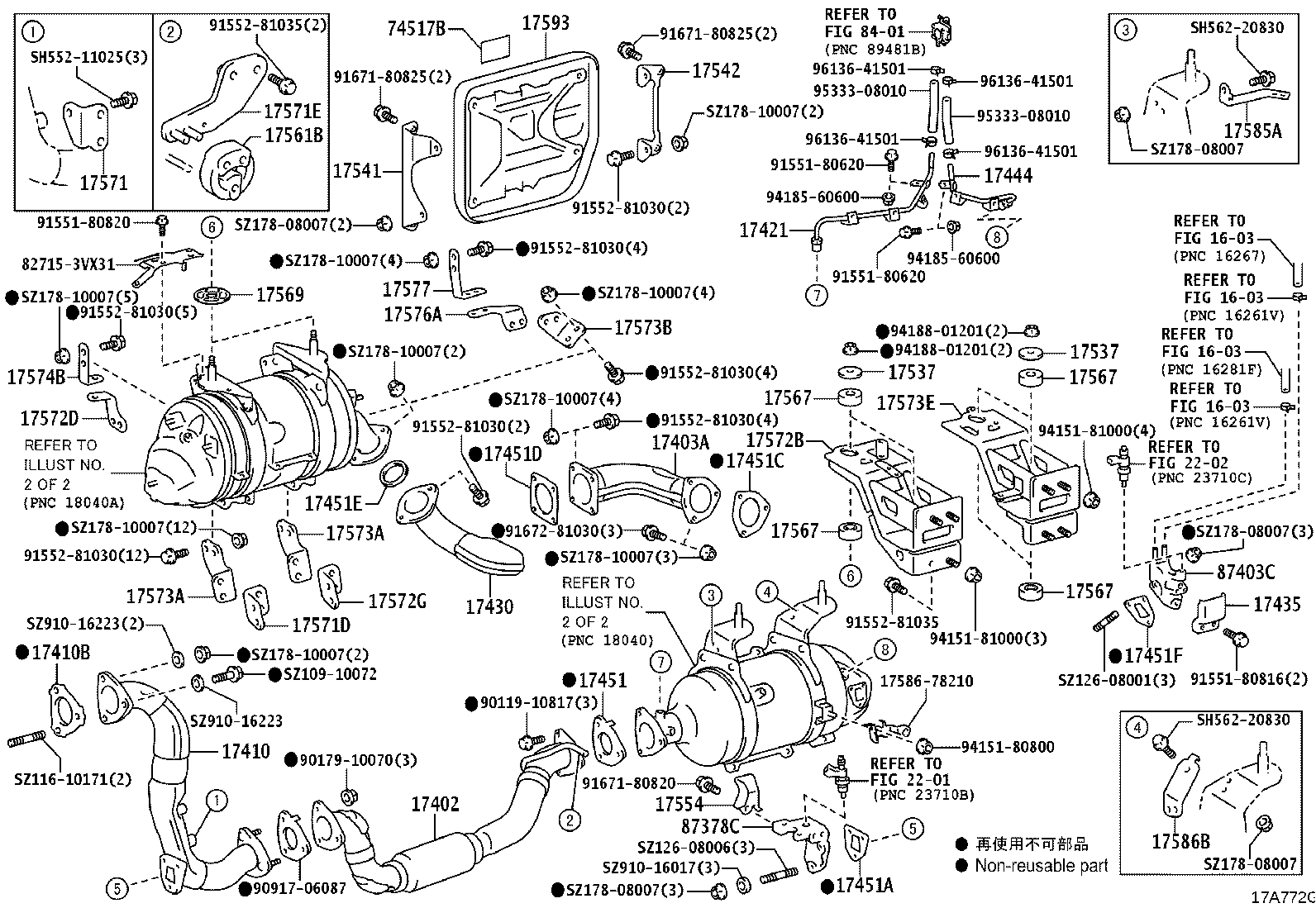

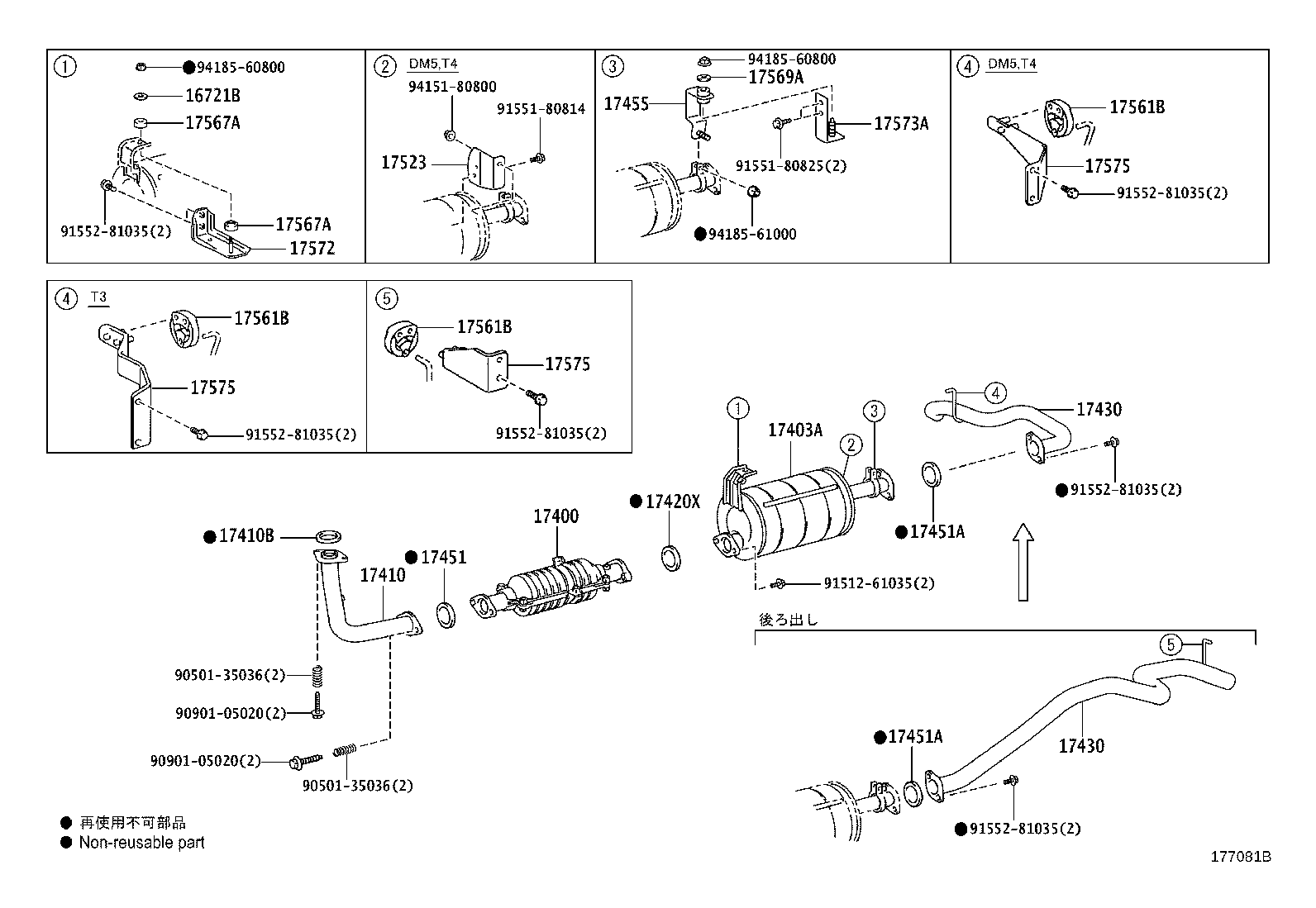

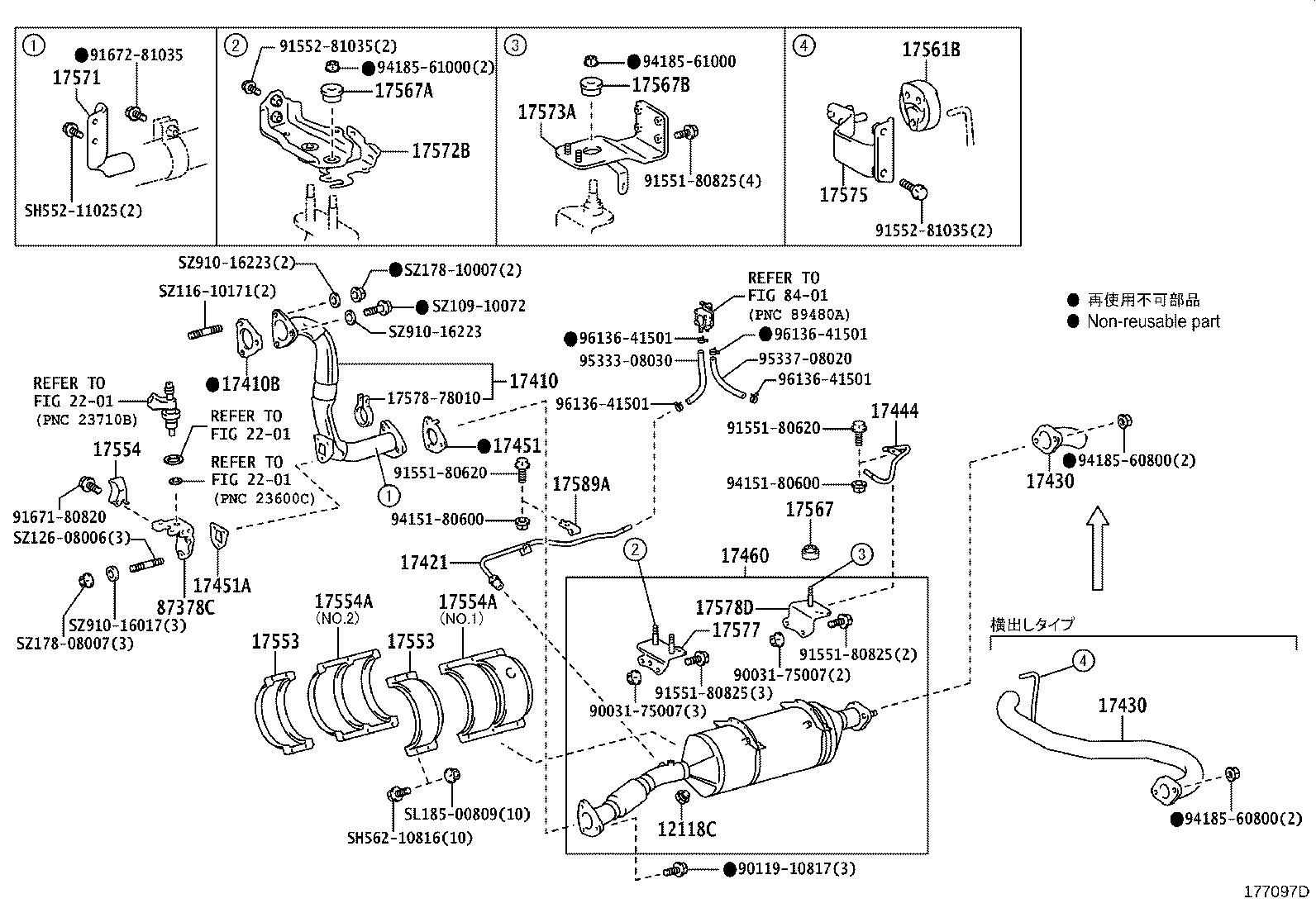

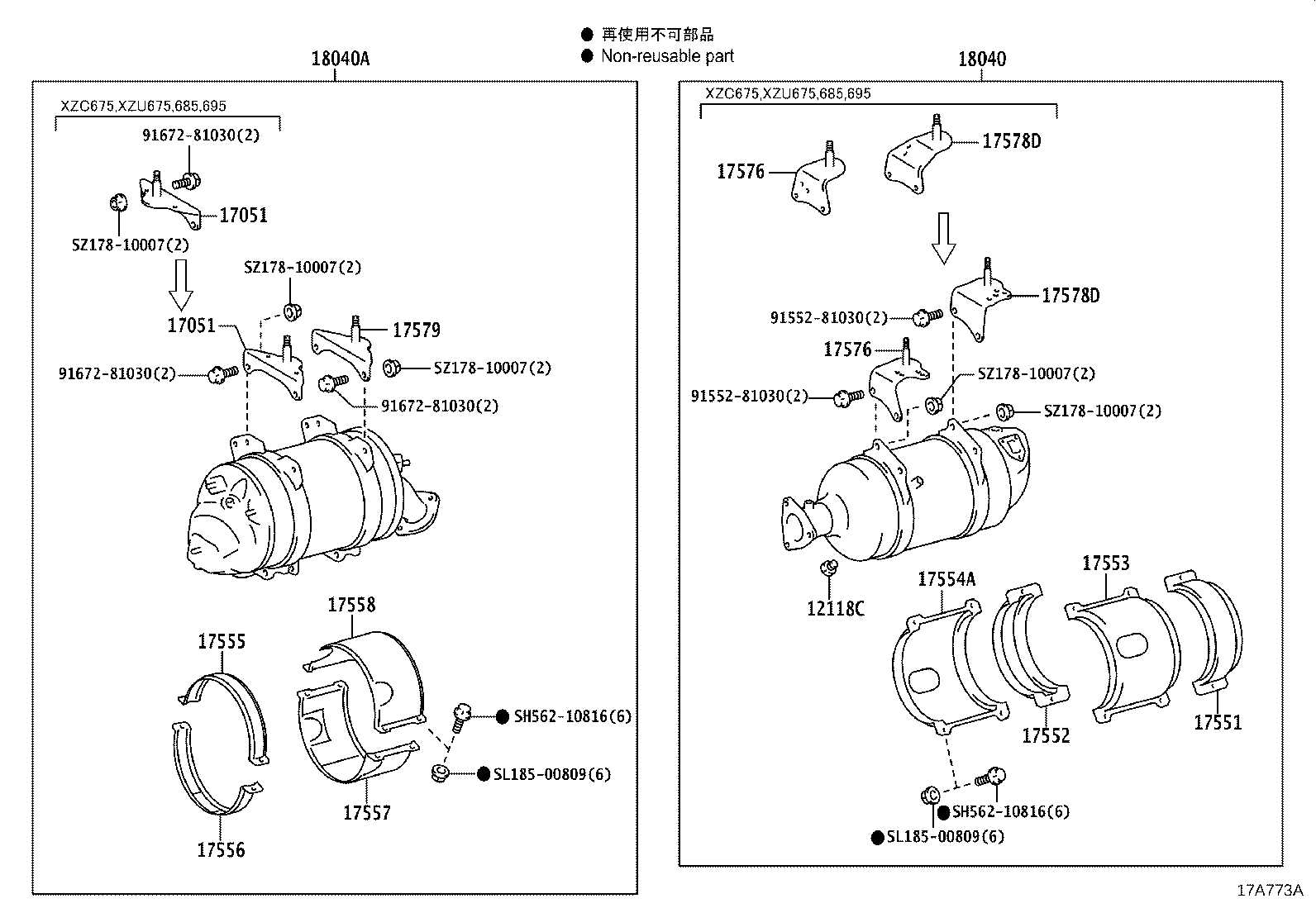

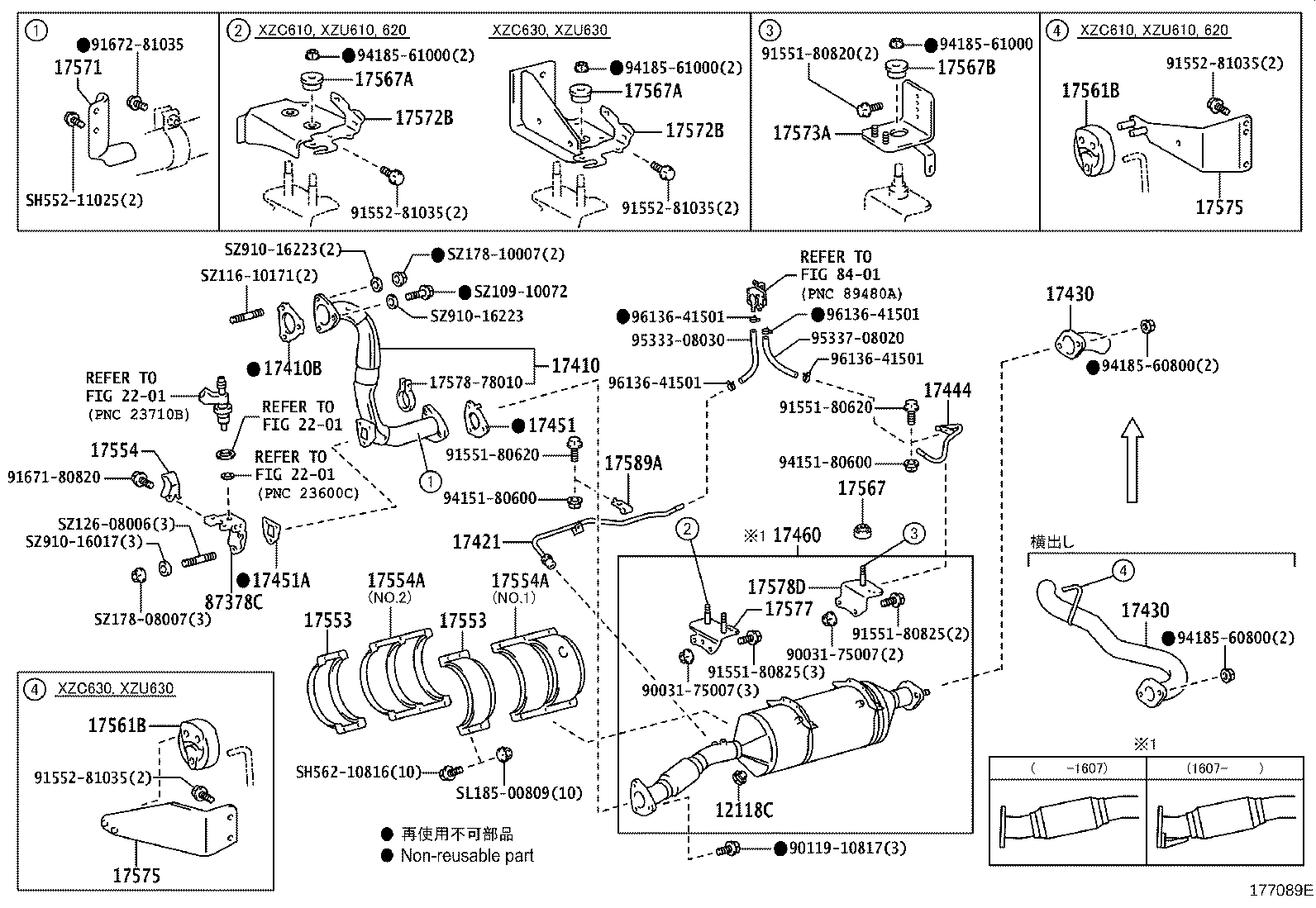

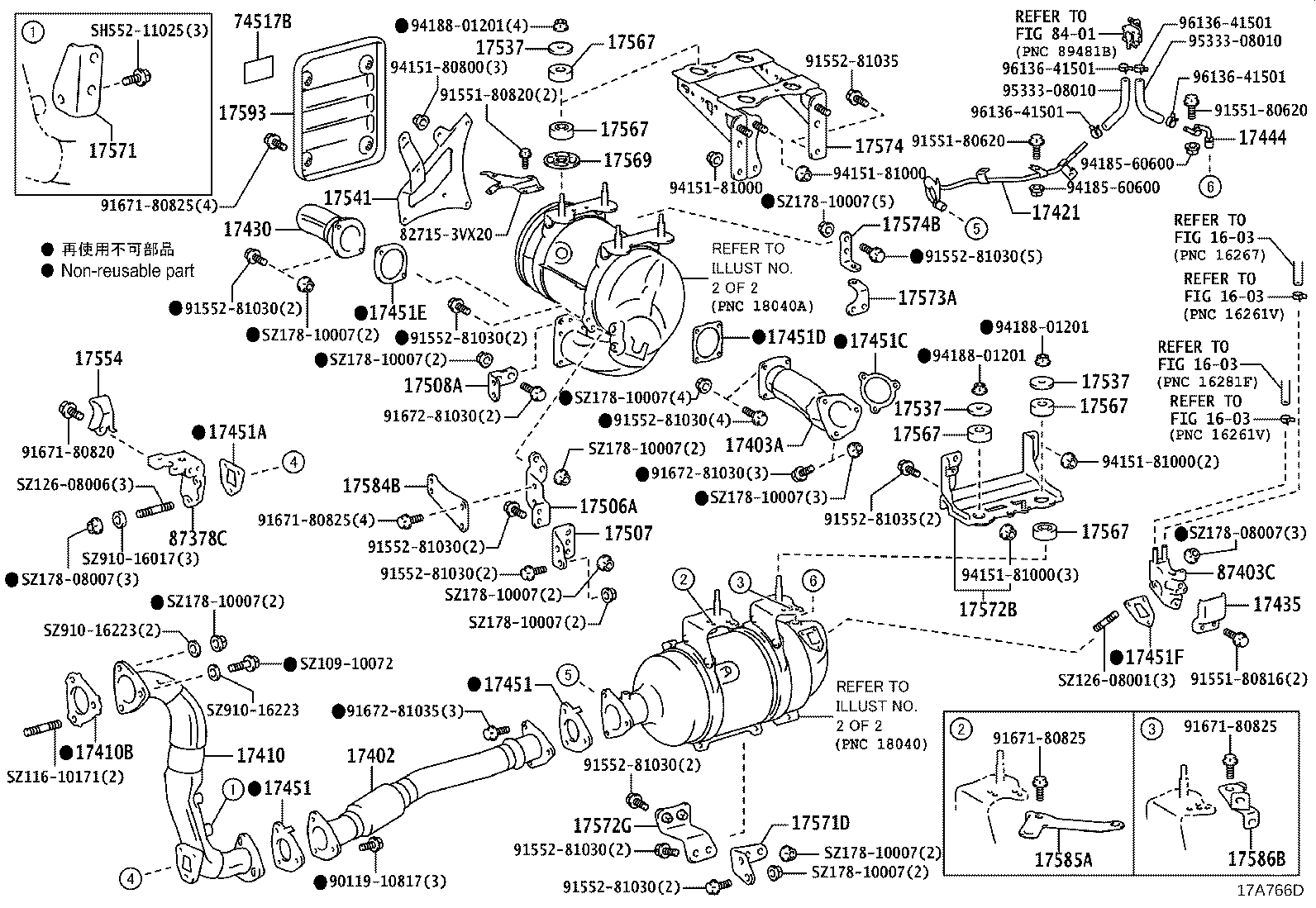

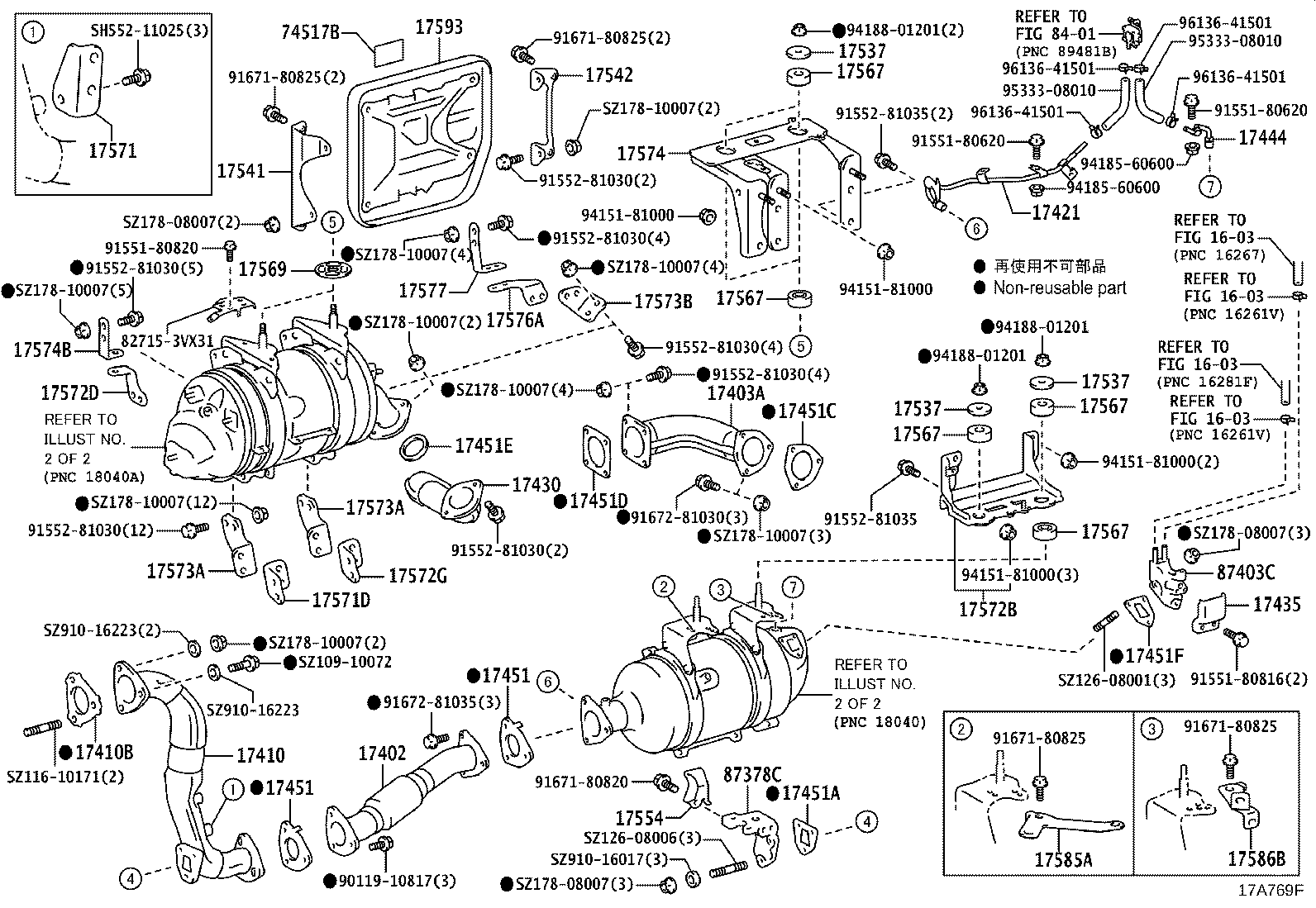

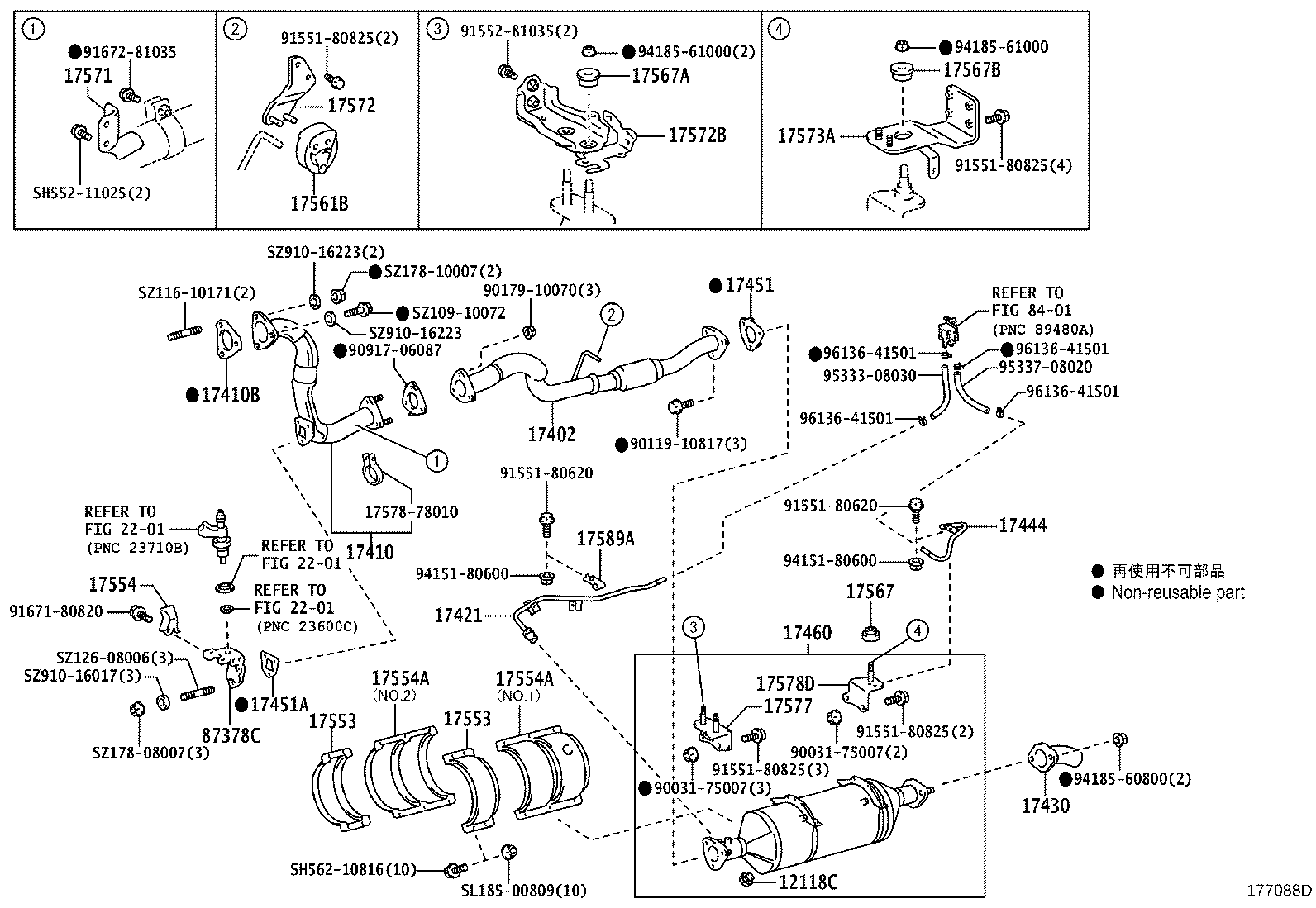

Figure 177079B 177079B 2011-07 → — Figure 177080B 177080B 2011-07 → — Figure 177081B 177081B 2011-07 → — Figure 177098E 177098E 2011-07 → — Figure 177097D 177097D 2011-07 → — Figure 177099D 177099D 2011-07 → — Figure 177094E 177094E 2011-07 → — Figure 177092D 177092D 2011-07 → — Figure 177090D 177090D 2011-07 → — Figure 177091D 177091D 2011-07 → — Figure 177089E 177089E 2011-07 → — Figure 177083E 177083E 2011-07 → — Figure 177084E 177084E 2011-07 → — Figure 177086D 177086D 2011-07 → — Figure 177088D 177088D 2011-07 → — Figure 179670H 179670H 2017-05 → — Figure 179671B 179671B 2017-05 → — Figure 17A765D 17A765D 2019-05 → — Figure 17A766D 17A766D 2019-05 → — Figure 17A767D 17A767D 2019-05 → — Figure 17A768A 17A768A 2019-05 → — Figure 17A796D 17A796D 2019-05 → — Figure 17A769F 17A769F 2019-05 → — Figure 17A795D 17A795D 2019-05 → — Figure 17A770F 17A770F 2019-05 → — Figure 17A771F 17A771F 2019-05 → — Figure 17A772G 17A772G 2019-05 → — Figure 17A794F 17A794F 2019-05 → — Figure 17A773A 17A773A 2019-05 → — Figure 17A787C 17A787C 2019-05 → —

Part groups

PNCDescription
12118C Plug, Drain
16721B Plate, Holder
17051 Bracket, Exhaust Pipe
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420X Gasket, Exhaust Pipe, Center
17421 Pipe, Exhaust, NO.2
17430 Pipe Assy, Exhaust, Tail
17435 Insulator, Exhaust Pipe Heat
17444 Pipe, Exhaust, NO.4
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17451D Gasket, Exhaust Pipe, NO.4
17451E Gasket, Exhaust Pipe, NO.5
17451F Gasket, Exhaust Pipe, NO.6
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521 Protector, Exhaust Pipe, Front NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17537 Plate, Exhaust Pipe
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17553 Insulator, Exhaust Pipe Heat, NO.3
17554 Insulator, Exhaust Pipe Heat, Front
17554A Insulator, Exhaust Pipe Heat, NO.4
17555 Insulator, Exhaust Pipe Heat, NO.5
17556 Insulator, Exhaust Pipe Heat, NO.6
17557 Insulator, Exhaust Pipe Heat, NO.7
17558 Insulator, Exhaust Pipe Heat, NO.8
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17569 Plate, Exhaust Pipe Support
17569A Plate, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17571D Bracket, Exhaust Pipe Support, NO.1
17571E Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17572G Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17574B Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576 Bracket, Muffler Clamp
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
17579 Bracket, Exhaust Pipe Support NO.1 Sub
17584B Bracket, Exhaust Pipe NO.1 Support
17585A Bracket, Exhaust Pipe NO.2 Support
17586B Bracket, Exhaust Pipe NO.3 Support
17589A Clamp, Exhaust Pipe
17593 Protector, Exhaust Pipe, NO.1
18040 Converter Assy, Exhaust Pipe, NO.1
18040A Converter Assy, Exhaust Pipe, NO.2
74517B Label, Exhaust Temperature Caution
87378C Pipe, Exhaust
87403C Pipe Sub-assy, Exhaust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
