Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

13 part groups · 7 illustrations

Illustrations

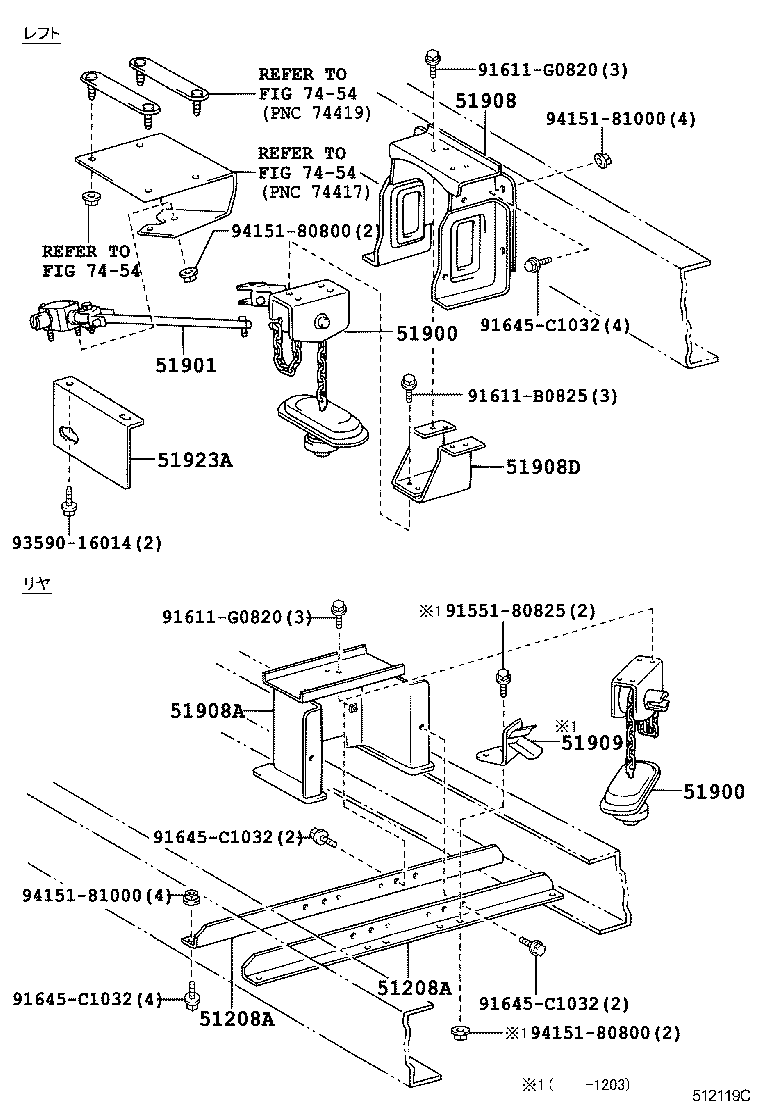

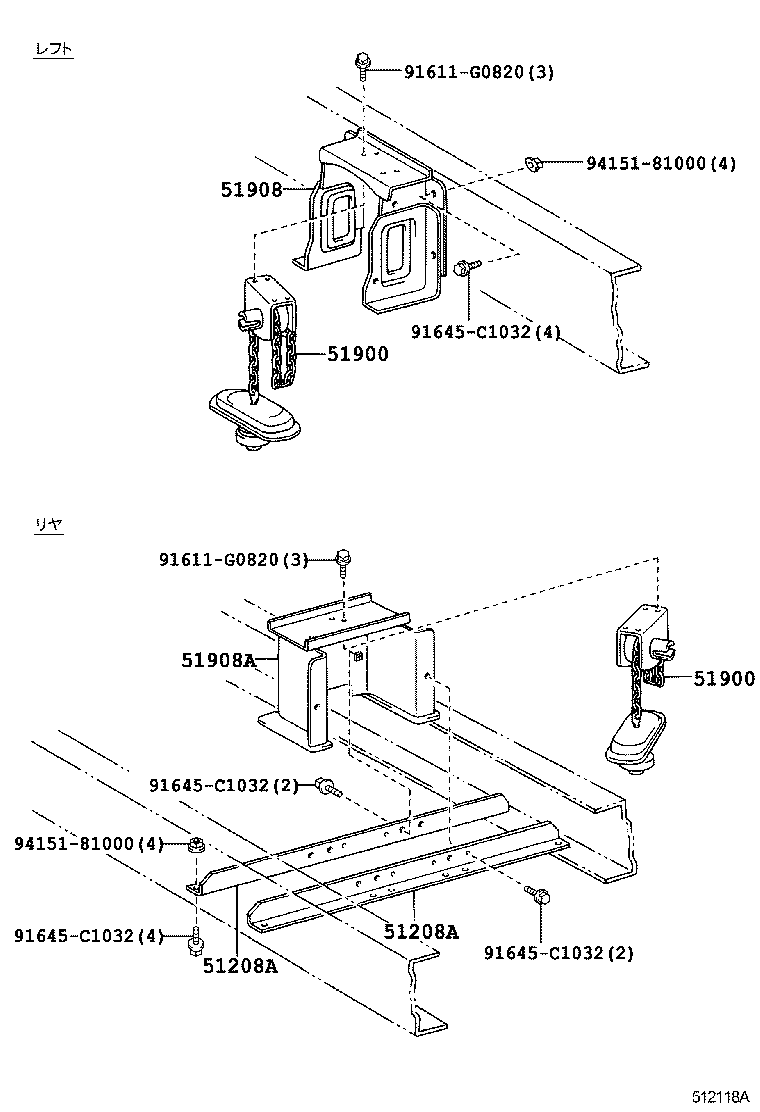

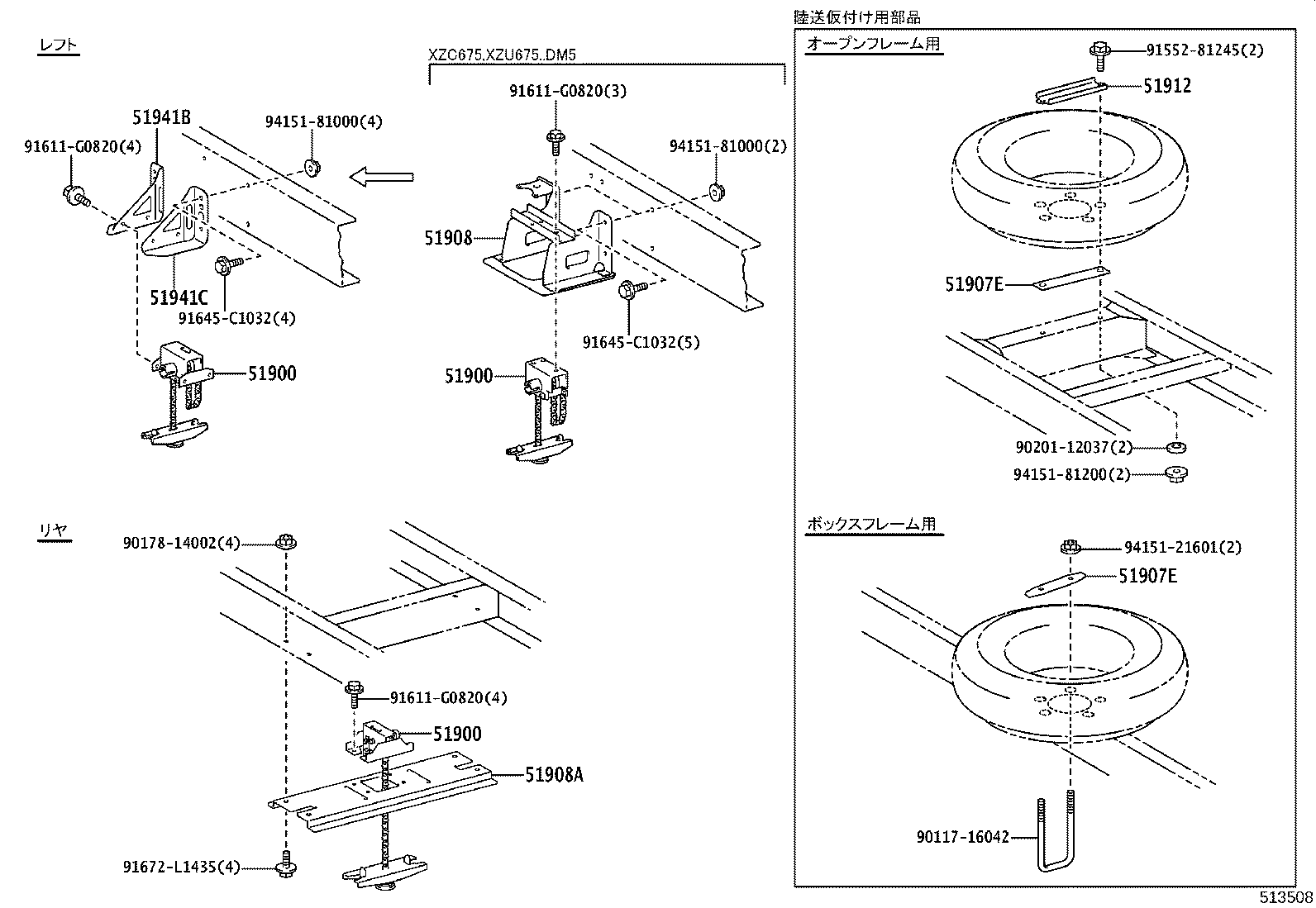

Figure 512114B 512114B 2011-07 → — Figure 512114B 512114B 2011-07 → — Figure 512116 512116 2011-07 → — Figure 512117A 512117A 2011-07 → — Figure 512118A 512118A 2011-07 → — Figure 512119C 512119C 2011-07 → — Figure 513508 513508 2019-05 → —

Part groups

PNCDescription
51208A Member Sub-assy, Spare Wheel Set
51900 Carrier Assy, Spare Wheel
51901 Rod Sub-assy, Spare Wheel Carrier
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51908A Bracket Sub-assy, Spare Wheel Mounting
51908D Bracket Sub-assy, Spare Wheel Carrier, RH
51909 Hinge Sub-assy, Spare Wheel Carrier
51912 Bracket, Spare Wheel
51919B Spacer, Spare Wheel Carrier
51923A Guide, Spare Whell Carrier Handle
51941B Bracket, Spare Wheel Carrier, NO.1
51941C Bracket, Spare Wheel Carrier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
