Toyota Dyna/Toyoace
2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan
Supported model
Data version 2019-05

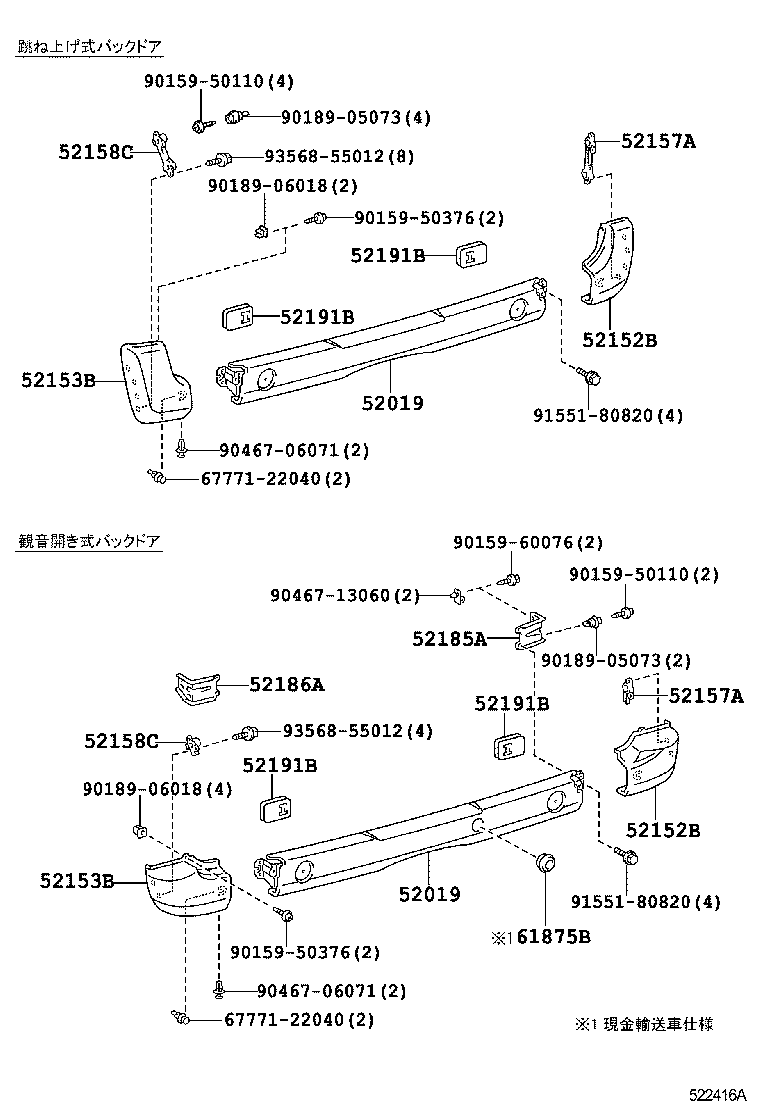

Rear Bumper & Bumper Stay
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52019 | Bar Sub-assy, Rear Bumper |
| 52087 | Stay Sub-assy, Rear Bumper Side, RH |
| 52088 | Stay Sub-assy, Rear Bumper Side, LH |
| 52151E | Bar, Rear Bumper |
| 52152B | Extension, Rear Bumper, RH |
| 52153B | Extension, Rear Bumper, LH |
| 52157A | Support, Rear Bumper Side, NO.2 RH |
| 52158C | Support, Rear Bumper Side, NO.2 LH |
| 52185A | Bracket, Rear Bumper Side, RH |
| 52186A | Bracket, Rear Bumper Side, LH |
| 52189A | Protector, Rear Bumper Arm Edge, RH |
| 52189G | Protector, Rear Bumper Arm Edge, LH |
| 52191B | Grommet, Rear Bumper Stay |
| 61875B | Lid, Spare Wheel Carrier, NO.1 |
| 65267B | Bracket Sub-assy, Tail Gate Bumper Stop, RH |
| 65268B | Bracket Sub-assy, Tail Gate Bumper Stop, LH |
| 66321H | Bumper, Gate Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
