Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05

Inside Trim Board

42 part groups · 5 illustrations

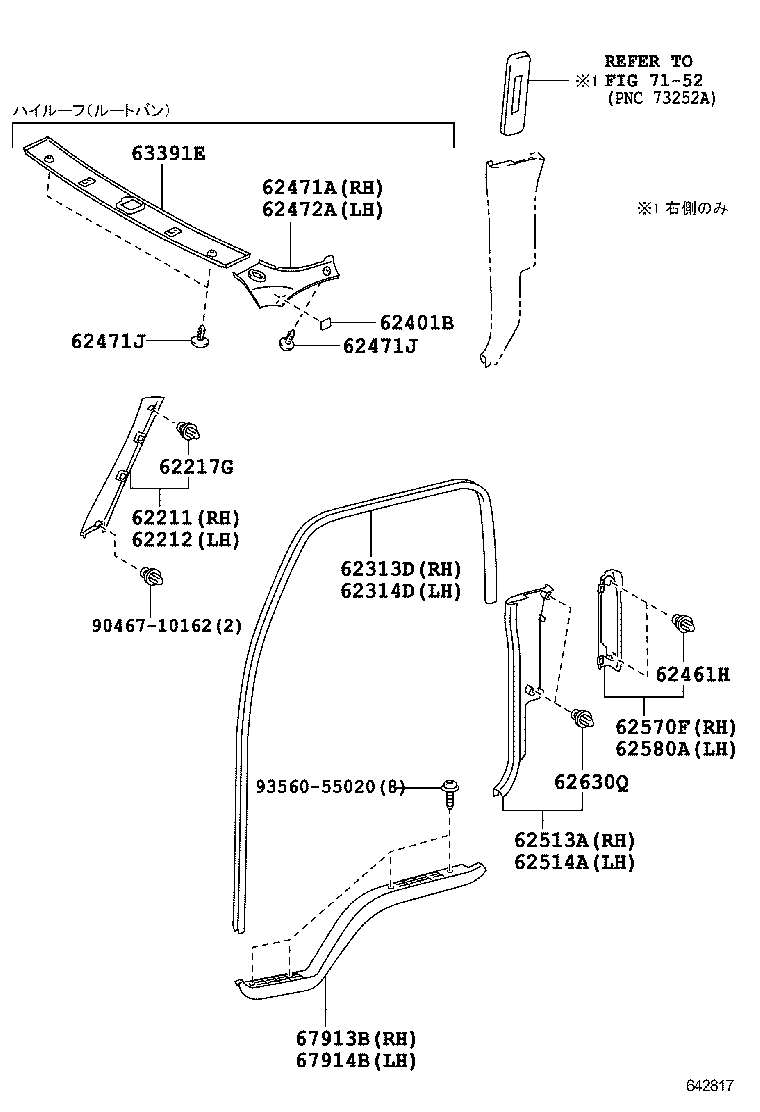

PNC	Description
62211	Garnish, Front Pillar, RH
62211T	Clip(FOR FRONT PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62217G	Clip, Front Pillar Garnish
62313D	Trim, Front Door Opening, RH
62314D	Trim, Front Door Opening, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62335A	Cover, Rear Door Opening Trim
62401B	Fastener, Hook
62461H	Clip (FOR ROOF SIDE INNER GARNISH)
62471A	Garnish, Roof Side, Inner RH
62471J	Clip (FOR ROOF SIDE GARNISH)
62472A	Garnish, Roof Side, Inner LH
62510P	Panel Assy, Quarter Trim, Front RH
62511	Board, Quarter Inside Trim, RH
62511B	Clip (FOR QUARTER INSIDE TRIM BOARD)
62511F	Retainer (FOR QUARTER INSIDE TRIM BOARD)
62511G	Clip (FOR QUARTER INSIDE TRIM BOARD)
62512	Board, Quarter Inside Trim, LH
62513A	Panel, Quarter Trim, Lower RH
62514A	Panel, Quarter Trim, Lower LH
62570F	Garnish Assy, Roof Side, Inner Lower RH
62580A	Garnish Assy, Roof Side, Inner Lower LH
62580B	Board Assy, Side Heater Cover, RH
62587C	Plate, Quarter Trim Pocket
62597D	Clip
62630P	Panel Assy, Quarter Trim, Rear RH
62630Q	Clip (FOR QUARTER TRIM)
62630V	Clip (FOR QUARTER REAR TRIM)
62640P	Panel Assy, Quarter Trim, Rear LH
63391E	Trim, Roof Headlining, Front
64261C	Garnish, Back Panel, Upper
64271C	Trim, Back Panel
64271D	Clip(FOR BACK PANEL TRIM)
67771H	Retainer, Door Trim
67772R	Cap, Door Trim Retainer
67913B	Plate, Front Door Scuff, RH
67914B	Plate, Front Door Scuff, LH
67917C	Plate, Rear Door Scuff, RH
67918D	Plate, Rear Door Scuff, LH
67918E	Plate, Rear Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
