Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

13 part groups · 8 illustrations

Illustrations

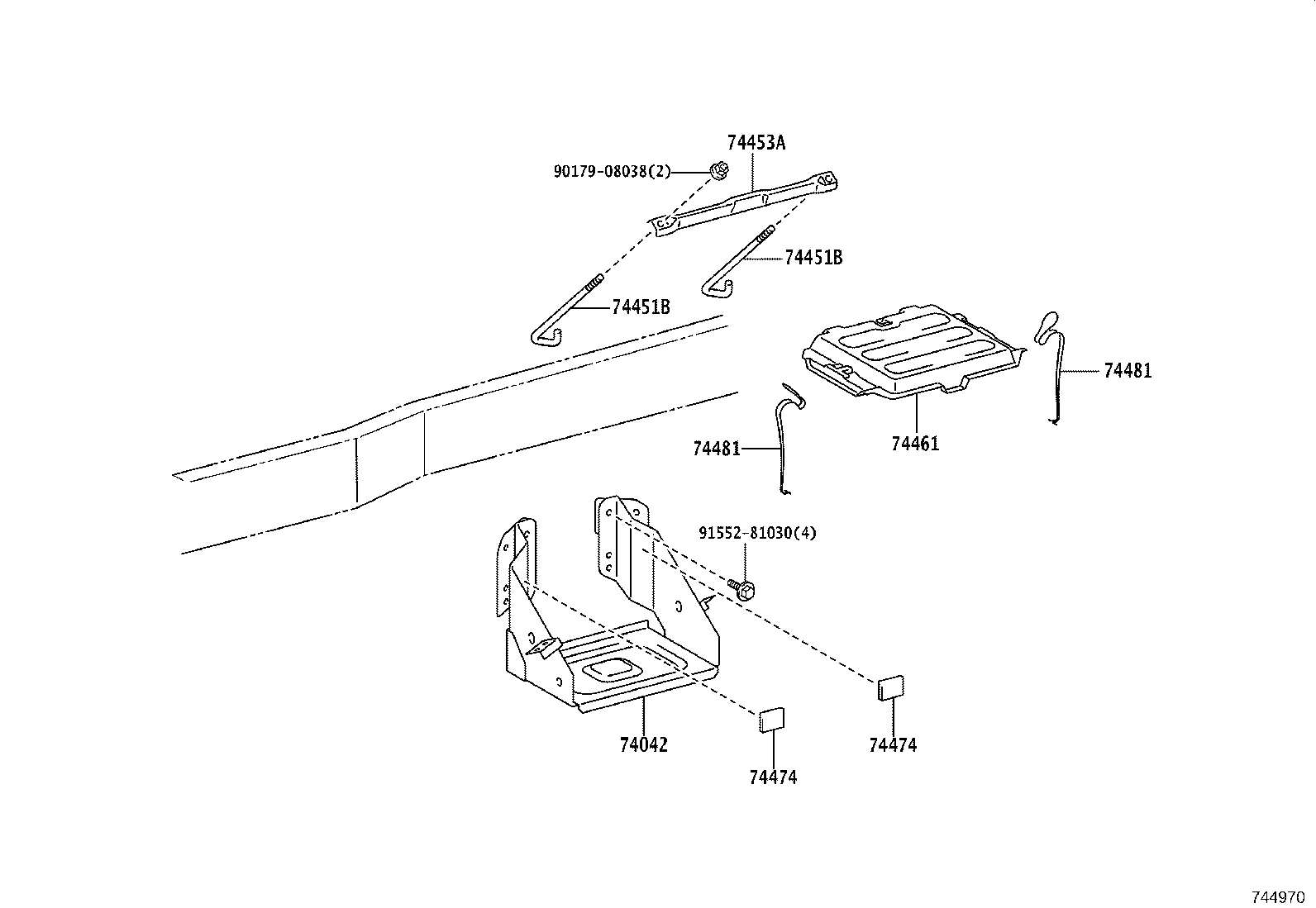

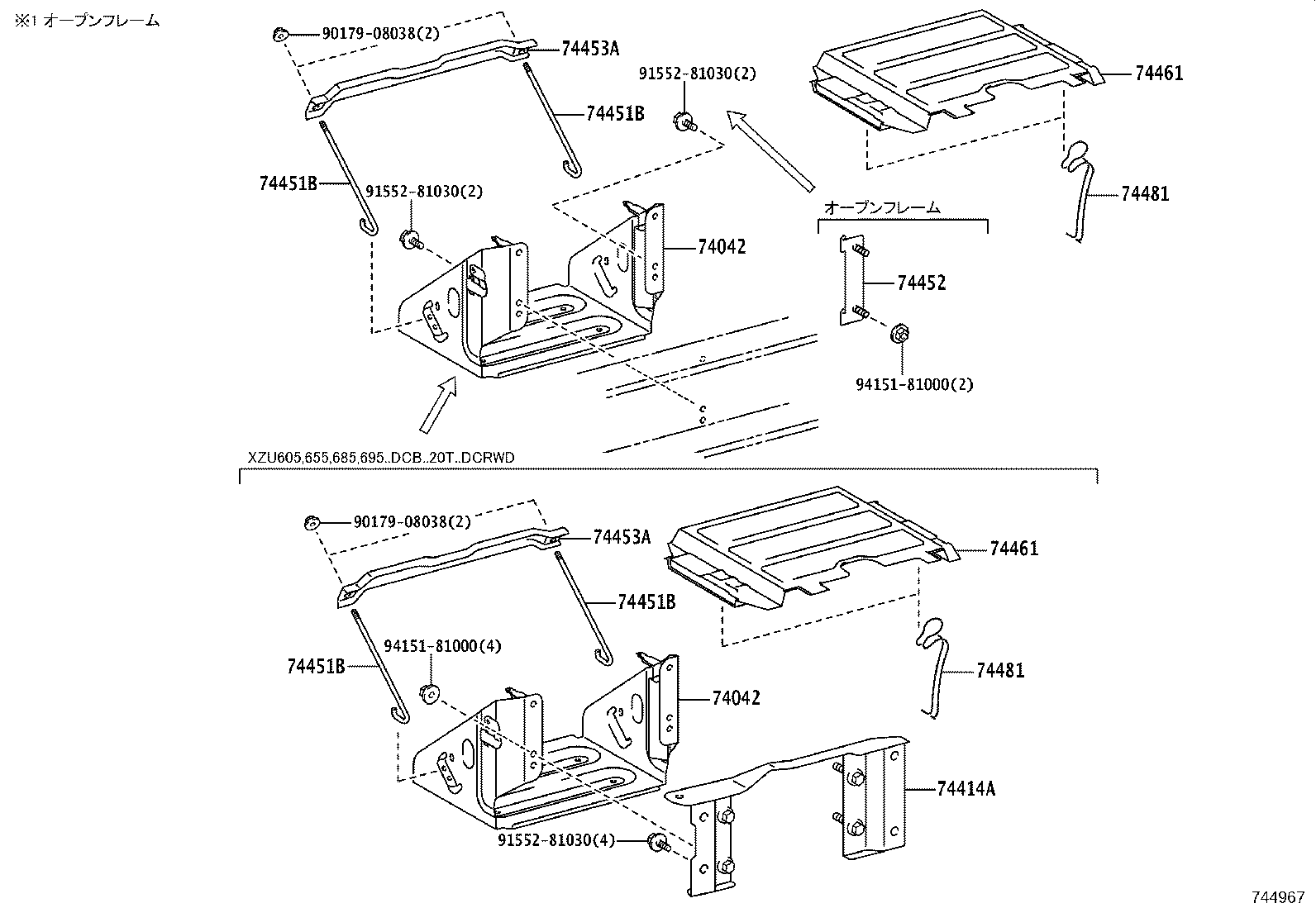

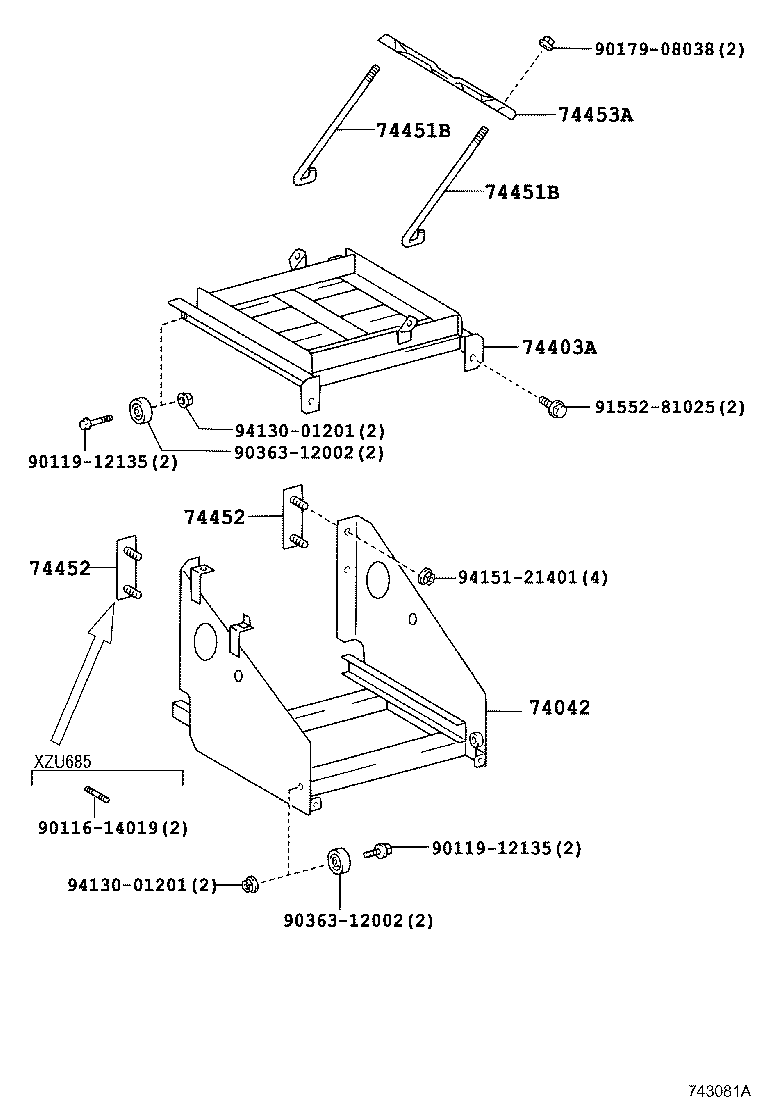

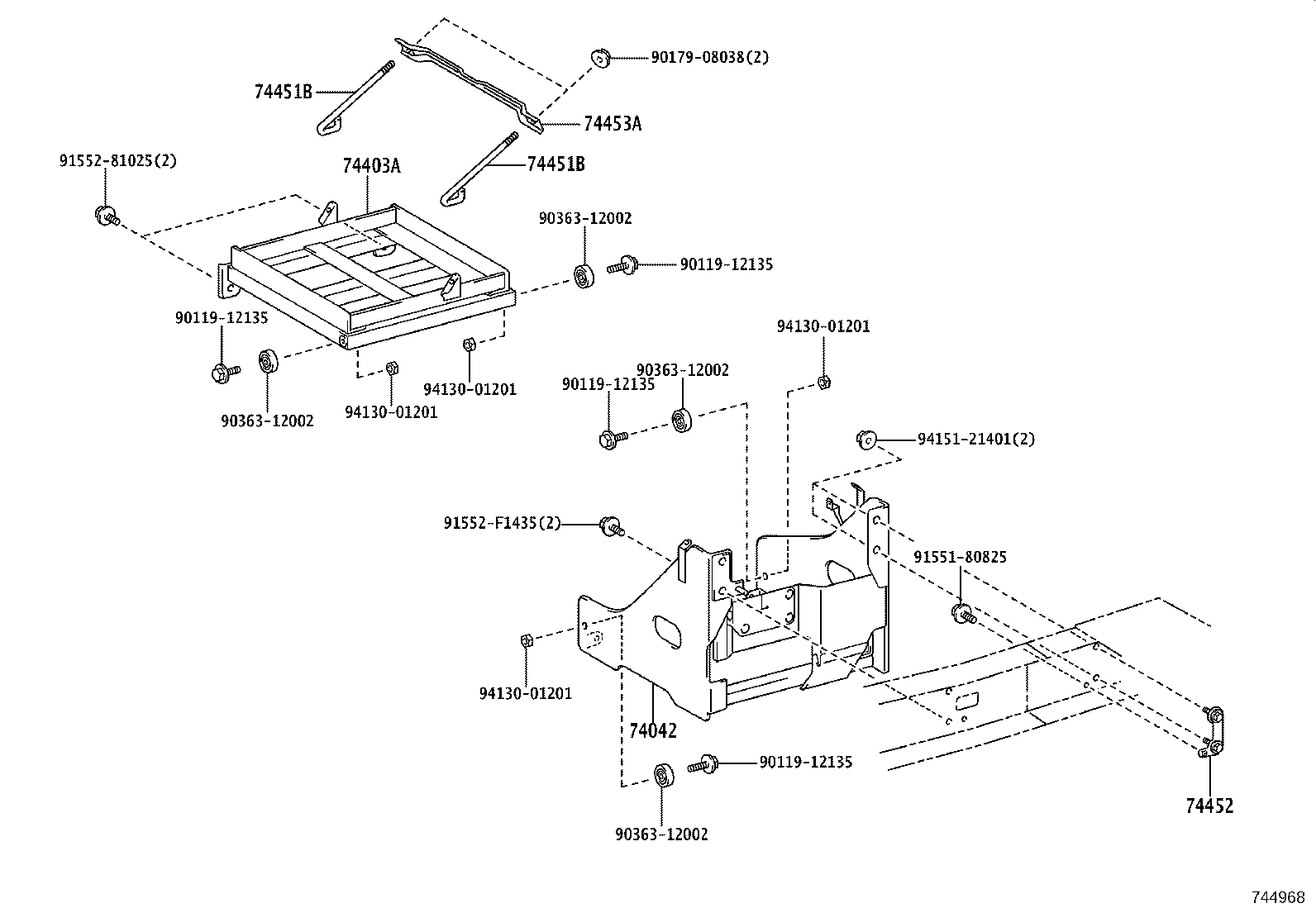

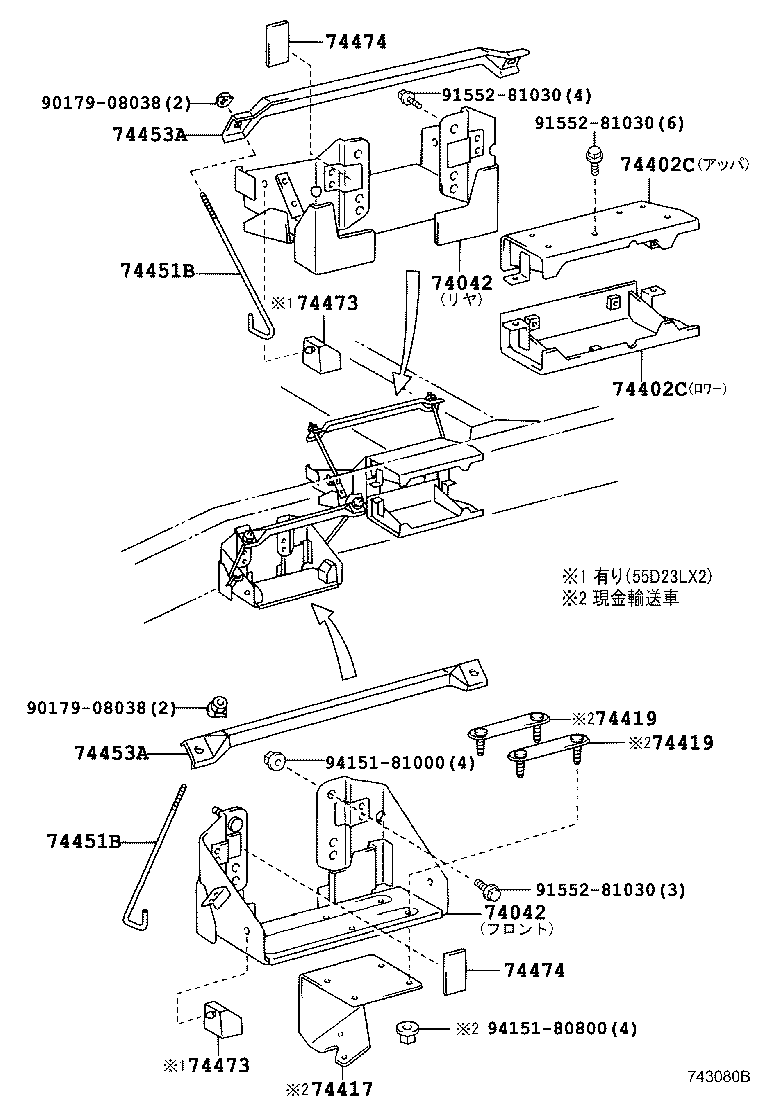

Figure 743077C 743077C 2011-07 → — Figure 743078 743078 2011-07 → — Figure 743079 743079 2011-07 → — Figure 743080B 743080B 2011-07 → — Figure 743081A 743081A 2011-07 → — Figure 744967 744967 2019-05 → — Figure 744970 744970 2019-05 → — Figure 744968 744968 2019-05 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74402C Bracket Sub-assy, Battery Carrier, Rear
74403A Carrier Sub-assy, Battery
74414A Bracket, Battery, NO.1
74417 Bracket, Battery Carrier
74419 Plate, Battery Seat
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74473 Spacer, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
