Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

9 part groups · 2 illustrations

Illustrations

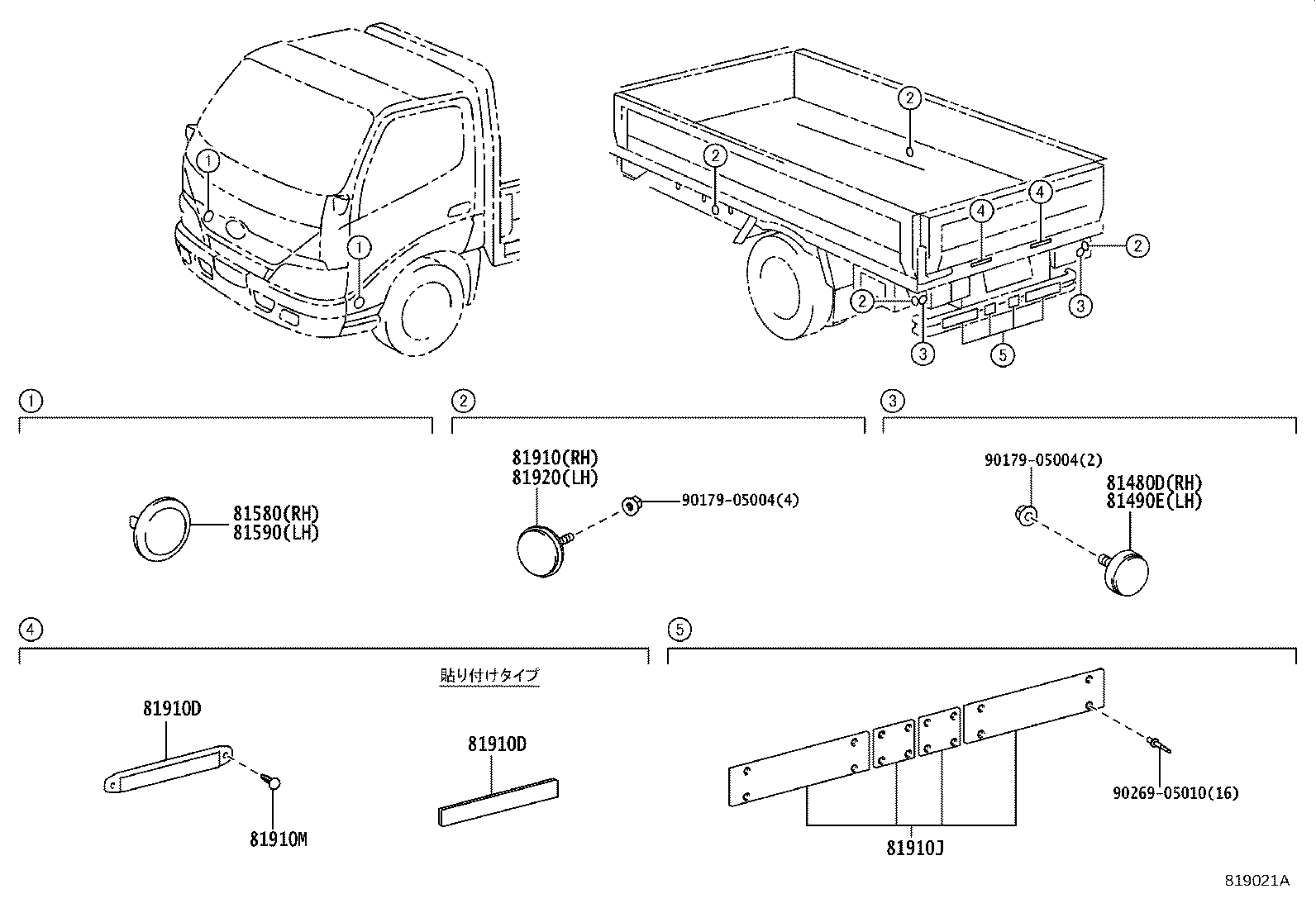

Figure 815703M 815703M 2011-07 → — Figure 819021A 819021A 2019-05 → —

Part groups

PNCDescription
81480D Reflector Assy, Reflex, RH
81490E Reflector Assy, Reflex, LH
81580 Reflector Assy, Reflex Side, RH
81590 Reflector Assy, Reflex Side, LH
81910 Reflector Assy, Reflex, RH
81910D Reflector Assy, Reflex, Rear
81910J Reflector Assy, Reflex, Rear NO.2
81910M Clip OR Rivet, Reflex Reflector
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
