Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

216 part groups · 45 illustrations

Illustrations

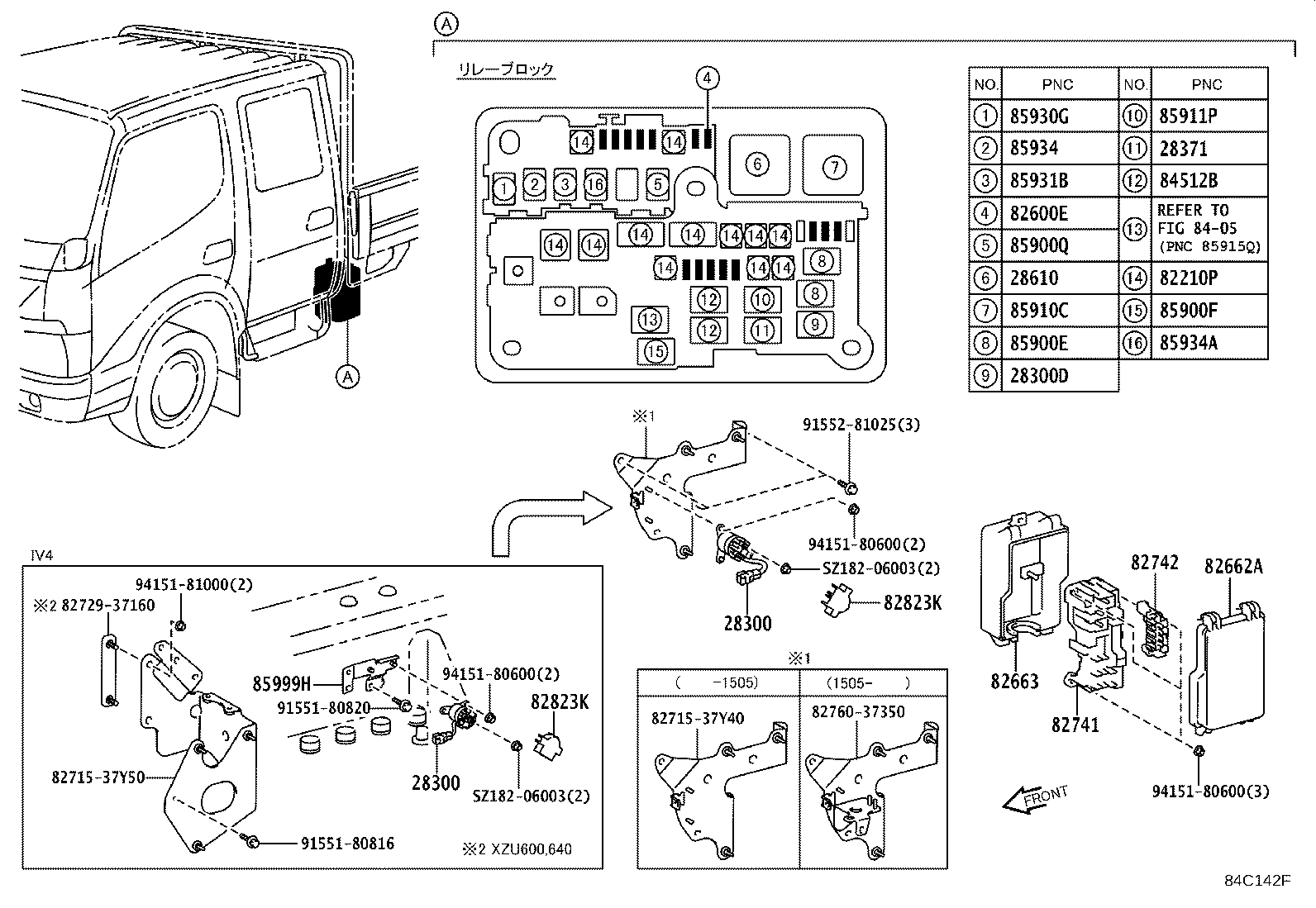

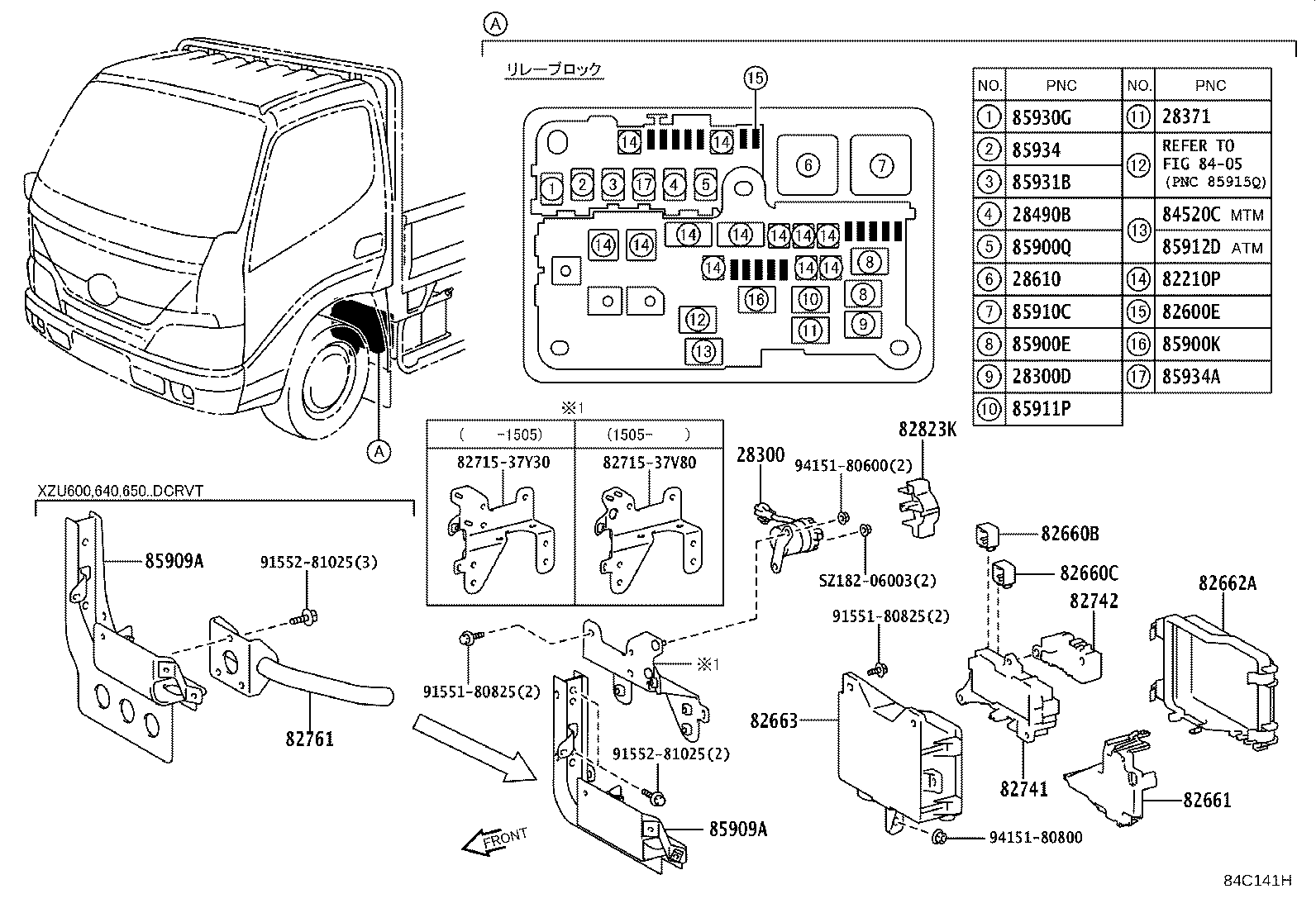

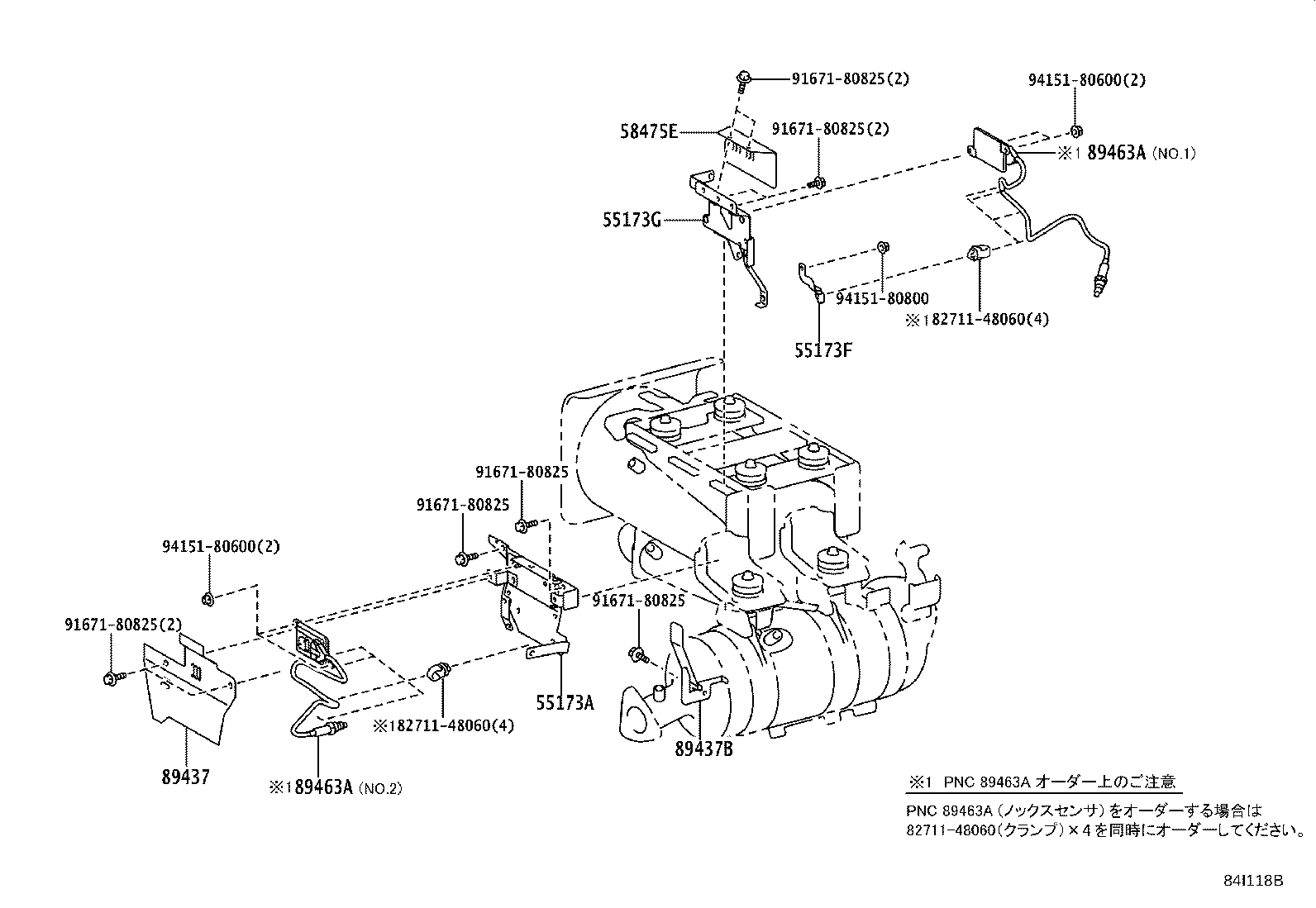

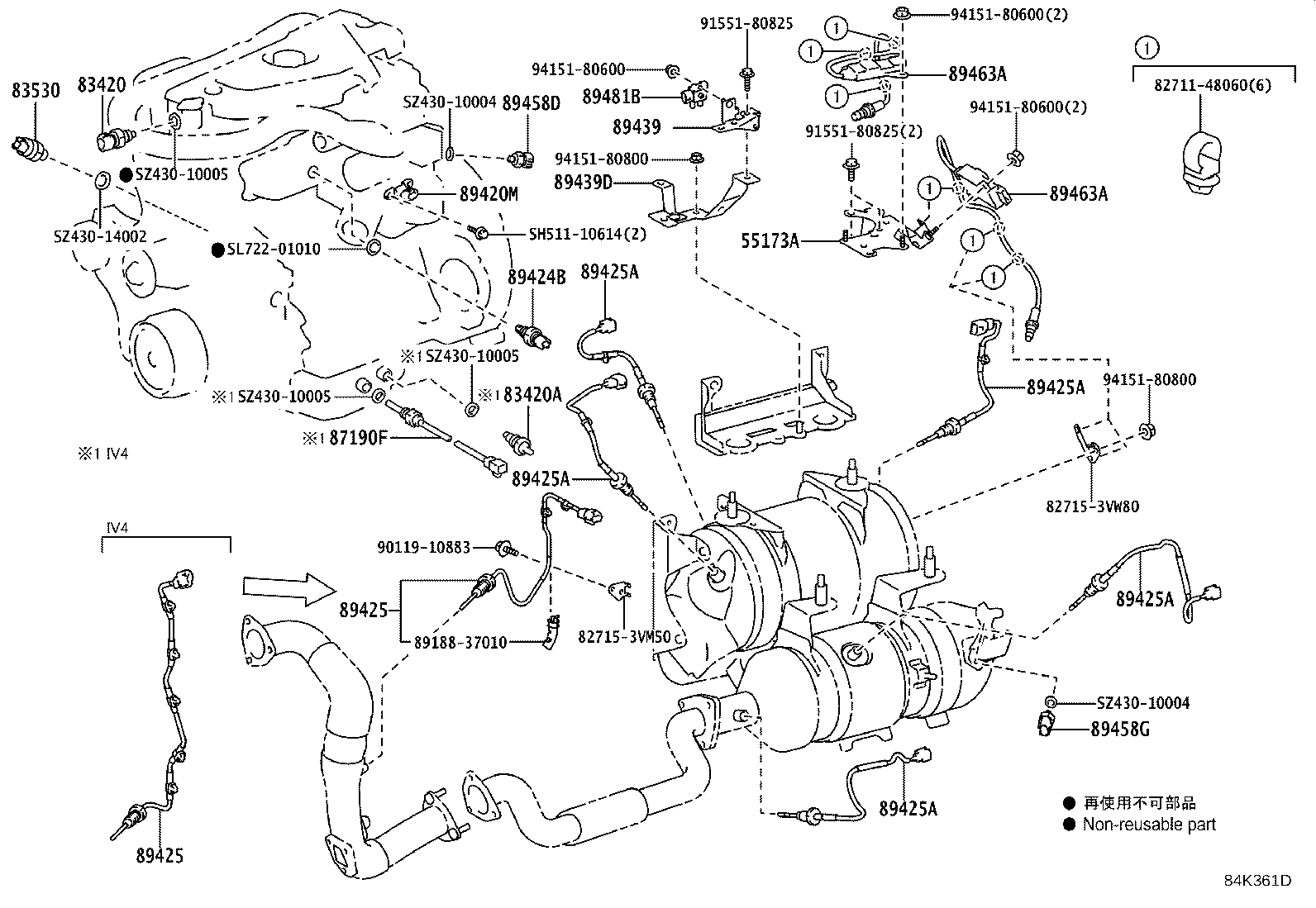

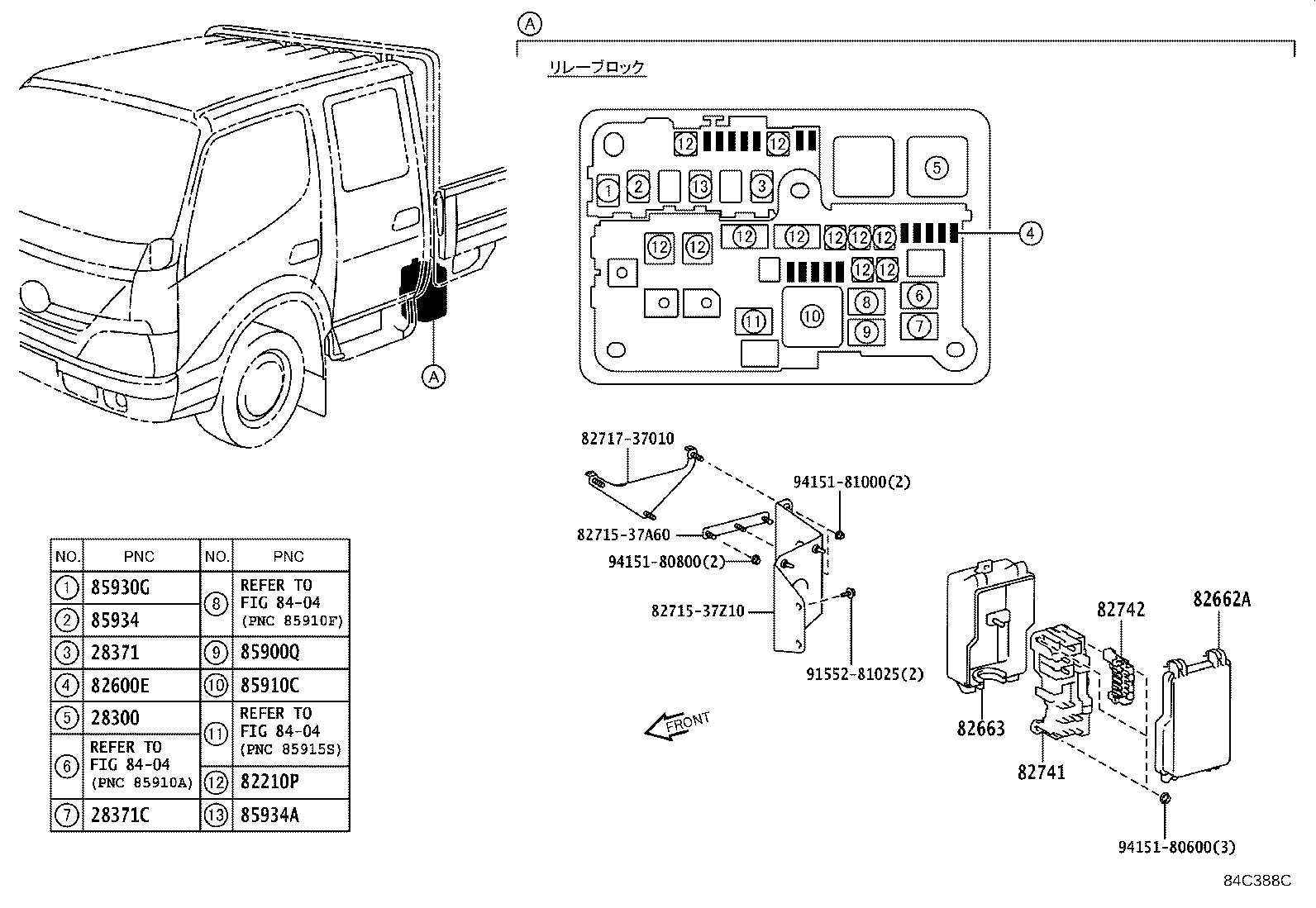

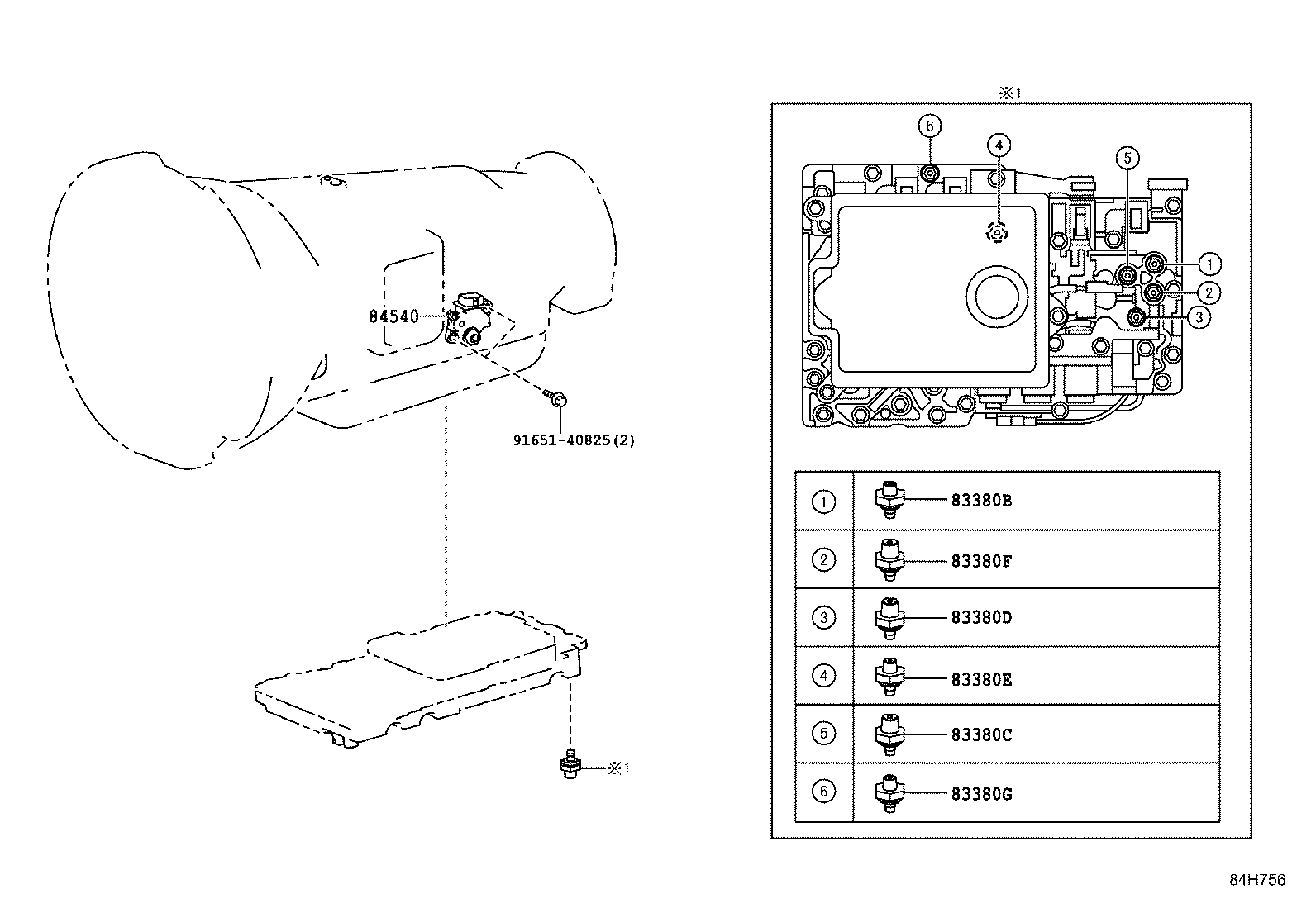

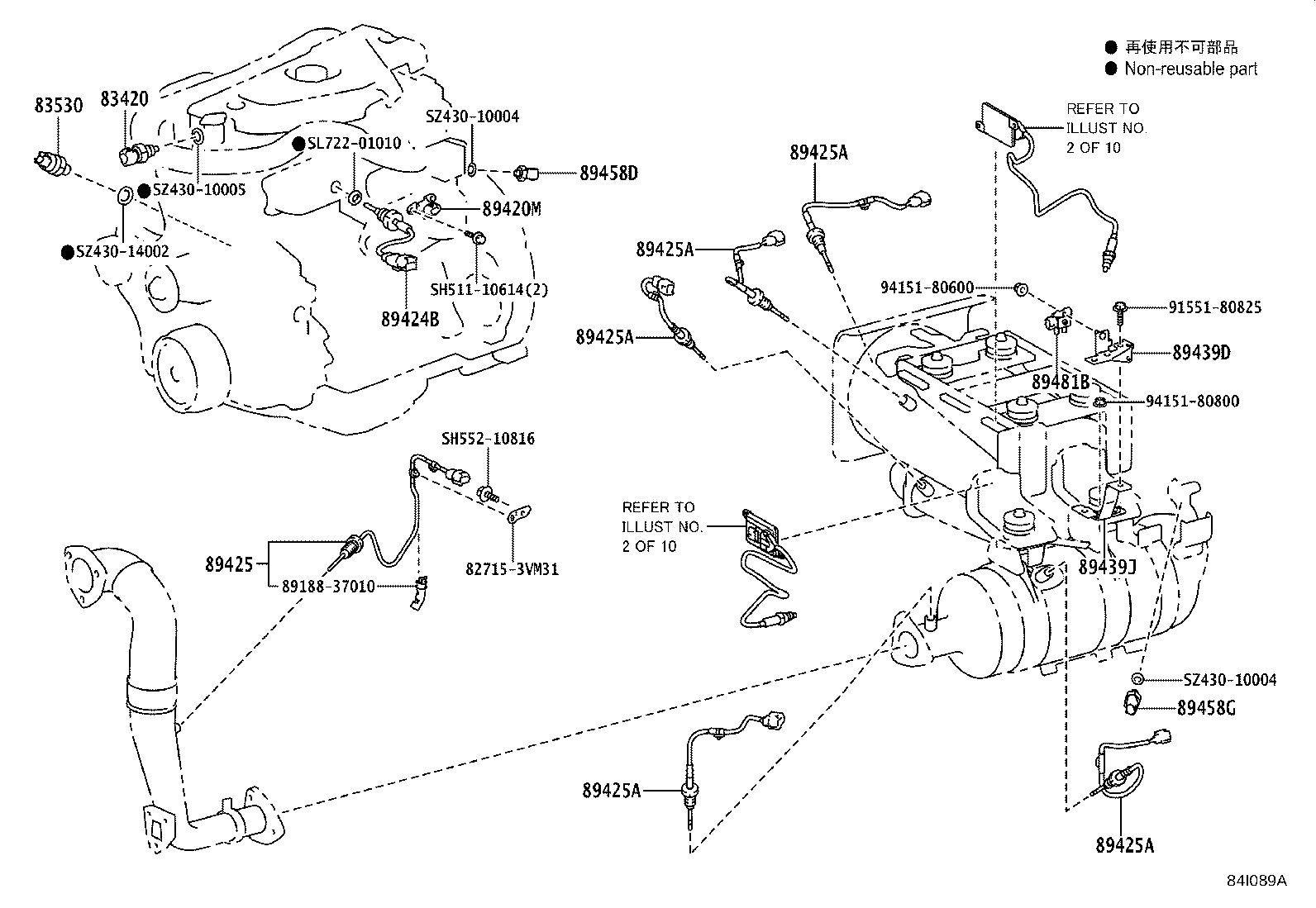

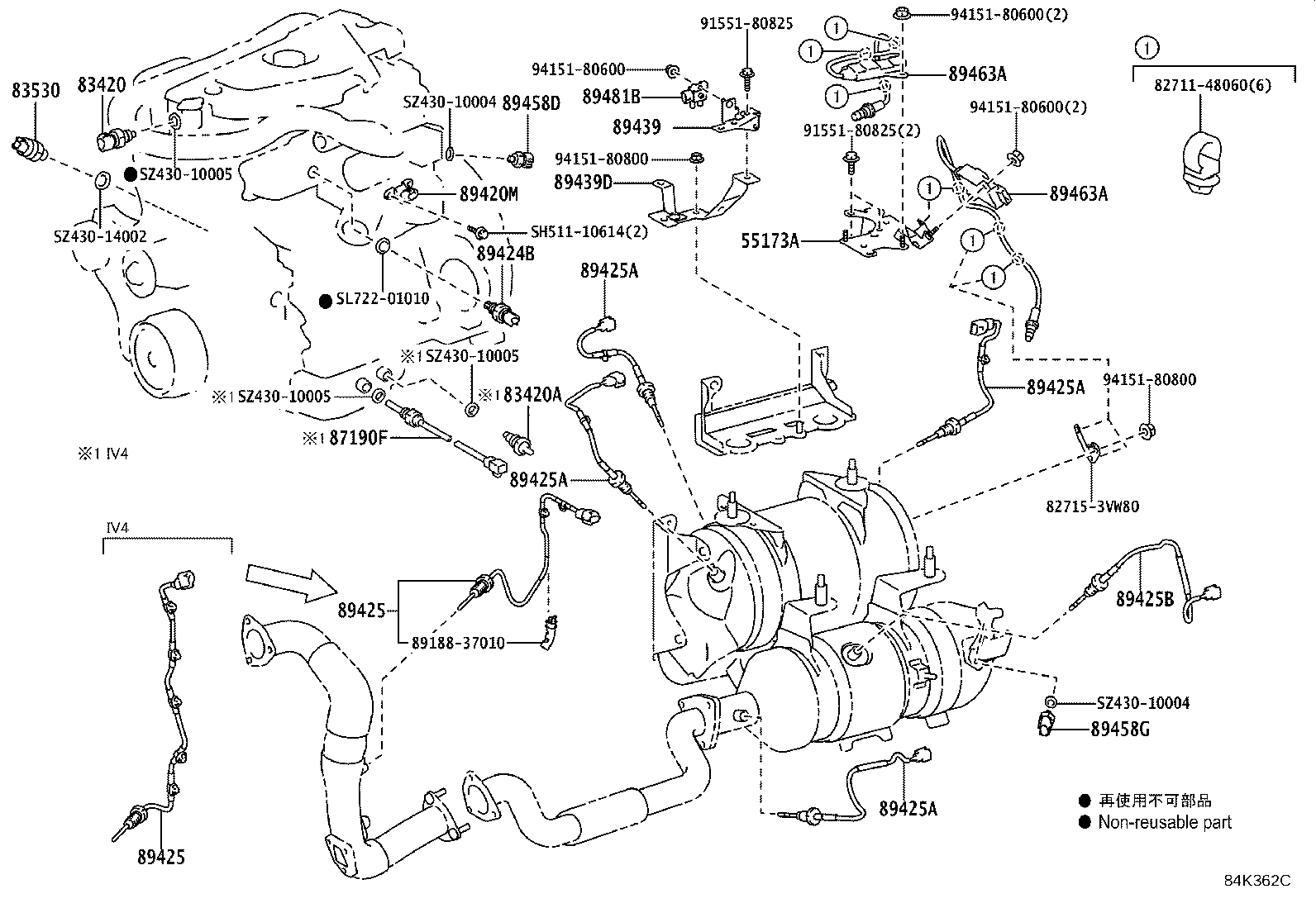

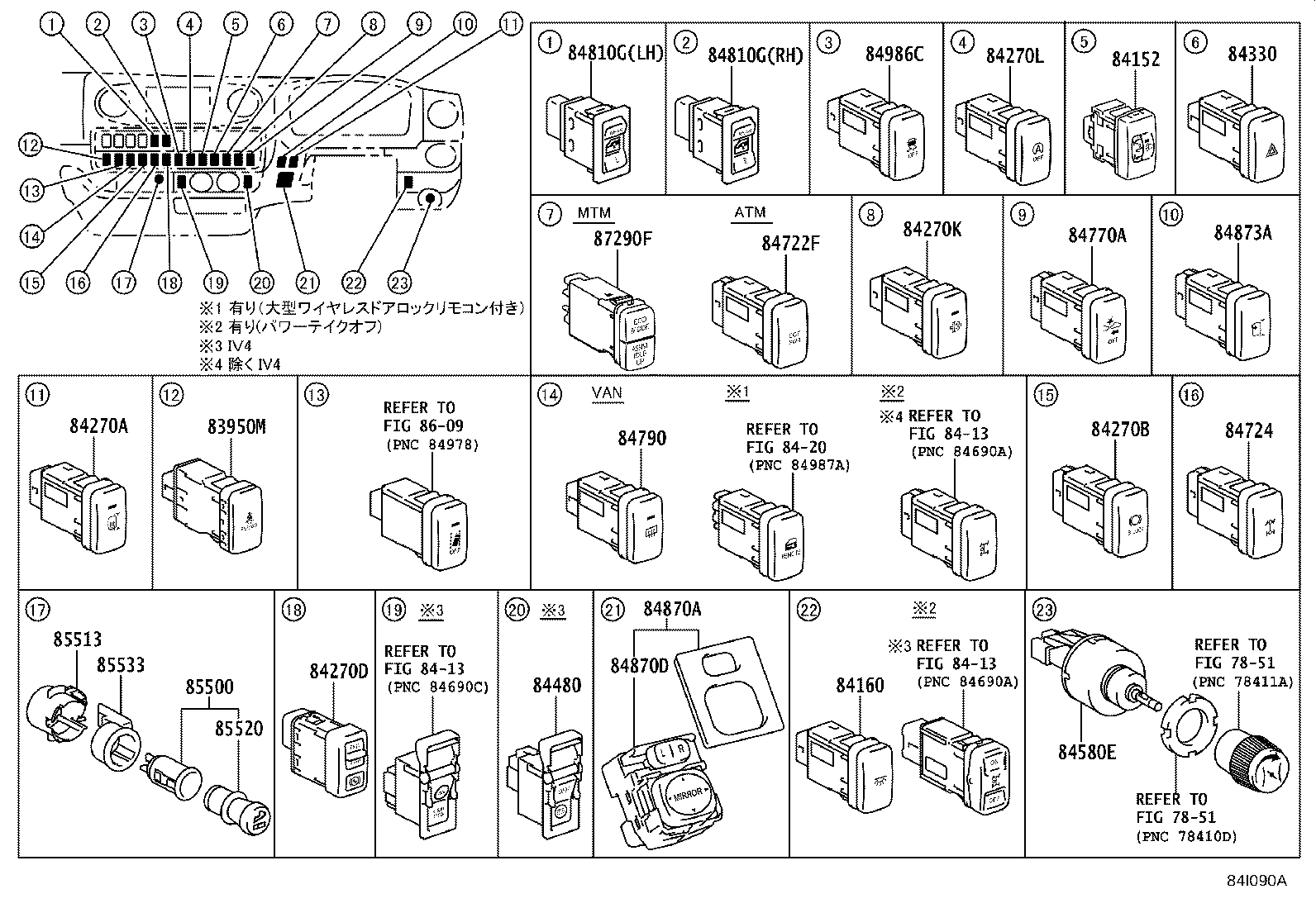

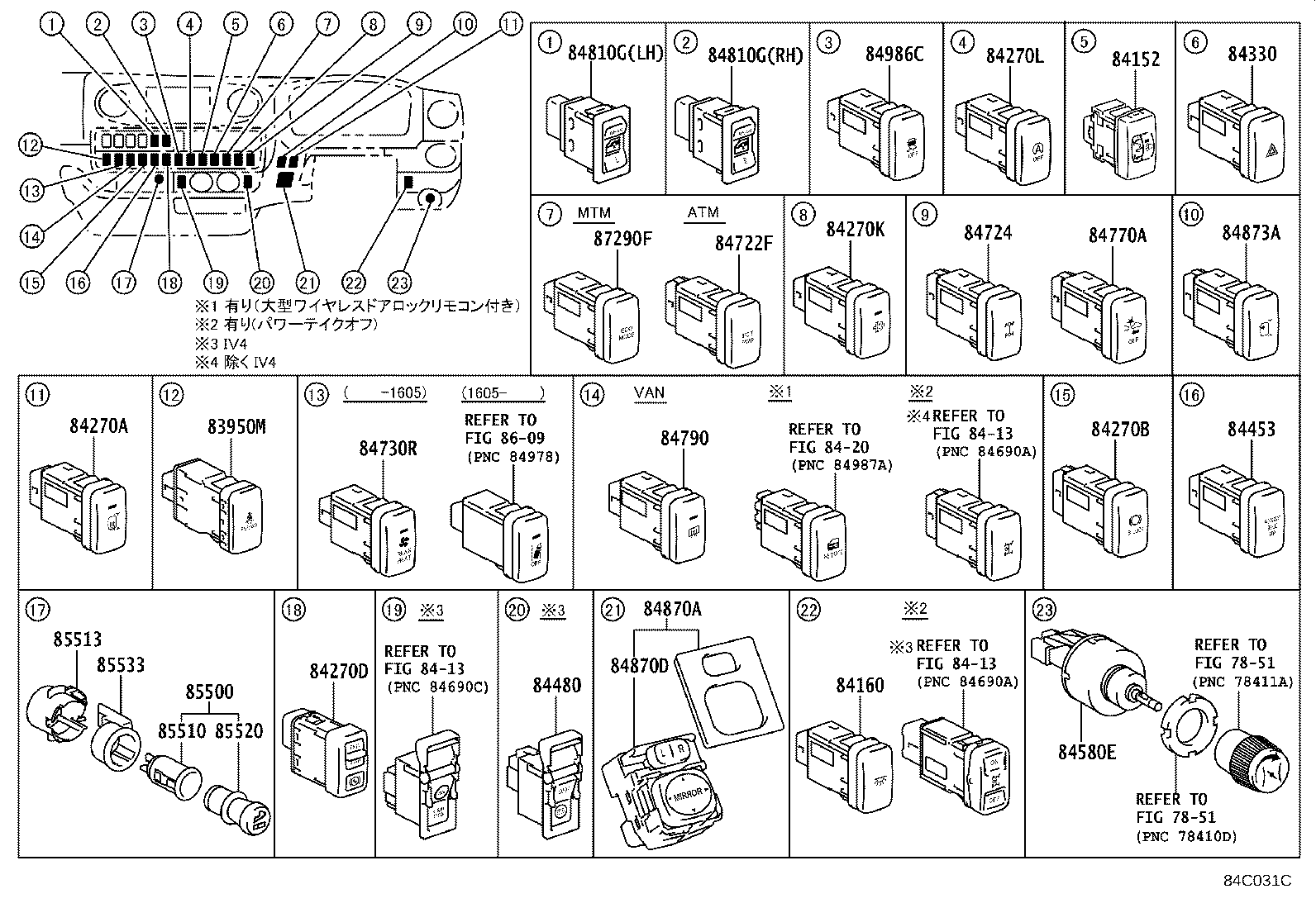

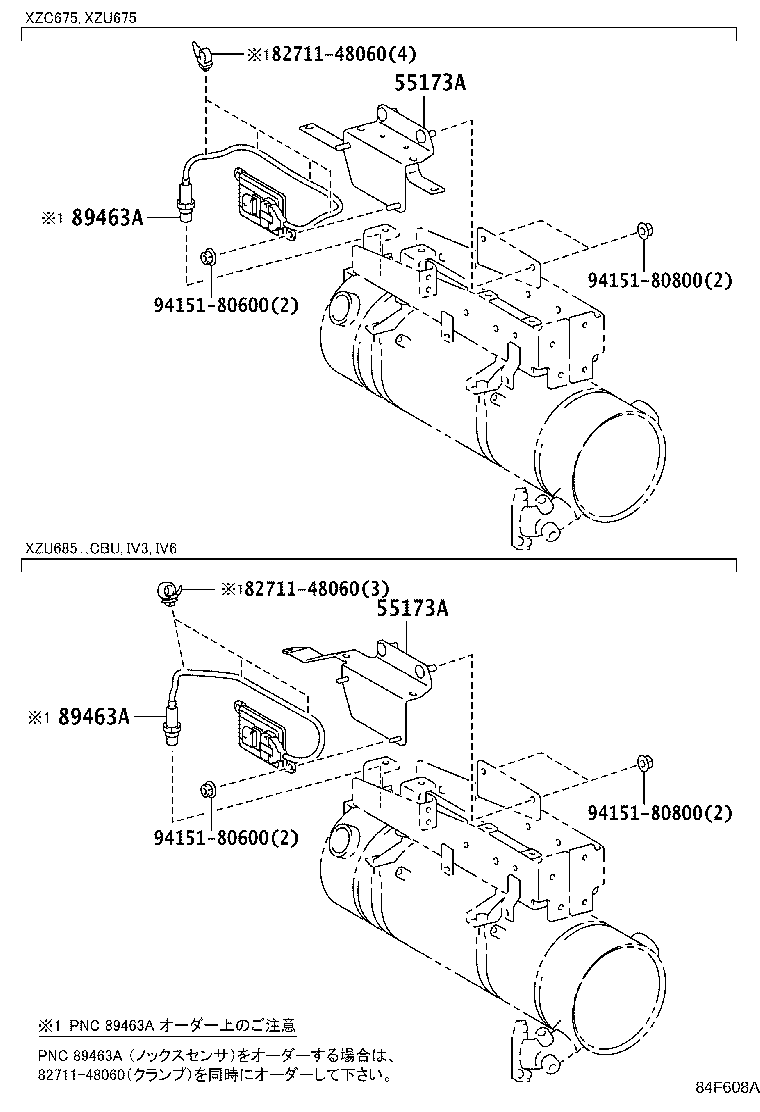

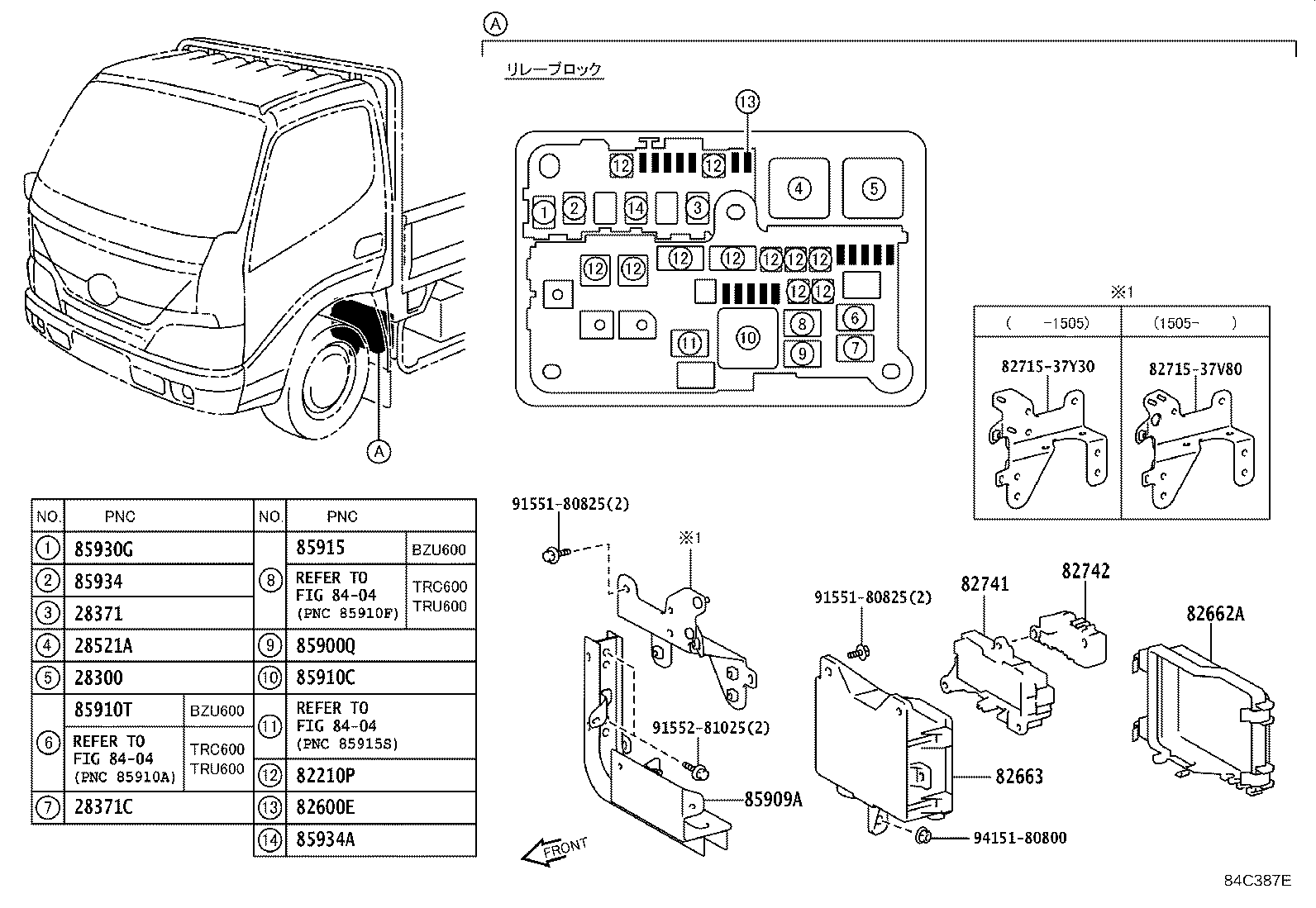

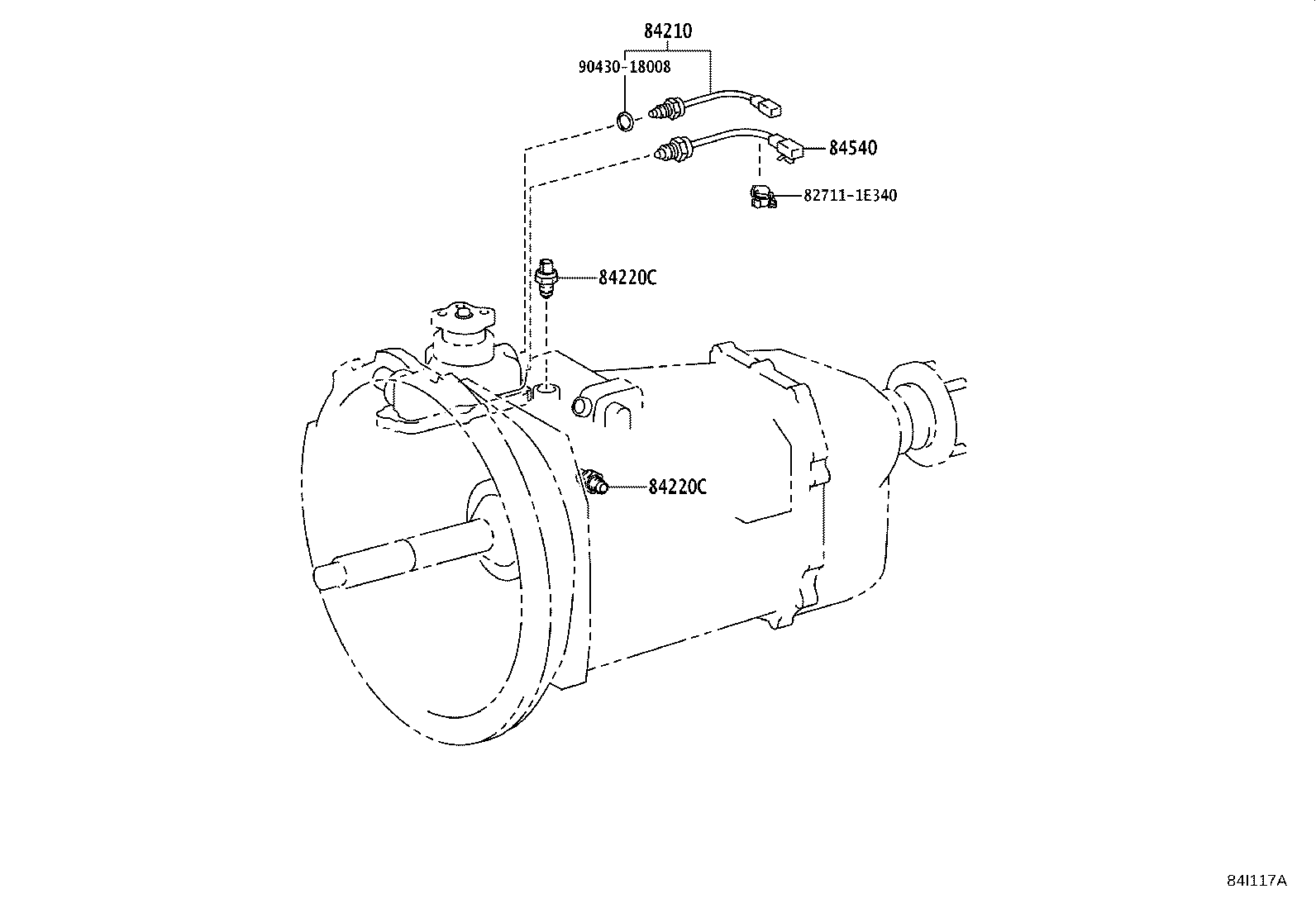

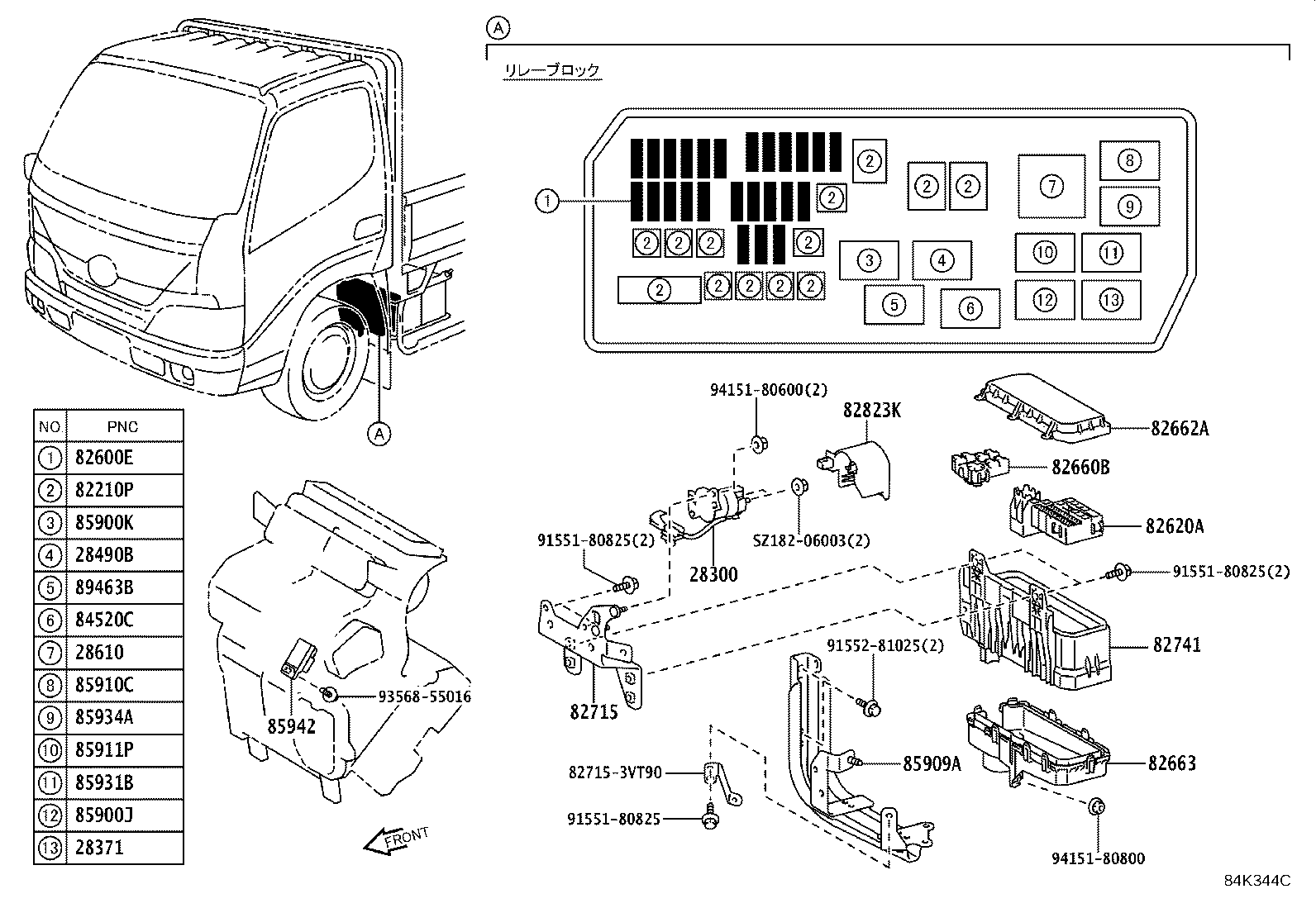

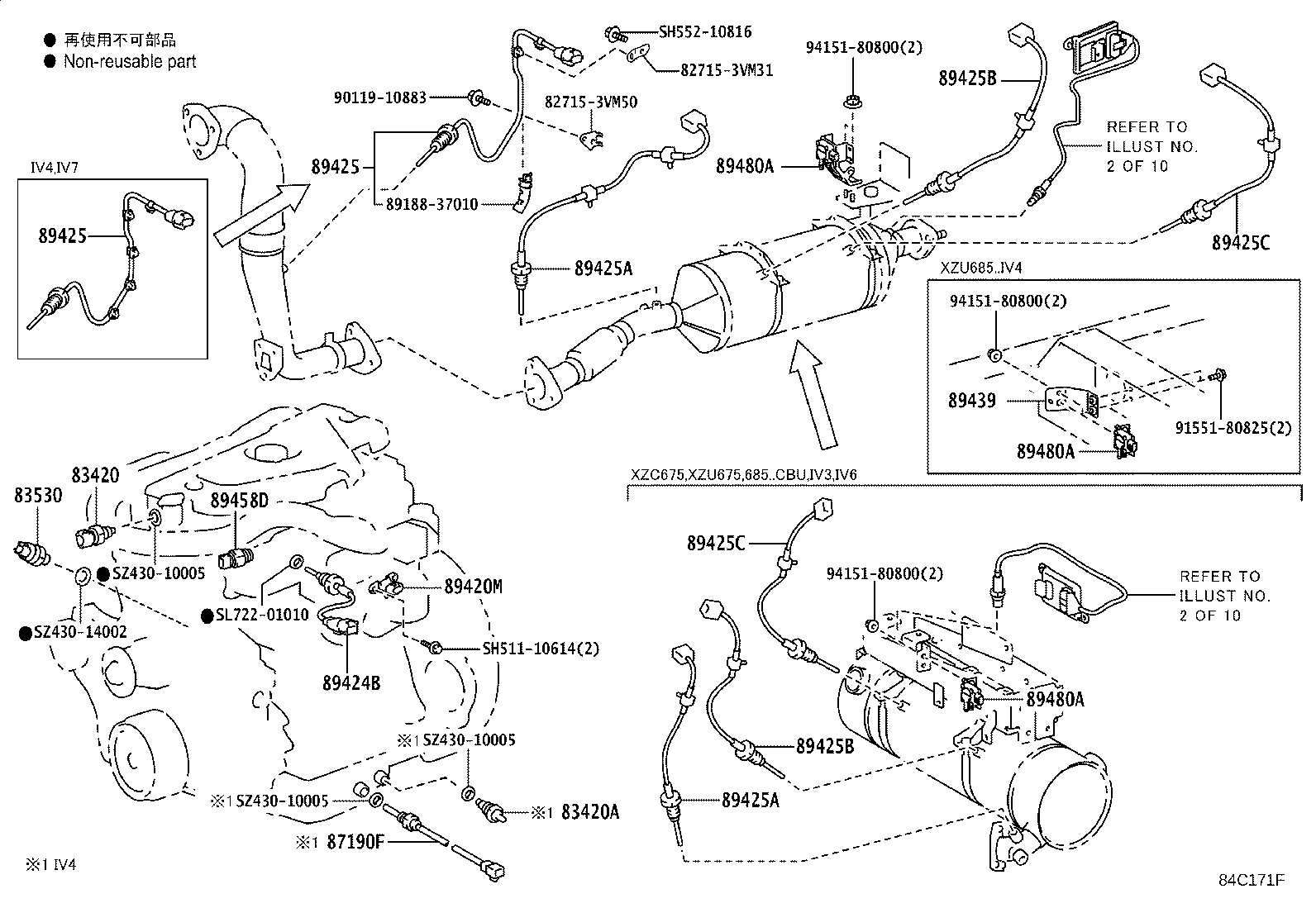

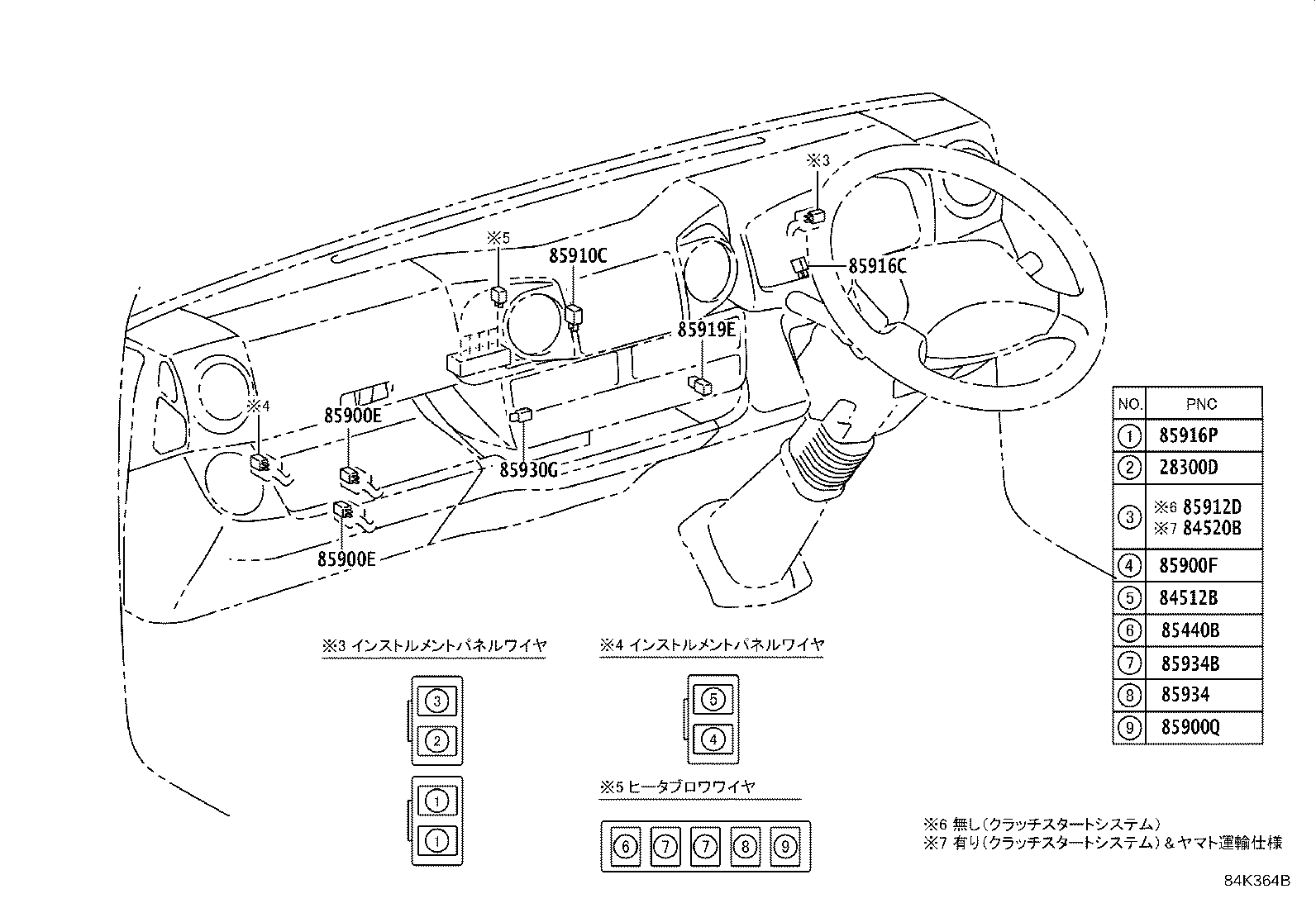

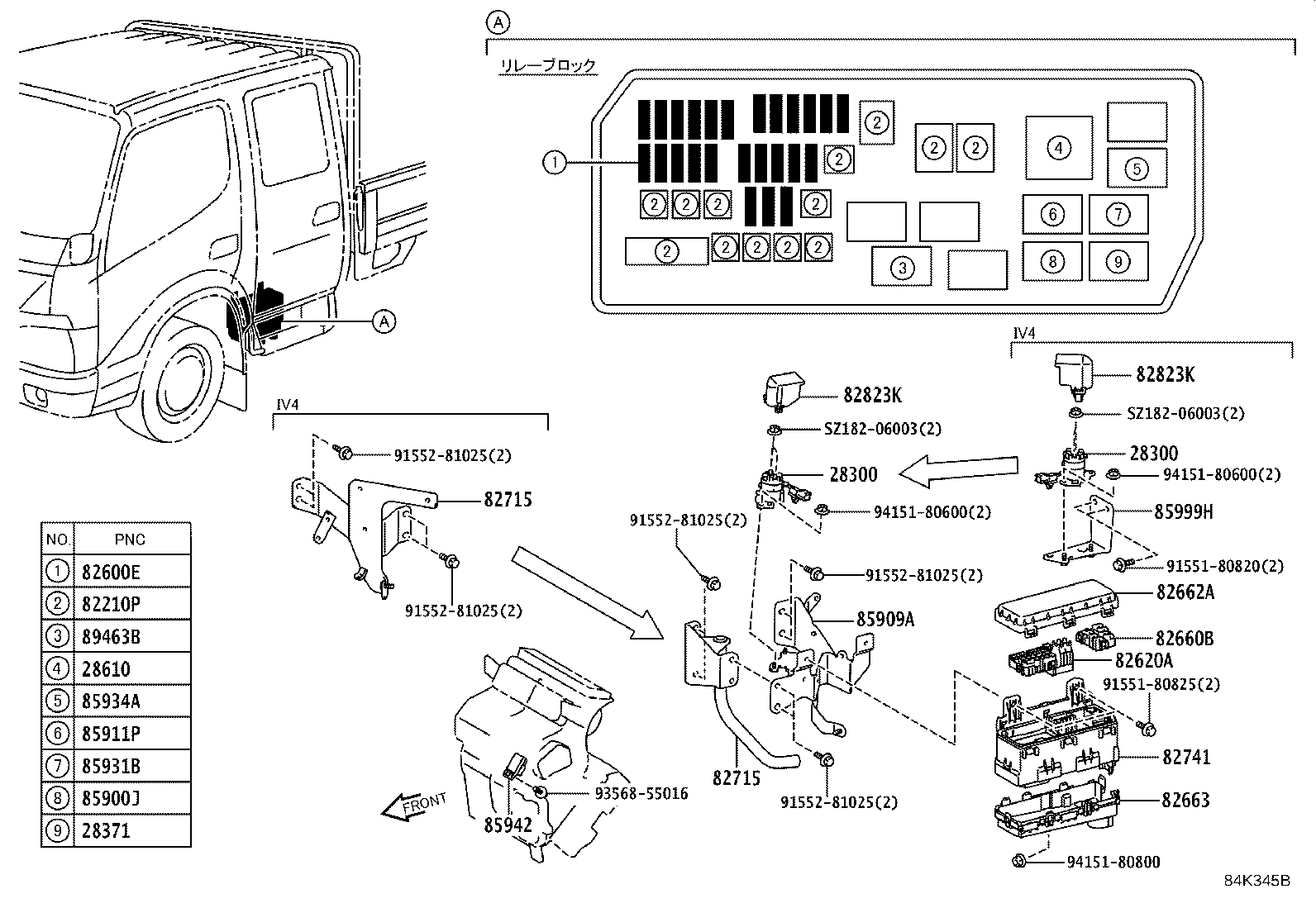

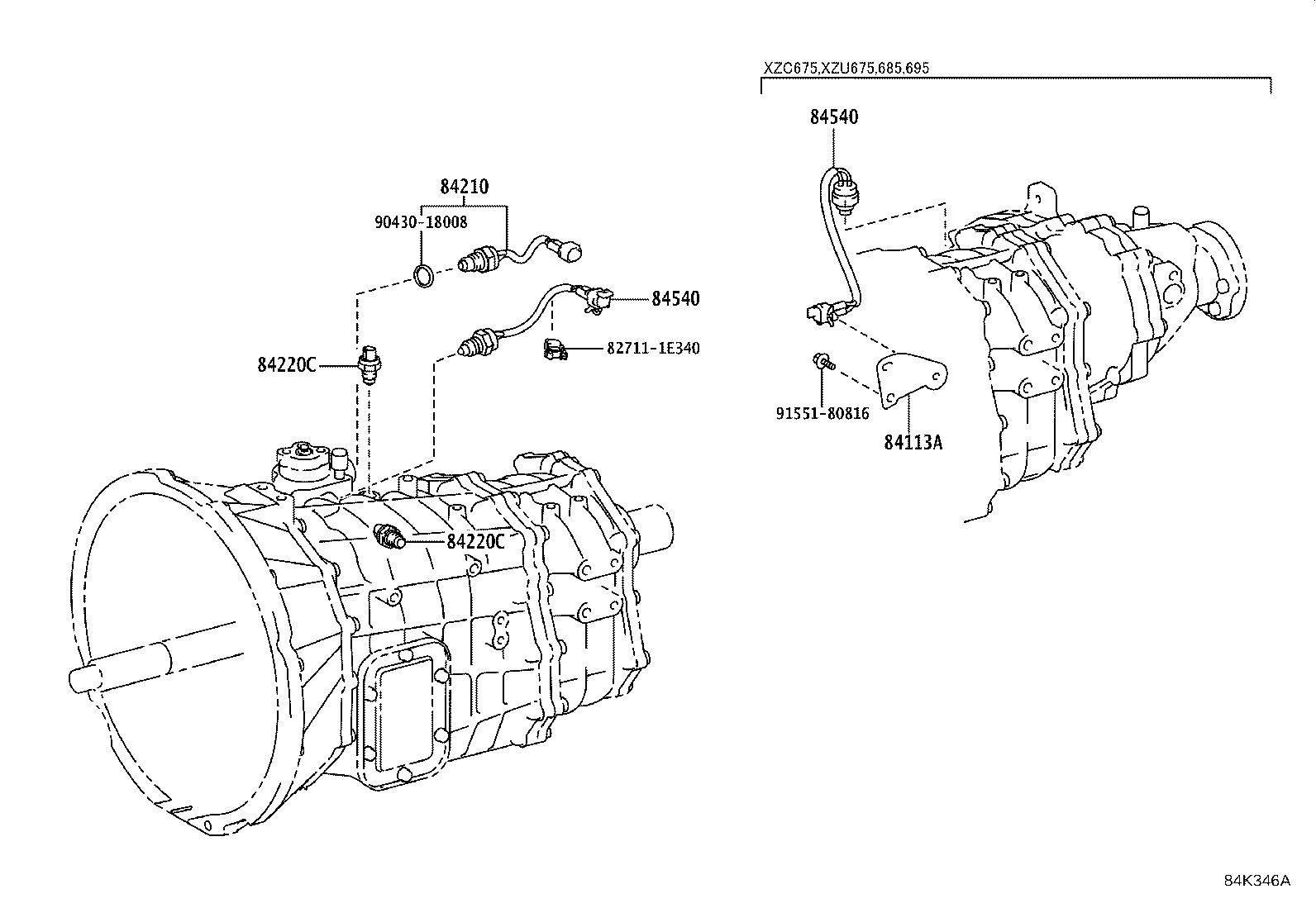

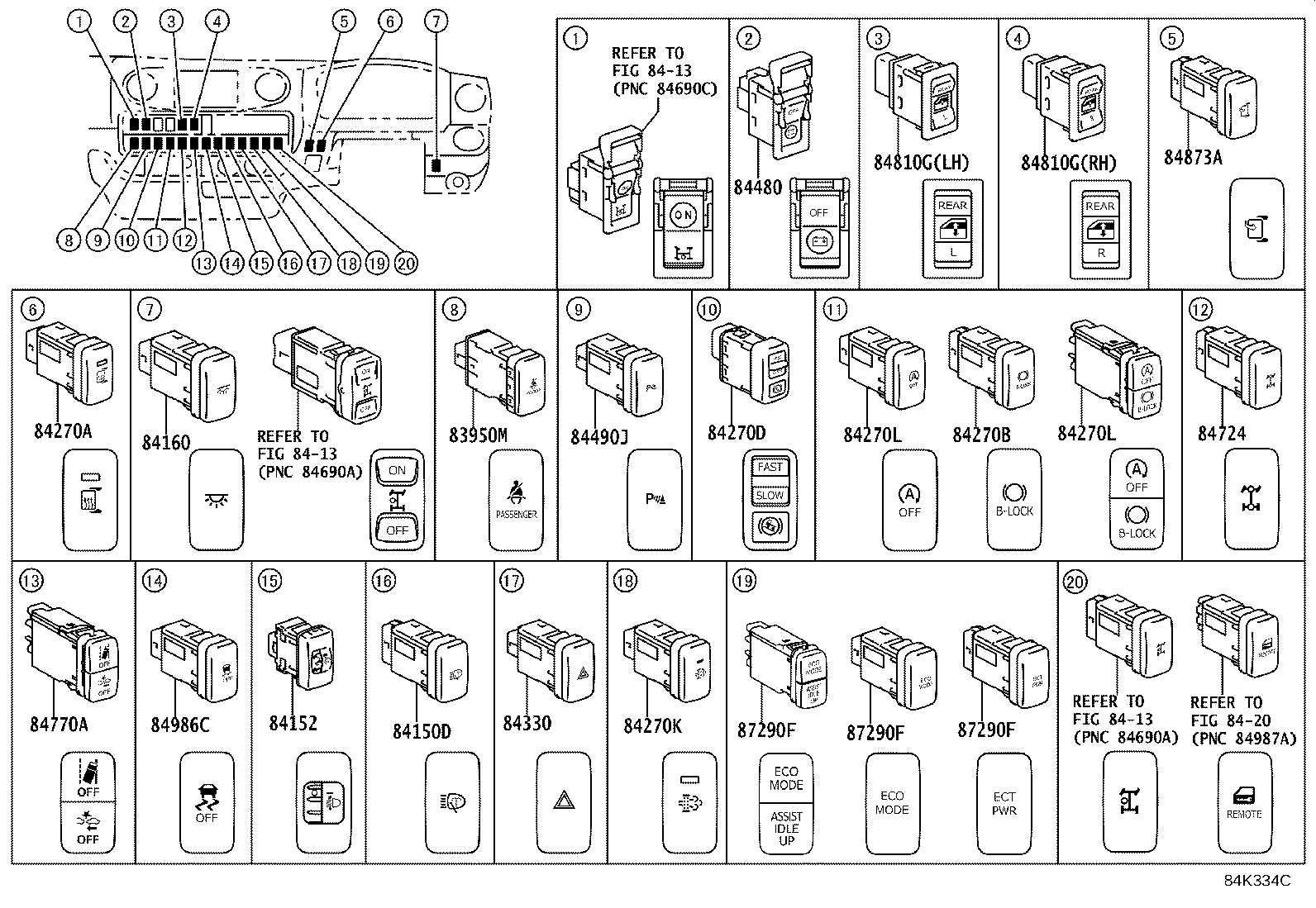

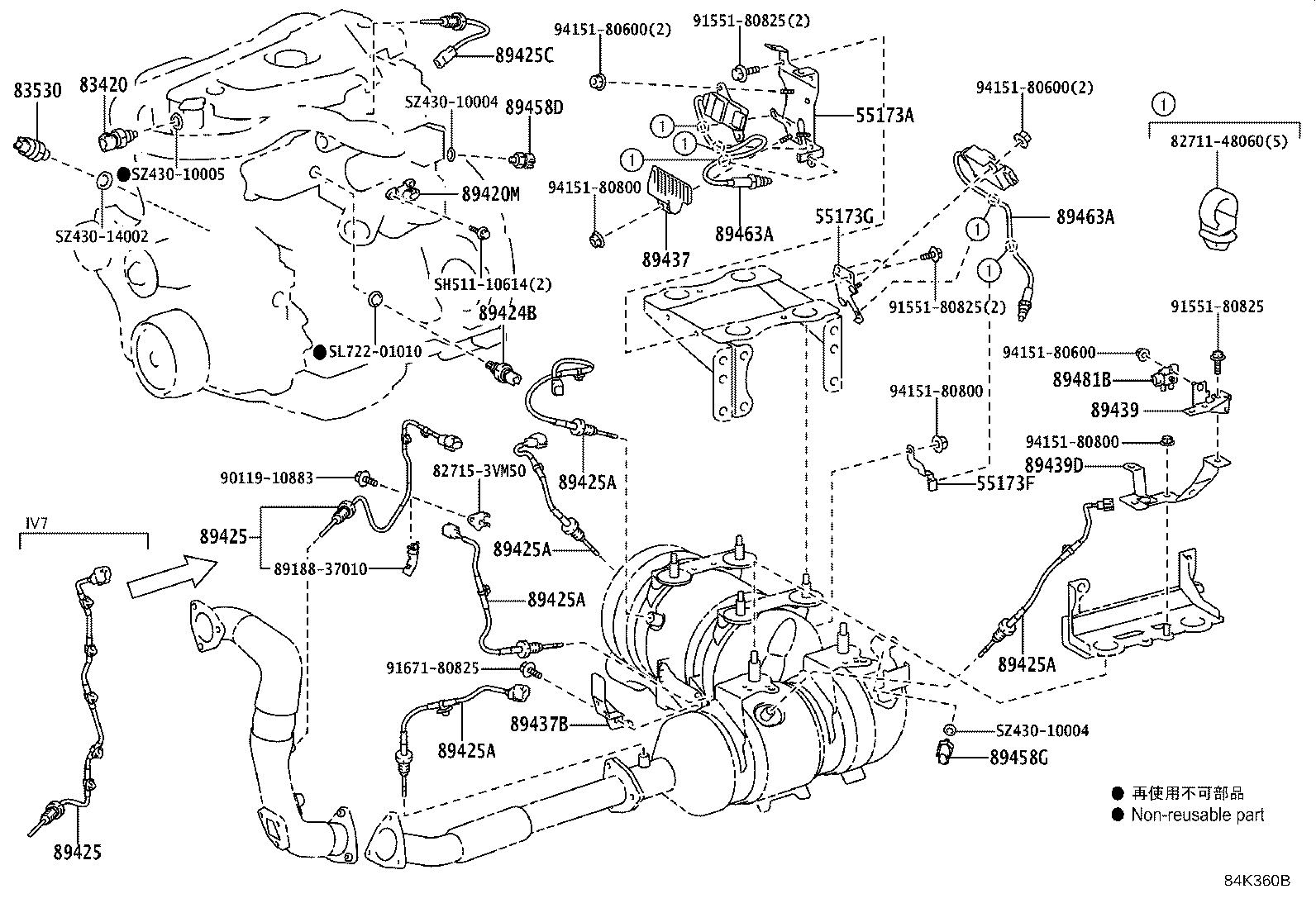

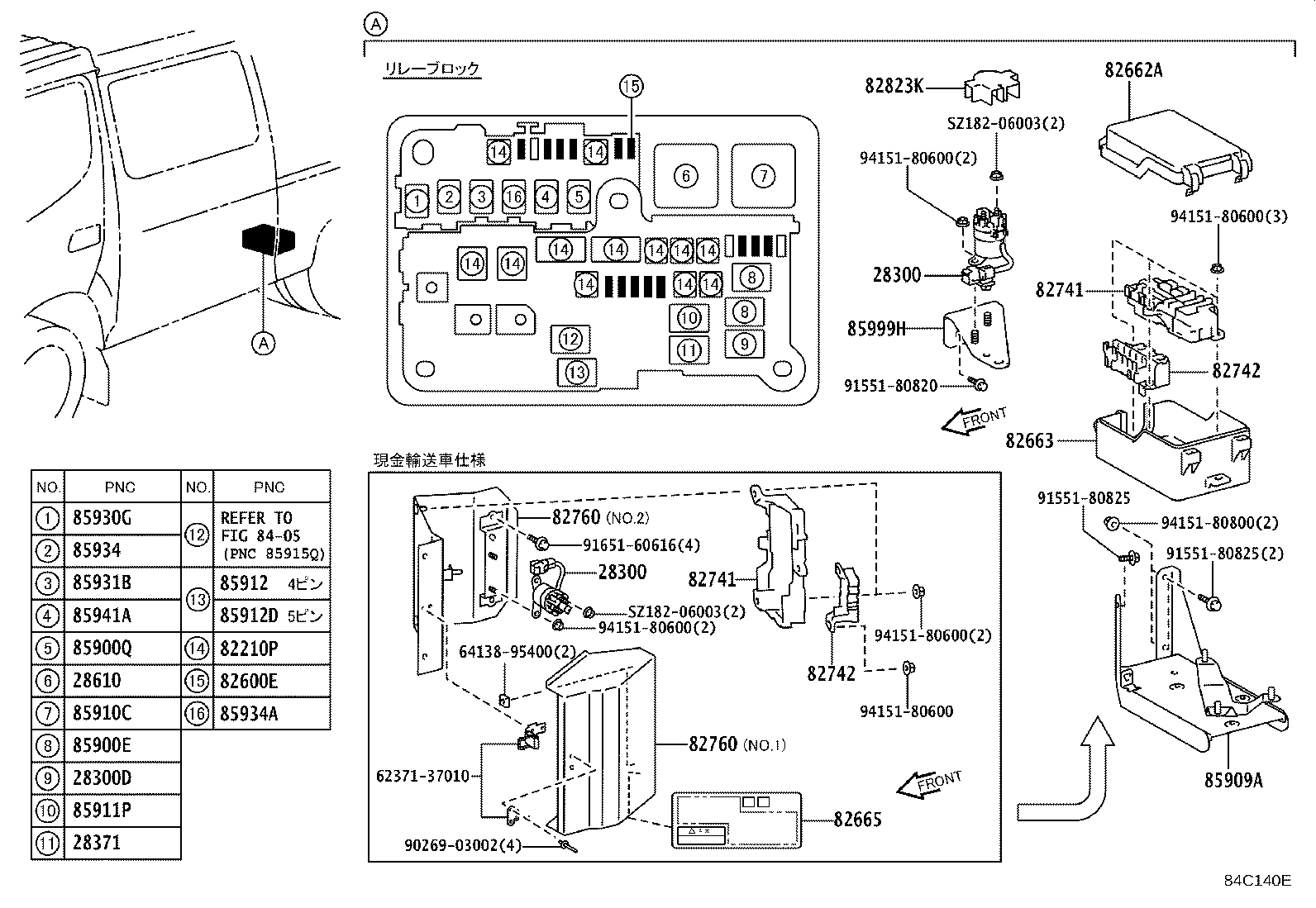

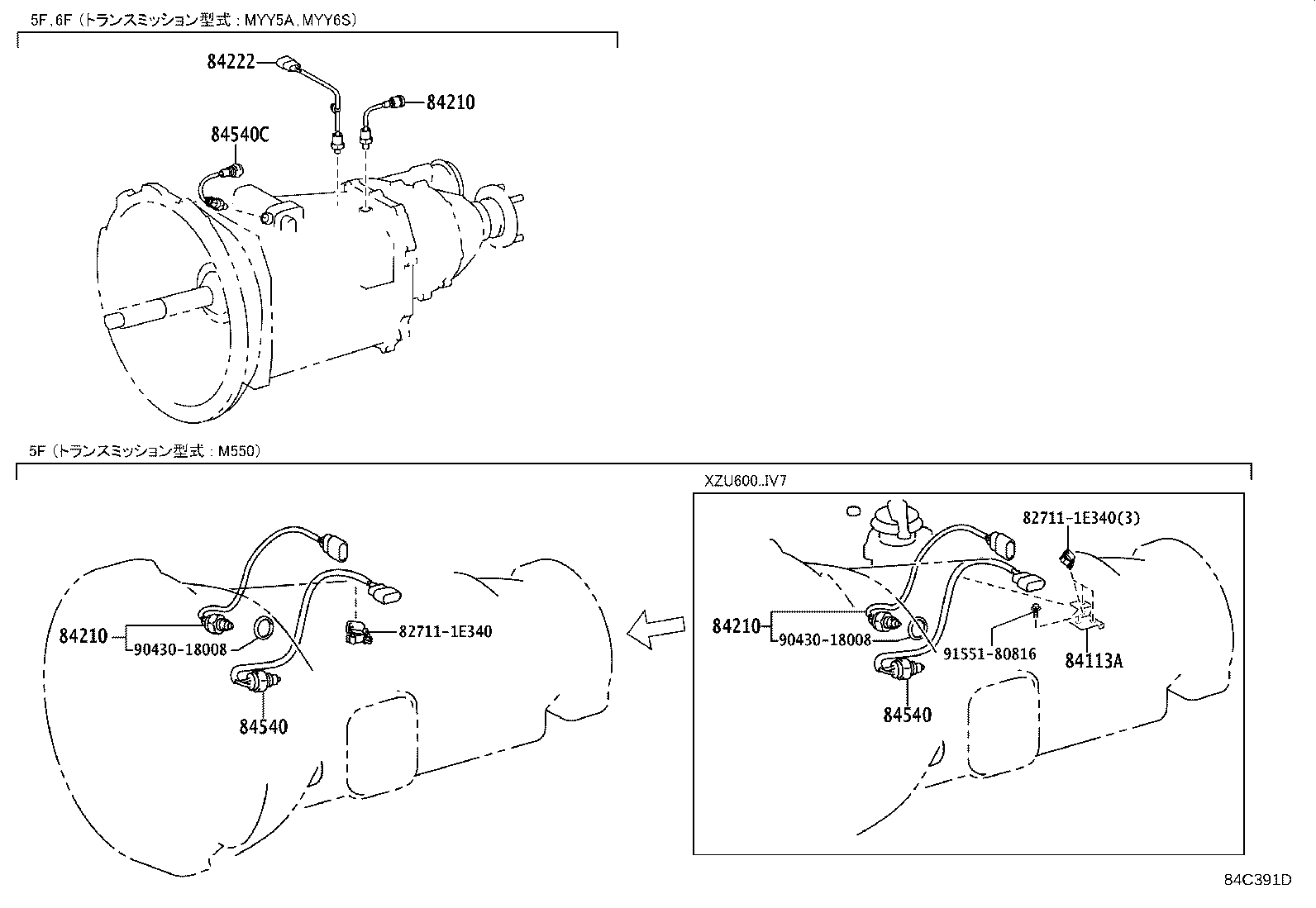

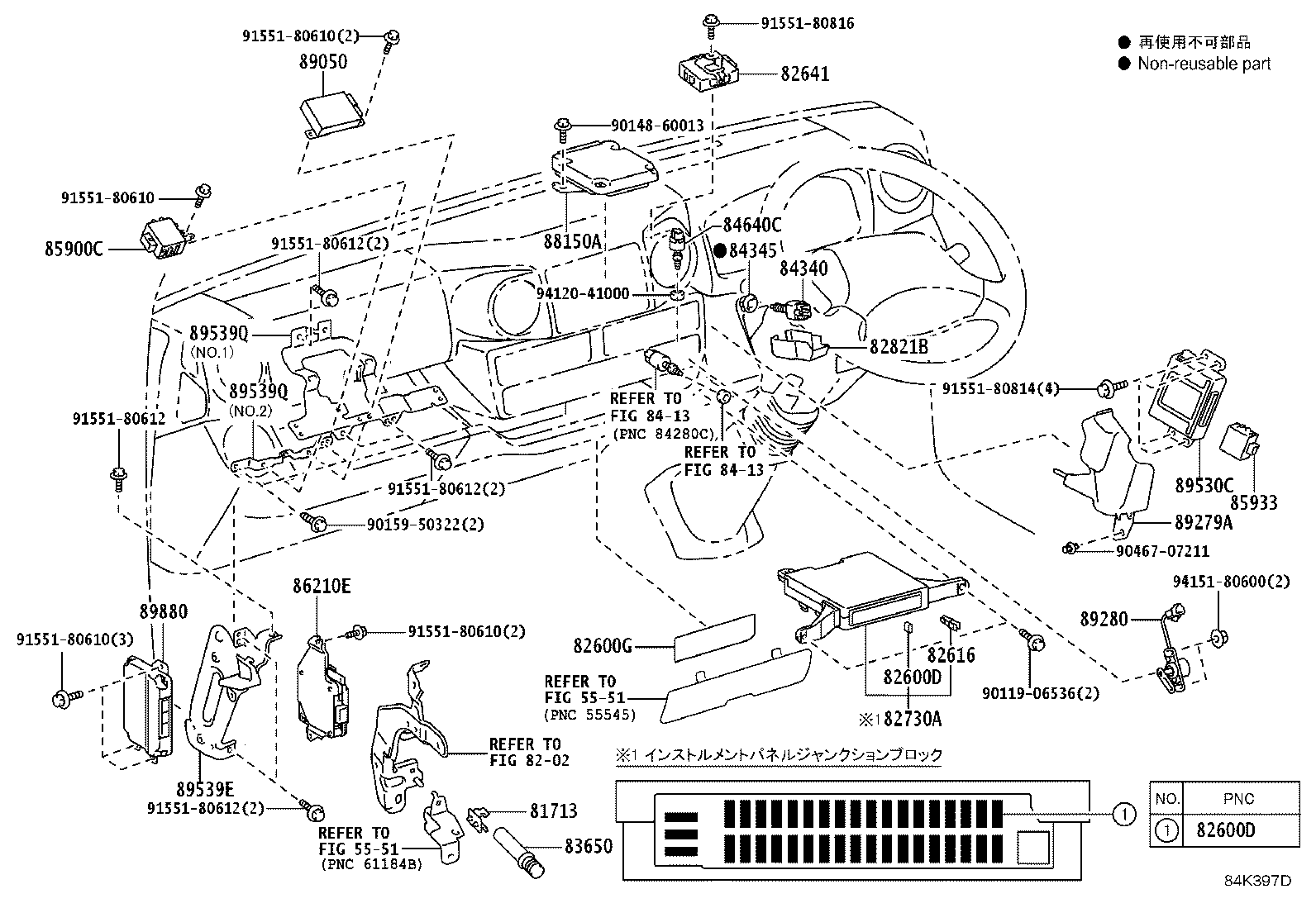

Figure 84C143A 84C143A 2011-07 → — Figure 84C104 84C104 2011-07 → 2016-05 Figure 84C171F 84C171F 2011-07 → — Figure 84I089A 84I089A 2017-05 → — Figure 84F609A 84F609A 2011-07 → — Figure 84F608A 84F608A 2011-07 → — Figure 84F610A 84F610A 2011-07 → — Figure 84F611A 84F611A 2011-07 → — Figure 84F612A 84F612A 2011-07 → — Figure 84F614A 84F614A 2011-07 → — Figure 84F613A 84F613A 2011-07 → — Figure 84I118B 84I118B 2017-05 → — Figure 84K360B 84K360B 2019-05 → — Figure 84K361D 84K361D 2019-05 → — Figure 84K362C 84K362C 2019-05 → — Figure 84C392B 84C392B 2011-07 → — Figure 84C391D 84C391D 2011-07 → — Figure 84H756 84H756 2011-07 → — Figure 84I117A 84I117A 2017-05 → — Figure 84K346A 84K346A 2019-05 → — Figure 84C388C 84C388C 2011-07 → 2016-05 Figure 84C142F 84C142F 2011-07 → — Figure 84C387E 84C387E 2011-07 → — Figure 84C141H 84C141H 2011-07 → — Figure 84C140E 84C140E 2011-07 → — Figure 84K344C 84K344C 2019-05 → — Figure 84K345B 84K345B 2019-05 → — Figure 84C131I 84C131I 2011-07 → — Figure 84K397D 84K397D 2019-05 → — Figure 84K364B 84K364B 2019-05 → — Figure 84C031C 84C031C 2011-07 → 2017-05 Figure 84C031C 84C031C 2011-07 → — Figure 84I090A 84I090A 2017-05 → — Figure 84K334C 84K334C 2019-05 → — Figure 84K365A 84K365A 2019-05 → — Figure 84C030C 84C030C 2011-07 → — Figure 84C136H 84C136H 2011-07 → — Figure 84C135D 84C135D 2011-07 → — Figure 84C137A 84C137A 2011-07 → — Figure 84C138A 84C138A 2011-07 → — Figure 84K333 84K333 2019-05 → — Figure 84C133E 84C133E 2011-07 → 2017-05 Figure 84C133E 84C133E 2011-07 → — Figure 84I146 84I146 2017-05 → — Figure 84K363A 84K363A 2019-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28490B Relay, Power Take-off Signal Reverse
28521A Relay, Lpg Preheater Cut
28610 Relay Assy, Intake Heater OR Glow Plug
46453C Bracket, Holder
55173A Bracket
55173F Bracket, Electrical Part
55173G Bracket, Electrical Part, NO.2
58475E Cover, Ecu Service
81713 Holder, Fusee
81935B Cord Assy, Oil Pan Heater
81980 Flasher Assy, Turn Signal
82210P Engine Room Fusible Link
82412B Wire, Fuel Gage
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600G Plate, Caution(FOR FUSE)
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620C Clip
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82665 Label, Relay Block
82715 Bracket,Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82760 Bracket Assy, Relay Block
82761 Bracket, Relay Block, NO.1
82821B Cover, Connector
82823K Cap, Terminal
83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83380 Switch Assy, Presure
83380A Switch Assy, Pressure
83380B Switch Assy, Pressure, NO.1
83380C Switch Assy, Pressure, NO.2
83380D Switch Assy, Pressure, NO.3
83380E Switch Assy, Pressure, NO.6
83380F Switch Assy, Pressure, NO.7
83380G Switch Assy, Pressure, NO.8
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83420A Gage Assy, Oil Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84160 Switch Assy, Room Lamp
84210 Switch Assy, Back-up Lamp
84220C Switch Assy, Transmission Position Indicator
84222 Switch, Transfer Indicator, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234A Bracket, Courtesy Lamp Switch (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84236B Cover, Courtesy Lamp Switch
84238A Striker, Courtesy Lamp Switch
84247A Switch, Steering Pad, LH
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84270A Switch Assy, Mirror Heater
84270B Switch Assy, Brake Lock
84270D Switch Assy, ES Start Timing
84270K Switch Assy, Dpr
84270L Switch Assy, Idle Stop
84290 Switch Assy, Limit
84290E Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84345A Adjuster, Parking Brake Switch Mounting
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84480 Switch Assy, Main
84490J Switch Assy, Clearance Sonar
84512 Switch, Tilt Cab Control
84512B Relay, Tilt Cab Control
84513A Bracket, Tilt Cab Starter Switch
84513B Bracket, Tilt Cab Starter Switch
84520B Relay, Clutch Start
84520C Relay, Neutral Signal Reverse
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84580E Switch Assy, Throttle Position
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84722F Switch, Transmission Control
84724 Switch, 4 Wheel Drive Control
84730 Switch Assy, Heater Blower
84730R Switch Assy, Heater Blower
84731R Knob, Rear Heater Blower Switch
84732A Switch, Rear Heater Blower
84770A Switch Assy, Pre-collision System Cancel
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84870D Switch Assy, Outer Mirror, NO.2
84873A Switch, Retractable Outer Mirror
84986C Switch, Vsc Off
85432 Solenoid, Key Interlock
85440B Relay(FOR FOUR WHEEL DRIVE CONTROL)
85500 Lighter Assy, Cigarette
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535E Cover, Power Outlet Socket, NO.2
85900 Relay Assy, Control Unit
85900C Relay Assy, Control Unit (FOR BRAKE LOCK)
85900E Relay, Idle Stop
85900F Relay, Battery Switch
85900H Relay Assy, Control Unit(FOR TILT CAB)
85900J Relay, Brake Lock
85900K Relay Assy, Control Unit (FOR ELECTRIC PARKING BRAKE)
85900Q Relay, Tail
85909A Bracket Sub-assy, Relay Block
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910T Relay, Lpg
85911P Relay, Actuator Power
85912 Relay, Defogger
85912D Relay
85915 Relay, Main
85916C Relay, Back UP Lamp
85916P Relay, Headlamp
85919E Relay, Stop Lamp
85930G Relay, Acc
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85934A Relay Condenser Fan
85934B Relay, Idle Stop
85940B Relay Assy, Rear Wiper
85941A Relay, Rear Windshield Washer
85942 Relay, Headlamp Cleaner Control
85999H Bracket, Relay
86206D Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86245C Bracket, Voltage Converter
86245D Bracket, Voltage Converter, NO.2
86245E Bracket, Voltage Converter, NO.3
86245F Bracket, Voltage Converter, NO.4
86650E Buzzer Assy
86650H Buzzer Assy, Back
86650P Buzzer Assy, Tilt Warning
87190F Switch Assy, Temperature Control
87290F Switch Assy, Eco
88150A Computer Assy, Driving Support
88610N Switch Assy, Cooler Control
88625M Thermistor, Cooler
89050 Computer Assy, Parking Brake
89070D Computer Assy, Transmission Control
89245B Sensor, Steering
89279A Cover, Computer
89280 Sensor Assy, Clutch Pedal Stroke
89401A Sensor, Suspension Stroke, Front(FOR DISCHARGE HEADLAMP)
89402 Sensor, Suspension Stroke, Rear(FOR DISCHARGE HEADLAMP)
89420M Sensor Assy, Air Pressure
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89437 Cover, Sensor
89437B Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89452A Sensor, Throttle Position
89458D Sensor, Fuel Pressure
89458G Sensor, Fuel Pressure, NO.2
89463A Sensor, Nitrogen Oxides
89463B Relay, Nitrogen Oxides
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467A Sensor, Wide Range Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89539E Bracket, Computer
89539Q Bracket, Computer
89615 Sensor, Knock Control
89620 Igniter Assy
89661B Computer, Engine Control
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
89880 Computer Assy, Electric Vehicle Control
89960 Computer Assy, Headlamp Leveling
G9271C Cover, Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
