Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

67 part groups · 60 illustrations

Illustrations

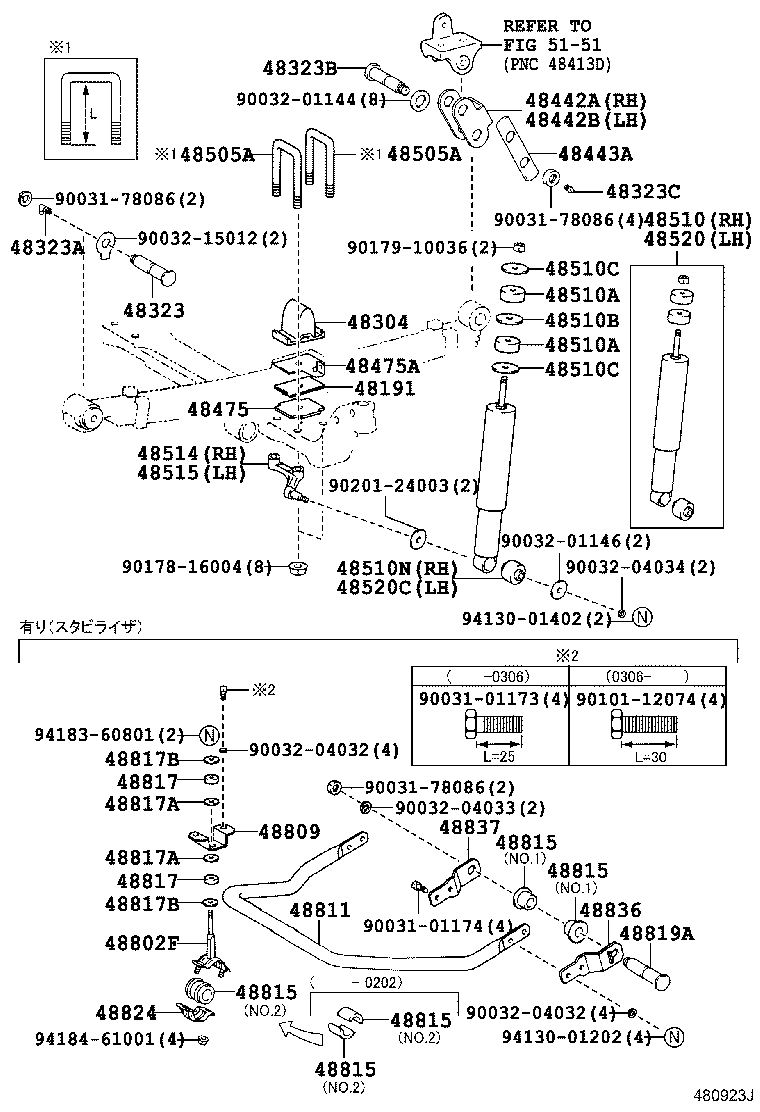

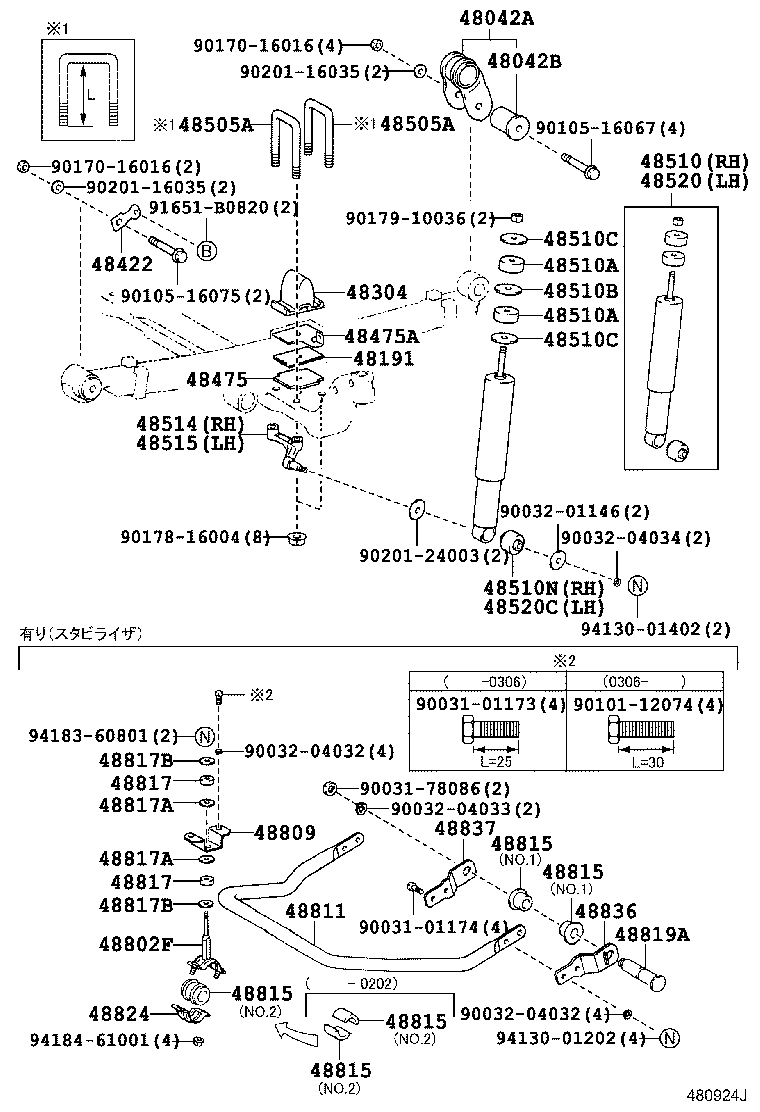

Figure 481063E 481063E 1999-08 → 2004-06 Figure 480924J 480924J 1999-05 → 2004-06 Figure 480924J 480924J 2004-06 → 2006-10 Figure 480924J 480924J 2004-06 → 2007-05 Figure 480924J 480924J 2006-10 → — Figure 480923J 480923J 1999-05 → 2004-06 Figure 480923J 480923J 2004-06 → — Figure 480923J 480923J 2006-10 → — Figure 482721A 482721A 2004-06 → 2006-10 Figure 482721A 482721A 2006-10 → — Figure 480918B 480918B 1999-05 → 2004-06 Figure 480918B 480918B 1999-05 → 2004-06 Figure 480918B 480918B 2004-06 → — Figure 480918B 480918B 2006-10 → — Figure 482516 482516 2004-06 → 2006-10 Figure 482516 482516 2004-06 → 2007-05 Figure 482516 482516 2006-10 → — Figure 480922B 480922B 1999-05 → 2004-06 Figure 480922B 480922B 2004-06 → — Figure 480922B 480922B 2006-10 → — Figure 481521A 481521A 2002-06 → 2004-06 Figure 481521A 481521A 2004-06 → 2006-10 Figure 481521A 481521A 2006-10 → — Figure 482517 482517 2004-06 → 2006-10 Figure 482517 482517 2006-10 → — Figure 482519 482519 2004-06 → 2006-10 Figure 482519 482519 2006-10 → — Figure 482518 482518 2004-06 → 2006-10 Figure 482518 482518 2004-06 → 2007-05 Figure 482518 482518 2006-10 → — Figure 482520 482520 2006-10 → — Figure 480916B 480916B 1999-05 → 2001-03 Figure 480916B 480916B 2003-10 → 2004-06 Figure 480917B 480917B 1999-05 → 2004-06 Figure 481585A 481585A 2001-03 → 2004-06 Figure 481585A 481585A 2006-10 → — Figure 481585A 481585A 2006-10 → — Figure 482513A 482513A 2004-06 → 2006-10 Figure 482513A 482513A 2004-06 → 2007-05 Figure 482513A 482513A 2006-10 → — Figure 481284A 481284A 1999-05 → 2001-03 Figure 481284A 481284A 2003-10 → 2004-06 Figure 480919B 480919B 1999-05 → 2004-06 Figure 481586A 481586A 2001-03 → 2004-06 Figure 482515A 482515A 2004-06 → 2006-10 Figure 482515A 482515A 2004-06 → 2007-05 Figure 482515A 482515A 2006-10 → — Figure 481064B 481064B 1999-08 → 2004-06 Figure 481020B 481020B 1999-05 → 2004-06 Figure 481020B 481020B 2004-06 → — Figure 481020B 481020B 2006-10 → — Figure 481018B 481018B 1999-05 → 2004-06 Figure 481021B 481021B 1999-05 → 2004-06 Figure 480920C 480920C 1999-05 → 2004-06 Figure 481022B 481022B 1999-05 → 2004-06 Figure 481022B 481022B 2004-06 → — Figure 481022B 481022B 2006-10 → — Figure 482521A 482521A 1999-05 → 2004-06 Figure 482521A 482521A 2004-06 → 2005-05 Figure 481372 481372 1999-05 → —

Part groups

PNCDescription
48042A Shackle Sub-assy, Front Spring, NO.2
48042B Bush, Front Spring NO.2 Shackle

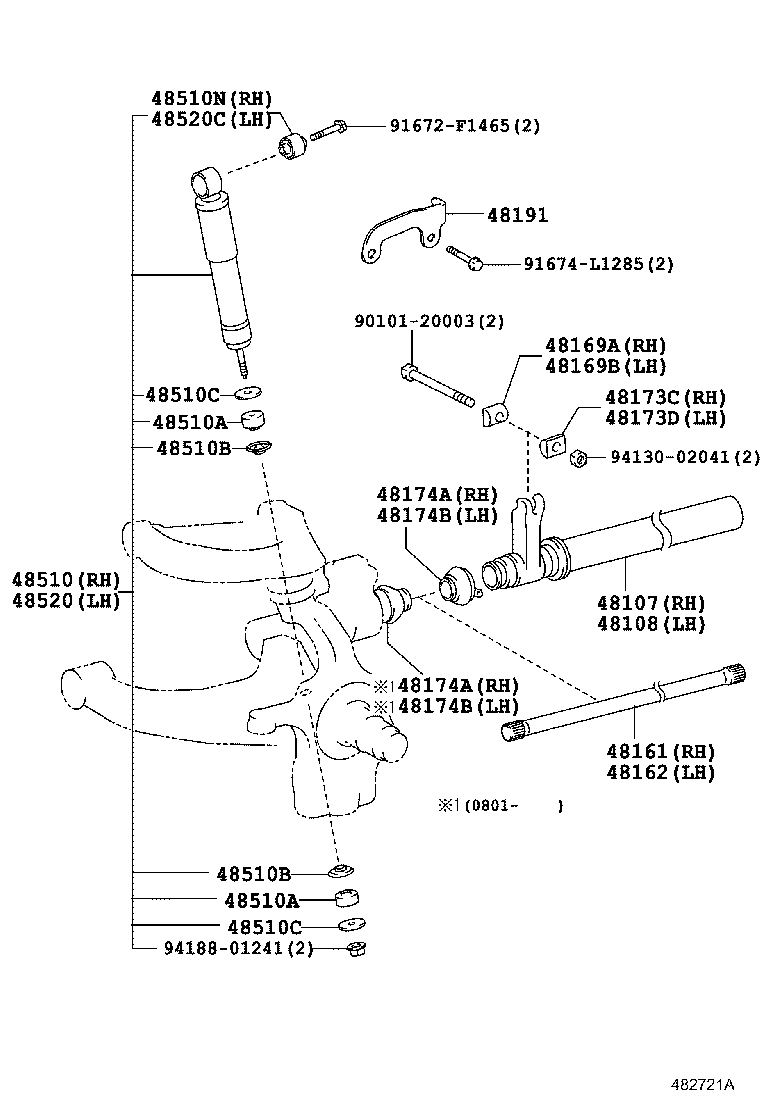

48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48110 Spring Assy, Front, RH
48110F Bimetal Formed Bush(FOR FRONT SPRING)

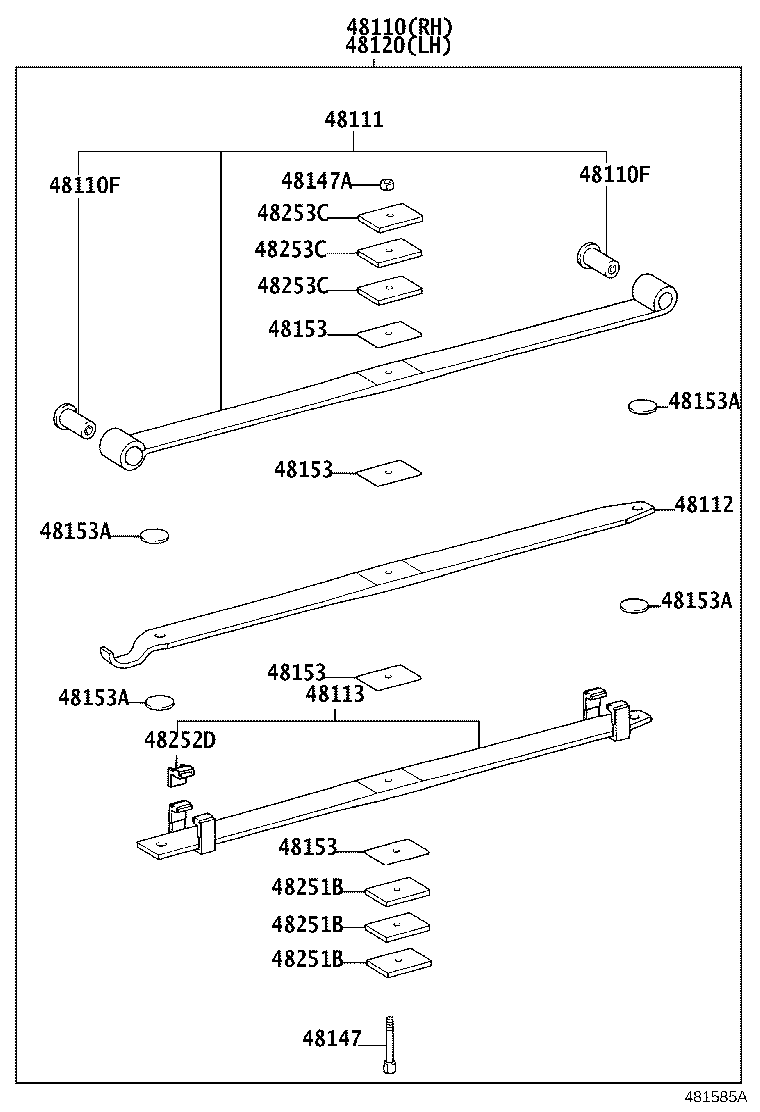

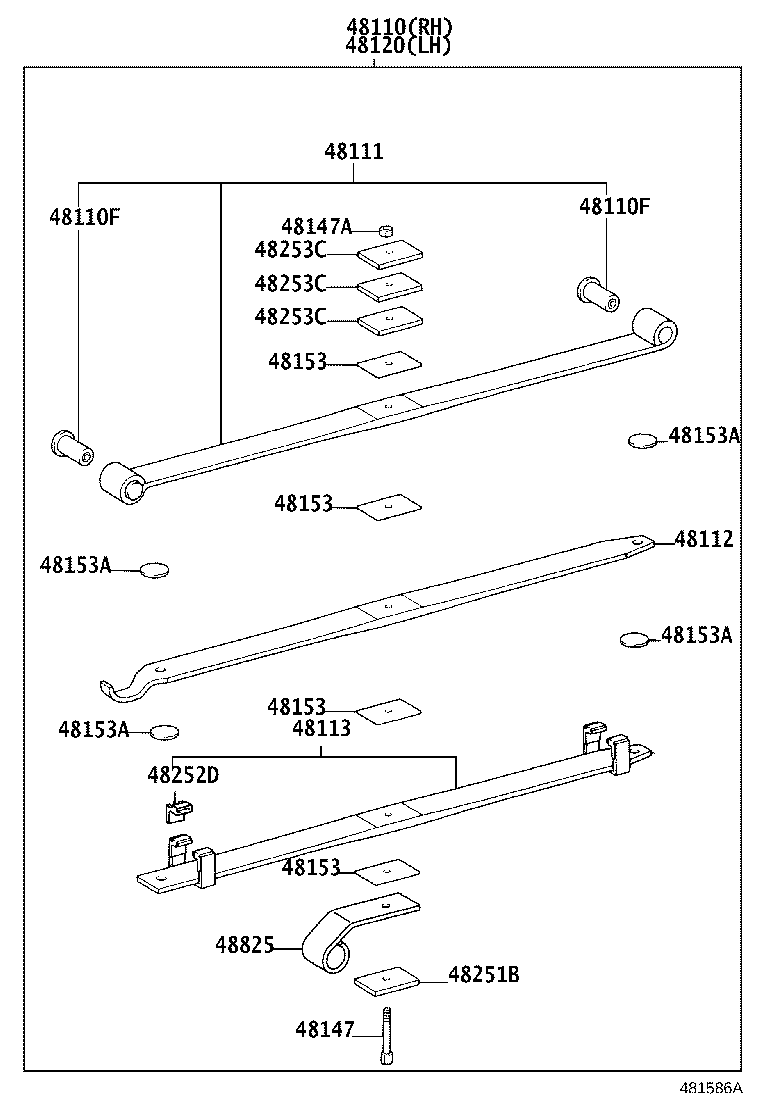

48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48147A Nut, Front Spring Center Bolt
48153 Spacer, Front Leaf Spring, NO.1
48153A Silencer, Front Spring, NO.1
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48253E Spacer, Front Spring, NO.3
48304 Bumper Sub-assy, Front Spring, NO.1
48323 Pin, Front Spring Bracket, Front
48323A Nipple, Grease(FOR FRONT SPRING BRACKET, FRONT PIN)
48323B Pin, Front Spring Bracket, Rear
48323C Nipple, Grease(FOR FRONT SPRING BRACKET, REAR PIN)
48422 Support, Front Spring Pin
48442A Shackle, Front Spring, RH
48442B Shackle, Front Spring, LH
48443A Plate, Fornt Spring Shackle, Outer
48473A Seat, Spring U Bolt, RH
48473B Seat, Spring U Bolt, LH
48475 Plate, Distance(FOR FRONT)
48475A Plate, Distance NO.2(FOR FRONT)
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E Washer, Front Shock Absorber Cushion, NO.2
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48512A Bracket, Front Shock Absorber, Upper RH
48513 Bracket, Front Shock Absorber, Upper LH
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48819A Bolt, Front Stabilizer
48824 Bracket, Stabilizer, Front
48825 Bracket, Stabilizer, NO.2
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
