Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Case & Gear

73 part groups · 49 illustrations

Illustrations

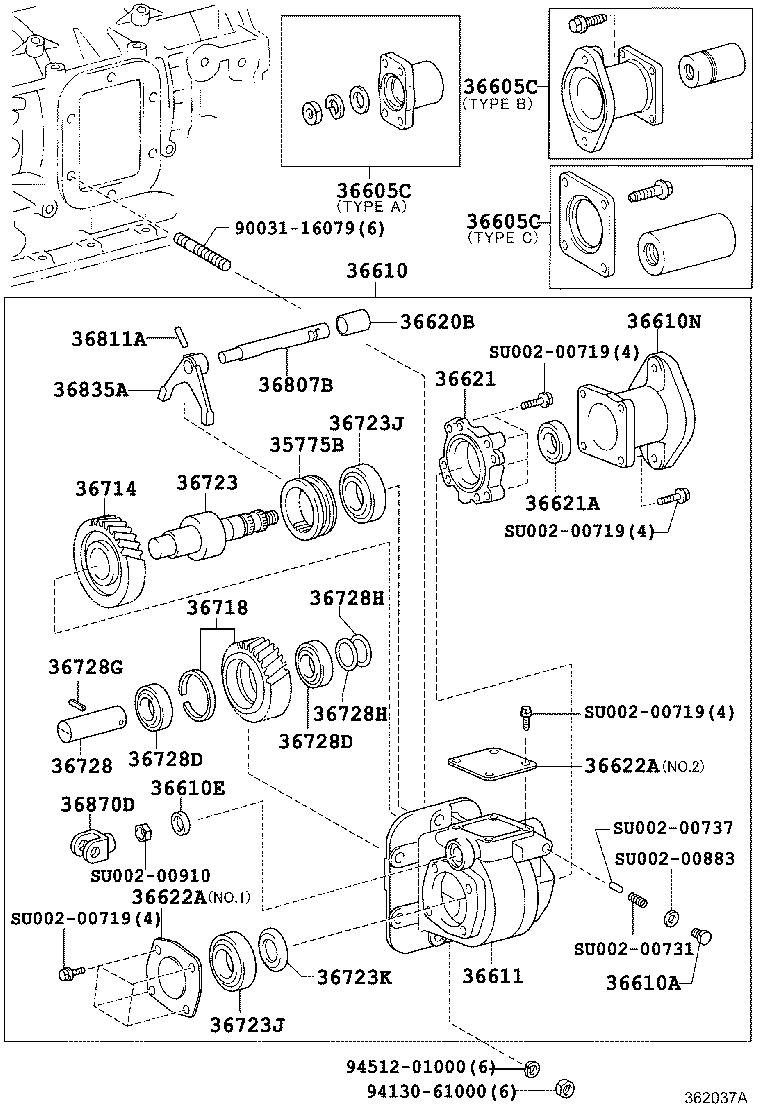

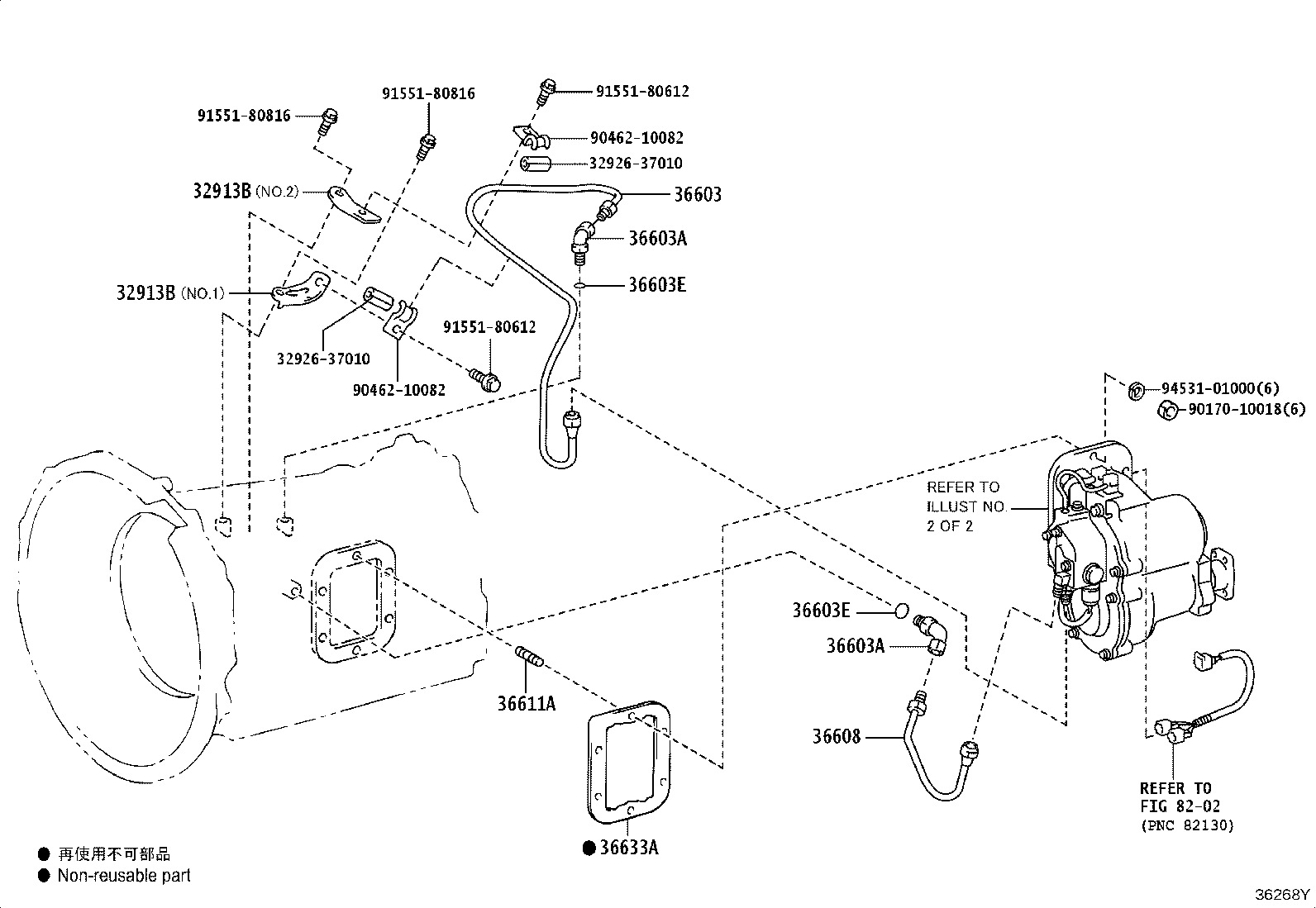

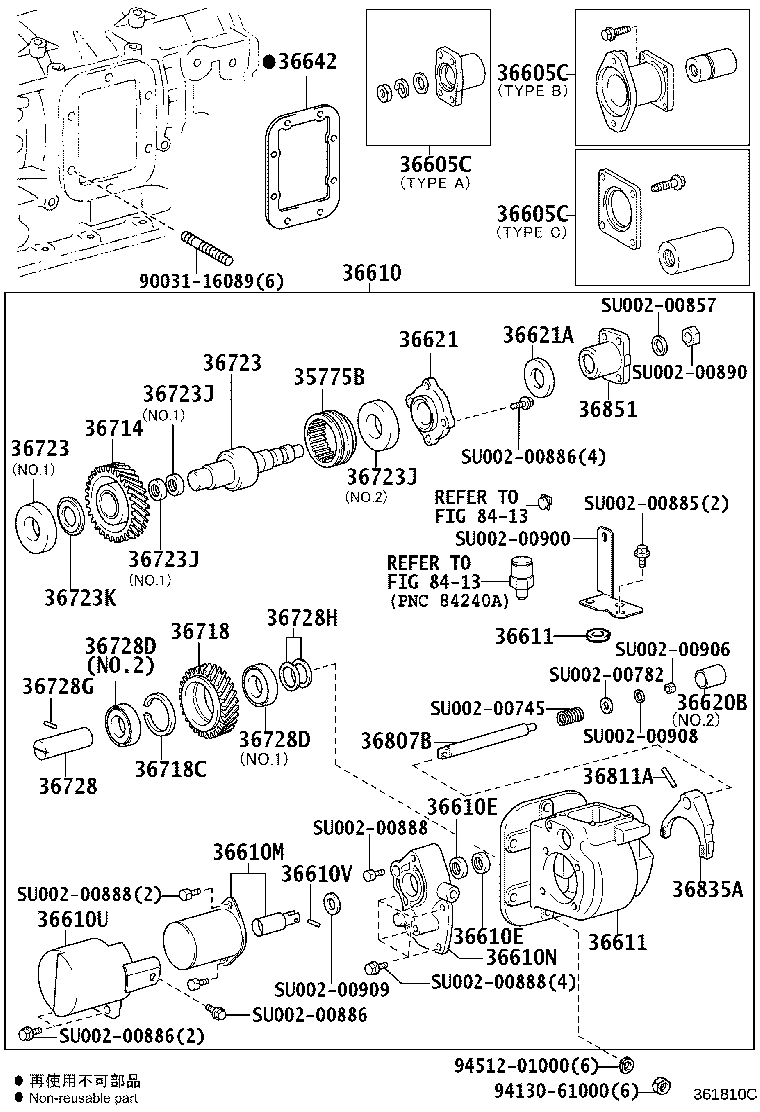

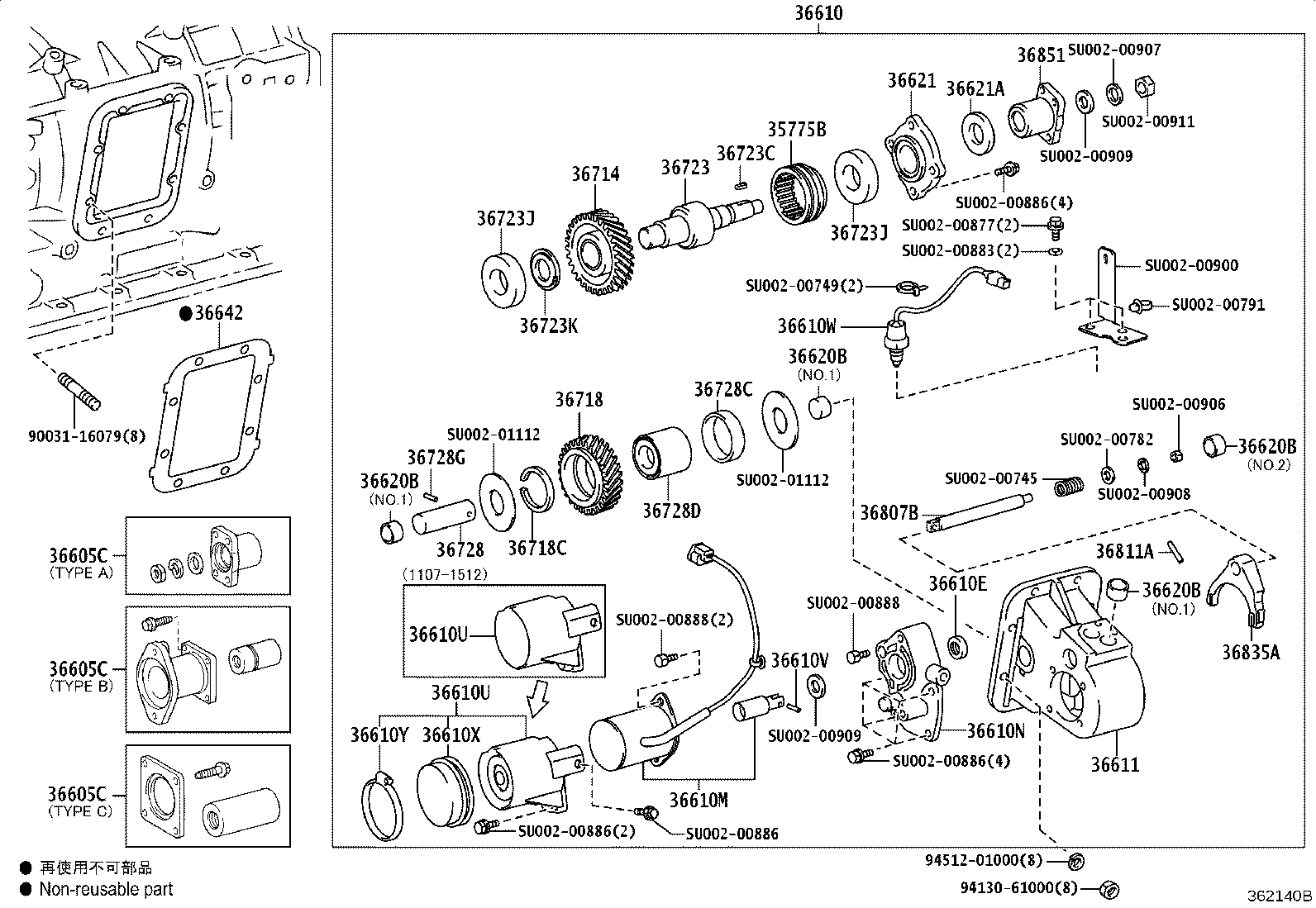

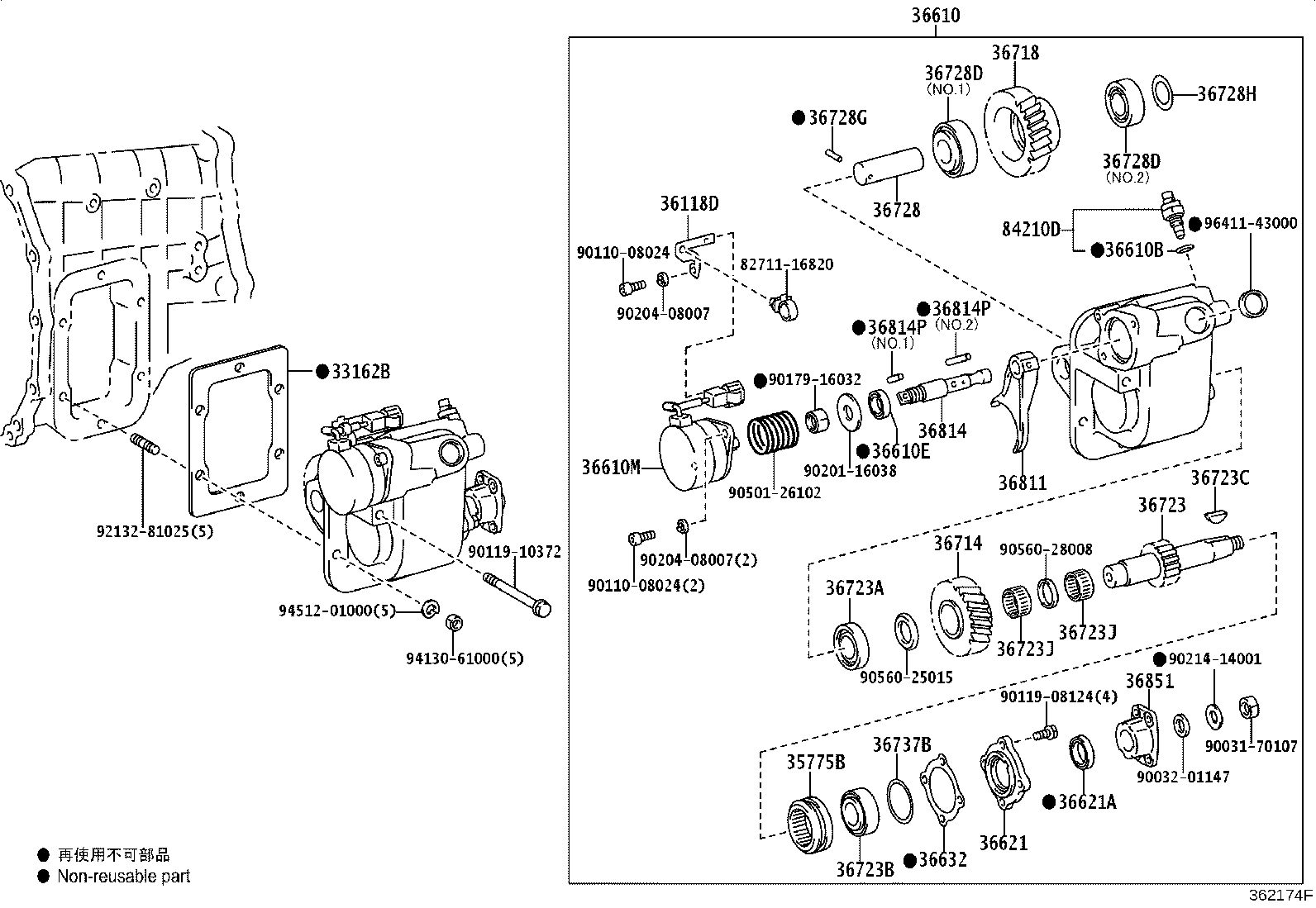

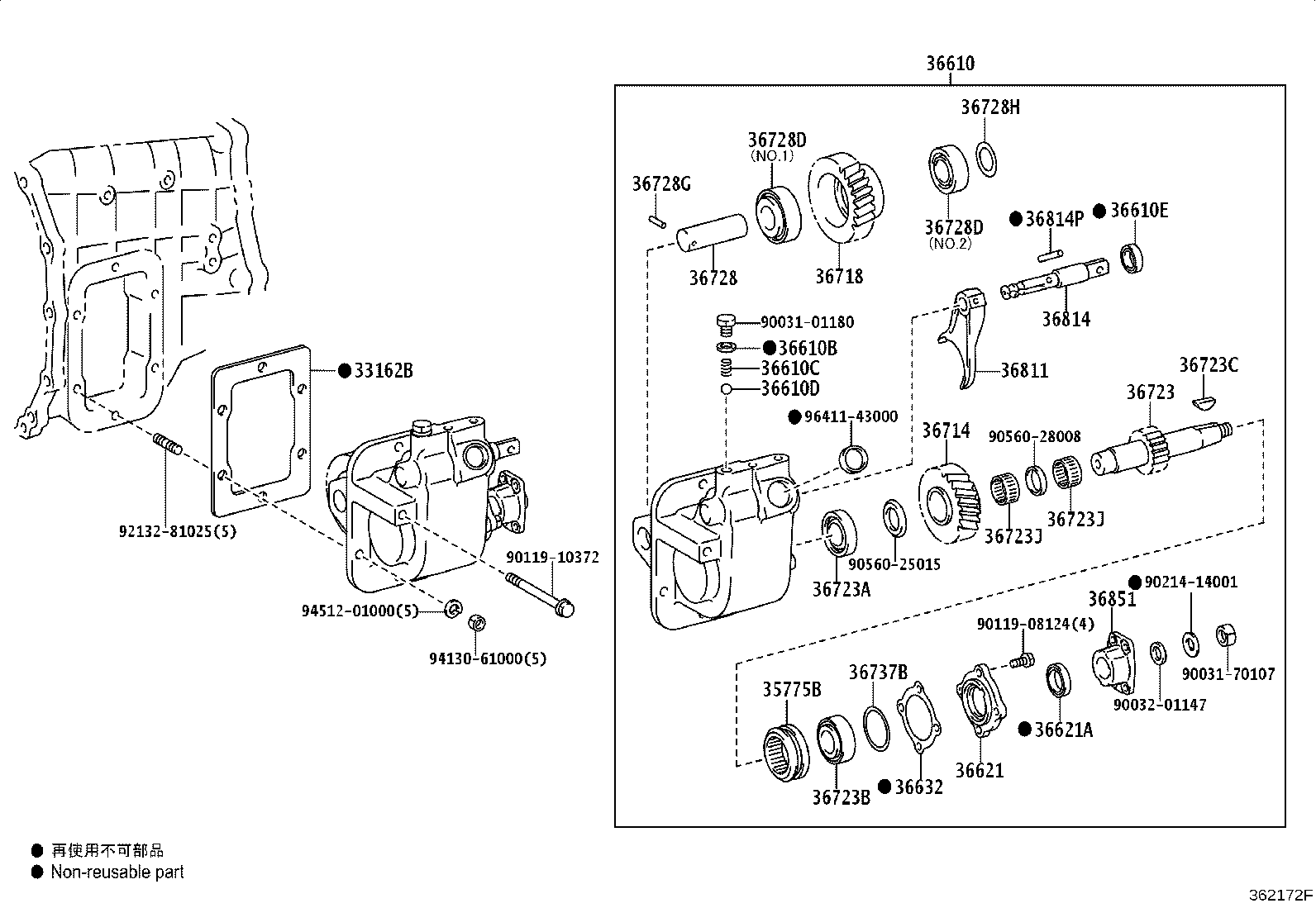

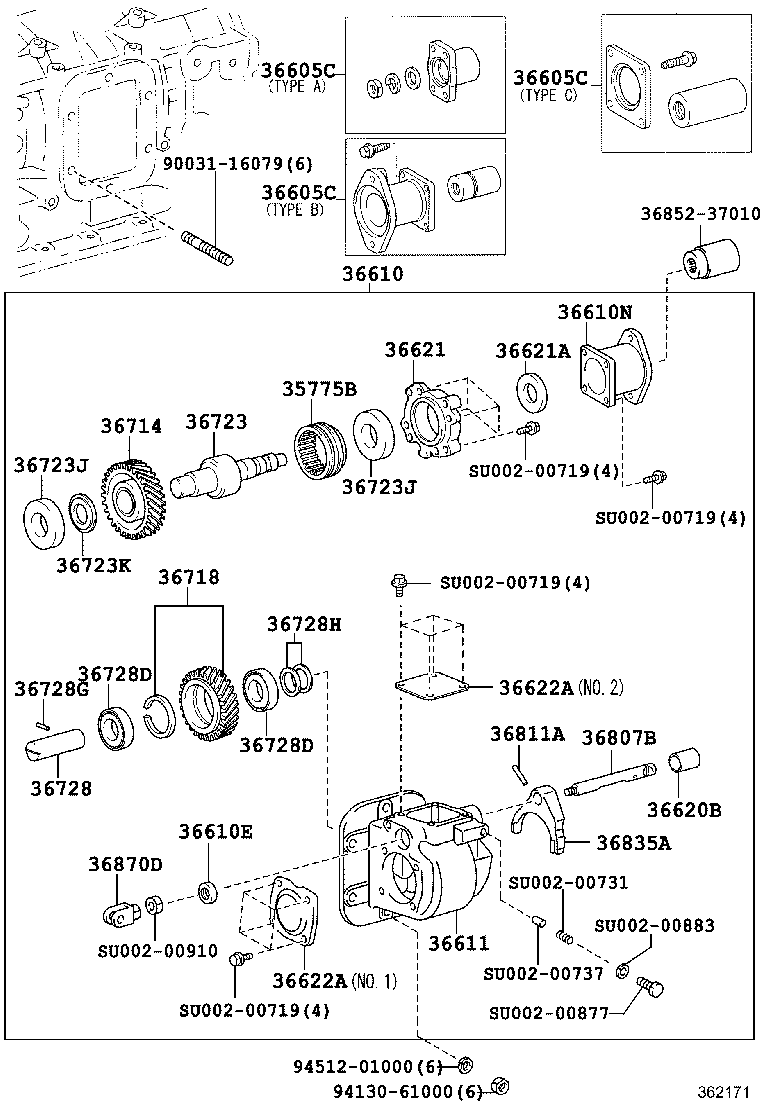

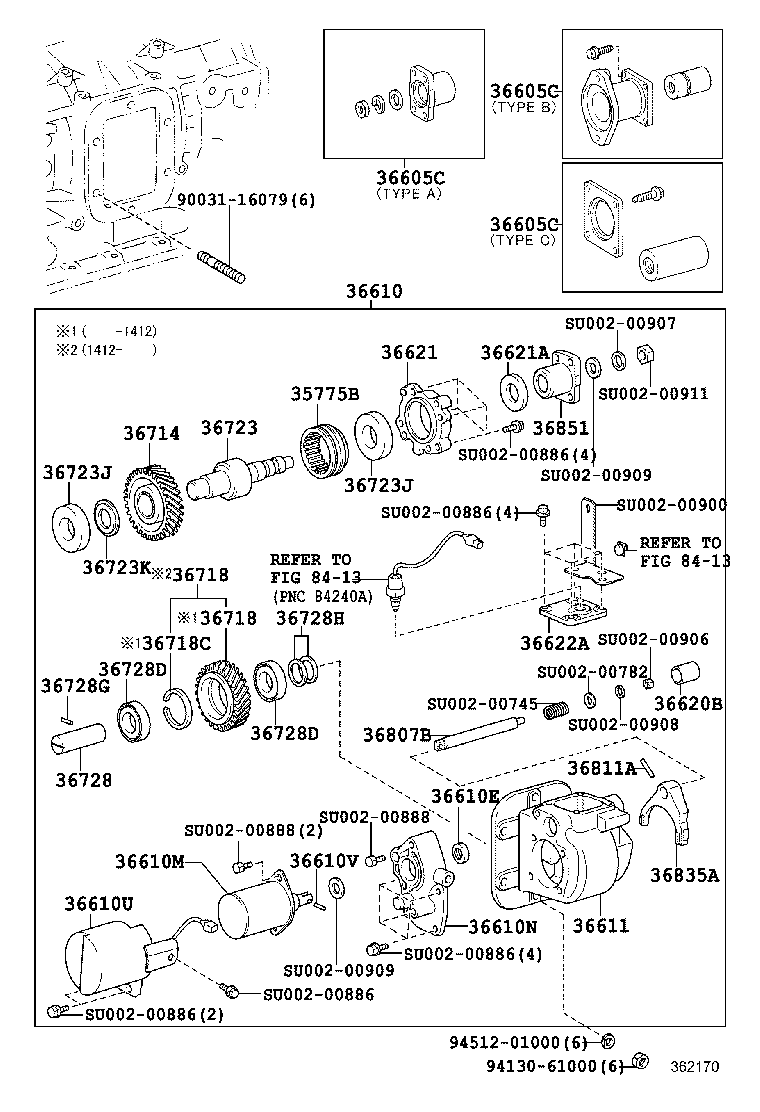

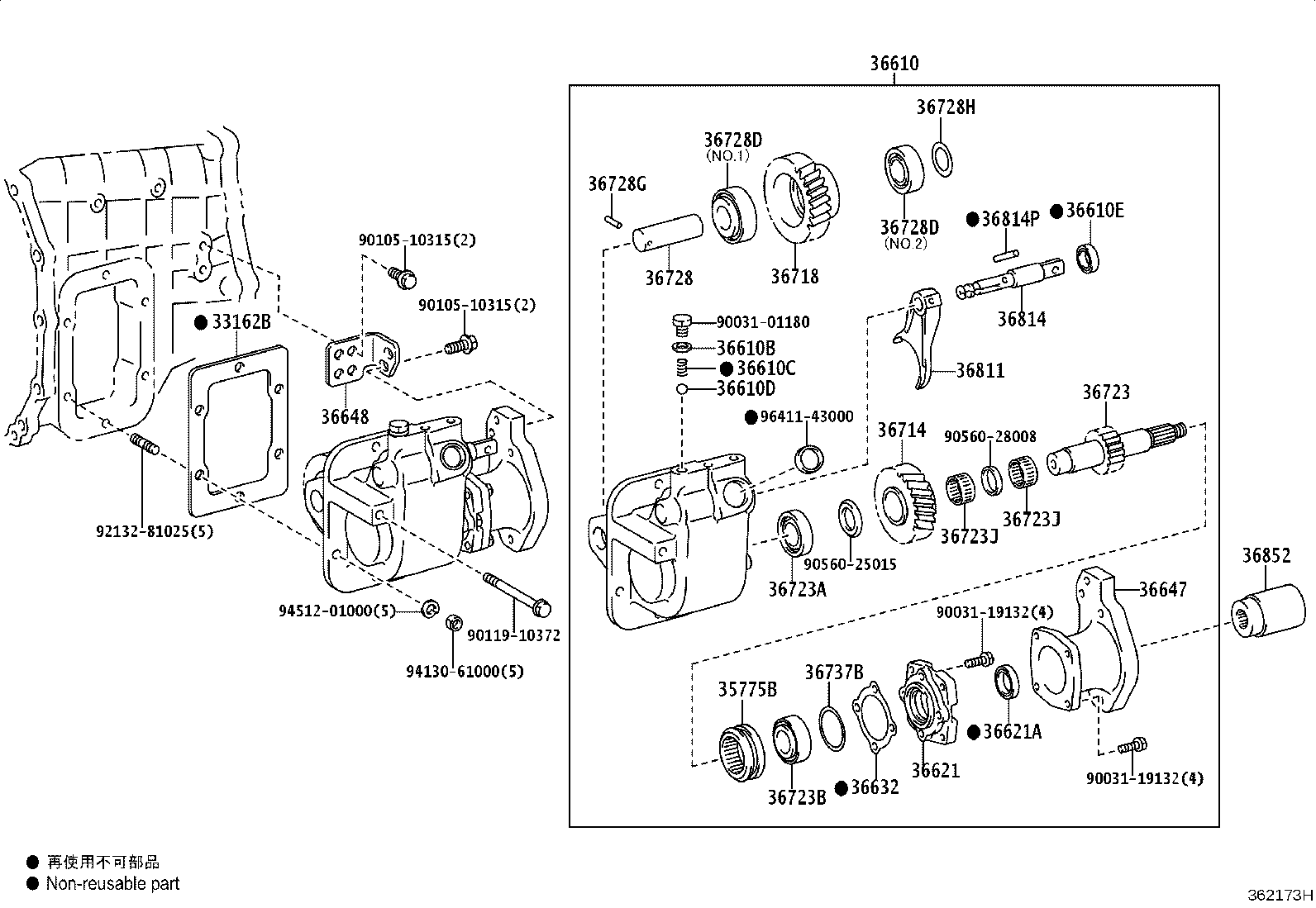

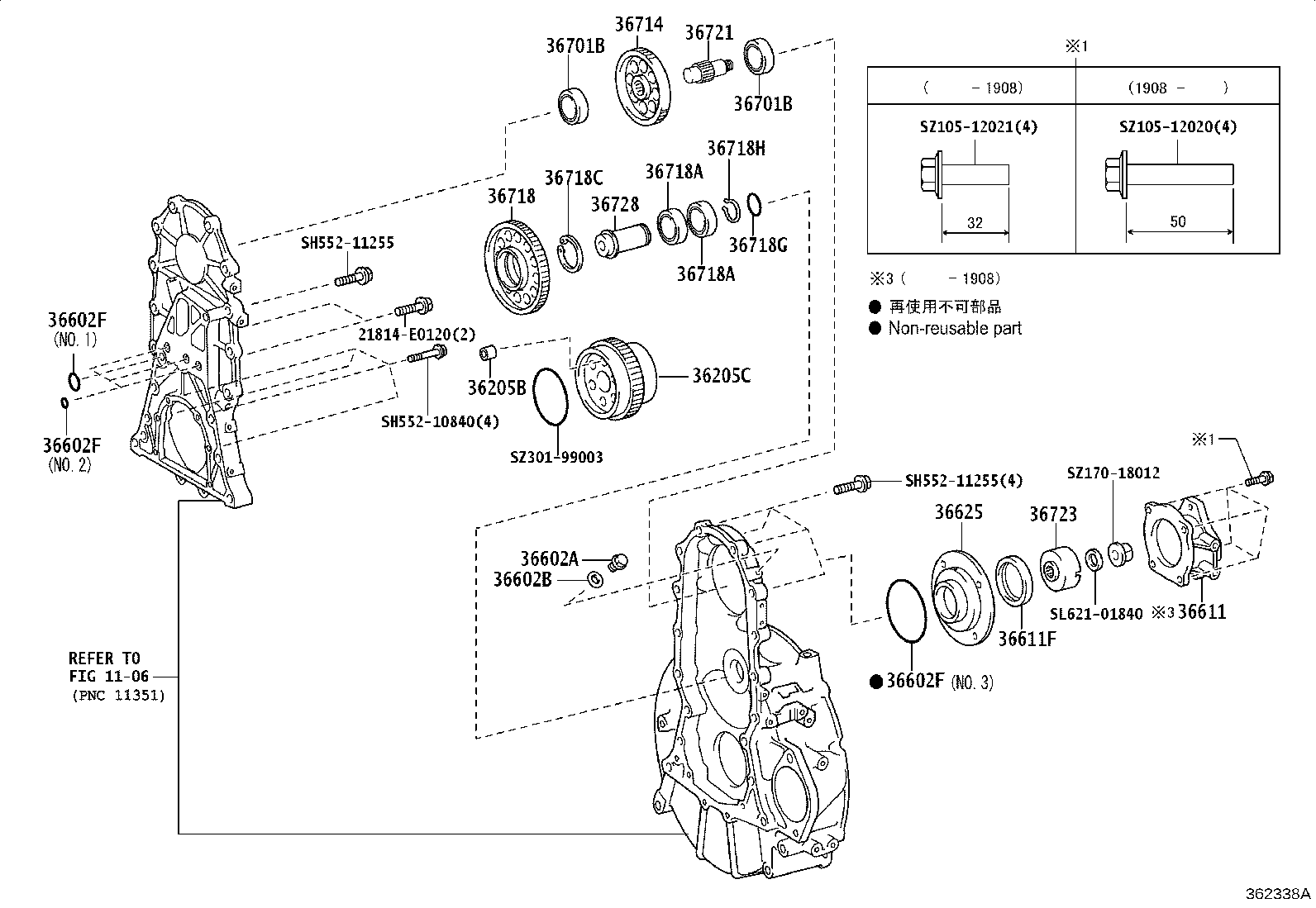

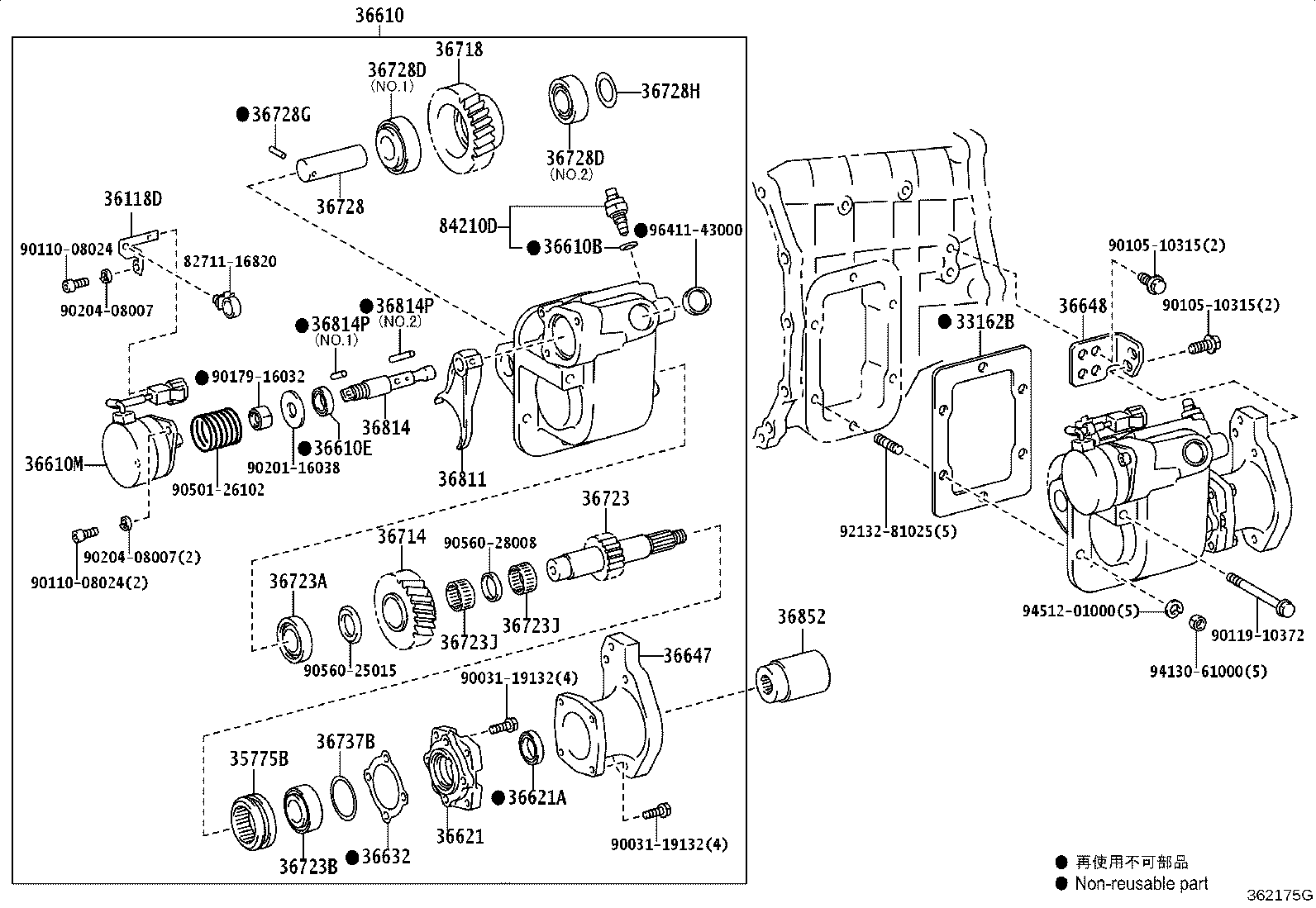

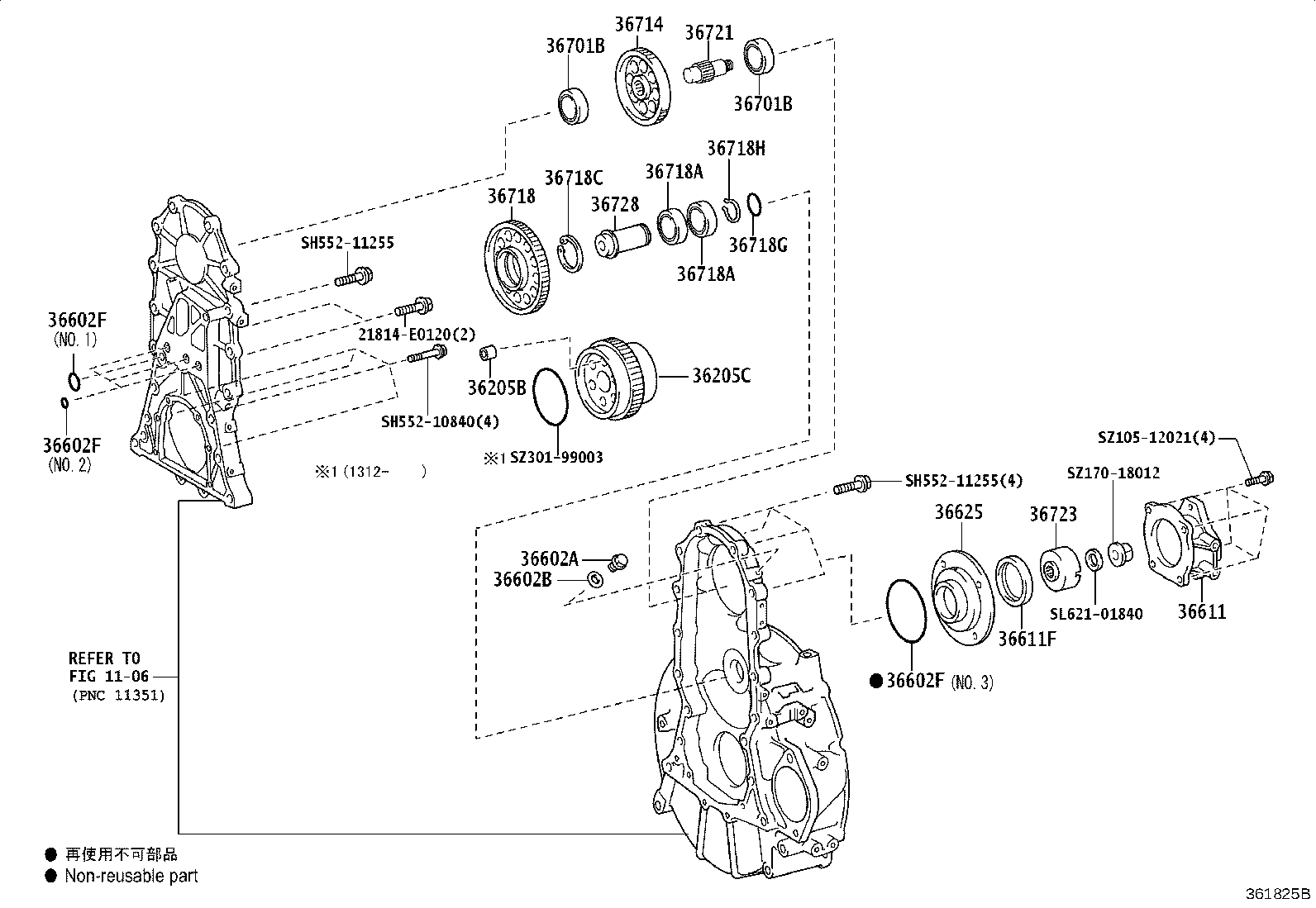

Figure 361672A 361672A 2011-07 → 2014-12 Figure 362037A 362037A 2014-12 → 2017-05 Figure 362171 362171 2017-05 → — Figure 362170 362170 2011-07 → — Figure 362170 362170 2017-05 → — Figure 362140B 362140B 2011-07 → — Figure 362140B 362140B 2017-05 → — Figure 361810C 361810C 2011-07 → — Figure 361810C 361810C 2017-05 → — Figure 36268Y 36268Y 2011-07 → — Figure 36268Y 36268Y 2017-05 → — Figure 36268Y 36268Y 2019-05 → — Figure 36268Y 36268Y 2021-03 → — Figure 362184B 362184B 2011-07 → — Figure 362184B 362184B 2017-05 → — Figure 362184B 362184B 2019-05 → — Figure 362184B 362184B 2021-03 → — Figure 361825B 361825B 2013-05 → — Figure 362338A 362338A 2019-05 → — Figure 362172F 362172F 2017-05 → — Figure 362172F 362172F 2021-03 → — Figure 362172F 362172F 2021-03 → — Figure 362173H 362173H 2017-05 → — Figure 362173H 362173H 2019-05 → — Figure 362173H 362173H 2021-03 → — Figure 362174F 362174F 2017-05 → — Figure 362174F 362174F 2019-05 → — Figure 362174F 362174F 2021-03 → — Figure 362175G 362175G 2017-05 → — Figure 362175G 362175G 2019-05 → — Figure 362175G 362175G 2019-05 → — Figure 362175G 362175G 2019-05 → — Figure 362175G 362175G 2019-05 → — Figure 362175G 362175G 2019-05 → — Figure 362175G 362175G 2021-03 → — Figure 362175G 362175G 2021-03 → — Figure 362175G 362175G 2021-03 → — Figure 362175G 362175G 2021-03 → — Figure 362175G 362175G 2021-03 → — Figure 362176G 362176G 2017-05 → — Figure 362176G 362176G 2019-05 → — Figure 362176G 362176G 2019-05 → — Figure 362176G 362176G 2021-03 → — Figure 362176G 362176G 2021-03 → — Figure 36268Z 36268Z 2011-07 → — Figure 362308B 362308B 2019-05 → — Figure 362308B 362308B 2021-03 → — Figure 362309B 362309B 2019-05 → — Figure 362309B 362309B 2021-03 → —

Part groups

PNCDescription
32913B Bracket, Transmission Oil Cooler, NO.2
33162B Gasket, Power Take-off Cover
352A0 Switch Assy, Transmission Oil Pressure
35775B Sleeve, Output Shaft
36118D Bracket, Power Take-off
36205B Collar(FOR SPROCKET TRANSFER DRIVE)
36205C Gear Sub-assy, Power Take-off Drive
36602A Plug (FOR CENTER POWER TAKE-OFF CASE)
36602B Gasket (FOR CENTER POWER TAKE-OFF CASE)
36602F Ring, O(FOR CENTER POWER TAKE-OFF CASE)
36603 Tube Sub-assy, Power Take-off Lubrication
36603A Elbow (FOR POWER TAKE-OFF LUBRICATION TUBE)
36603E Ring, O (FOR POWER TAKE-OFF LUBRICATION TUBE)
36605C Power Take-off Set
36608 Tube Sub-assy, Power Take Off Line Pressure
36610 Power Take-off Assy
36610A Bolt, Lock Ball (FOR POWER TAKE-OFF)
36610B Gasket, Seat (FOR POWER TAKE-OFF)
36610C Spring, Gear Shift Fork Lock Ball (FOR POWER TAKE-OFF)
36610D Ball, Gear Shift Fork Lock (FOR POWER TAKE-OFF)
36610E Seal, Oil (FOR POWER TAKE-OFF)
36610M Solenoid Assy, Power Take-off
36610N Adapter, Power Take-off Solenoid
36610U Cover, Power Take-off Dust
36610V Pin Assy, Spring (FOR POWER TAKE-OFF SOLENOID)
36610W Switch, Power Take-off Push ON
36610X Boot, Power Take-off Dust Cover
36610Y Band, Power Take-off Dust Cover Boot
36611 Case, Power Take-off
36611A Bolt, Stud (FOR POWER TAKE-OFF CASE)
36611F Seal, Oil (FOR POWER TAKE-OFF CASE)
36620B Plug(FOR POWER TAKE-OFF)
36621 Retainer, Power Take-off Bearing
36621A Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER)
36622A Cover, Power Take-off
36625 Cover, Power Take-off Bearing
36632 Gasket, Power Take-off Joint Retainer
36633A Gasket, Power Take-off Cover
36642 Spacer, Power Take-off Cover
36647 Adapter, Power Take-off Pump
36648 Bracket, Power Take-off Pump Adapter
36701B Bearing (FOR POWER TAKE-OFF INPUT GEAR)
36714 Gear, Power Take-off Output
36718 Gear, Power Take-off Idler
36718A Bearing(FOR POWER TAKE-OFF IDLER GEAR FRONT)
36718C Ring, Hole Snap(FOR POWER TAKE-OFF IDLER GEAR)
36718G Ring, O(FOR POWER TAKE-OFF IDLE GEAR)
36718H Ring, Shaft Snap(FOR POWER TAKE-OFF IDLE GEAR)
36721 Shaft, Power Take-off Input Gear
36723 Shaft, Power Take-off Output, NO.1
36723A Bearing (FOR OUTPUT SHAFT FRONT)
36723B Bearing (FOR OUTPUT SHAFT REAR)
36723C Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723J Bearing (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723K Collar (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728 Shaft, Power Take-off Idler
36728C Coller (FOR POWER TAKE-OFF IDLER SHAFT)
36728D Bearing (FOR POWER TAKE-OFF IDLER SHAFT)
36728F Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT)
36728G Pin (FOR POWER TAKE-OFF IDLER SHAFT)
36728H Shim (FOR POWER TAKE-OFF IDLER SHAFT)
36737B Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36807B Rod Sub-assy, Power Take-off Shift
36811 Fork, Powr Take-off Shift, NO.1
36811A Pin, Slotted Spring (FOR POWER TAKE-OFF SHIFT FORK)
36814 Shaft, Powr Take-off Fork, NO.1
36814P Pin (FOR POWER TAKE-OFF SHIFT SHAFT)
36835A Arm, Power Take-off Shift
36851 Retainer, Power Take-off Joint
36851C Flange, Power Take-off Output Shaft
36852 Coupling, Power Take-off Output Shaft
36870D Connector, Power Take-off Control Cable
84210D Switch Assy, Back-up Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
