Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

10 part groups · 25 illustrations

Illustrations

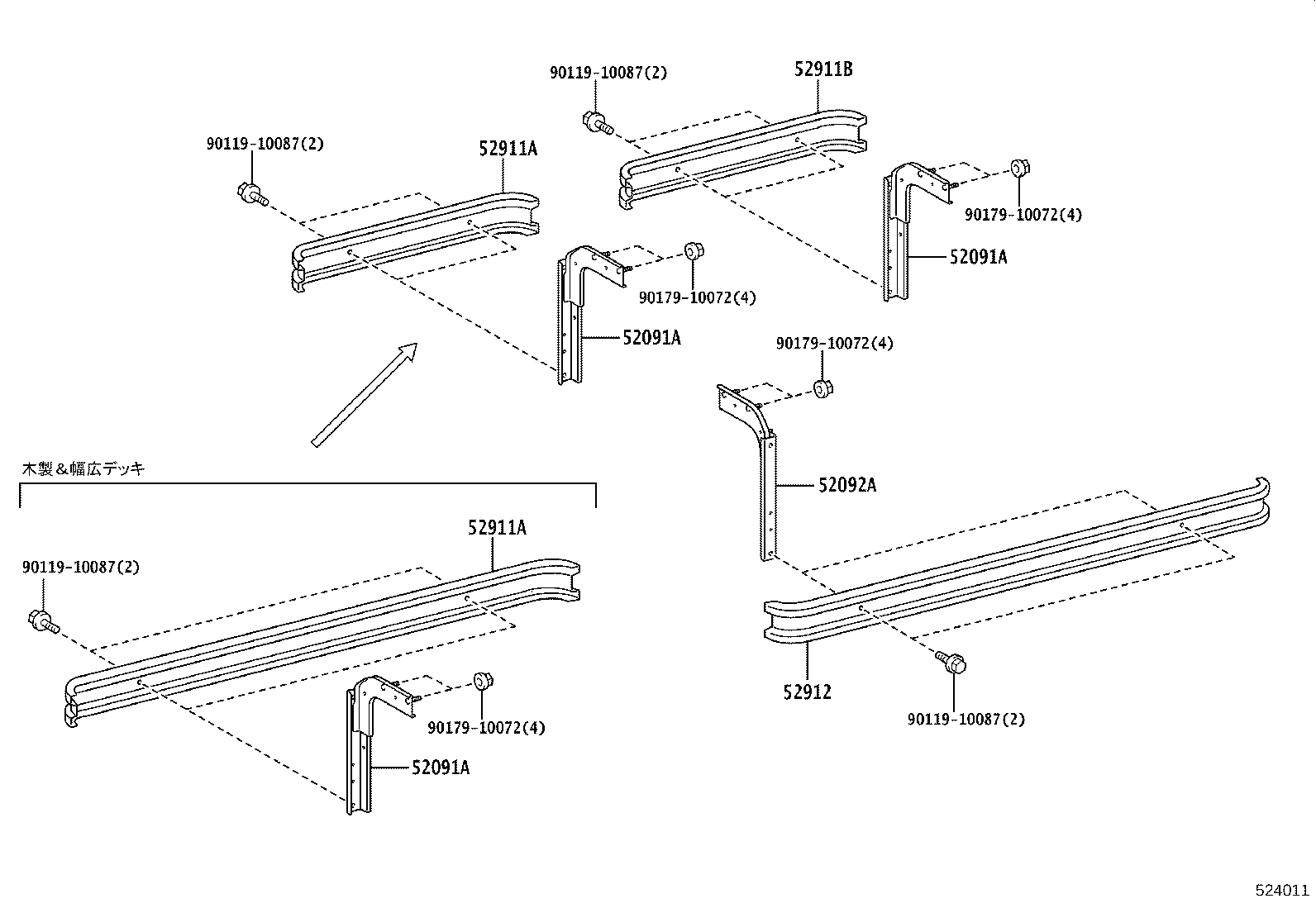

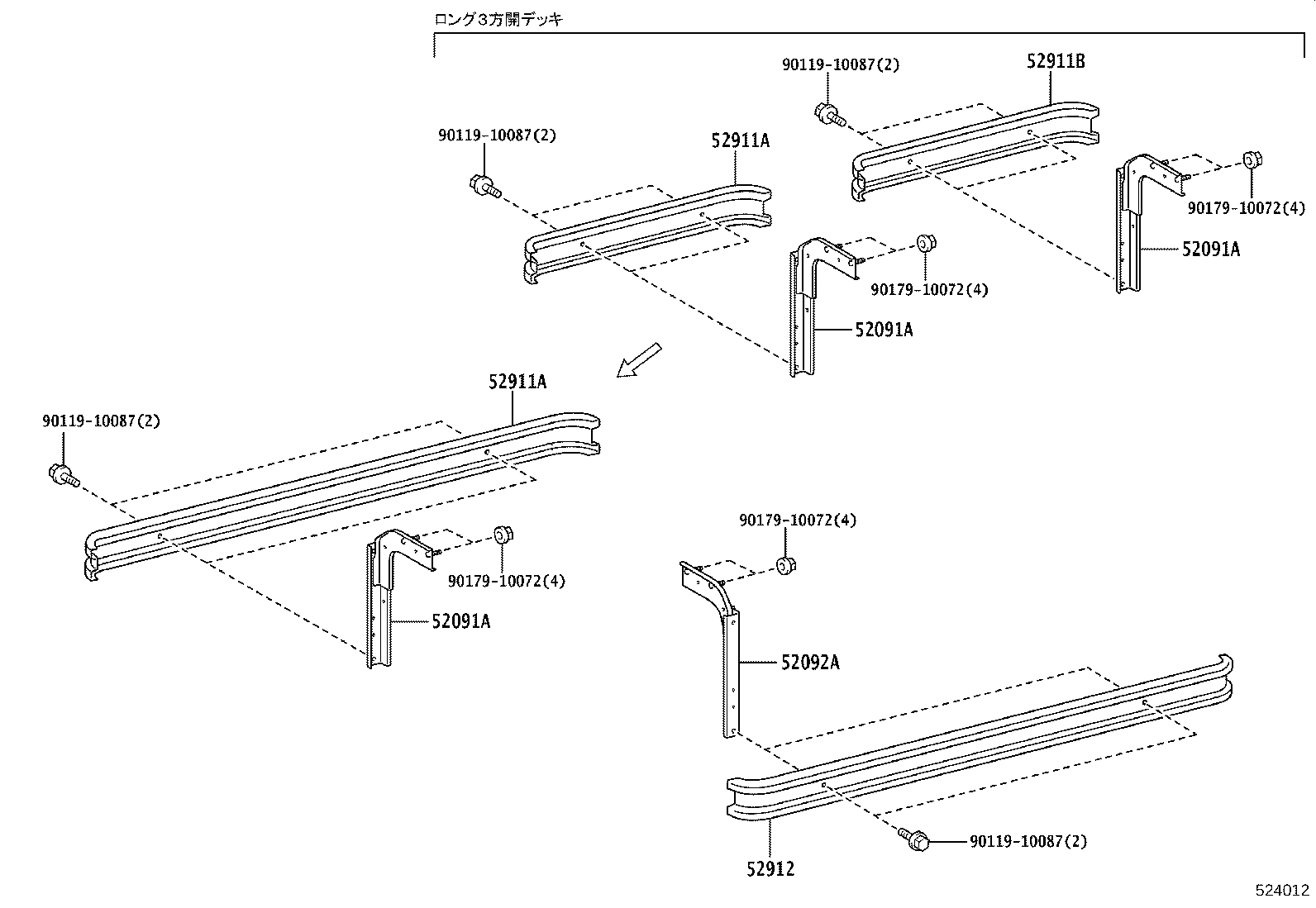

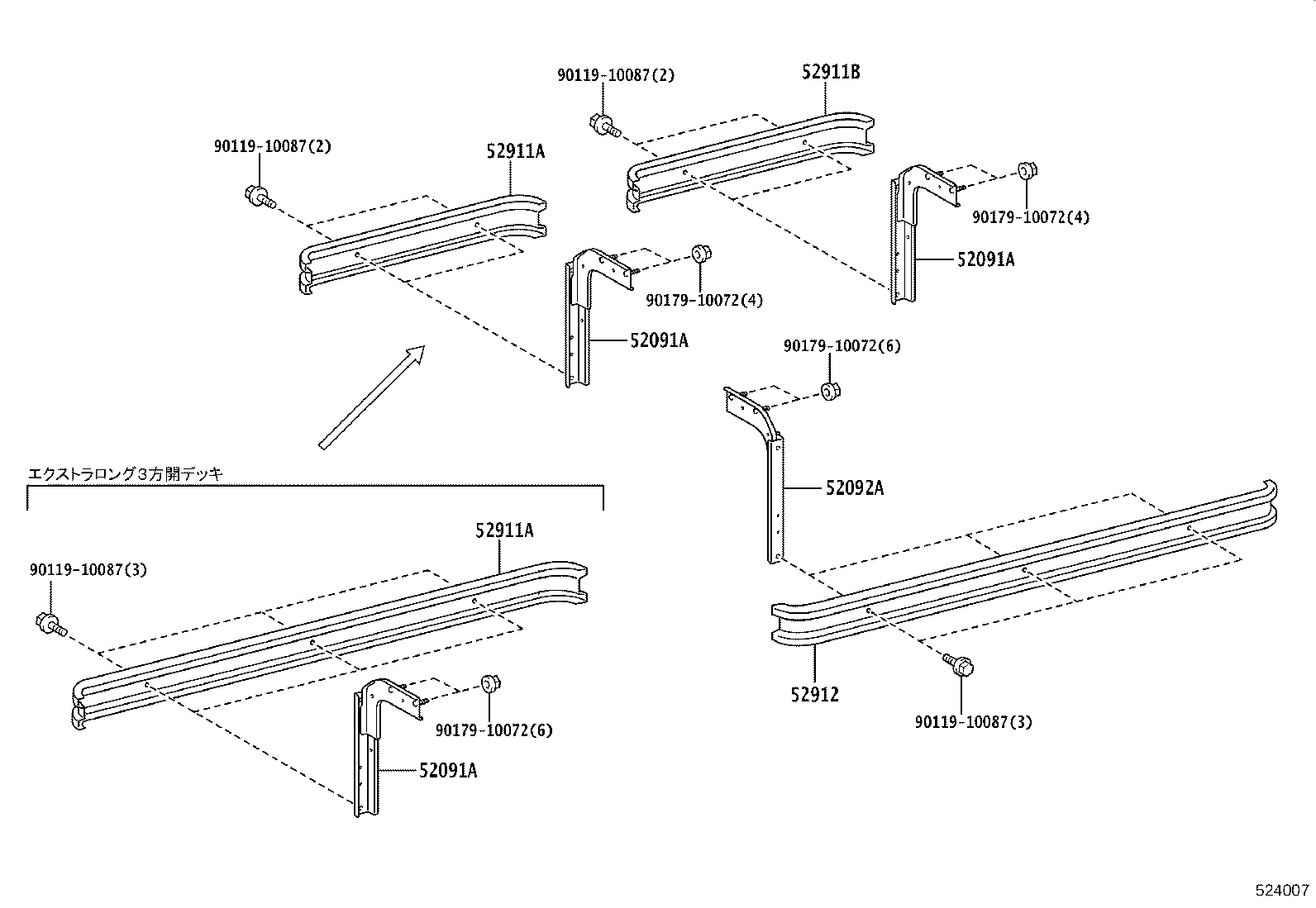

Figure 522467 522467 2011-07 → 2017-05 Figure 522467 522467 2017-05 → — Figure 522468 522468 2011-07 → 2017-05 Figure 522468 522468 2017-05 → — Figure 522469A 522469A 2011-07 → 2017-05 Figure 522469A 522469A 2017-05 → — Figure 522470A 522470A 2011-07 → 2017-05 Figure 522470A 522470A 2017-05 → — Figure 524011 524011 2019-05 → — Figure 524011 524011 2021-03 → — Figure 524012 524012 2019-05 → — Figure 524012 524012 2021-03 → — Figure 524005 524005 2019-05 → — Figure 524005 524005 2019-05 → — Figure 524005 524005 2021-03 → — Figure 524005 524005 2021-03 → — Figure 524002 524002 2019-05 → — Figure 524002 524002 2021-03 → — Figure 524007 524007 2019-05 → — Figure 524007 524007 2021-03 → — Figure 524003 524003 2019-05 → — Figure 524003 524003 2021-03 → — Figure 524003 524003 2021-03 → — Figure 524001 524001 2019-05 → — Figure 524001 524001 2021-03 → —

Part groups

PNCDescription
52091A Stay Sub-assy, Side Bumper, Front RH
52091B Stay Sub-assy, Side Bumper, RH
52092A Stay Sub-assy, Side Bumper, Front LH
52092B Stay Sub-assy, Side Bumper, LH
52093 Stay Sub-assy, Side Bumper, Rear RH
52094 Stay Sub-assy, Side Bumper, Rear LH
52911 Bar, Side Bumper
52911A Bar, Side Bumper, RH
52911B Bar, Side Bumper, RH NO.2
52912 Bar, Side Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
