Toyota Dyna/Toyoace
2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan
Supported model
Data version 2022-07

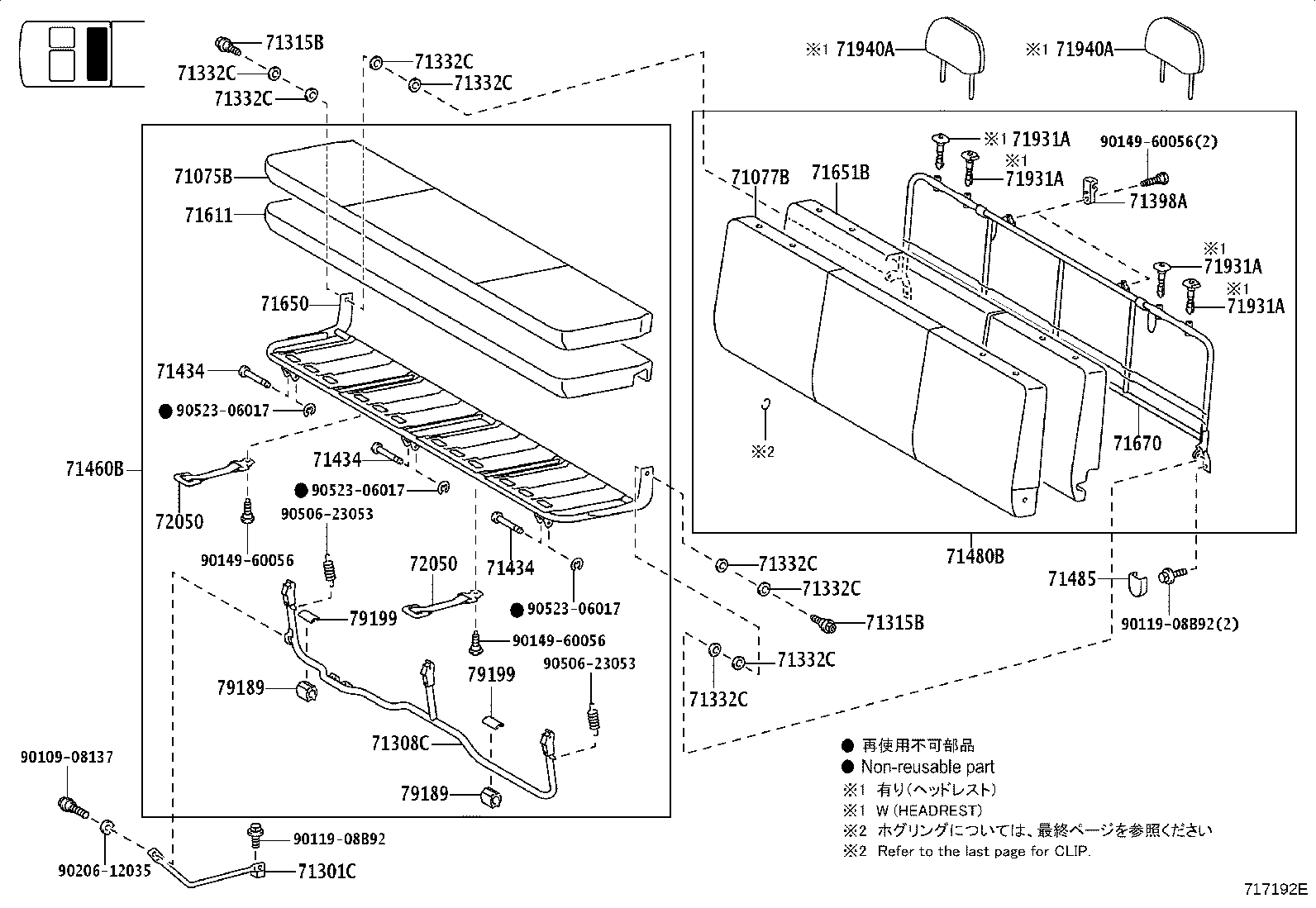

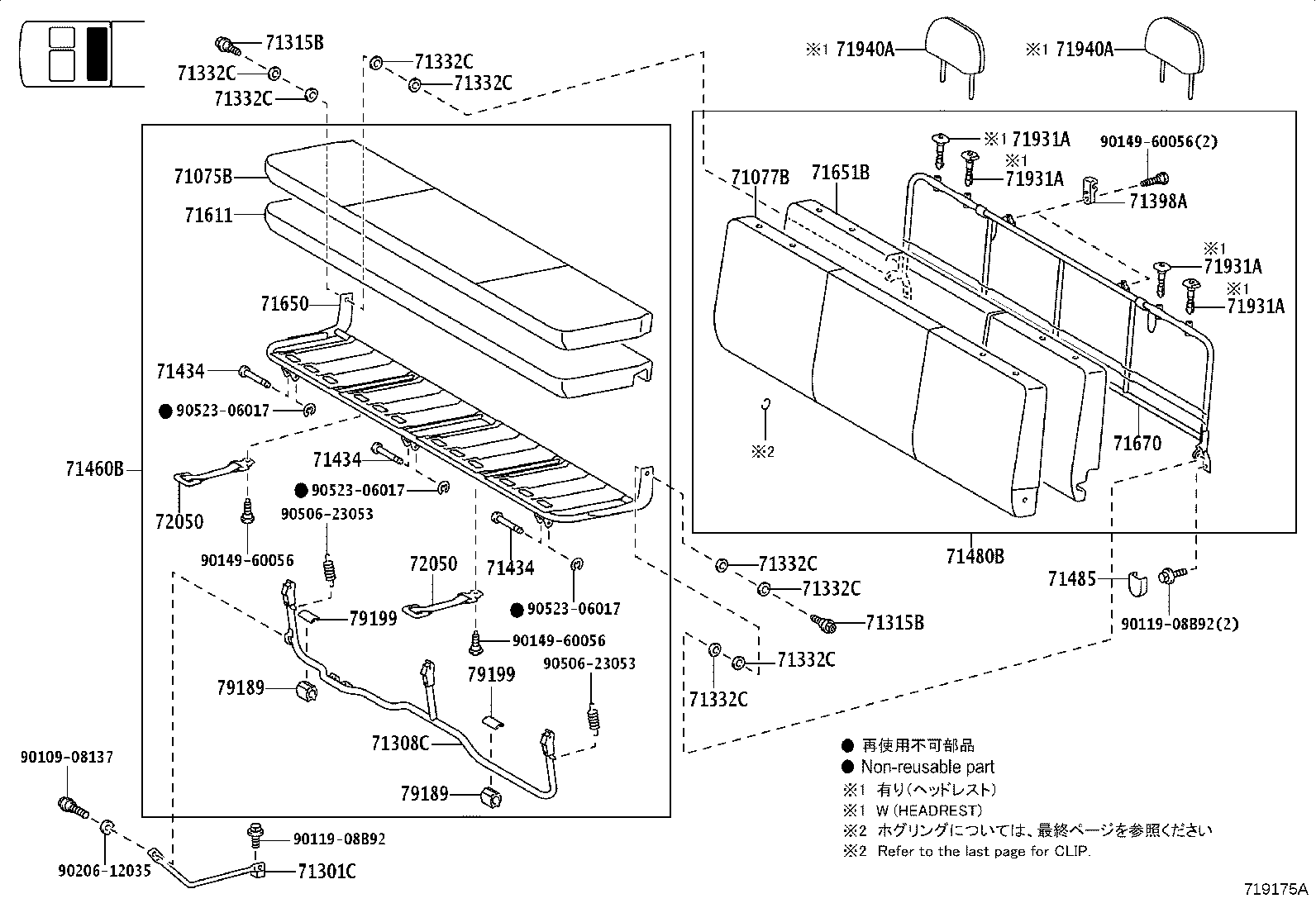

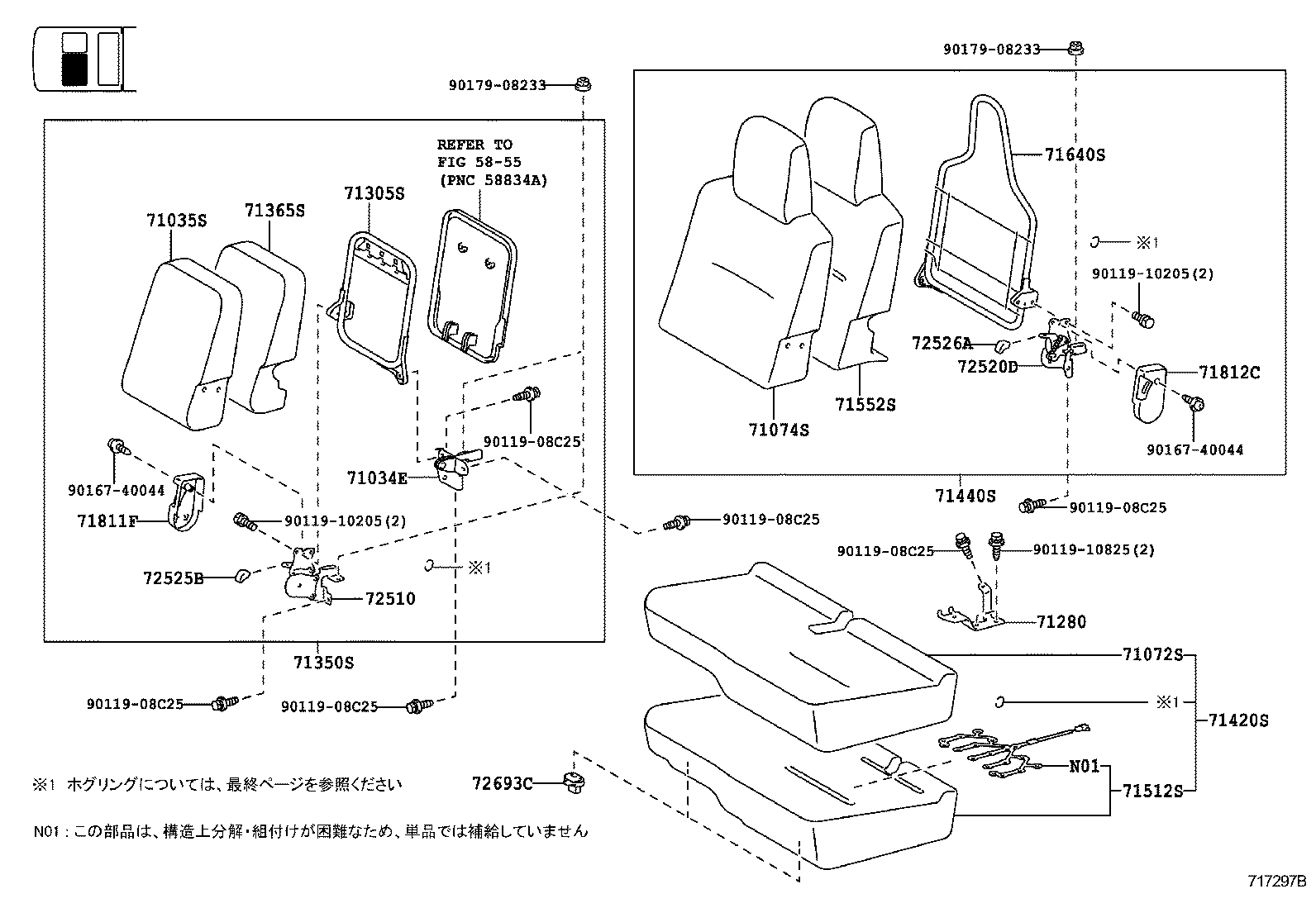

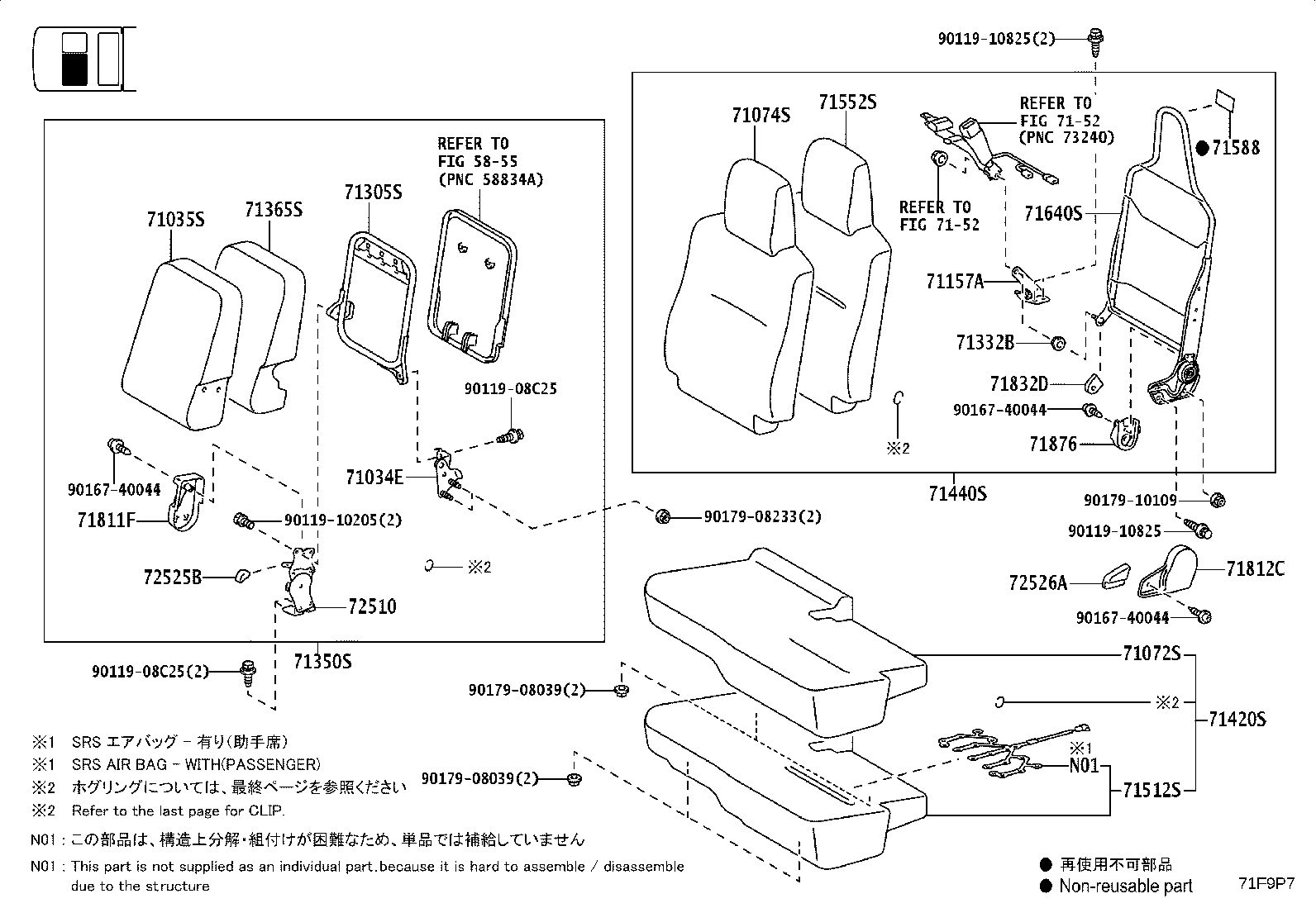

Seat & Seat Track
83 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 71034E | Hinge Sub-assy, Front Center Seat |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71157A | Hinge, Front Seat, Lower |
| 71189 | Leg, Front Seat, LH |
| 71213 | Bracket, Passenger Seat Set |
| 71280 | Bracket Assy, Seat, Inner LH |
| 71300B | Seat Assy, Rear (BENCH SEAT) |
| 71301C | Link Sub-assy, Rear Seat Cushion |
| 71305S | Frame Sub-assy, Center Seatback |
| 71308C | Leg Sub-assy, Rear Seat, Front |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71315B | Pin, Rear Seat Hinge |
| 71332B | Spacer, Rear Seatback Hinge |
| 71332C | Spacer, Rear Seatback Hinge |
| 71350S | Back Assy, Front Seat, Center |
| 71365S | Pad, Center Seatback |
| 71398A | Holder, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71421A | Spring, Front Seat Cushion |
| 71430C | Clip |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71434 | Pin, Rear Seat Cushion Leg, Rear |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71485 | Cover, Rear Seat Hinge |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71588 | Protector, Front Seatback Edge, NO.2 |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71611 | Pad, Rear Seat Cushion |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71790 | Belt Assy, Side Seat |
| 71811C | Cover, Reclining Adjuster, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 72050 | Belt Assy, Rear Seat Hook |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72137B | Cover, Seat Track, RH |
| 72145A | Bracket, Front Inner Seat Track, Lower Front RH |
| 72201A | Handle Sub-assy, Seat Track RH |
| 72213J | Pin, Front Seat Track Handle Set |
| 72261 | Reinforcement, Seat Track, RH |
| 72263 | Reinforcement, Inner Seat Track, RH |
| 72341A | Reinforce, Front Seat Stand Frame |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520D | Adjuster Assy, Reclining Seat, Outer LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72525B | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72693C | Hook, Front Seat Cushion Lock |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72791 | Lever, Lumbar Support |
| 72791A | Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER) |
| 73800 | Suspension Assy, Seat, RH |
| 73867 | Guard, Seat Suspension, Upper |
| 73888 | Handle, Seat Suspension Control |
| 73890 | Absorber Assy, Seat Suspension |
| 79189 | Stopper, NO.1 Seat Leg |
| 79199 | Holder, NO.1 Seat Leg Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
