Toyota Dyna/Toyoace

2011-07 → present · chassis XZC710,XZU7## · catalogue 771140 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 29 illustrations

Illustrations

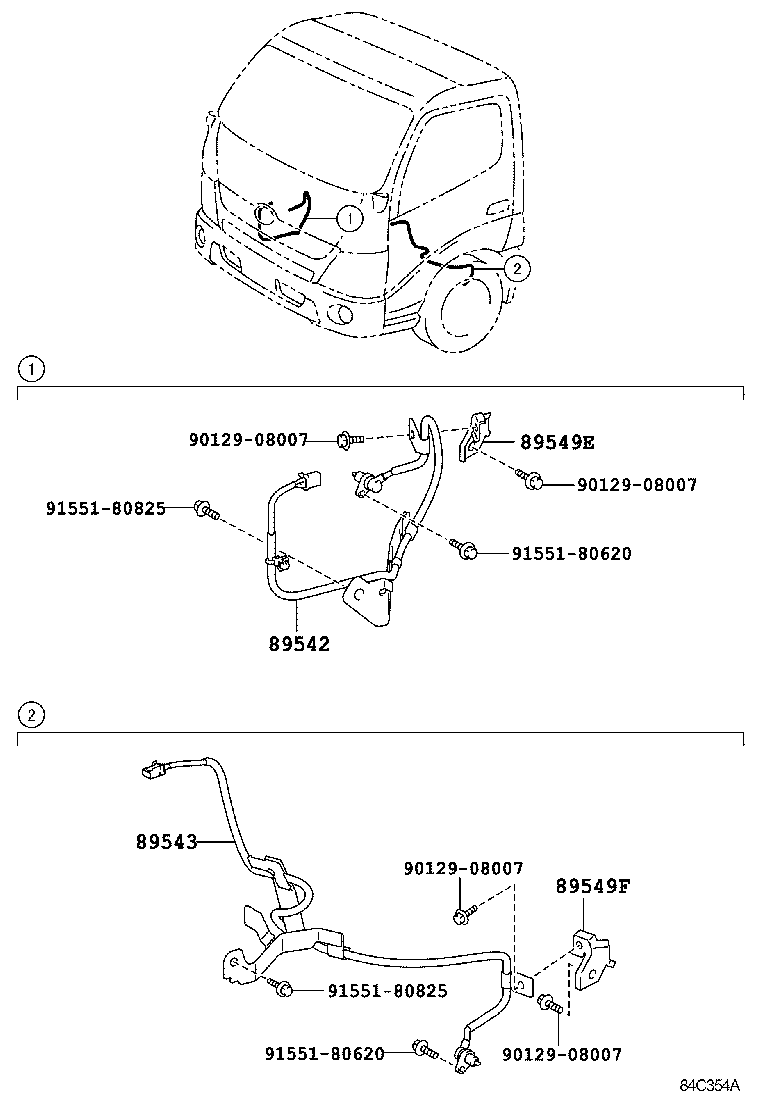

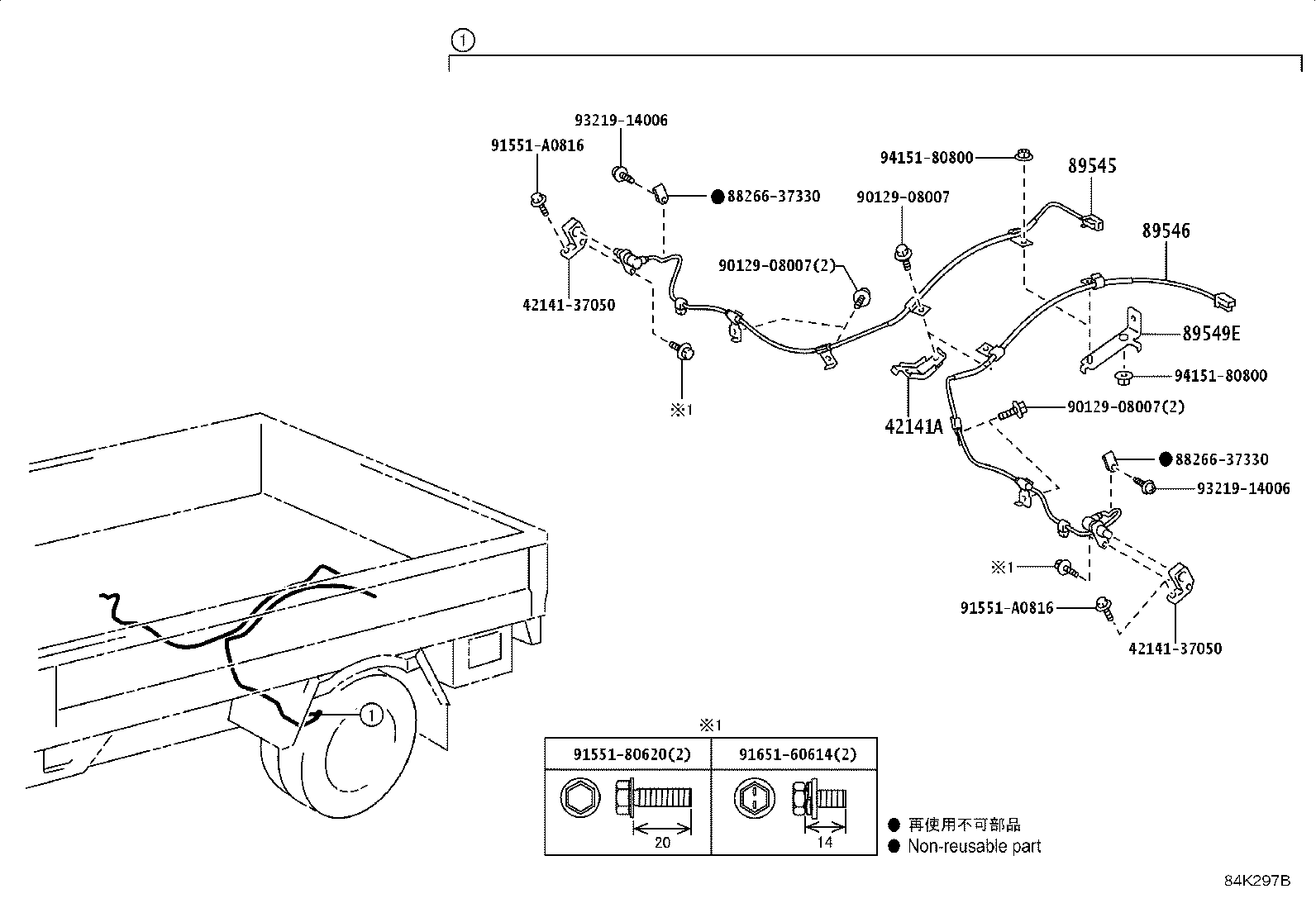

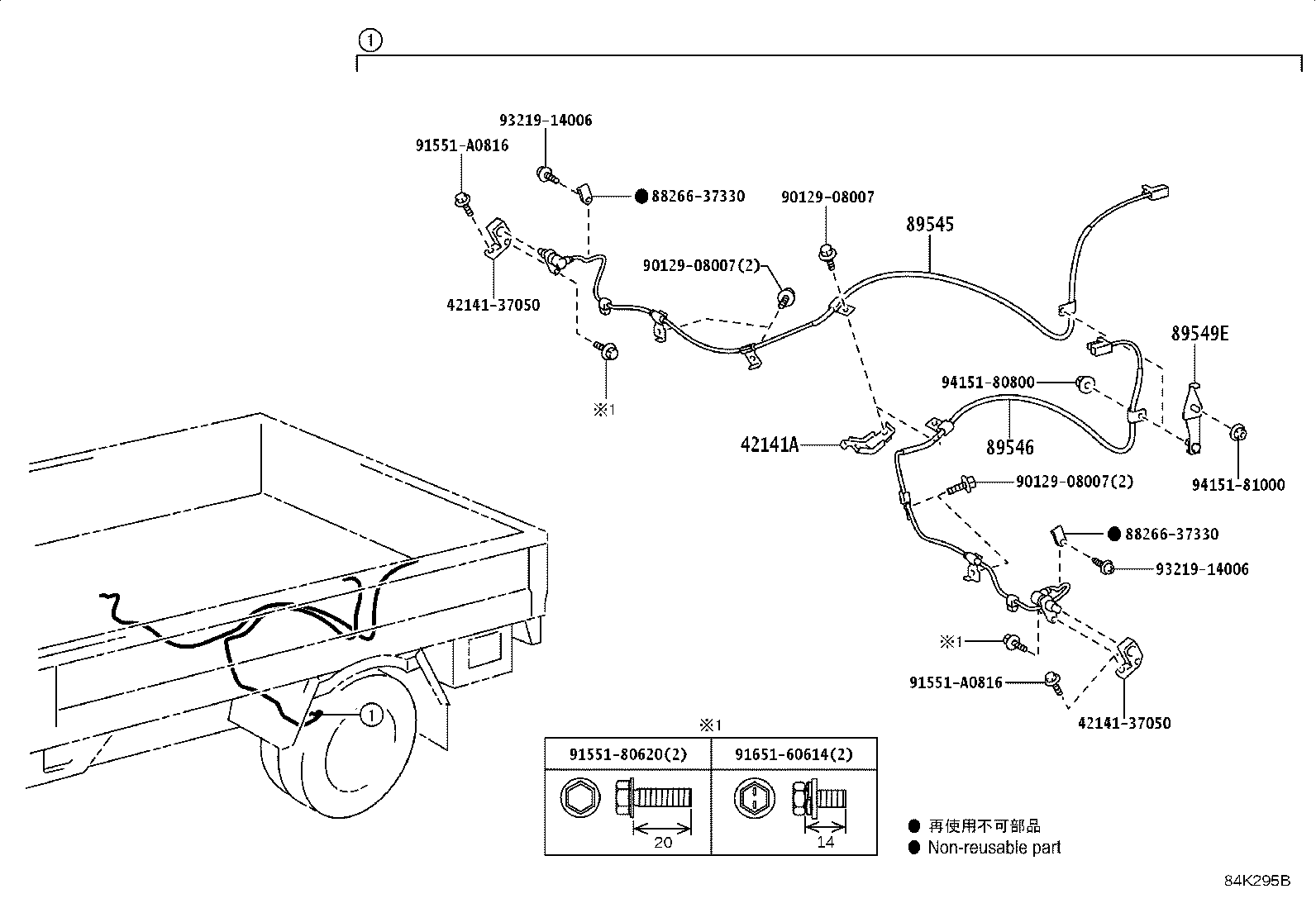

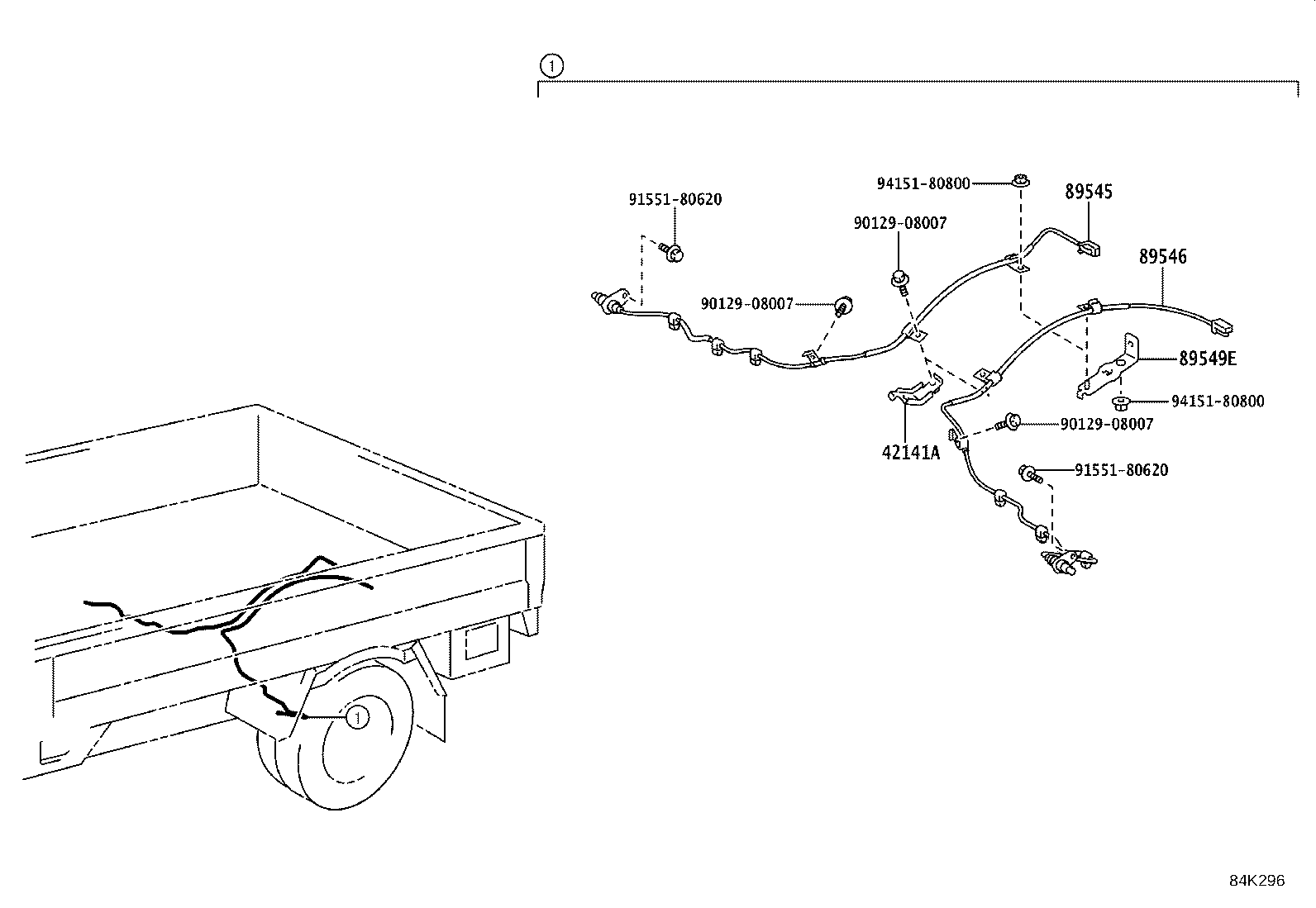

Figure 84C345B 84C345B 2011-07 → — Figure 84C345B 84C345B 2022-07 → — Figure 84C417 84C417 2011-07 → — Figure 84C418 84C418 2011-07 → — Figure 84C418 84C418 2022-07 → — Figure 84C354A 84C354A 2011-08 → — Figure 84C375B 84C375B 2011-07 → — Figure 84C375B 84C375B 2011-08 → — Figure 84C375B 84C375B 2017-05 → — Figure 84C375B 84C375B 2019-05 → — Figure 84C375B 84C375B 2021-03 → — Figure 84C415B 84C415B 2011-07 → — Figure 84C415B 84C415B 2011-07 → — Figure 84C415B 84C415B 2019-05 → — Figure 84C415B 84C415B 2019-05 → — Figure 84C415B 84C415B 2021-03 → — Figure 84C415B 84C415B 2021-03 → — Figure 84C415B 84C415B 2022-07 → — Figure 84C416D 84C416D 2011-07 → — Figure 84C416D 84C416D 2019-05 → — Figure 84C416D 84C416D 2019-05 → — Figure 84C416D 84C416D 2022-07 → — Figure 84G290 84G290 2015-05 → — Figure 84K297B 84K297B 2019-05 → — Figure 84K295B 84K295B 2019-05 → — Figure 84K357B 84K357B 2019-05 → — Figure 84K357B 84K357B 2019-05 → — Figure 84K357B 84K357B 2019-05 → — Figure 84K296 84K296 2016-05 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
89183A Sensor, Yawrate
89421F Sensor, Vacuum (FOR SKID CONTROL)
89437F Cover, Sensor
89441A Sensor, Deceleration
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549E Bracket, Speed Sensor
89549F Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
