Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01

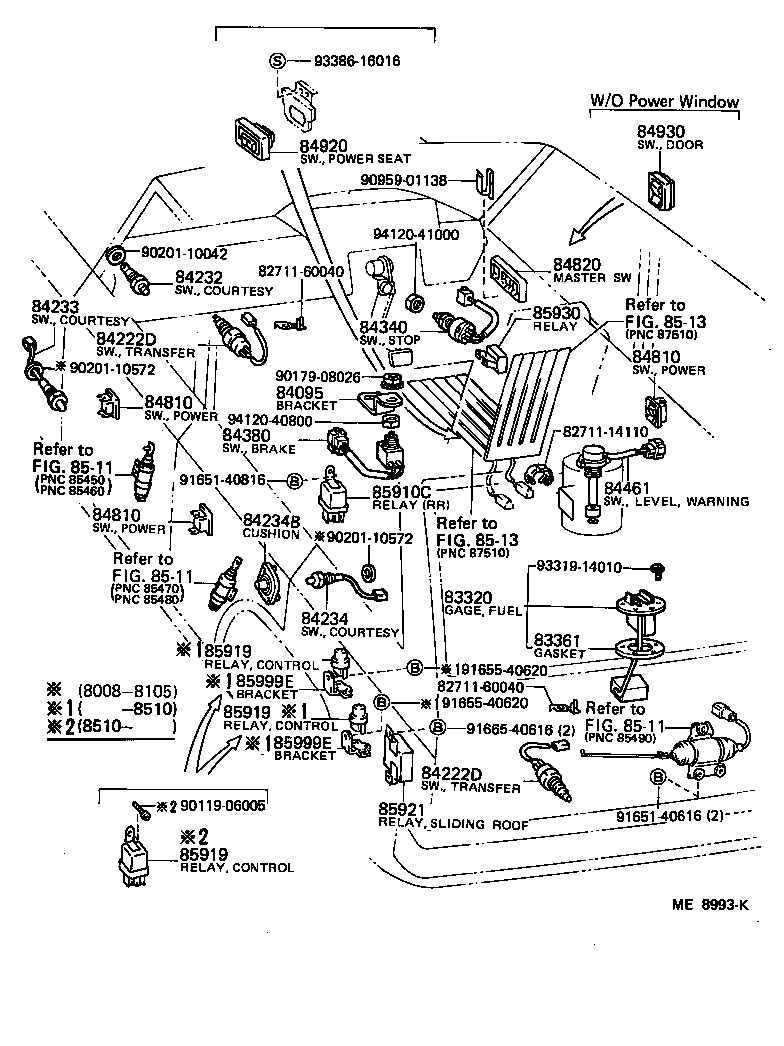

Switch & Relay & Computer
115 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28560A | Block, Heater |
| 28560B | Heater Assy, Oil |
| 28599 | Relay Assy, Solenoid |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81402 | Socket Sub-assy, Inspection Lamp, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82611 | Cover, Fuse Block |
| 82615 | Bracket, Fuse |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83381A | Switch, Pressure |
| 83389A | Bracket, Pressure Switch |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83481 | Sensor, Inner Ambient Temperature |
| 83482 | Sensor, Outer Ambient Temperature |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83570 | Gage Assy, Oil Temperature Sender |
| 83650 | Fusee |
| 83651 | Clamp, Fusee |
| 84001 | Switch Assy, Magnet |
| 84095 | Bracket Sub-assy, Hand Brake Signal Switch |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84110A | Bolt OR Nut, Light Control Switch Set |
| 84111 | Knob, Light Control Switch |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150 | Switch Assy, Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84210T | Sensor Assy, Shift Point |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84232 | Switch Assy, Courtesy Lamp (FOR GLOVE BOX) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330A | Bolt OR Nut, Hazard Warning Signal Switch Set |
| 84331 | Knob, Hazard Warning Signal Switch |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84510 | Switch Assy, Starter |
| 84540 | Switch Assy, Neutral Start |
| 84650 | Switch Assy, Windshield Wiper |
| 84650A | Bolt OR Nut, Windshield Wiper Switch Set |
| 84651 | Knob, Windshield Wiper Switch |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84722F | Switch, Transmission Control |
| 84722H | Bulb, Transmission Control Switch |
| 84730 | Switch Assy, Heater Blower |
| 84732A | Switch, Rear Heater Blower |
| 84751 | Switch, Seat Heater |
| 84760 | Switch Assy, Antenna |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84792 | Socket Sub-assy, Rear Window Defogger Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84930 | Switch Assy, Door Control |
| 84999 | Switch Assy, Governor Control |
| 84999A | Knob, Governor Control Switch |
| 84999B | Bulb, Governor Control Switch |
| 85430 | Valve, Outer Vent Control |
| 85430B | Bracket, Outer Vent Control Valve |
| 85440 | Solenoid Assy, Front Drive |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500E | Plate, Voltage Caution |
| 85540 | Resistance Assy, Cigarette Lighter |
| 85550 | Resistor Assy, Pilot Lamp |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85917 | Relay, Front Drive |
| 85919 | Relay, Solenoid Lock Door Control |
| 85921 | Relay, Sliding Roof Control |
| 85924 | Relay, Ignition Control |
| 85930 | Relay Assy, Power Window |
| 85931B | Relay, Fuel Heater |
| 85940 | Relay Assy, Windshield Wiper |
| 85948 | Relay, Windshield Wiper |
| 85959A | Holder, Relay |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 85999E | Bracket, Relay, NO.5 |
| 86651 | Buzzer Assy, Back |
| 87511 | Plate, Seat Heater Caution |
| 89310 | Relay Assy, Turn Signal Cancelling |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89530C | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
