Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

53 part groups · 11 illustrations

Illustrations

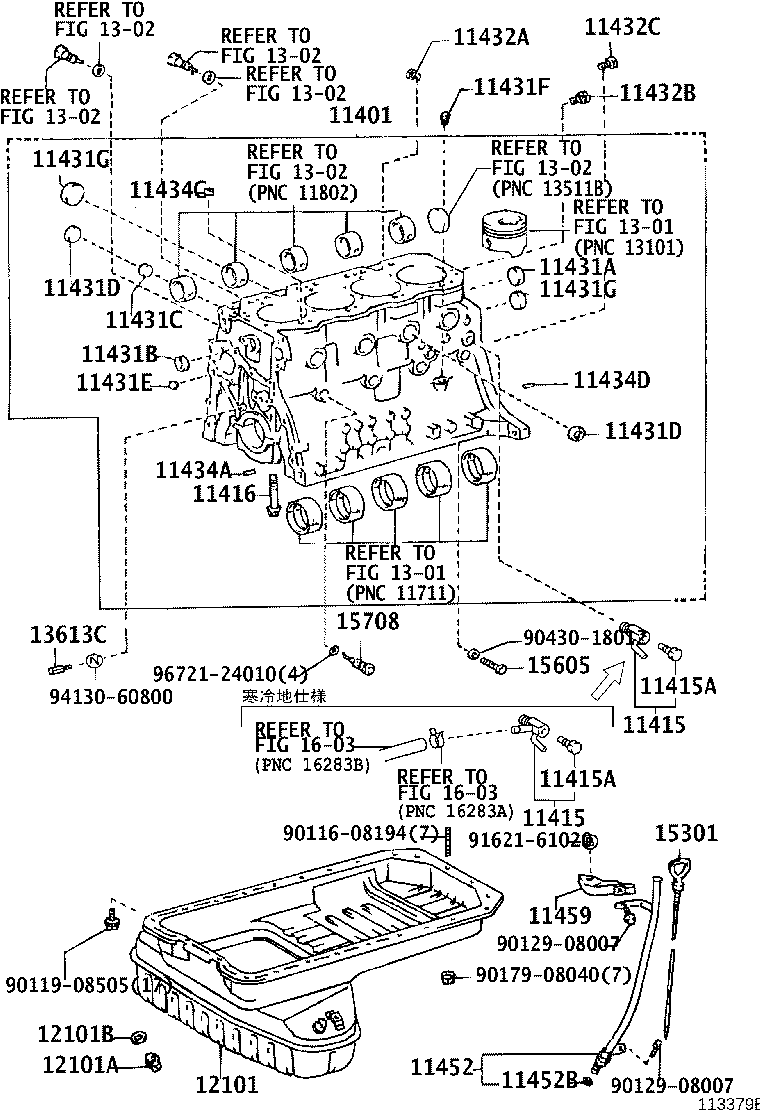

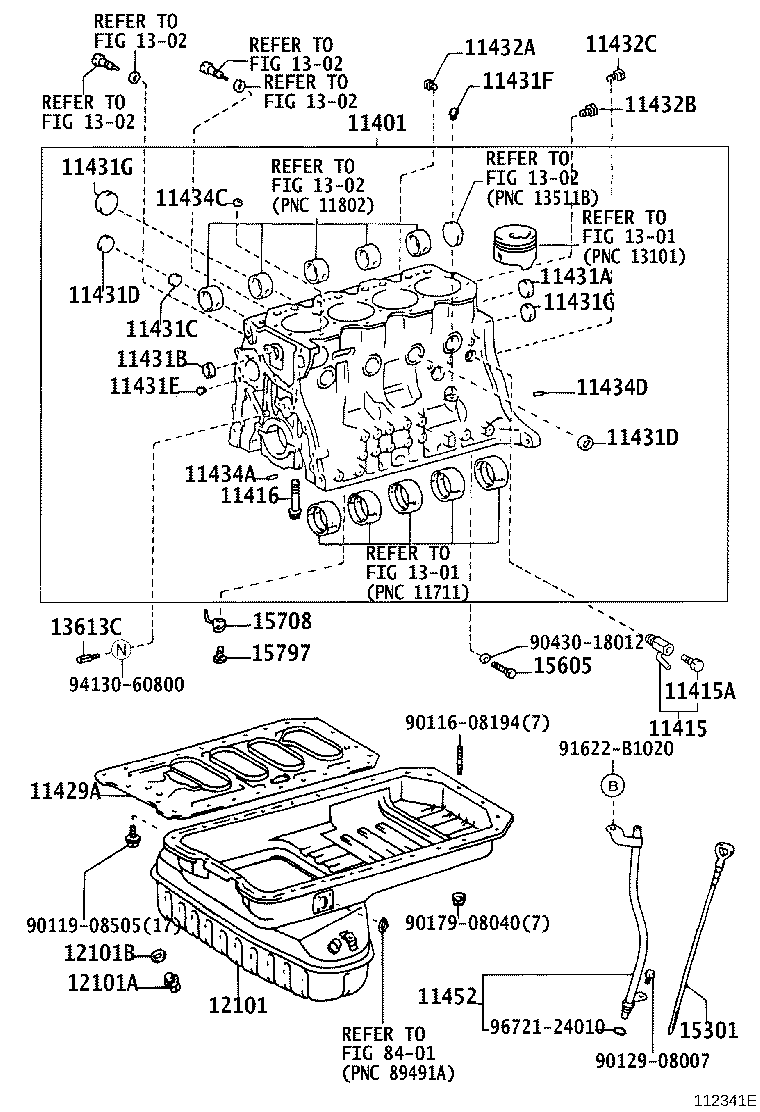

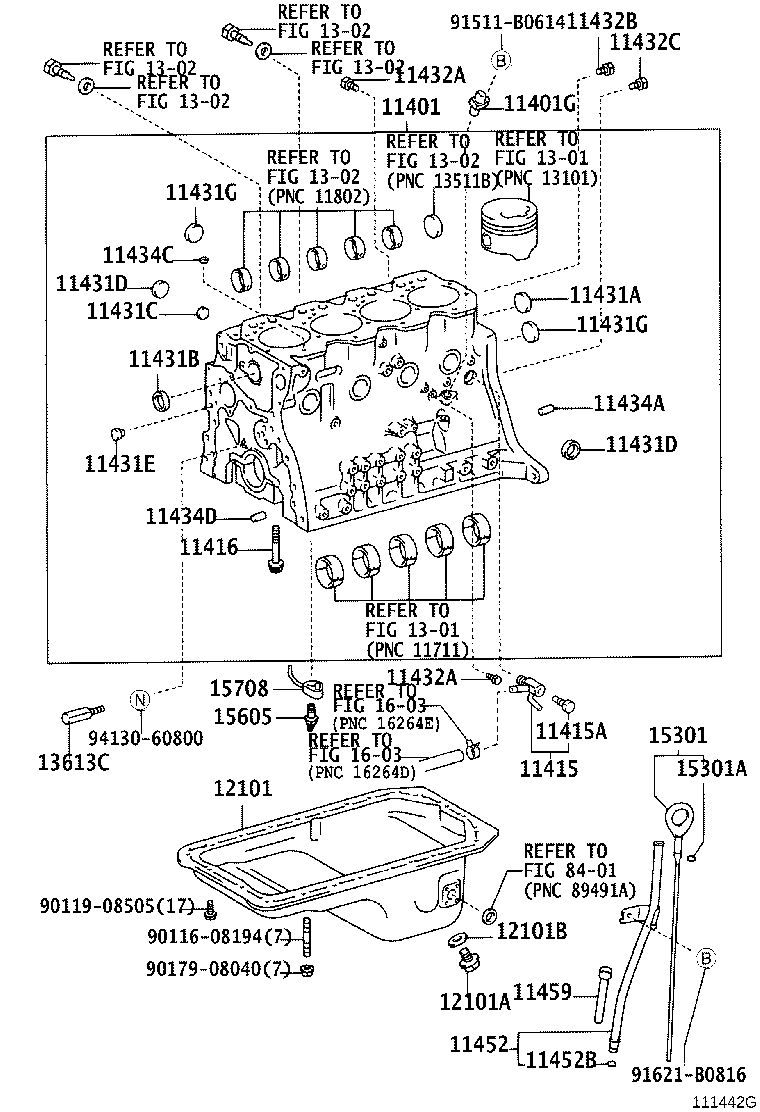

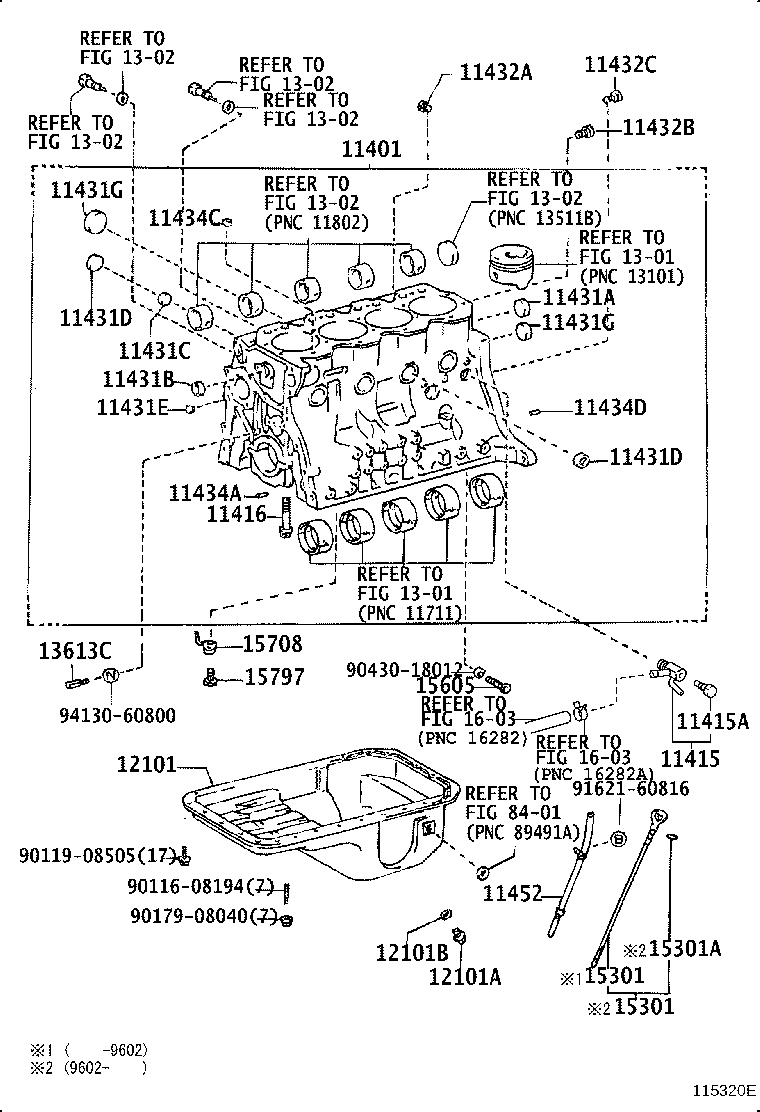

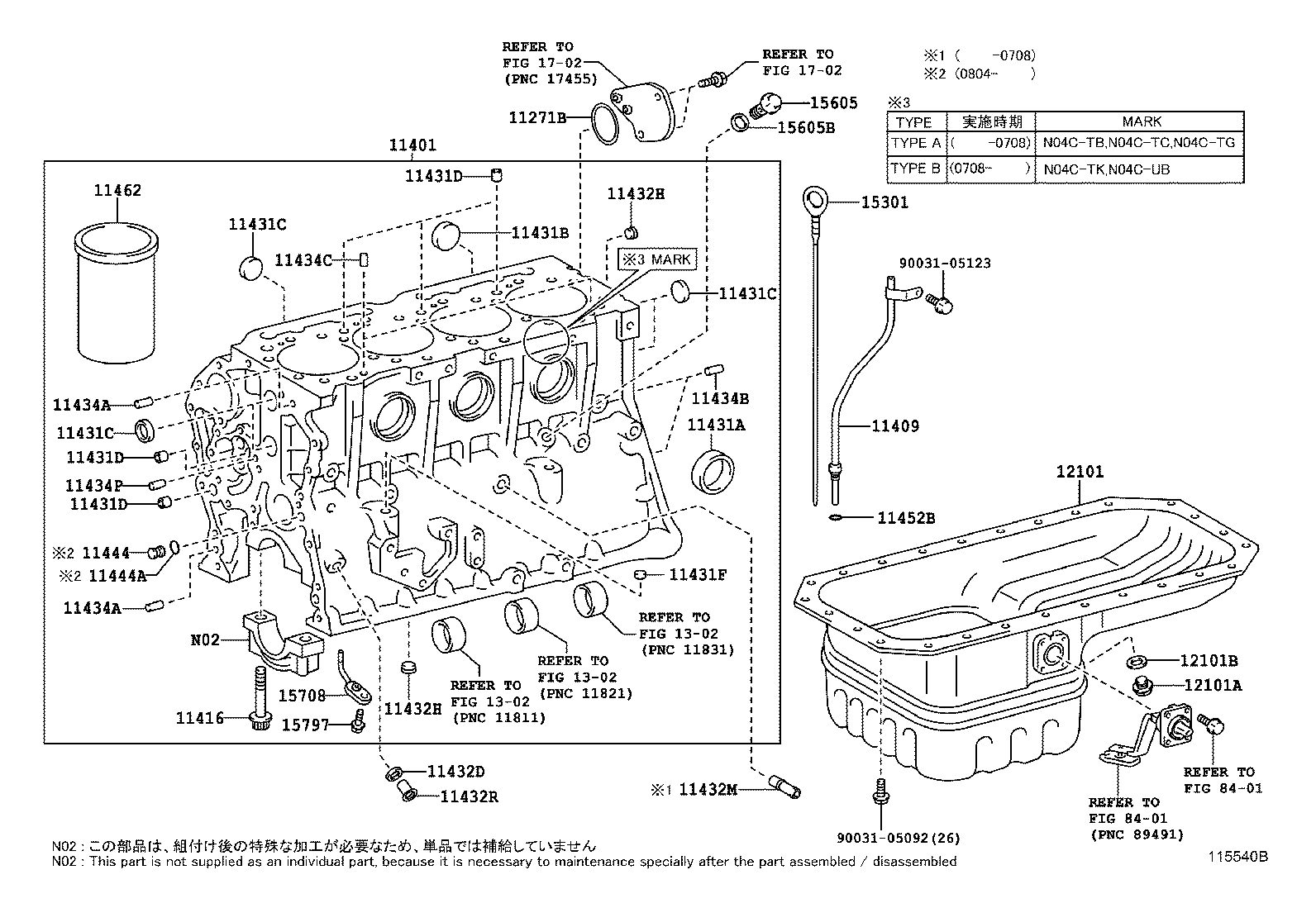

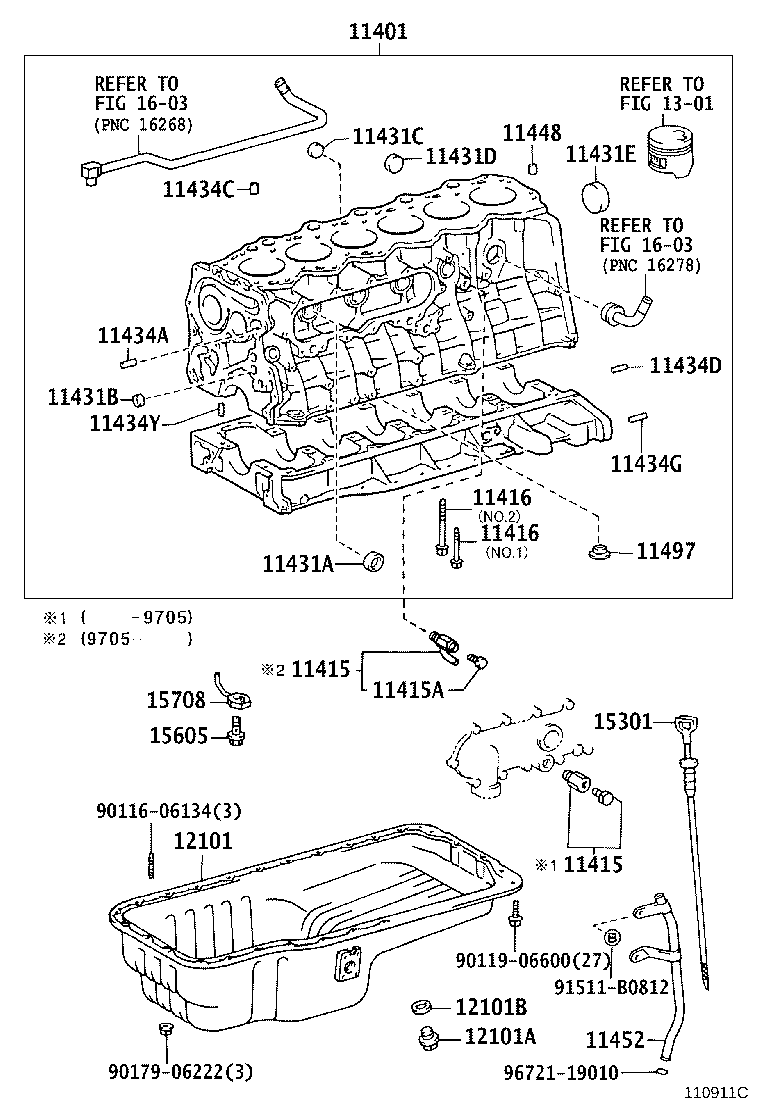

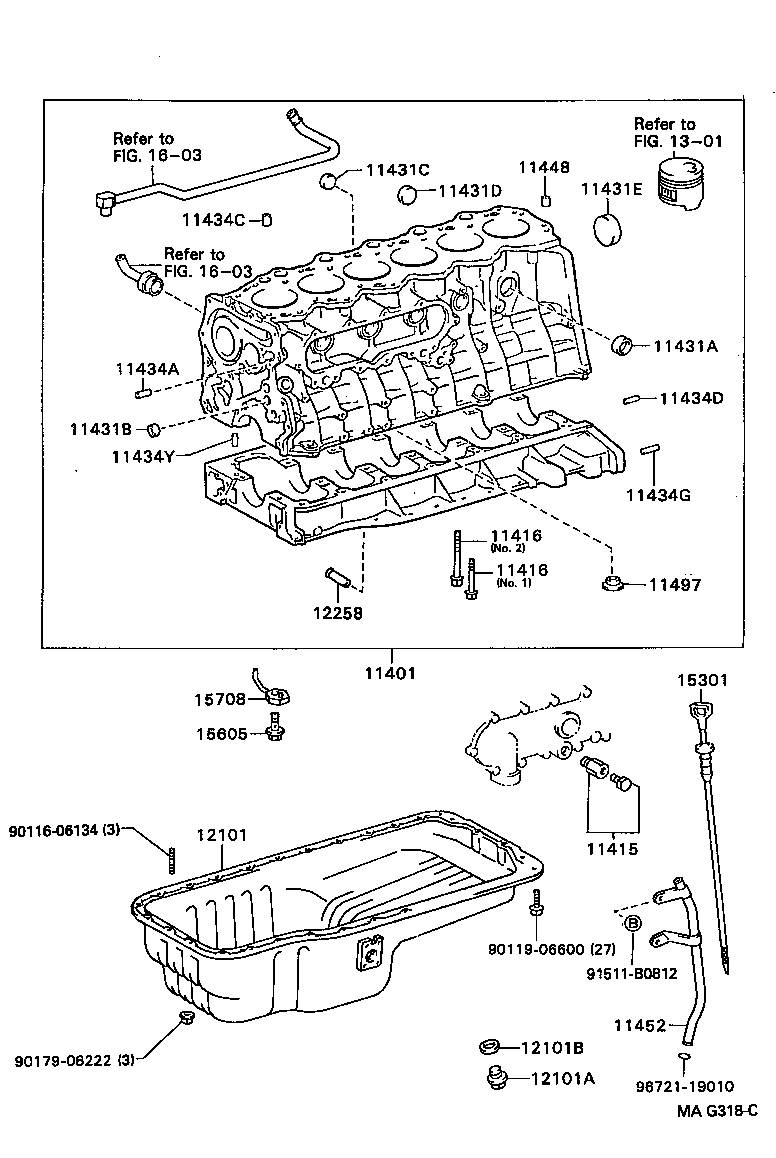

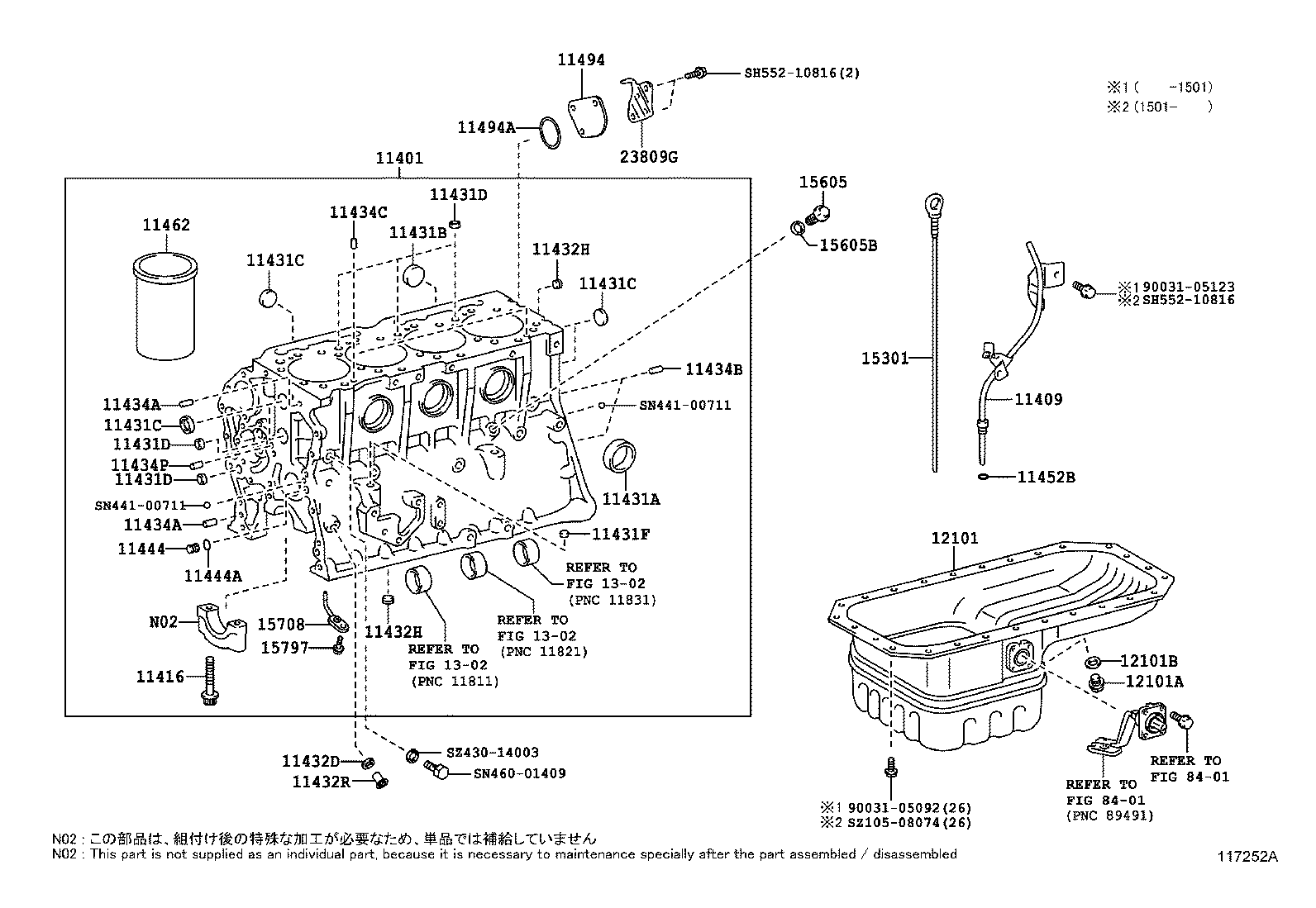

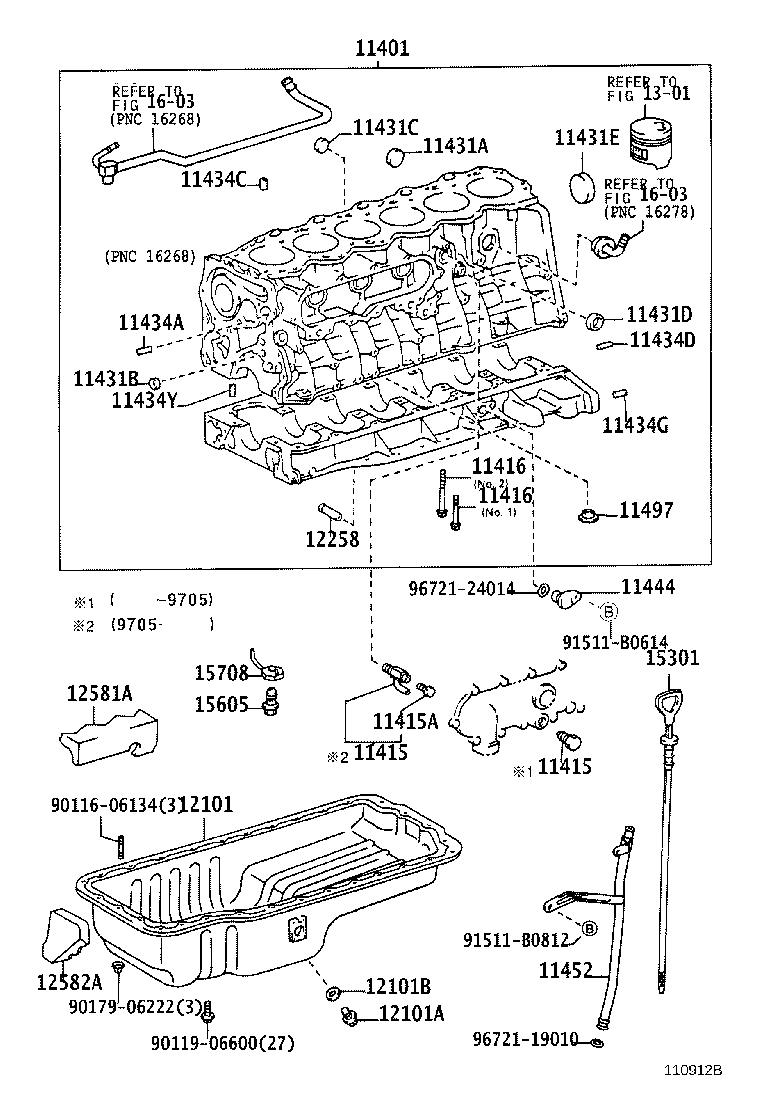

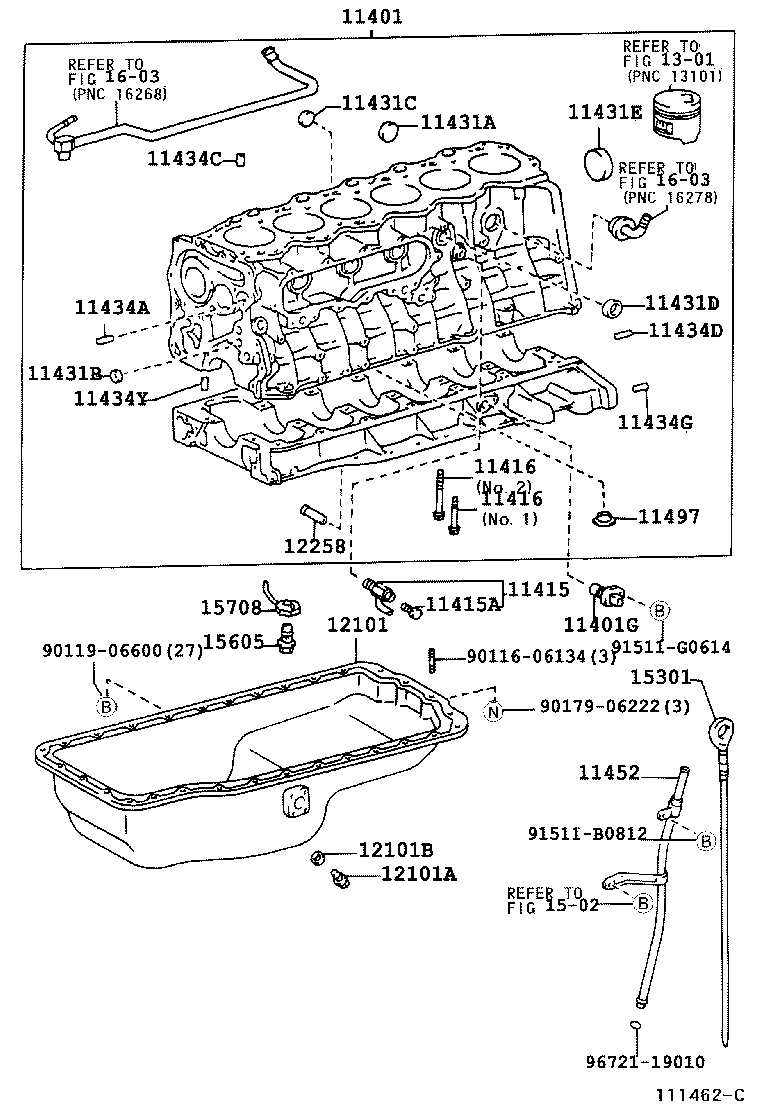

Figure 11C519 11C519 1993-01 → 1995-05 Figure 113379E 113379E 1995-05 → 1999-07 Figure 115320F 115320F 1995-12 → 1999-07 Figure 111442G 111442G 1999-07 → 2004-08 Figure 112341E 112341E 2002-03 → — Figure 110911C 110911C 1993-01 → 2004-08 Figure 110912B 110912B 1995-05 → 1999-07 Figure MAG318C MAG318C 1993-01 → 1995-05 Figure 111462C 111462C 1999-07 → 2004-08 Figure 115540B 115540B 2004-08 → 2011-08 Figure 117252A 117252A 2011-08 → —

Part groups

PNCDescription
11271B Ring, O(FOR CYLINDER BLOCK REAR PLATE)
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11409 Guide Sub-assy, Oil Level Gage
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11429A Plate, Cylinder Block Stiffening
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11431G Plug, Tight
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432D Gasket, W/Head Taper Screw Plug
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434P Pin, Straight(FOR OIL PUMP SET)
11434Y Pin, Straight(FOR OIL PAN)
11444 Plug, Hole
11444A Ring, O
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11462 Liner, Cylinder
11494 Plate, Oil Hole Cover
11494A Ring, O(FOR OIL HOLE COVER)
11497 Gasket, Cylinder Block Oil Hole
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12258 Pipe, Oil Return
12581A Insulator, Cylinder Block, NO.1
12582A Insulator, Cylinder Block, NO.2
13613C Nozzle, Oil
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15605 Valve Sub-assy, Oil Check
15605B Gasket(FOR OIL CHECK VALVE)
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
23809G Support Sub-assy, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
