Rear Spring & Shock Absorber

81 part groups · 9 illustrations

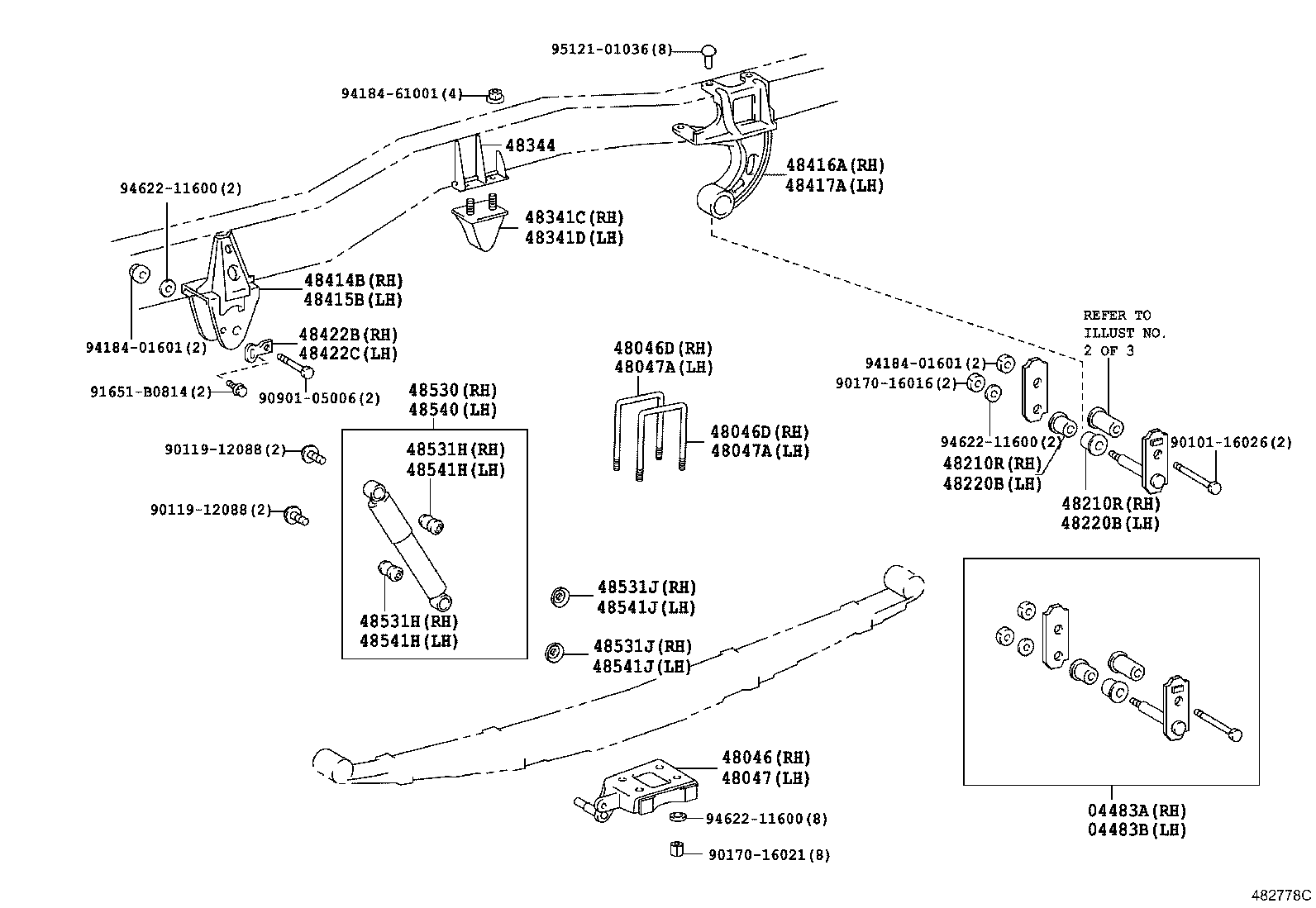

Illustrations

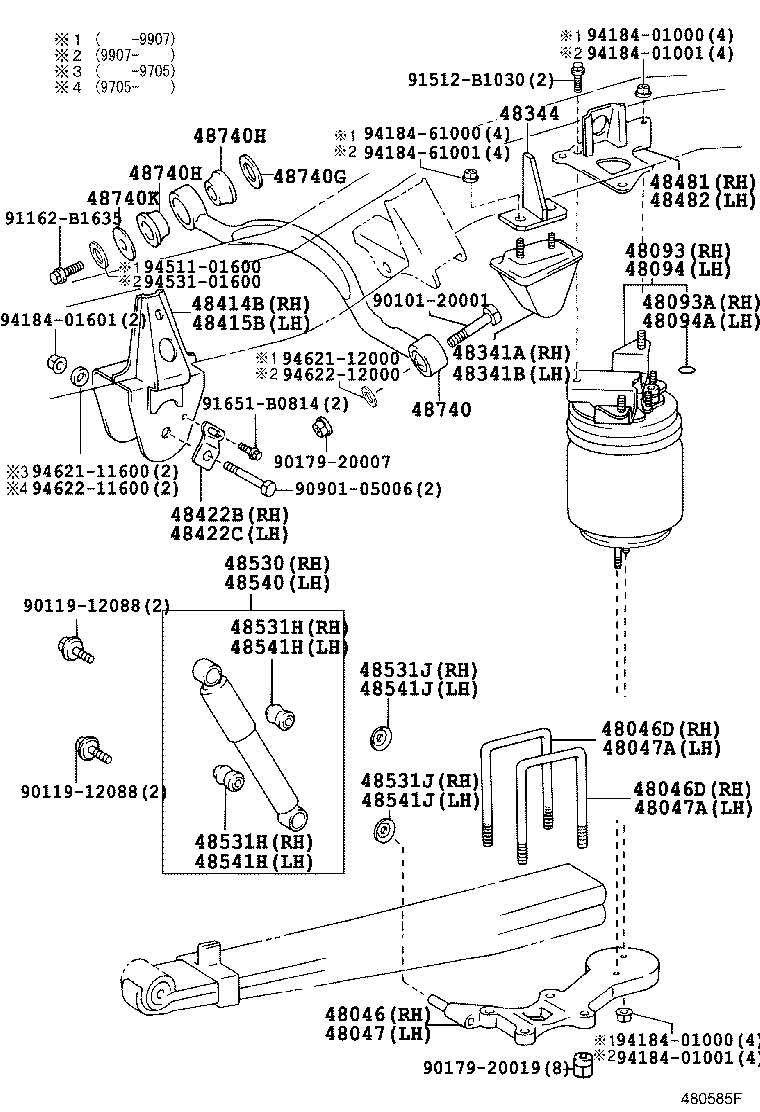

480949O 1993-01 → 2004-08

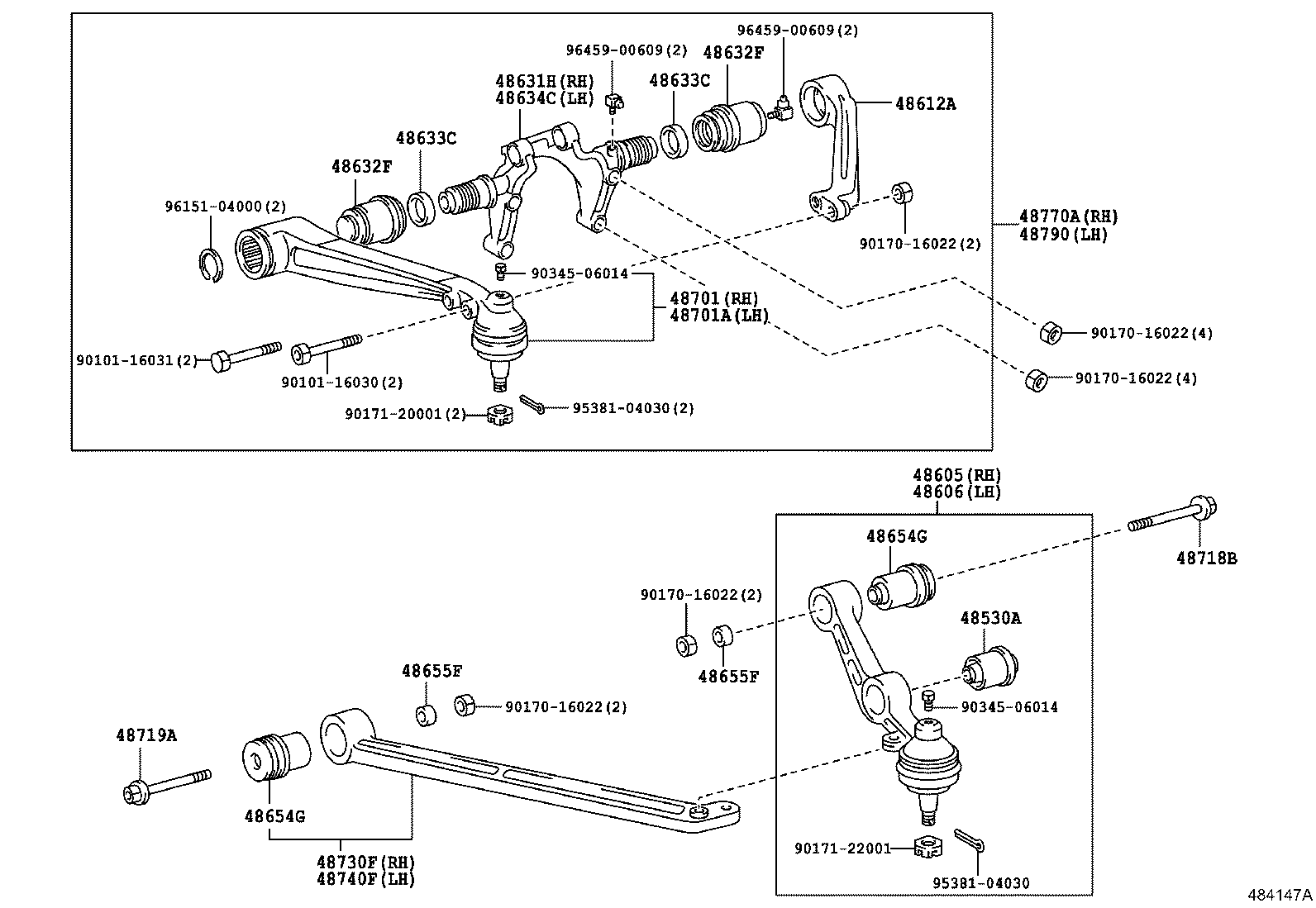

484147A 1995-12 → 1997-05

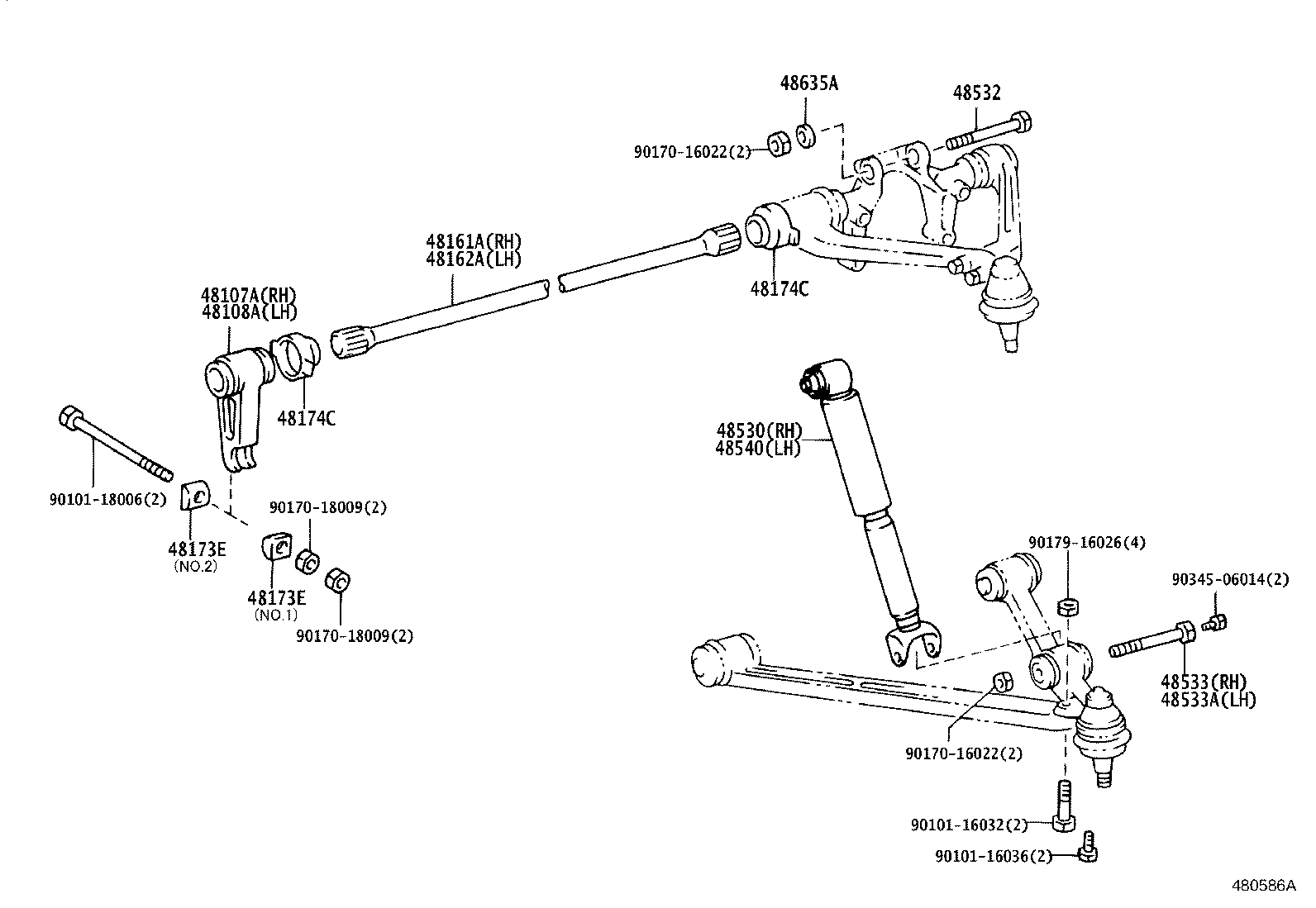

480586A 1995-12 → 1997-05

MCW159 1996-10 → 2004-08

481272C 1993-01 → —

Part groups

PNC	Description
04483A	Shackle Kit, Rear Spring, RH
04483B	Shackle Kit, Rear Spring, LH
48046	Seat Sub-assy, Spring U Bolt, RH
48046D	Bolt, U(FOR REAR SPRING RH)
48047	Seat Sub-assy, Spring U Bolt, LH
48047A	Bolt, U(FOR REAR SPRING LH)
48093	Sleeve Sub-assy, Rear Suspension, RH
48093A	Ring, O(FOR REAR SUSPENSION SLEEVE RH)
48094	Sleeve Sub-assy, Rear Suspension, LH
48094A	Ring, O(FOR REAR SUSPENSION SLEEVE LH)
48107A	Arm Sub-assy, Anchor, RH
48108A	Arm Sub-assy, Anchor, LH
48161A	Spring, Rear Torsion Bar, RH
48162A	Spring, Rear Torsion Bar, LH
48173E	Seat, Anchor Arm Adjuster
48174C	Cover, Rear Tortion Bar Dust
48210	Spring Assy, Rear RH
48210C	Bush(FOR REAR SPRING LEAF)
48210R	Bush(FOR REAR SPRING SHACKLE LOWER RH)
48211	Leaf, Rear Spring, NO.1
48212	Leaf, Rear Spring, NO.2
48220	Spring Assy, Rear LH
48220B	Bush(FOR REAR SPRING SHACKLE LOWER LH)
48247	Bolt, Rear Spring, Center
48252	Silencer, Rear Spring
48253	Spacer, Rear Spring, NO.1
48255	Spacer, Rear Spring Leaf
48256	Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48284	Nut, Rear Spring Center Bolt
48284A	Nut, Rear Spring Clip
48341A	Bumper, Rear Spring, NO.1 RH
48341B	Bumper, Rear Spring, NO.1 LH
48341C	Bumper, Rear Spring, NO.2 RH
48341D	Bumper, Rear Spring, NO.2 LH
48344	Stopper, Bumper, Rear
48375	Damper, Leaf Spring Dynamic
48414B	Bracket, Spring, NO.3 RH
48415B	Bracket, Spring, NO.3 LH
48416A	Bracket, Spring, NO.4 RH
48417A	Bracket, Spring, NO.4 LH
48422B	Support, Rear Spring Pin, RH
48422C	Support, Rear Spring Pin, LH
48481	Seat, Rear Spring, Upper
48482	Seat, Rear Spring, Upper LH
48530	Absorber Assy, Shock, Rear RH
48530A	Bush(FOR REAR SHOCK ABSORBER)
48531H	Bush(FOR REAR SHOCK ABSORBER RH)
48531J	Washer, Rear Shock Absorber Cushion, NO.1 RH
48532	Pin, Rear Shock Absorber Pivot
48533	Pin, Rear Shock Absorber Lower Pivot, RH
48533A	Pin, Rear Shock Absorber Lower Pivot, LH
48540	Absorber Assy, Shock, Rear LH
48541H	Bush(FOR REAR SHOCK ABSORBER LH)
48541J	Washer, Rear Shock Absorber Cushion, NO.1 LH
48605	Arm Sub-assy, Suspension Lower, NO.1 RH
48606	Arm Sub-assy, Suspension Lower, NO.1 LH
48612A	Arm, Rear Upper Control, NO.2
48631H	Shaft, Rear Upper Arm, NO.2 RH
48632F	Bush, Rear Suspension Upper Arm
48633C	Seal, Rear Suspension Upper Arm Pivot Dust
48634C	Shaft, Rear Suspension Upper Arm
48635A	Bush, Upper Arm, Rear
48654G	Bush, Lower Arm
48655F	Bush, Lwr Arm, NO.2
48701	Arm Sub-assy, Upper Control, RH
48701A	Arm Sub-assy, Upper Control, LH
48718B	Shaft, Rear Suspension Lower Arm, NO.1
48719A	Shaft, Rear Suspension Lower Arm, NO.2
48730F	Arm Assy, Rear Suspension, NO.2 RH
48740	Rod Assy, Rear Lateral Control
48740F	Arm Assy, Rear Suspension, NO.2 LH
48740G	Washer, Plate, NO.1(FOR REAR LATERAL CONTROL ROD)
48740H	Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48740K	Washer, Plate, NO.2(FOR REAR LATERAL CONTROL ROD)
48770A	Arm Assy, Upper Control, Rear RH
48790	Arm Assy, Upper Control, Rear LH
48812	Bar, Stabilizer, Rear
48815R	Bush, Stabilizer(FOR REAR)
48823C	Cover, Rear Stabilizer Bracket
48830D	Link Assy, Rear Stabilizer, RH
48840A	Link Assy, Rear Stabilizer, LH
