Toyota Coaster

1993-01 → 2016-12 · chassis BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# · catalogue 811130 · Japan

Discontinued model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

62 part groups · 25 illustrations

Illustrations

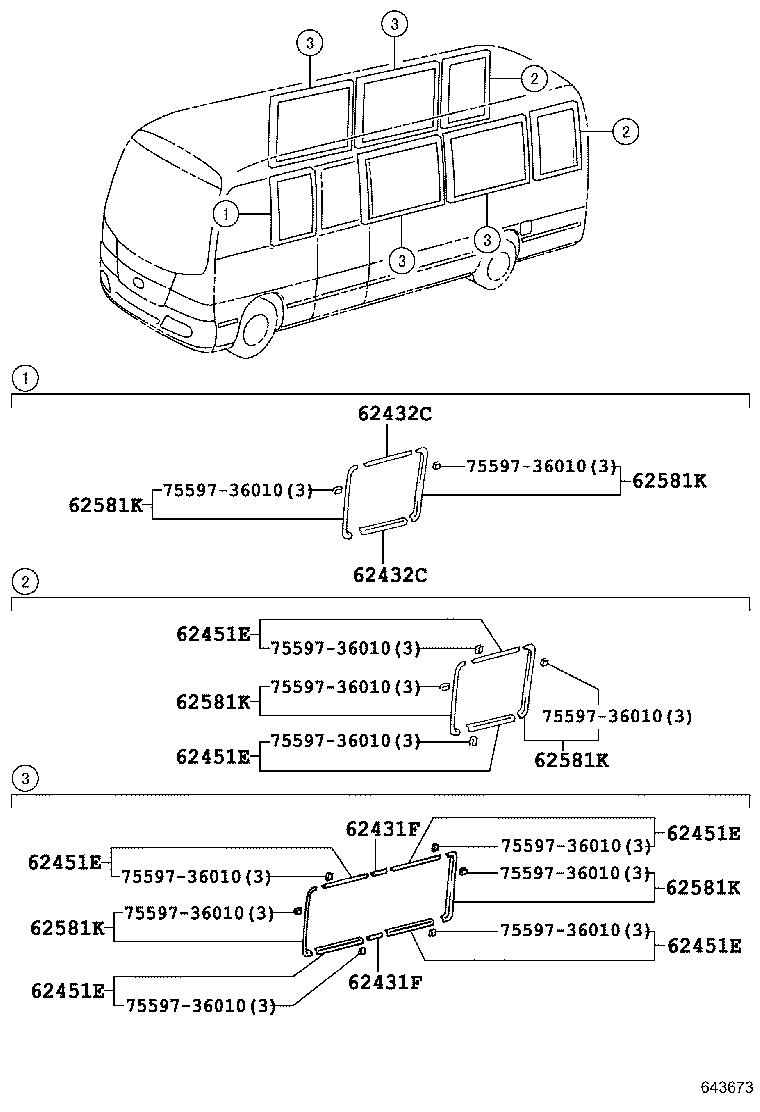

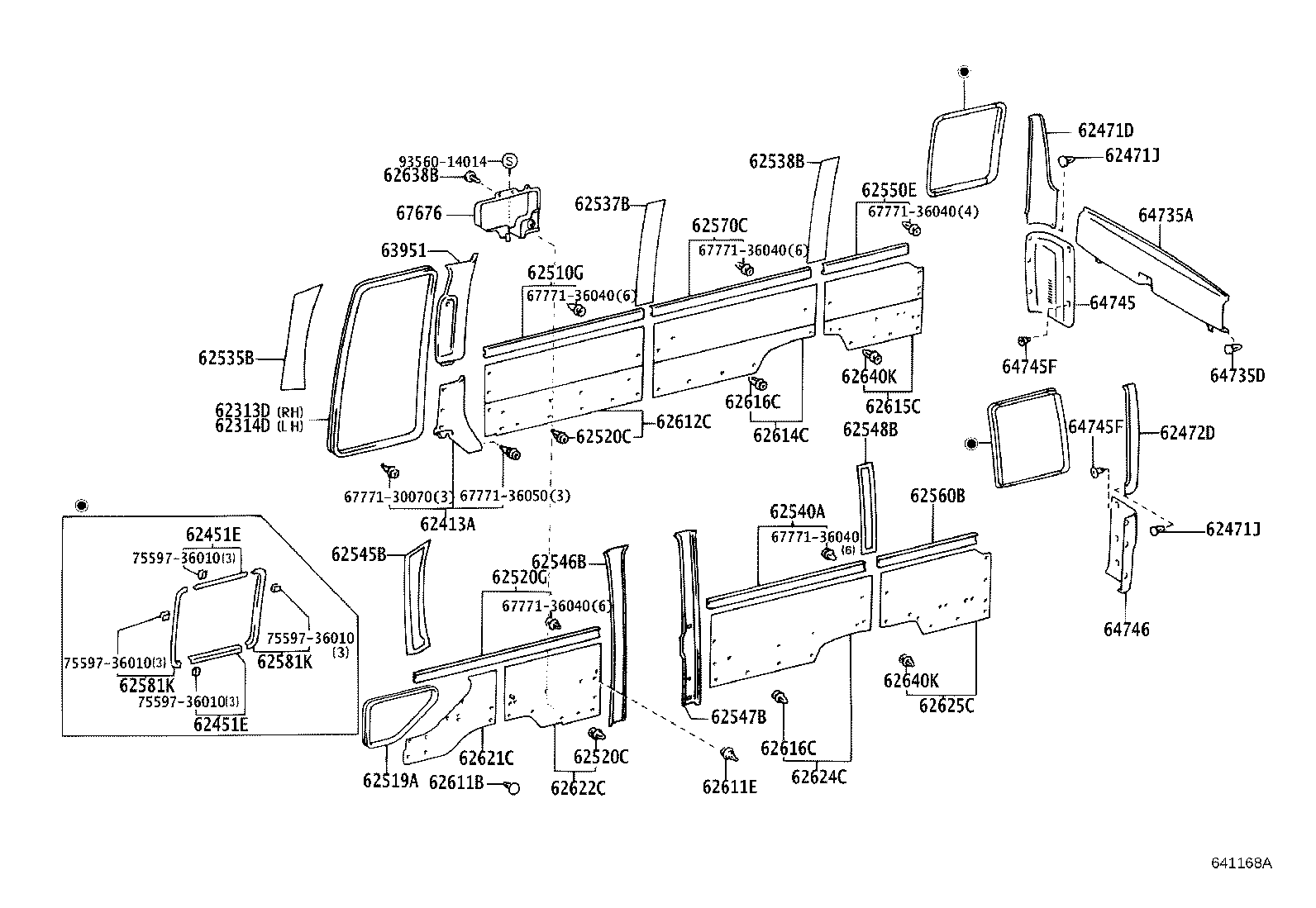

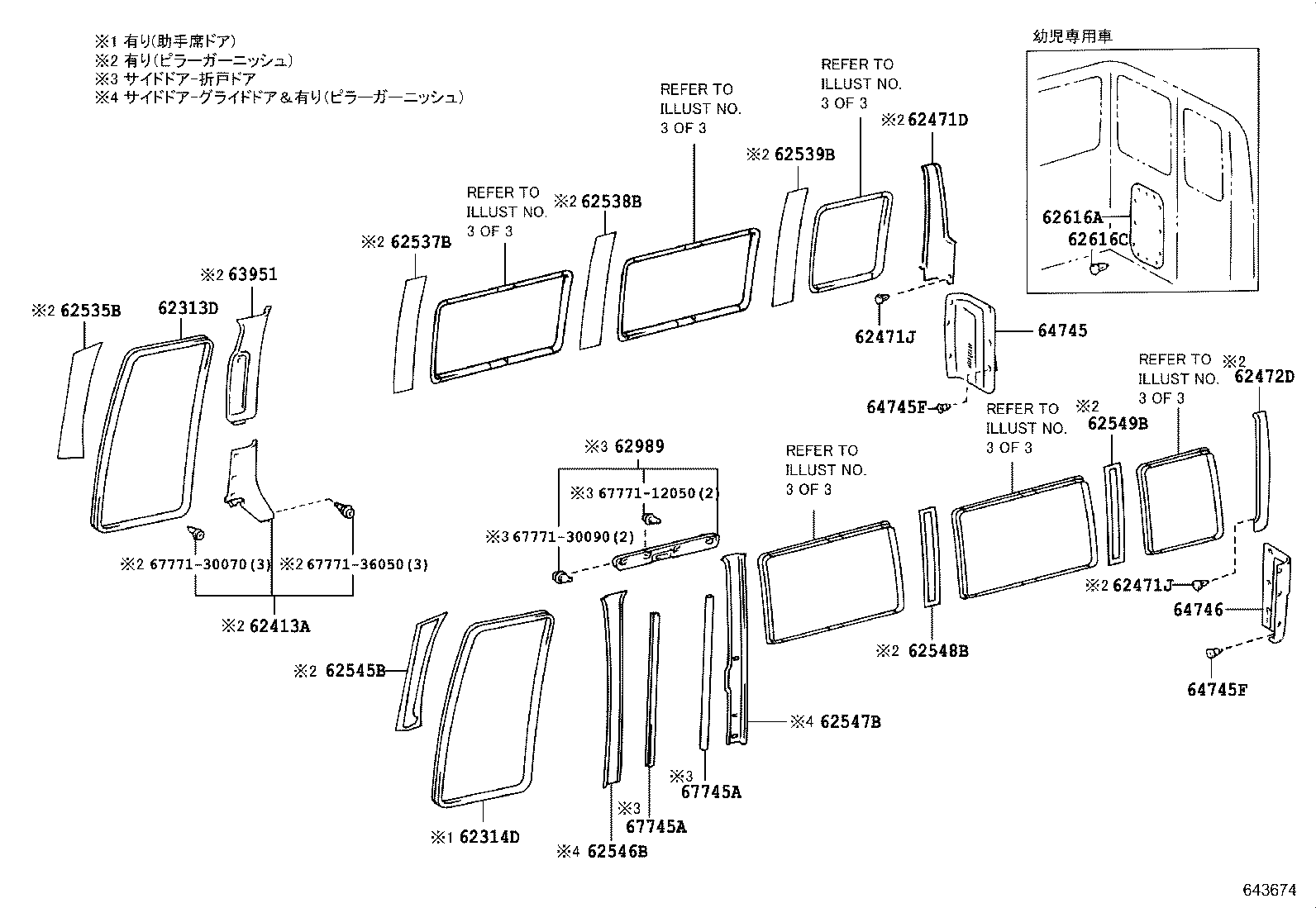

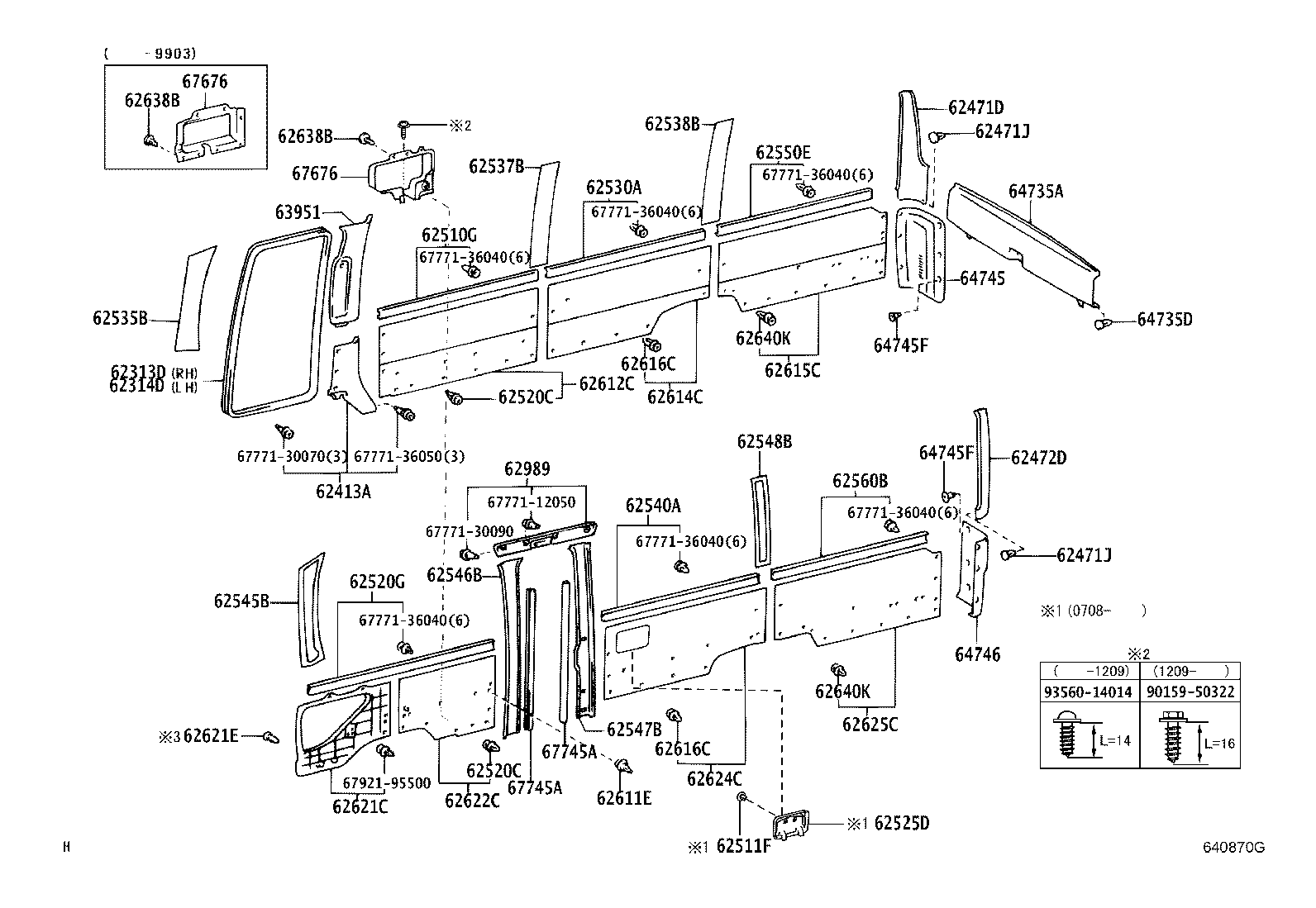

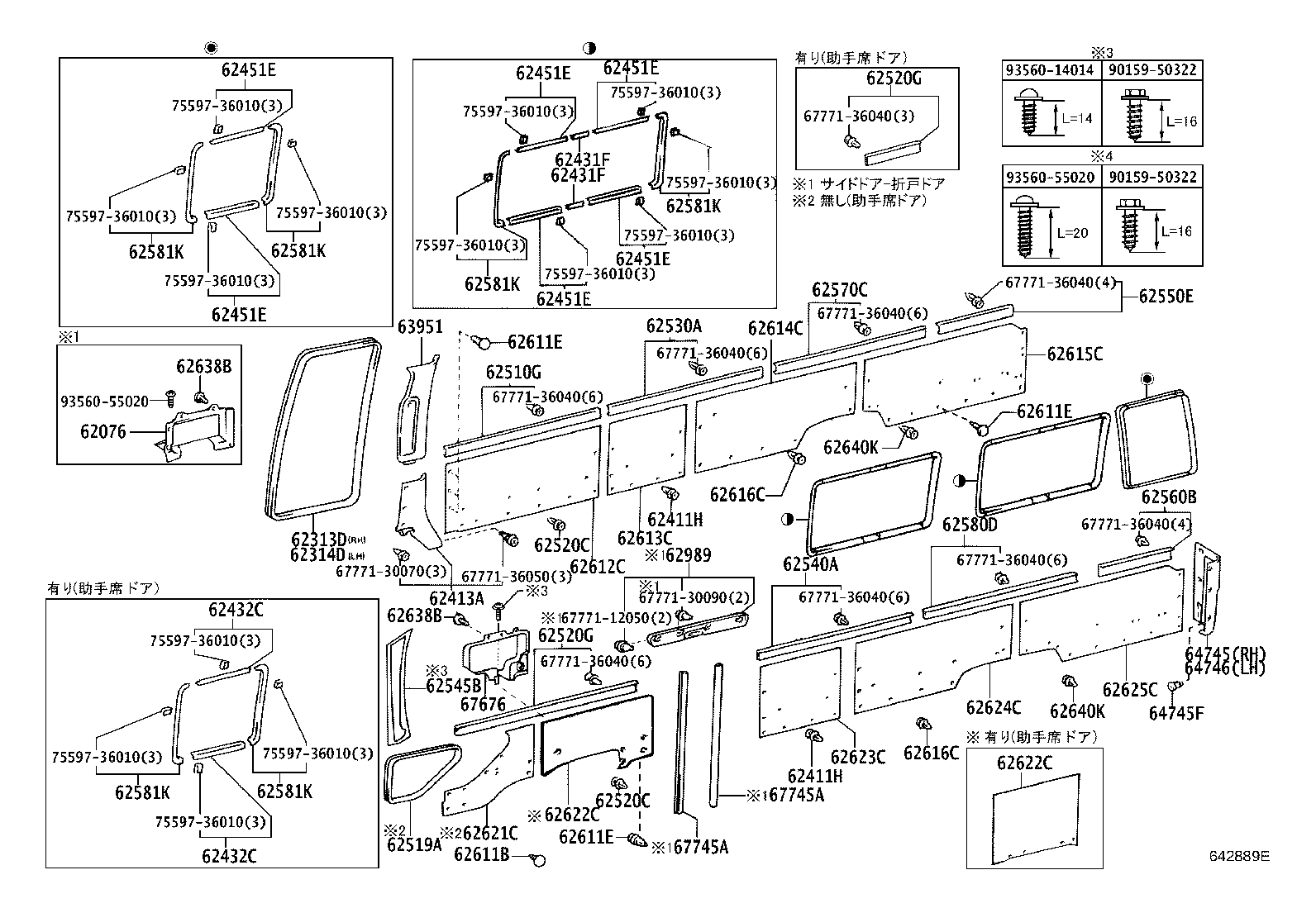

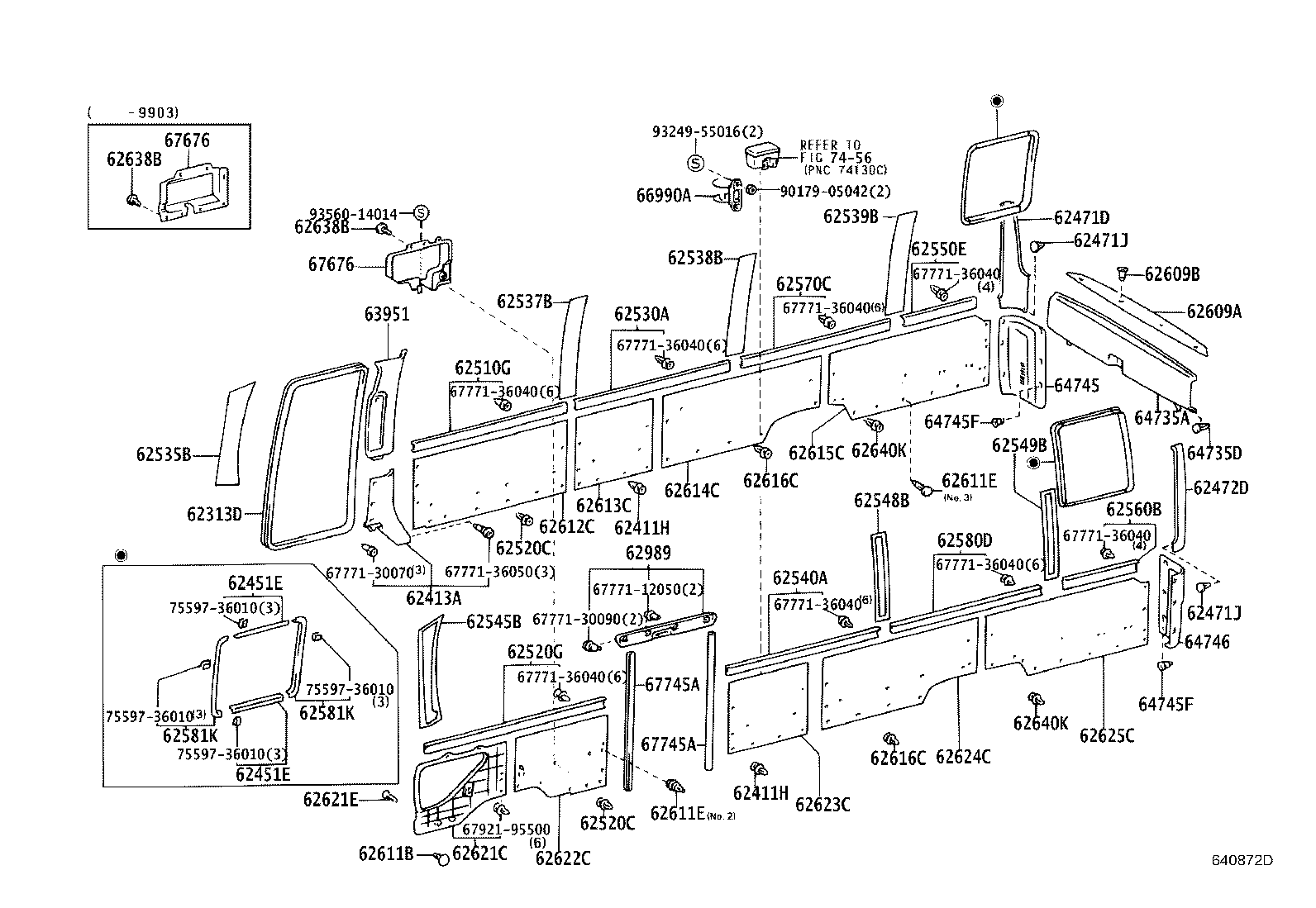

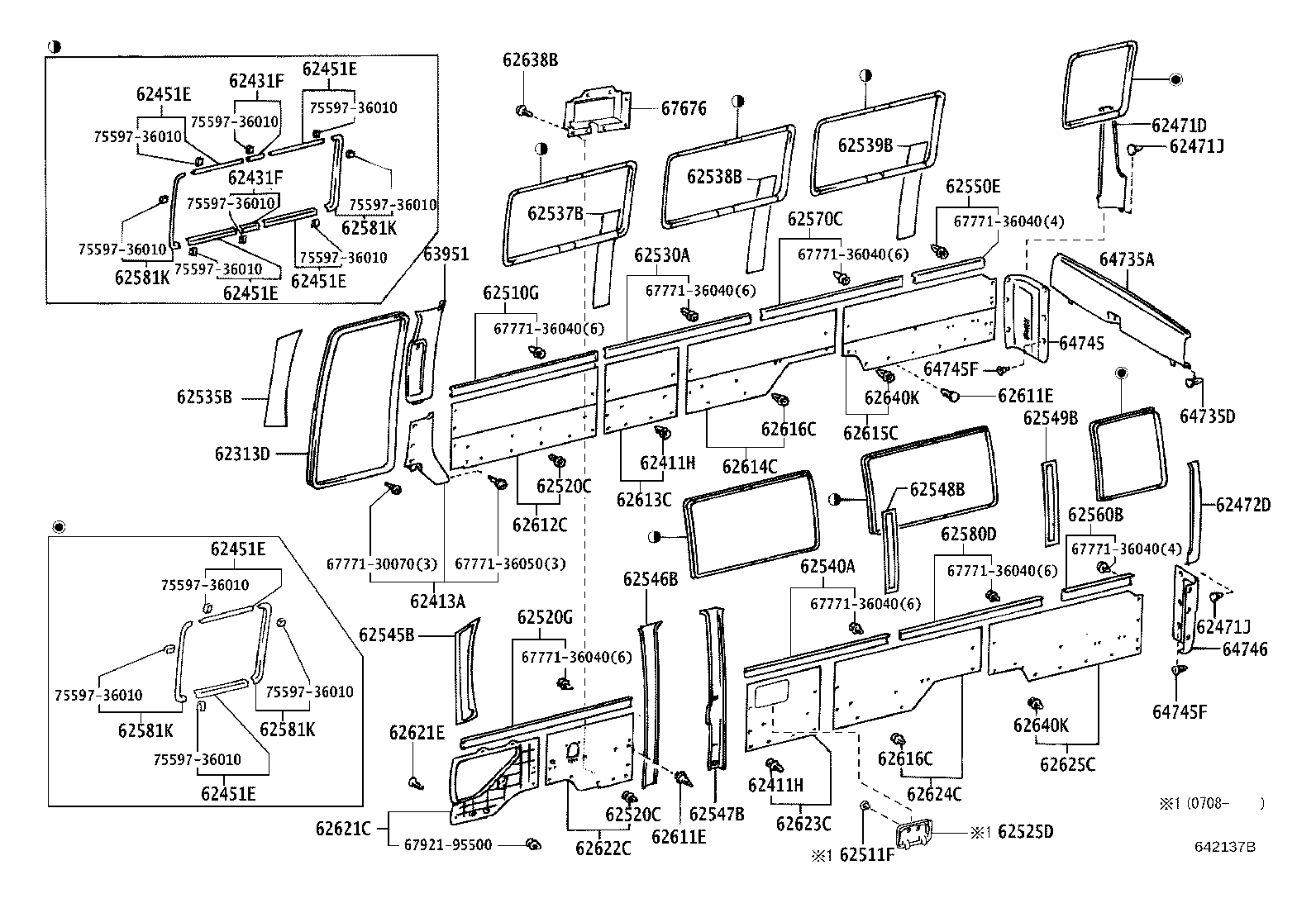

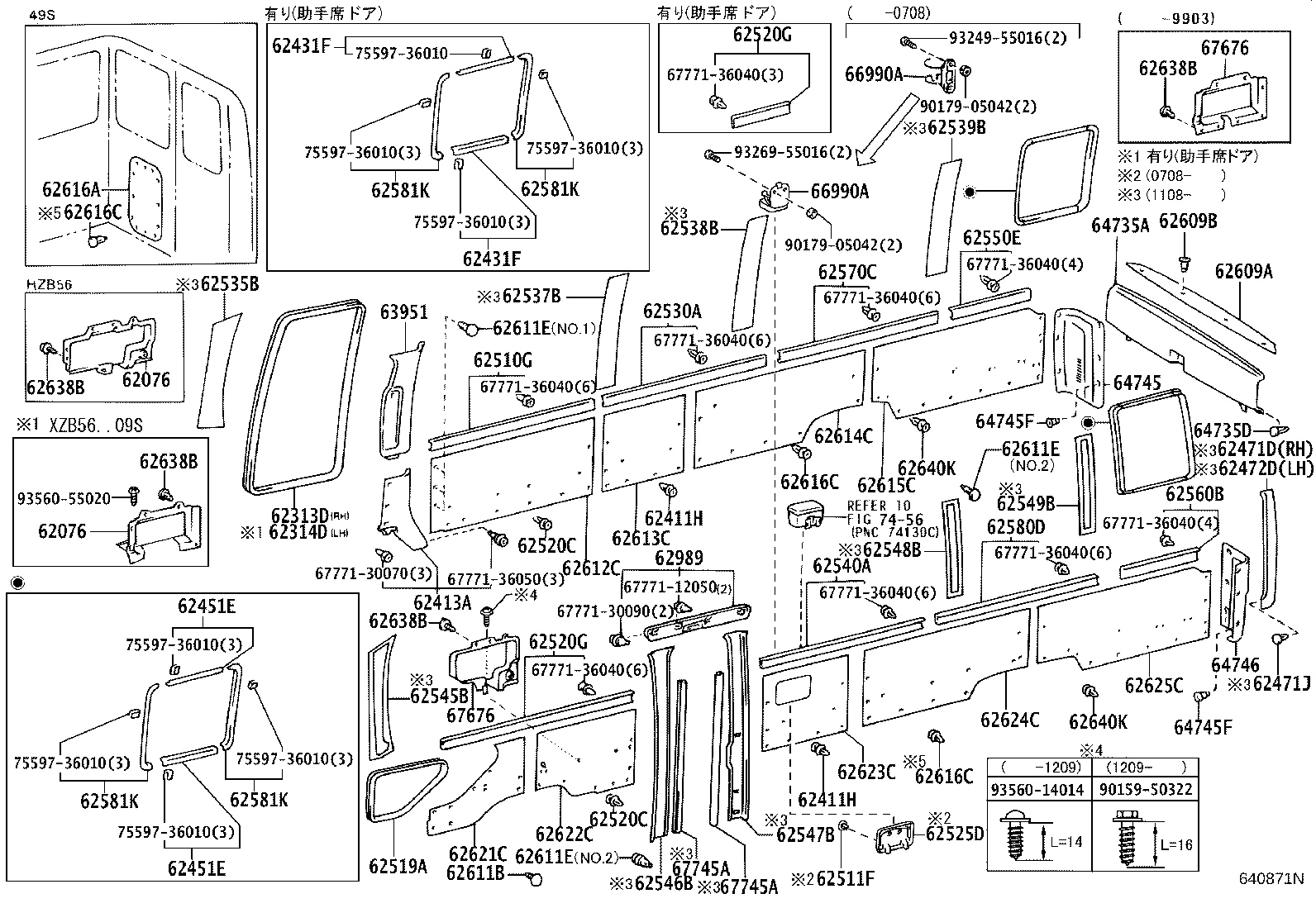

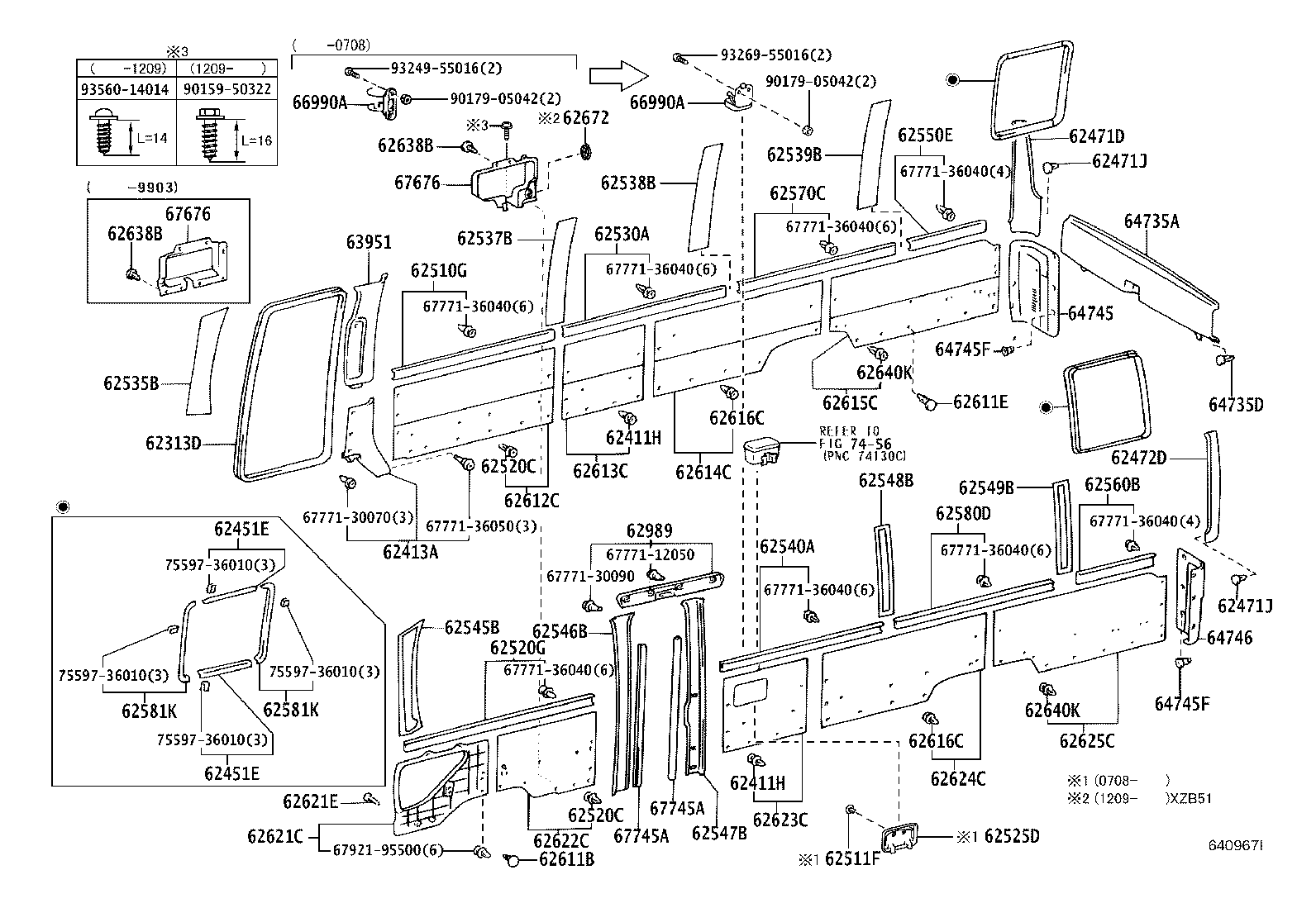

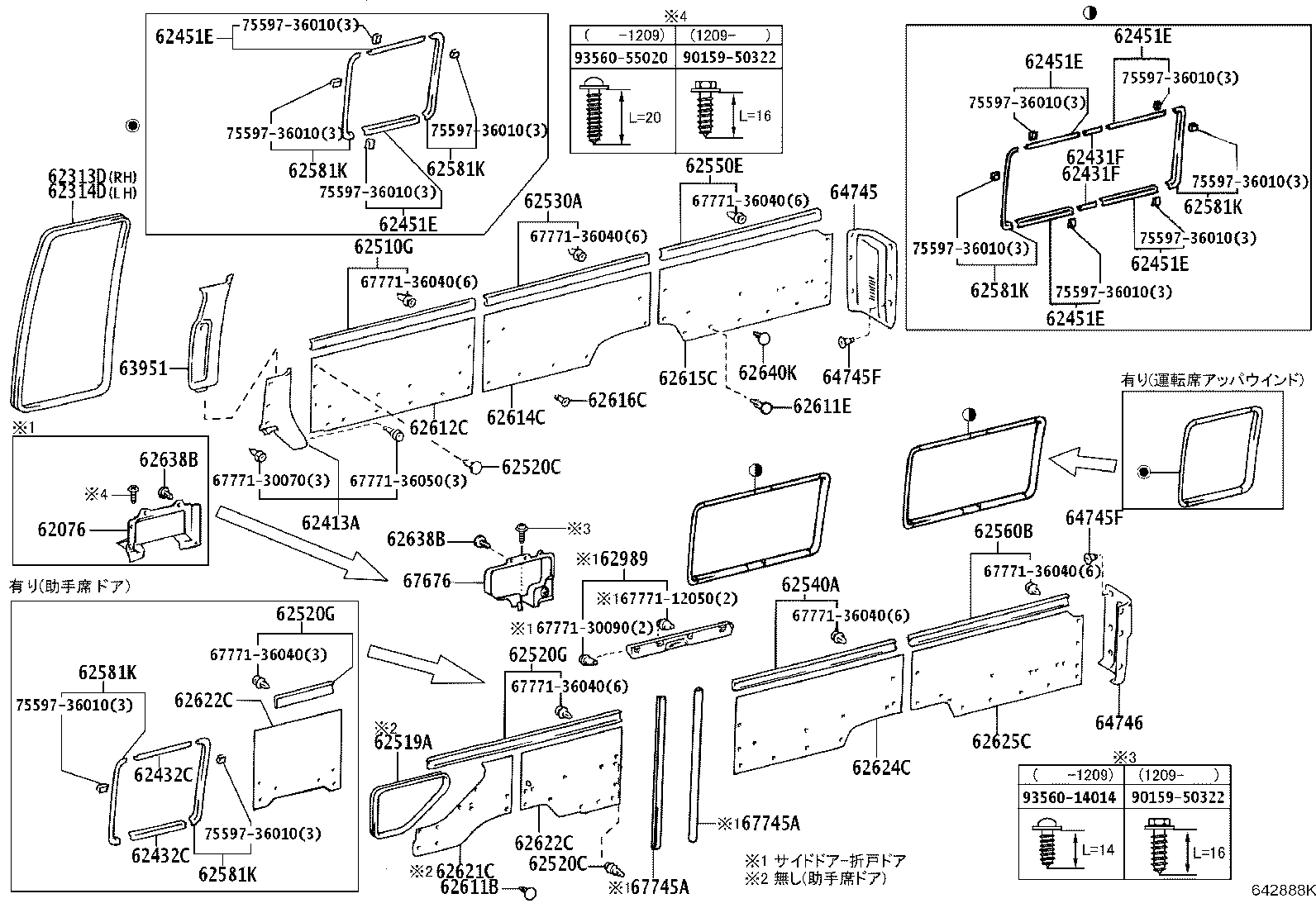

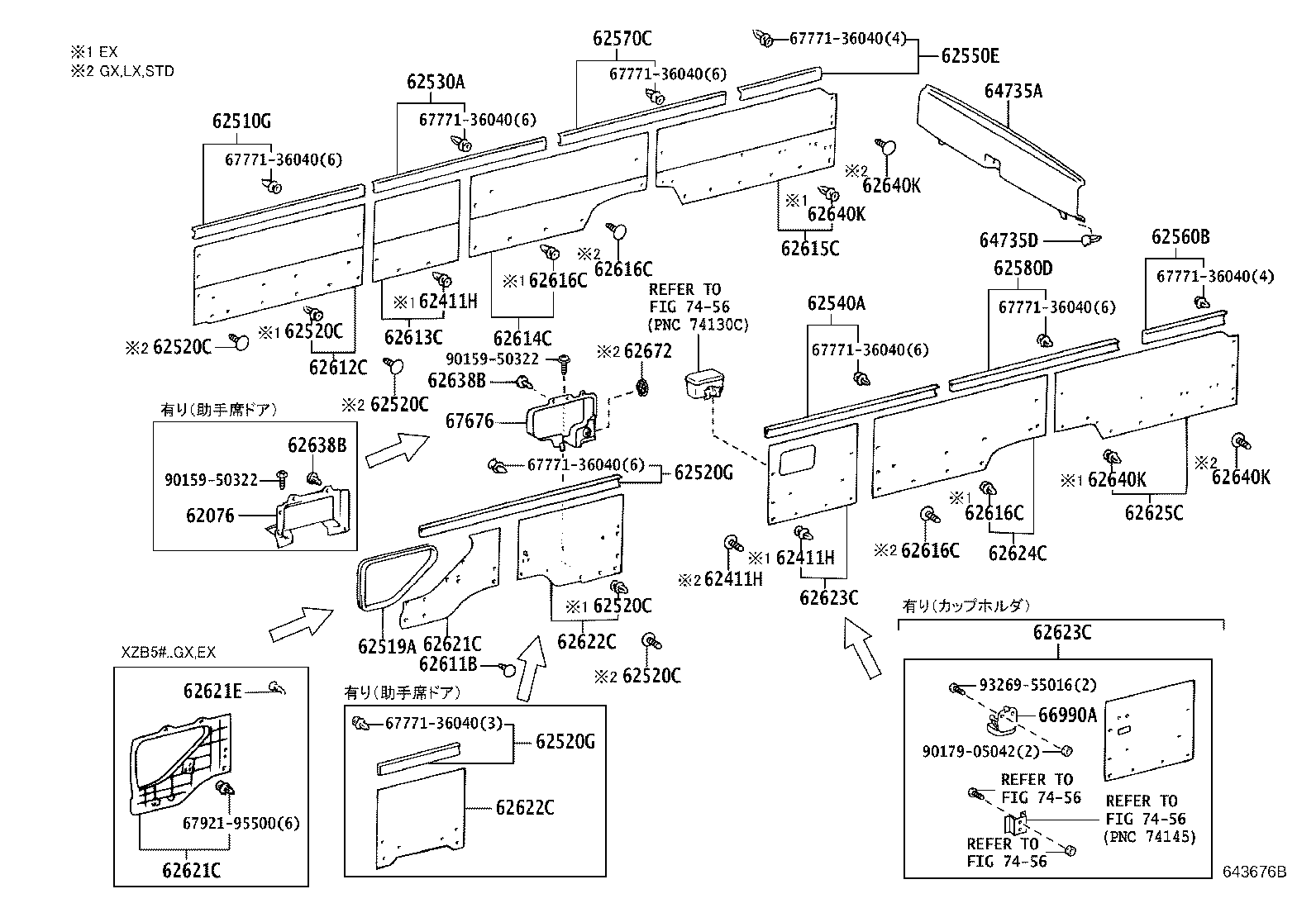

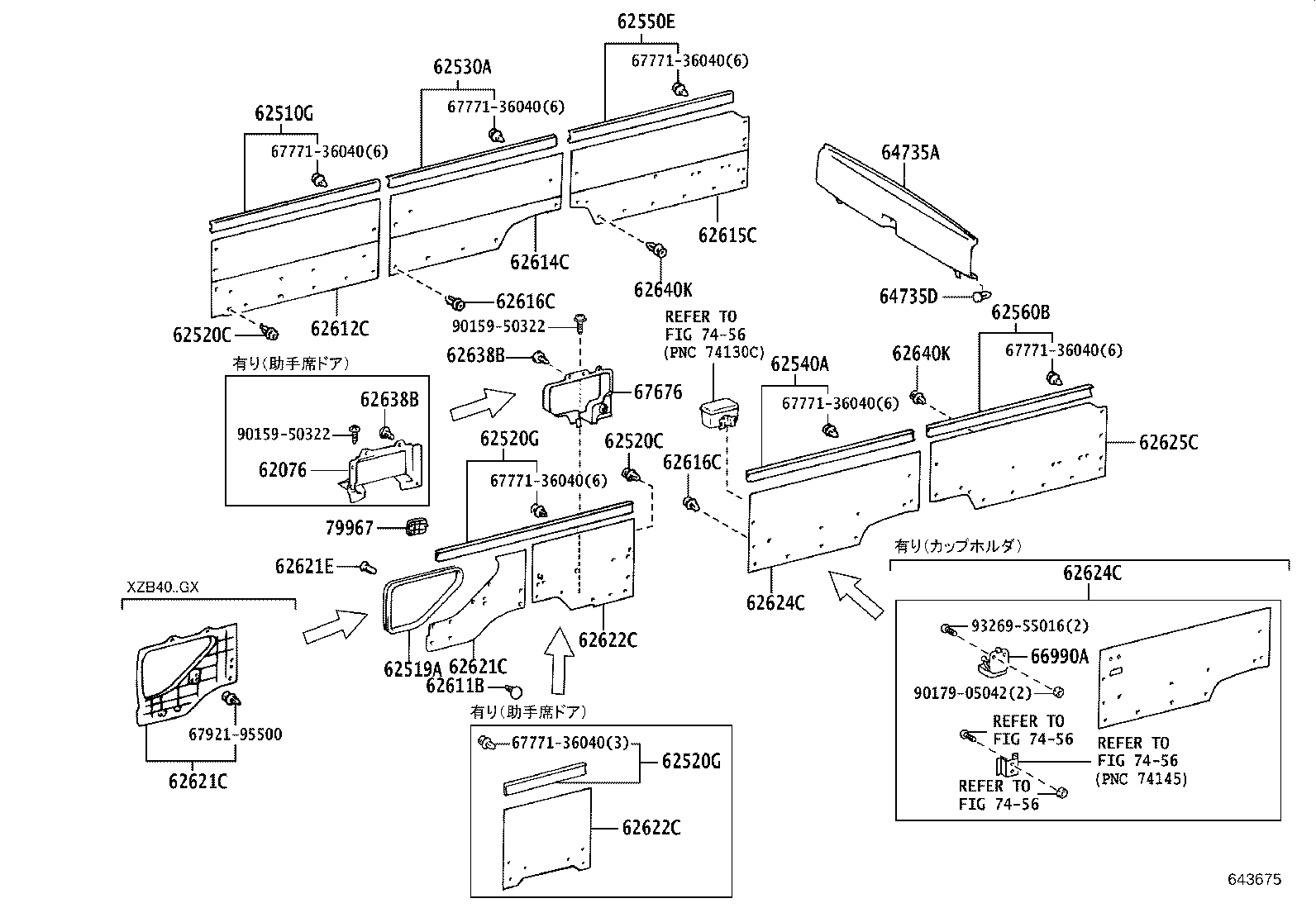

Figure 640869N 640869N 1993-01 → 2004-08 Figure 640869N 640869N 2004-08 → 2011-08 Figure 640869N 640869N 2004-08 → 2015-01 Figure 640870I 640870I 1993-01 → 2004-08 Figure 640870I 640870I 2004-08 → 2007-08 Figure 640870I 640870I 2004-08 → 2015-01 Figure 640871P 640871P 1993-01 → 2004-08 Figure 640871P 640871P 1999-08 → 2004-08 Figure 640871P 640871P 2004-08 → 2011-08 Figure 640871P 640871P 2004-08 → 2015-01 Figure 640872F 640872F 1993-01 → 2004-08 Figure 640872F 640872F 1997-05 → 2004-08 Figure 640967K 640967K 1993-01 → 2004-08 Figure 640967K 640967K 2004-08 → 2015-01 Figure 640967K 640967K 2004-08 → 2015-01 Figure 641168C 641168C 1999-08 → 2004-08 Figure 641168C 641168C 2002-11 → 2004-08 Figure 642137D 642137D 1993-01 → 2004-08 Figure 642137D 642137D 2004-08 → 2011-08 Figure 642888K 642888K 2011-08 → 2015-01 Figure 642889G 642889G 2011-08 → 2015-01 Figure 643674 643674 2015-01 → — Figure 643675B 643675B 2015-01 → — Figure 643676D 643676D 2015-01 → — Figure 643673 643673 2015-01 → —

Part groups

PNCDescription
62076 Cover Sub-assy, Side Trim, Lower LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411H Clip
62413A Garnish, Center Pillar, Lower RH
62431F Garnish, Roof Side Rail
62432C Garnish, Roof Side Rail, Front LH
62451E Garnish, Roof Side Rail, Rear
62471D Garnish, Rear Pillar, Upper RH
62471J Clip (FOR ROOF SIDE GARNISH)
62472D Garnish, Rear Pillar, Upper LH
62510G Trim Assy, Side NO.1, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62519A Trim, Side Lower Window
62520C Clip, Quarter Trim Board, NO.1
62520G Trim Assy, Side NO.1, LH
62525D Cover, Side Trim Base, NO.1 LH
62530A Trim Assy, Side NO.2, RH
62535B Garnish, Pillar NO.1, RH
62537B Garnish, Pillar NO.3, RH
62538B Garnish, Pillar NO.4, RH
62539B Garnish, Pillar NO.5, RH
62540A Trim Assy, Side NO.2, LH
62545B Garnish, Pillar NO.1, LH
62546B Garnish, Pillar NO.2, LH
62547B Garnish, Pillar NO.3, LH
62548B Garnish, Pillar NO.4, LH
62549B Garnish, Pillar NO.5, LH
62550E Trim Assy, Side NO.3, RH
62560B Trim Assy, Side, NO.3 LH
62570C Trim Assy, Side NO.4
62580D Trim Assy, Side NO.4 LH
62581K Garnish, Rear Window Side
62609A Board Sub-assy, Luggage Partition
62609B Clip (FOR LUGGAGE PARTITION BOARD)
62611B Clip (FOR SIDE TRIM BOARD)
62611E Retainer, Door Trim
62612C Board, Side Trim NO.2, RH
62613C Board, Side Trim NO.3, RH
62614C Board, Side Trim NO.4, RH
62615C Board, Side Trim NO.5, RH
62616A Board, Side Trim NO.6
62616C Clip
62621C Board, Side Trim NO.1, LH
62621E Clip
62622C Board, Side Trim NO.2, LH
62623C Board, Side Trim NO.3, LH
62624C Board, Side Trim NO.4, LH
62625C Board, Side Trim NO.5, LH
62638B Clip
62640K Clip(FOR QUARTER TRIM REAR PANEL)
62672 Cover, Side Trim Board, NO.1 LH
62989 Cover, Center Door Lock
63951 Cover, Cooler Pipe
64735A Garnish, Center Back Rail Inner
64735D Clip(FOR CENTER BACK RAIL INNER GARNISH)
64745 Cover, Rear Combination Lamp Service, RH
64745F Retainer, Door Trim
64746 Cover, Rear Combination Lamp Service, LH
66990A Holder Assy, Cup
67676 Cover, Side Trim Board, Front LH
67745A Moulding, Center Door Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
