Toyota Coaster
2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan
Supported model
Data version 2023-05
Seat & Seat Track
432 part groups · 19 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 55560D | Lock Assy, Seat Under Tray |
| 66990 | Holder Assy, Cup |
| 66990B | Holder Assy, Cup, NO.2 RH |
| 66990C | Holder Assy, Cup, NO.3 RH |
| 66990D | Holder Assy, Cup, NO.4 RH |
| 66990F | Holder Assy, Cup, NO.5 RH |
| 66990G | Holder Assy, Cup, NO.6 RH |
| 66990H | Holder Assy, Cup, NO.7 RH |
| 66990J | Holder Assy, Cup, NO.1 LH |
| 66990M | Holder Assy, Cup, NO.4 LH |
| 66990N | Holder Assy, Cup, NO.5 LH |
| 66990P | Holder Assy, Cup, NO.6 LH |
| 66990Q | Holder Assy, Cup, NO.7 LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71108B | Leg Sub-assy, Front Seat, RH |
| 71148C | Cover, Rear Seat Leg, Outer |
| 71148D | Cover, Rear Seat Leg, Outer |
| 71148E | Cover, Rear Seat Leg, Outer |
| 71148F | Cover, Rear Seat Leg, Outer |
| 71148G | Cover, Rear Seat Leg, Outer |
| 71148H | Cover, Rear Seat Leg, Outer |
| 71148L | Cover, Rear Seat Leg, Outer |
| 71148N | Cover, Rear Seat Leg, Outer |
| 71148P | Cover, Rear Seat Leg, Outer |
| 71148R | Cover, Rear Seat Leg, Outer |
| 71149 | Wire, Front Seat Cushion Connecting |
| 71149H | Cover, Rear Seat Leg, Inner |
| 71149K | Cover, Rear Seat Leg, Inner |
| 71149L | Cover, Rear Seat Leg, Inner |
| 71149N | Cover, Rear Seat Leg, Inner |
| 71149R | Cover, Rear Seat Leg, Inner |
| 71149S | Cover, Rear Seat Leg, Inner |
| 71149T | Cover, Rear Seat Leg, Inner |
| 71149U | Cover, Rear Seat Leg, Inner |
| 71149V | Cover, Rear Seat Leg, Inner |
| 71149W | Cover, Rear Seat Leg, Inner |

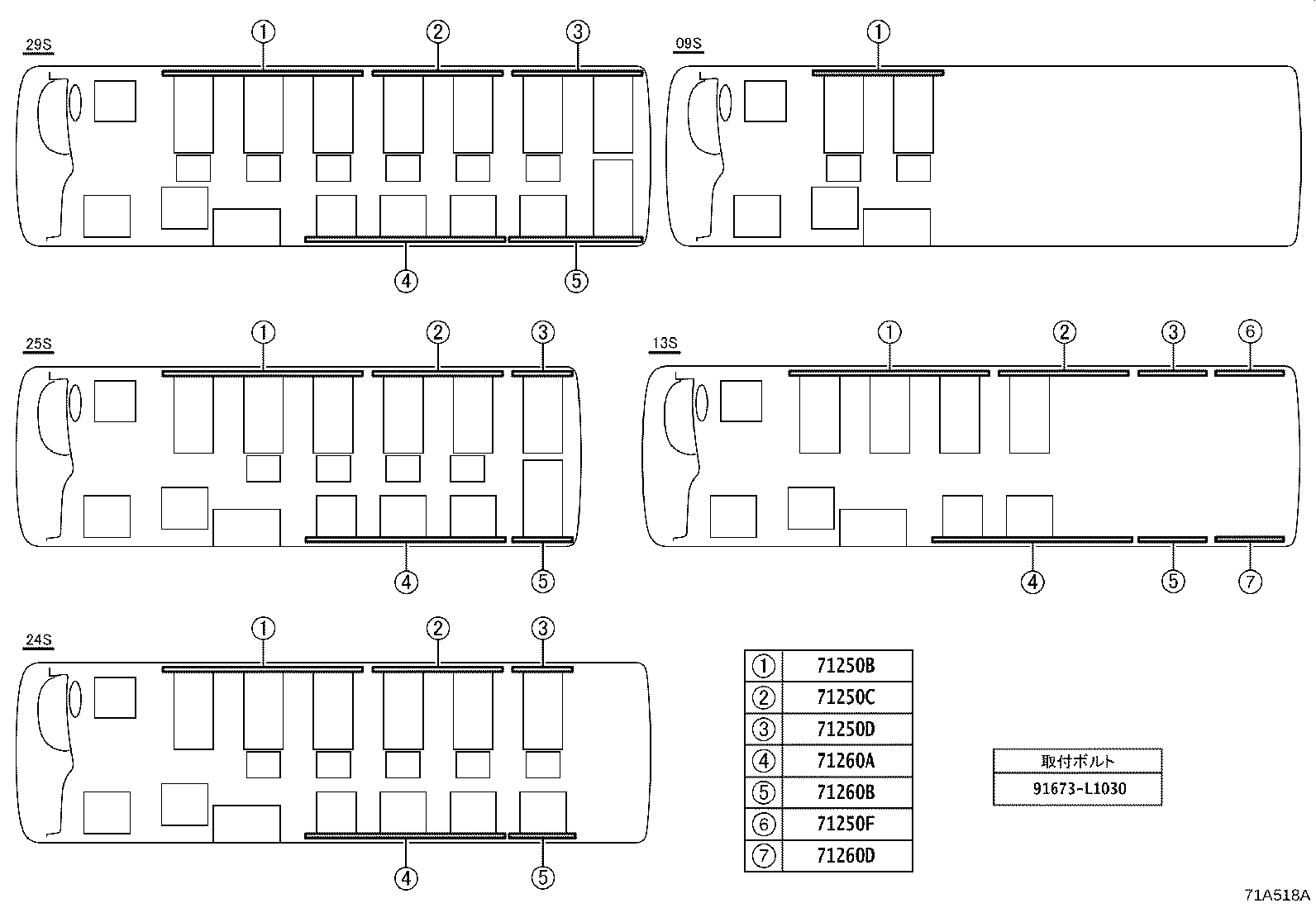

| 71250B | Bracket Assy, Seat, Outer RH |
| 71250C | Bracket Assy, Seat, Outer RH |
| 71250D | Bracket Assy, Seat, Outer RH |
| 71250F | Bracket Assy, Seat, Outer RH |
| 71260A | Bracket Assy, Seat, Outer LH |
| 71260B | Bracket Assy, Seat, Outer LH |
| 71260D | Bracket Assy, Seat, Outer LH |
| 71308F | Leg Sub-assy, Rear Seat, RH |
| 71308G | Leg Sub-assy, Rear Seat, RH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71521 | Pad, Front Seat Cushion Silencer, A |
| 71524 | Pad, Front Seat Cushion Silencer, D |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705B | Cap(FOR FRONT SEATBACK BOARD) |
| 71707A | Cover Sub-assy, Front Seatback Board |
| 71750A | Tray Assy, Front Seat Under |
| 71769A | Clip, Rear Seatback Board |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811F | Cover, Reclining Adjuster, RH |
| 71811H | Cover, Reclining Adjuster, RH |
| 71811J | Cover, Reclining Adjuster, RH |
| 71811L | Cover, Reclining Adjuster, RH |
| 71811M | Cover, Reclining Adjuster, RH |
| 71811N | Cover, Reclining Adjuster, RH |
| 71811P | Cover, Reclining Adjuster, RH |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71812C | Cover, Reclining Adjuster, LH |
| 71812E | Cover, Reclining Adjuster, LH |
| 71812K | Cover, Reclining Adjuster, LH |
| 71812M | Cover, Reclining Adjuster, LH |
| 71812N | Cover, Reclining Adjuster, LH |
| 71812P | Cover, Reclining Adjuster, LH |
| 71812Q | Cover, Reclining Adjuster, LH |
| 71846B | Cap, Rear Seatback Board, NO.1 |
| 71861C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861E | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861G | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861H | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71861J | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71862A | Shield, Rear Seat Cushion, Inner LH |
| 71862C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71862J | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71867N | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867P | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867Q | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867R | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867S | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867T | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71867U | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71868B | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868C | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868E | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868F | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868G | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868H | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868L | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71873D | Shield, Rear Seat Cushion, Lower RH |
| 71873E | Shield, Rear Seat Cushion, Lower RH |
| 71873F | Shield, Rear Seat Cushion, Lower RH |
| 71873G | Shield, Rear Seat Cushion, Lower RH |
| 71873H | Shield, Rear Seat Cushion, Lower RH |
| 71873J | Shield, Rear Seat Cushion, Lower RH |
| 71873K | Shield, Rear Seat Cushion, Lower RH |
| 71873T | Shield, Rear Seat Cushion, Lower RH |
| 71874K | Shield, Rear Seat Cushion, Lower LH |
| 71874M | Shield, Rear Seat Cushion, Lower LH |
| 71874N | Shield, Rear Seat Cushion, Lower LH |
| 71874P | Shield, Rear Seat Cushion, Lower LH |
| 71874Q | Shield, Rear Seat Cushion, Lower LH |
| 71874R | Shield, Rear Seat Cushion, Lower LH |
| 71874S | Shield, Rear Seat Cushion, Lower LH |
| 71874T | Shield, Rear Seat Cushion, Lower LH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71875E | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71875J | Cover, Reclining Adjuster Inside, RH |
| 71875K | Cover, Reclining Adjuster Inside, RH |
| 71875V | Cover, Reclining Adjuster Inside, RH |
| 71875W | Cover, Reclining Adjuster Inside, RH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876B | Cover, Reclining Adjuster Inside, LH |
| 71876E | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71876J | Cover, Reclining Adjuster Inside, LH |
| 71876K | Cover, Reclining Adjuster Inside, LH |
| 71876Y | Cover, Reclining Adjuster Inside, LH |
| 71876Z | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72301 | Wire Sub-assy, Seat Track Equalizing |
| 72331A | Board, Assistant Seat, Back |
| 72345A | Pipe, Reclining Connecting |
| 72379 | Belt, Seat Reclining Handle |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72810 | Armrest Assy, Junior Seat |
| 72830E | Armrest Assy, Front Seat |
| 72995A | Cover, Rear Seat |
| 73173G | Cover, Rear Seat Shoulder Belt, RH |
| 73173N | Cover, Rear Seat Shoulder Belt, RH |
| 73175A | Cover, Rear Seat Shoulder Belt, LH |
| 73175B | Cover, Rear Seat Shoulder Belt, LH |
| 73175C | Cover, Rear Seat Shoulder Belt, LH |
| 73175D | Cover, Rear Seat Shoulder Belt, LH |
| 73175E | Cover, Rear Seat Shoulder Belt, LH |
| 73175F | Cover, Rear Seat Shoulder Belt, LH |
| 73175G | Cover, Rear Seat Shoulder Belt, LH |
| 73373D | Cover, Rear Seat Shoulder Belt Hole, RH |
| 73373F | Cover, Rear Seat Shoulder Belt Hole |
| 73373M | Cover, Rear Seat Shoulder Belt, RH |
| 73373N | Cover, Rear Seat Shoulder Belt, RH |
| 73373P | Cover, Rear Seat Shoulder Belt, RH |
| 73373Q | Cover, Rear Seat Shoulder Belt, RH |
| 73373R | Cover, Rear Seat Shoulder Belt, RH |
| 73373S | Cover, Rear Seat Shoulder Belt, RH |
| 73373T | Cover, Rear Seat Shoulder Belt, RH |
| 73375B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 73375G | Cover, Rear Seat Shoulder Belt, LH |
| 73375H | Cover, Rear Seat Shoulder Belt, LH |
| 73375J | Cover, Rear Seat Shoulder Belt, LH |
| 73375K | Cover, Rear Seat Shoulder Belt, LH |
| 73375L | Cover, Rear Seat Shoulder Belt, LH |
| 73375M | Cover, Rear Seat Shoulder Belt Hole |
| 74631E | Hook, Coat, NO.2 RH |
| 74631F | Hook, Coat, NO.3 RH |
| 74631G | Hook, Coat, NO.4 RH |
| 74631H | Hook, Coat, NO.5 RH |
| 74631J | Hook, Coat, NO.6 RH |
| 74631K | Hook, Coat, NO.7 RH |
| 74631L | Hook, Coat, NO.1 LH |
| 74631P | Hook, Coat, NO.4 LH |
| 74631Q | Hook, Coat, NO.5 LH |
| 74631R | Hook, Coat, NO.6 LH |
| 74631S | Hook, Coat, NO.7 LH |
| 74844A | Ornament, Front Seatback Panel, A |
| 78071B | Cover Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78071C | Cover Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78071D | Cover Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78071E | Cover Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78071F | Cover Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78071G | Cover Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78073A | Cover Sub-assy, Sub Seatback, RH NO.2 |
| 78073B | Cover Sub-assy, Sub Seatback, RH NO.3 |
| 78073C | Cover Sub-assy, Sub Seatback, RH NO.4 |
| 78073D | Cover Sub-assy, Sub Seatback, RH NO.5 |
| 78073E | Cover Sub-assy, Sub Seatback, RH NO.6 |
| 78073F | Cover Sub-assy, Sub Seatback, RH NO.7 |
| 78077C | Board Sub-assy, Assistant Seat Cushion, NO.1 |
| 78077D | Board Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78077E | Board Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78077F | Board Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78077G | Board Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78077H | Board Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78077J | Board Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78078A | Board Sub-assy, Assistant Seat Cushion, NO.2 |
| 78081 | Cover Sub-assy, Assistant Seat Cushion, NO.1 |
| 78082 | Cover Sub-assy, Assistant Seat Cushion, NO.2 |
| 78083 | Cover Sub-assy, Assistant Seatback, NO.1 |
| 78084 | Cover Sub-assy, Assistant Seatback, NO.2 |
| 78701B | Frame Sub-assy, Sub Seat Cushion, RH NO.2 |
| 78701C | Frame Sub-assy, Sub Seat Cushion, RH NO.3 |
| 78701D | Frame Sub-assy, Sub Seat Cushion, RH NO.4 |
| 78701E | Frame Sub-assy, Sub Seat Cushion, RH NO.5 |
| 78701F | Frame Sub-assy, Sub Seat Cushion, RH NO.6 |
| 78701G | Frame Sub-assy, Sub Seat Cushion, RH NO.7 |
| 78703C | Frame Sub-assy, Sub Seatback, RH NO.2 |
| 78703D | Frame Sub-assy, Sub Seatback, RH NO.3 |
| 78703E | Frame Sub-assy, Sub Seatback, RH NO.4 |
| 78703F | Frame Sub-assy, Sub Seatback, RH NO.5 |
| 78703G | Frame Sub-assy, Sub Seatback, RH NO.6 |
| 78703H | Frame Sub-assy, Sub Seatback, RH NO.7 |
| 78705 | Bracket Sub-assy, Sub Seat Cushion |
| 78705A | Bracket Sub-assy, Sub Seat Cushion NO.2 |
| 78705B | Bracket Sub-assy, Sub Seat Cushion NO.3 |
| 78705C | Bracket Sub-assy, Sub Seat Cushion NO.4 |
| 78705D | Bracket Sub-assy, Sub Seat Cushion NO.5 |
| 78705E | Bracket Sub-assy, Sub Seat Cushion NO.6 |
| 78705F | Bracket Sub-assy, Sub Seat Cushion NO.7 |
| 78707 | Frame Sub-assy, Sub Seatback, Lower RH |

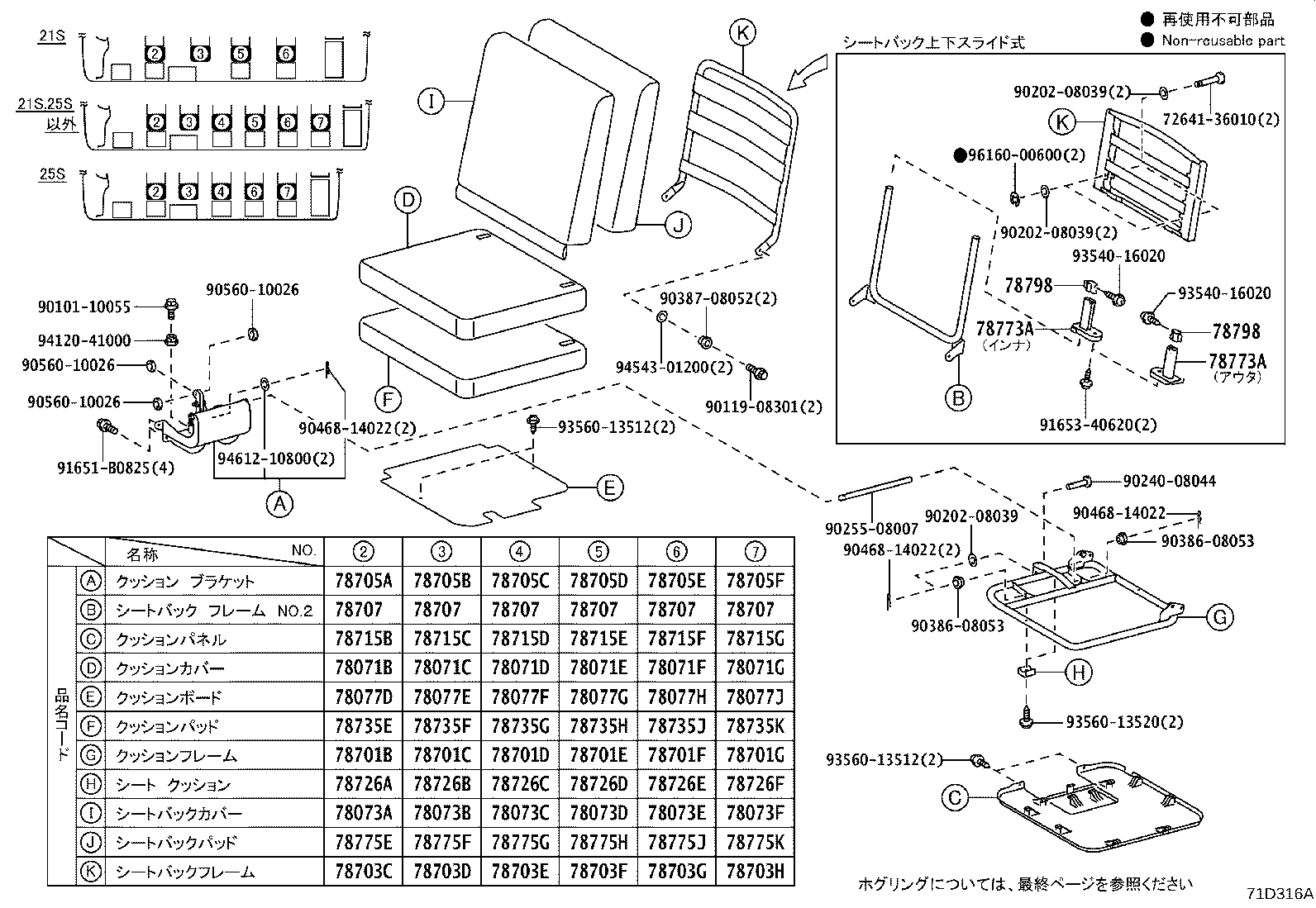

| 78715A | Panel, Assistant Seat Cushion |
| 78715B | Panel, Sub Seat Cushion NO.2 |
| 78715C | Panel, Sub Seat Cushion NO.3 |
| 78715D | Panel, Sub Seat Cushion NO.4 |
| 78715E | Panel, Sub Seat Cushion NO.5 |
| 78715F | Panel, Sub Seat Cushion NO.6 |
| 78715G | Panel, Sub Seat Cushion NO.7 |
| 78726 | Cushion, Sub Seat Cushion Frame |
| 78726A | Cushion, Sub Seat Cushion Frame, NO.2 |
| 78726B | Cushion, Sub Seat Cushion Frame, NO.3 |
| 78726C | Cushion, Sub Seat Cushion Frame, NO.4 |
| 78726D | Cushion, Sub Seat Cushion Frame, NO.5 |
| 78726E | Cushion, Sub Seat Cushion Frame, NO.6 |
| 78726F | Cushion, Sub Seat Cushion Frame, NO.7 |
| 78735C | Pad, Assistant Seat Cushion, NO.1 |
| 78735D | Pad, Assistant Seat Cushion, NO.2 |
| 78735E | Pad, Sub Seat Cushion, RH NO.2 |
| 78735F | Pad, Sub Seat Cushion, RH NO.3 |
| 78735G | Pad, Sub Seat Cushion, RH NO.4 |
| 78735H | Pad, Sub Seat Cushion, RH NO.5 |
| 78735J | Pad, Sub Seat Cushion, RH NO.6 |
| 78735K | Pad, Sub Seat Cushion, RH NO.7 |
| 78773A | Hoop, Sub Seatback Guide |
| 78775C | Pad, Assistant Seatback, NO.1 |
| 78775D | Pad, Assistant Seatback, NO.2 |
| 78775E | Pad, Sub Seatback, RH NO.2 |
| 78775F | Pad, Sub Seatback, RH NO.3 |
| 78775G | Pad, Sub Seatback, RH NO.4 |
| 78775H | Pad, Sub Seatback, RH NO.5 |
| 78775J | Pad, Sub Seatback, RH NO.6 |
| 78775K | Pad, Sub Seatback, RH NO.7 |
| 78798 | Spacer, Sub Seatback Frame |
| 78801 | Frame Sub-assy, Assistant Seat, NO.1 |
| 78802 | Frame Sub-assy, Assistant Seat, NO.2 |
| 78803A | Leg Sub-assy, Sub Seat, RH |
| 78805A | Frame Sub-assy, Assistant Seat Cushion, NO.1 |
| 78806A | Frame Sub-assy, Assistant Seat Cushion, NO.2 |

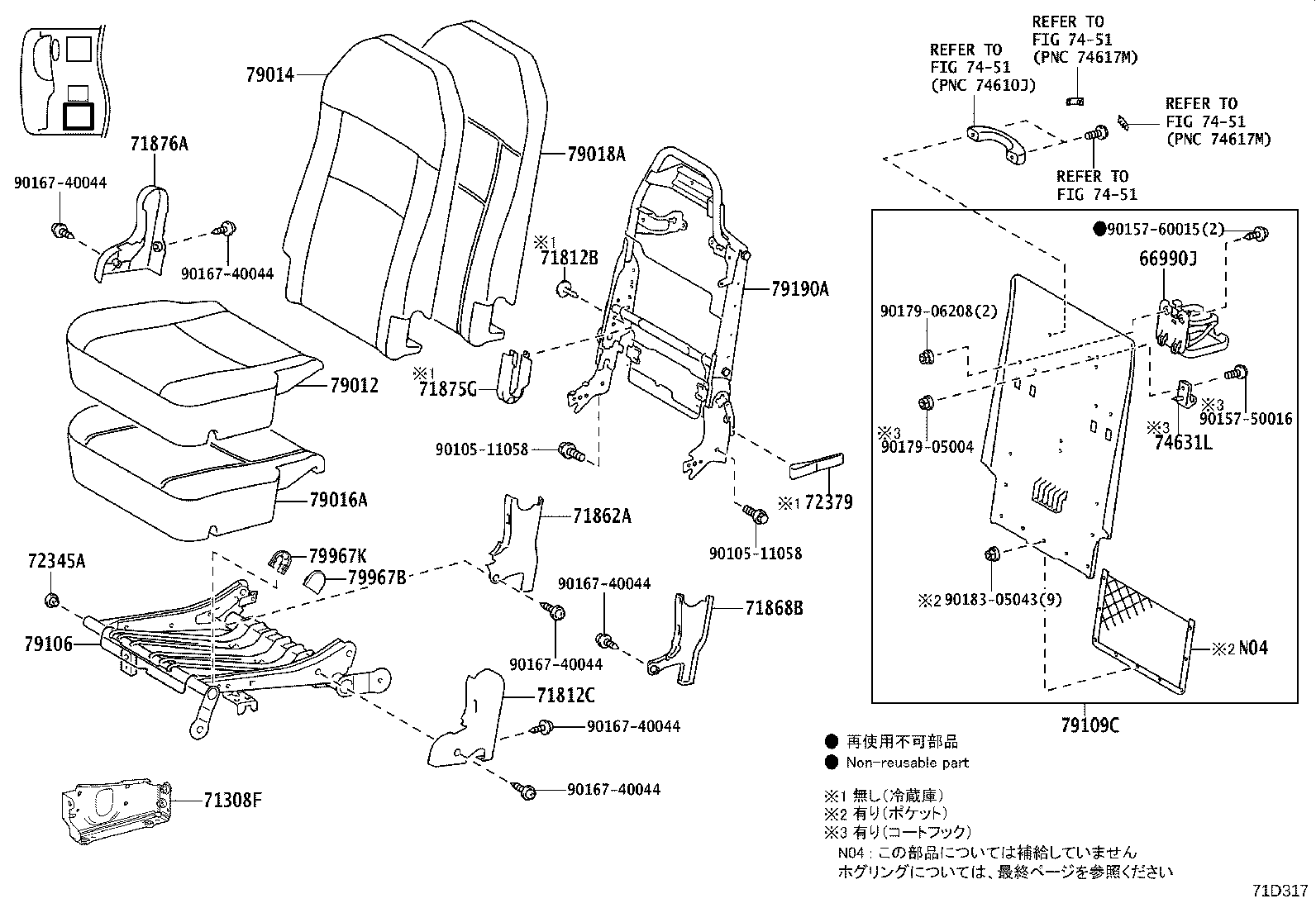

| 79012 | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013 | Cover Sub-assy, NO.1 Seatback, RH |
| 79014 | Cover Sub-assy, NO.1 Seatback, LH |
| 79016A | Pad Sub-assy, NO.1 Seat Cushion, LH |
| 79018A | Pad Sub-assy, NO.1 Seatback, LH |

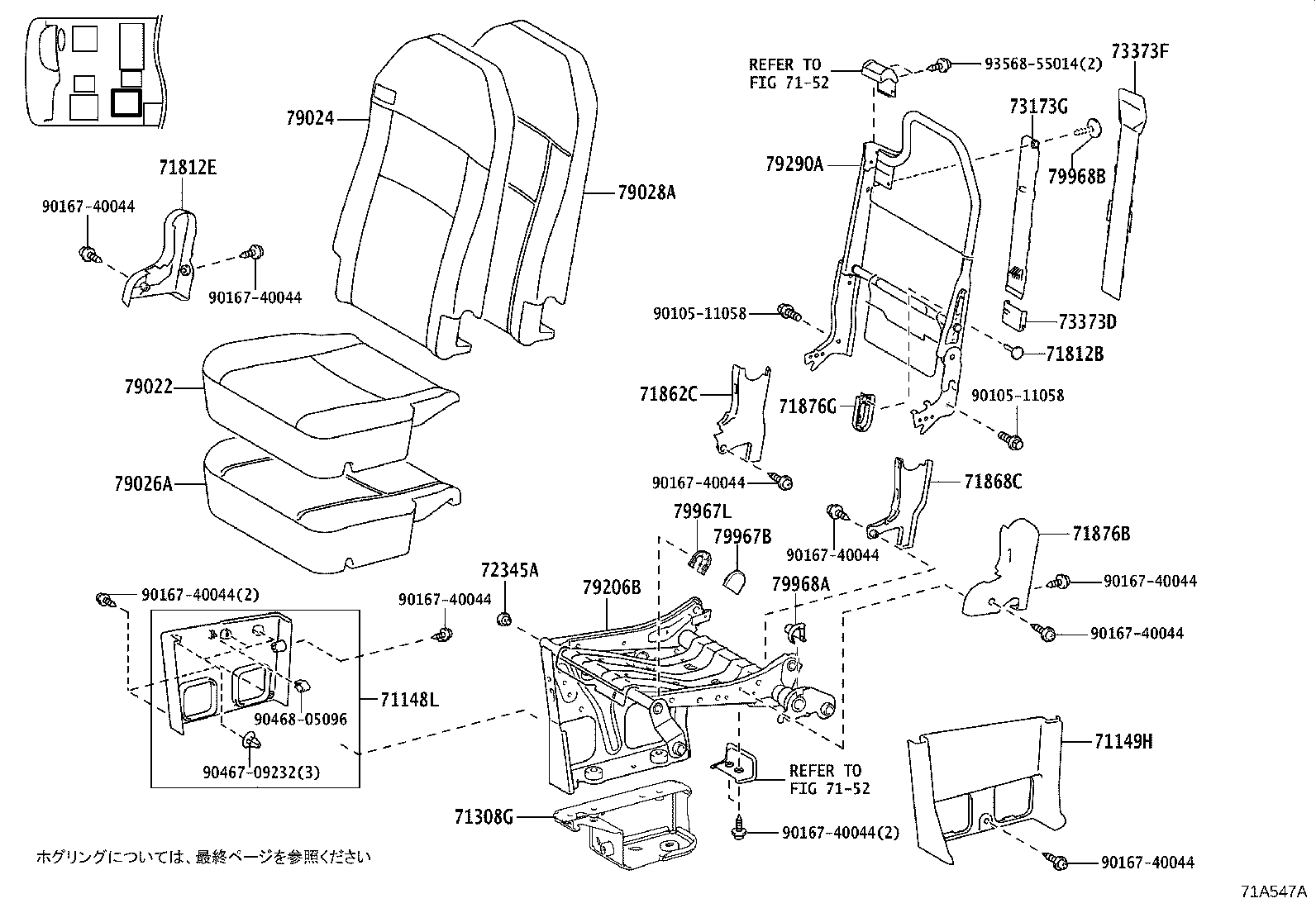

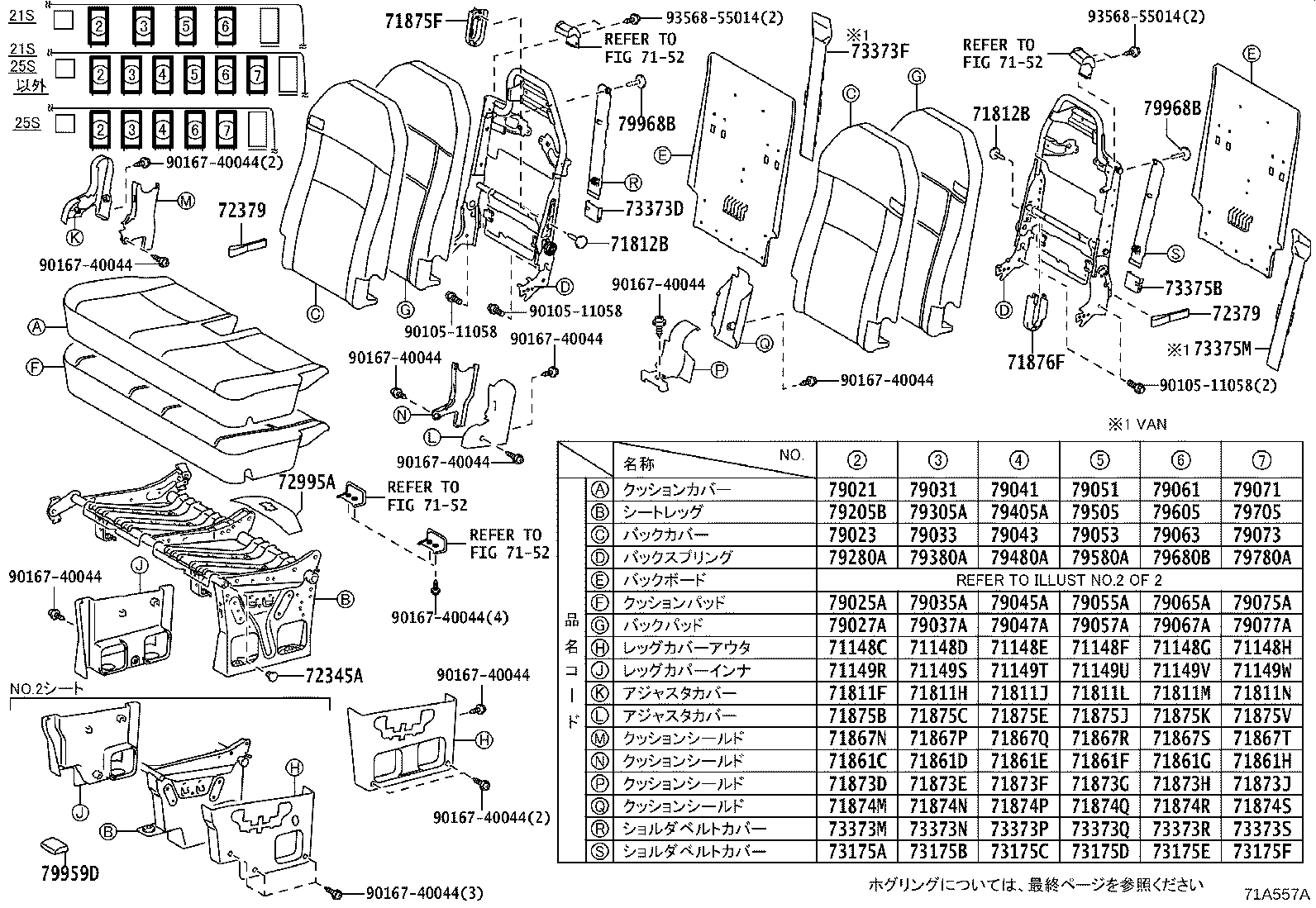

| 79021 | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022 | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023 | Cover Sub-assy, NO.2 Seatback, RH |
| 79024 | Cover Sub-assy, NO.2 Seatback, LH |
| 79025A | Pad Sub-assy, NO.2 Seat Cushion, RH |
| 79026A | Pad Sub-assy, NO.2 Seat Cushion, LH |
| 79027A | Pad Sub-assy, NO.2 Seatback, RH |
| 79028A | Pad Sub-assy, NO.2 Seatback, LH |
| 79031 | Cover Sub-assy, NO.3 Seat Cushion, RH |
| 79033 | Cover Sub-assy, NO.3 Seatback, RH |
| 79035A | Pad Sub-assy, NO.3 Seat Cushion, RH |
| 79037A | Pad Sub-assy, NO.3 Seatback, RH |
| 79041 | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042 | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043 | Cover Sub-assy, NO.4 Seatback, RH |
| 79044 | Cover Sub-assy, NO.4 Seatback, LH |
| 79045A | Pad Sub-assy, NO.4 Seat Cushion, RH |
| 79046A | Pad Sub-assy, NO.4 Seat Cushion, LH |
| 79047A | Pad Sub-assy, NO.4 Seatback, RH |
| 79048A | Pad Sub-assy, NO.4 Seatback, LH |
| 79051 | Cover Sub-assy, NO.5 Seat Cushion, RH |
| 79052 | Cover Sub-assy, NO.5 Seat Cushion, LH |
| 79053 | Cover Sub-assy, NO.5 Seatback, RH |
| 79054 | Cover Sub-assy, NO.5 Seatback, LH |
| 79055A | Pad Sub-assy, NO.5 Seat Cushion, RH |
| 79056A | Pad Sub-assy, NO.5 Seat Cushion, LH |
| 79057A | Pad Sub-assy, NO.5 Seatback, RH |
| 79058A | Pad Sub-assy, NO.5 Seatback, LH |
| 79061 | Cover Sub-assy, NO.6 Seat Cushion, RH |
| 79062 | Cover Sub-assy, NO.6 Seat Cushion, LH |
| 79063 | Cover Sub-assy, NO.6 Seatback, RH |
| 79064 | Cover Sub-assy, NO.6 Seatback, LH |
| 79065A | Pad Sub-assy, NO.6 Seat Cushion, RH |
| 79066A | Pad Sub-assy, NO.6 Seat Cushion, LH |
| 79067A | Pad Sub-assy, NO.6 Seatback, RH |
| 79068A | Pad Sub-assy, NO.6 Seatback, LH |
| 79071 | Cover Sub-assy, NO.7 Seat Cushion, RH |
| 79072 | Cover Sub-assy, NO.7 Seat Cushion, LH |
| 79073 | Cover Sub-assy, NO.7 Seatback, RH |
| 79074 | Cover Sub-assy, NO.7 Seatback, LH |
| 79075A | Pad Sub-assy, NO.7 Seat Cushion, RH |
| 79076 | Pad Sub-assy, NO.7 Seat Cushion, LH |
| 79077A | Pad Sub-assy, NO.7 Seatback, RH |
| 79078A | Pad Sub-assy, NO.7 Seatback, LH |

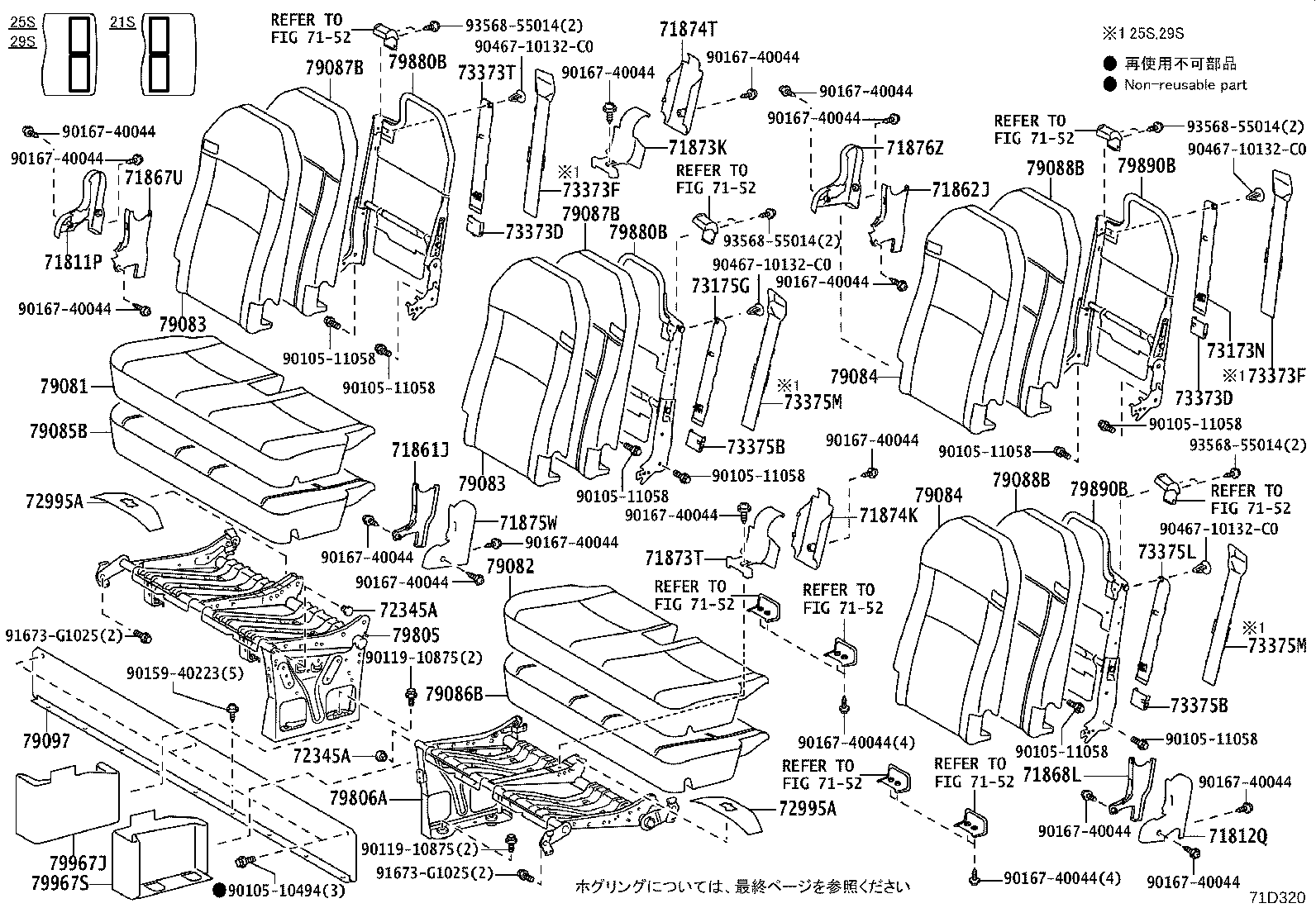

| 79081 | Cover Sub-assy, NO.8 Seat Cushion, RH |
| 79082 | Cover Sub-assy, NO.8 Seat Cushion, LH |
| 79083 | Cover Sub-assy, NO.8 Seatback, RH |
| 79084 | Cover Sub-assy, NO.8 Seatback, LH |
| 79085B | Pad Sub-assy, NO.8 Seat Cushion, RH |
| 79086B | Pad Sub-assy, NO.8 Seat Cushion, LH |
| 79087B | Pad Sub-assy, NO.8 Seatback, RH |
| 79088B | Pad Sub-assy, NO.8 Seatback, LH |
| 79093 | Cover Sub-assy, NO.9 Seatback, RH |
| 79097 | Partition Sub-assy, Luggage Compartment Wall |
| 79101A | Frame Sub-assy, NO.1 Junior Seat, RH |
| 79102A | Frame Sub-assy, NO.1 Junior Seat, LH |
| 79106 | Leg Sub Assy, NO.1 Seat, LH |
| 79108A | Leg Sub-assy, NO.6 Seat, Rear |
| 79109 | Board Sub-assy, NO.1 Seatback |
| 79109C | Board Sub-assy, NO.1 Seatback, LH |
| 79120 | Cushion Assy, NO.1 Seat, RH |
| 79130 | Cushion Assy, NO.1 Seat, LH |
| 79190A | Spring Assy, NO.1 Seatback, LH |
| 79201A | Frame Sub-assy, NO.2 Junior Seat, RH |
| 79202A | Frame Sub-assy, NO.2 Junior Seat, LH |
| 79205B | Leg Sub-assy, NO.2 Seat, RH |
| 79206B | Leg Sub-assy, NO.2 Seat, LH |

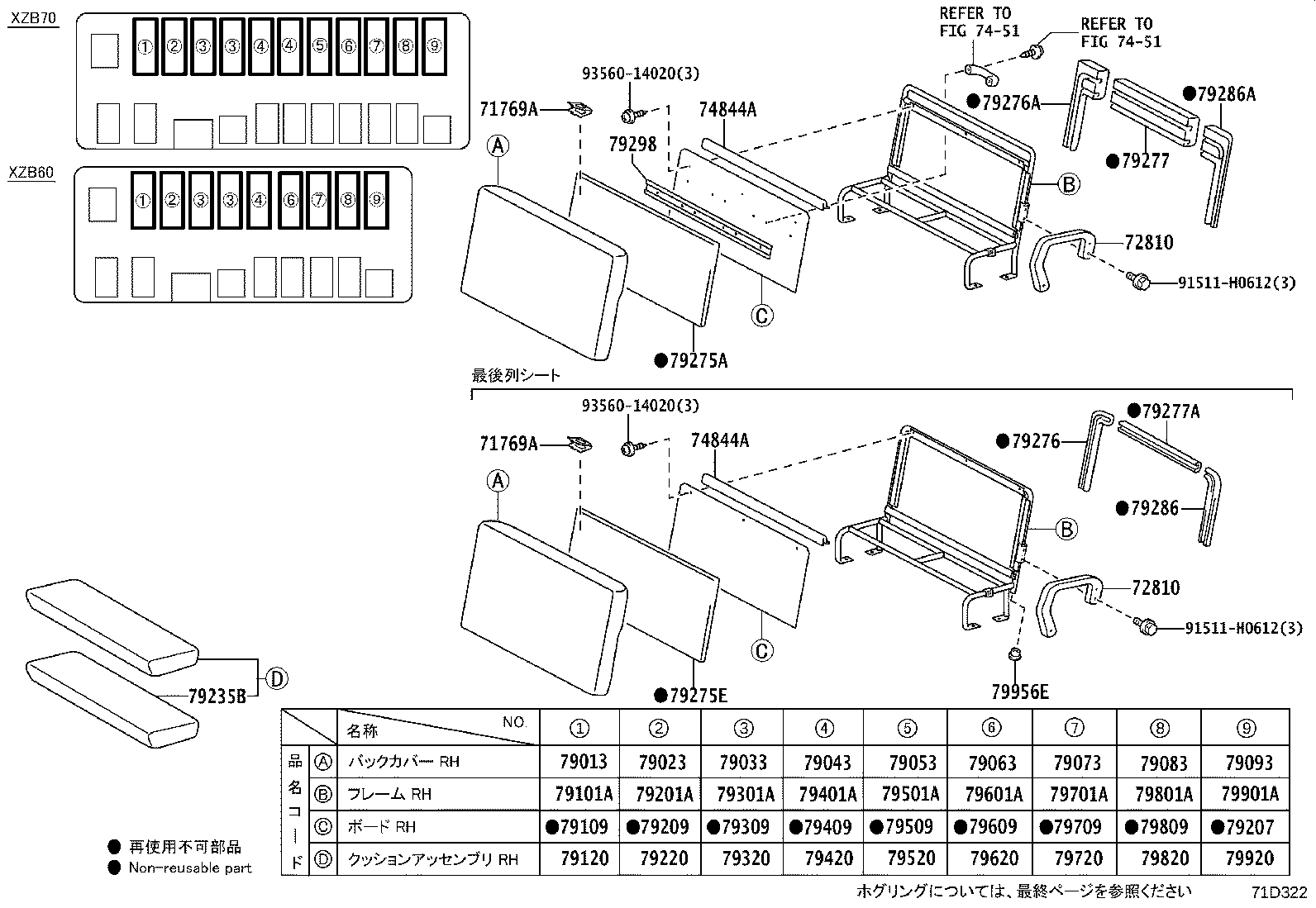

| 79207 | Board Sub-assy, Junior Seatback, RH |
| 79209 | Board Sub-assy, NO.2 Seatback |
| 79209B | Board Sub-assy, NO.2 Seatback, LH |
| 79220 | Cushion Assy, NO.2 Seat, RH |
| 79230 | Cushion Assy, NO.2 Seat, LH |
| 79235B | Pad, Junior Seat Cushion, RH |

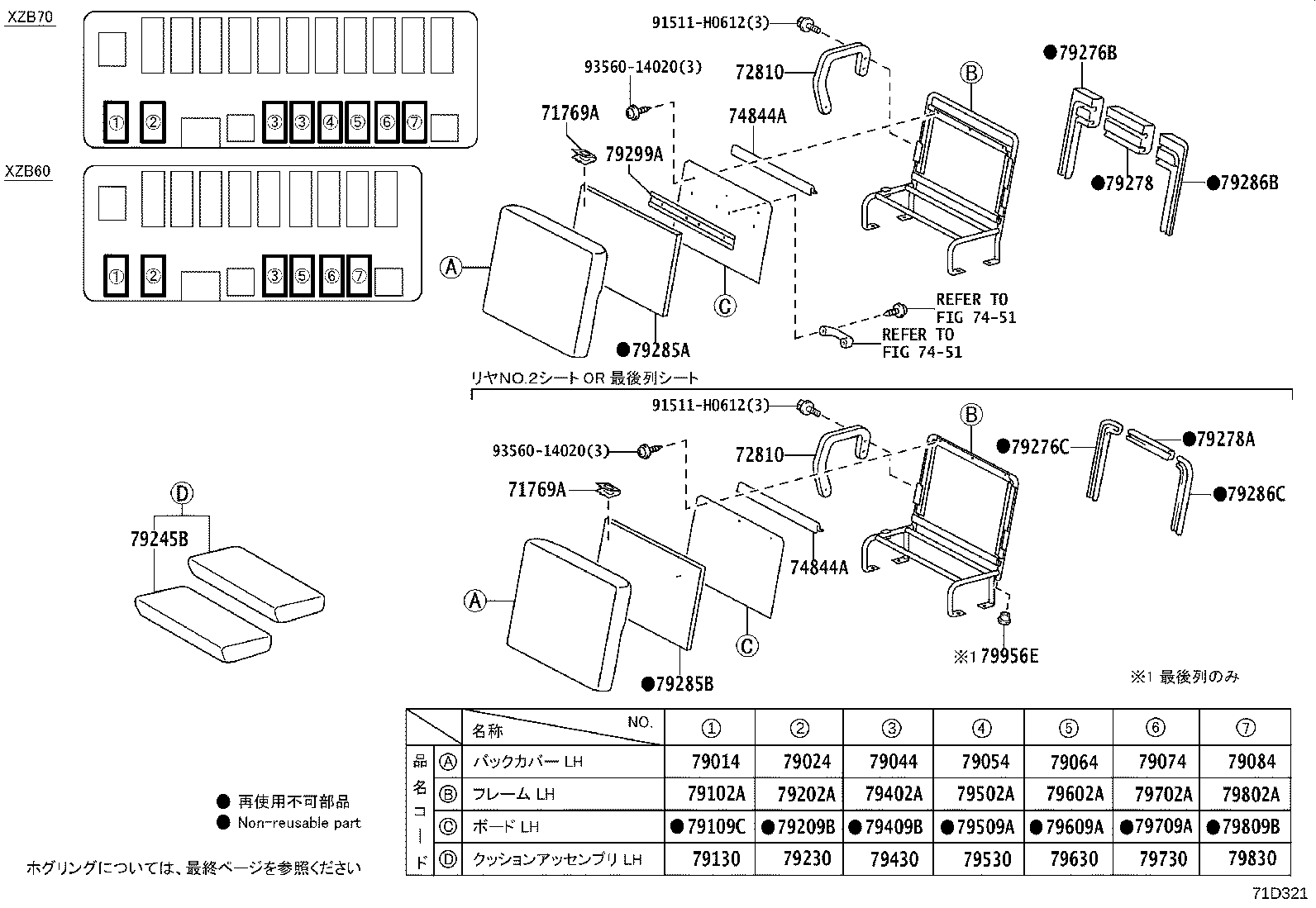

| 79245B | Pad, Junior Seat Cushion, LH |
| 79275A | Pad, Junior Seatback, RH |
| 79275E | Pad, Junior Seatback, RH |
| 79276 | Pad, Junior Seatback Safety, RH |
| 79276A | Pad, Junior Seatback Safety, RH |
| 79276B | Pad, Junior Seatback Safety, RH |
| 79276C | Pad, Junior Seatback Safety, RH |
| 79277 | Pad, Junior Seatback Safety, A |
| 79277A | Pad, Junior Seatback Safety, A |
| 79278 | Pad, Junior Seatback Safety, B |
| 79278A | Pad, Junior Seatback Safety, B |
| 79280A | Spring Assy, NO.2 Seatback, RH |
| 79285A | Pad, Junior Seatback, LH |
| 79285B | Pad, Junior Seatback, LH |
| 79286 | Pad, Junior Seatback Safety, LH |
| 79286A | Pad, Junior Seatback Safety, LH |
| 79286B | Pad, Junior Seatback Safety, LH |
| 79286C | Pad, Junior Seatback Safety, LH |
| 79290A | Spring Assy, NO.2 Seatback, LH |
| 79298 | Reinforcement, Junior Seat Assist Set, RH |
| 79299A | Reinforcement, Junior Seat Assist Set, LH |
| 79301A | Frame Sub-assy, NO.3 Junior Seat, RH |
| 79305A | Leg Sub-assy, NO.3 Seat, RH |
| 79309 | Board Sub-assy, NO.3 Seatback |
| 79320 | Cushion Assy, NO.3 Seat, RH |
| 79380A | Spring Assy, NO.3 Seatback, RH |
| 79401A | Frame Sub-assy, NO.4 Junior Seat, RH |
| 79402A | Frame Sub-assy, NO.4 Junior Seat, LH |
| 79405A | Leg Sub-assy, NO.4 Seat, RH |
| 79406A | Leg Sub-assy, NO.4 Seat, LH |
| 79409 | Board Sub-assy, NO.4 Seatback |
| 79409B | Board Sub-assy, NO.4 Seatback, LH |
| 79420 | Cushion Assy, NO.4 Seat, RH |
| 79430 | Cushion Assy, NO.4 Seat, LH |
| 79480A | Spring Assy, NO.4 Seatback, RH |
| 79490A | Spring Assy, NO.4 Seatback, LH |
| 79501A | Frame Sub-assy, NO.5 Junior Seat, RH |
| 79502A | Frame Sub-assy, NO.5 Junior Seat, LH |
| 79505 | Leg Sub-assy, NO.5 Seat, RH |
| 79506 | Leg Sub-assy, NO.5 Seat, LH |
| 79509 | Board Sub-assy, NO.5 Seatback, RH |
| 79509A | Board Sub-assy, NO.5 Seatback, LH |
| 79520 | Cushion Assy, NO.5 Seat, RH |
| 79530 | Cushion Assy, NO.5 Seat, LH |
| 79580A | Spring Assy, NO.5 Seatback, RH |
| 79590A | Spring Assy, NO.5 Seatback, LH |
| 79601A | Frame Sub-assy, NO.6 Junior Seat, RH |
| 79602A | Frame Sub-assy, NO.6 Junior Seat, LH |
| 79605 | Leg Sub-assy, NO.6 Seat, RH |
| 79606 | Leg Sub-assy, NO.6 Seat, LH |
| 79609 | Board Sub-assy, NO.6 Seatback, RH |
| 79609A | Board Sub-assy, NO.6 Seatback, LH |
| 79620 | Cushion Assy, NO.6 Seat, RH |
| 79630 | Cushion Assy, NO.6 Seat, LH |
| 79680B | Spring Assy, NO.6 Seatback, RH |
| 79690A | Spring Assy, NO.6 Seatback, LH |
| 79701A | Frame Sub-assy, NO.7 Junior Seat, RH |
| 79702A | Frame Sub-assy, NO.7 Junior Seat, LH |
| 79705 | Leg Sub-assy, NO.7 Seat, RH |
| 79706 | Leg Sub-assy, NO.7 Seat, LH |
| 79709 | Board Sub-assy, NO.7 Seatback, RH |
| 79709A | Board Sub-assy, NO.7 Seatback, LH |
| 79720 | Cushion Assy, NO.7 Seat, RH |
| 79730 | Cushion Assy, NO.7 Seat, LH |
| 79780A | Spring Assy, NO.7 Seatback, RH |
| 79790A | Spring Assy, NO.7 Seatback, LH |
| 79801A | Frame Sub-assy, NO.8 Junior Seat, RH |
| 79802A | Frame Sub-assy, NO.8 Junior Seat, LH |
| 79805 | Leg Sub-assy, NO.8 Seat, RH |
| 79806A | Leg Sub-assy, NO.8 Seat, LH |
| 79809 | Board Sub-assy, NO.8 Seatback |
| 79809B | Board Sub-assy, NO.8 Seatback, LH |
| 79820 | Cushion Assy, NO.8 Seat, RH |
| 79830 | Cushion Assy, NO.8 Seat, LH |
| 79880B | Spring Assy, NO.8 Seatback, RH |
| 79890B | Spring Assy, NO.8 Seatback, LH |
| 79901A | Frame Sub-assy, NO.9 Junior Seat, RH |
| 79920 | Cushion Assy, NO.9 Seat, RH |
| 79956E | Cap(FOR REAR SEAT LEG SIDE COVER) |
| 79959D | Cover, Seat Leg |
| 79967B | Cover, Rear Seat Leg Side NO.2 |
| 79967J | Cover, Rear Seat Leg Side, NO.4 |
| 79967K | Cover, Rear Seat Leg Side, NO.4 |
| 79967L | Cover, Rear Seat Leg Side, NO.4 |
| 79967S | Cover, Rear Seat Leg Side, NO.4 |
| 79968A | Cover, Rear Seat Leg Side, NO.5 |
| 79968B | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
