Toyota Coaster

2017-01 → present · chassis GDB1#,60,70,80,XZB60,70,80 · catalogue 811140 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

84 part groups · 59 illustrations

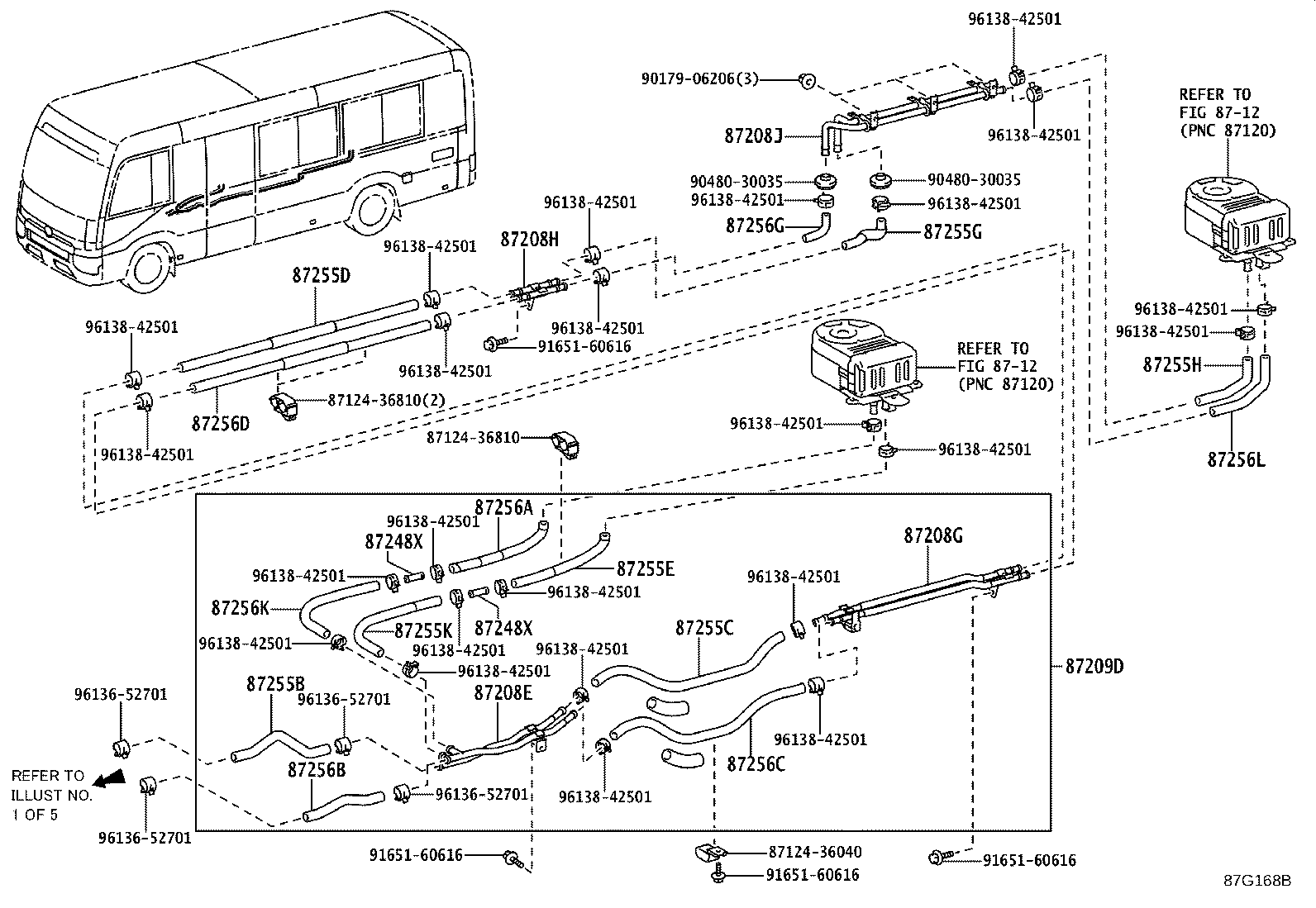

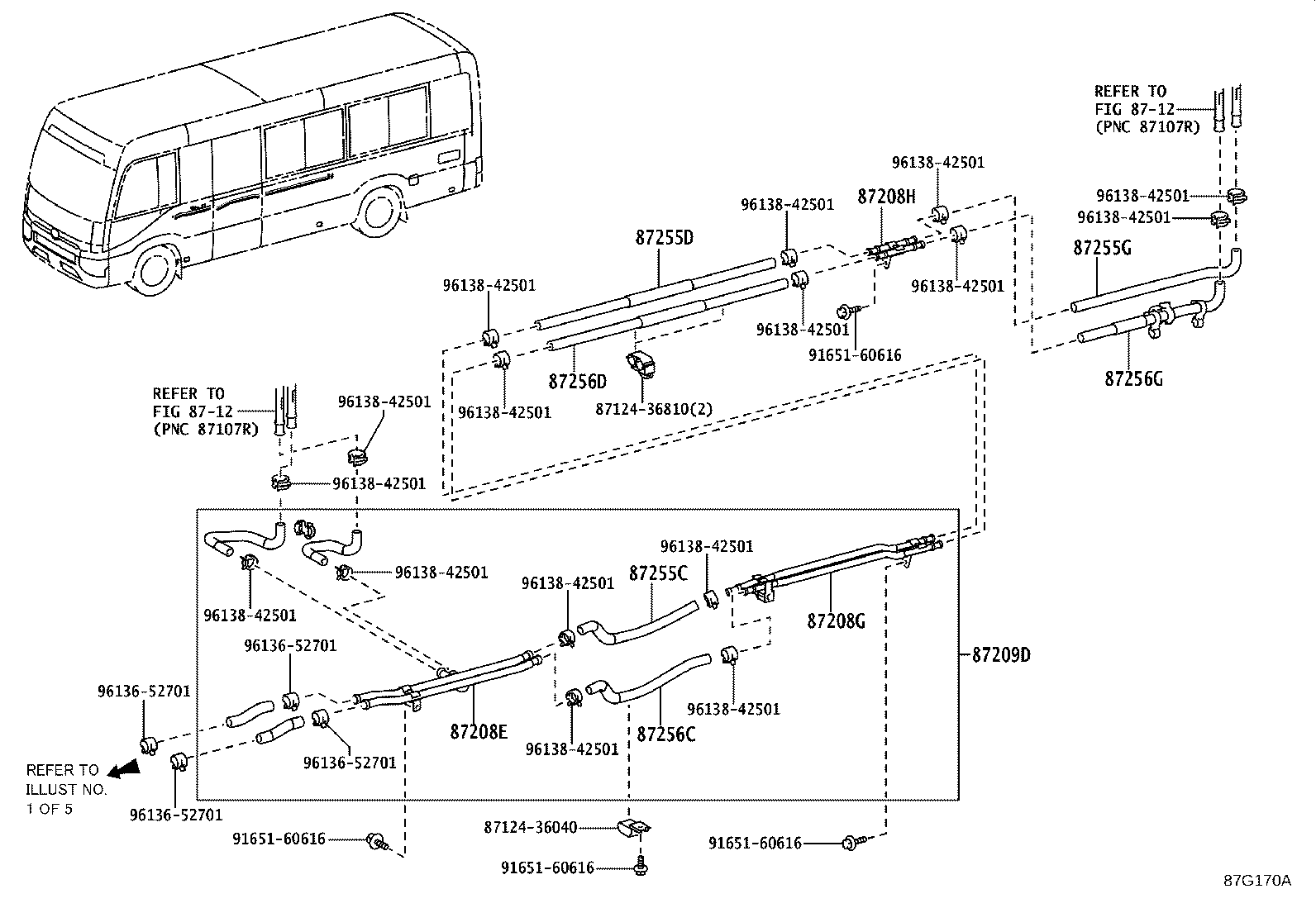

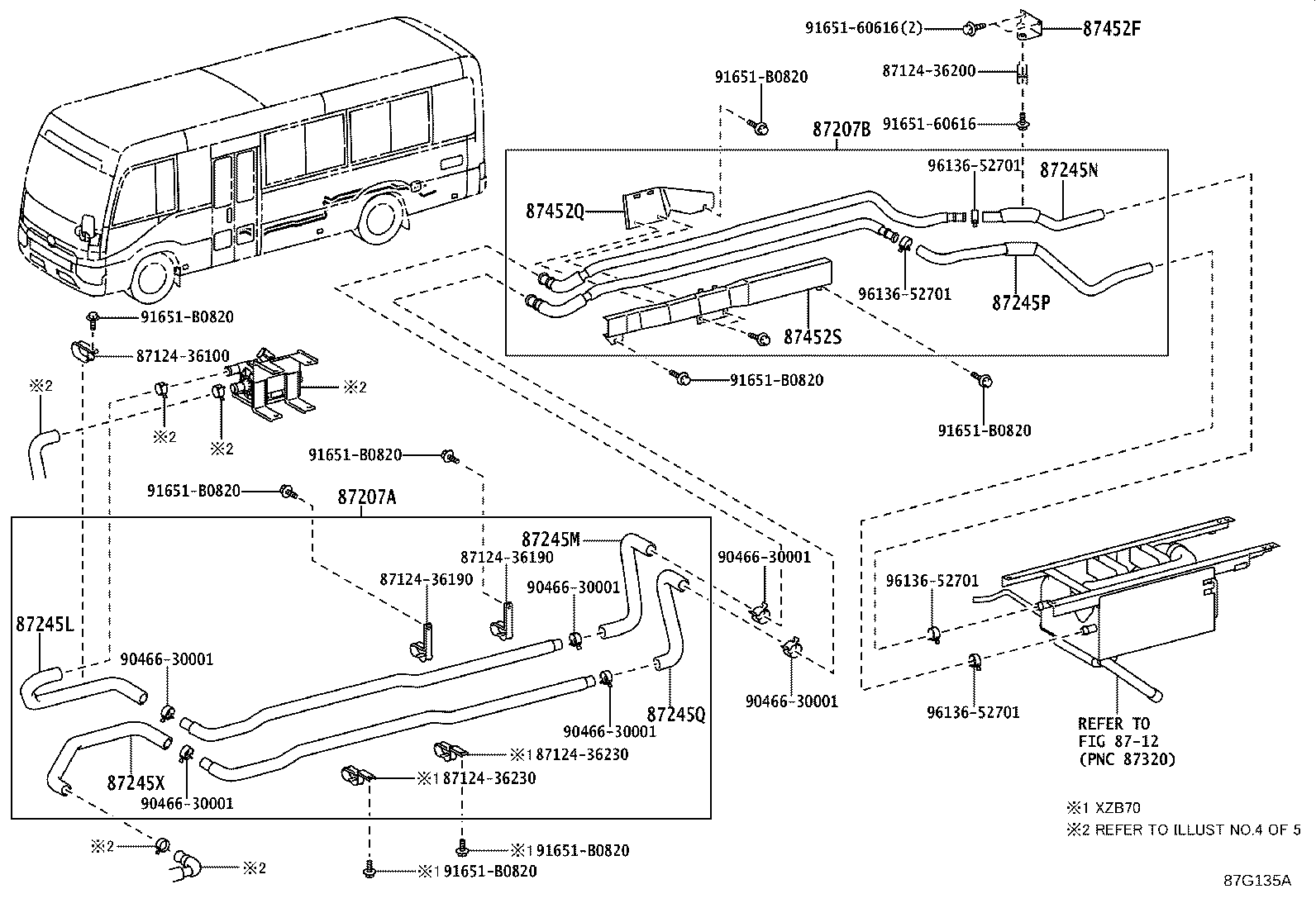

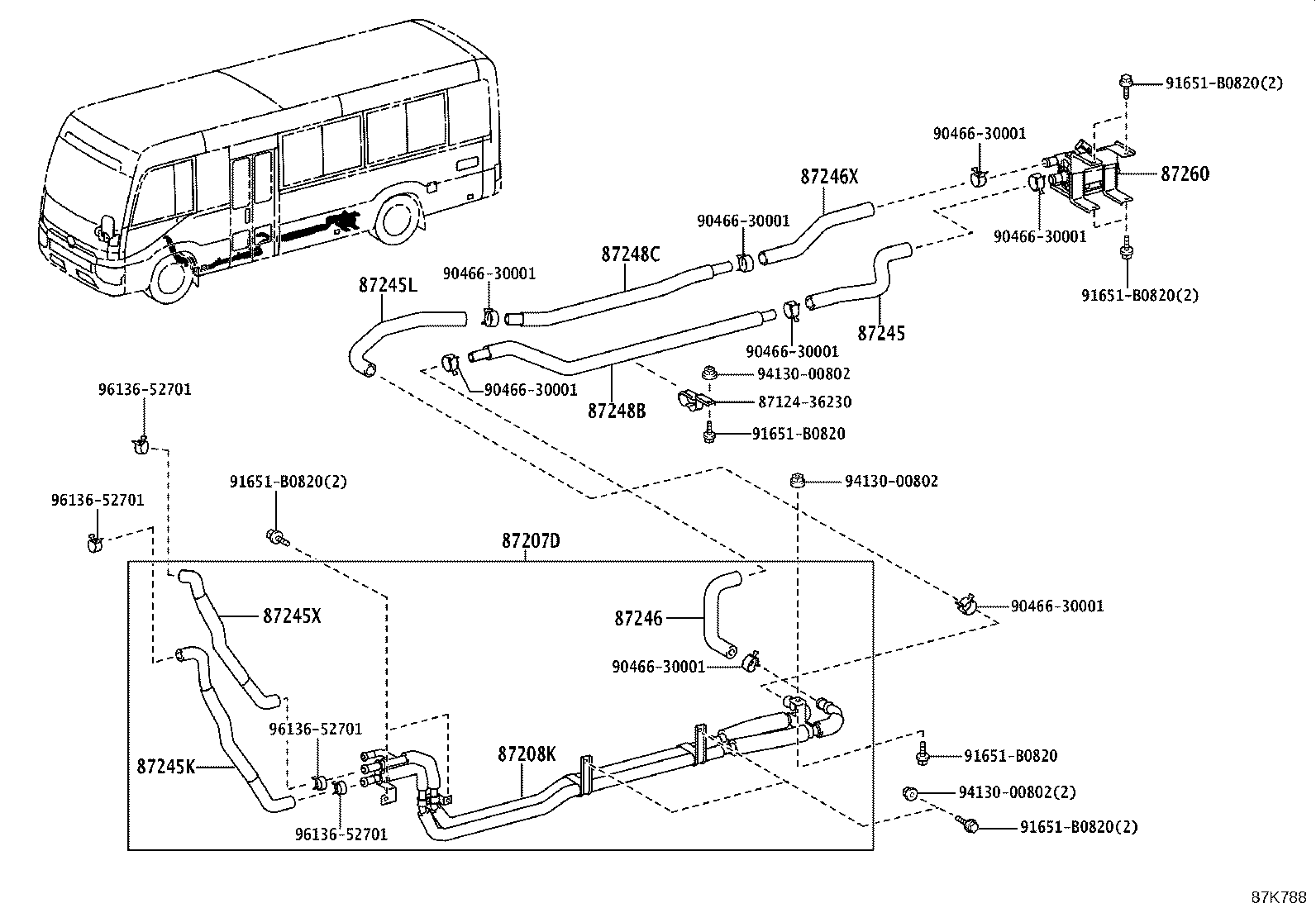

Illustrations

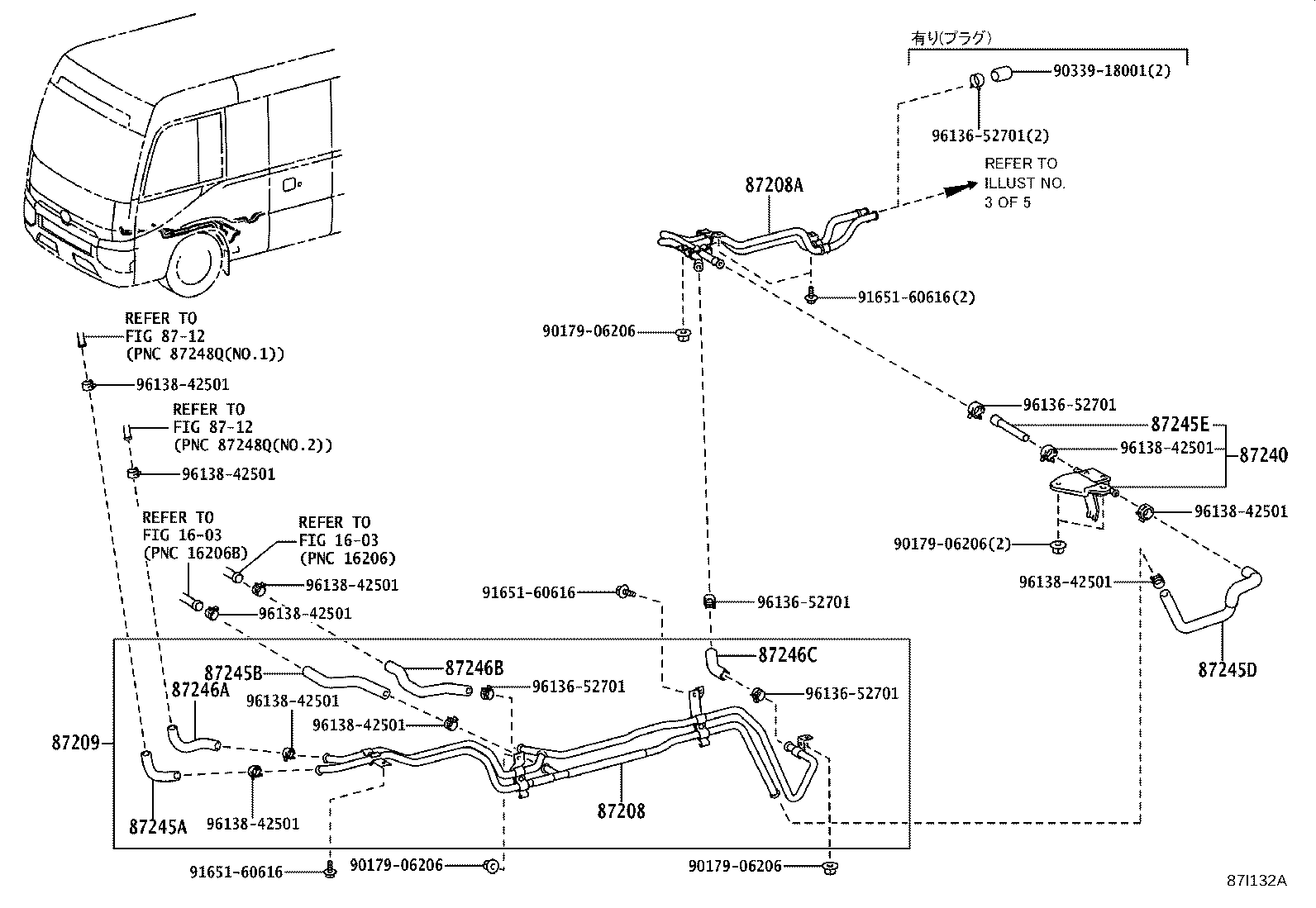

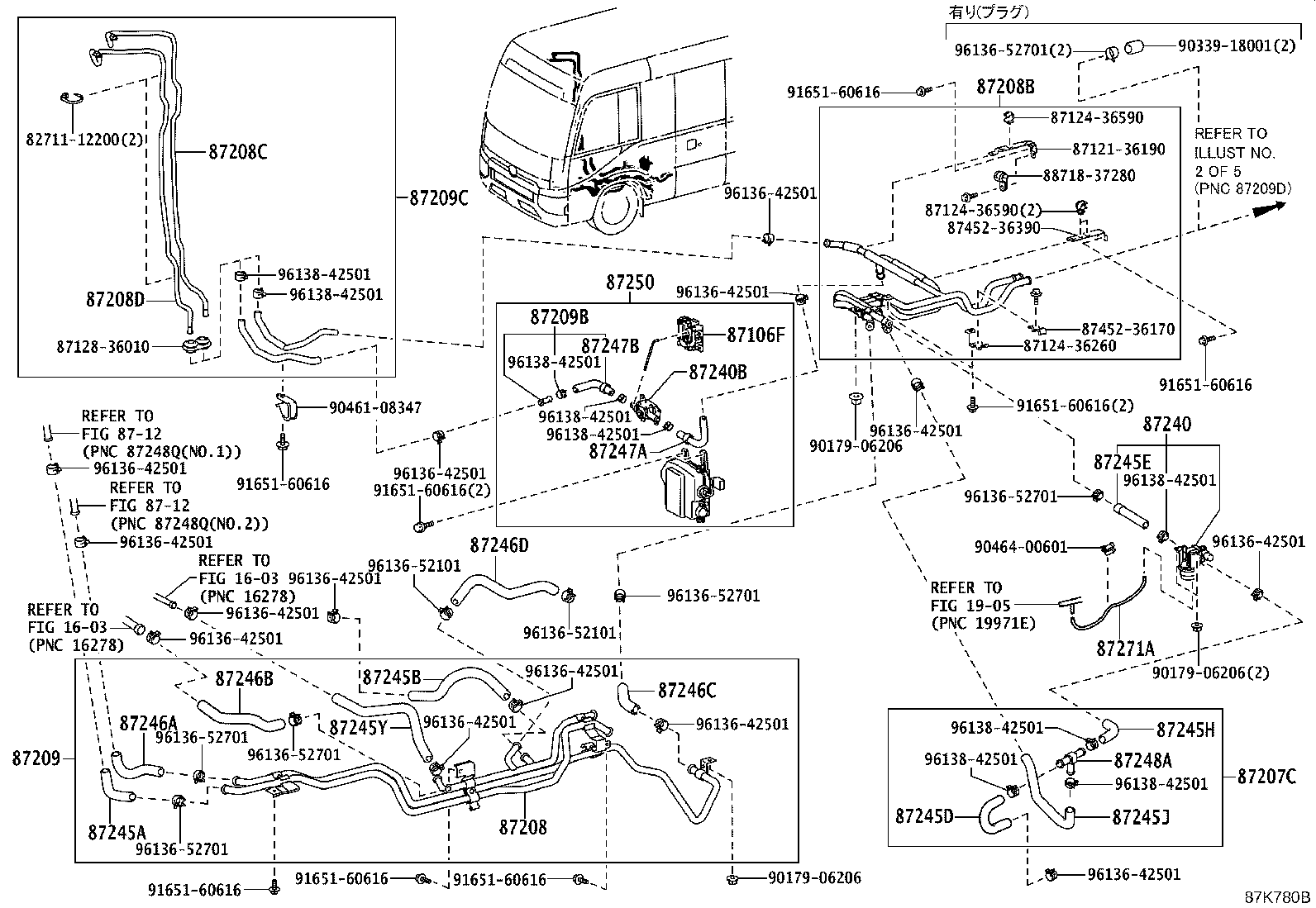

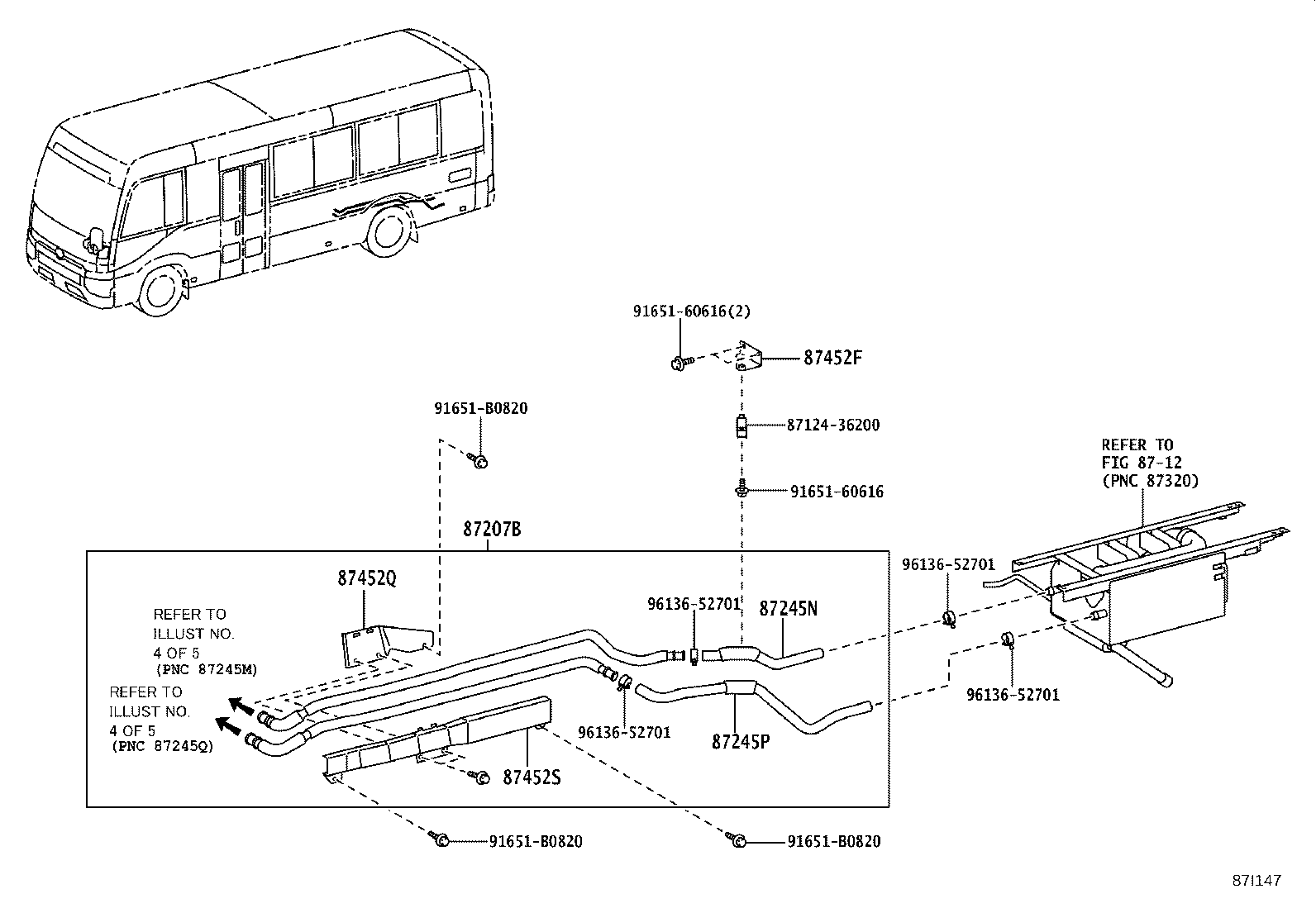

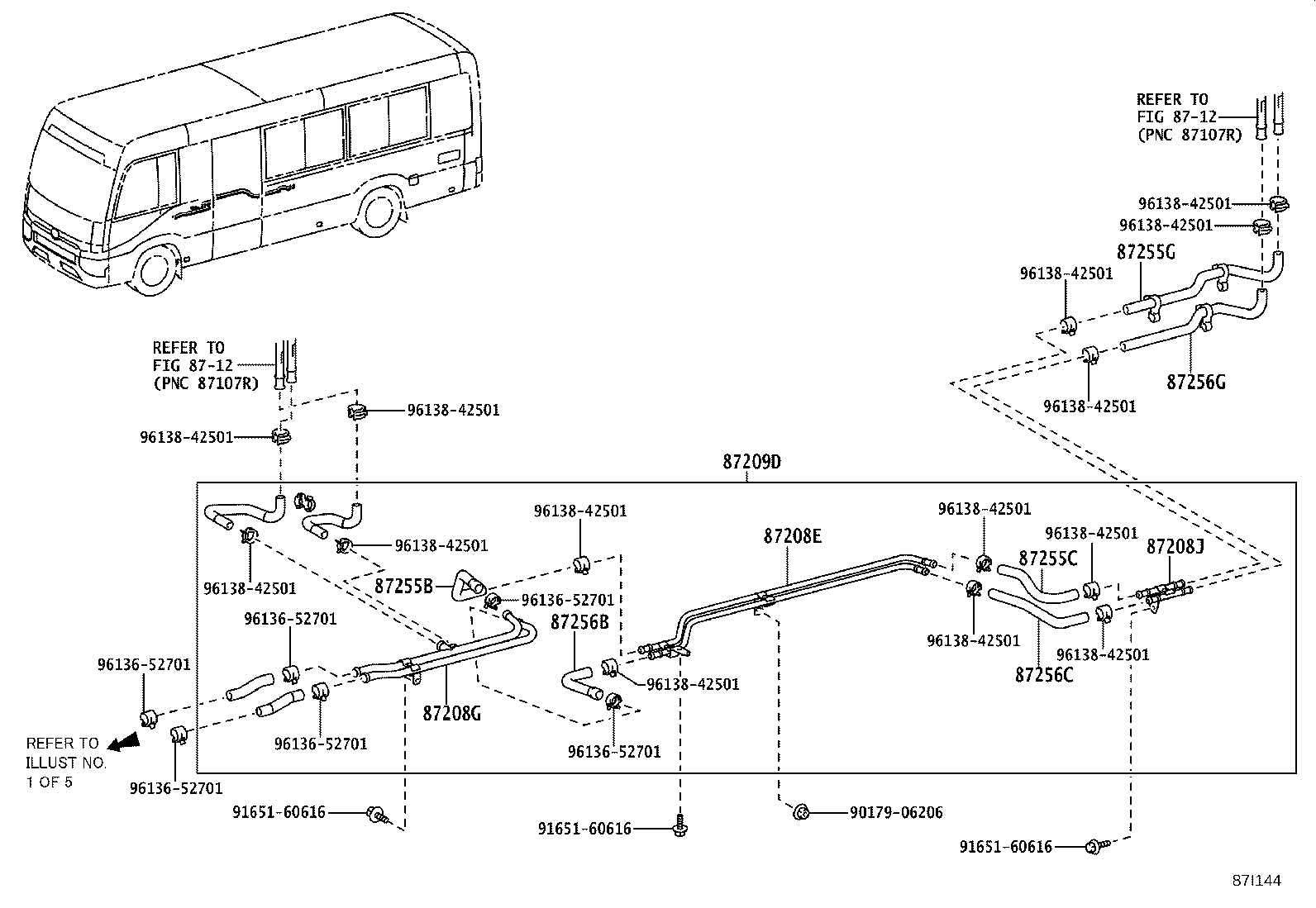

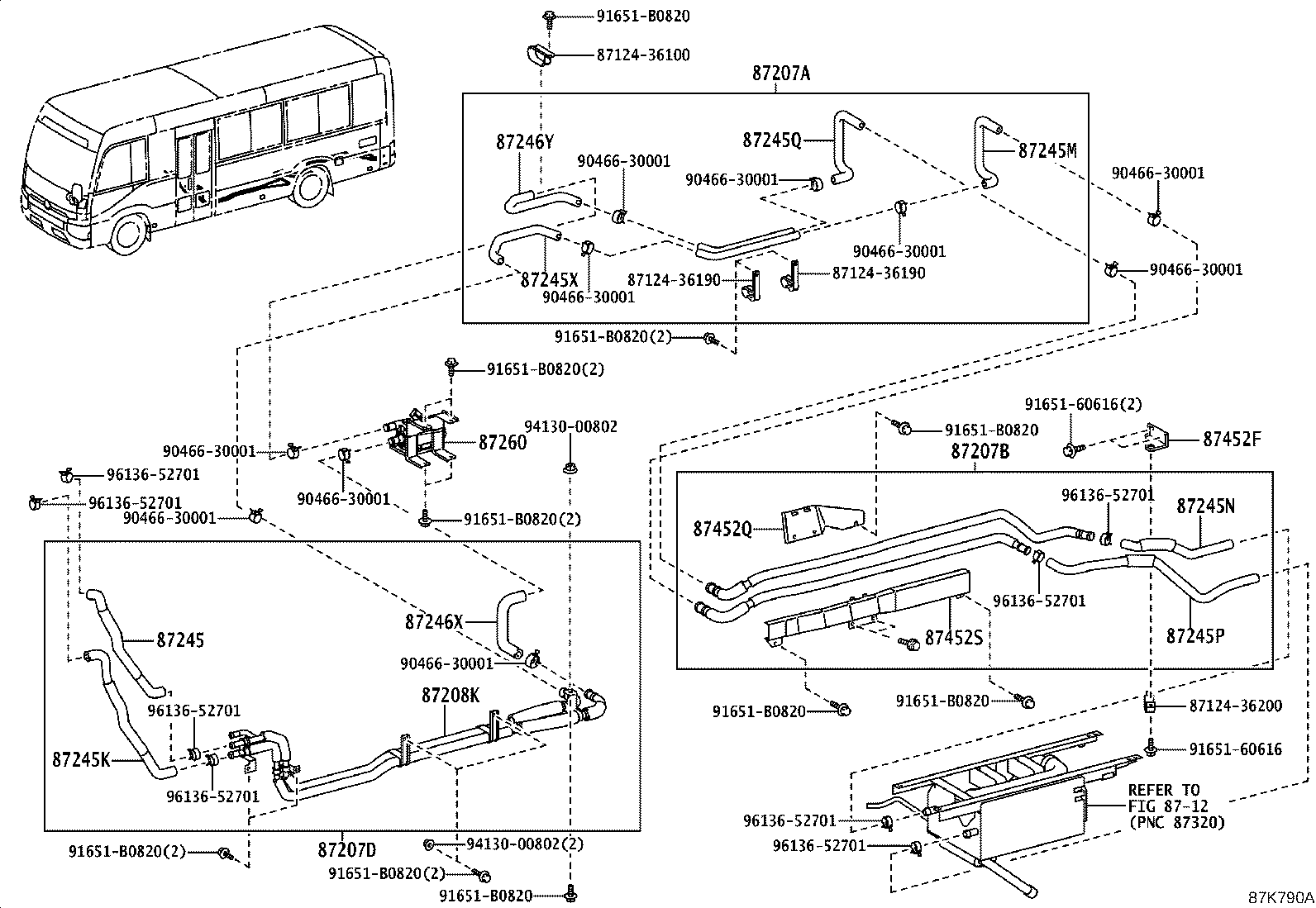

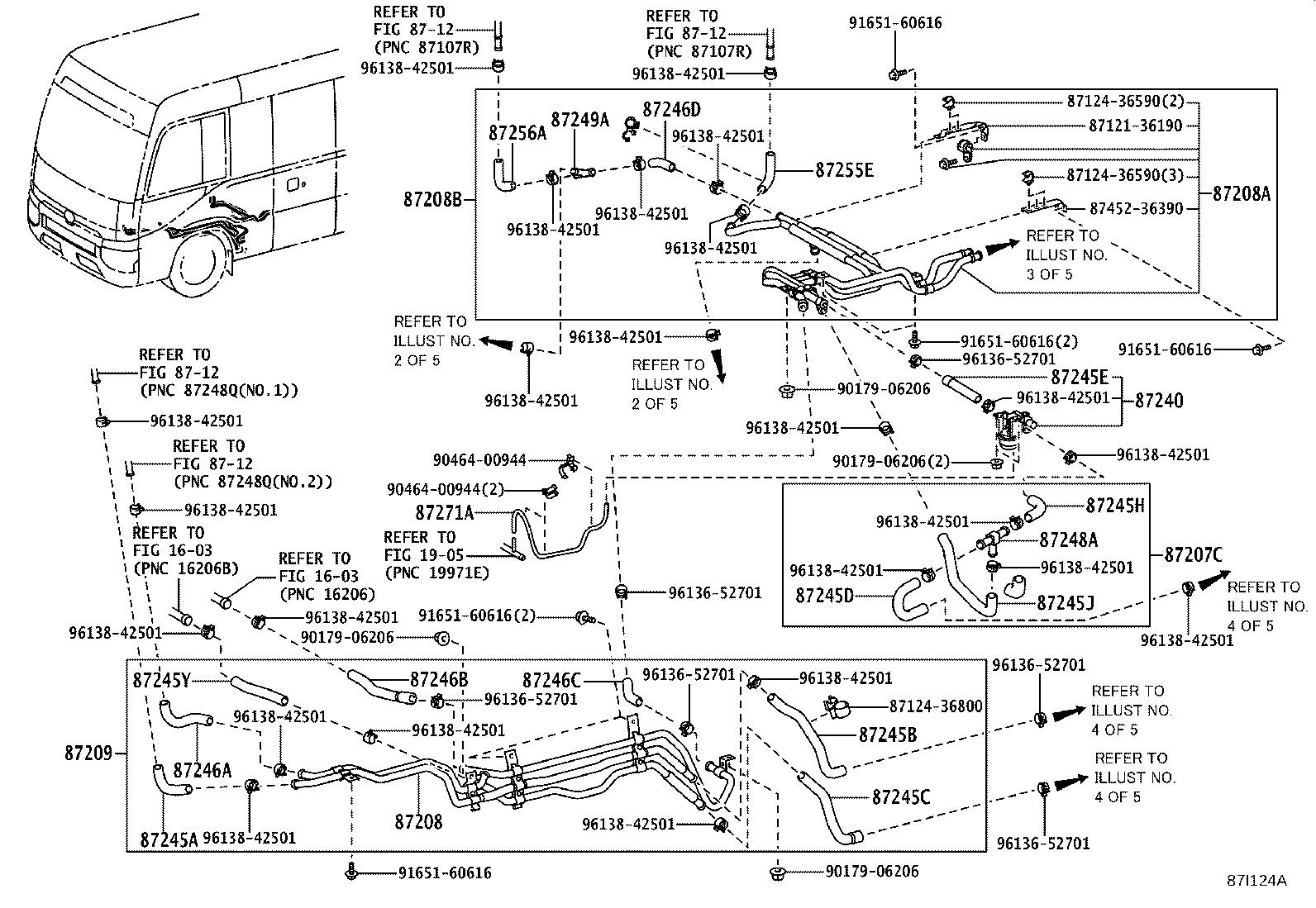

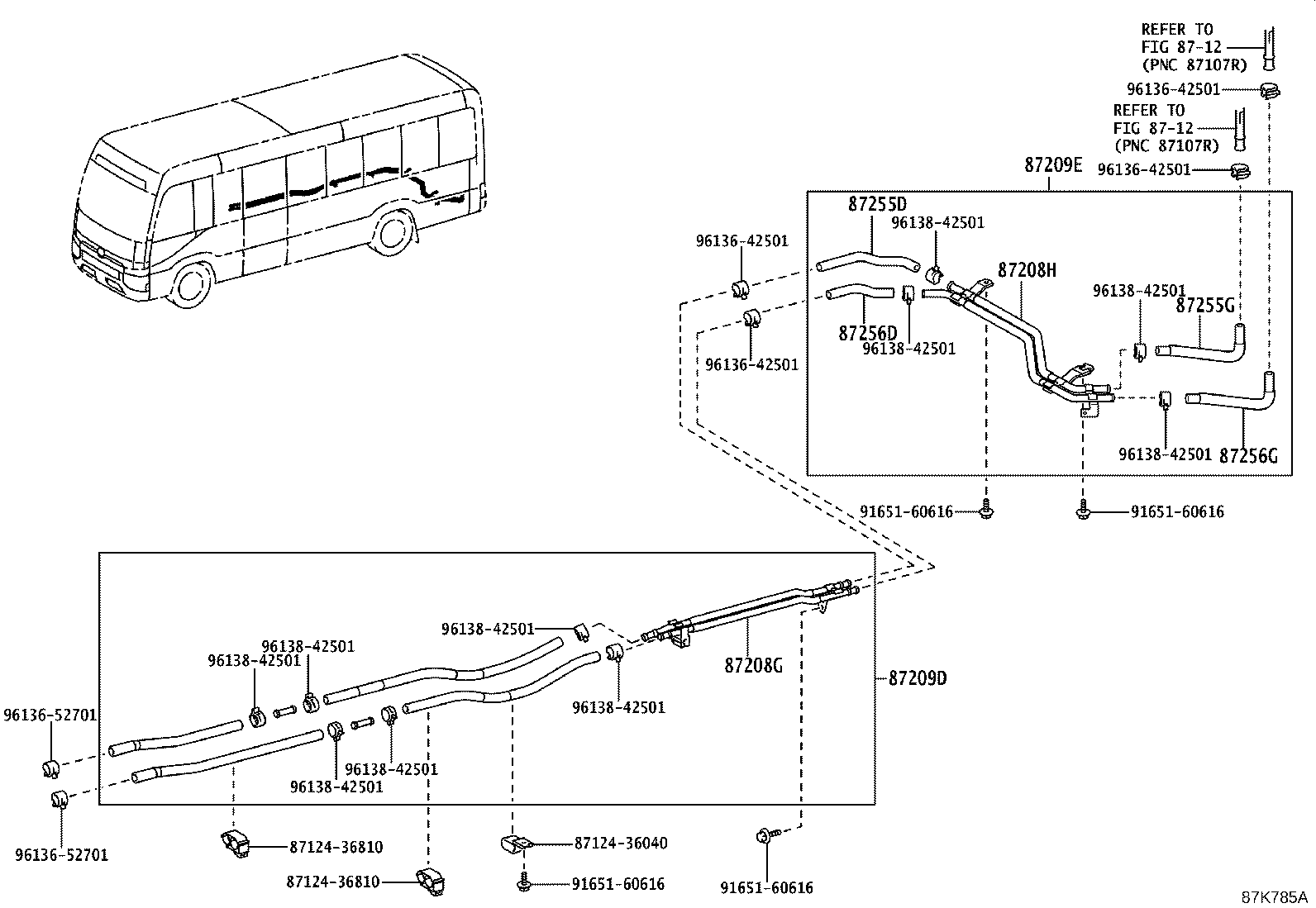

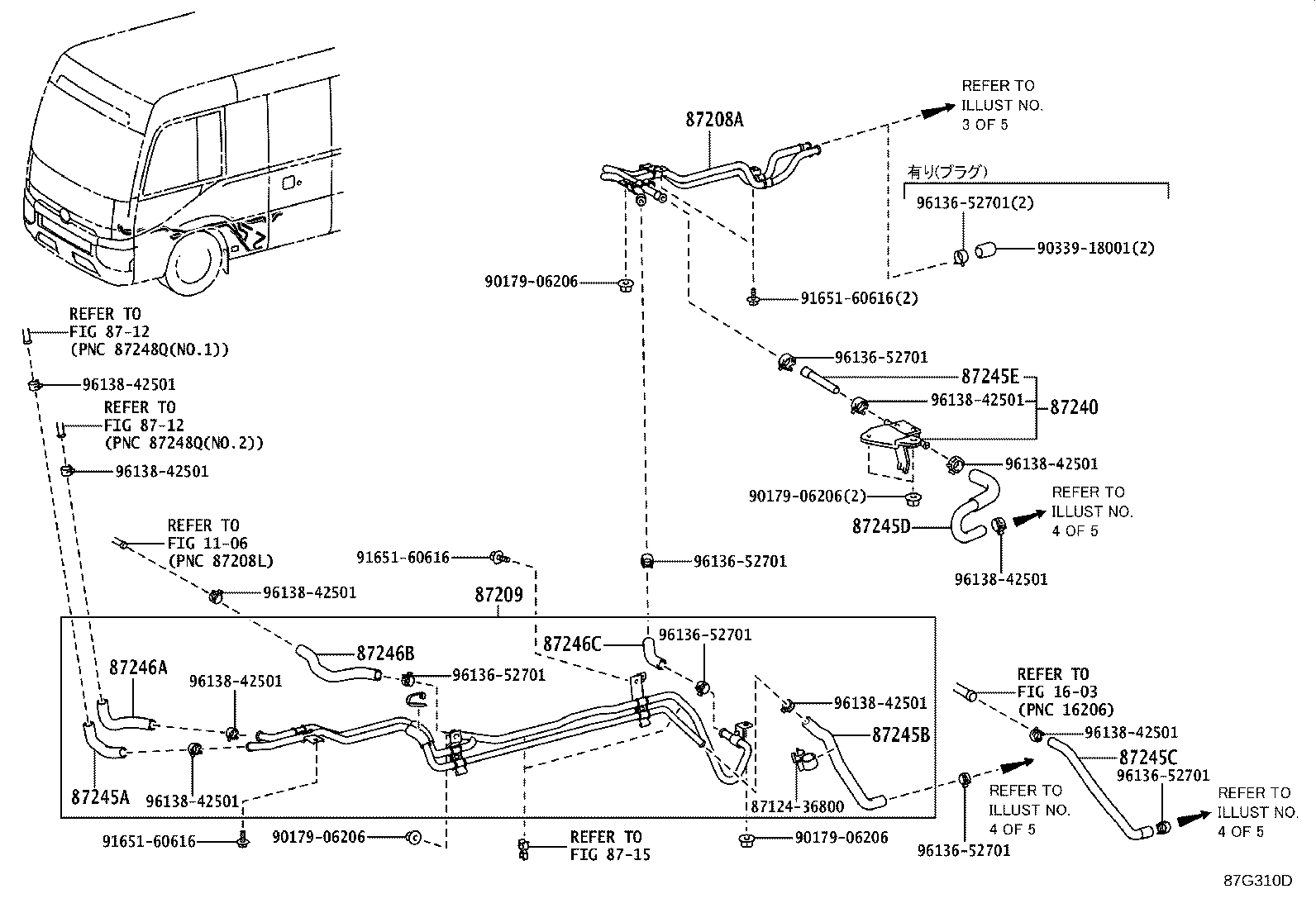

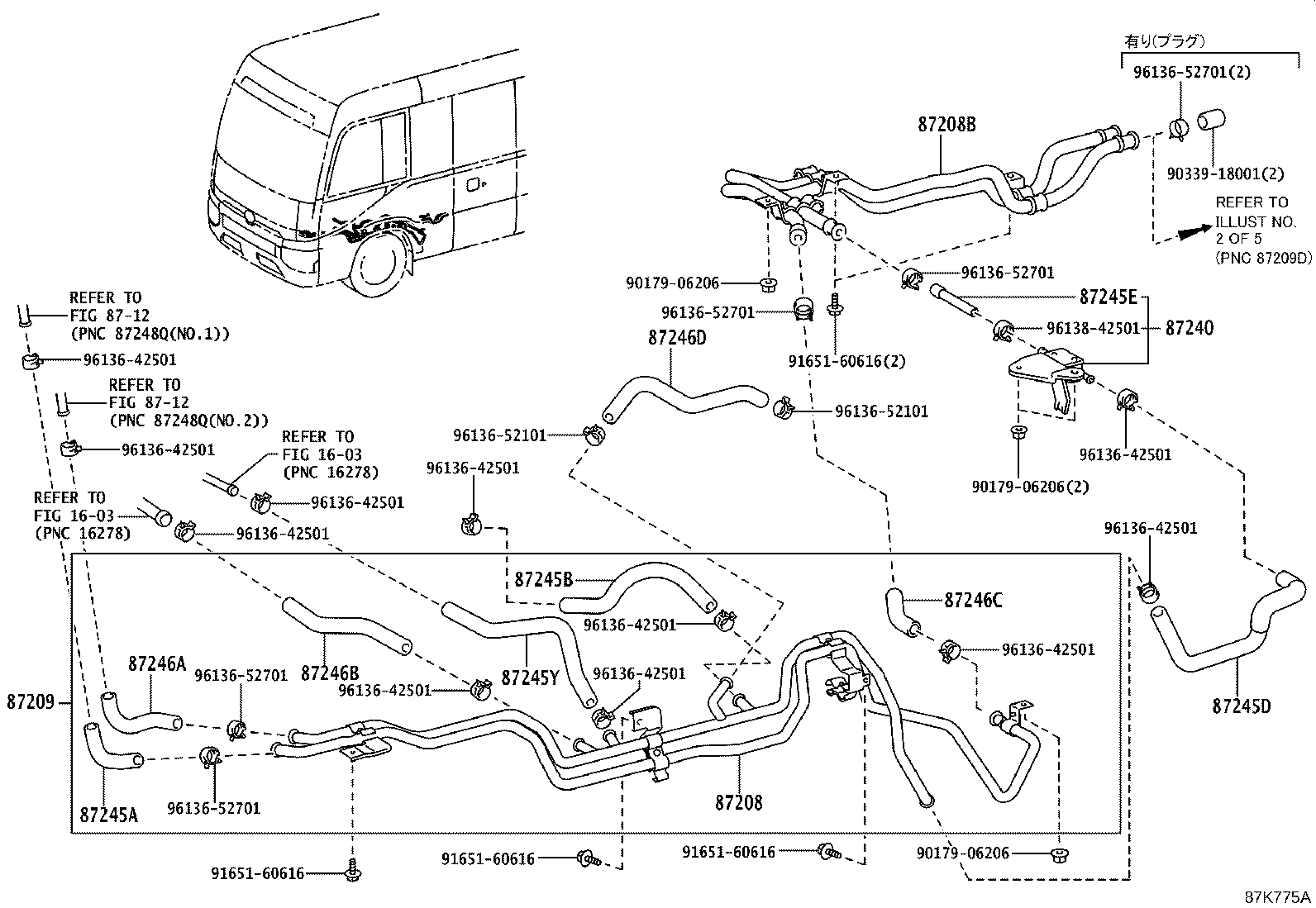

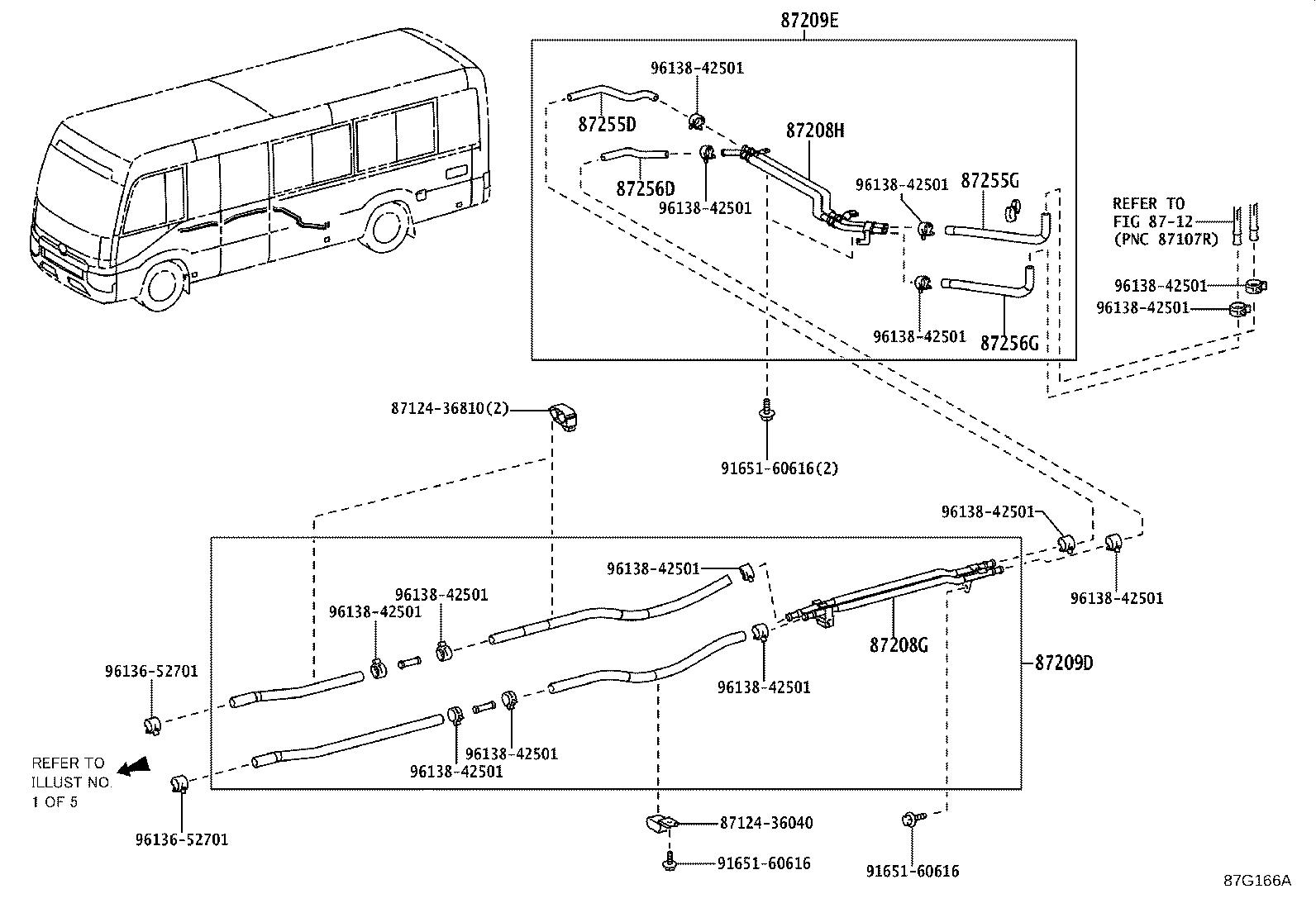

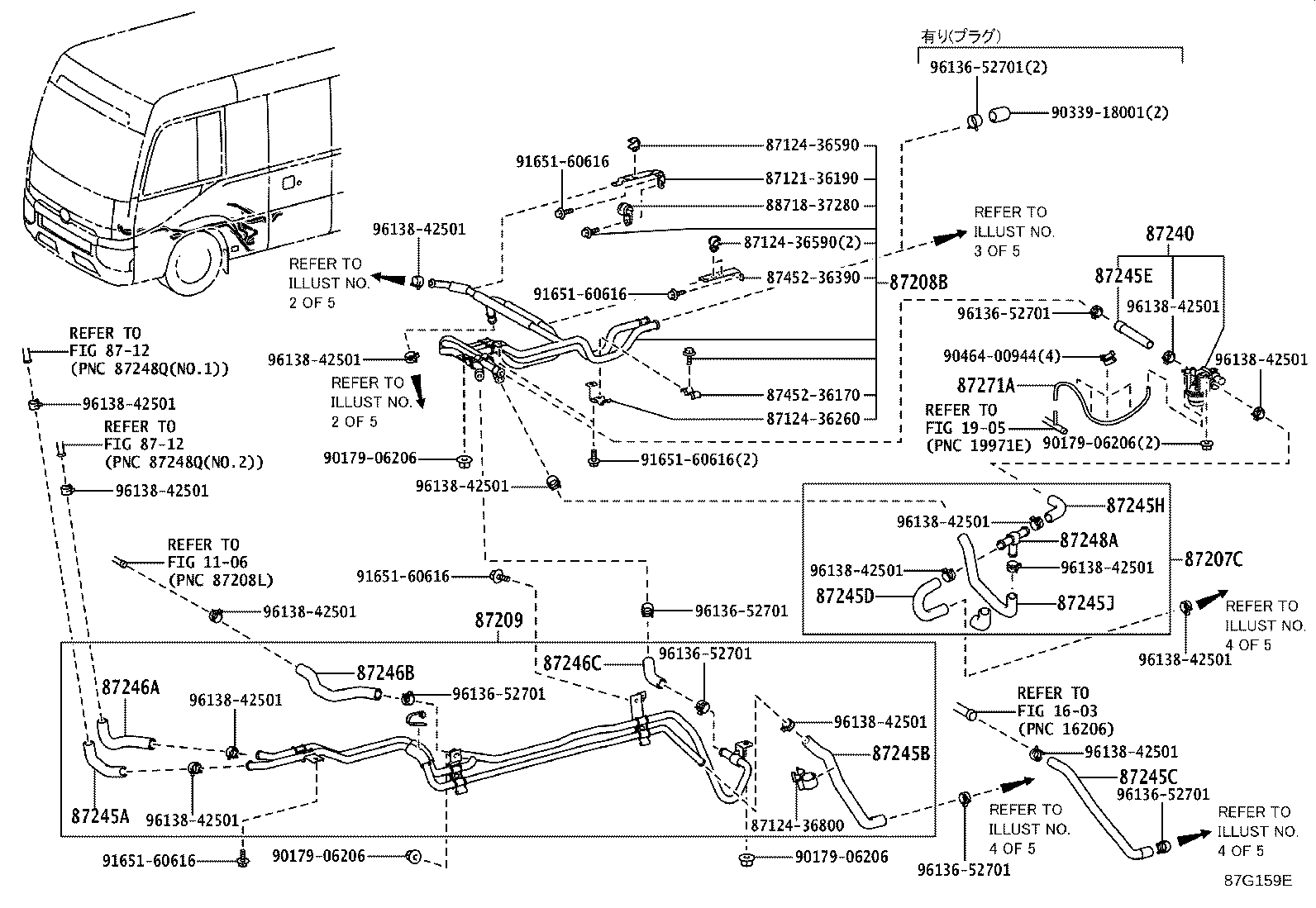

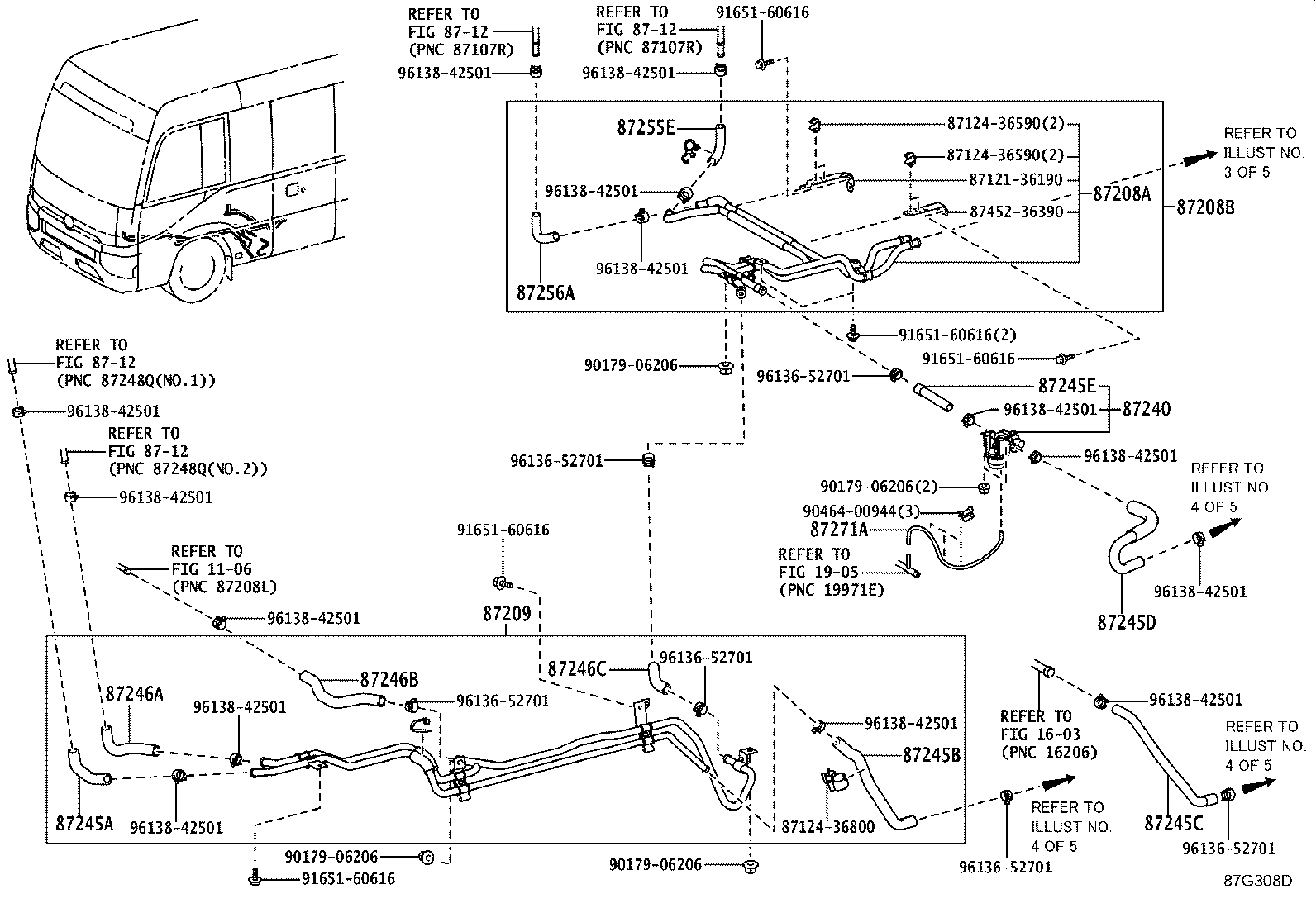

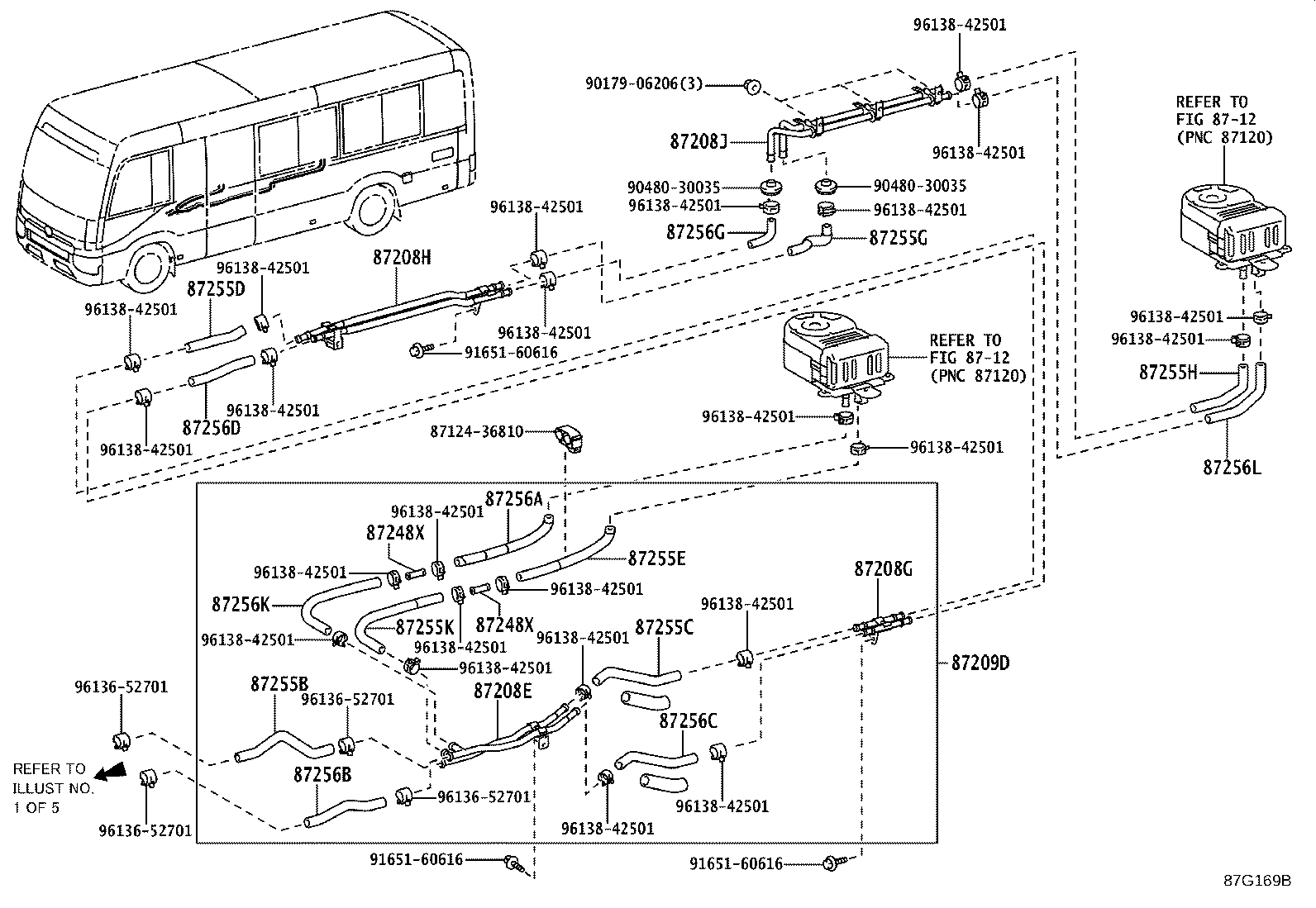

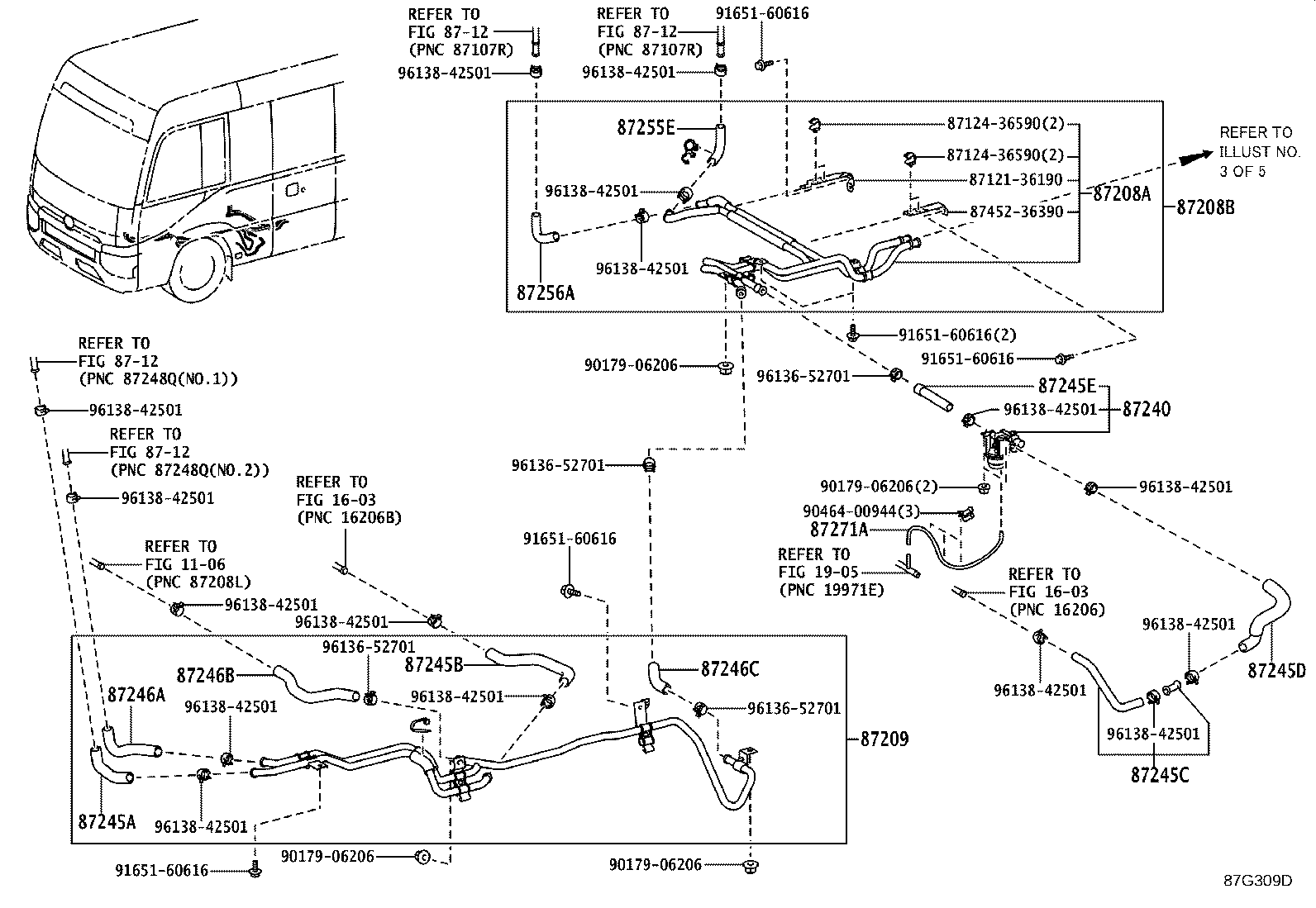

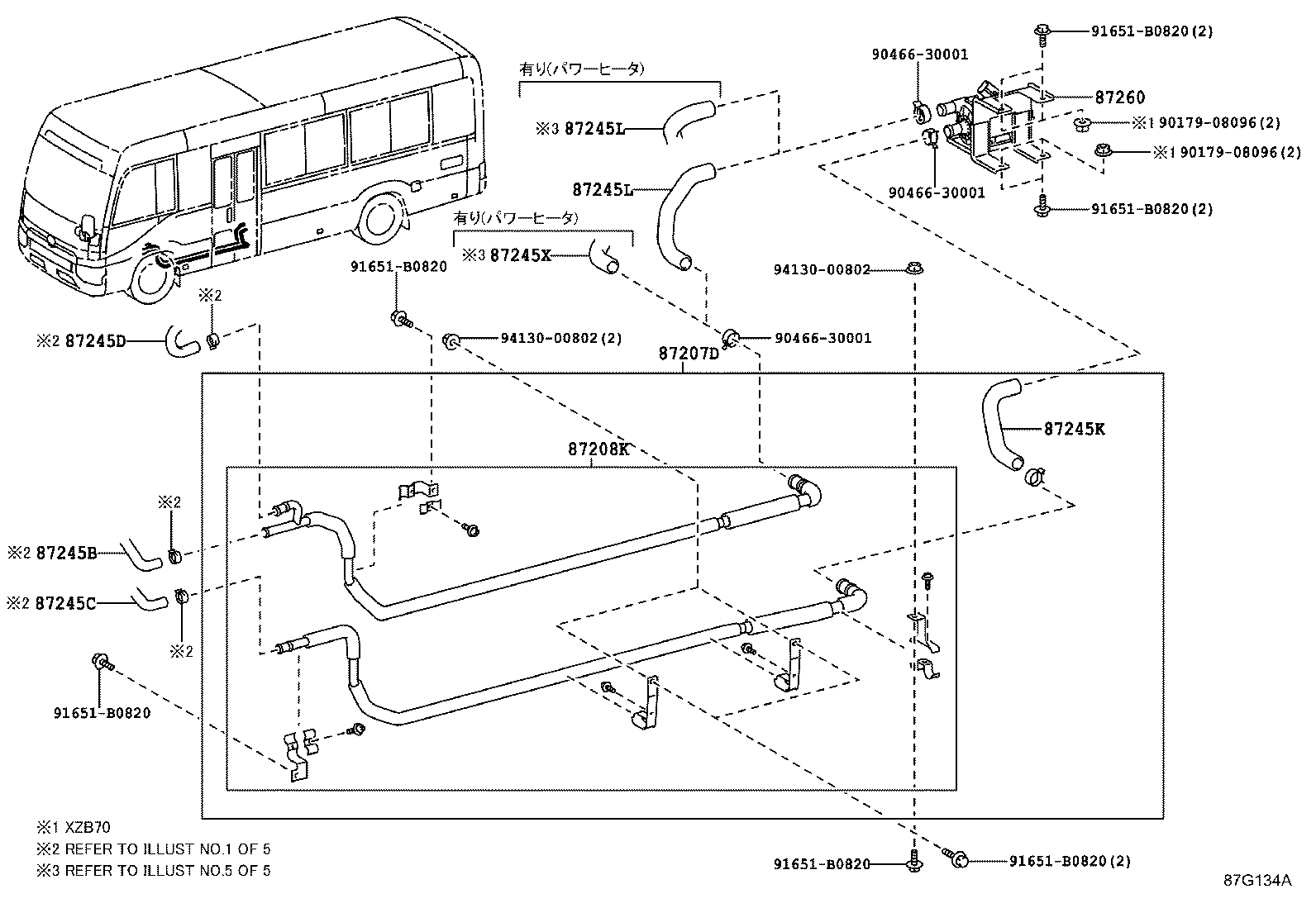

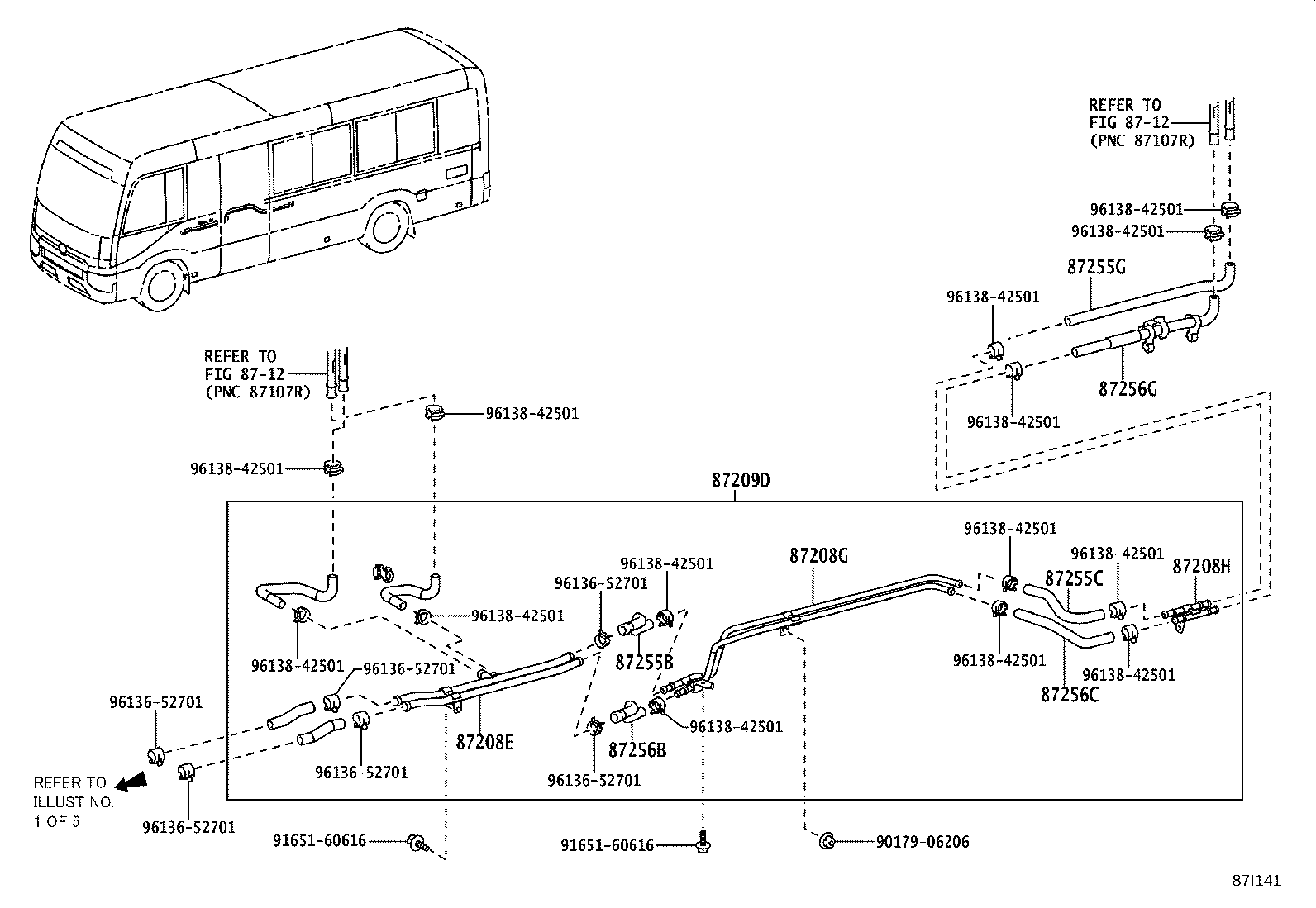

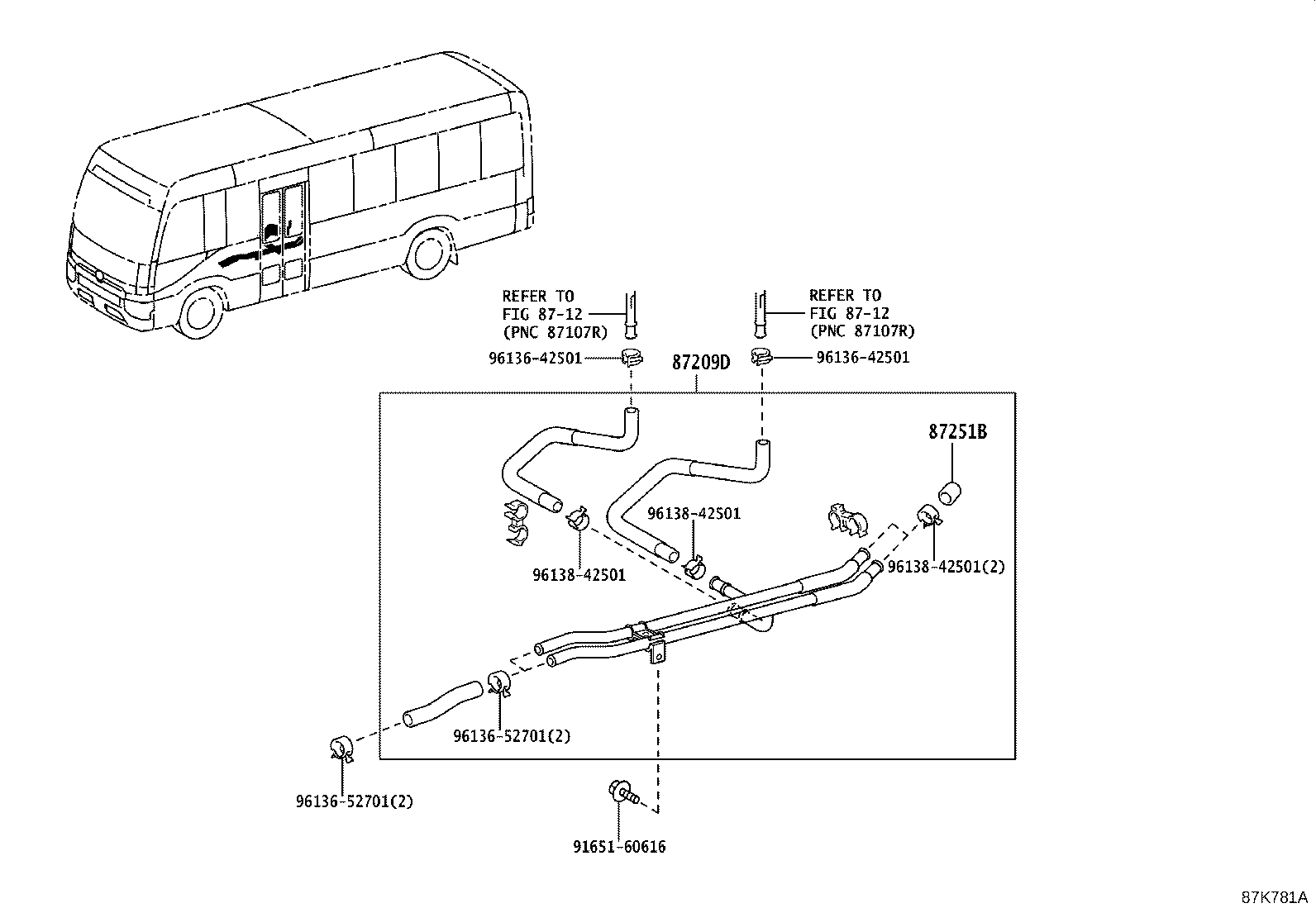

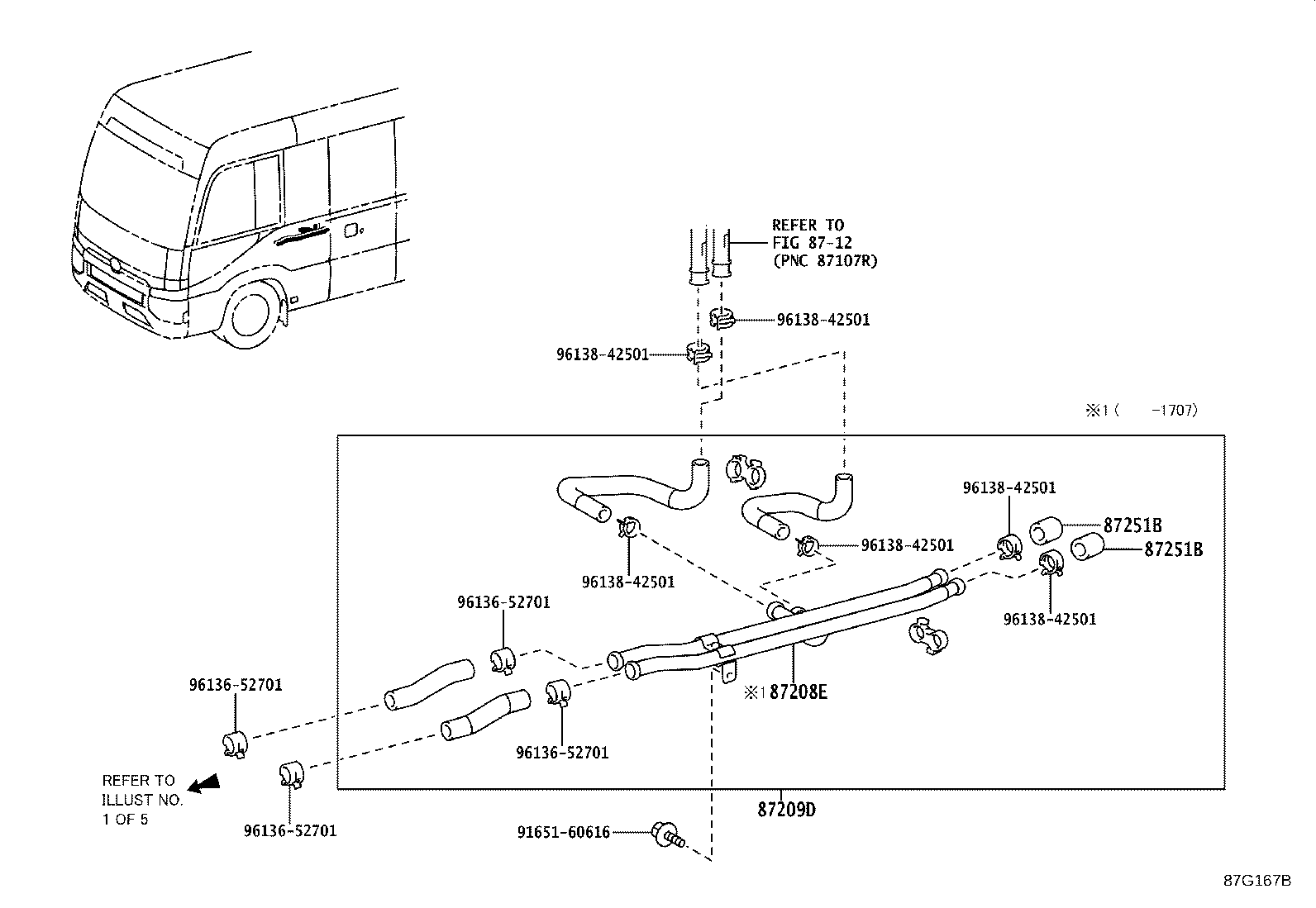

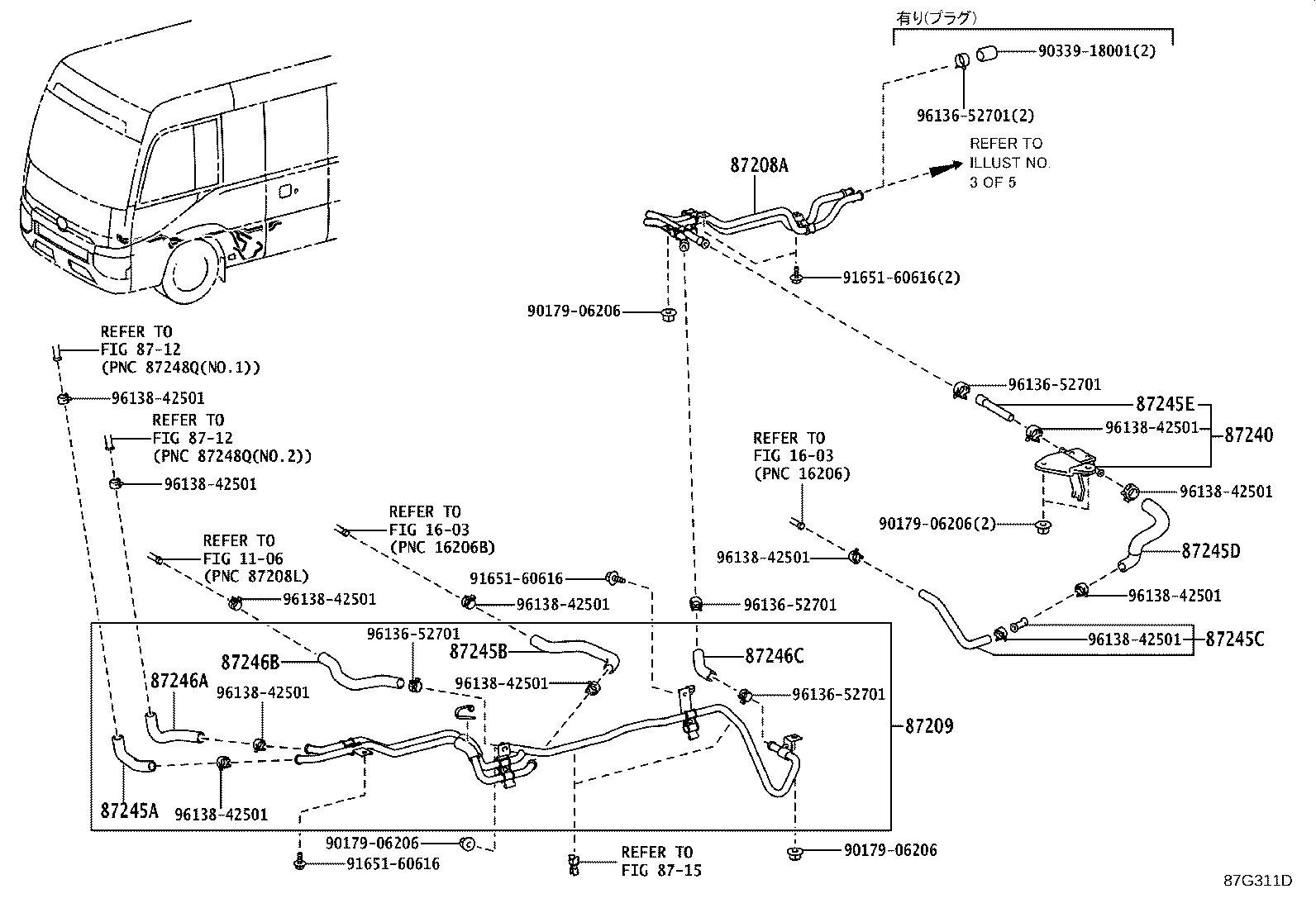

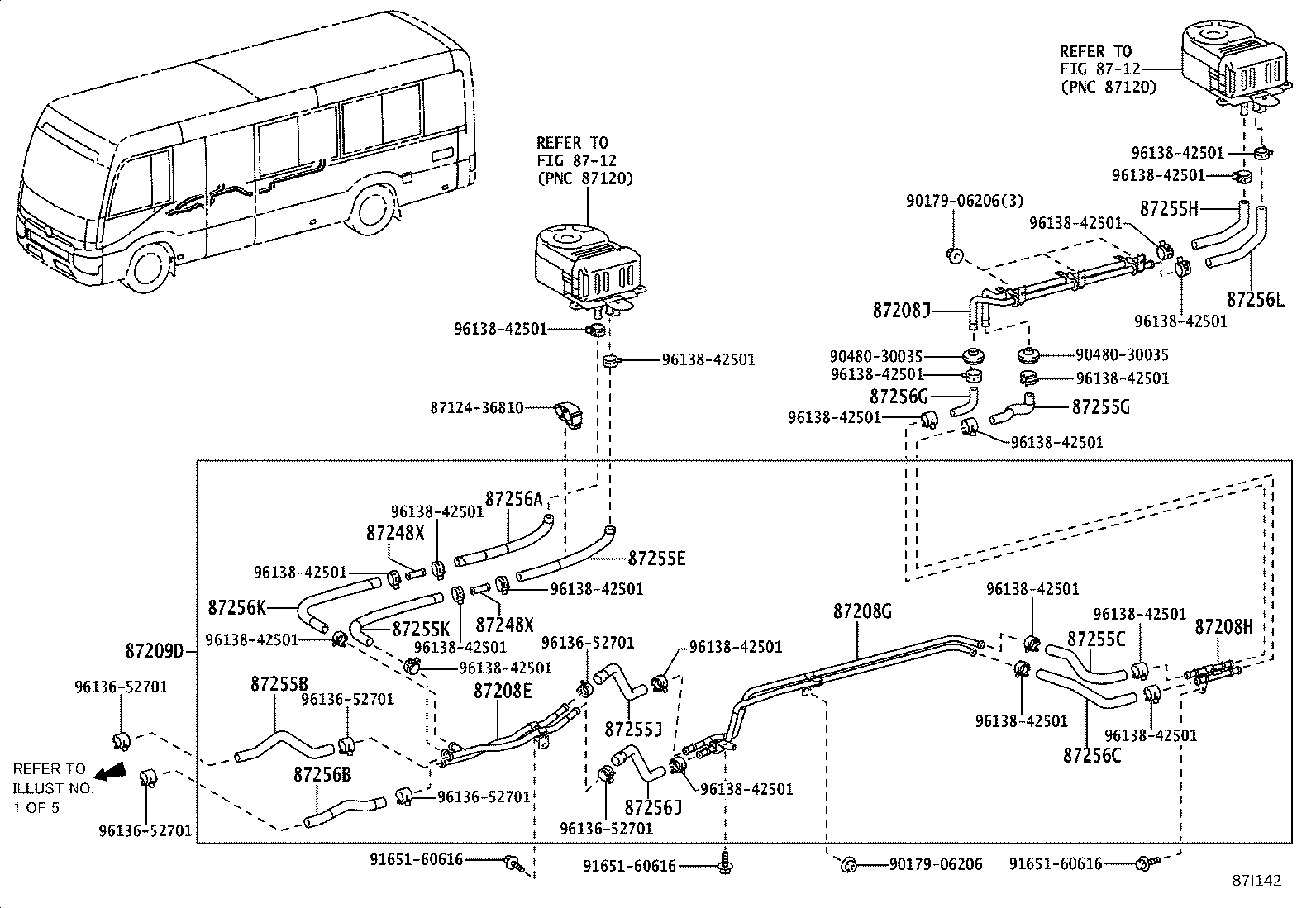

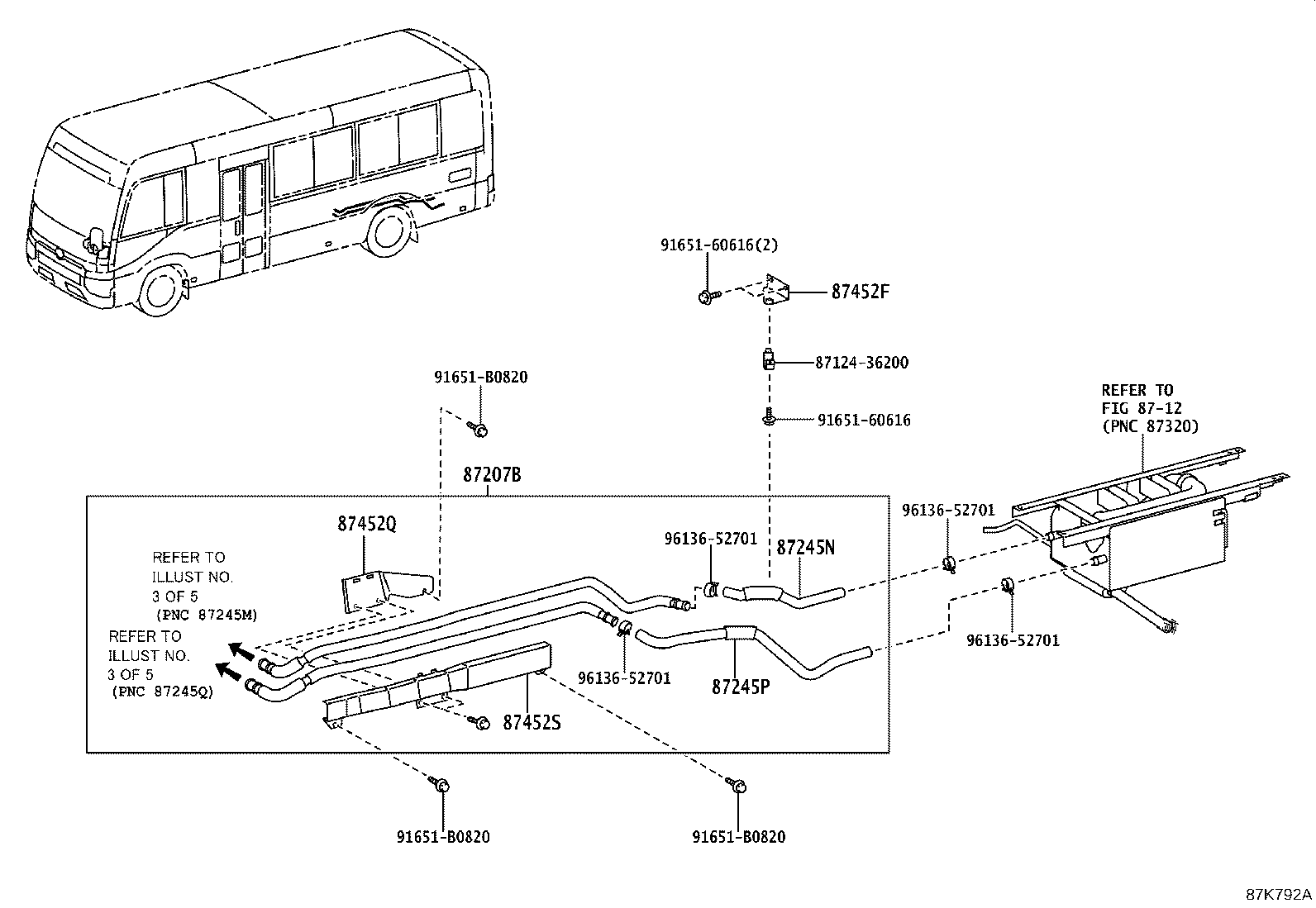

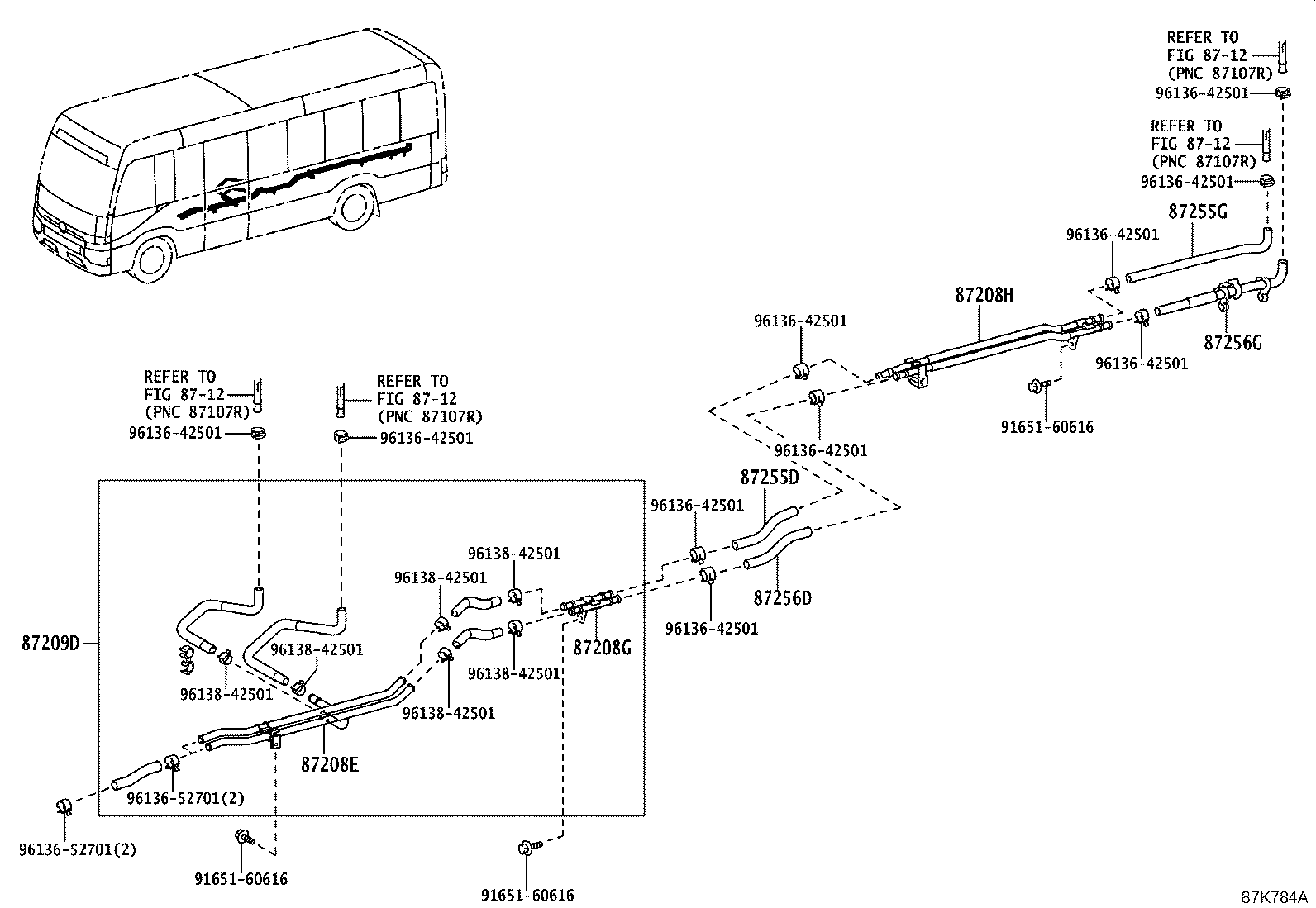

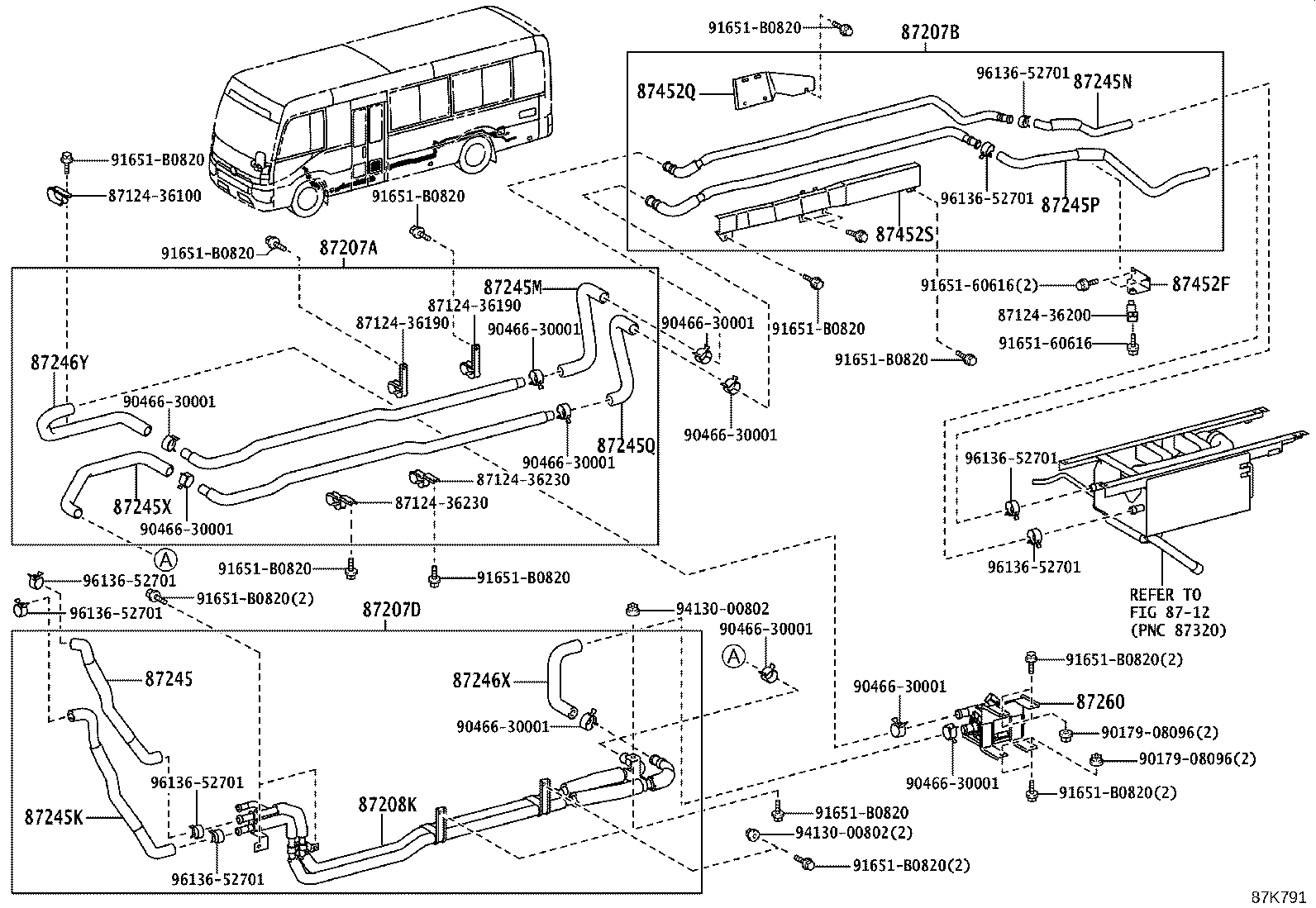

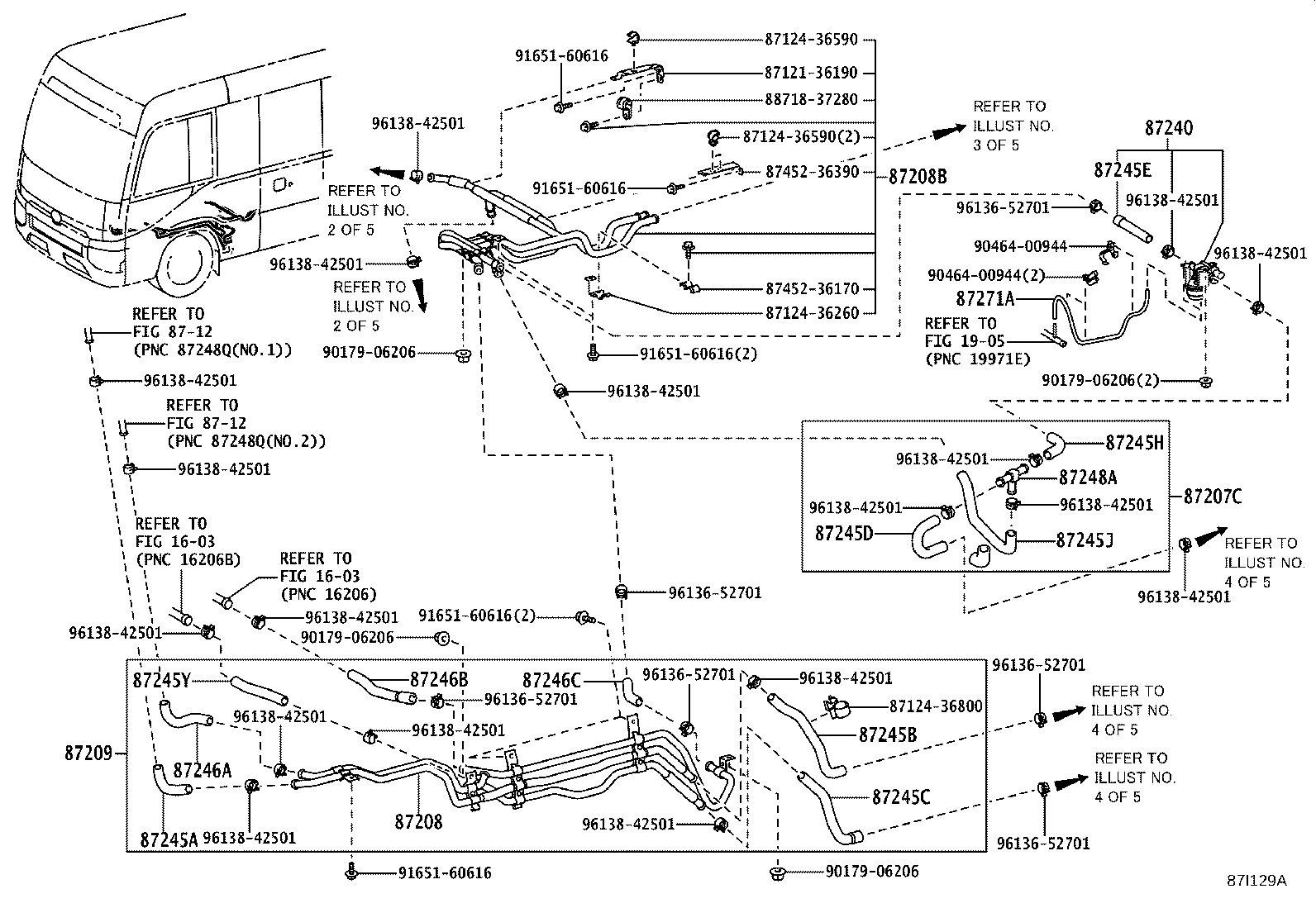

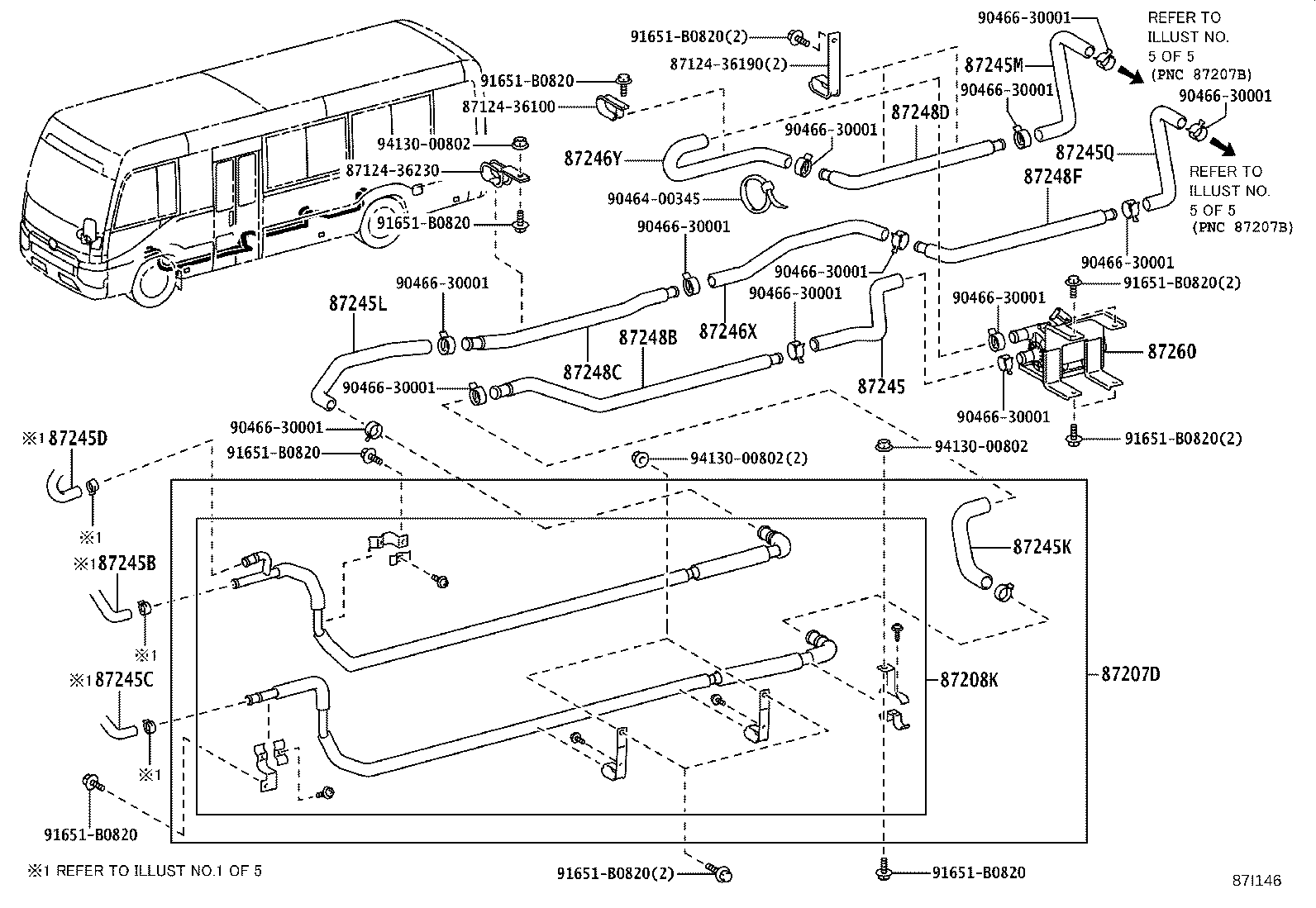

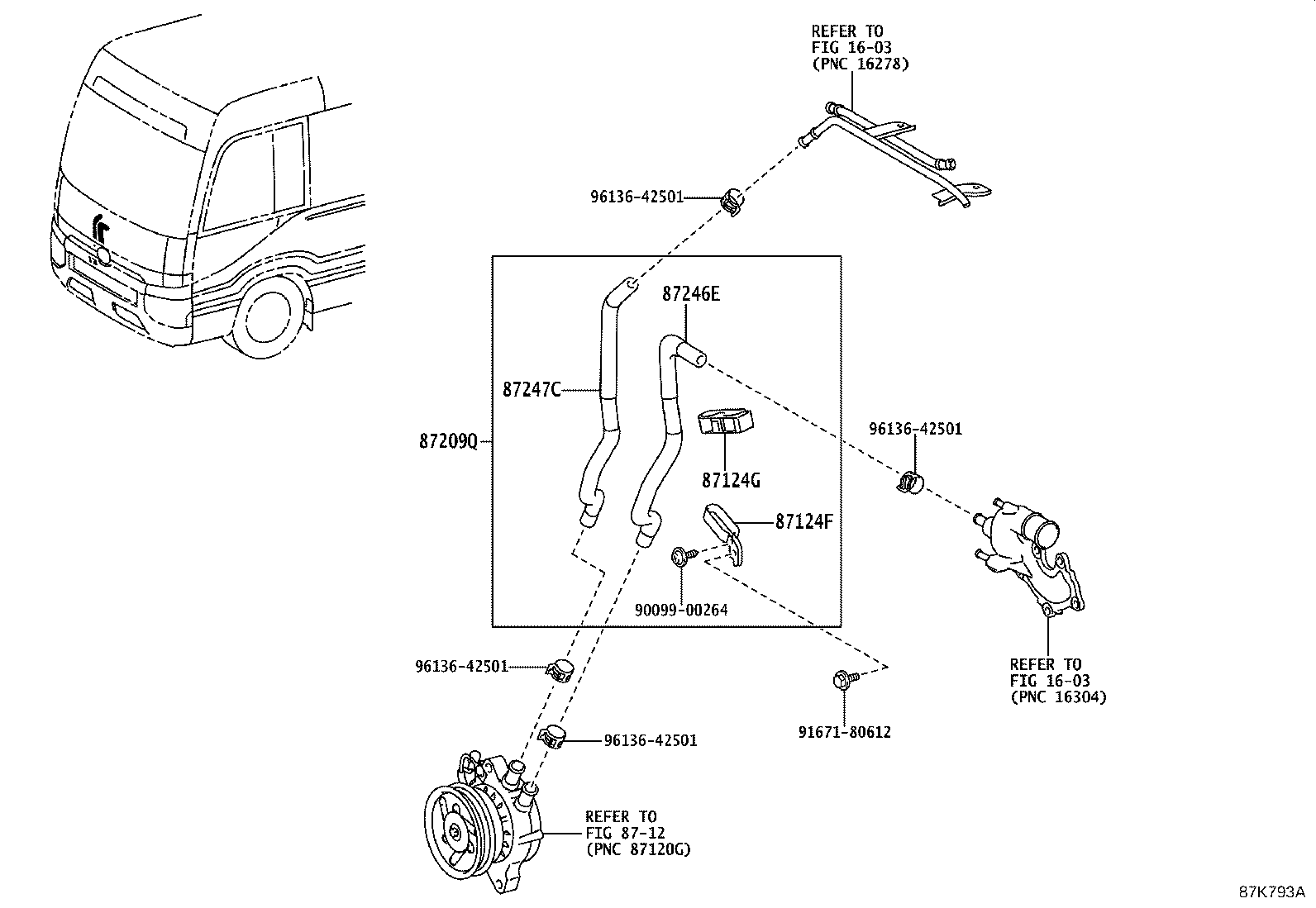

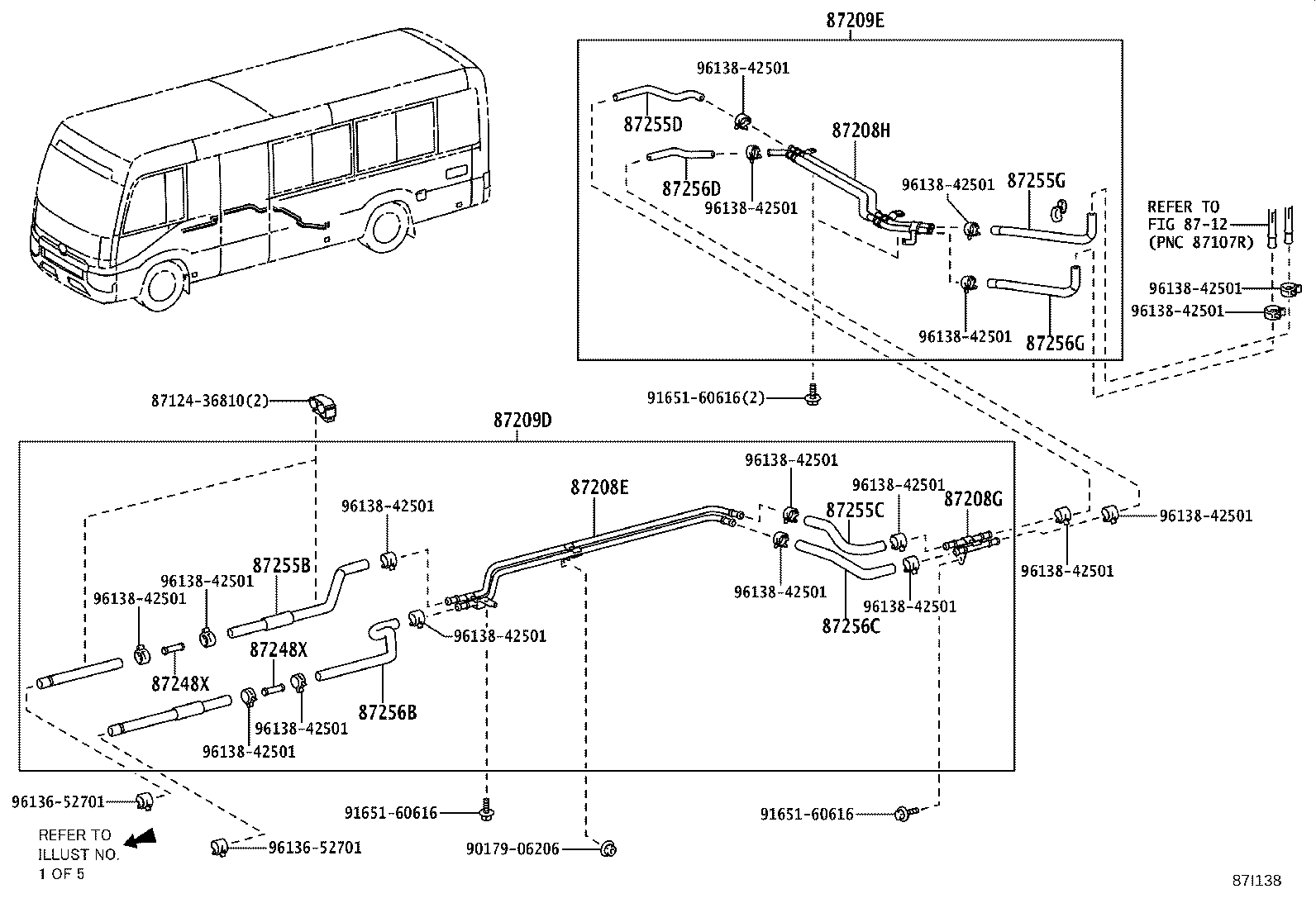

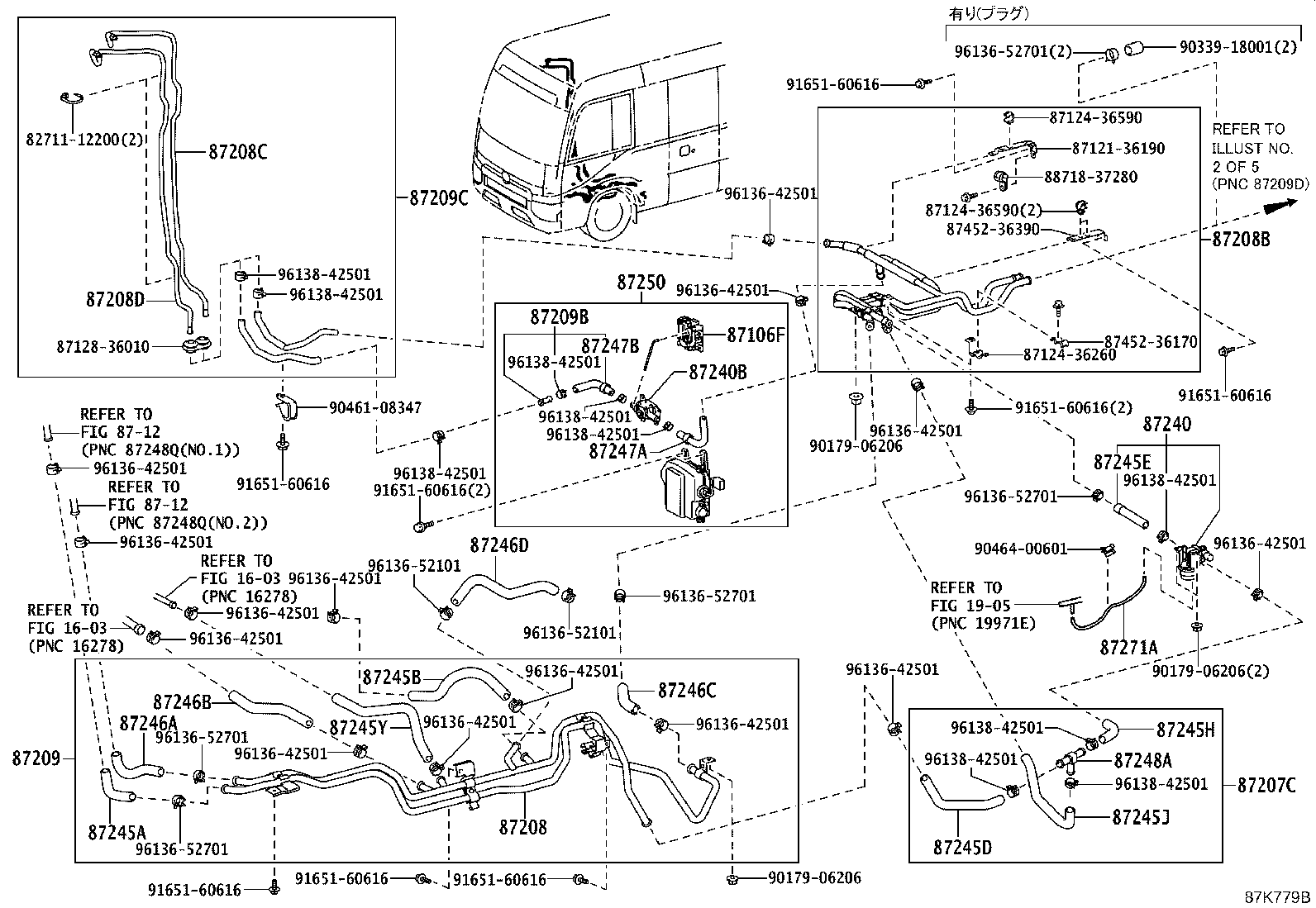

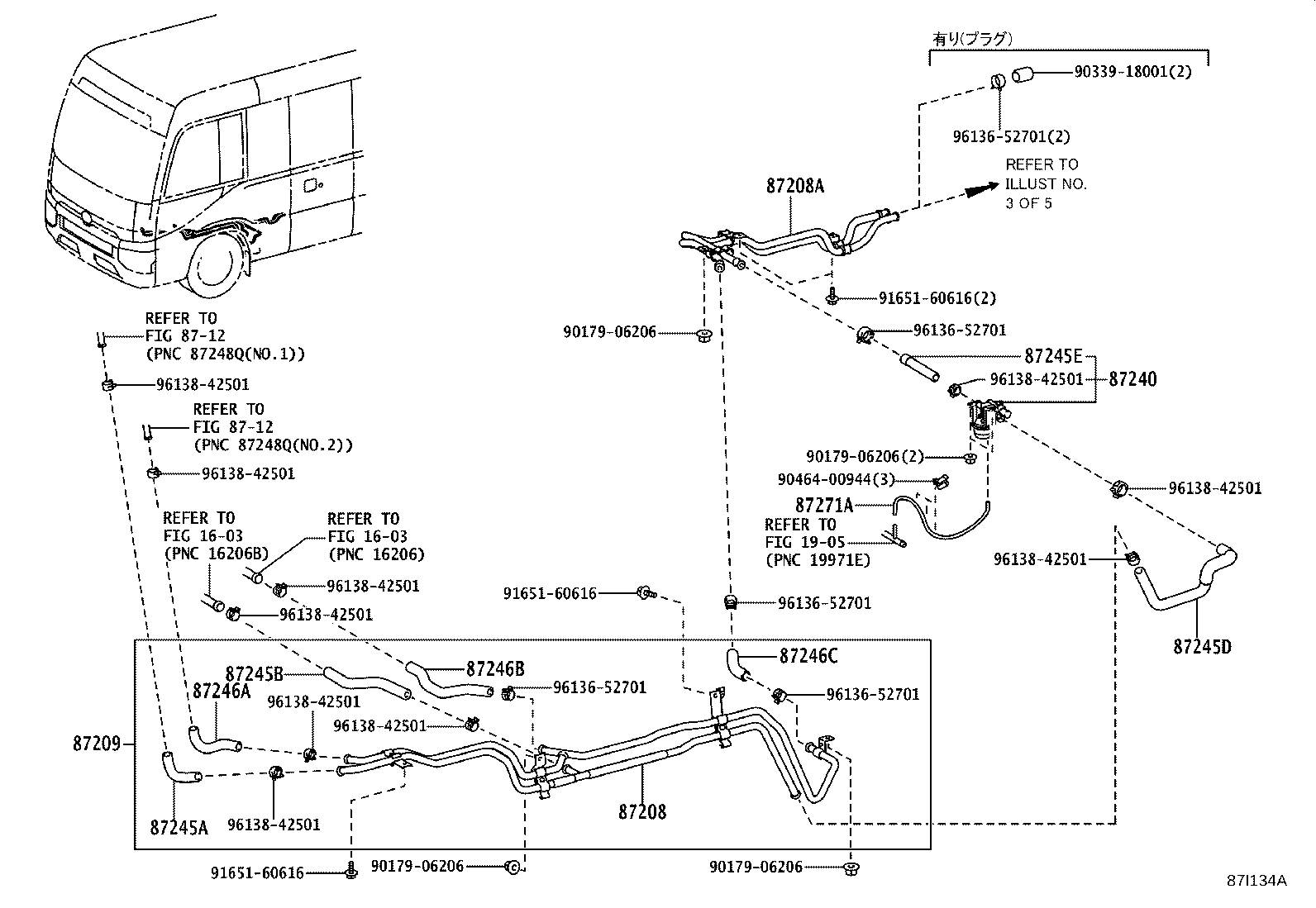

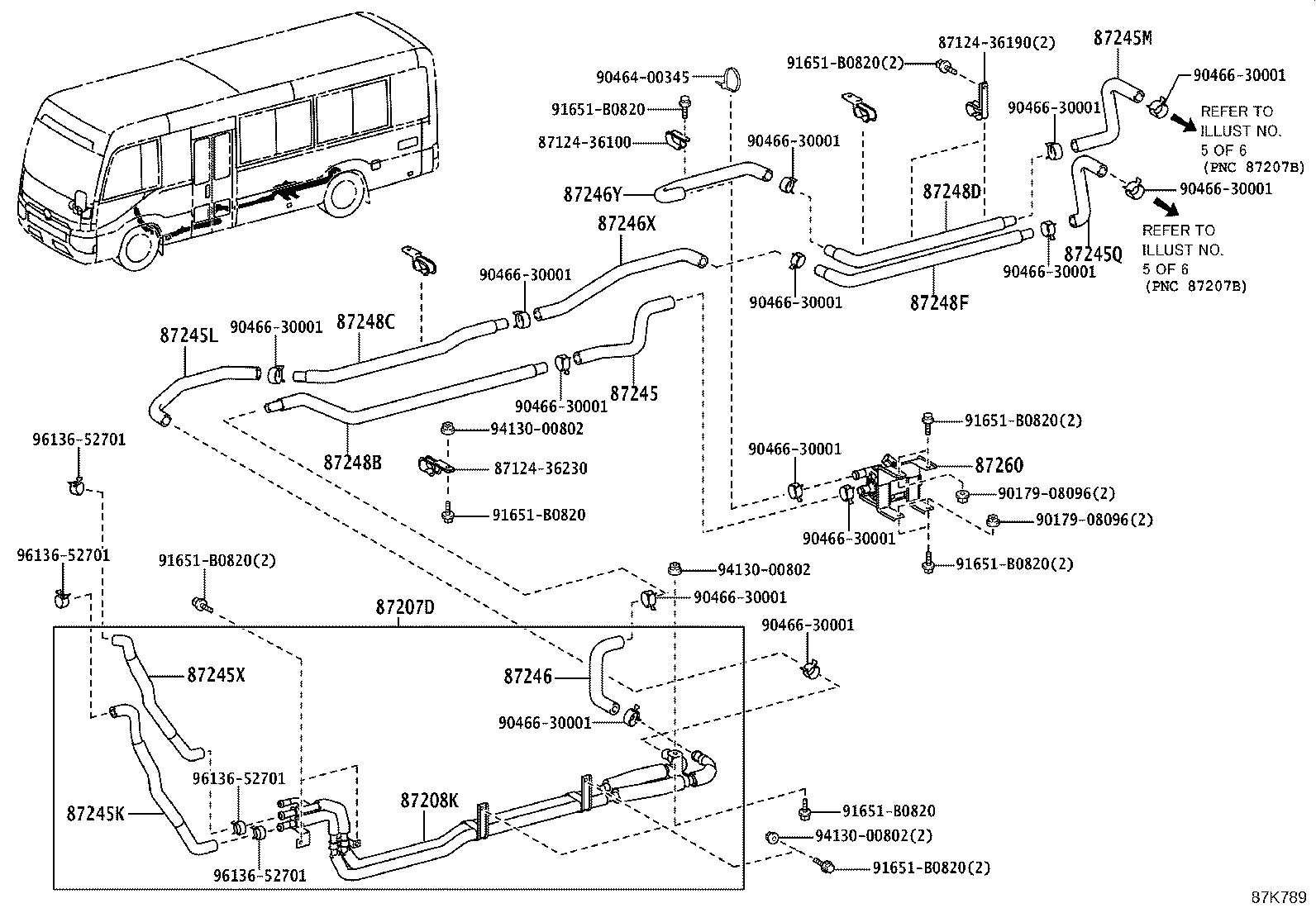

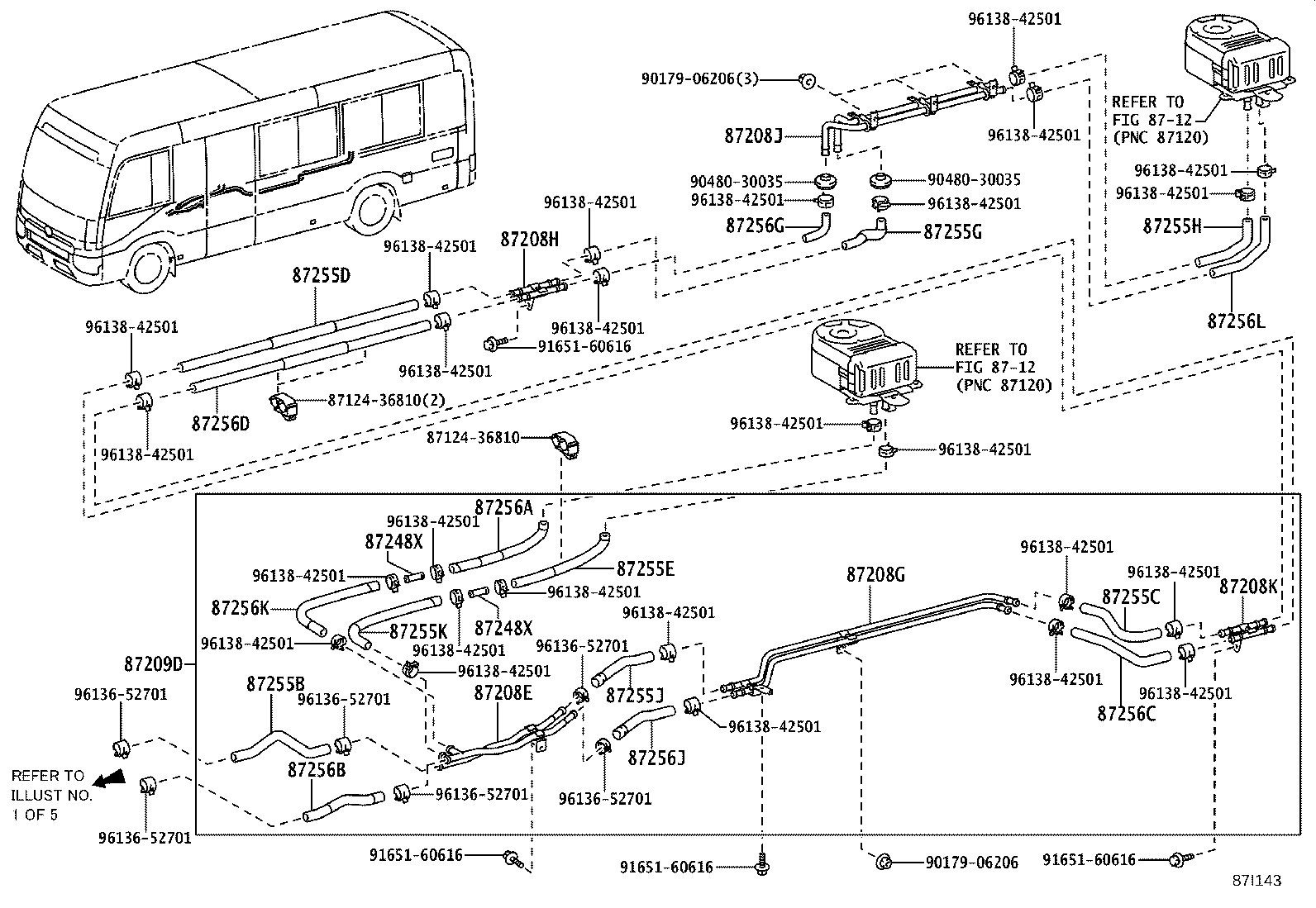

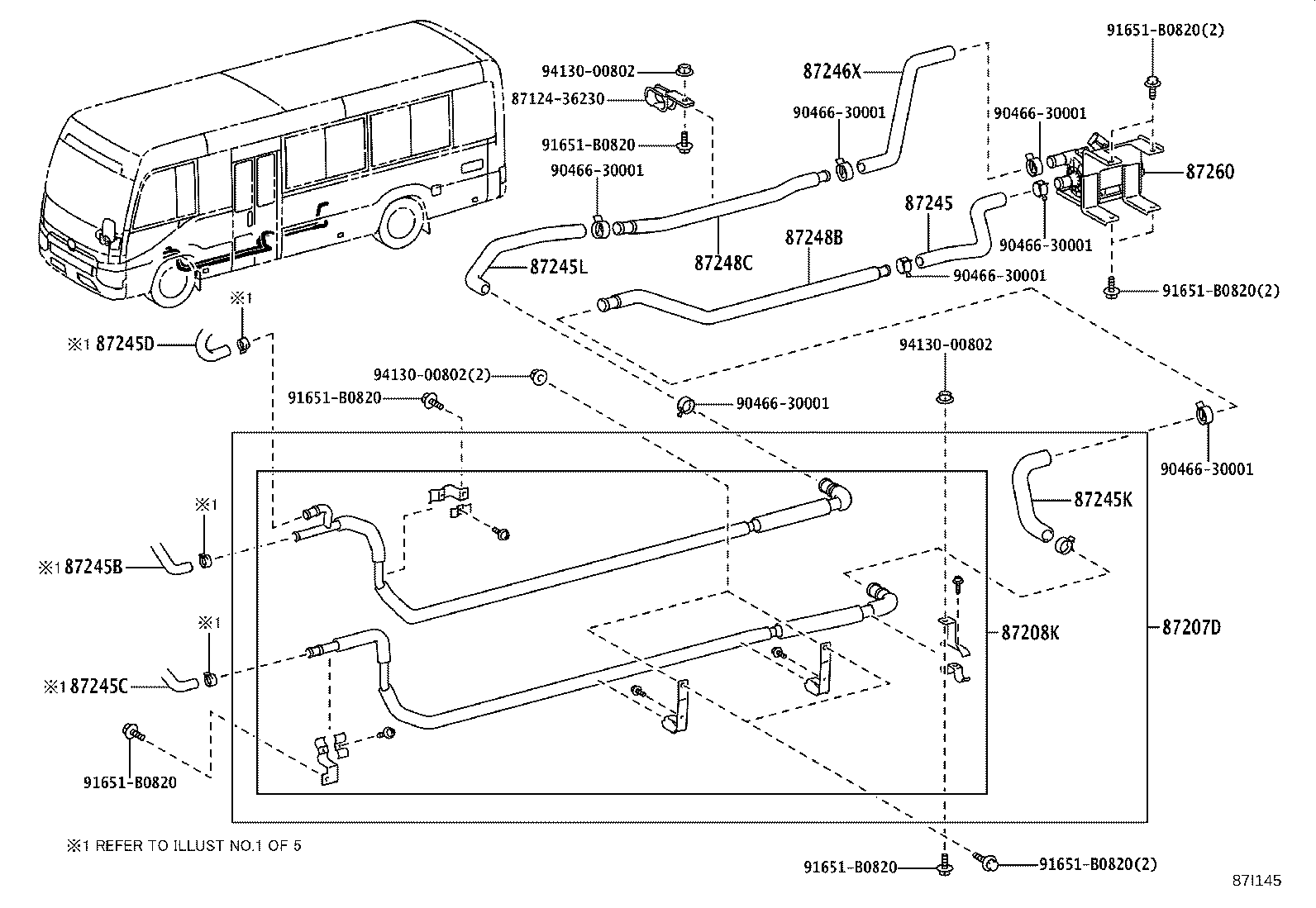

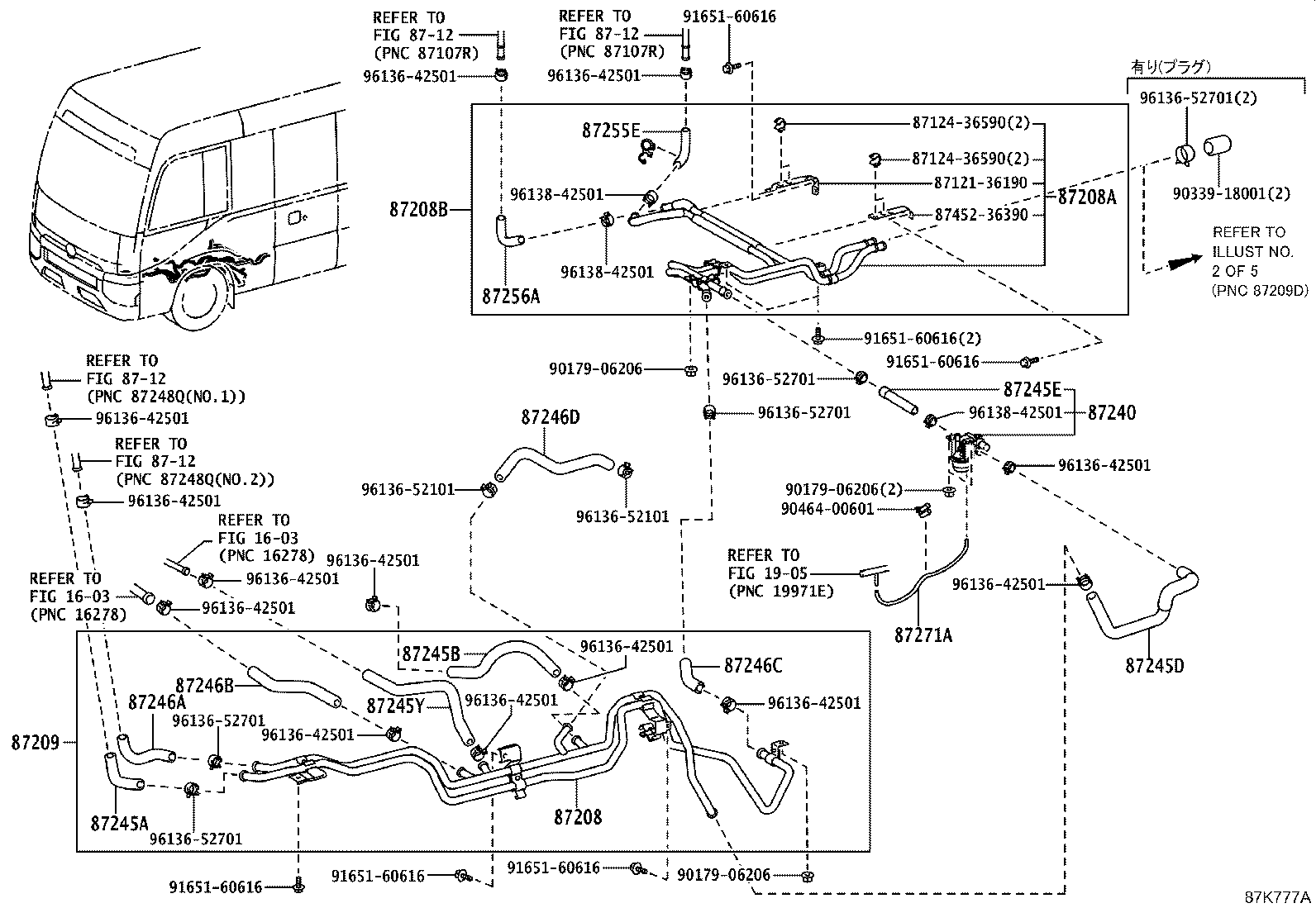

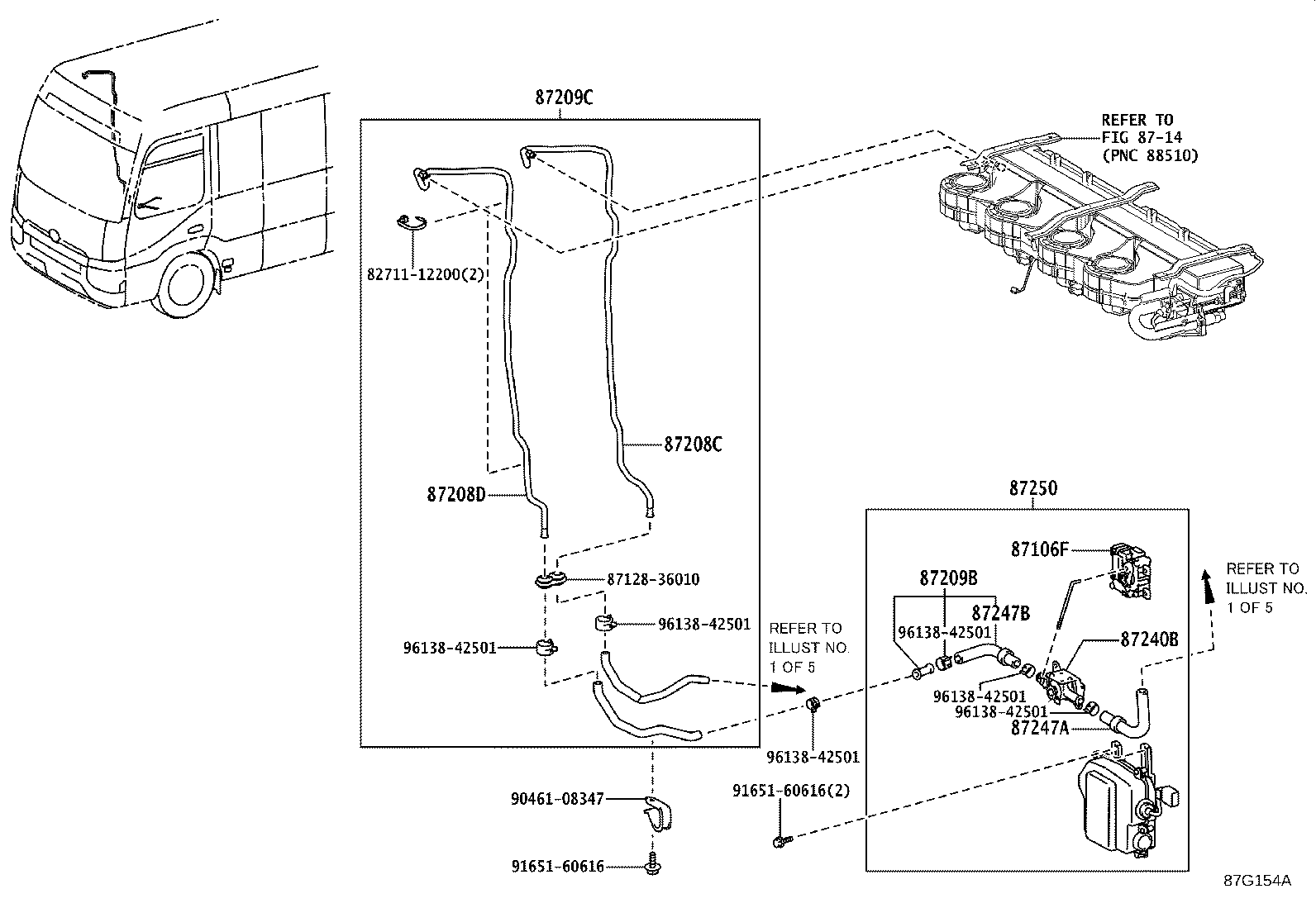

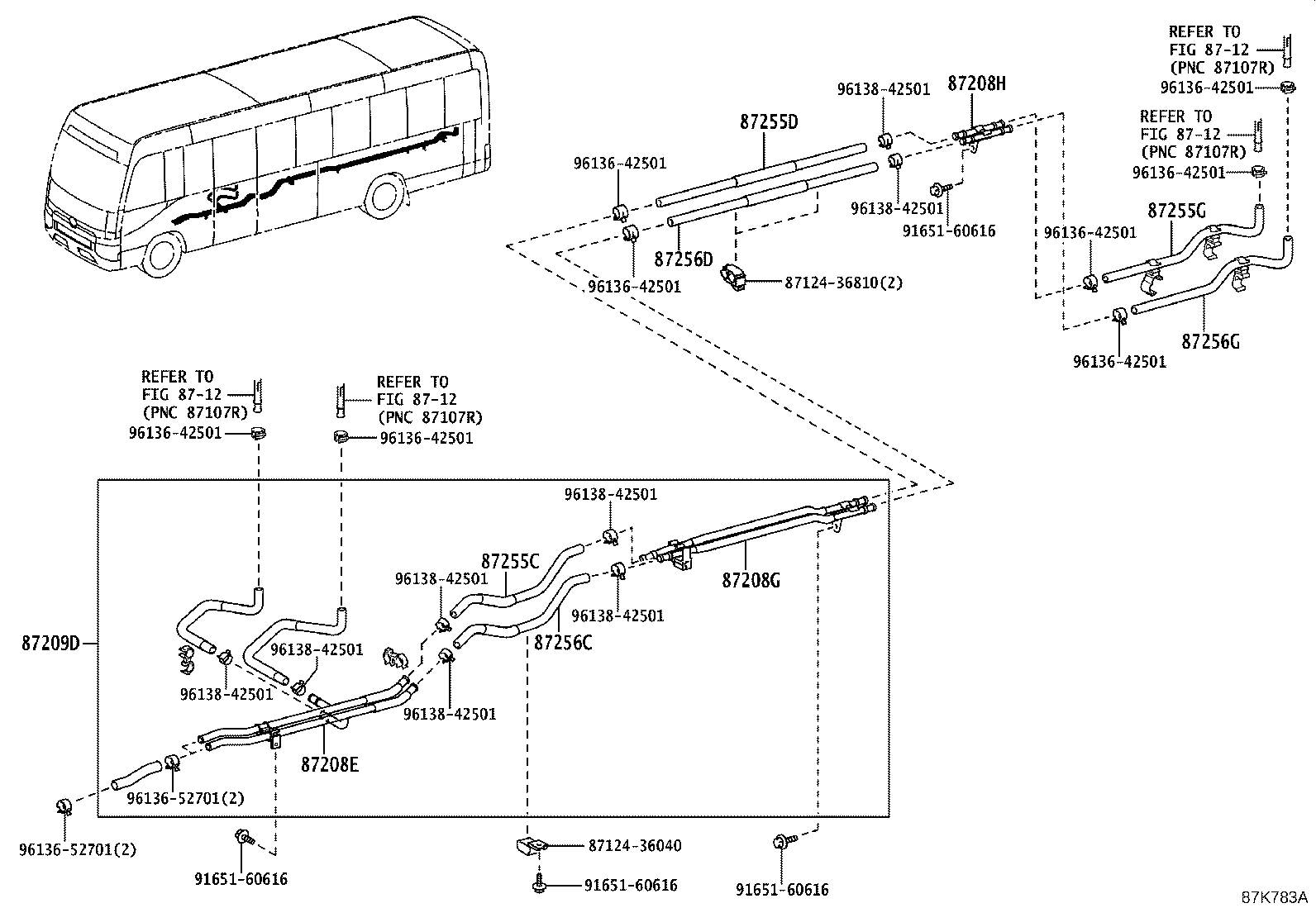

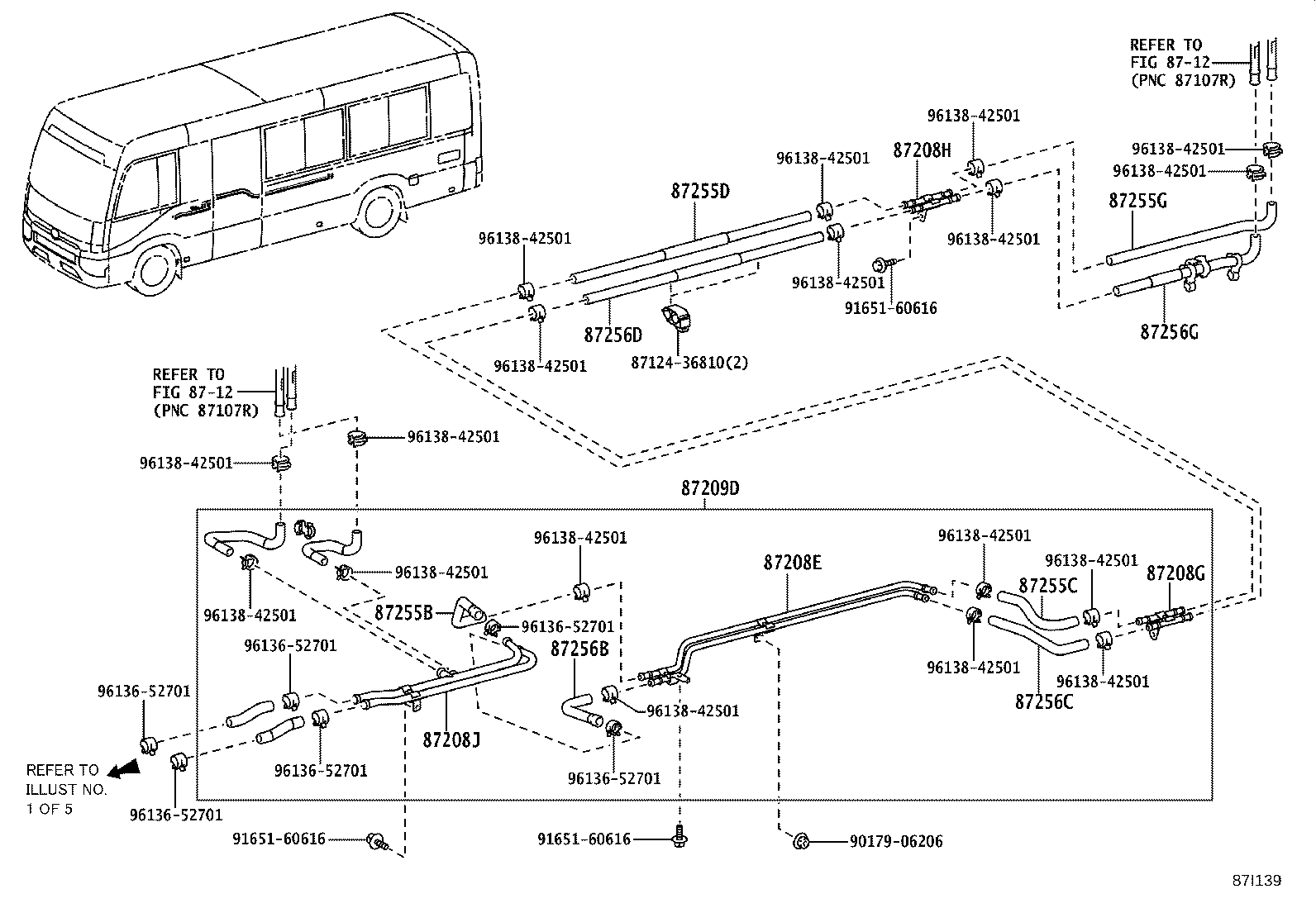

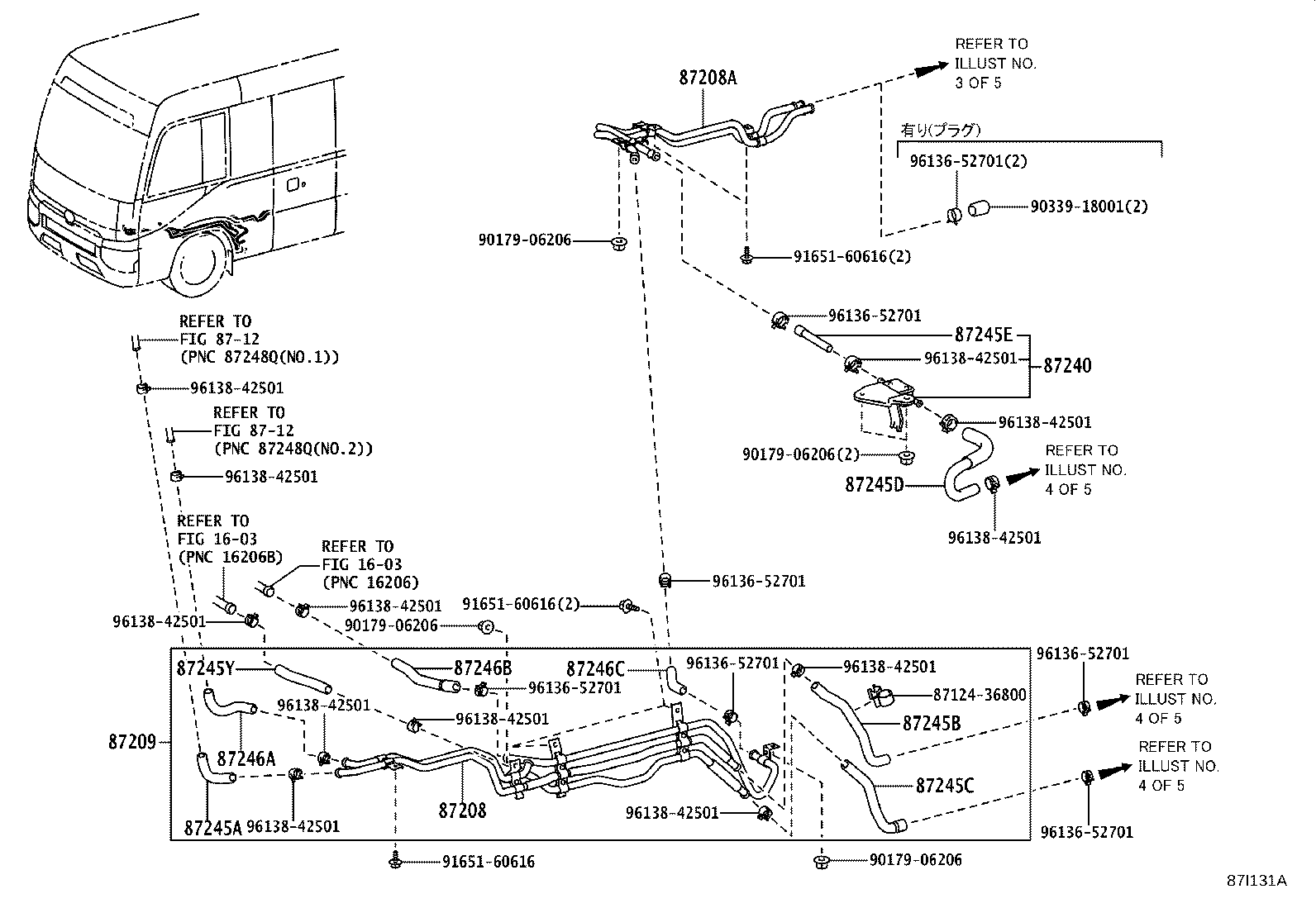

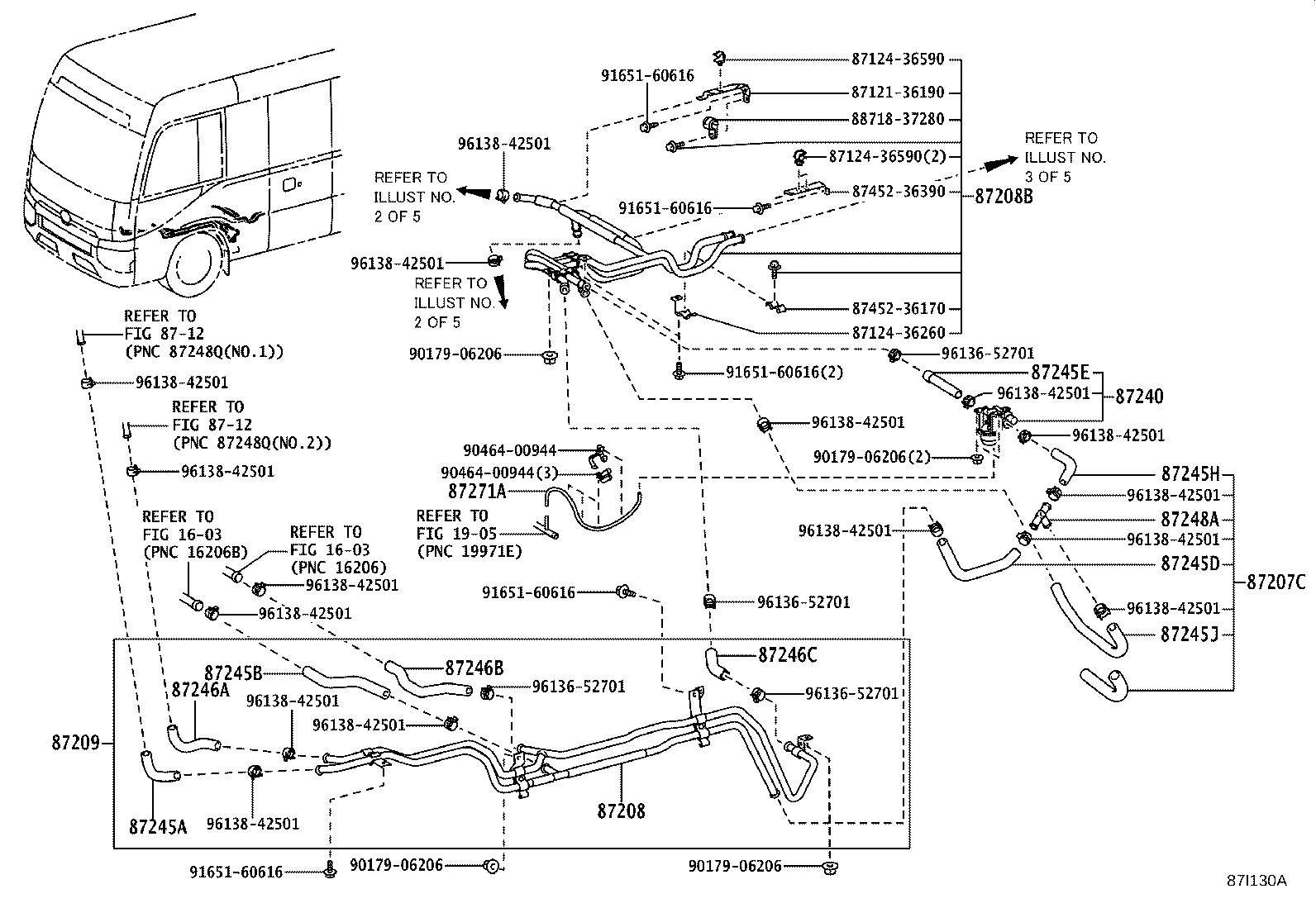

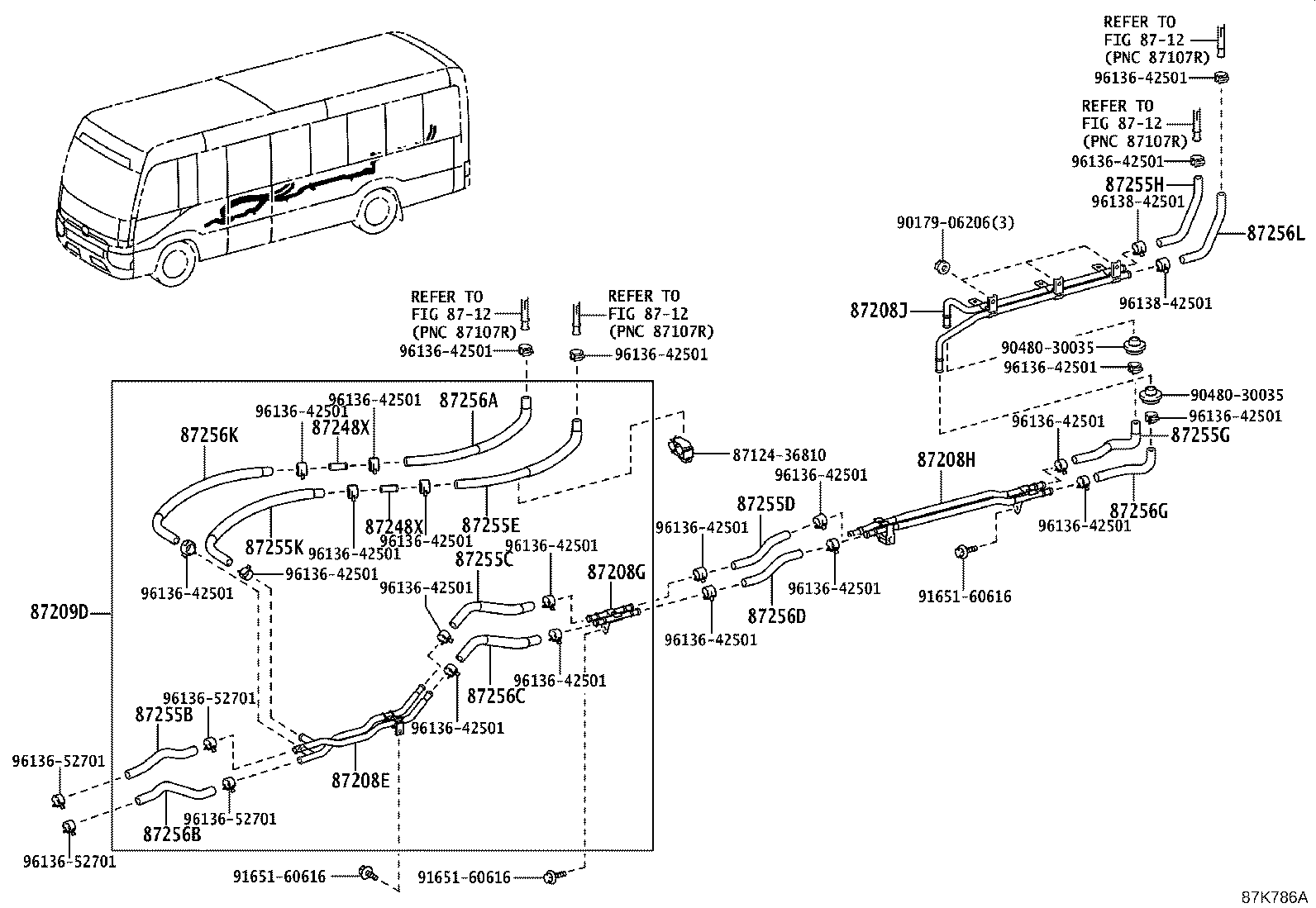

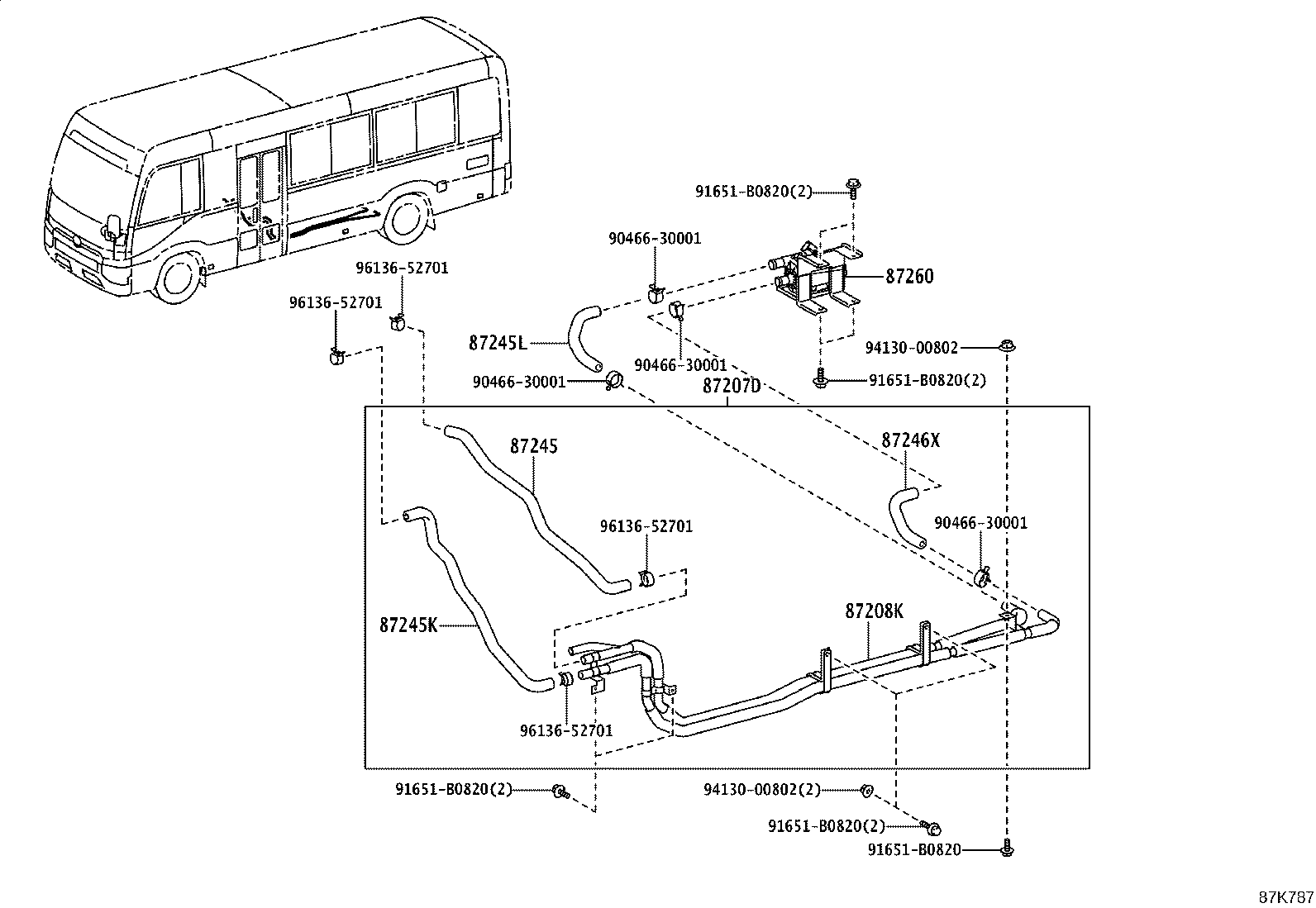

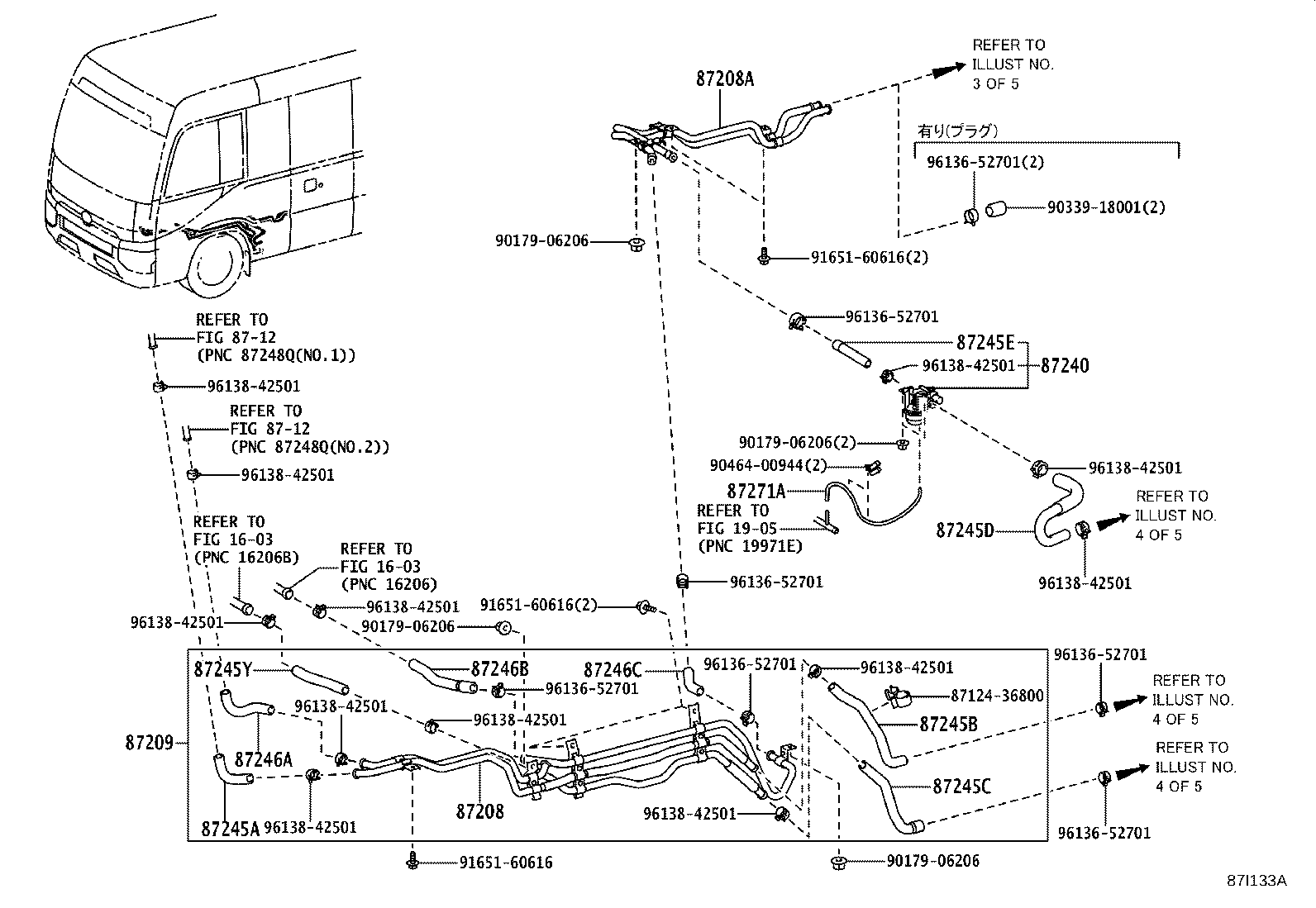

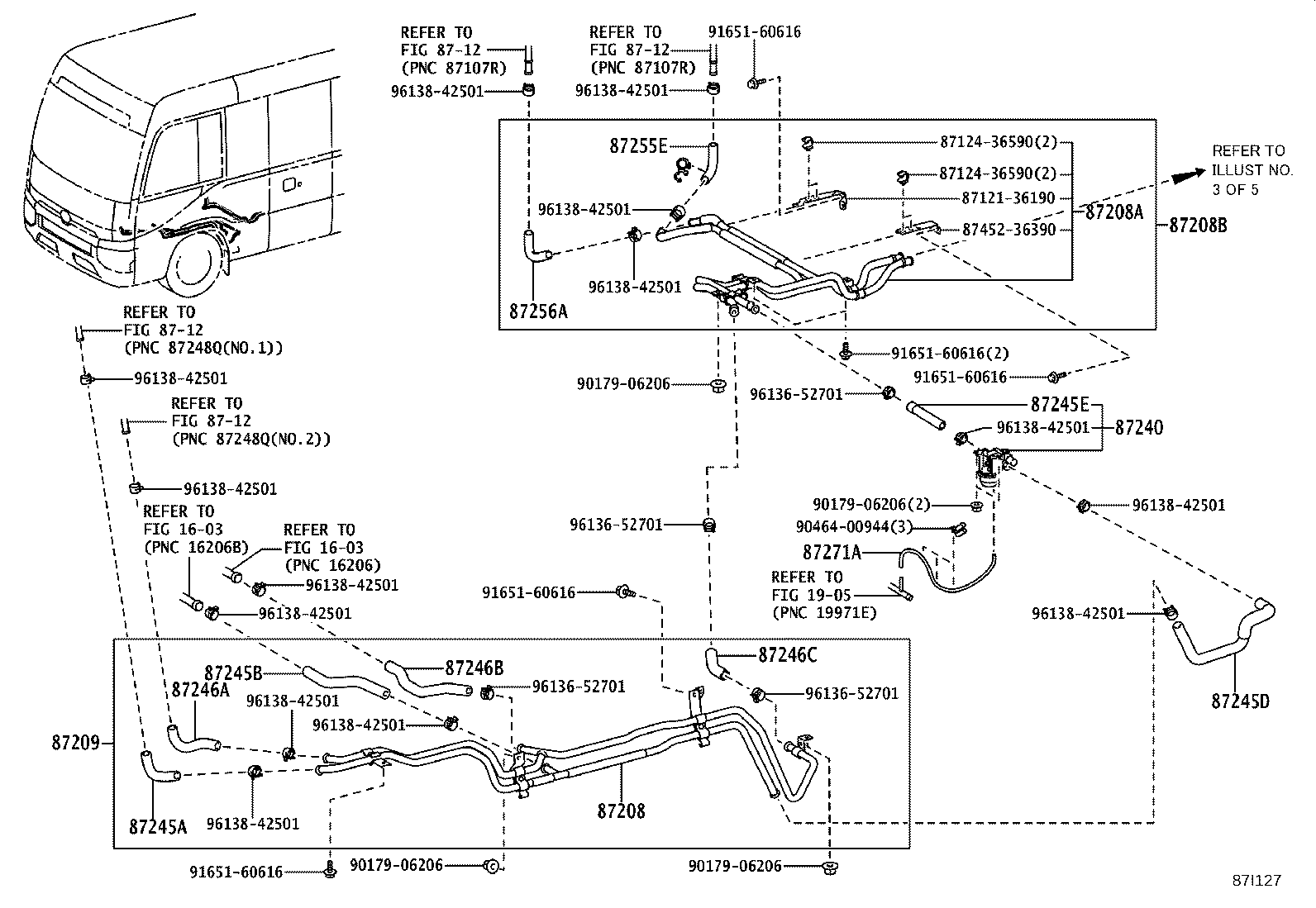

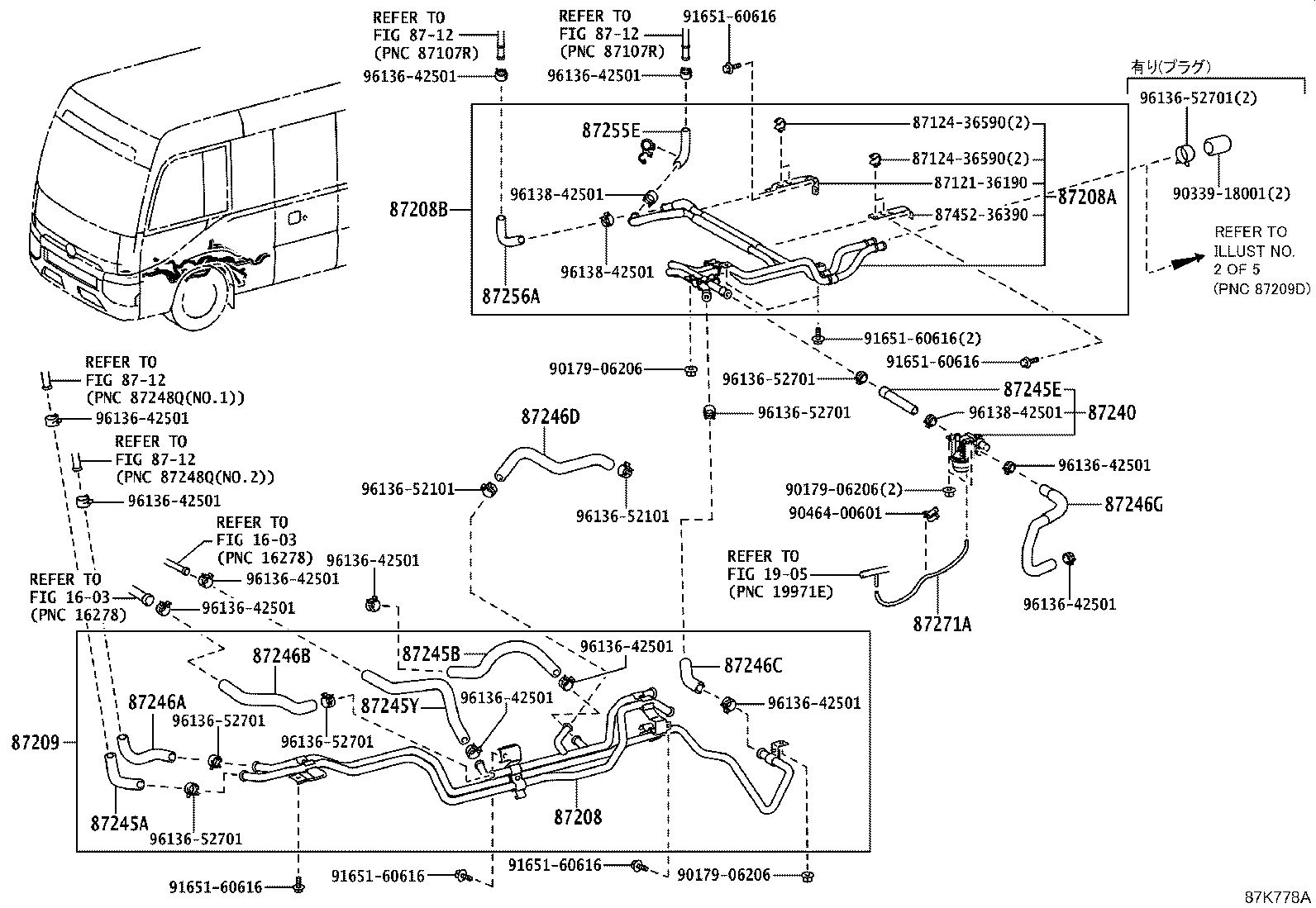

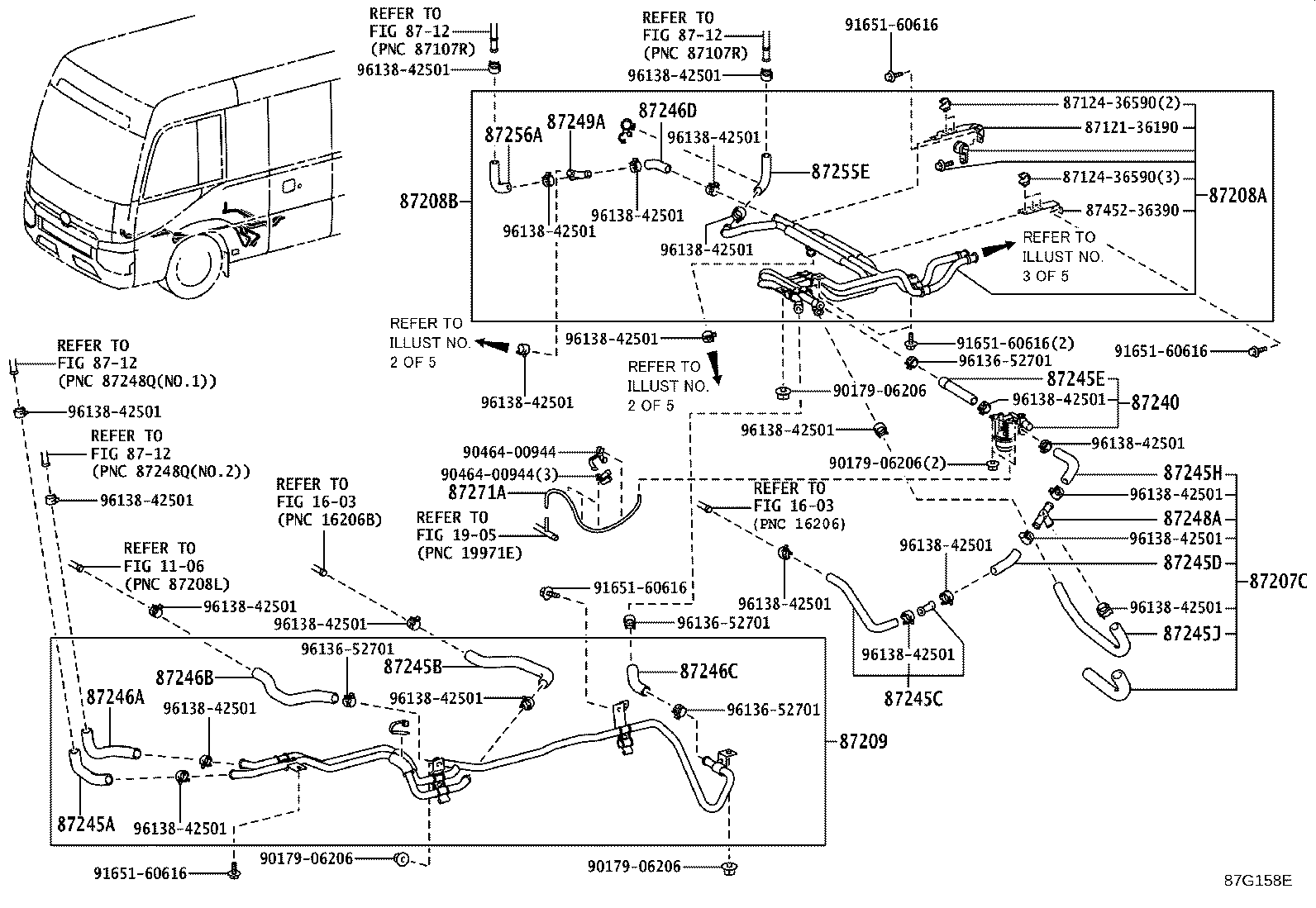

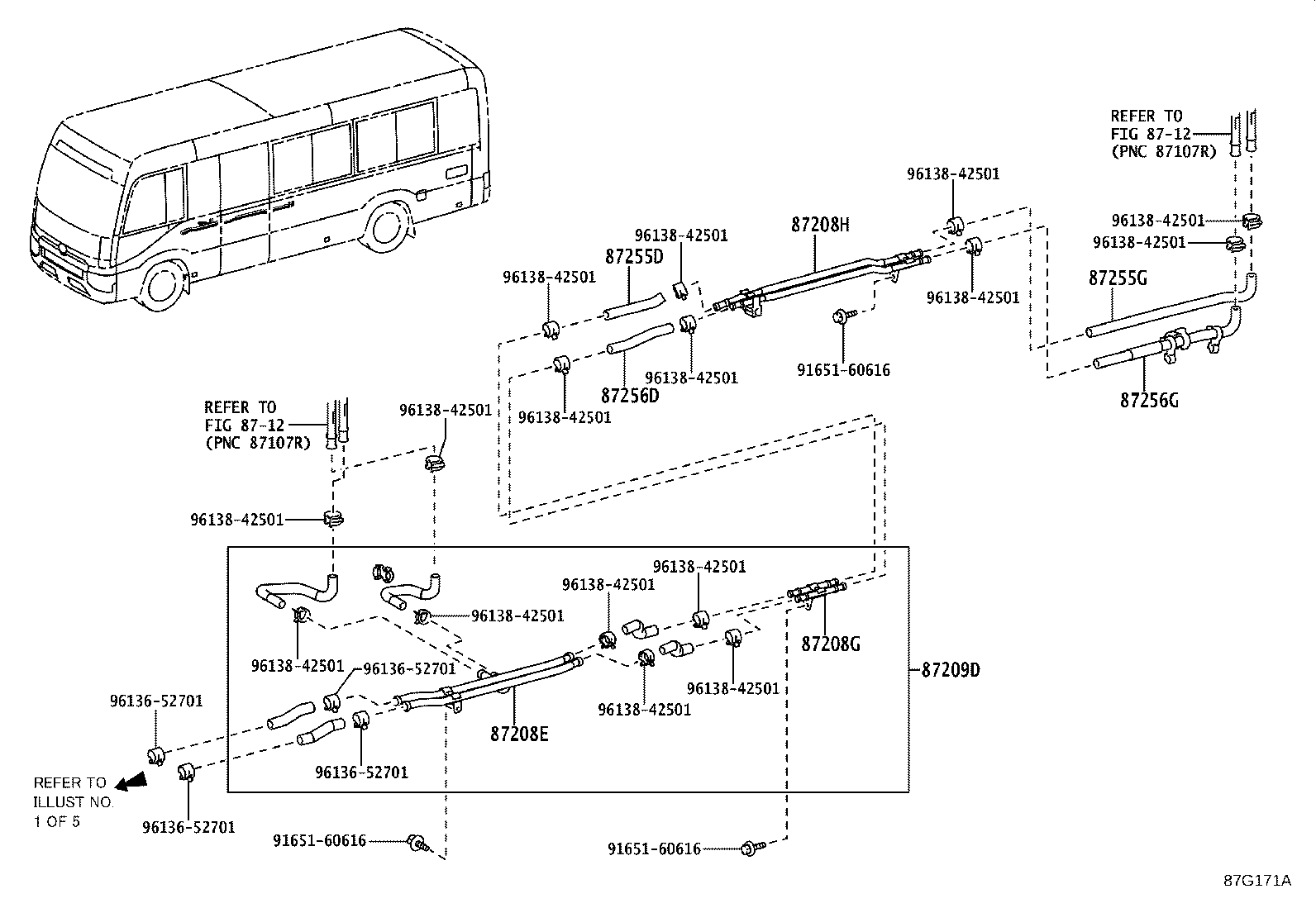

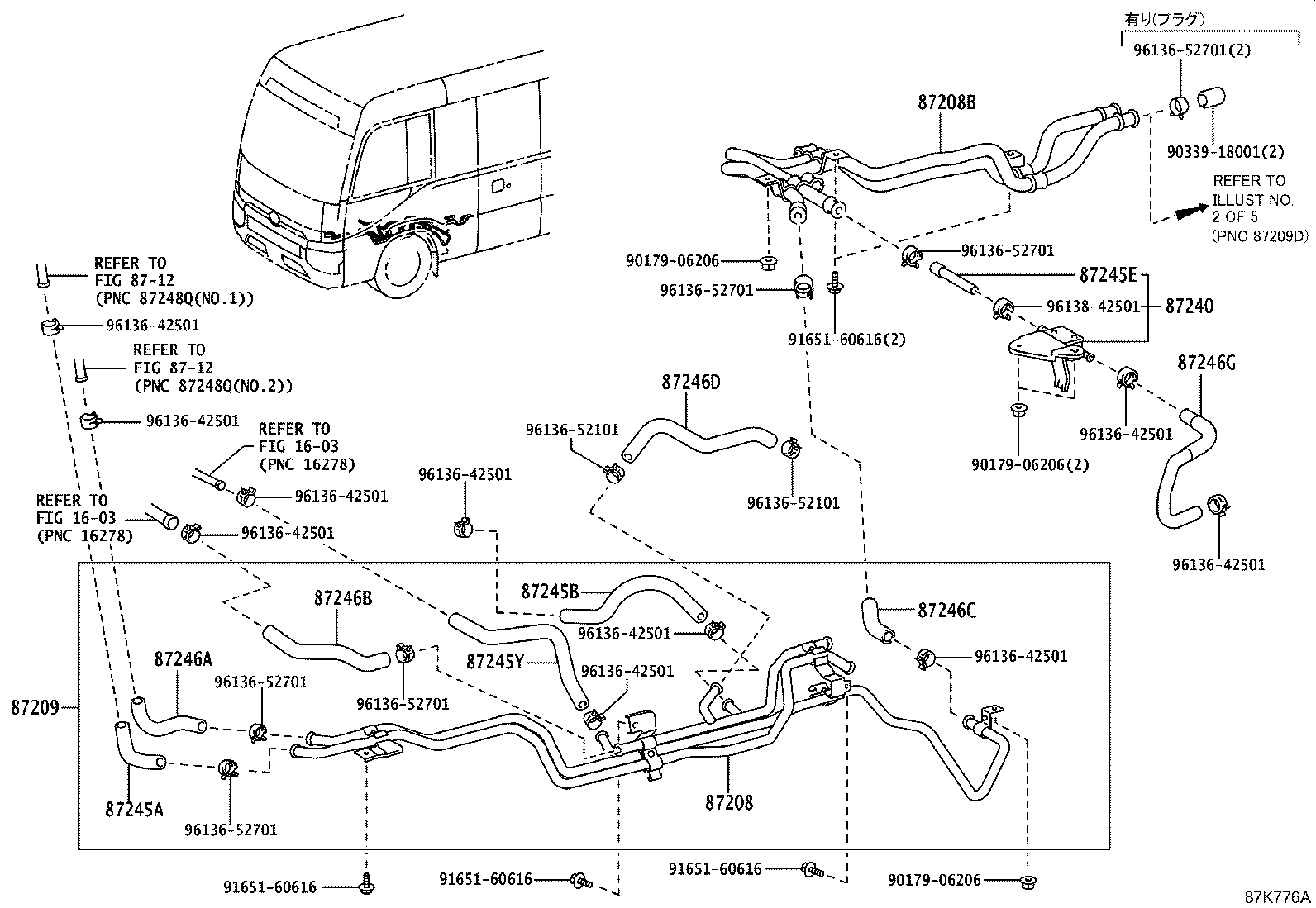

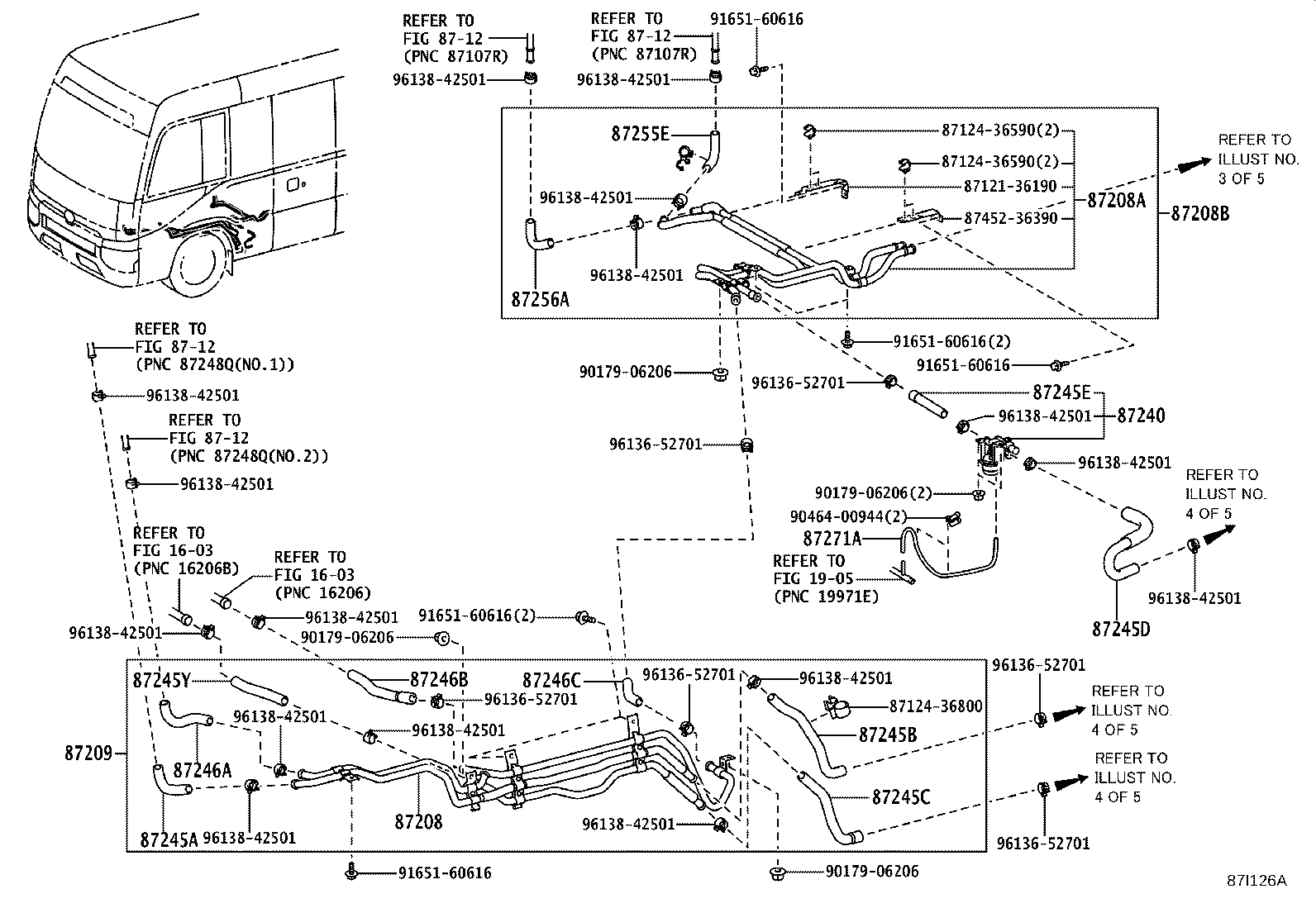

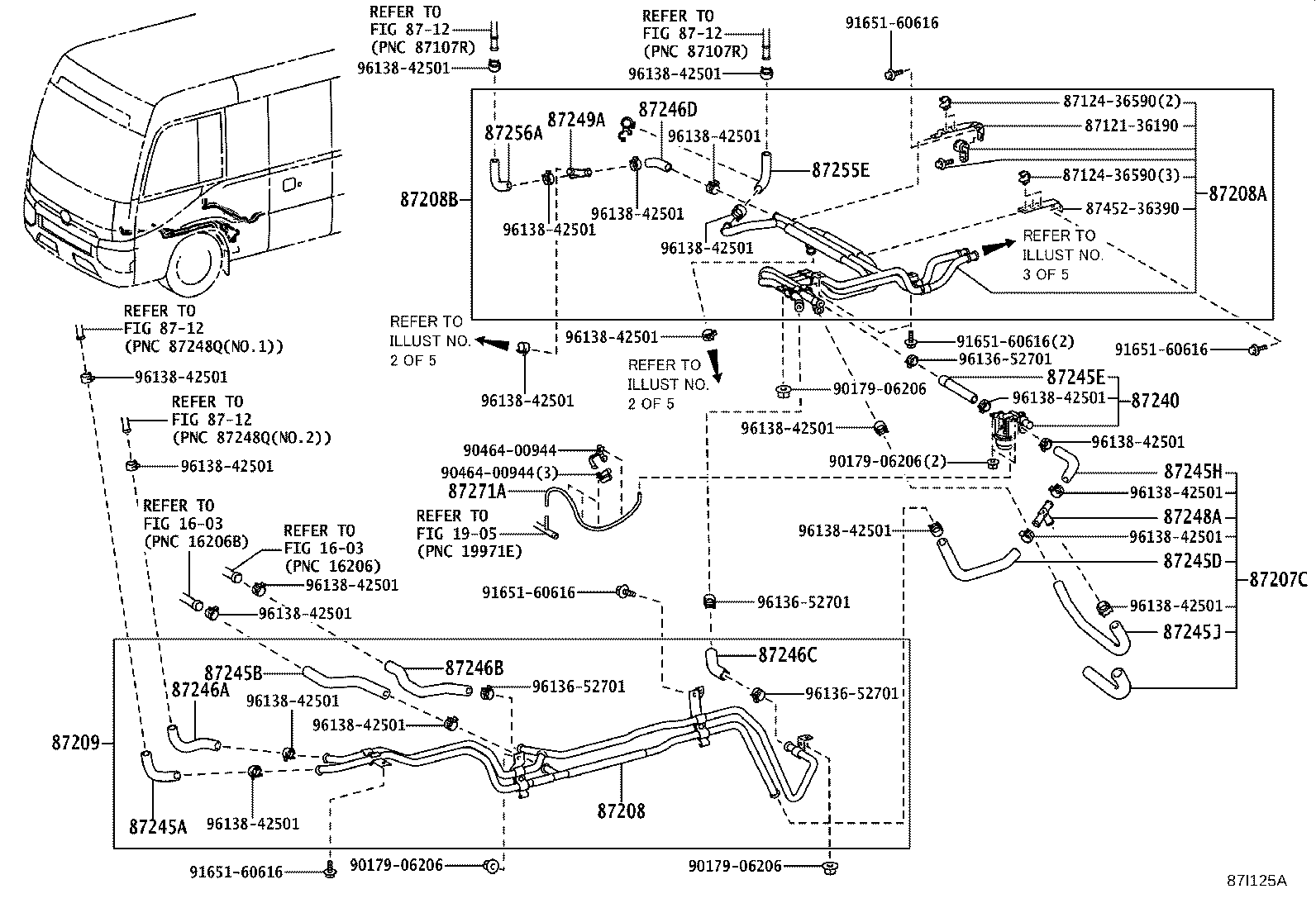

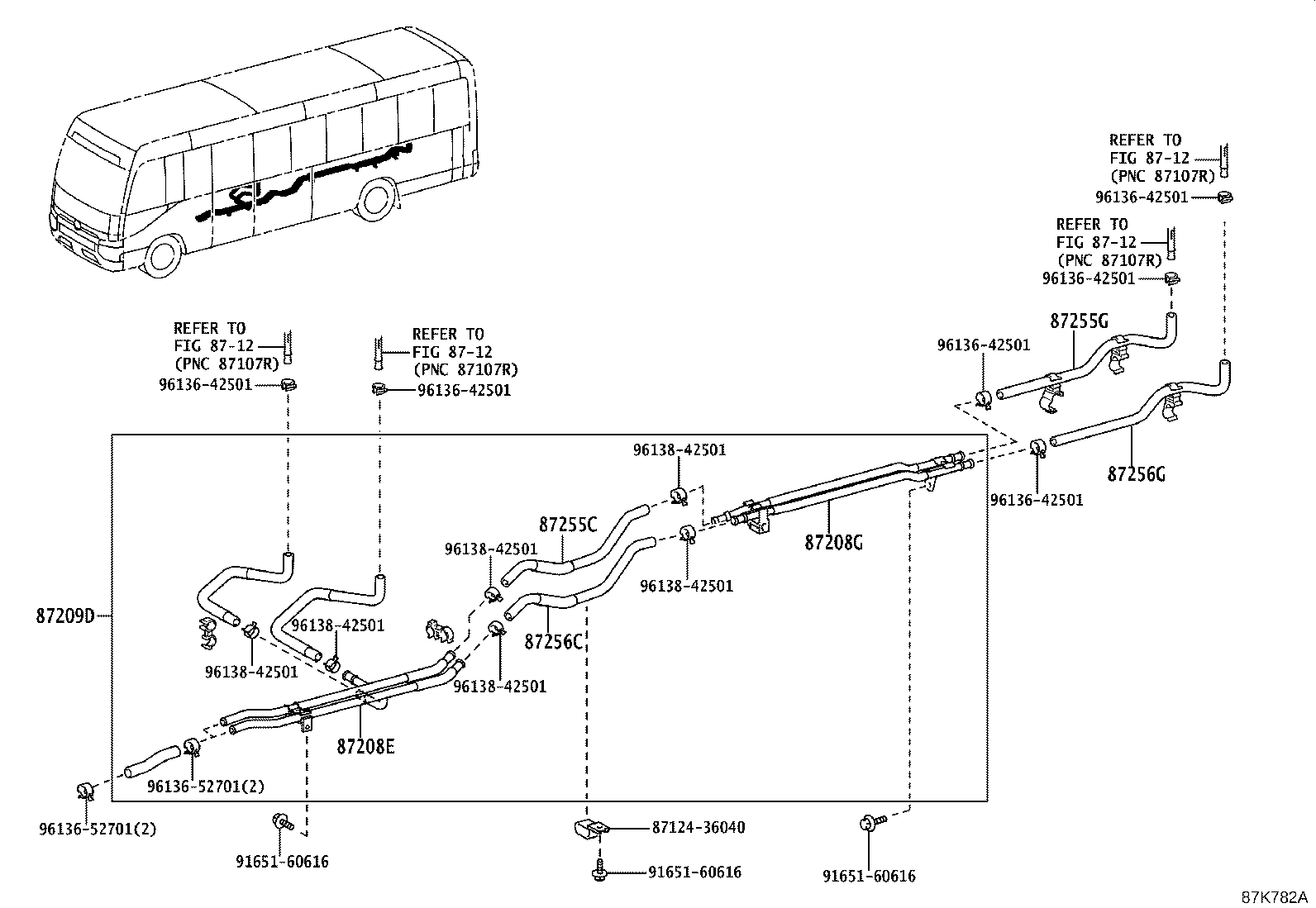

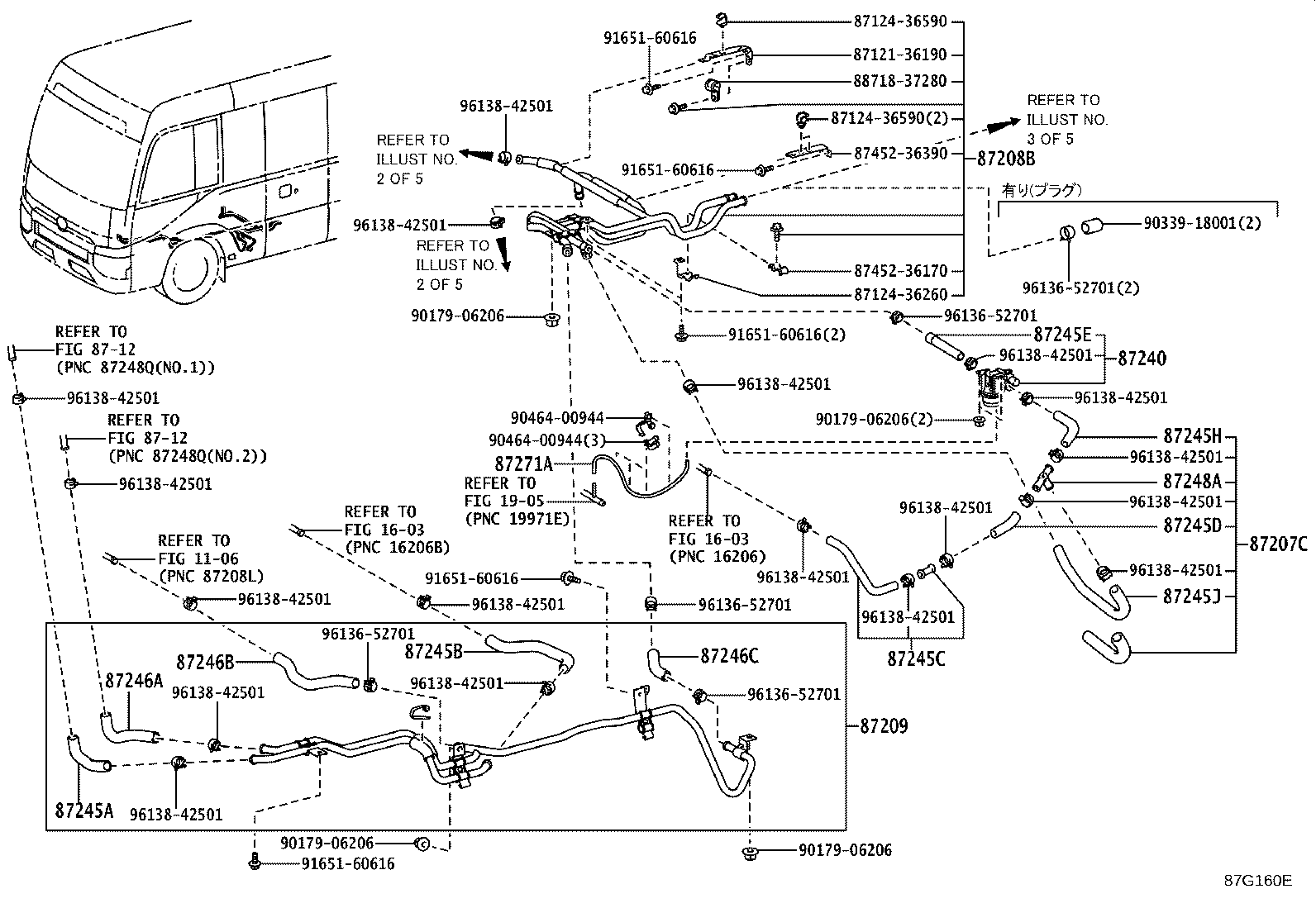

Figure 87G156E 87G156E 2017-01 → 2019-08 Figure 87I124A 87I124A 2019-08 → — Figure 87I124A 87I124A 2020-06 → — Figure 87G308D 87G308D 2017-01 → 2019-08 Figure 87I126A 87I126A 2019-08 → — Figure 87G158E 87G158E 2017-01 → 2019-08 Figure 87I125A 87I125A 2019-08 → — Figure 87I125A 87I125A 2020-06 → — Figure 87G309D 87G309D 2017-01 → 2019-08 Figure 87I127A 87I127A 2019-08 → — Figure 87G159E 87G159E 2017-01 → 2019-08 Figure 87I129A 87I129A 2019-08 → — Figure 87G310D 87G310D 2017-01 → 2019-08 Figure 87I131A 87I131A 2019-08 → — Figure 87G160E 87G160E 2017-01 → 2019-08 Figure 87I130A 87I130A 2019-08 → — Figure 87G311D 87G311D 2017-01 → 2019-08 Figure 87I132A 87I132A 2019-08 → — Figure 87I133A 87I133A 2019-08 → — Figure 87I134A 87I134A 2019-08 → — Figure 87K775A 87K775A 2022-01 → — Figure 87K776A 87K776A 2022-01 → — Figure 87K777A 87K777A 2022-01 → — Figure 87K778A 87K778A 2022-01 → — Figure 87K779B 87K779B 2022-01 → — Figure 87K780B 87K780B 2022-01 → — Figure 87G154A 87G154A 2017-01 → — Figure 87G154A 87G154A 2020-06 → — Figure 87K781A 87K781A 2022-01 → — Figure 87K782A 87K782A 2022-01 → — Figure 87K783A 87K783A 2022-01 → — Figure 87K784A 87K784A 2022-01 → — Figure 87K785A 87K785A 2022-01 → — Figure 87K786A 87K786A 2022-01 → — Figure 87G167B 87G167B 2017-01 → — Figure 87G166A 87G166A 2017-01 → 2019-08 Figure 87I138 87I138 2019-08 → — Figure 87I138 87I138 2020-06 → — Figure 87G170A 87G170A 2017-01 → 2019-08 Figure 87I139 87I139 2019-08 → — Figure 87G171A 87G171A 2017-01 → 2019-08 Figure 87I141 87I141 2019-08 → — Figure 87G169B 87G169B 2017-01 → 2019-08 Figure 87I142 87I142 2019-08 → — Figure 87G168B 87G168B 2017-01 → 2019-08 Figure 87I143 87I143 2019-08 → — Figure 87I144 87I144 2019-08 → — Figure 87K787 87K787 2022-01 → — Figure 87K788 87K788 2022-01 → — Figure 87K789 87K789 2022-01 → — Figure 87G134A 87G134A 2017-01 → — Figure 87I145 87I145 2019-08 → — Figure 87I146 87I146 2019-08 → — Figure 87K790A 87K790A 2022-01 → — Figure 87K791 87K791 2022-01 → — Figure 87K792A 87K792A 2022-01 → — Figure 87G135A 87G135A 2017-01 → — Figure 87I147 87I147 2019-08 → — Figure 87K793A 87K793A 2022-01 → —

Part groups

PNCDescription
87106F Servo Sub-assy, Heater Valve Damper
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87207A Pipe & Hose Sub-assy, Water A
87207B Pipe & Hose Sub-assy, Water B
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87208H Pipe Sub-assy, Heater Water, H
87208J Pipe Sub-assy, Heater Water, J
87208K Pipe Sub-assy, Heater Water, K
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87209D Hose Sub-assy, Water, D
87209E Hose Sub-assy, Water, E
87209Q Hose Sub-assy, Water, F
87240 Valve Assy, Heater Water
87240B Valve Assy, Heater Water, NO.2
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87245K Hose, Heater Water, Inlet K
87245L Hose, Heater Water, L
87245M Hose, Heater Water, M
87245N Hose, Heater Water, Inlet N
87245P Hose, Heater Water, Inlet P
87245Q Hose, Heater Water, Inlet Q
87245X Hose, Heater Water
87245Y Hose, Heater Water
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87246X Hose, Heater Water
87246Y Hose, Heater Water
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87250 Hose And Valve Assy
87251B Plug, Heater Water
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87255G Hose, Rear Heater Water Inlet, G
87255H Hose, Heater Water Inlet, H
87255J Hose, Heater Water Inlet, J
87255K Hose, Rear Heater Water Inlet, K
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256G Hose, Rear Heater Water Outlet, G
87256J Hose, Rear Heater Water Outlrt, J
87256K Hose, Rear Heater Water Outlet, K
87256L Hose, Rear Heater Water Outlet, L
87260 Pump Assy, Heater
87271A Hose, Heater Vacuum, NO.1
87452F Bracket, Power Heater, NO.3
87452Q Bracket, Heater, NO.1
87452S Bracket, Heater, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
