Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 14 illustrations

Illustrations

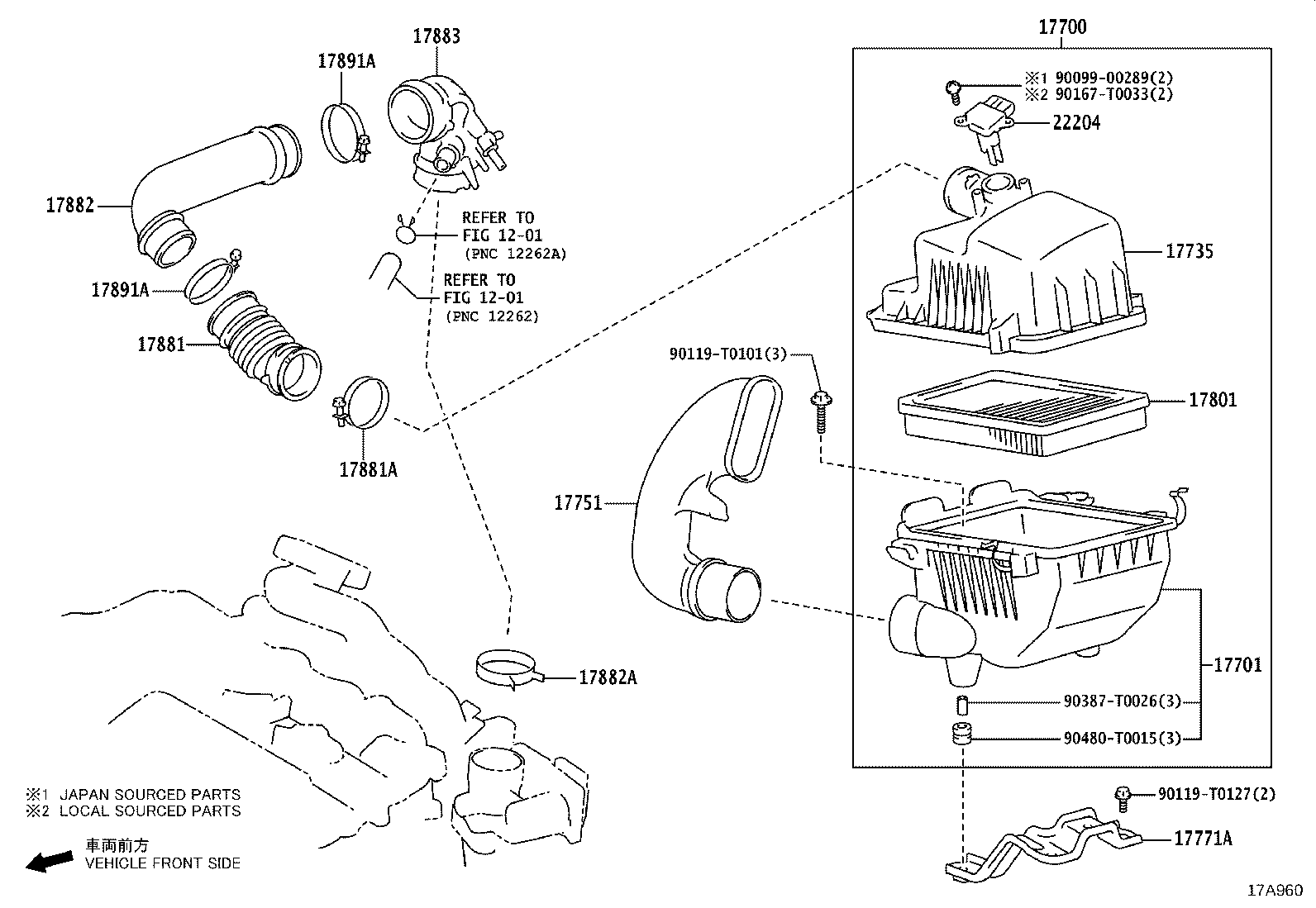

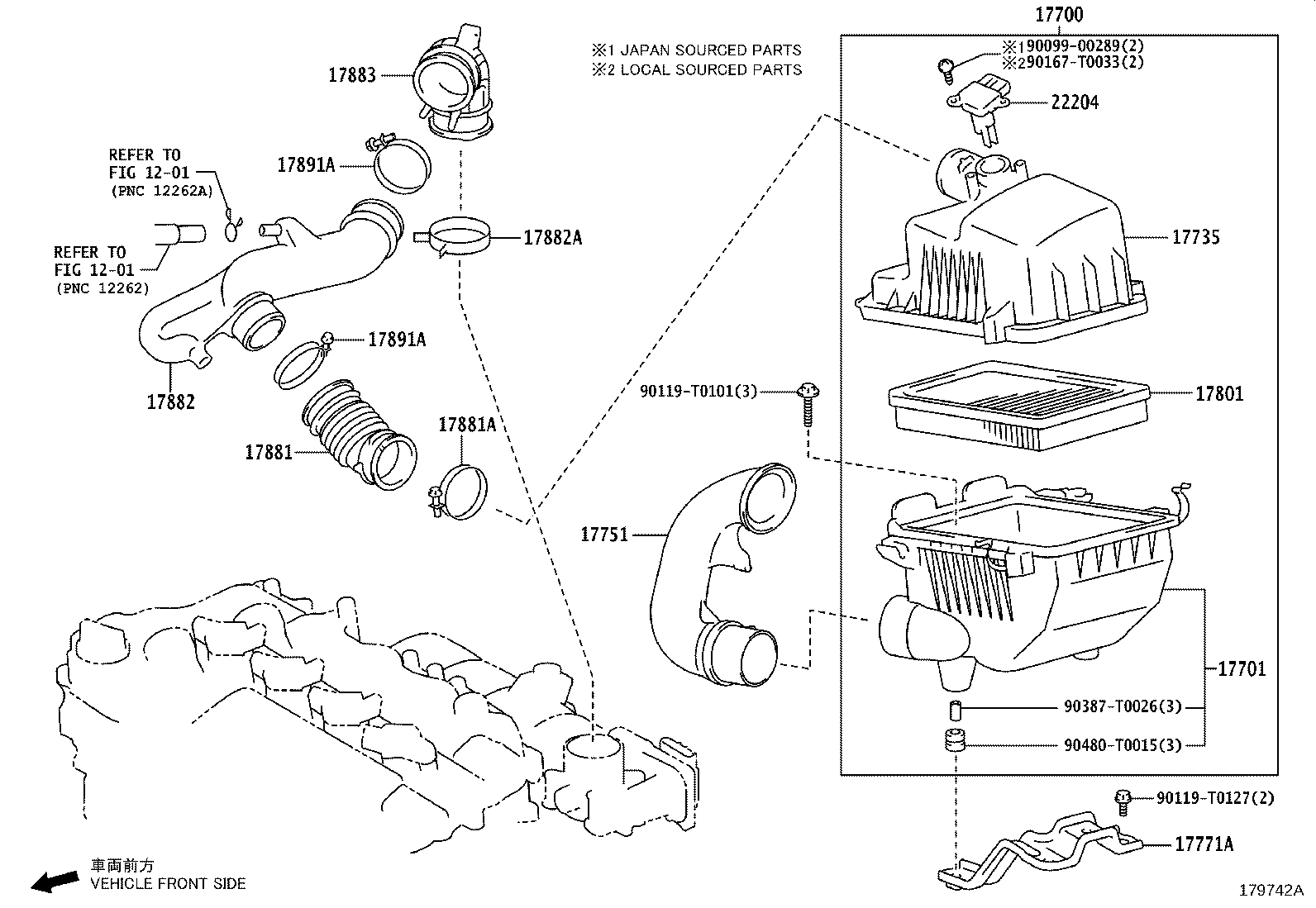

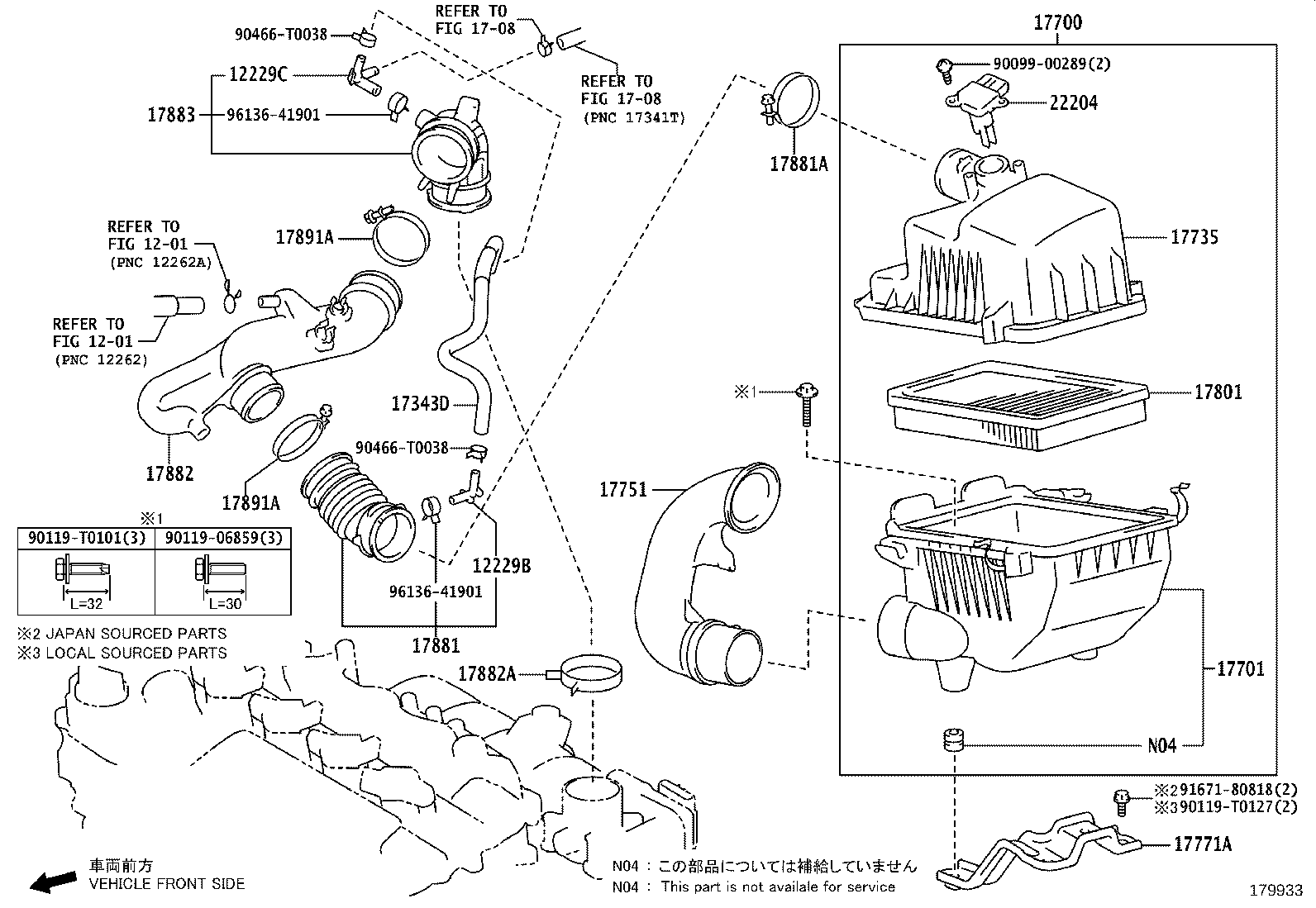

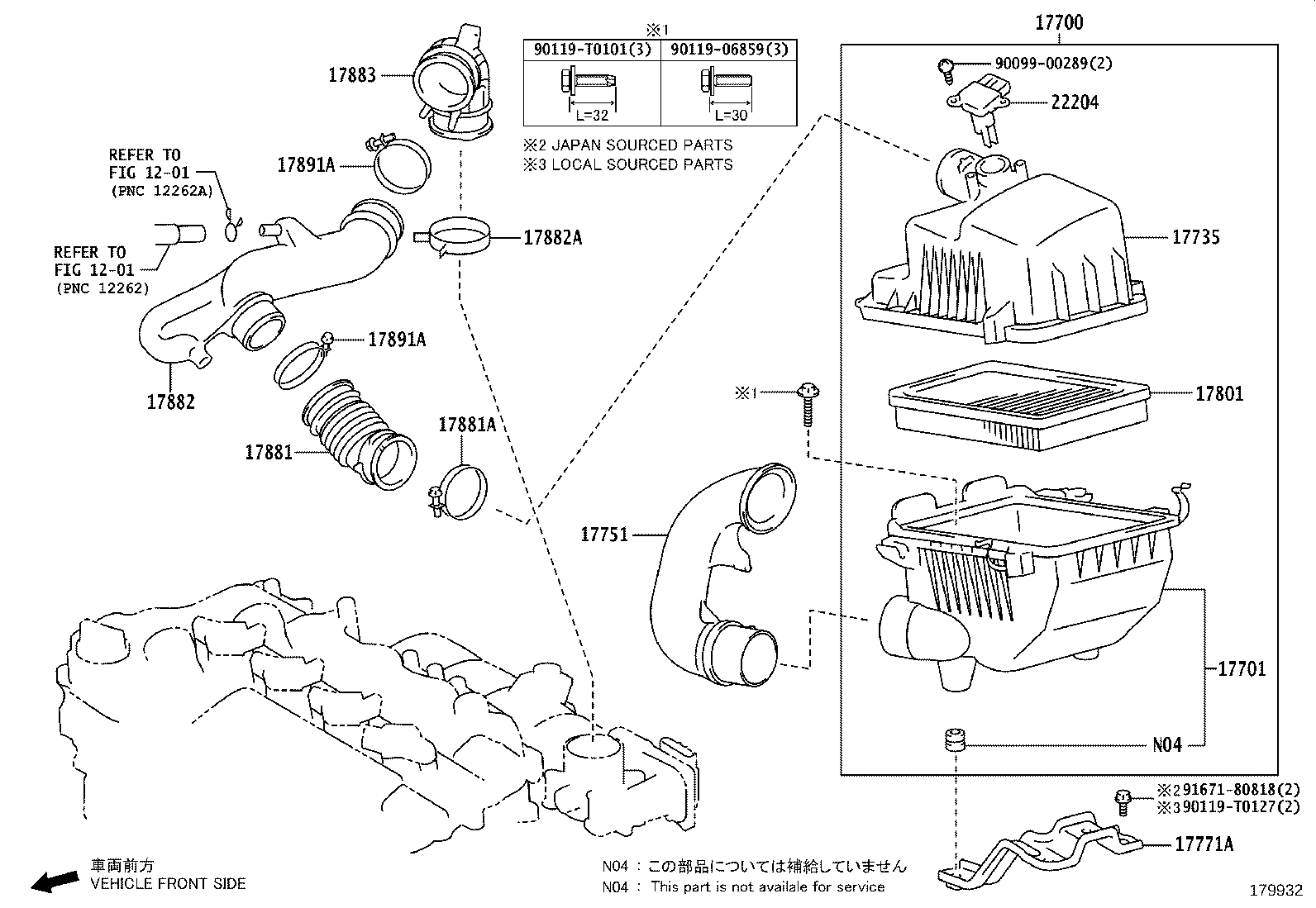

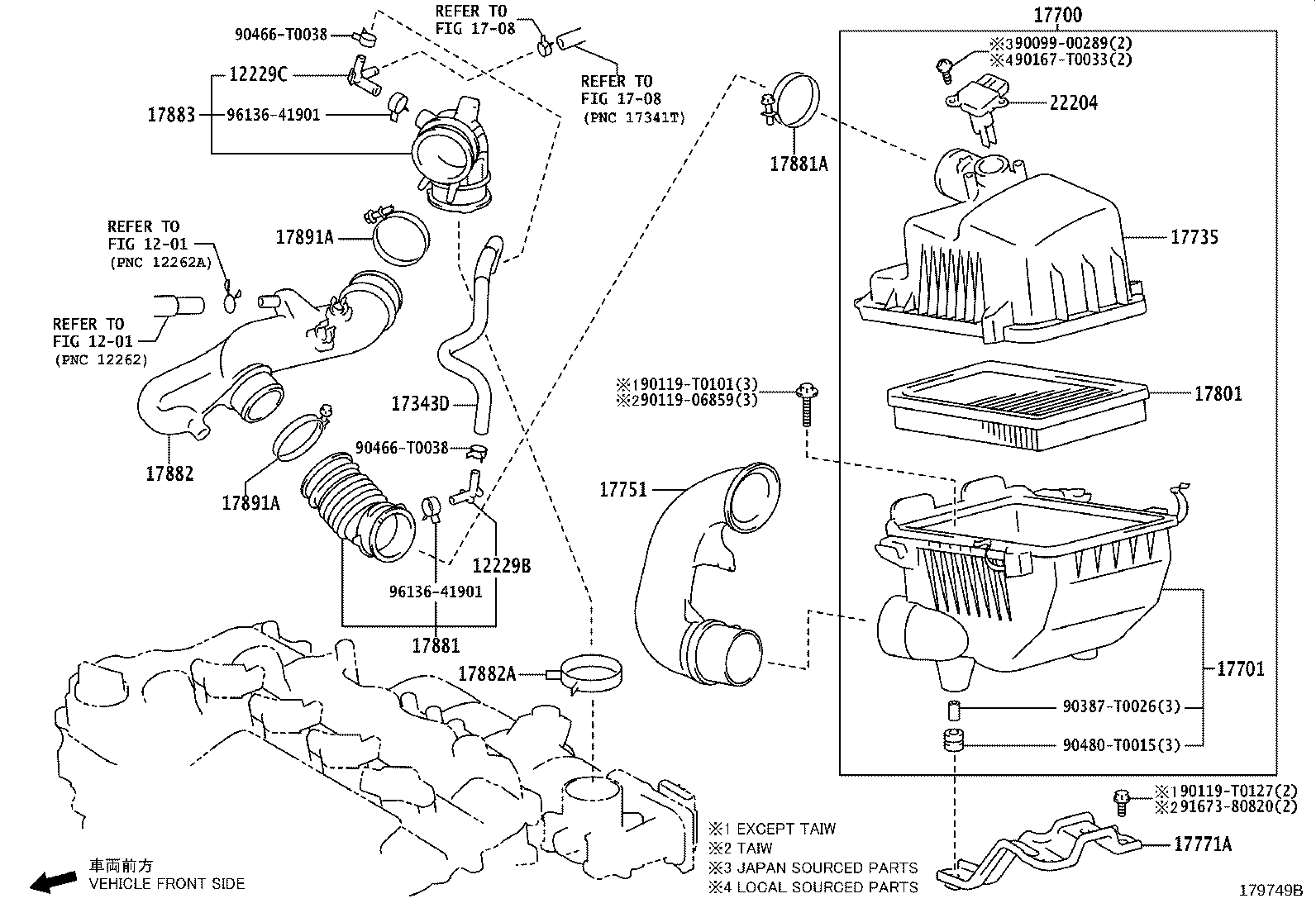

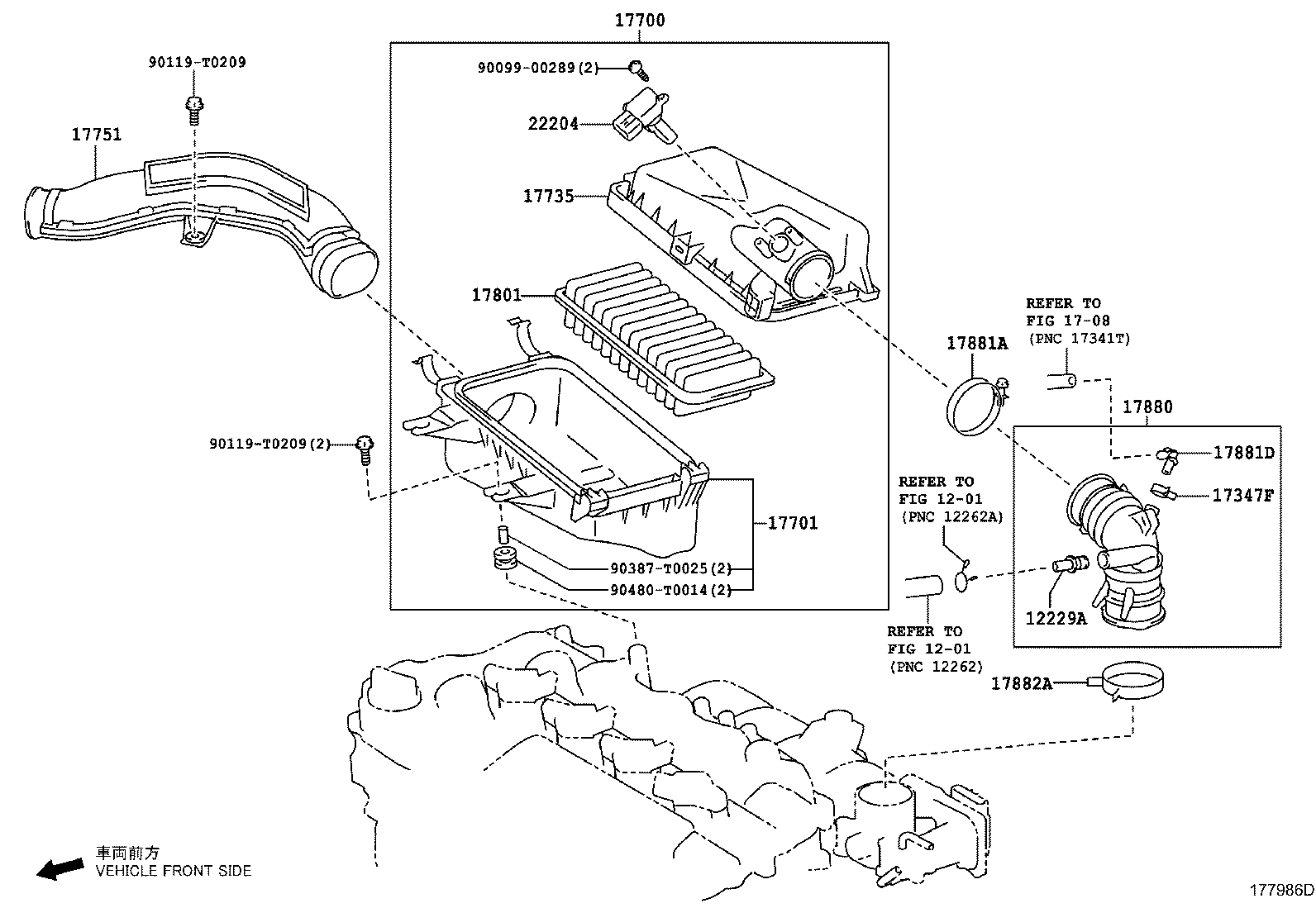

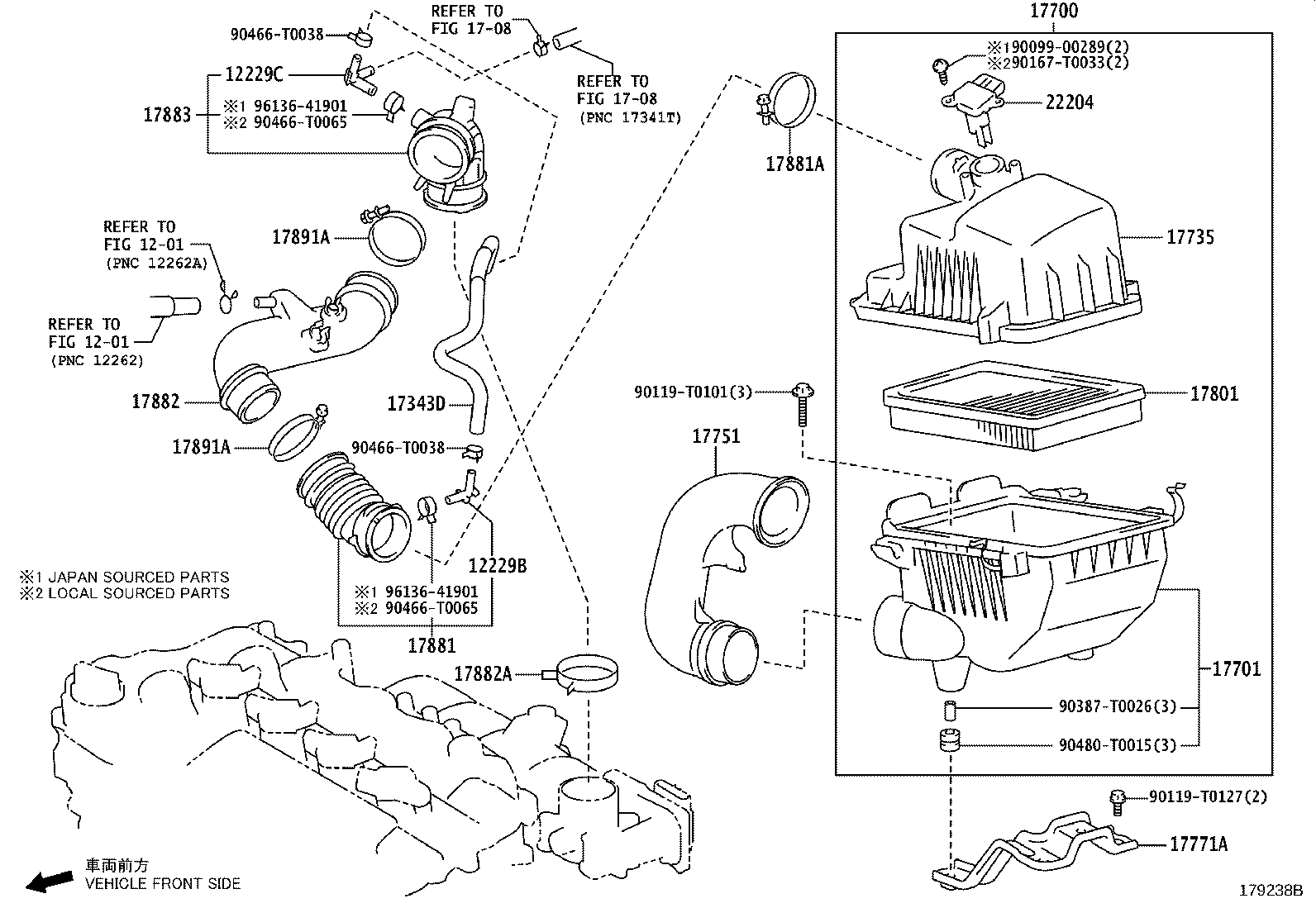

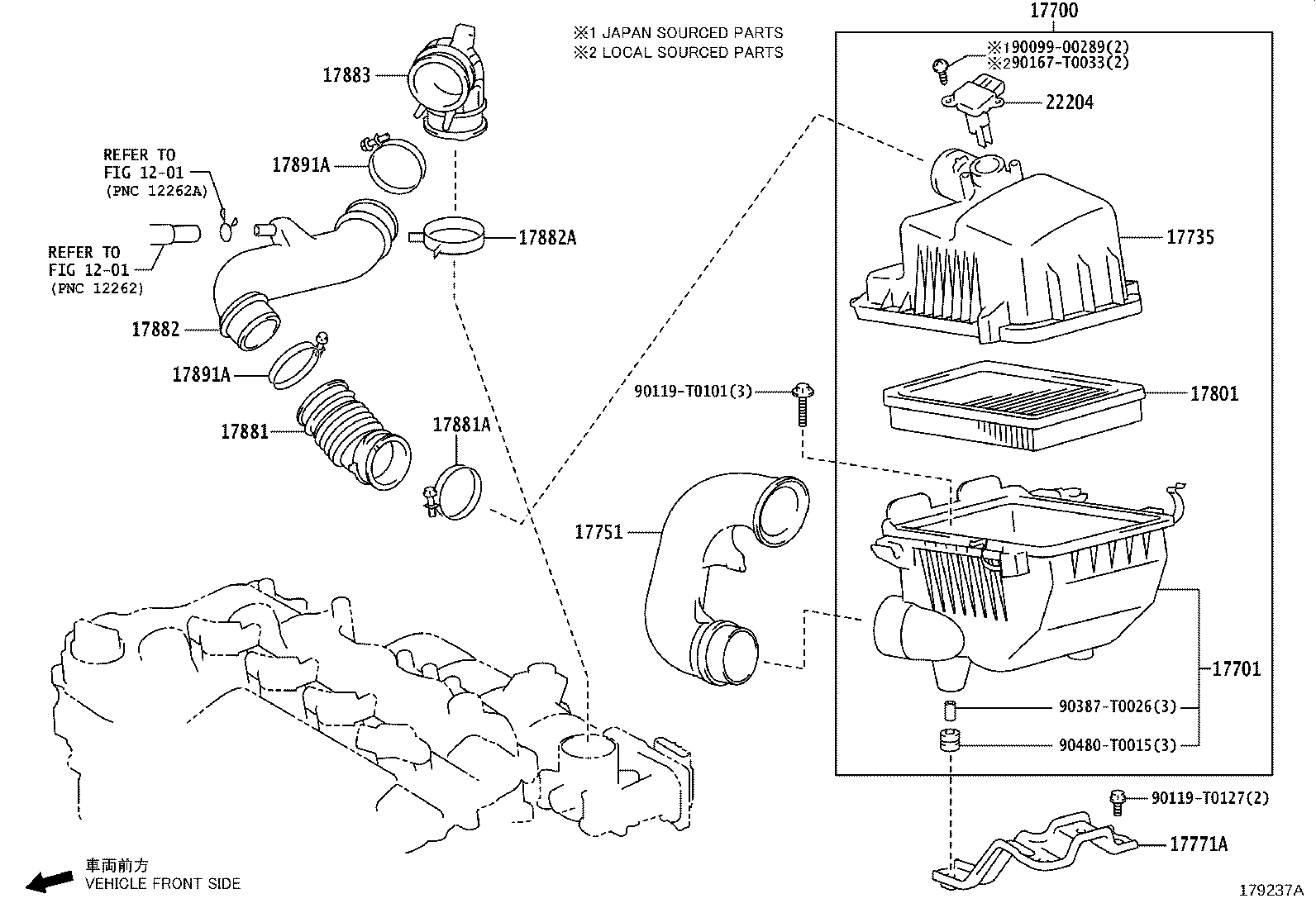

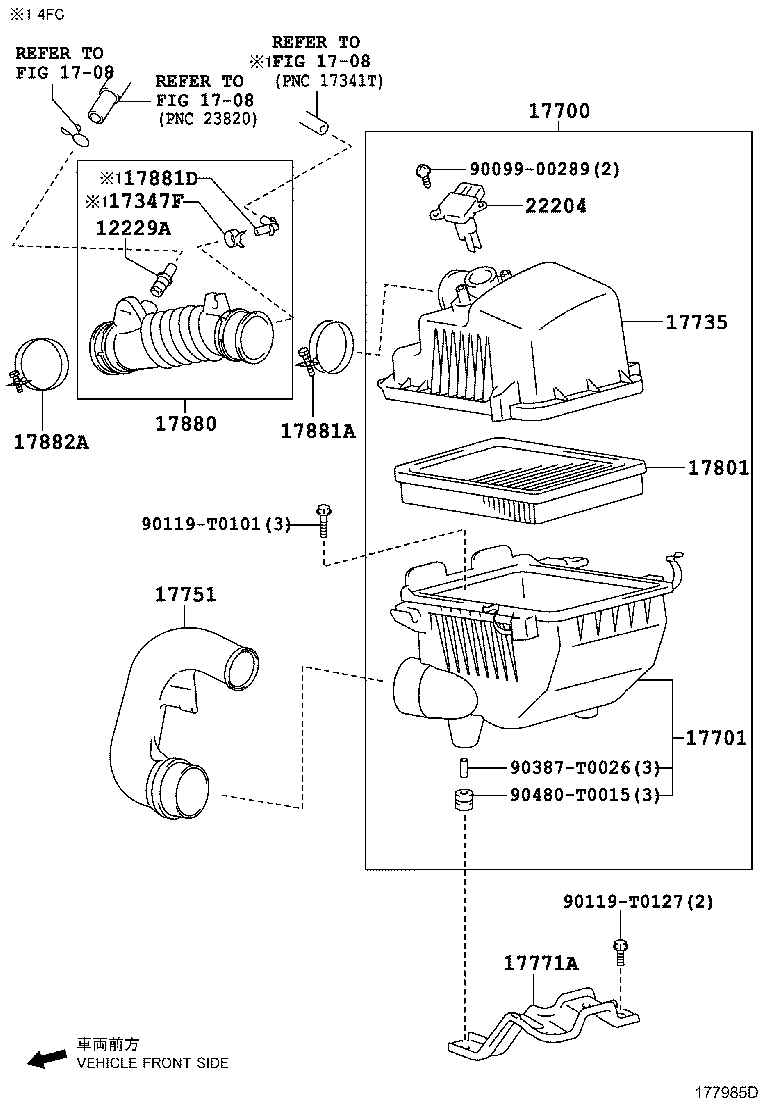

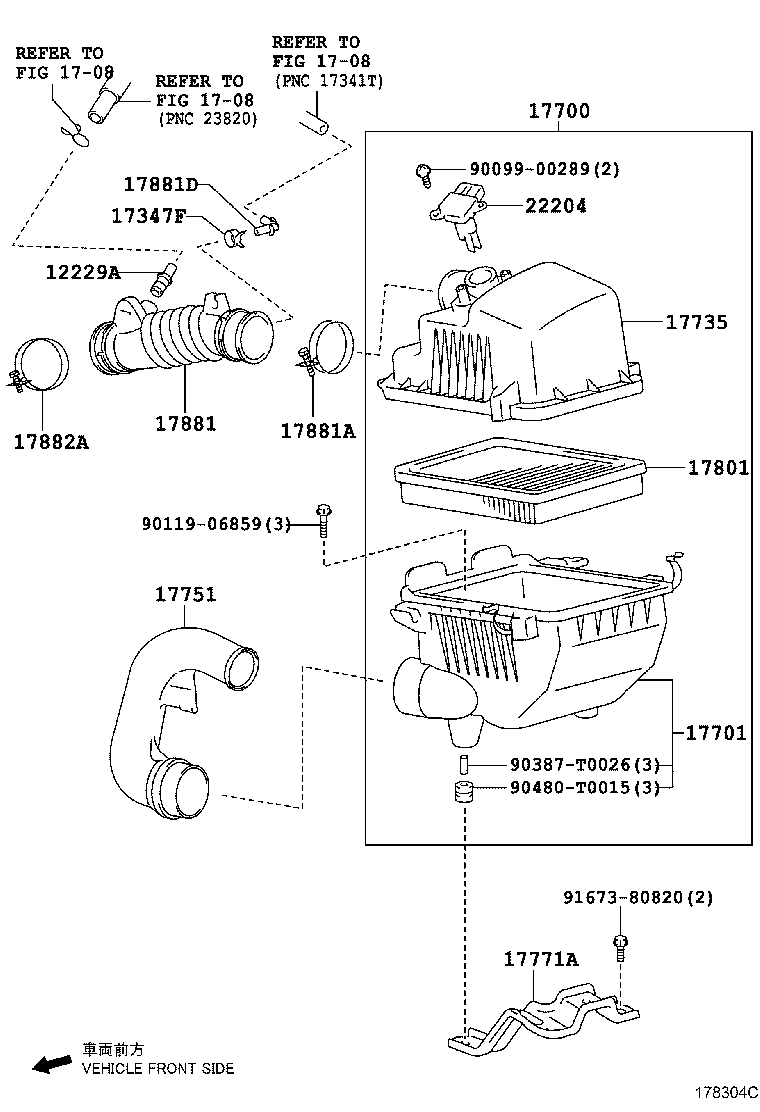

Figure 177985D 177985D 2013-04 → — Figure 178304C 178304C 2014-04 → — Figure 179237A 179237A 2016-04 → 2018-01 Figure 179237A 179237A 2018-01 → — Figure 179238B 179238B 2016-04 → 2018-01 Figure 179238B 179238B 2018-01 → — Figure 177986D 177986D 2017-08 → — Figure 179742A 179742A 2017-10 → — Figure 179742A 179742A 2018-01 → — Figure 179749B 179749B 2017-08 → — Figure 179749B 179749B 2018-01 → — Figure 179932 179932 2018-04 → — Figure 179933 179933 2018-04 → — Figure 17A960 17A960 2019-11 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
12229B Pipe, Ventilation, NO.1
12229C Pipe, Ventilation, NO.2
17343D Hose, Air, NO.3
17347F Clamp OR Clip(FOR AIR HOSE)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17891A Clamp, Air Cleaner Hose
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
