Toyota Corolla Sed (JPP)
2019-01 → present · chassis MZEA1#,ZRE212,ZWE21# · catalogue 153260 · United States
Supported model
Data version 2024-09

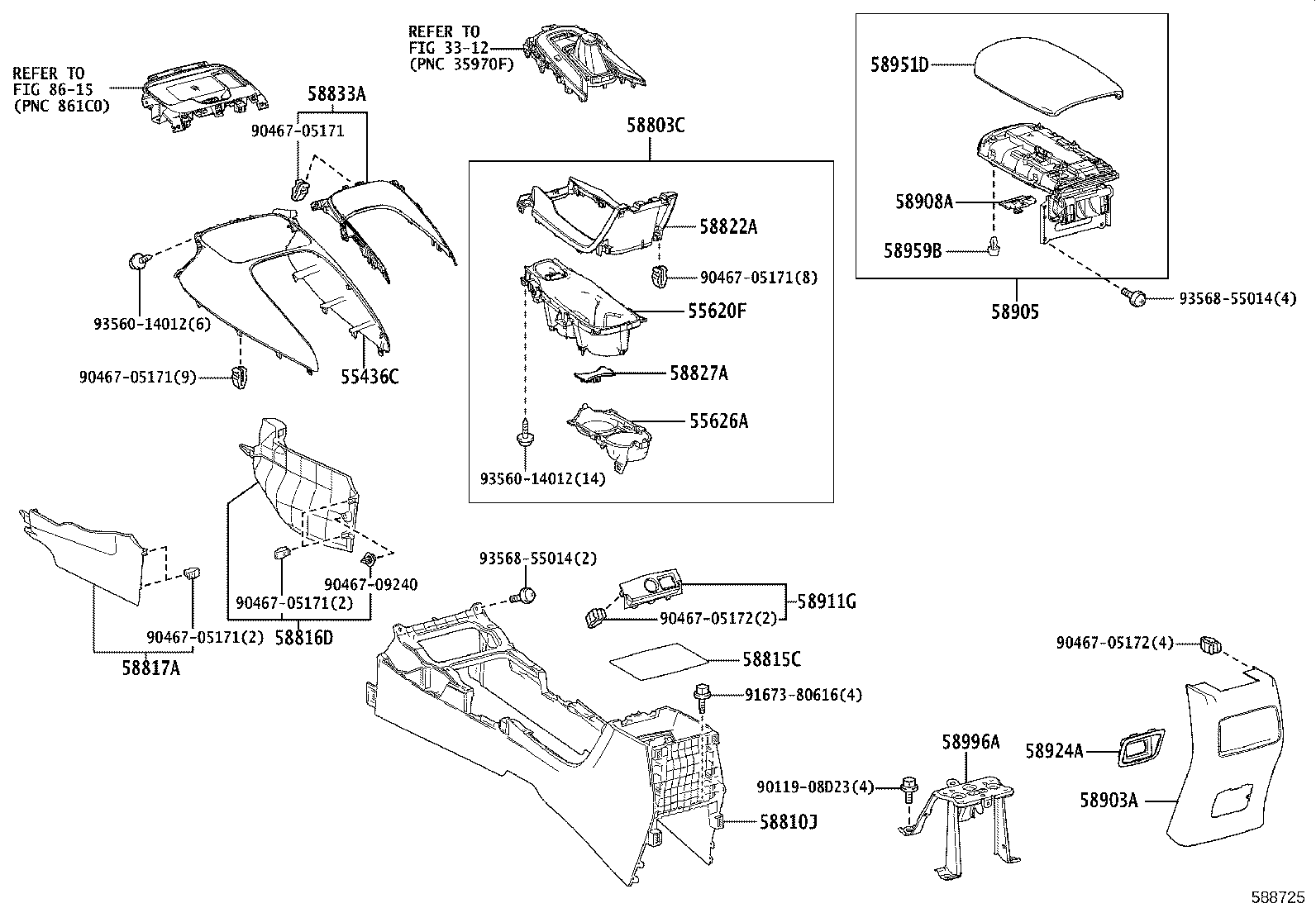

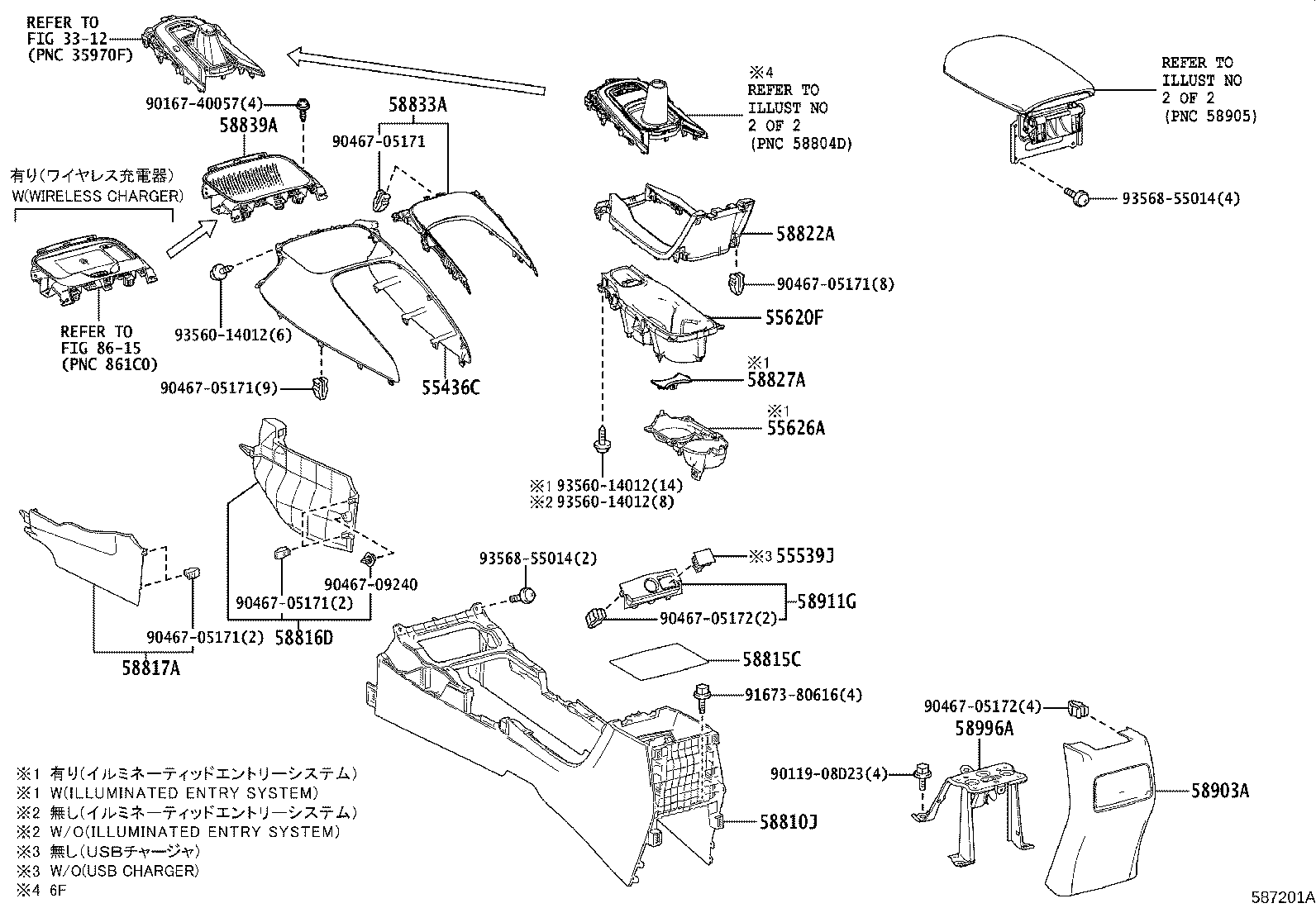

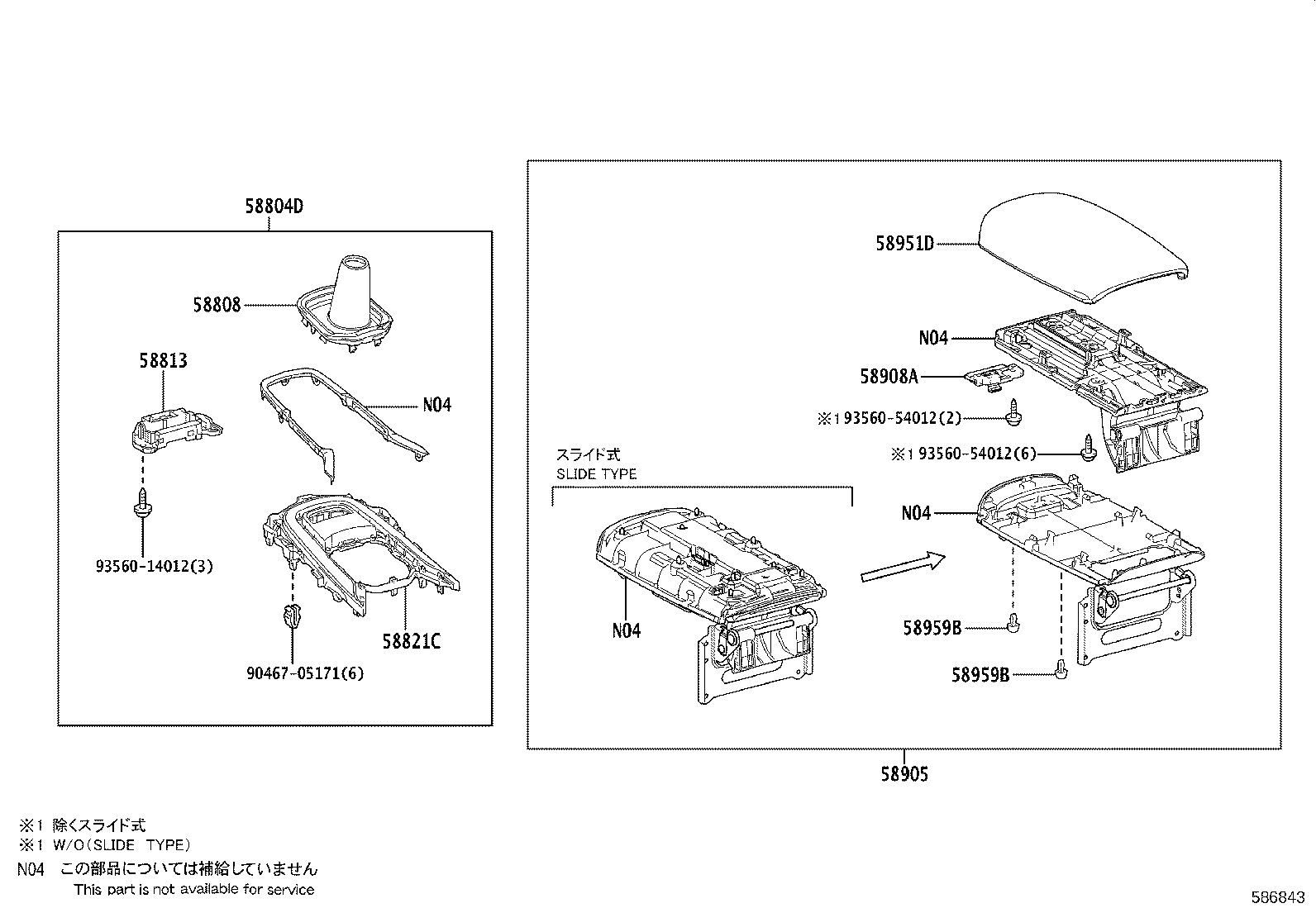

Console Box & Bracket
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55436C | Panel, Instrument Panel Finish, End LH |
| 55539J | Cover, Spare Switch Hole |
| 55620F | Holder Assy, Console Box Cup |
| 55626A | Retainer, Instrument Panel Under Tray Wall |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58804D | Panel Sub-assy, Console, Upper Front |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58813 | Box, Console, Upper |
| 58815C | Carpet, Console Box |
| 58816D | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58822A | Panel, Console, Upper Rear |
| 58827A | Garnish, Console Box Pocket |
| 58833A | Cover, Console, Upper |
| 58839A | Cover, Console Box Hole |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58911G | Panel, Box, NO.1 |
| 58924A | Panel, Console Rear End, NO.2 |
| 58951D | Door, Console Compartment, Outer |
| 58959B | Cushion, Console Compartment Door |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
