Heating & Air Conditioning - Cooler Unit

49 part groups · 30 illustrations

Illustrations

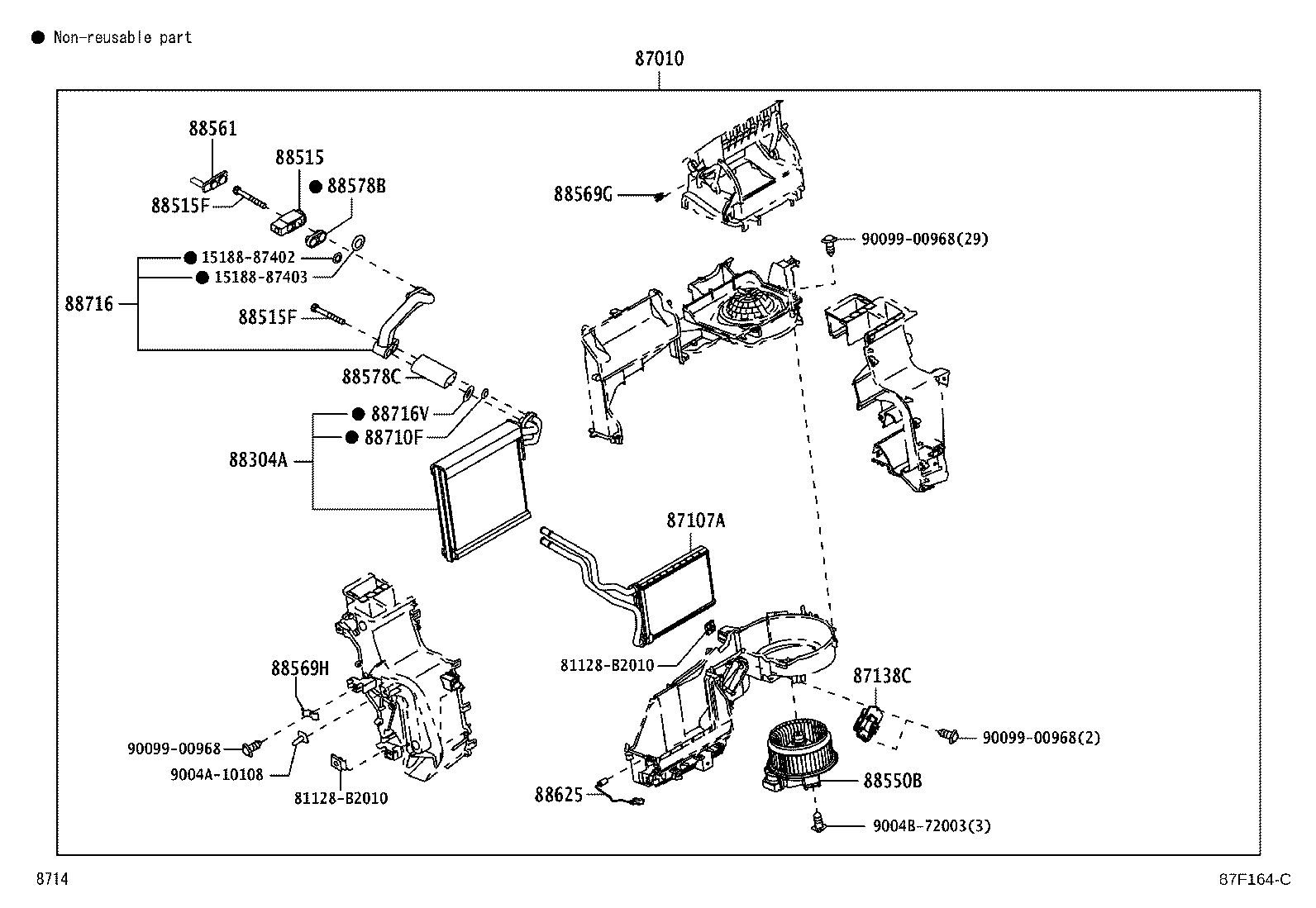

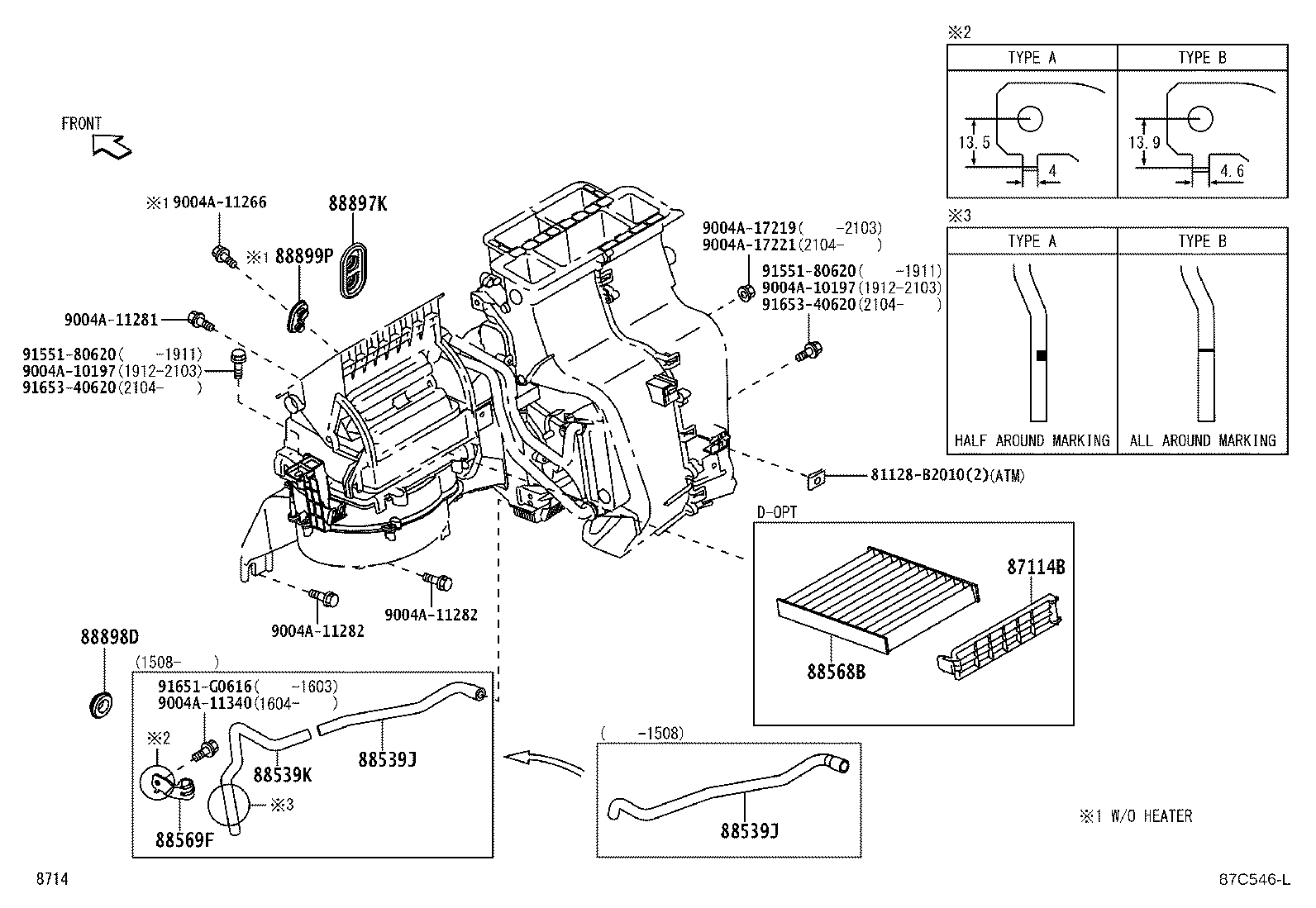

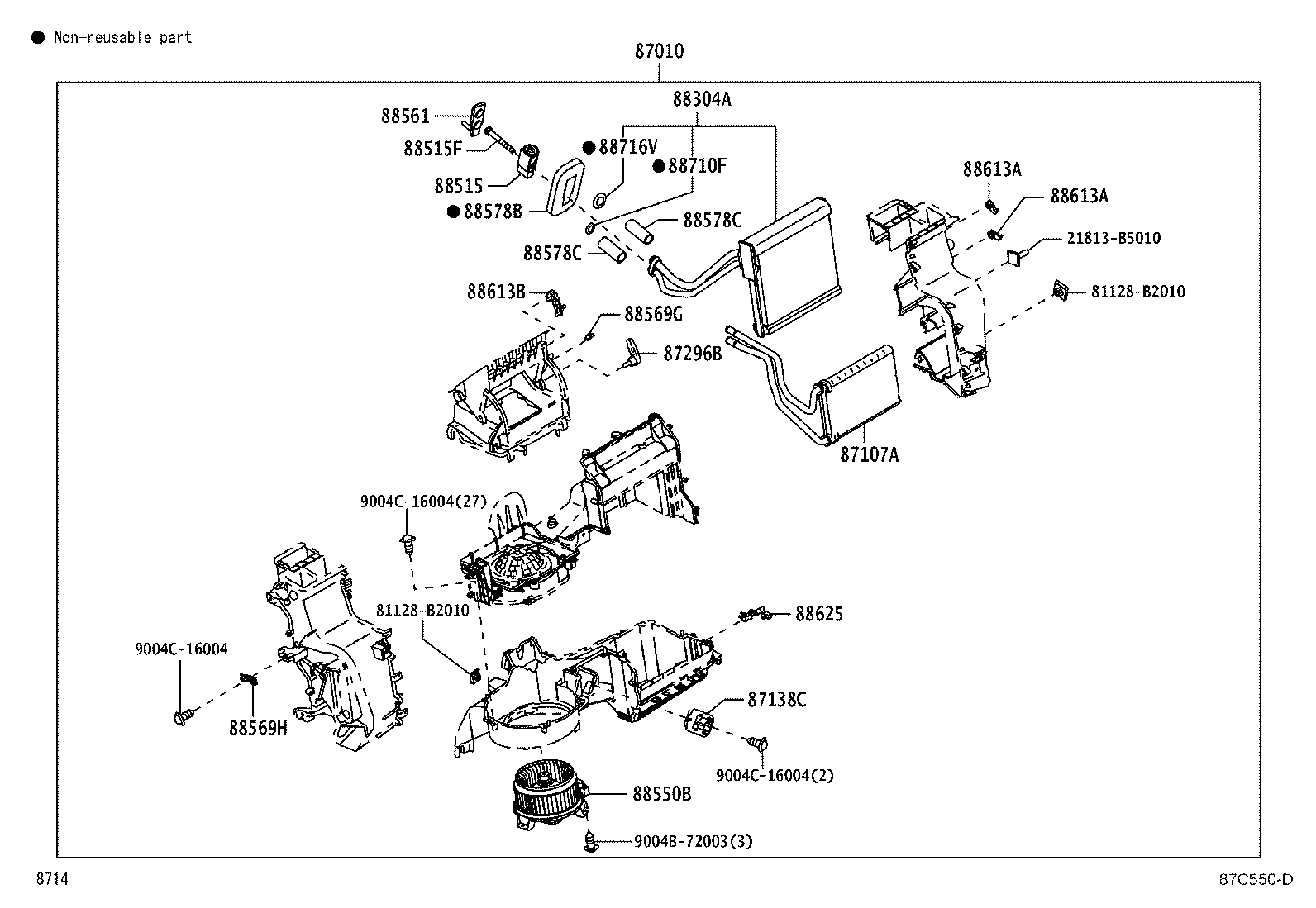

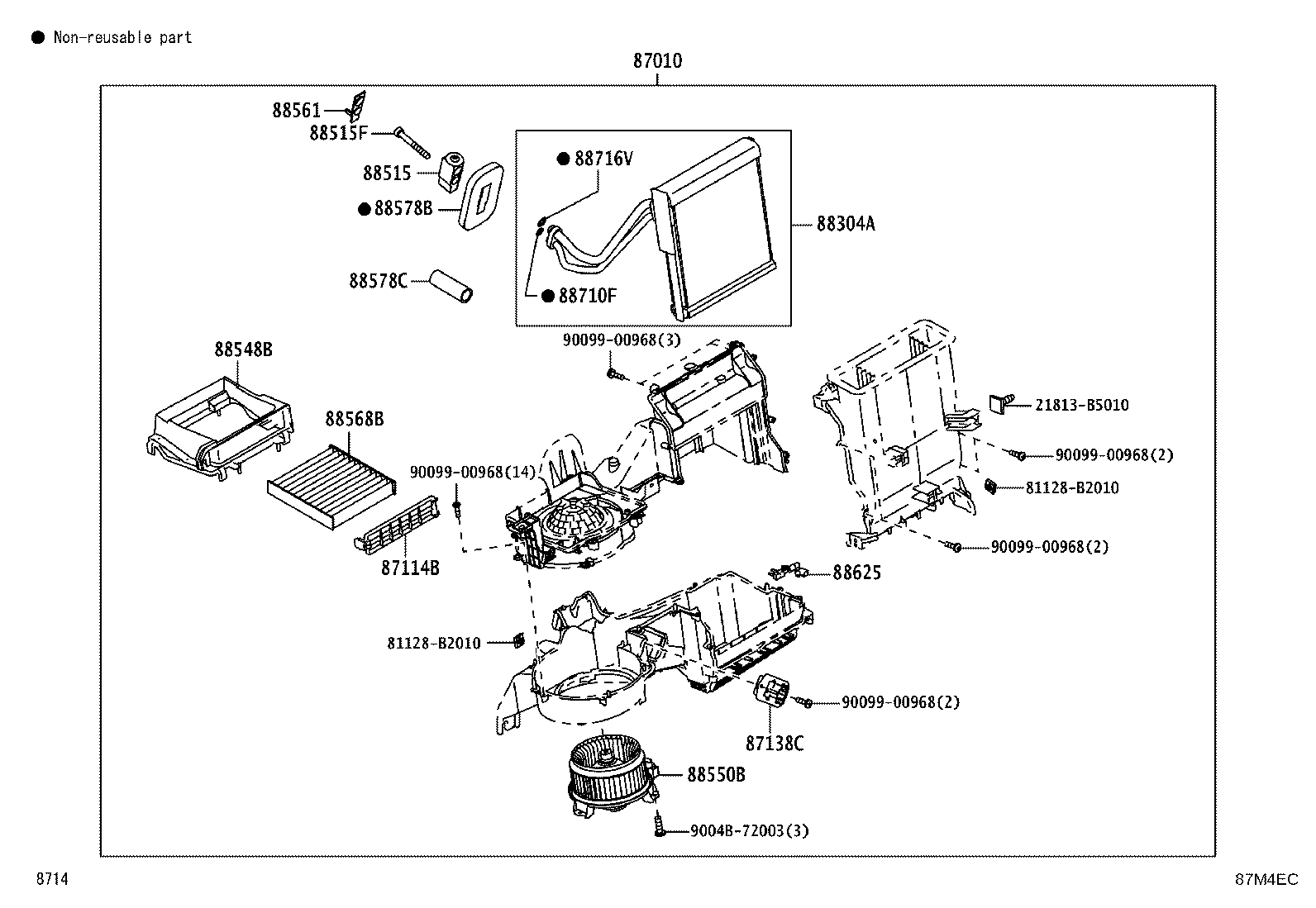

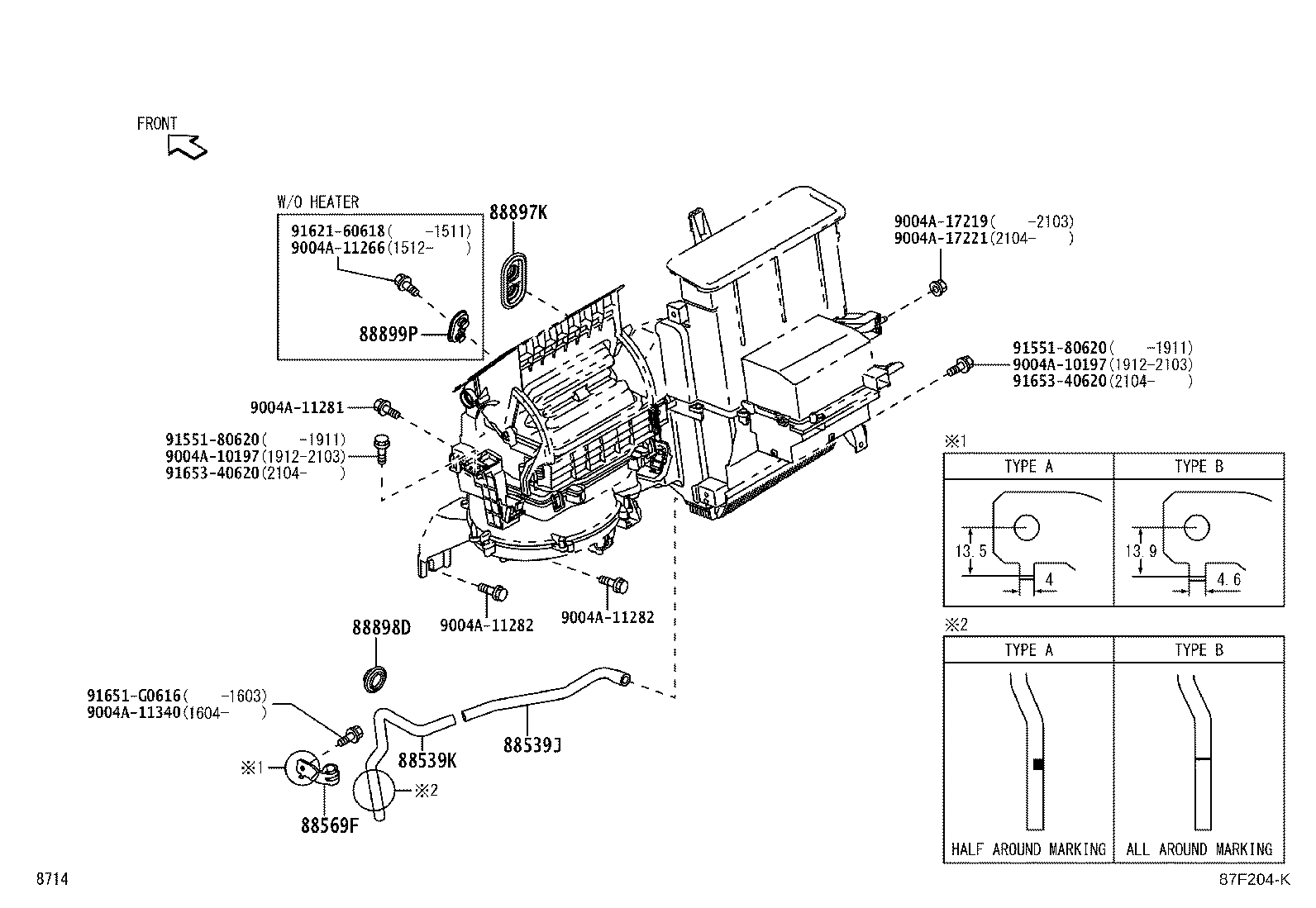

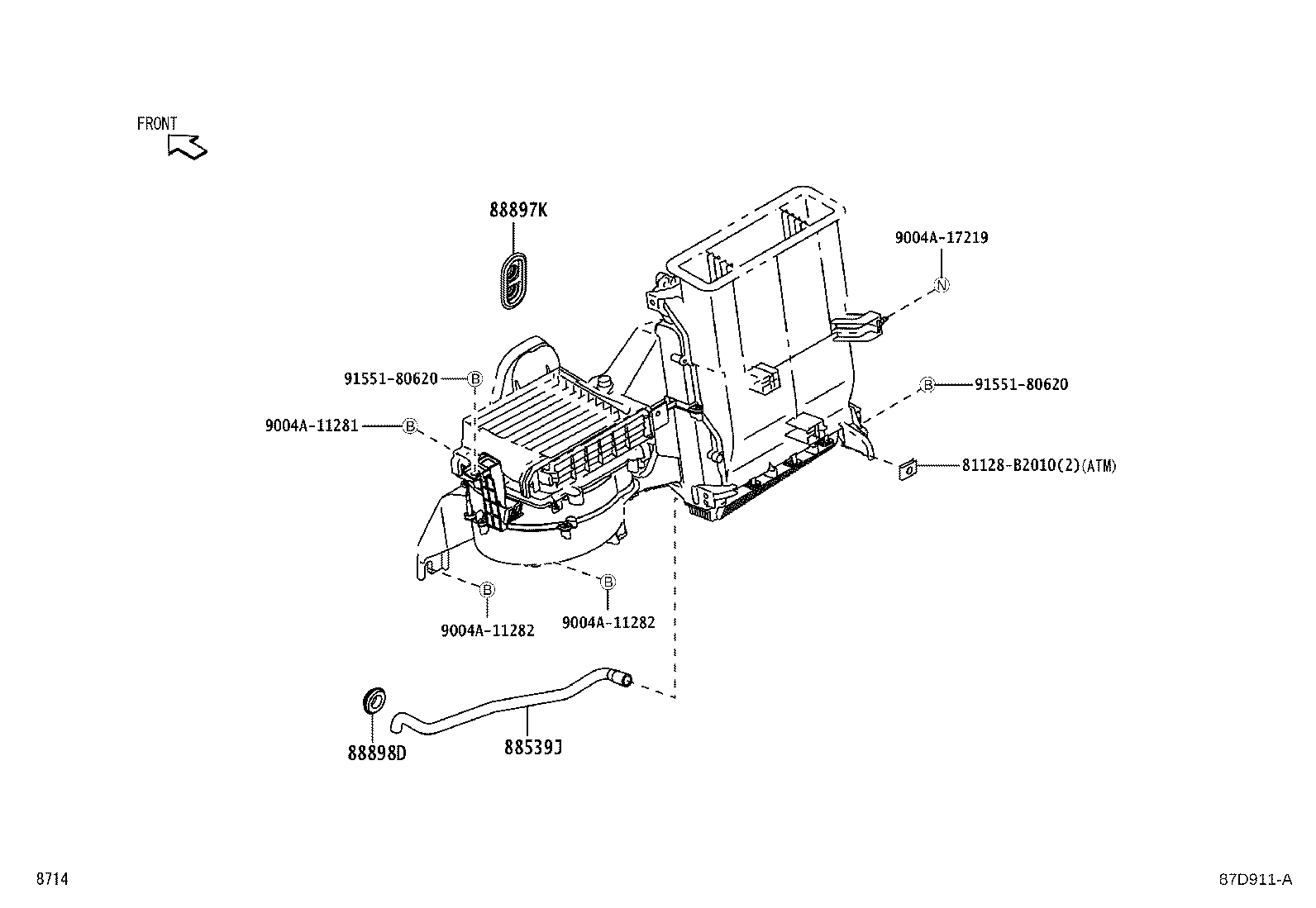

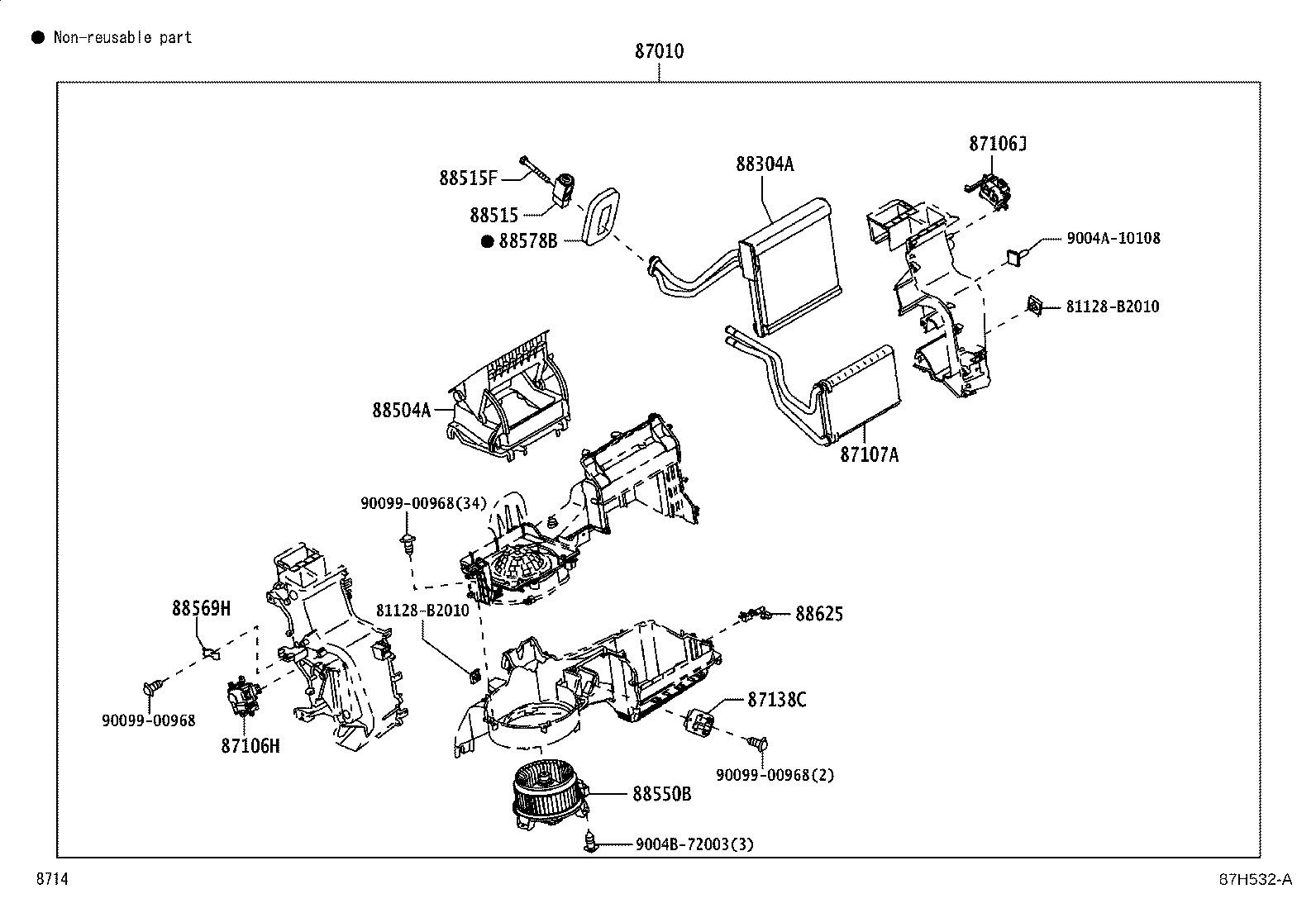

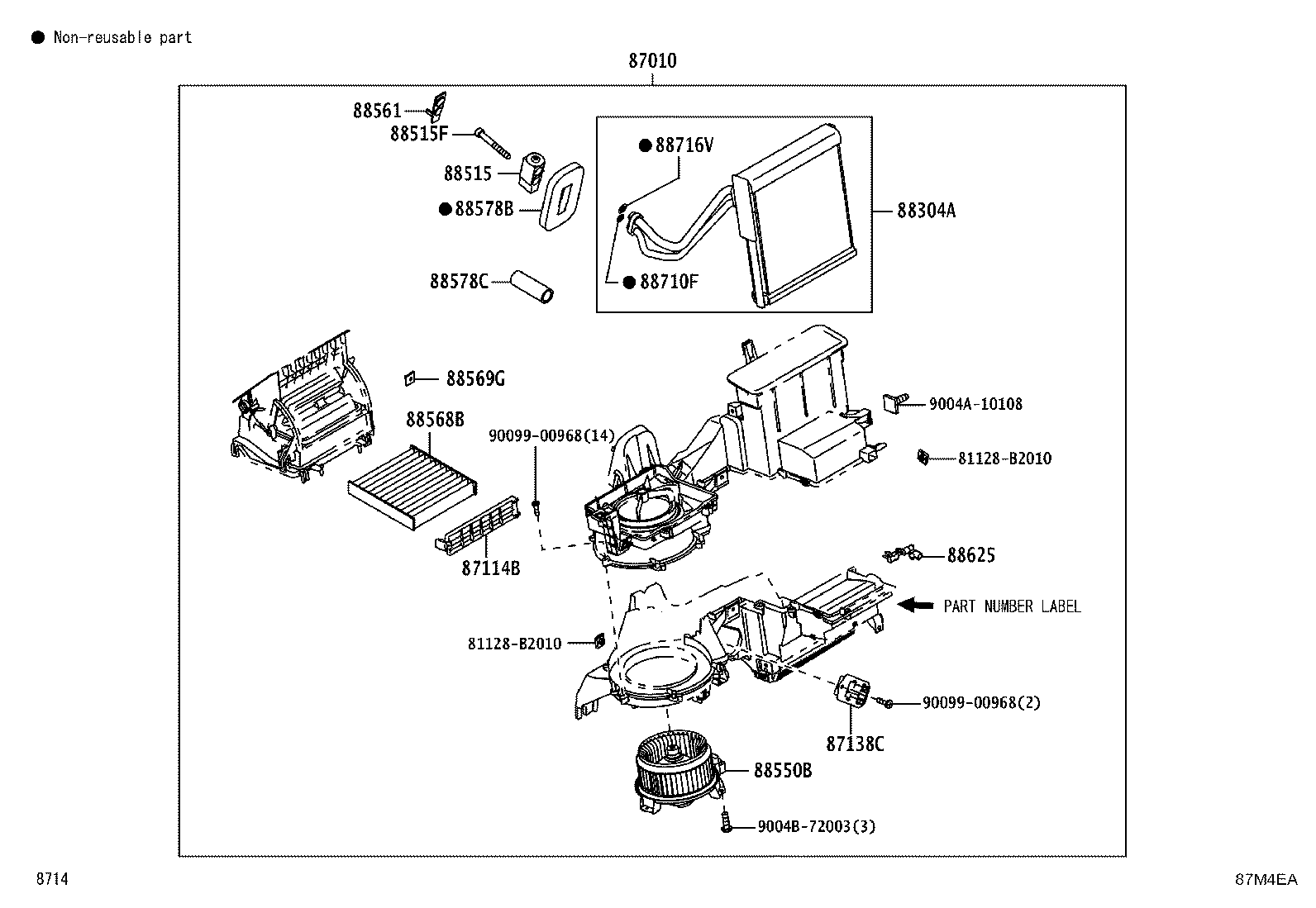

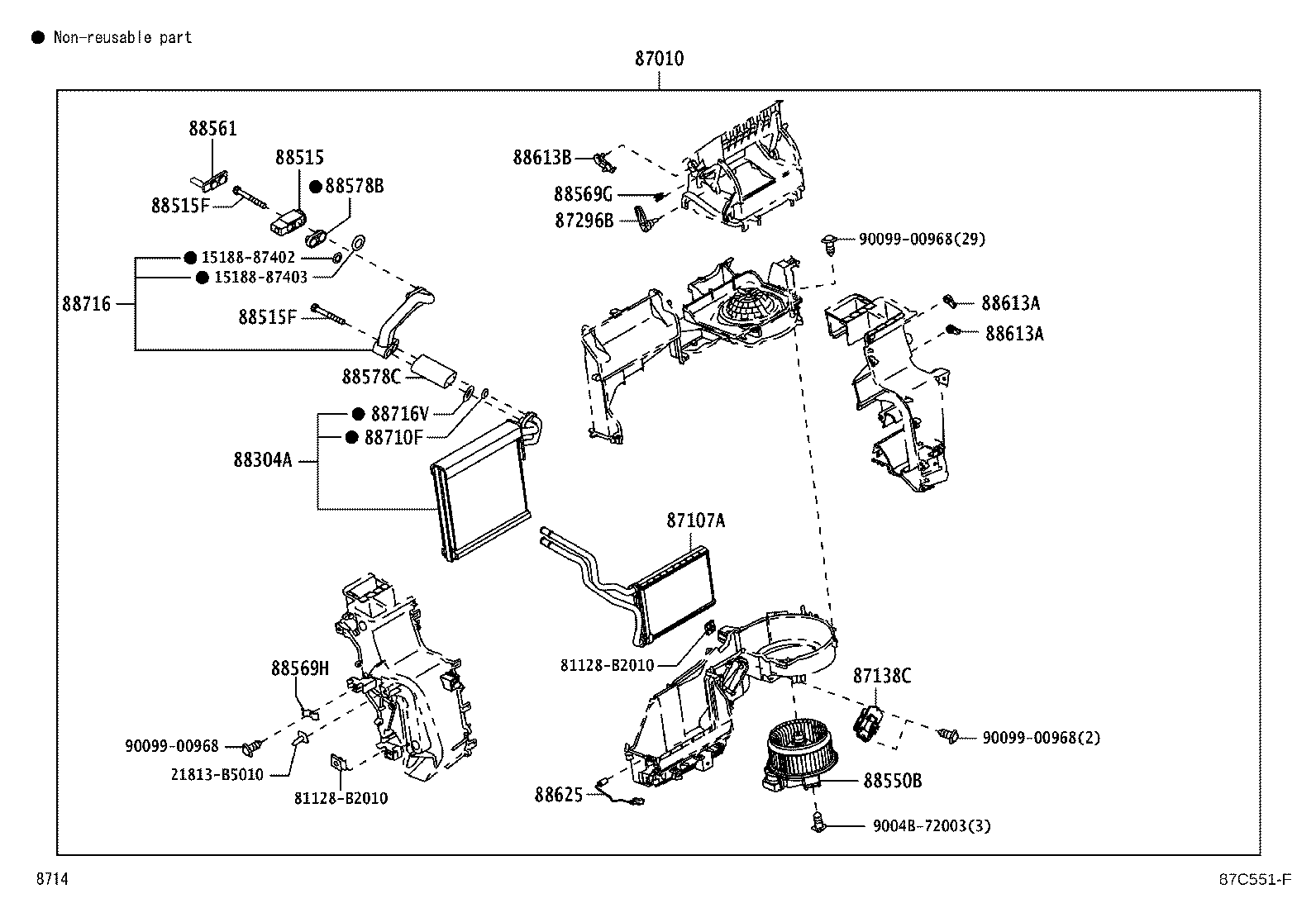

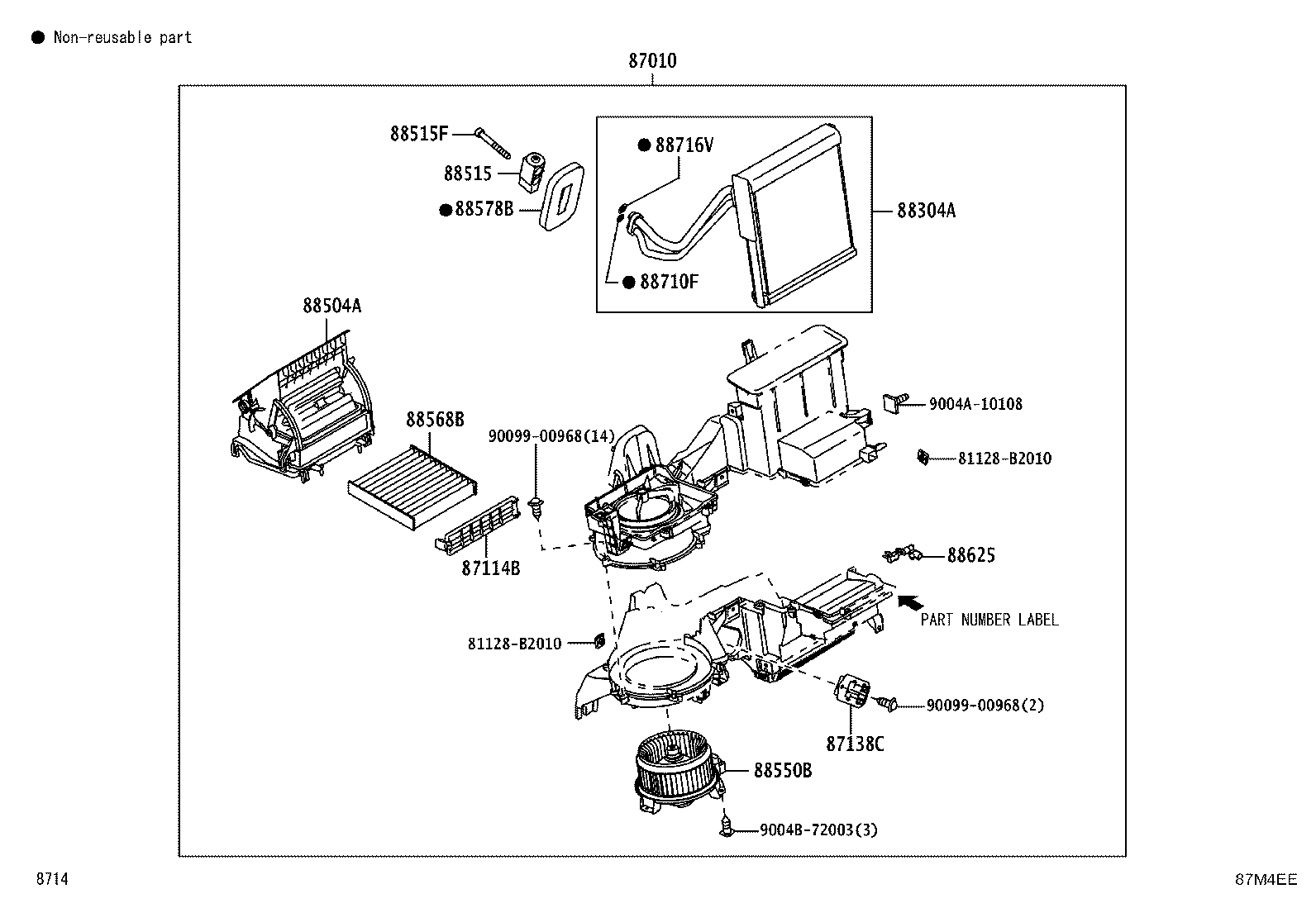

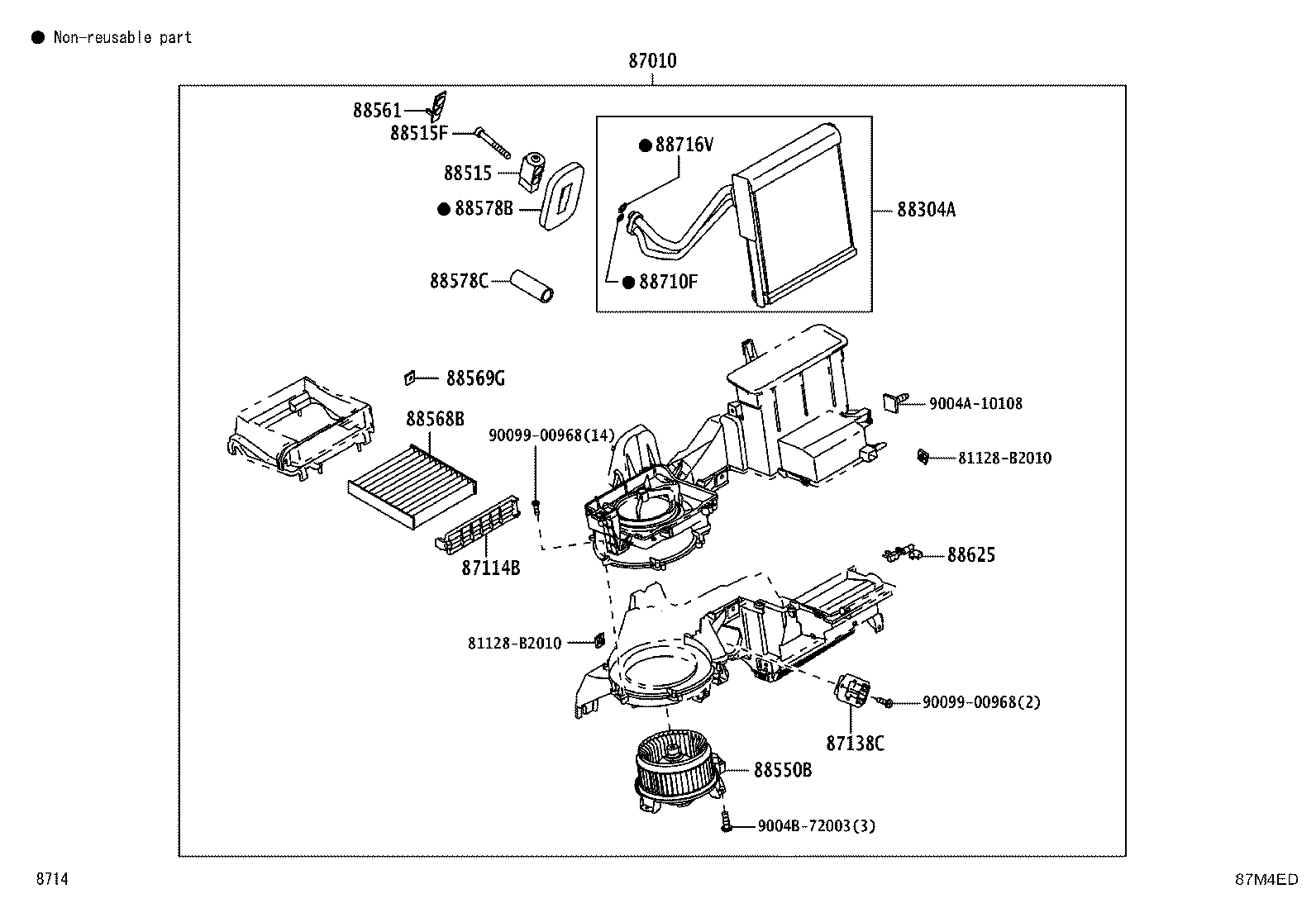

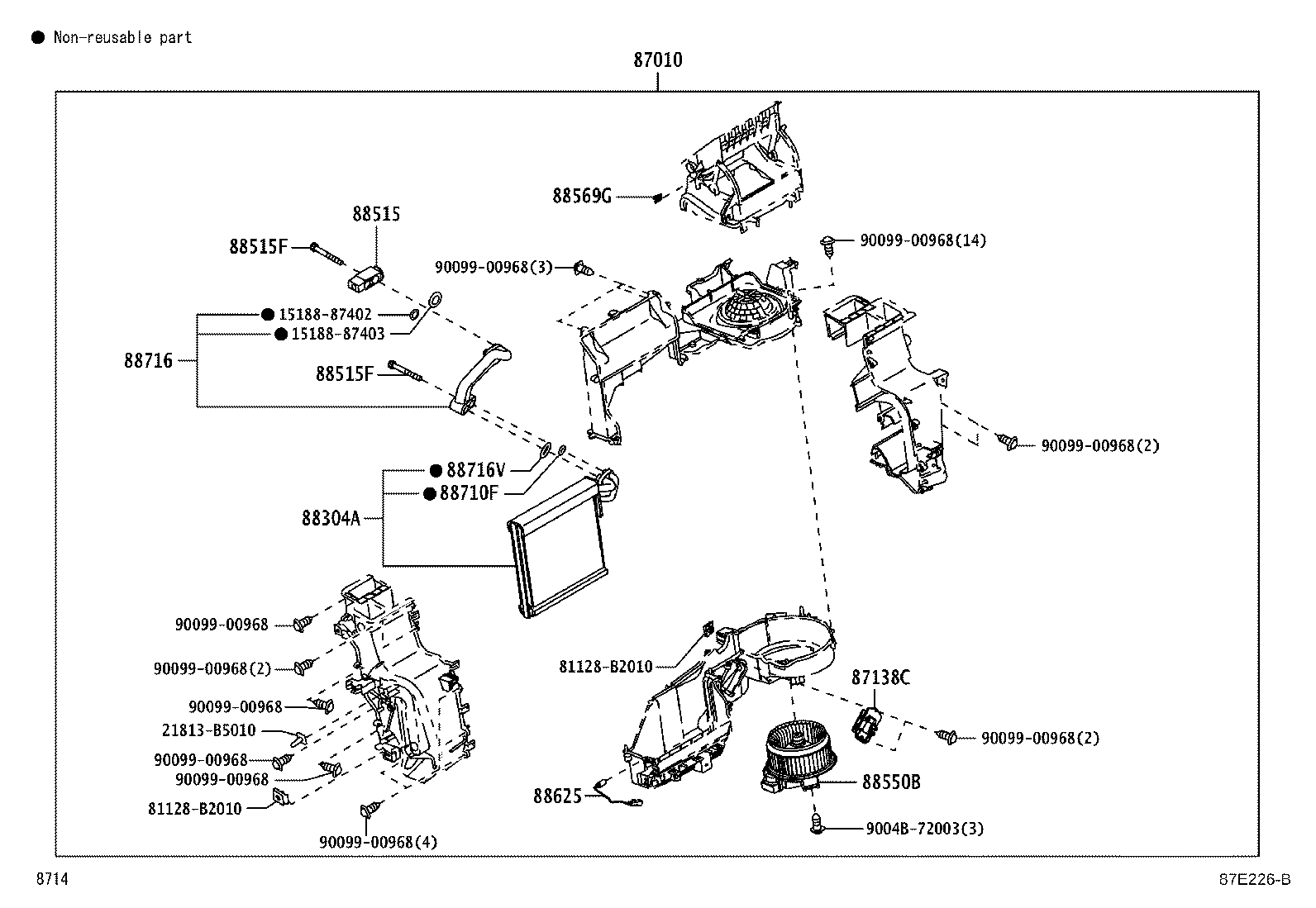

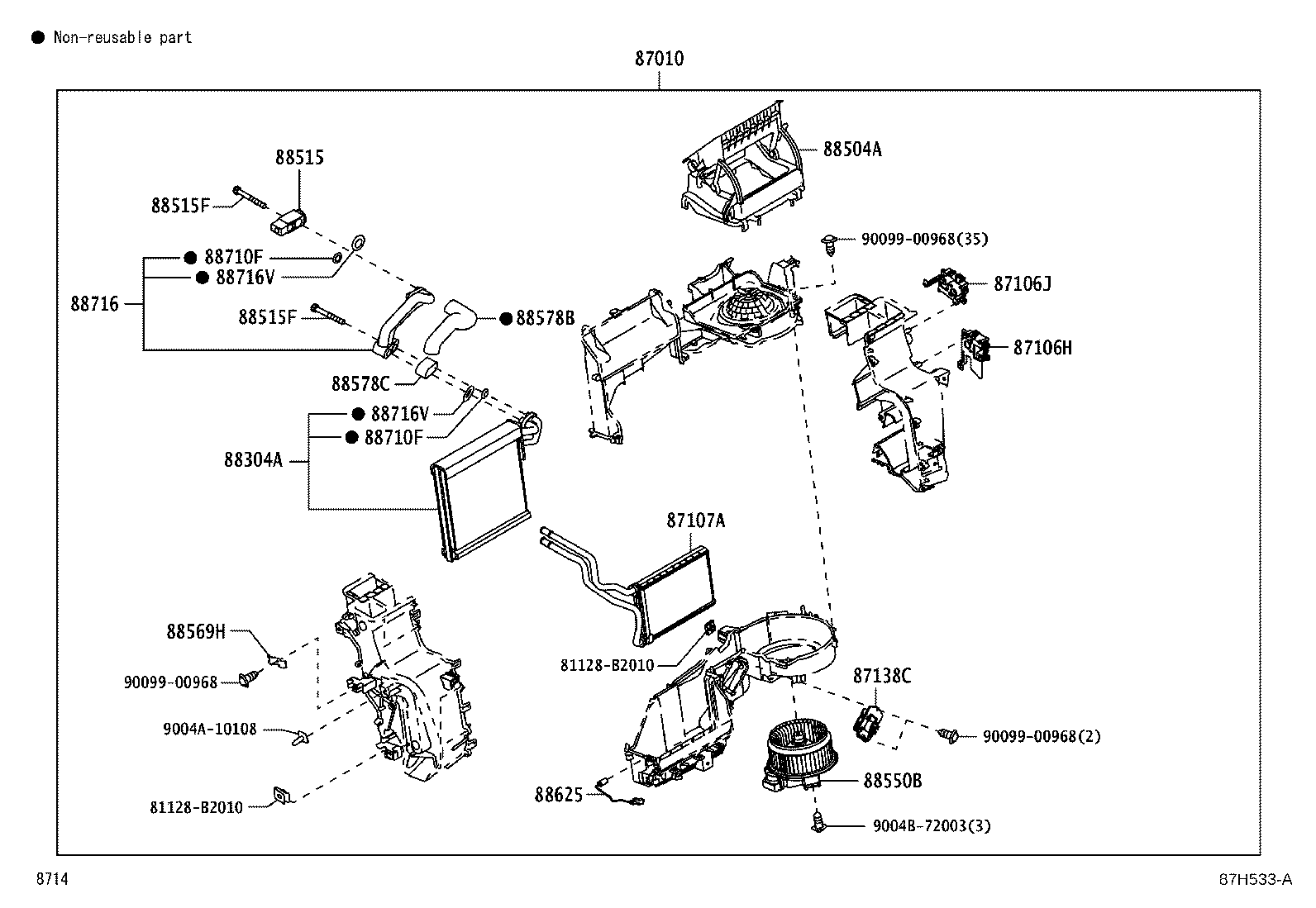

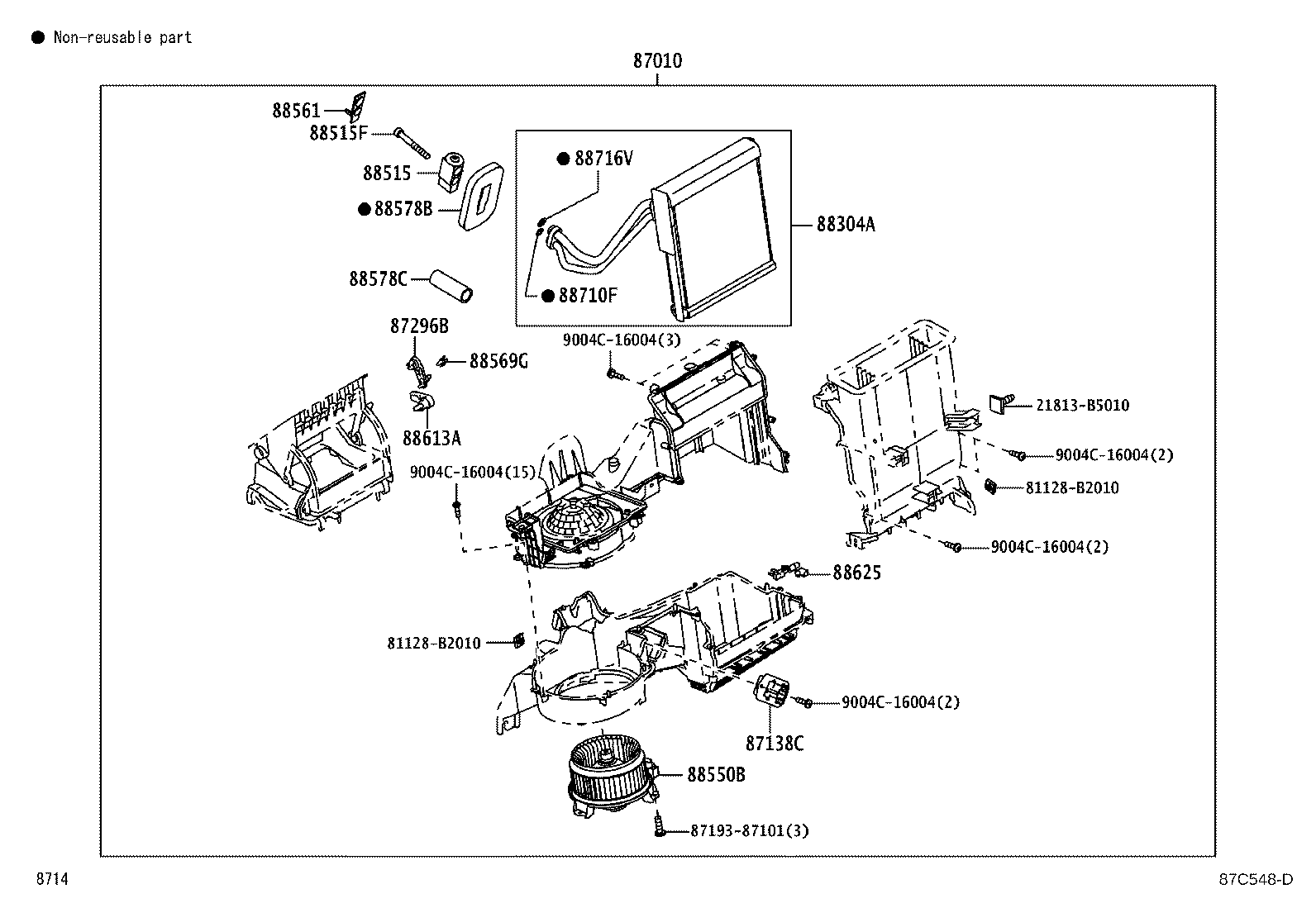

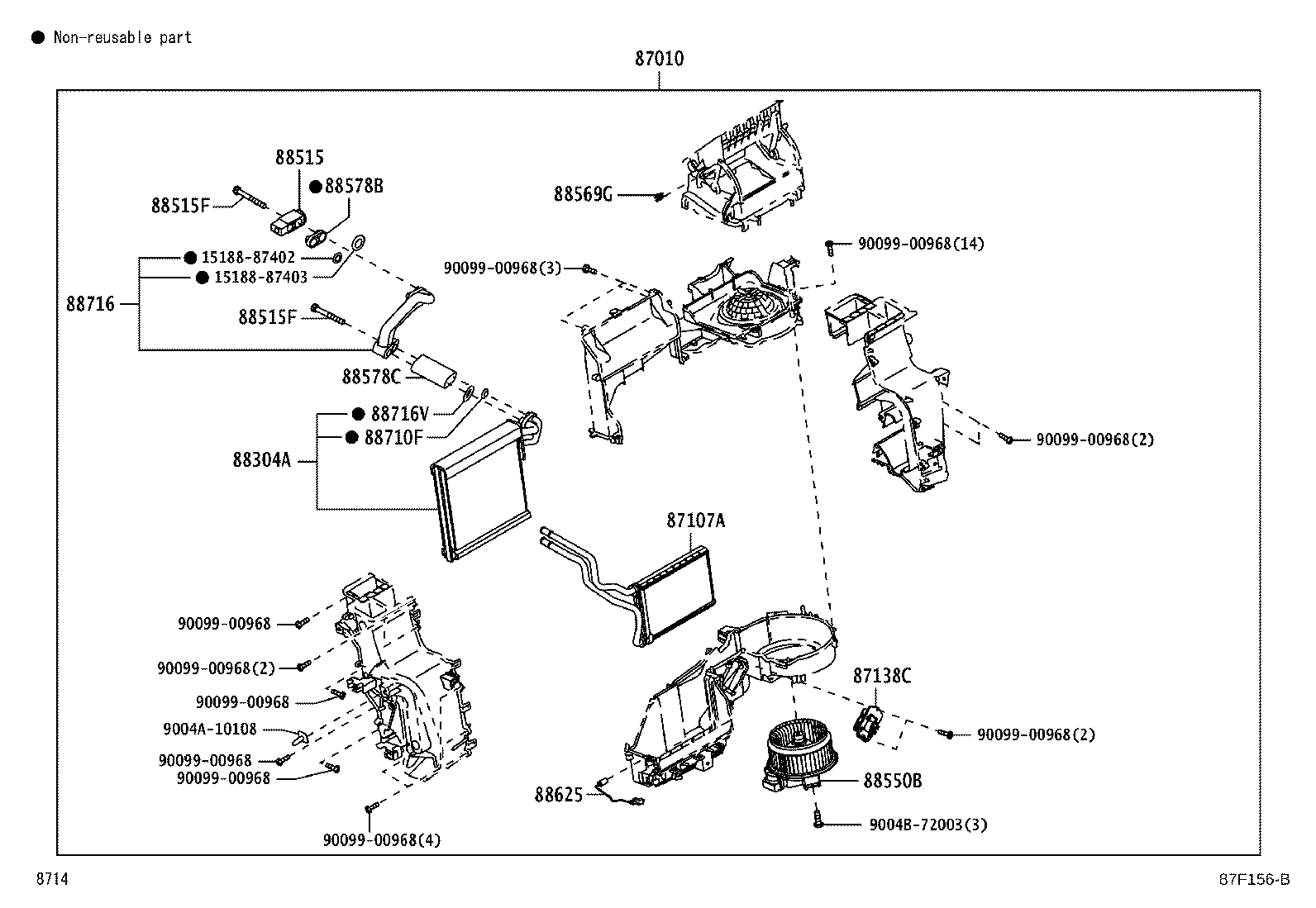

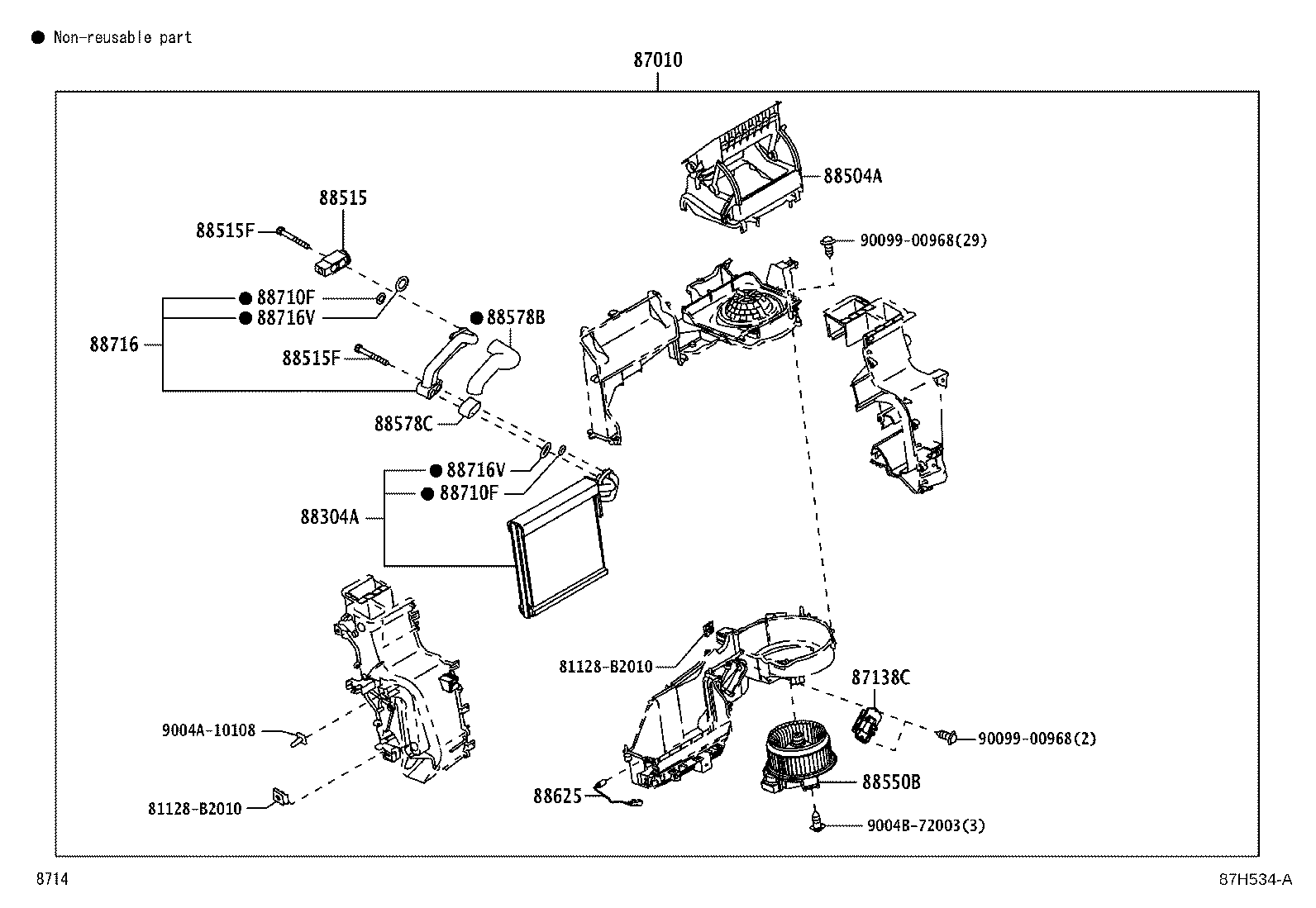

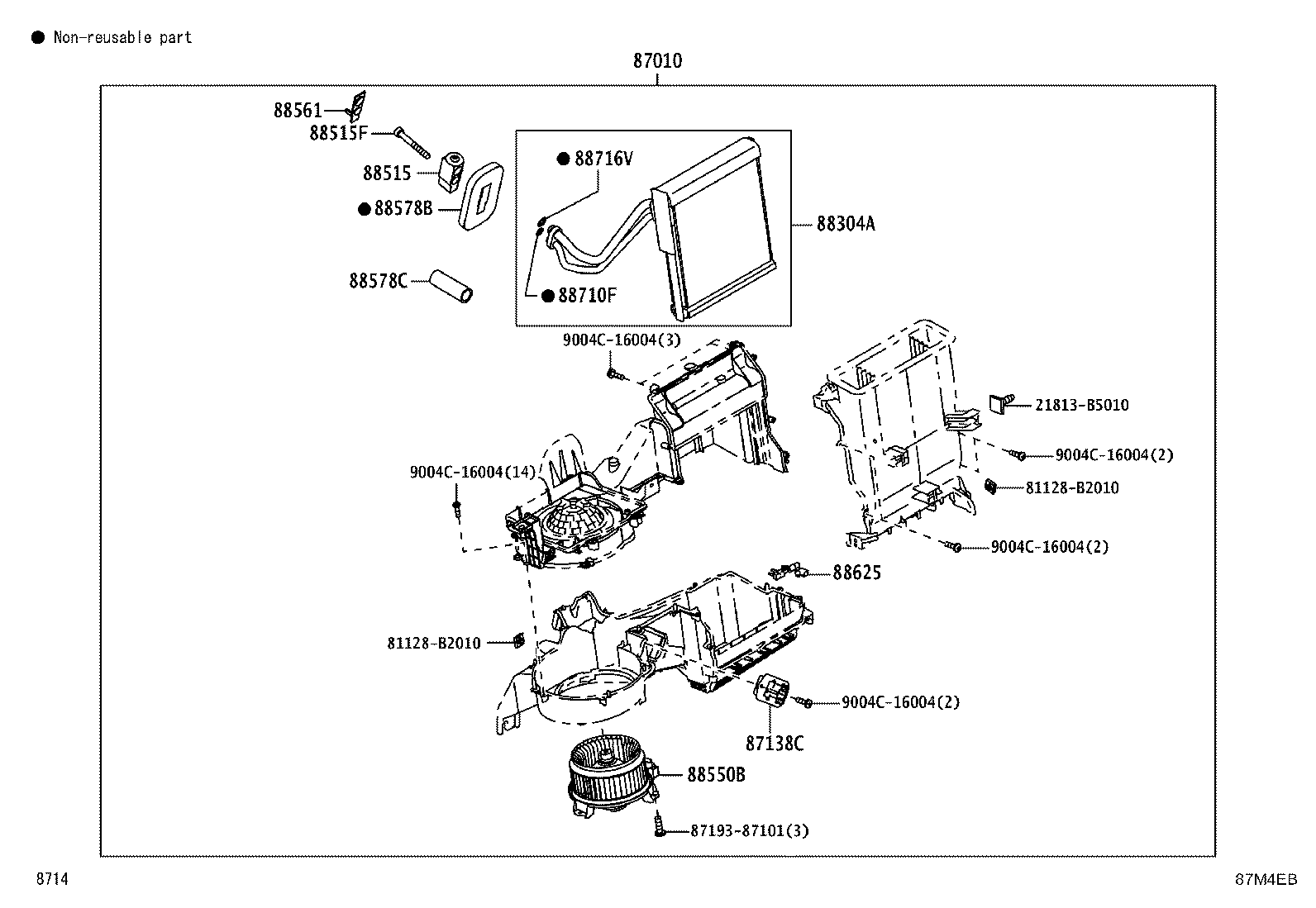

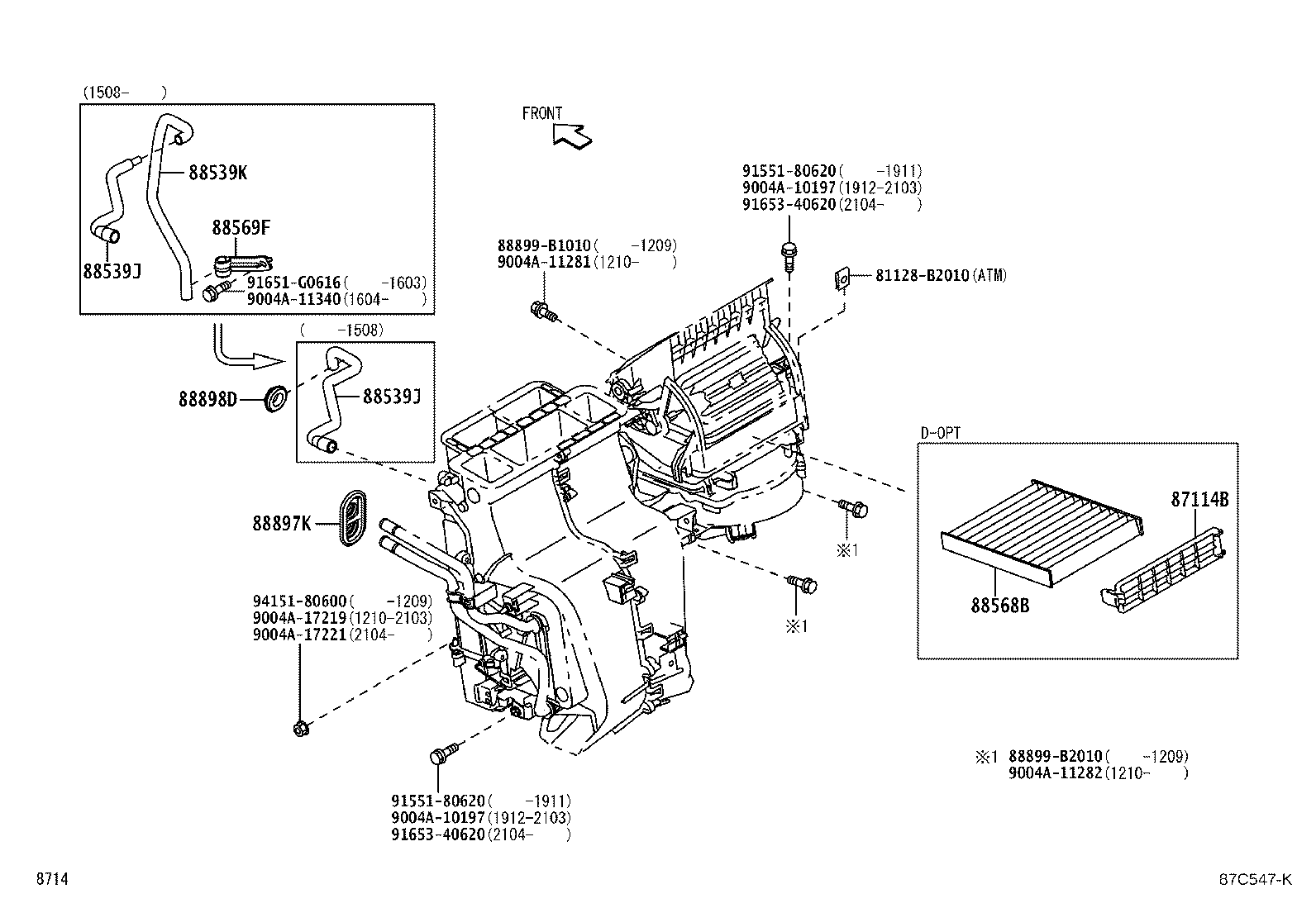

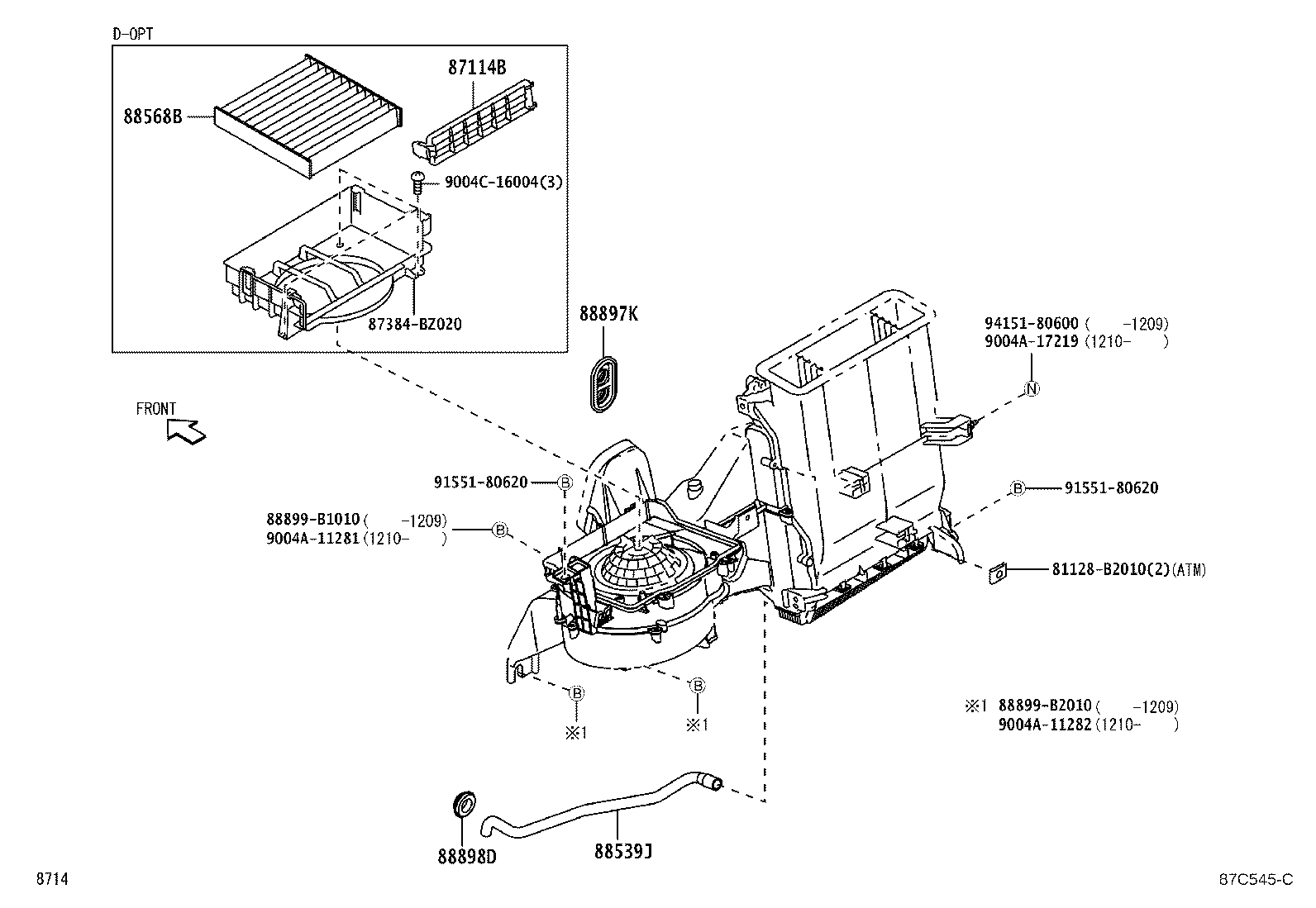

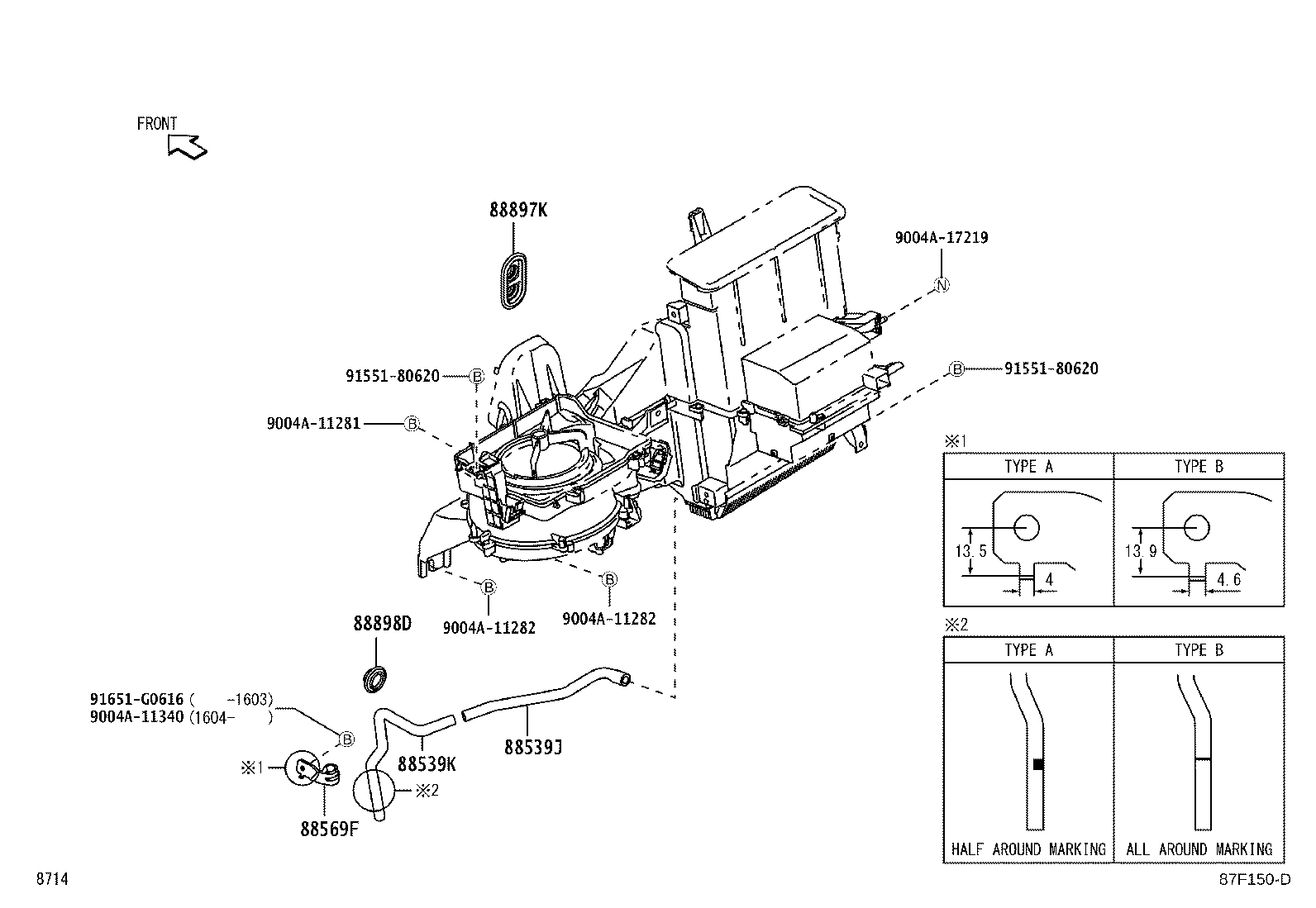

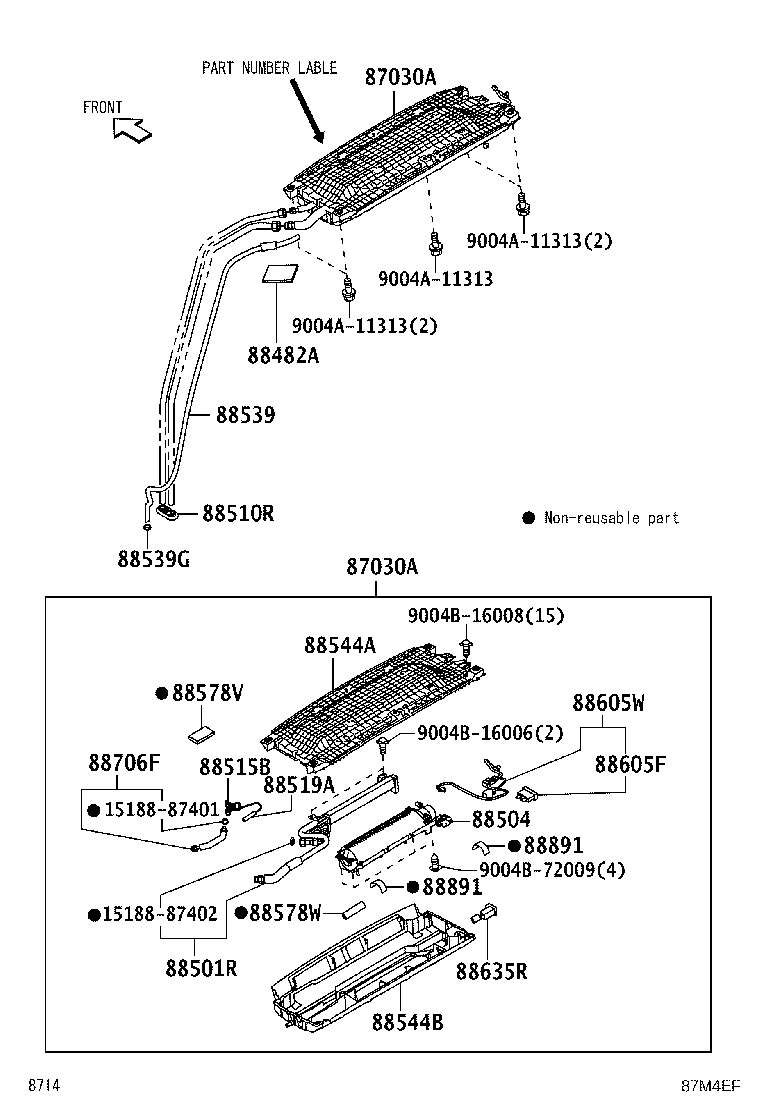

Figure 87C544B 87C544B 2011-11 → 2015-08 Figure 87F204K 87F204K 2015-08 → — Figure 87F204K 87F204K 2019-01 → — Figure 87C548D 87C548D 2011-11 → 2015-08 Figure 87M4EA 87M4EA 2015-08 → 2019-04 Figure 87C545C 87C545C 2011-11 → 2013-06 Figure 87D911A 87D911A 2013-06 → 2015-07 Figure 87F150D 87F150D 2015-07 → 2019-01 Figure 87M4EB 87M4EB 2011-11 → 2013-06 Figure 87M4EC 87M4EC 2013-06 → 2015-07 Figure 87M4ED 87M4ED 2015-07 → 2019-01 Figure 87M4EE 87M4EE 2019-01 → — Figure 87M4EE 87M4EE 2019-04 → — Figure 87C546L 87C546L 2011-11 → — Figure 87C550D 87C550D 2011-11 → 2019-04 Figure 87H532A 87H532A 2019-04 → — Figure 87C547K 87C547K 2011-12 → 2019-04 Figure 87C547K 87C547K 2014-04 → 2019-04 Figure 87C547K 87C547K 2018-01 → 2019-04 Figure 87C547K 87C547K 2019-04 → — Figure 87C551F 87C551F 2011-12 → 2015-08 Figure 87F156B 87F156B 2015-08 → 2019-04 Figure 87F156B 87F156B 2018-01 → 2019-04 Figure 87E226B 87E226B 2014-04 → 2015-08 Figure 87F164C 87F164C 2015-08 → 2019-04 Figure 87H533A 87H533A 2019-04 → — Figure 87H534A 87H534A 2019-04 → — Figure 87M4EF 87M4EF 2011-11 → 2015-07 Figure 87M4EF 87M4EF 2015-07 → — Figure 87M4EF 87M4EF 2015-07 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87030A Unit Assy, Cooling, Rear
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87138C Resistor, Blower
87296B Lever, Heater Air Damper Control
88304A Cooler, Evaporator
88482A Cover
88501R Evaporator Sub-assy (REAR)
88504 Case Sub-assy, Cooler Blower
88504A Case Sub-assy, Blower
88510R Grommet (FOR COOLER UNIT)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88519A Holder, Remote Bulb, Parts
88539 Hose, Cooler Unit Drain, NO.1
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88544A Case, Cooler Blower, Upper
88544B Case, Cooler Blower, Lower
88548B Case, Air Filter
88550B Motor Assy, Blower
88561 Cover, Cooler Unit
88568B Filter, Air
88569F Clamp
88569G Clamp
88569H Clamp
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88605F Fuse(FOR COOLER WIRING HARNESS)
88605W Harness Sub-assy, Wiring Air Conditioner
88613A Lever, Cooler Control, NO.1
88613B Lever, Cooler Control, NO.2
88625 Thermistor, Cooler, NO.1
88635R Resistor, Blower
88706F Tube Sub-assy, Liquid, F
88710F Ring, O
88716 Tube, Liquid
88716V Ring, O(FOR COOLER UNIT)
88891 Packing (FOR COOLER)
88897K Grommet, (FOR COOLER PIPE)
88898D Grommet
88899P Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
