Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

107 part groups · 48 illustrations

Illustrations

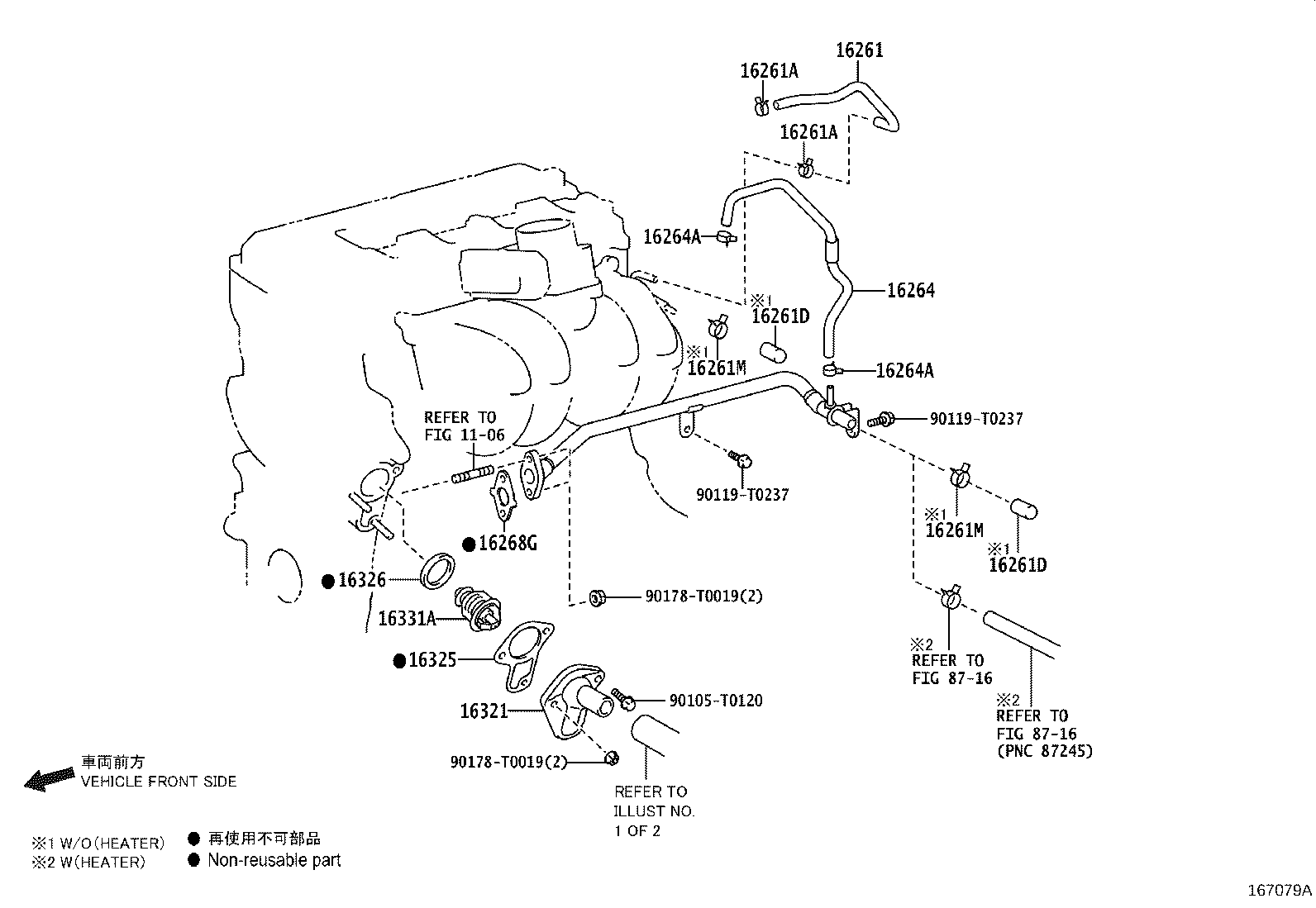

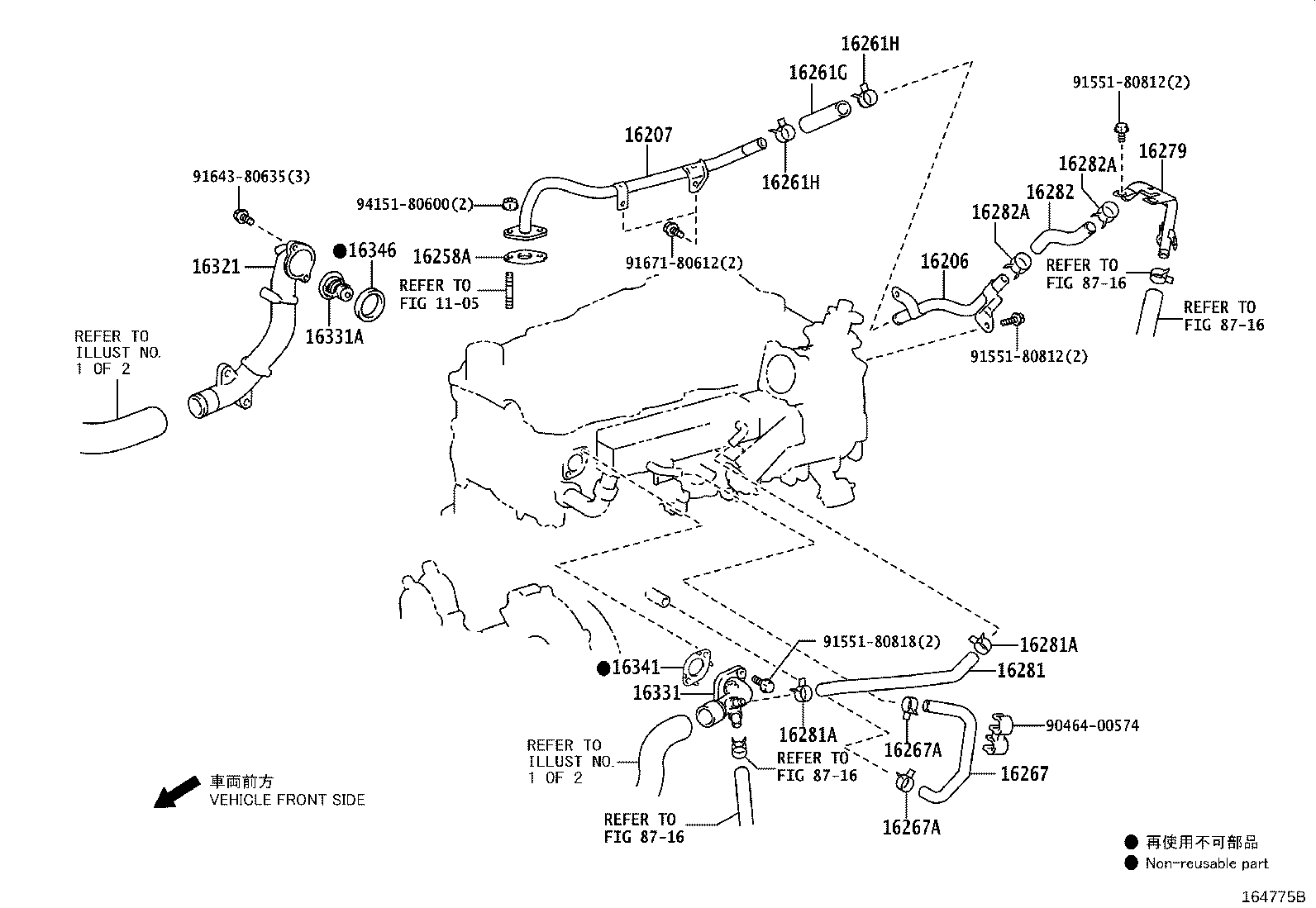

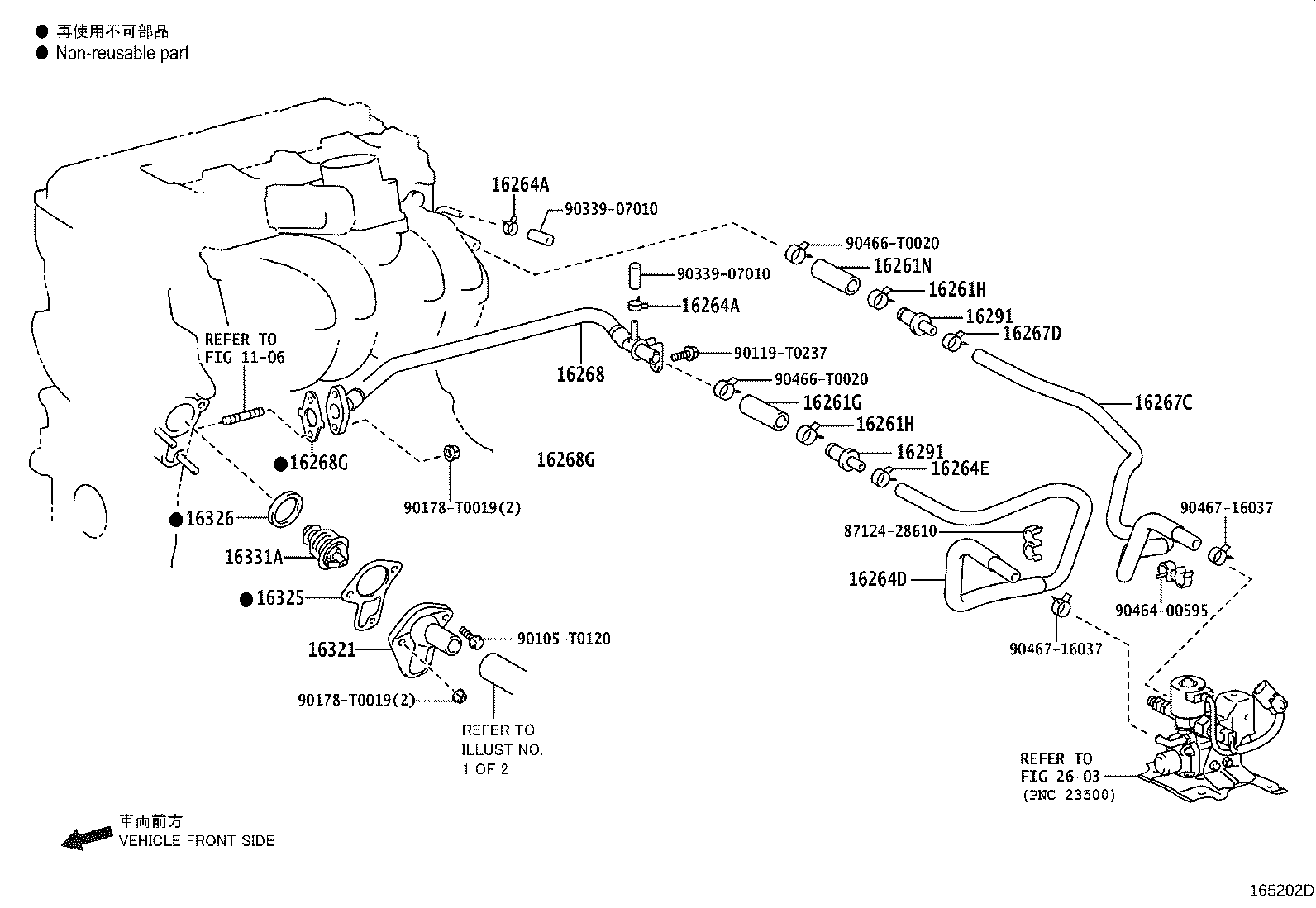

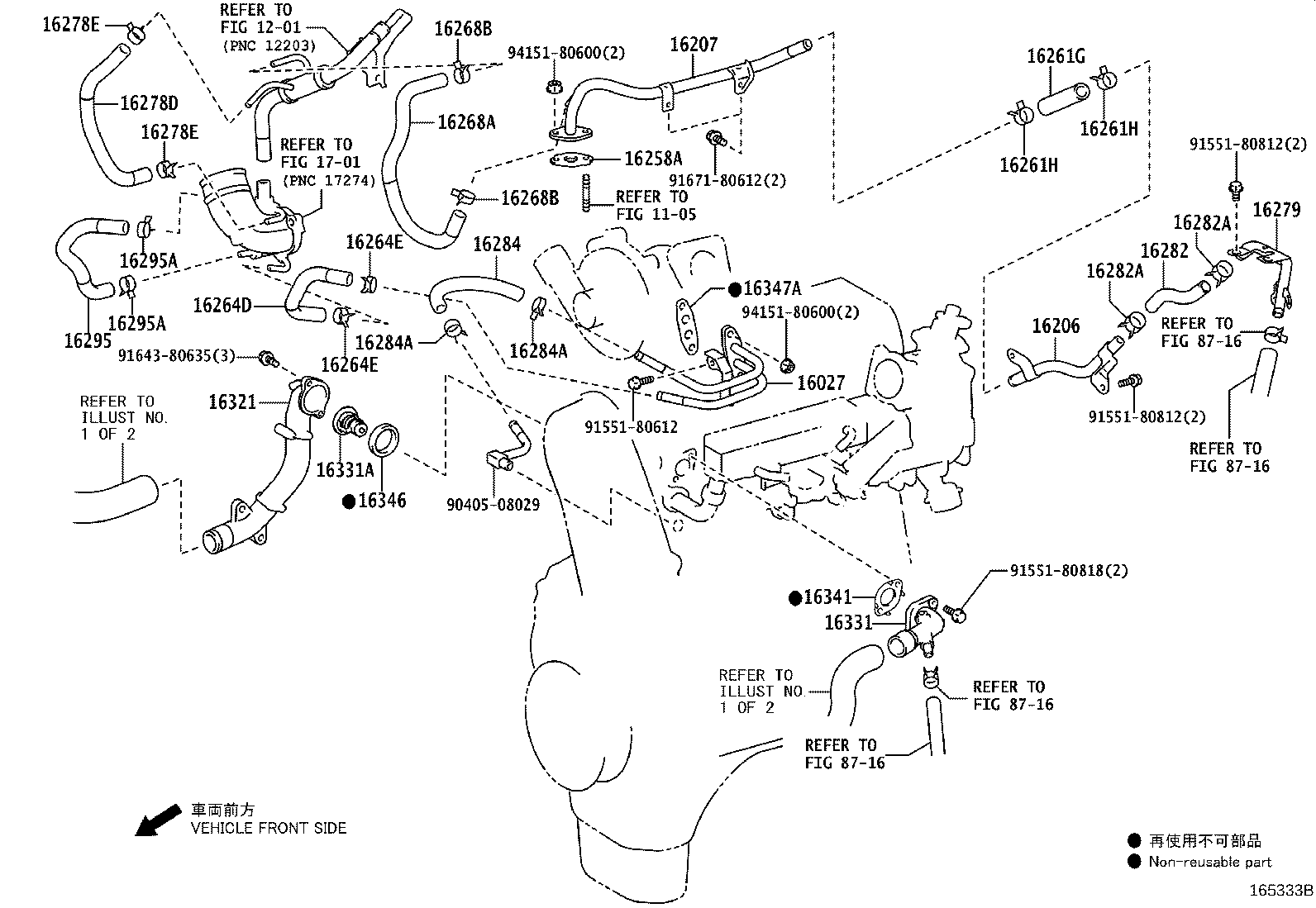

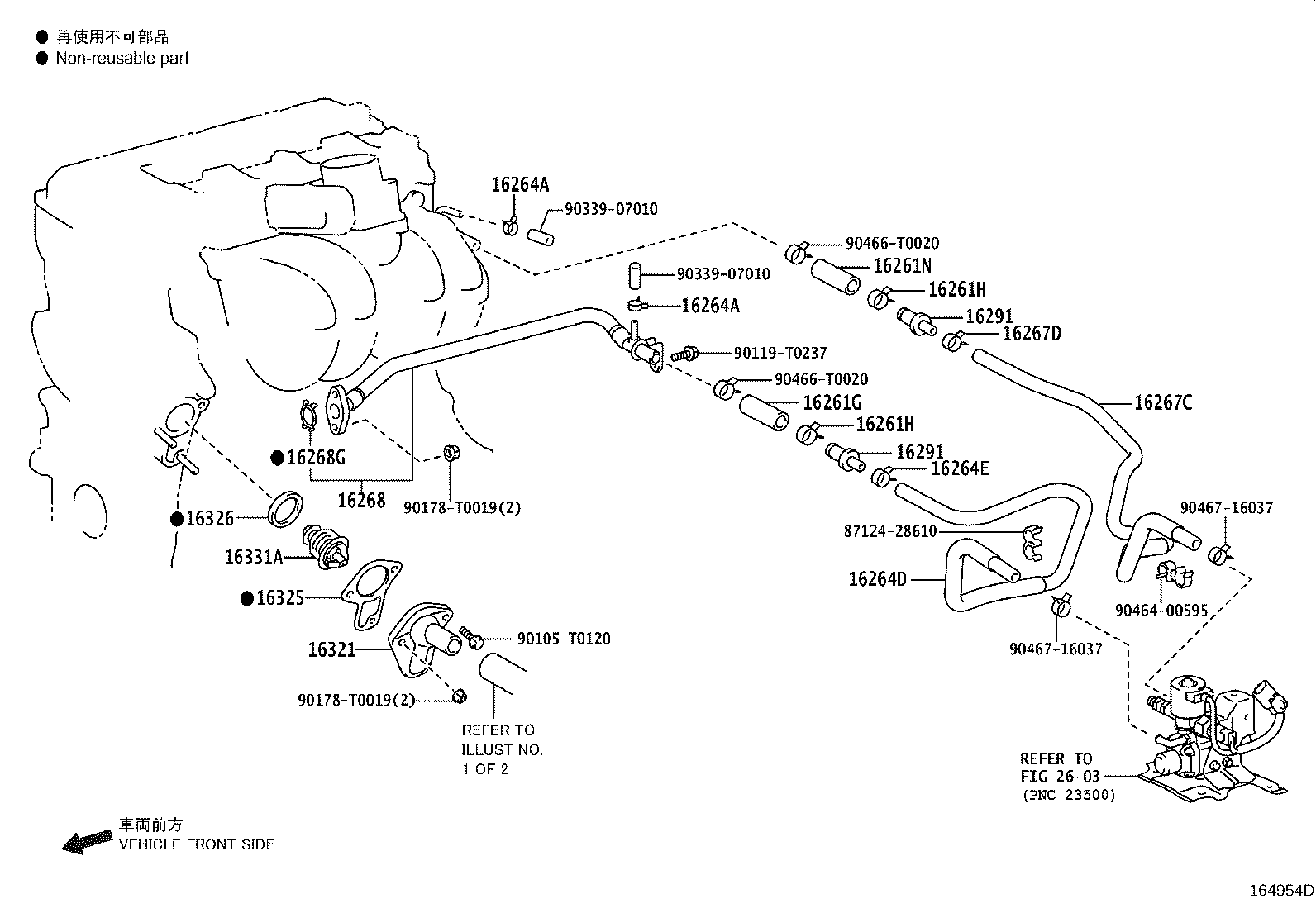

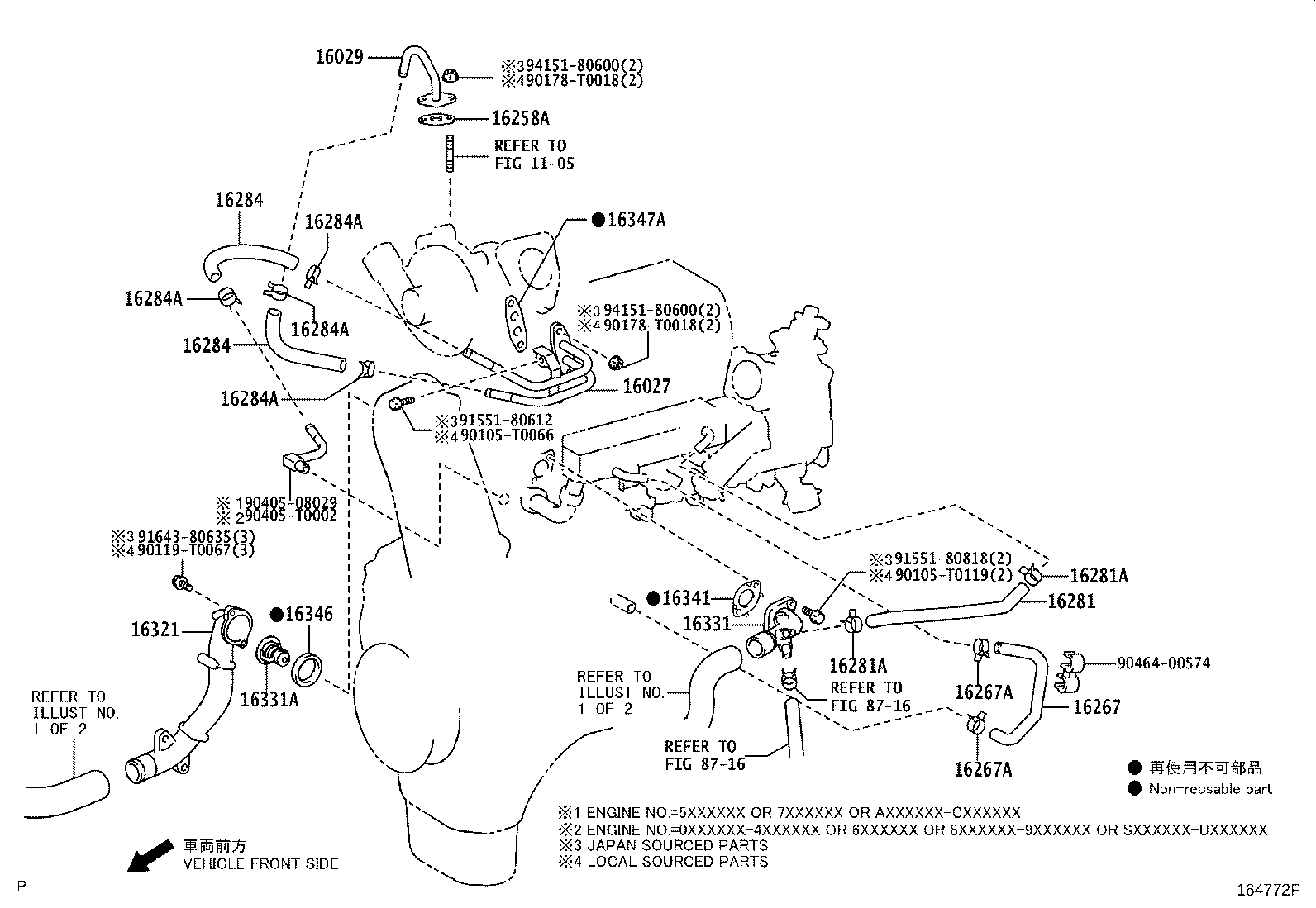

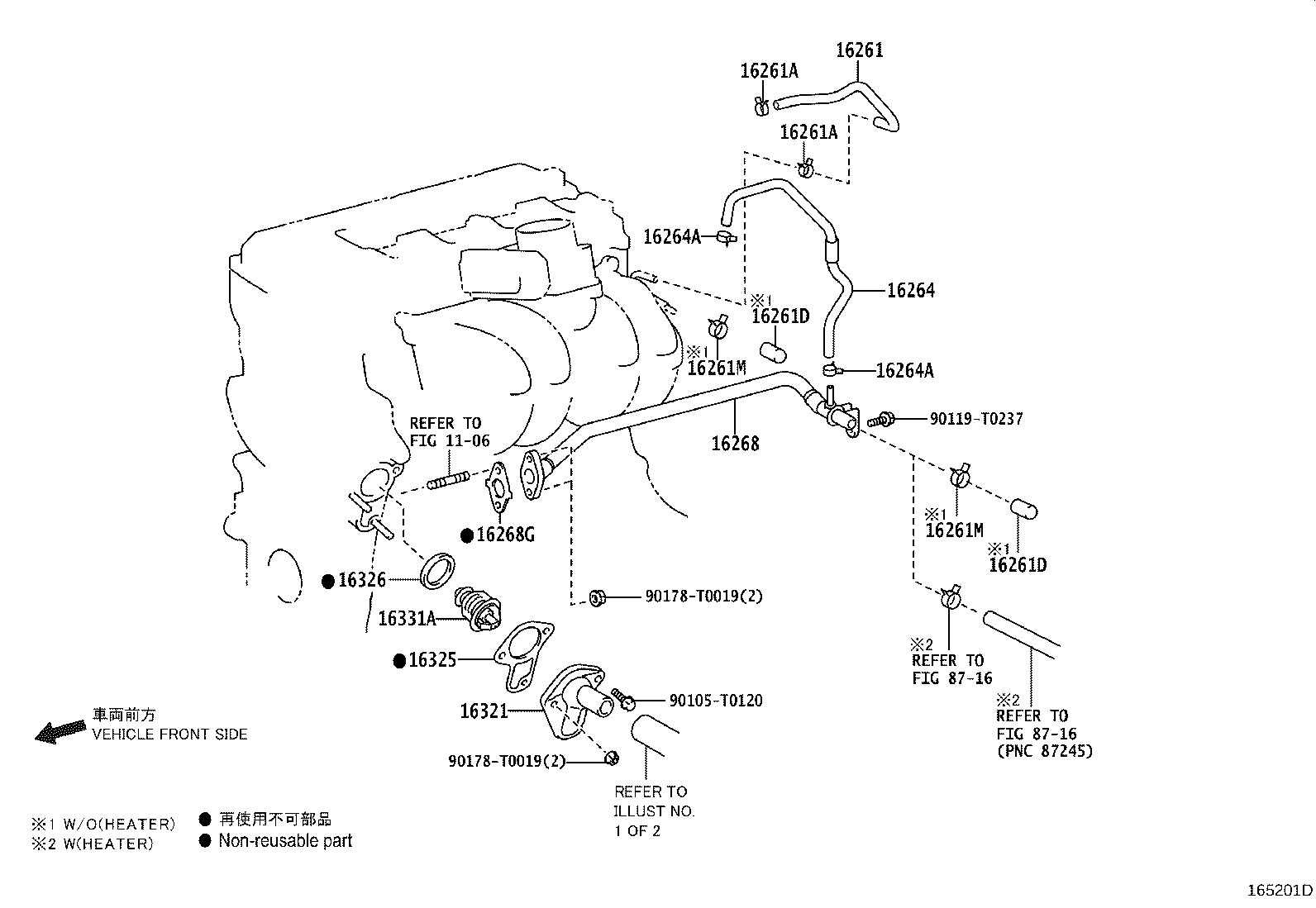

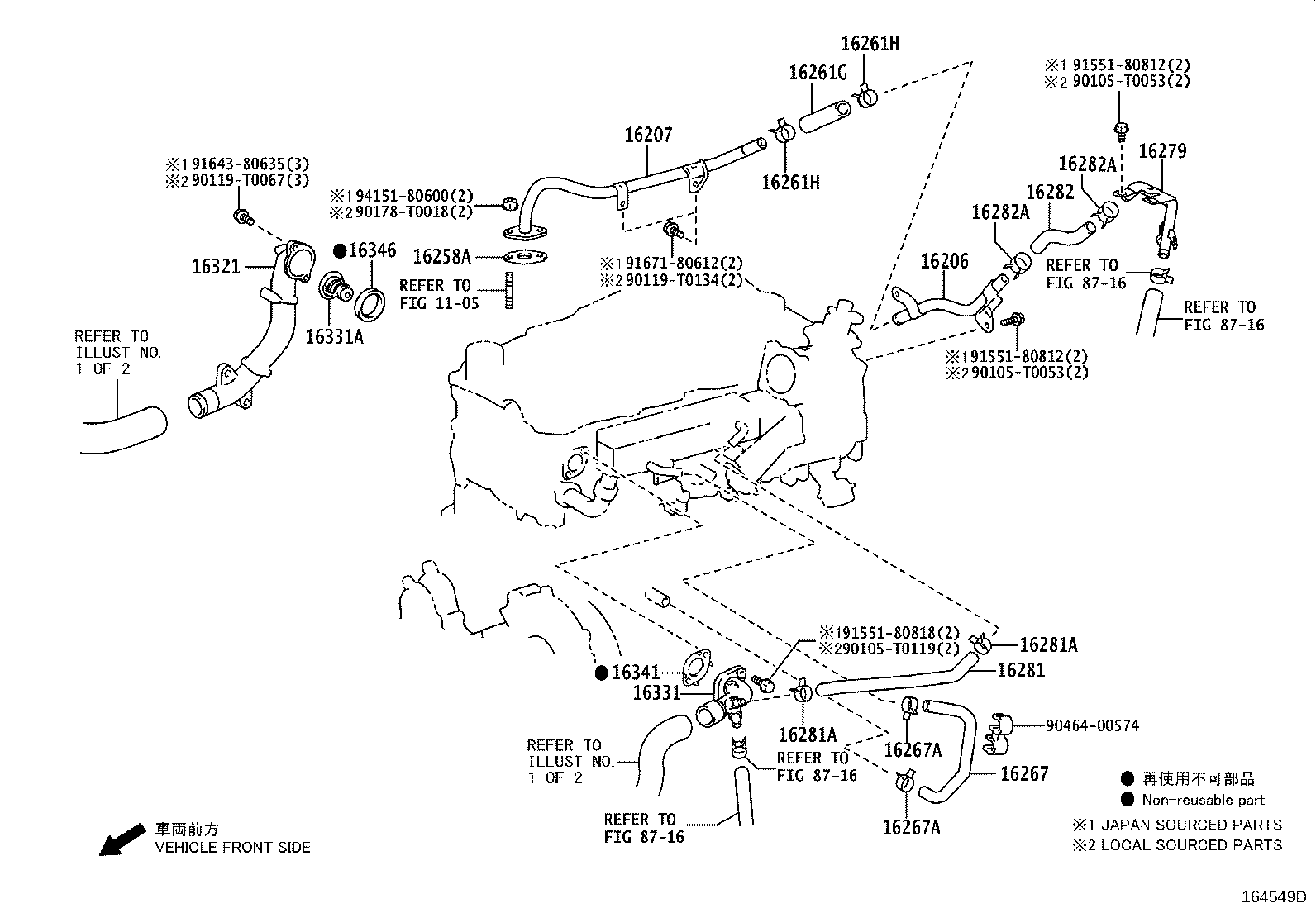

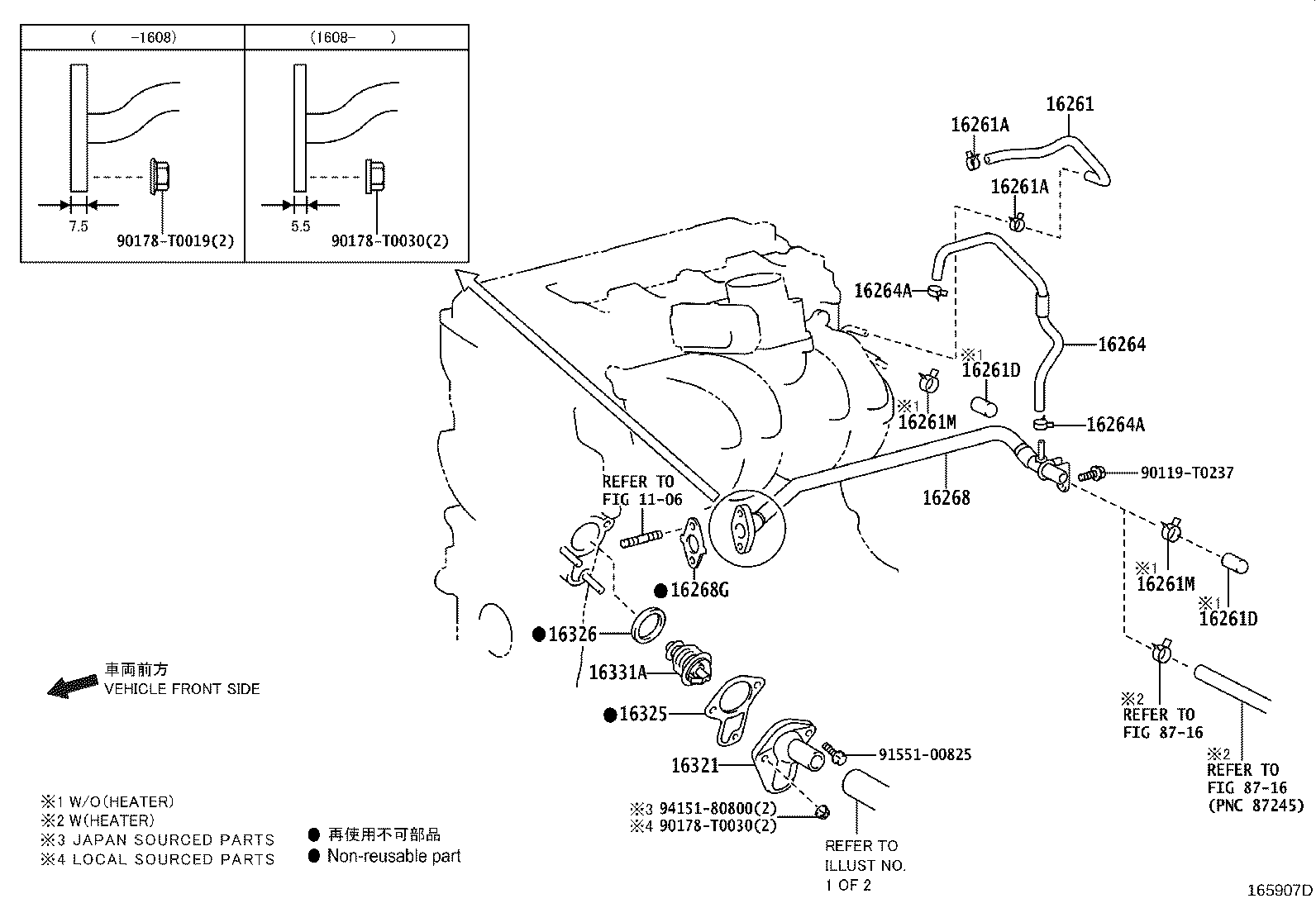

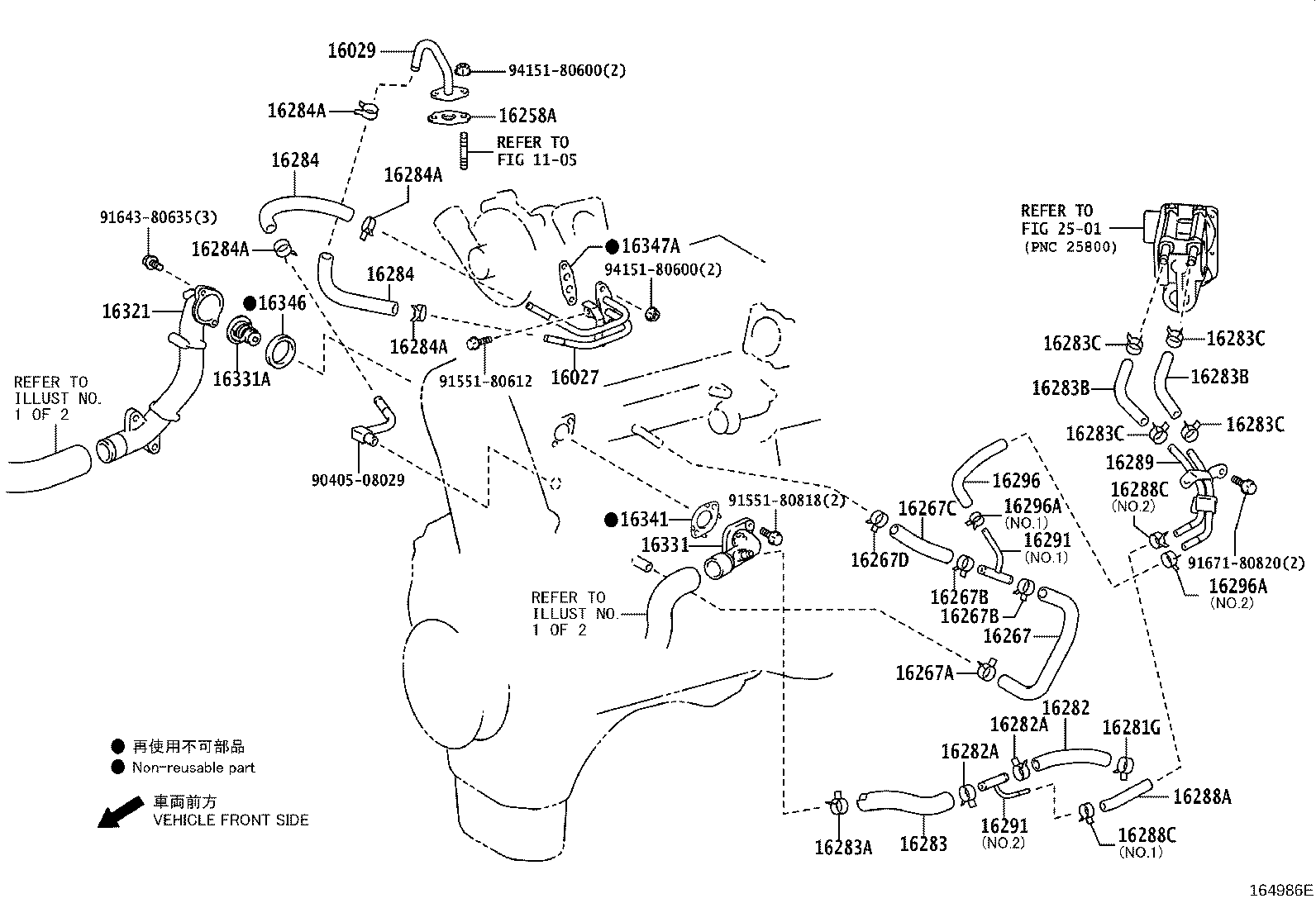

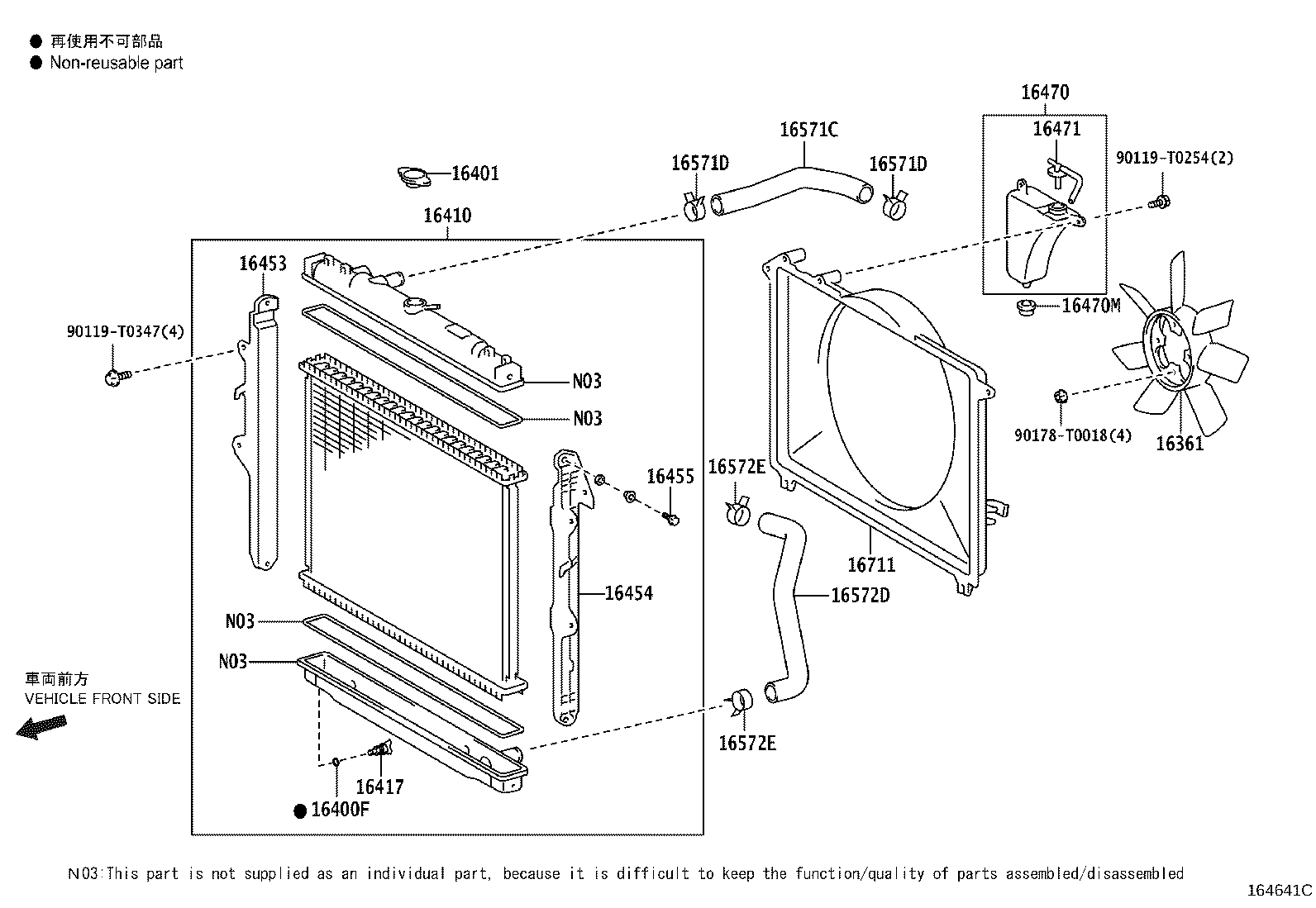

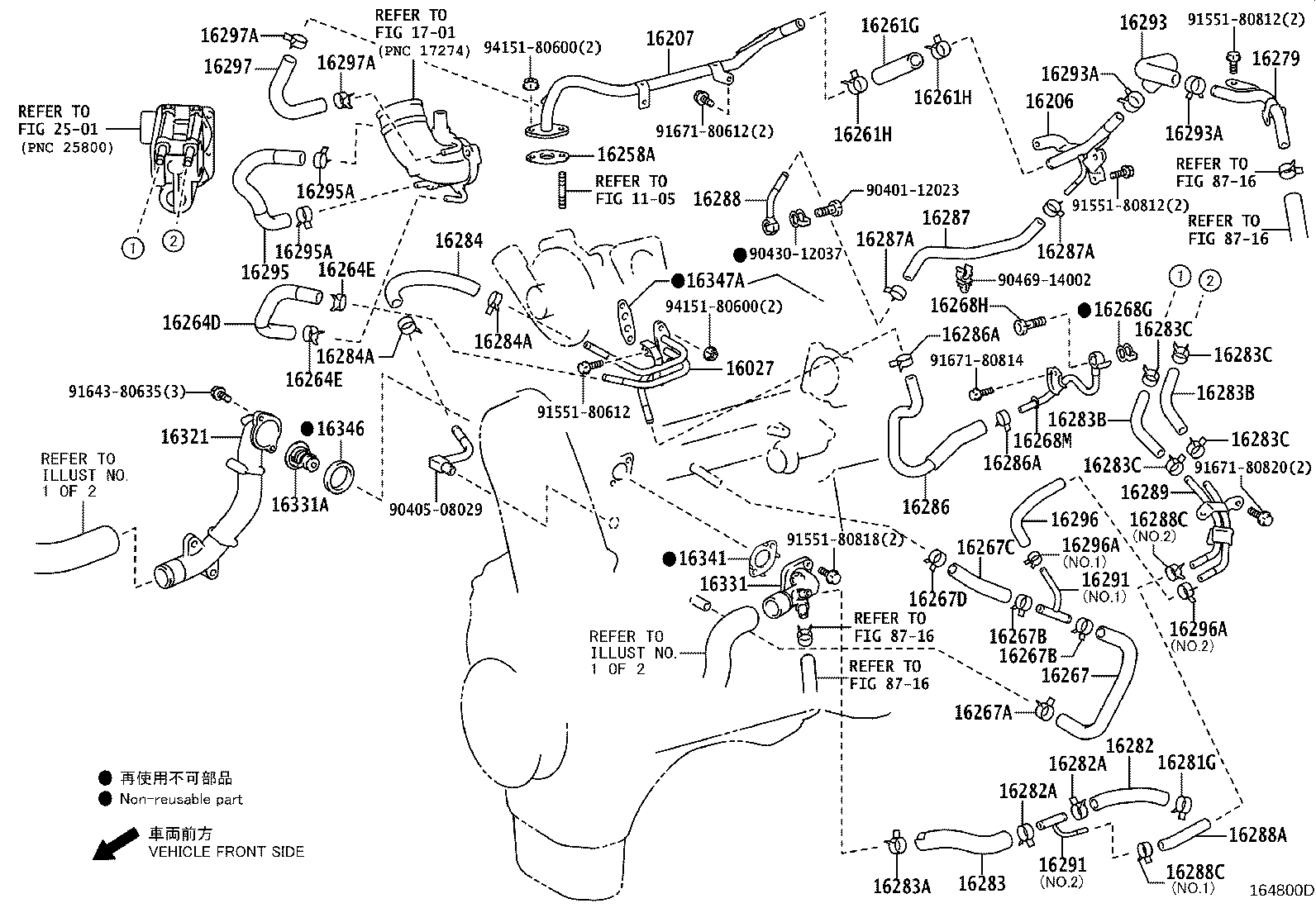

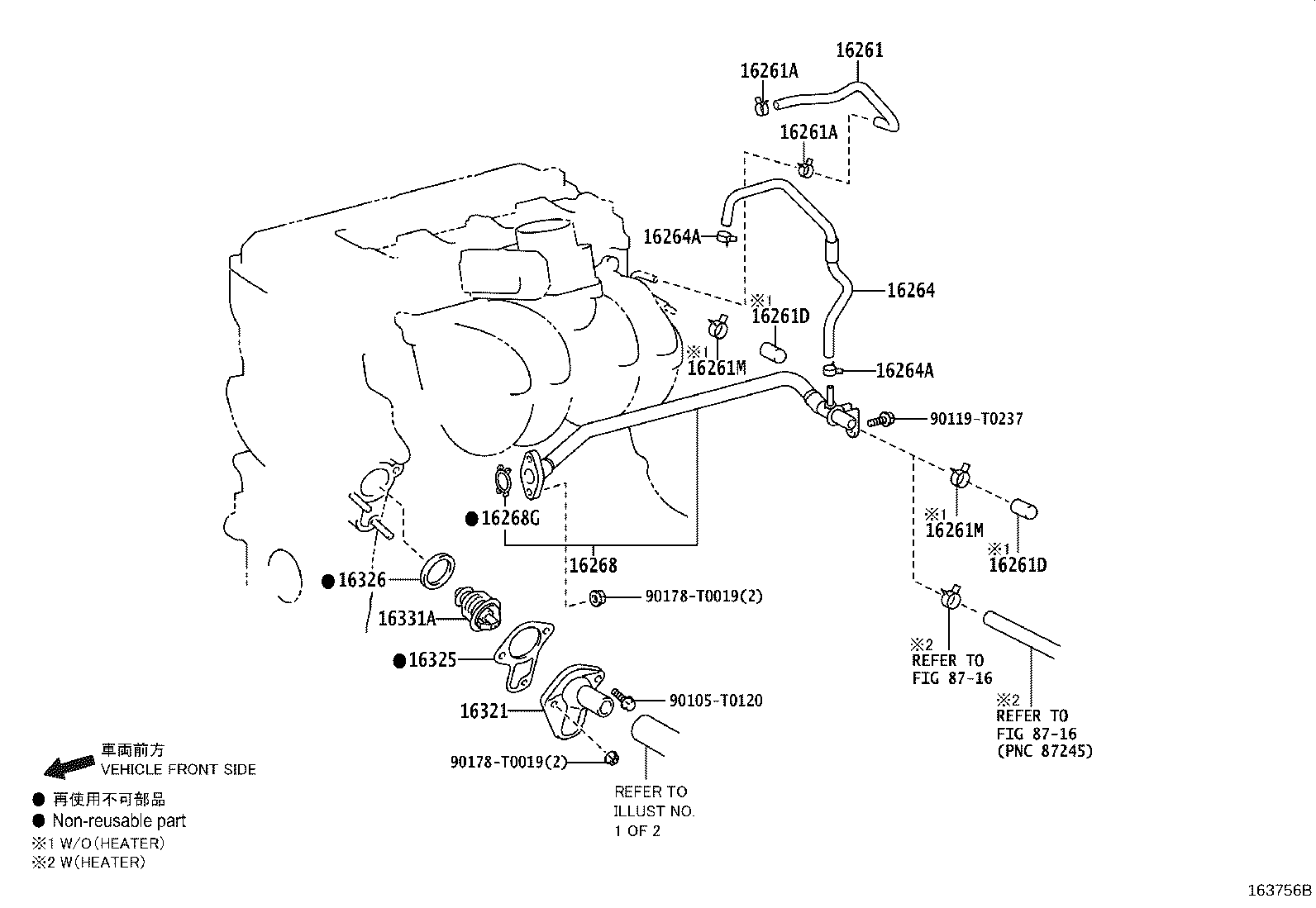

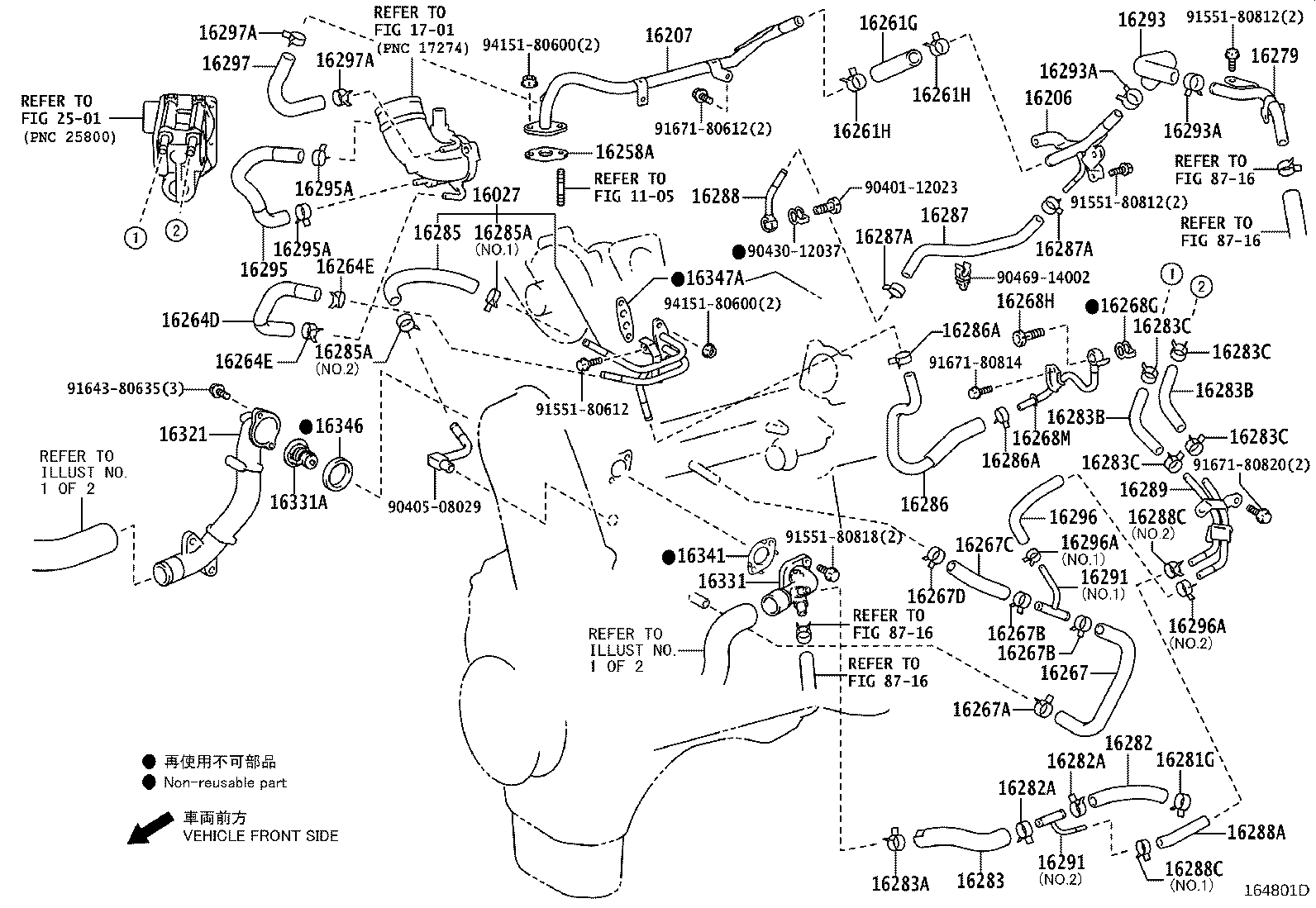

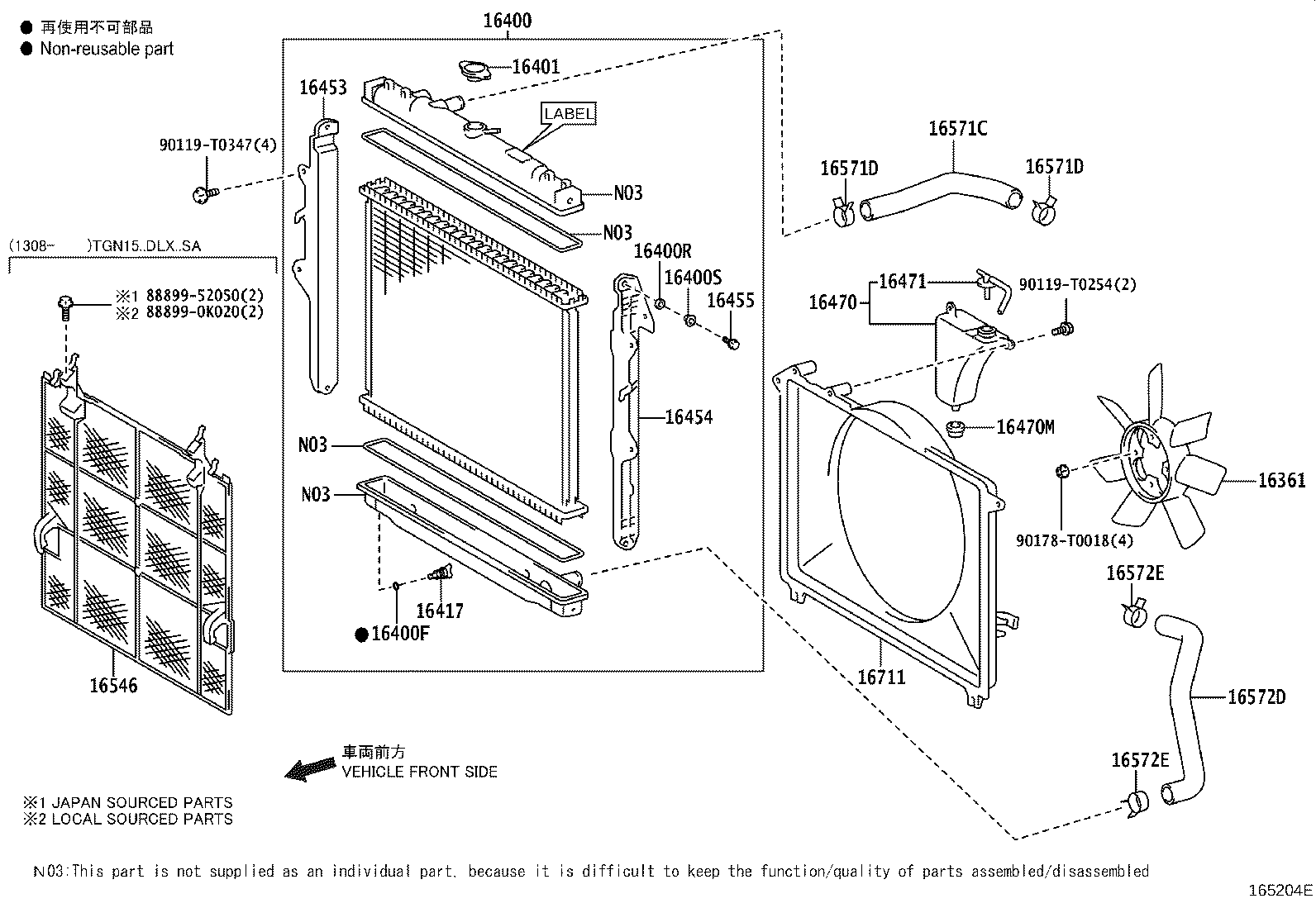

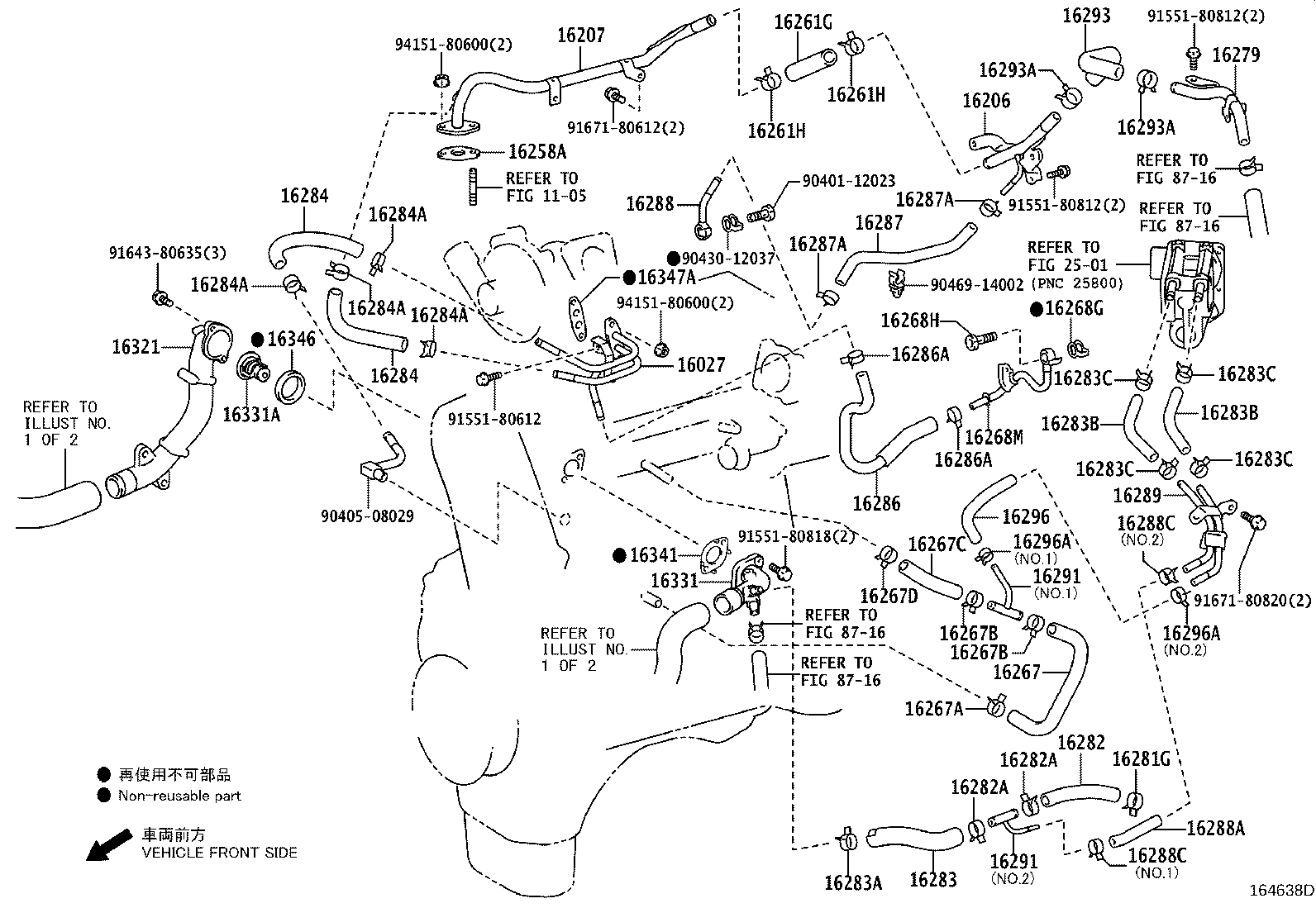

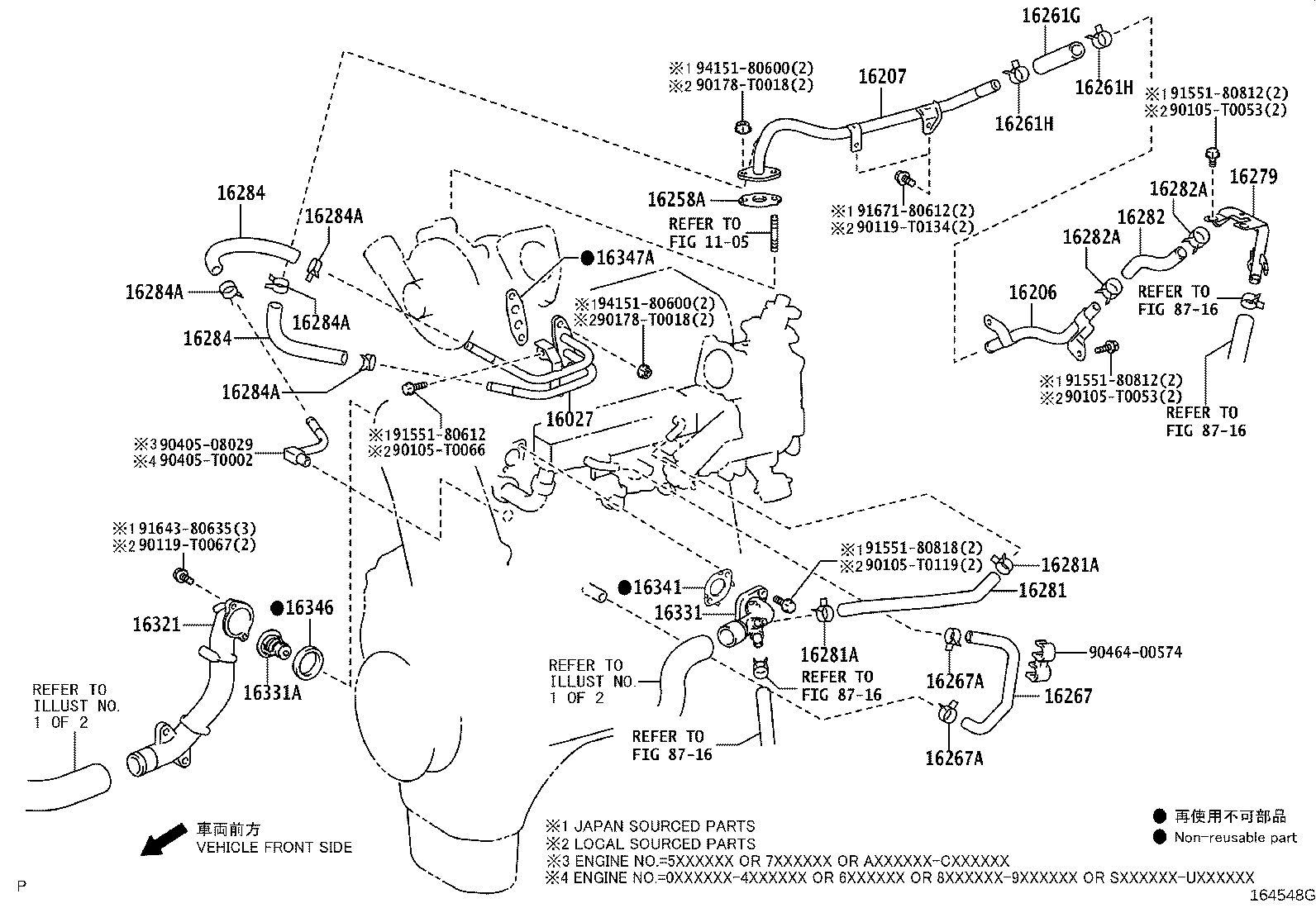

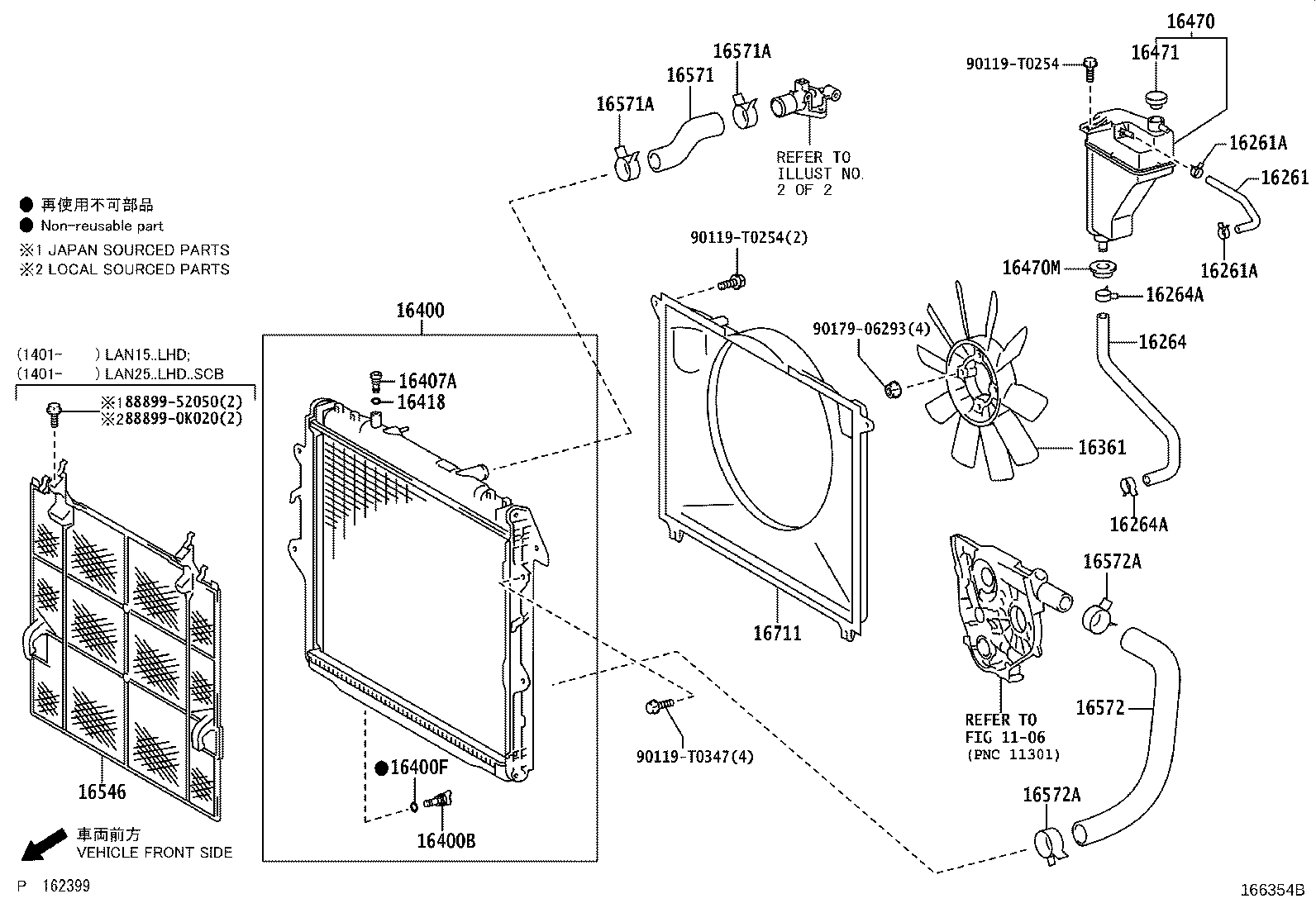

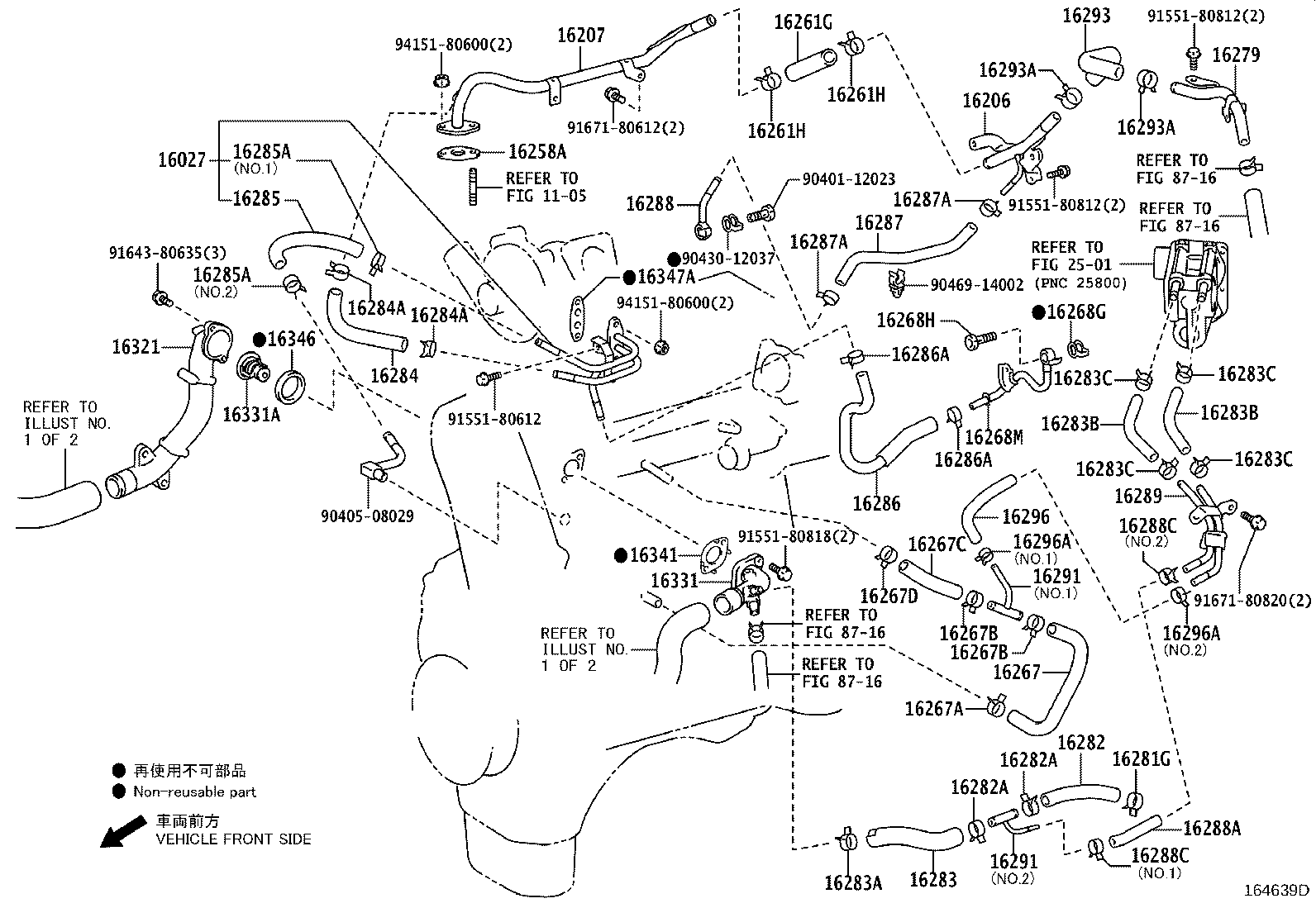

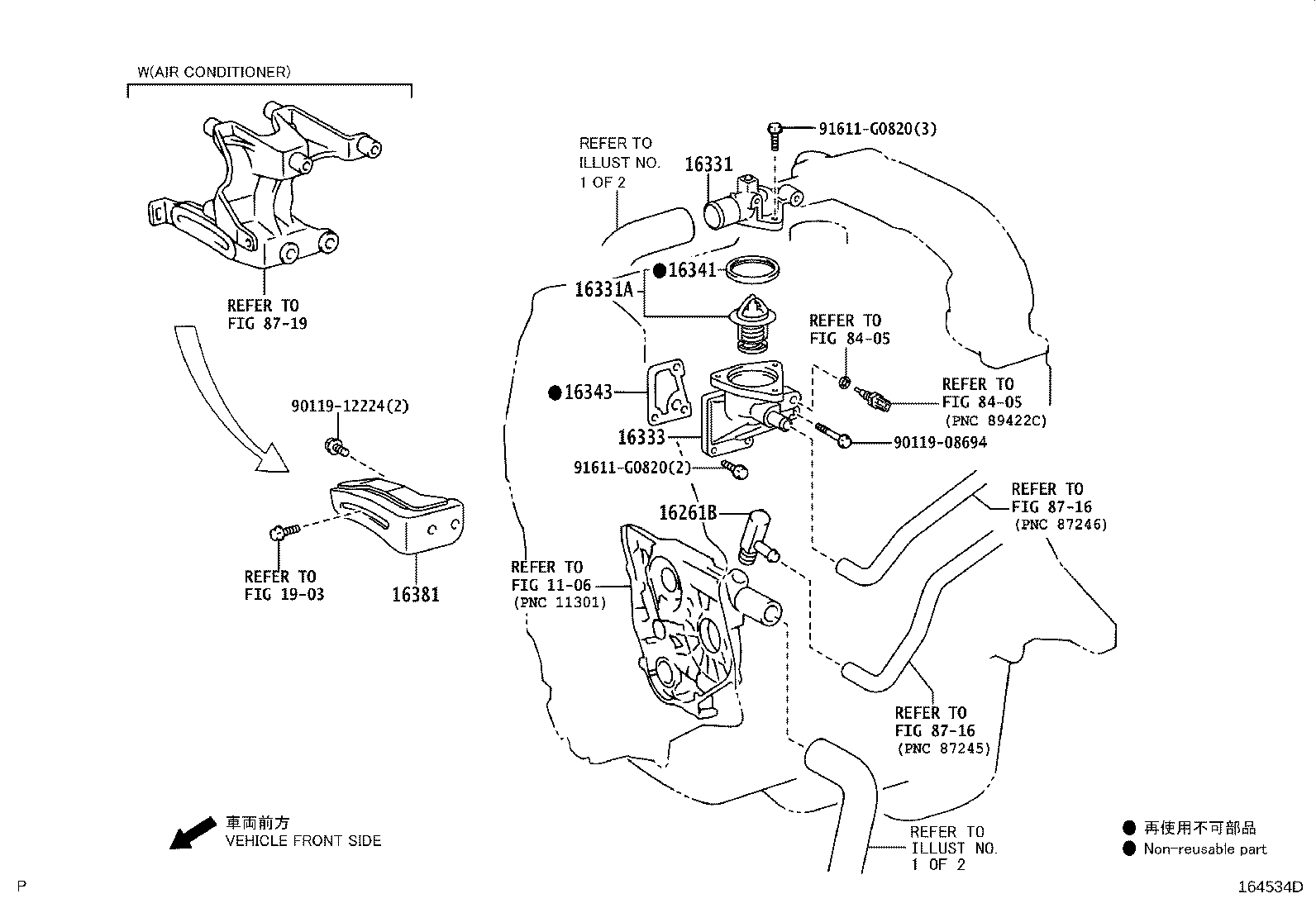

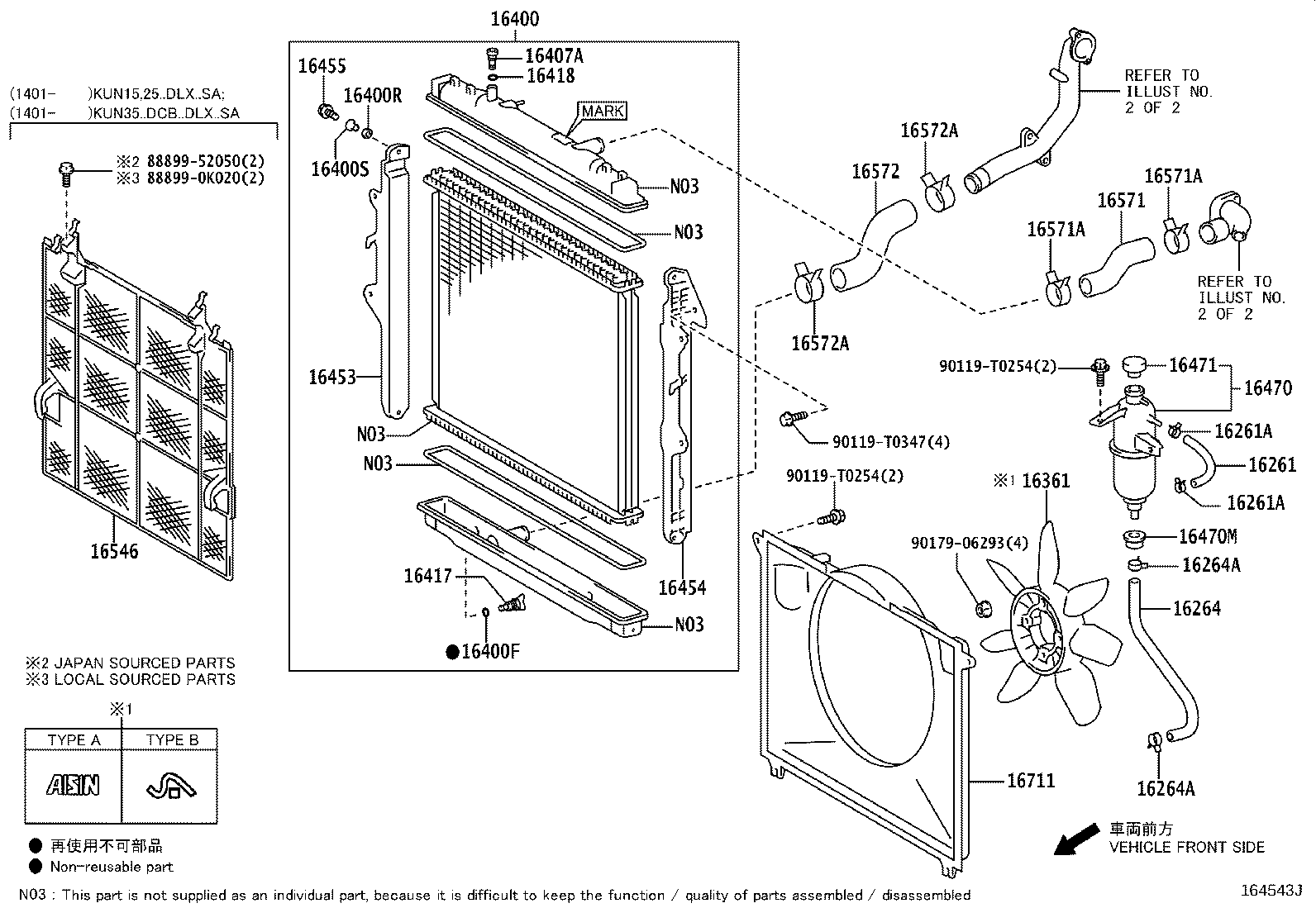

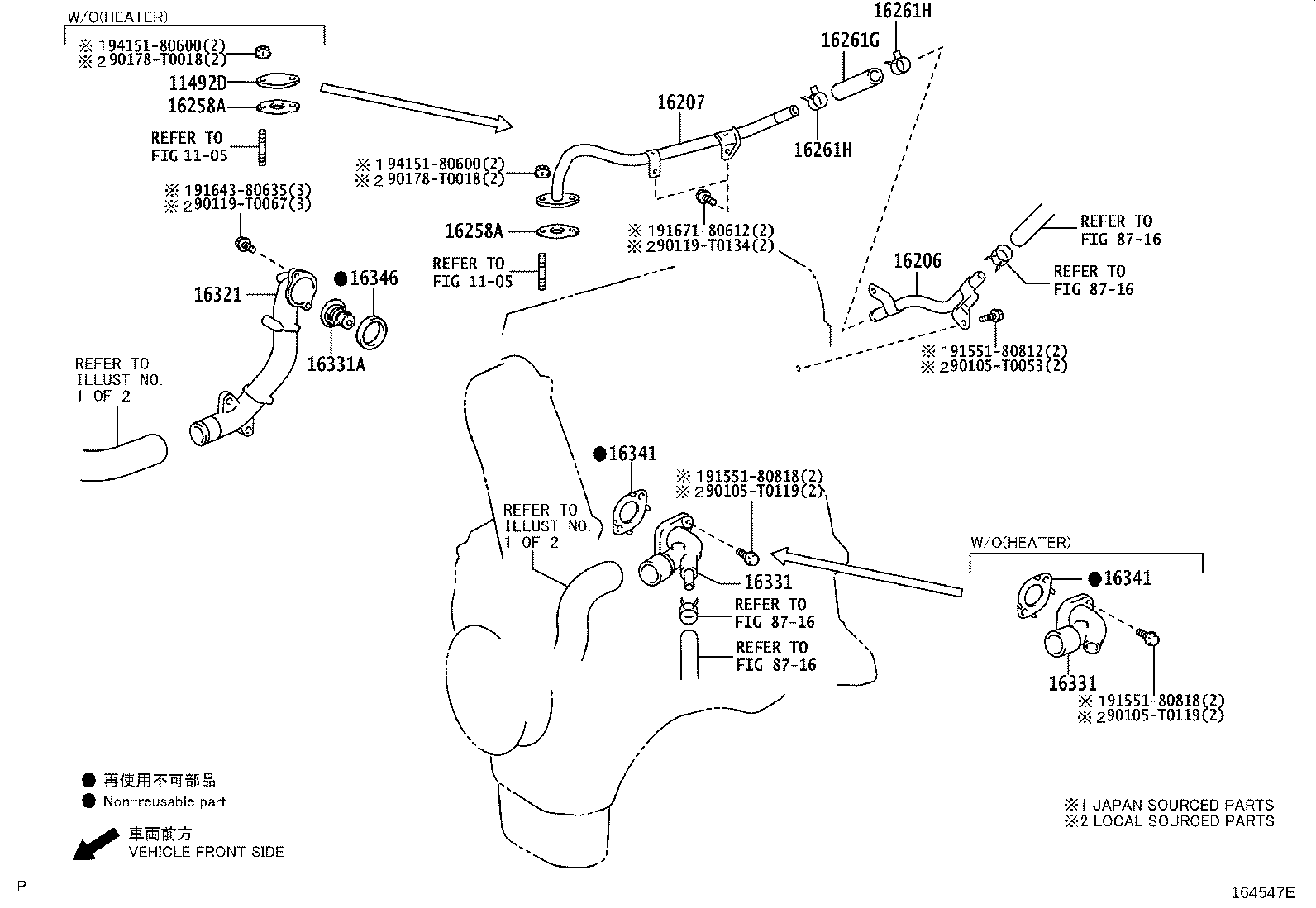

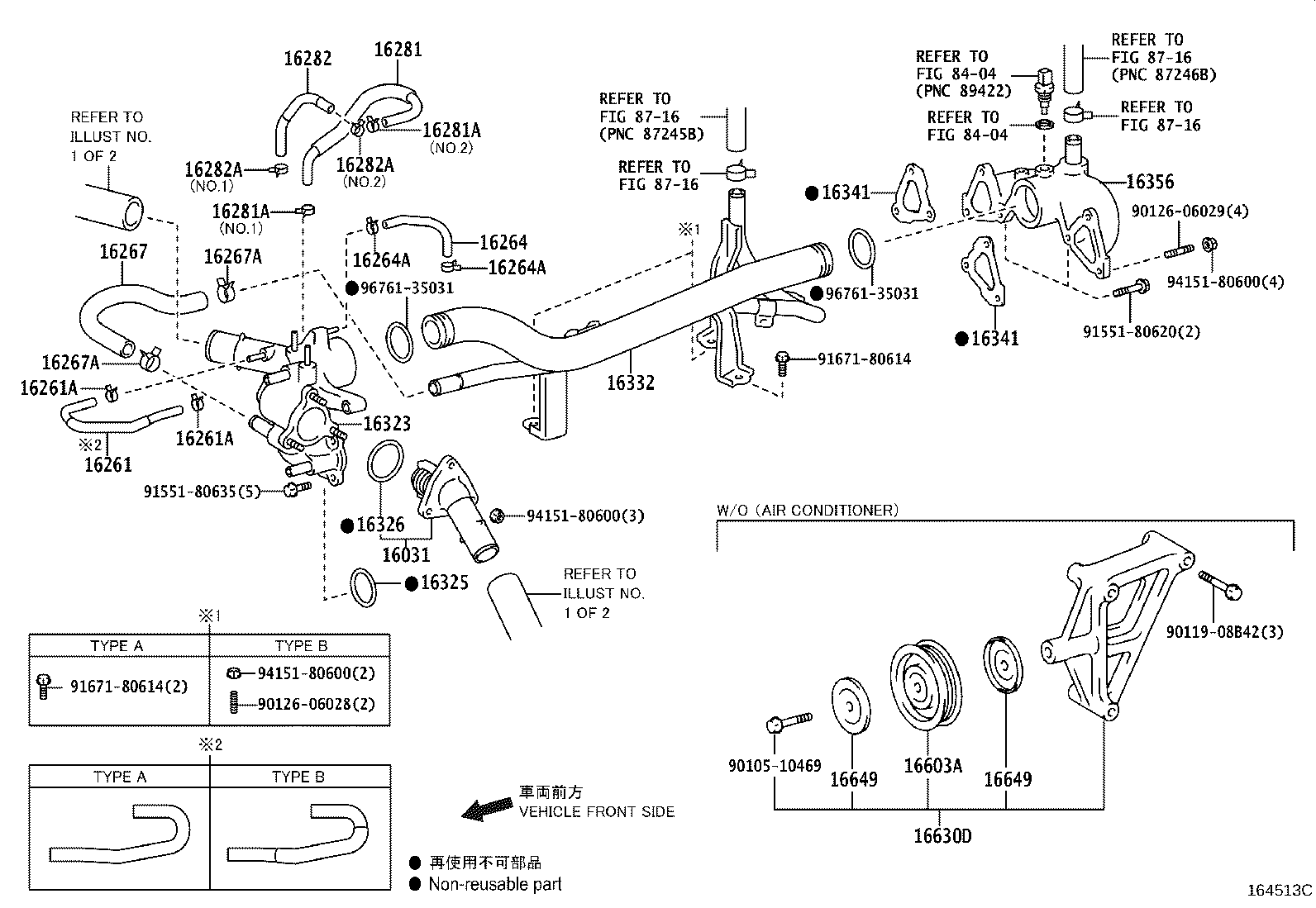

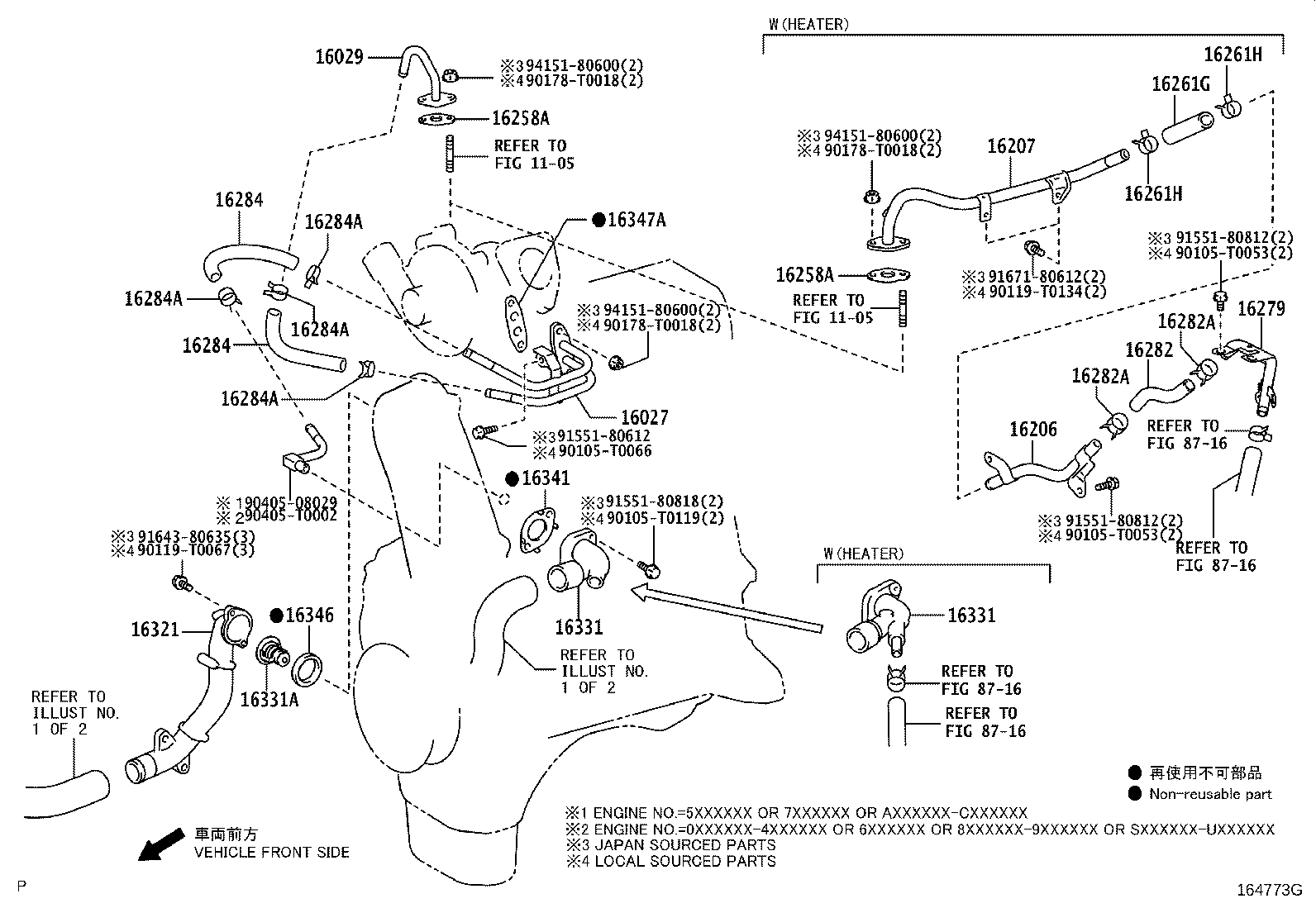

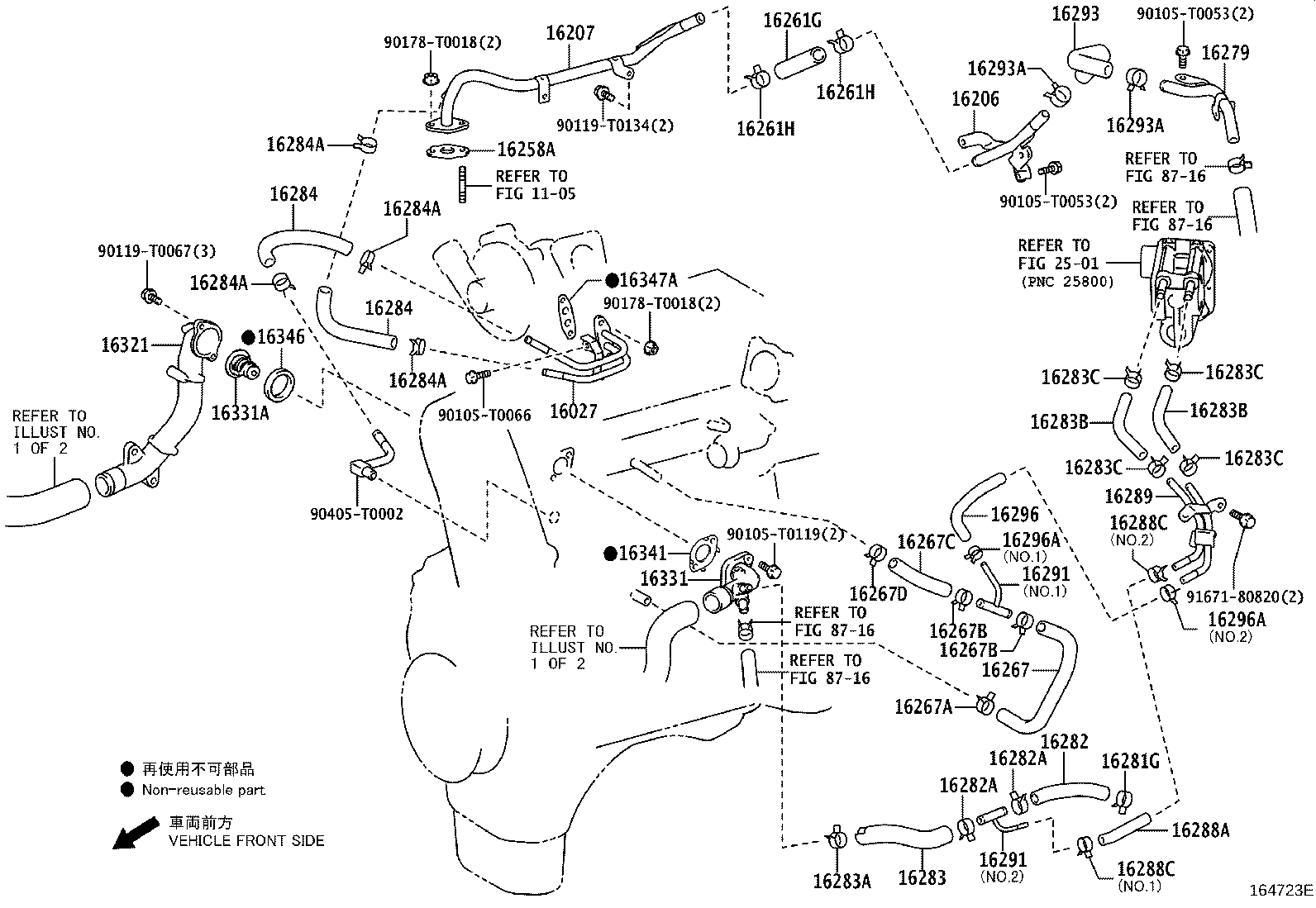

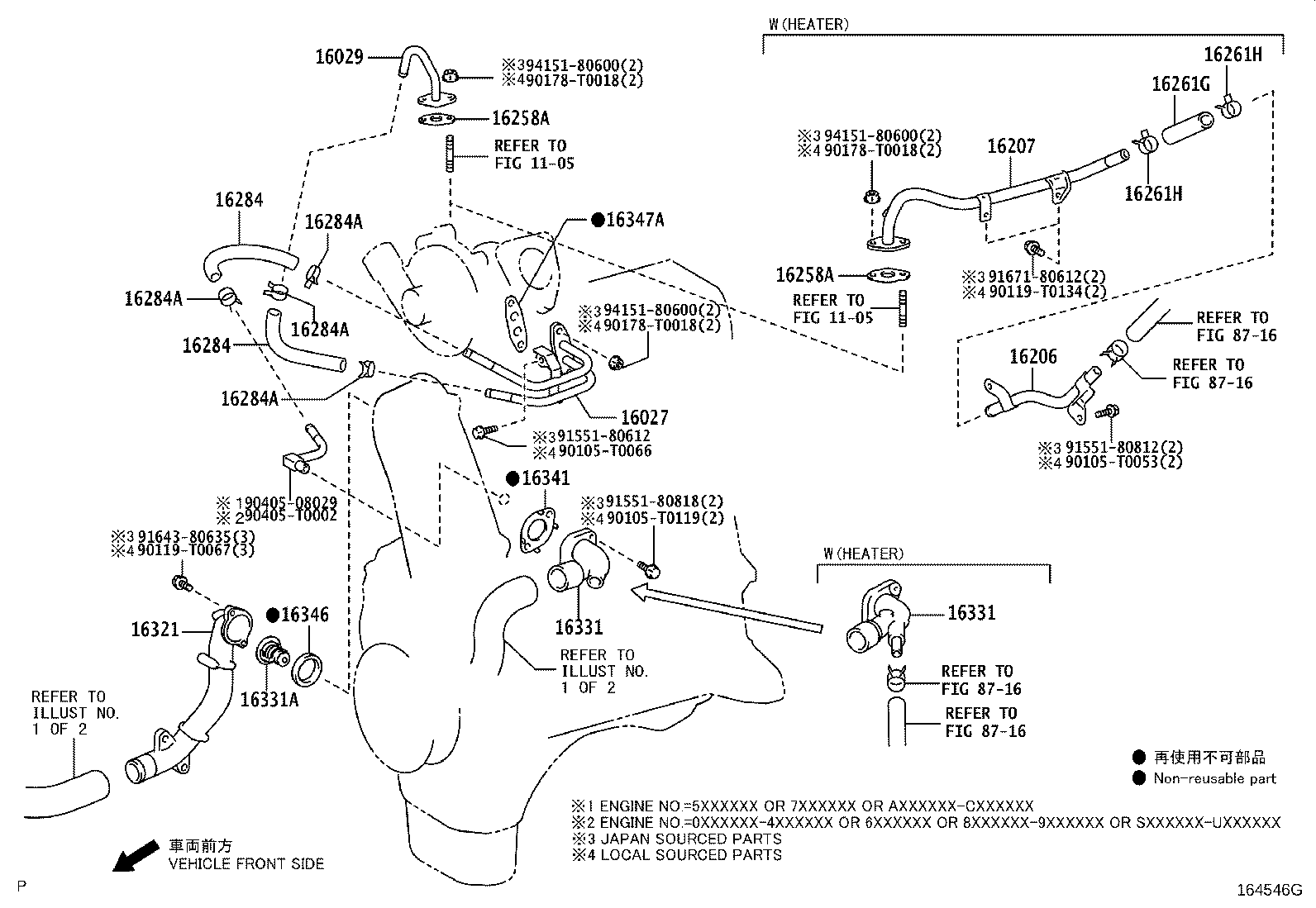

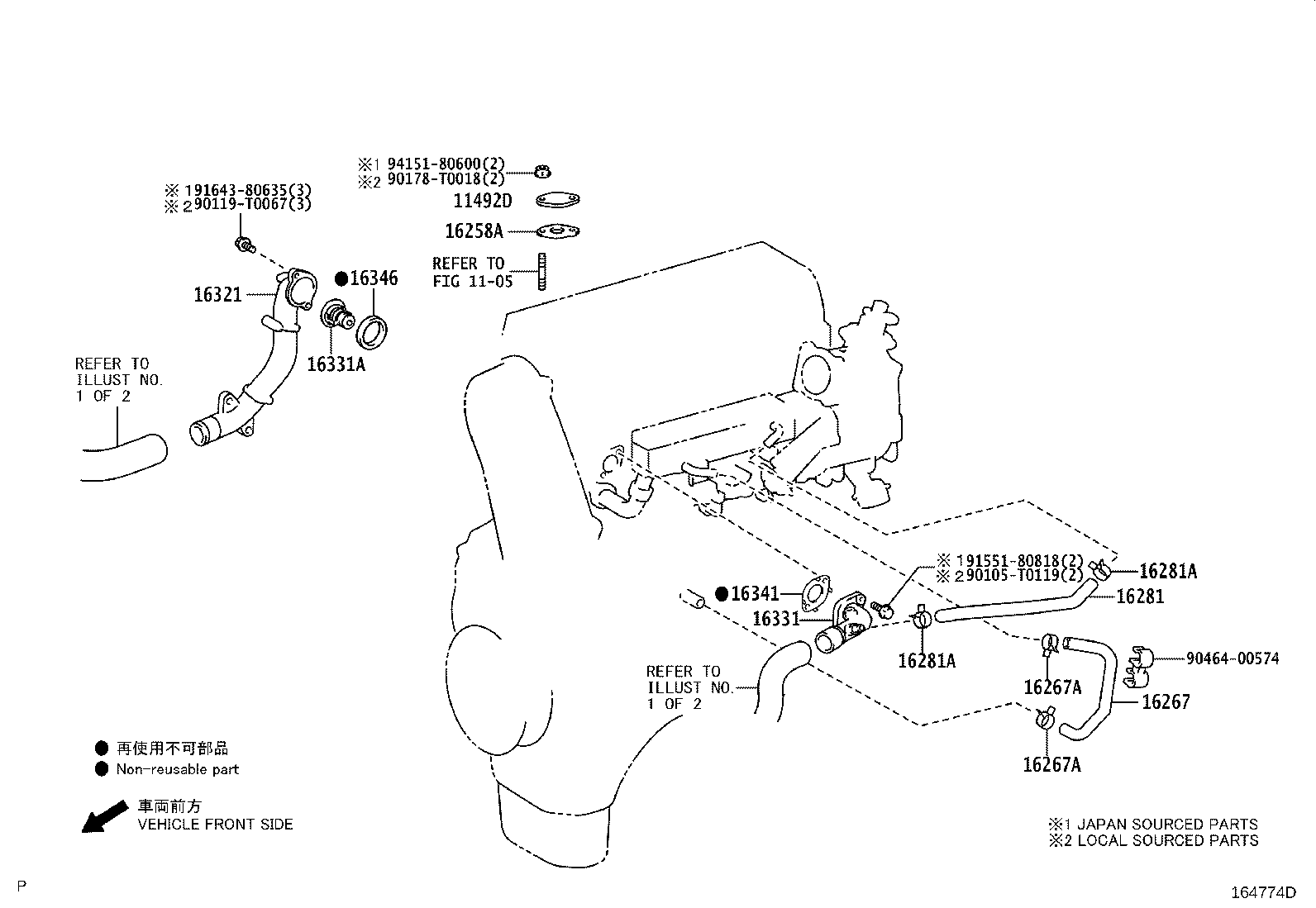

Figure 164512F 164512F 2011-07 → — Figure 164513C 164513C 2011-07 → — Figure 164543J 164543J 2011-07 → — Figure 164546G 164546G 2011-07 → — Figure 164546G 164546G 2011-07 → — Figure 164772F 164772F 2012-08 → — Figure 164772F 164772F 2013-11 → — Figure 164547E 164547E 2011-07 → 2012-08 Figure 164547E 164547E 2011-07 → — Figure 164547E 164547E 2011-07 → — Figure 164547E 164547E 2011-07 → — Figure 164547E 164547E 2011-09 → 2012-10 Figure 164547E 164547E 2011-09 → 2012-10 Figure 164773G 164773G 2012-08 → — Figure 164773G 164773G 2012-10 → — Figure 164774D 164774D 2012-08 → — Figure 164774D 164774D 2012-10 → — Figure 164548G 164548G 2011-07 → — Figure 164548G 164548G 2011-10 → — Figure 164548G 164548G 2014-08 → — Figure 164548G 164548G 2014-10 → — Figure 164549D 164549D 2011-07 → — Figure 164549D 164549D 2011-10 → — Figure 164638D 164638D 2011-07 → 2012-03 Figure 164639D 164639D 2011-07 → 2012-03 Figure 164800D 164800D 2012-03 → — Figure 164801D 164801D 2012-03 → — Figure 164723E 164723E 2012-04 → — Figure 164775B 164775B 2012-08 → — Figure 164986E 164986E 2012-08 → — Figure 165333B 165333B 2013-08 → — Figure 166354B 166354B 2011-08 → — Figure 164534D 164534D 2011-08 → — Figure 165204E 165204E 2011-07 → — Figure 165204E 165204E 2011-10 → — Figure 164641C 164641C 2011-10 → — Figure 163756B 163756B 2011-07 → 2013-02 Figure 163756B 163756B 2011-07 → 2013-03 Figure 164954D 164954D 2012-05 → 2013-02 Figure 167079A 167079A 2013-02 → 2015-04 Figure 167079A 167079A 2013-03 → 2015-03 Figure 165201D 165201D 2013-02 → 2015-03 Figure 165201D 165201D 2013-02 → 2015-04 Figure 165201D 165201D 2013-02 → 2015-04 Figure 165201D 165201D 2013-03 → 2015-03 Figure 165906B 165906B 2015-03 → — Figure 165907D 165907D 2015-03 → — Figure 165202D 165202D 2013-02 → —

Part groups

PNCDescription
11492D Plate, Seal, NO.1
16027 Pipe Sub-assy, Turbo Water, NO.1
16029 Pipe Sub-assy, Turbo Water, NO.3
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261M Clip, W/O Heater Plug
16261N Hose, Water By-pass, NO.2
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16268H Bolt, Union(FOR WATER BY-PASS PIPE)
16268M Pipe, Water By-pass, NO.3
16278D Hose, Water By-pass
16278E Clip(FOR WATER BY-PASS HOSE)
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283B Hose, Water By-pass
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16288A Hose(FOR WATER BY-PASS PIPE NO.4)
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16356 Joint, Water By-pass, Rear
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16407A Cock Sub-assy, Radiator Drain
16410 Radiator Assy, W/O Cap
16417 Cock
16418 Packing
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16546 Protector, Radiator
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16603A Pulley Sub-assy, Idler, NO.1
16630D Pulley Assy, Idler
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
