Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

34 part groups · 50 illustrations

Illustrations

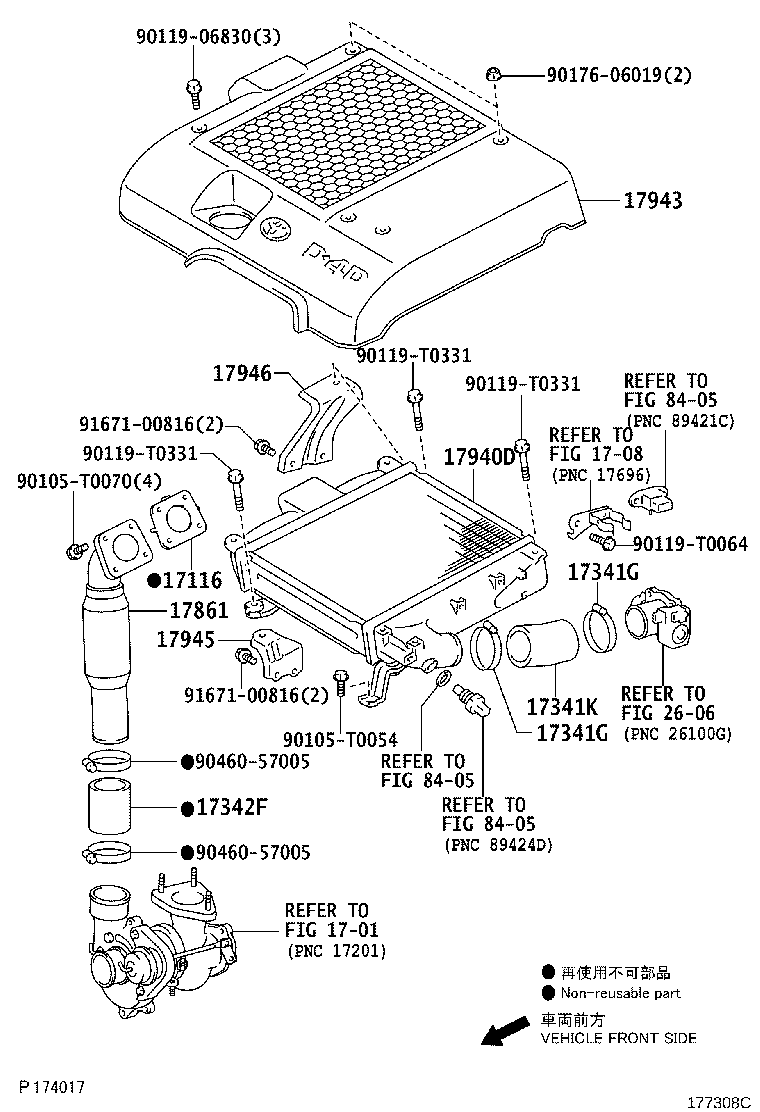

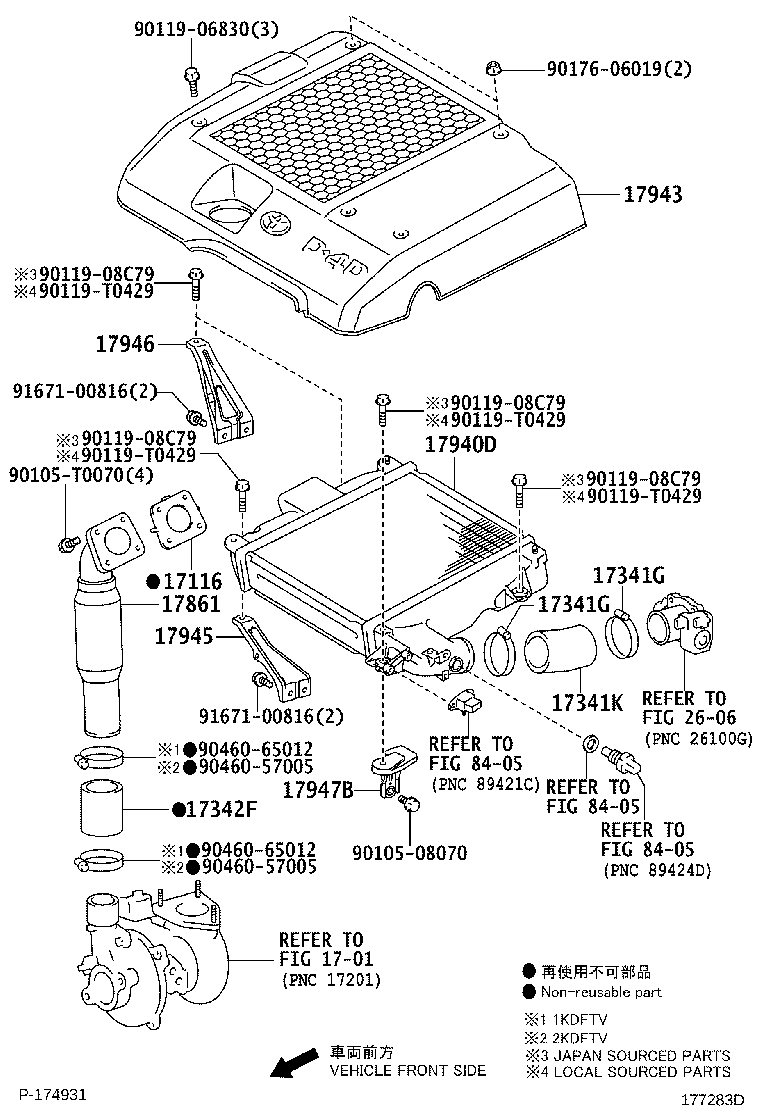

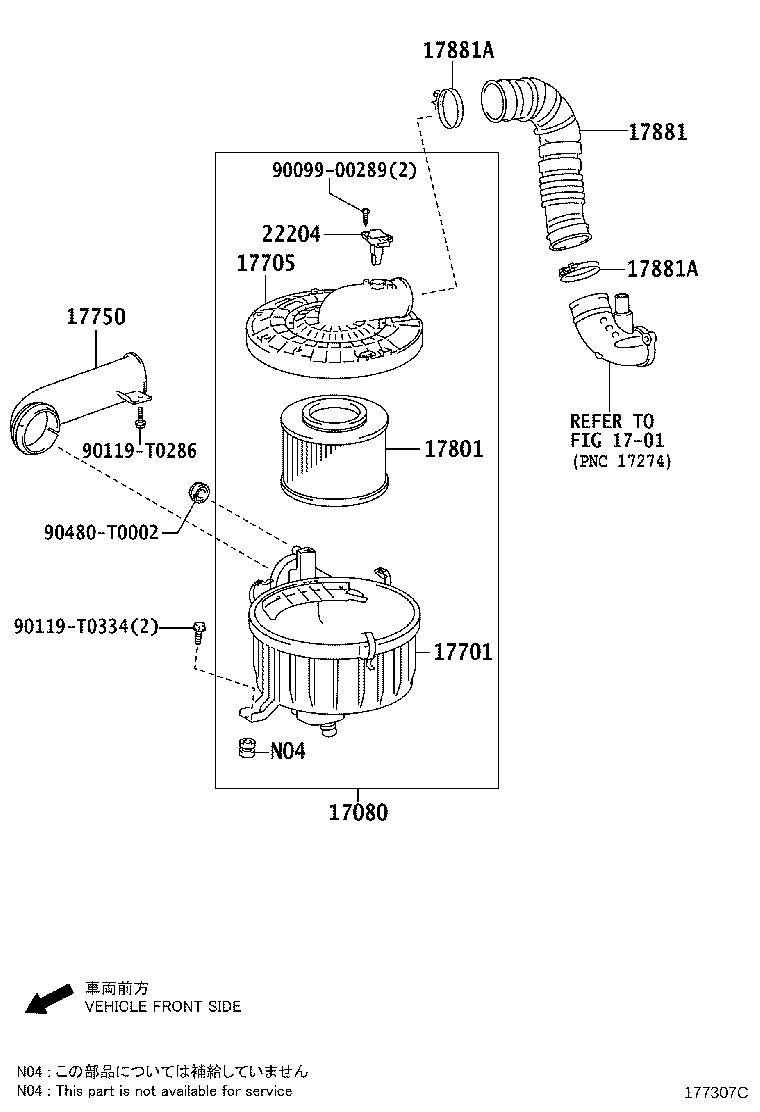

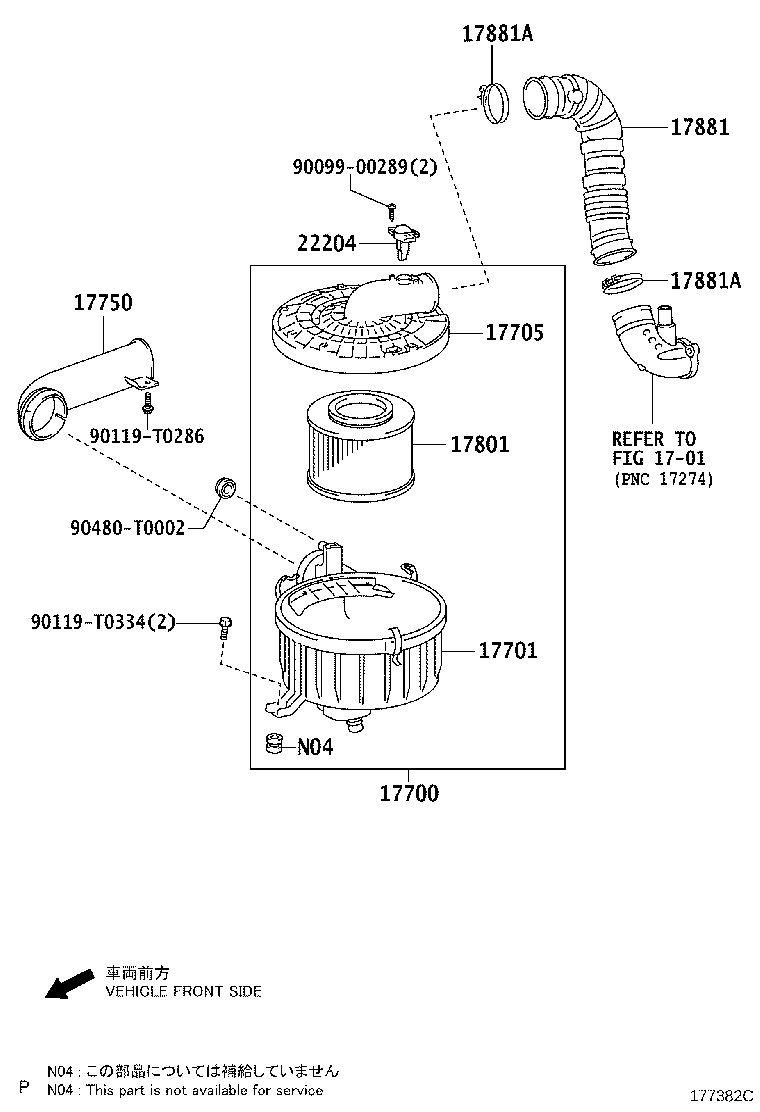

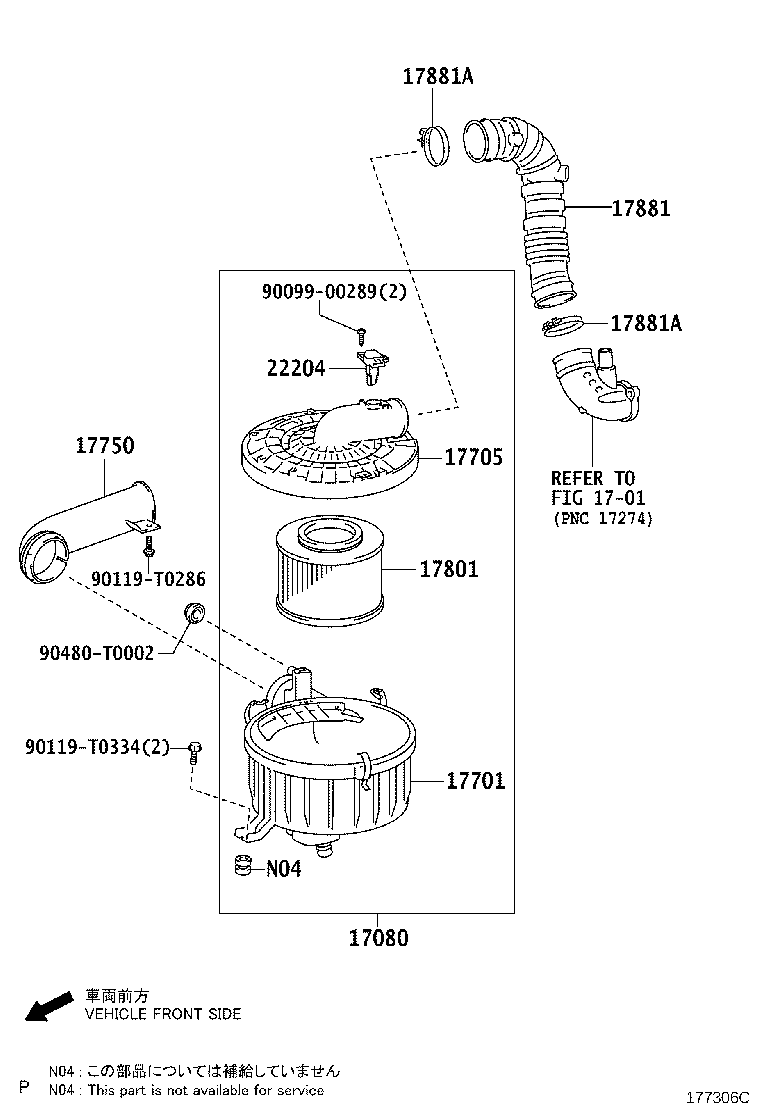

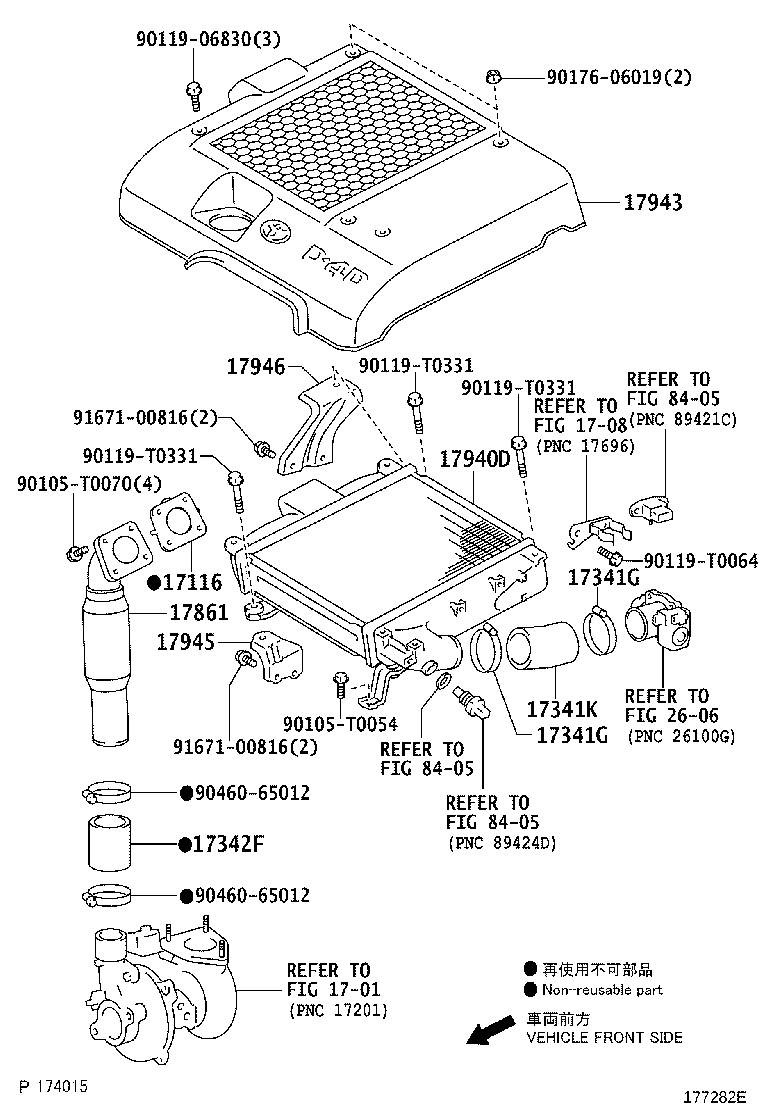

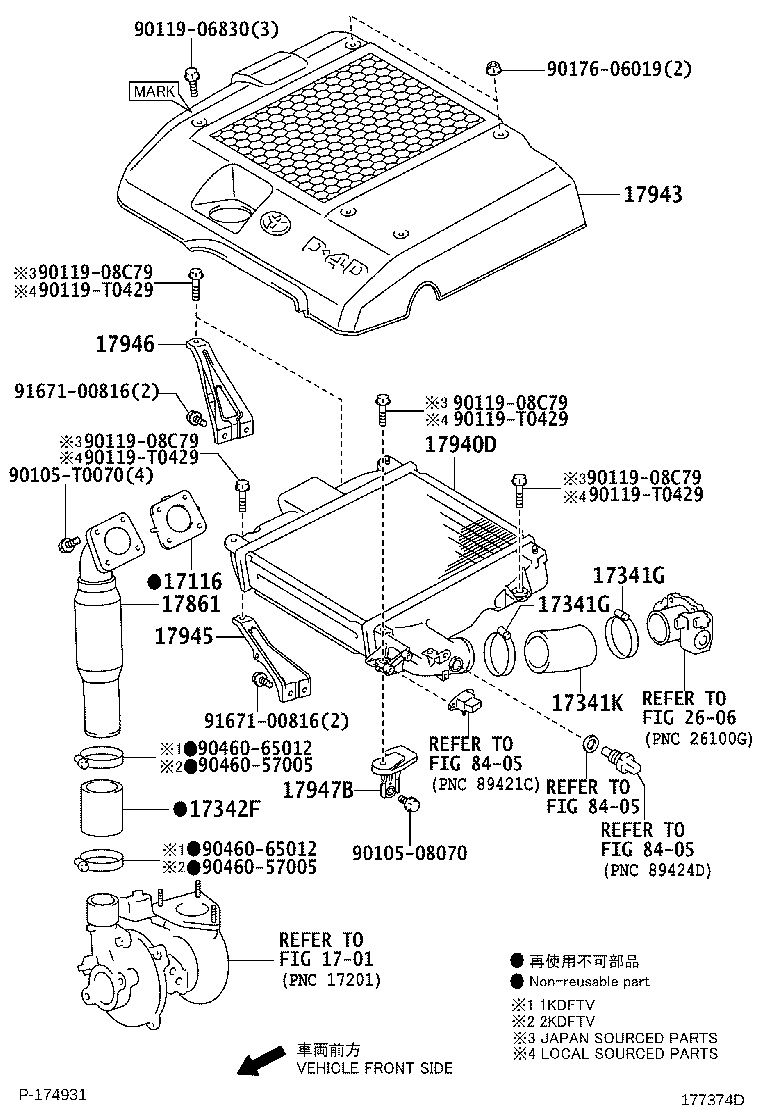

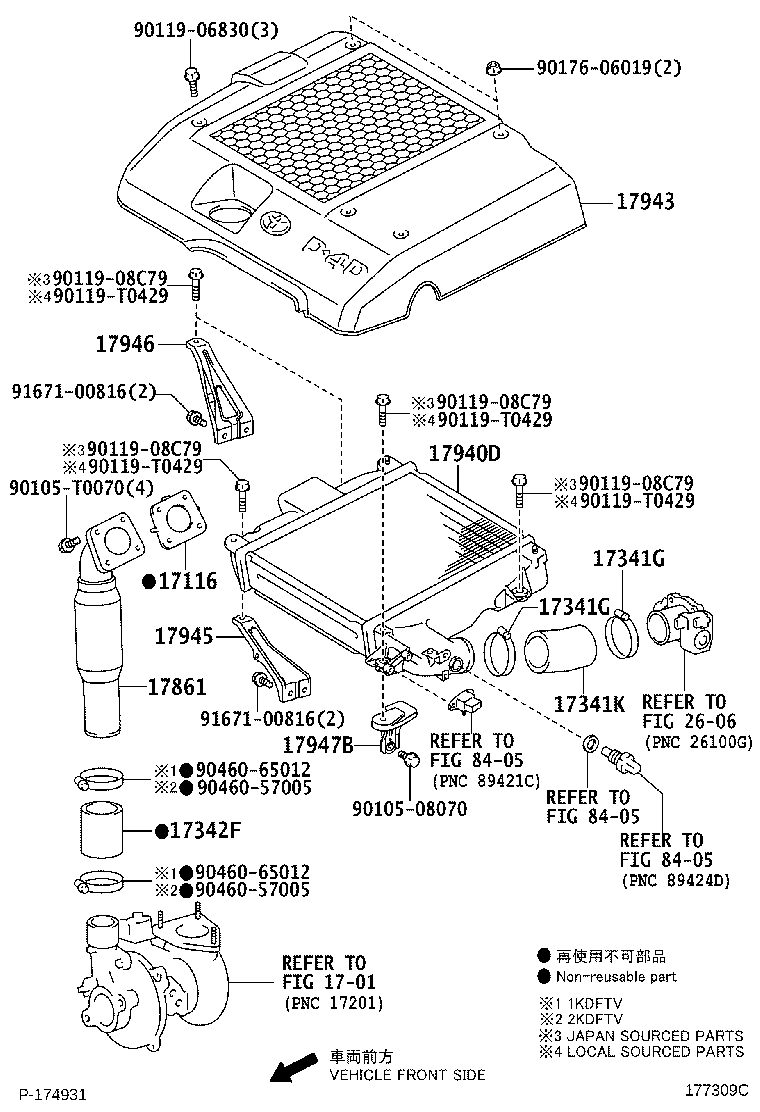

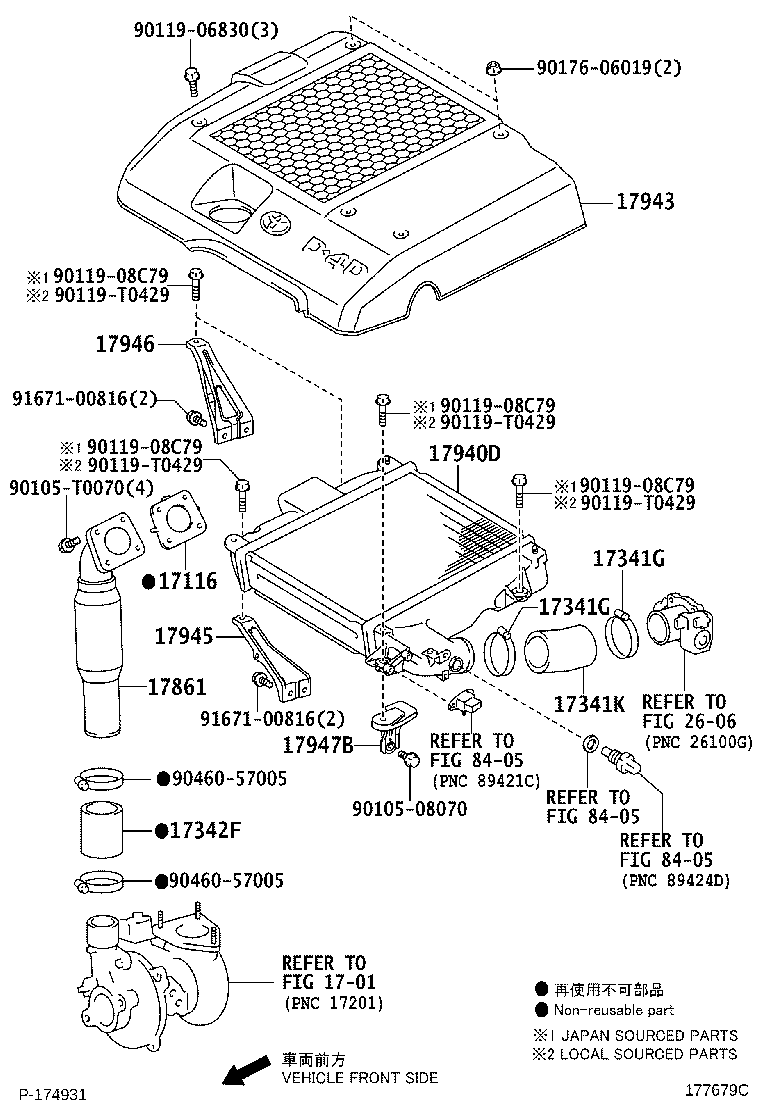

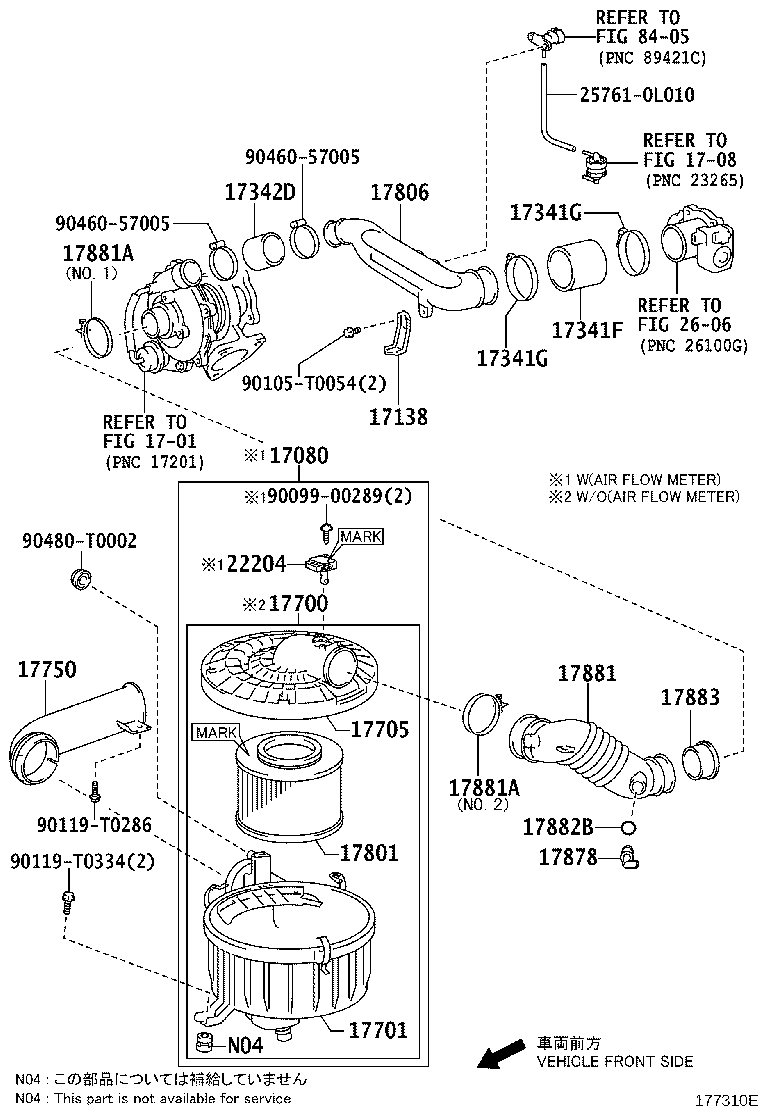

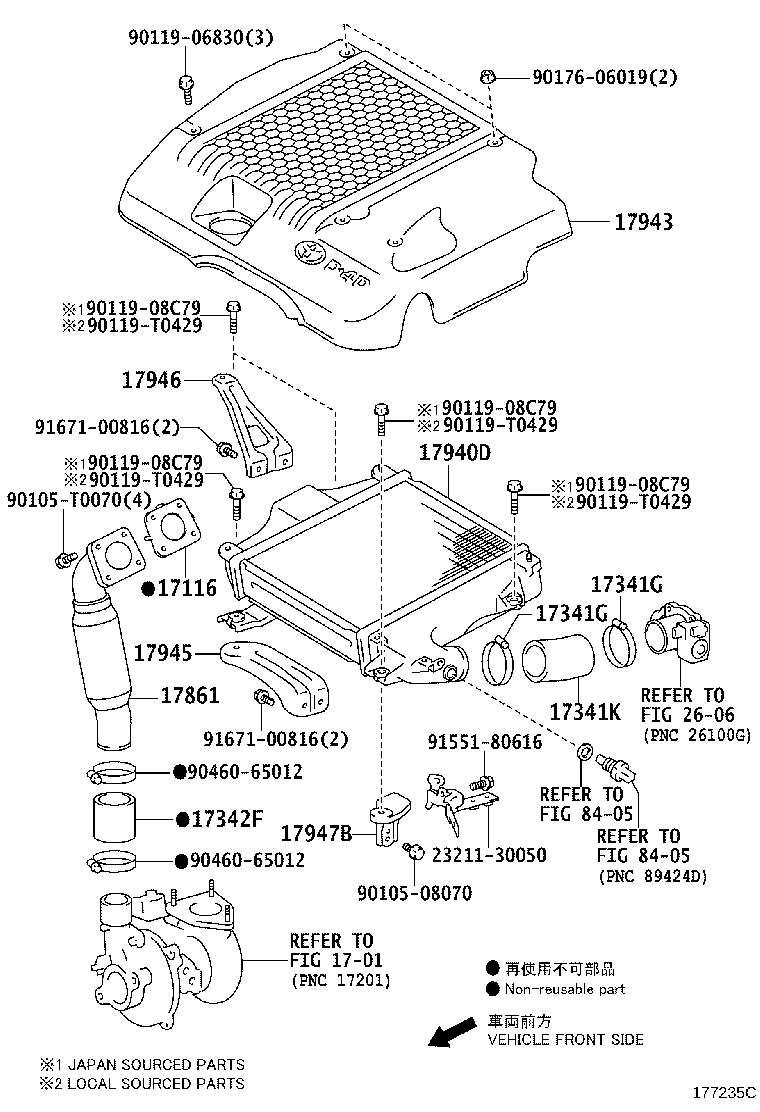

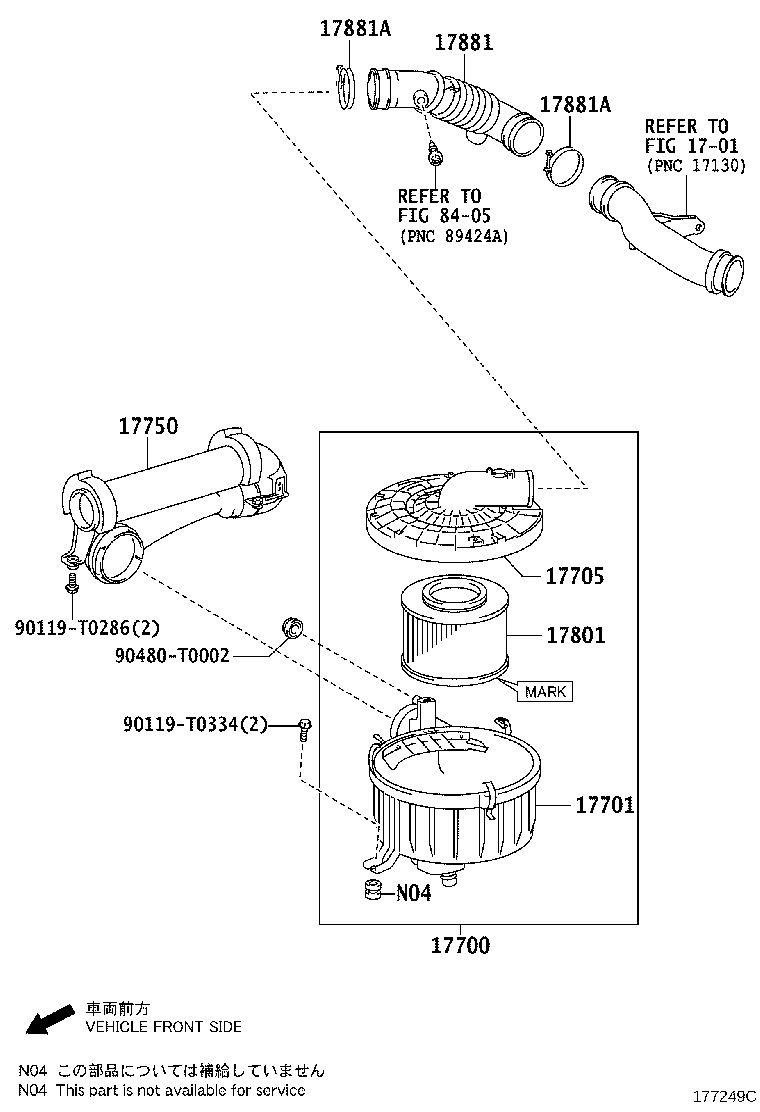

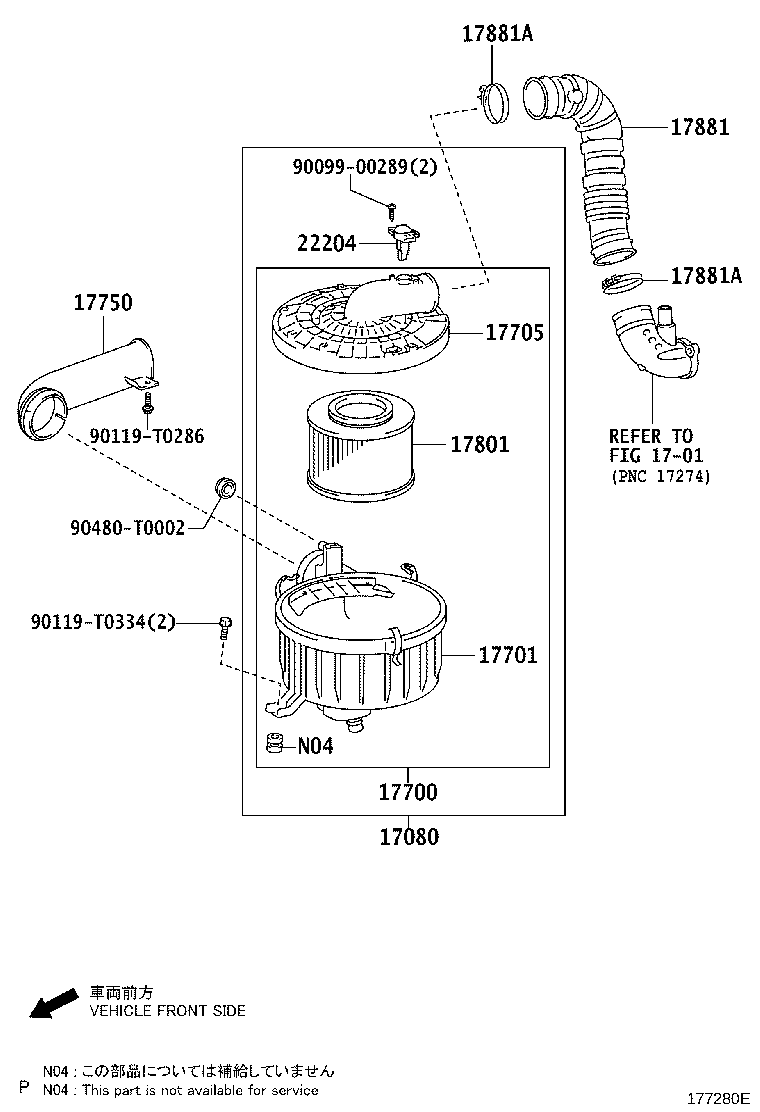

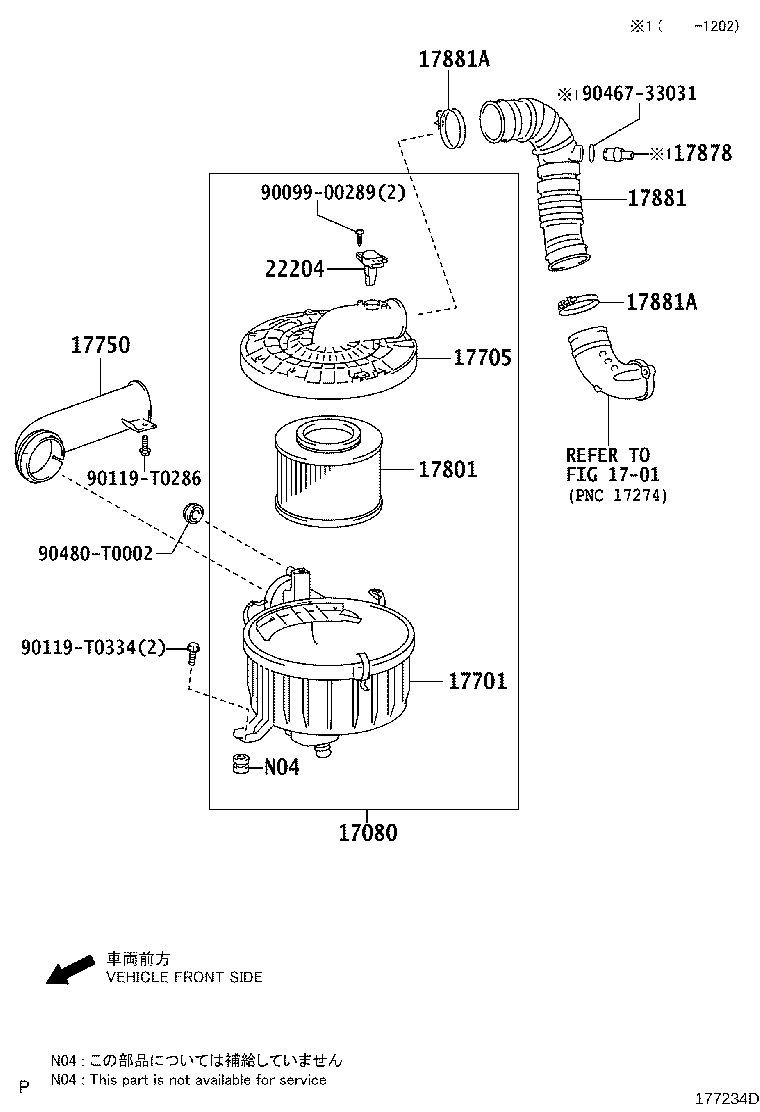

Figure 17C868 17C868 2011-07 → — Figure 177306C 177306C 2011-07 → — Figure 177306C 177306C 2012-04 → — Figure 177306C 177306C 2012-08 → — Figure 177306C 177306C 2012-10 → — Figure 177306C 177306C 2013-08 → — Figure 177306C 177306C 2013-11 → — Figure 177306C 177306C 2014-08 → — Figure 177280E 177280E 2011-07 → — Figure 177280E 177280E 2012-08 → — Figure 177280E 177280E 2012-10 → — Figure 177281F 177281F 2011-08 → — Figure 177281F 177281F 2012-01 → — Figure 177281F 177281F 2012-10 → — Figure 177281F 177281F 2014-10 → — Figure 177382C 177382C 2011-10 → — Figure 177382C 177382C 2012-10 → — Figure 177307C 177307C 2011-07 → — Figure 177234D 177234D 2011-07 → — Figure 177234D 177234D 2013-08 → — Figure 177630C 177630C 2012-08 → — Figure 177283D 177283D 2011-07 → — Figure 177283D 177283D 2011-07 → — Figure 177283D 177283D 2012-08 → — Figure 177283D 177283D 2012-08 → — Figure 177283D 177283D 2012-10 → — Figure 177283D 177283D 2012-10 → — Figure 177283D 177283D 2013-08 → — Figure 177283D 177283D 2013-11 → — Figure 177283D 177283D 2013-11 → — Figure 177283D 177283D 2014-08 → — Figure 177283D 177283D 2014-10 → — Figure 177282E 177282E 2011-07 → — Figure 177308C 177308C 2011-07 → — Figure 177309C 177309C 2011-07 → — Figure 177235C 177235C 2011-07 → — Figure 177374D 177374D 2011-10 → — Figure 177374D 177374D 2014-10 → — Figure 177523D 177523D 2012-04 → — Figure 177523D 177523D 2012-08 → — Figure 177523D 177523D 2013-08 → — Figure 177679C 177679C 2012-08 → — Figure 177310E 177310E 2011-07 → 2012-08 Figure 177310E 177310E 2011-07 → — Figure 177310E 177310E 2011-07 → — Figure 177310E 177310E 2011-08 → 2012-10 Figure 177310E 177310E 2011-09 → 2012-10 Figure 177249E 177249E 2011-08 → — Figure 177293C 177293C 2011-07 → — Figure 177292D 177292D 2011-08 → —

Part groups

PNCDescription
17080 Cleaner Assy, Air W/Air Flow Meter
17116 Gasket, Intake Flange
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17750 Cover Assy, Air Cleaner Inlet, Seal
17801 Element Sub-assy, Air Cleaner Filter
17806 Pipe Sub-assy, Air Cleaner, NO.2
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17878 Pipe, Intake Air Connector, NO.3
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17893A Clamp, Hose

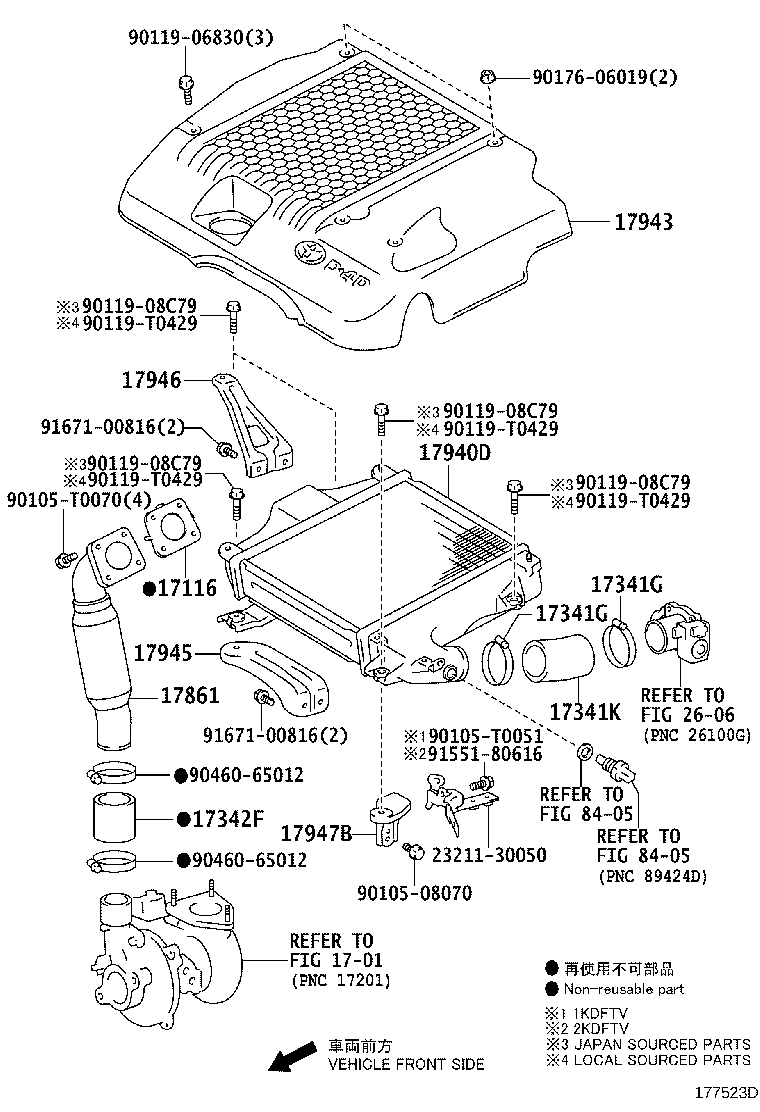

17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17947B Bracket, Intercooler Support, NO.3
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
