Toyota Hilux

2011-07 → 2021-10 · chassis GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 · catalogue 672380 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

36 part groups · 5 illustrations

Illustrations

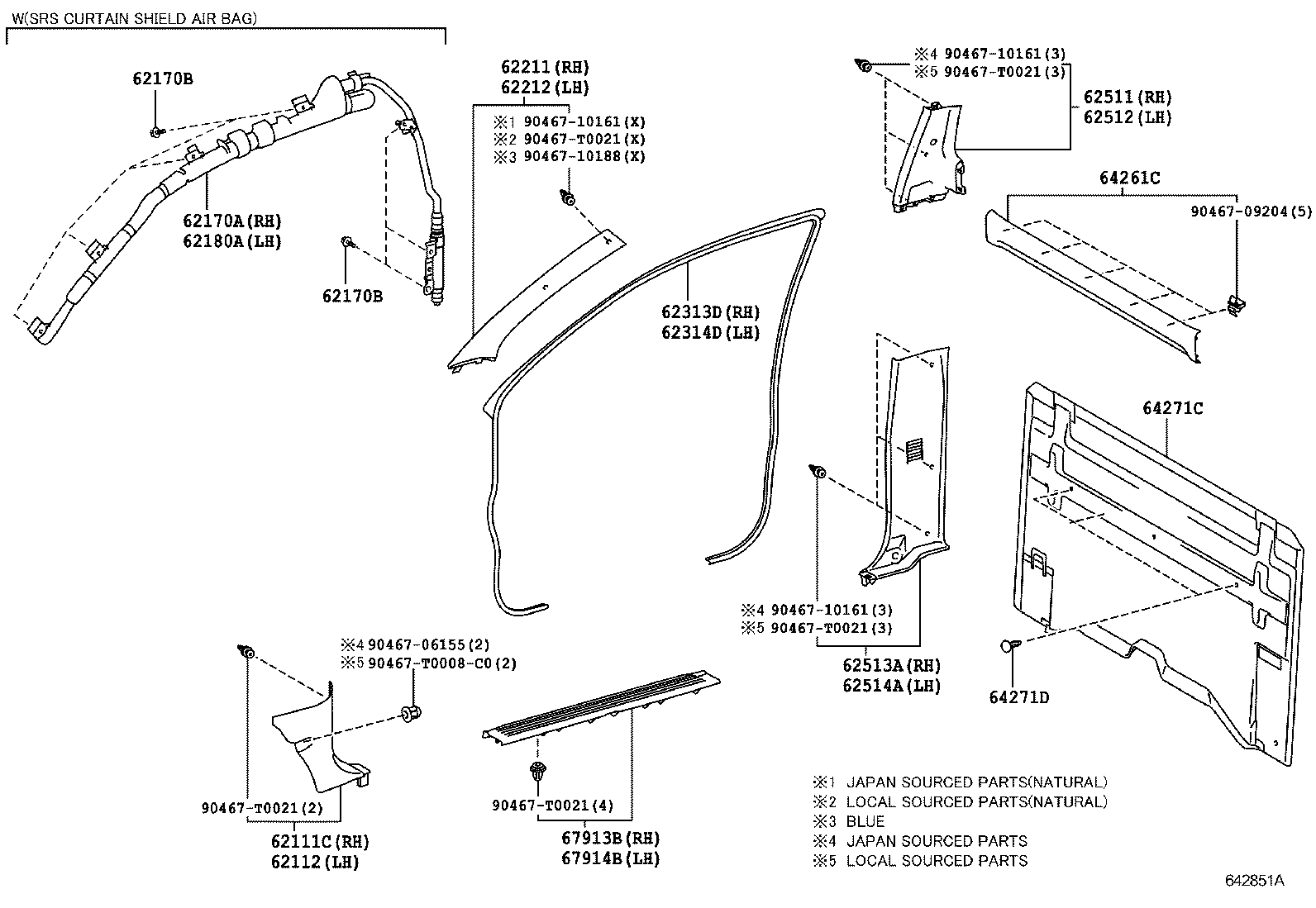

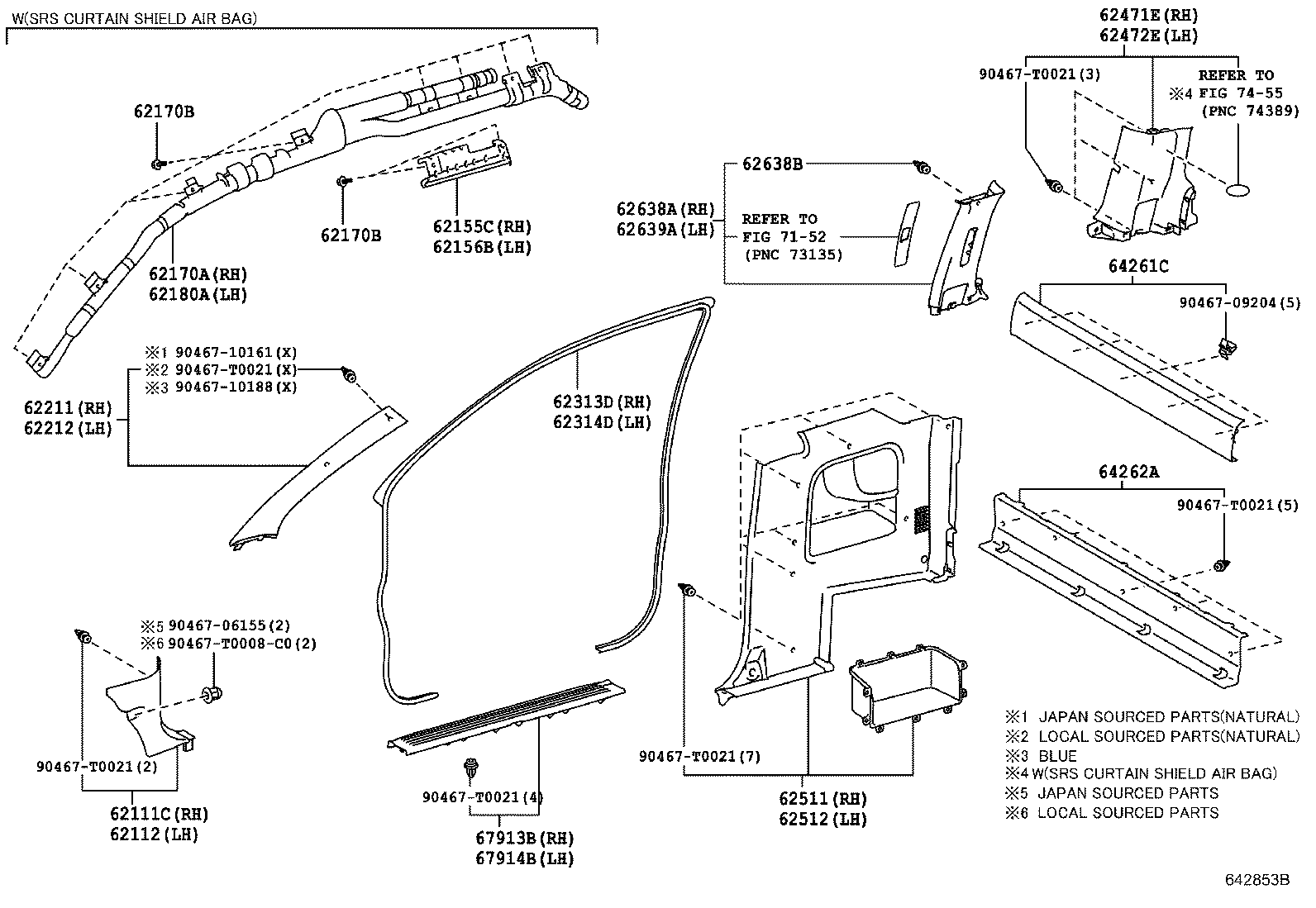

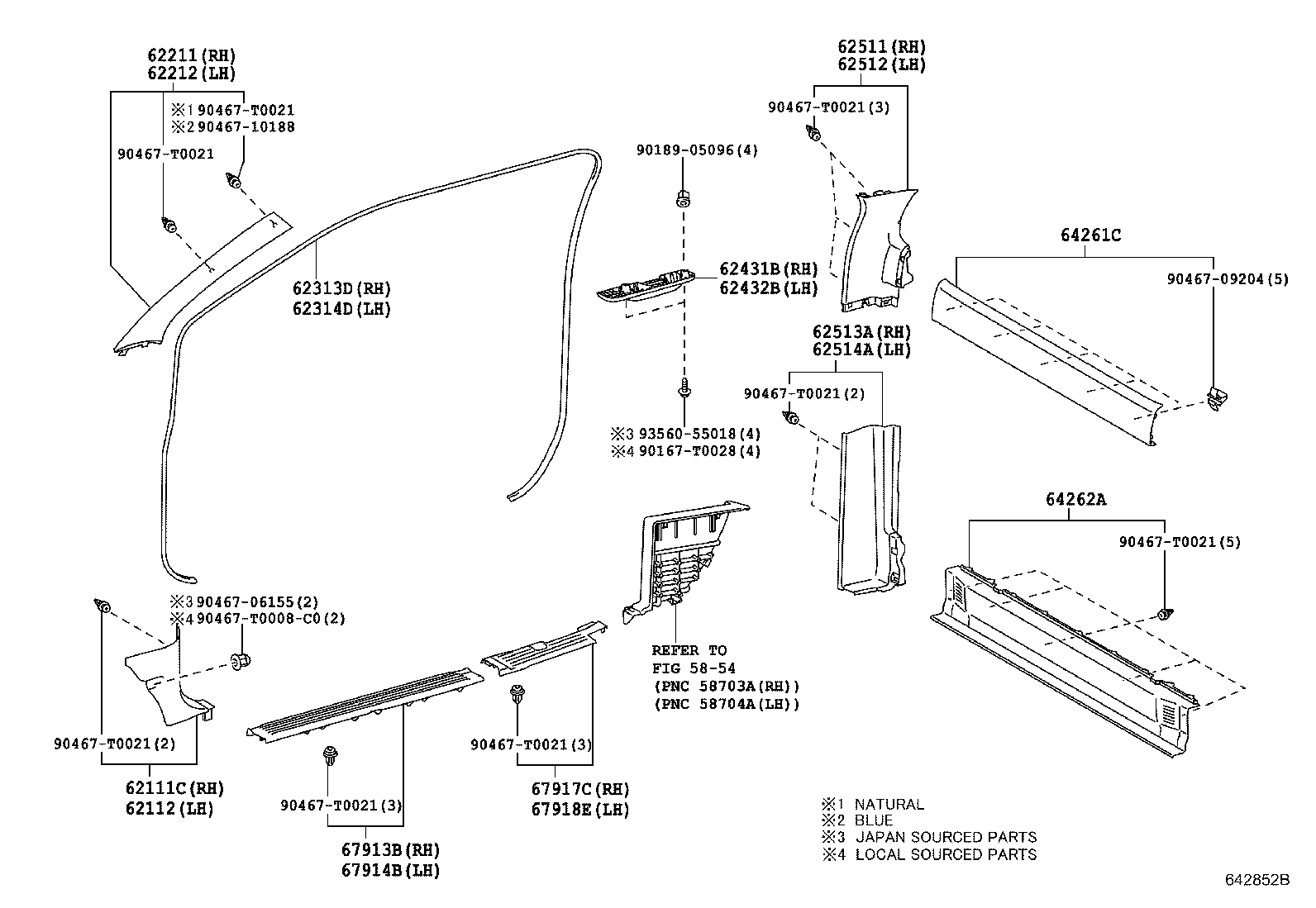

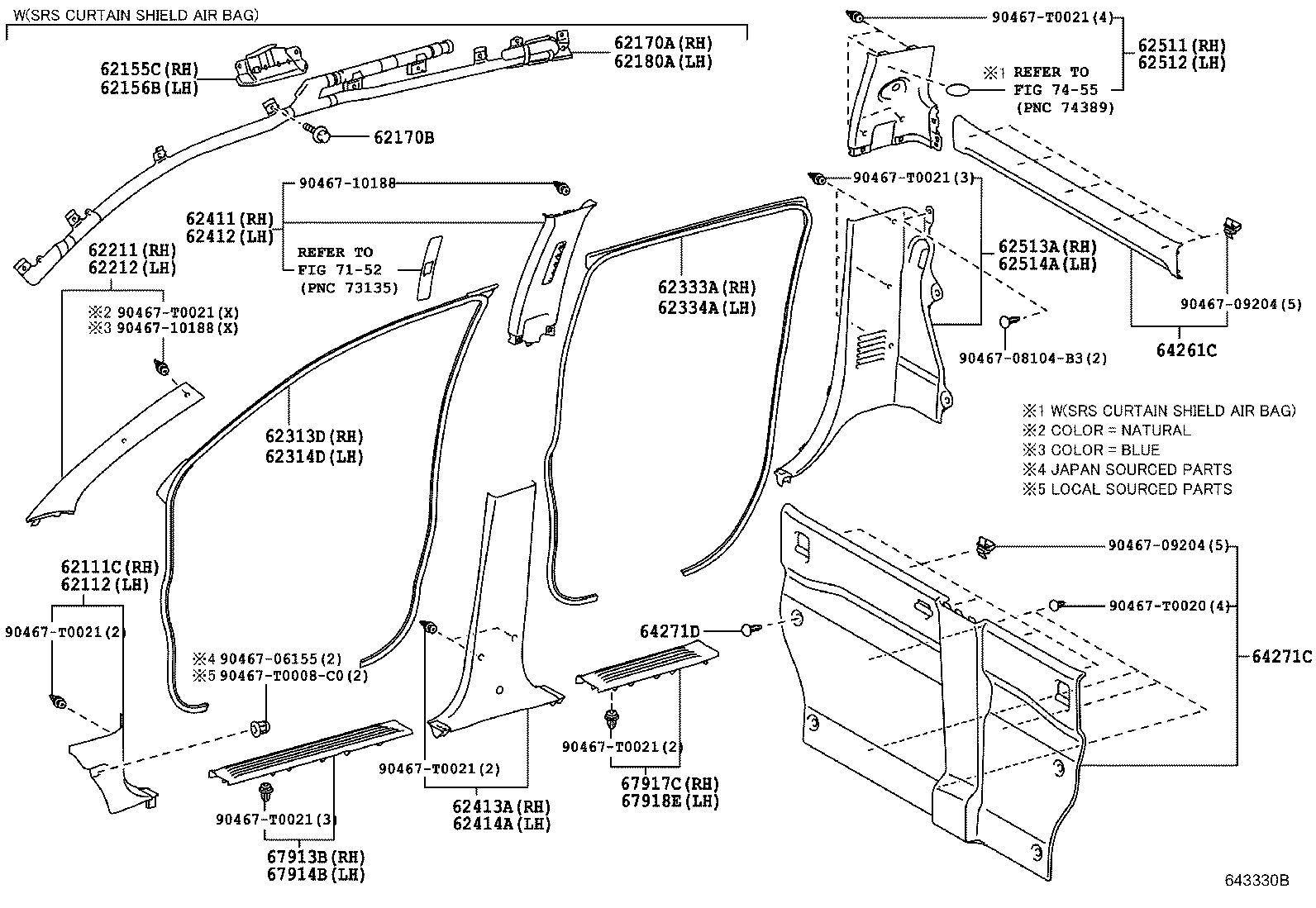

Figure 642850D 642850D 2011-07 → — Figure 643330B 643330B 2013-08 → — Figure 642851A 642851A 2011-07 → — Figure 642852B 642852B 2011-07 → — Figure 642853B 642853B 2011-07 → —

Part groups

PNCDescription
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62155C Bracket, Curtain Shield Airbag, RH
62156B Bracket, Curtain Shield Airbag, LH
62170A Airbag Assy, Curtain Shield, RH
62170B Bolt, W/Washer
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62431B Garnish, Roof Side Rail, NO.1 RH
62432B Garnish, Roof Side Rail, NO.1 LH
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62513A Panel, Quarter Trim, Lower RH
62514A Panel, Quarter Trim, Lower LH
62638A Garnish, Quarter Pillar, RH
62638B Clip
62639A Garnish, Quarter Pillar, LH
64261C Garnish, Back Panel, Upper
64262A Garnish, Back Panel, Lower
64271C Trim, Back Panel
64271D Clip(FOR BACK PANEL TRIM)
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67918E Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
