Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

21 part groups · 3 illustrations

Illustrations

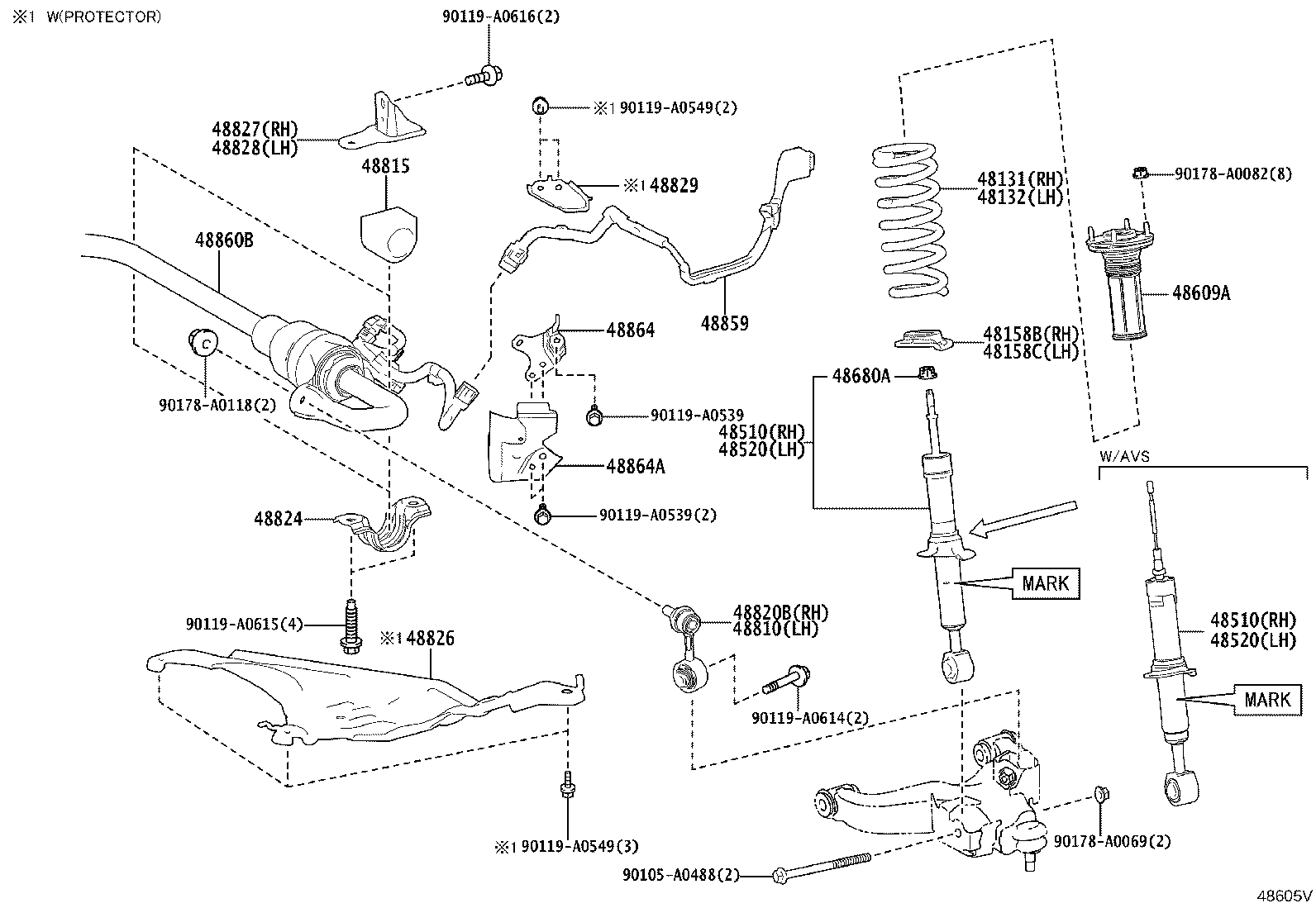

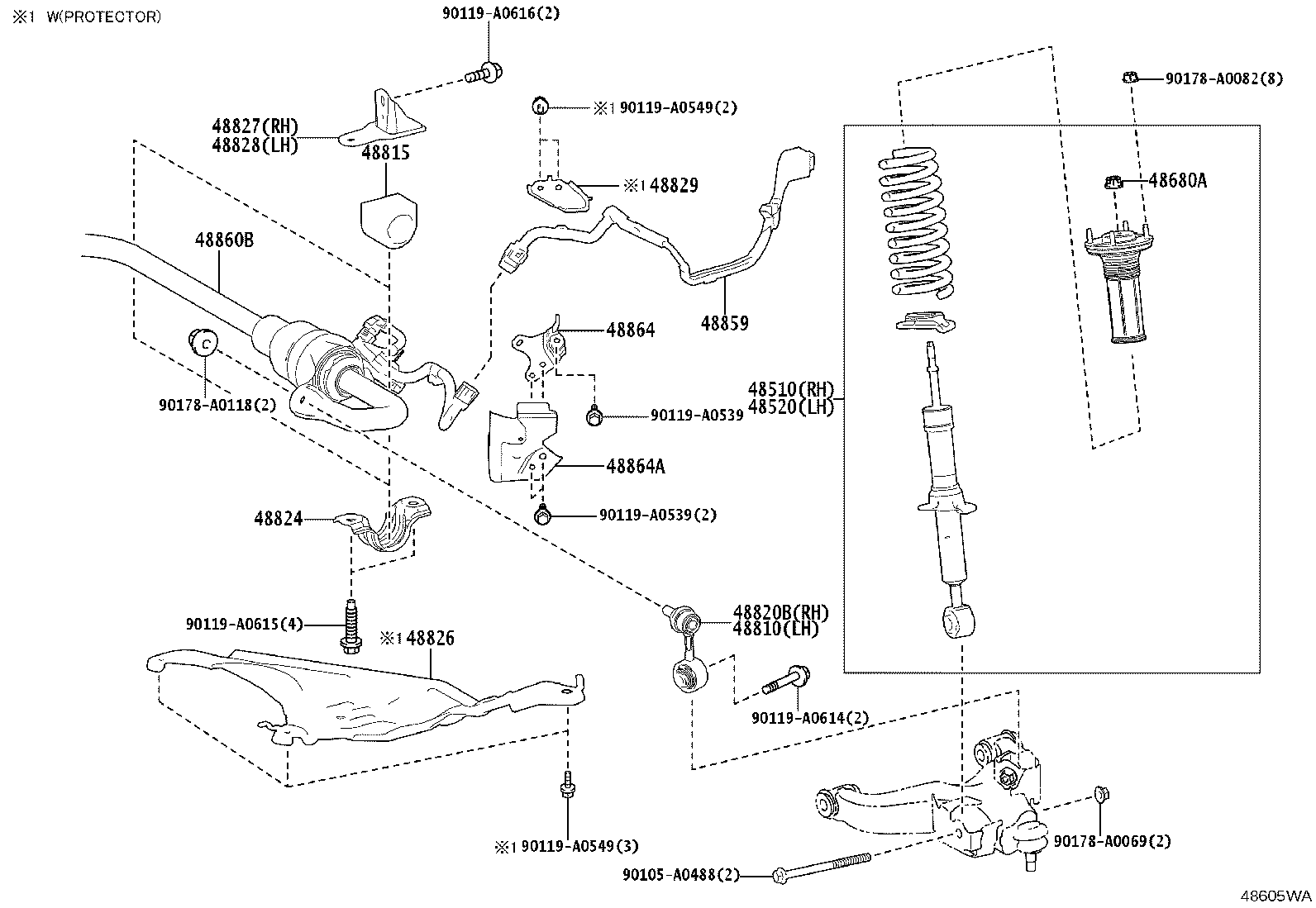

Figure 48605U 48605U 2023-12 → — Figure 48605V 48605V 2023-12 → — Figure 48605WA 48605WA 2023-12 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48609A Support Sub-assy, Front Suspension
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824 Bracket, Stabilizer, Front
48826 Protector, Front Stabilizer Bar
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829 Bracket, Stabilizer
48859 Wire Harness, Accumulator Pressure Sensor
48860B Actuator Assy, Front Active Stabilizer Control
48864 Bracket, Stabilizer Control Wire, NO.1
48864A Bracket, Stabilizer Control Wire, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
