Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

130 part groups · 65 illustrations

Illustrations

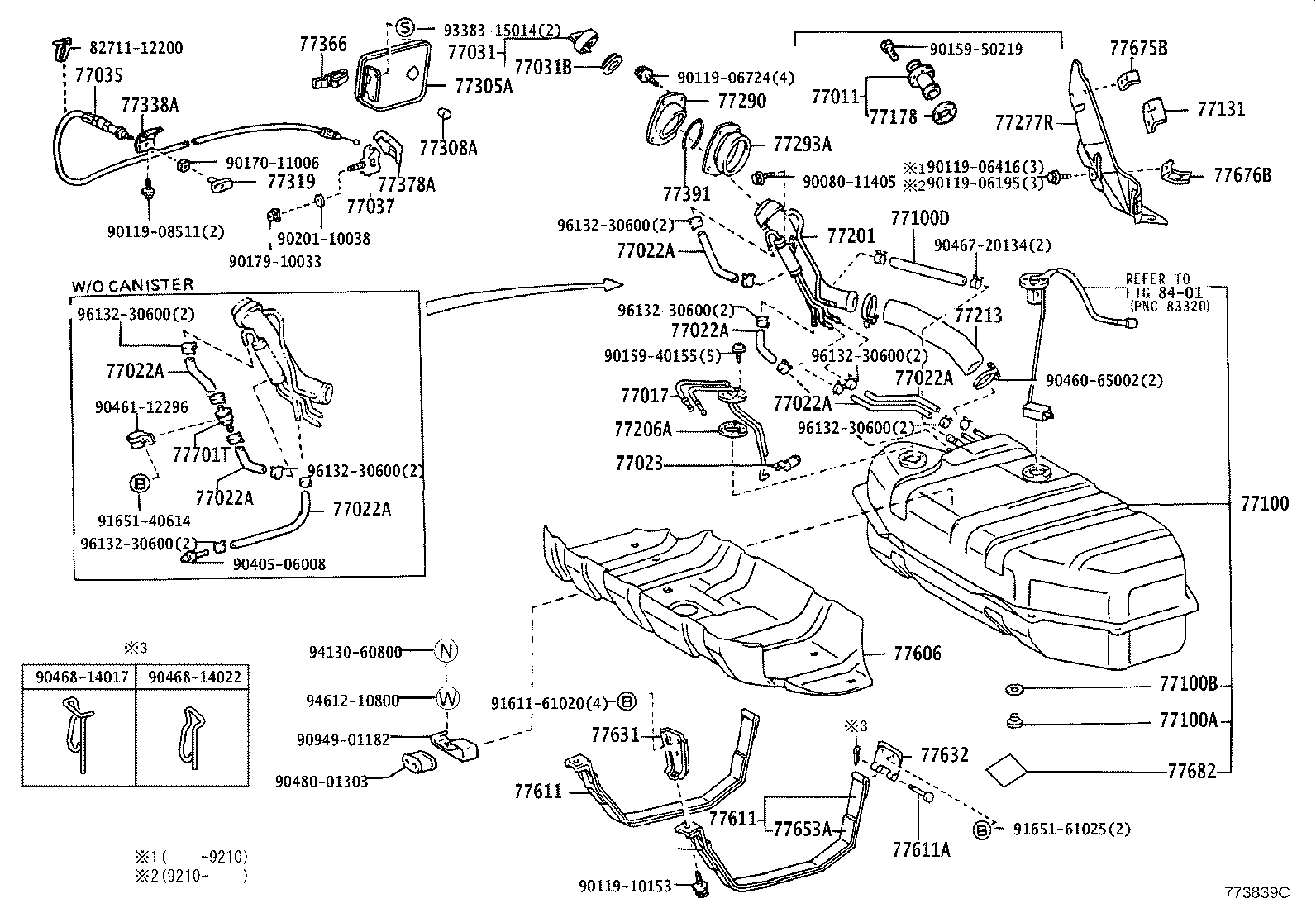

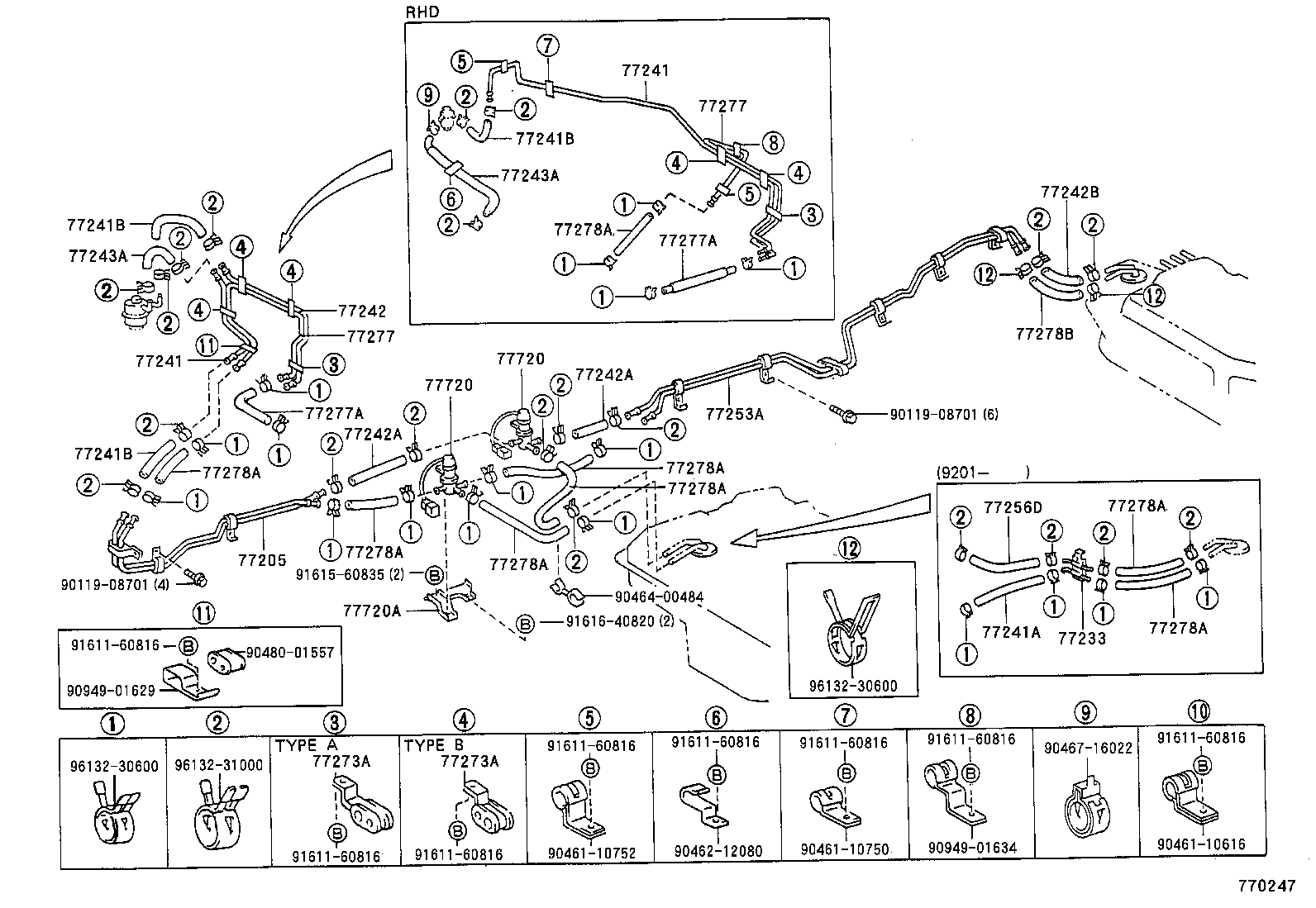

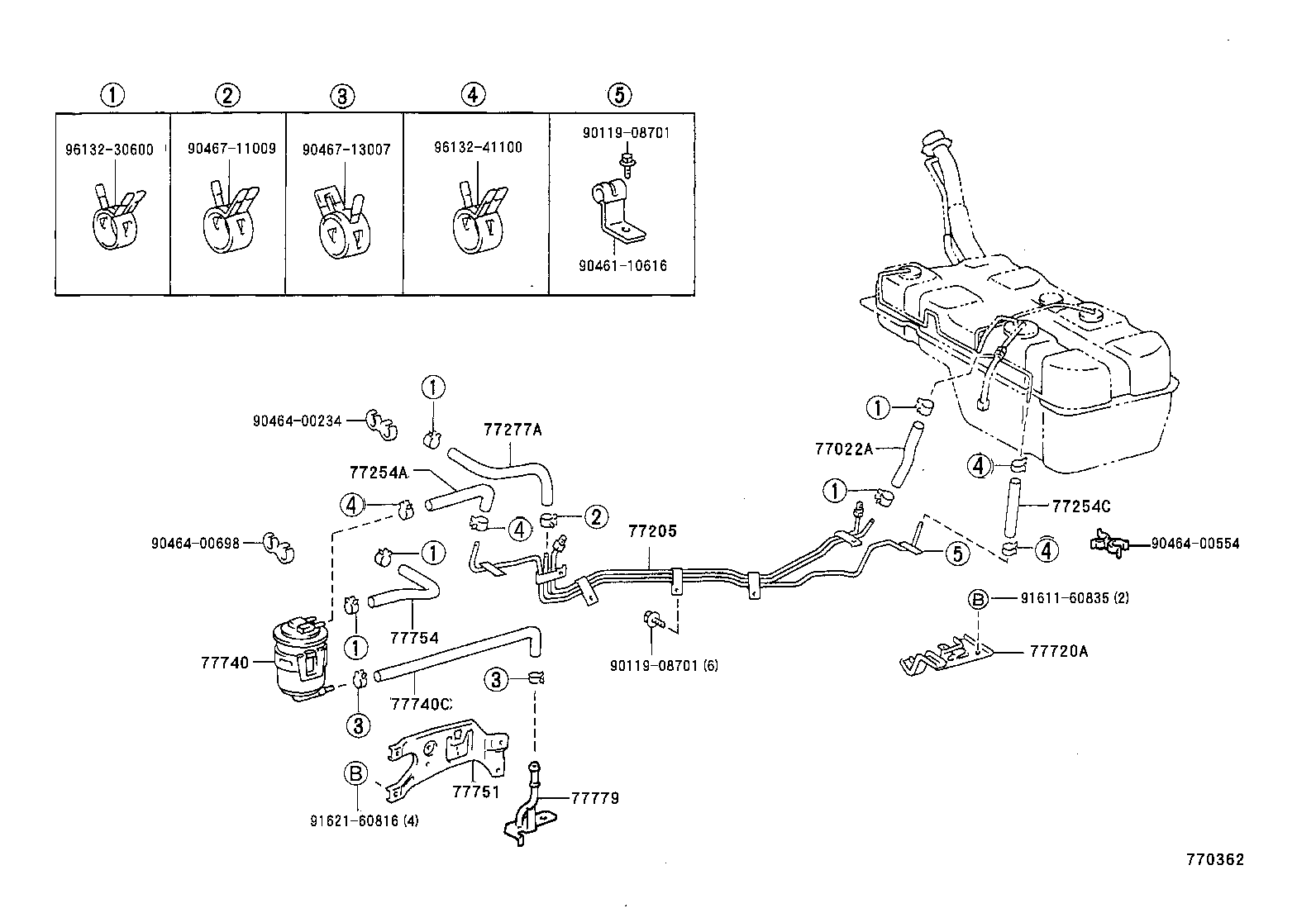

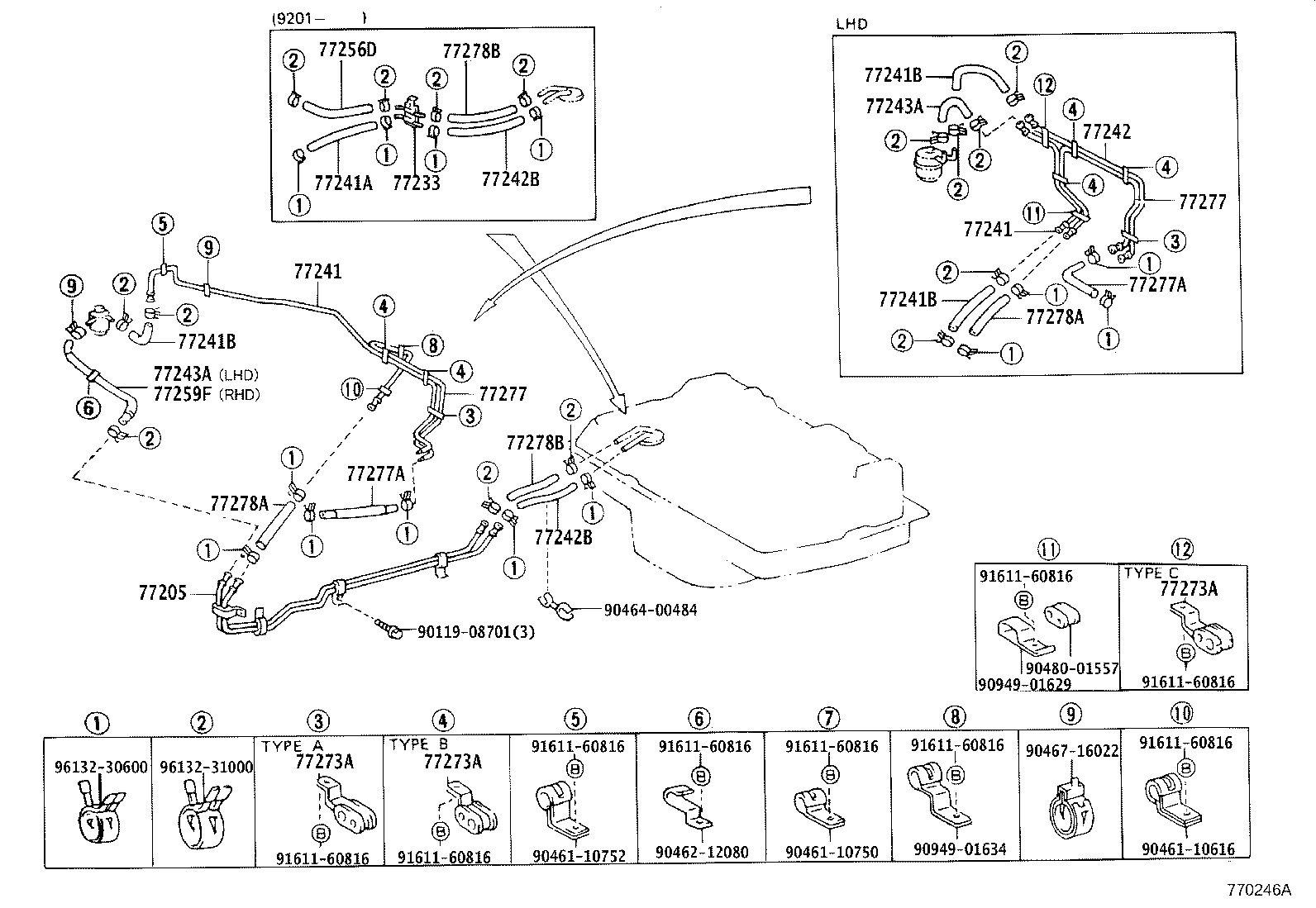

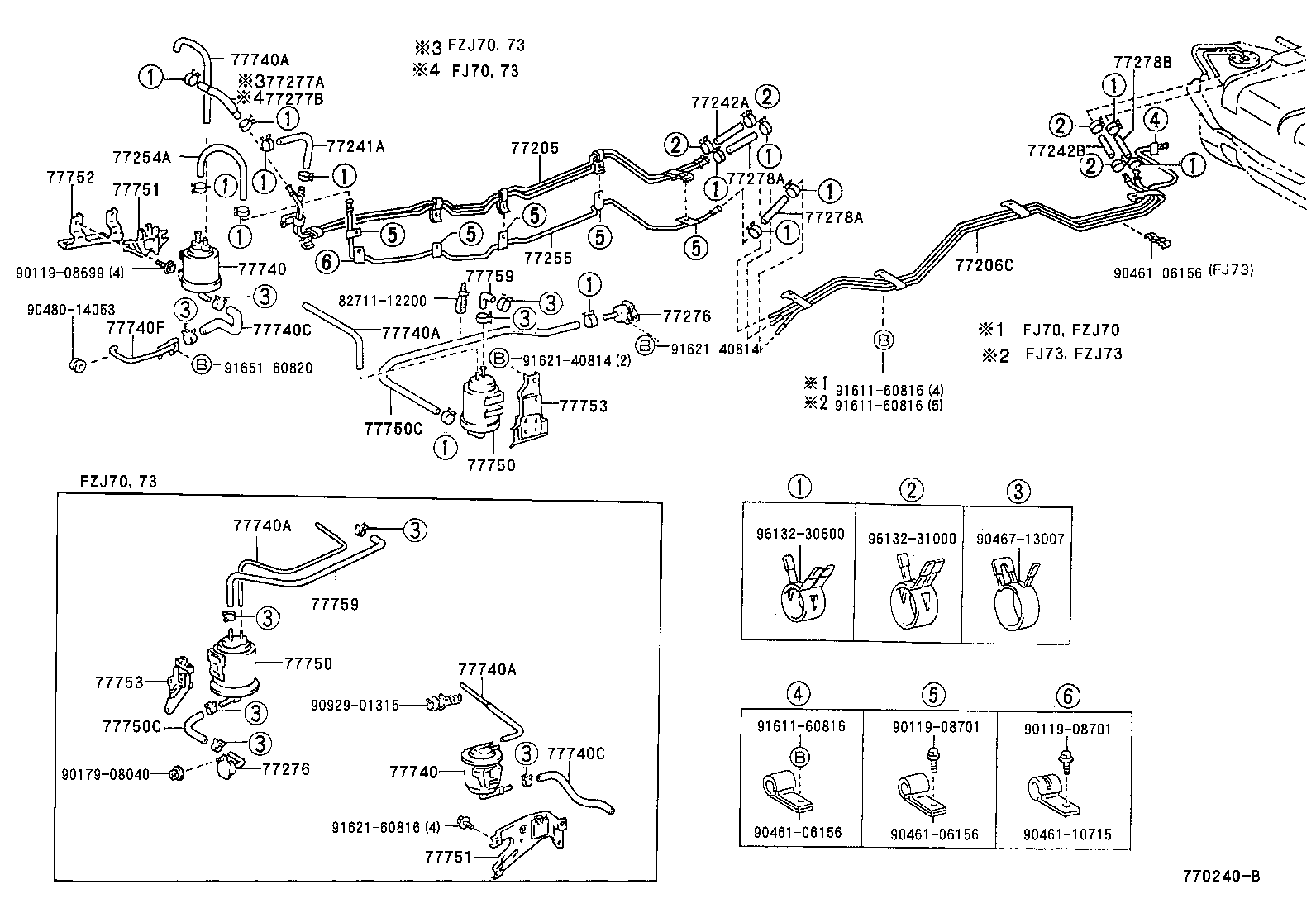

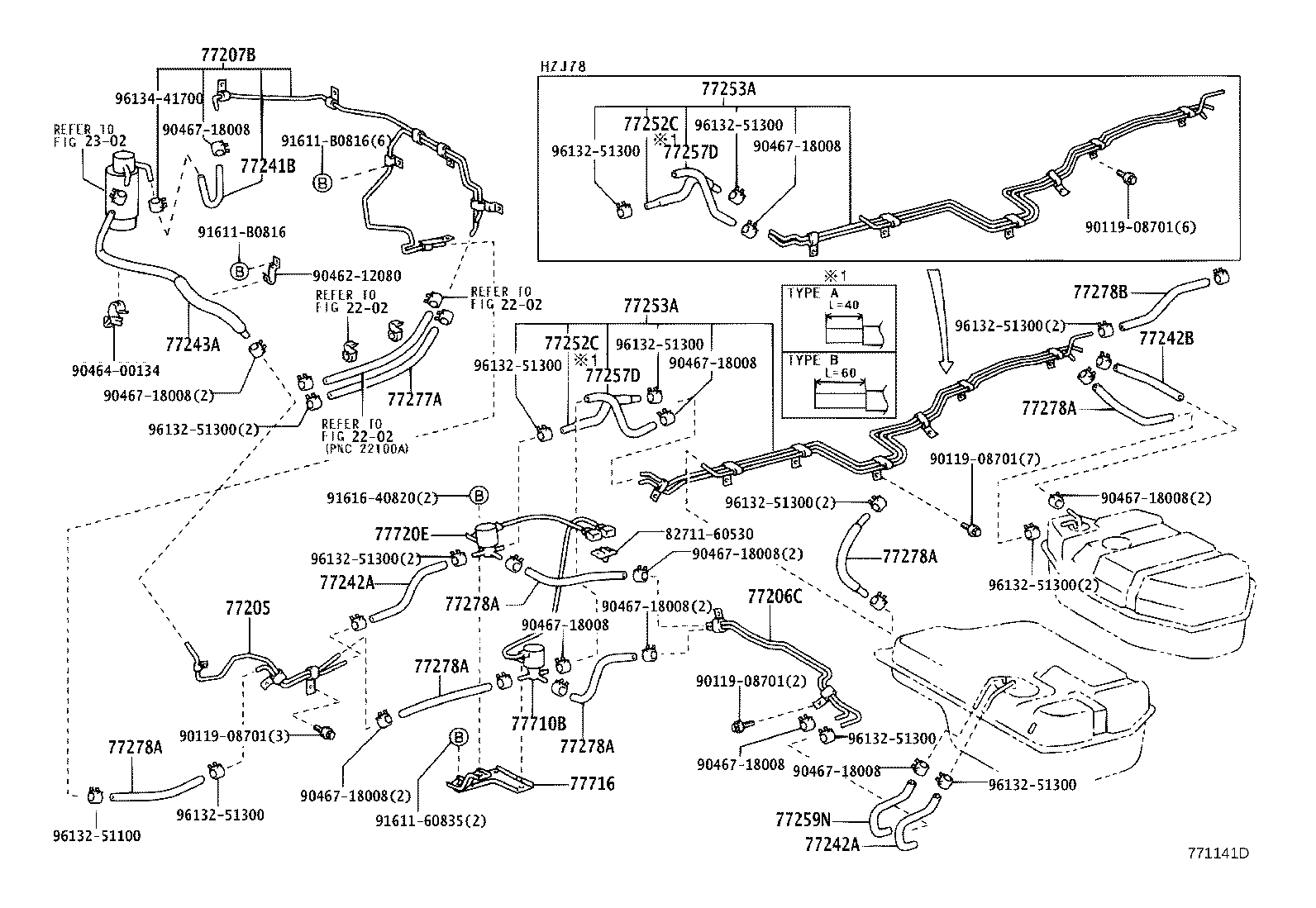

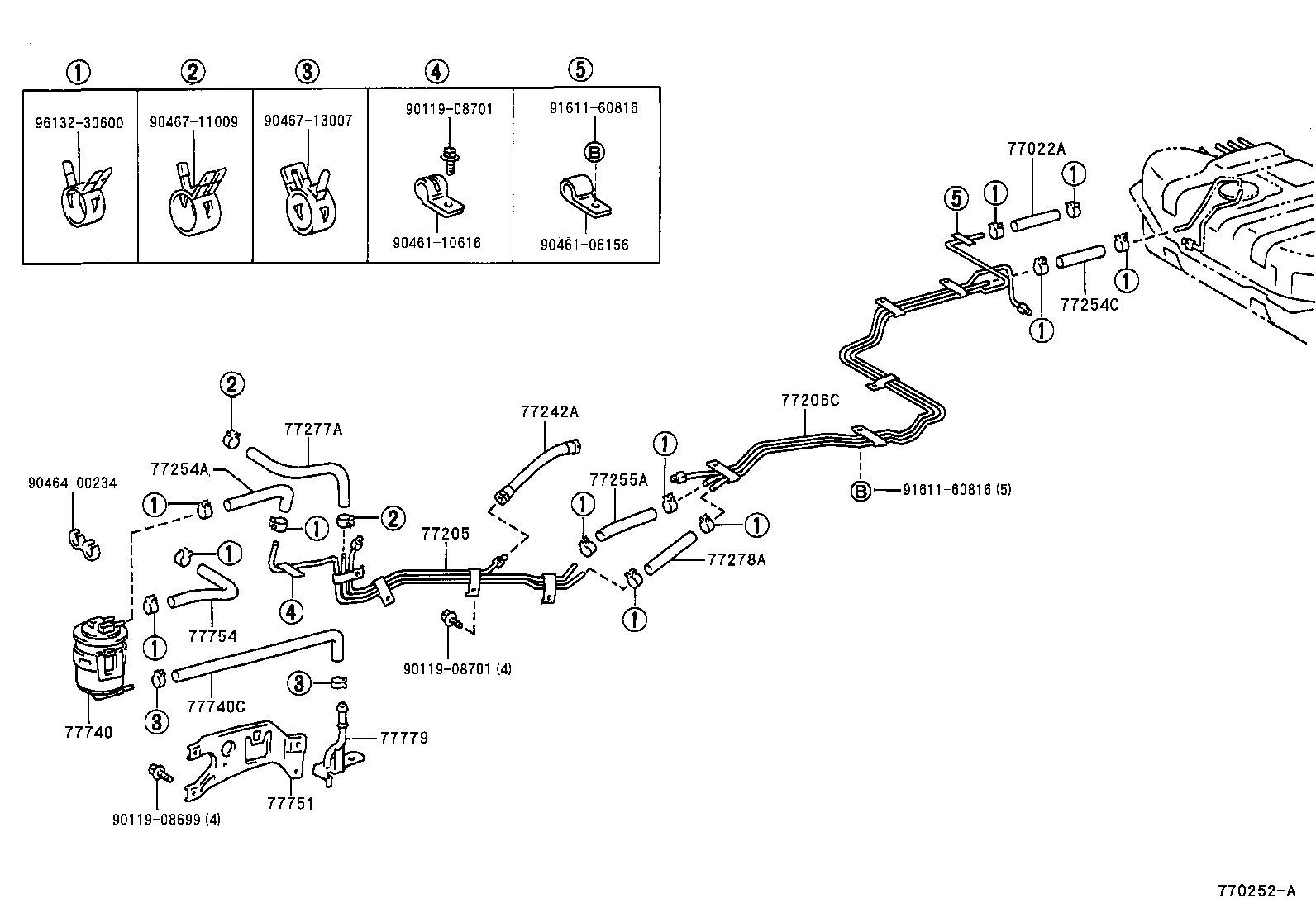

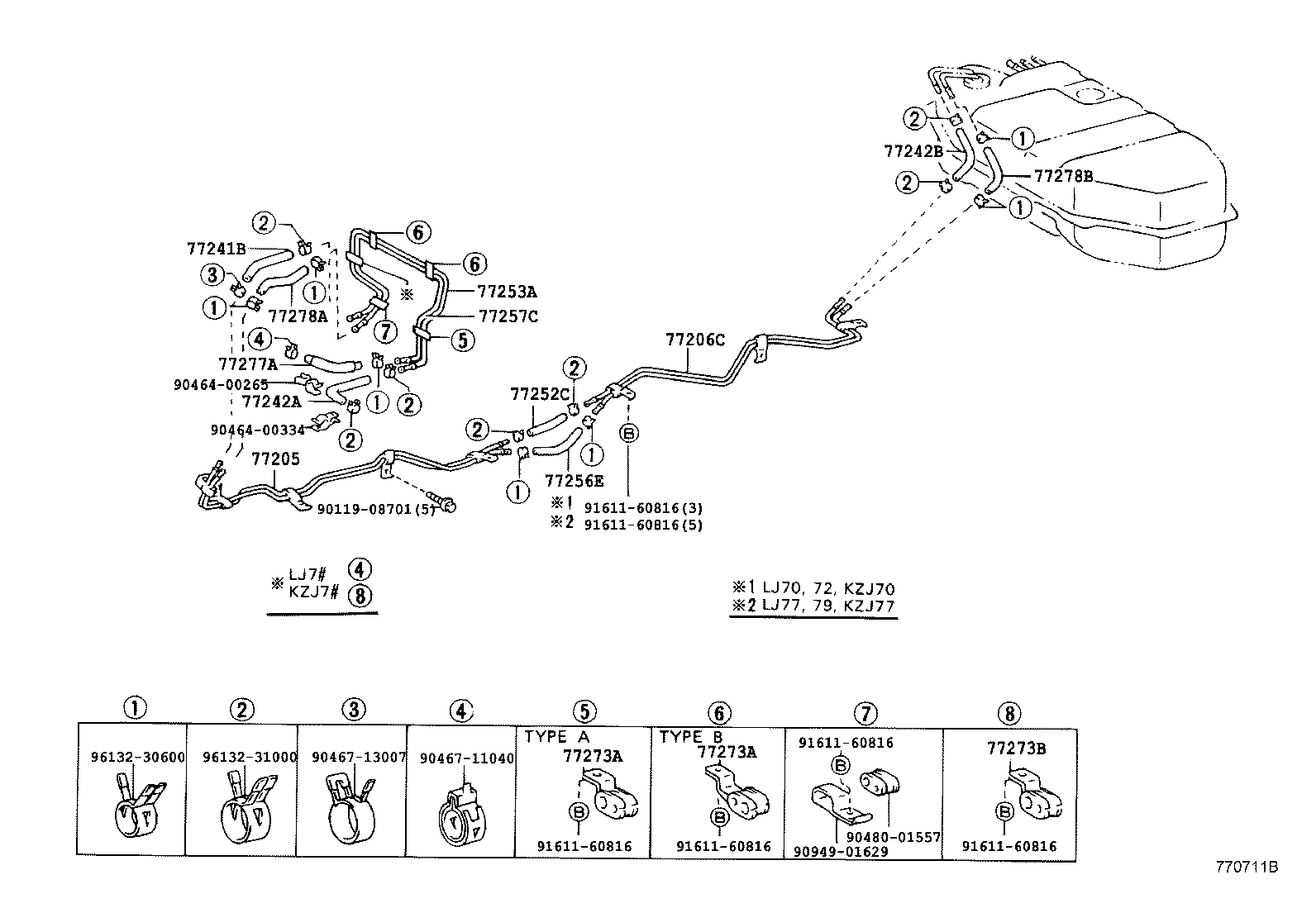

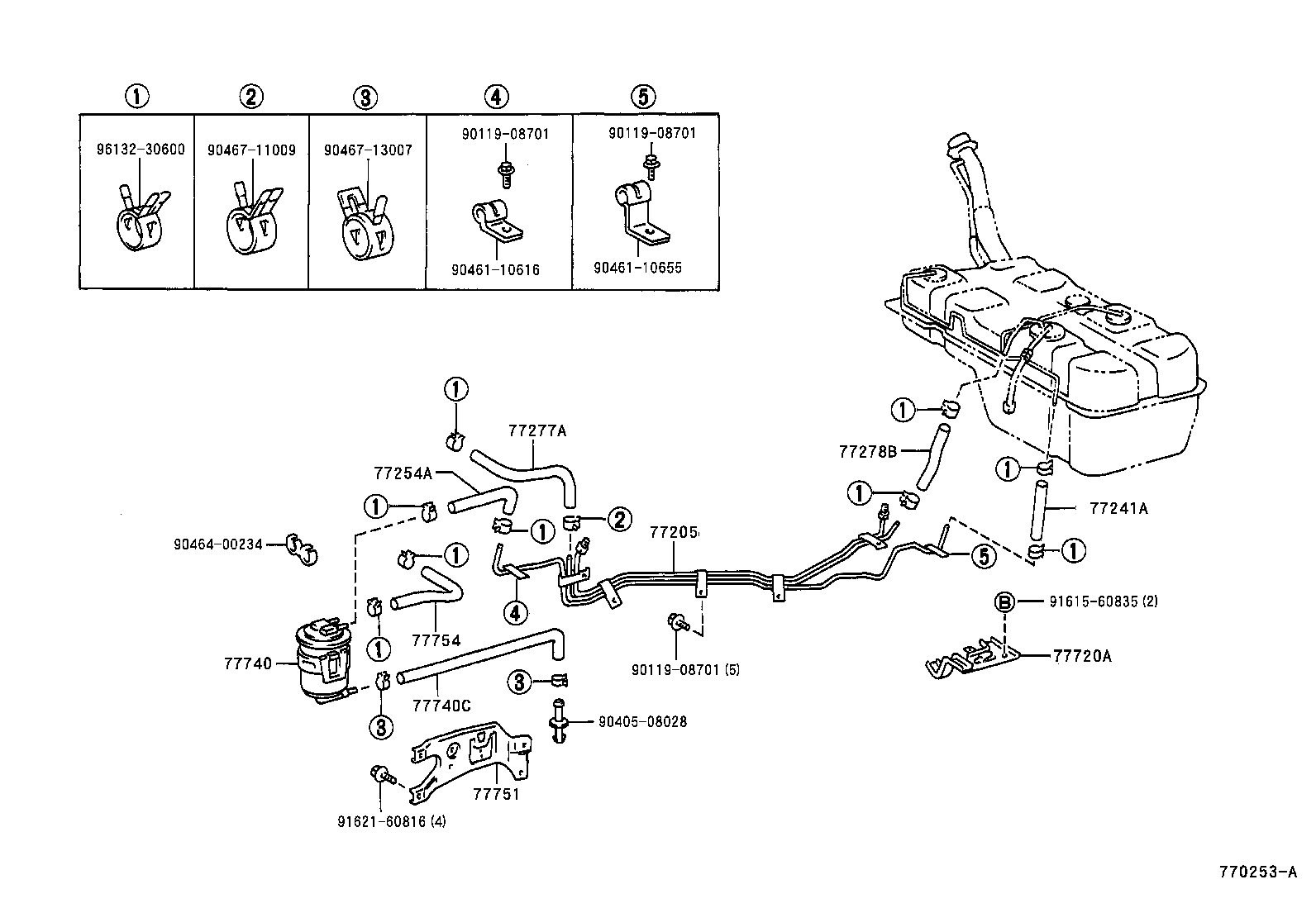

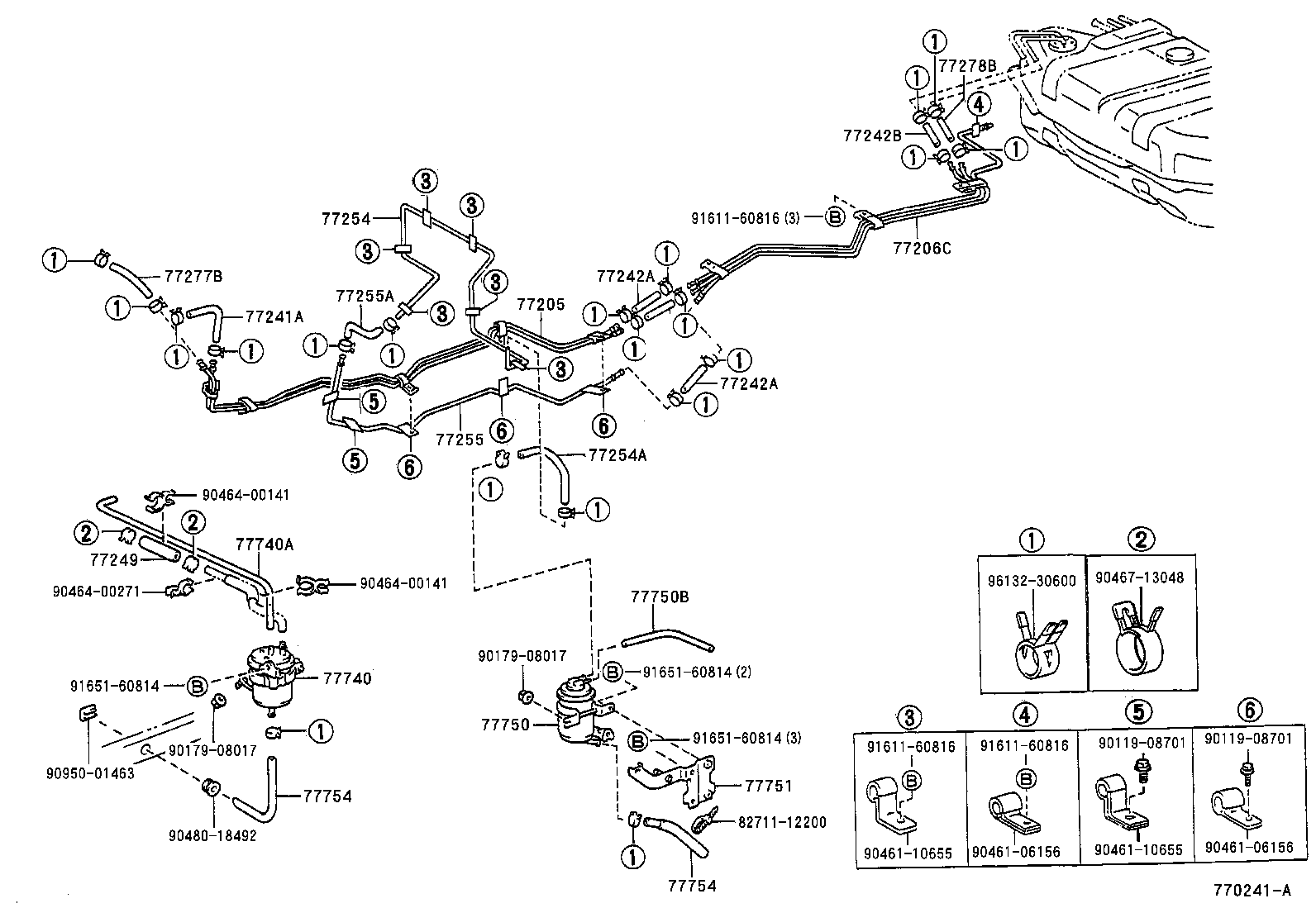

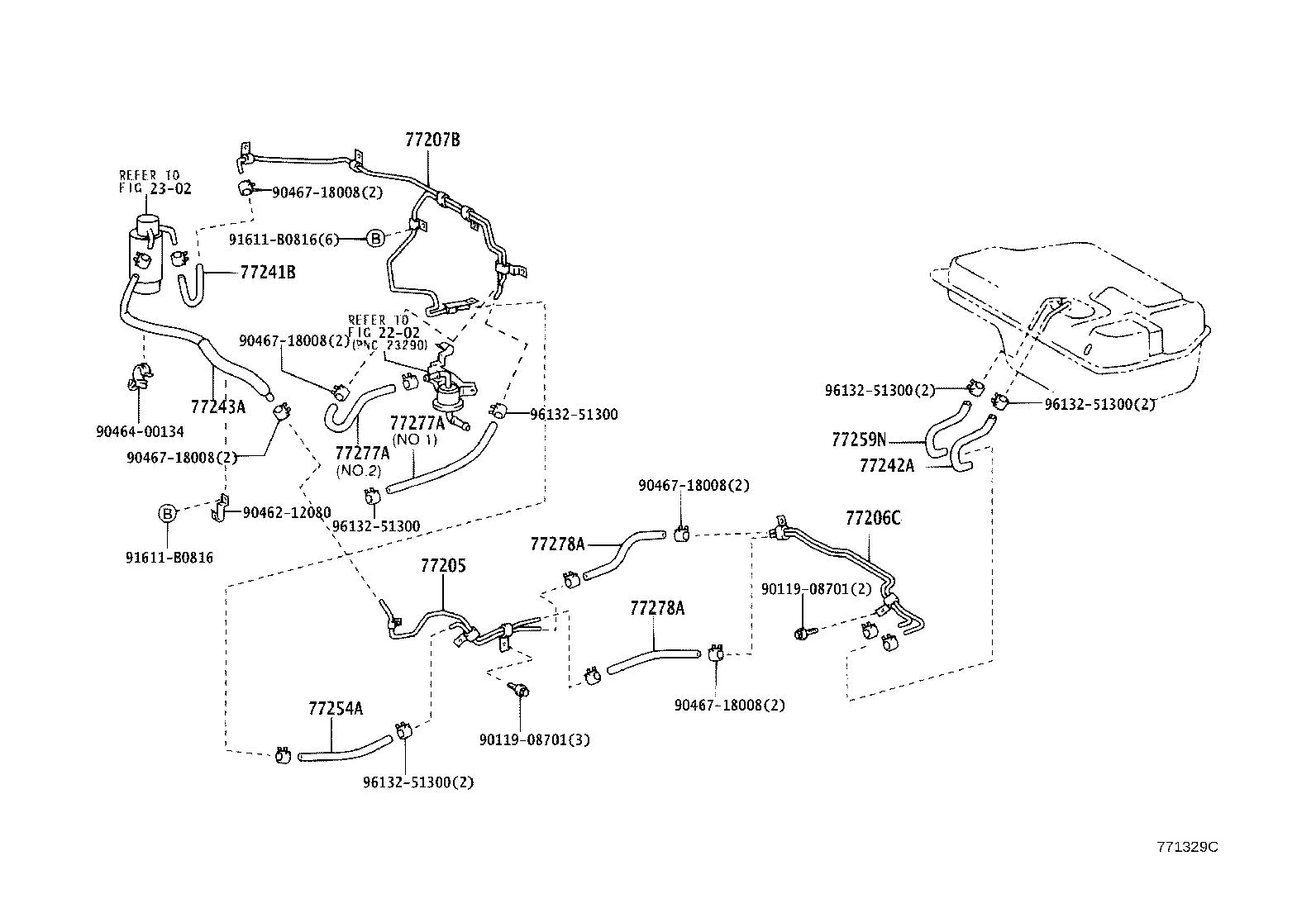

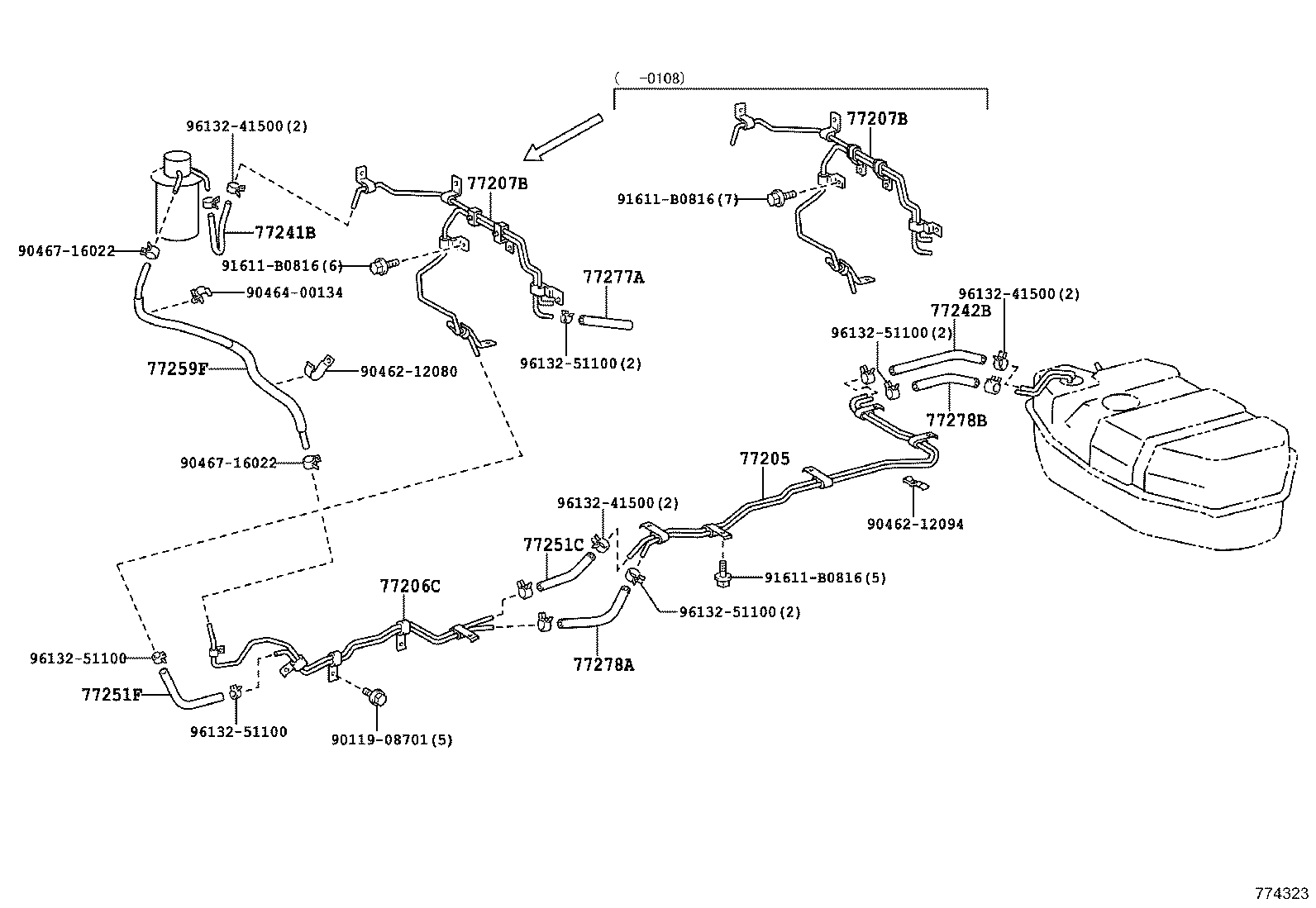

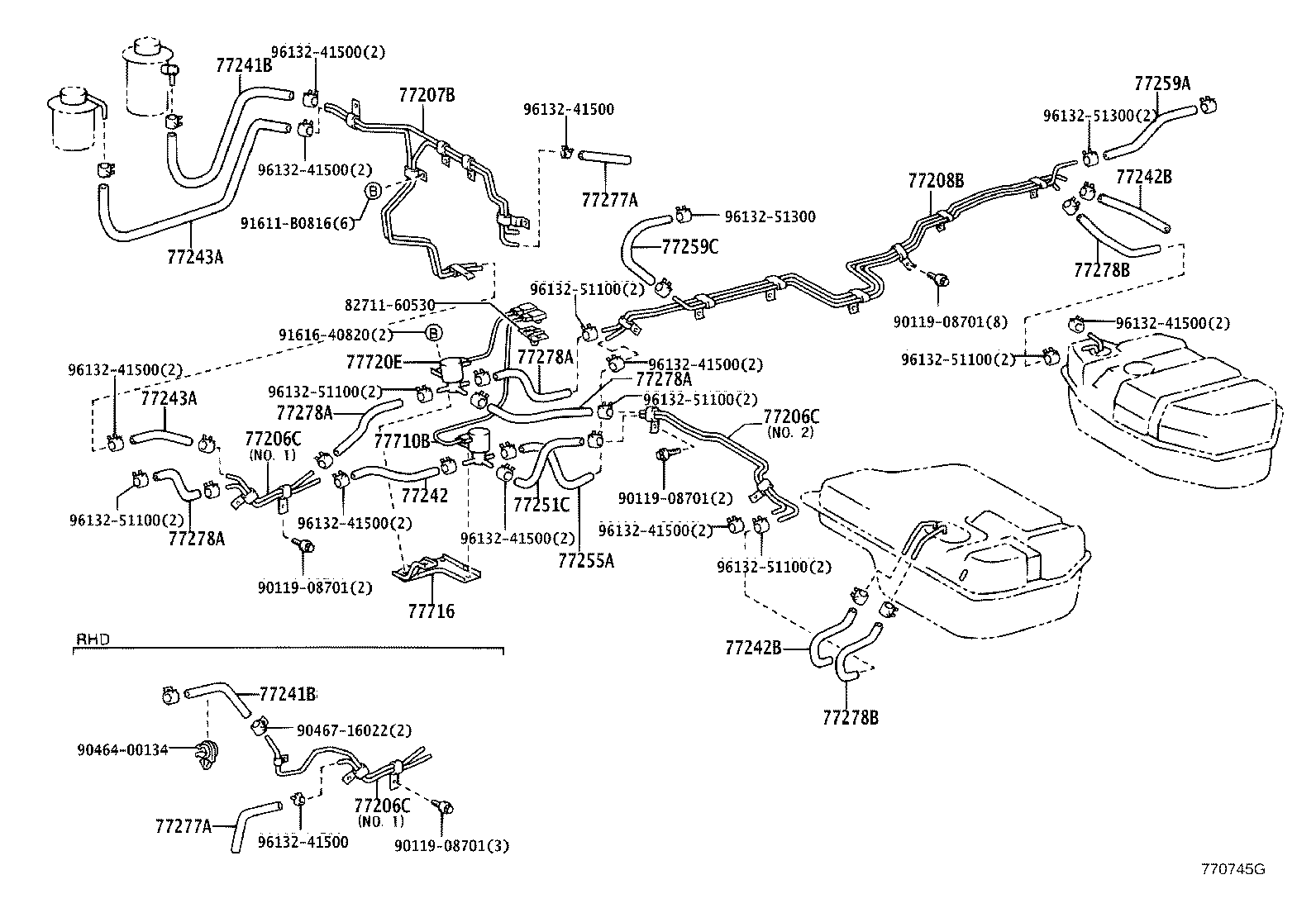

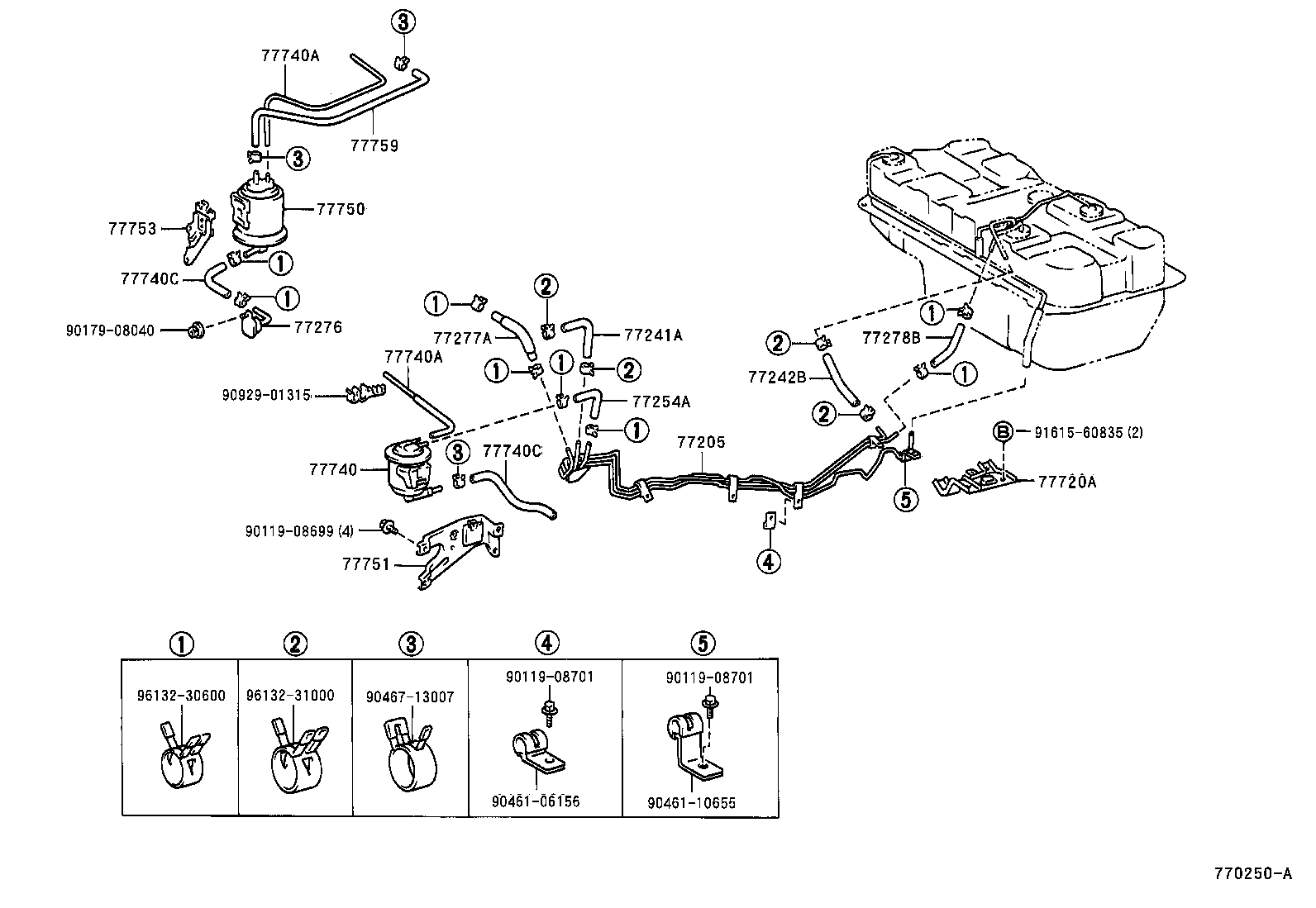

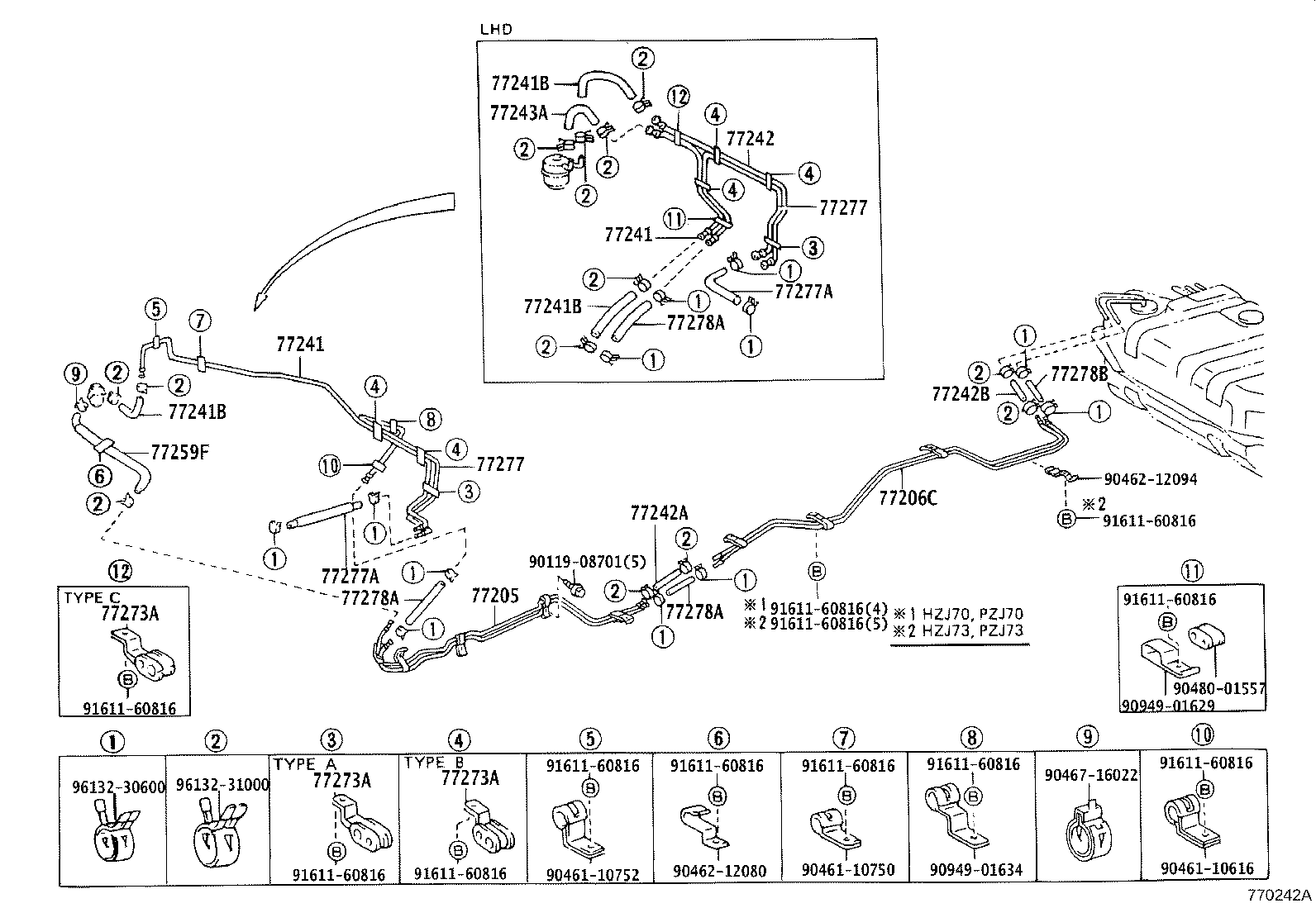

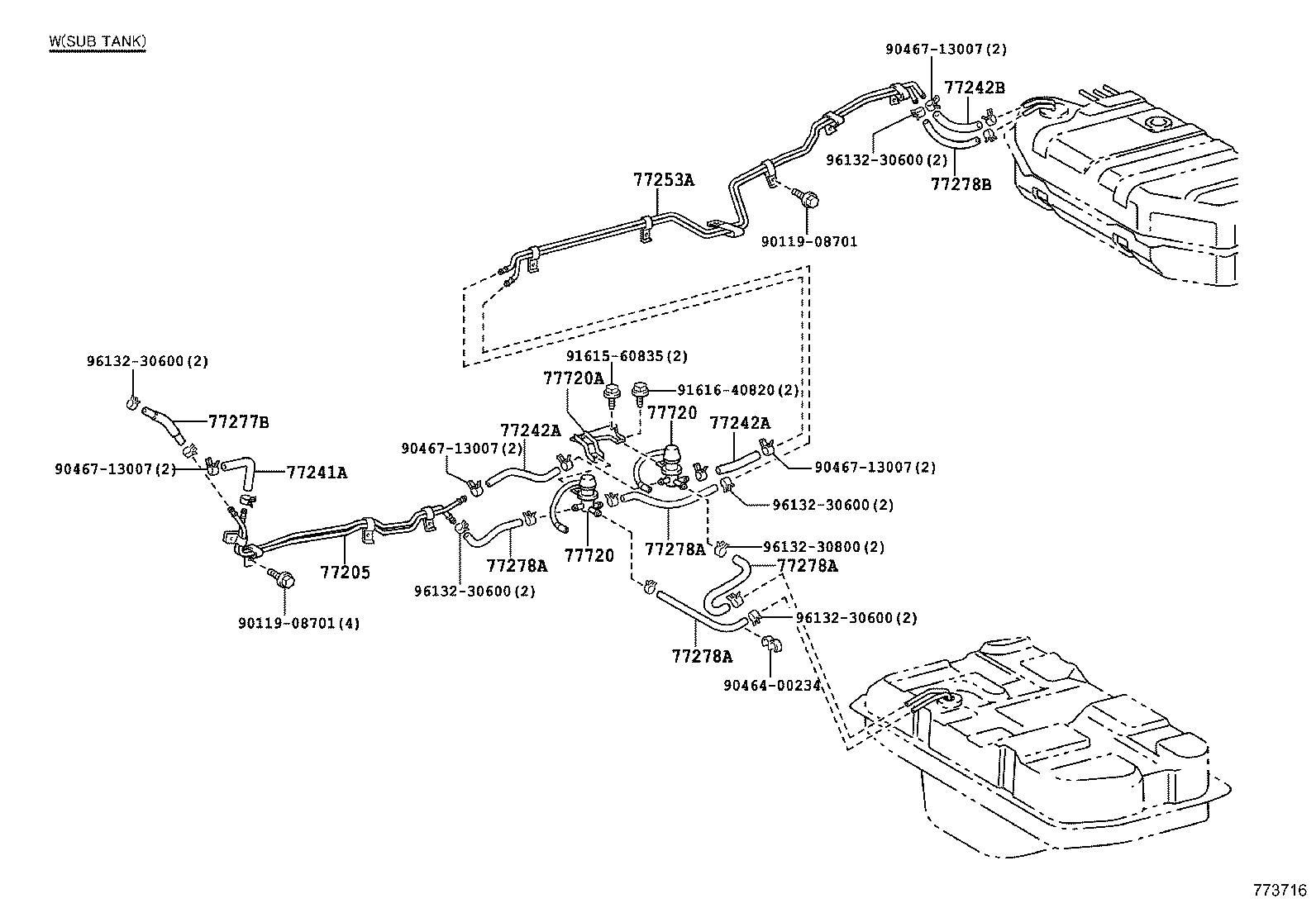

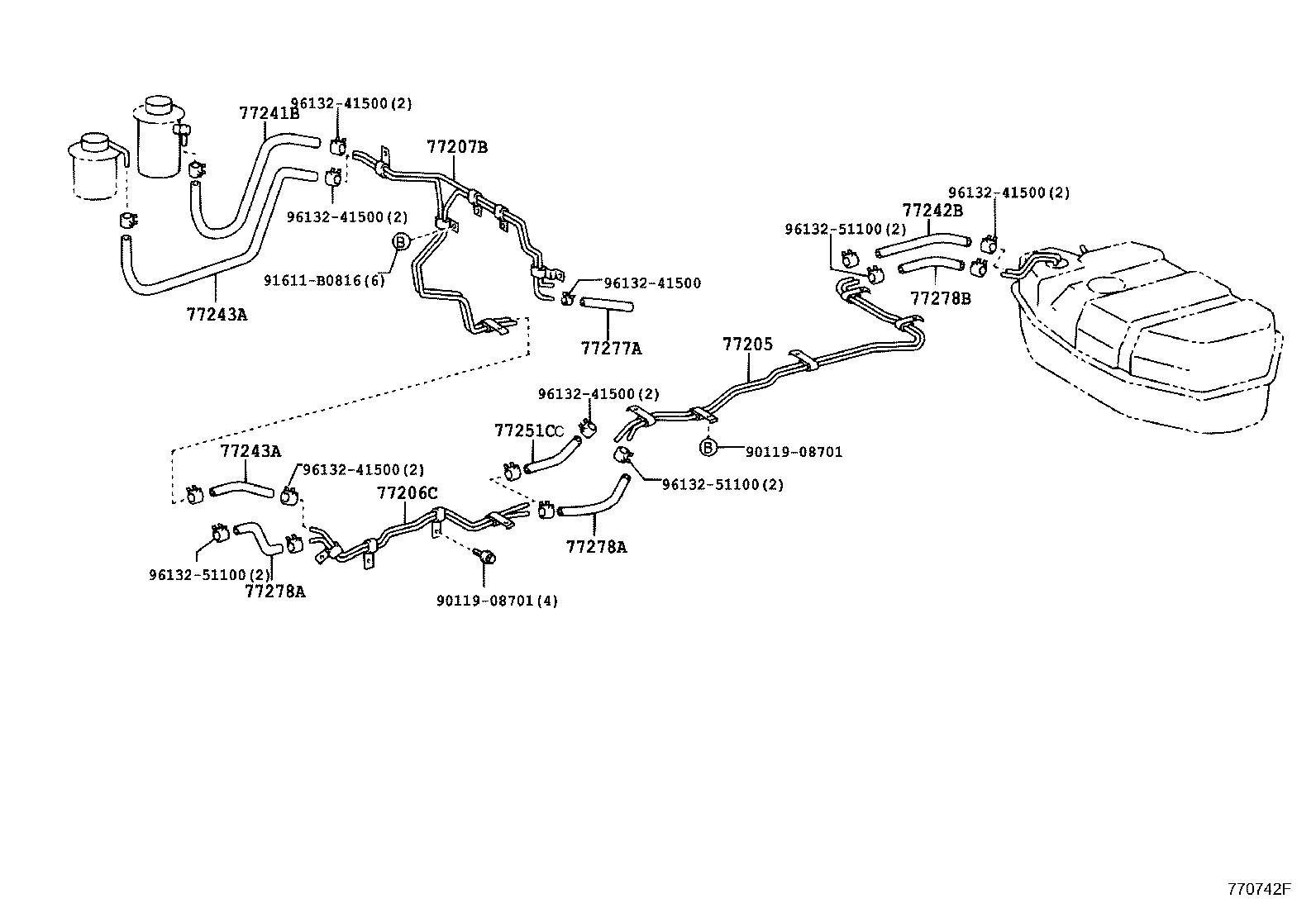

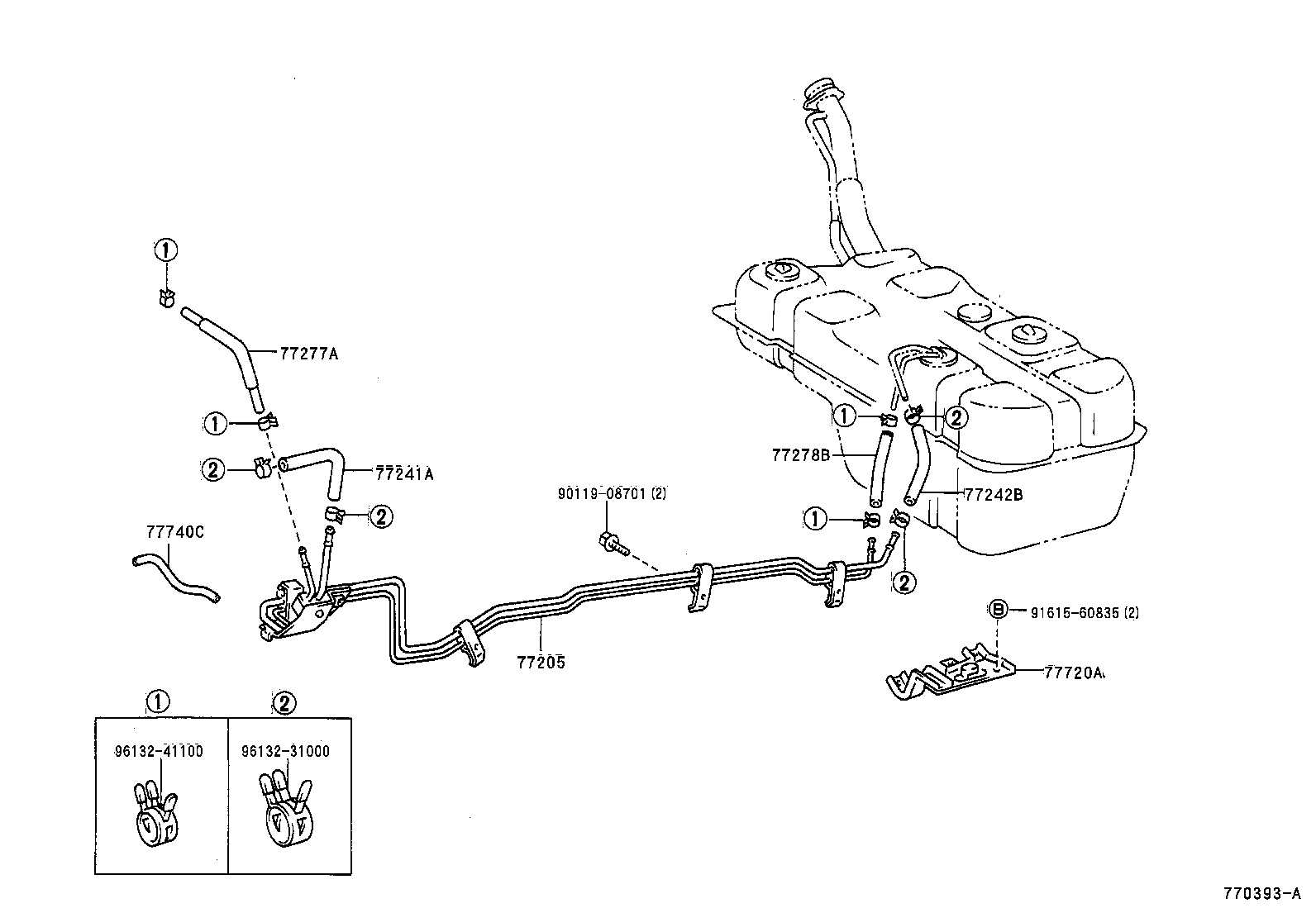

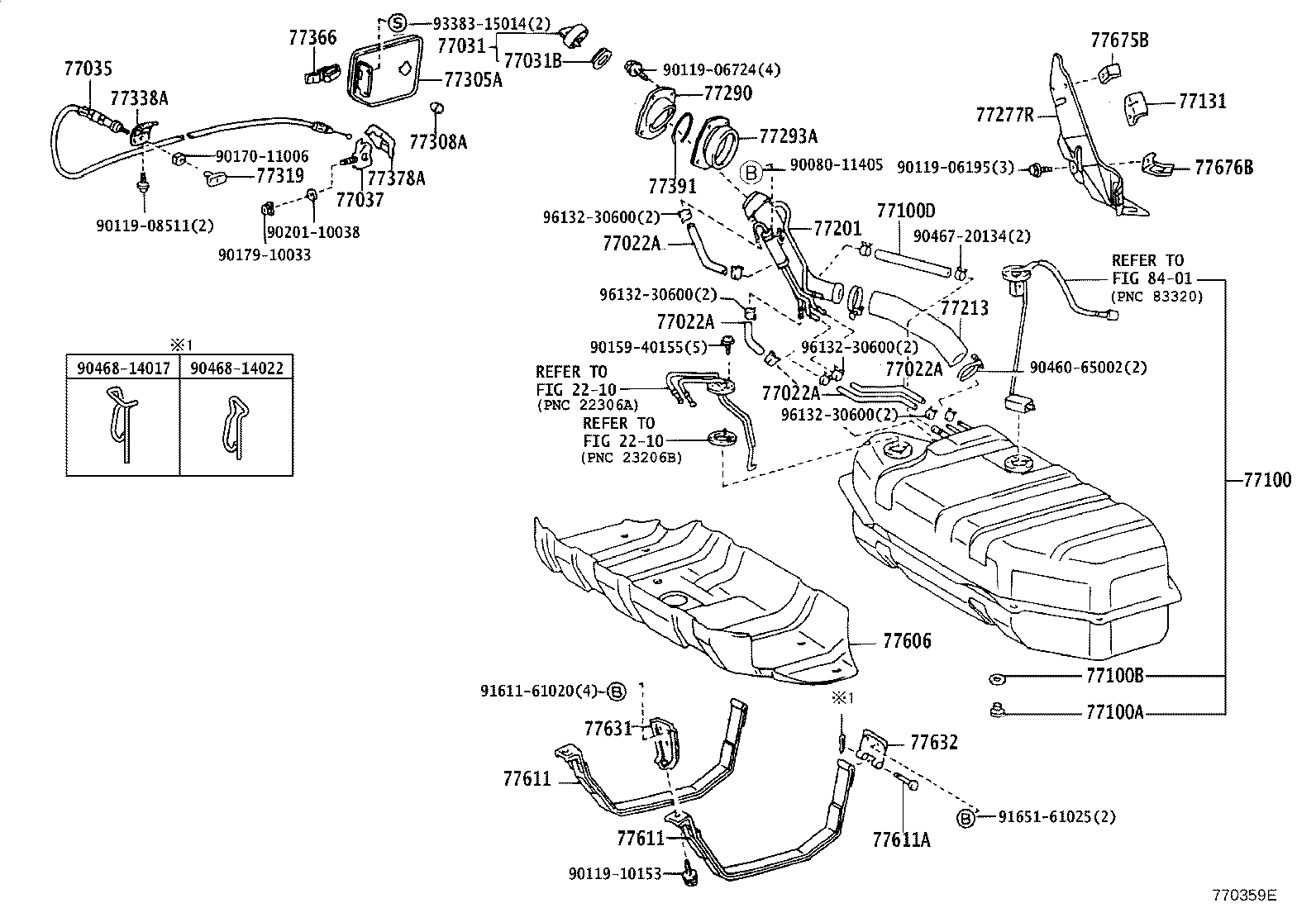

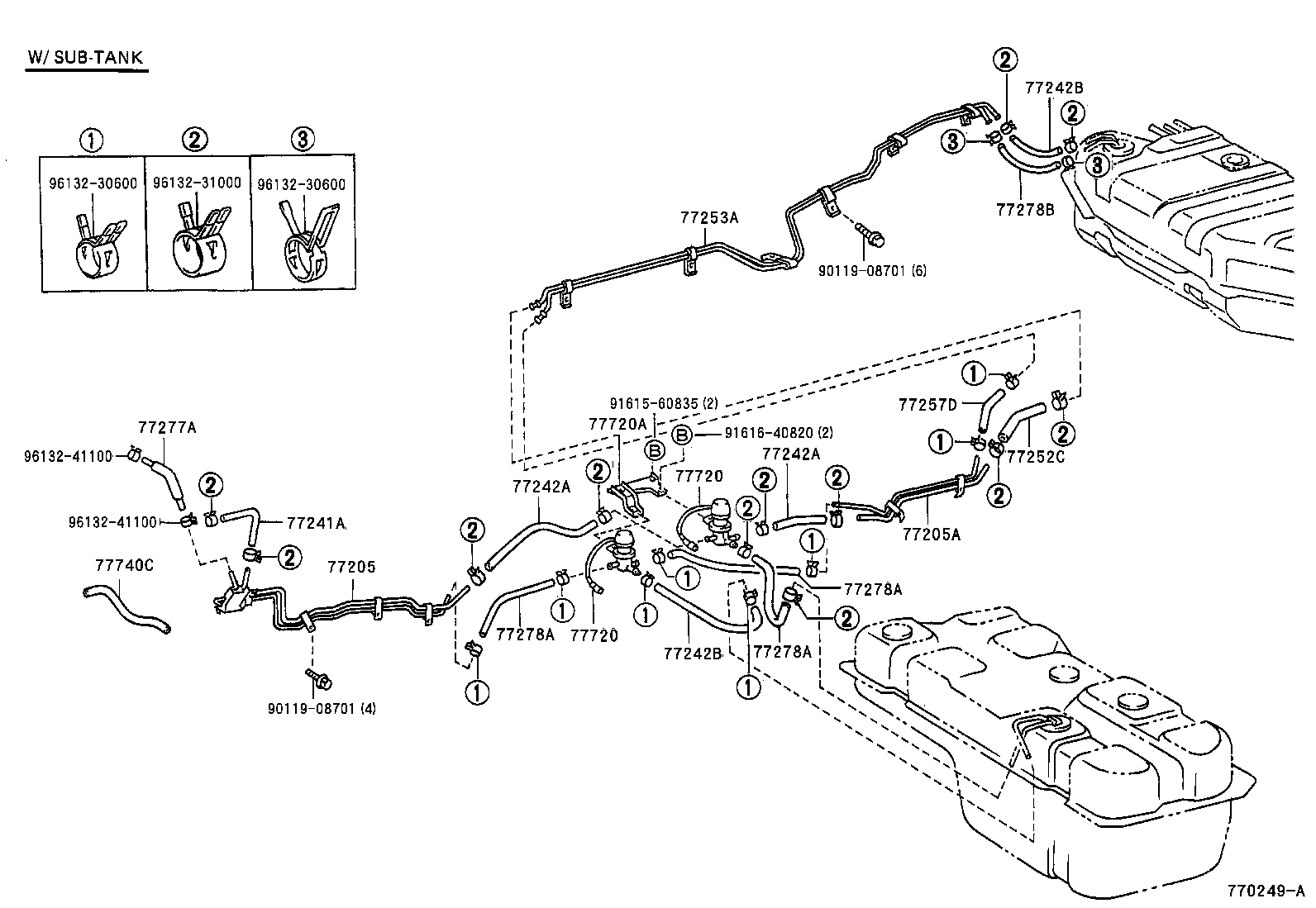

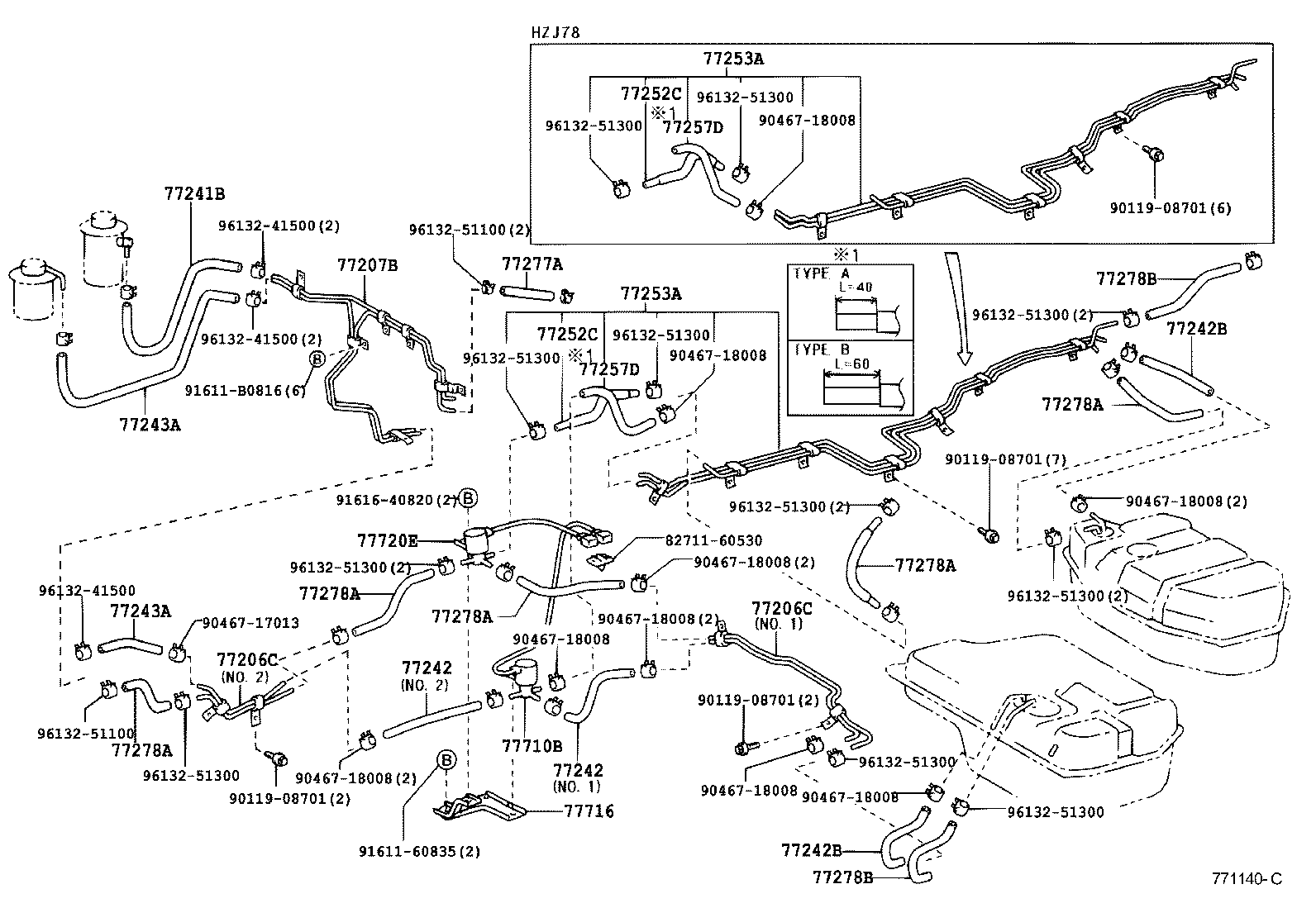

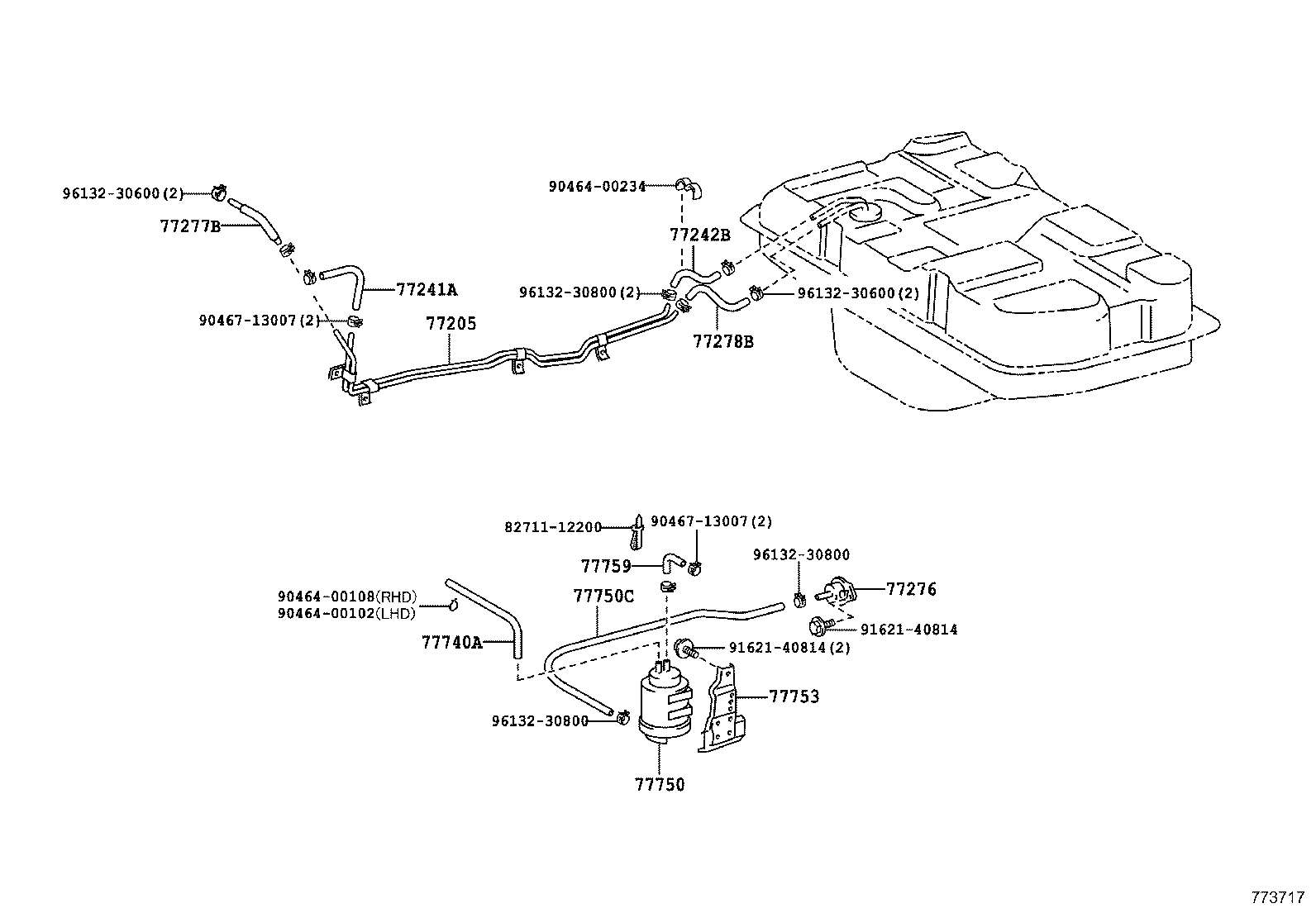

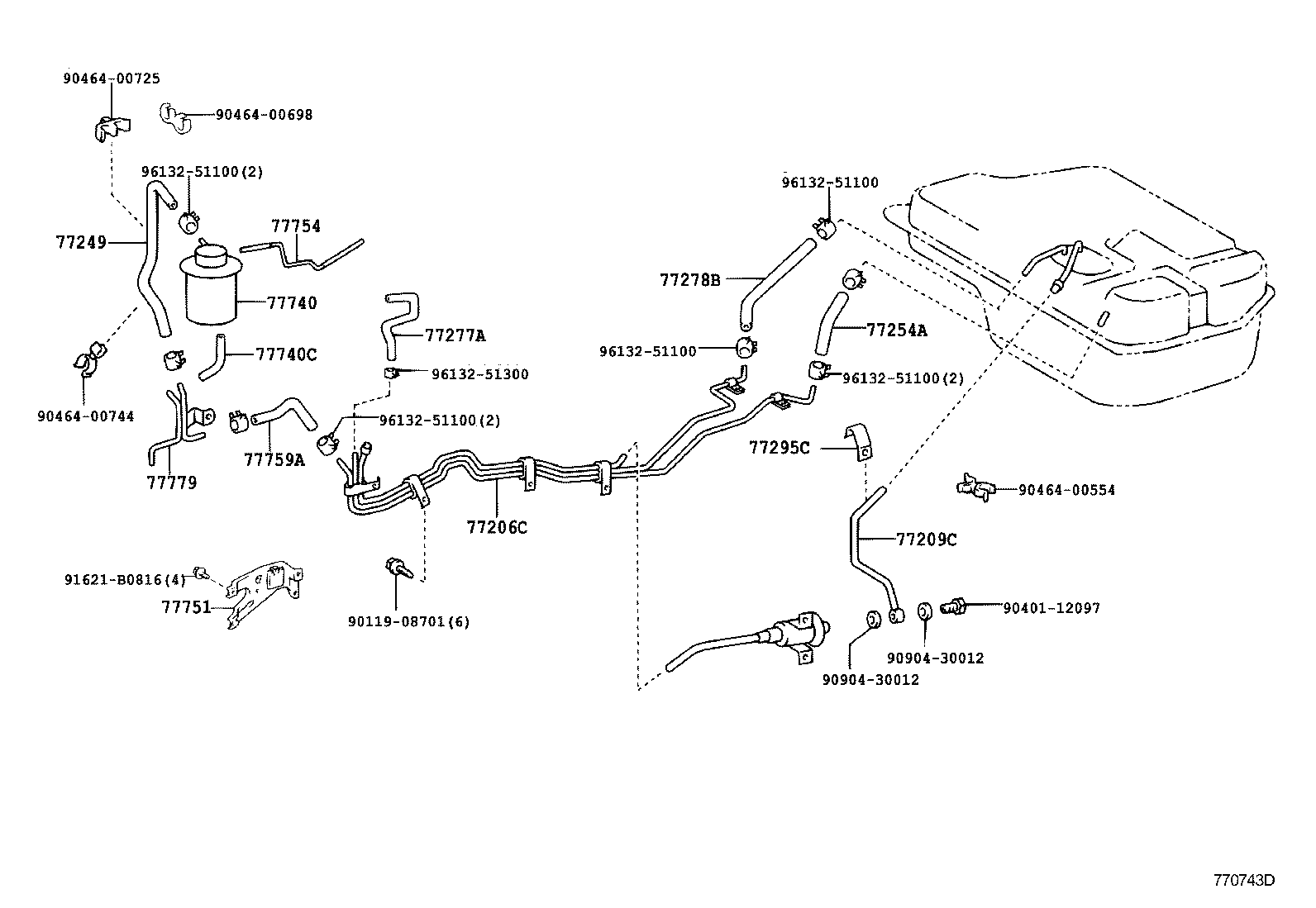

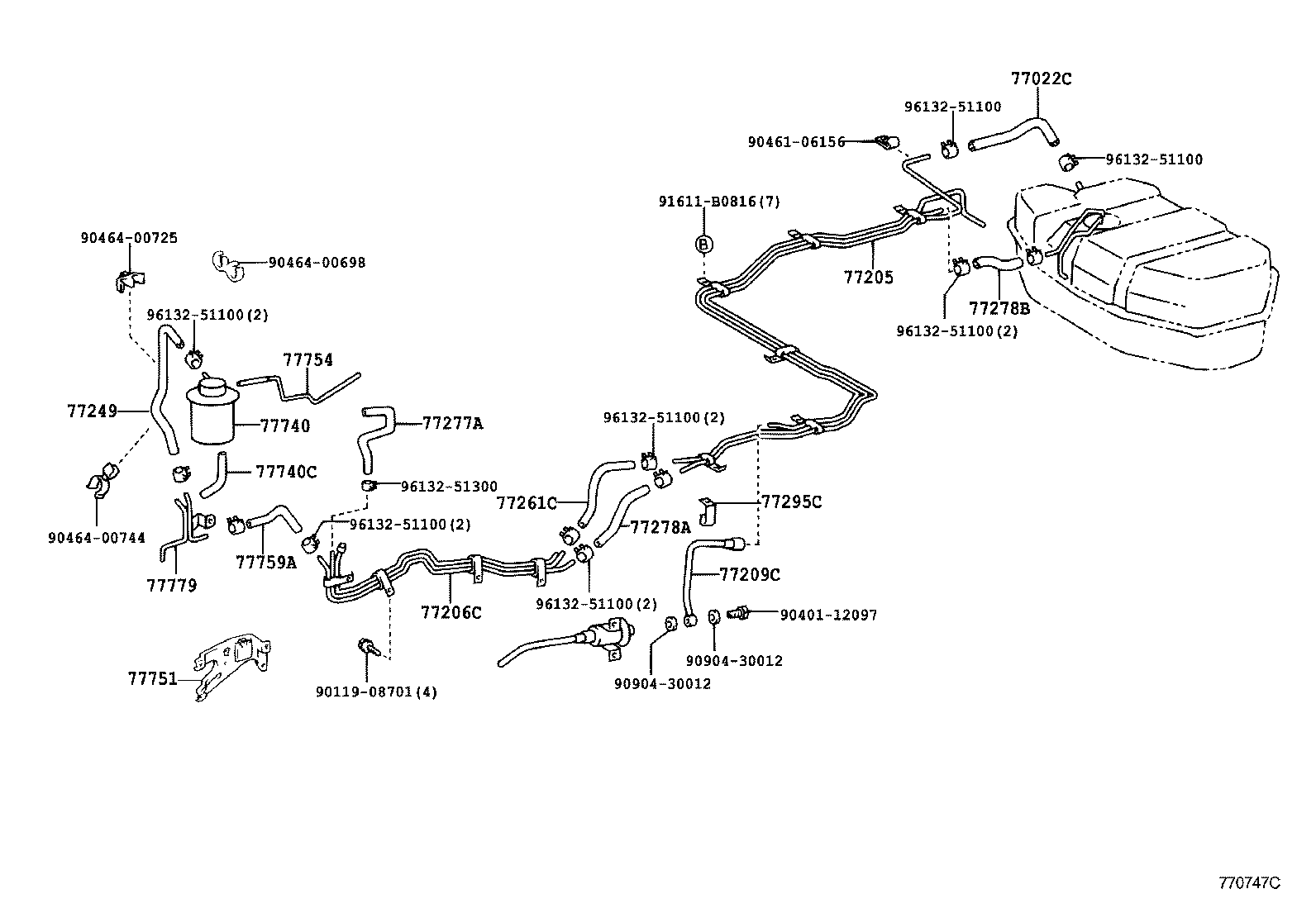

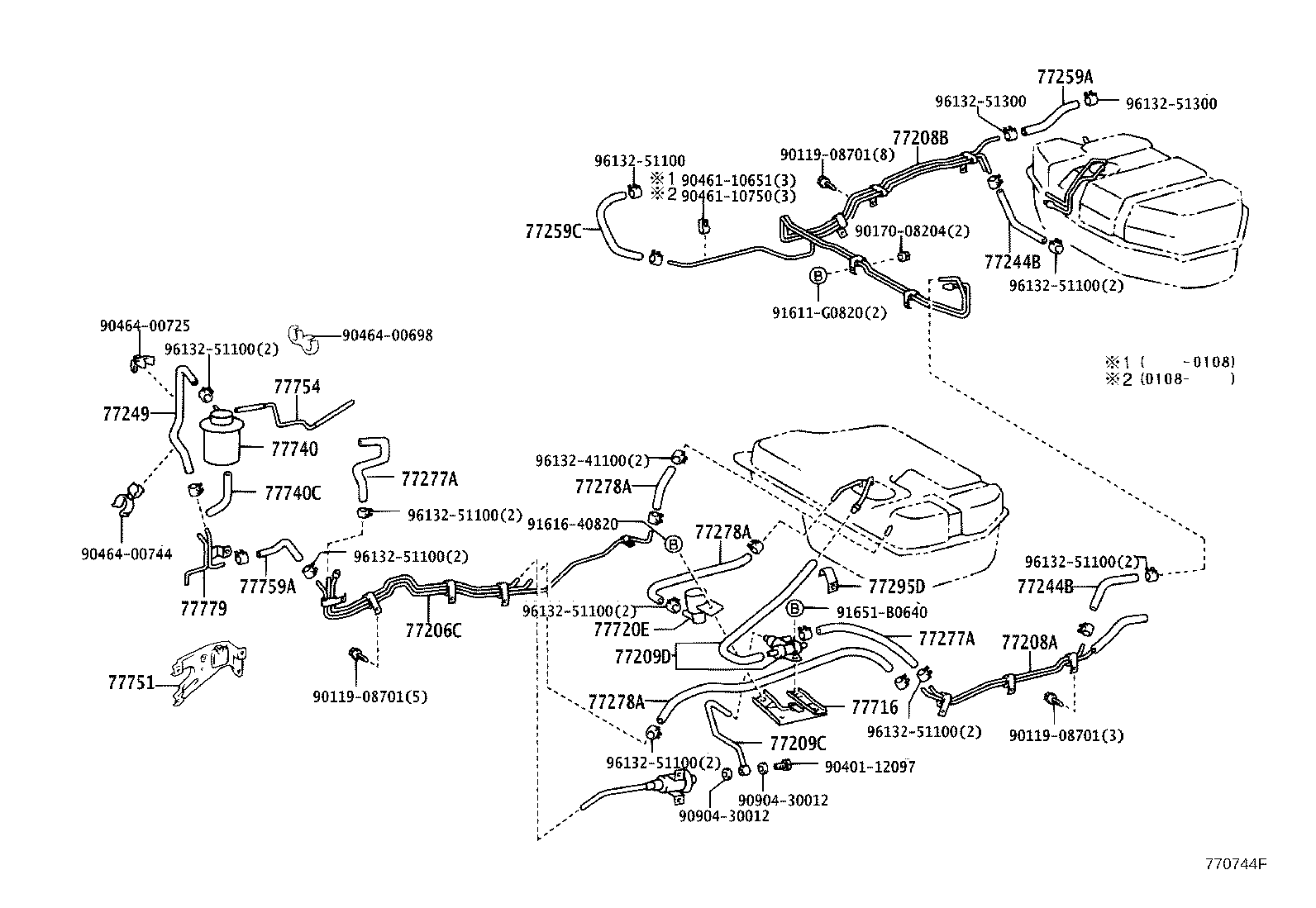

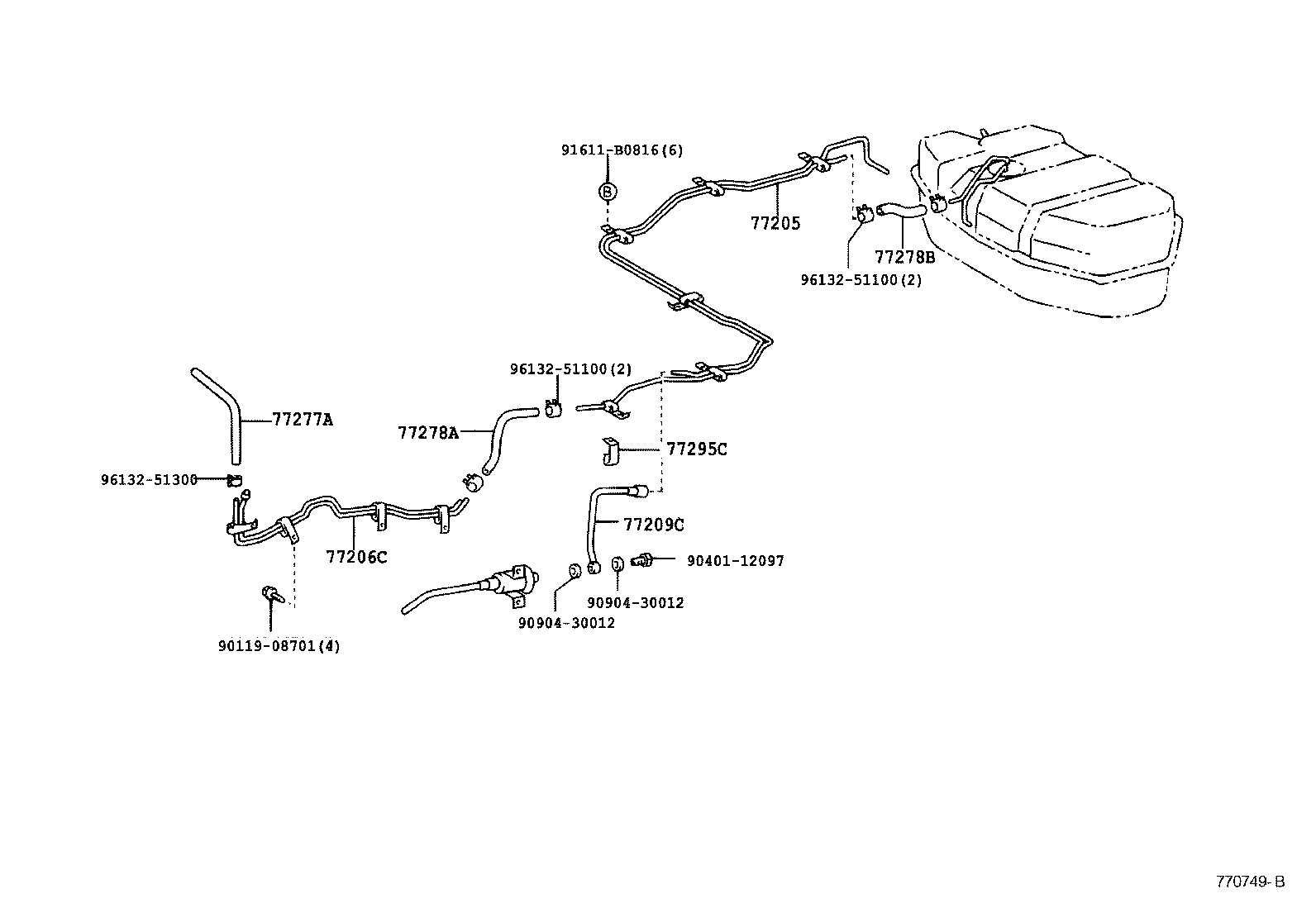

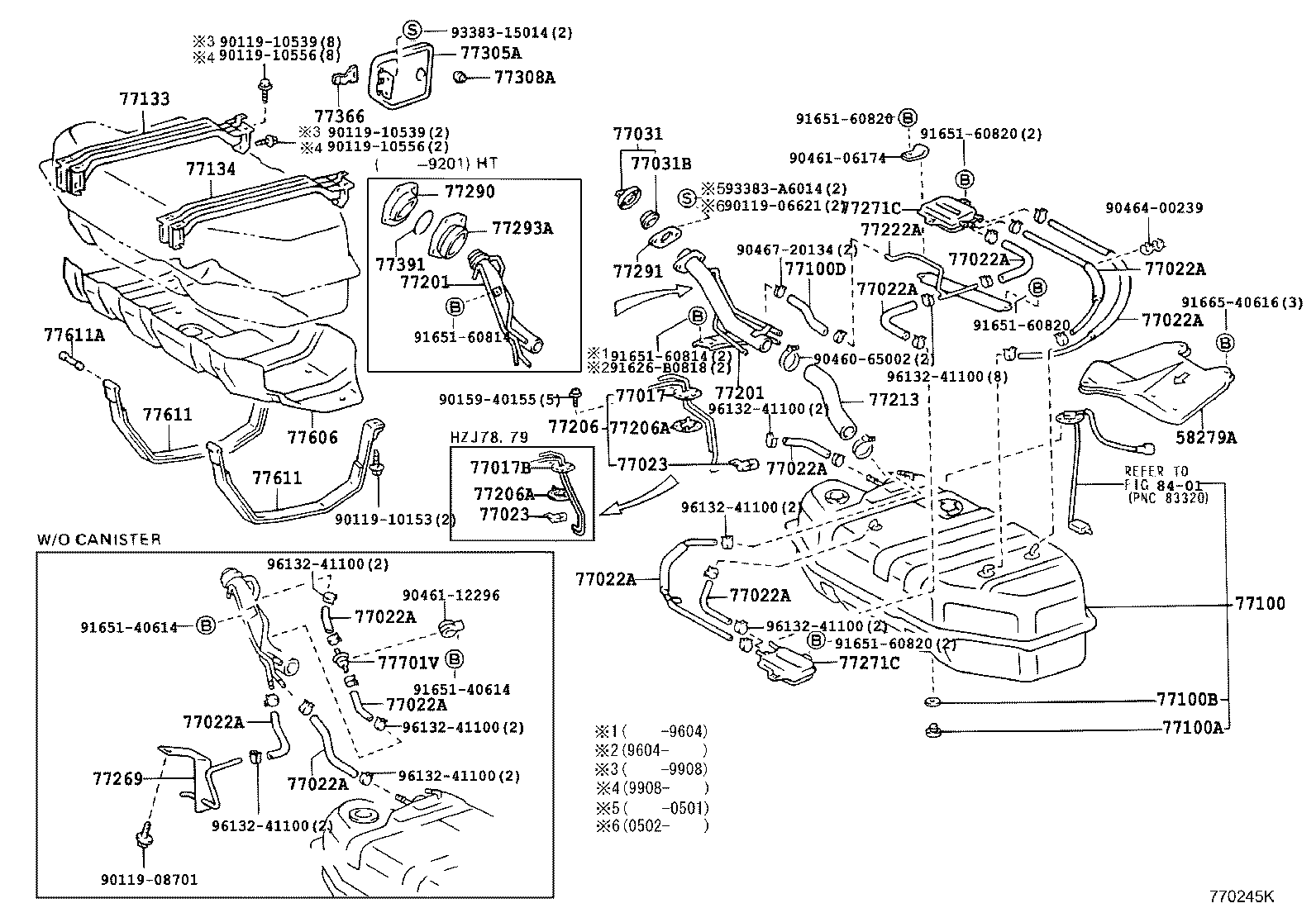

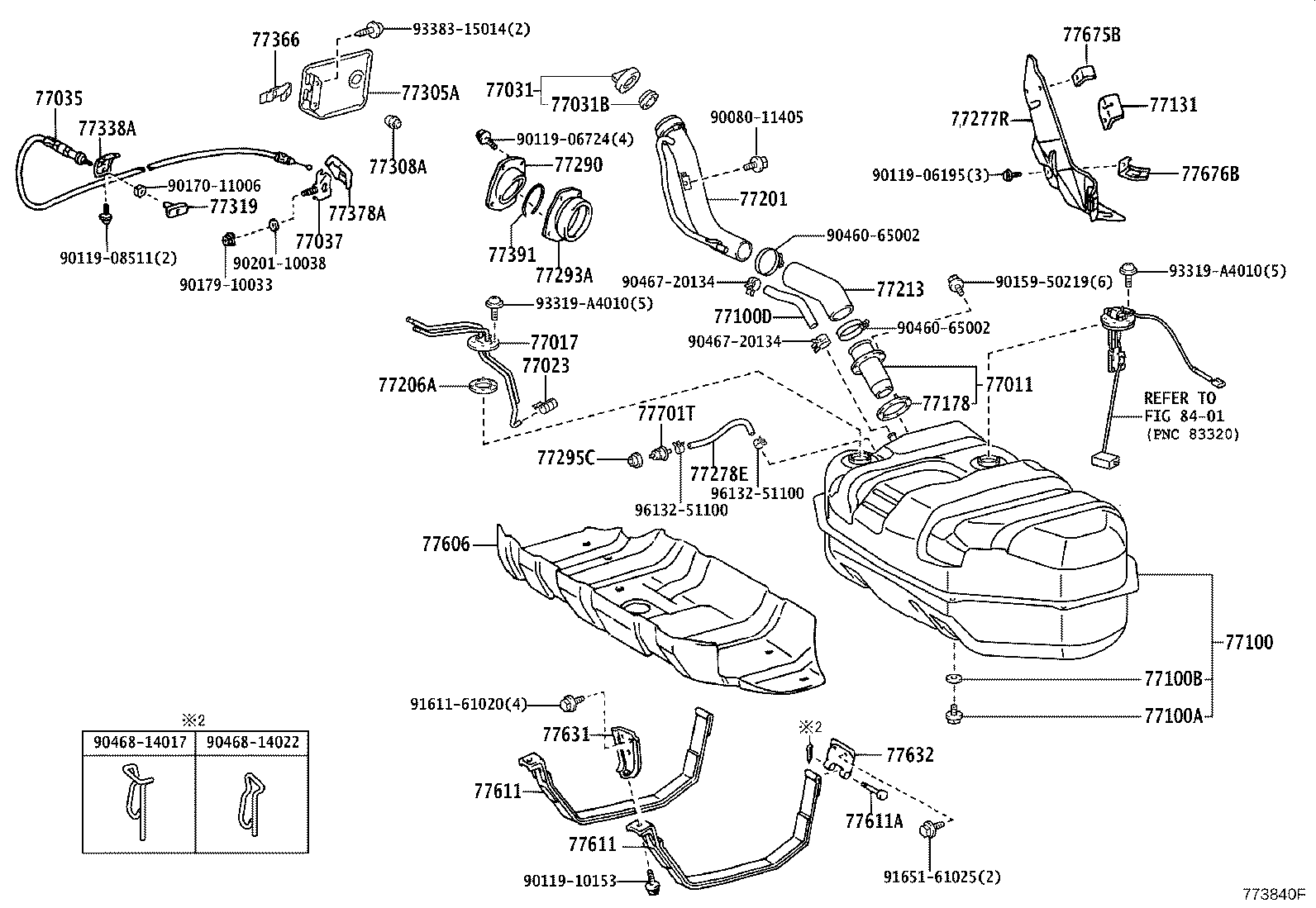

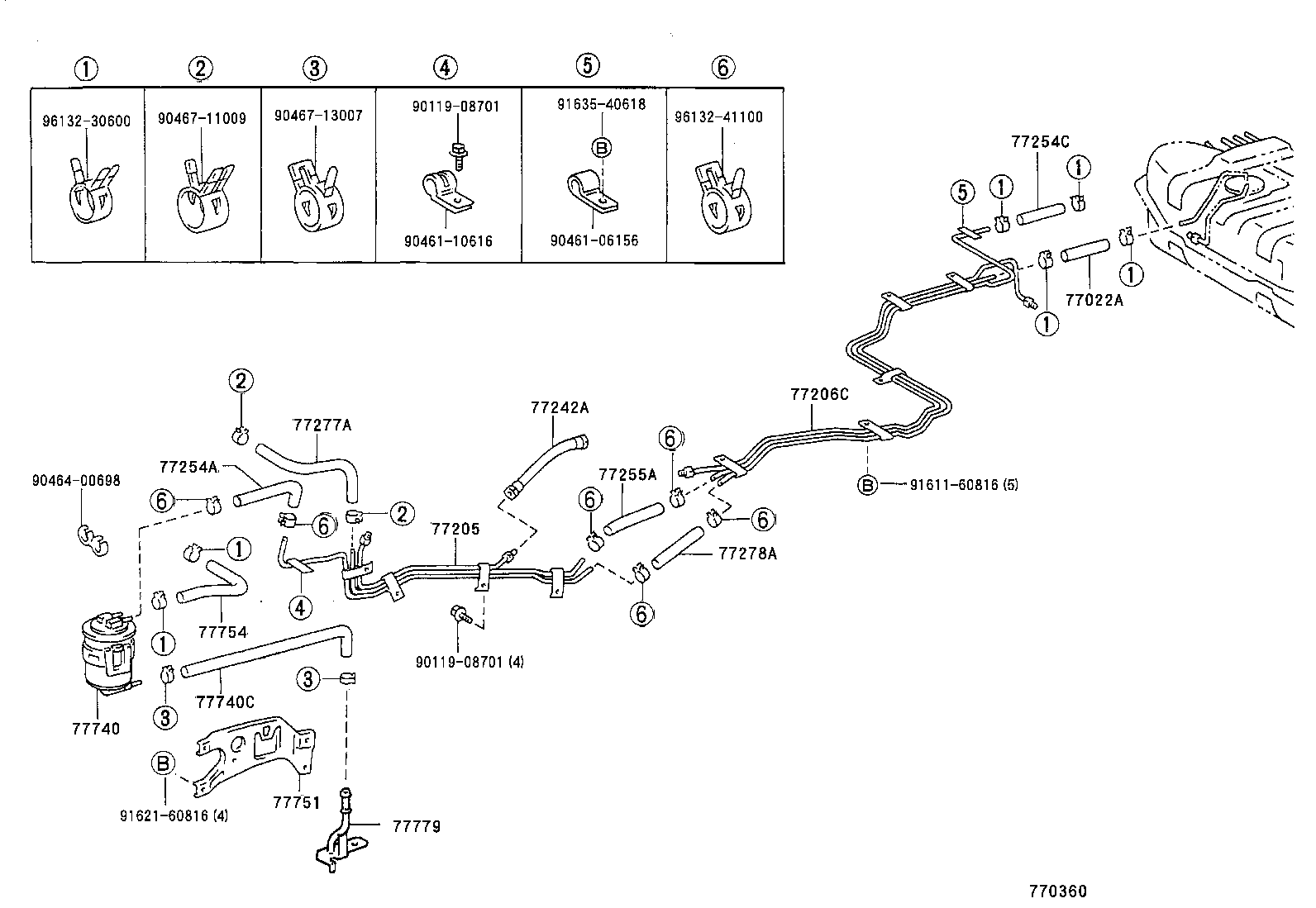

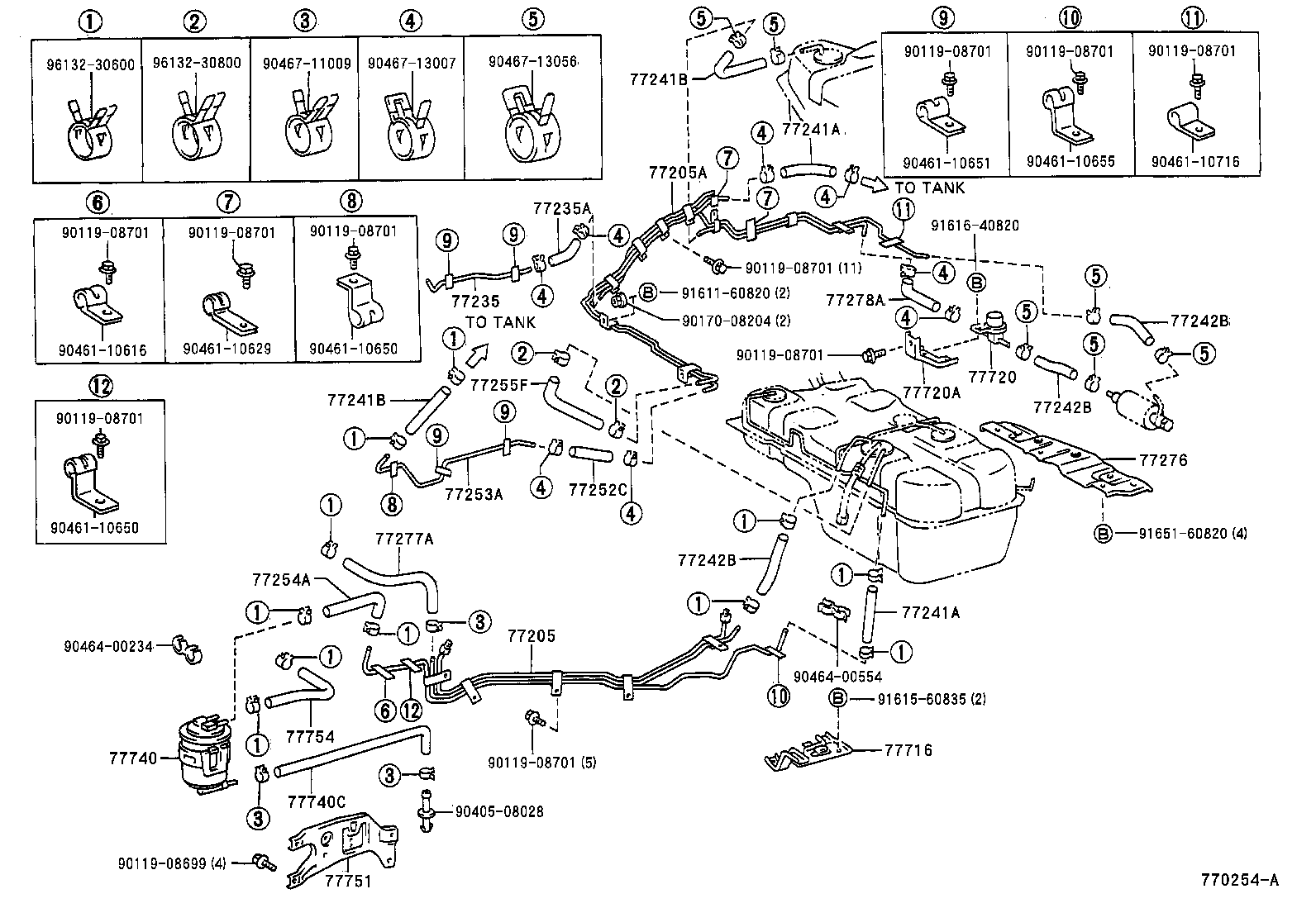

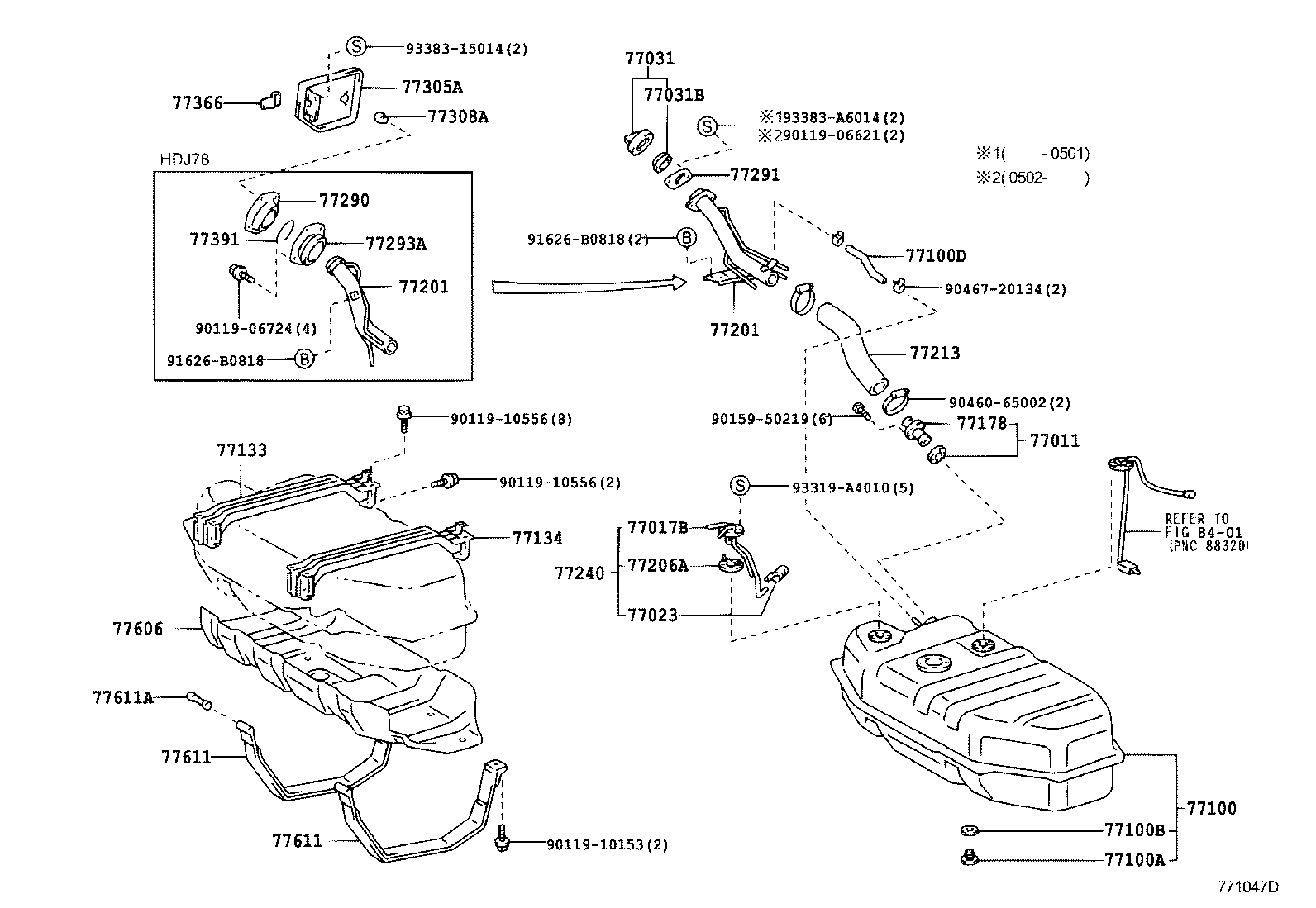

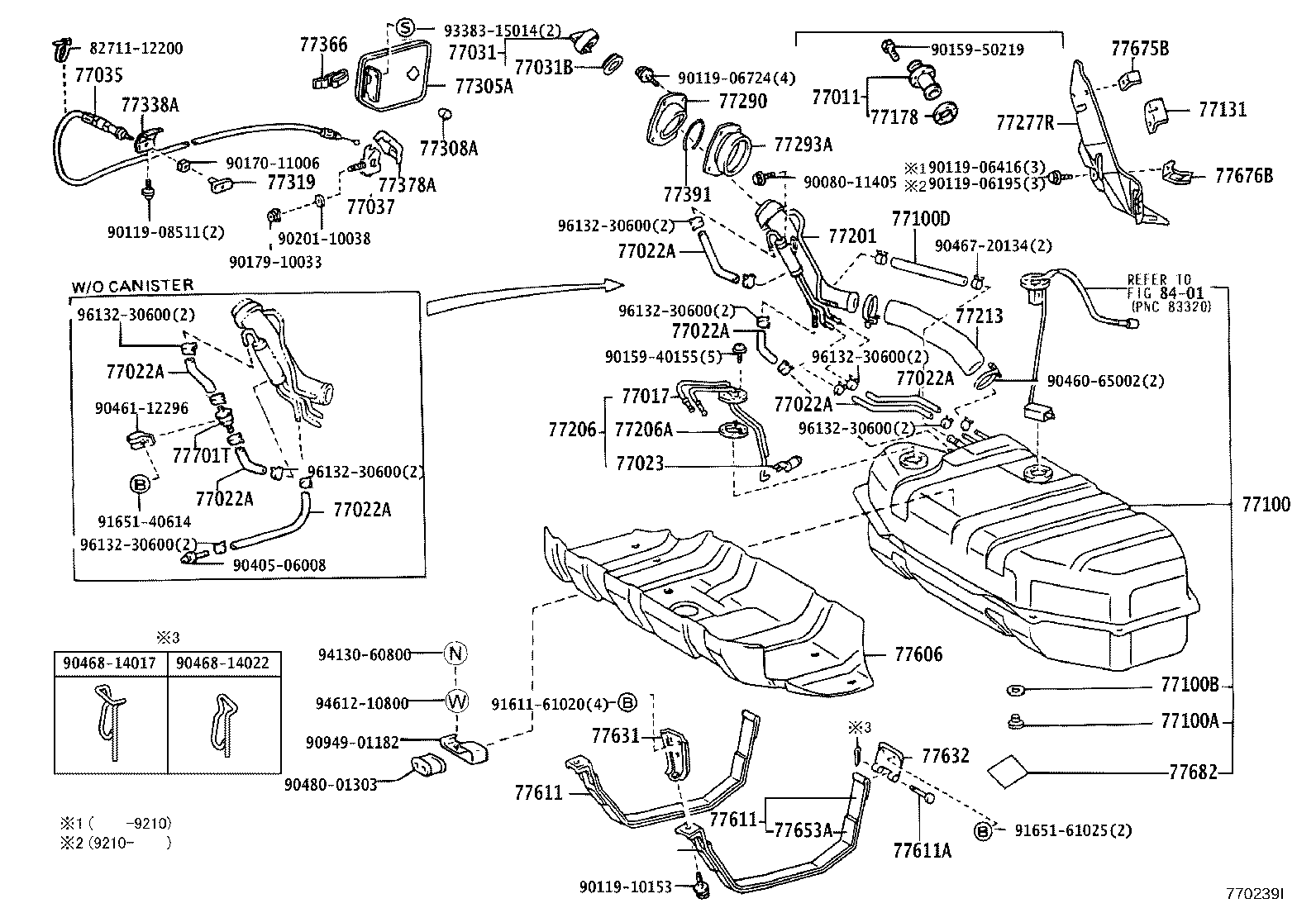

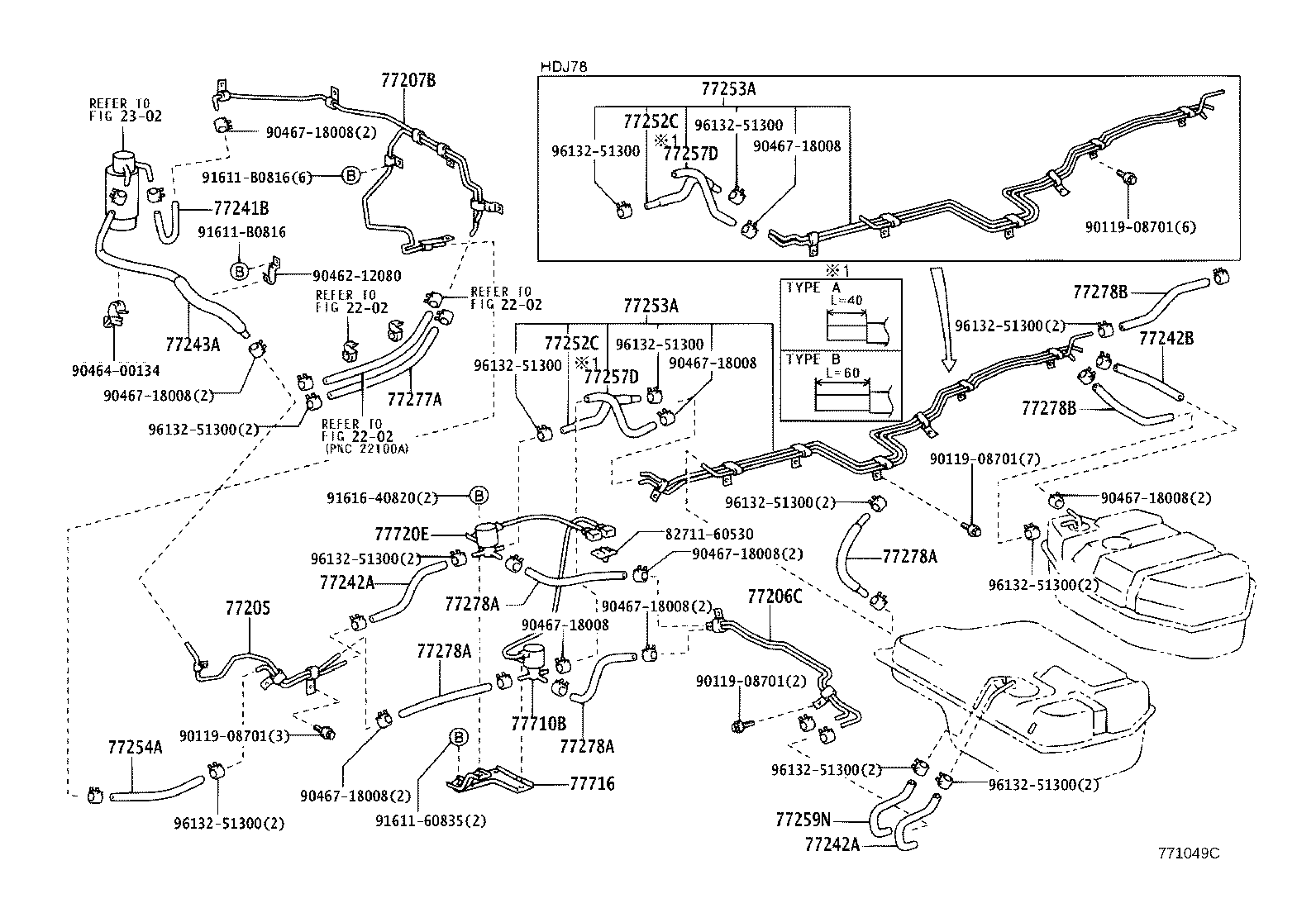

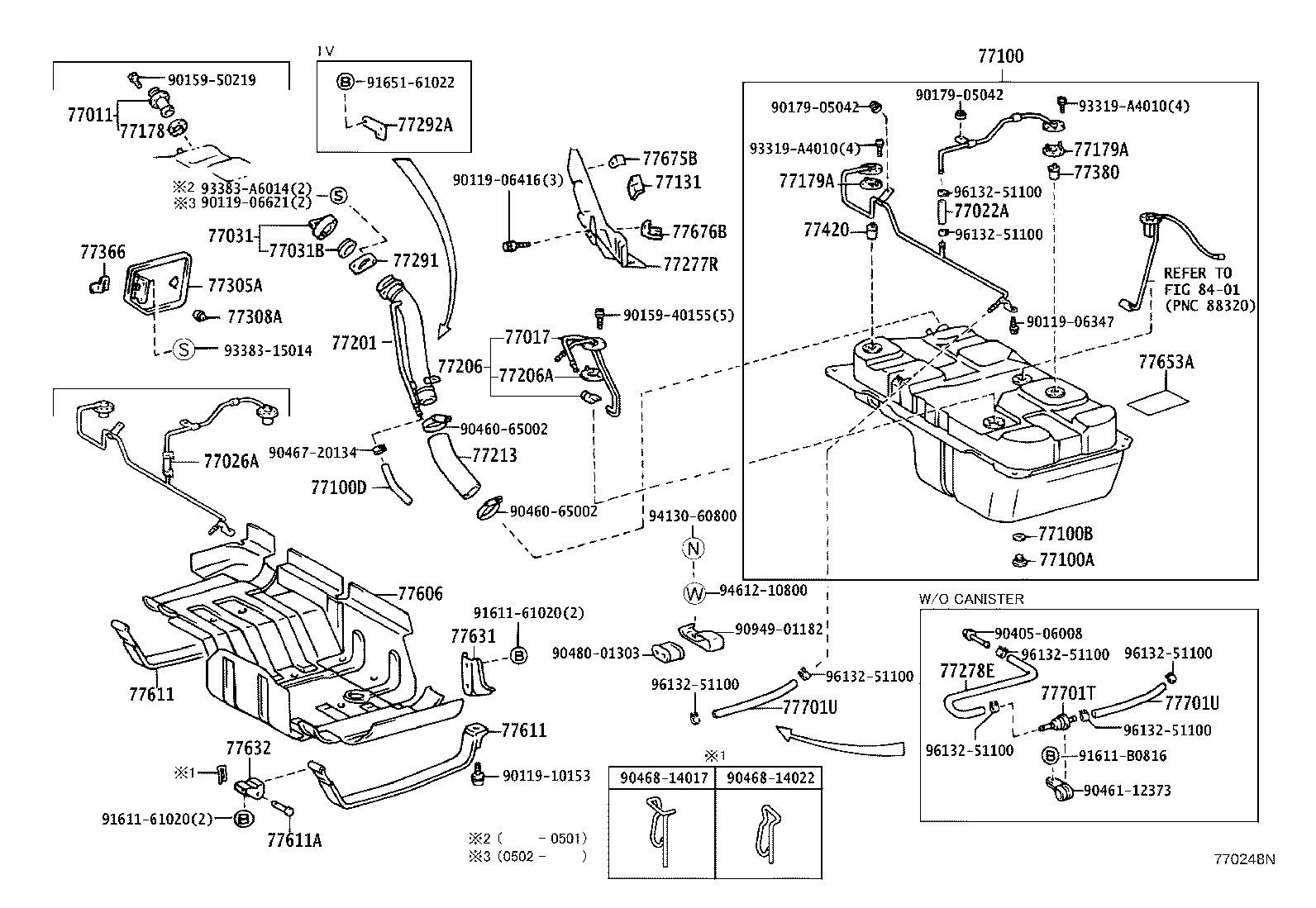

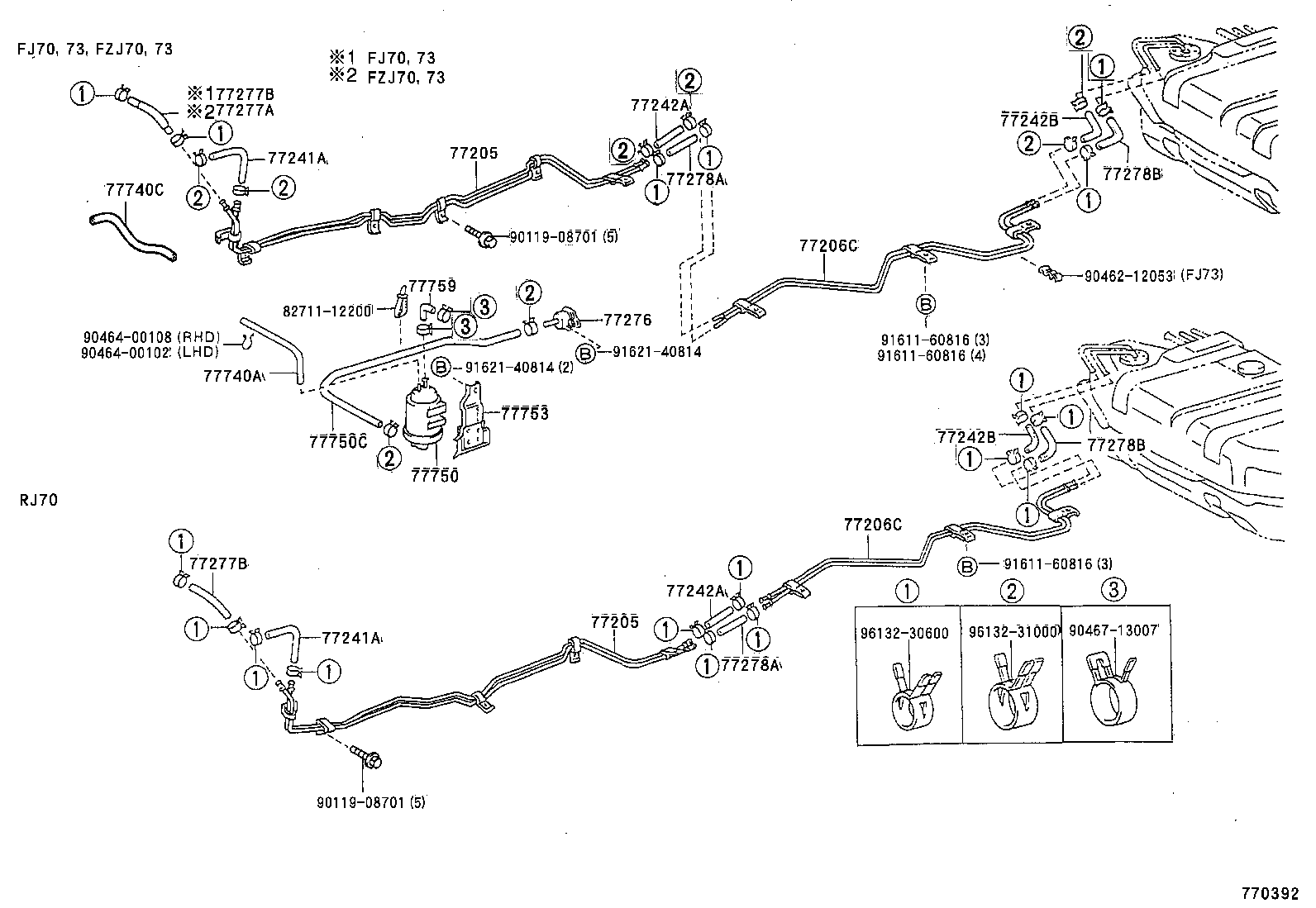

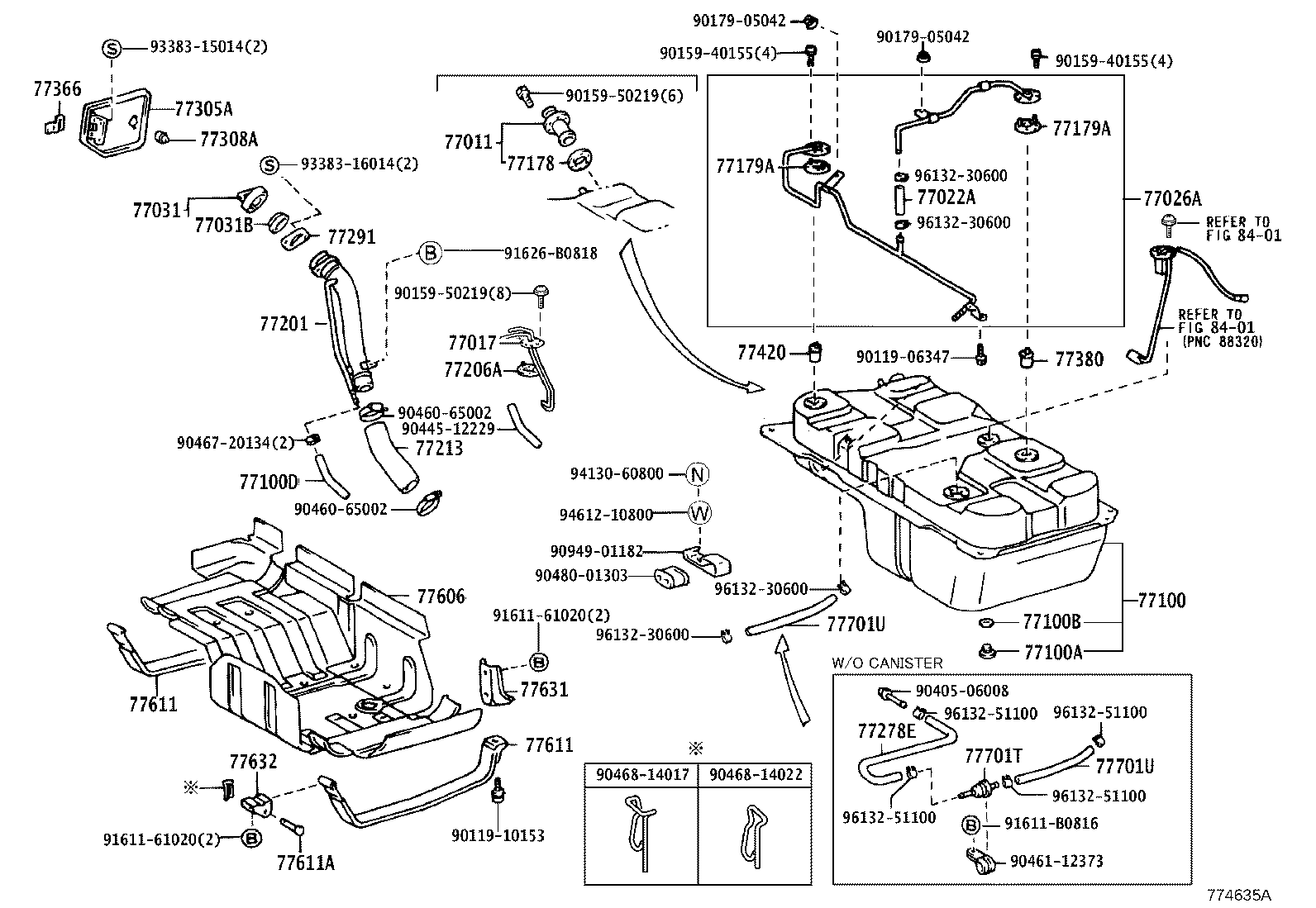

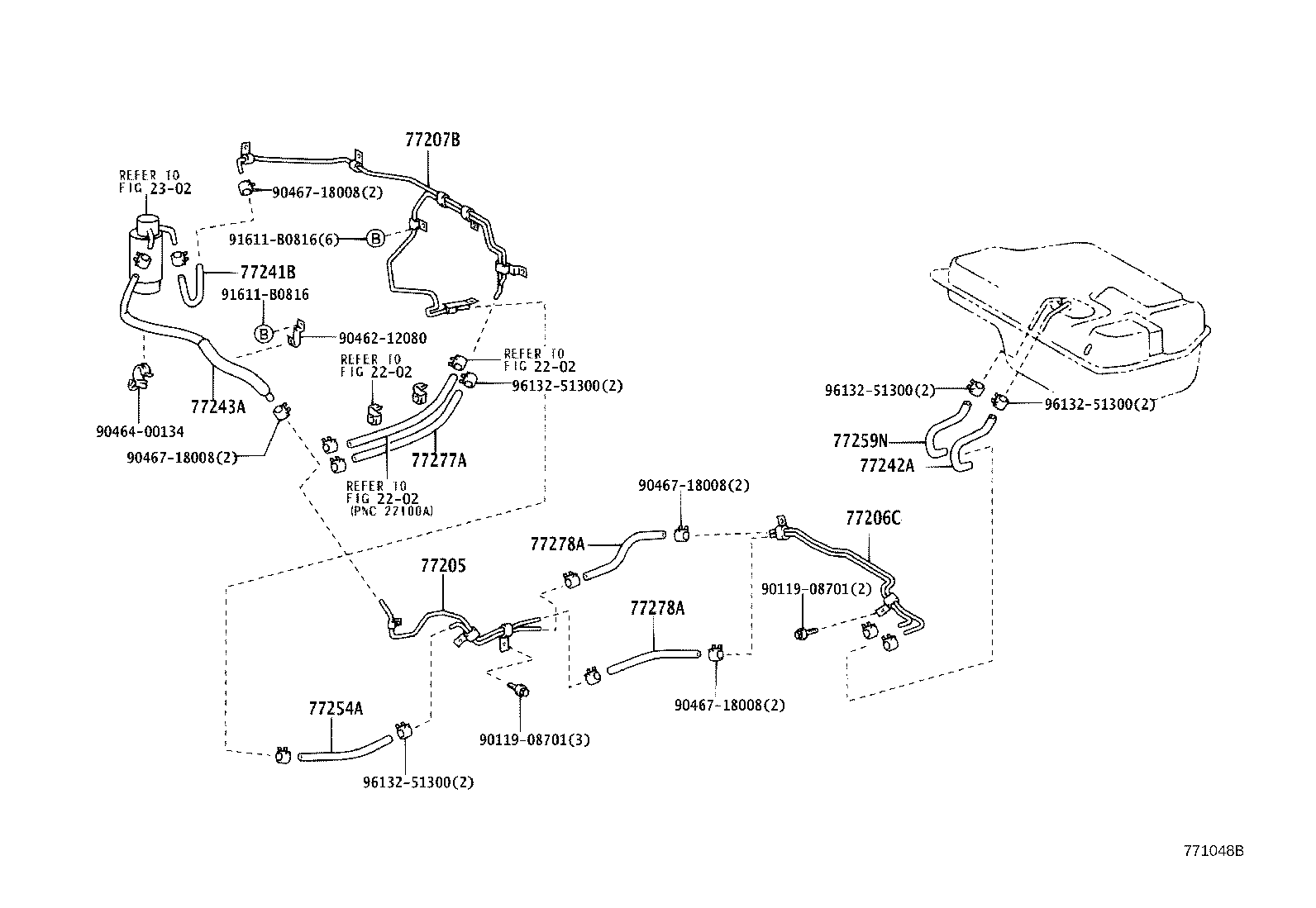

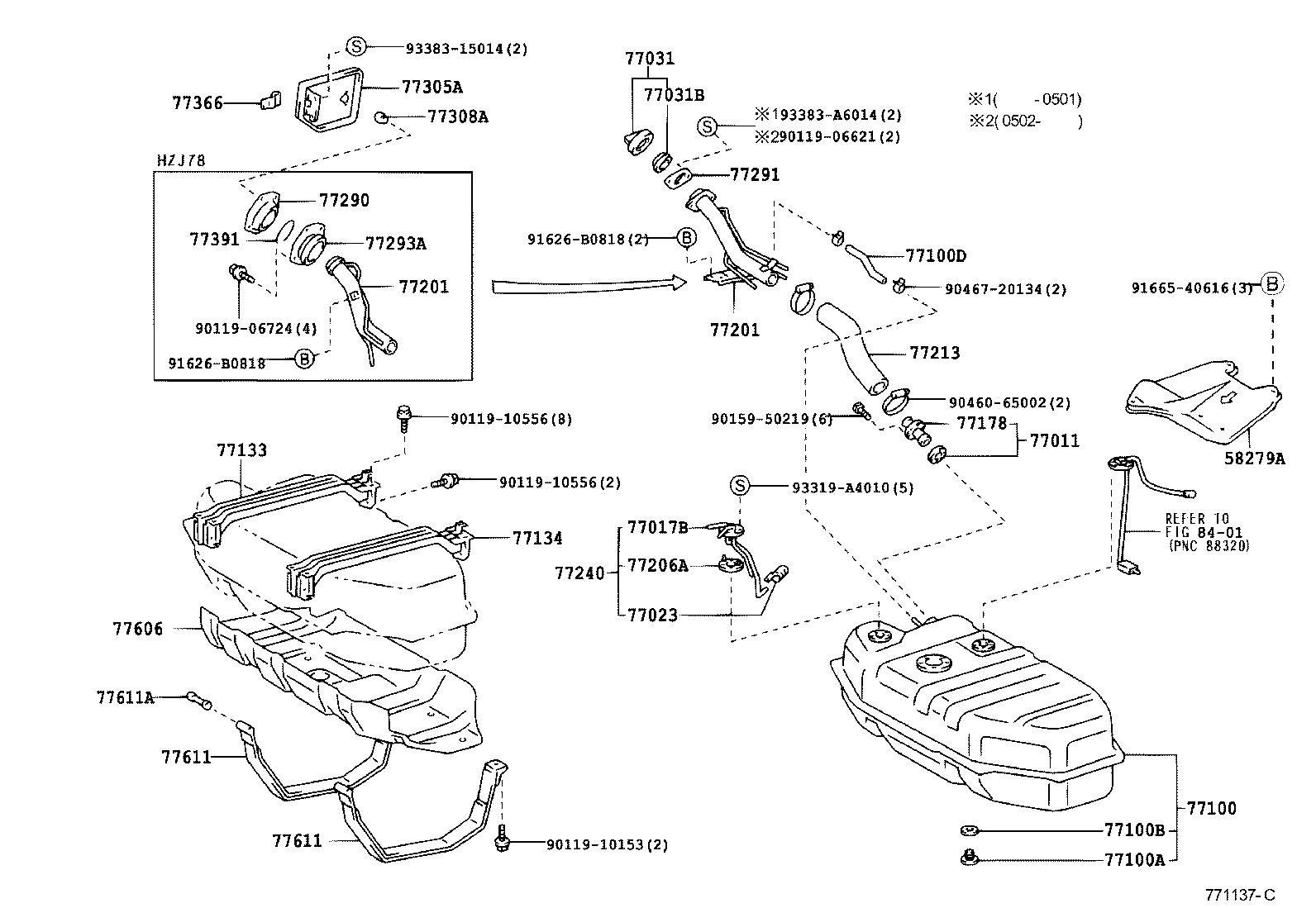

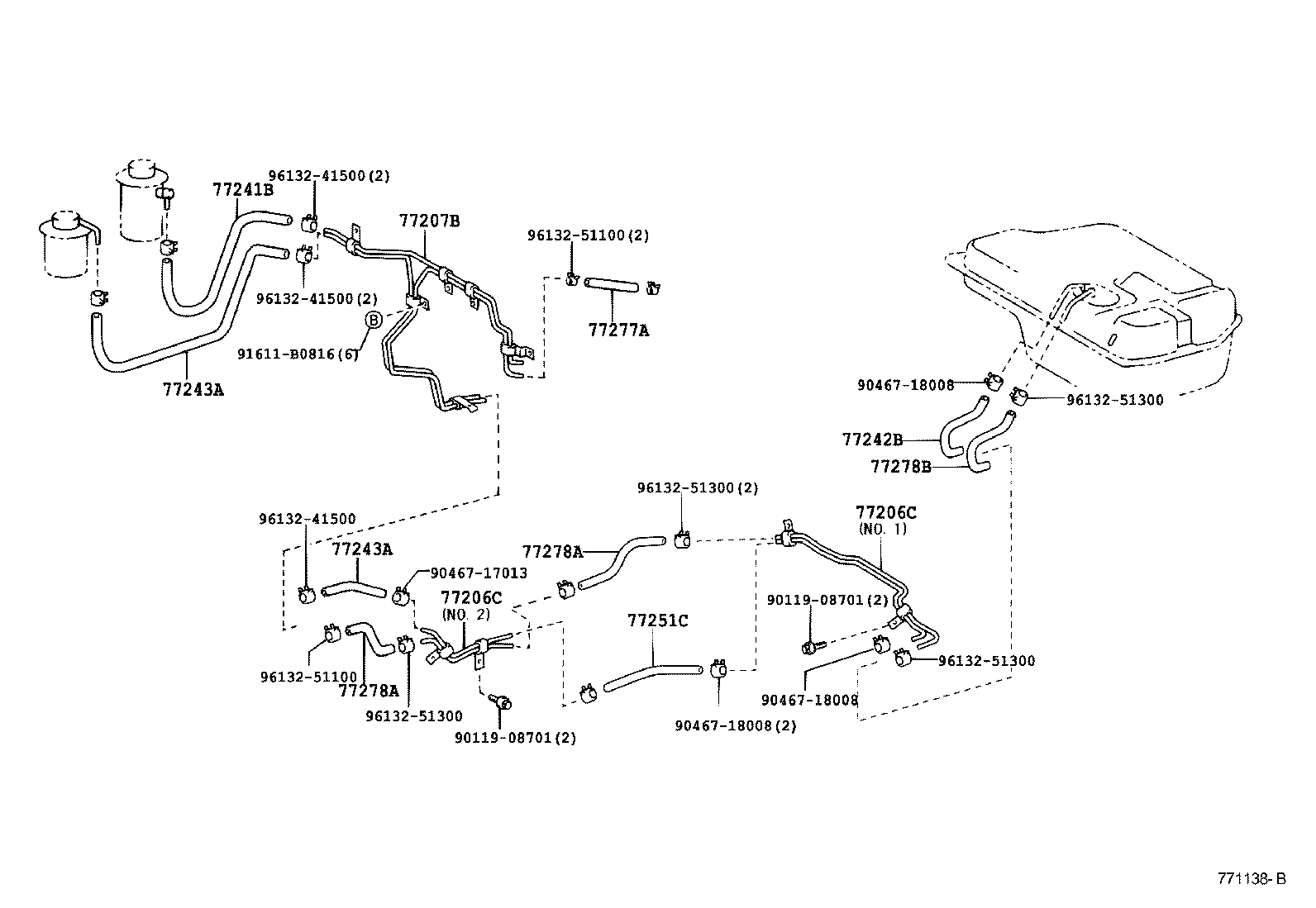

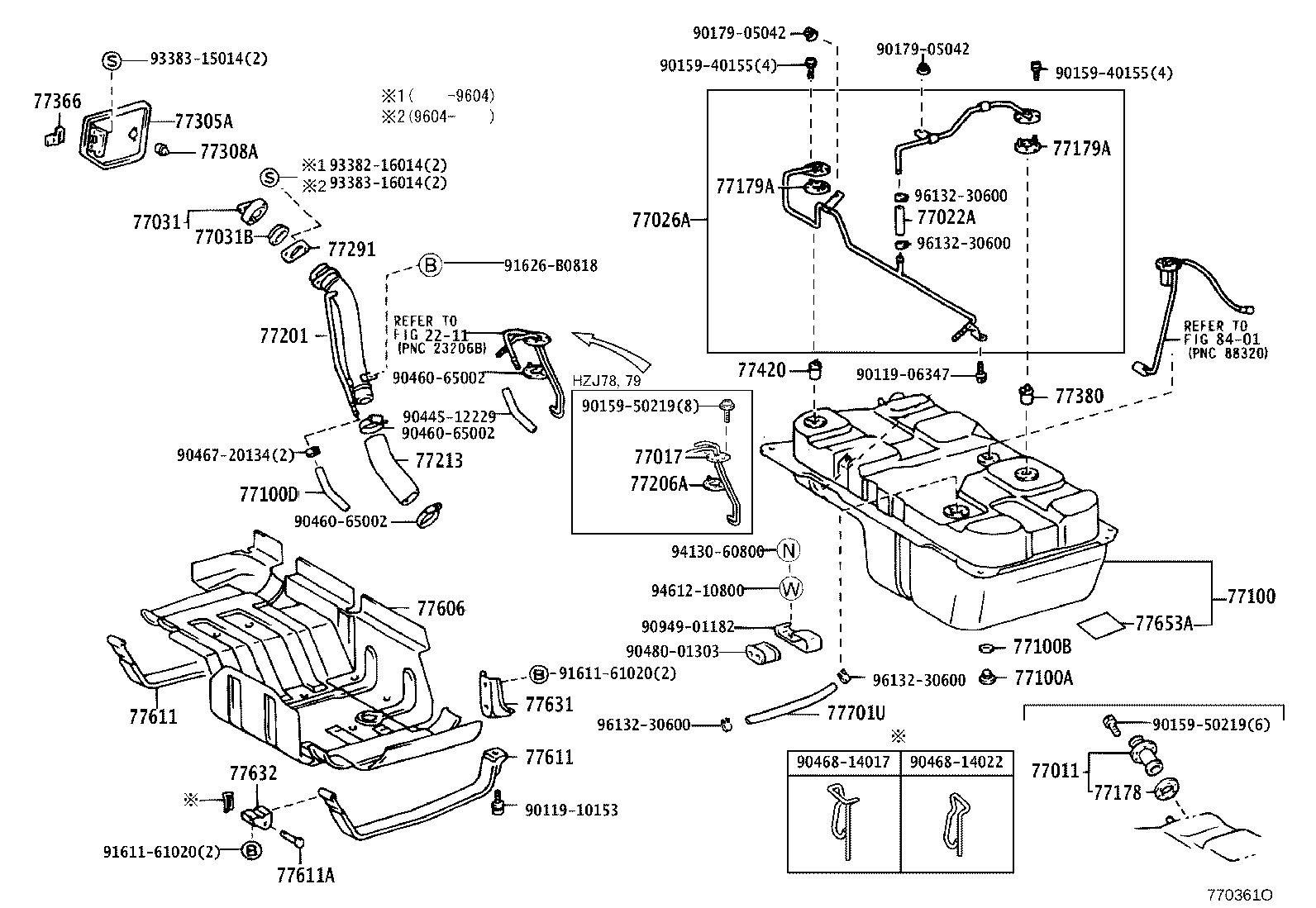

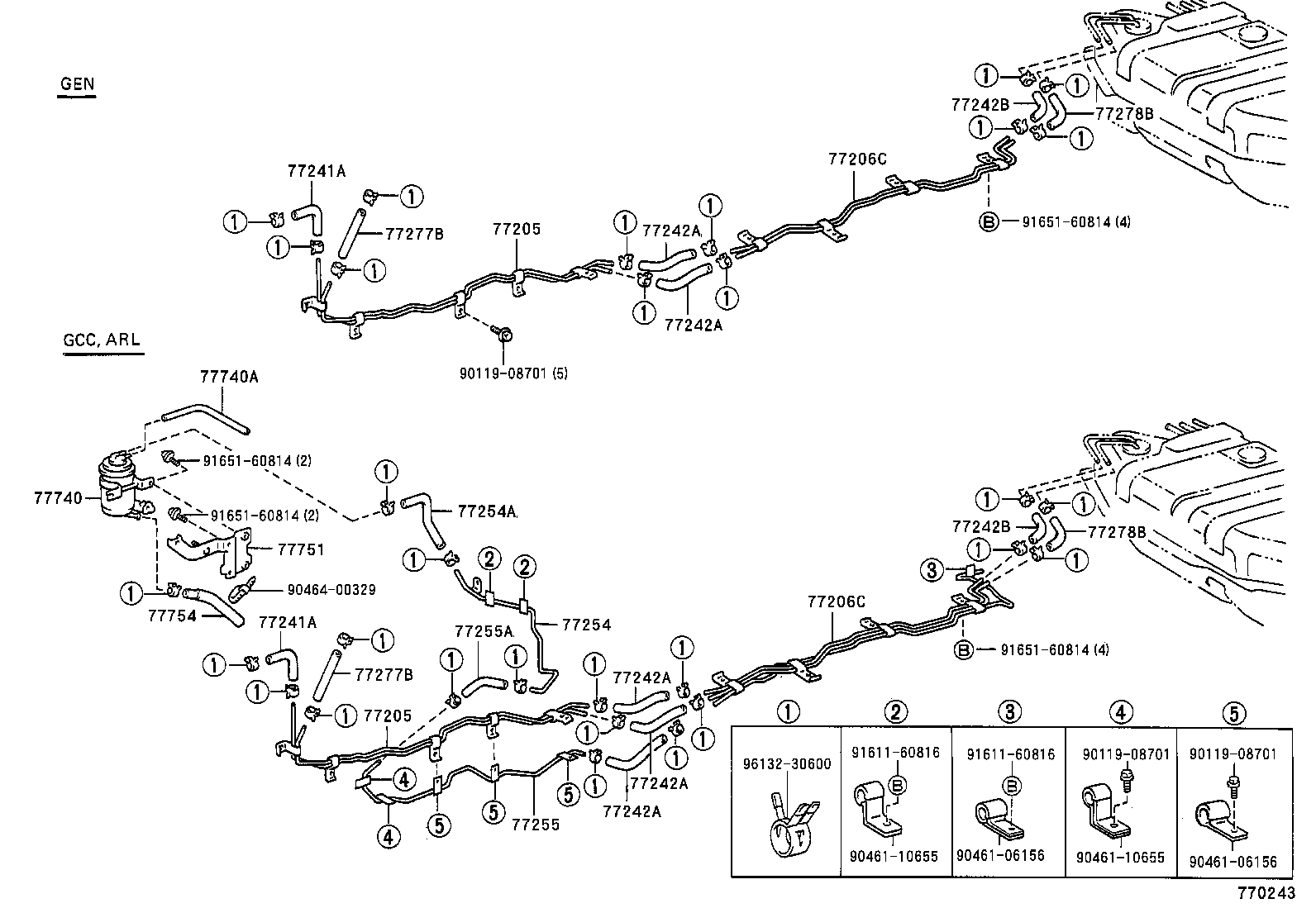

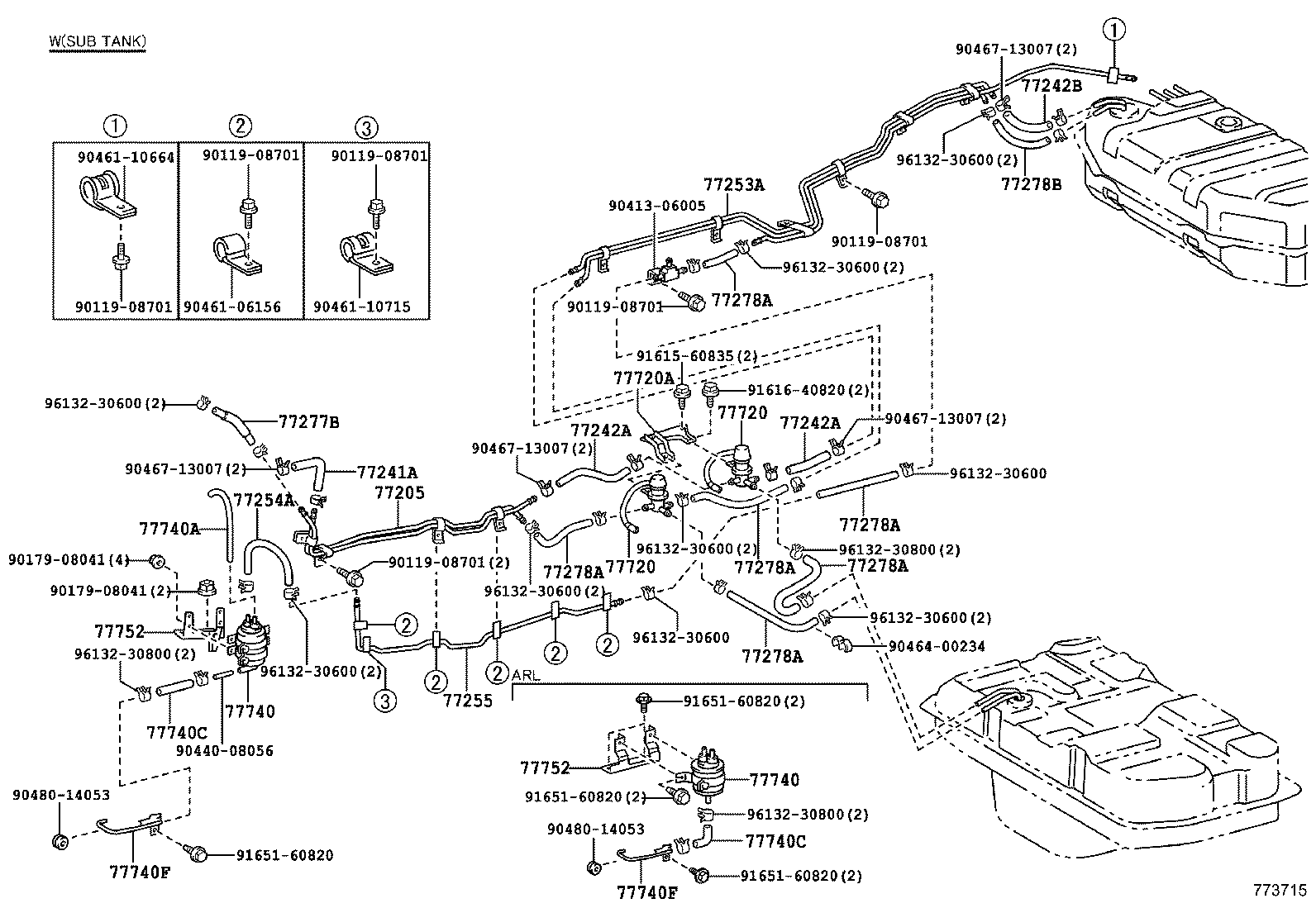

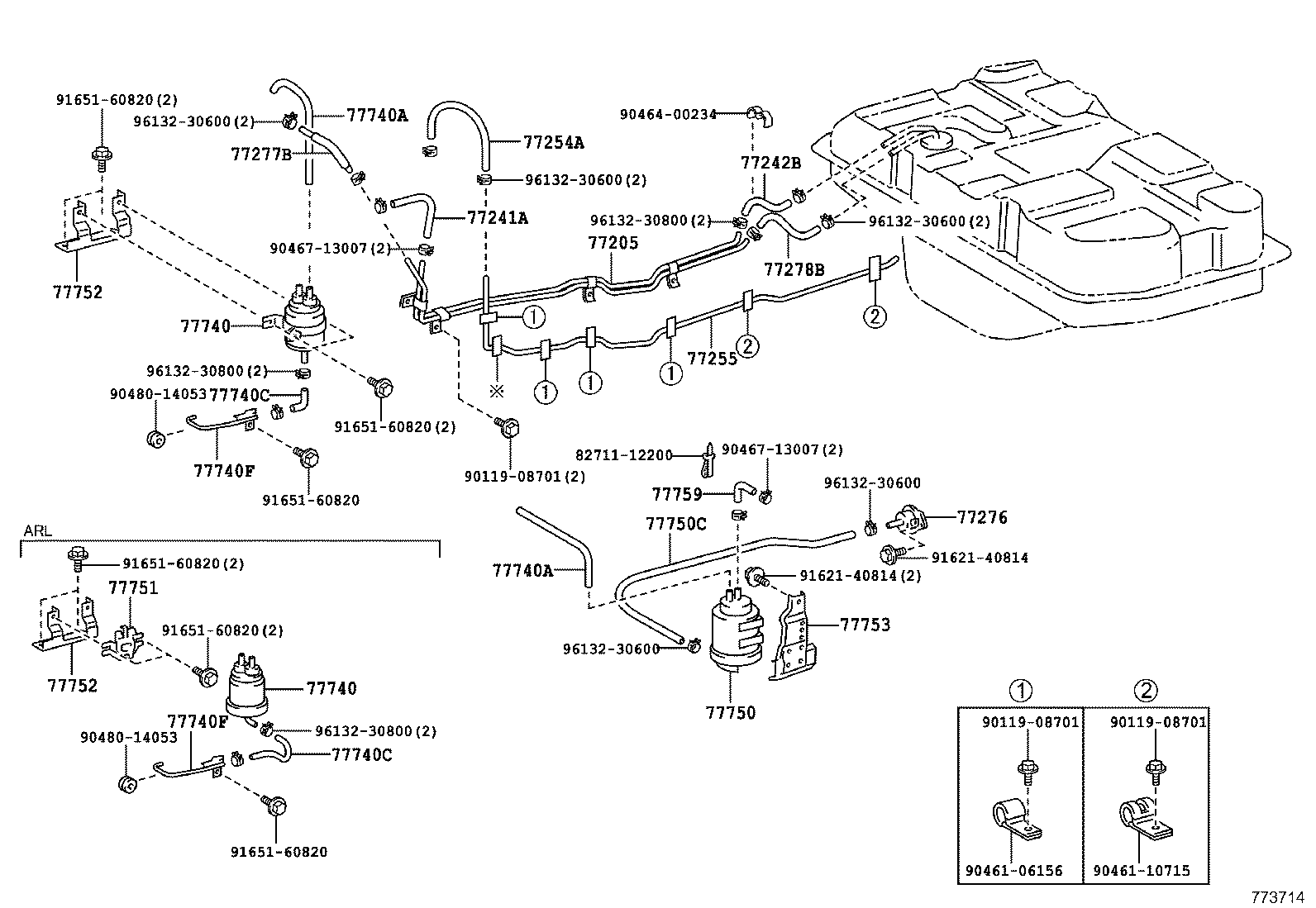

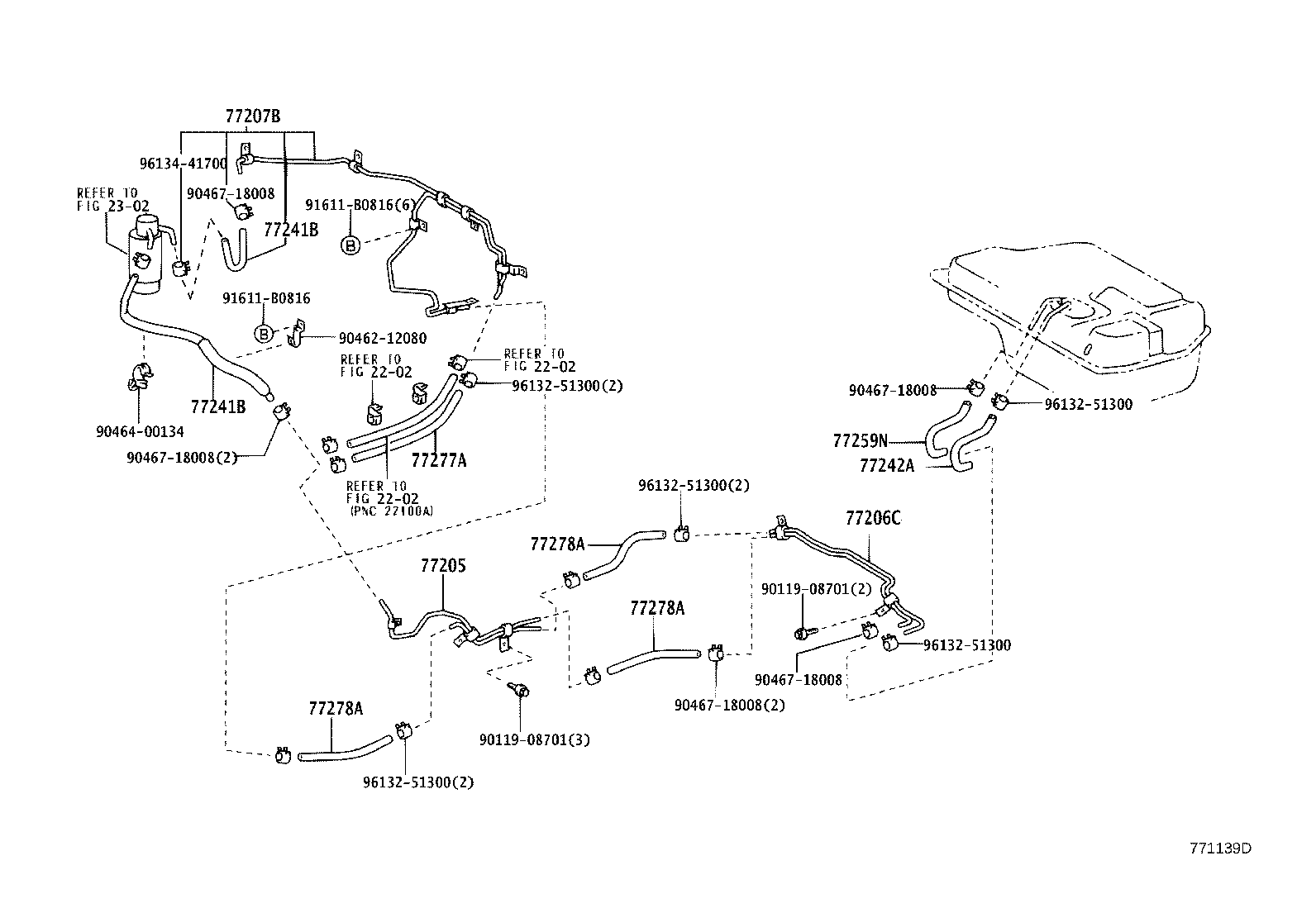

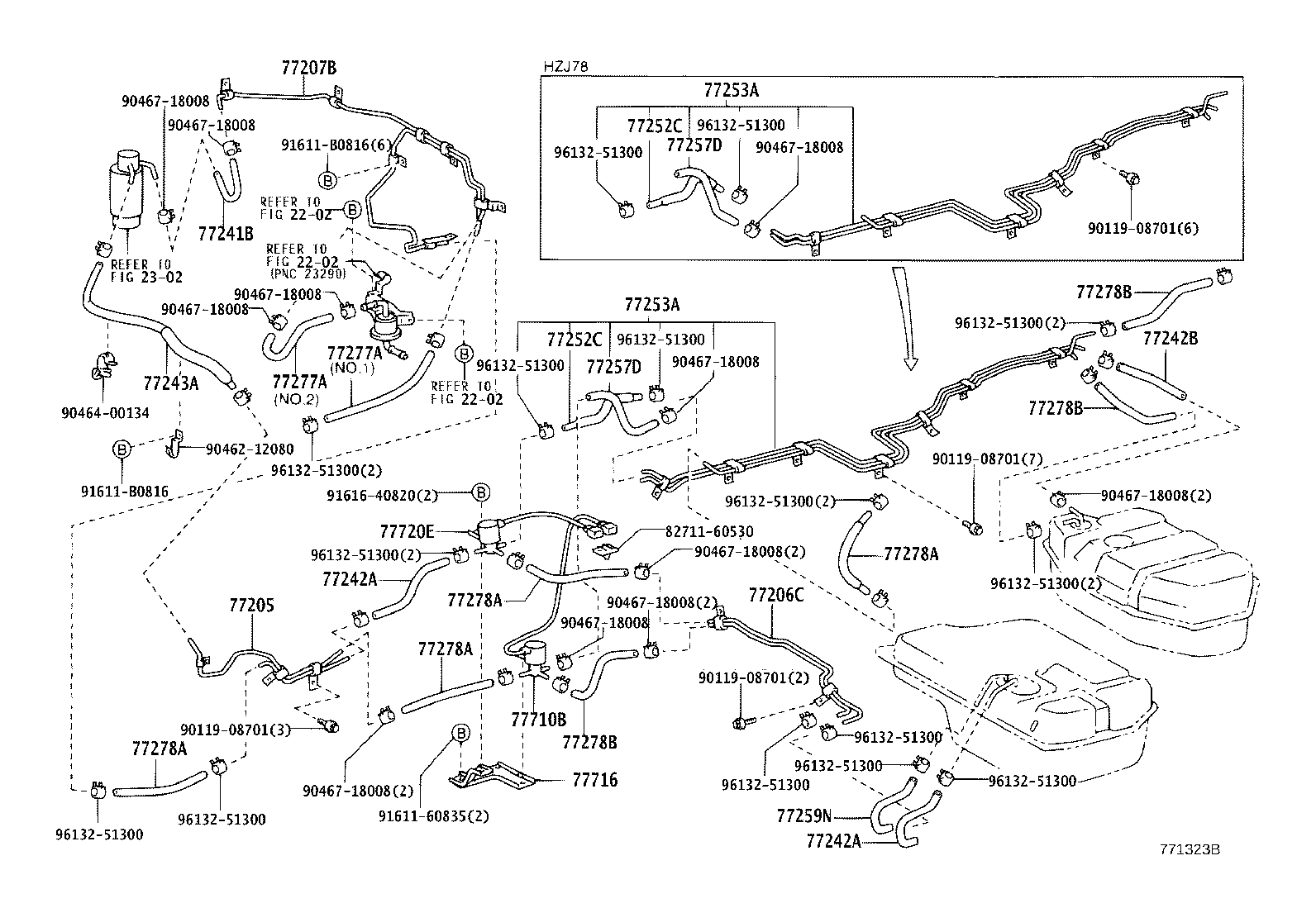

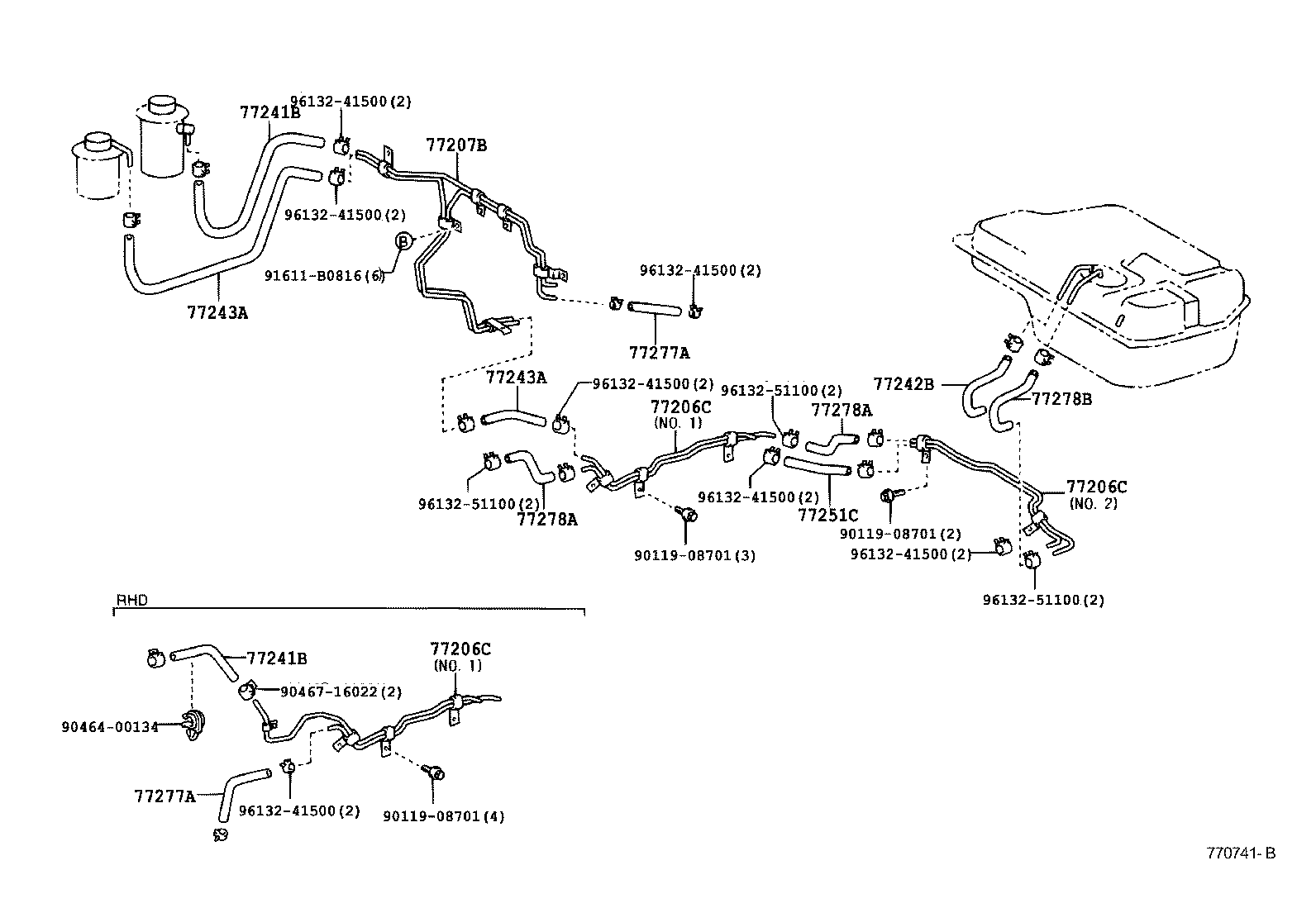

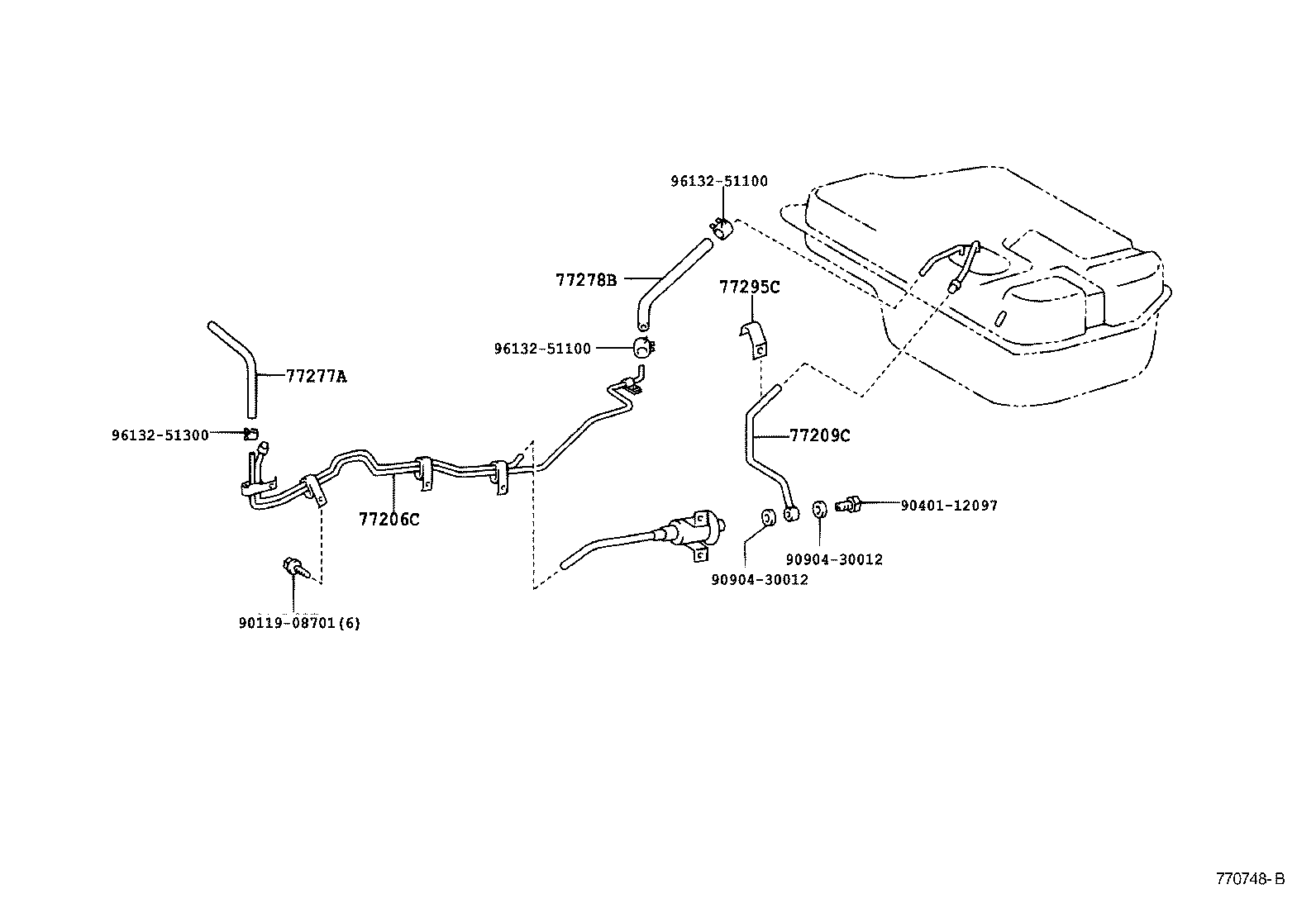

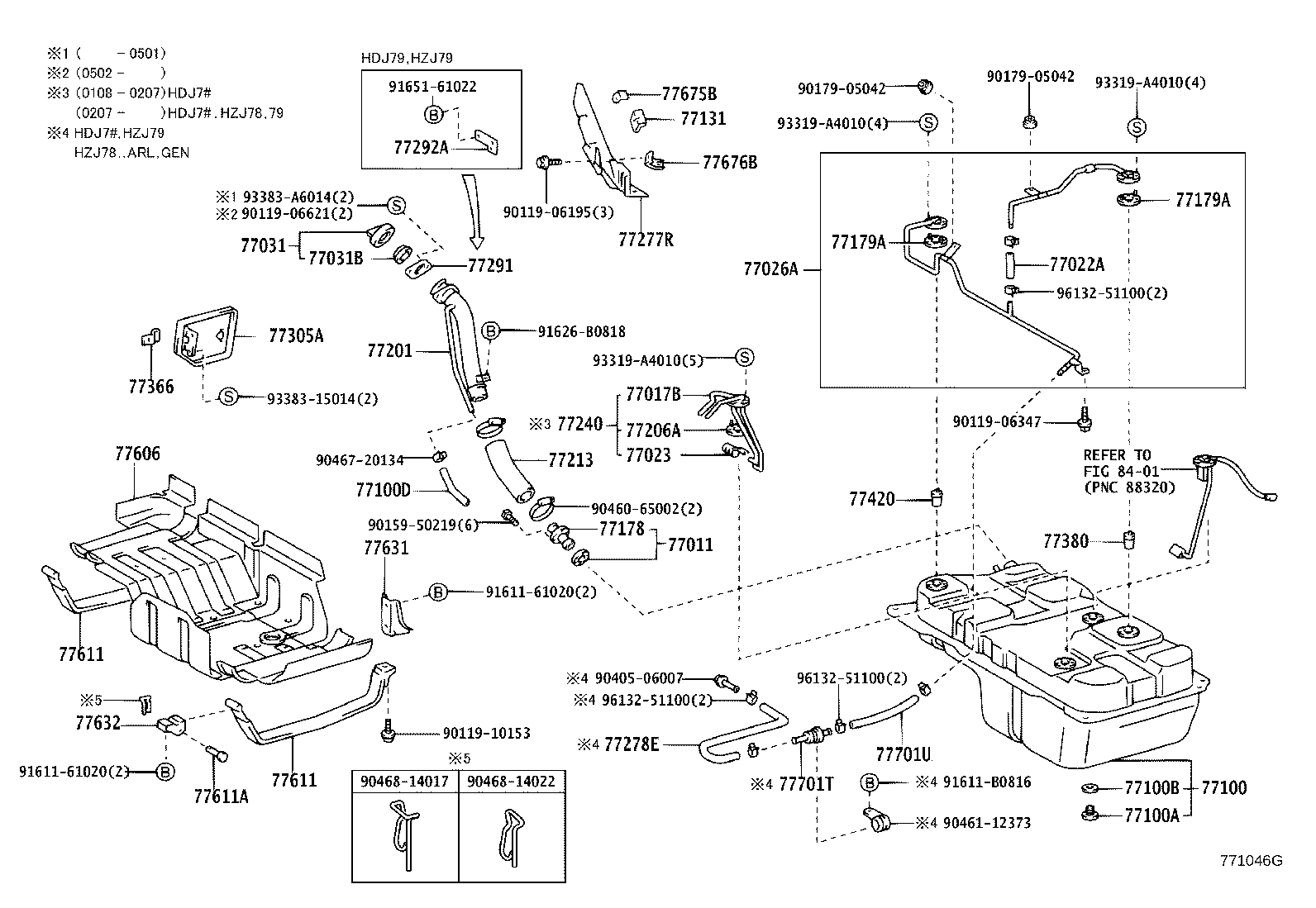

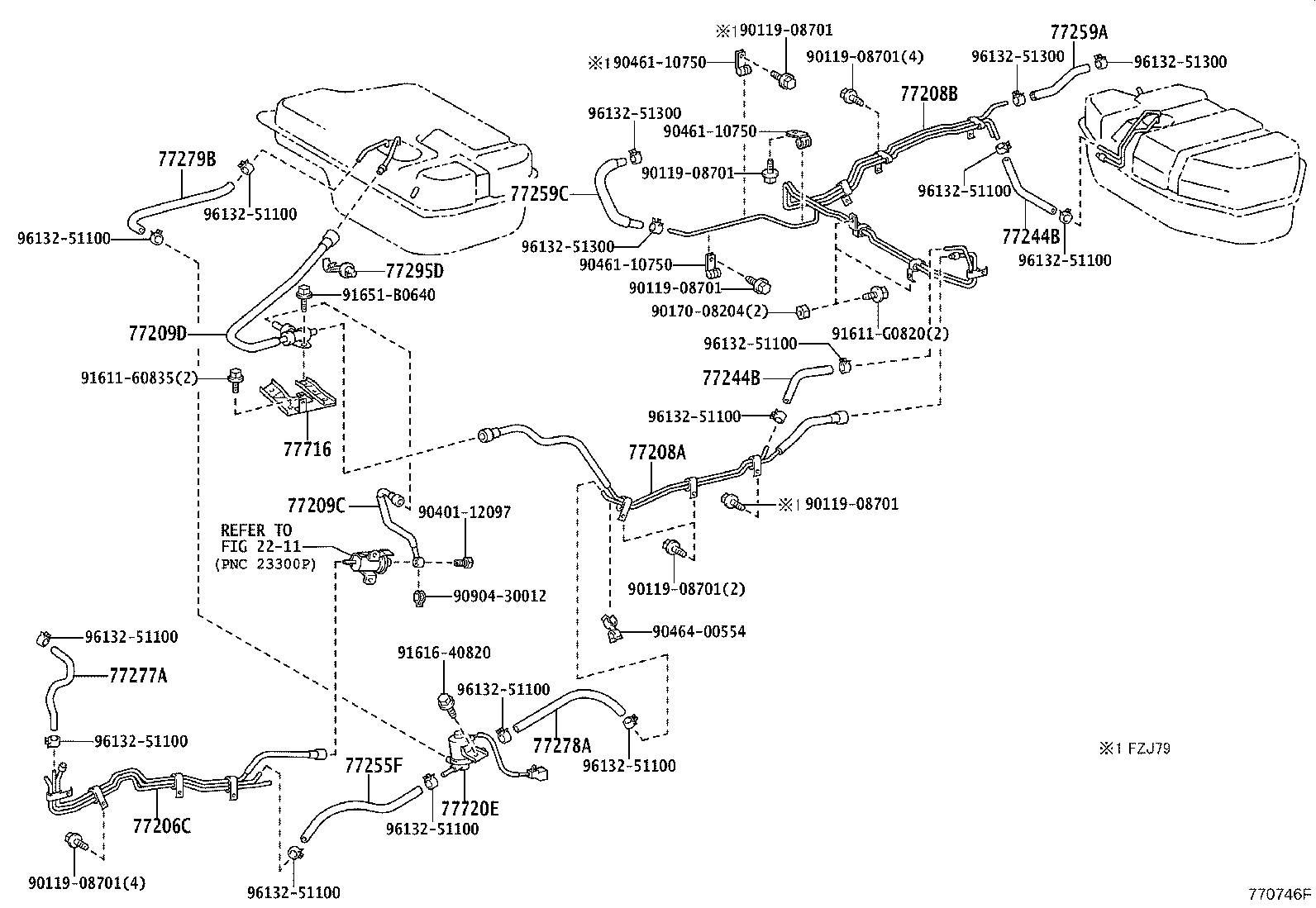

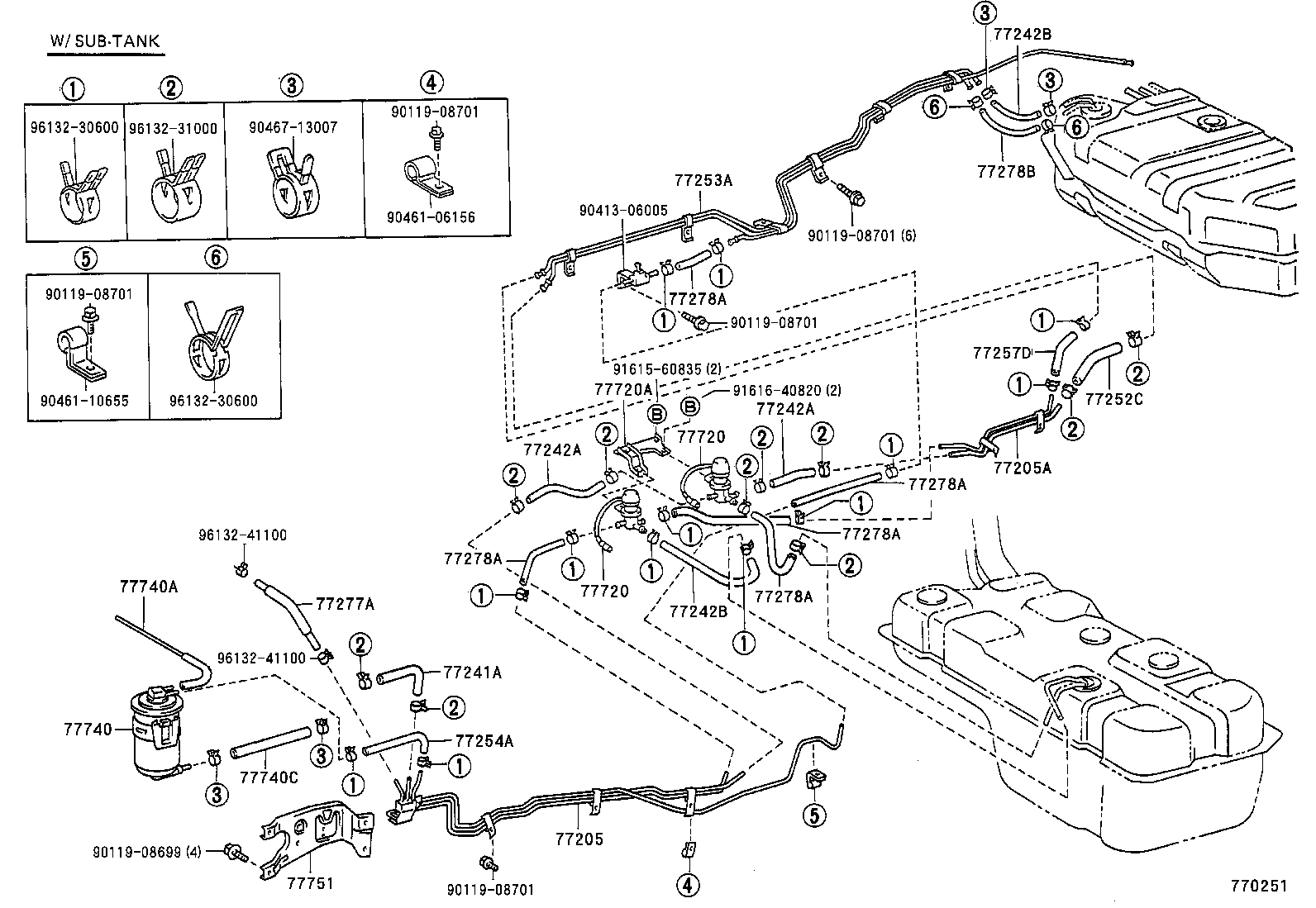

Figure 770244C 770244C 1990-01 → 1992-01 Figure 770244C 770244C 1992-01 → 1992-08 Figure 770239I 770239I 1990-01 → 1999-08 Figure 770248N 770248N 1992-01 → 2002-07 Figure 770248N 770248N 1992-08 → 1999-08 Figure 770359E 770359E 1997-09 → 2004-05 Figure 770361O 770361O 1992-08 → 2007-01 Figure 771046G 771046G 1999-08 → 2007-01 Figure 773839C 773839C 1999-08 → — Figure 773840F 773840F 1999-08 → — Figure 774635A 774635A 1999-08 → — Figure 770245K 770245K 1990-01 → 1999-08 Figure 770245K 770245K 1990-01 → 2007-01 Figure 770245K 770245K 1994-01 → 1999-08 Figure 770245K 770245K 1994-01 → 2007-01 Figure 770245K 770245K 1999-08 → 2002-07 Figure 770245K 770245K 1999-08 → 2007-01 Figure 771047D 771047D 2001-08 → 2007-01 Figure 771137D 771137D 2002-07 → 2007-01 Figure 770241A 770241A 1990-01 → 1991-08 Figure 773714 773714 1990-01 → 1992-08 Figure 773715 773715 1990-01 → 1992-08 Figure 773716 773716 1990-01 → 1992-08 Figure 773717 773717 1990-01 → 1992-08 Figure 770711B 770711B 1990-01 → 1992-08 Figure 770711B 770711B 1990-01 → 1996-04 Figure 770243 770243 1990-04 → 1996-04 Figure 770392 770392 1990-01 → 1999-08 Figure 770251 770251 1992-01 → 1999-08 Figure 770253A 770253A 1992-08 → 1999-08 Figure 770254A 770254A 1992-08 → 1999-08 Figure 770252A 770252A 1992-08 → 2001-06 Figure 770741B 770741B 1999-08 → 2002-07 Figure 770745G 770745G 1999-08 → 2002-07 Figure 771048B 771048B 2001-08 → 2003-03 Figure 771049C 771049C 2001-08 → 2003-03 Figure 770360 770360 1997-09 → 2004-05 Figure 770362 770362 1997-09 → 2004-05 Figure 770240B 770240B 1990-01 → 1992-08 Figure 770240B 770240B 1992-08 → 1999-08 Figure 770240B 770240B 1992-08 → 2007-01 Figure 770242A 770242A 1990-01 → 1999-08 Figure 770242A 770242A 1990-01 → 2007-01 Figure 770250A 770250A 1992-01 → 1999-08 Figure 770250A 770250A 1992-01 → 2007-01 Figure 770393A 770393A 1992-01 → 2007-01 Figure 770249A 770249A 1992-01 → 2007-01 Figure 770247 770247 1990-01 → 2007-01 Figure 770246A 770246A 1990-01 → 2007-01 Figure 771329C 771329C 2003-03 → 2007-01 Figure 771323B 771323B 2003-03 → 2007-01 Figure 770749B 770749B 1999-08 → 2008-08 Figure 770747C 770747C 1999-08 → 2008-08 Figure 770748B 770748B 1999-08 → 2008-08 Figure 770746F 770746F 1999-08 → 2008-08 Figure 770743D 770743D 1999-08 → 2008-08 Figure 770744F 770744F 1999-08 → 2008-08 Figure 770742F 770742F 1999-08 → — Figure 774323 774323 1999-08 → 2002-07 Figure 774323 774323 1999-08 → — Figure 771139D 771139D 2002-07 → — Figure 771141D 771141D 2002-07 → — Figure 771138B 771138B 2002-07 → — Figure 771140C 771140C 2002-07 → — Figure 770712 770712 1990-01 → —

Part groups

PNCDescription
58279A Protector, Fuel Hose
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017B Tube Sub-assy, Fuel Tank Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)

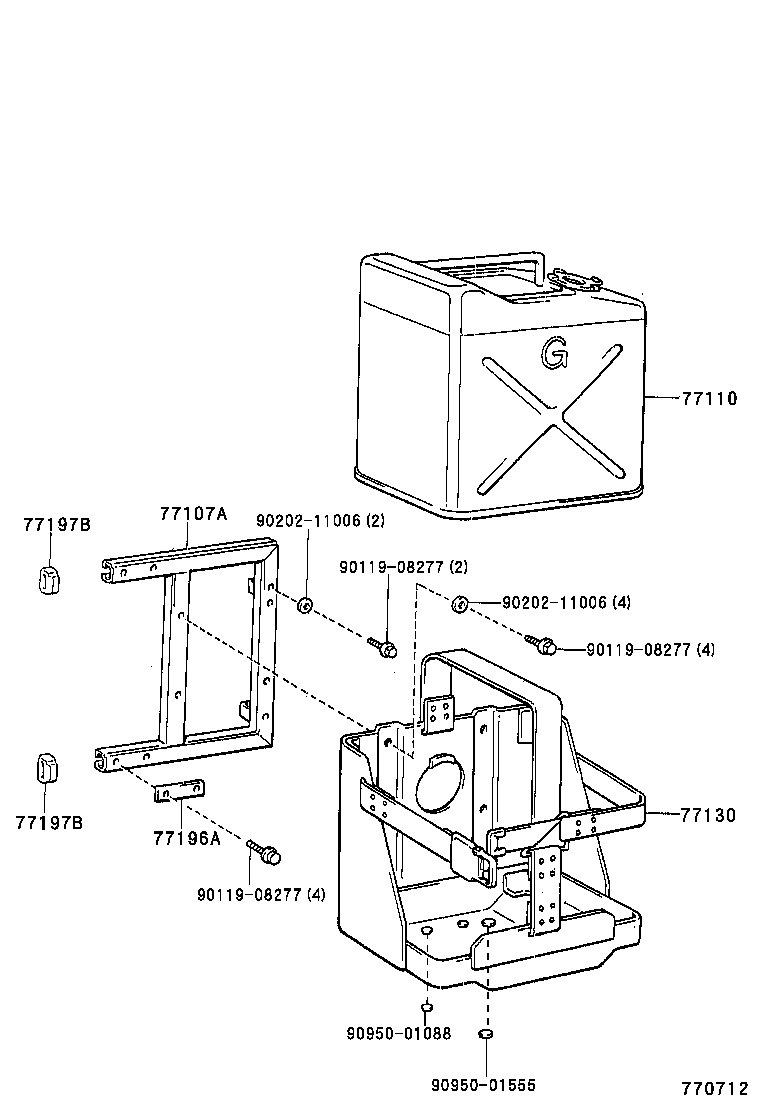

77107A Carrier Sub-assy, Auxiliary Fuel Tank
77110 Tank Assy, Auxiliary Fuel
77130 Bracket Assy, Auxiliary Fuel Tank
77131 Bracket, Fuel Tank Filler Pipe Support
77133 Support, Fuel Sub-tank, RH
77134 Support, Fuel Sub-tank, LH
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77196A Pad, Auxiliary Fuel Tank Carrier
77197B Cover, Auxiliary Fuel Tank Carrier
77201 Pipe Sub-assy, Fuel Tank Inlet
77205 Tube Sub-assy, Fuel Main
77205A Tube Sub-assy, Fuel Main
77206 Tube Sub-assy, Fuel Tank Suction
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77207B Tube Sub-assy, Fuel Main, NO.3
77208A Tube Sub-assy, Fuel Main, NO.4
77208B Tube Sub-assy, Fuel Main, NO.4
77209C Tube Sub-assy, Fuel Tank Main
77209D Tube Sub-assy, Fuel Tank Main
77213 Hose, Fuel Tank Sub Inlet
77222A Tube, Fuel Vapor Liquid Separator, NO.1
77233 Joint, Fuel Hose
77235 Tube, Fuel Tank Breather, NO.1
77235A Hose, Fuel(FOR FUEL TANK BREATHER)
77240 Tube Assy, Fuel Suction
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77244B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.4)
77249 Hose, Fuel Emission
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251F Hose, Fuel
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77253A Tube, Fuel Main, NO.3
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254C Hose, Fuel, NO.3 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256D Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE)
77256E Hose, Fuel, NO.2 (FOR FUEL RETURN NO.2 TUBE)
77257C Tube, Fuel Return, NO.3
77257D Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE)
77259A Hose, Fuel(FOR BREATHER TUBE)
77259C Hose, Fuel
77259F Hose, Fuel
77259N Hose, Fuel, NO.2
77261C Hose, Fuel, NO.3 (FOR FUEL EMISSION TUBE)
77269 Tube, Fuel Connecting
77271C Separator, Fuel Vapor Liquid
77273A Clamp, Fuel Tube W/Grommet, NO.6
77273B Clamp, Fuel Tube W/Grommet, NO.6
77276 Protector, Fuel Hose
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77277R Protector, Fuel Tank Filler Pipe
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77278E Hose, Fuel
77279B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3)
77290 Shield Assy, Fuel Tank Filler Pipe
77291 Packing, Fuel Tank Support, Upper
77292A Stay, Fuel Tank Fillar Upper Pipe
77293A Shield, Fuel Tank Filler Pipe, NO.3
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77305A Lid Sub-assy, Fuel Filler Opening
77308A Cushion(FOR FUEL INLET BOX COVER)
77319 Knob, Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77366 Spring, Fuel Filler Opening Lid Hinge
77378A Cover, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77420 Valve Assy, Fuel Cut Off, NO.2
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77675B Bracket, Fuel Tank Filler Pipe Protector, NO.1
77676B Bracket, Fuel Tank Filler Pipe Protector, NO.2
77682 Seat, Fuel Tank Band, LH
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77701V Valve, Check (FOR SUB-FUEL TANK)
77710B Valve Assy, Fuel Tank Solenoid Main
77716 Bracket, Fuel Solenoid Valve Main
77720 Valve Sub-assy, Safety
77720A Bracket, Safety Valve
77720E Valve Assy, Fuel Tank Solenoid Return
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77750C Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77752 Bracket, Charcoal Canister Support
77753 Bracket, Charcoal Canister, NO.3
77754 Hose, Charcoal Canister Outlet, NO.1
77759 Hose, Charcoal Canister
77759A Hose, Charcoal Canister
77779 Tube, Charcoal Canister Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
