Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05
Disc Wheel & Wheel Cap
9 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

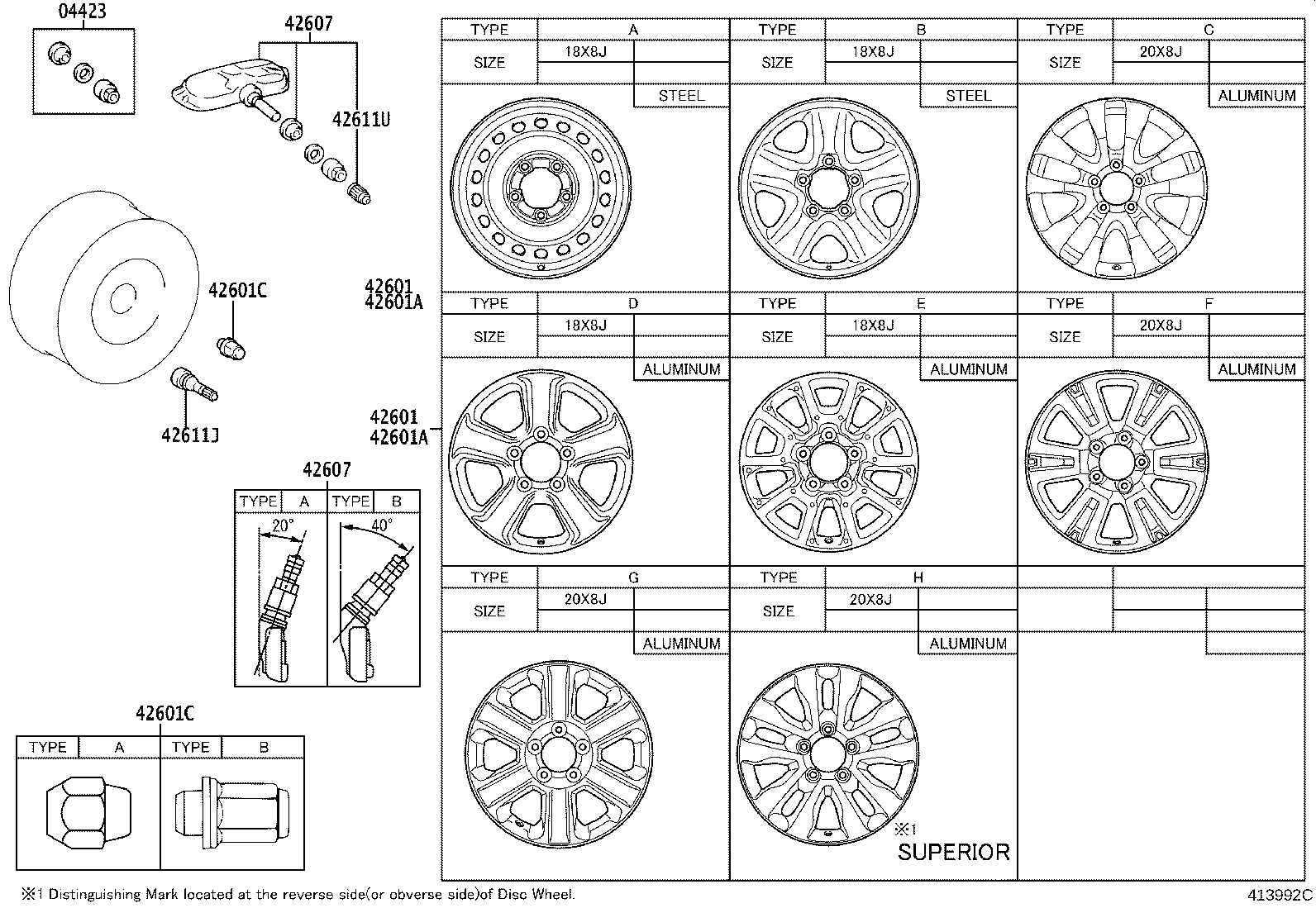

| 04423 | Fitting Kit, Tire Pressure Monitor OR Balancer Valve |

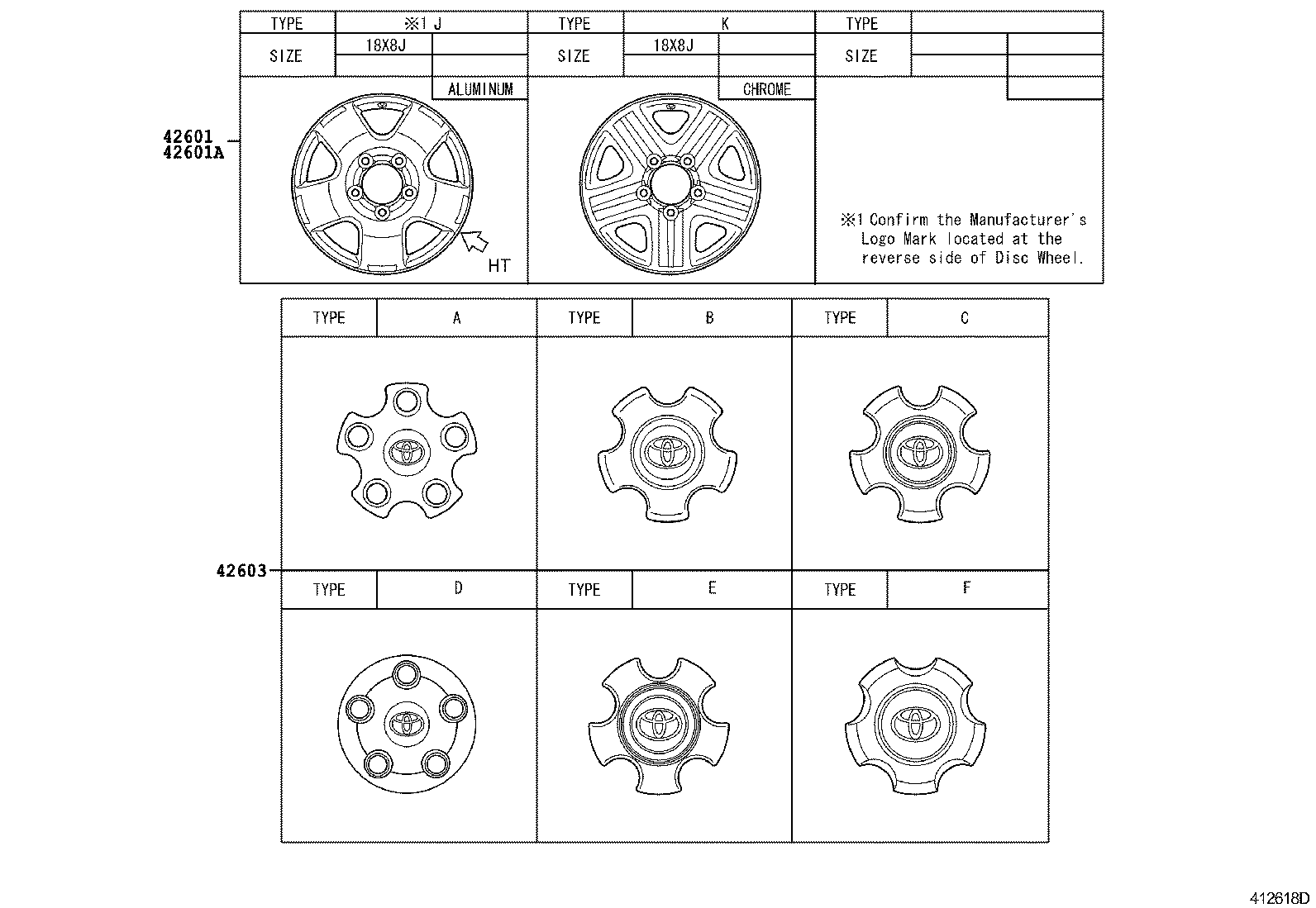

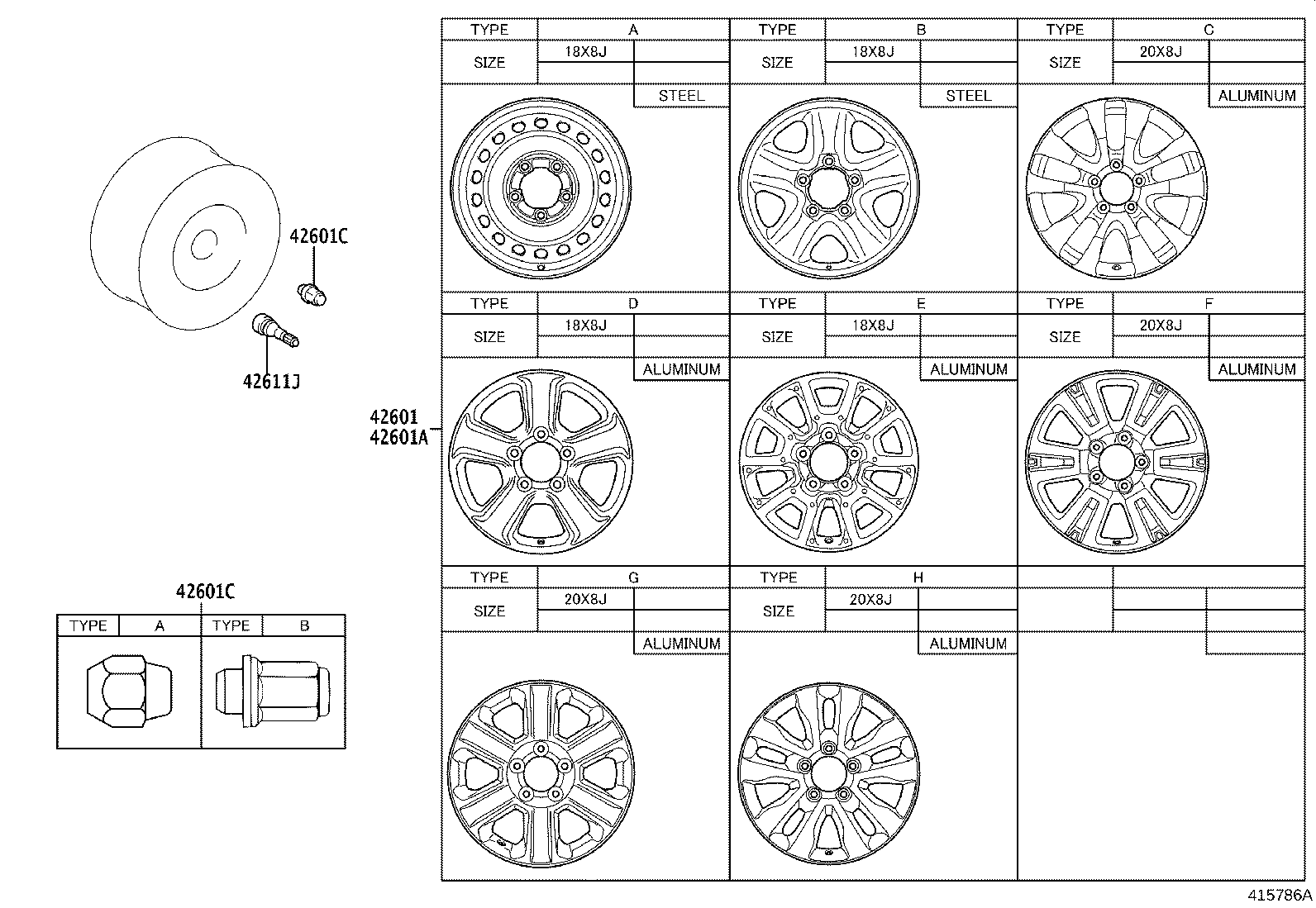

| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |

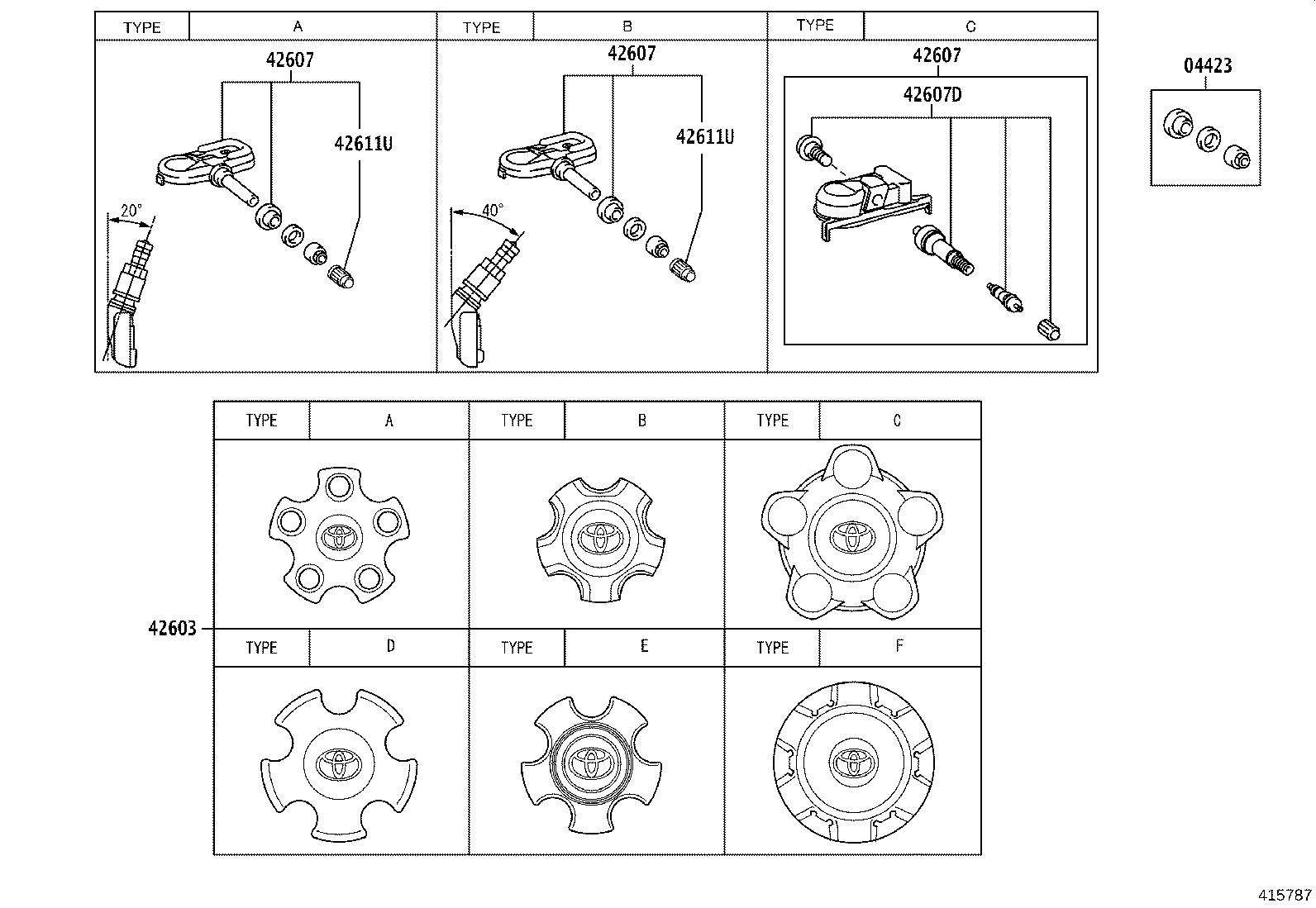

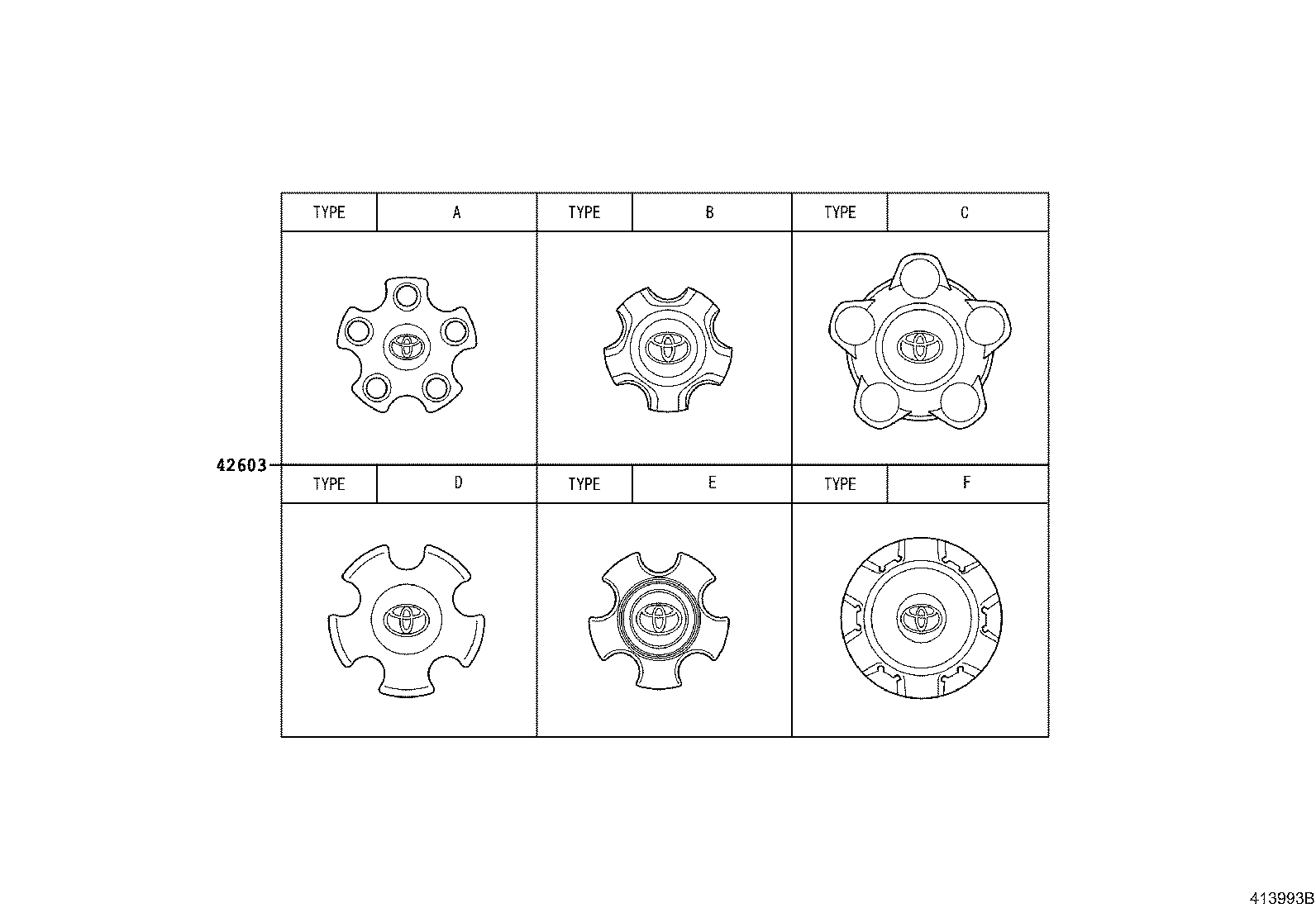

| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607 | Valve Sub-assy, Tire Pressure Monitor |
| 42607D | Valve, Tire Pressure Monitor |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
