Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

19 part groups · 4 illustrations

Illustrations

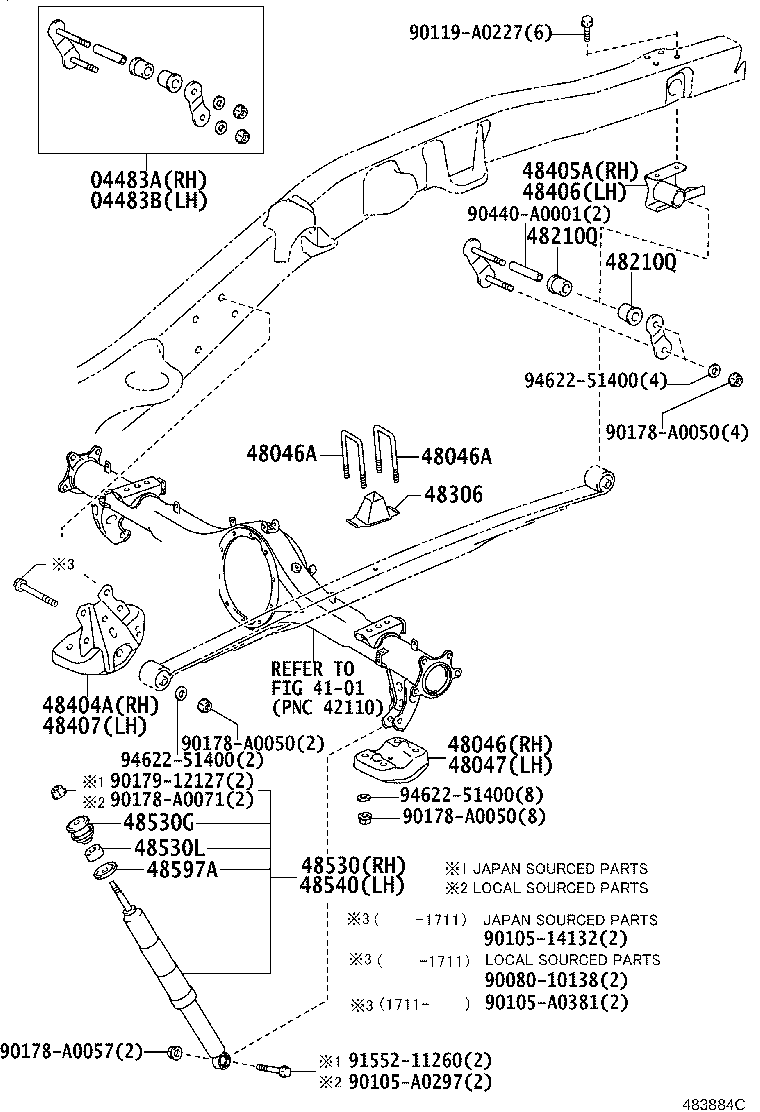

Figure 482417H 482417H 2006-11 → 2013-08 Figure 483884C 483884C 2013-08 → — Figure 482484B 482484B 2006-11 → — Figure 482485B 482485B 2006-11 → 2009-04

Part groups

PNCDescription
04483A Shackle Kit, Rear Spring, RH
04483B Shackle Kit, Rear Spring, LH
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48220 Spring Assy, Rear LH
48306 Bumper Sub-assy, Rear Spring
48404A Bracket Sub-assy, Spring, NO.3 RH
48405A Bracket Sub-assy, Spring, NO.4 RH
48406 Bracket Sub-assy, Spring, NO.4 LH
48407 Bracket Sub-assy, Spring, NO.3 LH
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530L Cushion, Rear Shock Absorber, NO.3
48540 Absorber Assy, Shock, Rear LH
48597A Retainer, Rear Shock Absorber Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
