Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

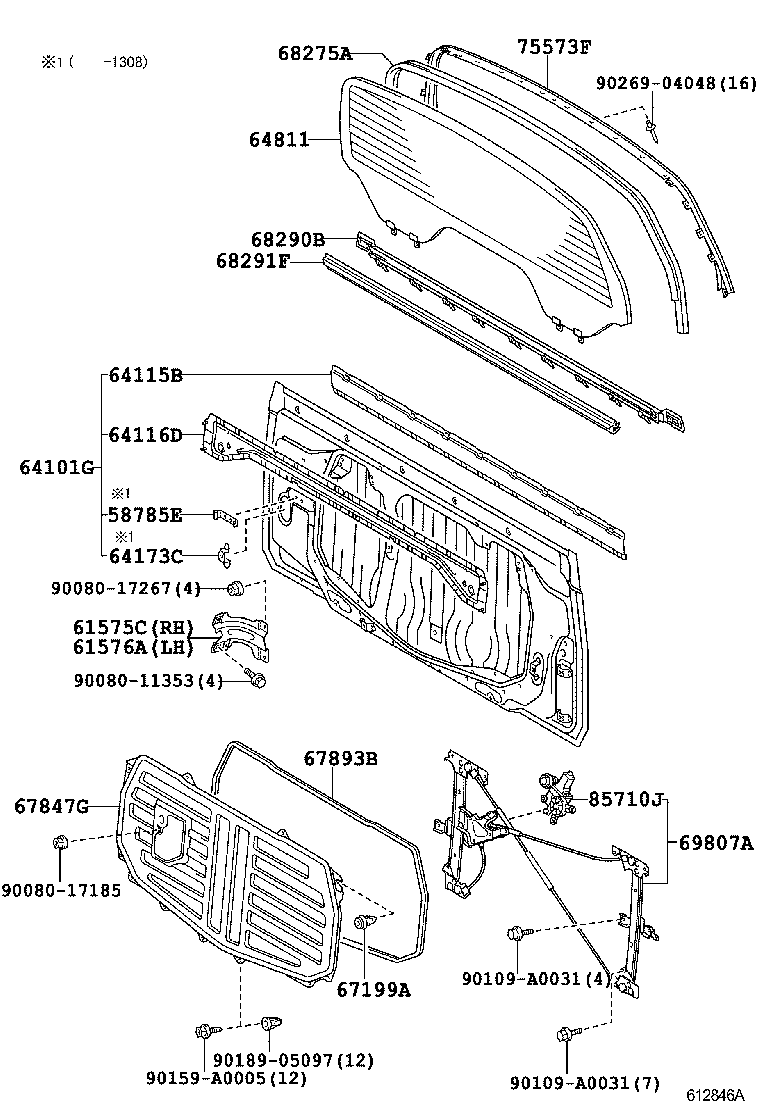

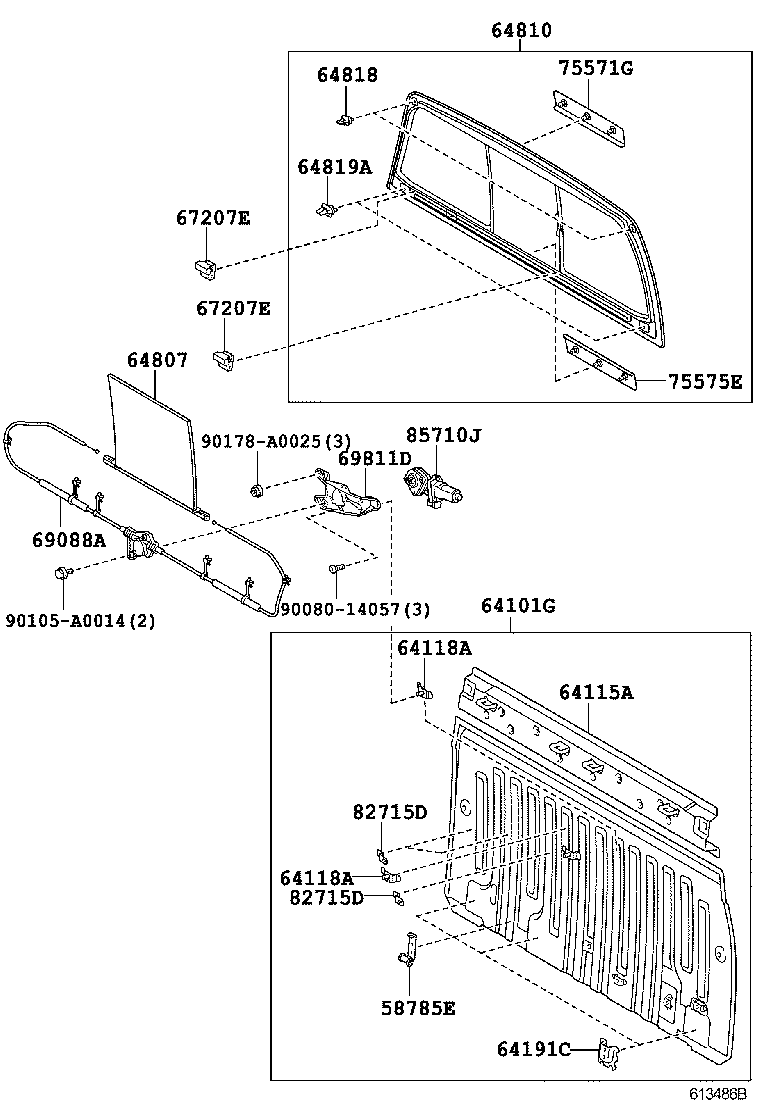

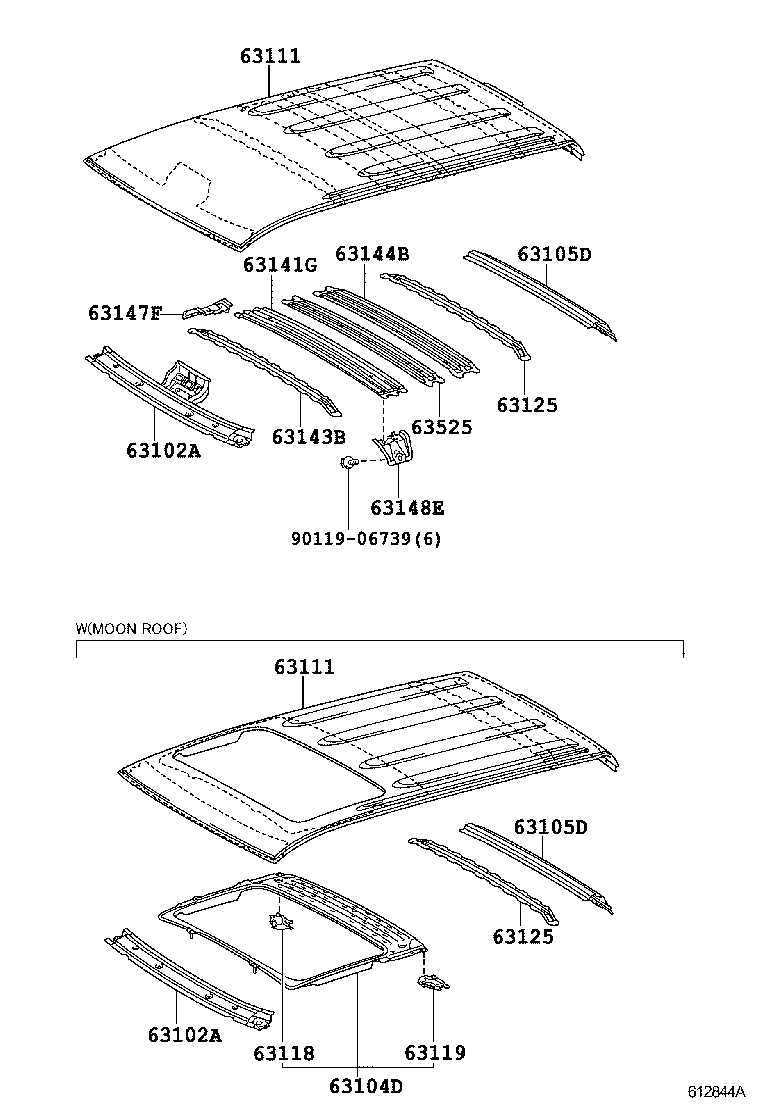

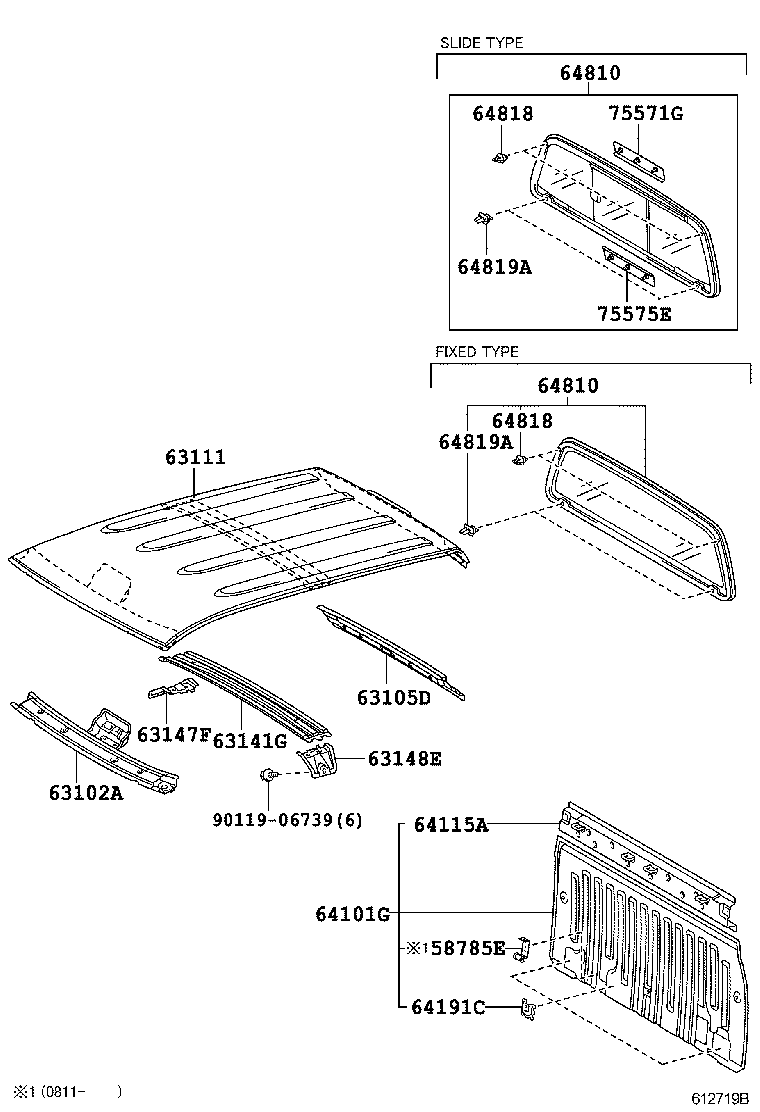

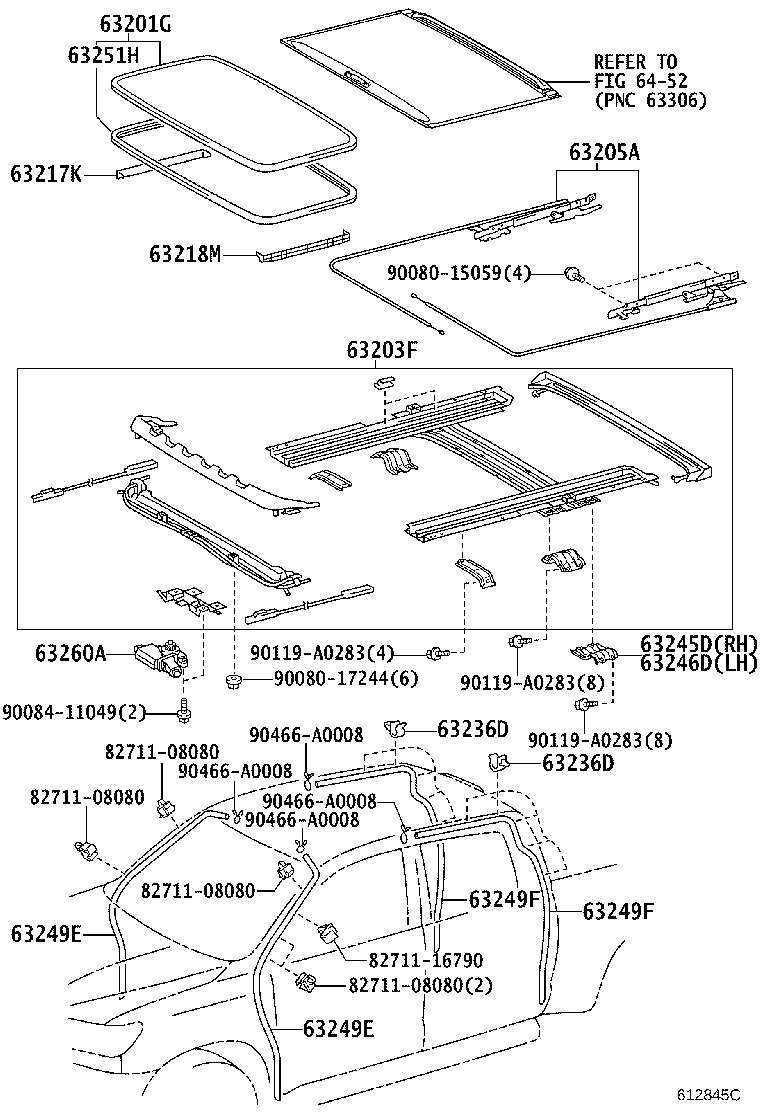

Roof Panel & Back Panel
55 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 58785E | Bracket, Tool Bag Band |
| 61575C | Plate, Cab Rear Pillar, Upr RH |
| 61576A | Plate, Cab Rear Pillar, Upr LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104D | Reinforcement Sub-assy, Roof Panel, NO.2 |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63147F | Bracket, Roof Panel Reinforcement, RH |
| 63148E | Bracket, Roof Panel Reinforcement, LH |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63525 | Bracket, Television Rack, NO.1 |
| 64101G | Panel Sub-assy, Back |
| 64115A | Reinforcement, Back, Upper |
| 64115B | Reinforcement, Back Panel |
| 64116D | Reinforcement, Cab Back, Upper |
| 64118A | Reinforcement, Upper Back, NO.4 RH |
| 64173C | Bracket, Rear Mounting, Lower |
| 64191C | Bracket, Rear Seat Belt Anchorage, RH |
| 64807 | Glass Sub-assy, Back Window Slide |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64818 | Spacer, Back Window Glass |
| 64819A | Spacer, Back Window Glass, NO.2 |
| 67199A | Retainer, Back Door Inner Panel |
| 67207E | Stopper Sub-assy, Back Door |
| 67847G | Cover, Back Door Service Hole, NO.1 |
| 67893B | Protector, Back Door Panel, NO.1 |
| 68275A | Run, Back Door Glass |
| 68290B | Weatherstrip Assy, Back Door Glass, Outer |
| 68291F | Weatherstrip, Back Door Glass, Inner |
| 69088A | Cable Sub-assy, Door Window Regulator |
| 69807A | Regulator Sub-assy, Back Door Power Window |
| 69811D | Plate, Door Window Regulator Base |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
| 75573F | Moulding, Back Window, Outside |
| 75575E | Moulding, Back Window, Outside Lower |
| 82715D | Bracket, Wiring Harness Clamp |
| 85710J | Motor Assy, Power Window Regulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
