Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

51 part groups · 12 illustrations

Illustrations

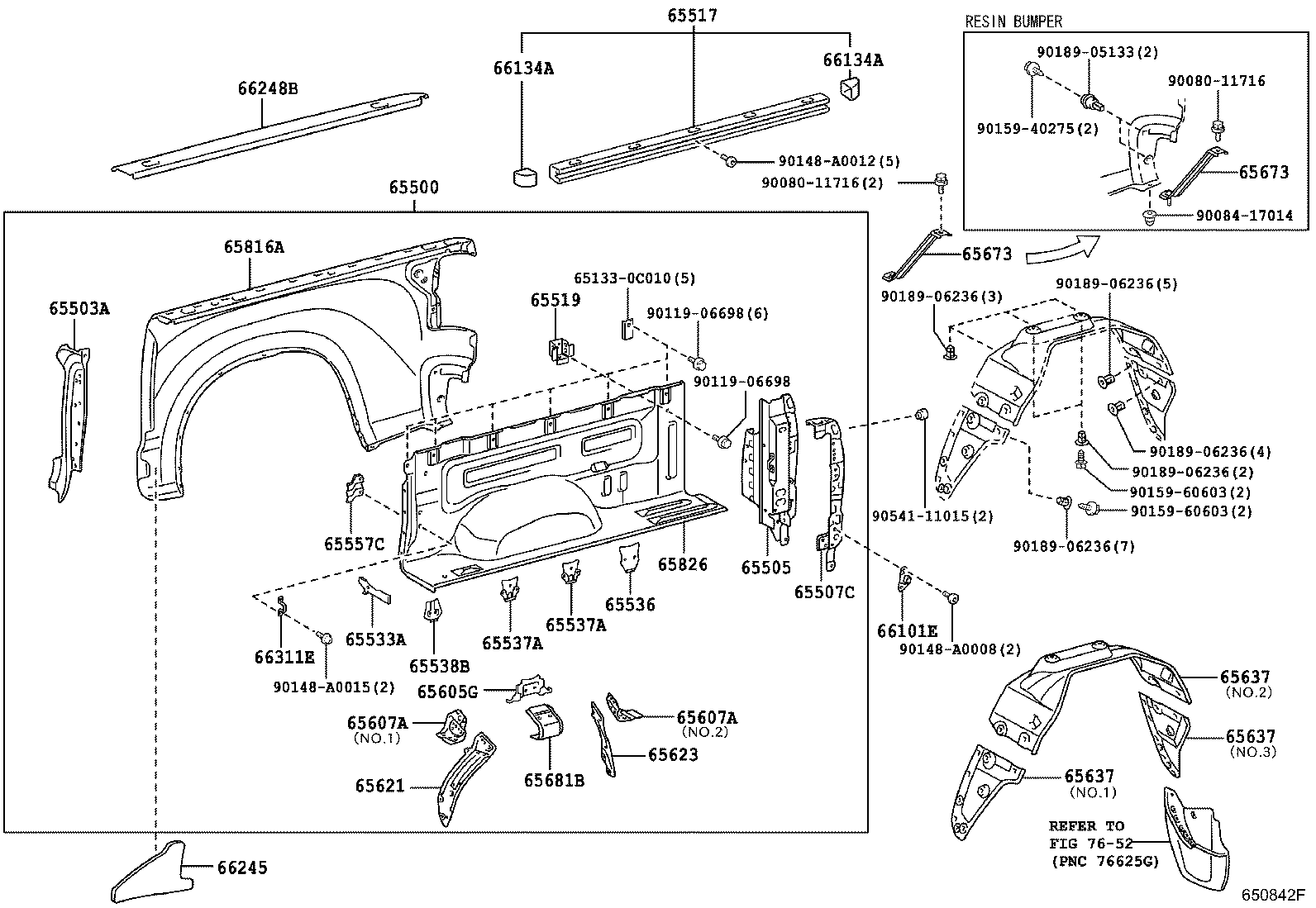

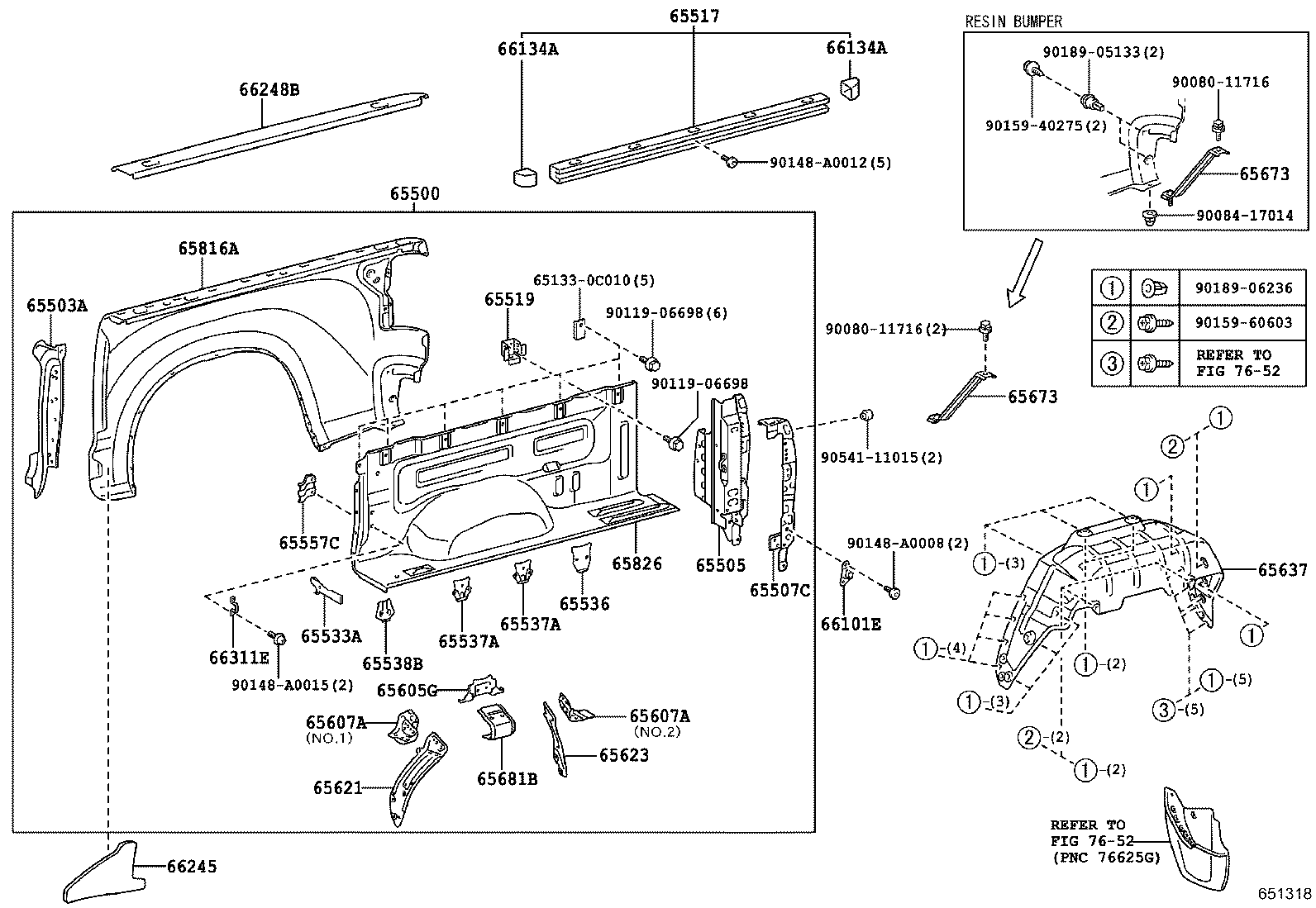

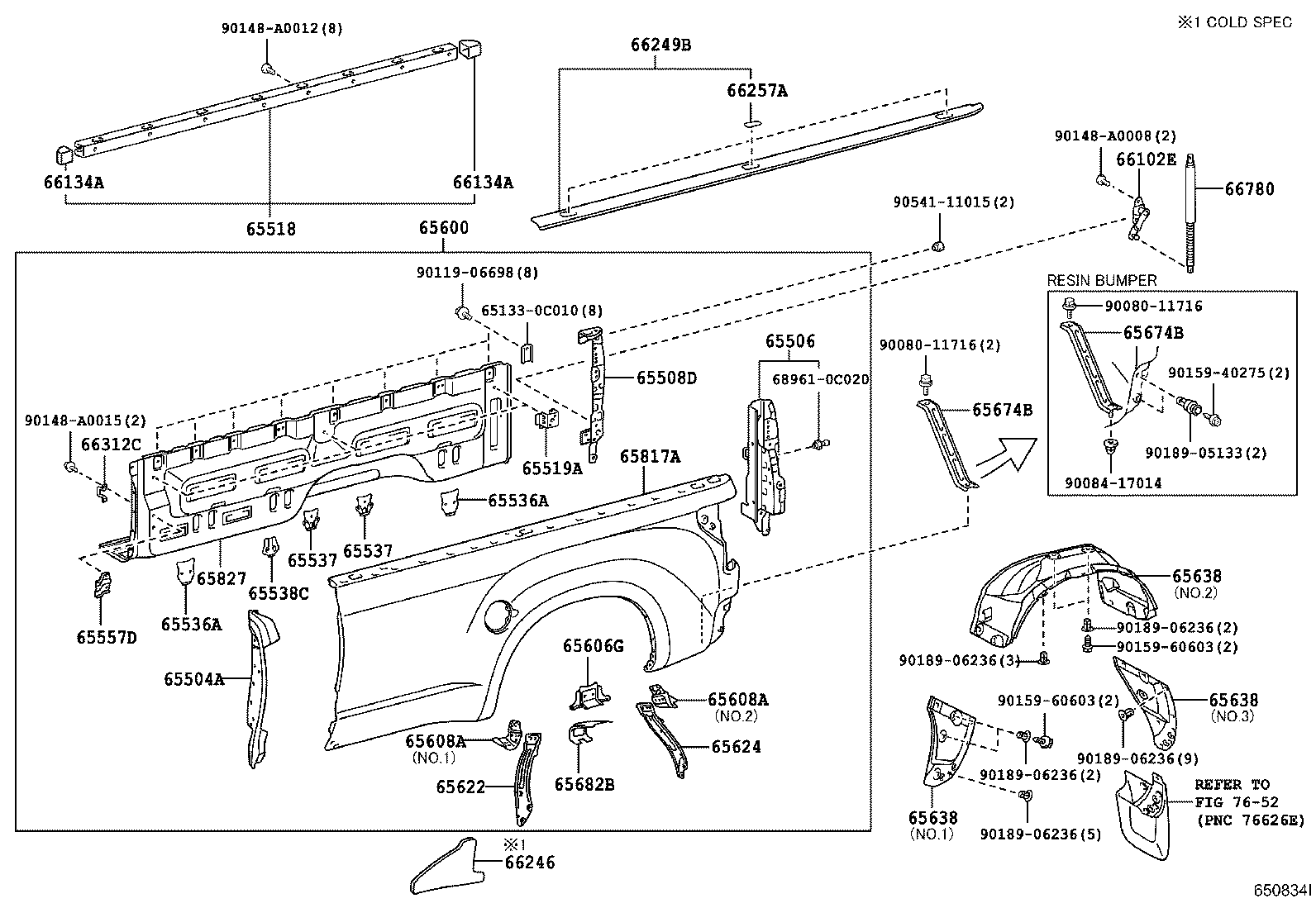

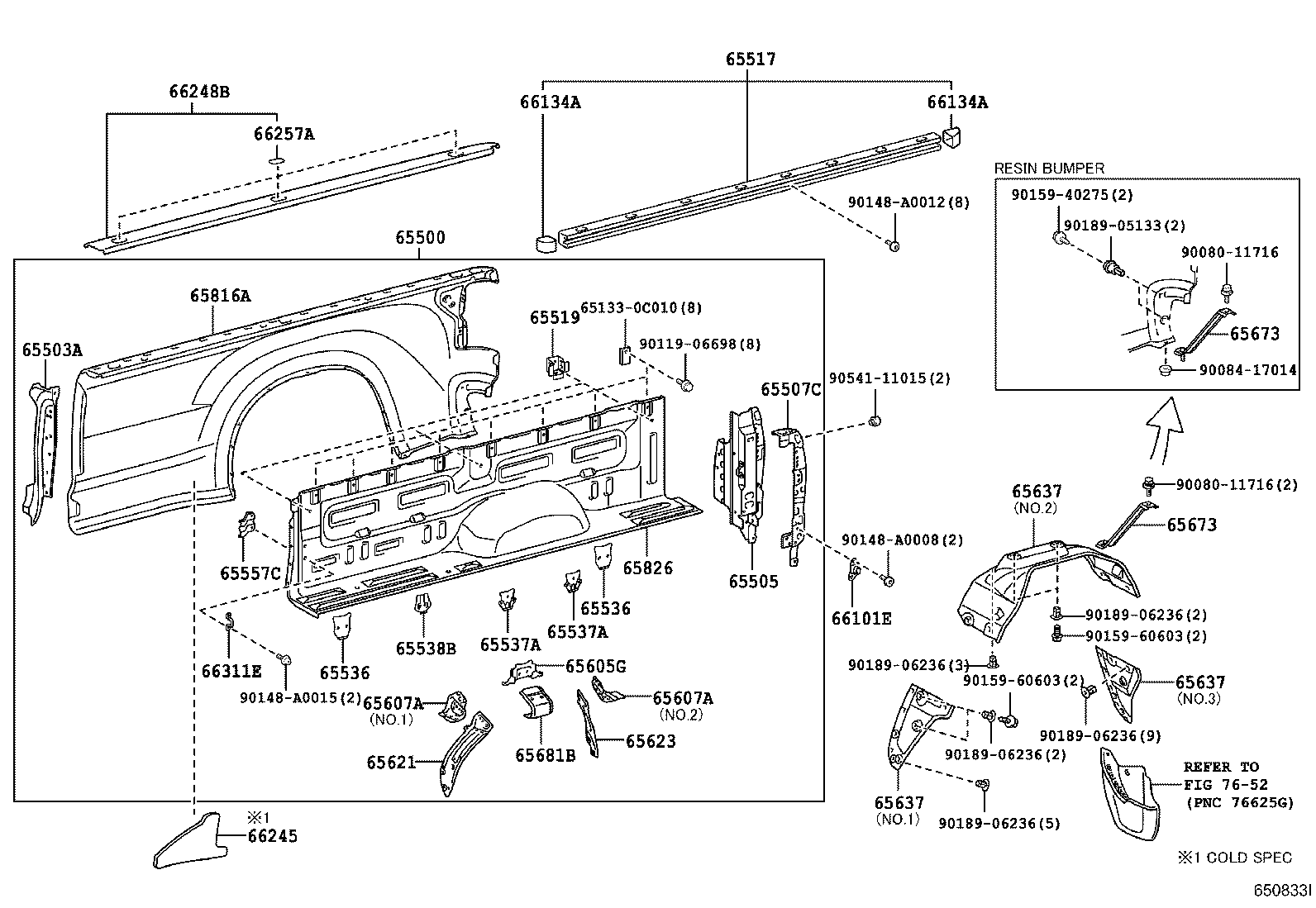

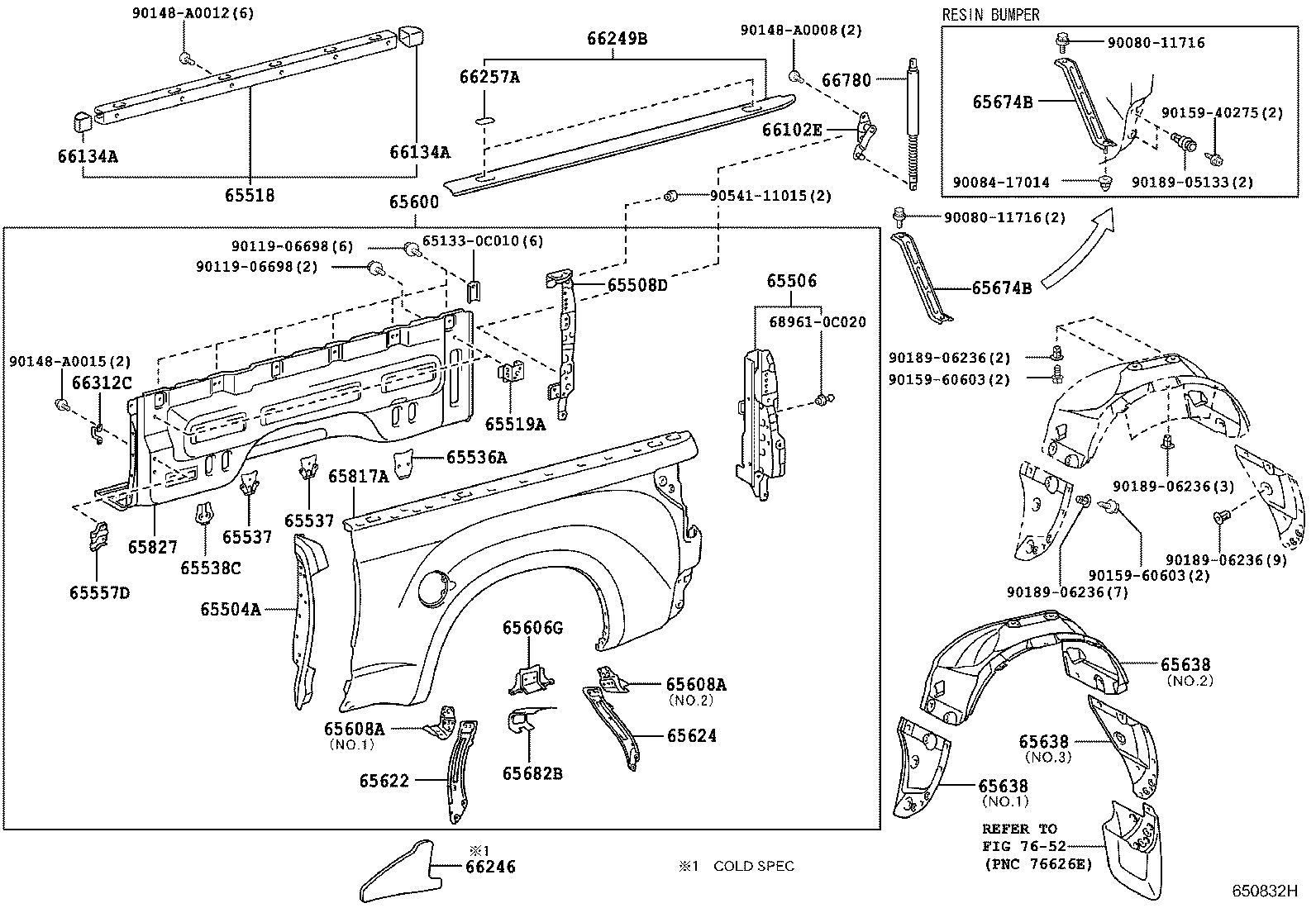

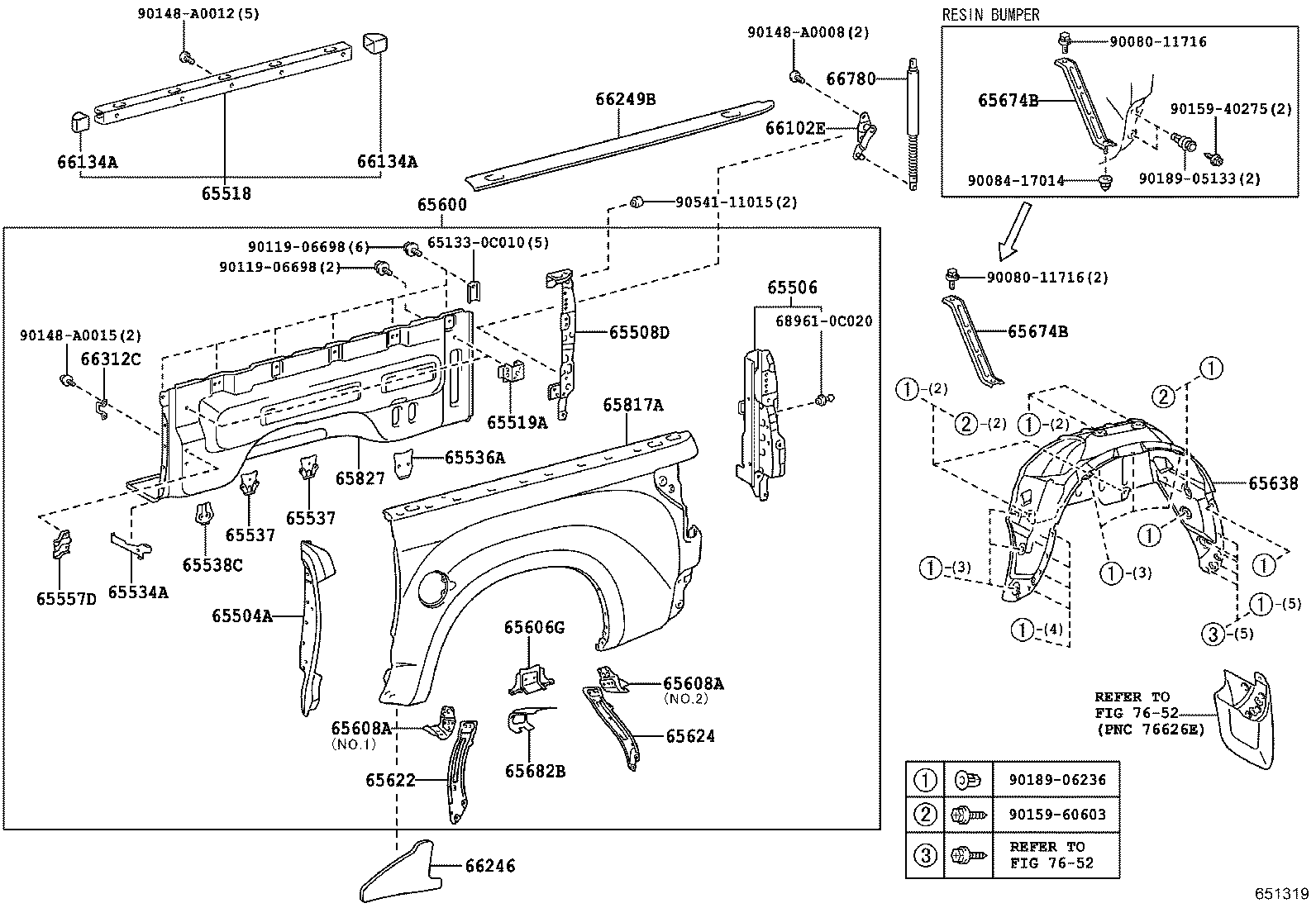

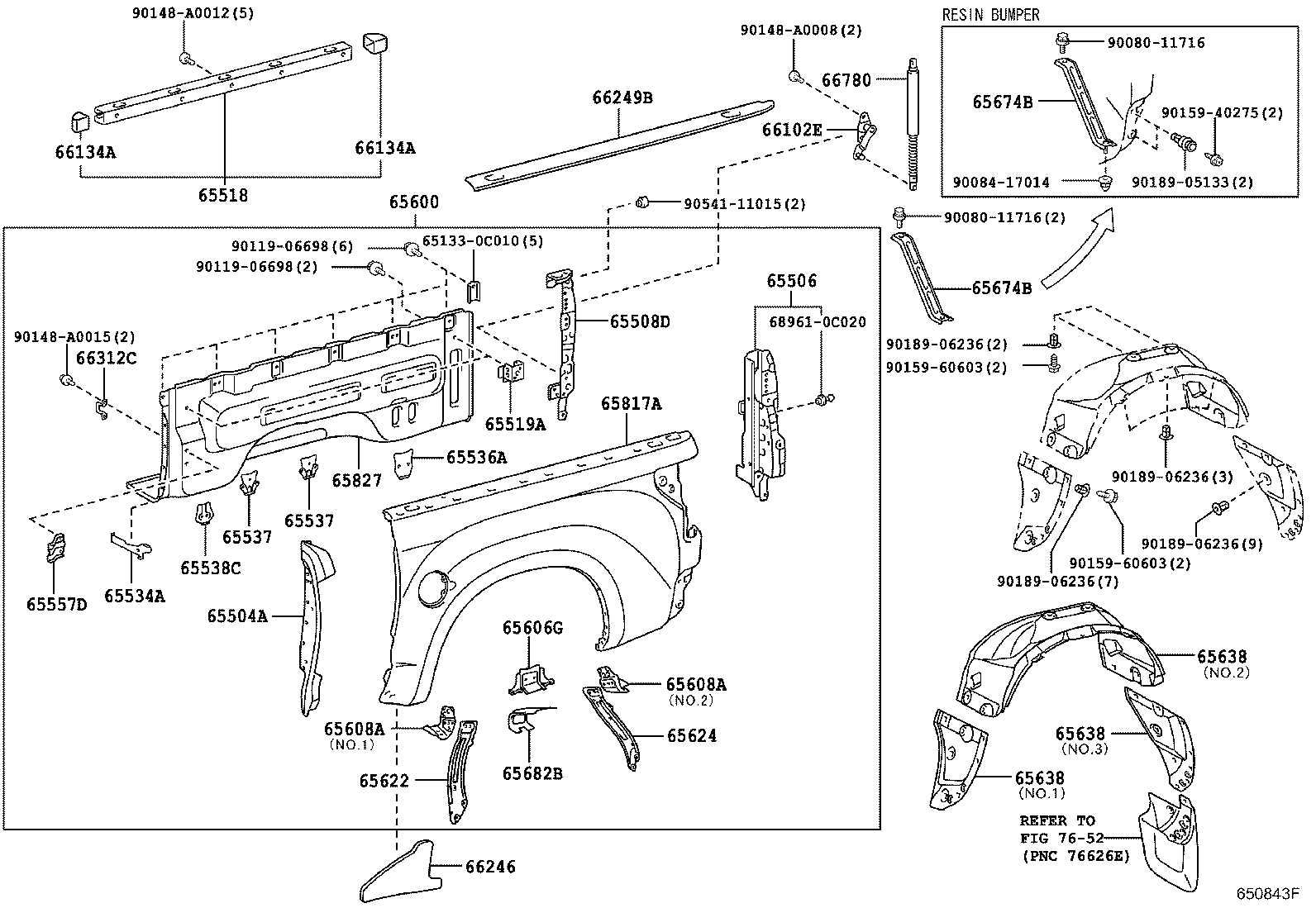

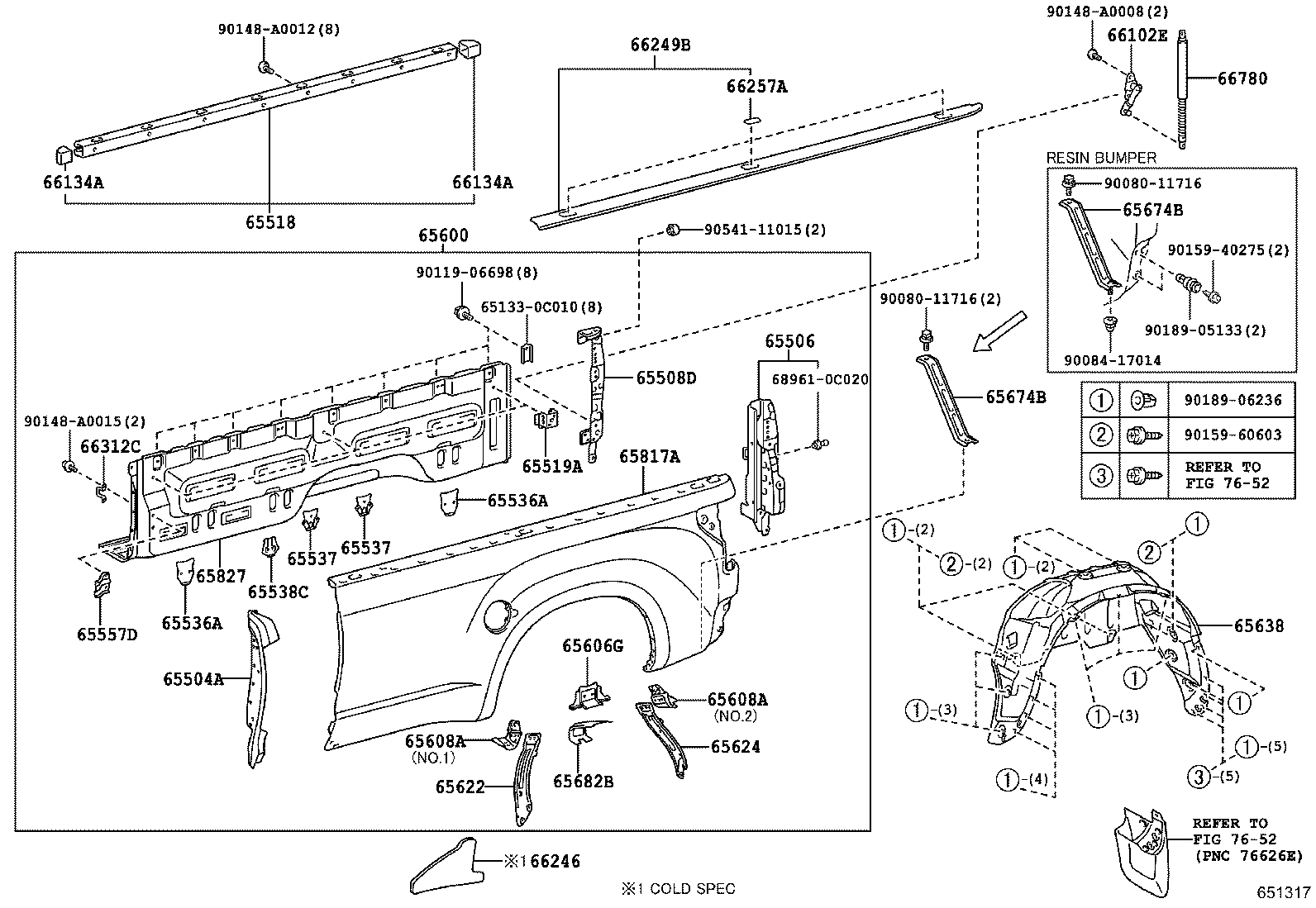

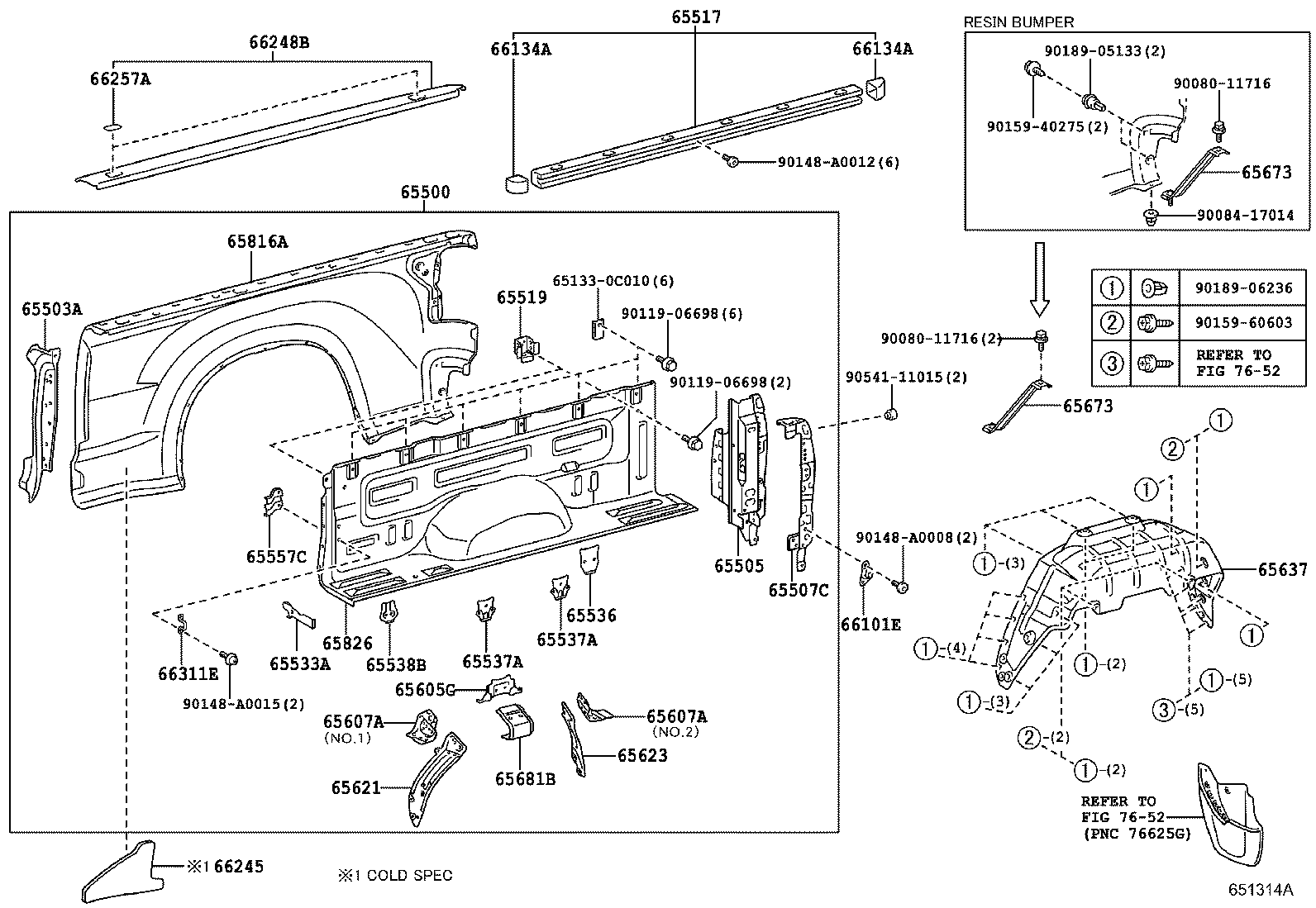

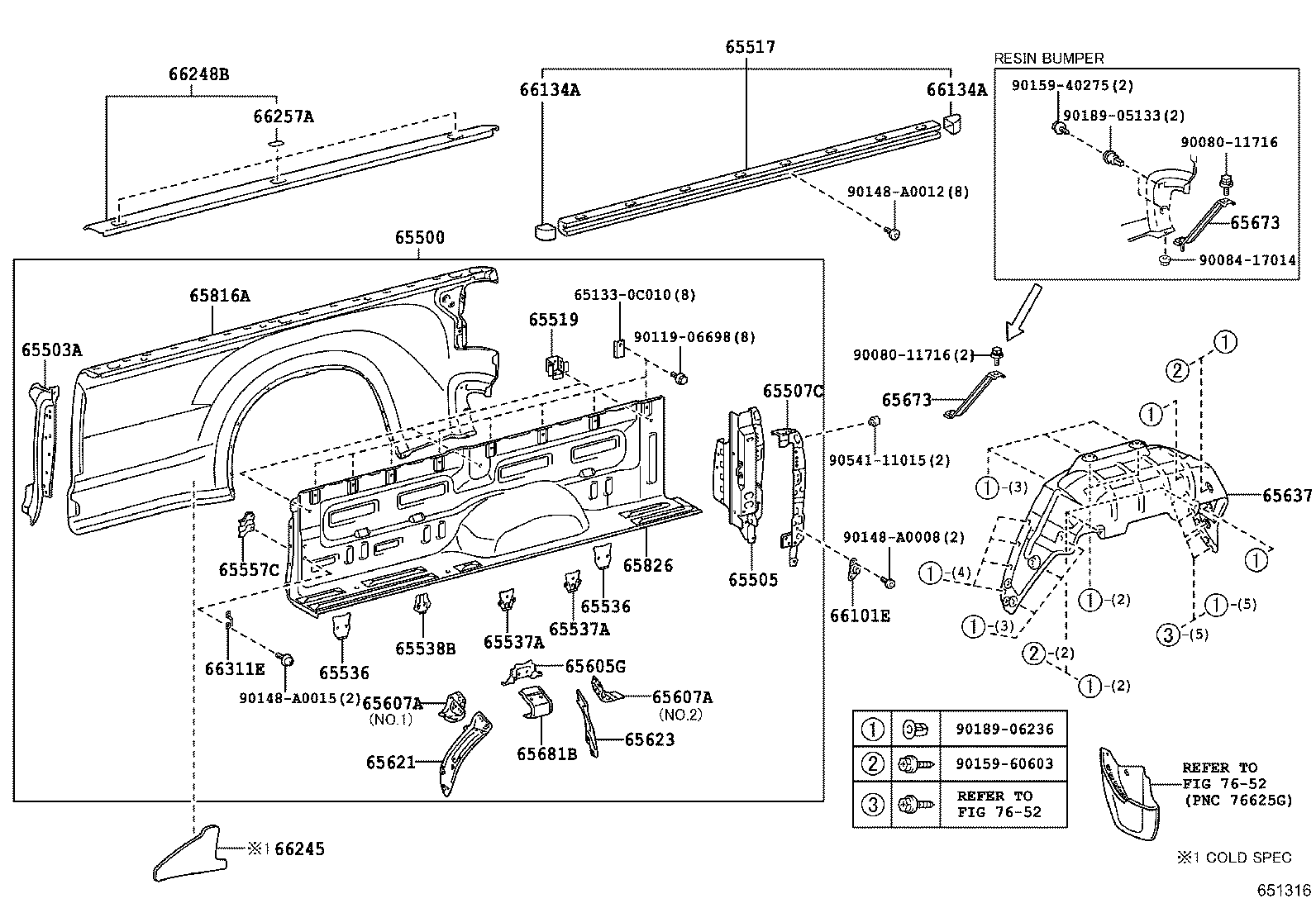

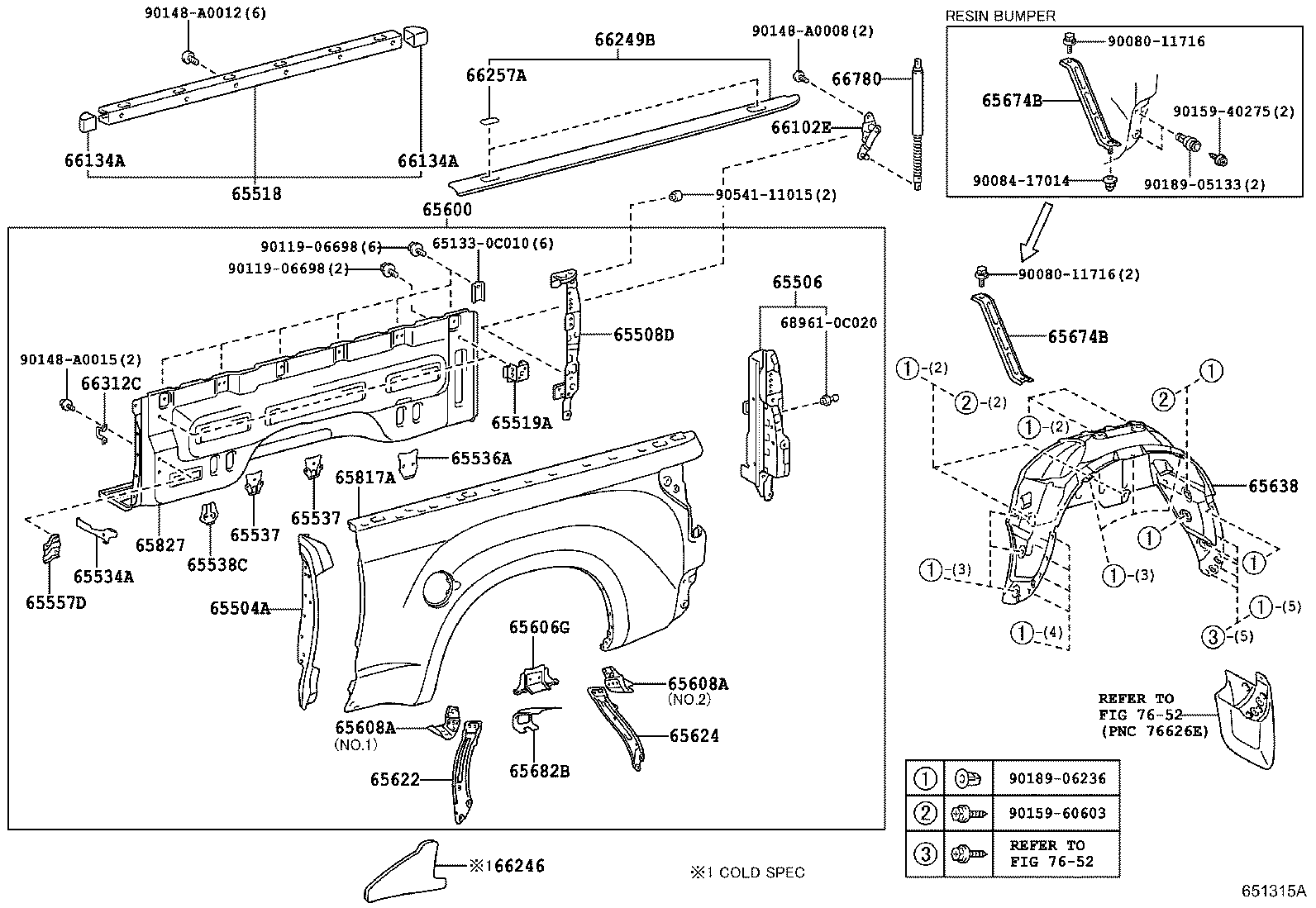

Figure 650831H 650831H 2006-11 → 2013-08 Figure 650832H 650832H 2006-11 → 2013-08 Figure 650833I 650833I 2006-11 → 2013-08 Figure 650834I 650834I 2006-11 → 2013-08 Figure 650842F 650842F 2007-03 → 2013-08 Figure 650843F 650843F 2007-03 → 2013-08 Figure 651314A 651314A 2013-08 → — Figure 651315A 651315A 2013-08 → — Figure 651316 651316 2013-08 → — Figure 651317 651317 2013-08 → — Figure 651318 651318 2013-08 → — Figure 651319 651319 2013-08 → —

Part groups

PNCDescription
65500 Panel Assy, Rear Body Side, RH
65503A Post Sub-assy, Side Panel Front End, RH
65504A Post Sub-assy, Side Panel Front End, LH
65505 Post Sub-assy, Side Panel Rear End, RH
65506 Post Sub-assy, Side Panel Rear End, LH
65507C Post Sub-assy, Side Panel Rear End, Out RH
65508D Post Sub-assy, Side Panel Rear End, Out LH
65517 Rail, Side Panel Top, Rear RH
65518 Rail, Side Panel Top, Rear LH
65519 Bracket, Top Rail
65519A Bracket, Top Rail
65533A Pillar, Side Front Corner, RH
65534A Pillar, Side Front Corner, LH
65536 Patch, Side Panel Reinforcement, NO.1
65536A Patch, Side Panel Reinforcement, NO.2
65537 Patch, Side Panel Reinforcement, NO.2
65537A Patch, Side Panel Reinforcement, RH
65538B Patch, Side Panel Reinforcement, NO.3
65538C Patch, Side Panel Reinforcement, LH
65557C Retainer, Rope Hook, NO.1
65557D Retainer, Rope Hook, NO.2
65600 Panel Assy, Rear Body Side, LH
65605G Panel Sub-assy, Wheel House, RH
65606G Panel Sub-assy, Wheel House, LH
65607A Skirt Sub-assy, Side Panel, Rear RH
65608A Skirt Sub-assy, Side Panel, Rear LH
65621 Skirt, Side Panel, Front RH
65622 Skirt, Side Panel, Front LH
65623 Skirt, Side Panel, RR RH
65624 Skirt, Side Panel, RR LH
65637 Liner, Rear Wheel House, RH
65638 Liner, Rear Wheel House, LH
65673 Brace, Side Panel Skirt, Rear
65674B Brace, Side Panel Skirt, RR LH
65681B Bracket, Wheel House Seal, Side, RH
65682B Bracket, Wheel House Seal, Side, LH
65816A Panel, Rear Body Side, RH
65817A Panel, Rear Body Side, LH
65826 Panel, Rear Body Side, Inner RH
65827 Panel, Rear Body Side, Inner LH
66101E Hinge Sub-assy, Tail Gate Male, RH
66102E Hinge Sub-assy, Tail Gate Male, LH
66134A Cap, Side Gate Support
66245 Protector, Rear Body, NO.3 RH
66246 Protector, Rear Body, NO.3 LH
66248B Protector, Rear Body Side Panel, RH
66249B Protector, Rear Body Side Panel, LH
66257A Plate, Rear Body Protector, RH
66311E Hook, Rope
66312C Hook, Rope
66780 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
