Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

32 part groups · 7 illustrations

Illustrations

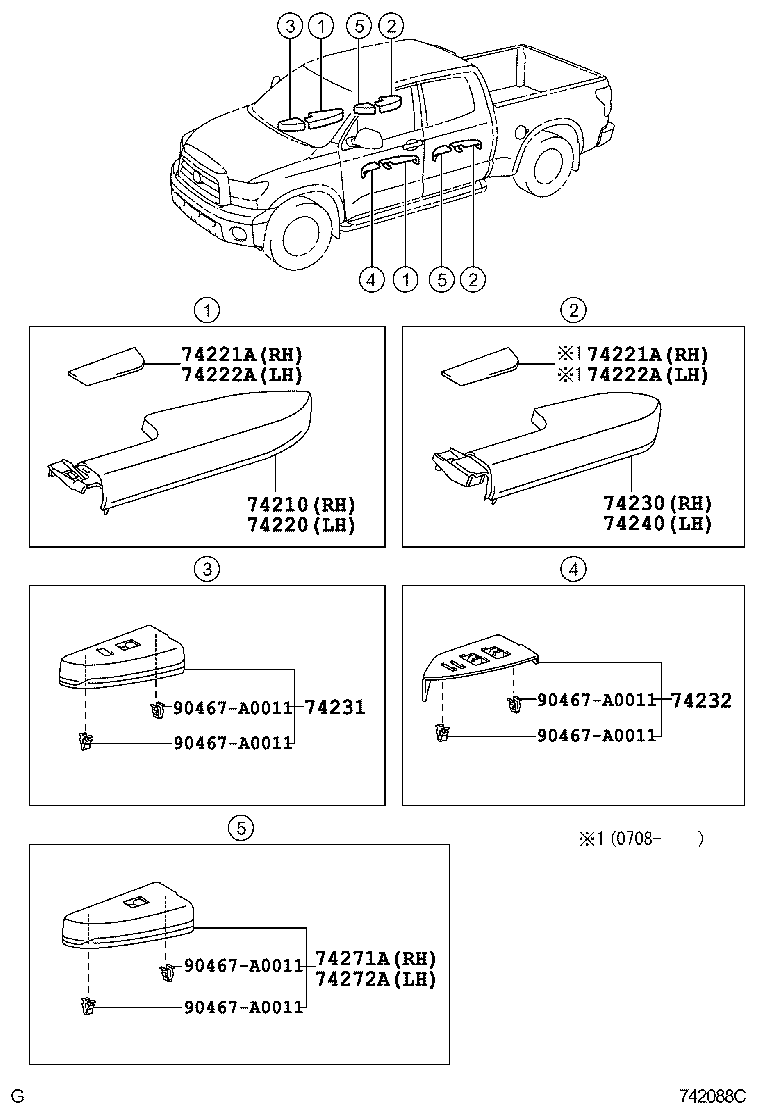

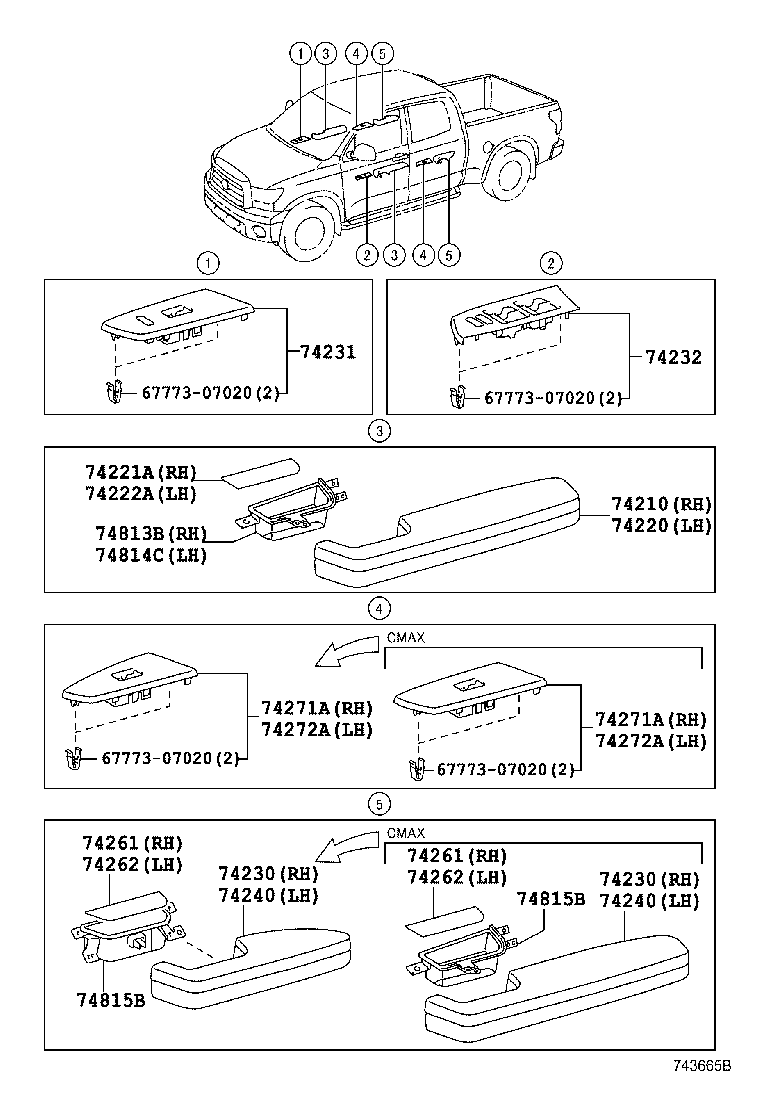

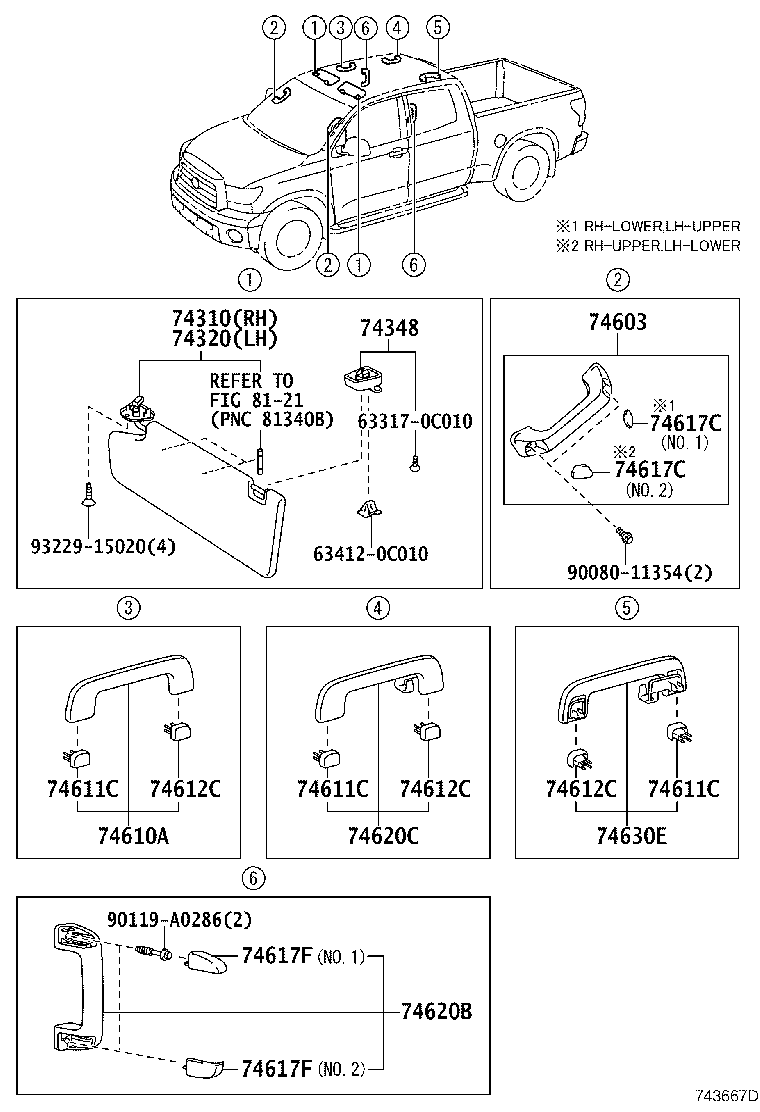

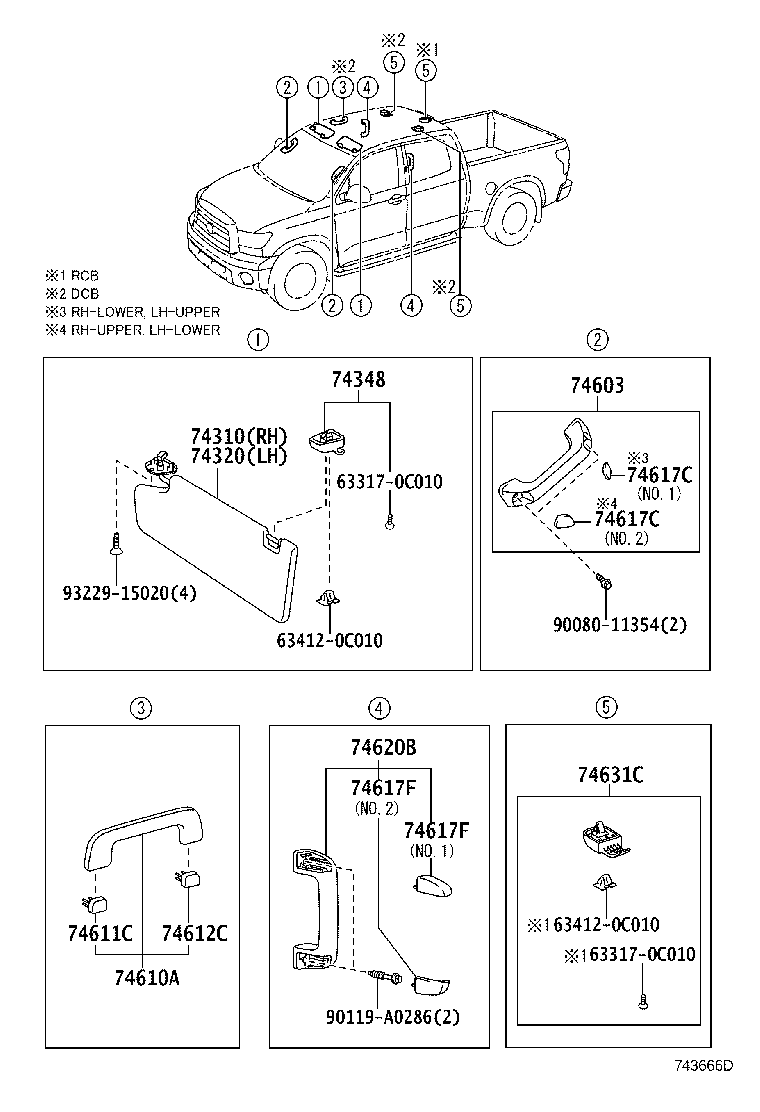

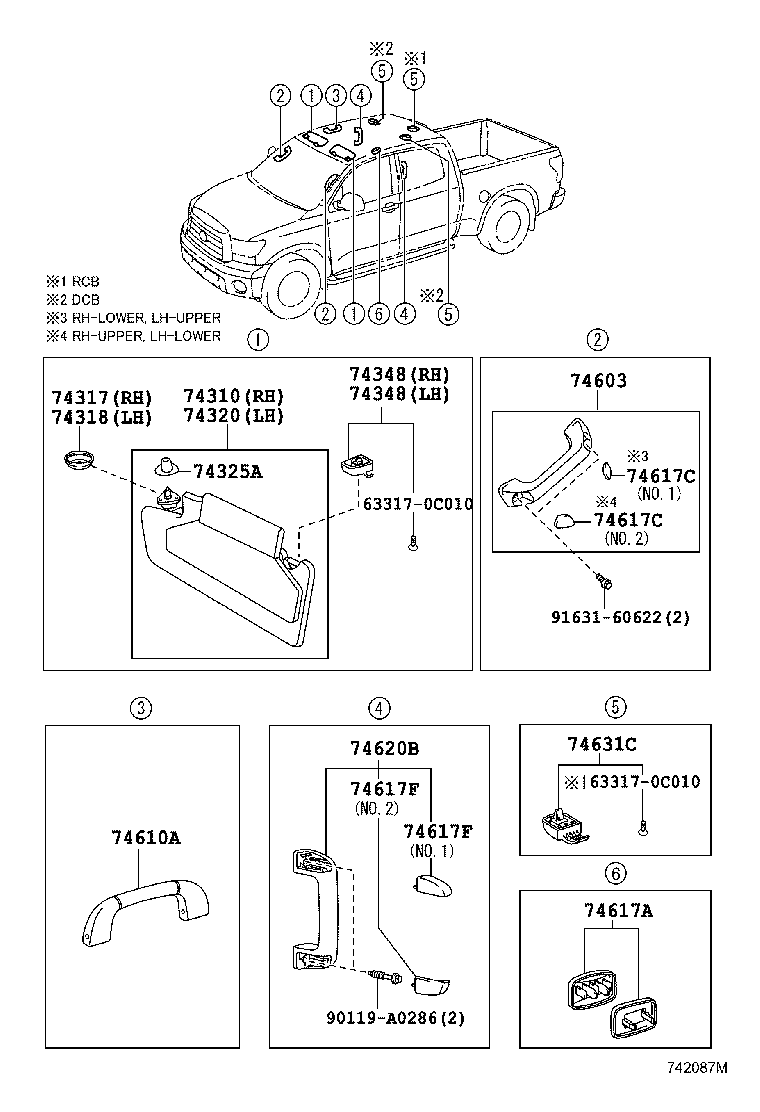

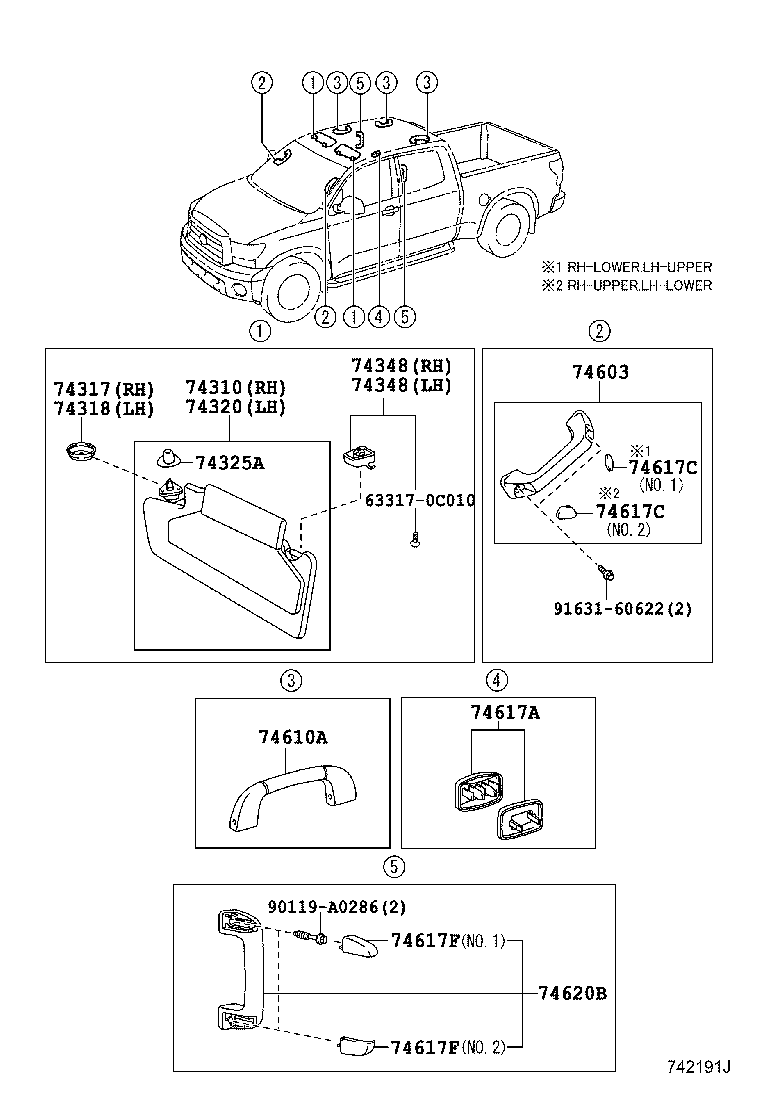

Figure 742089D 742089D 2006-11 → — Figure 742088C 742088C 2006-11 → 2013-08 Figure 743665B 743665B 2013-08 → — Figure 742087M 742087M 2006-11 → 2013-08 Figure 743666D 743666D 2013-08 → — Figure 742191J 742191J 2007-03 → 2013-08 Figure 743667D 743667D 2013-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74221A Cover, Front Door Armrest, RH
74222A Cover, Front Door Armrest, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74261 Cover, Rear Door Armrest, RH
74262 Cover, Rear Door Armrest, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74325A Support, Front Visor, NO.1
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74610A Grip Sub-assy, Assist
74611C Cover, Assist Grip, LH
74612C Cover, Assist Grip, RH
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74617F Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74631C Hook, Coat
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
74815B Handle, Rear Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
