Toyota C-hr

2023-10 → present · chassis MAXH2#,ZYX20 · catalogue 528220 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

106 part groups · 23 illustrations

Illustrations

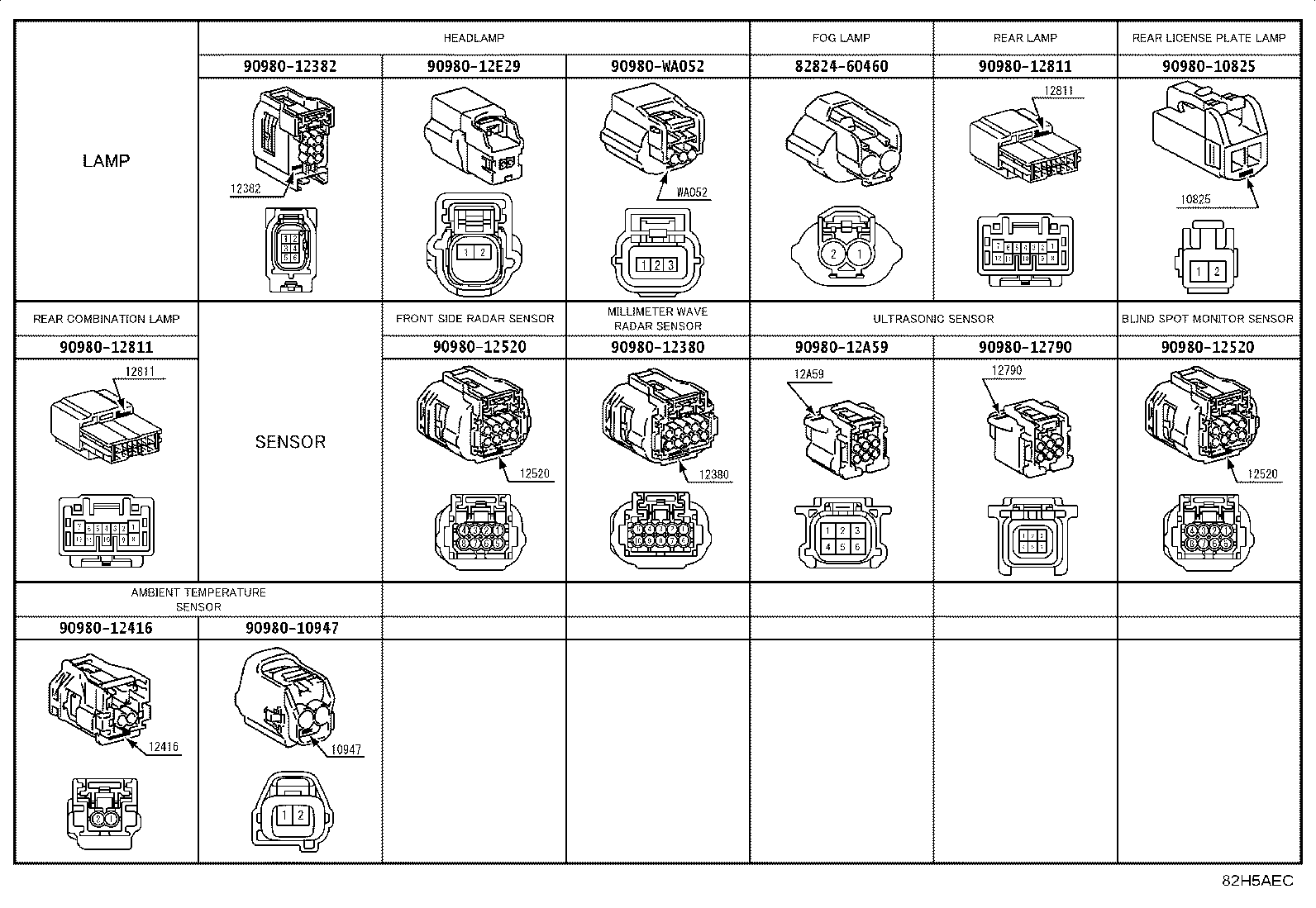

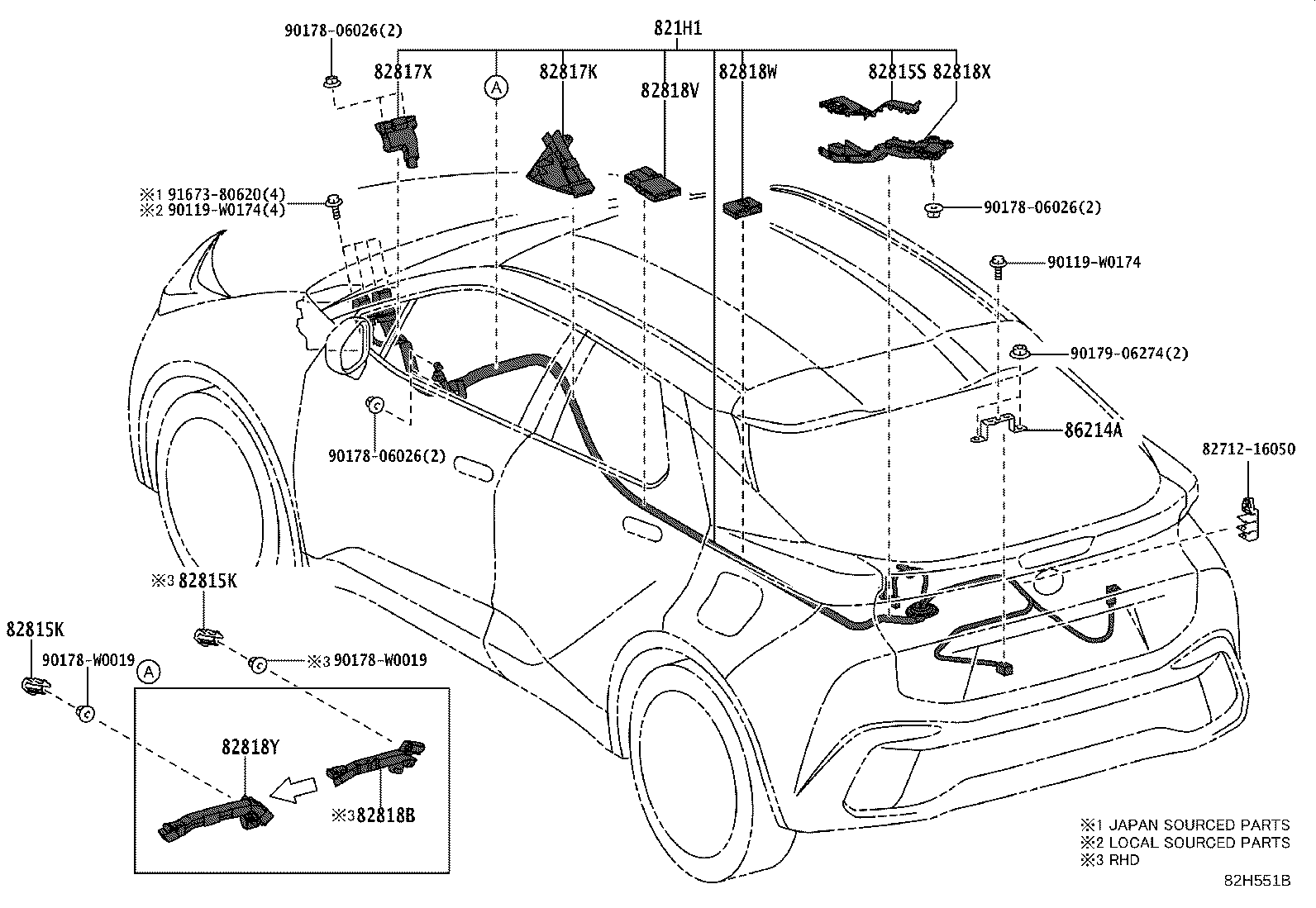

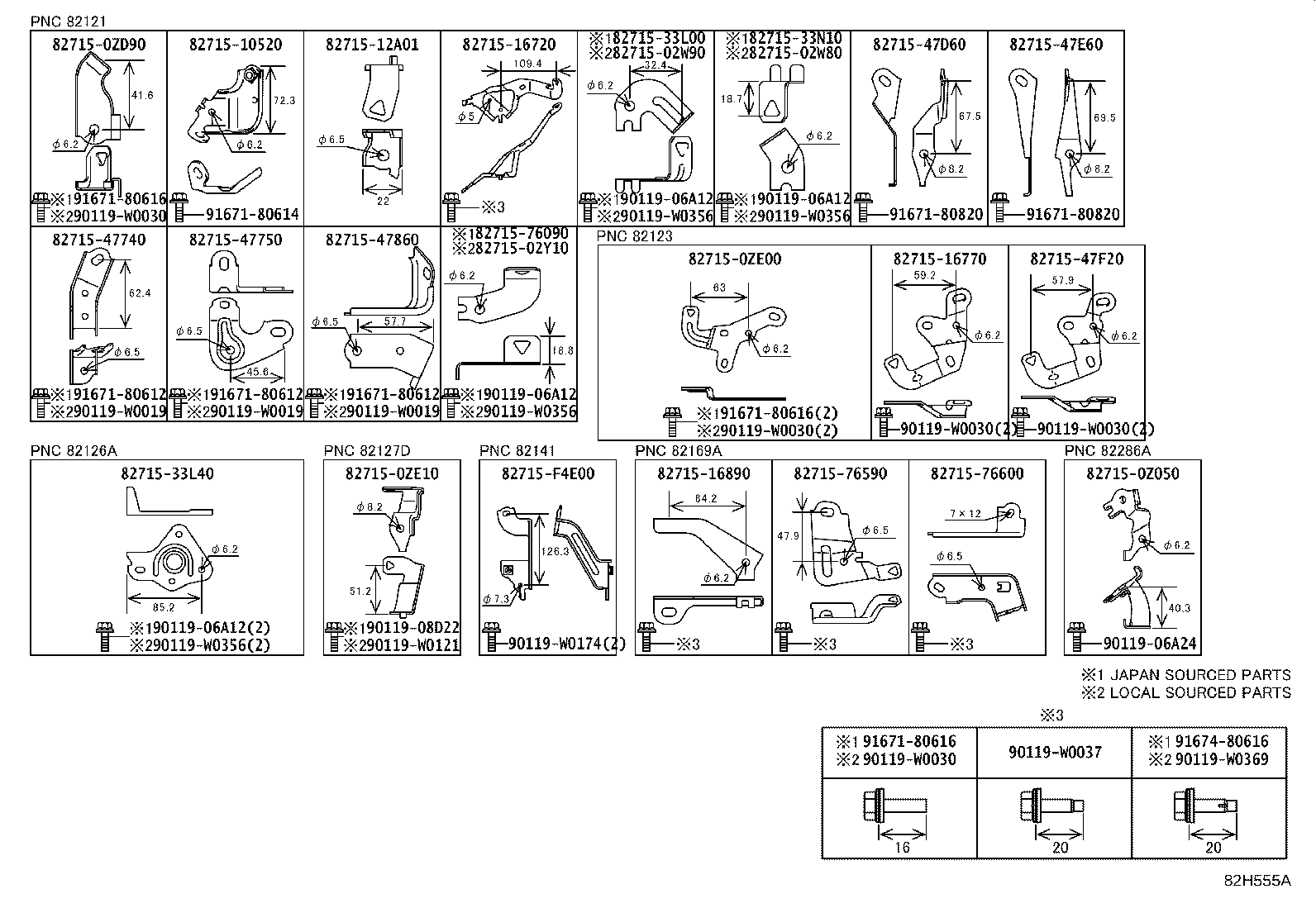

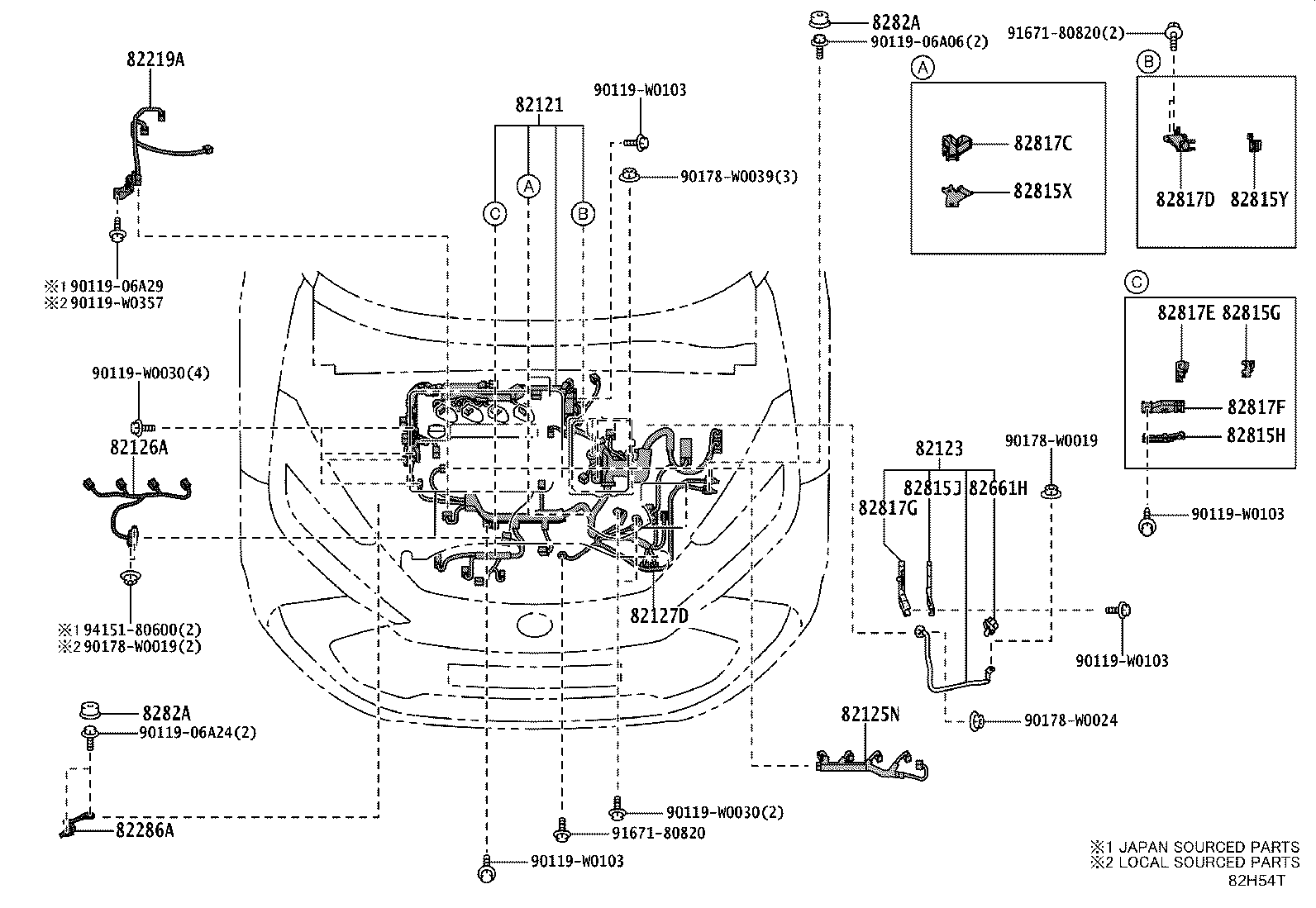

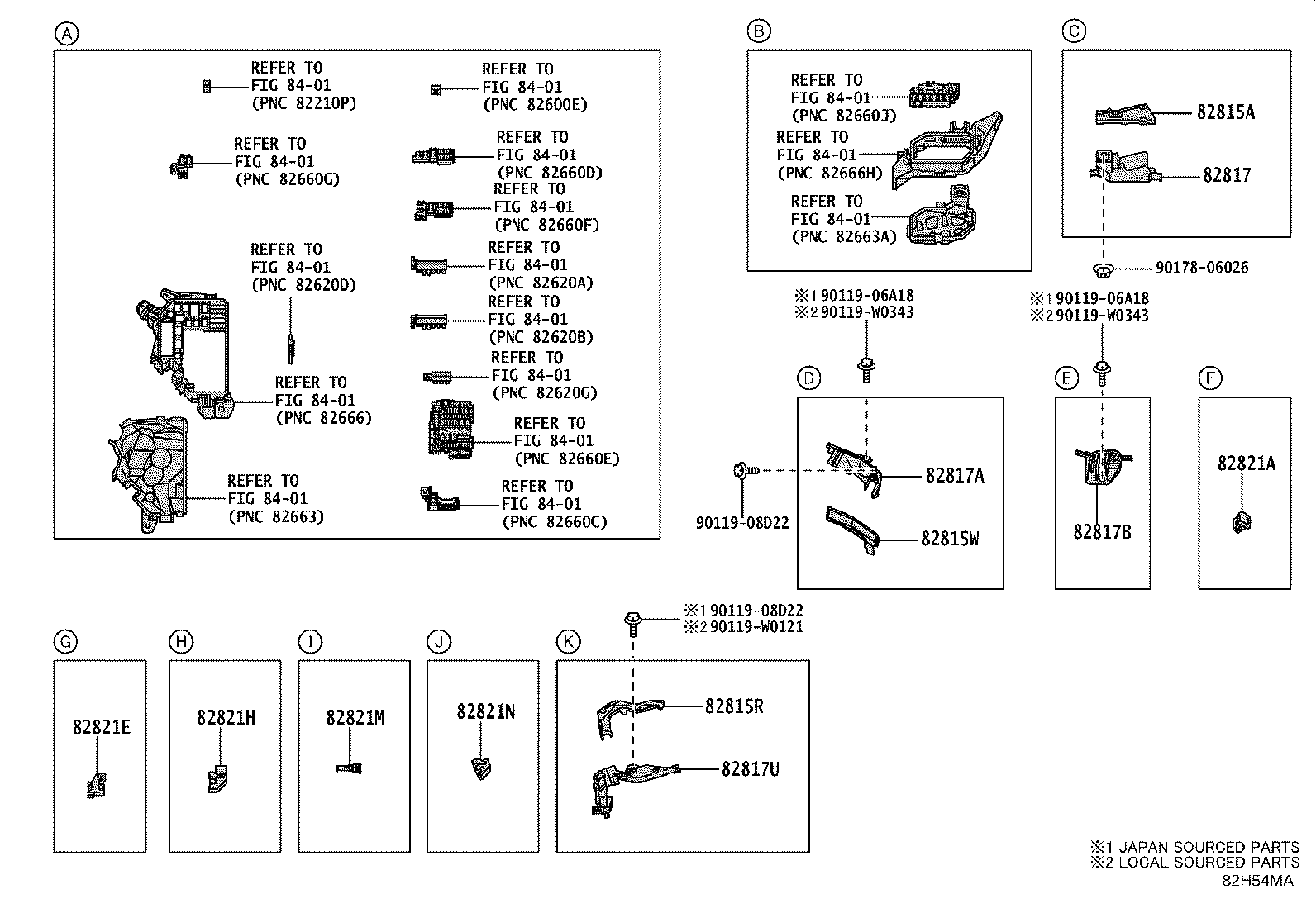

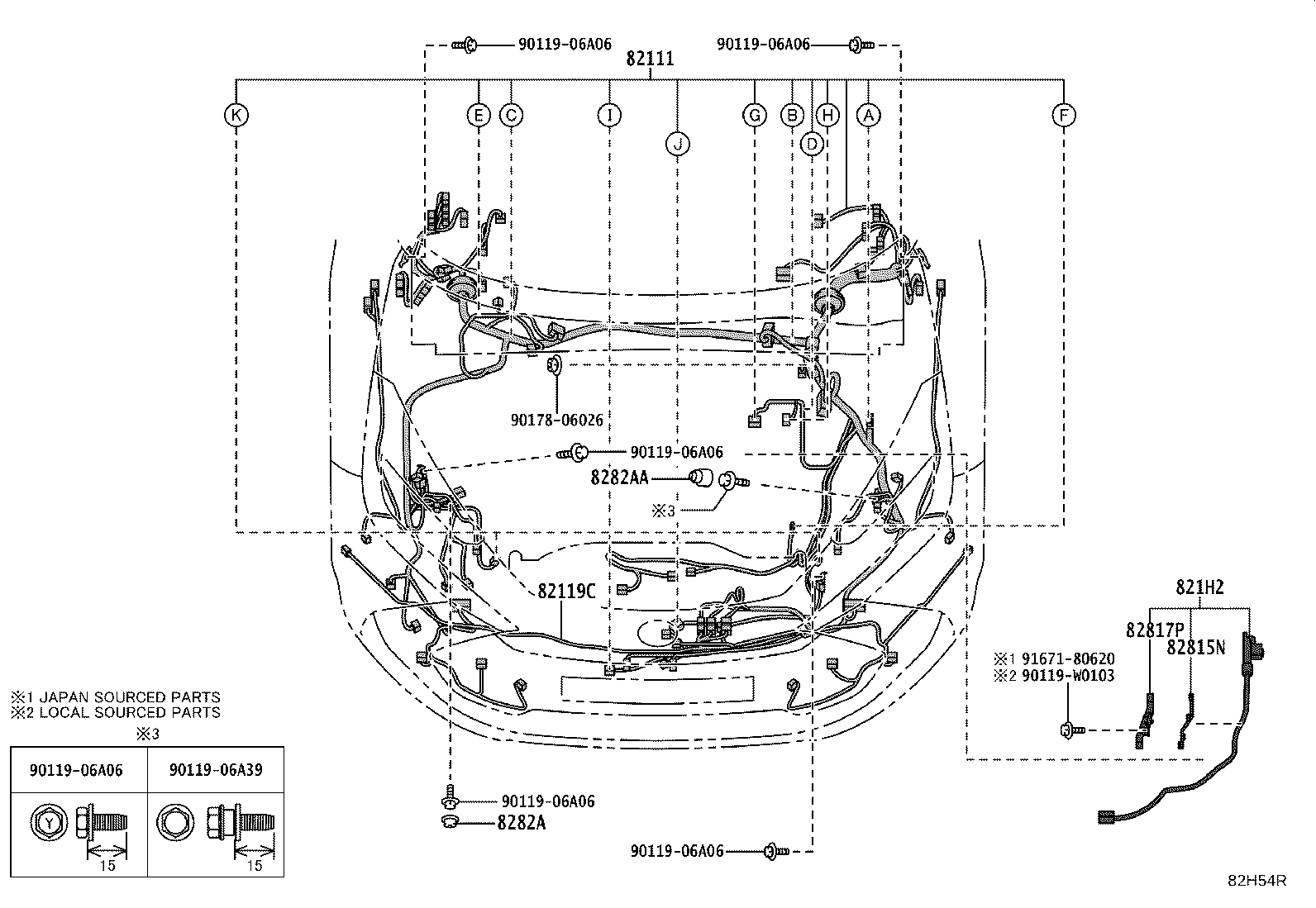

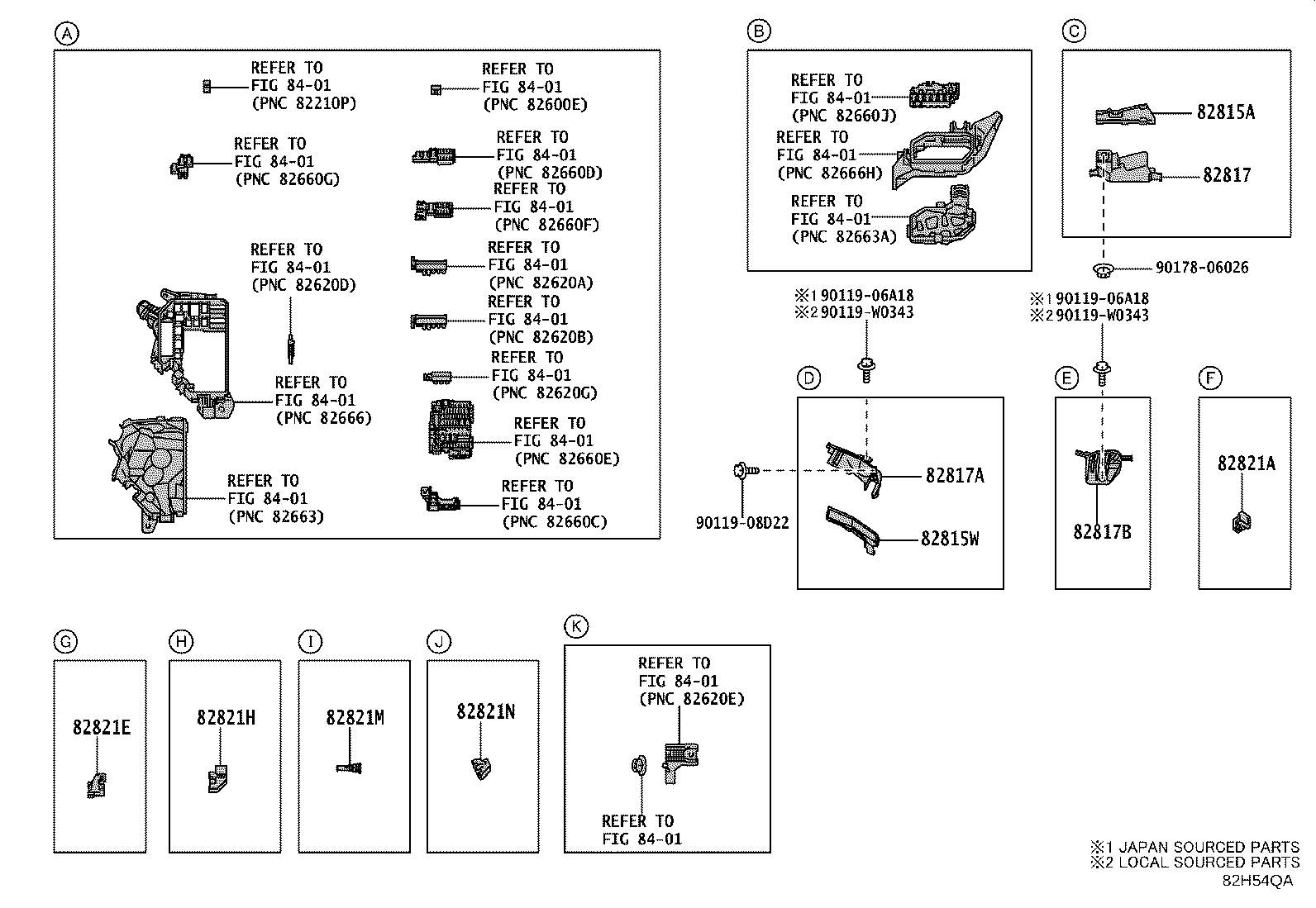

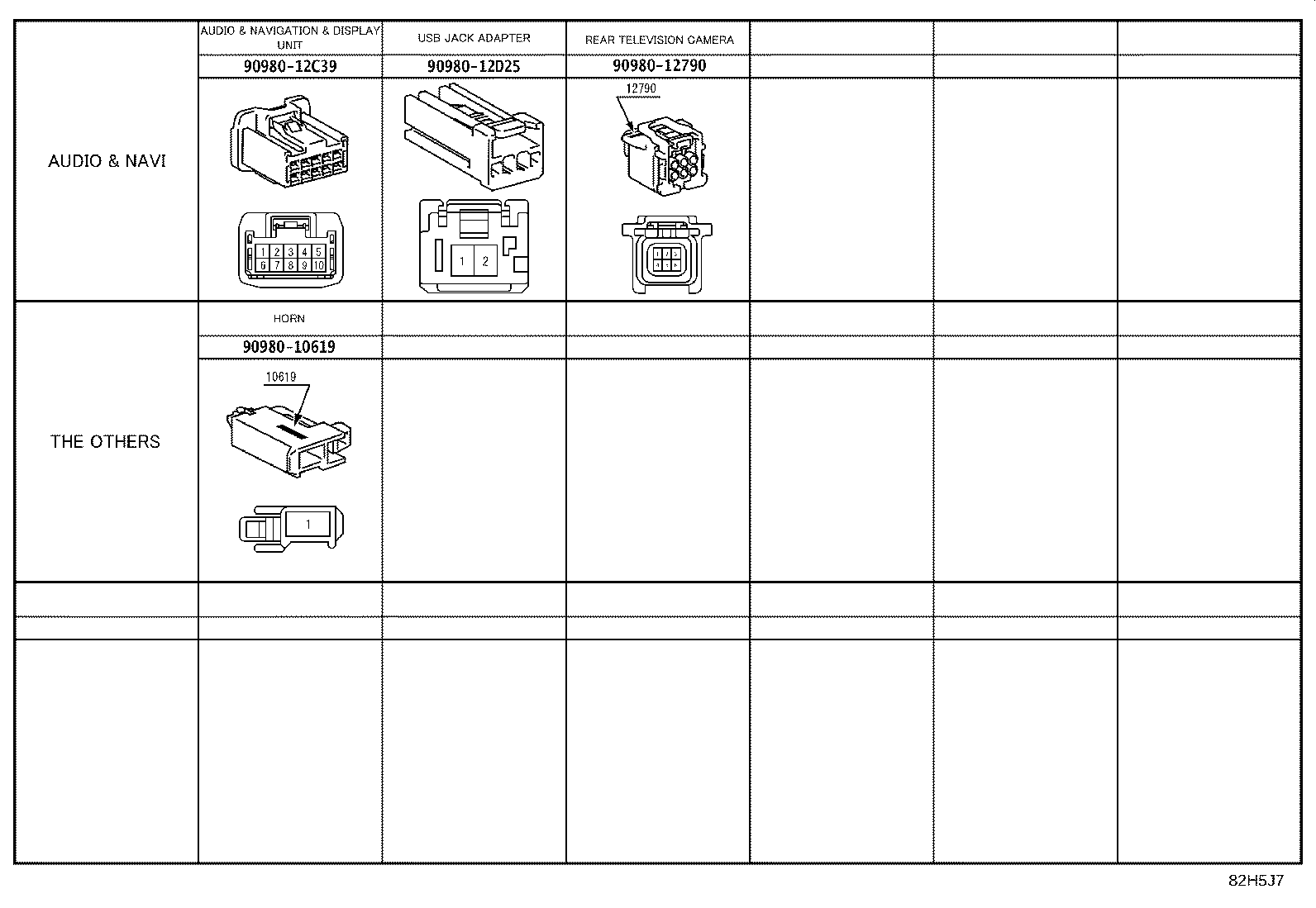

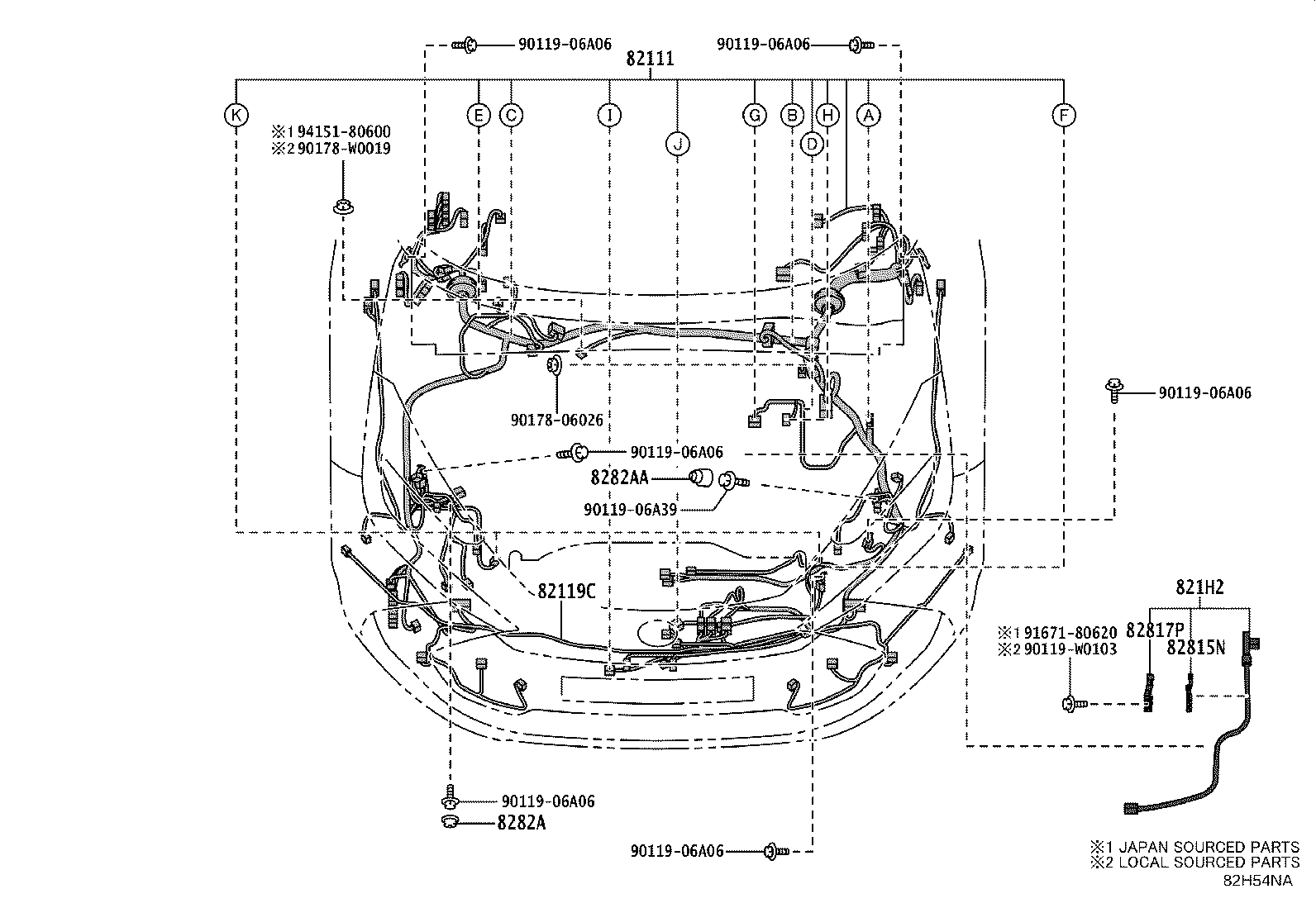

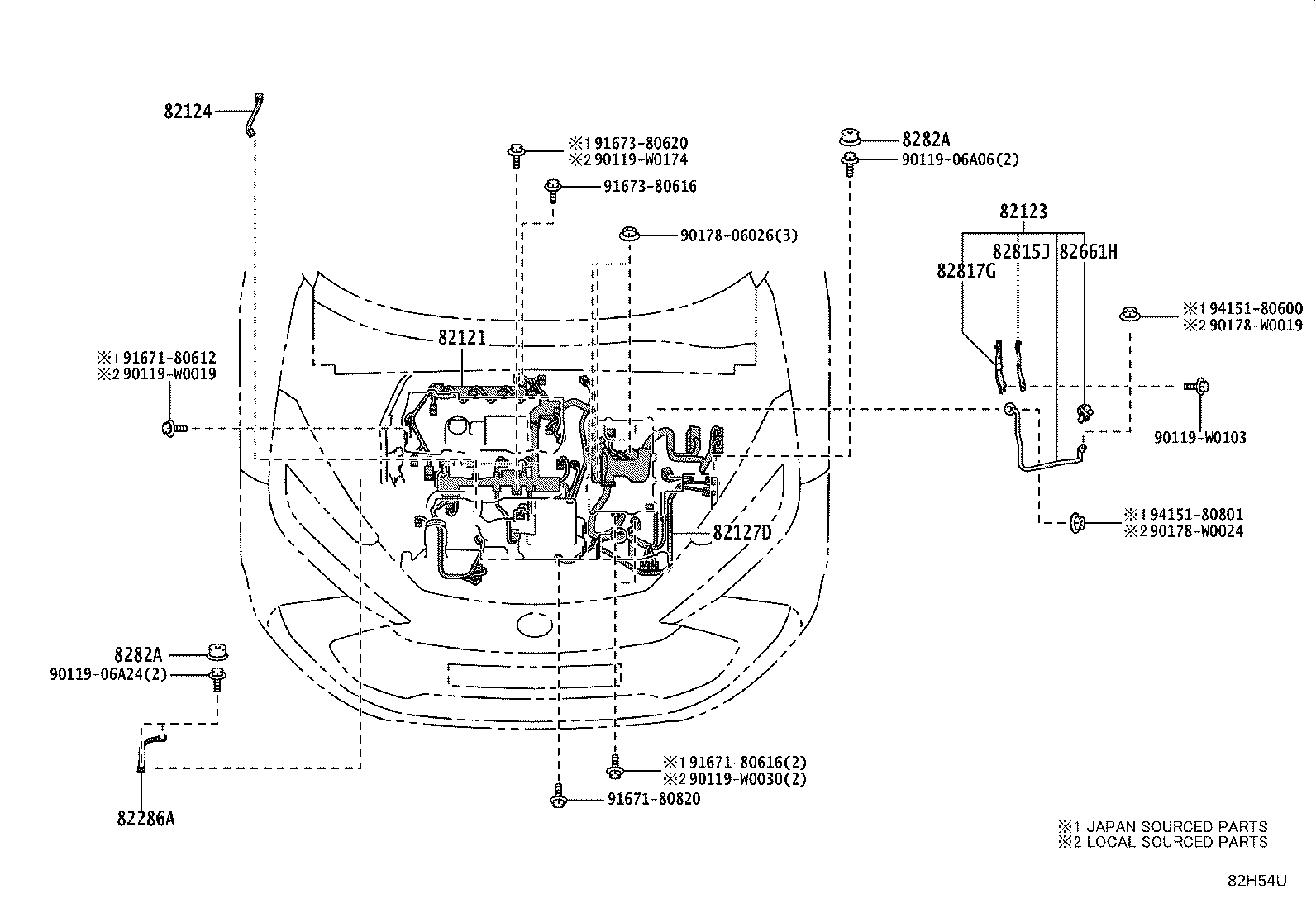

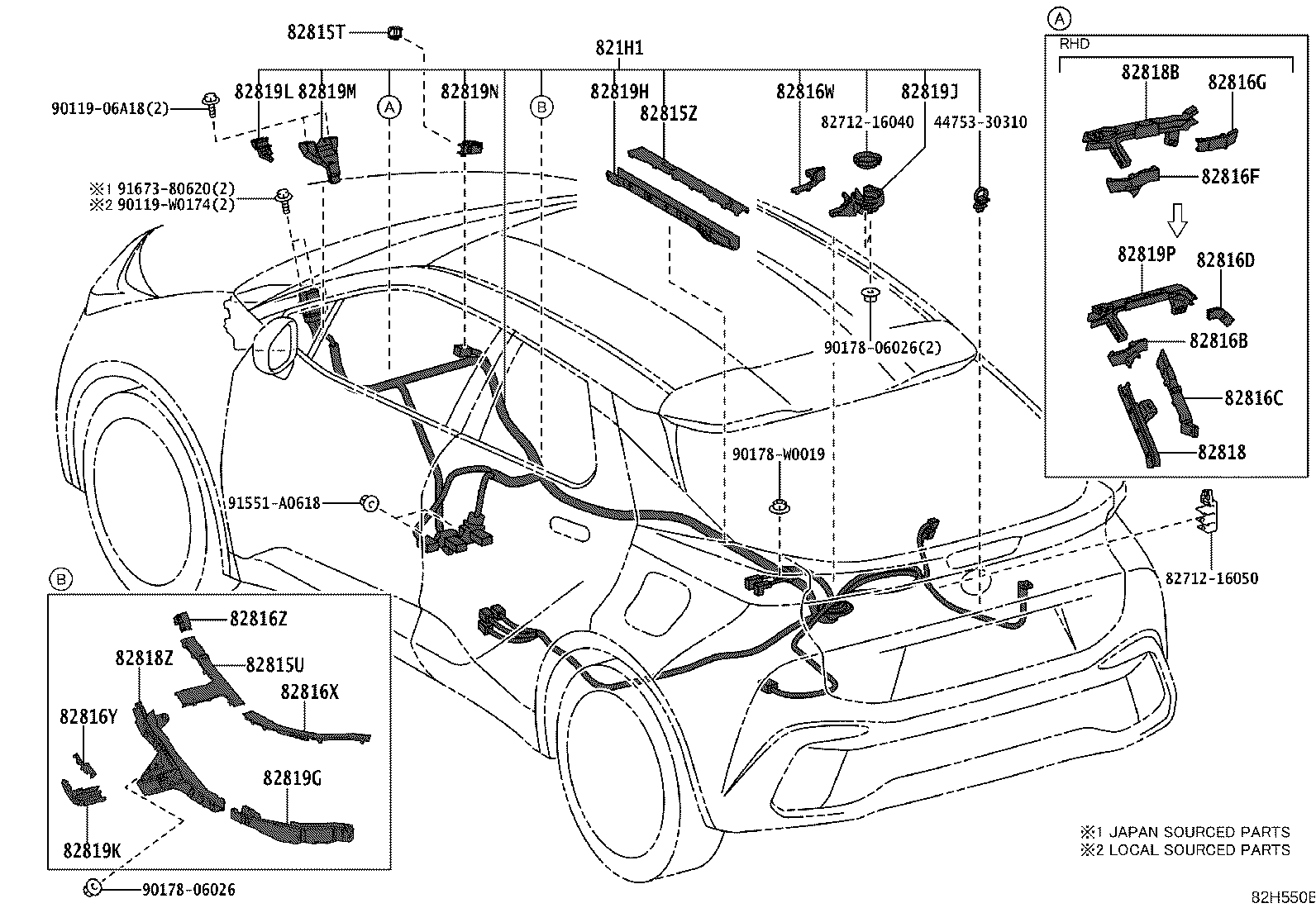

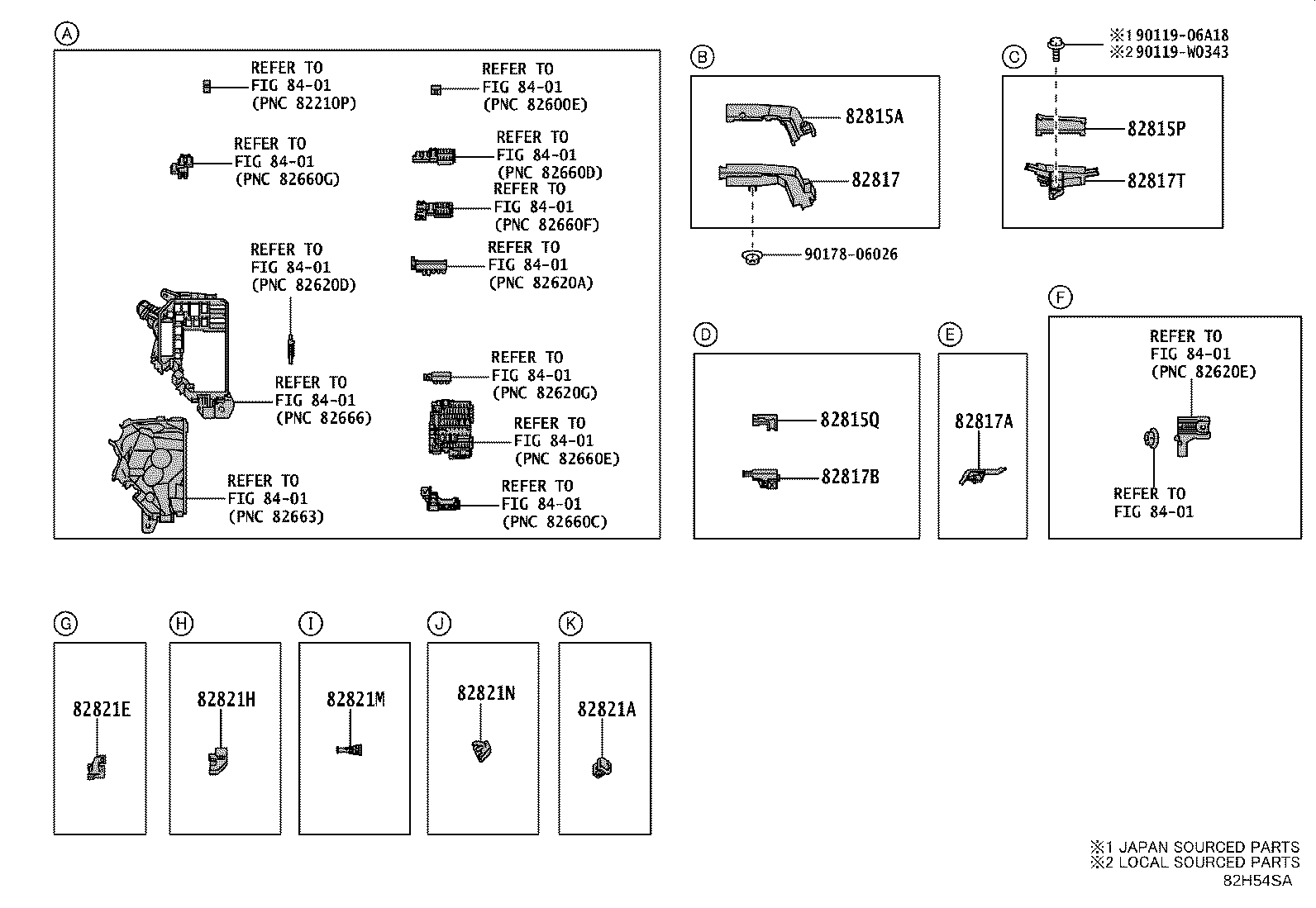

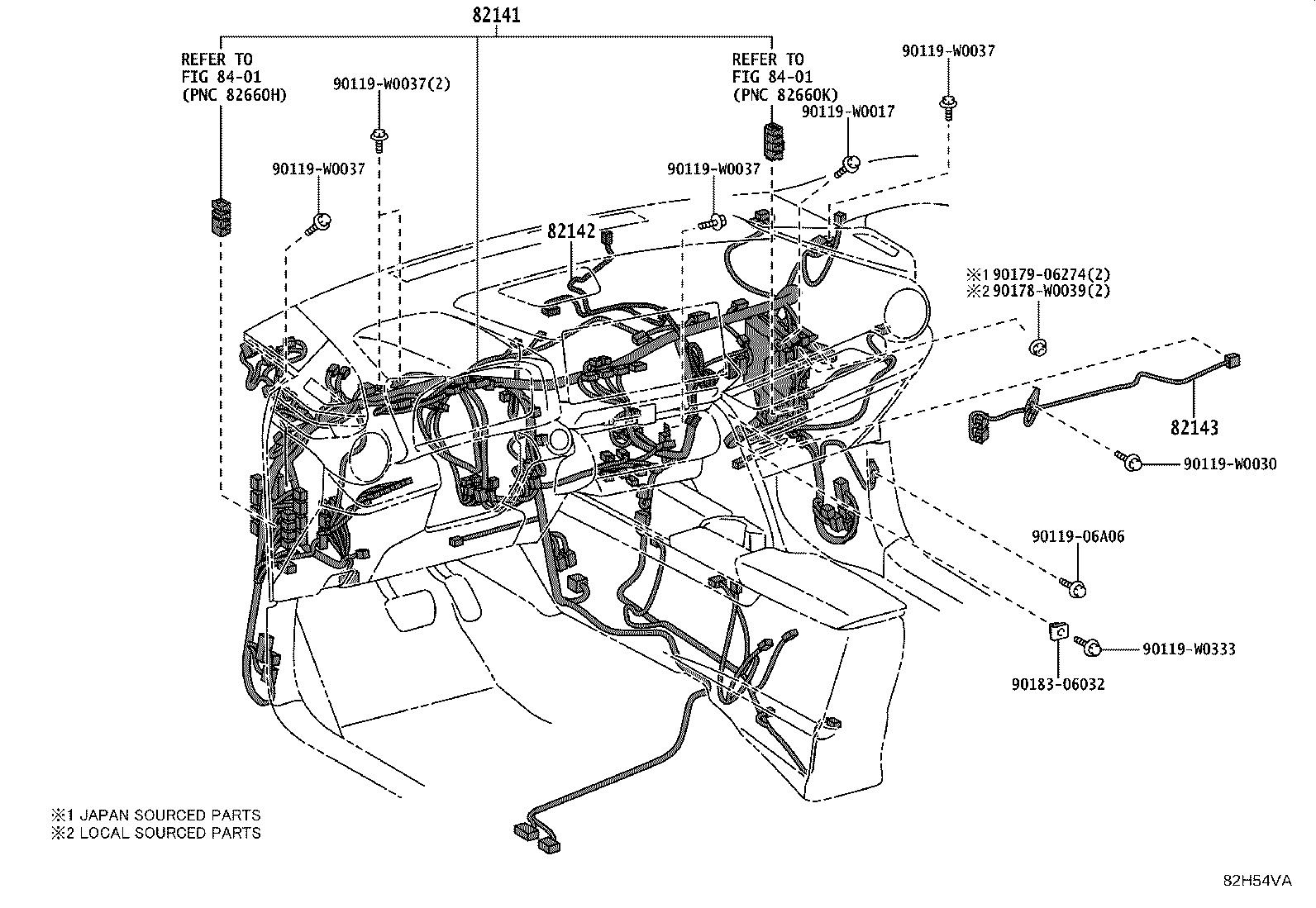

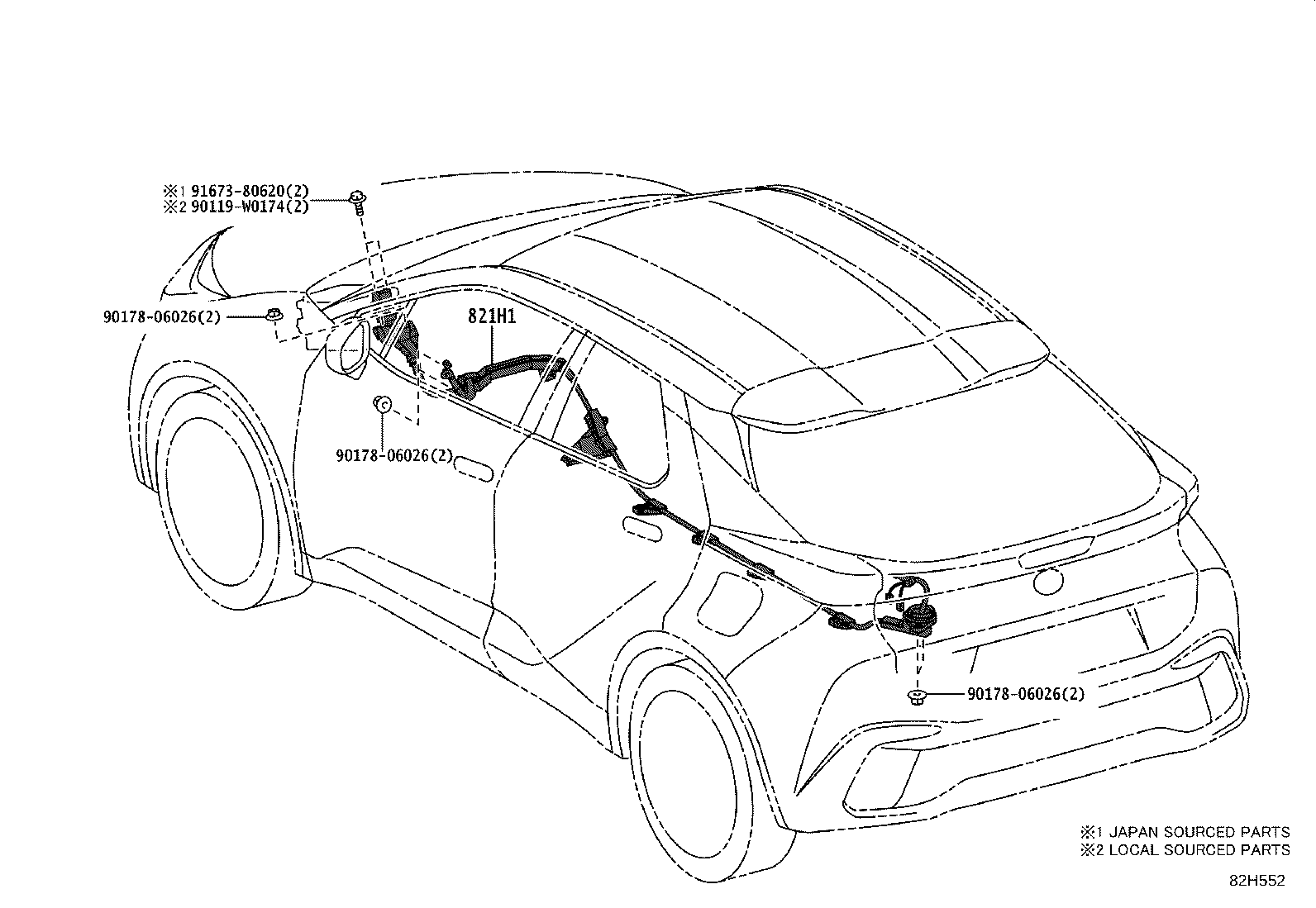

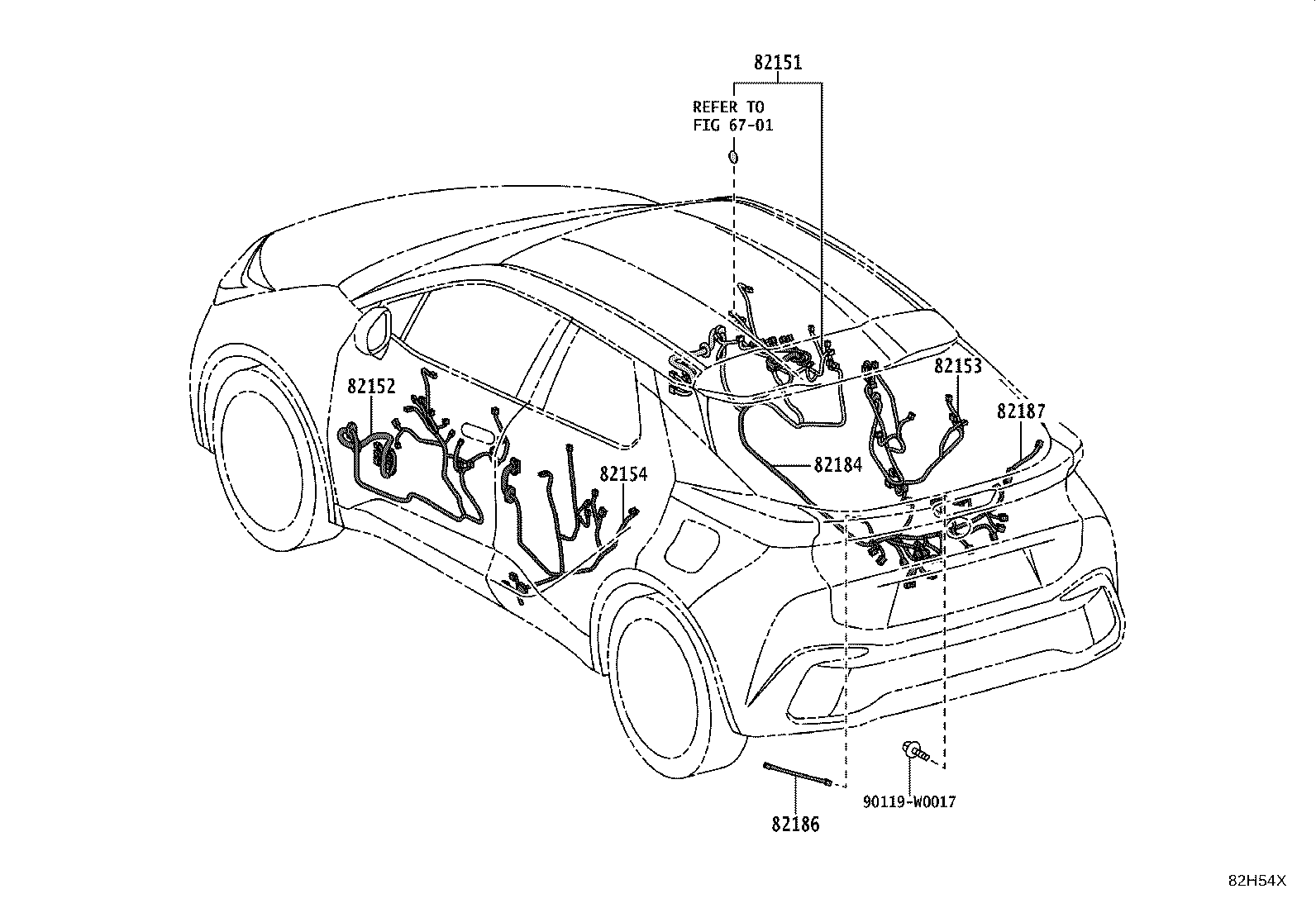

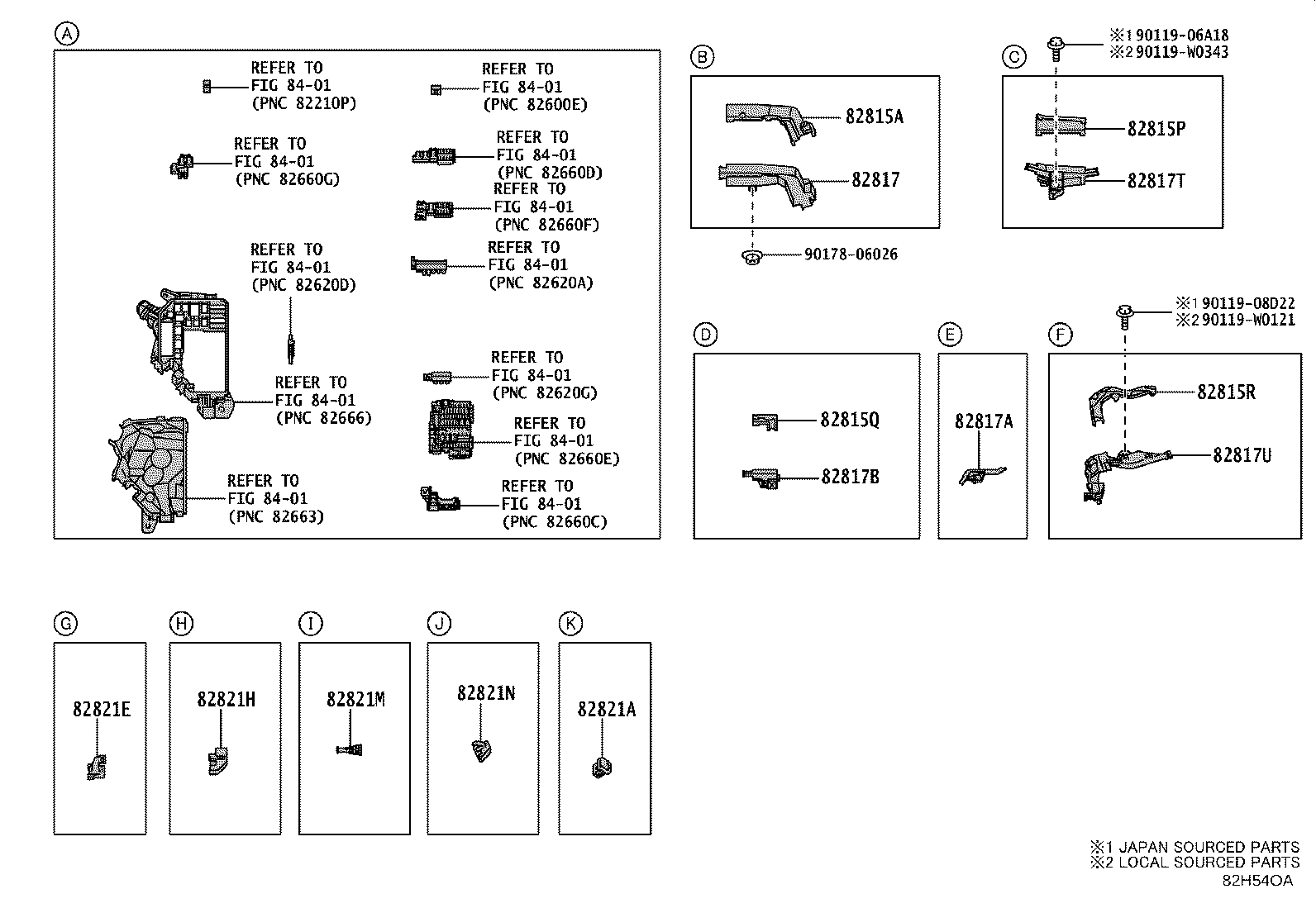

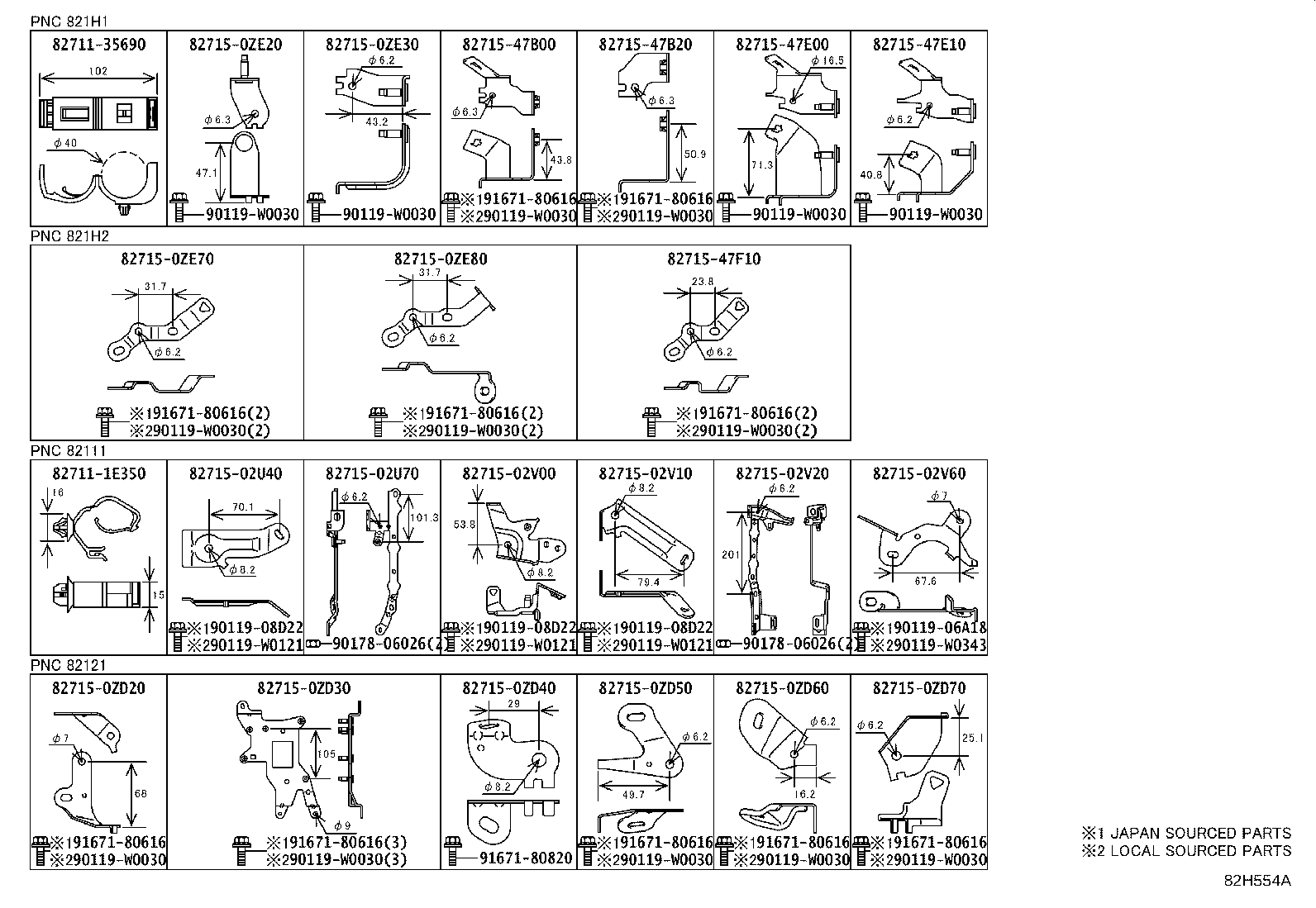

Figure 82H54LA 82H54LA 2023-10 → — Figure 82H54MA 82H54MA 2023-10 → — Figure 82H54NA 82H54NA 2023-10 → — Figure 82H54OA 82H54OA 2023-10 → — Figure 82H54P 82H54P 2023-10 → — Figure 82H54QA 82H54QA 2023-10 → — Figure 82H54R 82H54R 2023-10 → — Figure 82H54SA 82H54SA 2023-10 → — Figure 82H54T 82H54T 2023-10 → — Figure 82H54U 82H54U 2023-10 → — Figure 82H54VA 82H54VA 2023-10 → — Figure 82H54WA 82H54WA 2023-10 → — Figure 82H54X 82H54X 2023-10 → — Figure 82H54YC 82H54YC 2023-10 → — Figure 82H54ZA 82H54ZA 2023-10 → — Figure 82H550B 82H550B 2024-01 → — Figure 82H551B 82H551B 2023-10 → — Figure 82H552 82H552 2023-10 → — Figure 82H553 82H553 2023-10 → — Figure 82H554A 82H554A 2023-10 → — Figure 82H555A 82H555A 2023-10 → — Figure 82H5AEC 82H5AEC 2023-10 → — Figure 82H5J7 82H5J7 2023-10 → —

Part groups

PNCDescription

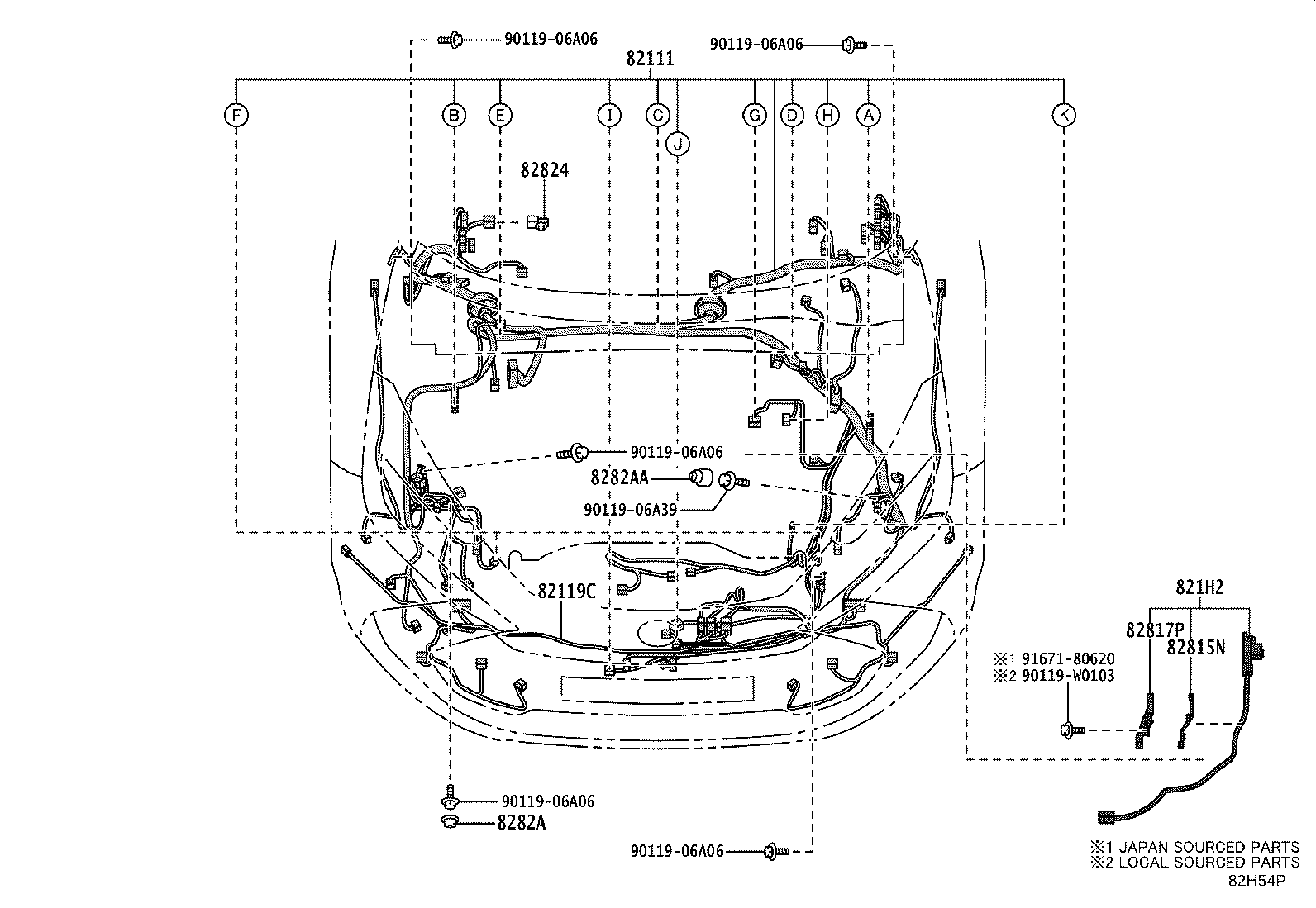

82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7

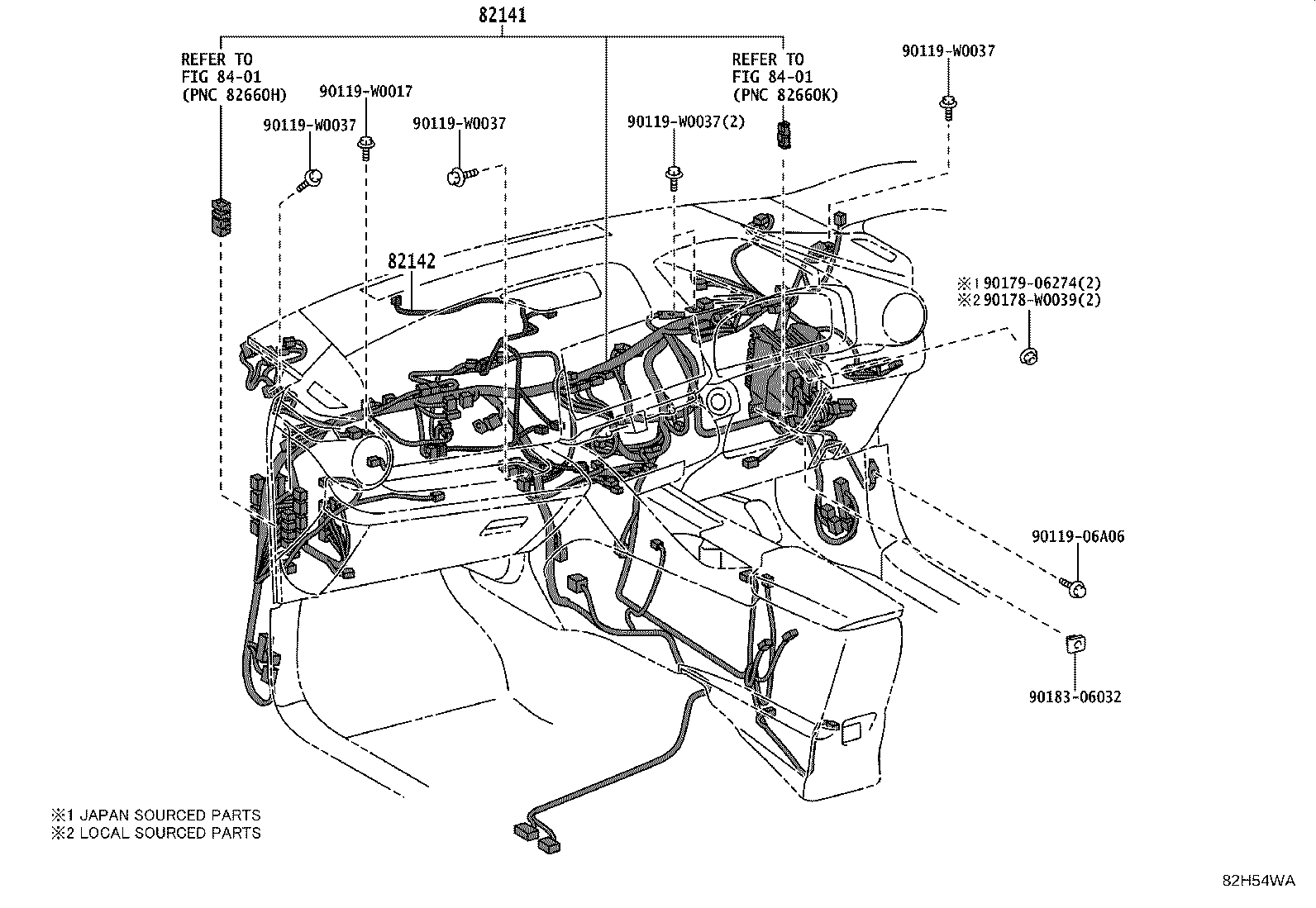

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

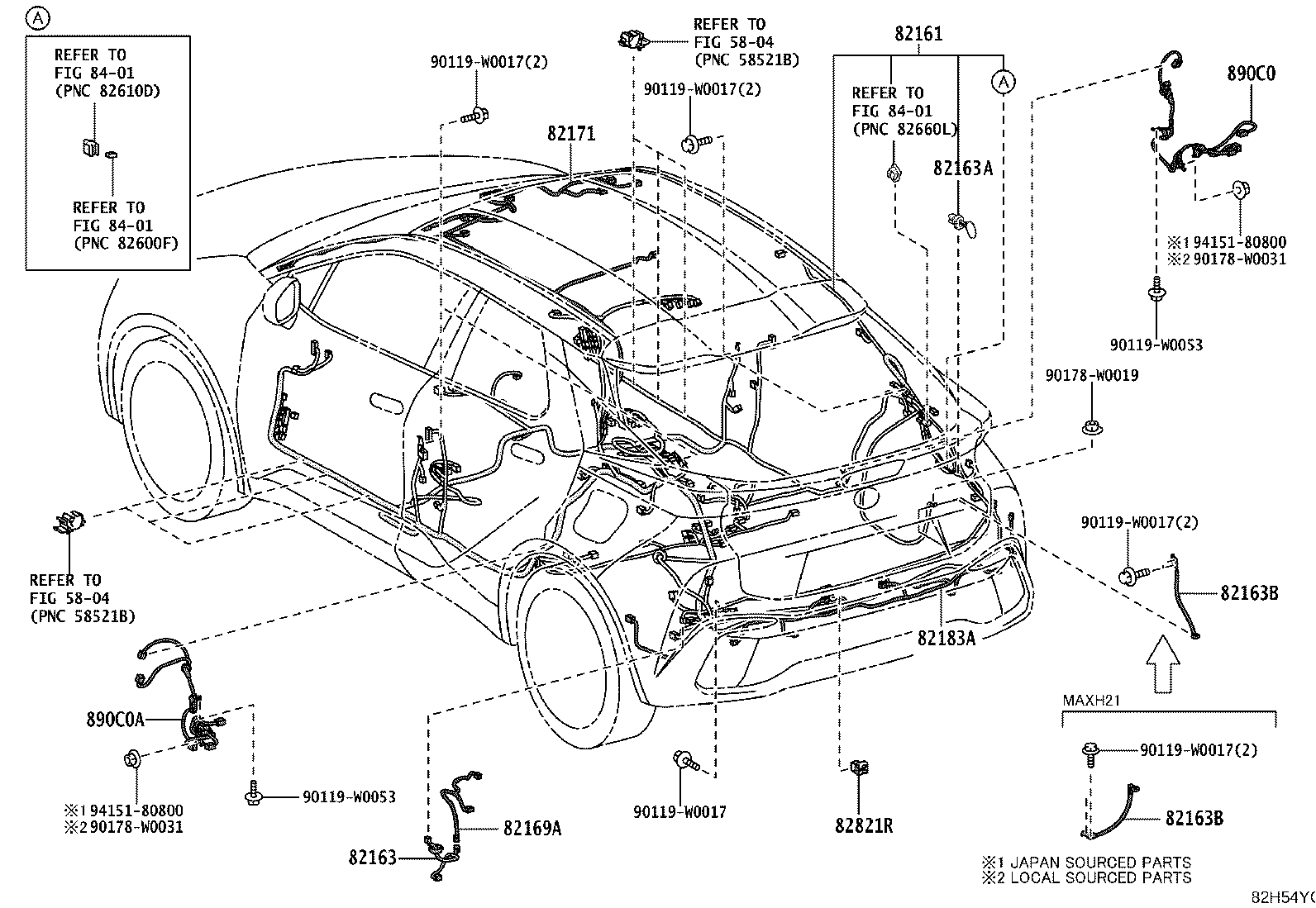

82161 Wire, Floor
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2

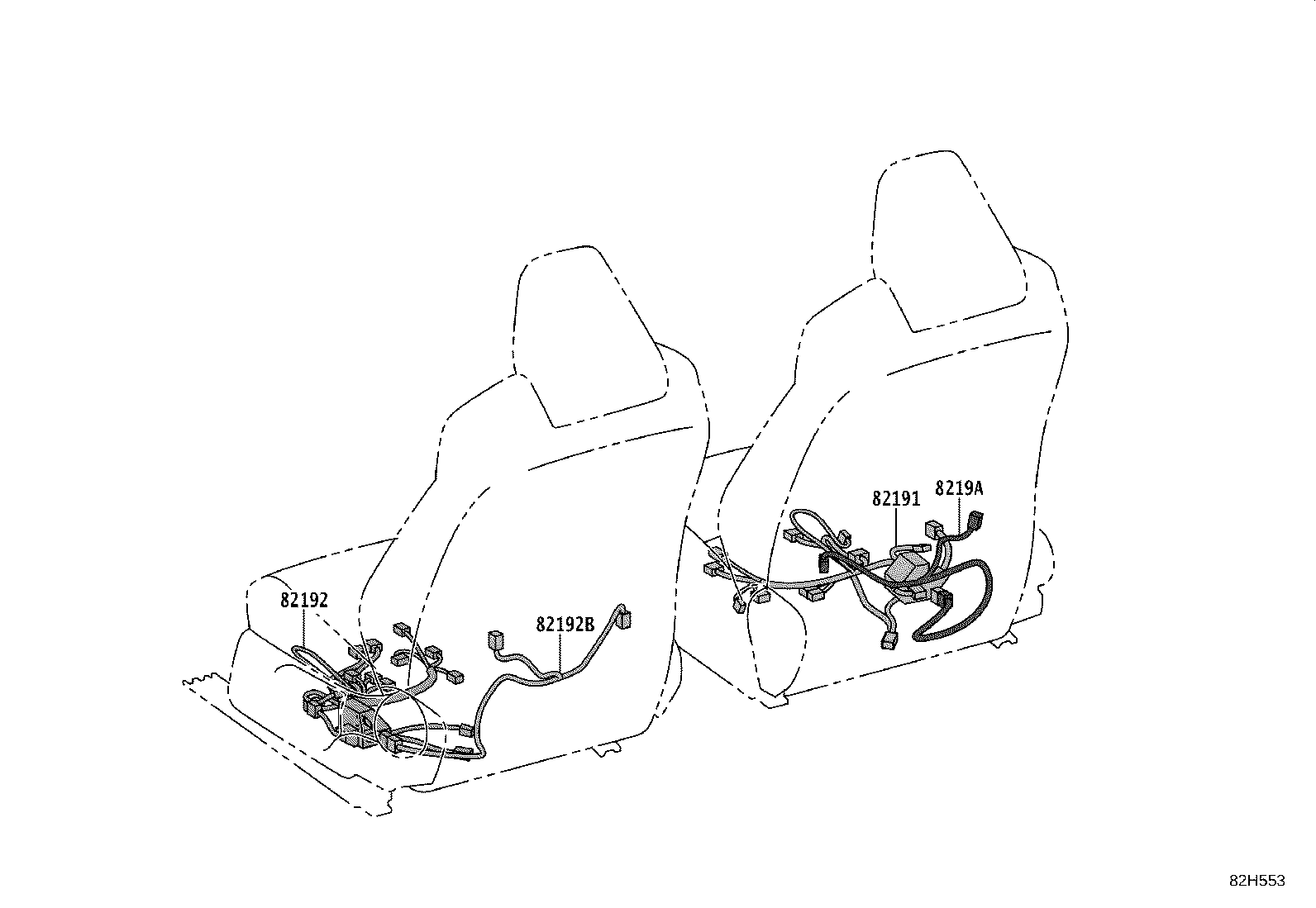

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2

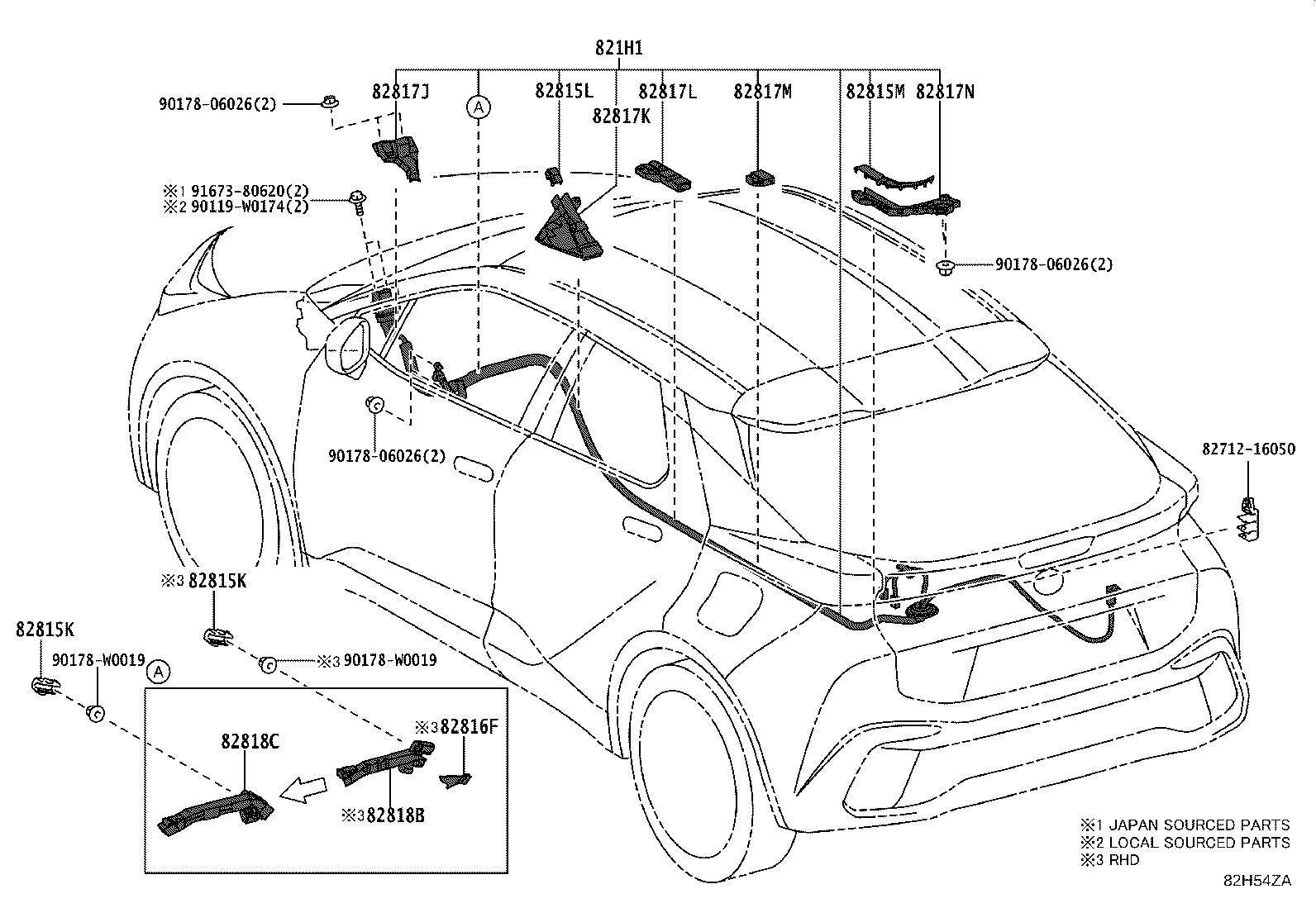

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82661H Cover, Relay Block
82815A Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816W Cover, Wiring Harness Protector, NO.19
82816X Cover, Wiring Harness Protector, NO.20
82816Y Cover, Wiring Harness Protector, NO.21
82816Z Cover, Wiring Harness Protector, NO.22
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819K Protector, Wiring Harness, NO.26
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
82819P Protector, Wiring Harness, NO.30
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821R Cover, Connector
82824 Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
86214A Bracket, Radio Earth
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
