Toyota Hilux

1997-08 → 2006-03 · chassis KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# · catalogue 672360 · General

Discontinued model Data version 2007-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

66 part groups · 12 illustrations

Illustrations

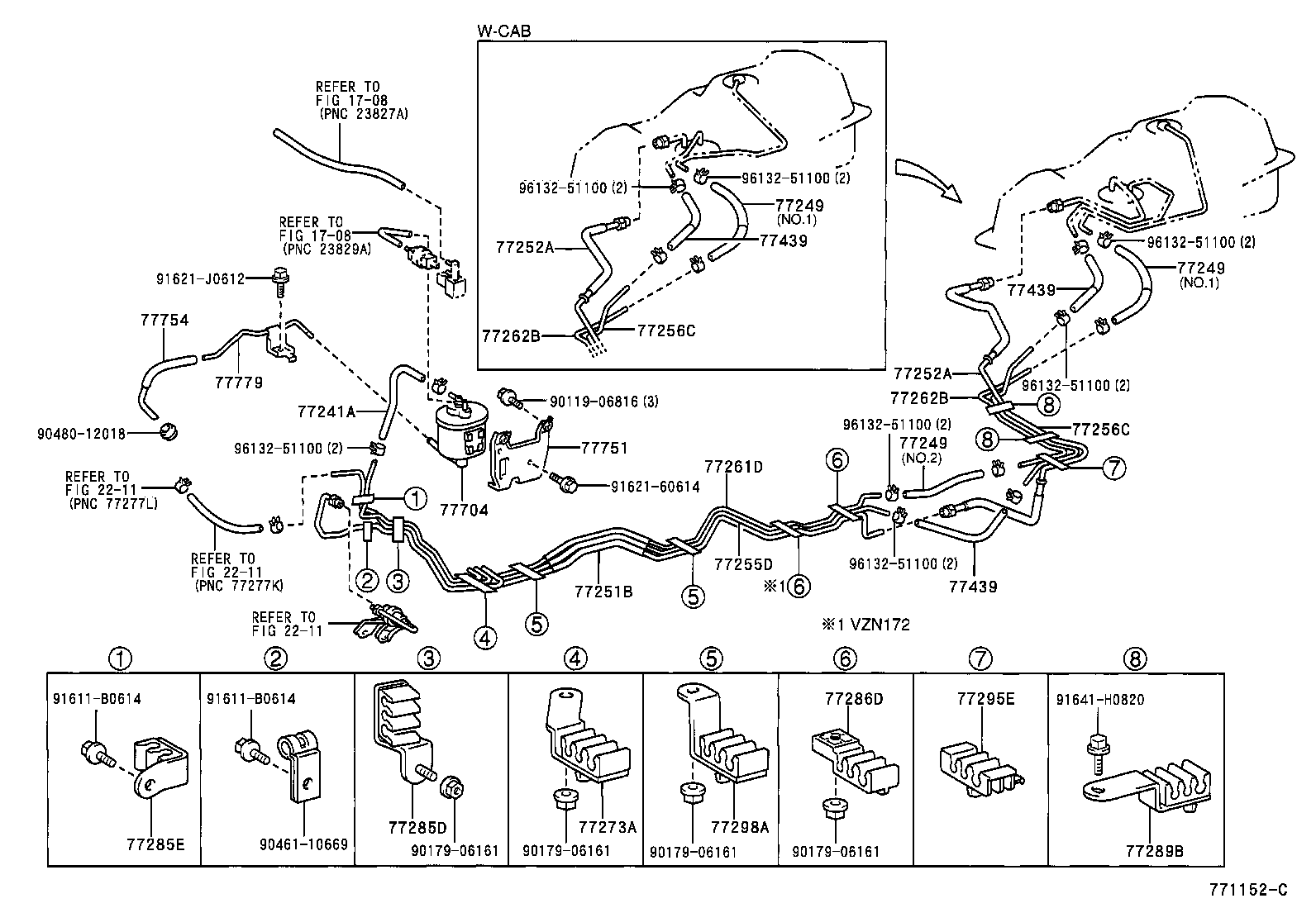

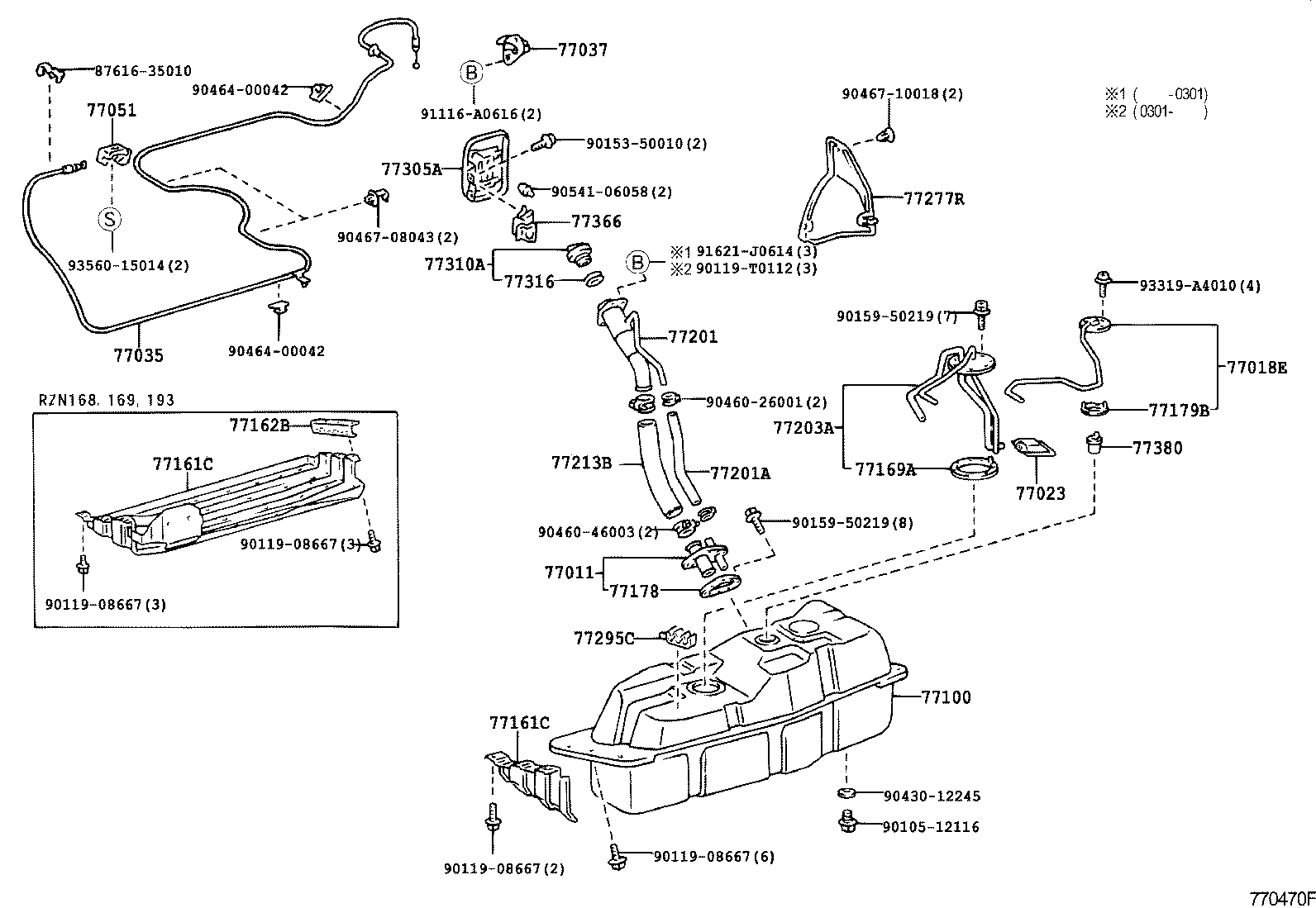

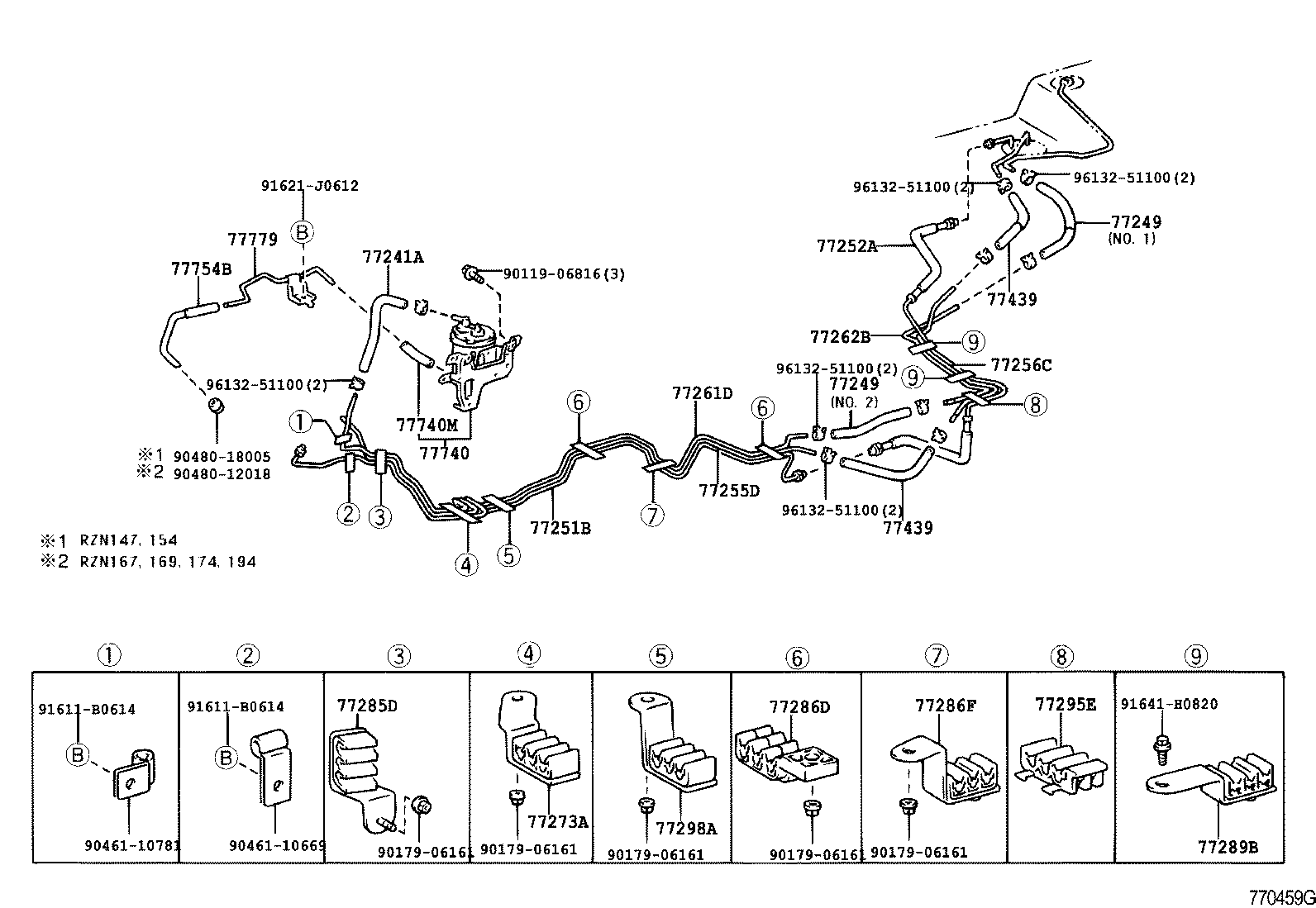

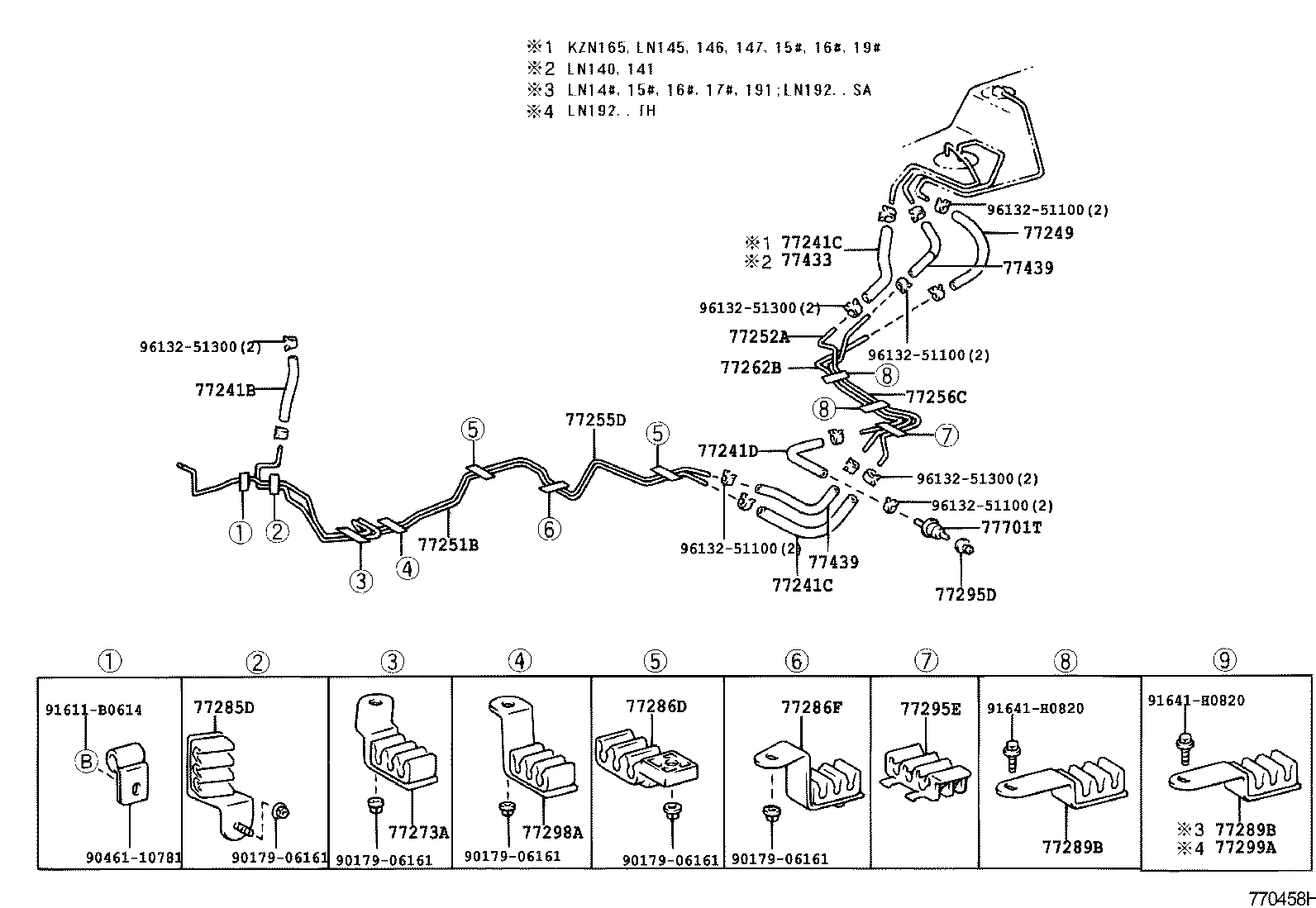

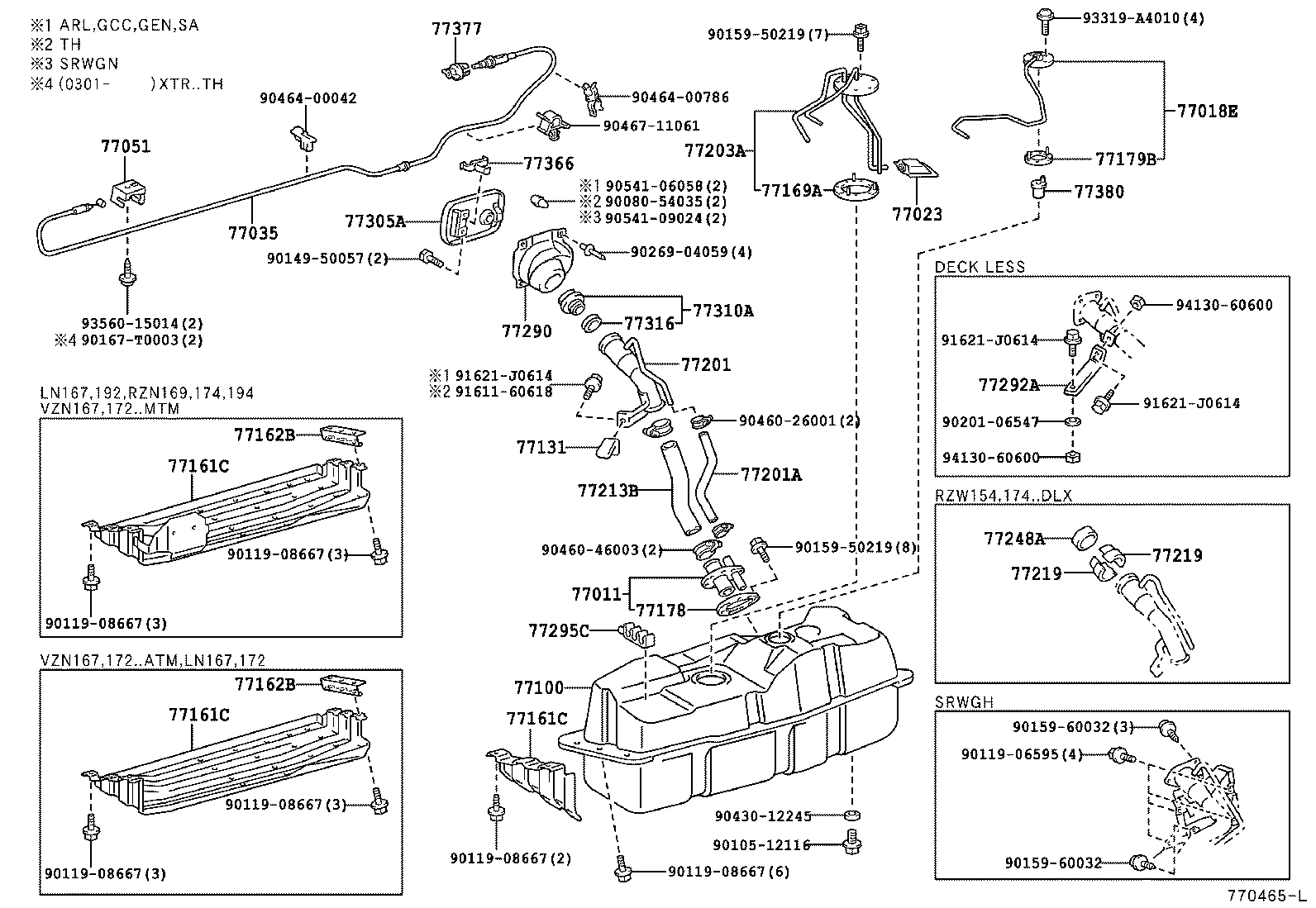

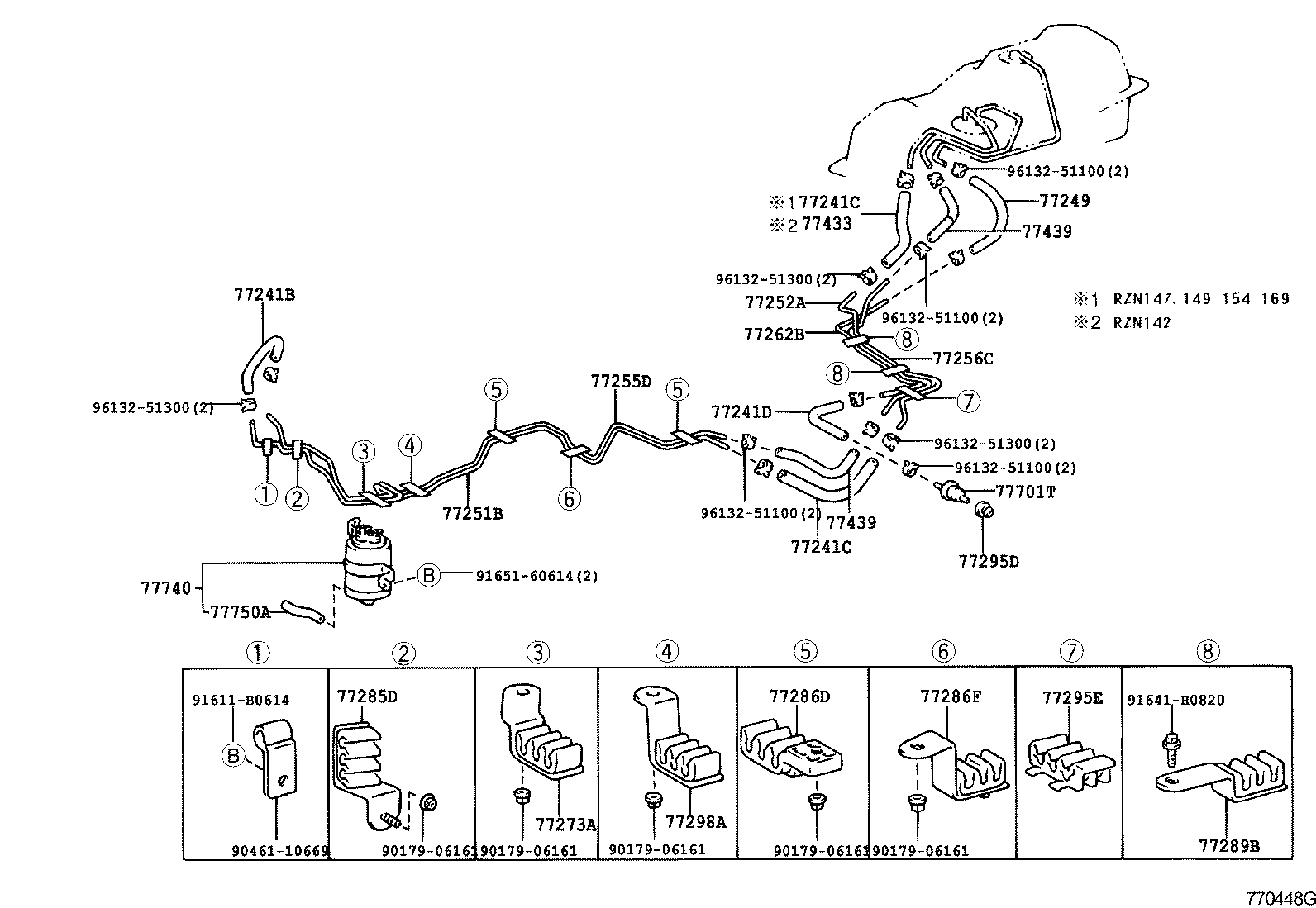

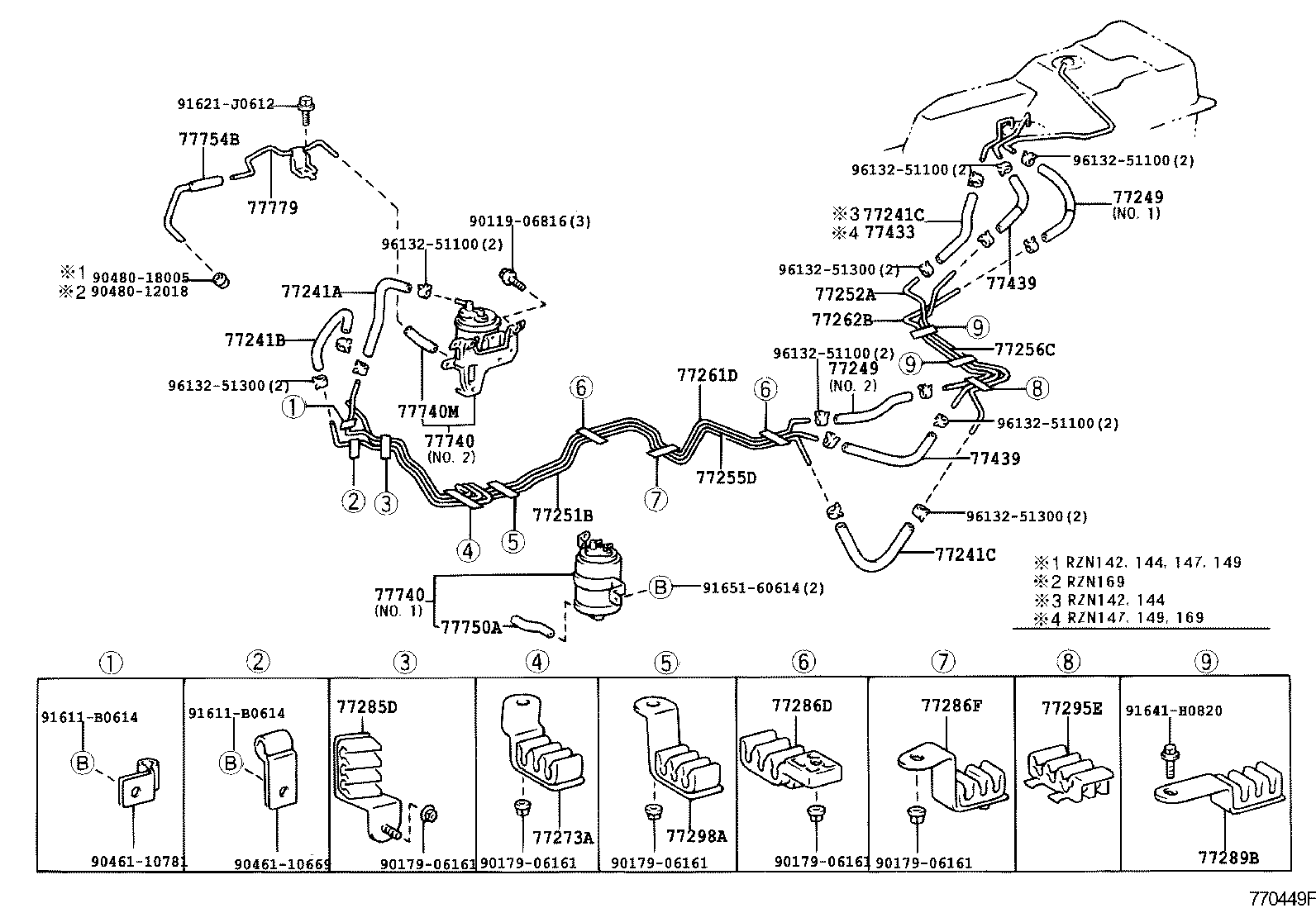

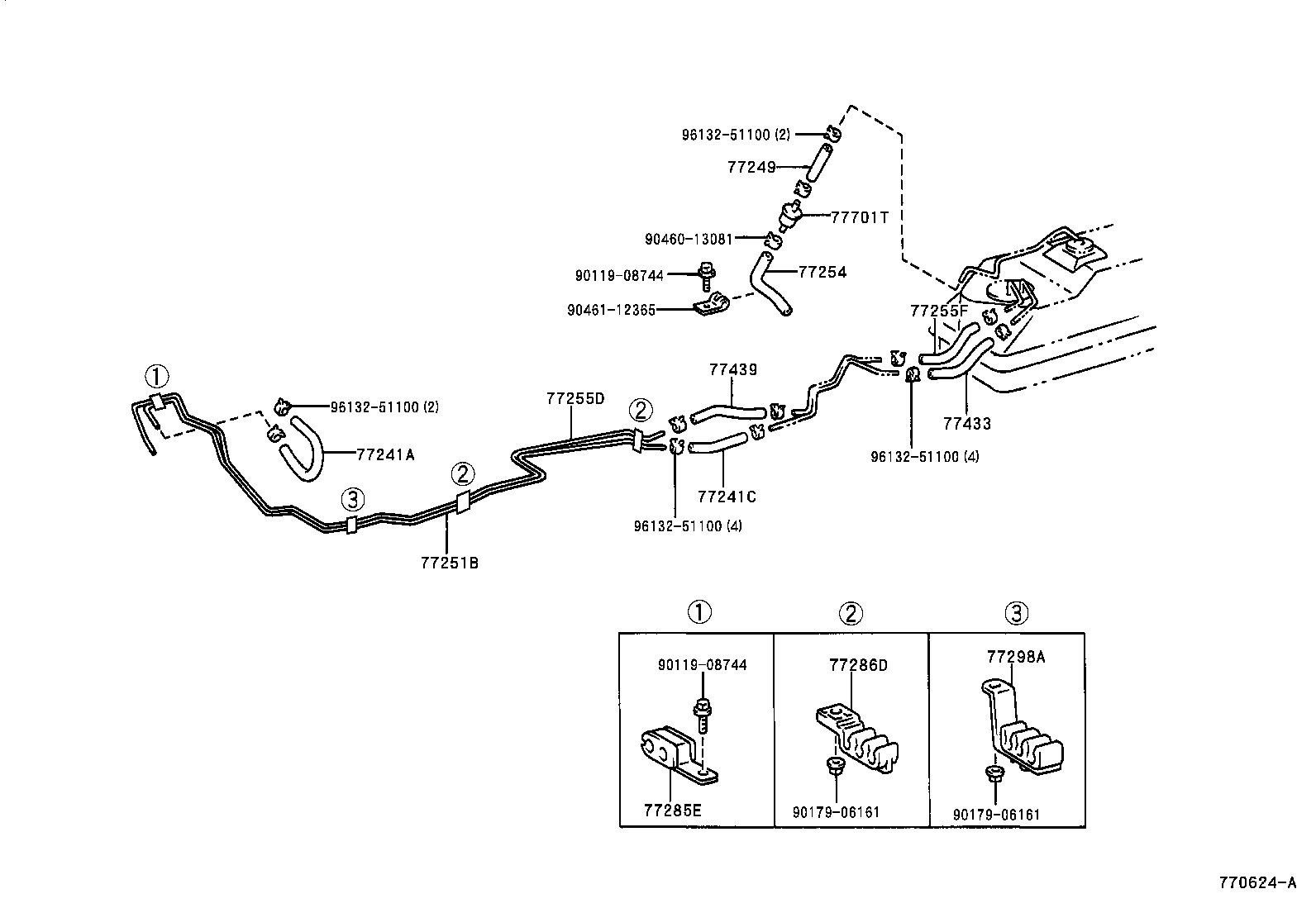

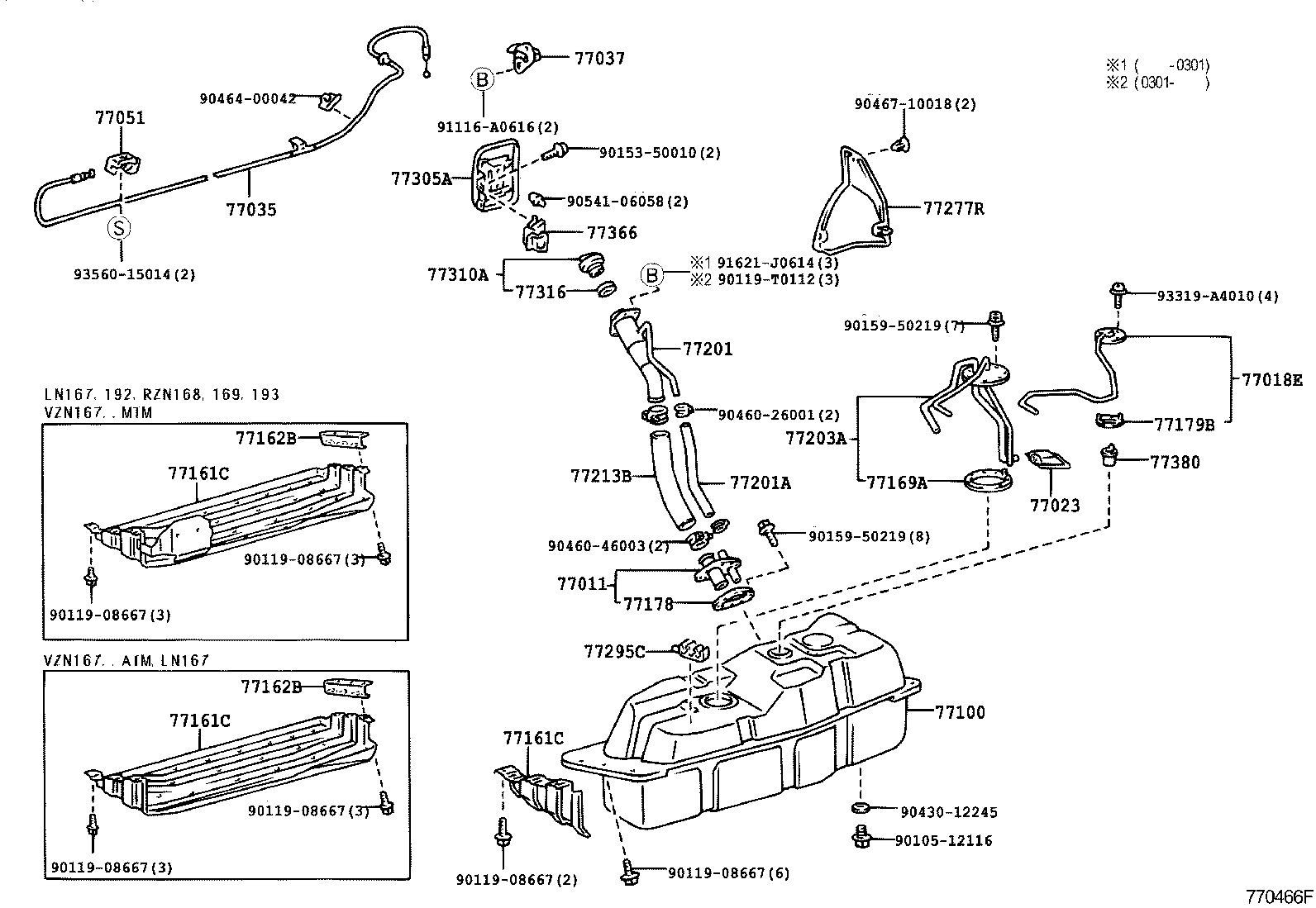

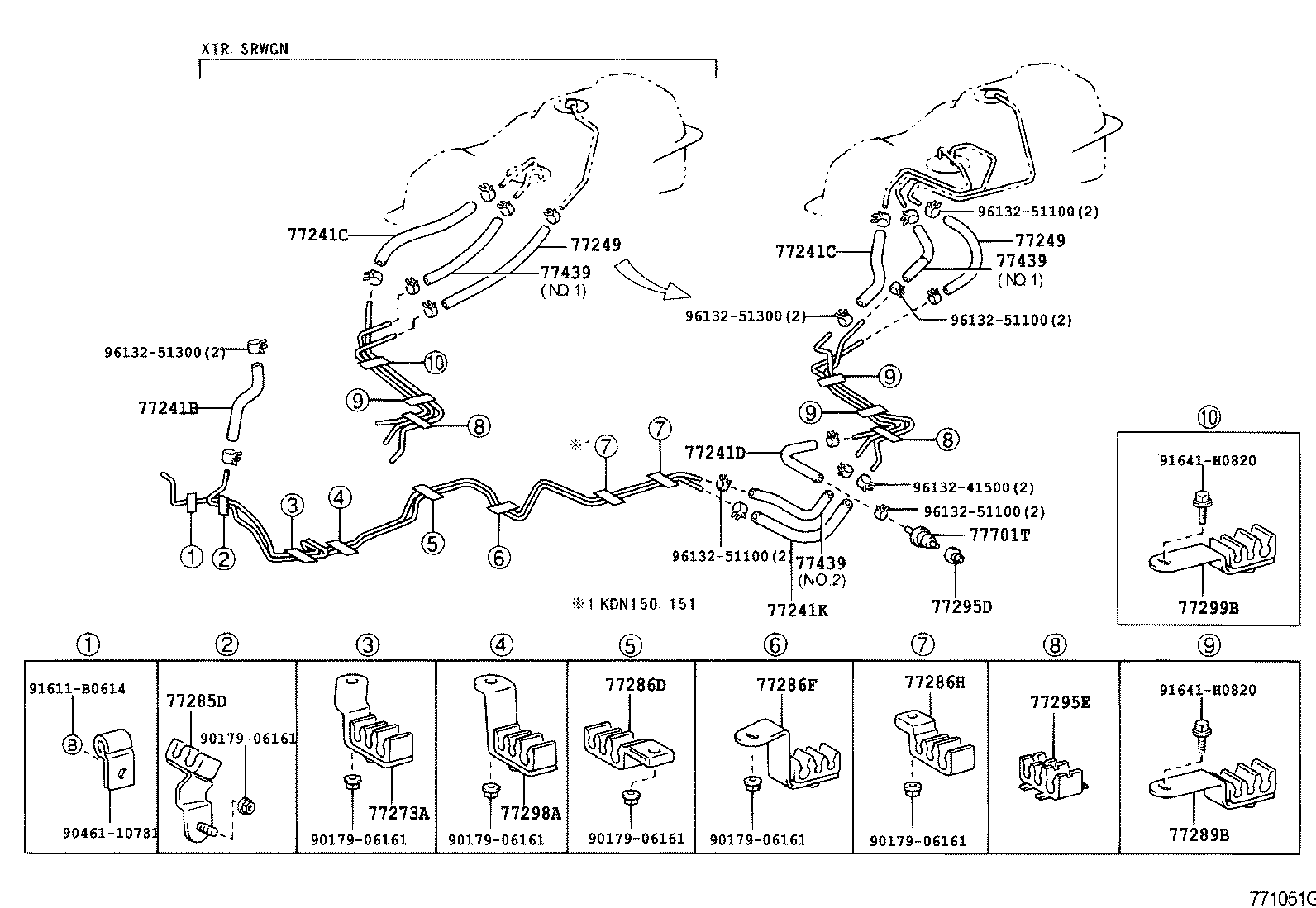

Figure 770471I 770471I 1997-08 → — Figure 770470F 770470F 1997-08 → — Figure 770465L 770465L 1997-08 → — Figure 770465L 770465L 2001-10 → — Figure 770466F 770466F 1997-08 → — Figure 770458H 770458H 1997-08 → — Figure 770459G 770459G 1997-08 → — Figure 770448G 770448G 1997-08 → — Figure 770449F 770449F 1997-08 → — Figure 770624A 770624A 1998-08 → — Figure 771051G 771051G 2001-10 → — Figure 771152C 771152C 2002-08 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77023 Filter Sub-assy, Fuel Suction Tube
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77131 Bracket, Fuel Tank Filler Pipe Support
77161C Protector, Fuel Tank, Lower
77162B Bracket, Fuel Tank Rear Protector
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179B Gasket, Fuel Tank Evaporation Vent Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77203A Tube Sub-assy, Fuel Suction
77213B Hose, Fuel Tank TO Filler Pipe
77219 Cover, Fuel Tank Filler Pipe
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77241C Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1)
77241D Hose, Fuel, NO.4 (FOR MAIN TUBE, NO.1)
77241K Hose, Fuel, NO.9
77248A Holder, Fuel Tank Filler Pipe Cover
77249 Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77254 Tube, Fuel Emission, NO.1
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C Tube, Fuel Return, NO.2
77261D Tube, Fuel Tank TO Canister
77262B Tube, Fuel Tank TO Canister, NO.2
77273A Clamp, Fuel Tube W/Grommet, NO.6
77277R Protector, Fuel Tank Filler Pipe
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77289B Clamp, Fuel Tube, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77292A Stay, Fuel Tank Fillar Upper Pipe
77295C Grommet, Fuel Tube
77295D Grommet, Fuel Tube
77295E Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77299B Seal, Fuel Sender Gage Cover
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77433 Hose, Fuel Main, NO.1
77439 Hose, Fuel Return
77701T Valve, Check (FOR MAIN FUEL TANK)
77704 Canister Sub-assy, Charcoal
77740 Canister Assy, Charcoal
77740M Hose, Charcoal Canister
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
77754B Hose, Charcoal Canister Outlet
77779 Tube, Charcoal Canister Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
