Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

101 part groups · 13 illustrations

Illustrations

84D561A 2012-07 → —

84D568 2012-07 → 2015-07

84G214 2015-07 → —

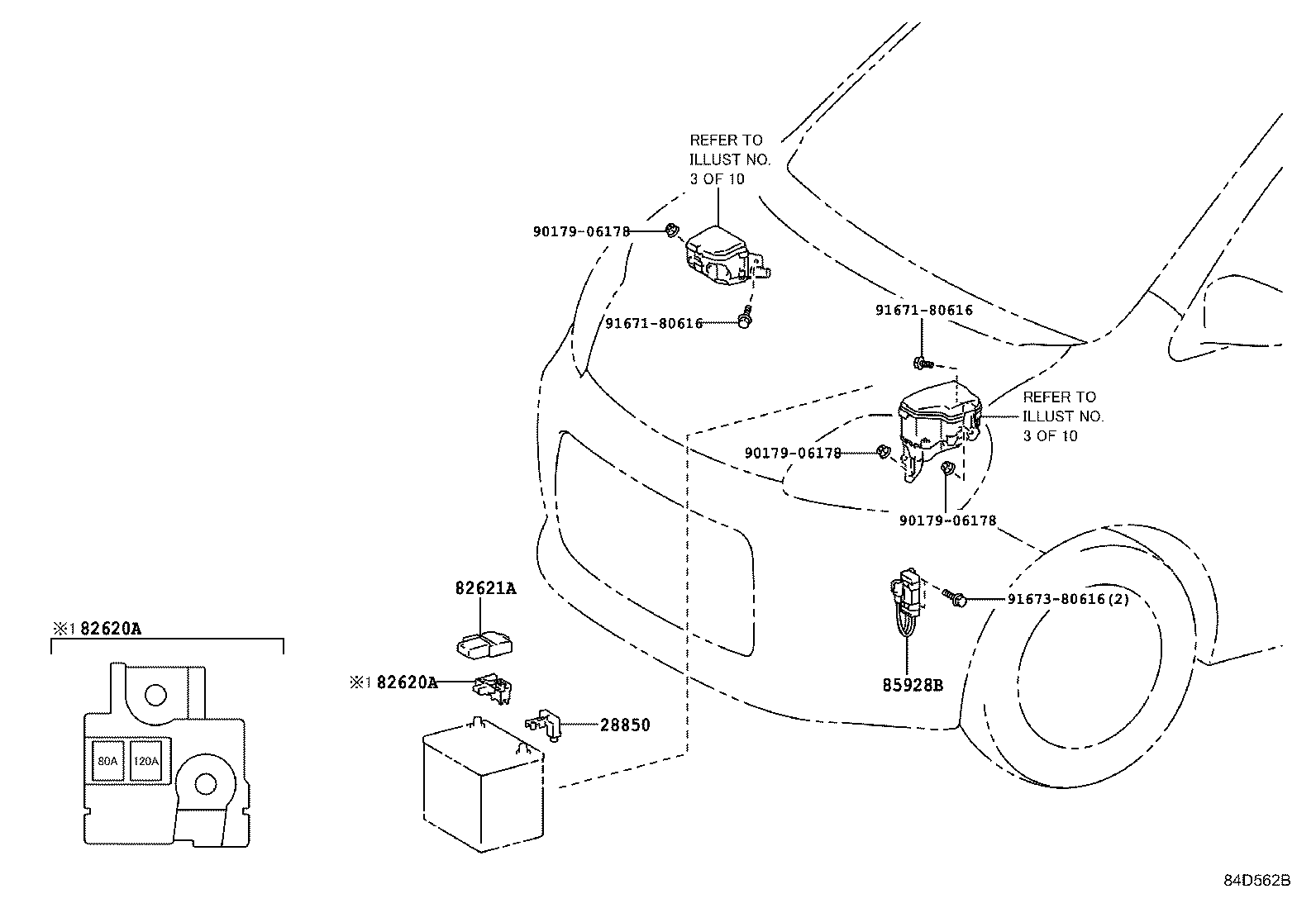

84D562B 2012-07 → 2015-07

84G212 2015-07 → —

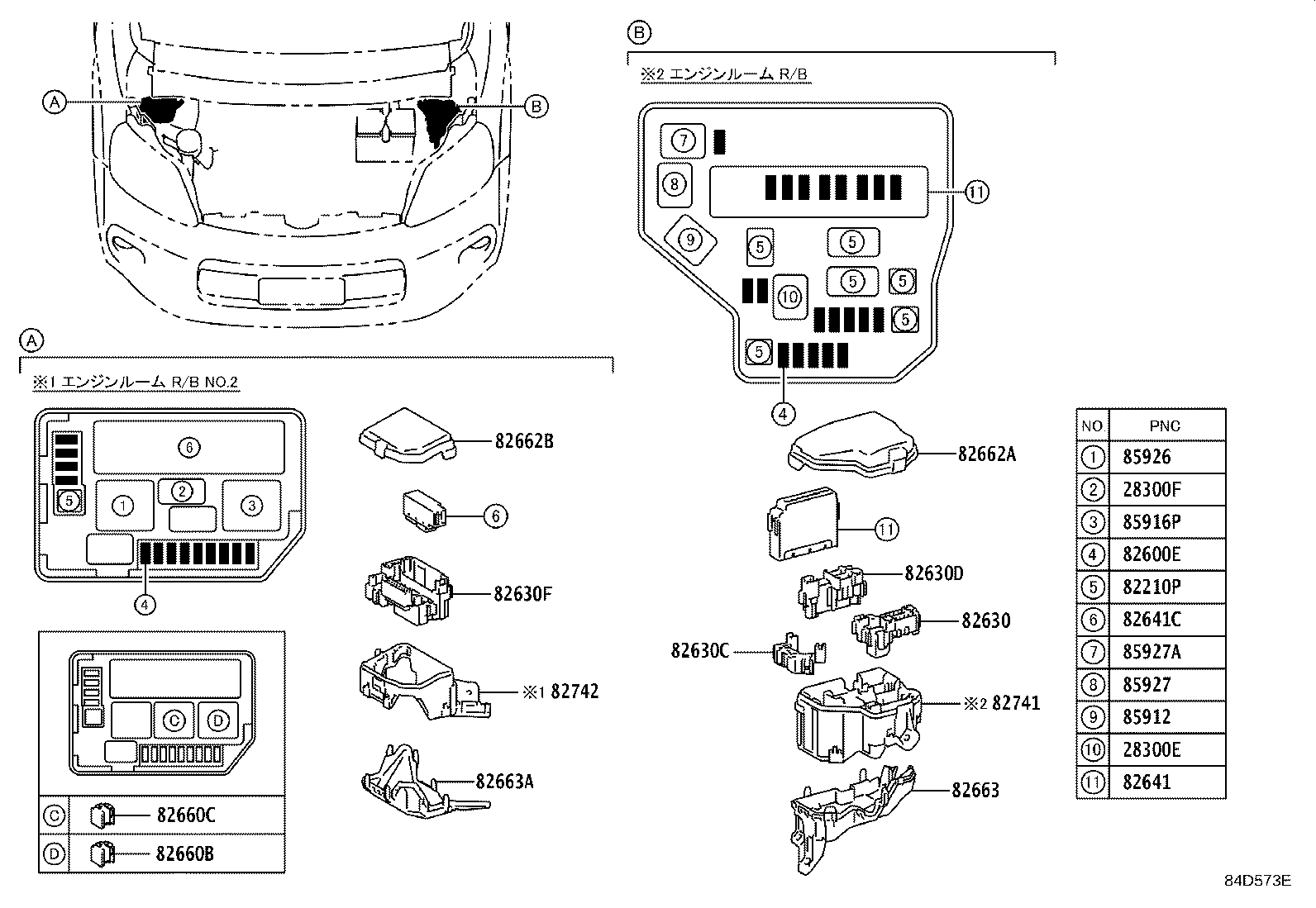

84D573E 2012-07 → 2015-07

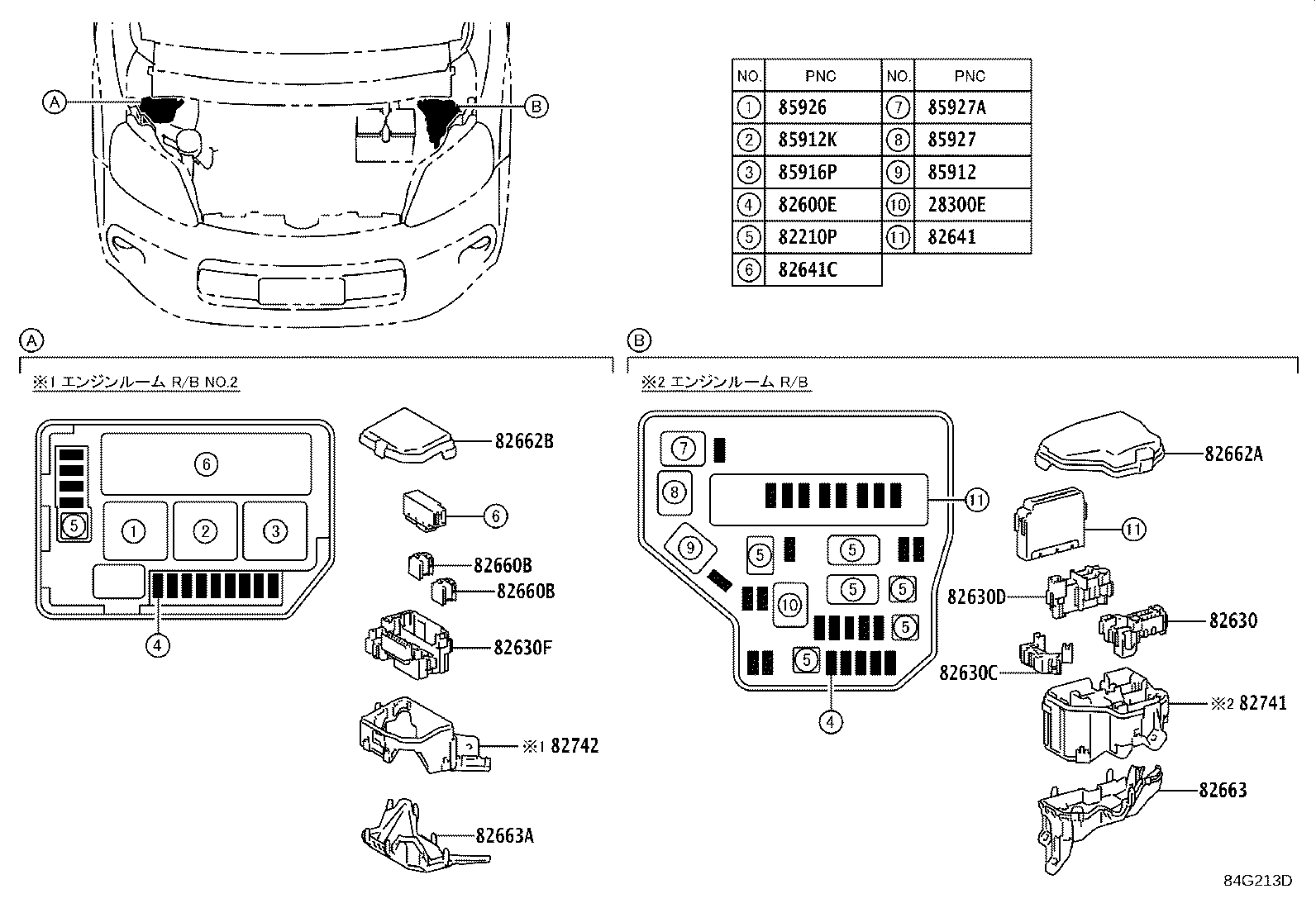

84G213D 2015-07 → —

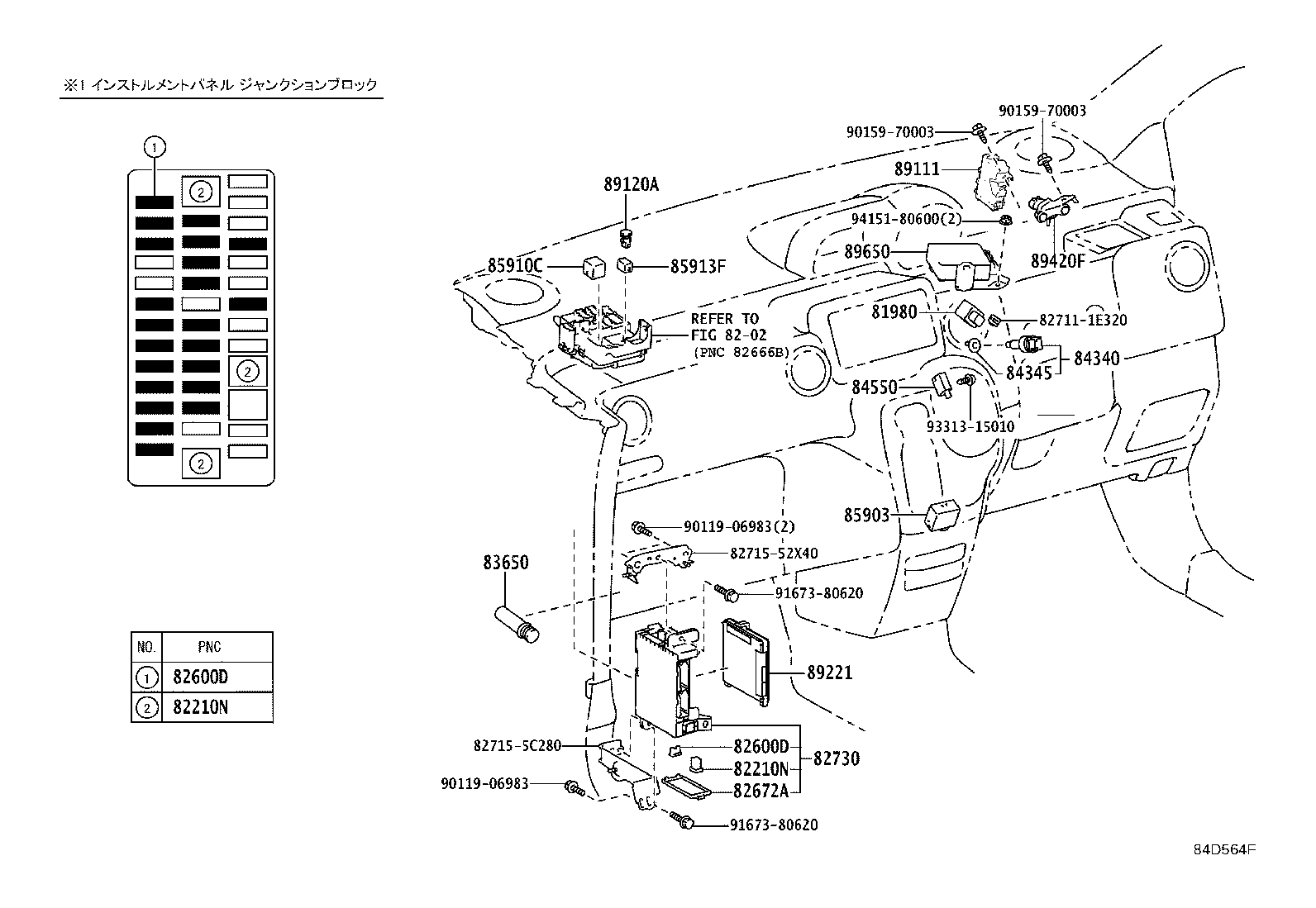

84D564F 2012-07 → —

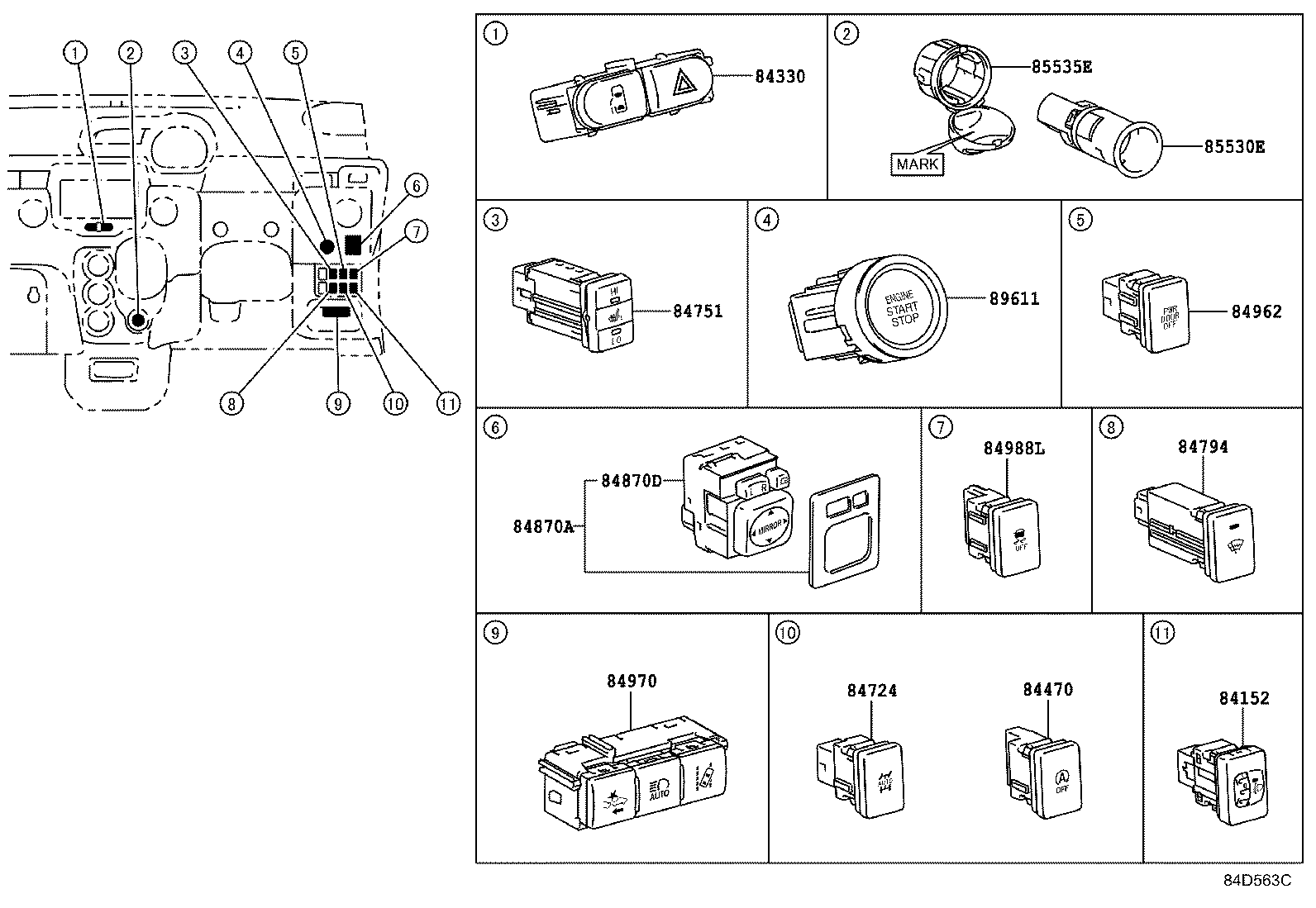

84D563C 2012-07 → —

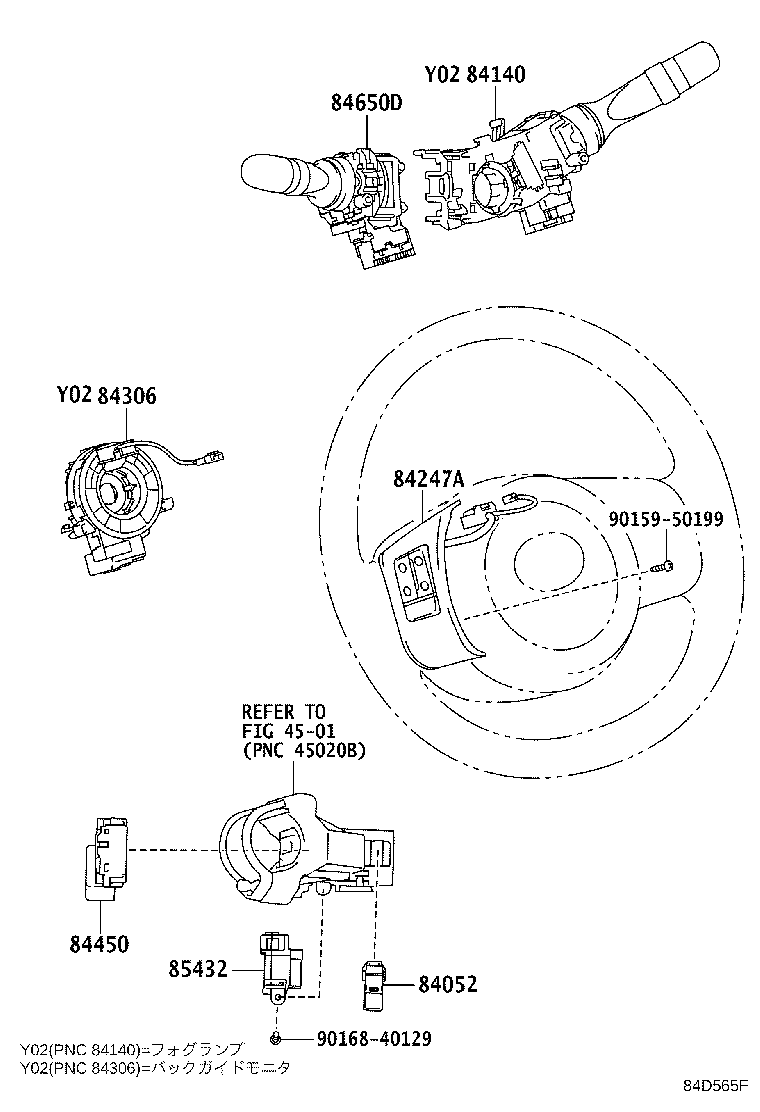

84D565F 2012-07 → 2015-07

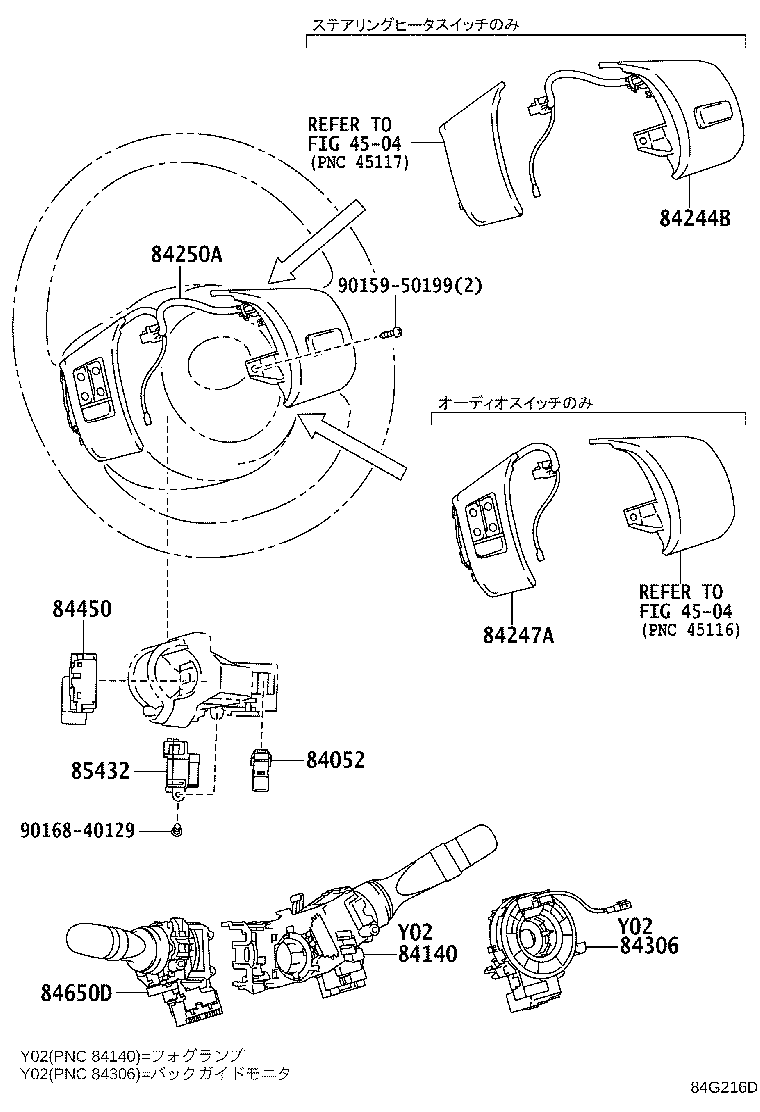

84G216D 2015-07 → —

84D566B 2012-07 → —

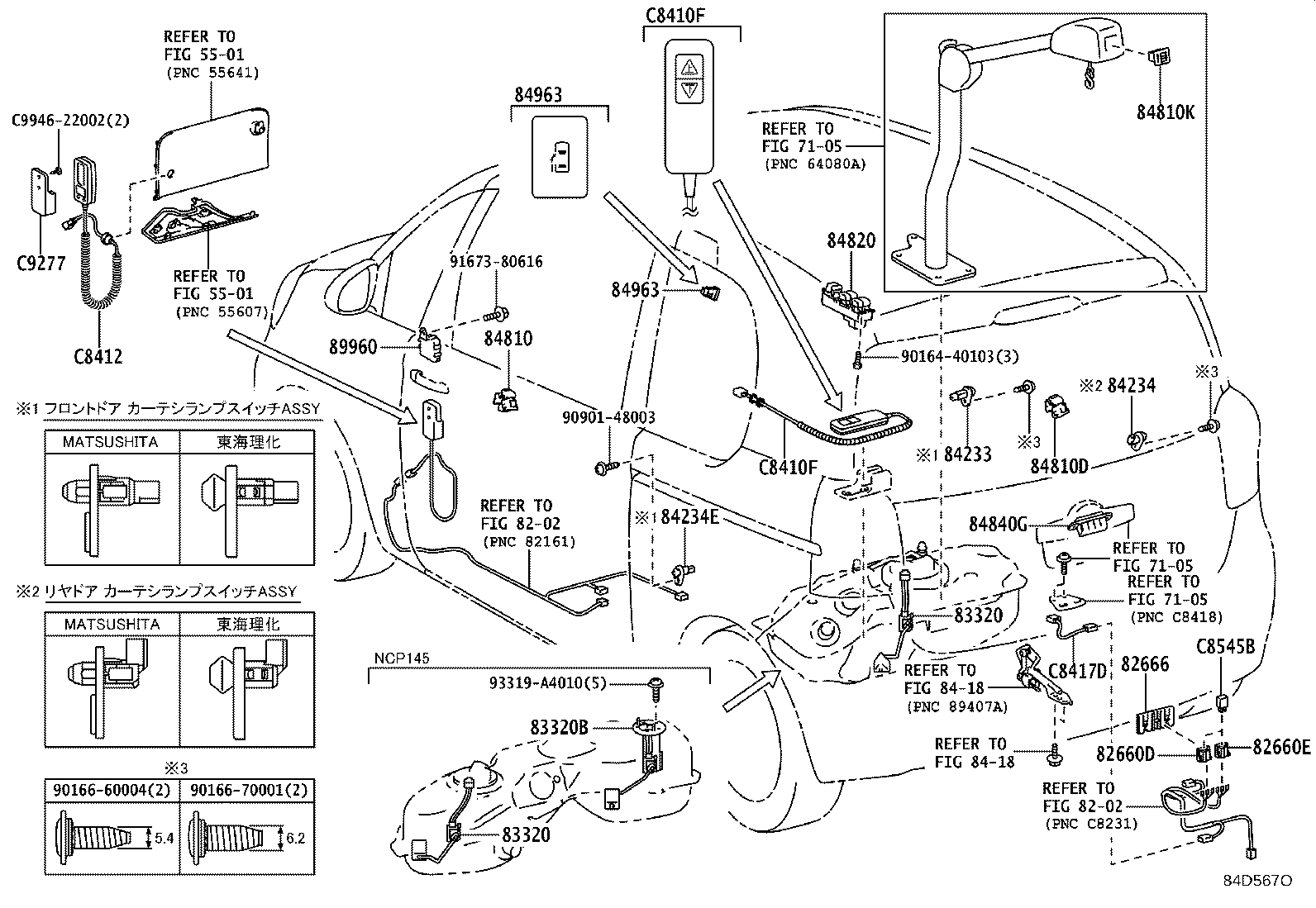

84D567O 2012-07 → —

Part groups

PNC	Description
28300E	Relay Assy, Starter, NO.1
28300F	Relay Assy, Starter, NO.2
28850	Sensor Assy, Battery Current
28850C	Sensor Assy, Battery State
28859A	Holder, Battery Current Sensor
81980	Flasher Assy, Turn Signal
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82620A	Block Assy, Fusible Link
82621A	Cover, Fusible Link
82630	Holder Assy, Fuse
82630C	Holder Assy, Fuse
82630D	Holder, Fuse
82630F	Holder, Fuse
82641	Relay, Integration NO.1
82641C	Relay, Integration NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82666	Holder, Connector
82672A	Cover, Junction Block
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
83320	Gage Assy, Fuel Sender
83320B	Gage Assy, Fuel Sender, NO.2
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234E	Switch, Courtesy Lamp (FOR SLIDE DOOR)
84244B	Switch, Steering Pad, RH
84247A	Switch, Steering Pad, LH
84250A	Switch Assy, Steering Pad
84290	Switch Assy, Limit
84306	Cable Sub-assy, Spiral
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84450	Switch Assy, Ignition OR Starter
84470	Switch Assy, Warning Canceling
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84724	Switch, 4 Wheel Drive Control
84751	Switch, Seat Heater
84794	Switch, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84810K	Switch, Chair Lift Arm
84820	Master Switch Assy, Power Window Regulator
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror
84870D	Switch Assy, Outer Mirror, NO.2
84920	Switch Assy, Power Seat
84920L	Switch Assy, Power Seat, NO.2
84962	Switch, Power Slide Door Main
84963	Switch, Power Slide Door Control, NO.1
84970	Switch Assy, Combination
84988L	Switch, Vsc Off
85432	Solenoid, Key Interlock
85530E	Socket Assy, Power Outlet, NO.3
85535E	Cover, Power Outlet Socket, NO.2
85903	Computer Sub-assy, Shift Lock Control
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85912	Relay, Defogger
85912K	Relay, Vvt
85913F	Relay, Steering Heater
85916P	Relay, Headlamp
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85928B	Resistor, Cooling Fan
85999H	Bracket, Relay
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89420F	Sensor Assy, Vacuum
89437	Cover, Sensor
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89467C	Sensor, Air Fuel Ratio, NO.2
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89960	Computer Assy, Headlamp Leveling
C8410A	Switch Assy, Power Lift Control
C8410F	Switch, Power Lift Remote Control
C8417D	Switch, Limit
C8545A	Relay, Power Lift Control
C8545B	Relay, Power Lift Control, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
