Toyota Crown

1979-09 → 1983-07 · chassis GS11#,LS11#,MS11#,RS110 · catalogue 331140 · Japan

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

31 part groups · 9 illustrations

Illustrations

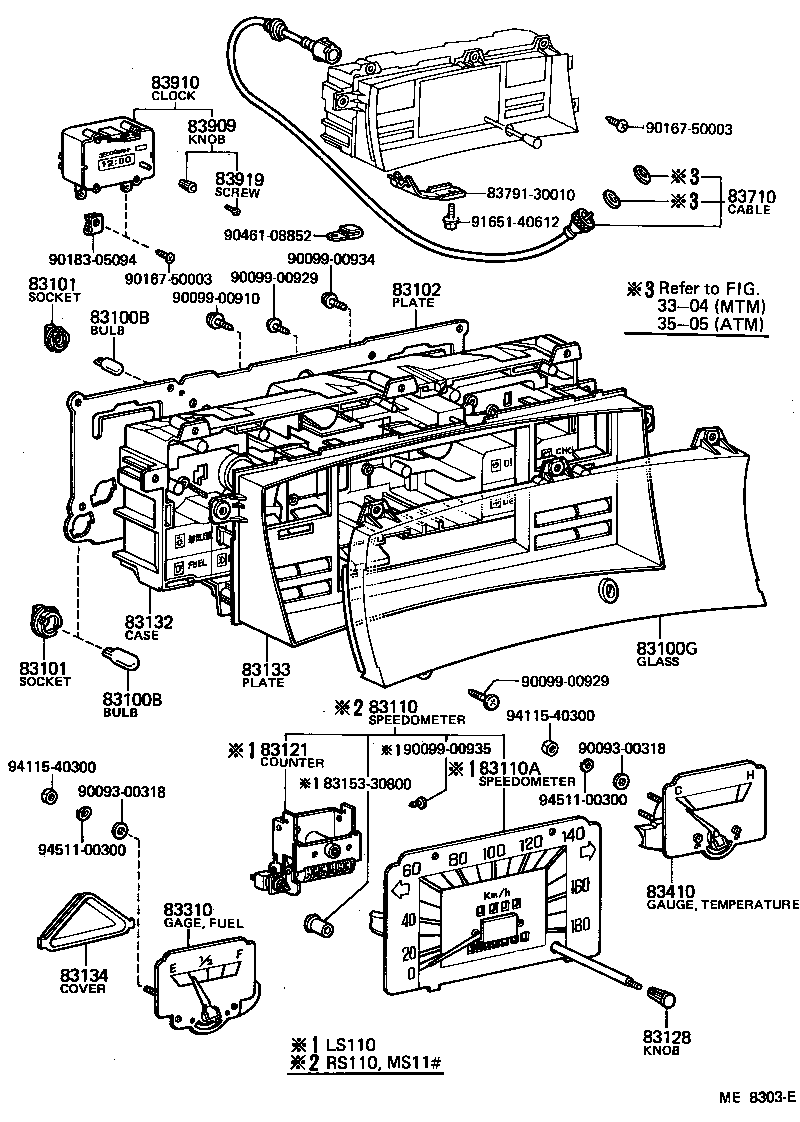

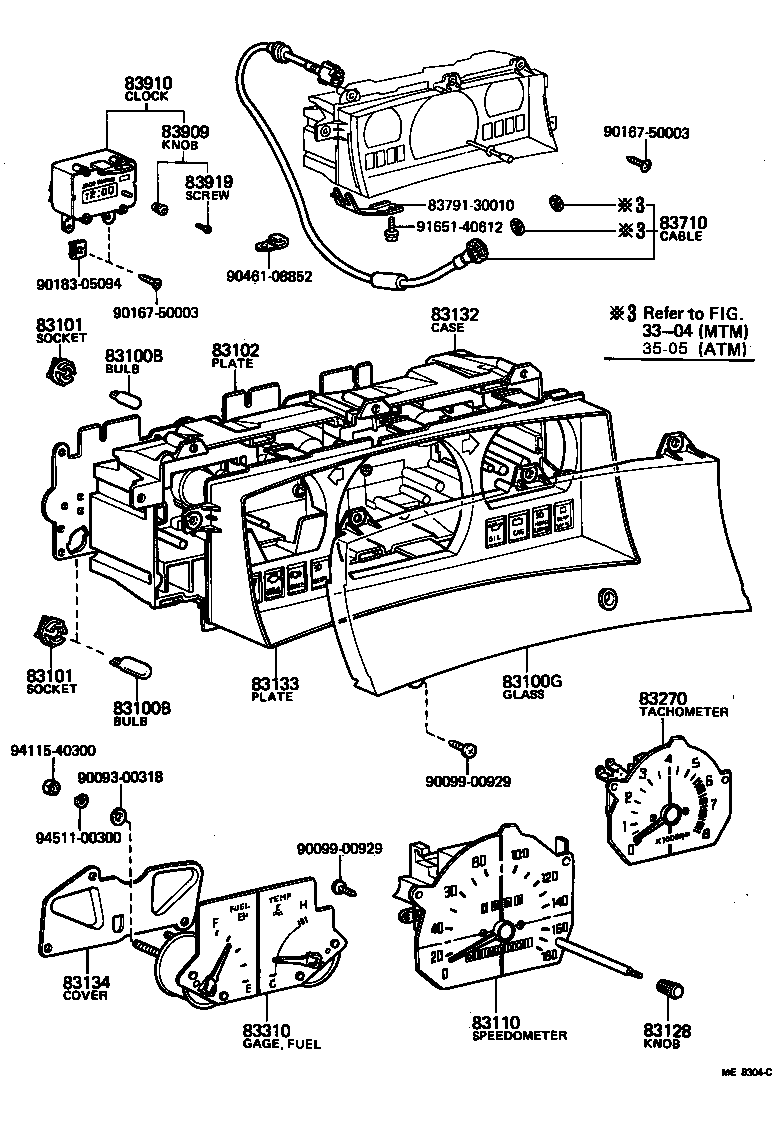

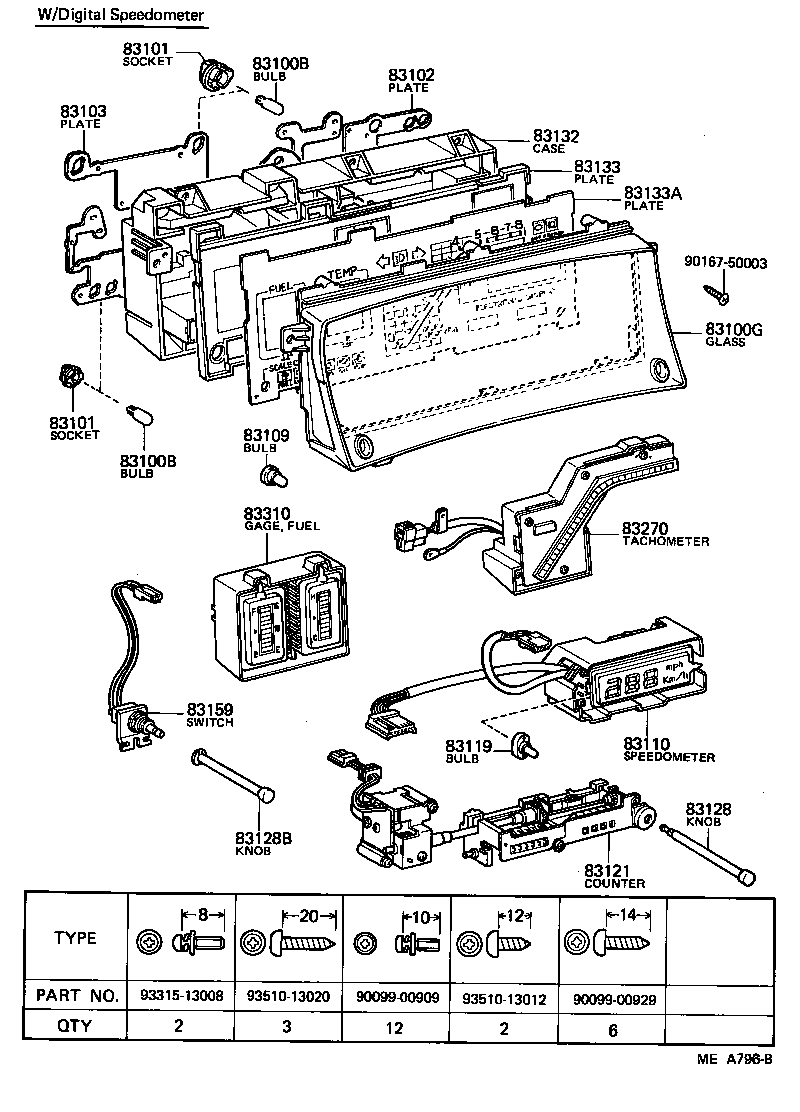

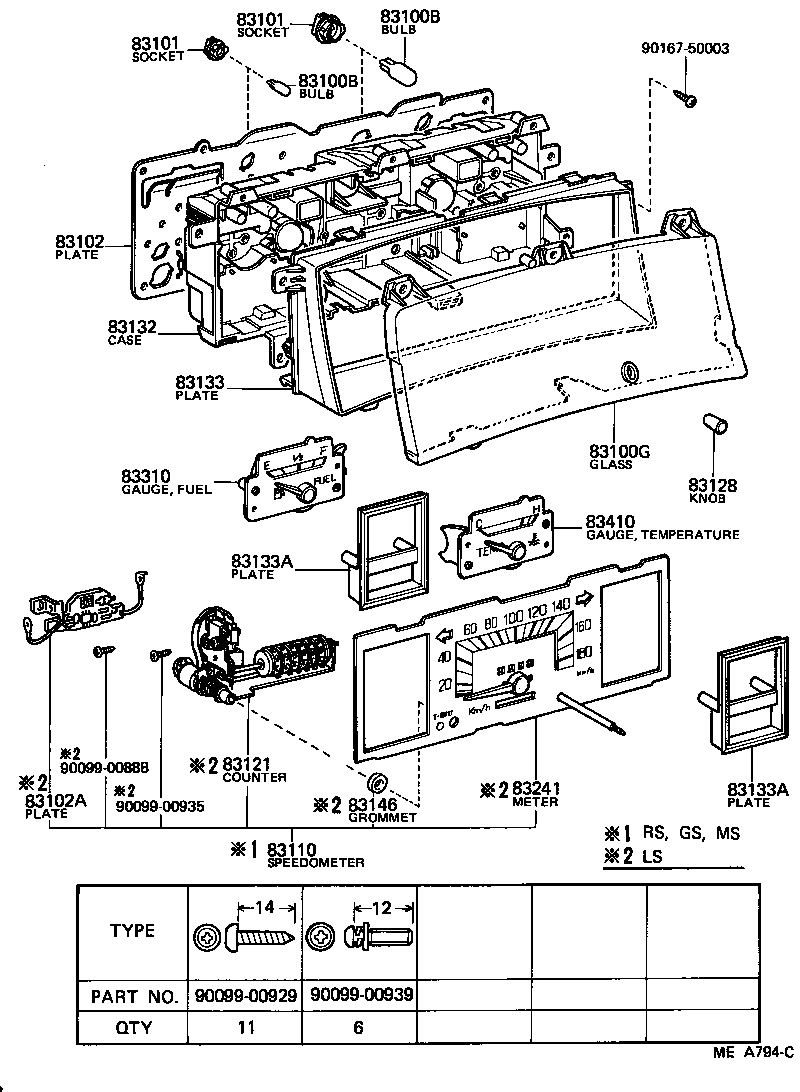

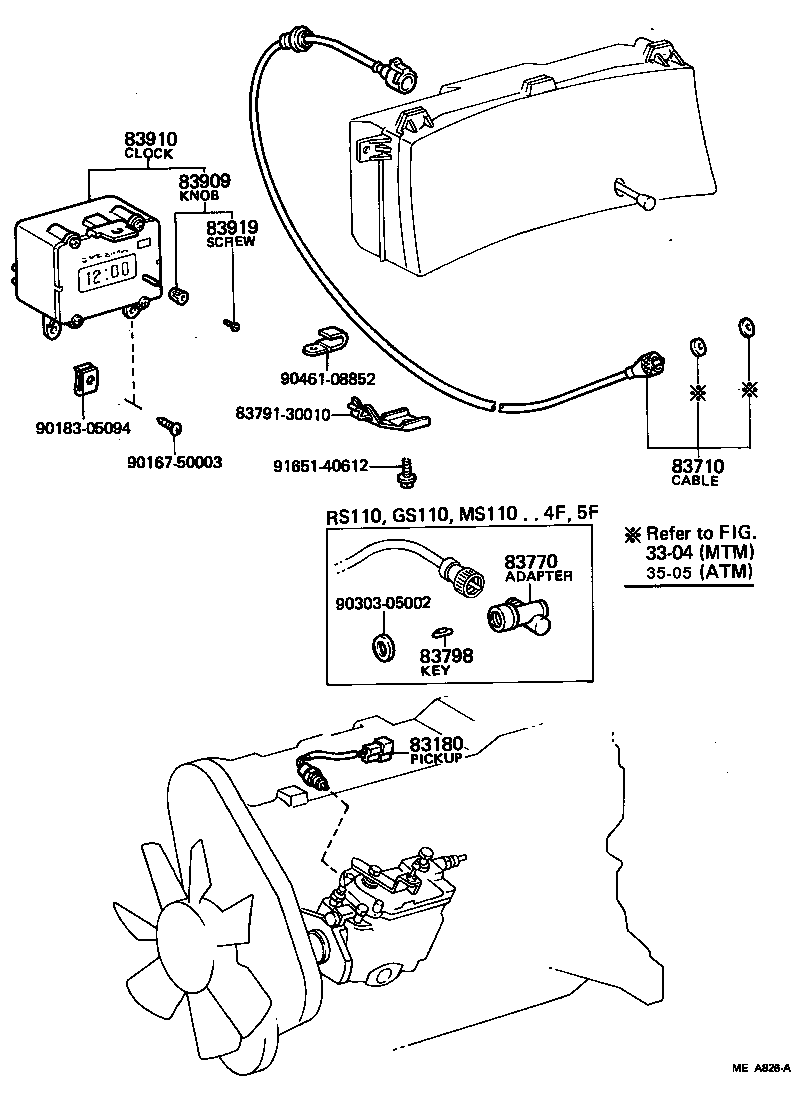

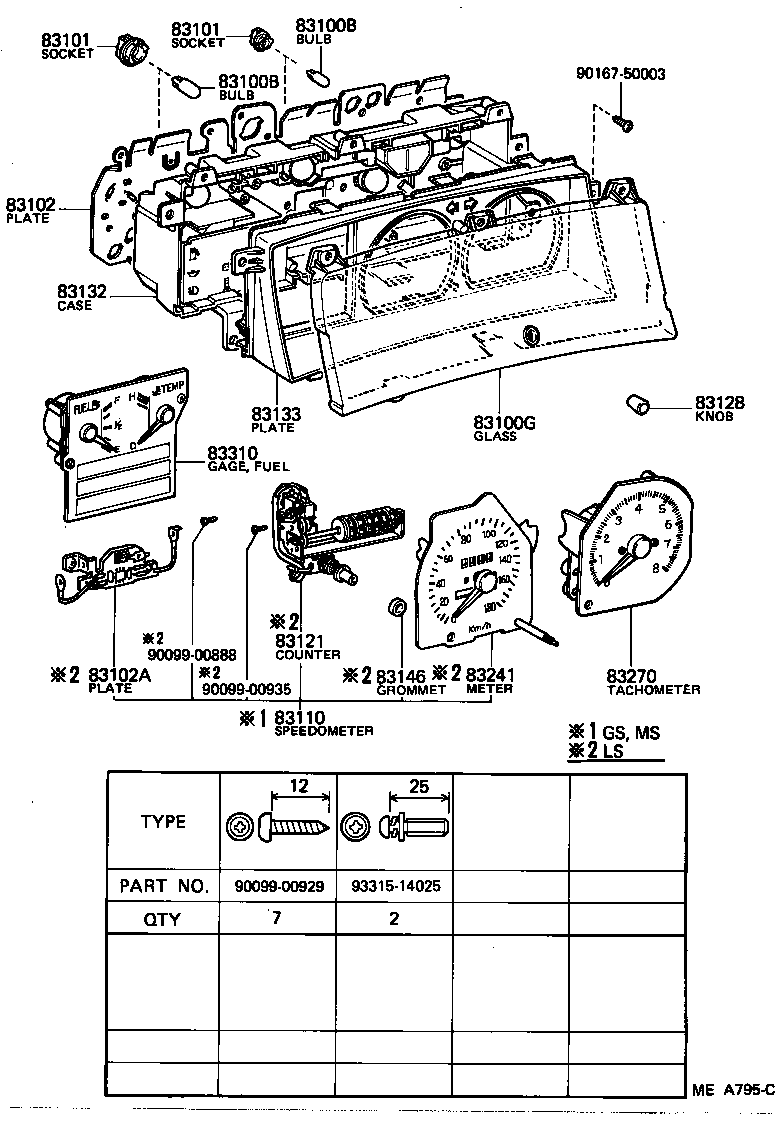

Figure ME8302G ME8302G 1979-09 → — Figure ME8303E ME8303E 1979-09 → 1981-08 Figure ME8304C ME8304C 1979-09 → 1981-08 Figure ME8304C ME8304C 1979-09 → — Figure MEA794C MEA794C 1981-08 → — Figure MEA795C MEA795C 1981-08 → — Figure MEA796B MEA796B 1981-08 → — Figure MEA796B MEA796B 1982-06 → 1982-07 Figure MEA826A MEA826A 1981-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83102A Plate Sub-assy, Speedometer Circuit
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83103A Lamp Sub-assy, Meter
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83110A Speedometer Sub-assy
83119 Bulb, Combination Meter, NO.3
83121 Counter, Total
83128 Knob, Trip Counter
83128B Knob, Meter Switch
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83133A Plate, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83146 Grommet, Meter Glass
83159 Switch, Meter, NO.1
83180 Detector Assy, Revolution
83241 Meter Sub-assy, Speed
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
