Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

63 part groups · 11 illustrations

Illustrations

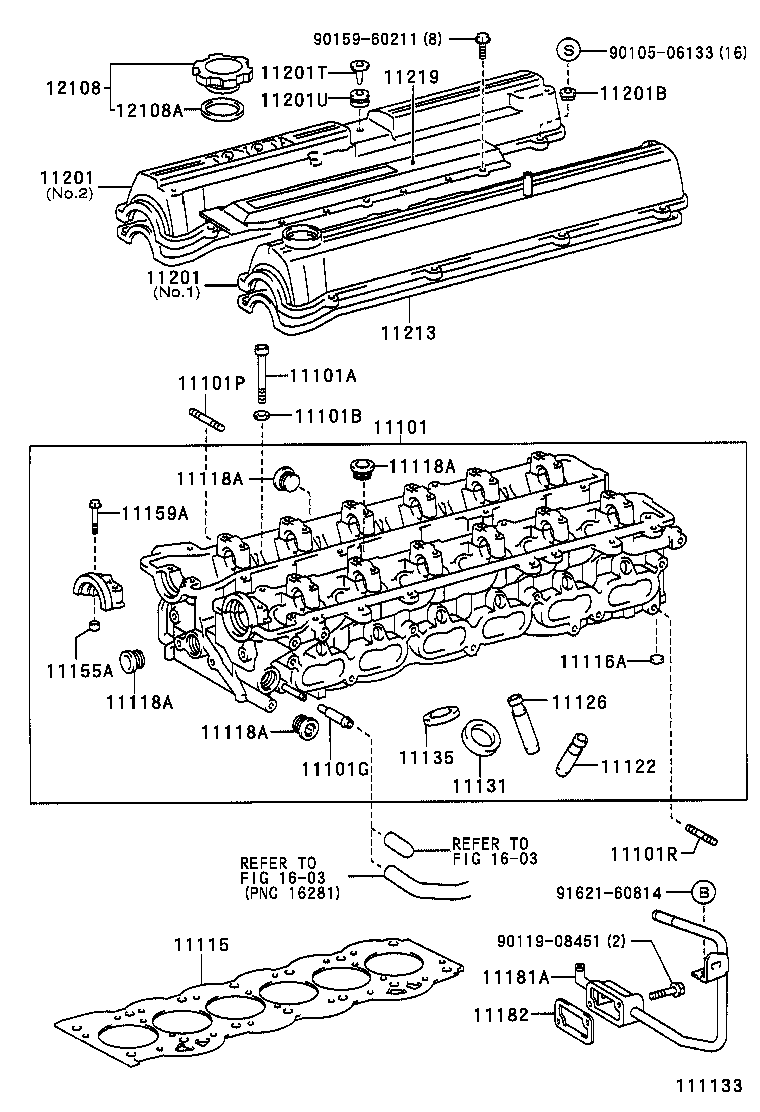

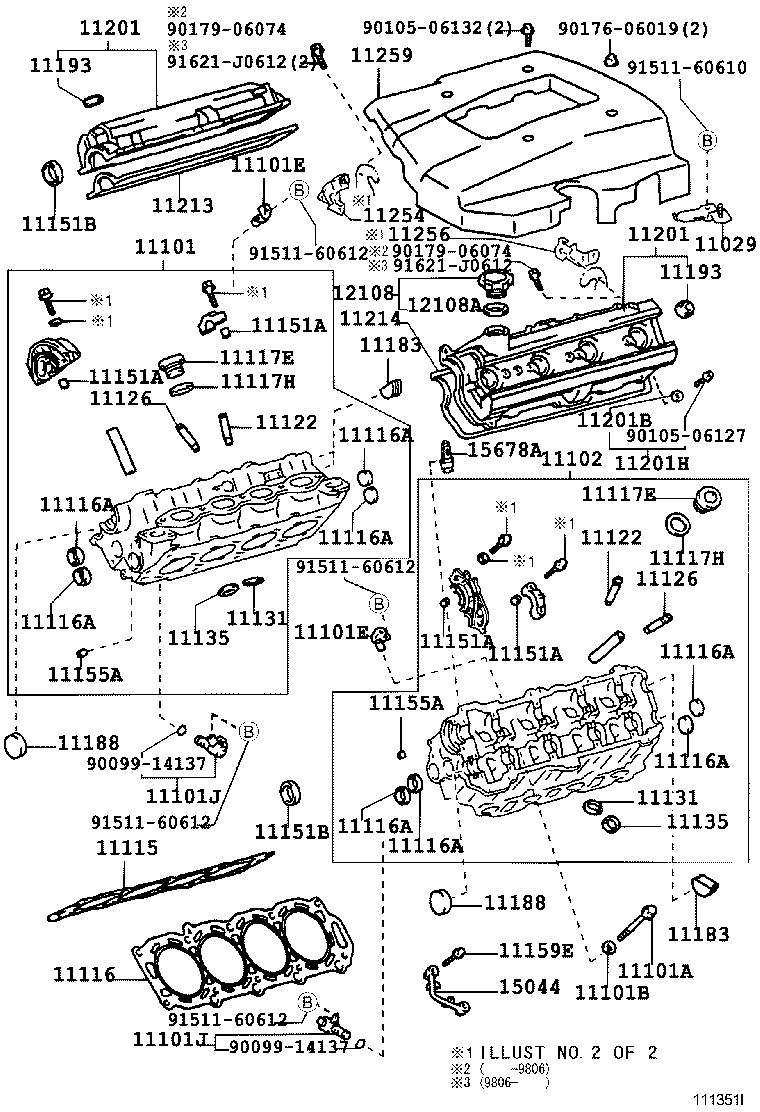

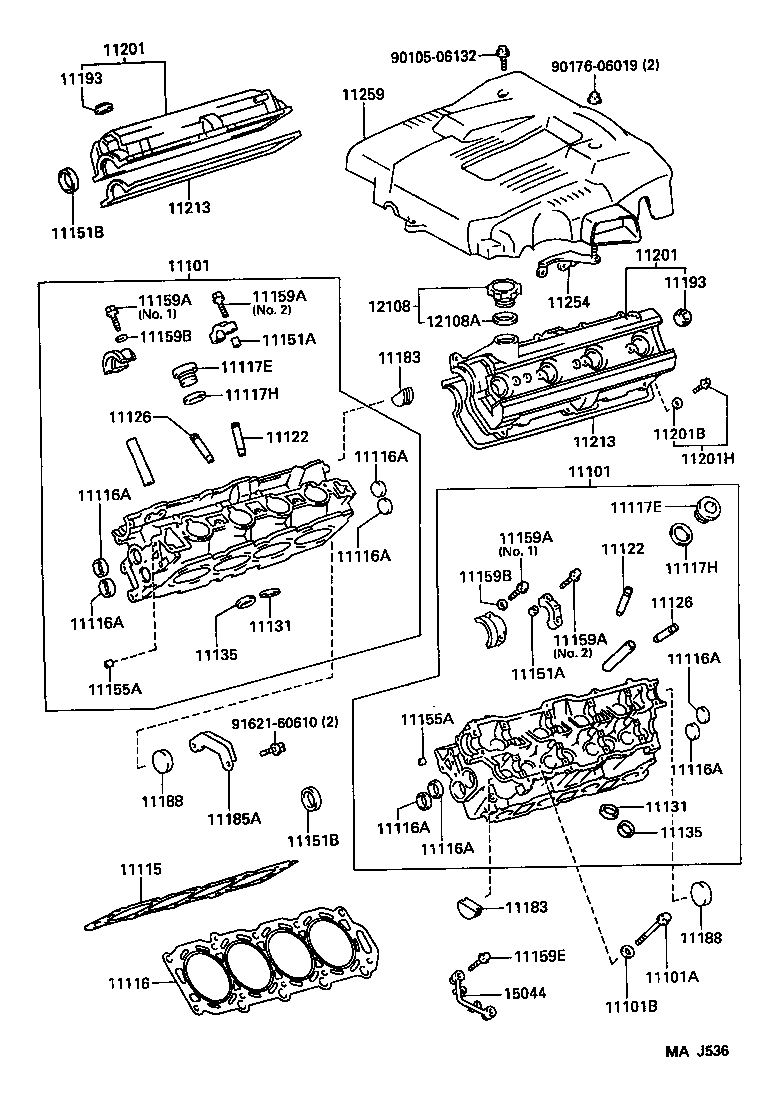

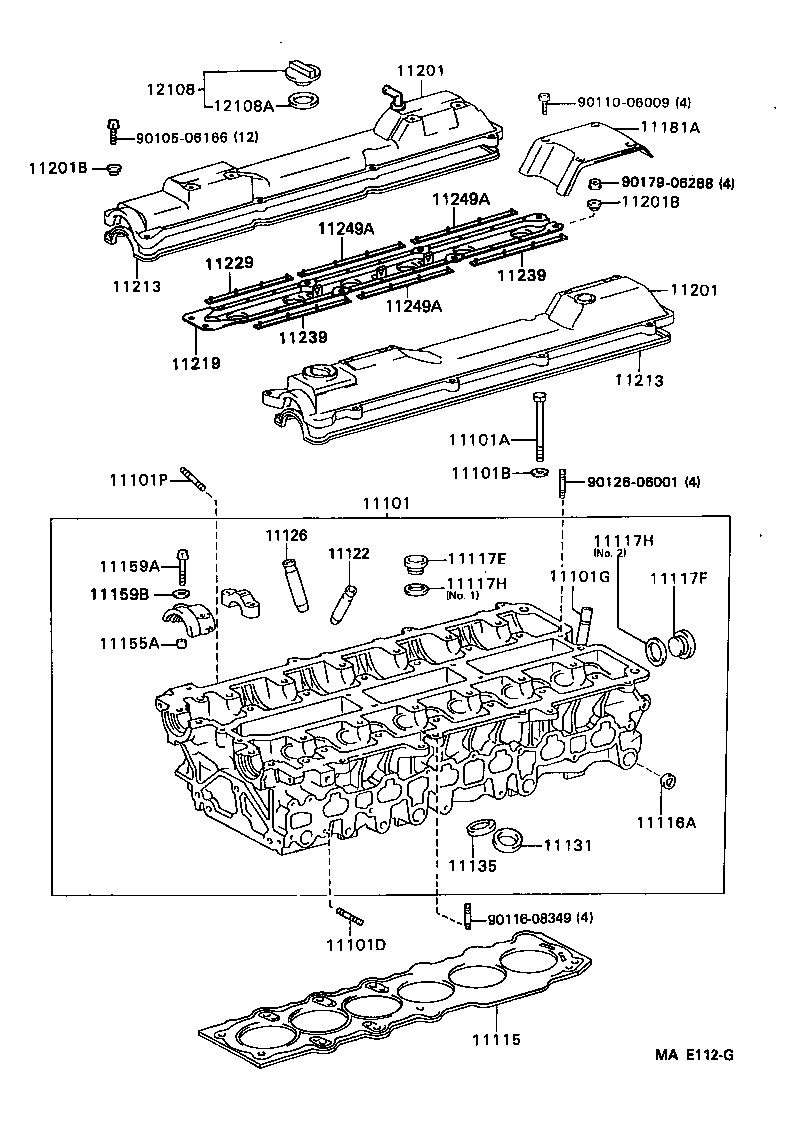

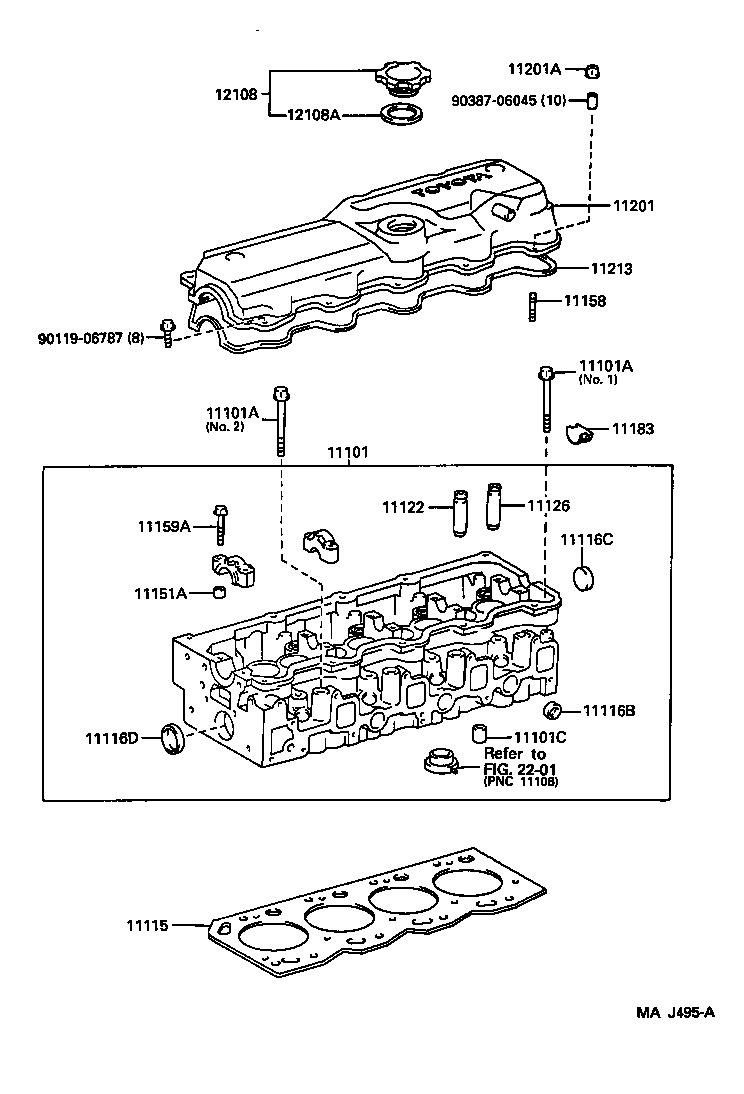

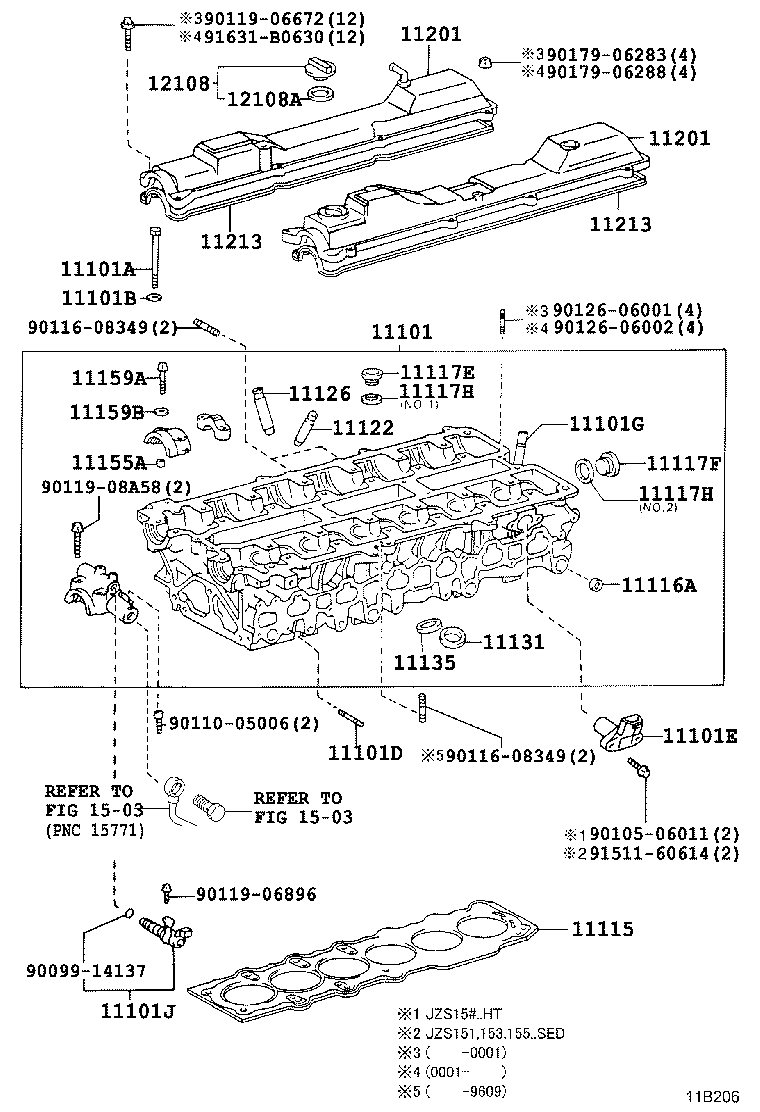

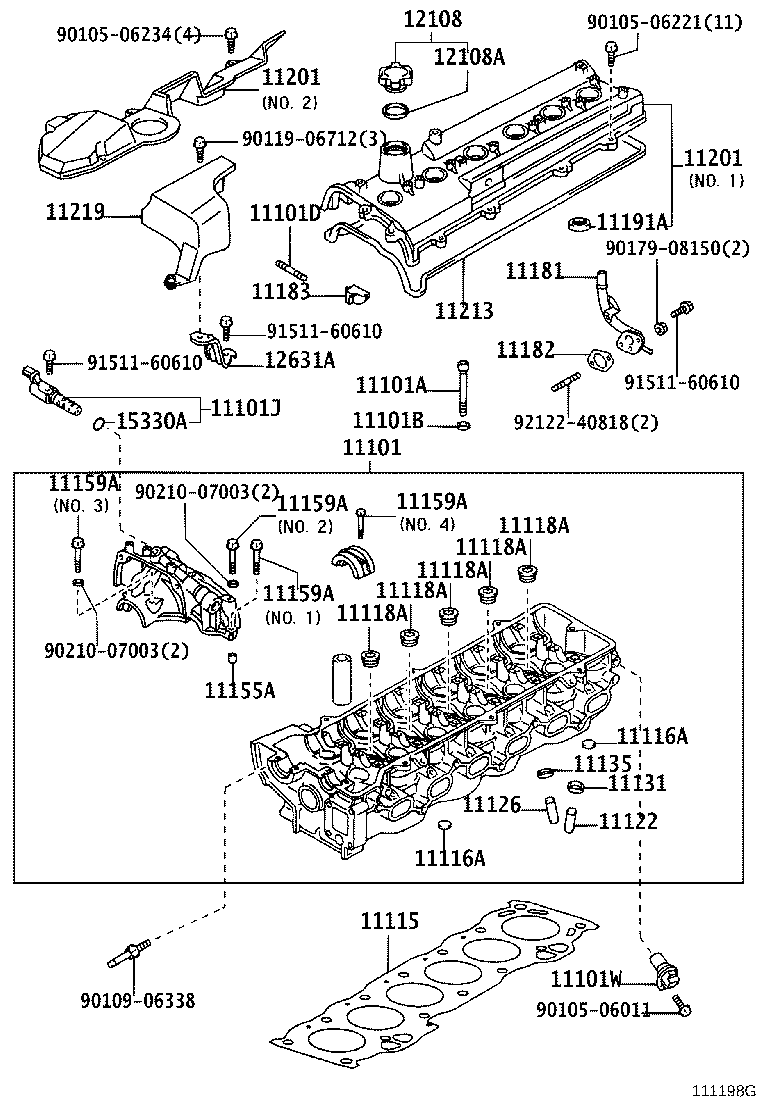

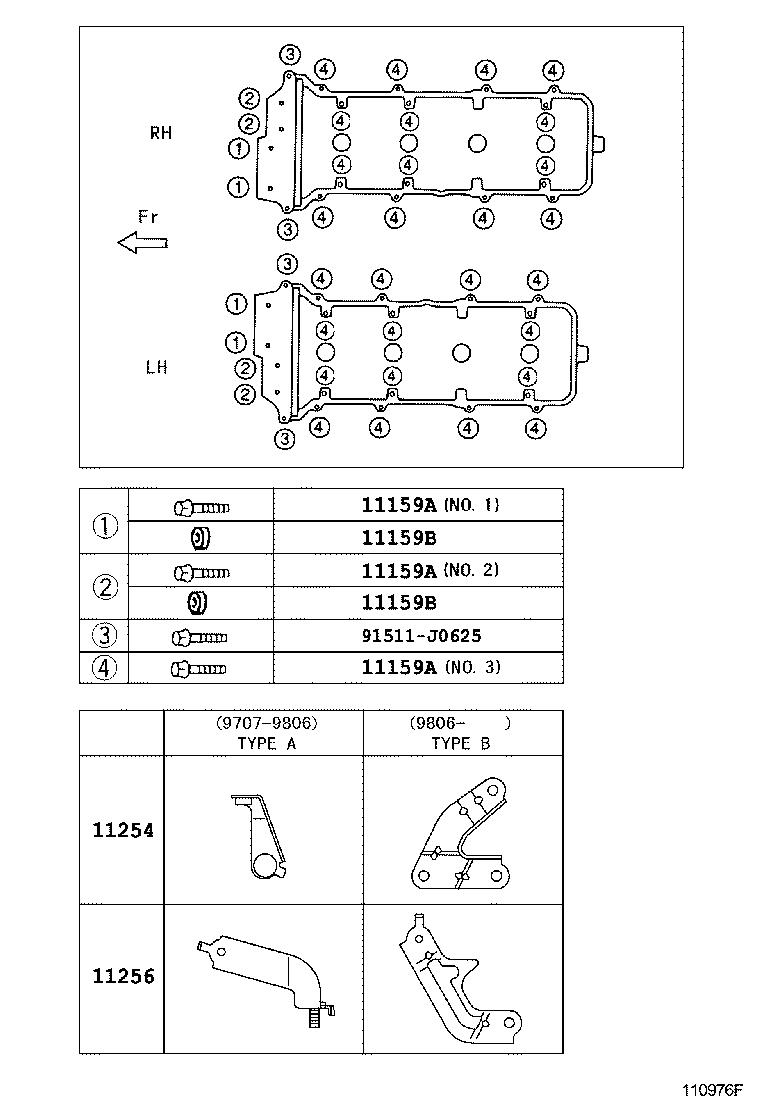

Figure 111132A 111132A 1995-08 → 1998-08 Figure 111198G 111198G 1998-08 → — Figure 111133 111133 1995-12 → — Figure MAE112G MAE112G 1995-08 → 1996-09 Figure 11B206 11B206 1995-08 → — Figure 11B206 11B206 1996-09 → — Figure MAJ495A MAJ495A 1995-08 → 1999-09 Figure MAJ536 MAJ536 1995-08 → 1997-07 Figure 111350F 111350F 1997-07 → 1998-04 Figure 111351I 111351I 1998-04 → — Figure 110976F 110976F 1997-07 → —

Part groups

PNCDescription
11029 Bracket Sub-assy, V-bank Cover
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101D Bolt, Stud(FOR WATER OUTLET)
11101E Sensor, Cam Position
11101G Union(FOR CYLINDER HEAD)
11101J Valve Assy, Camshaft Timing Oil Control
11101P Bolt, Stud(FOR DISTRIBUTOR)
11101R Bolt, Stud(FOR FUEL PIPE)
11101W Sensor, Crank Position, NO.1
11102 Head, Cylinder, LH
11115 Gasket, Cylinder Head
11116 Gasket, Cylinder Head, NO.2
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159B Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
11159E Bolt(FOR CAMSHAFT OIL FEED PIPE)
11181 Plate, Cylinder Head, Rear
11181A Cover, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11185A Cover, Camshaft Rear Housing, NO.1
11188 Plug, Camshaft Housing
11191A Gasket(FOR SPARK PLUG TUBE)
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201T Pin(FOR CYLINDER HEAD COVER)
11201U Bush(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11219 Cover, Cylinder Head, NO.3
11229 Gasket, Cylinder Head Cover, NO.3
11239 Gasket, Clinder Head Coner, NO.4
11249A Gasket, Clinder Head Coner, NO.5
11254 Bracket, V-bank Cover, NO.1
11256 Bracket, V-bank Cover, NO.2
11259 Cover, V-bank
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12631A Bracket, Engine Cover
15044 Pipe Sub-assy, Camshaft Oil Feed
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
