Toyota Pixis Joy
2016-09 → present · chassis LA250,260 · catalogue 592110 · Japan
Supported model
Data version 2017-10
Instrument Panel & Glove Compartment
52 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51960B | Hook Assy, Front |

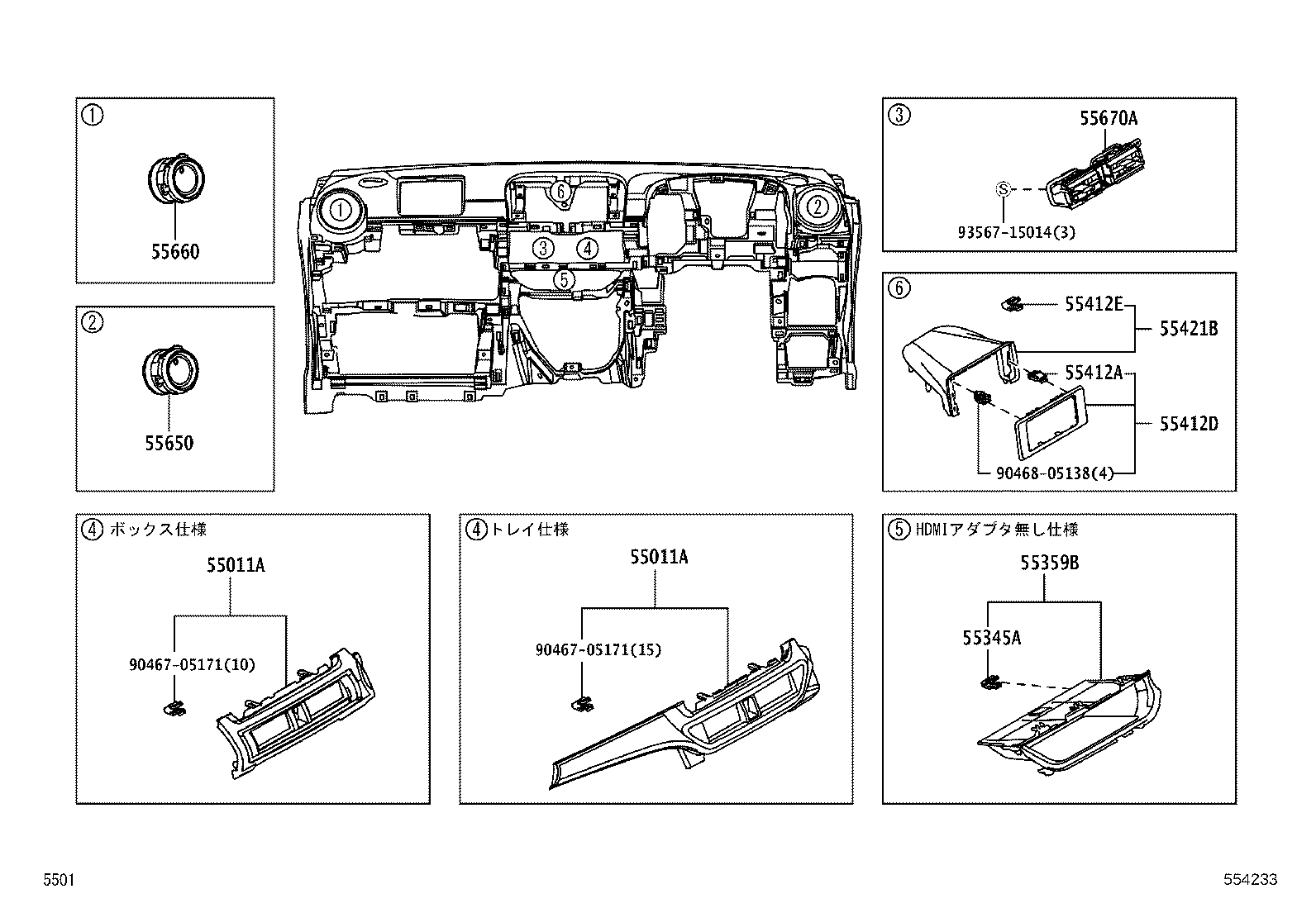

| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |

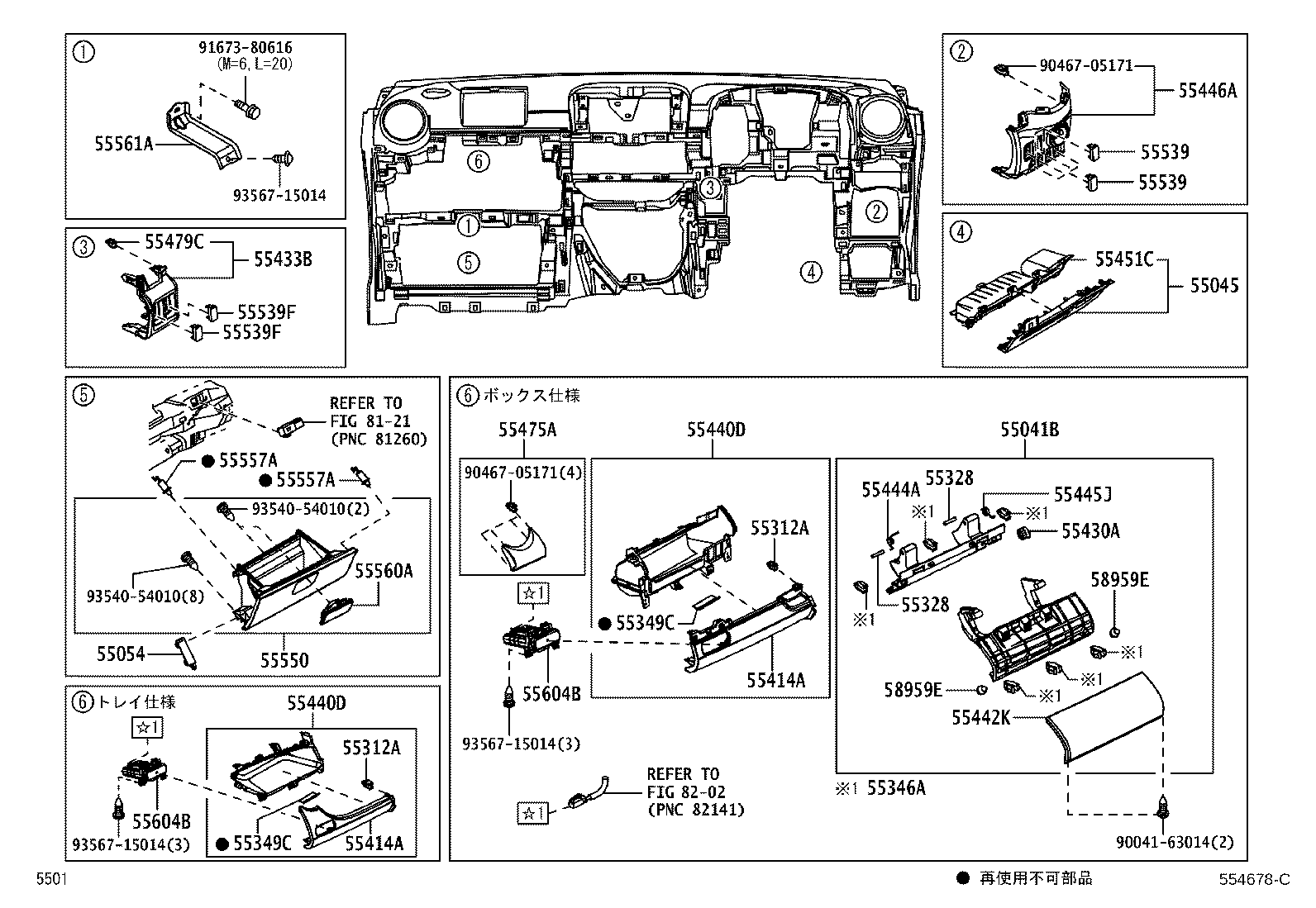

| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |

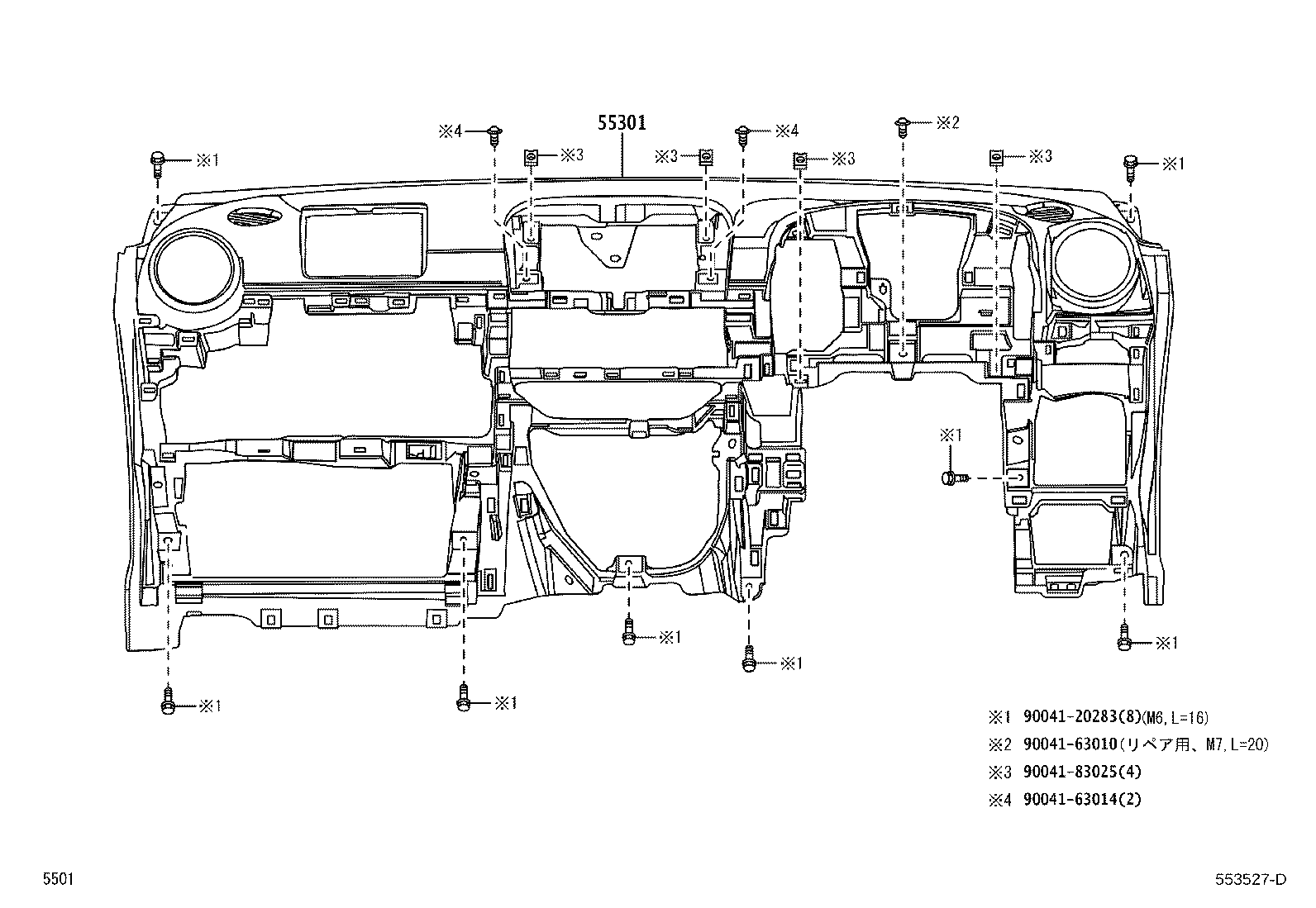

| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312A | Clip, Instrument Panel |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55349A | Cushion, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55359B | Box, Instrument Panel, Center |
| 55394B | Bolt, Instrument Panel |

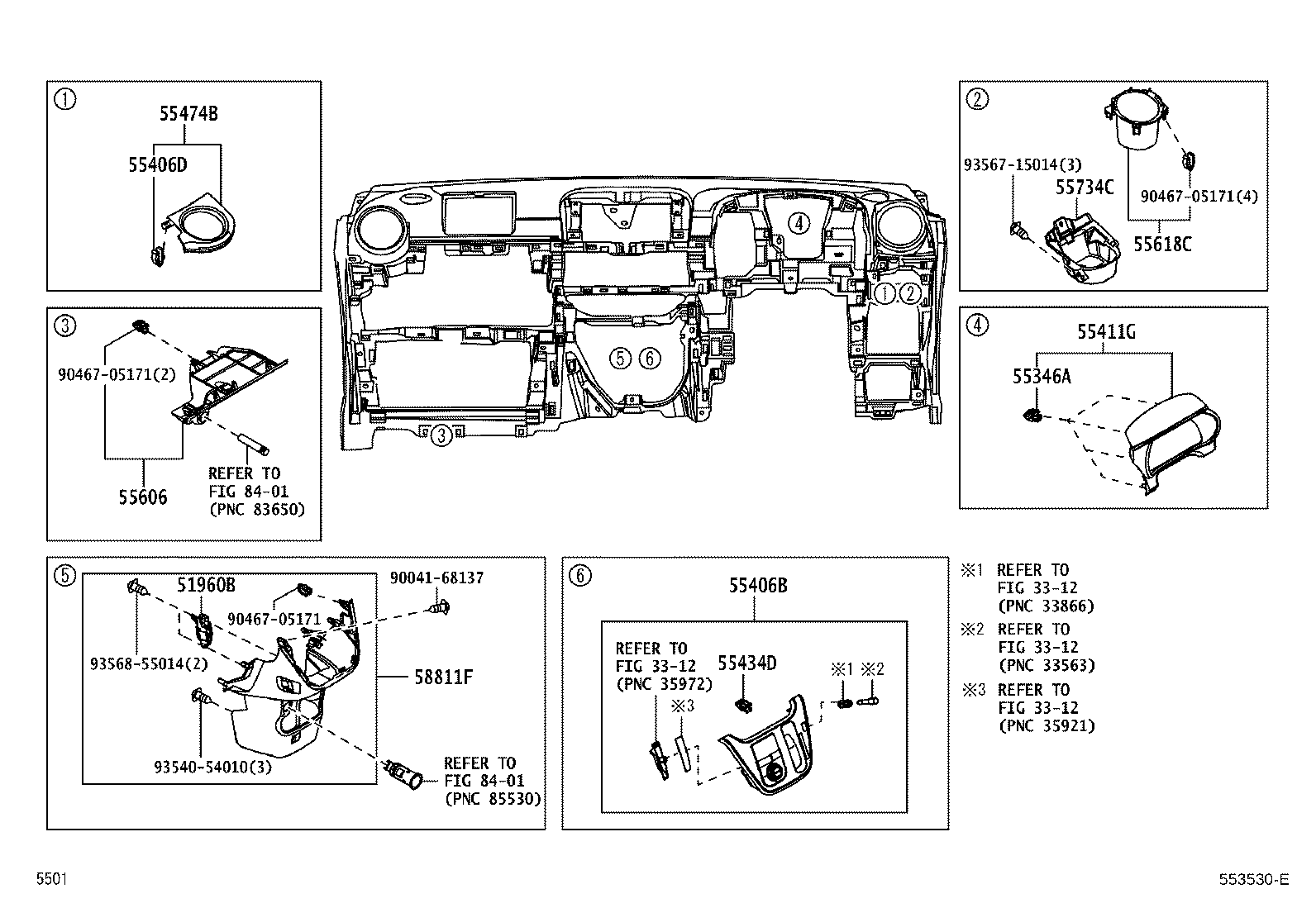

| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412A | Clip, Panel, Instrument Cluster Finish, End |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55412E | Clip, Panel, Instrument Cluster Finish, End |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55430A | Damper Assy, Instrument Cluster Finish Panel |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55440D | Box Assy, Instrument Panel |
| 55442K | Door, Instrument Panel Box |
| 55444A | Spring, Instrument Panel Box |
| 55445J | Spring, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55451C | Box, Instrument Panel, NO.1 |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55539 | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55604B | Holder Sub-assy, Instrument Panel Cup |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55618C | Holder, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55734C | Plate, Water Guard |
| 58811F | Box, Consol |
| 58959E | Cushion, Console Compartment Door |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
