Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

42 part groups · 11 illustrations

Illustrations

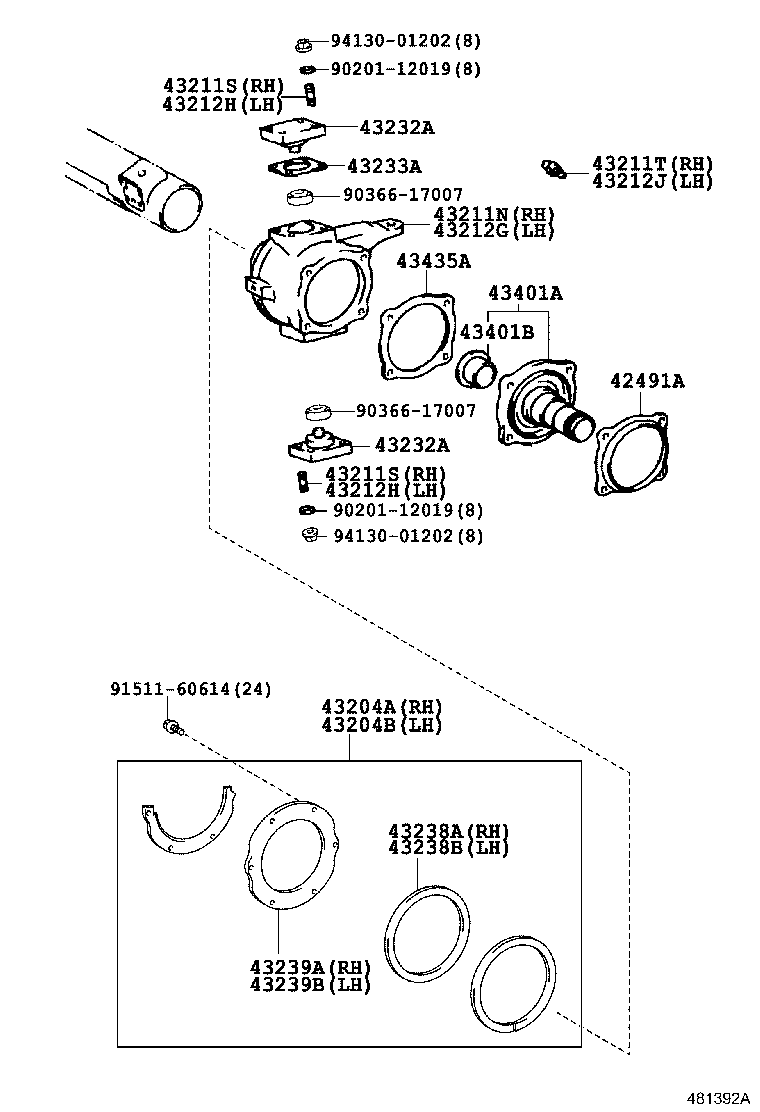

Figure 480601B 480601B 1986-10 → — Figure 481392A 481392A 1991-10 → — Figure 482956 482956 1986-10 → — Figure MCH454C MCH454C 1986-10 → — Figure MCH455B MCH455B 1984-10 → — Figure 481599 481599 1986-10 → — Figure 483558 483558 1986-10 → — Figure MCU292A MCU292A 1991-10 → — Figure MCD970D MCD970D 1986-10 → — Figure MCU293A MCU293A 1986-10 → — Figure 480602A 480602A 1986-10 → 1993-10

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
42491A Protector, Rear Steering Knuckle Spindle
43204A Seal Sub-assy, Rear Steering Knuckle Oil, RH
43204B Seal Sub-assy, Rear Steering Knuckle Oil, LH
43211N Knuckle, Rear Steering, RH
43211S Bolt, Stud (FOR REAR STEERING KNUCKLE RH)
43211T Plug (FOR REAR STEERING KNUCKLE RH)
43212G Knuckle, Rear Steering, LH
43212H Bolt, Stud (FOR REAR STEERING KNUCKLE LH)
43212J Plug (FOR REAR STEERING KNUCKLE LH)
43232A Cap, Rear Steering Knuckle Bearing
43233A Shim, Rear Steering Knuckle Adjust, NO.1
43238A Seal, Rear Steering Knuckle Oil, Inner RH
43238B Seal, Rear Steering Knuckle Oil, Inner LH
43239A Seal, Rear Steering Knuckle Oil, Outer RH
43239B Seal, Rear Steering Knuckle Oil, Outer LH
43401A Spindle Sub-assy, Rear Steering Knuckle
43401B Bush, Solid (FOR REAR STEERING KNUCKLE SPINDLE)
43435A Gasket, Rear Steering Knuckle Spindle
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48253 Spacer, Rear Spring, NO.1
48341 Bumper, Rear Spring
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
