Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

90 part groups · 42 illustrations

Illustrations

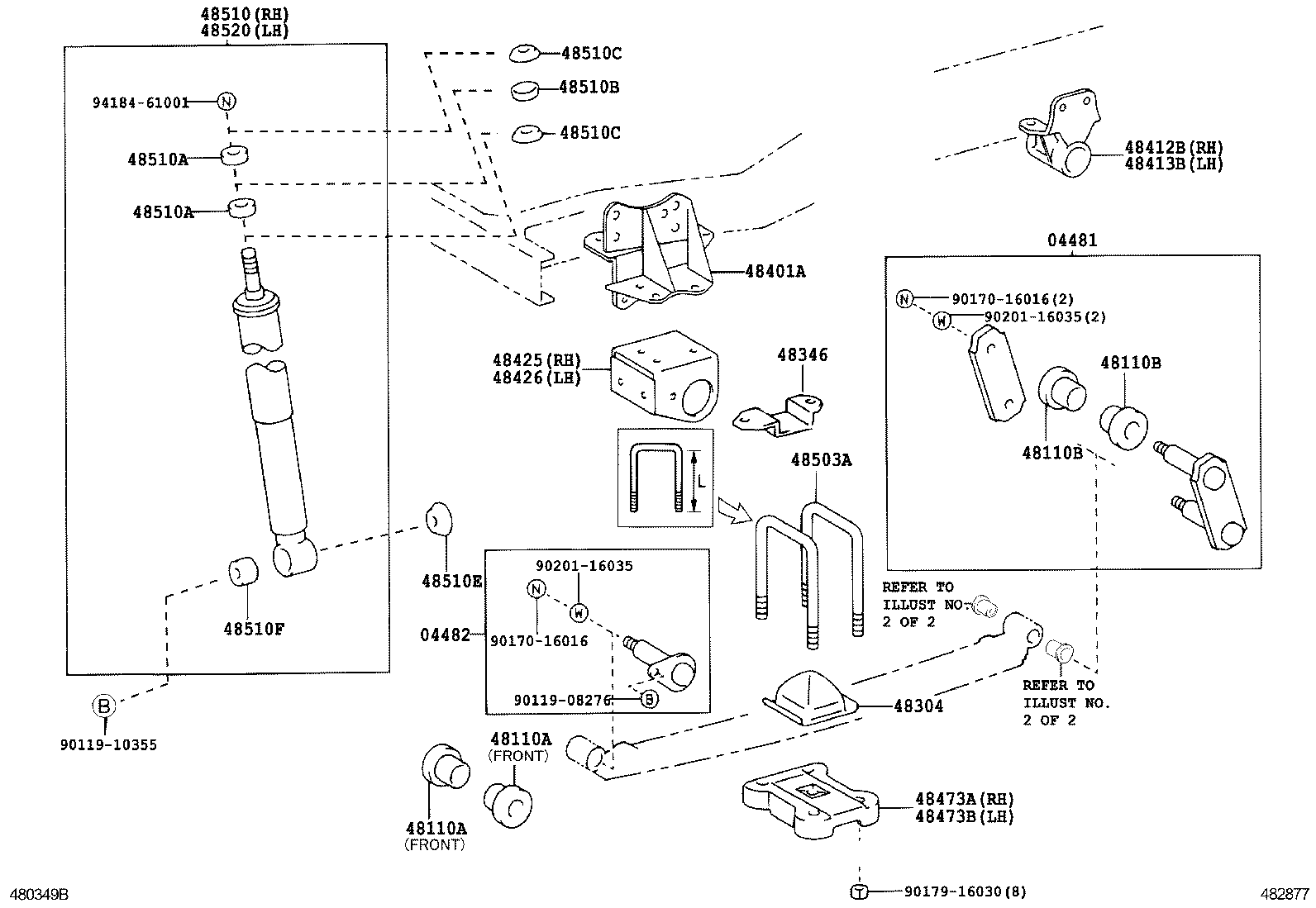

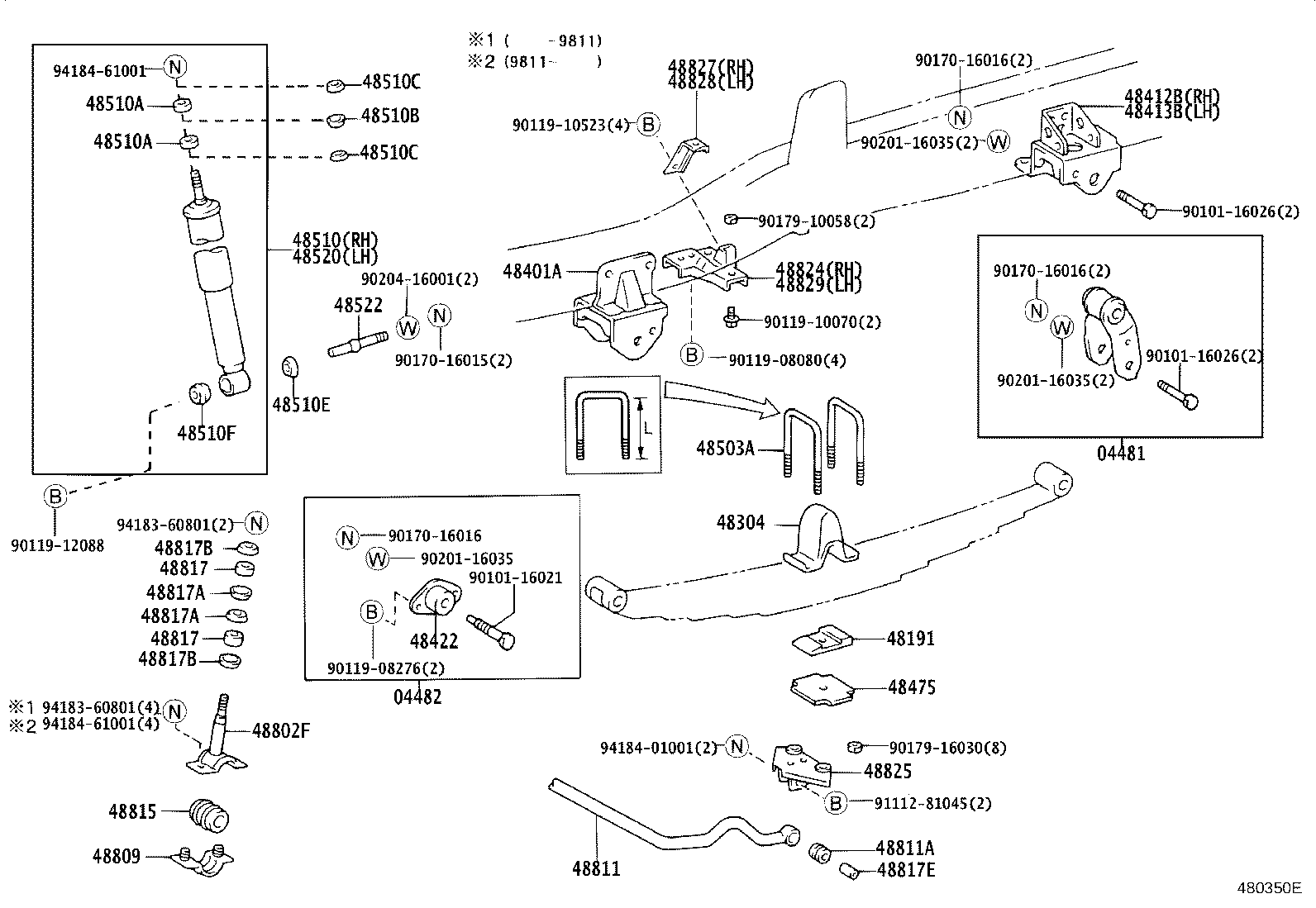

Figure 483812 483812 1995-05 → — Figure 482877 482877 1995-05 → — Figure 480350E 480350E 1995-05 → — Figure 482879 482879 1995-05 → — Figure 480752 480752 1995-05 → — Figure 480752 480752 1997-08 → — Figure 480800 480800 1996-10 → — Figure 480465D 480465D 1995-05 → 1995-08 Figure 480465D 480465D 1995-05 → 1996-09 Figure 480465D 480465D 1995-05 → 1997-10 Figure 480465D 480465D 1995-08 → 1997-10 Figure 480465D 480465D 1995-10 → 1996-10 Figure 480465D 480465D 1996-09 → — Figure 480826D 480826D 1997-10 → — Figure 480826D 480826D 1998-05 → — Figure 480747A 480747A 1995-05 → — Figure 481572A 481572A 1995-05 → 1996-09 Figure 481572A 481572A 1996-09 → — Figure 480467 480467 1996-10 → — Figure 480754B 480754B 1995-05 → 1995-08 Figure 480754B 480754B 1995-05 → 1997-10 Figure 480754B 480754B 1995-05 → — Figure 480754B 480754B 1995-05 → — Figure 480754B 480754B 1995-08 → — Figure 480754B 480754B 1998-05 → — Figure 480755A 480755A 1995-05 → — Figure 480525A 480525A 1995-05 → — Figure 480525A 480525A 1997-08 → — Figure 483257 483257 1995-05 → — Figure 480468A 480468A 1997-02 → — Figure 480526A 480526A 1995-05 → 1995-10 Figure 480526A 480526A 1995-05 → — Figure 480526A 480526A 1995-05 → — Figure 480526A 480526A 1995-10 → — Figure 480526A 480526A 1995-10 → — Figure 480527 480527 1995-07 → — Figure 481297 481297 1995-05 → — Figure 481297 481297 1997-08 → — Figure 481297 481297 1997-12 → — Figure 481298 481298 1997-12 → 1999-06 Figure 483135 483135 1996-10 → — Figure 480546 480546 1997-01 → —

Part groups

PNCDescription
04481 Shackle Kit, Front Spring
04482 Pin Kit, Front Spring
48107 Arm Sub-assy, Anchor, RH
48108 Arm Sub-assy, Anchor, LH
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48118 Leaf, Front Spring, NO.8
48120 Spring Assy, Front, LH
48141 Clip, Front Spring, NO.1
48142A Clip, Front Spring
48145A Seat, Spring Clip(FOR FRONT SPRING)
48147 Bolt, Front Spring, Center
48152 Seat, Front Spring
48153 Spacer, Front Leaf Spring, NO.1
48155 Nut, Spring Center(FOR FRONT SPRING)
48161 Spring, Torsion Bar, RH
48162 Spring, Torsion Bar, LH
48169A Swivel, Anchor Arm, RH
48169B Swivel, Anchor Arm, LH
48173 Seat, Anchor Arm Adjuster
48173C Seat, Anchor Arm Adjuster, RH
48173D Seat, Anchor Arm Adjuster, LH
48174 Cover, Torsion Bar Dust
48174A Cover, Torsion Bar Dust, RH
48174B Cover, Torsion Bar Dust, LH
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48302A Spring, Hollow(FOR FRONT SUSPENSION)
48303A Seat Sub-assy, Hollow Spring
48304 Bumper Sub-assy, Front Spring, NO.1
48305 Bumper Sub-assy, Front Spring, NO.2
48346 Stopper, Bumper, Front
48401A Bracket Sub-assy, Spring, NO.1
48412B Bracket, Spring, NO.2 RH
48413B Bracket, Spring, NO.2 LH
48422 Support, Front Spring Pin
48425 Bracket, Spring, NO.1 Lower RH
48426 Bracket, Spring, NO.1 Lower LH
48473A Seat, Spring U Bolt, RH
48473B Seat, Spring U Bolt, LH
48475 Plate, Distance(FOR FRONT)
48503A Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E Washer, Front Shock Absorber Cushion, NO.2
48510F Cushion, Shock Absorber
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48512A Bracket, Front Shock Absorber, Upper RH
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48522 Pin, Front Shock Absorber Lower Pivot
48532A Pin, Front Shock Absorber Upper Pivot
48533B Pin, Front Shock Absorber Lower Pivot
48543 Reinforcement, Front Absorber Bracket, RH
48544 Reinforcement, Front Absorber Bracket, LH
48635 Bush, Upper Arm, Rear
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48811A Bush(FOR FRONT STABILIZER BAR)
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817E Spacer(FOR STABILIZER BAR)
48819A Bolt, Front Stabilizer
48820 Link Assy, Front Stabilizer
48820B Link Assy, Front Stabilizer, RH
48823B Cover, Front Stabilizer Bracket
48824 Bracket, Stabilizer, Front
48825 Bracket, Stabilizer, NO.2
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829 Bracket, Stabilizer
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
