Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 12 illustrations

Illustrations

Figure 825185I 825185I 2006-10 → — Figure 825451D 825451D 2007-05 → — Figure 825452D 825452D 2007-05 → — Figure 825186D 825186D 2006-10 → — Figure 825187J 825187J 2006-10 → — Figure 825188C 825188C 2006-10 → — Figure 825189C 825189C 2006-10 → — Figure 825190C 825190C 2006-10 → — Figure 825191D 825191D 2006-10 → — Figure 825450E 825450E 2006-10 → — Figure 825192G 825192G 2006-10 → — Figure 825453B 825453B 2006-10 → —

Part groups

PNCDescription
63189D Bracket, Wiring Harness Connector
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82050 Wire Assy, Engine

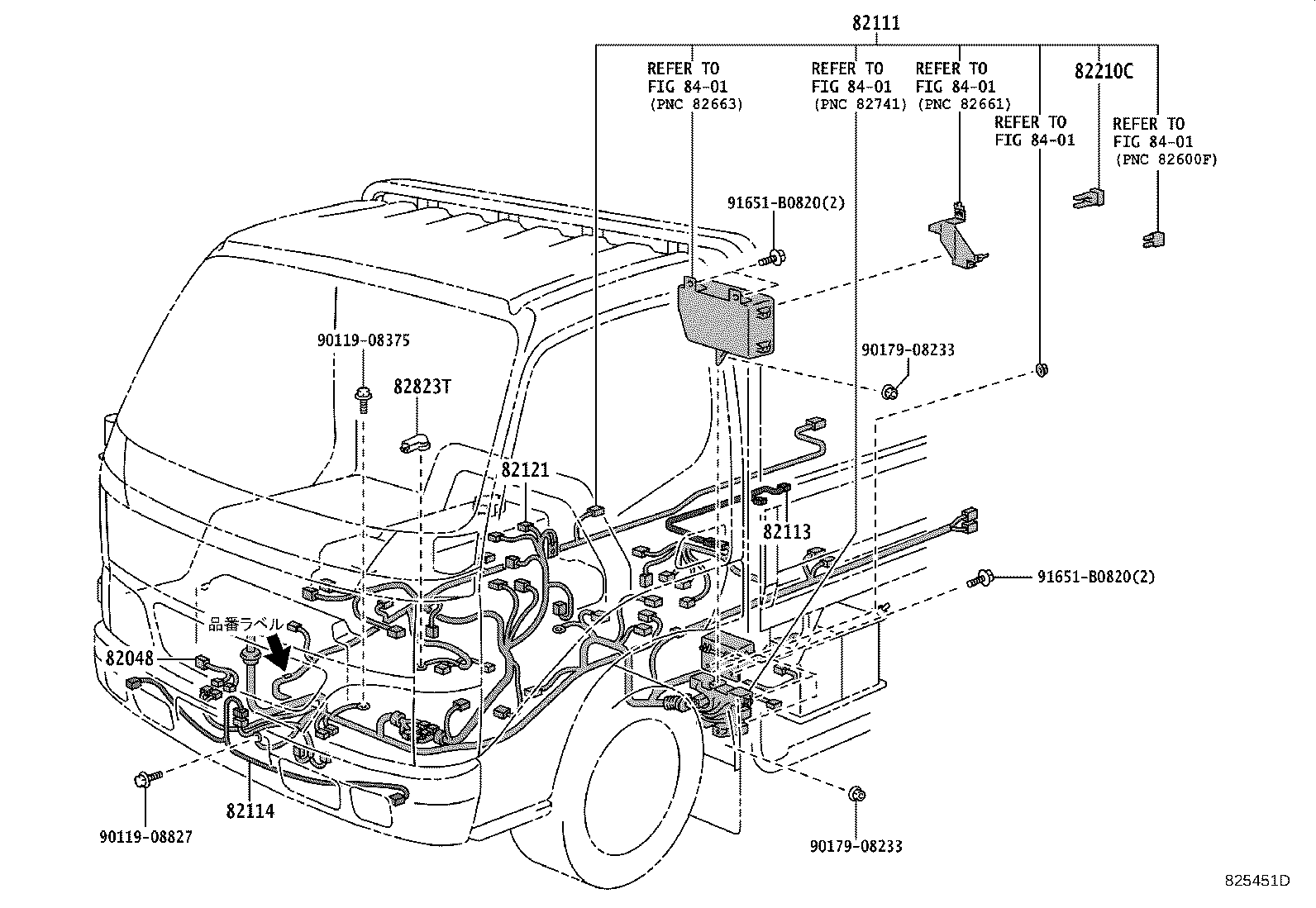

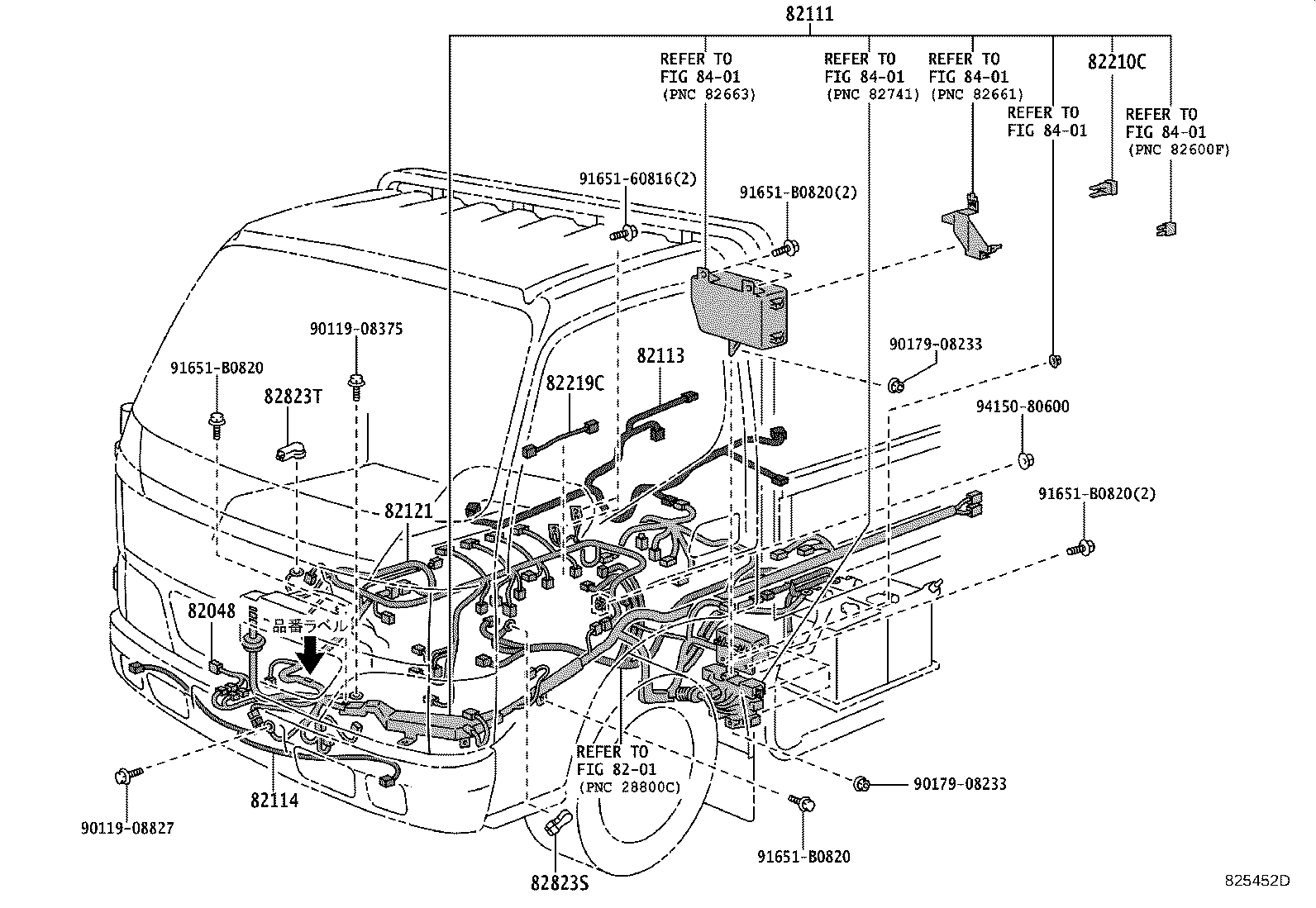

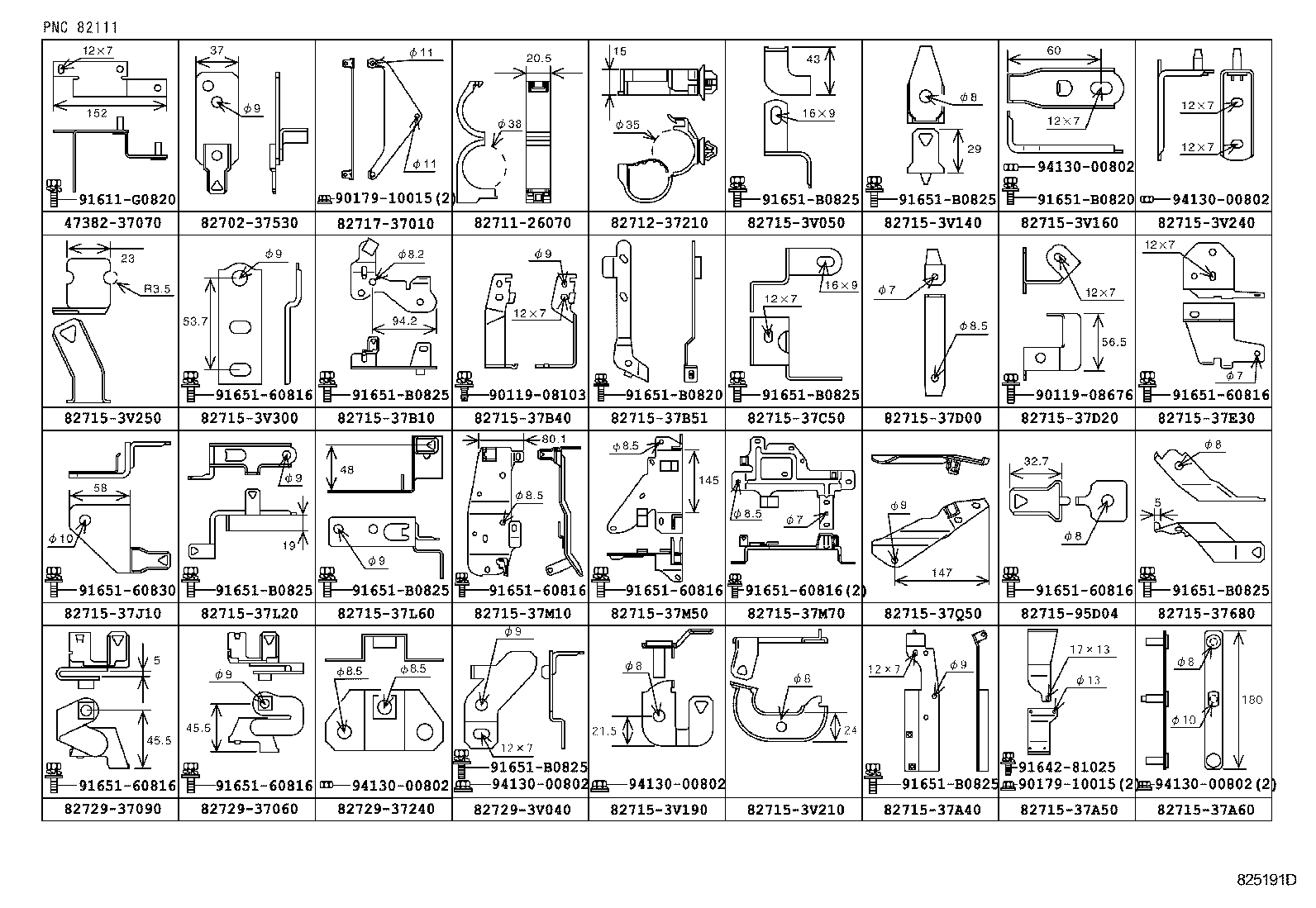

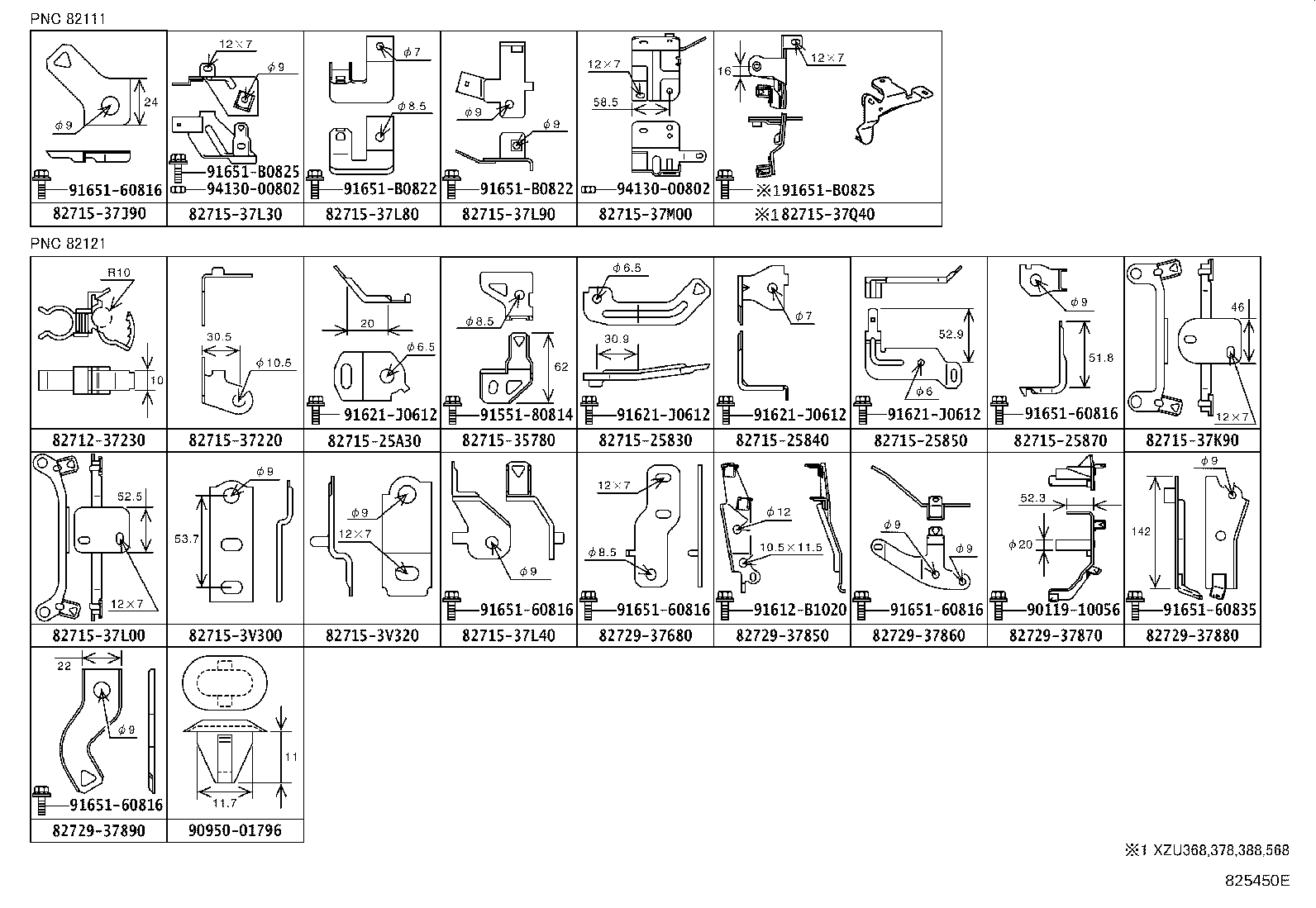

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123A Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82127 Wire, Differential

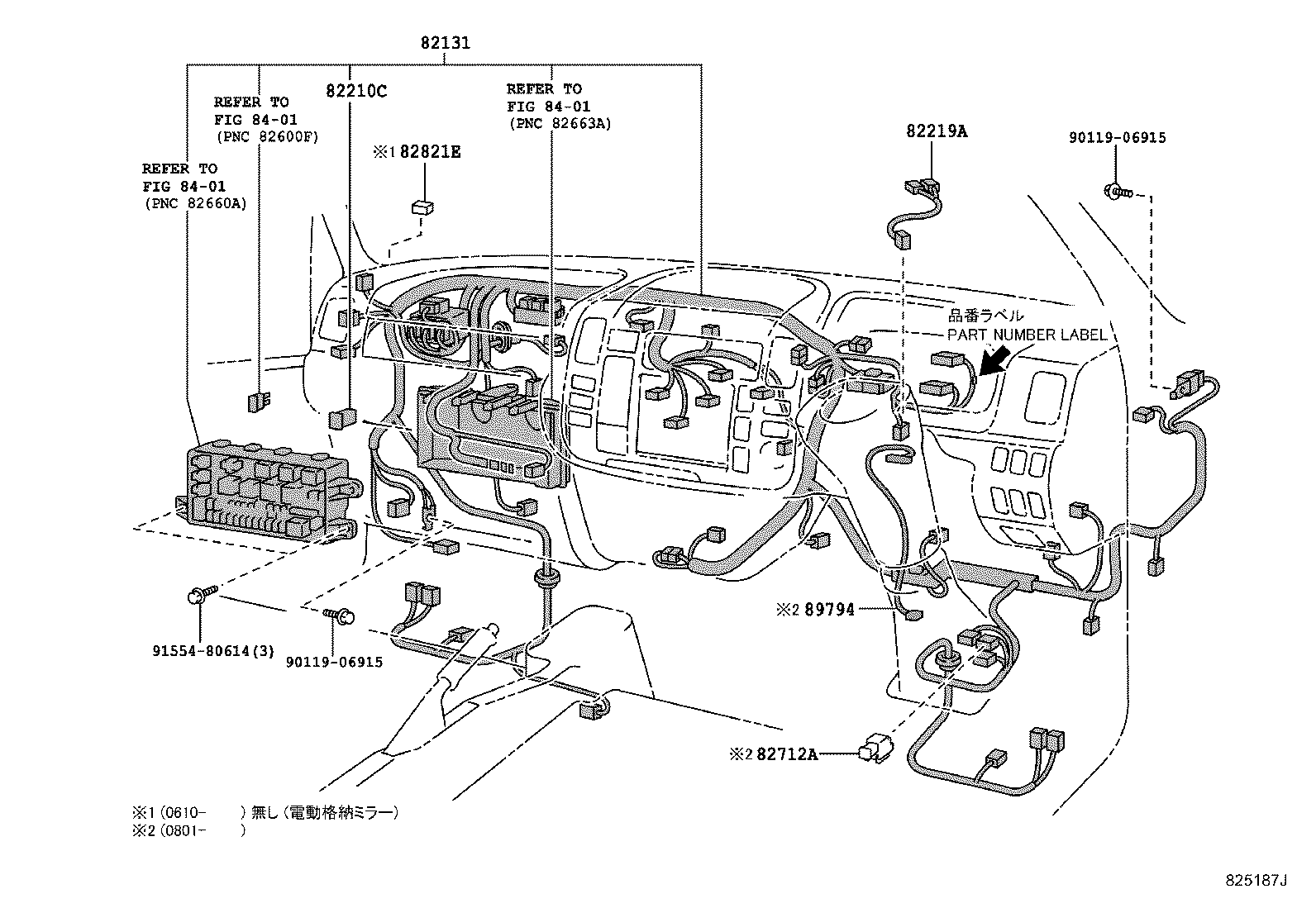

82130 Harness Assy, Chassis Wire
82131 Wire, Cowl

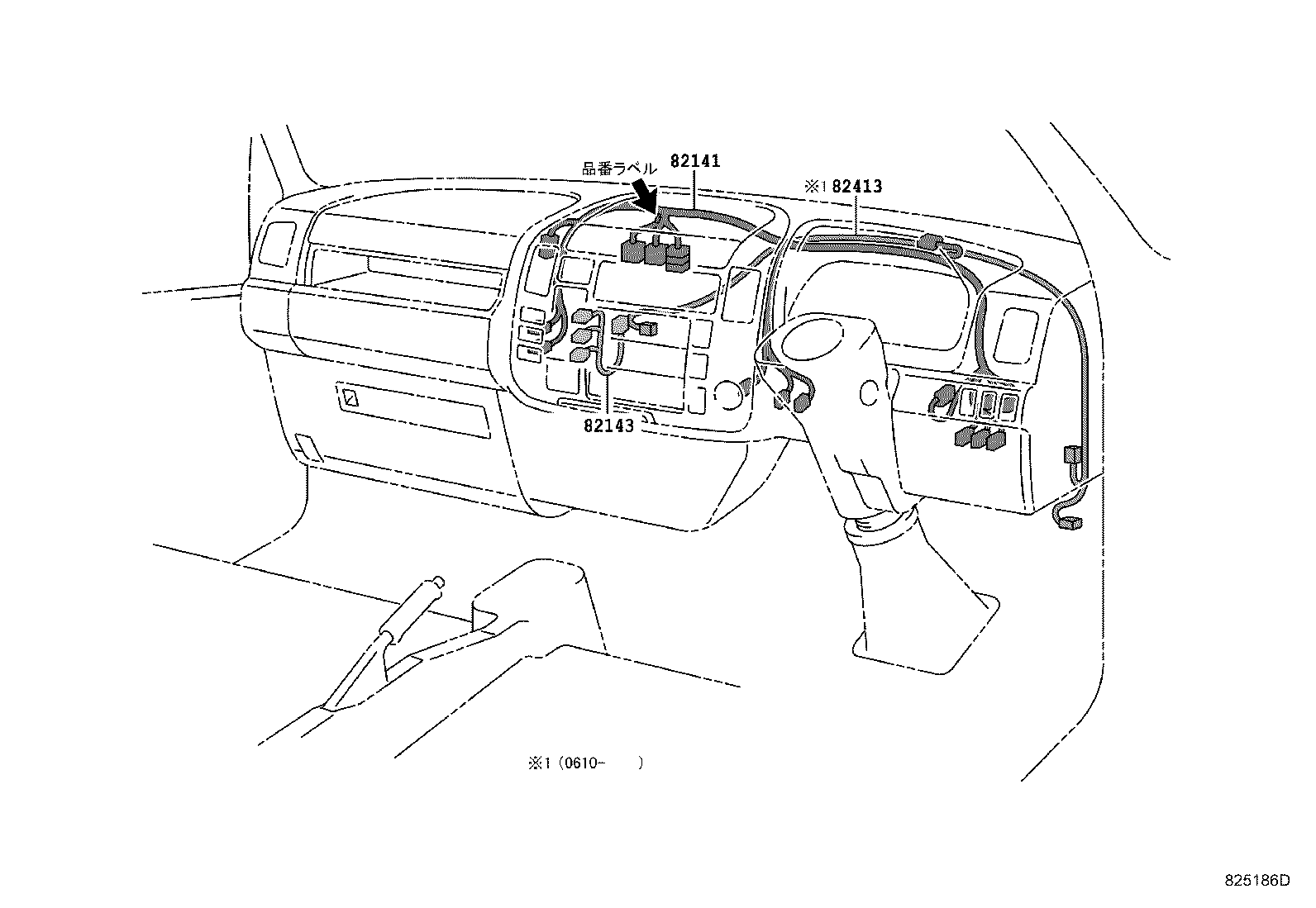

82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82156 Wire, Slide Door
82161 Wire, Floor
82162 Wire, Floor, NO.2

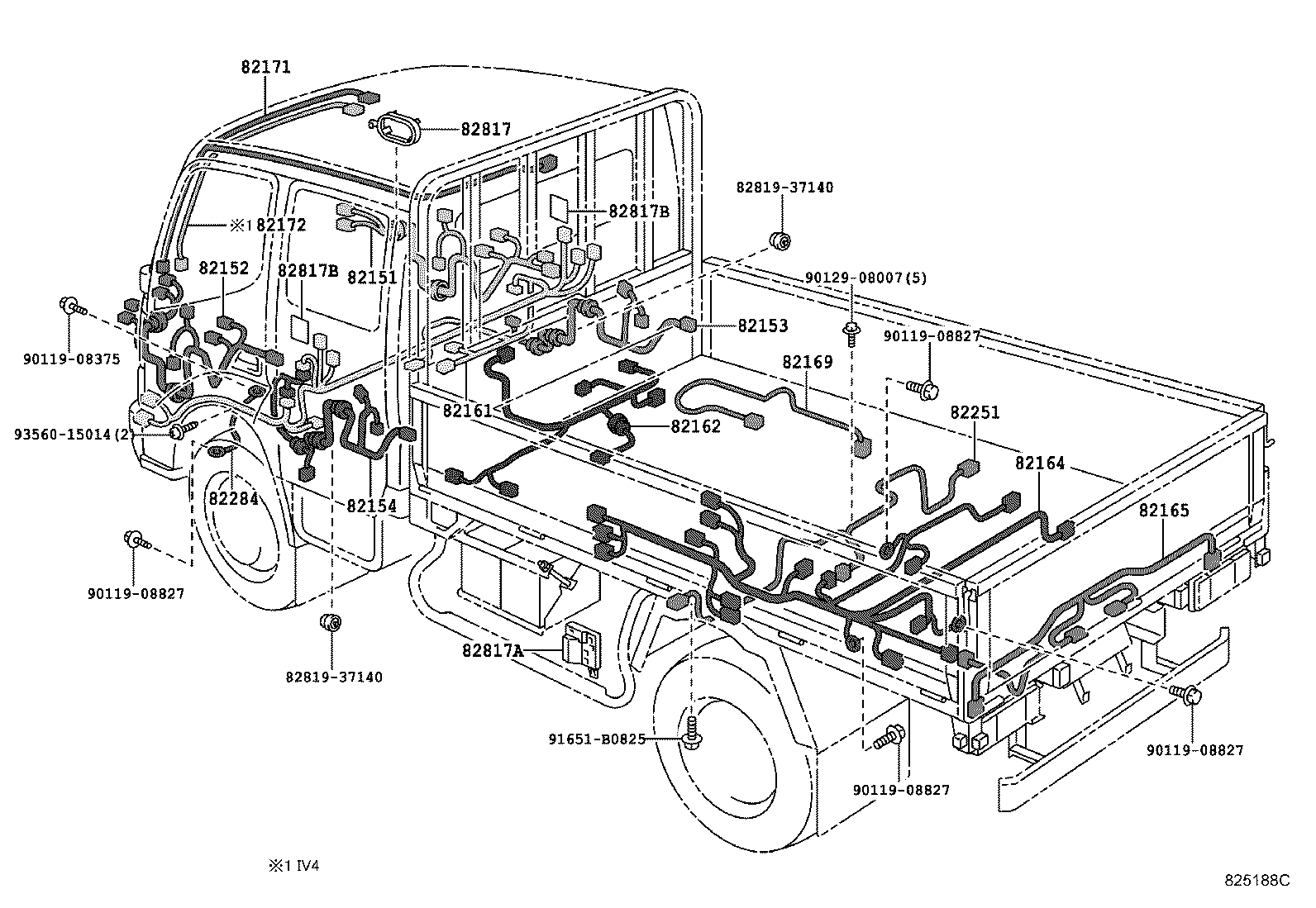

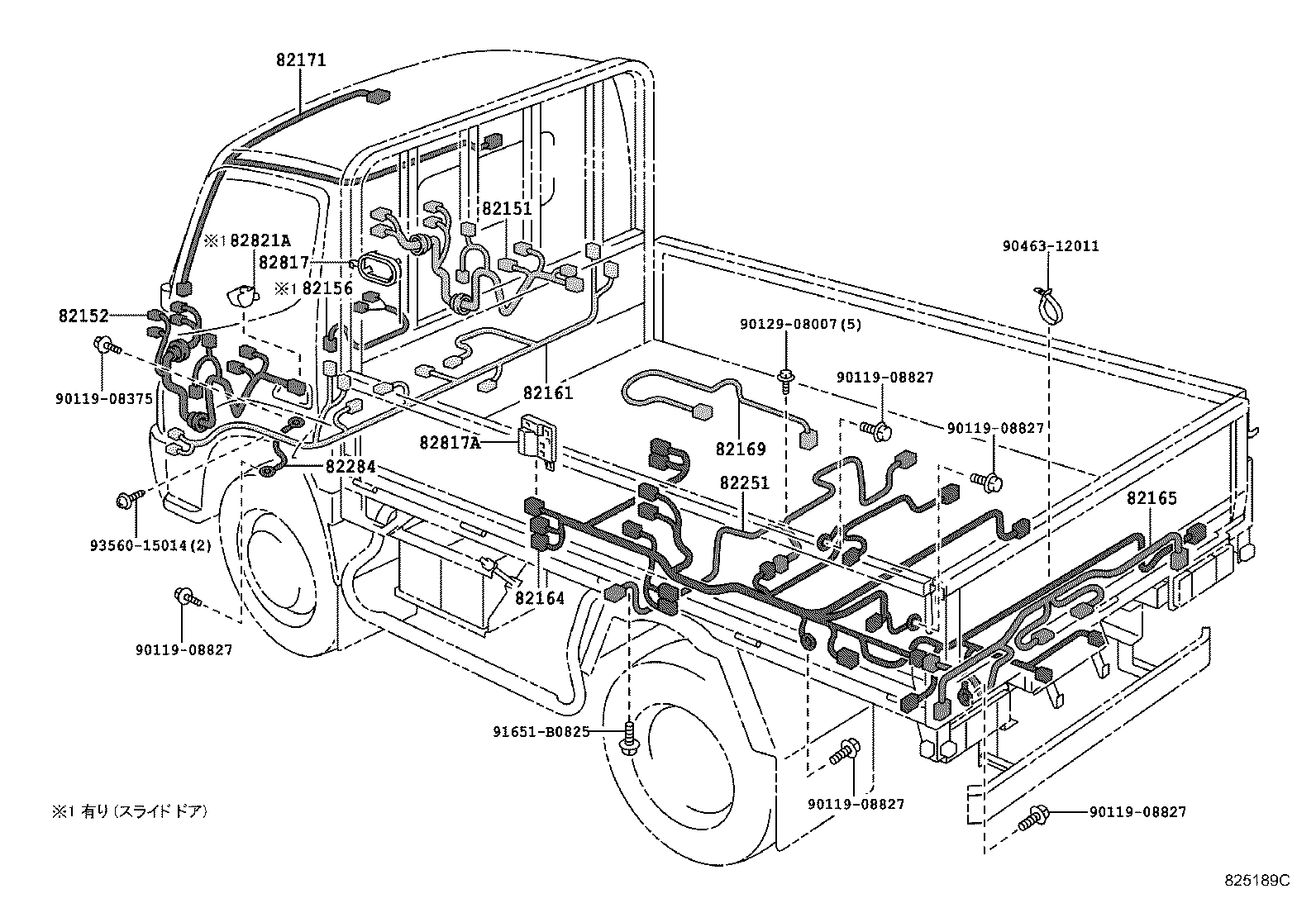

82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2

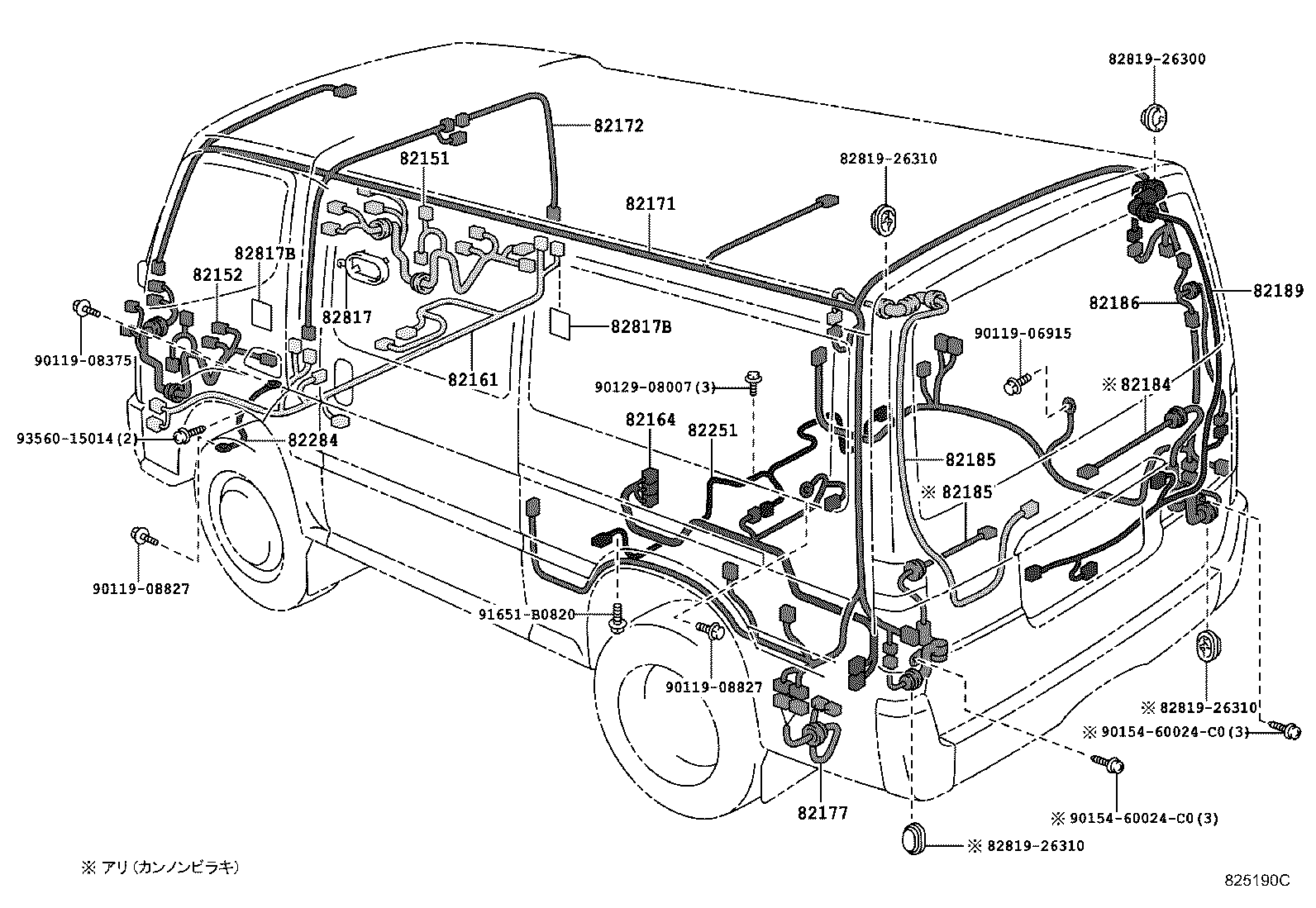

82177 Wire, Rear Body
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82189 Wire, Back Door, NO.4
82210C Fusible Link
82219A Wire, Sensor
82219C Wire, Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82284 Wire, Earth
82413 Wire, Buzzer
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
89794 Wire, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
