Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

19 part groups · 26 illustrations

Illustrations

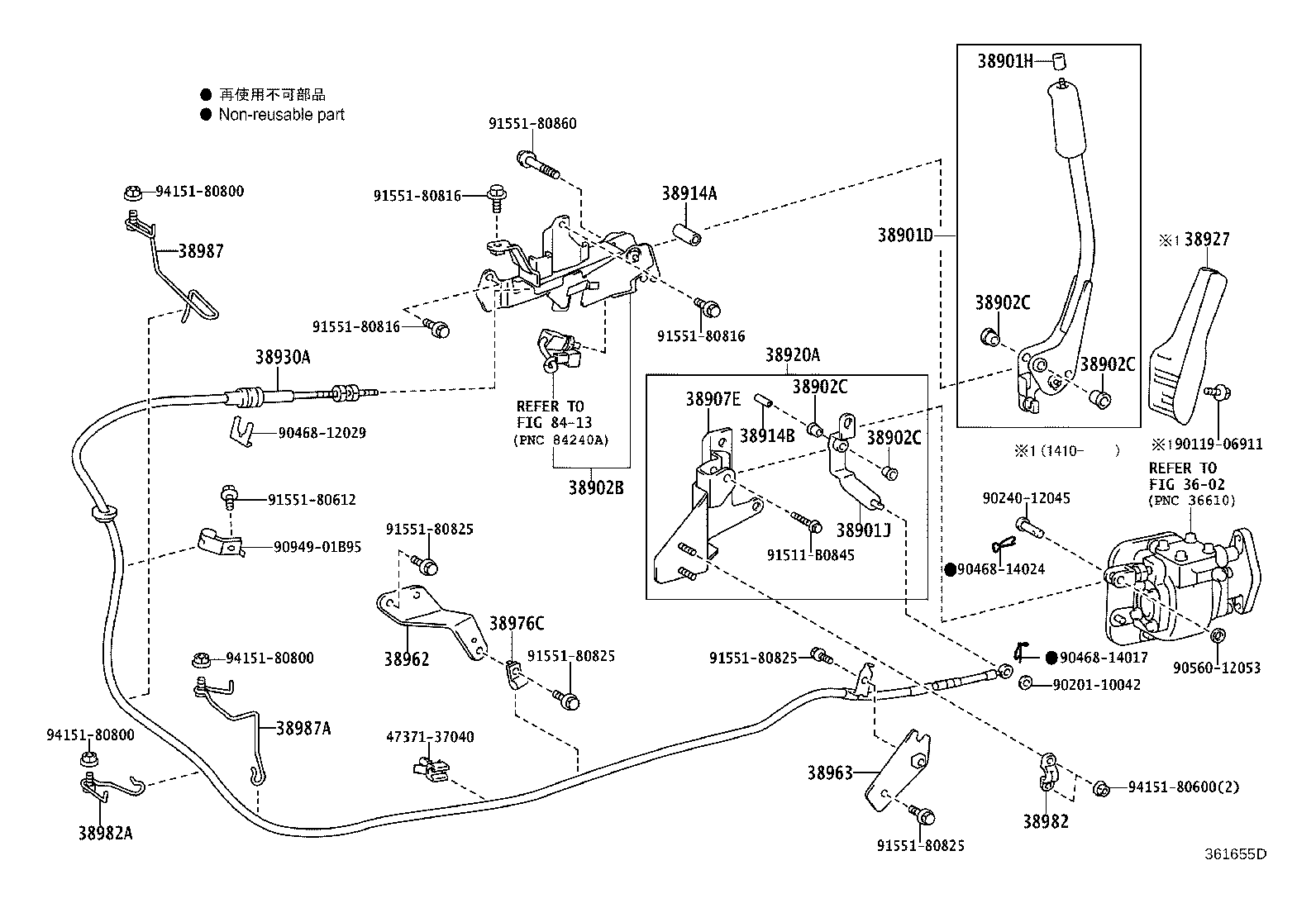

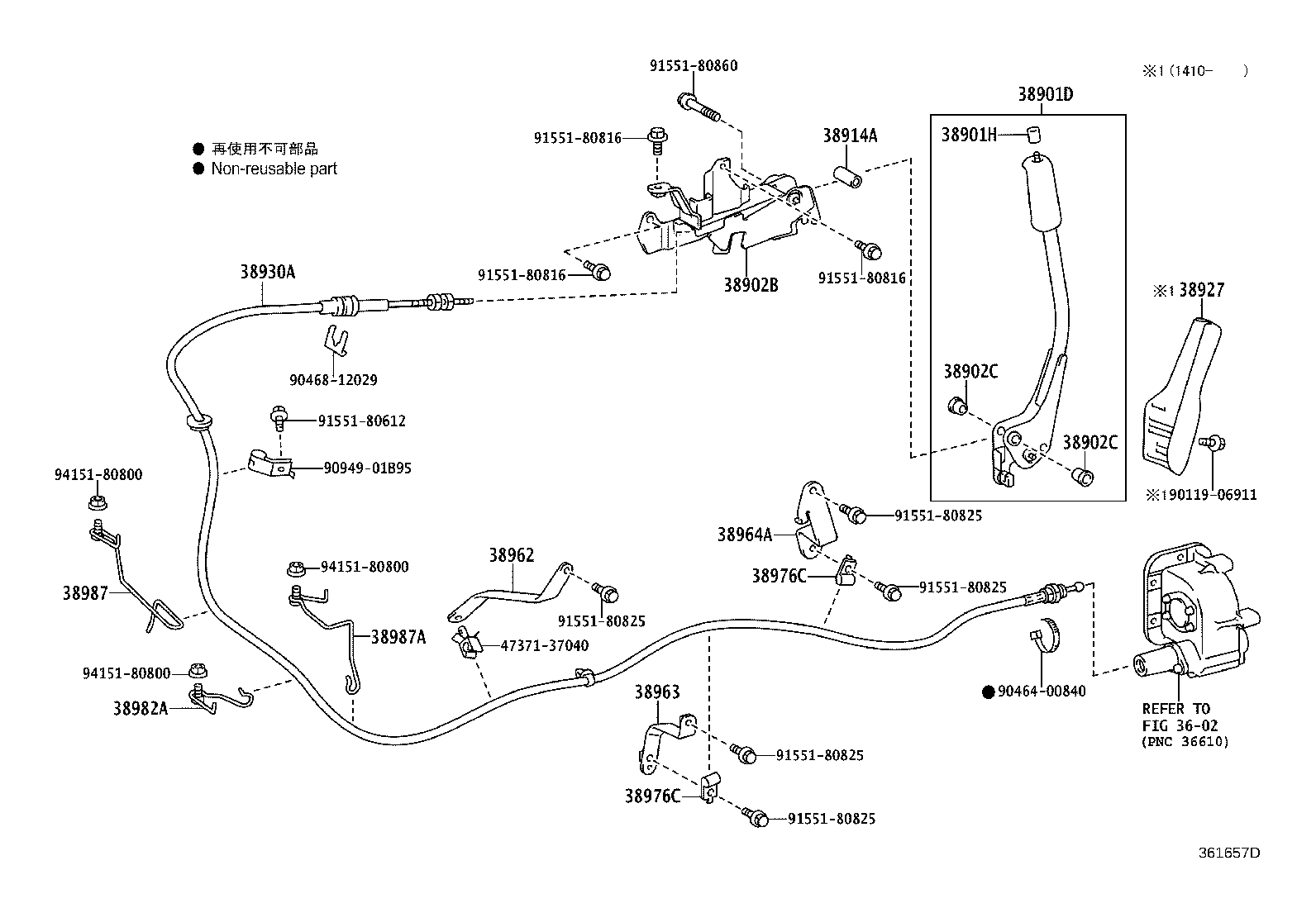

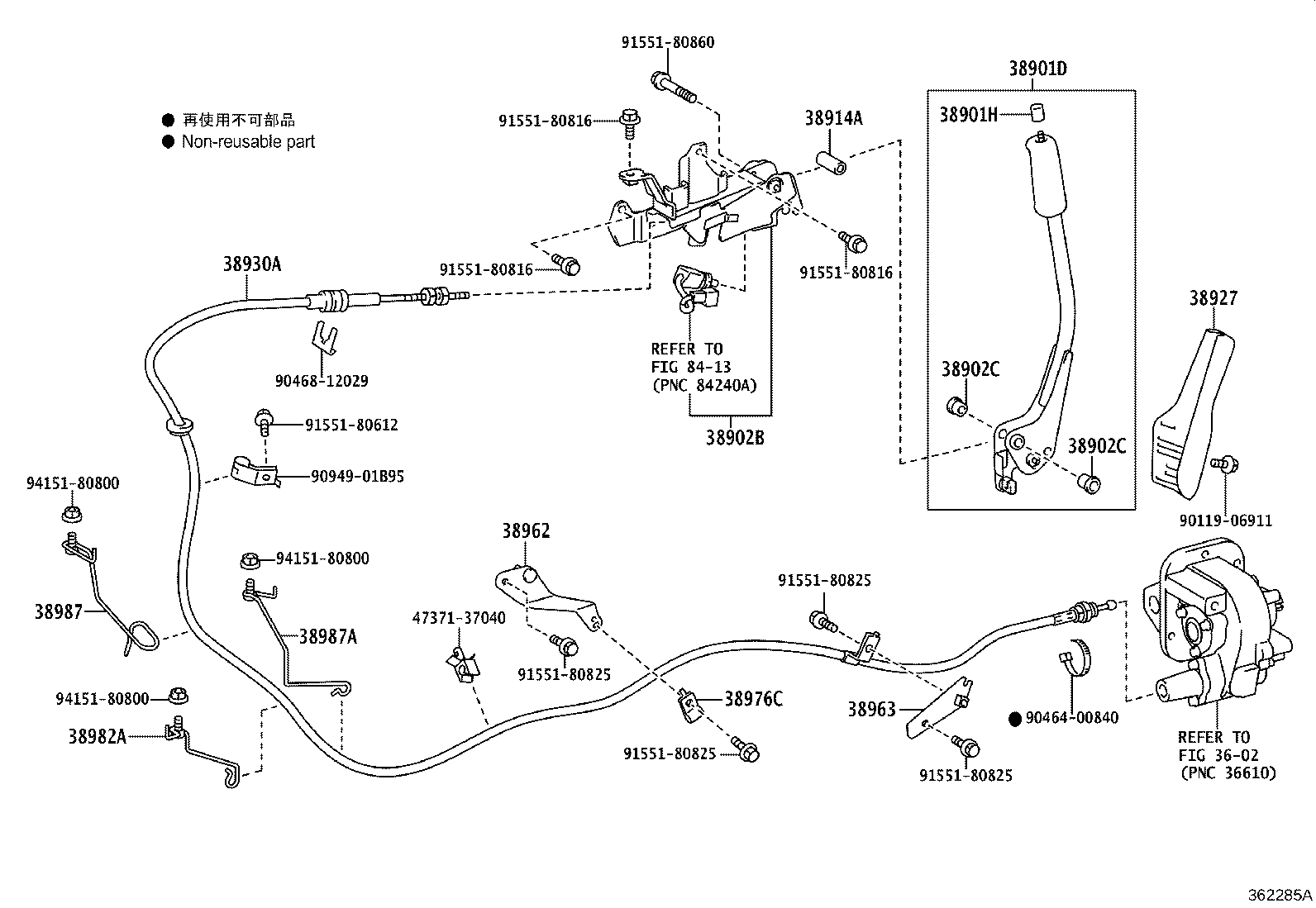

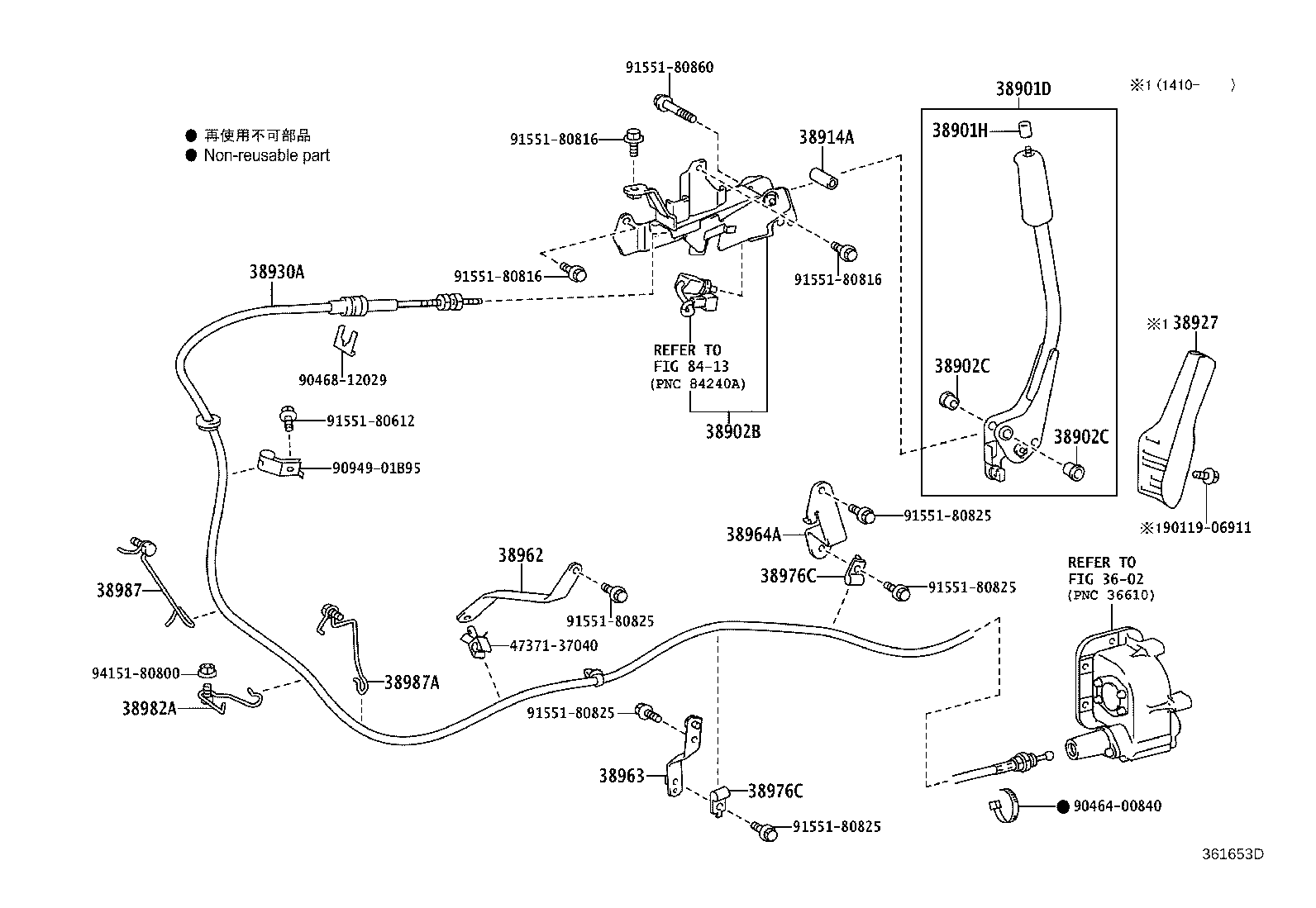

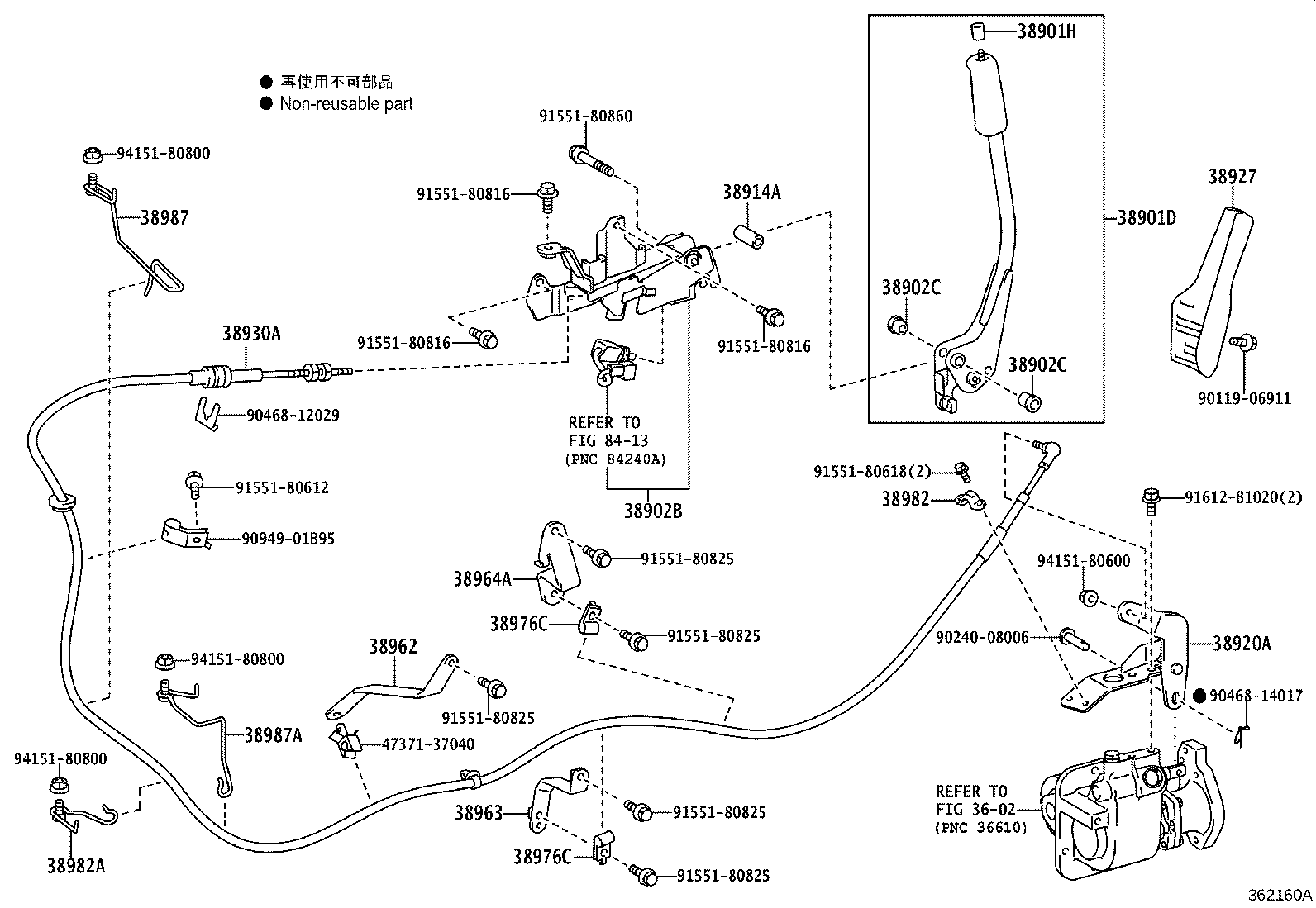

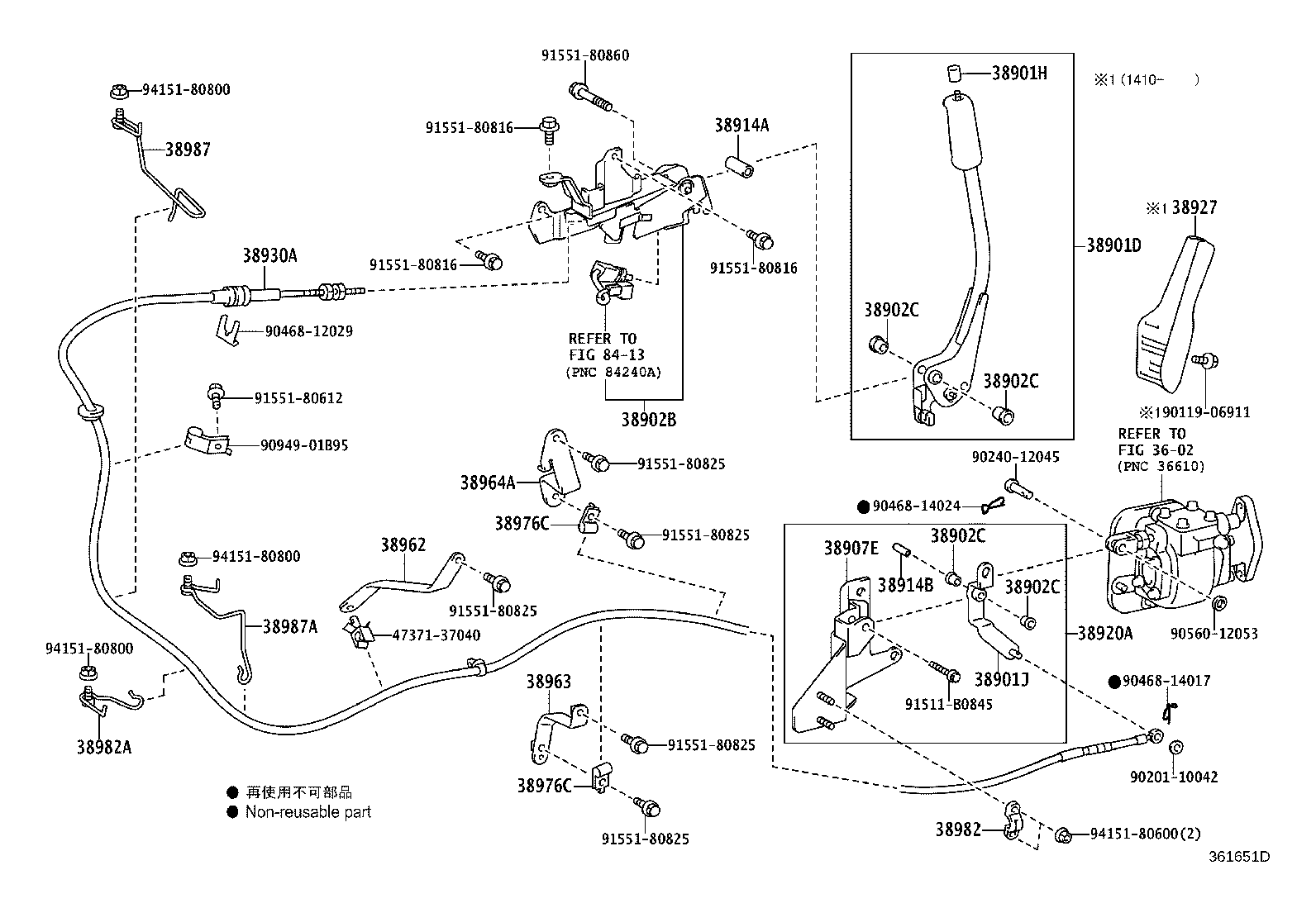

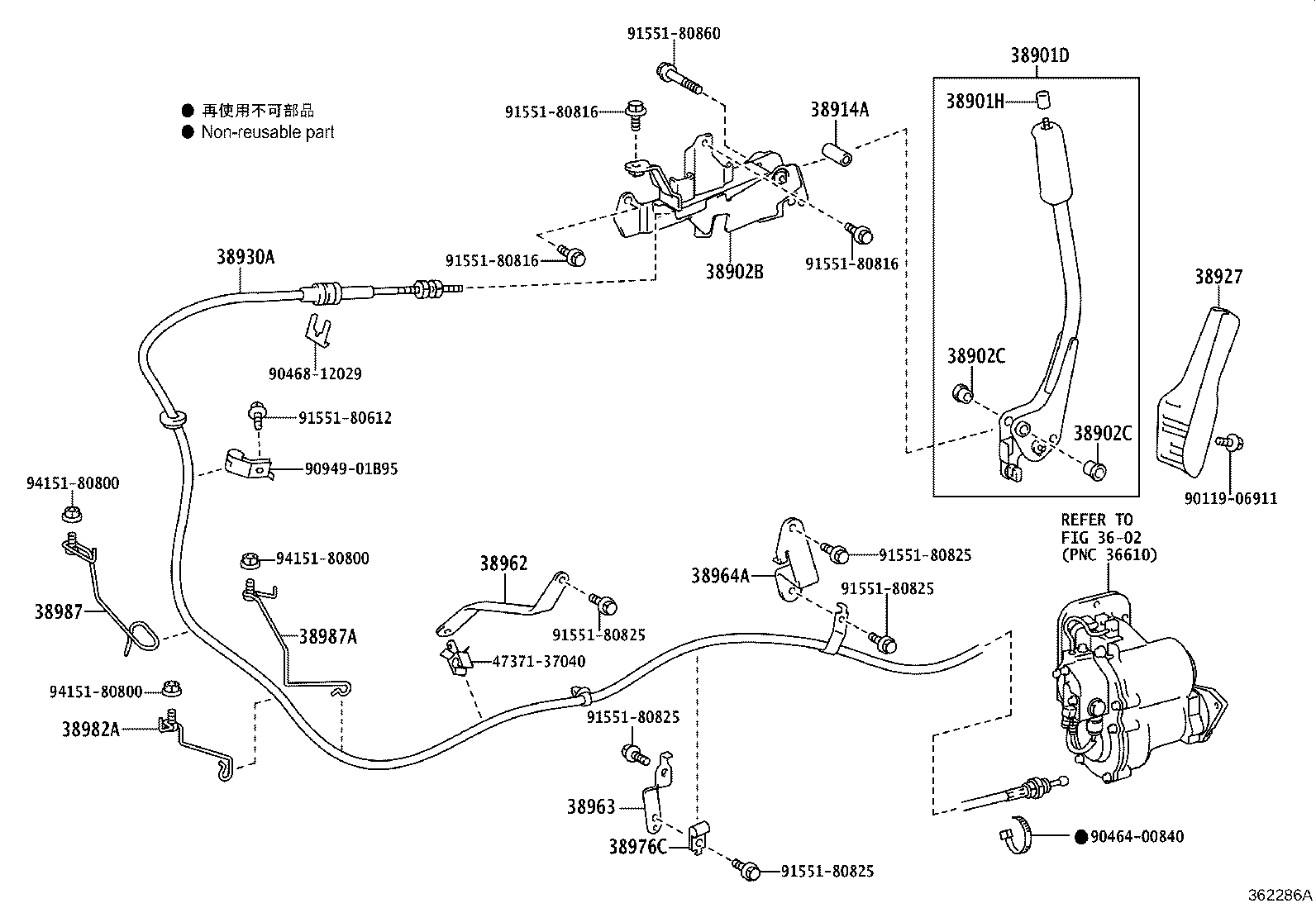

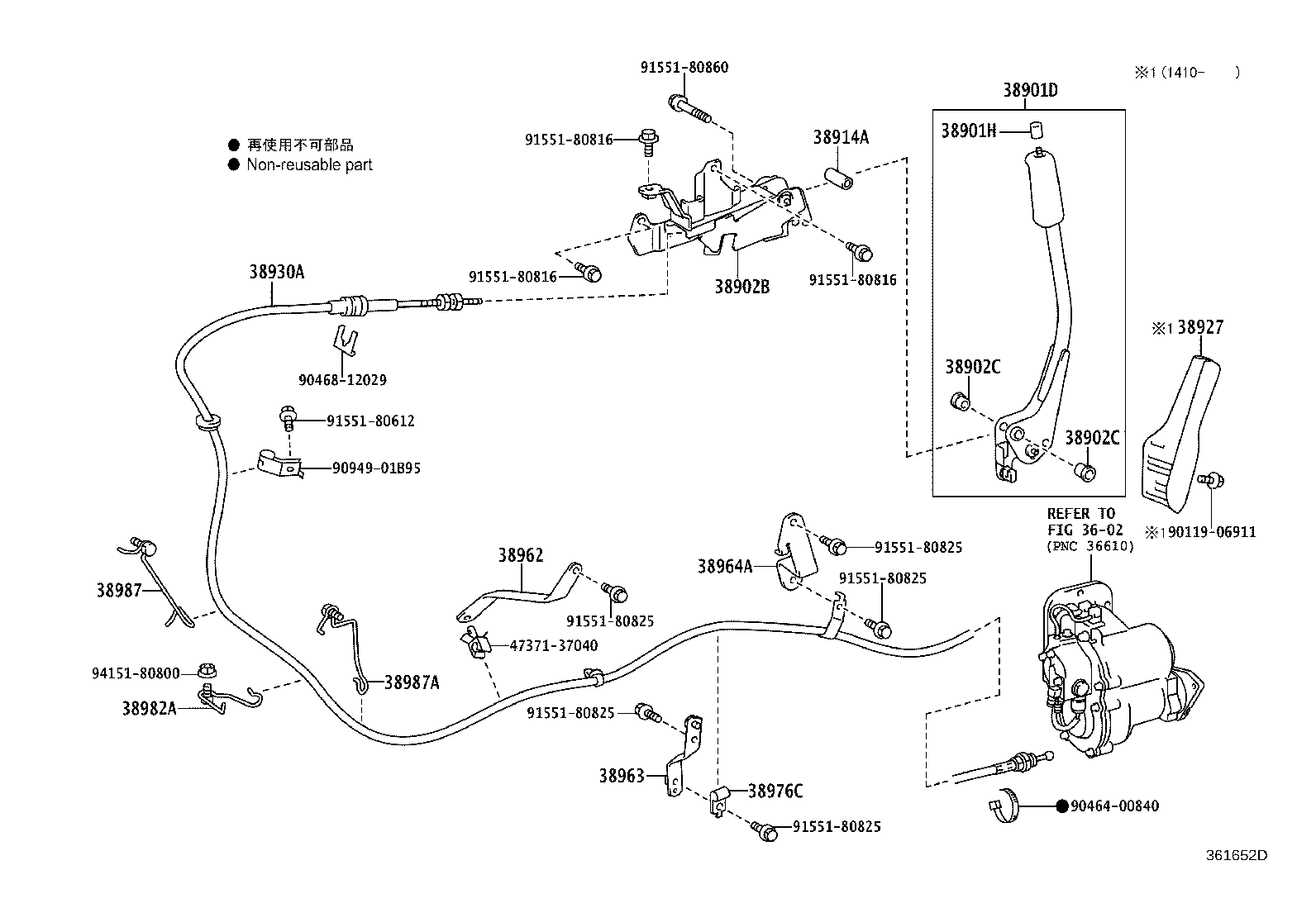

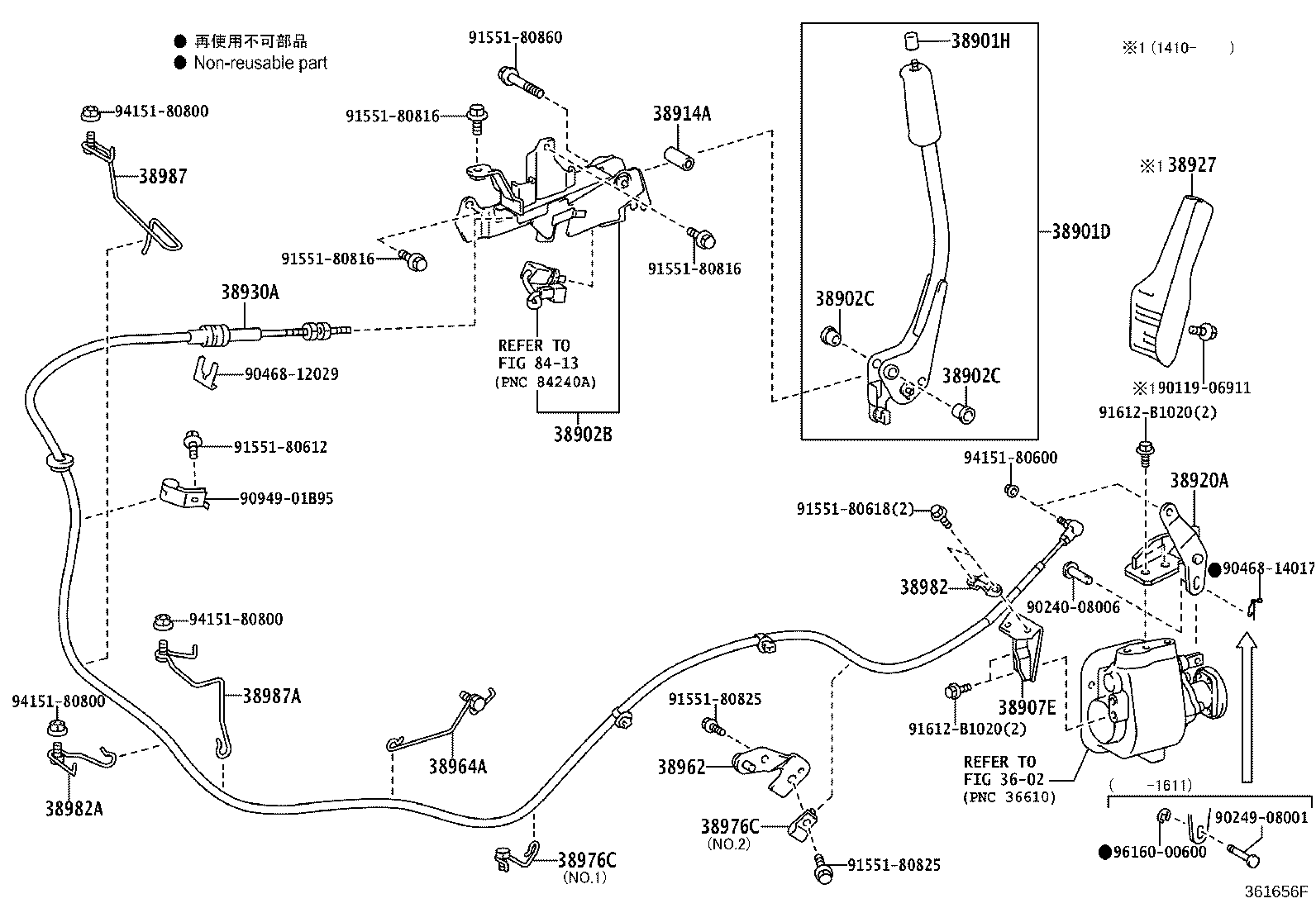

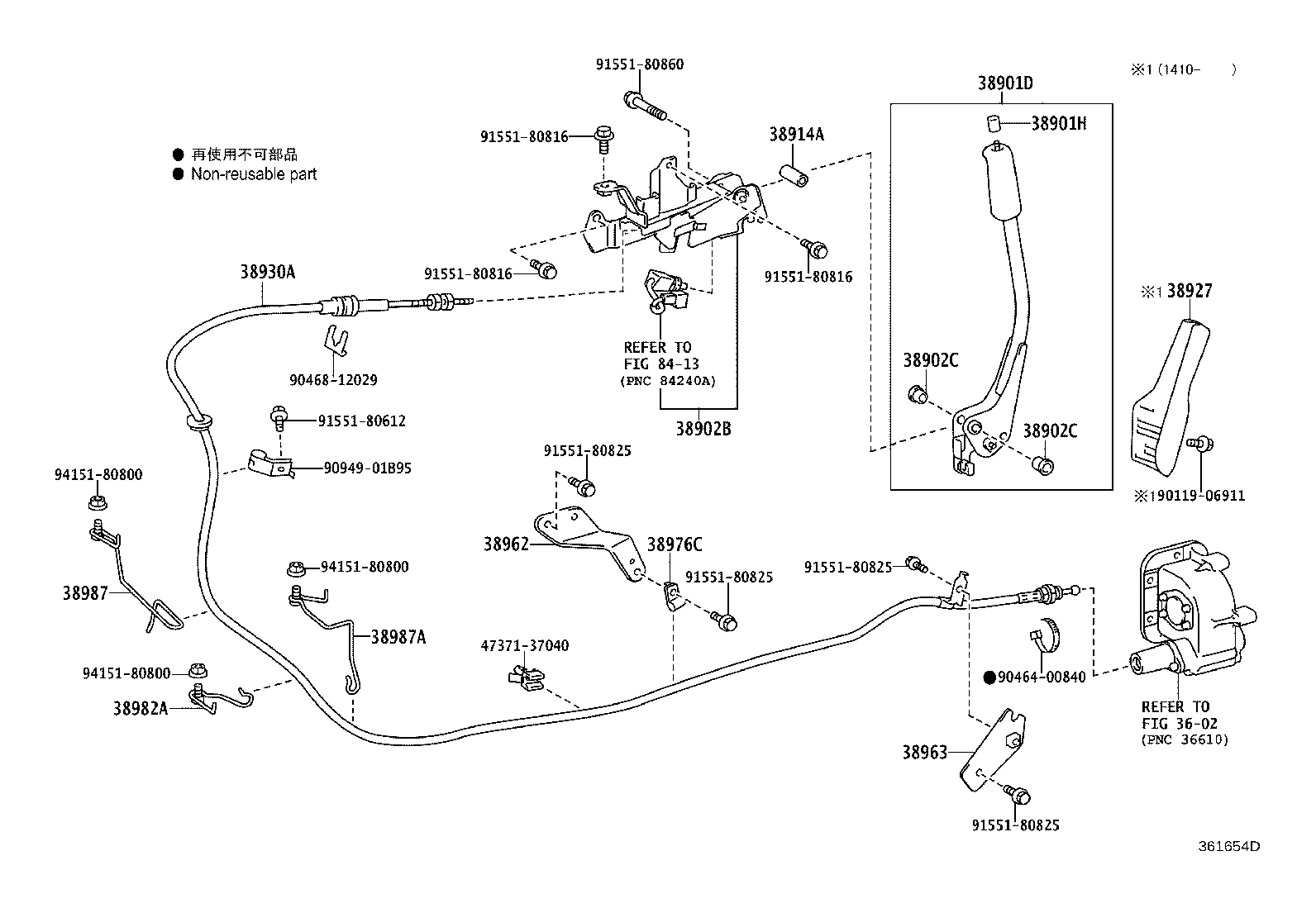

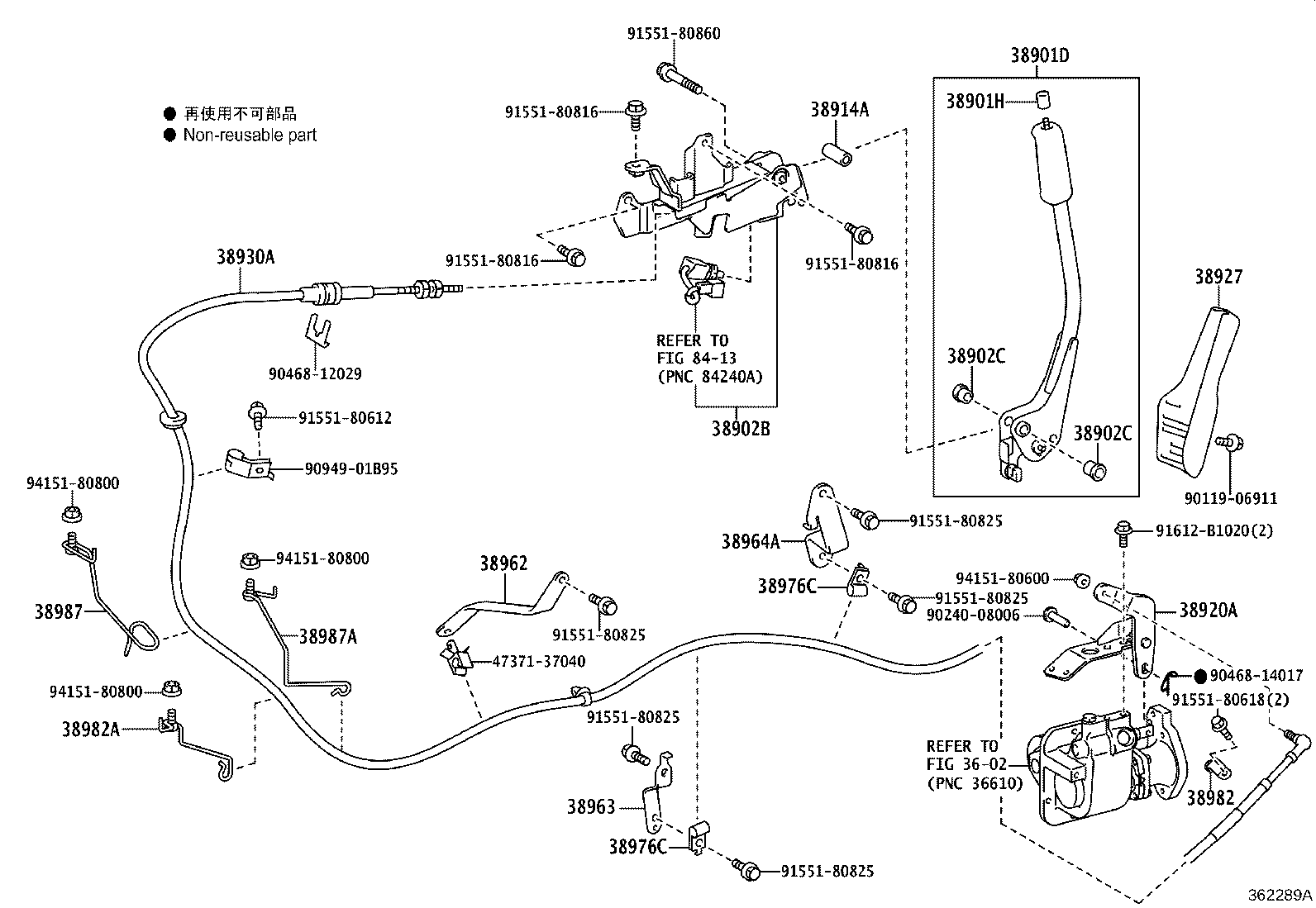

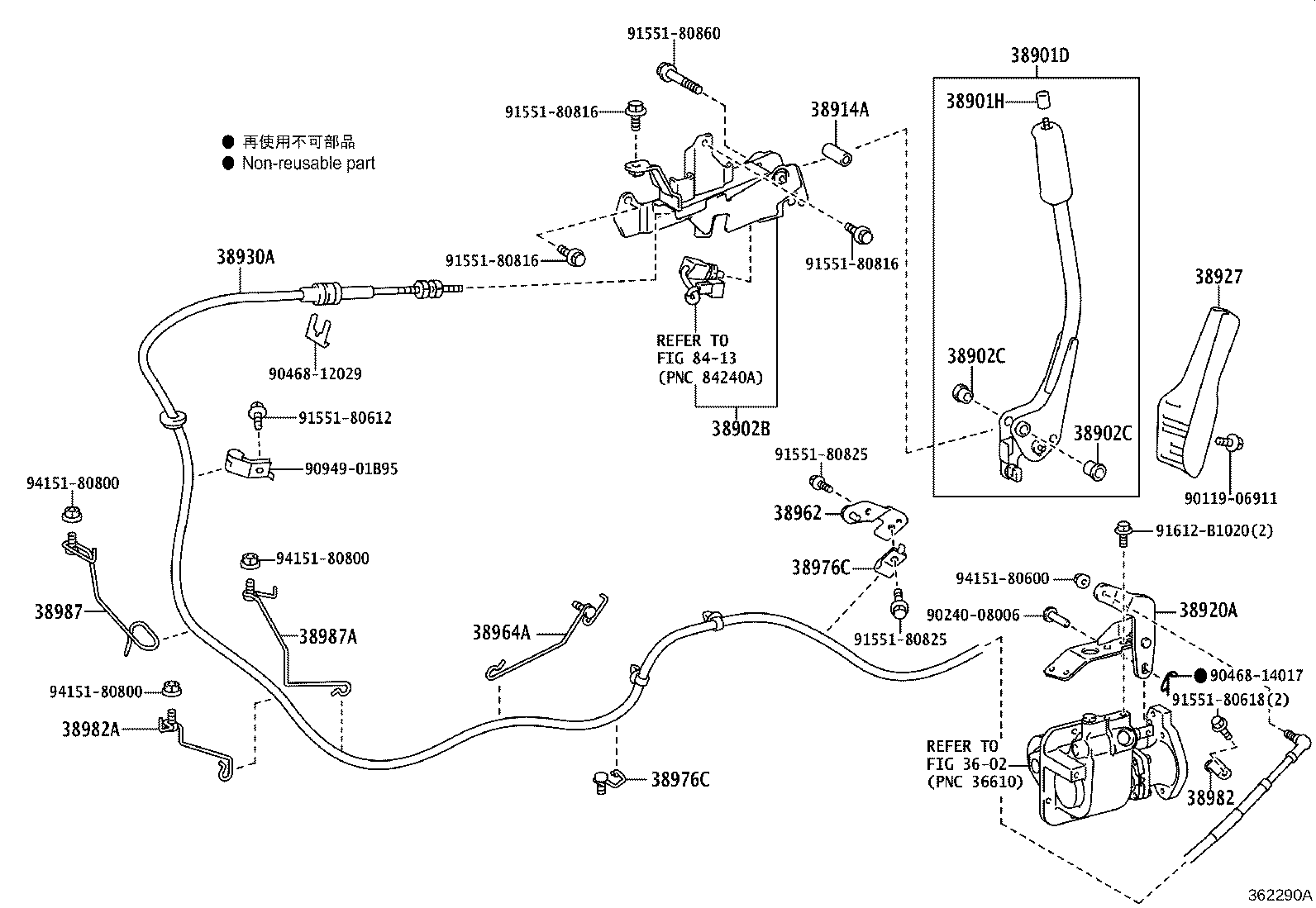

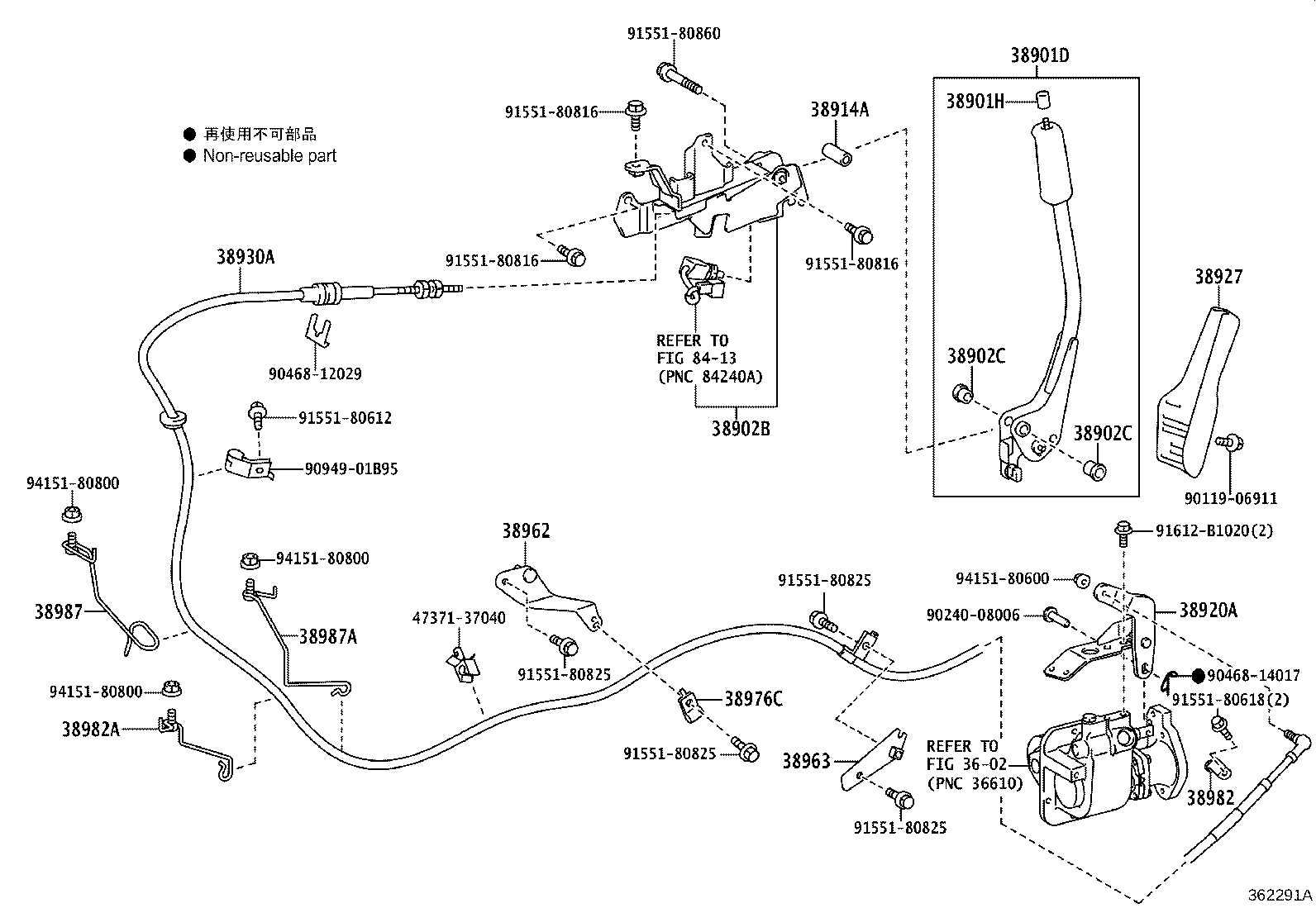

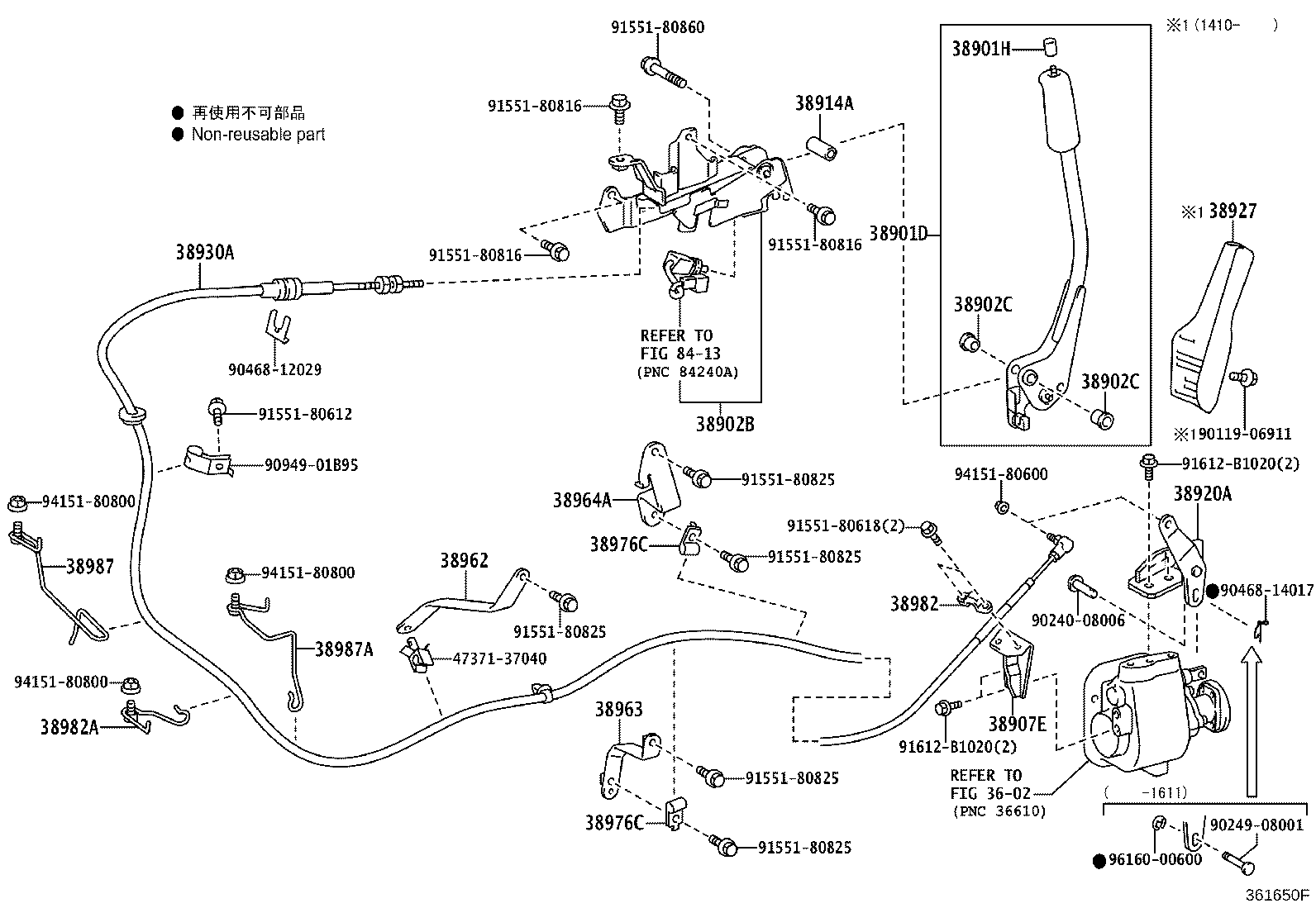

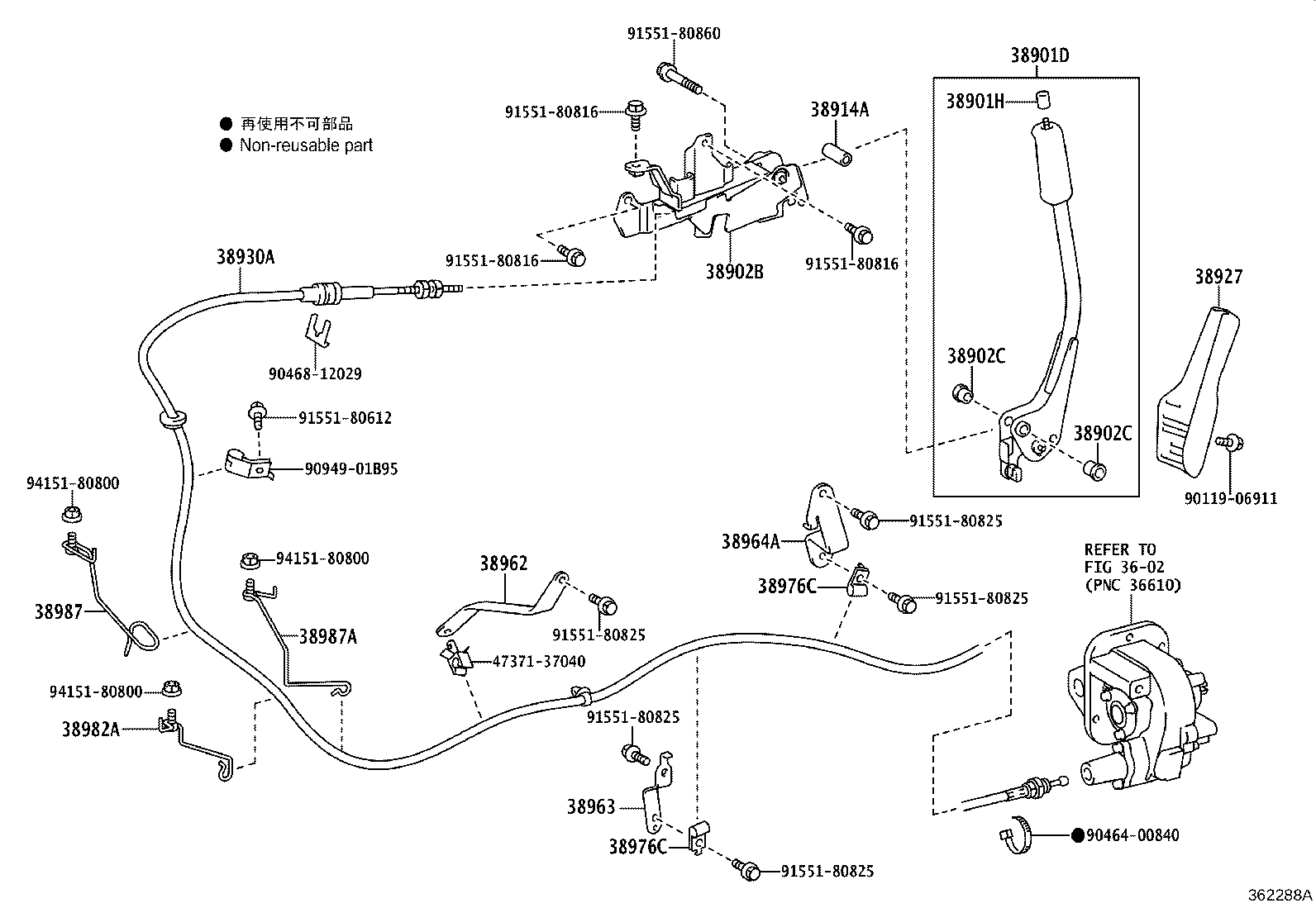

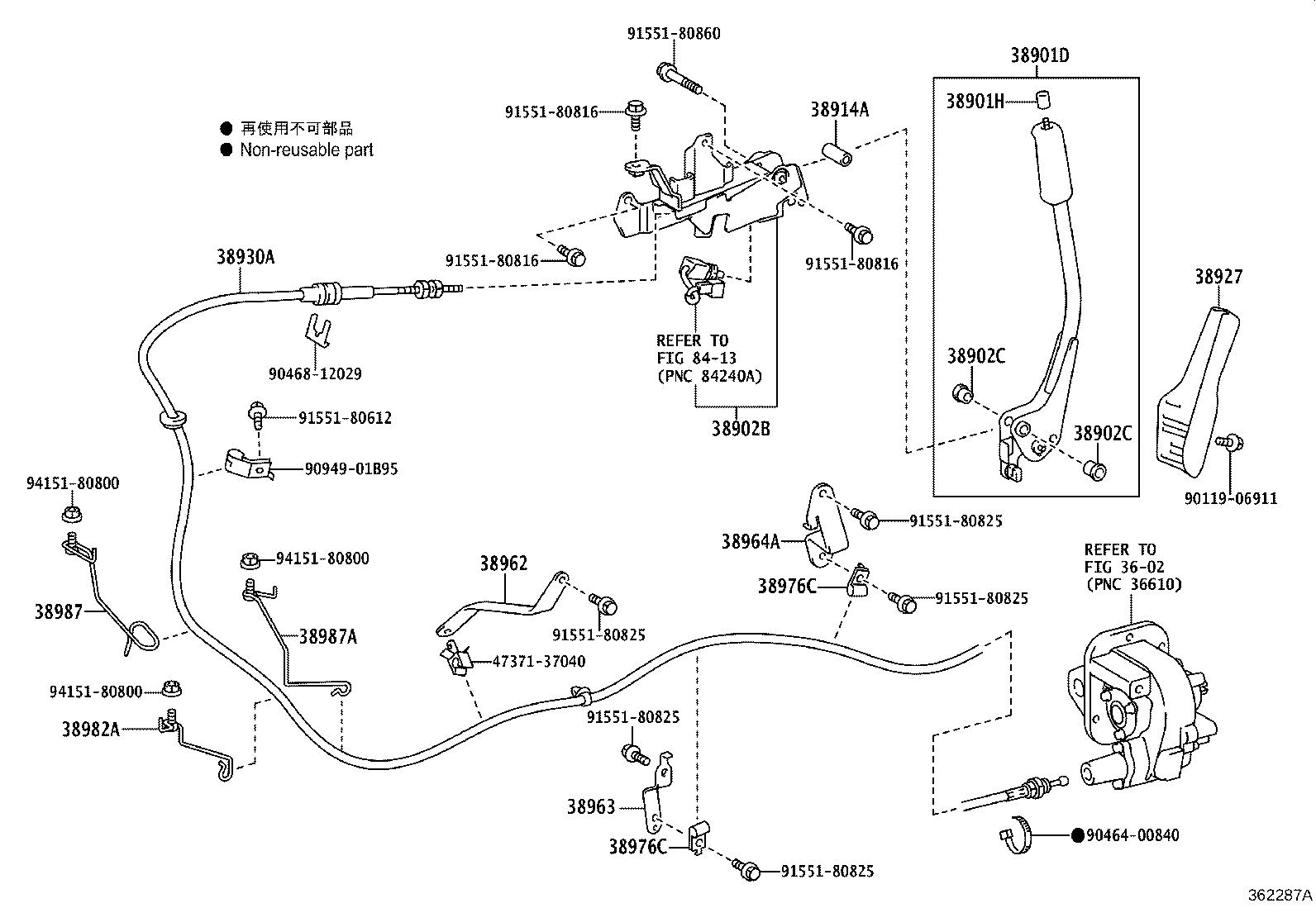

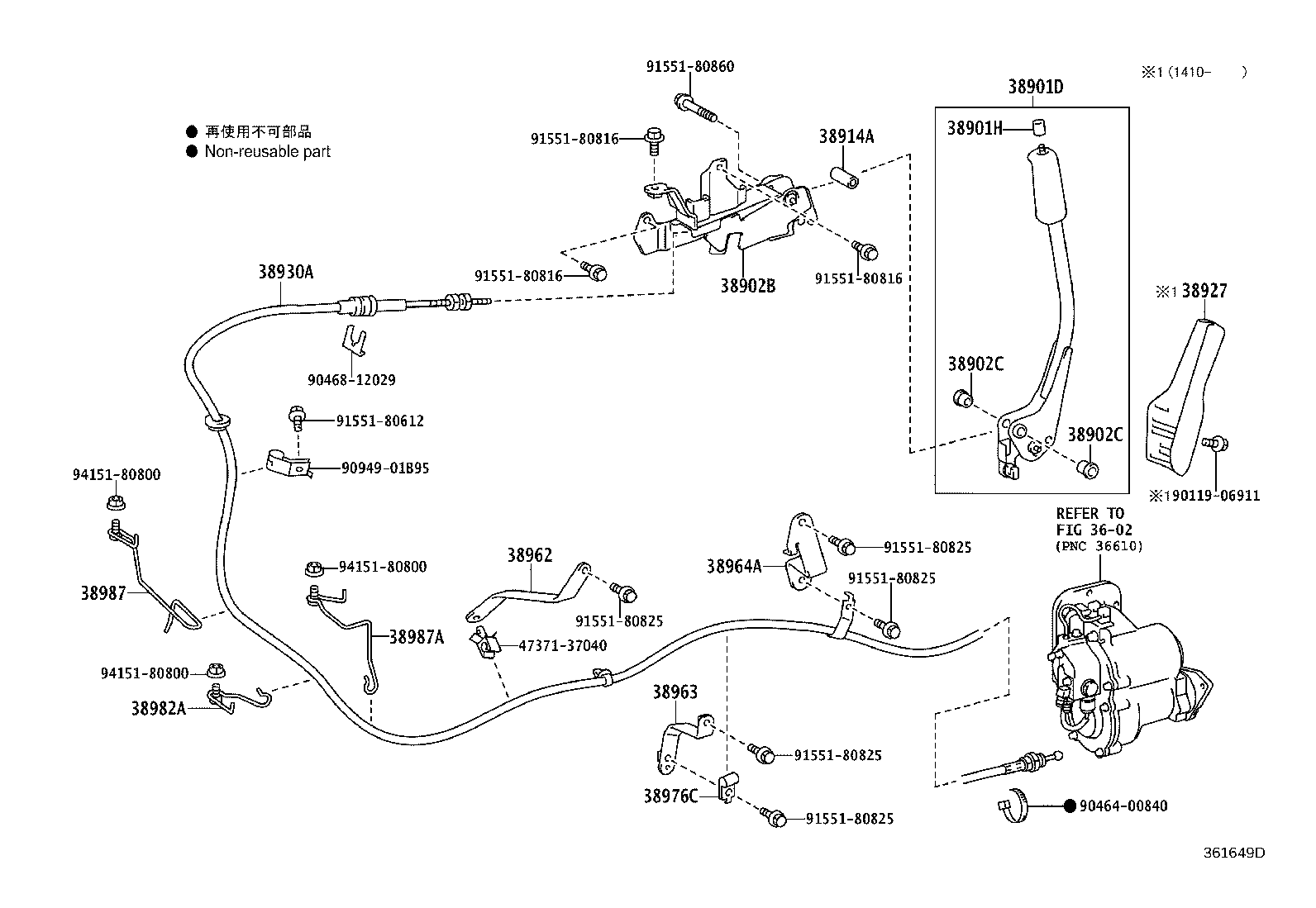

Figure 361648D 361648D 2011-07 → — Figure 361649D 361649D 2011-07 → — Figure 361650F 361650F 2011-07 → — Figure 361651D 361651D 2011-07 → — Figure 361652D 361652D 2011-07 → — Figure 361653D 361653D 2011-07 → — Figure 361654D 361654D 2011-07 → — Figure 361654D 361654D 2018-05 → — Figure 361655D 361655D 2011-07 → — Figure 361656F 361656F 2011-07 → — Figure 361657D 361657D 2011-07 → — Figure 362160A 362160A 2017-05 → — Figure 362285A 362285A 2019-05 → — Figure 362286A 362286A 2019-05 → — Figure 362287A 362287A 2019-05 → — Figure 362288A 362288A 2019-05 → — Figure 362289A 362289A 2019-05 → — Figure 362290A 362290A 2019-05 → — Figure 362291A 362291A 2019-05 → — Figure 361658D 361658D 2011-07 → — Figure 361713C 361713C 2011-07 → — Figure 361713C 361713C 2011-07 → — Figure 361713C 361713C 2011-07 → — Figure 361713C 361713C 2011-07 → — Figure 361713C 361713C 2011-07 → — Figure 361713C 361713C 2011-07 → —

Part groups

PNCDescription
38901D Lever Sub-assy, Valve Control
38901H Knob, Valve Control Lever
38901J Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38907E Stay Sub-assy, Power Teke-off Control
38914A Pipe, Valve Control Lever
38914B Pipe, Valve Control Lever, NO.2
38920A Lever Assy, Power Take-off Control, NO.1
38927 Cover, Valve Control Lever
38930A Cable Assy, Push Pull
38962 Bracket, Cable Clamp, NO.2
38963 Bracket, Cable Clamp, NO.3
38964A Bracket, Cable Clamp, NO.4
38976C Clamp, Push Pull Cable
38982 Clamp, Push Pull Cable, NO.1
38982A Clamp, Push Pull Cable, NO.2
38987 Clamp, Cable Push Pull
38987A Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
