Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

26 part groups · 18 illustrations

Illustrations

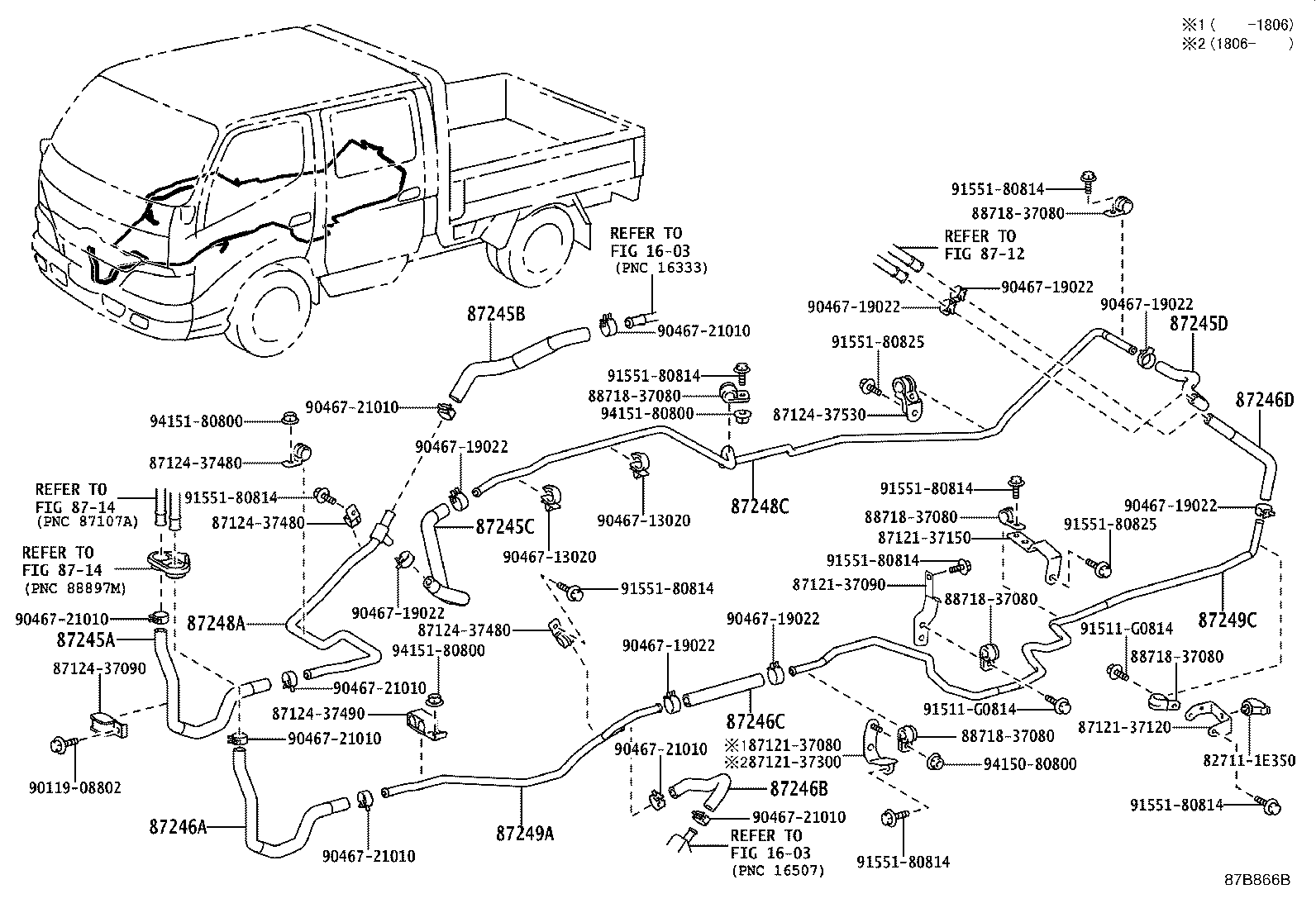

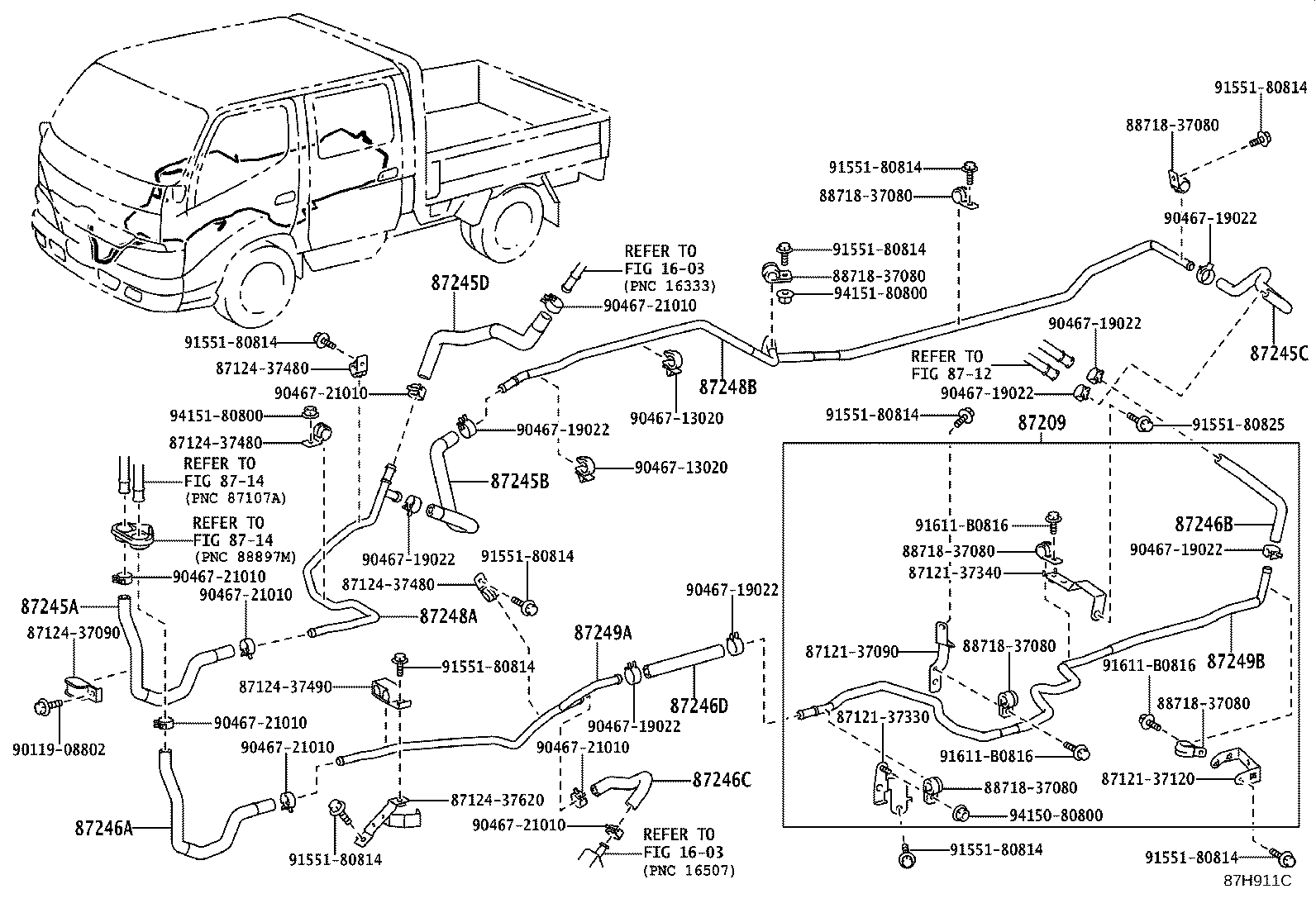

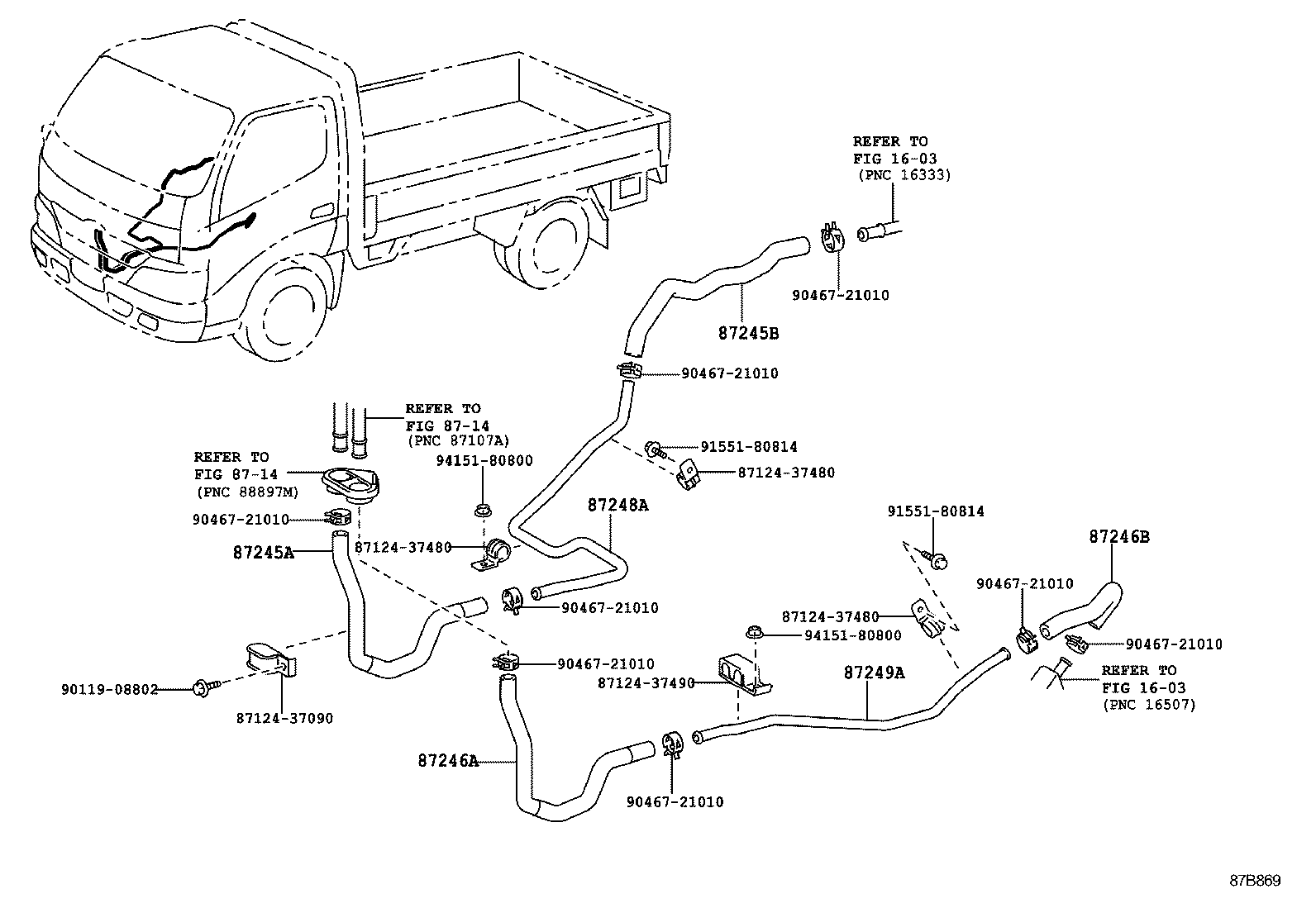

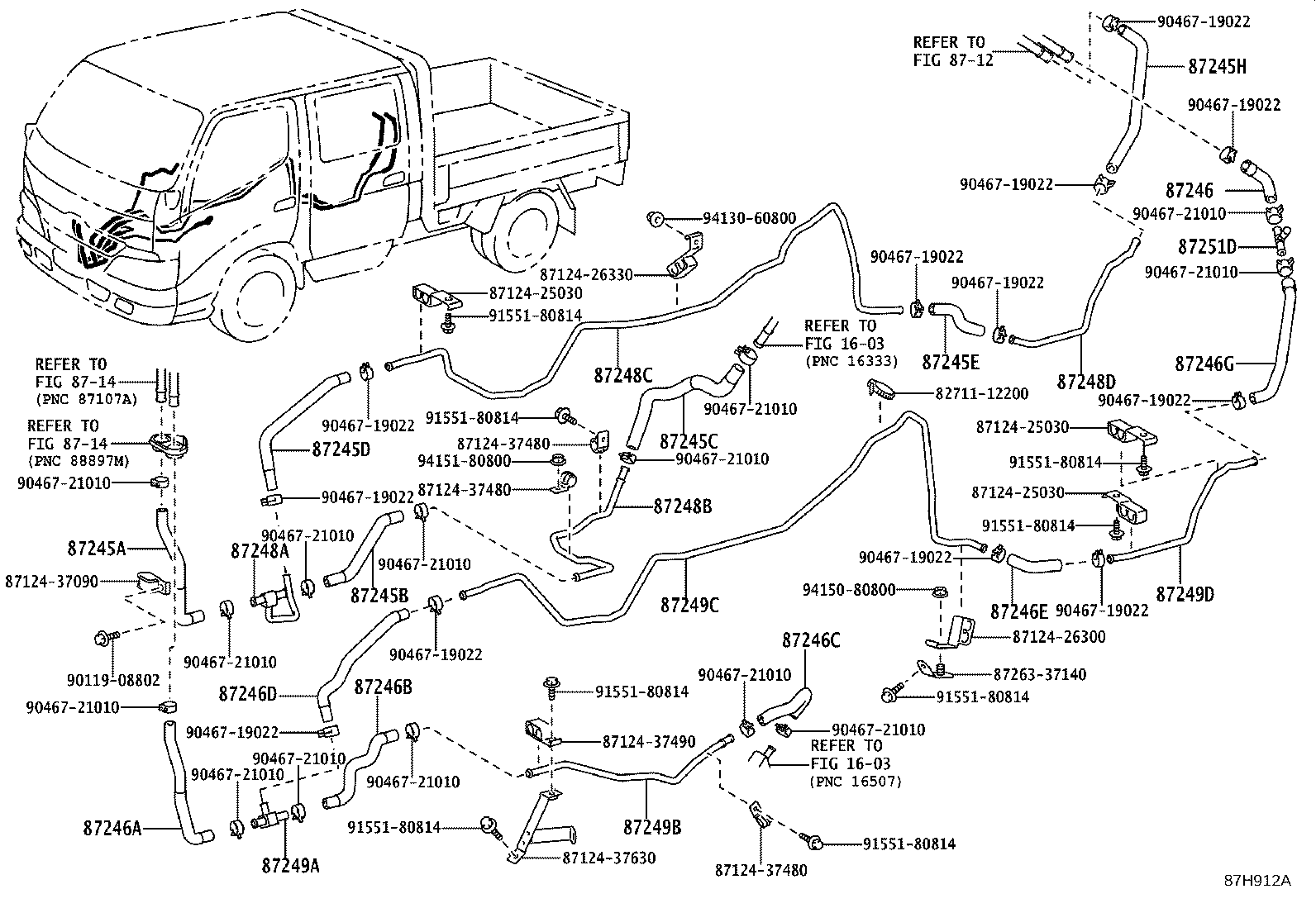

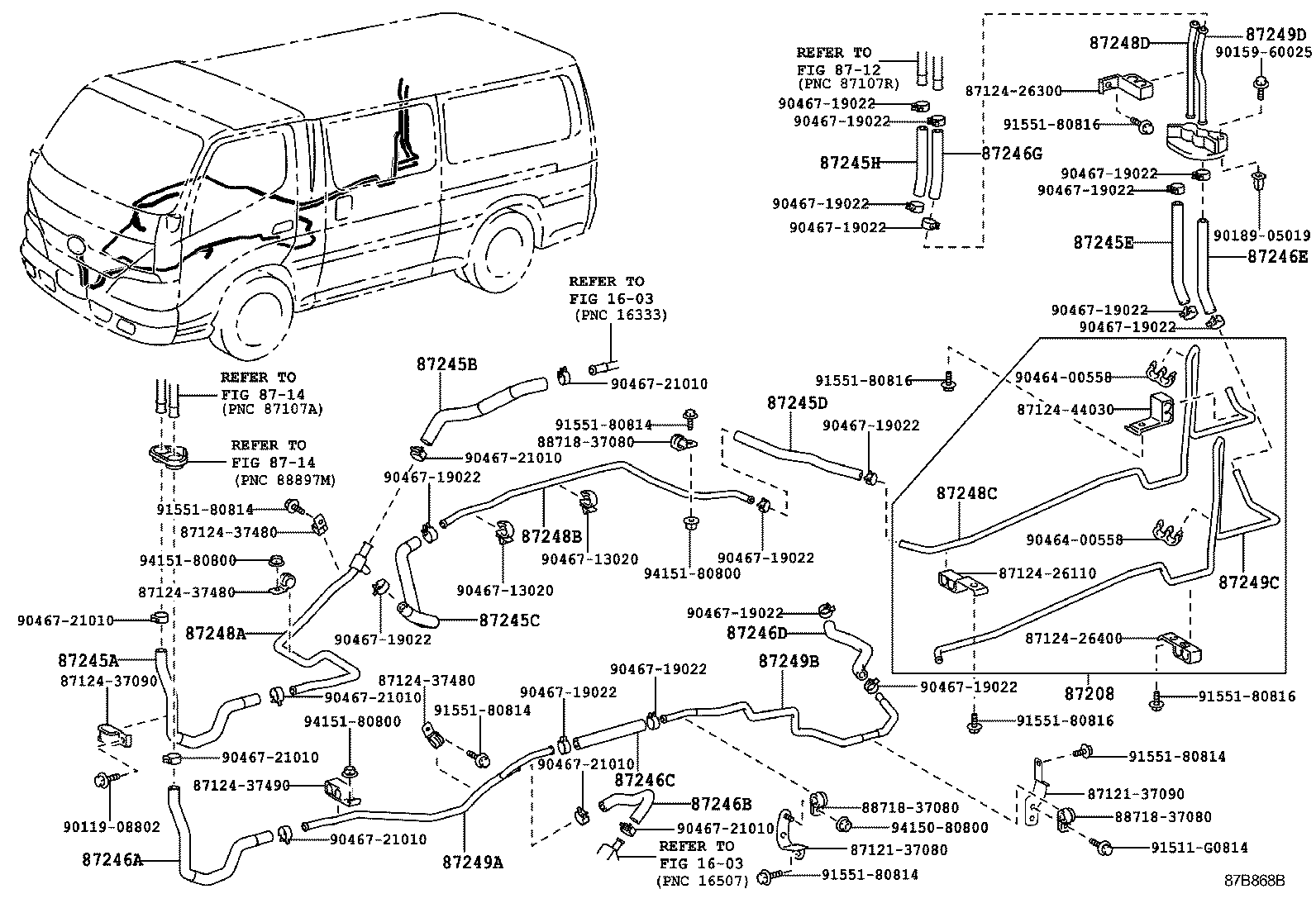

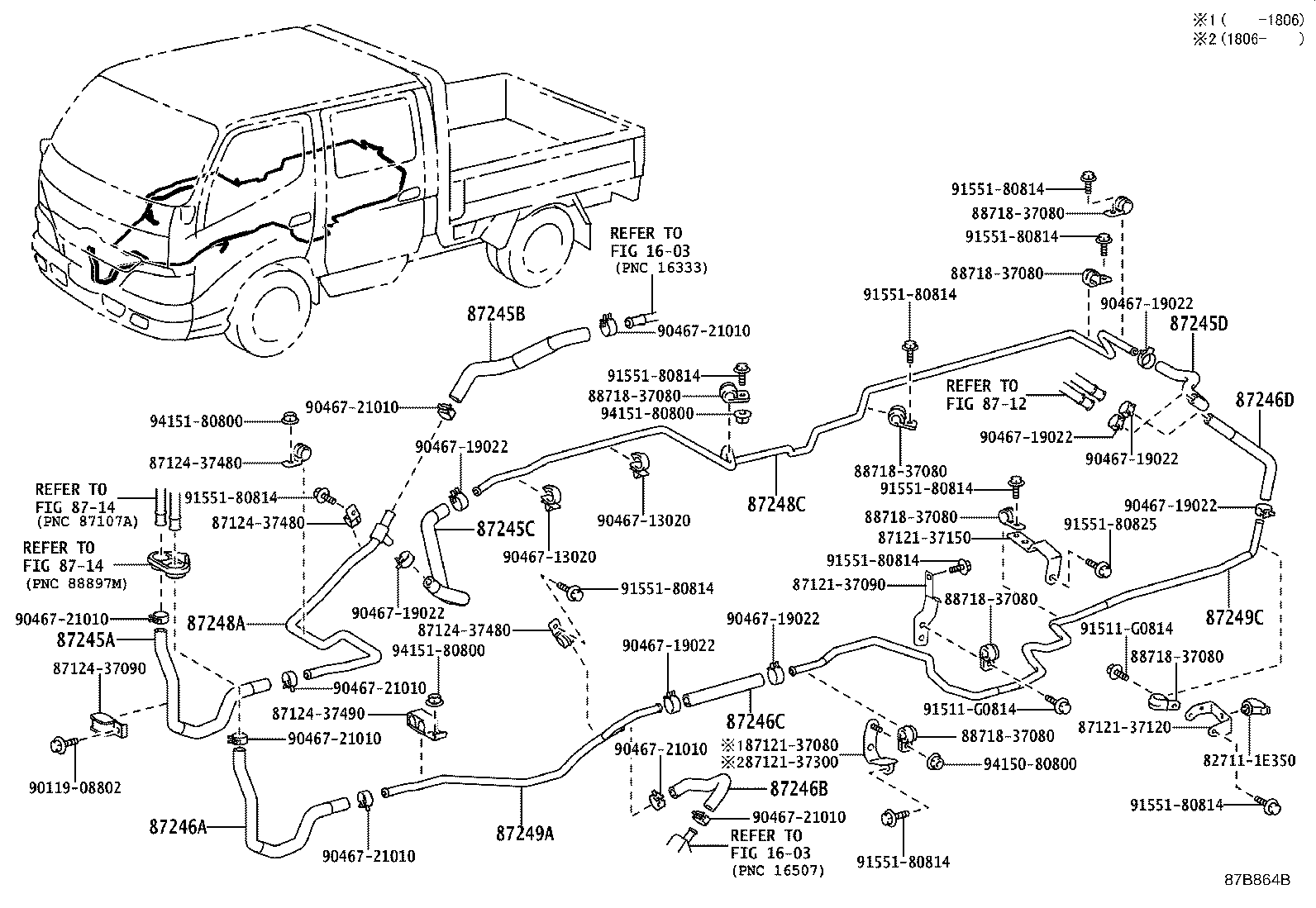

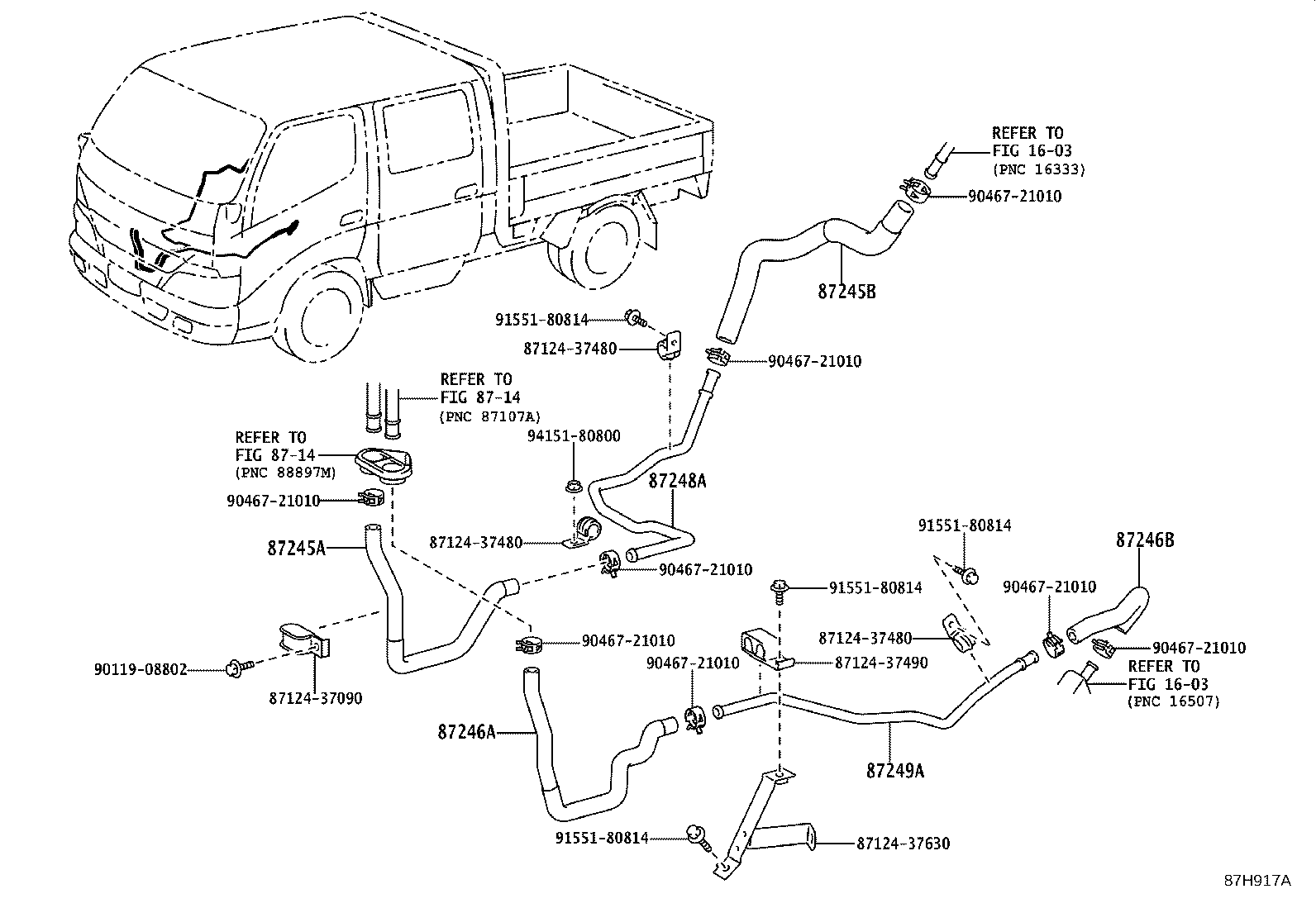

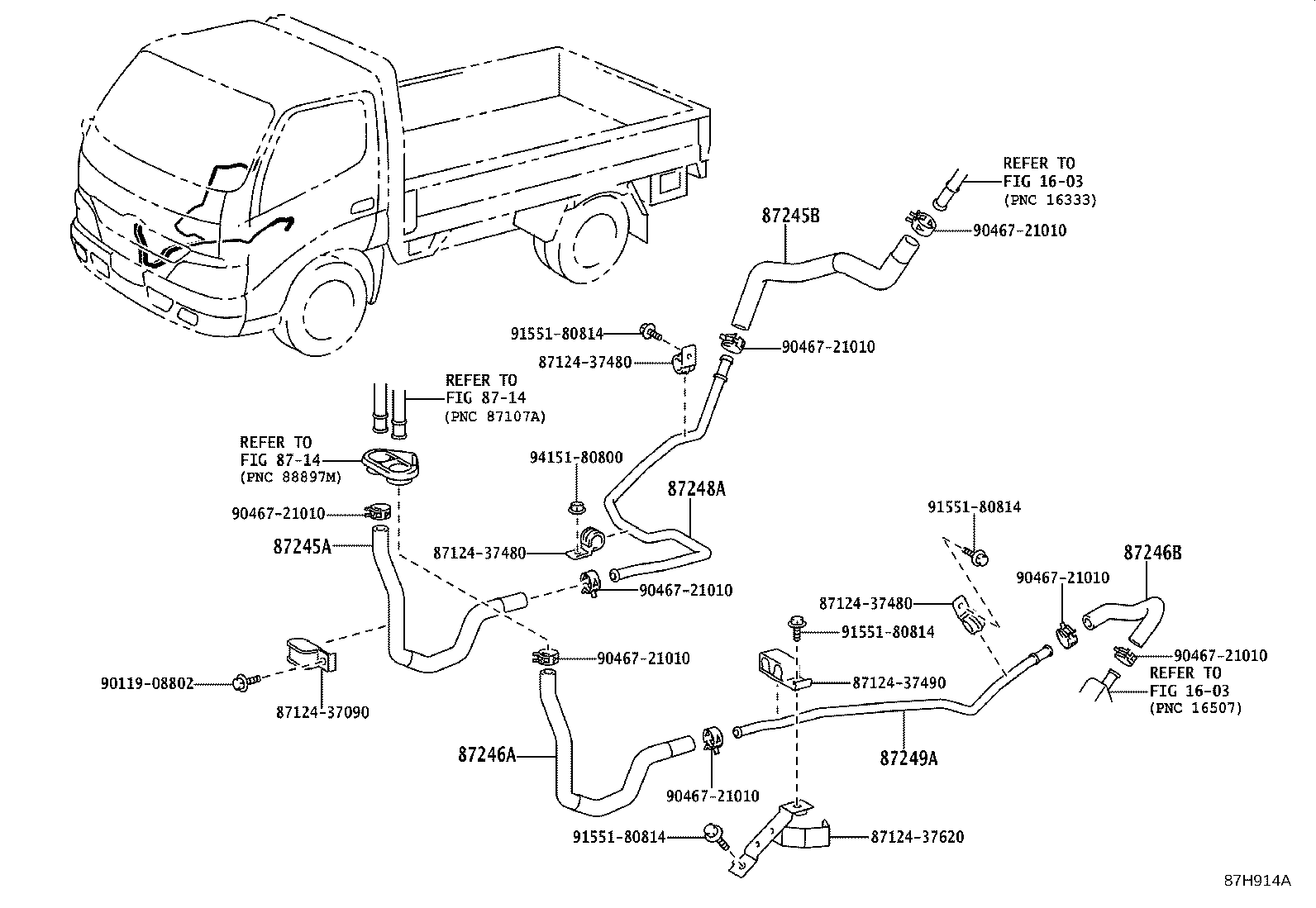

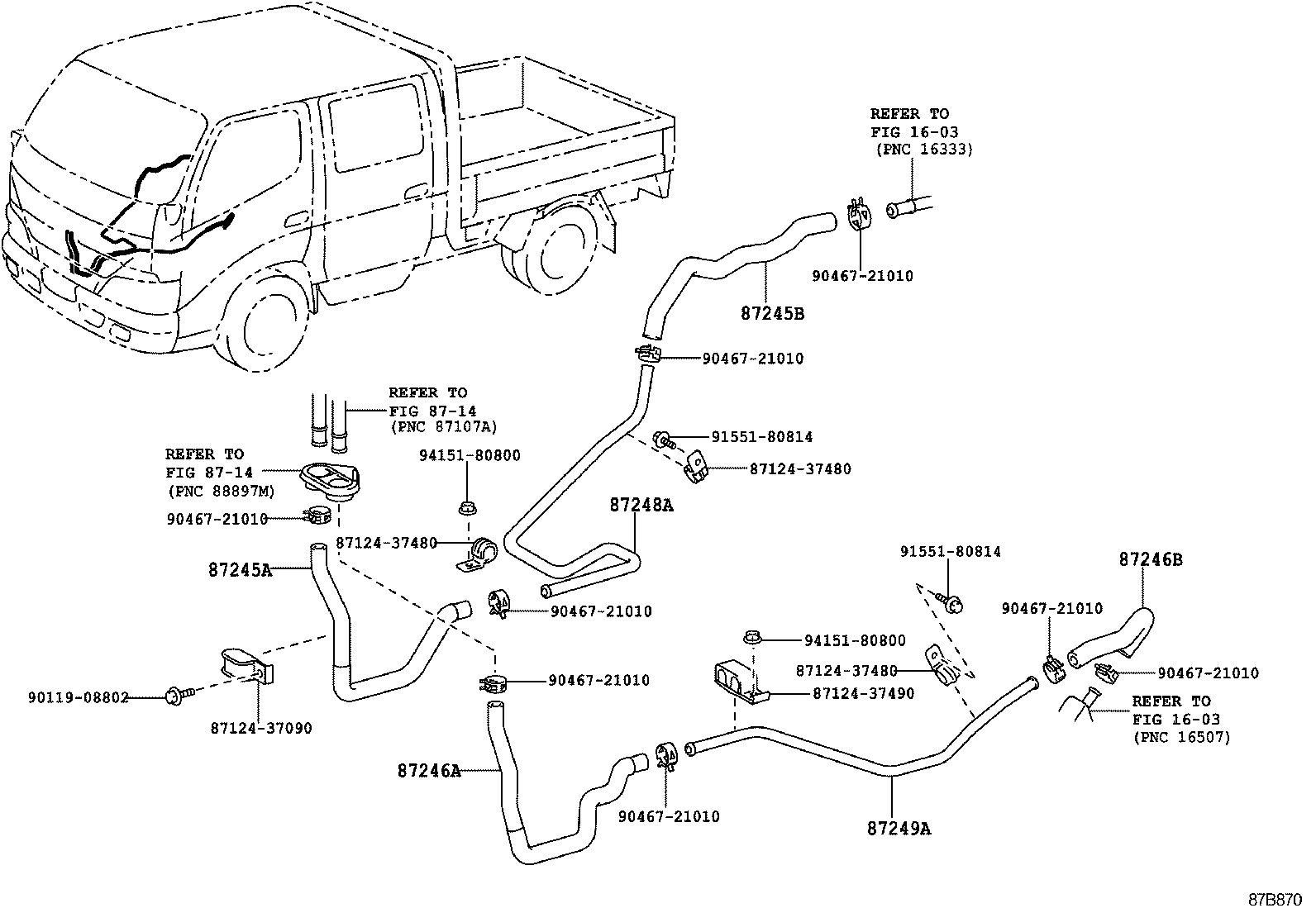

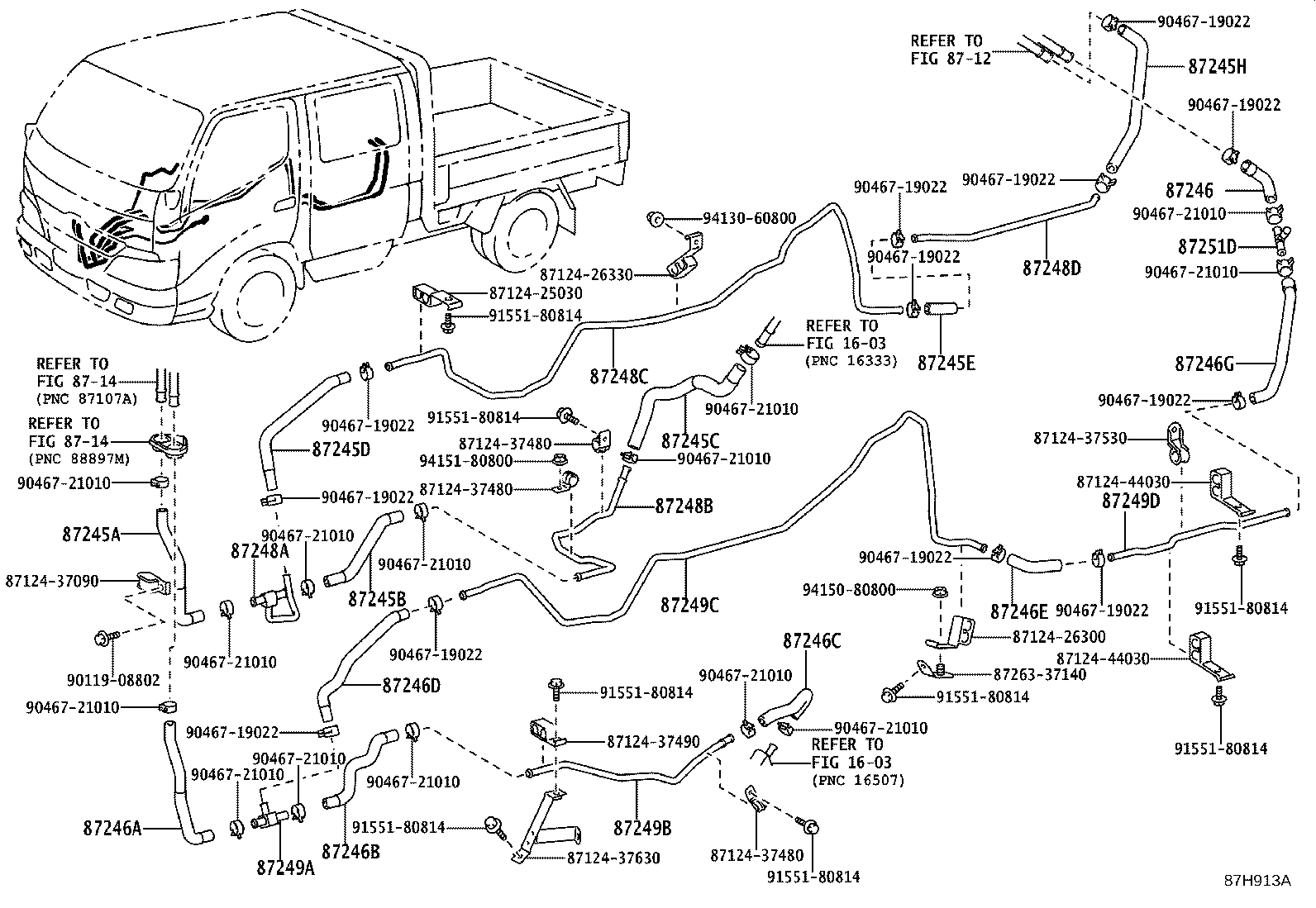

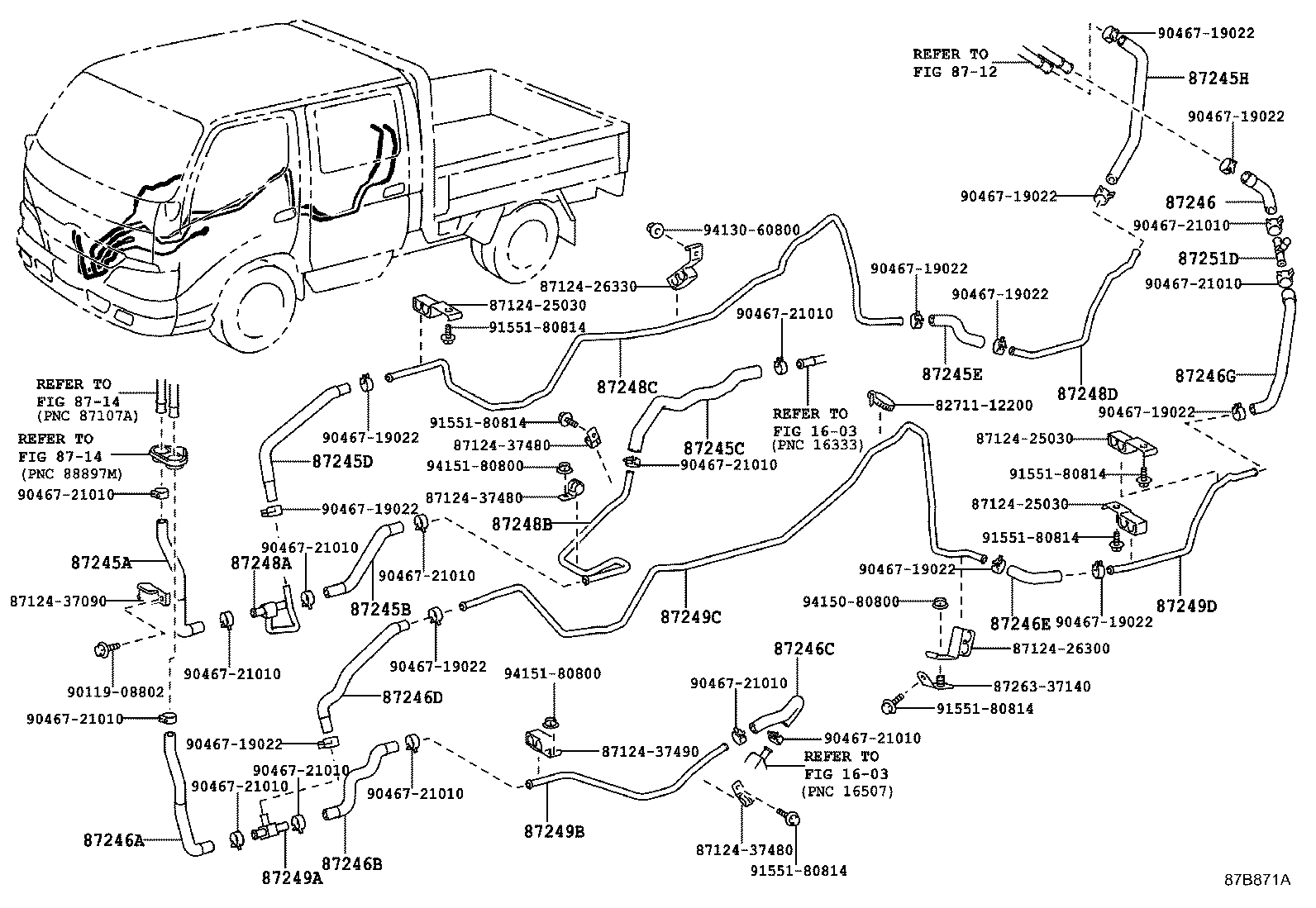

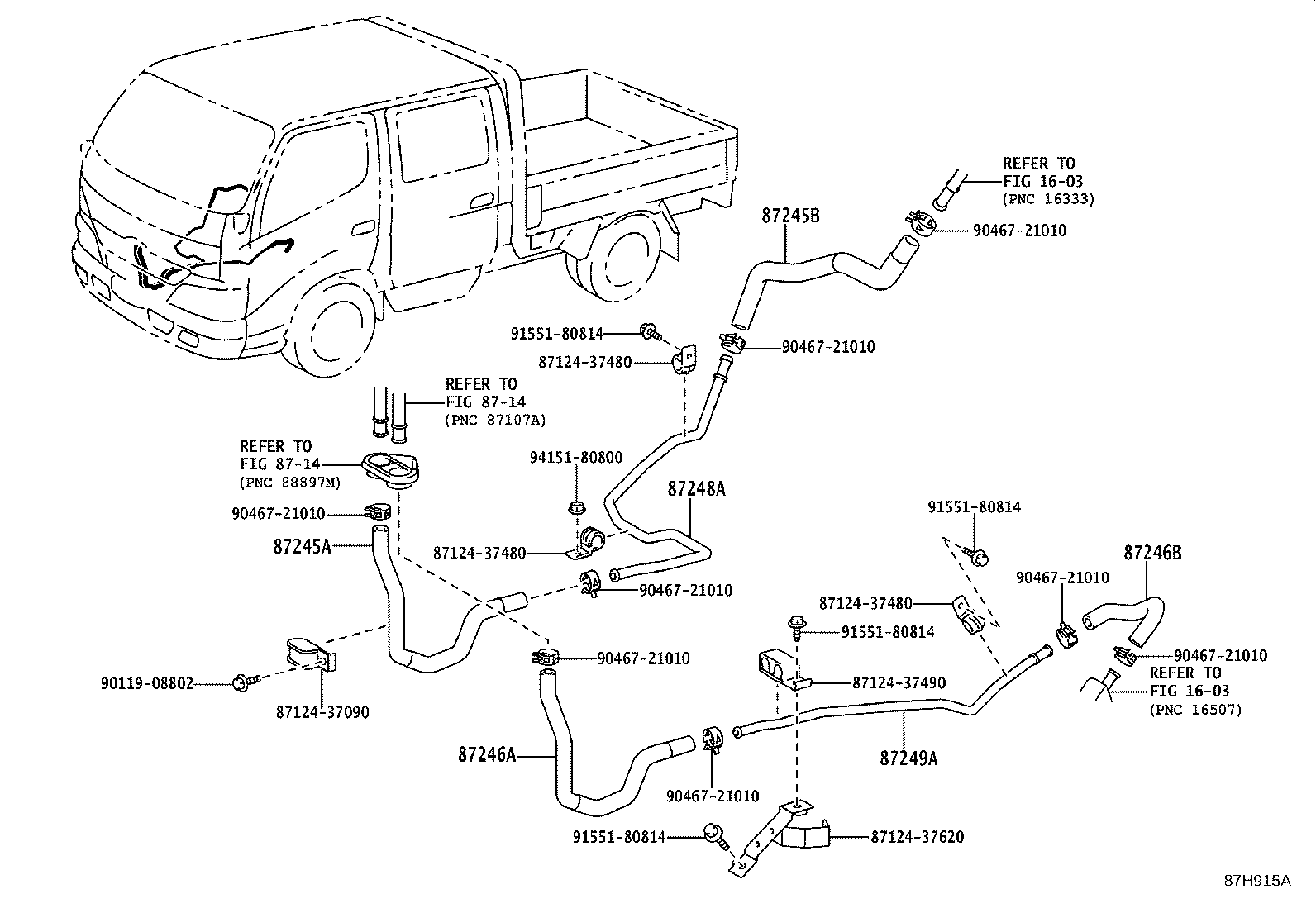

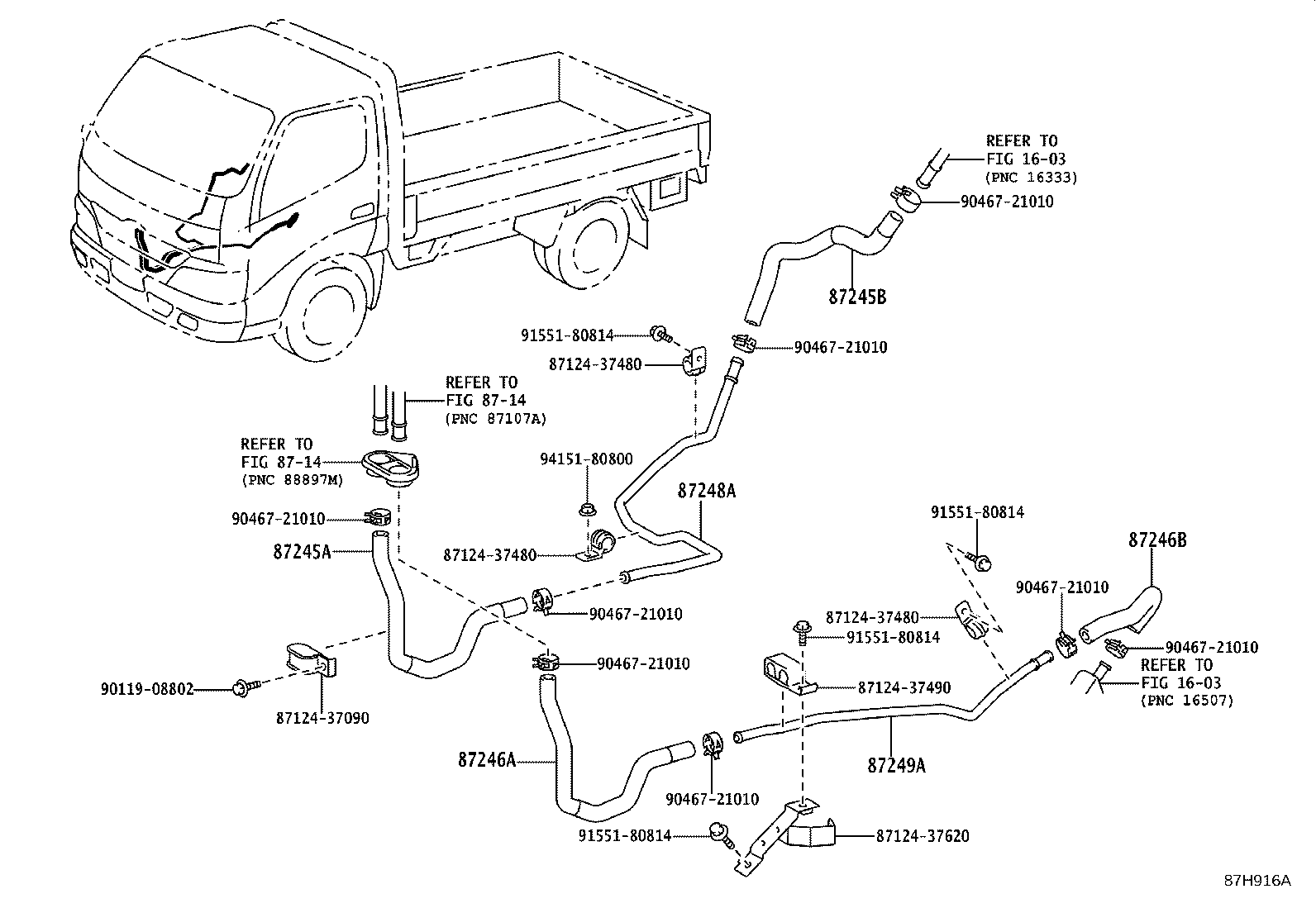

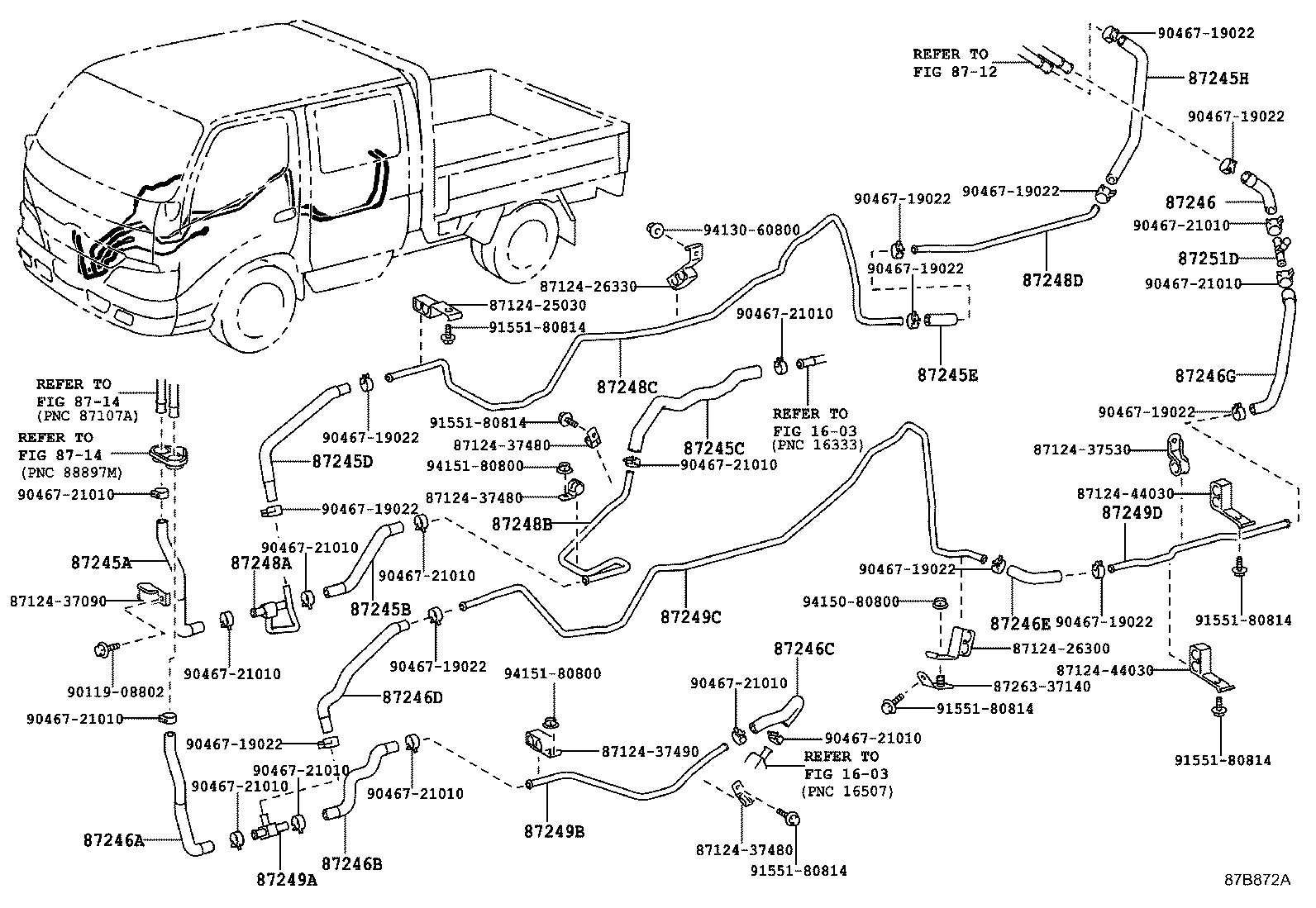

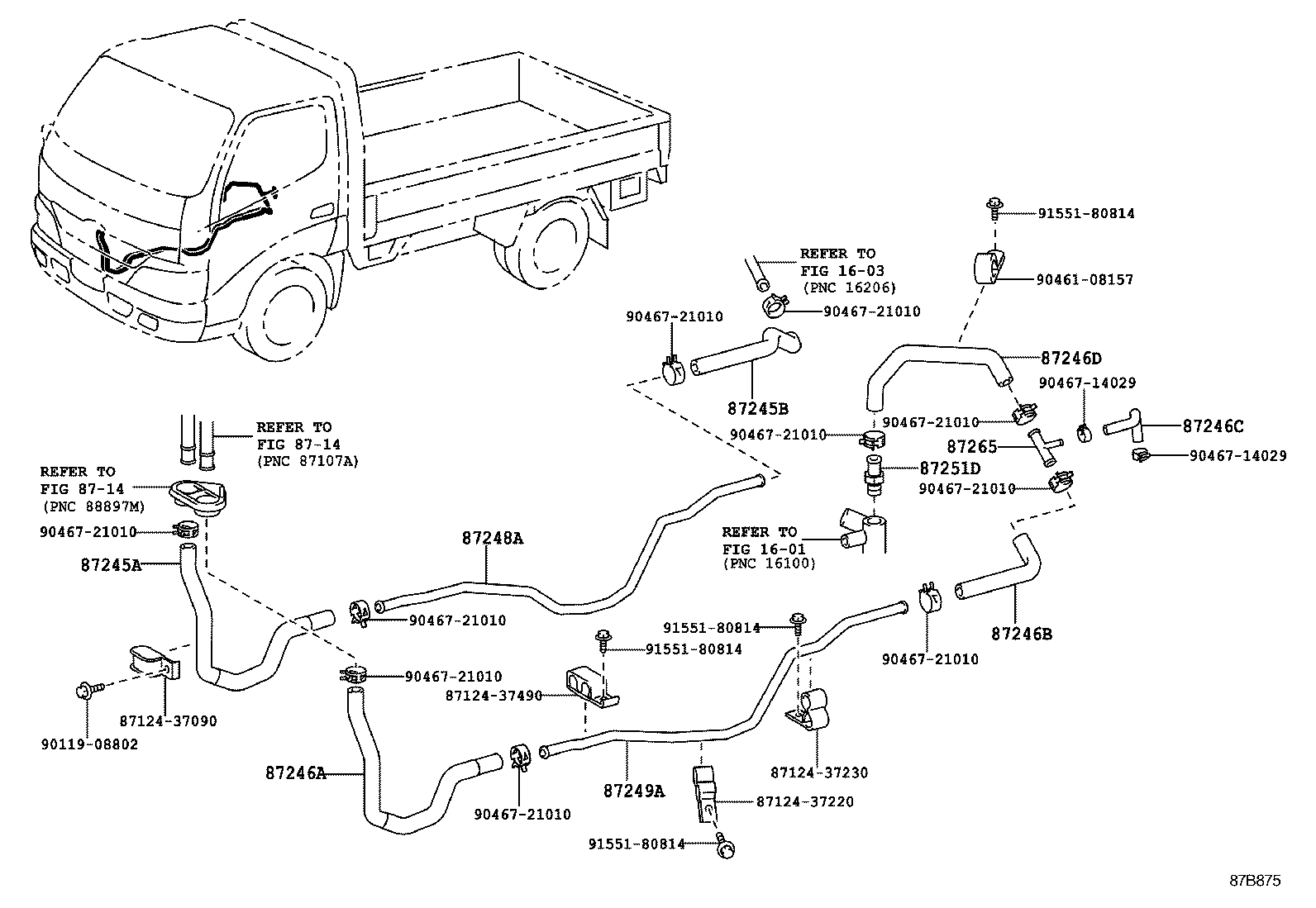

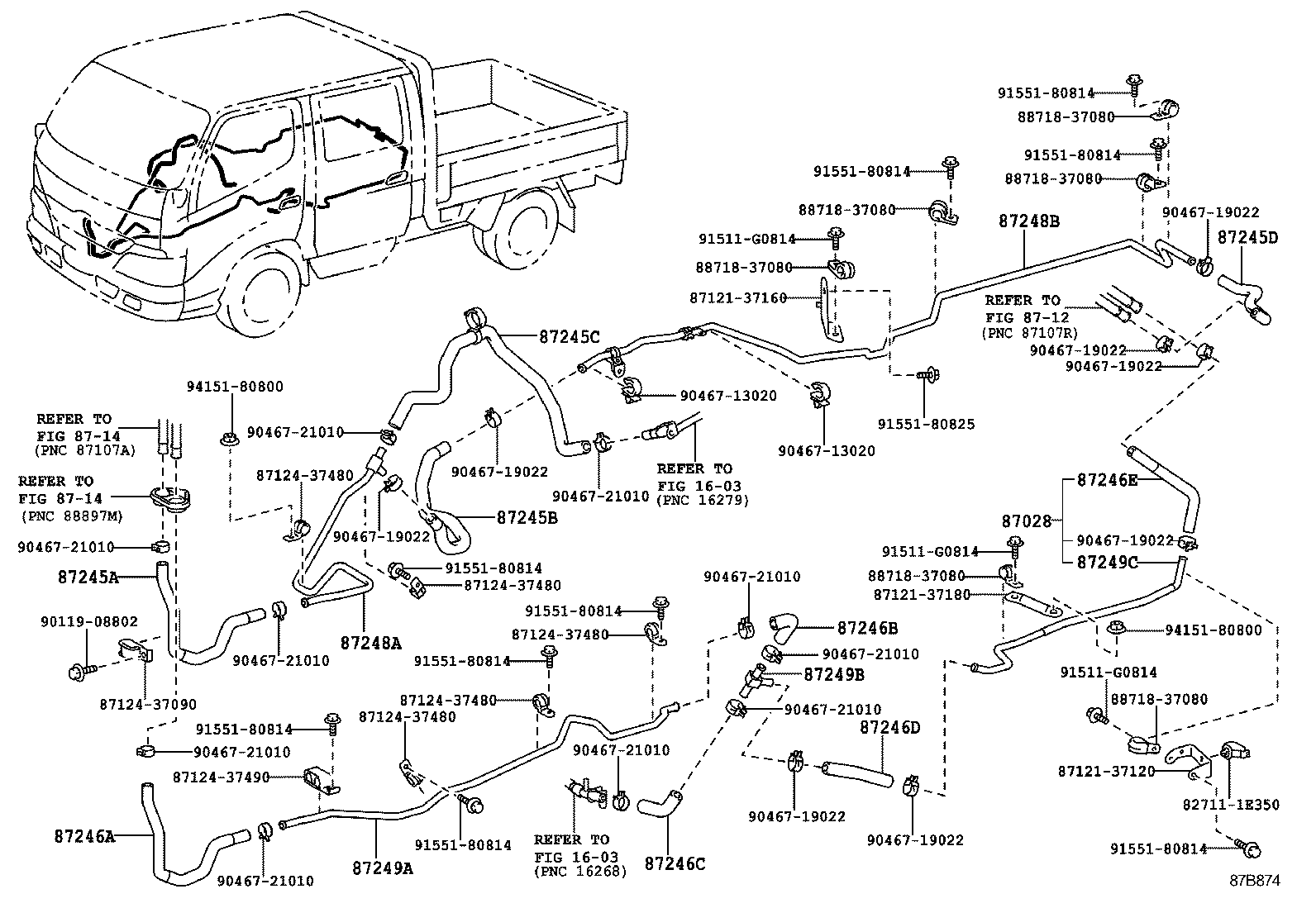

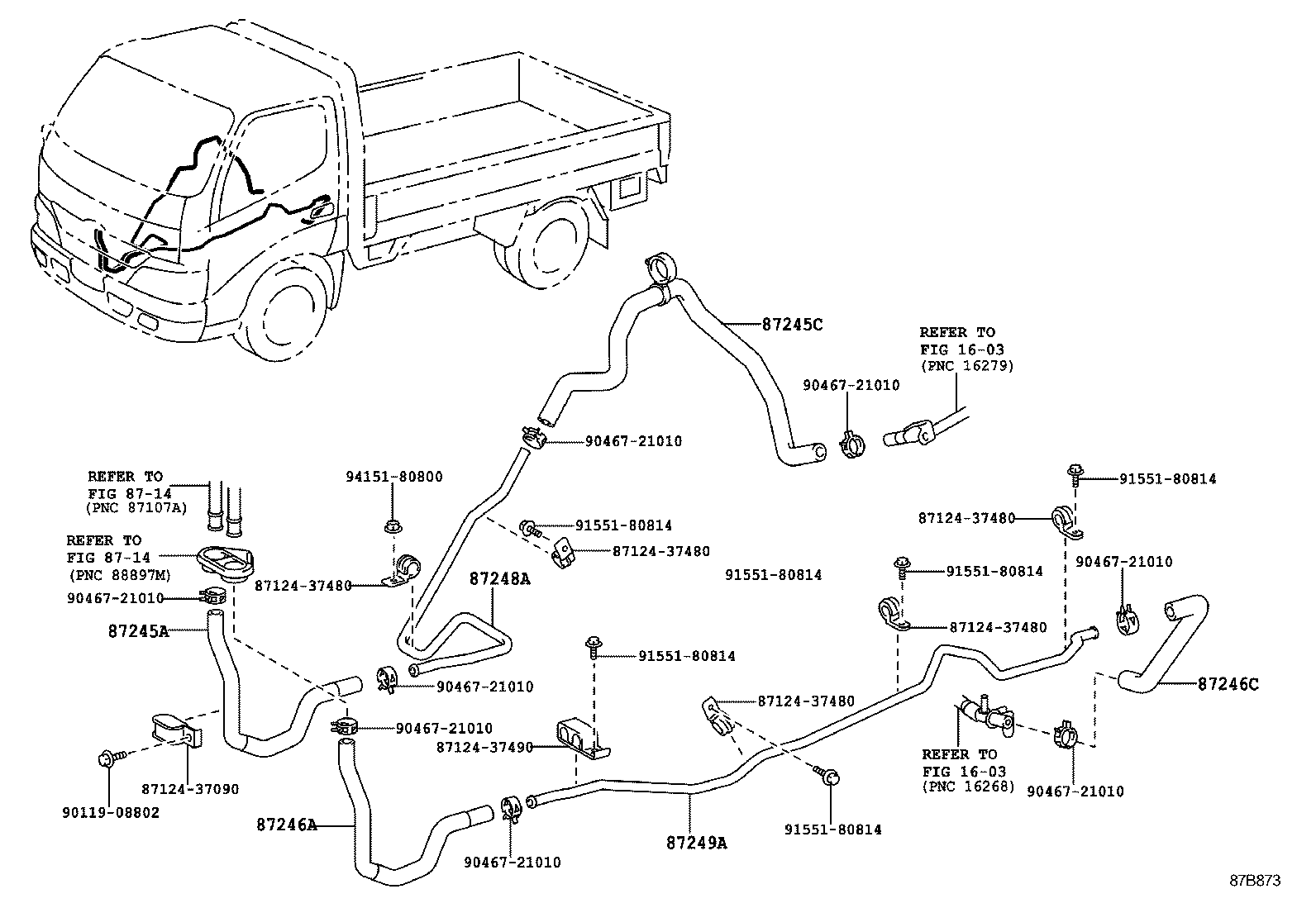

Figure 87B863 87B863 2011-07 → — Figure 87B864B 87B864B 2011-07 → — Figure 87B866B 87B866B 2011-07 → — Figure 87B868B 87B868B 2011-07 → 2016-05 Figure 87B869 87B869 2011-07 → — Figure 87B870 87B870 2011-07 → — Figure 87B871A 87B871A 2011-07 → — Figure 87B872A 87B872A 2011-07 → — Figure 87B873 87B873 2011-07 → — Figure 87B874 87B874 2011-07 → — Figure 87B875 87B875 2011-07 → — Figure 87H911C 87H911C 2019-05 → — Figure 87H912A 87H912A 2019-05 → — Figure 87H913A 87H913A 2019-05 → — Figure 87H914A 87H914A 2019-05 → — Figure 87H915A 87H915A 2019-05 → — Figure 87H916A 87H916A 2019-05 → — Figure 87H917A 87H917A 2019-05 → —

Part groups

PNCDescription
87028 Pipe & Hose Sub-assy, Water, NO.2
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251D Joint, Water, NO.1
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
